Intermec 700 Series 700, 700 Series 700CNI, 751B, 700 Series 730B, 741A User Manual

User’s Manual

700 Series
Monochrome

Mobile Computer

Intermec Technologies Corporation

Corporate Headquarters Technical Communications Department
6001 36th Ave. W. 550 Second Street SE

Everett, WA 98203 Cedar Rapids, IA 52401
U.S.A. U.S.A.

www.intermec.com

The information contained herein is proprietary and is provided solely for the purpose of allowing customers
to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for
any other purpose without written permission of Intermec.

Information and specifications contained in this document are subject to change without prior notice and do
not represent a commitment on the part of Intermec Technologies Corporation.

E 2003 by Intermec Technologies Corporation. All rights reserved.

The word Intermec, the Intermec logo, Norand, ArciTech, CrossBar, Data Collection Browser, dcBrowser,
Duratherm, EasyCoder, EasyLAN, Enterprise Wireless LAN, EZBuilder, Fingerprint, i-gistics, INCA (under
license), InterDriver, Intermec Printer Network Manager,IRL,JANUS,LabelShop,MobileFramework,
MobileLAN, Nor*Ware, Pen*Key, Precision Print, PrintSet, RoutePower, TE 2000, Trakker Antares, UAP,
Universal Access Point, and Virtual Wedge are either trademarks or registered trademarks of Intermec
Technologies Corporation.

Throughout this manual, trademarked names may be used. Rather than put a trademark ( or )symbolin
every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion,
and to the benefit of the trademark owner, with no intention of infringement.

There are U.S. and foreign patents pending.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the
United States and/or other countries.

Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.opensssl.org/).

This product includes cryptographic software written by Eric Young ([e-mail]).

ii 700 Series Monochrome Mobile Computer User’s Manual

Contents

Before You Begin xiii.............................................................

Introduction 1...............................................................

1

Audio System 2.................................................................

Safety Summary xiii.......................................................

Donotrepairoradjustalone xiii.......................................

First aid xiii.......................................................

Resuscitation xiii...................................................

Energized equipment xiii.............................................

Safety Icons xiv...........................................................

Global Services and Support xv..............................................

Warranty Information xv............................................

Web Support xv...................................................

Telephone Support xv...............................................

WhoShouldReadthisManual? xvi...........................................

Related Documents xvi.....................................................

Speaker 2...............................................................

External Headset Jack 2....................................................

Battery 3......................................................................

Beeper 5......................................................................

Enable the Beeper 5.......................................................

Select a Beeper Volume 6...................................................

Disable the Beeper 7......................................................

Key Sequences 8................................................................

Gold Plane Keys 8........................................................

Alpha (Blue) Plane Keys 9..................................................

Modem Support 10..............................................................

Storage Media 10...............................................................

Wireless Network Support 10......................................................

Software Build Version 11.........................................................

Accessories 12..................................................................

iii700 Series Monochrome Mobile Computer User’s Manual

Contents

2

Pocket PC 2002 13...........................................................

Introduction 14.................................................................

Premium versus Professional Editions 14.............................................

Where to Find Information 16.....................................................

Basic Skills 17..................................................................

Buttons and Stylus 17.....................................................

Today Screen 17..........................................................

Programs 19.............................................................

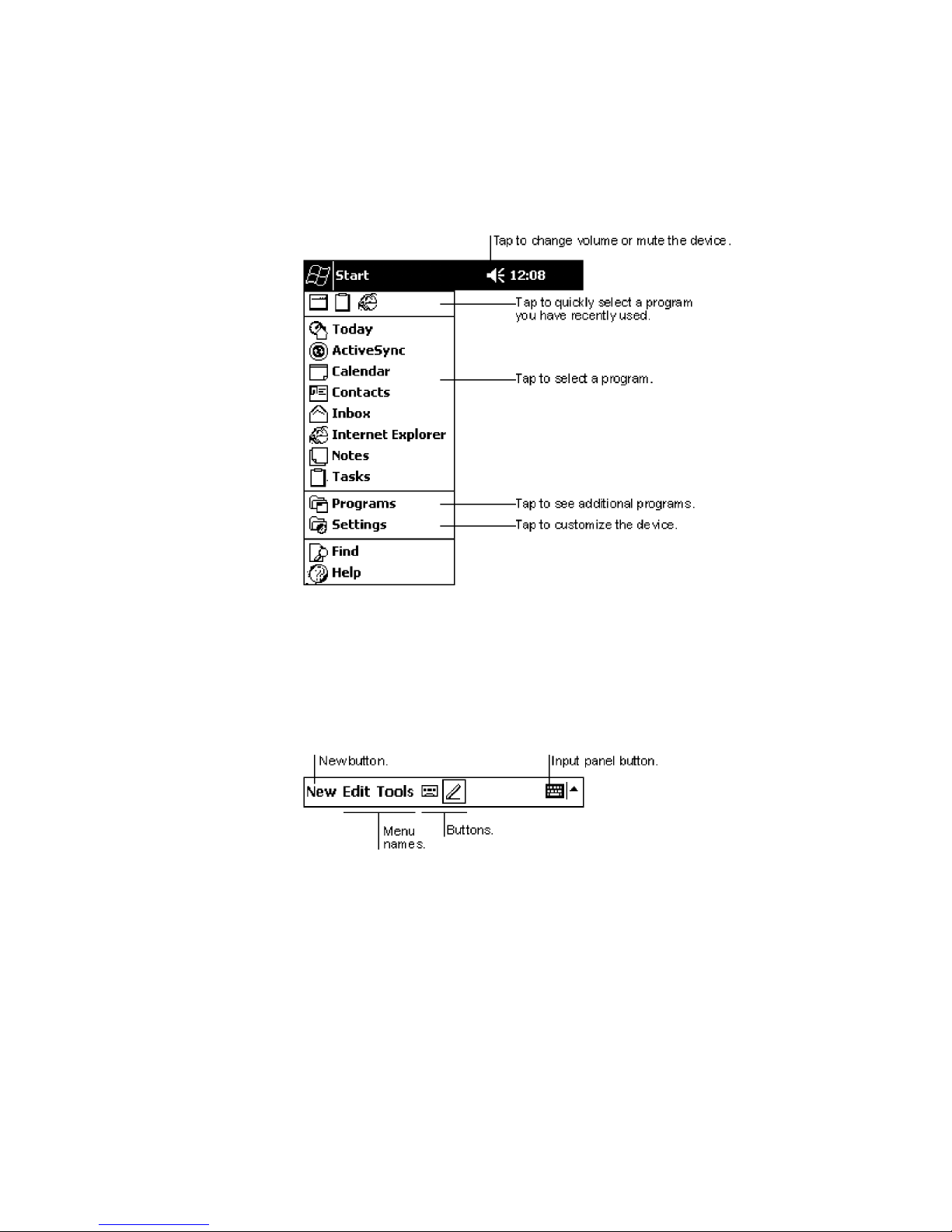

Navigation Bar and Command Bar 20.........................................

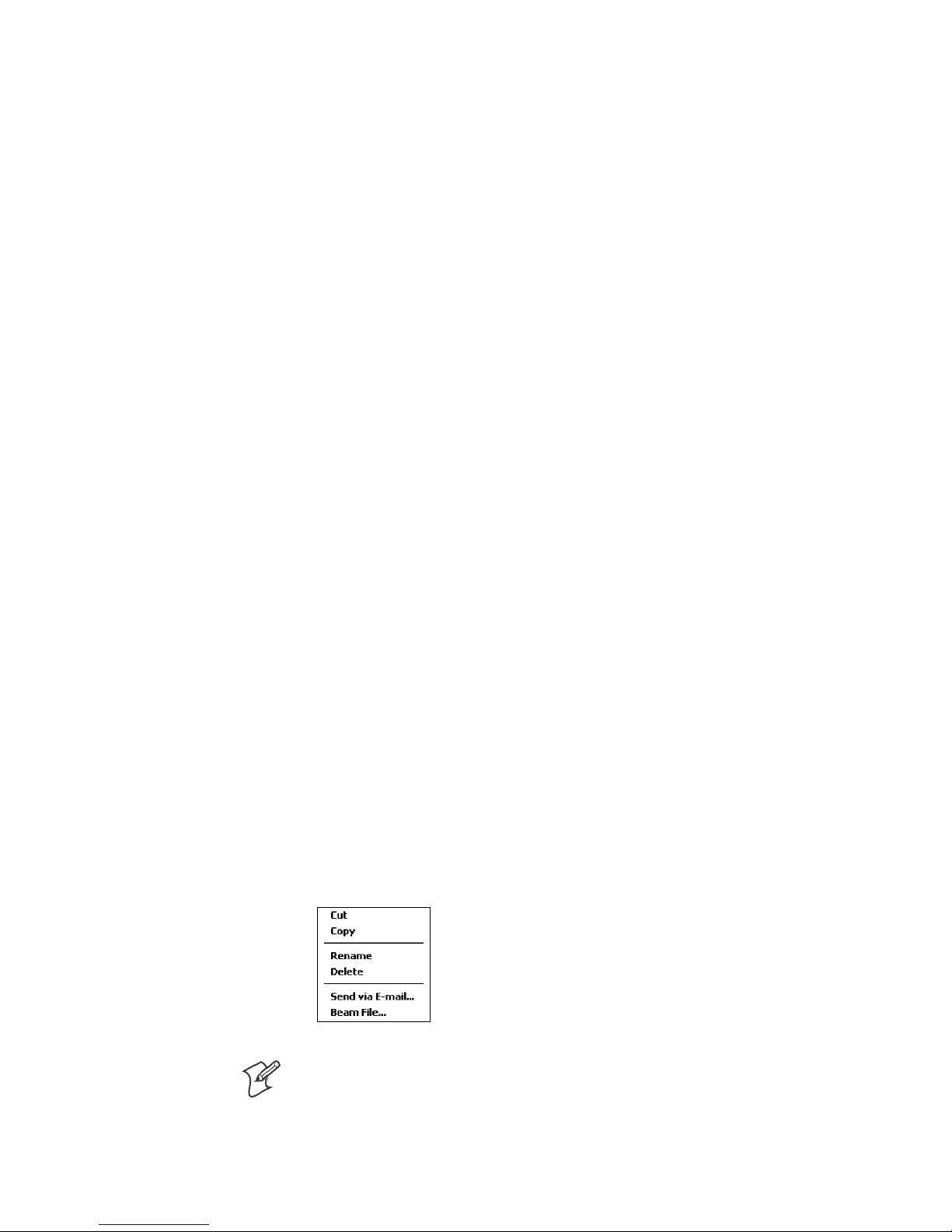

Pop-up Menus 21........................................................

Notifications 21..........................................................

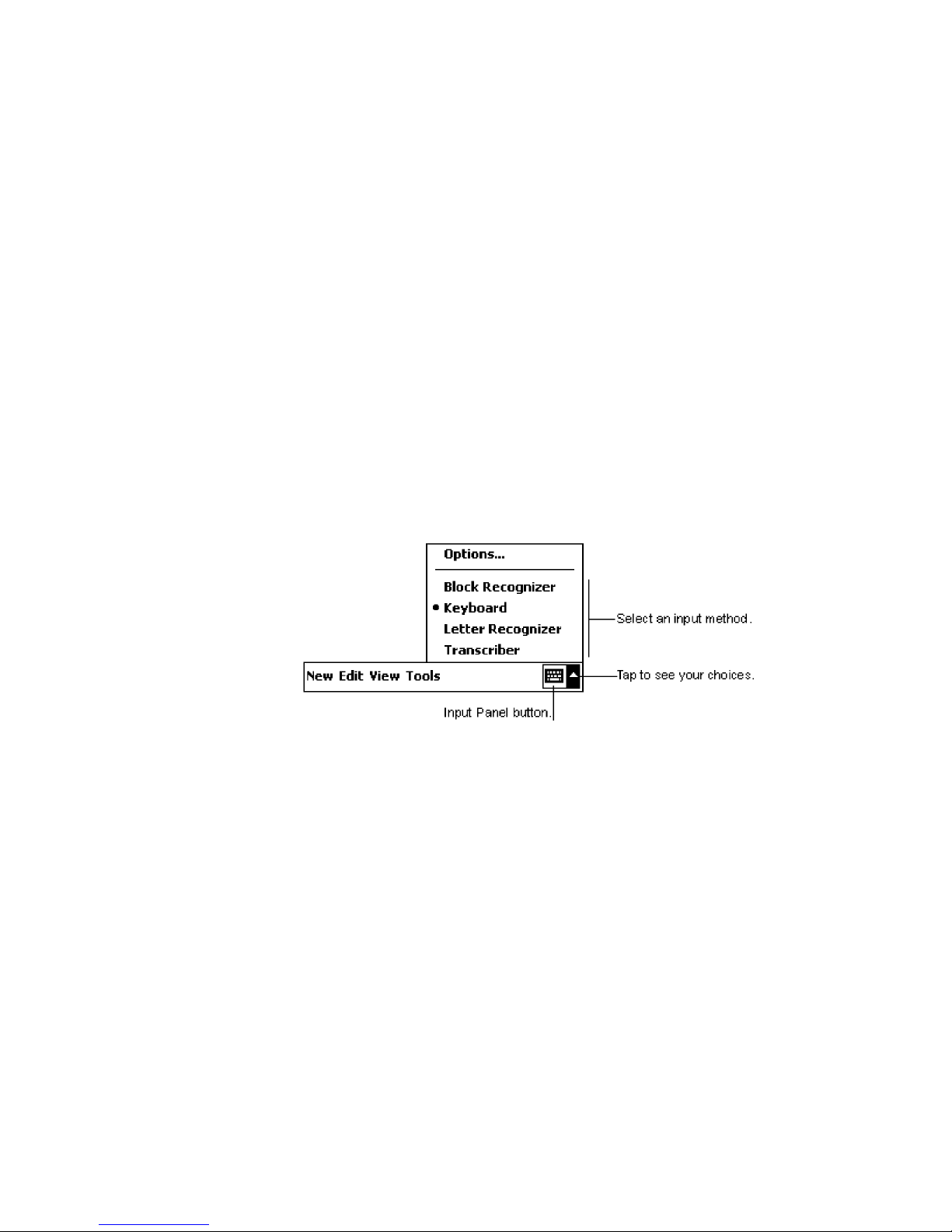

Enter Information on Your 700 Series Computer 22..............................

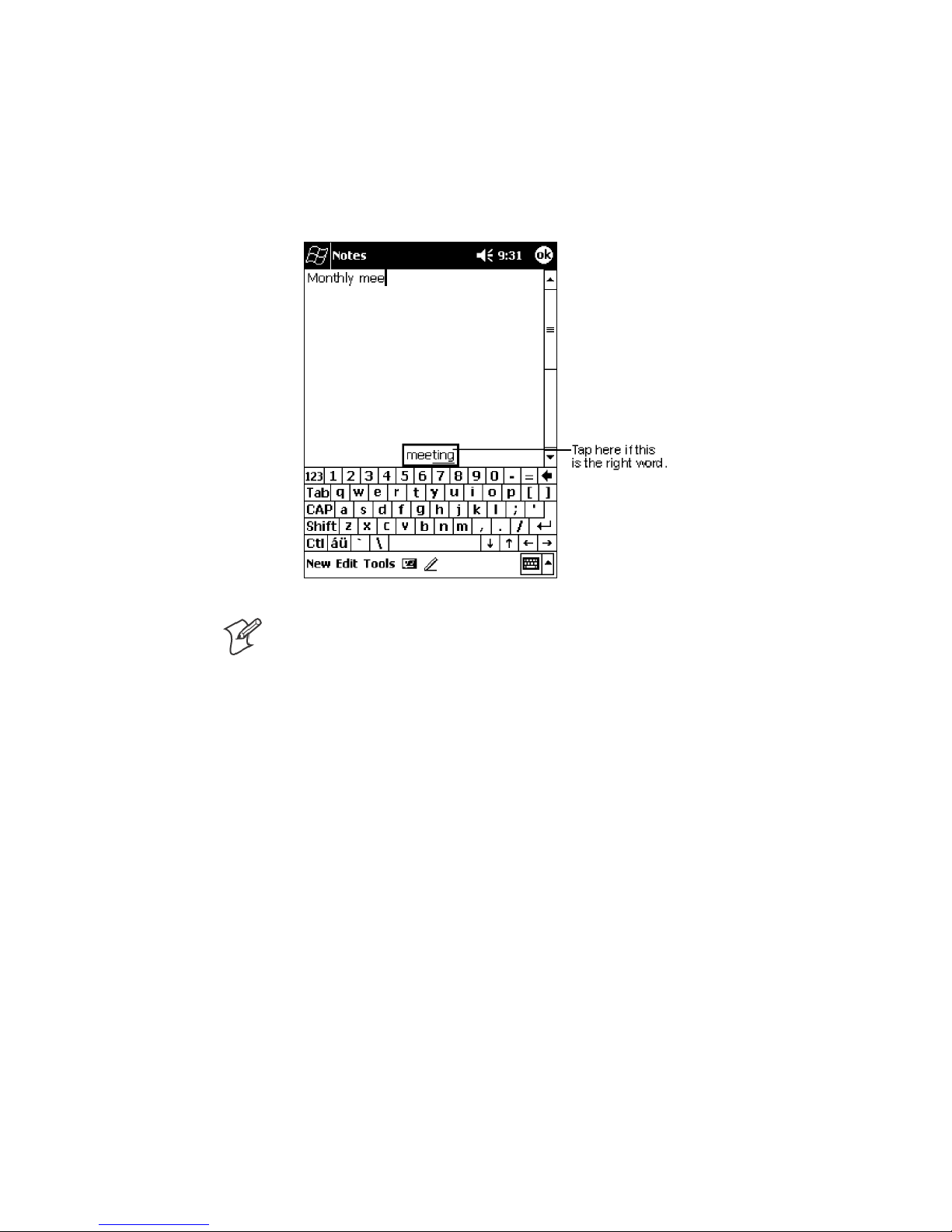

Typing With the Soft Keyboard 23.....................................

Using Block Recognizer 23...........................................

Using Letter Recognizer 24...........................................

Using Transcriber 24................................................

Selecting Typed Text 24.............................................

Writing on the Screen 25...................................................

Selecting the Writing 25.............................................

Converting Writing to Text 26........................................

Drawing on the Screen 28..................................................

Creating a Drawing 28..............................................

Selecting a Drawing 28..............................................

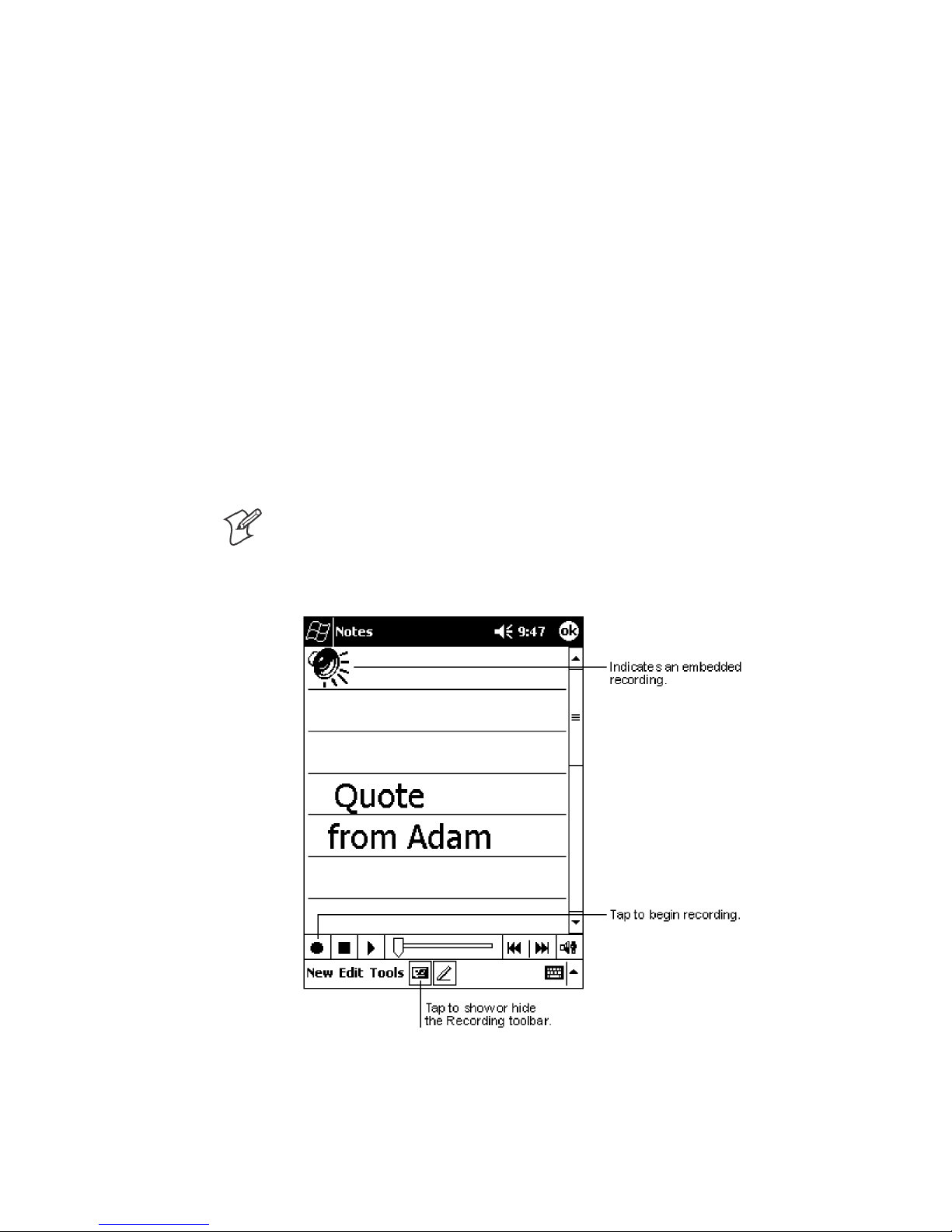

Recording a Message 29....................................................

Creating a Recording 29.............................................

Using My Text 30........................................................

Finding and Organizing Information 31.......................................

Customizing Your 700 Series Computer 32.....................................

Adjusting Settings 32...............................................

Adding or Removing Programs 32.....................................

Microsoft ActiveSync 35..........................................................

Microsoft Pocket Outlook 37......................................................

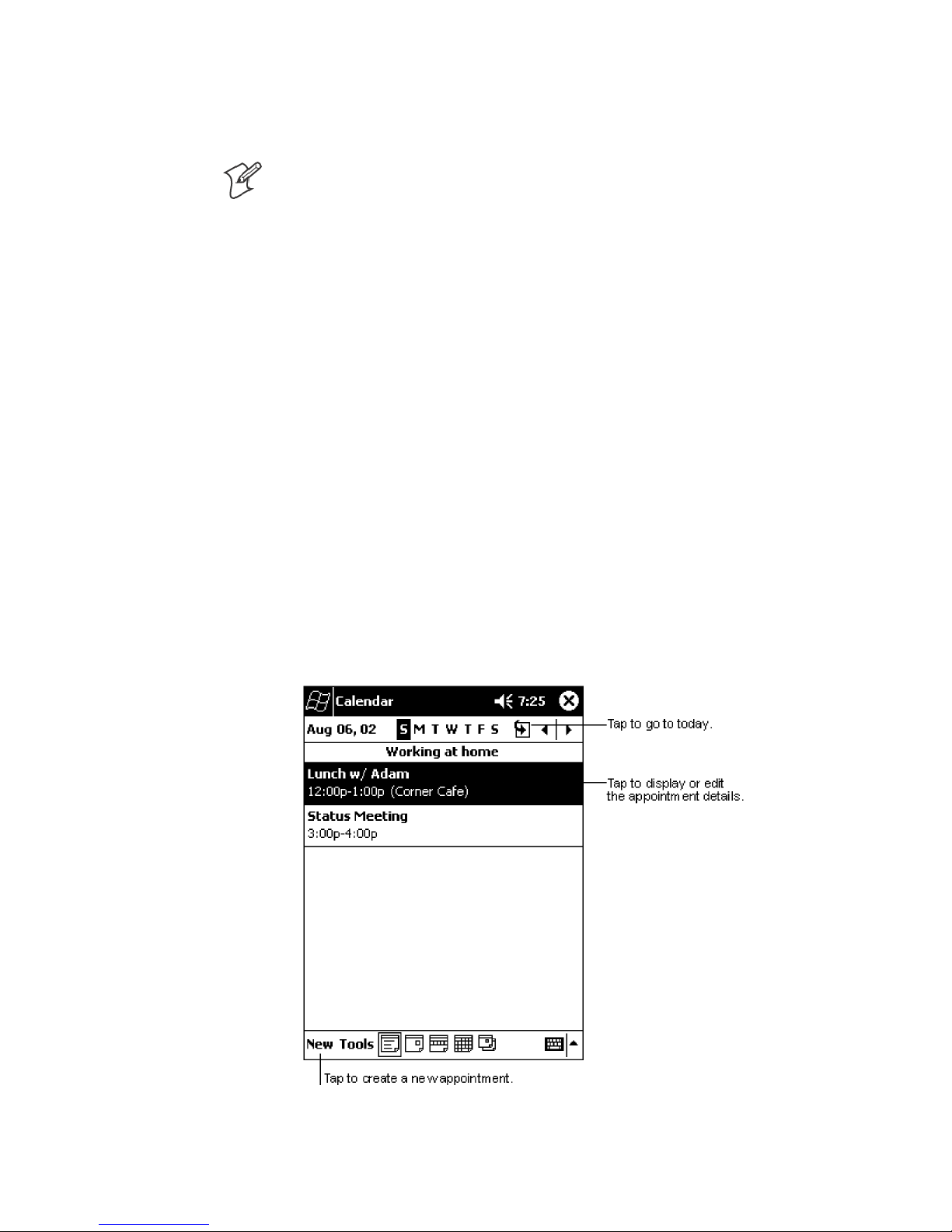

Calendar: Scheduling Appointments and Meetings 37.............................

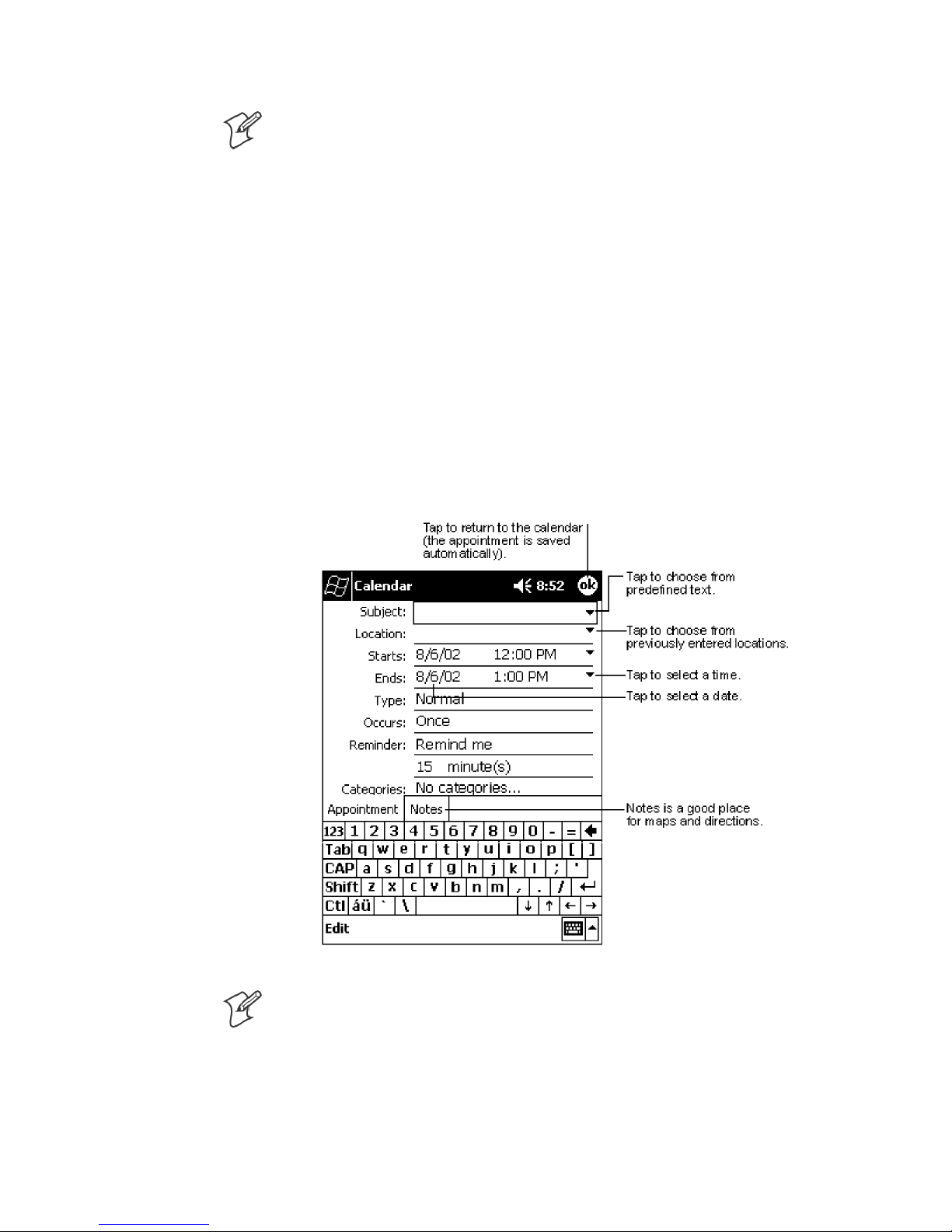

Creating an Appointment 38.........................................

Using the Summary Screen 39........................................

Creating Meeting Requests 39........................................

Scheduling a Meeting 39.............................................

Contacts: Tracking Friends and Colleagues 40...................................

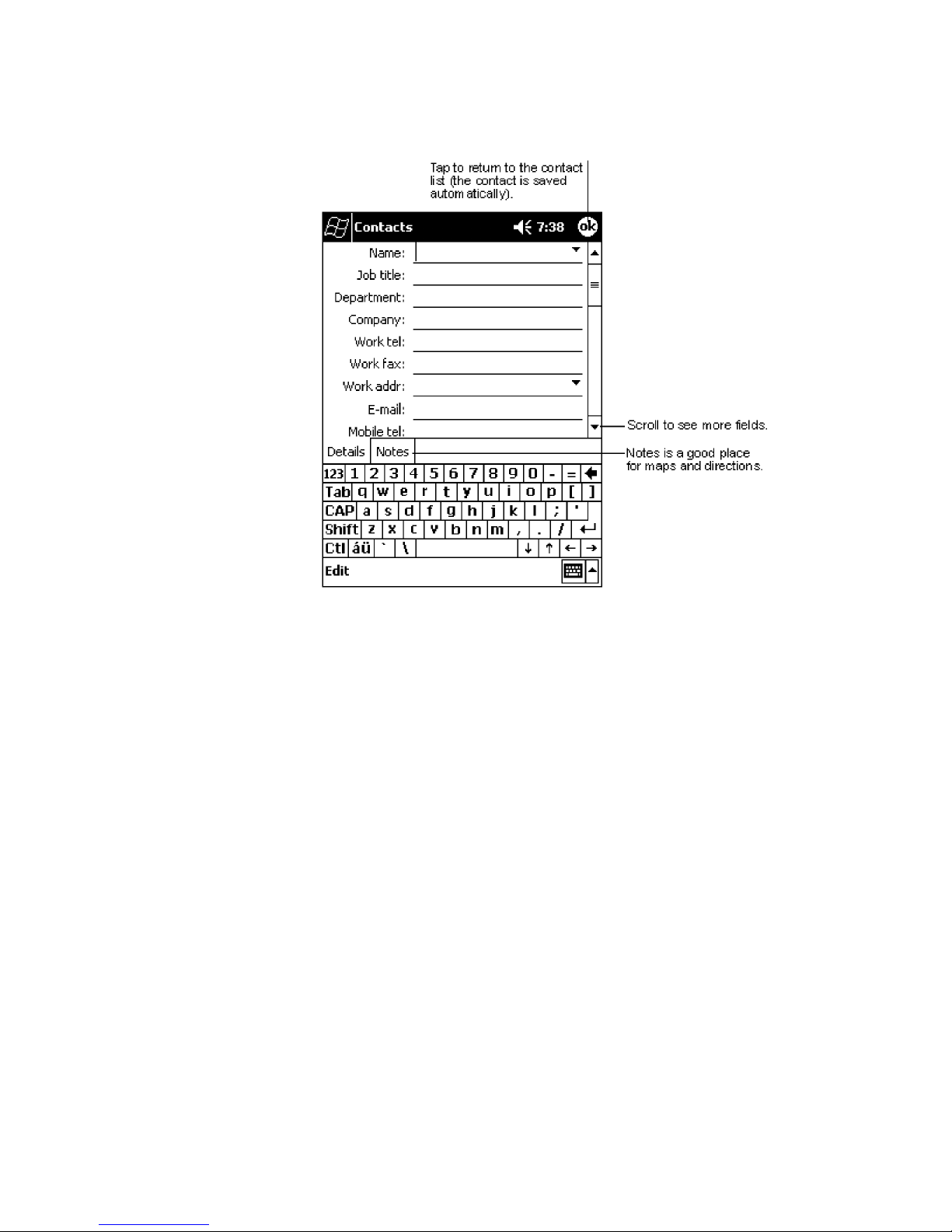

Creating a Contact 40...............................................

Finding a Contact 41...............................................

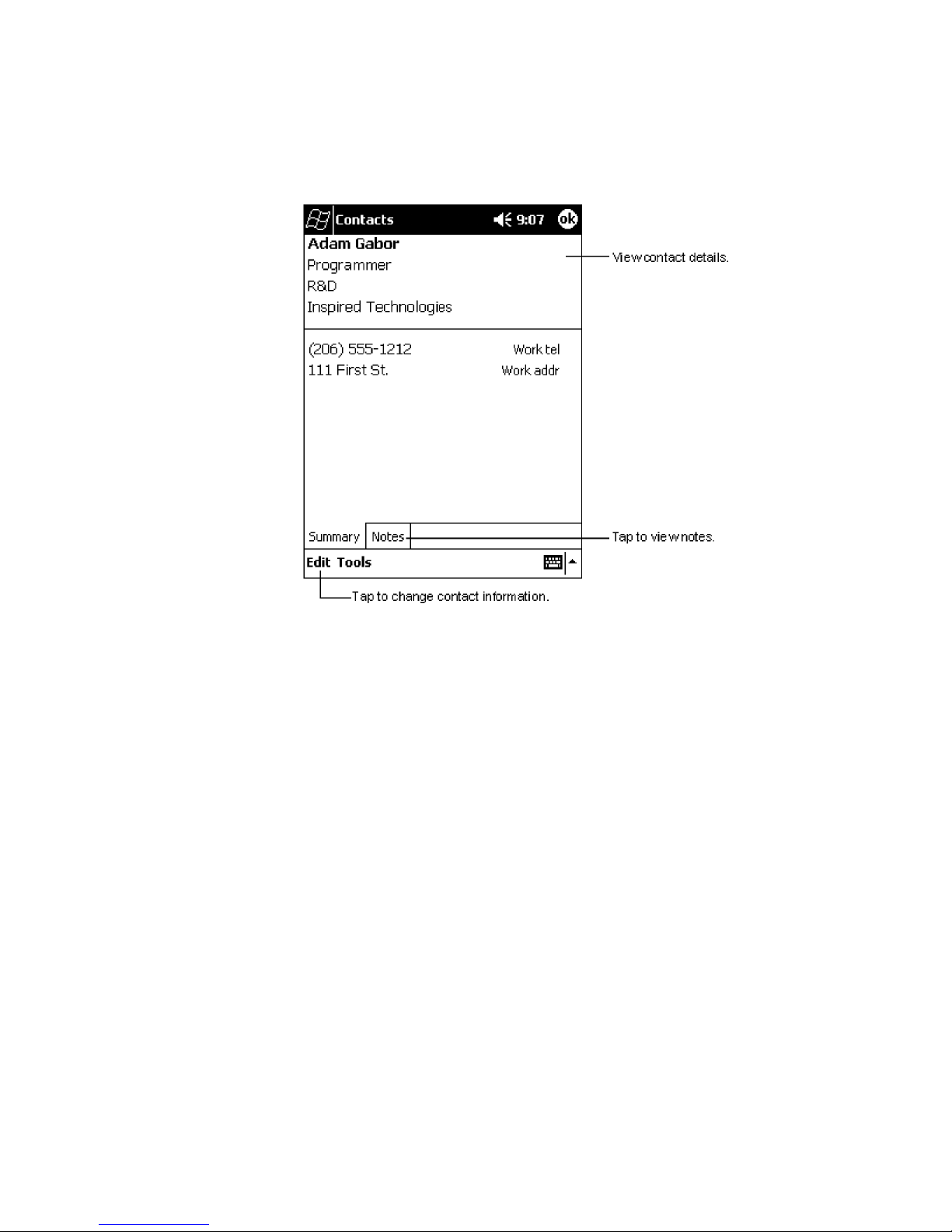

Using the Summary Screen 42........................................

iv 700 Series Monochrome Mobile Computer User’s Manual

Contents

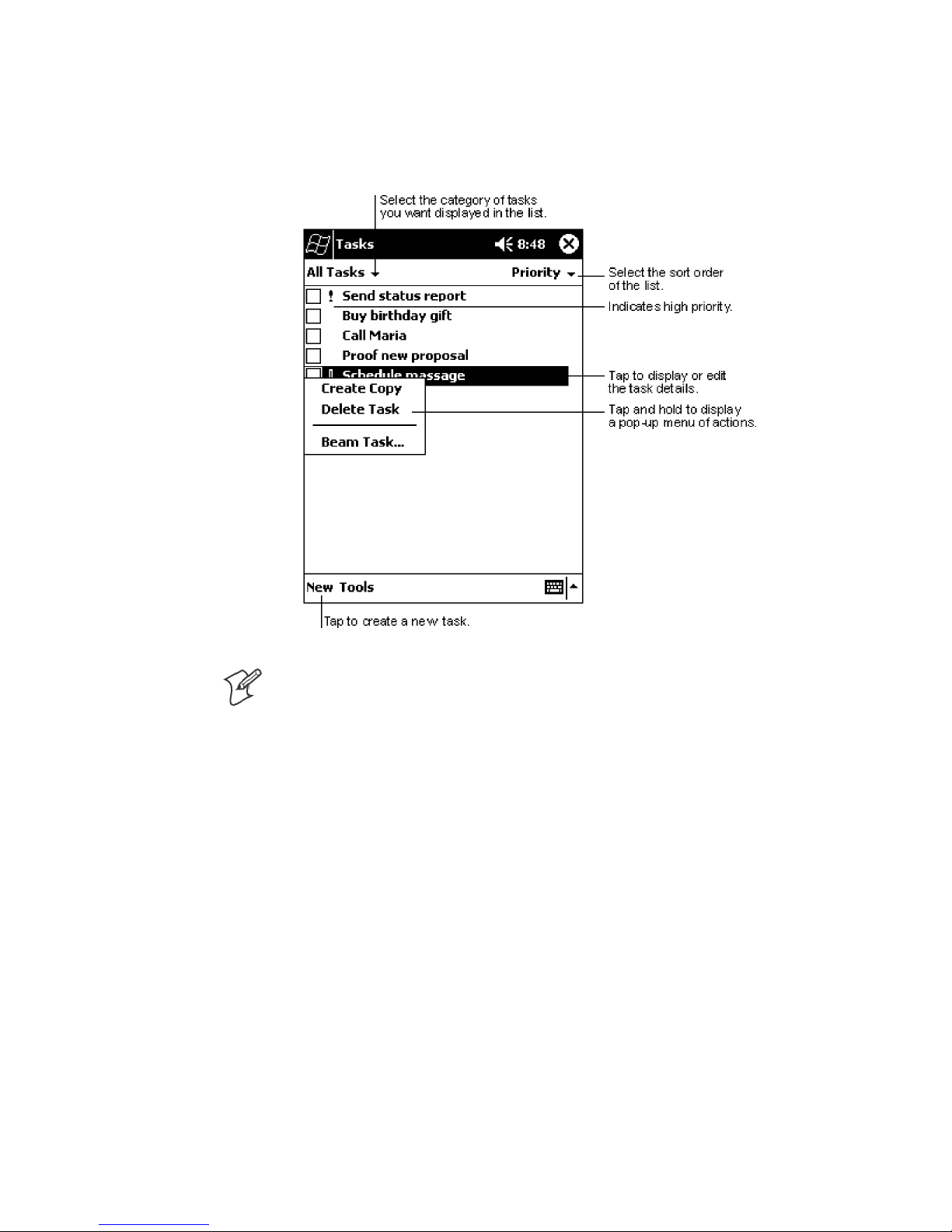

Tasks: Keeping a To Do List 43..............................................

Creating a Task 44.................................................

Using the Summary Screen 45........................................

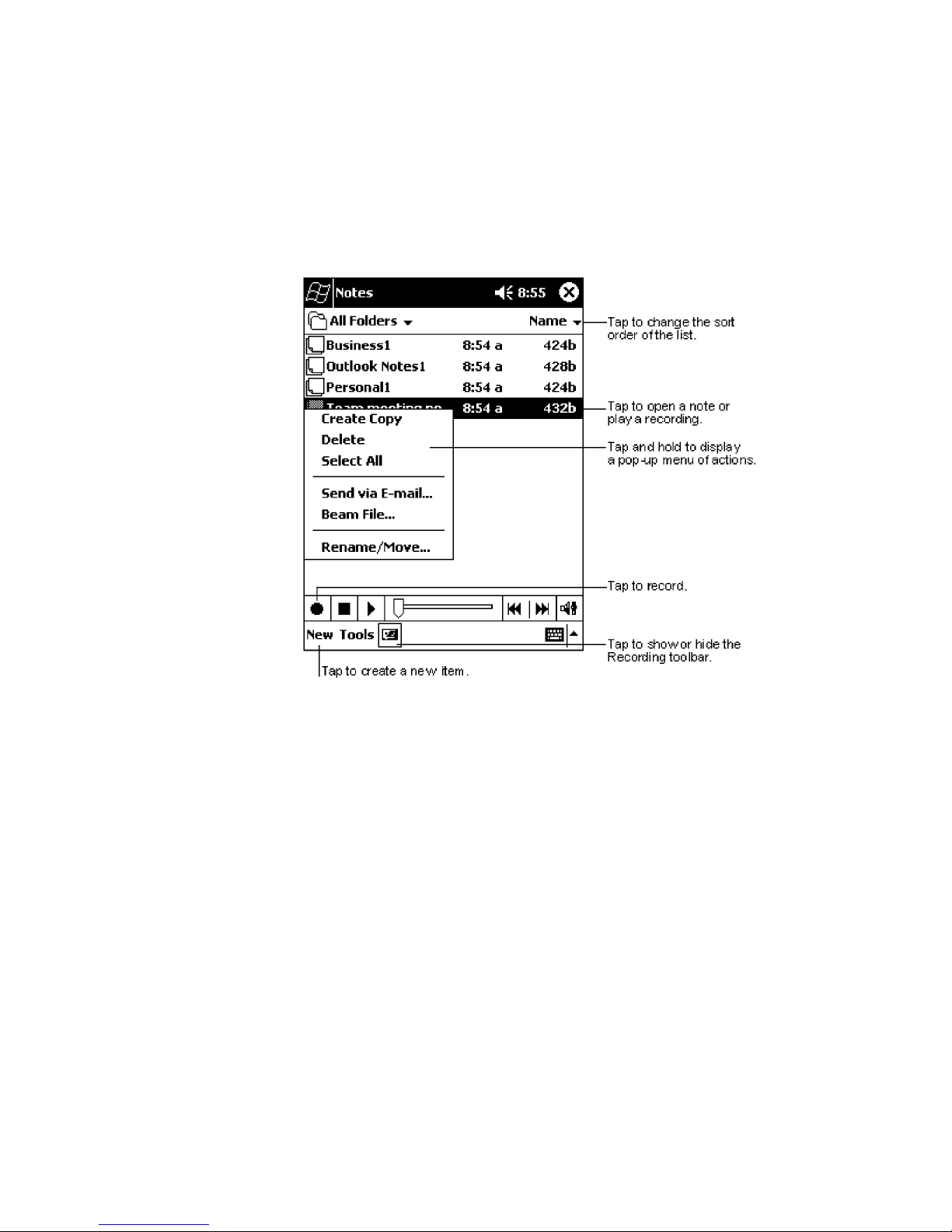

Notes: Capturing Thoughts and Ideas 46......................................

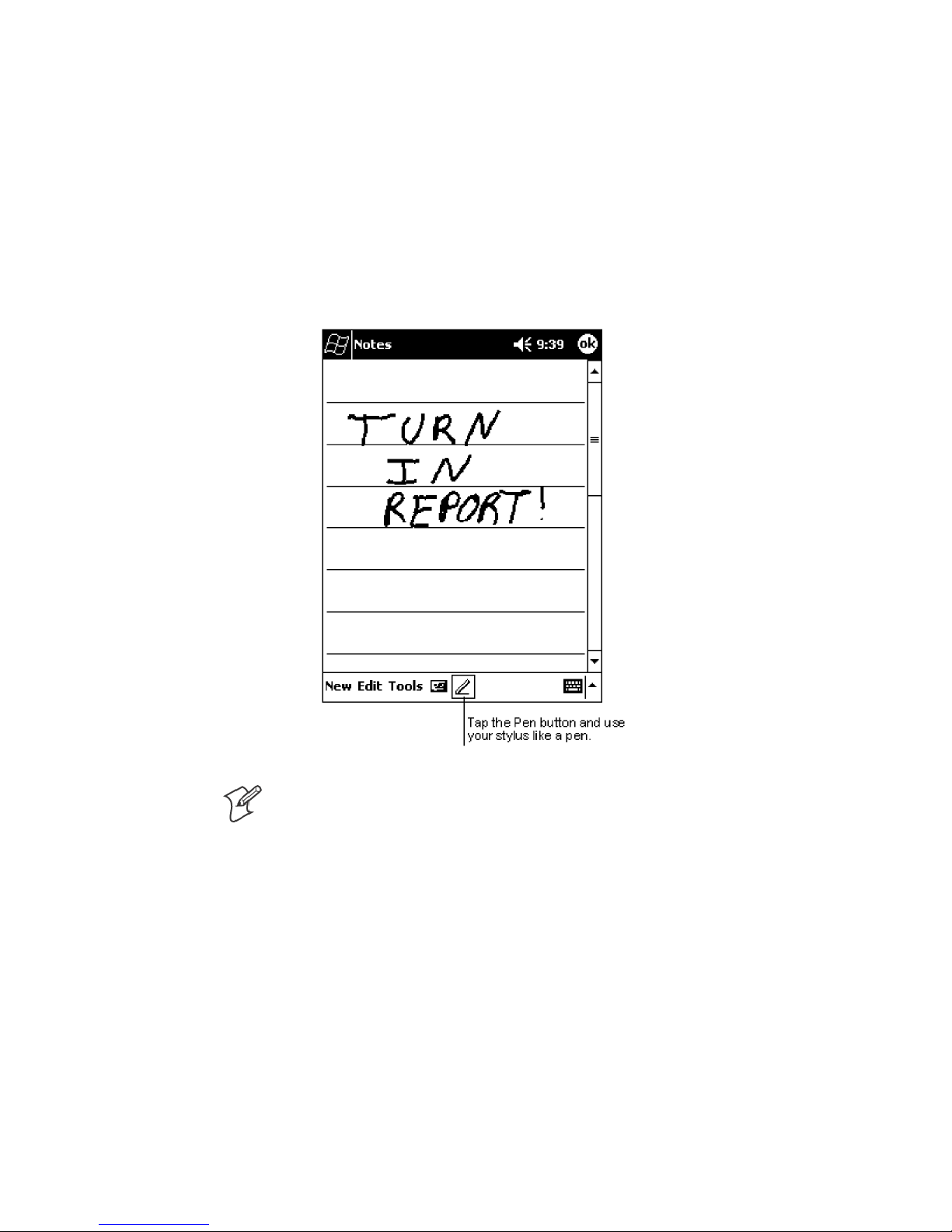

Creating a Note 47.................................................

Inbox: Sending and Receiving E -mail Messages 48...............................

Synchronizing E-mail Messages 48.....................................

Connecting Directly to an E-mail Server 48..............................

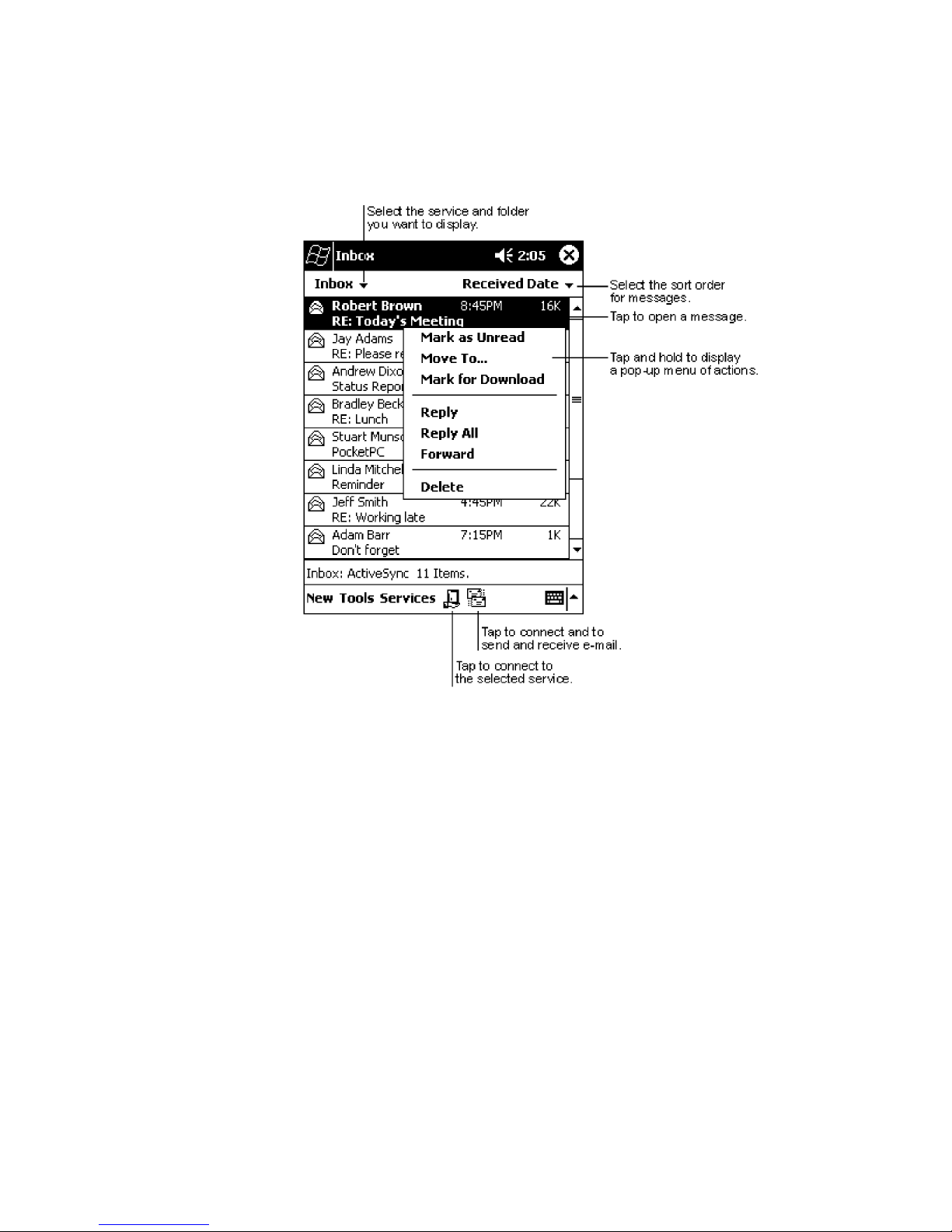

Using the Message List 49............................................

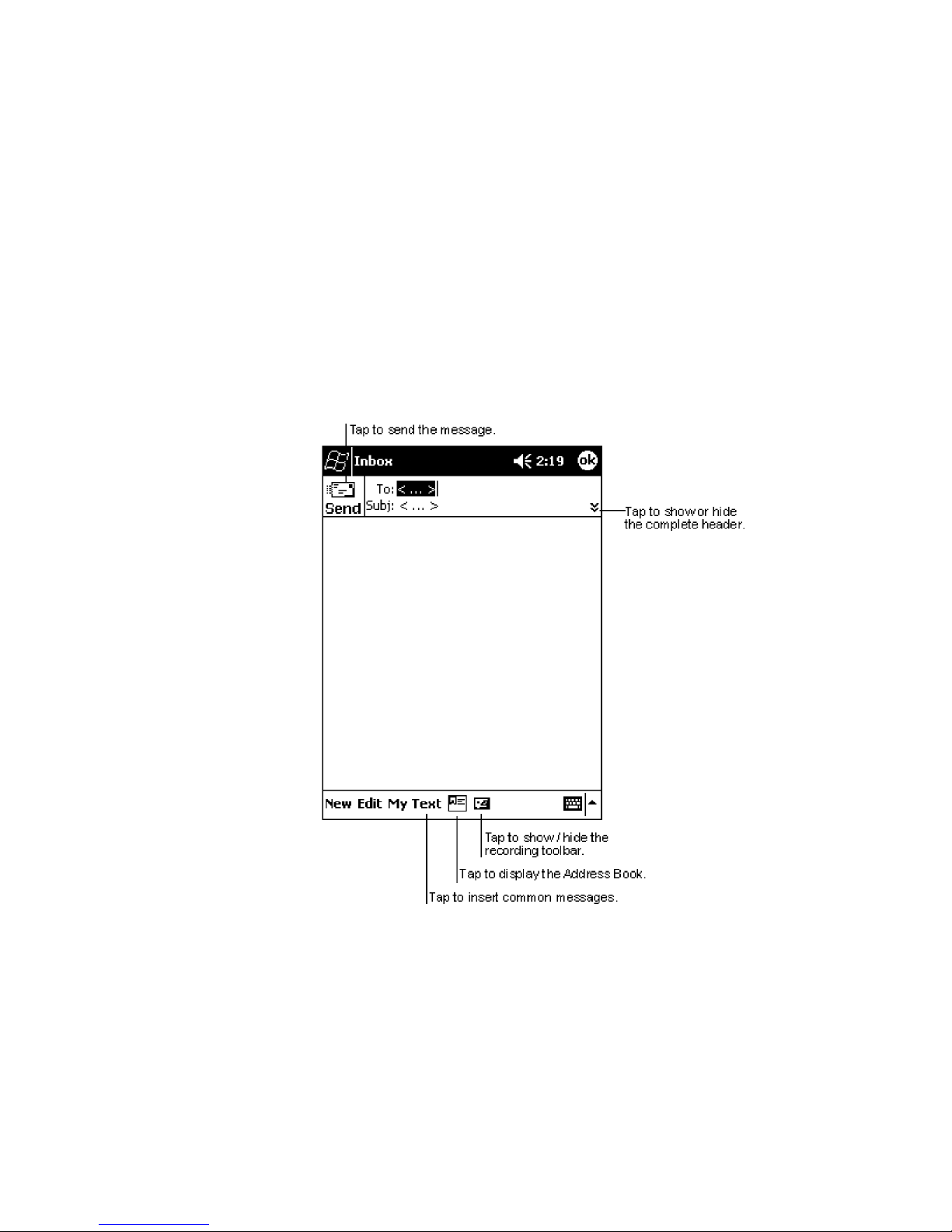

Composing Messages 51.............................................

Managing E-mail Messages and Folders 52...............................

Folder Behavior With a Direct Connection to an E-mail Server 52.............

Companion Programs 53.........................................................

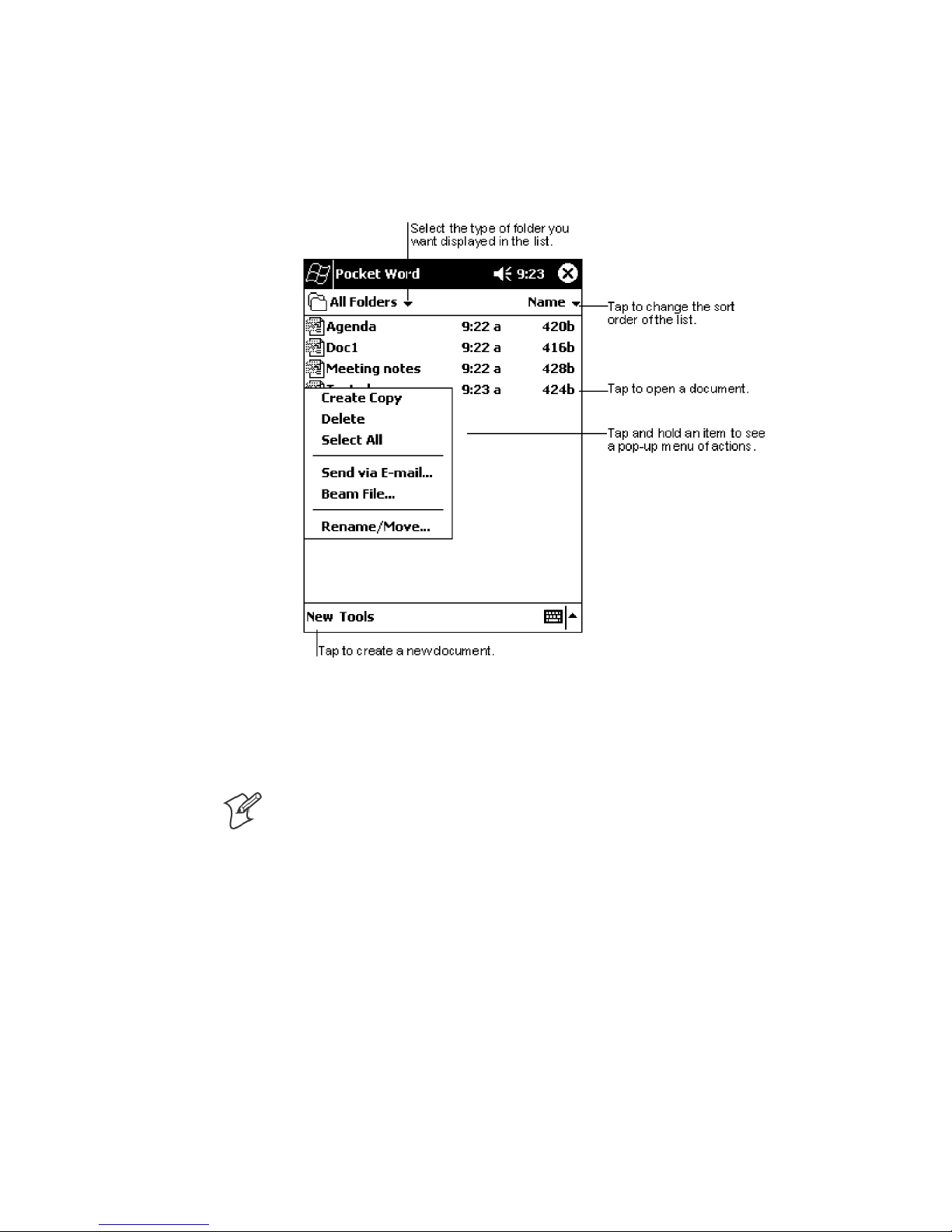

Pocket Word 53..........................................................

Creating a Document 53.............................................

Typing Mode 55...................................................

Writing Mode 56..................................................

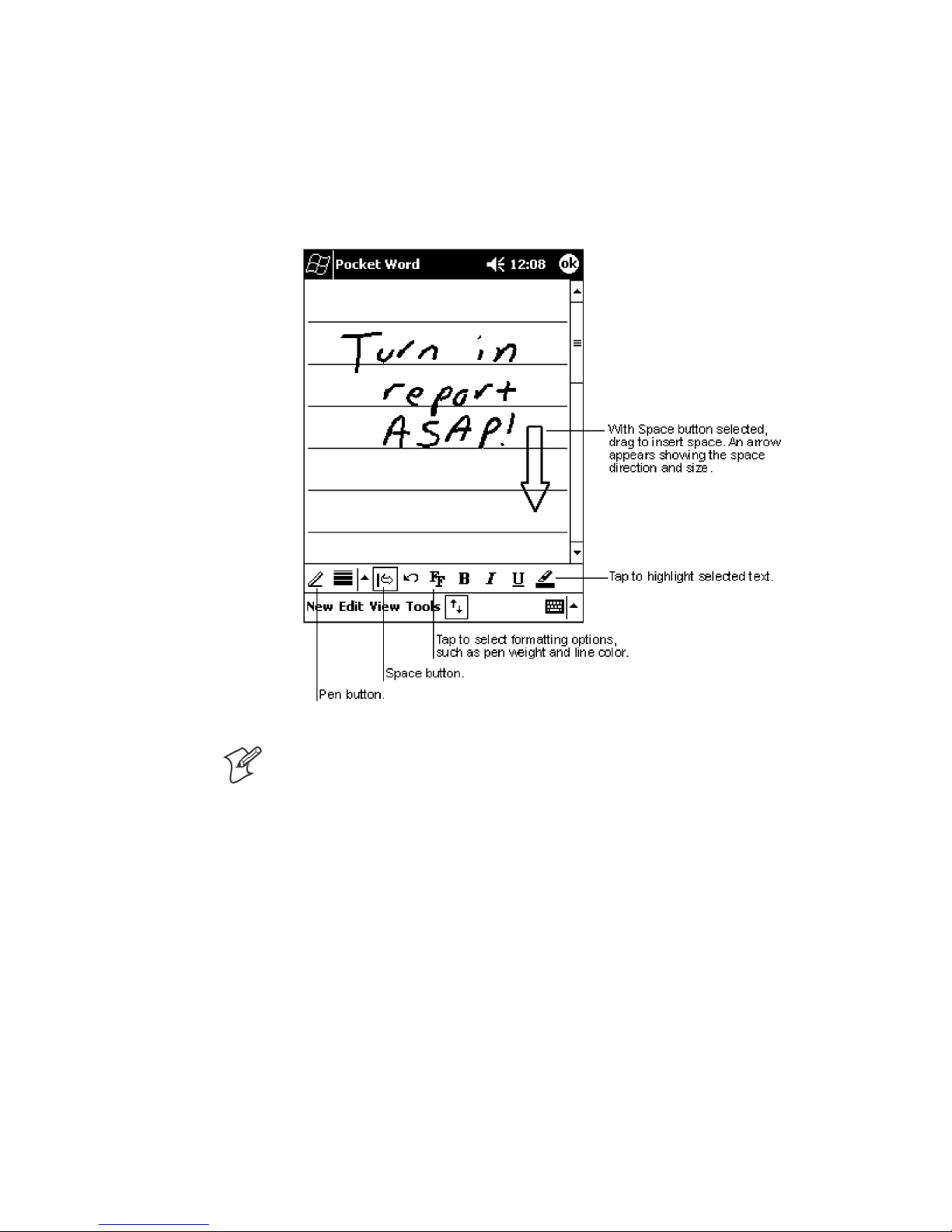

Drawing Mode 57..................................................

Recording Mode 57................................................

Pocket Excel 58..........................................................

Creating a Workbook 58.............................................

Tips for Working in Pocket Excel 59...................................

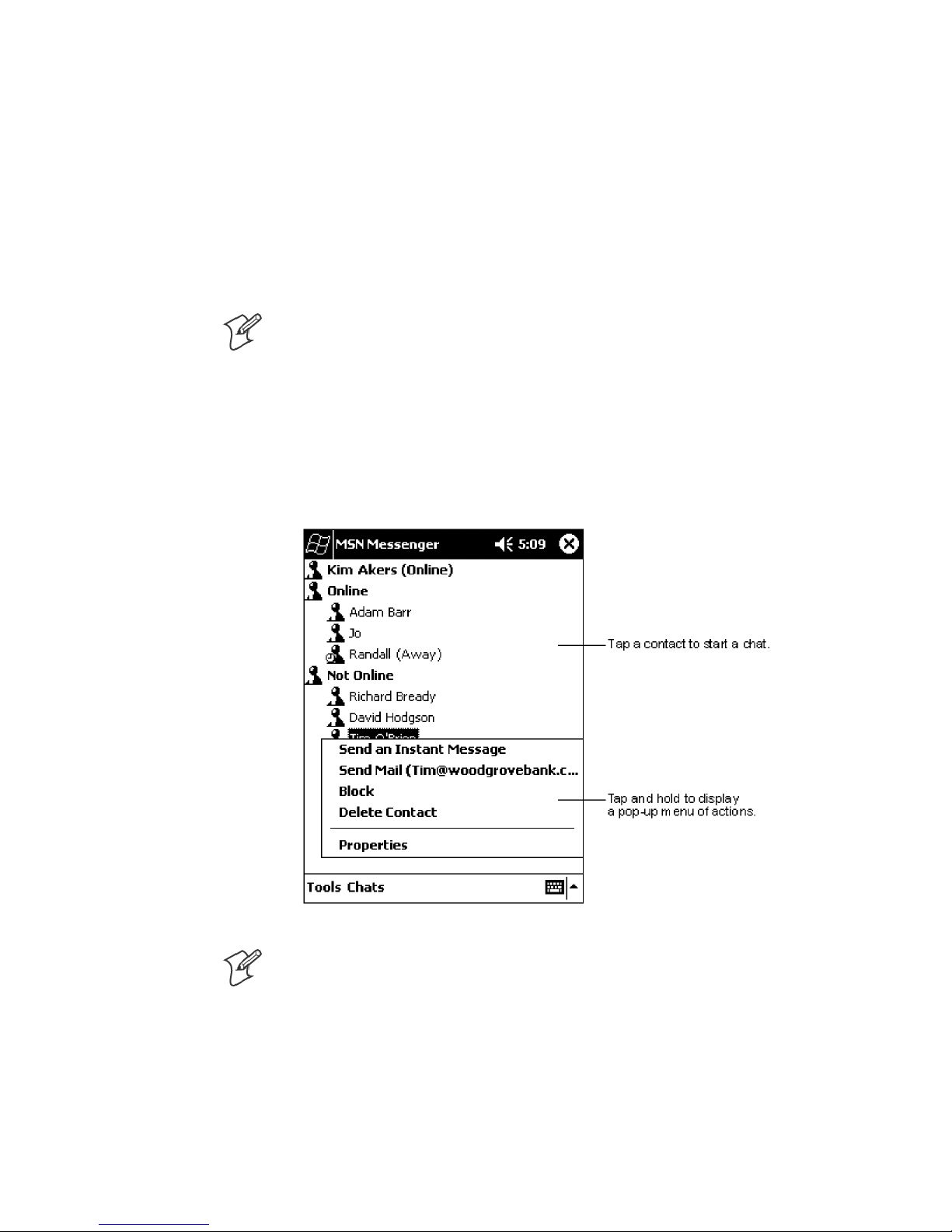

MSN Messenger 59.......................................................

Setting Up 60.....................................................

Working with Contacts 60...........................................

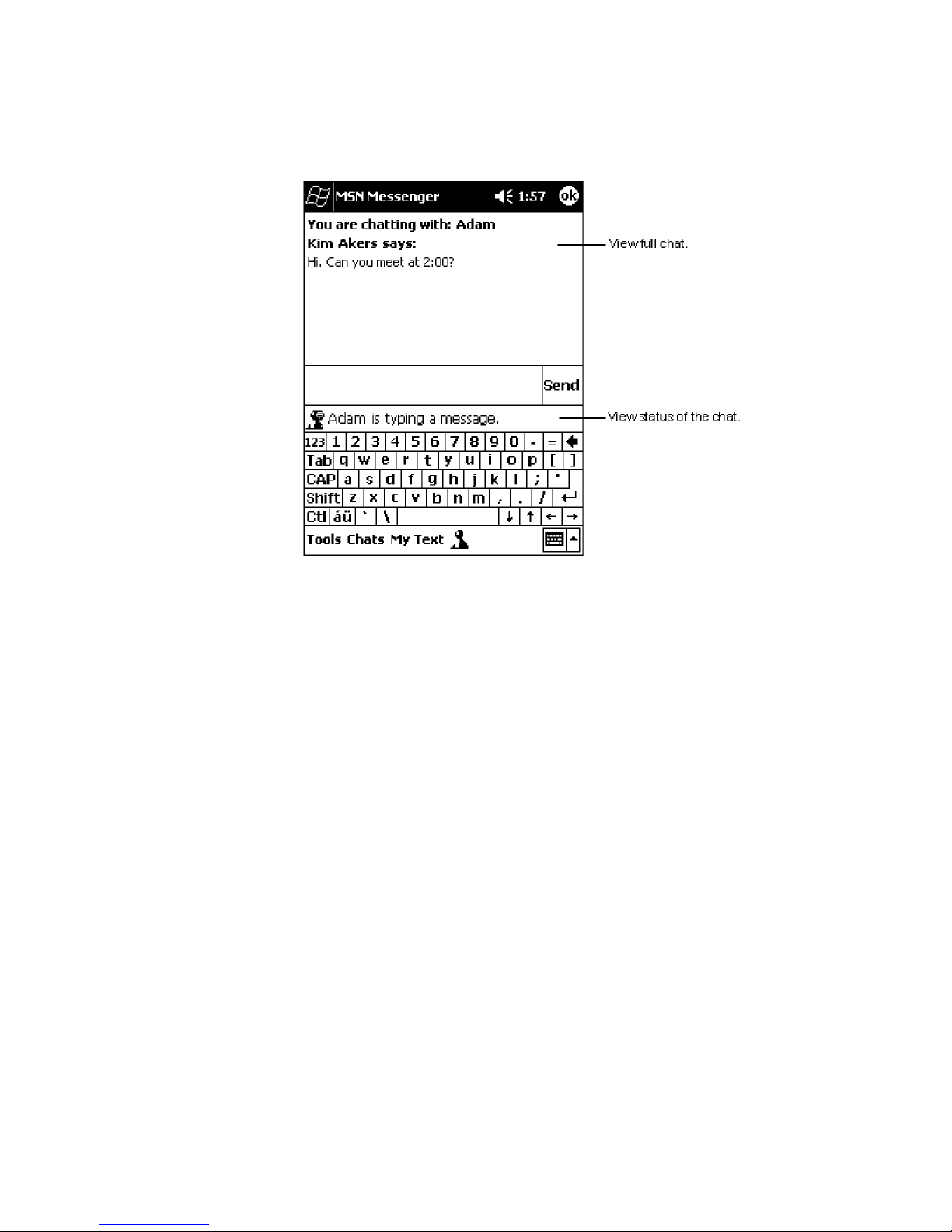

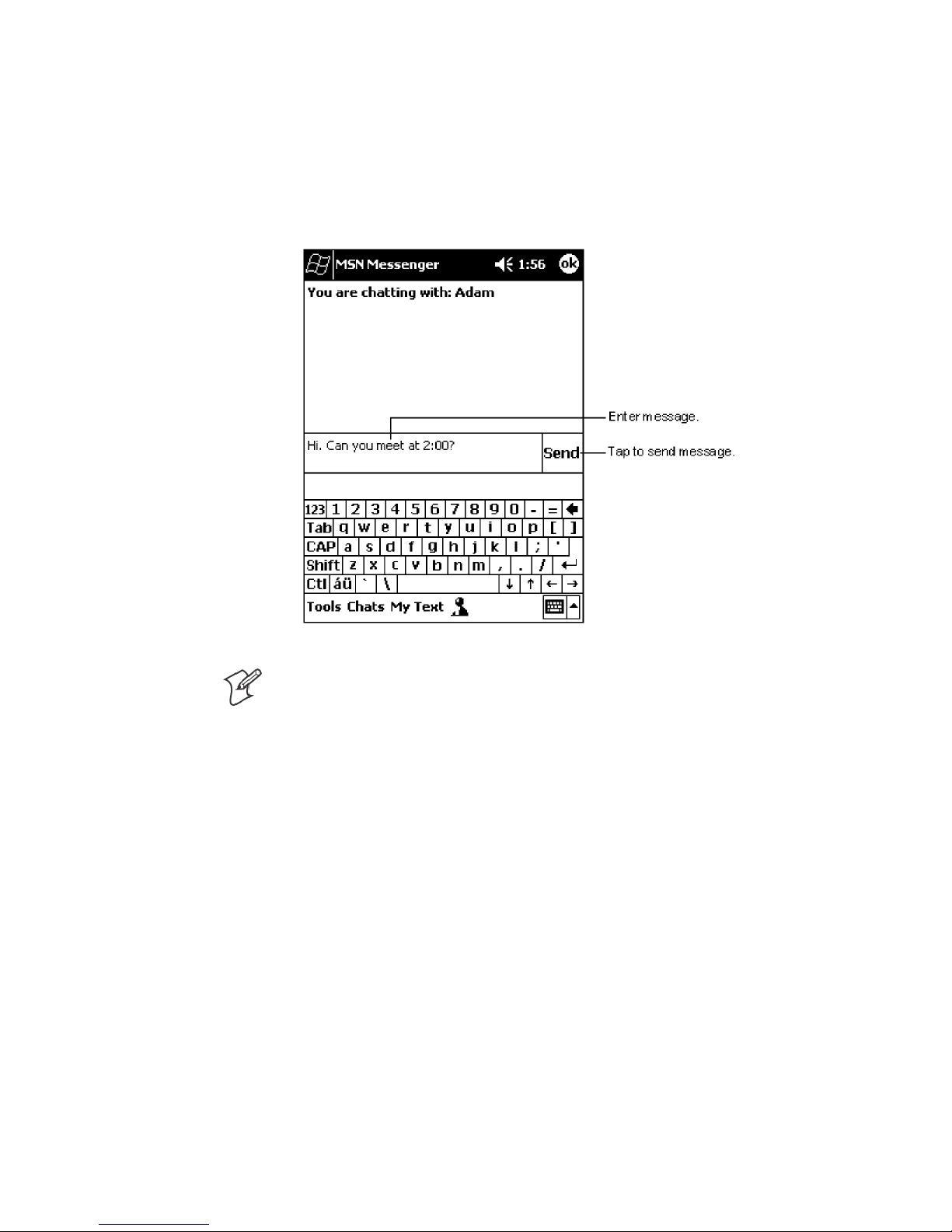

Chatting with Contacts 61...........................................

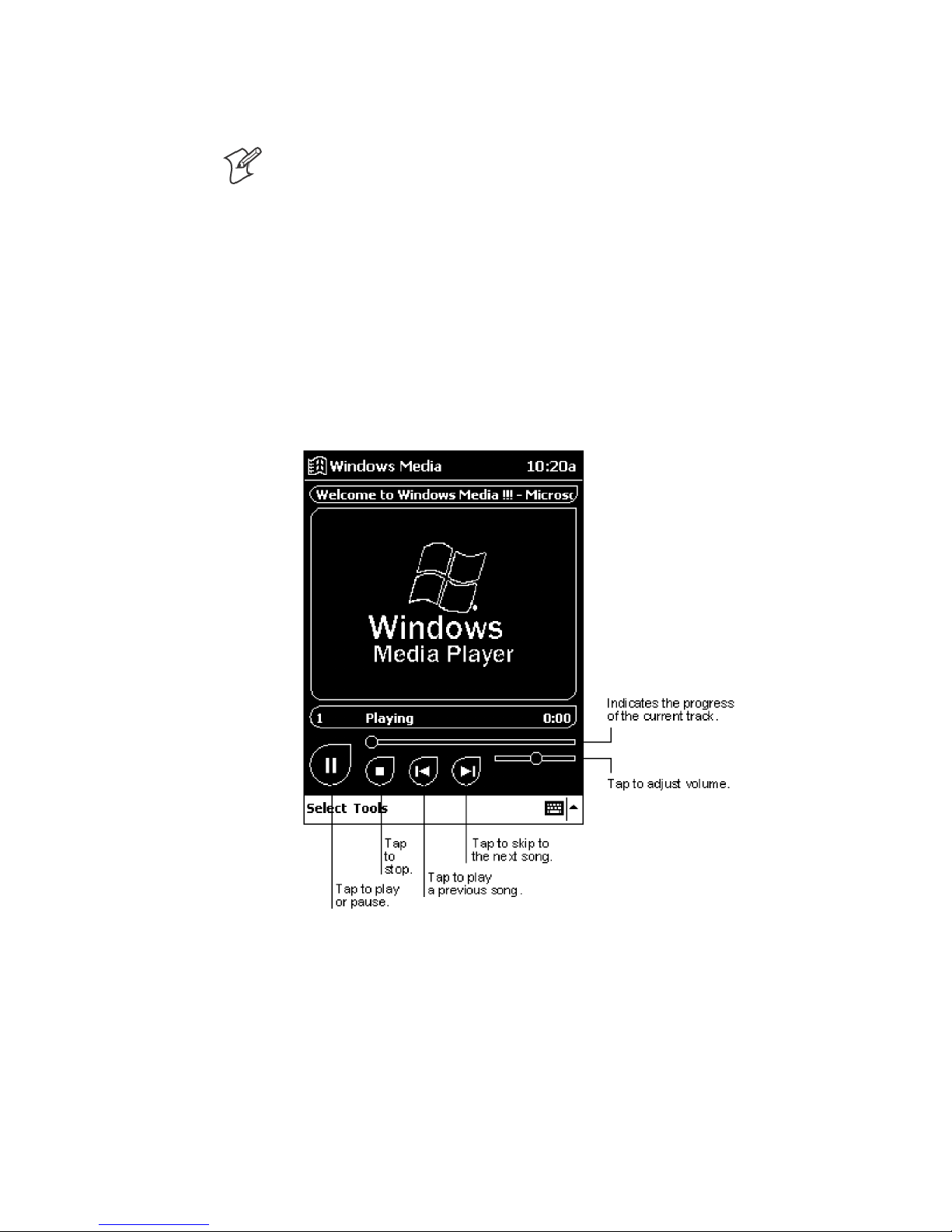

Windows Media Player for Pocket PC 63.......................................

Microsoft Reader 64.......................................................

Getting Books on Your 700 Series Computer 64...........................

Using the Library 65................................................

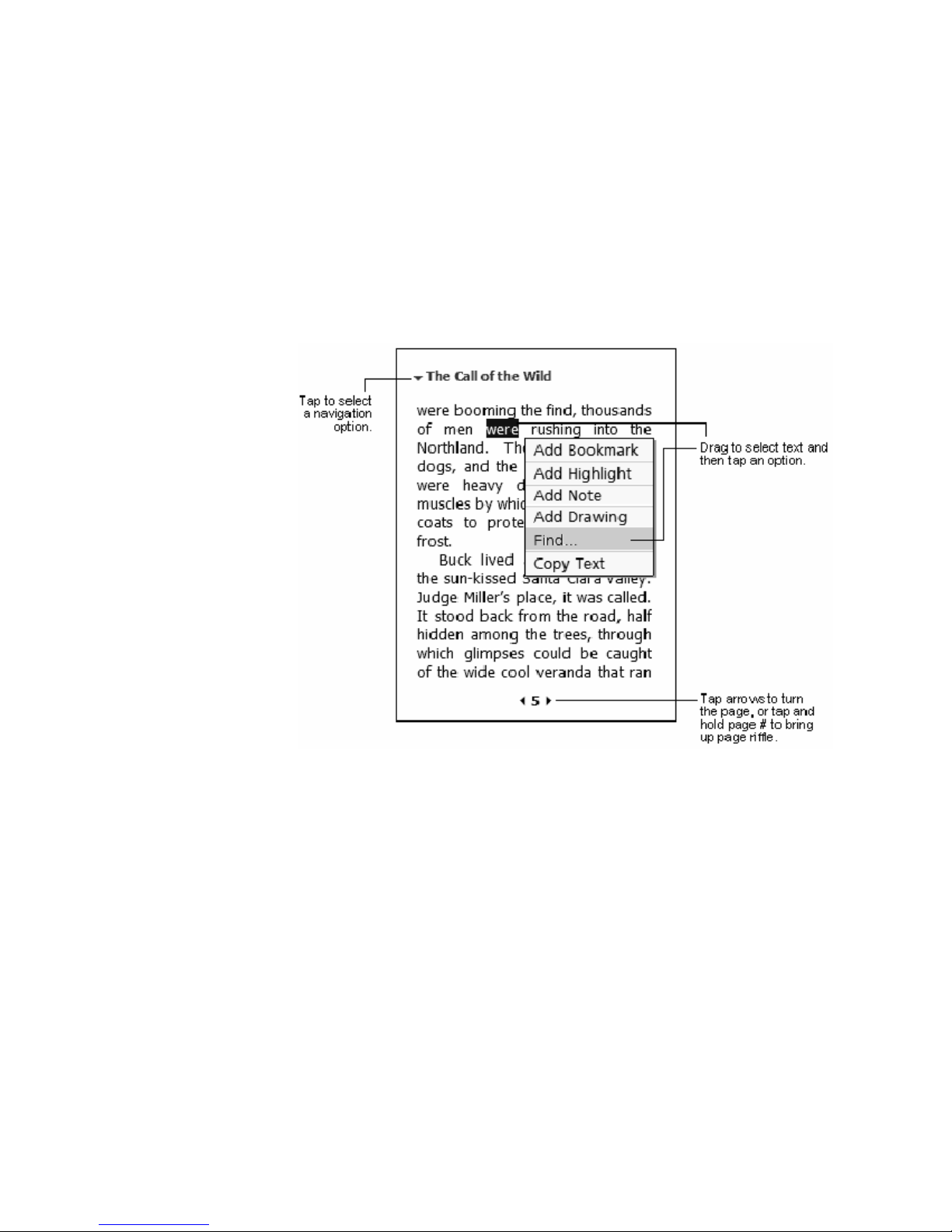

Reading a Book 66.................................................

Using Reader Features 67............................................

Removing a Book 67................................................

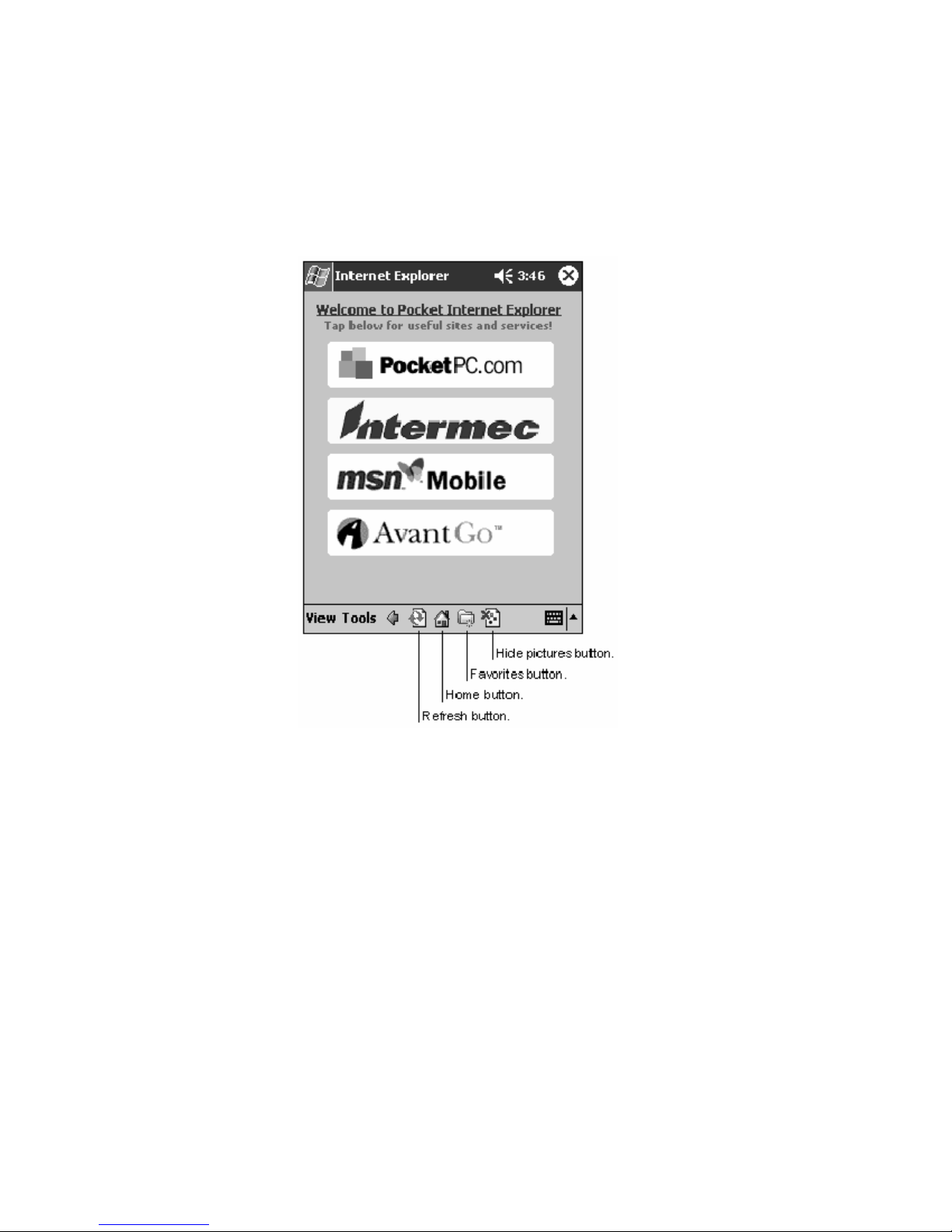

Pocket Internet Explorer 68........................................................

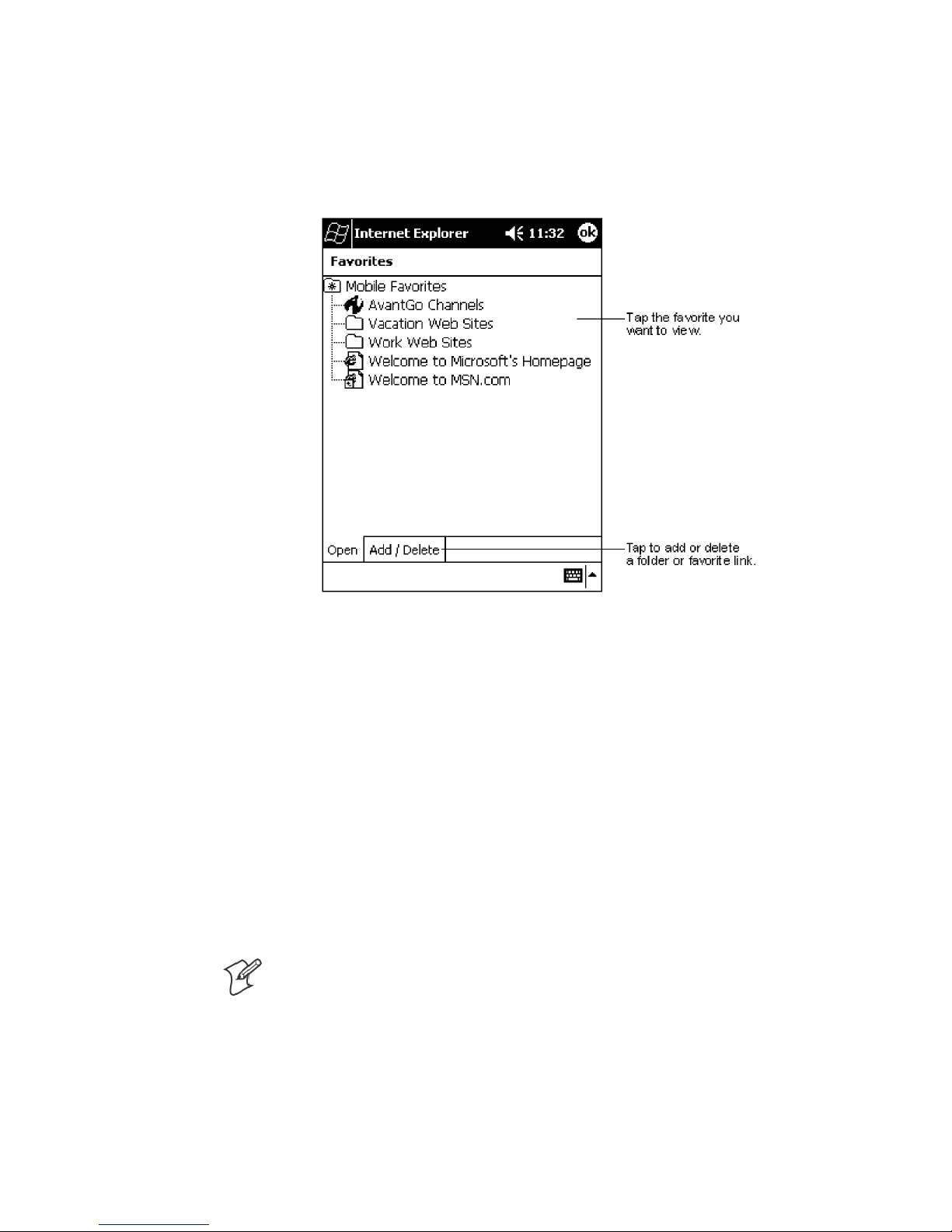

TheMobileFavoritesFolder 68..............................................

Favorite Links 68.........................................................

Mobile Favorites 68.......................................................

Using AvantGo Channels 70................................................

Using Pocket Internet Explorer 71............................................

Viewing Mobile Favorites and Channels 72..............................

Browsing the Internet 72.............................................

v700 Series Monochrome Mobile Computer User’s Manual

Contents

3

Getting Connected 73............................................................

Transferring Items Using Infrared 73..........................................

Sending Information 73.............................................

Receiving Information 74............................................

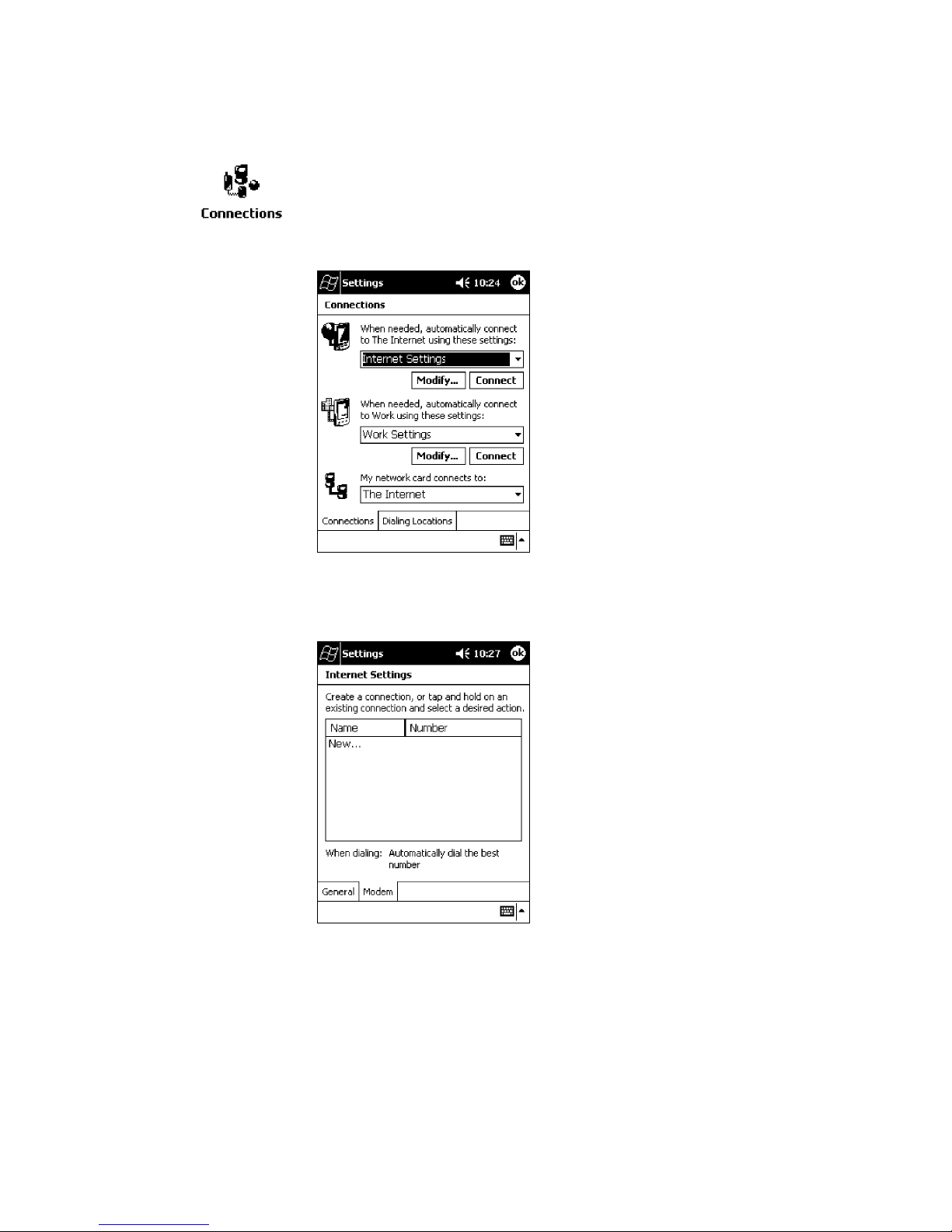

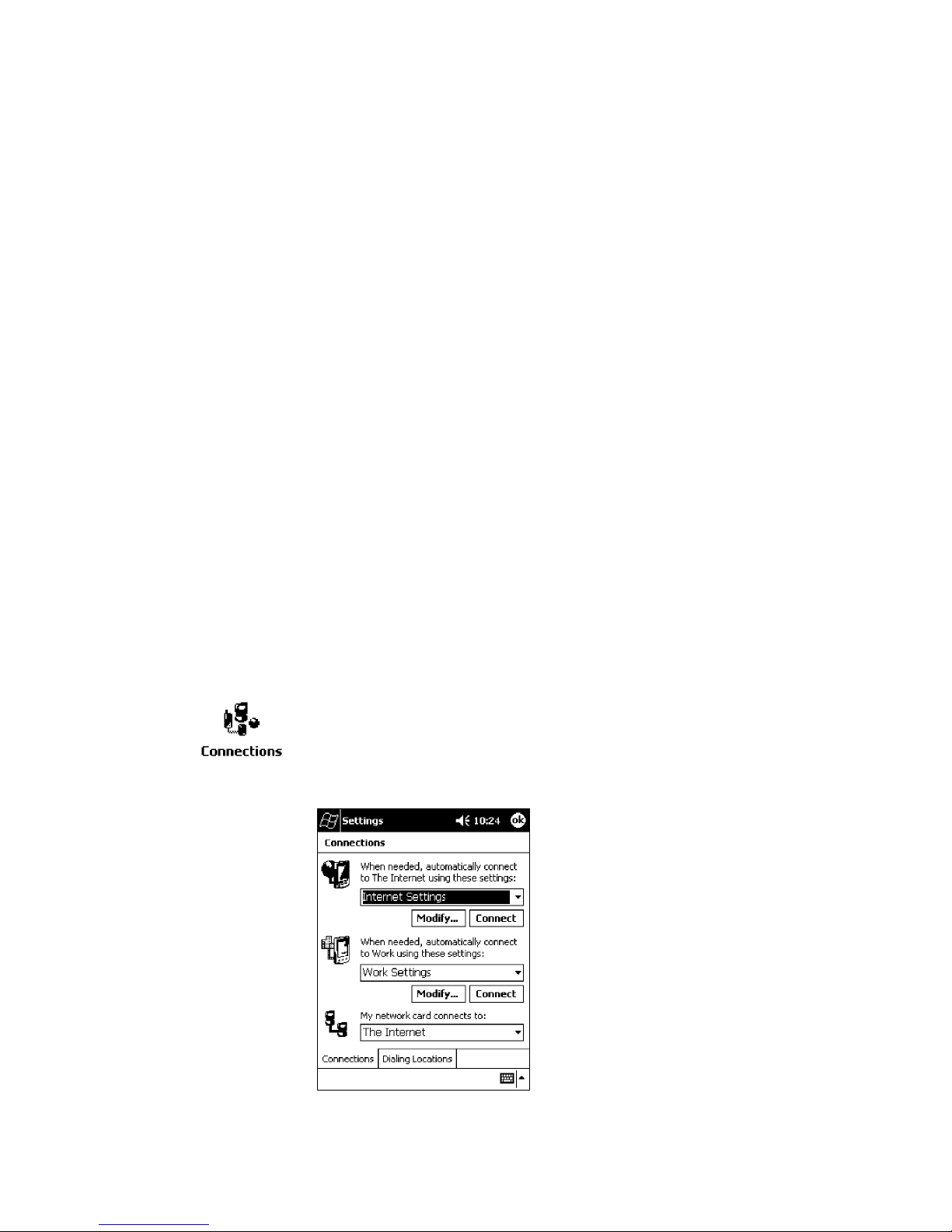

Connecting to an Internet Service Provider 74...................................

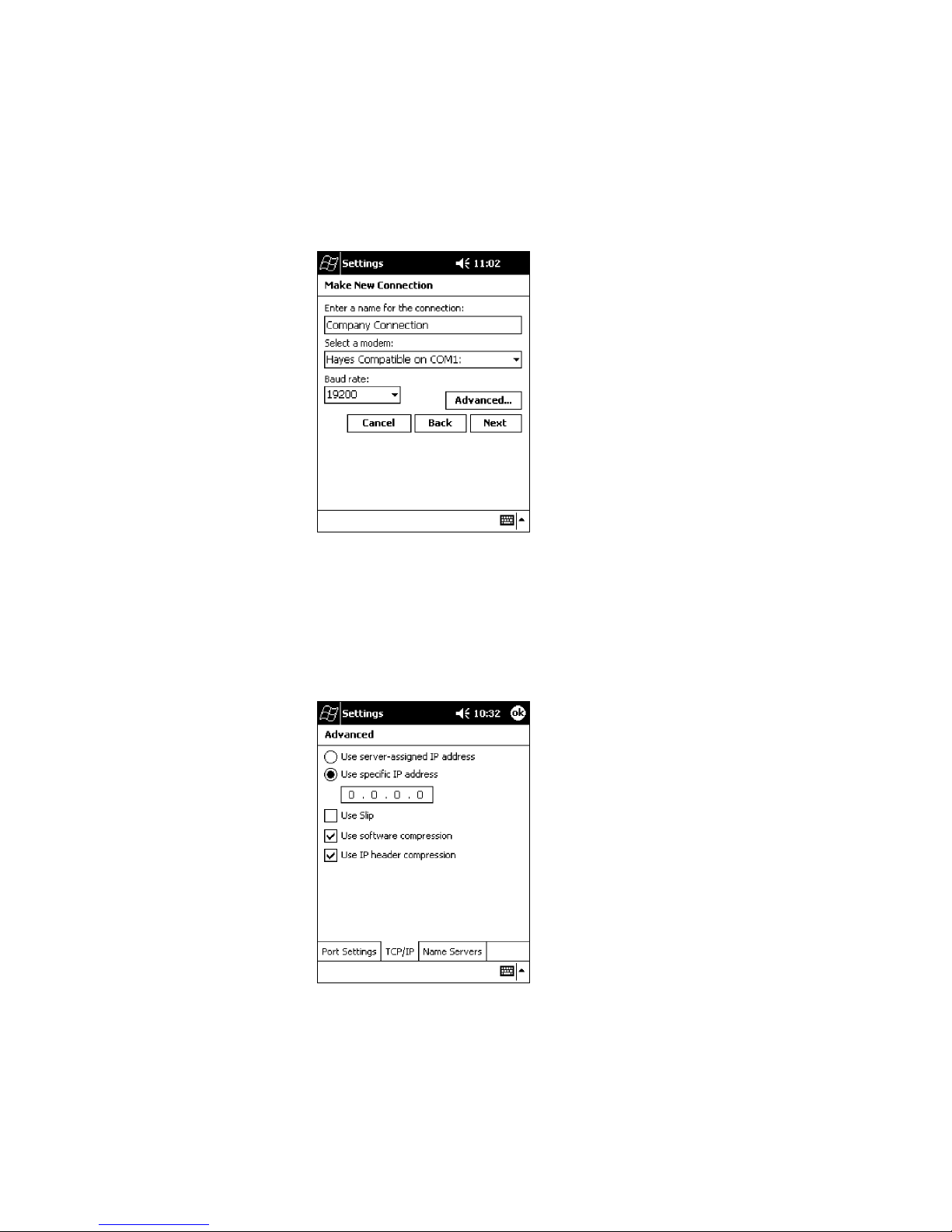

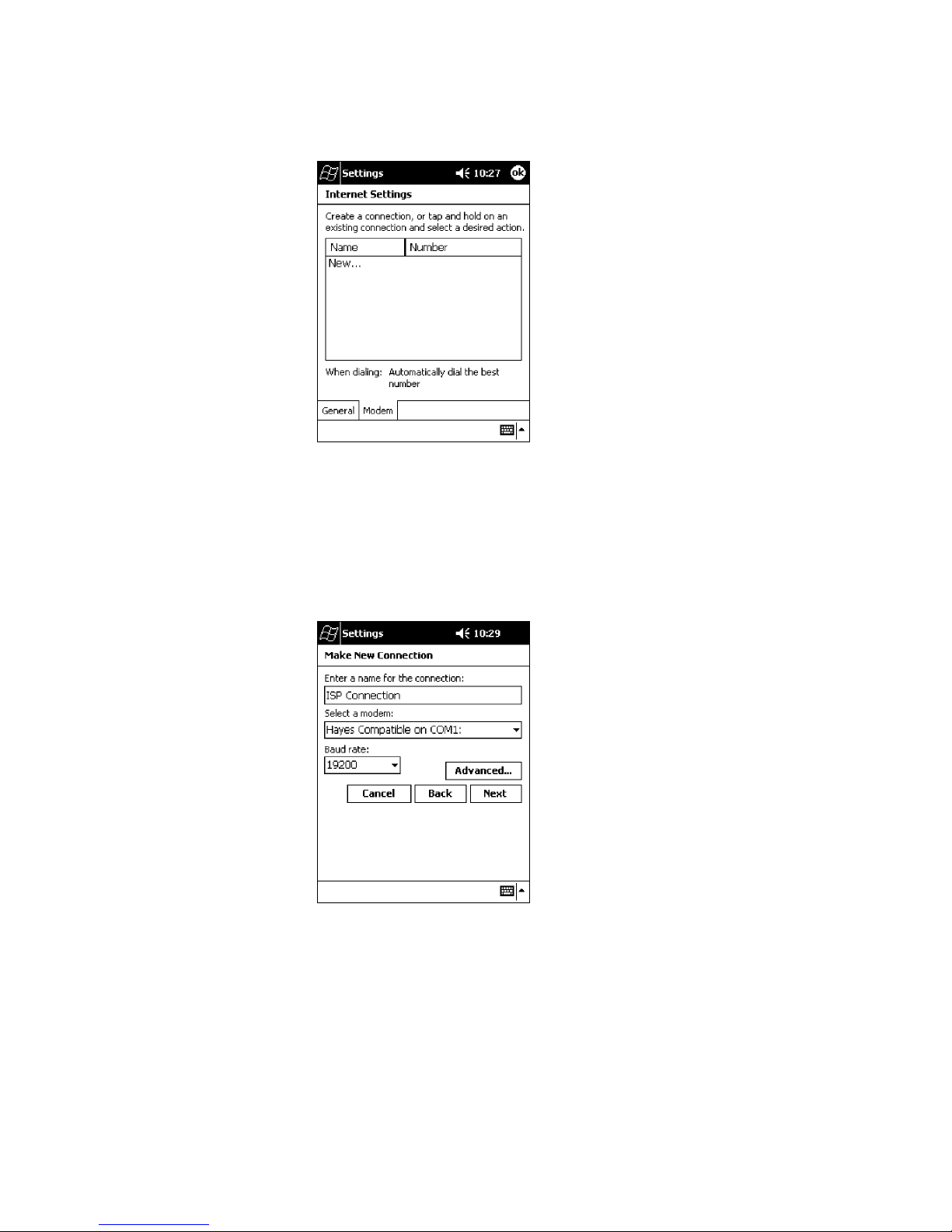

Creating a Modem Connection to an ISP 74.............................

Creating an Ethernet Connection to an ISP 78............................

Connecting to Work 79....................................................

Creating a Modem Connection to Work 79..............................

Creating an Ethernet Connection to Work 83............................

Ending a Connection 85...................................................

Connecting Directly to an E-mail Server 85.....................................

Setting Up an E-mail Service 86..............................................

Installing Applications 89...................................................

Packaging an Application 90.......................................................

4

Installing Applications 90.........................................................

Using Microsoft ActiveSync 91..............................................

Using the FTP Server 92...................................................

Using a Storage Card 92...................................................

Updating the System Software 93...................................................

Application Migration 93.........................................................

Migrating to a 700 Color Computer 95..............................................

Cabinet File Installation 95........................................................

Network Support 97.........................................................

CORE 98.....................................................................

Install an Available Radio Module 98..........................................

Loading a Radio Module 98.................................................

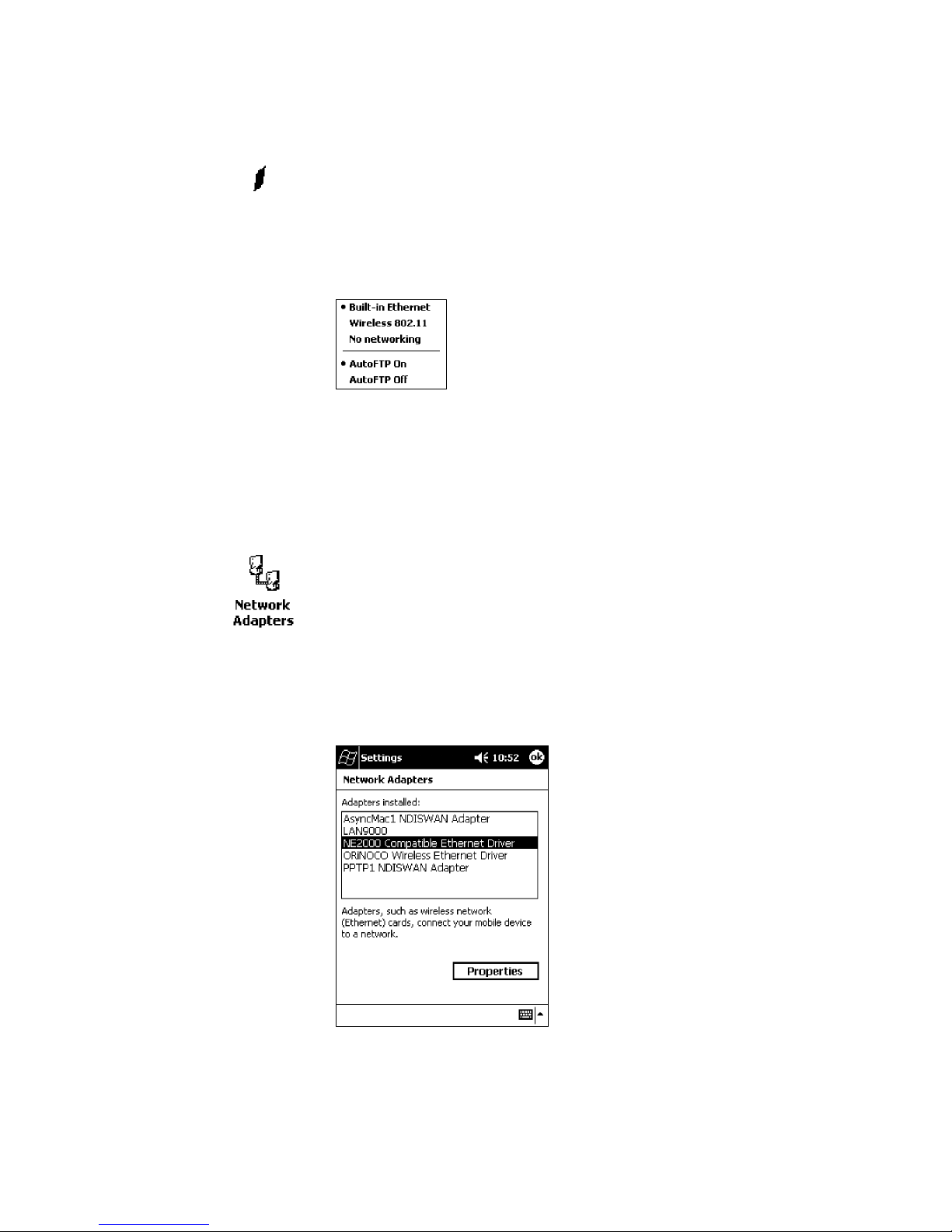

Network Adapters 99............................................................

Ethernet Communications 100..............................................

802.11b Communications 102..............................................

Network Selection APIs 102..........................................

802.11b Radio CORE Module 102....................................

vi 700 Series Monochrome Mobile Computer User’s Manual

Contents

WWAN Radio Options 106................................................

CDPD 107.......................................................

DataTAC and Mobitex 110..........................................

GPRS 113........................................................

GSM 117........................................................

AT Command Interface 121..........................................

Wireless Printing 125......................................................

Documentation 125................................................

700 Monochrome Computer Setup 126.................................

Bluetooth CORE Module (Bluealps) 129................................

AutoIP/DHCP 131..............................................................

SNMP Configuration on the 700 Series Computer 132..................................

Management Information Base 132...........................................

Object Identifiers 133.....................................................

Configuring with SNMP 133...............................................

Printer Support 135..........................................................

5

Printing ASCII 136..............................................................

Directly to a Port 136.....................................................

Directly to a Generic Serial Port 136..........................................

IrDA Printer Driver 136..........................................................

NPCP Printer Driver 137.........................................................

About NPCP 137........................................................

NPCP Driver Installation and Removal 137....................................

Opening the NPCP Driver 138..............................................

Closing the NPCP Driver 138...............................................

Reading from the NPCP Driver 138..........................................

Writing to the NPCP Driver 138.............................................

NPCP Driver I/O Controls 139..............................................

NPCP Printer Communications 140..........................................

Sample Code 140.........................................................

NPCP Error Codes 141....................................................

O’Neil Printer D river 142.........................................................

DTR Driver Installation and Removal 142.....................................

Opening the DTR Driver 143...............................................

Closing the DTR Driver 143................................................

Writing to the DTR Driver 143..............................................

DTR Printer Communications 143...........................................

vii700 Series Monochrome Mobile Computer User’s Manual

Contents

6

Scanner Support 145.........................................................

Scanner Control and Data Transfer 146..............................................

Automatic Data Collection COM Interfaces 147.......................................

Multiple ADC COM Object Support 147......................................

HowtoCreateandUsetheADCCOMInterfaces 148............................

Read-Ahead Bar Code Data Access 148.................................

Grid Data Filtering 149.............................................

Filter Expression Values 150..........................................

Editing Expression Values 151........................................

ADC Connection 153...............................................

Create and Delete ADC COM Object Functions 154.............................

ITCDeviceOpen 154...............................................

ITCDeviceClose 155................................................

IADC Functions 156......................................................

IADC::CancelReadRequest 157.......................................

IADC::Initialize 158................................................

IADC::QueryAttribute 159...........................................

IADC::QueryData 160..............................................

IADC::Read 161...................................................

IADC::SetAttribute 162.............................................

IBarCodeReaderControl Functions 164........................................

IBarCodeReaderControl::CancelReadRequest 165.........................

IBarCodeReaderControl::ControlLED 166...............................

IBarCodeReaderControl::Initialize 167..................................

IBarCodeReaderControl::IssueBeep 168.................................

IBarCodeReaderControl::QueryAttribute 169............................

IBarCodeReaderControl::Read 170.....................................

IBarCodeReaderControl::SetAttribute 172...............................

IBarCodeReaderControl::TriggerScanner 175.............................

IS9CConfig Functions 176.................................................

IS9CConfig::GetCodabar 177.........................................

IS9CConfig::SetCodabar 178.........................................

IS9CConfig::GetCode39 180.........................................

IS9CConfig::SetCode39 181..........................................

IS9CConfig::GetCode93 183.........................................

IS9CConfig::SetCode93 184..........................................

IS9CConfig::GetCode128 186........................................

IS9CConfig::SetCode128 187.........................................

IS9CConfig::GetI2of5 189...........................................

IS9CConfig::SetI2of5 190...........................................

IS9CConfig::GetMatrix2of5 192......................................

IS9CConfig::SetMatrix2of5 193.......................................

IS9CConfig::GetMSI 195............................................

IS9CConfig::SetMSI 196............................................

IS9CConfig::GetPDF417 198........................................

IS9CConfig::SetPDF417 200.........................................

IS9CConfig::GetPlessey 203..........................................

IS9CConfig::SetPlessey 204..........................................

IS9CConfig::GetStandard2of5 206.....................................

IS9CConfig::SetStandard2of5 207.....................................

viii 700 Series Monochrome Mobile Computer User’s Manual

Contents

IS9CConfig::GetTelepen 209.........................................

IS9CConfig::SetTelepen 210..........................................

IS9CConfig::GetUpcEan 212.........................................

IS9CConfig::SetUpcEan 214.........................................

IS9CConfig2 Functions 218................................................

IS9CConfig2::GetCode11 219........................................

IS9CConfig2::SetCode11 220.........................................

IS9CConfig2::GetCustomSymIds 222..................................

IS9CConfig2::SetCustomSymIds 223...................................

IS9CConfig2::GetGlobalAmble 226....................................

IS9CConfig2::SetGlobalAmble 227....................................

IS9CConfig2::GetPDF417Ext 229.....................................

IS9CConfig2::SetPDF417Ext 230.....................................

IS9CConfig2::GetSymIdXmit 232.....................................

IS9CConfig2::SetSymIdXmit 233......................................

IS9CConfig3 Functions 235................................................

ISCP Commands 235...............................................

ISCP::GetConfig 236...............................................

ISCP::SetConfig 237................................................

AIM Symbology ID Defaults 238............................................

7

Data Collection Configuration 240..................................................

Programming 241............................................................

Creating CAB Files 242..........................................................

Creating Device-Specific CAB Files 242.......................................

Creating an .INF File 242............................................

Sample .INF File 251...............................................

Using Installation Functions in SETUP.DLL 254................................

After the CAB File Extraction 254............................................

Creating CAB Files with CAB Wizard 255.....................................

Troubleshooting the CAB Wizard 256.........................................

FTP Server 257.................................................................

Configurable Parameters Via the Registry Editor 258.............................

BlockSize 258.....................................................

DeviceName 259..................................................

DeviceURL 259...................................................

IDNATarget 260..................................................

ManifestName 260.................................................

PauseAtStartup 261.................................................

Root 261.........................................................

Transferring Files Over TCP/IP Networks 262..................................

Stopping the FTP Server from Your Application 266..............................

Autostart FTP 266........................................................

Full Screen 268.................................................................

ix700 Series Monochrome Mobile Computer User’s Manual

Contents

Kernel I/O Controls 270..........................................................

IOCTL_HAL_GET_DEVICE_INFO 270.....................................

IOCTL_HAL_GET_DEVICEID 271........................................

IOCTL_HAL_GET_OAL_VERINFO 272....................................

IOCTL_HAL_GET_BOOTLOADER_VERINFO 273..........................

IOCTL_HAL_WARMBOOT 274...........................................

IOCTL_HAL_COLDBOOT 274............................................

IOCTL_HAL_GET_RESET_INFO 275......................................

IOCTL_HAL_GET_BOOT_DEVICE 276....................................

IOCTL_HAL_REBOOT 277...............................................

IOCTL_PROCESSOR_INFORMATION 278.................................

Network Selection APIs 279.......................................................

ActivateRadioProfile() 280..................................................

EncryptWEP_String() 281..................................................

GetNIC_NetworkConnectState() 282.........................................

GetNIC_SignalStrength() 282...............................................

GetRegistryChannelNumber() 283...........................................

GetRegistryInfrastructureMode() 283.........................................

GetRegistryNetworkName() 284.............................................

GetRegistryPowerMode() 284...............................................

GetRegistryProfileNumber() 285.............................................

GetRegistryWEP_Key() 285................................................

UpdateNIC_ApplyCommand() 286..........................................

UpdateNIC_ChannelNumber() 286..........................................

UpdateNIC_InfrastructureMode() 286........................................

UpdateNIC_NetworkName() 287............................................

UpdateNIC_PowerMode() 287..............................................

UpdateNIC_WEP_Key() 287...............................................

Reboot Functions 288............................................................

IOCTL_HAL_REBOOT 288...............................................

IOCTL_HAL_COLDBOOT 288............................................

IOCTL_HAL_WARMBOOT 288...........................................

Configurable Settings 289...................................................

A

Configuration Parameters 290......................................................

Changing a Parameter Setting 290............................................

About Configuration Parameters 291..........................................

x 700 Series Monochrome Mobile Computer User’s Manual

Contents

Data Collection Control Panel Applet 292............................................

Symbologies 292.........................................................

Code 39 293......................................................

Standard 2 of 5 294.................................................

Codabar 295......................................................

UPC/EAN 296....................................................

Code 93 297......................................................

Code 128 298.....................................................

Plessey 301.......................................................

MSI 302.........................................................

PDF417 303......................................................

Interleaved 2 of 5 306...............................................

Matrix 2 of 5 307..................................................

Telepen 308......................................................

Code 11 309......................................................

Symbology Options 310....................................................

Symbology ID 310.................................................

Prefix 315........................................................

Suffix 316........................................................

Virtual Wedge 317........................................................

Virtual Wedge 317.................................................

Preamble 318.....................................................

Postamble 319.....................................................

Grid 320.........................................................

Code Page 321....................................................

Beeper/LED 322.........................................................

Beeper Volume 322.................................................

Beeper Frequency 324...............................................

Good Read Beeps 325...............................................

Good Read Beep Duration 326........................................

SNMP Control Panel Applet 327...................................................

Security 328.............................................................

Read Only Community 328..........................................

Read/Write Community 329.........................................

Read Encryption 330...............................................

Write Encryption 331...............................................

Encryption Key 332................................................

Traps 333...............................................................

Authentication 333.................................................

Threshold 334.....................................................

Identification 335.........................................................

Contact 335......................................................

Name 336........................................................

Location 337......................................................

Unit Information Control Panel Applet 338...........................................

Versions 339............................................................

CAB Files 340...........................................................

Battery Status 342........................................................

xi700 Series Monochrome Mobile Computer User’s Manual

Contents

B

Wireless Network Control Panel Applet 343...........................................

Profiles (without Security Net Pack) 343.......................................

Profiles (with Security Network Package) 345...................................

Other Configurable Parameters 352.................................................

Audio Volume 352........................................................

Automatic Shutoff 352.....................................................

Backlight Timeout 353....................................................

Date/Time 353..........................................................

Key Clicks 353...........................................................

Reader Commands 354...........................................................

Change Configuration 354.................................................

Set Time and Date 355....................................................

Bar Codes 357................................................................

Bar Code Symbologies 358........................................................

UPC 360...............................................................

EAN 360...............................................................

Codabar 360............................................................

Code 11 361............................................................

Code 39 361............................................................

Encoded Code 39 (Concatenation) 361........................................

Encoded Code 39 (Full ASCII) 361...........................................

Code 93 362............................................................

Code 128 362...........................................................

I 2 of 5 (Interleaved) 364...................................................

S2of5(Standard2of5) 364...............................................

Plessey 365..............................................................

MSI Code (Variant of Plessey) 365...........................................

Bar Code Labels 366.............................................................

Audio Volume 366........................................................

Automatic Shutoff 367.....................................................

Backlight Timeout 367....................................................

Key Clicks 368...........................................................

Virtual Wedge Grid, Preamble, Postamble 369..................................

Grid 369.........................................................

Preamble 369.....................................................

Postamble 369.....................................................

Index

I

Classes and Functions 372........................................................

General Index 375...............................................................

Files Index 392.................................................................

xii 700 Series Monochrome Mobile Computer User’s Manual

Before You Begin

Safety Summary

Before You Begin

This section provides you with safety information, technical support
information, and sources for additional product information.

Your safety is extremely important. Read and follow all warnings and
cautions in this document before handling and operating Intermec
equipment. You can be seriously injured, and equipment and data can be
damaged if you do not follow the safety warnings and cautions.

Donotrepairoradjustalone

Do not repair or adjust energized equipment alone under any
circumstances. Someone capable of providing first aid must always be
present for your safety.

First aid

Always obtain first aid or medical attention immediately after an injury.
Never neglect an injury, no matter how slight it seems.

Resuscitation

Begin resuscitation immediately if someone is injured and stops breathing.
Any delay could result in death. To work on or near high voltage, you
should be familiar with approved industrial first aid methods.

Energized equipment

Never work on energized equipment unless authorized by a responsible
authority. Energized electrical equipment is dangerous. Electrical shock
from energized equipment can cause death. If you must perform
authorized emergency work on energized equipment, be sure that you
comply strictly with approved safety regulations.

xiii700 Series Monochrome Mobile Computer User’s Manual

Before You Begin

Safety Icons

This section explains how to identify and understand dangers, warnings,
cautions, and notes that are in this manual. You may also see icons that tell
you when to follow ESD procedures and when to take special precautions
for handling optical parts.

A warning alerts you of an operating procedure, practice, condition,
or statement that must be strictly observed to avoid death or serious
injury to the persons working on the equipment.

Avertissement: Un avertissement vous avertit d’une procédure de
fonctionnement, d’une méthode, d’un état ou d’un rapport qui doit
être strictement respecté pour éviter l’occurrence de mort ou de
blessures graves aux personnes manupulant l’équipement.

A caution alerts you to an operating procedure, practice, condition, or
statement that must be strictly observed to prevent equipment damage
or destruction, or corruption or loss of data.

Attention: Une précaution vous avertit d’une procédure de
fonctionnement, d’une méthode, d’un état ou d’un rapport qui doit
être strictement respecté pour empêcher l’endommagement ou la
destruction de l’équipement, ou l’altération ou la perte de données.

Note: Notes either provide extra information about a topic or contain
special instructions for handling a particular condition or set of
circumstances.

xiv 700 Series Monochrome Mobile Computer User’s Manual

Global Services and Support

Warranty Information

To understand the warranty for your Intermec product, visit the Intermec
web site at http://www.intermec.com, click Support, and then click
Warranty.

Disclaimer of warranties: The sample code included in this document is
presented for reference only. The code does not necessarily represent
complete, tested programs. The code is provided “as is with all faults.” All
warranties are expressly disclaimed, including the implied warranties of
merchantability and fitness for a particular purpose.

Web Support

Visit the Intermec web site at http://www.intermec.com to download
many of our current manuals in PDF format. To order printed versions of
the Intermec manuals, contact your local Intermec representative or
distributor.

Visit the Intermec technical knowledge base (Knowledge Central) at
http://intermec.custhelp.com to review technical information or to request
technical support for your Intermec product.

Before You Begin

Telephone Support

These services are available from Intermec Technologies Corporation.

Call 1-800-755-5505

Service Description

Factory Repair and
On-site Repair

Technical S u pport Get technical support on your

Service Contract
Status

Schedule Site
Surveys or
Installations

Ordering Products Talk to sales administration, place

Request a return authorization
number for authorized service center
repair, or request an on-site repair
technician.

Intermec product.

Inquire about an existing contract,
renew a contract, or ask invoicing
questions.

Schedule a site survey, or request a
product or system installation.

an order, or check the status of your
order.

and choose this option

1

2

3

4

5

xv700 Series Monochrome Mobile Computer User’s Manual

Before You Begin

Who Should Read this Manual?

This manual provides you with information about the features of the 700
Series Monochrome Mobile Computer and how to configure, trouble­shoot, and support it. You must be familiar with your host PC, your net­work, and your other Intermec equipment.

Related Documents

This table contains a list of related Intermec documents and their part
numbers.

Document Title Part Number

700 Series Monochrome Mobile Computer Quick Start Guide 962-054-061

700 Series Monochrome Software Tools CD Professional Edition 235-078-001 (Kit)

700 Series Monochrome S oftware Tools CD Premium Edition 235-079-001 (Kit)

The Intermec web site at http://www.intermec.com contains many of our
documents that you can download in PDF format.

To order printed versions of the Intermec manuals, contact your local
Intermec representative or distributor.

xvi 700 Series Monochrome Mobile Computer User’s Manual

Introduction

1

This chapter introduces the 700 Series Monochrome Mobile Computer,
developed by Intermec Technologies Corporation to enhance wireless con­nectivity needs.

This chapter contains hardware and software configuration information to
assist you in making the most out of your 700 Monochrome Computer.
The components include:

S Audio system, including the speaker, the internal microphone, and the

external head jack (page 2)

S Battery (page 3)

S Beeper (page 5)

S Key sequences (page 8)

S Modem support (page 10)

S Network support (page 10)

S Removeable card support (page 10)

S Software build ver sion (page 11)

Note: Desktop icons and control panel applet icons are shown to the left.

1700 Series Monochrome Mobile Computer User’s Manual

IntroductionChapter —1

Audio System

Speaker

The audio system consists of the speaker and the external headset jack.

A speaker capable of v ariable volume levels is located on the back of the
computer. This speaker has a transducer volume of 85 dB min at 10 CM
and a frequency range of 1-8 KHz.

This is the back of t he 700 Monochrome C omputer. The speaker c an be hidden by your handstrap.
To see the speaker, unhook the handstrap fromthe bottom, then lift the strap. See the 700 Series
Monochrome Mobile Computer Quick Start Guide (P/N: 962-054-061) for information on this
handstrap.

External Headset Jack

The external headset jack connects a mobile phone style headset to you r
mobile computer for use in noisy environments. The jack is a 2.5 mm,
three-conductor jack, with autosensing of the headset jack insertion which
disables the internal speaker and microphone. The external headset jack is
located on the bottom of the mobile computer next to the Hirose docking
connector.

Speaker

This is the bottom end of the 700Monochrome Computer. The keypad is to the top in this
illustration.

2 700 Series Monochrome Mobile Computer User’s Manual

Headset jack

Battery

Introduction—Chapter 1

The 700 Series Computer comes equipped with a nominal 7.2 Watt-hour,

3.6V (one 2000 mAh cell), replaceable Lithium-Ion (LiIon) battery. To
view the status of this battery from the 700 Series Computer, tap Start →
Settings → the System tab → the Power icon to view the current status of
both the main battery and the backup battery. Tap ok to exit this informa­tion.

Note:TheUnit Information control panel applet is only available in the
700 Monochrome Computer if the ISCPDATACOLLECTION.CAB f ile
is installed.

You can also view the battery status for the 700 Series Computer by
accessing the Unit Information control panel applet. Tap Start → Settings
→ the System tab → the Unit Information icon → the Battery Status tab
to view the current status. Tap ok to exit this information.

3700 Series Monochrome Mobile Computer User’s Manual

IntroductionChapter —1

If your computer shuts down because of low battery conditions, your com­puter will not operate. This is done to ensure that data is protected. Al­though the battery will protect the data against loss for several hours, you
should connect your computer to a power source when you first detect a
low battery condition.

Your computer contains an internal super capacitor, a temporary power
storage device, that protects data for about one minute. This is to give you
time to replace the main battery pack before that data is lost. Be sure to put

the computer in a suspend mode before doing so.

If you have at least one device in your 700 Series Computer (radio, scan­ner, imager, Ethernet), the battery power fail level is set so that after the
system shuts down in a low battery condition, there is still sufficient charge
to allow the unit to remain configured, keep proper time, and maintain
DRAM (Dynamic Random Access Memory) for at least four hours at
room temperature if the main battery remains in the mobile computer.
The configuration and time are lost if:

S The battery discharges beyond this level.

S The battery is removed when the computer is not in suspend mode.

S A cold reset is performed on the computer.

4 700 Series Monochrome Mobile Computer User’s Manual

Beeper

Enable the Beeper

Introduction—Chapter 1

Note: Each time the 700 Computer is cold-booted, all default settings are
restored.

If the beeper is disabled on your 700 Monochrome Computer, do the fol­lowing instructions to enable the beeper. If you are not able to enable the
beeper, then contact Customer Support.

For information about setting volume levels for screen taps, ActiveSync
alert noises, etc., tap Start → Help → Pocket PC Basics, then select

Notifications.

Do the following to enable the beeper:

1 Tap Start → Settings → the Personal tab → the Sounds & Notifica-

tions icon → the Volume tab.

2 Drag the System volume slider bar to the right off the “Silent” position.

3 Tap ok to exit this applet.

5700 Series Monochrome Mobile Computer User’s Manual

IntroductionChapter —1

Select a Beeper Volume

700 Computers built with a laser scanner have three options: Off, High,
or Medium. See Appendix A, “Configurable Settings,” for more informa­tion about the Beeper Volume option.

Do the following to select a beeper volume:

1 Tap Start → Settings → the System tab → the Data Collection icon to

2 Use the right and left arrows to scroll to the Beeper/LED tab, then tap

3 Tap Beeper Volume, select an option, then tap Apply to change the set-

4 Tap ok to confirm this change, then tap ok to exit the Data Collection

access its control panel applet.

this tab.

ting.

control panel applet.

6 700 Series Monochrome Mobile Computer User’s Manual

Disable the Beeper

Introduction—Chapter 1

Do the following to disable the beeper:

1 Tap Start → Settings → the Personal tab → Sounds & Notifications

→ the Volume tab.

2 Drag the System volume slider bar completely to the left to the “Silent”

position.

3 Tap ok to exit this applet.

7700 Series Monochrome Mobile Computer User’s Manual

IntroductionChapter —1

Key Sequences

Gold Plane Keys

Use the following key sequences to enter characters into your 700 Mono­chrome Computer.

The [Gold] b plane key provide you access to display controls, special
characters, and Pocket PC options.

Press the [Gold] b key for each gold plane key stroke you wish to make.
For example to turn on the front light, press and hold the [Gold] b key
plus the 3 key. To turn the front light off press [Gold] b3again.

The following table lists sequences that use the [Gold] plane key. See
Chapter 2, “Pocket PC 2002,” for information about the Pocket PC ap­plications.

Gold Plane Key Sequences

Press the Keys To Do This

[Gold] bc
[Gold] bd
[Gold] b3
[Gold] ba
[Gold] b4
[Gold] b5
[Gold] b6
[Gold] b7
[Gold] b8
[Gold] b9
[Gold] b0
[Gold] be
[Gold] bK
[Gold] bE
[Gold] bA
[Gold] bR
[Gold] bL

Decrease the display screen contrast (Darker)

Increase the display screen contrast (Lighter)

Toggle the backlight on or off

Access the Pocket PC Notes application

Access the Pocket PC Calendar application

Access the Pocket PC Contacts application

Access the Pocket PC Tasks application

Move up one page.

Enter an asterisk (*).

Move down one page.

Access the Pocket PC S tart menu.

Enter an at symbol (@).

Enter a backslash (/).

Enter a minus sign (–).

Enter a plus sign (+).

Move to the right.

Move to the left.

8 700 Series Monochrome Mobile Computer User’s Manual

Introduction—Chapter 1

Alpha (Blue) Plane Keys

The Alpha (Blue) F plane keys work a bit differently than the Gold
plane keys. When you press F, the Scanning/Alpha LED (C)lights
‘red’ to indicate Alpha mode. The keypad stays in the Alpha mode until
you press F again.

If you want to type a lowercase ‘c,’ press F222(the [2]
key three times). If you need a letter that is on the same key as the last let­ter entered, wait two seconds after you pressed the last key then you can
enter the correct series of keystrokes to create the next letter.

Also, while you are in the Alpha mode and you press 1 to initiate the
CAPS mode, you will render a CAPS LOCK until you press 1 again.
Once you are in CAPS mode, you stay in CAPS until it is pressed again.
Press 0 to enter a space.

Alpha (Blue) Plane Key Sequences

To Enter Press the Keys To Enter Press the Keys

a

b F22 B F122

c F222 C F1222

d F3 D F13

e F33 E F133

f F333 F F1333

g F4 G F14

h F44 H F144

i F444 I F1444

j F5 J F15

k F55 K F155

l F555 L F1555

m F6 M F16

n F66 N F166

o F666 O F1666

p F7 P F17

q F77 Q F177

r F777 R F1777

s F7777 S F17777

t F8 T F18

u F88 U F188

v F888 V F1888

w F9 W F19

x F99 X F199

y F999 Y F1999

z F9999 Z F19999

F2

A F12

9700 Series Monochrome Mobile Computer User’s Manual

IntroductionChapter —1

Modem Support

Storage Media

The 700 Series Computer has the following modem options:

S Modem dock that provides charging and includes a built-in modem and

a serial port between which an application can switch.

S Mini-Landline modem that can be tethered to the port on the bottom

of the 700 Monochrome Computer.

Note: MultiMediaCards (MMCs) and Secure Digital (SD) storage cards
are not supported in 700 Monochrome Computers.

To access the CompactFlash (CF) card slot, locate the access door at the
top of the 700 Series Computer, remove its two screws, then remove the
door. See the 700 Series Monochrome Mobile Computer Quick Start Guide
P/N: 962-054-061 for more information.

The CF card slot accepts a storage card or the 802.11b radio, which is fac­tory-installed and cannot be removed.

This is the top of the 700 Monochrome Computer. Note that the keypad is to the top in this
illustration.

Wireless Network Support

Radios are installed at the factory and cannot be installed by a user. The
700 Series Computer must be serviced to install or replace a radio. Contact
your Intermec representative for more information. See Chapter 4, “Net-
work Support” for information about supported radios.

CompactFlash
card slot

10 700 Series Monochrome Mobile Computer User’s Manual

Software Build Version

To check to see if your 700 Series Computer has the latest build, select
Start → Internet Explorer → the Intermec logo.

The latest software build version is displayed beneath the Version Infor-
mation title. This information would be useful should you need assistance.

Introduction—Chapter 1

You can also view the latest software build by accessing the Unit Informa­tion control panel applet. Select Start → Settings → the System tab →

the Unit Information icon → the Versions tab to view the current build
version.

Note:TheUnit Information control panel applet is only available in the
700 Monochrome Computer if the ISCPDATACOLLECTION.CAB f ile
is installed.

11700 Series Monochrome Mobile Computer User’s Manual

IntroductionChapter —1

Accessories

The following accessories are available for the 700 Series Computer. Note
that this is not a complete list. Contact your Intermec representative for
information about these and other accessories that are not in this list.

Intermec

Accessory Descriptions

ACPowerCord3-prong,U.S.(contact your representative for cords available for outside the U.S.) 321-054-001

Battery Pack 318-011-002

Battery Charger 852-054-001

Holster with Scan Handle 815-046-002

Holster without Scan Handle 815-046-001

Multidock (holds four 700 Series Computers) 225-682-002

RS-232 Data Cable, Hirose to DB9M, 4.0 ft (1.22 m) 226-435-001

RS-232 Data Cable, Hirose to DB9M, 6.0 ft (1.83 m) 226-435-002

Single Dock 225-681-001

Single Dock Cable, RS-232, DB9F to DB25M, 6.0 ft (1.83 m) 226-084-001

Single Dock Null Modem Cable, DB9F to DB9F with T-screws 321-563-001

Single Dock Universal AC Adapter 851-061-001

Storage Media — CompactFlash storage cards (16MB, 32MB, 64MB, 128MB) 856-028-XXX

Vehicle Dock with charge, one RS-232 serial (DB9M) port and power connection 225-680-001

Vehicle Dock Cable (use wi th P/N: 203-414-001) 226-109-001

Vehicle Cradle (requires appropriate mounting hardware) 225-680-101

Part Number

12 700 Series Monochrome Mobile Computer User’s Manual

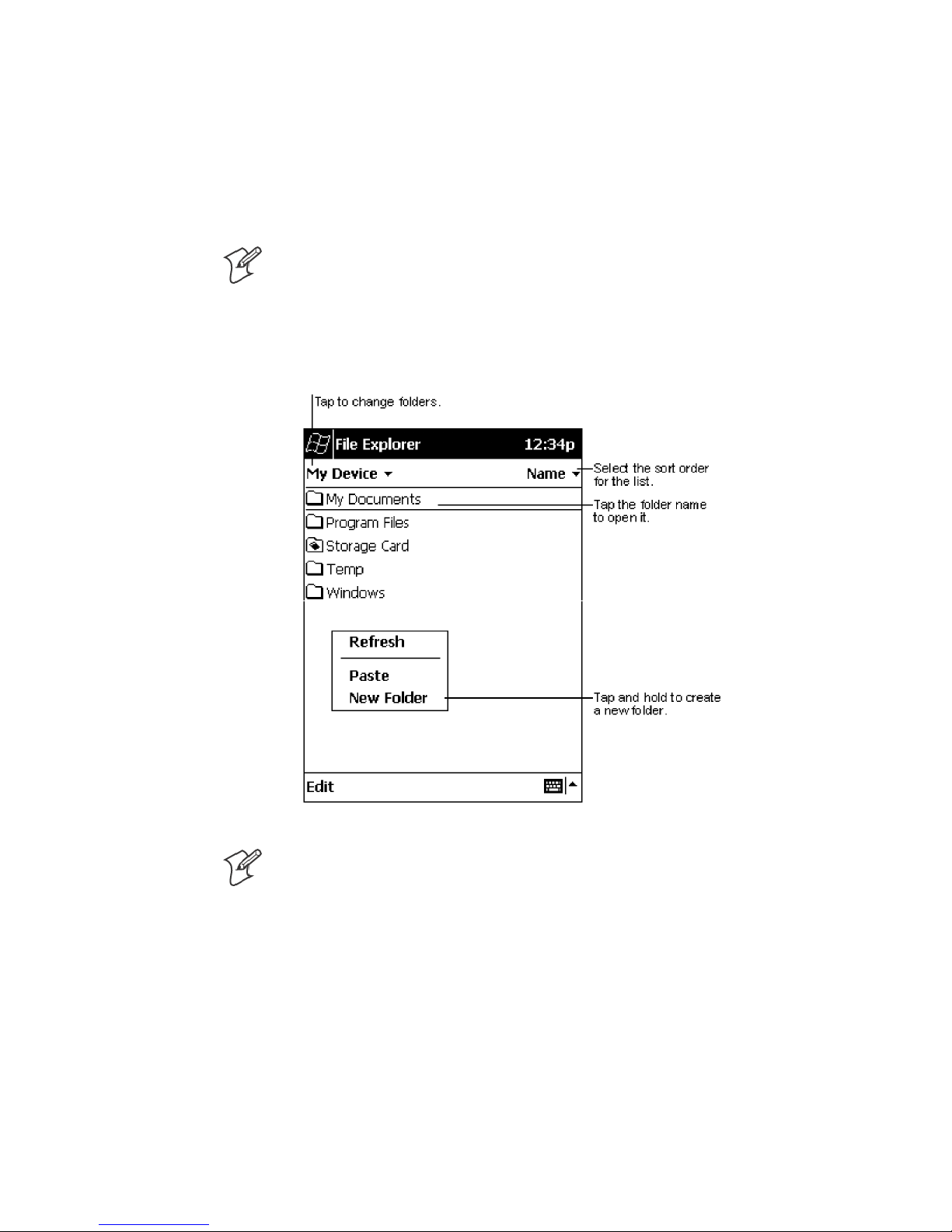

Pocket PC 2002

2

This chapter introduces the Pocket PC 2002 operating system from
Microsoft Corporation.

13700 Series Monochrome Mobile Computer User’s Manual

Pocket PC 2002Chapter —2

Introduction
