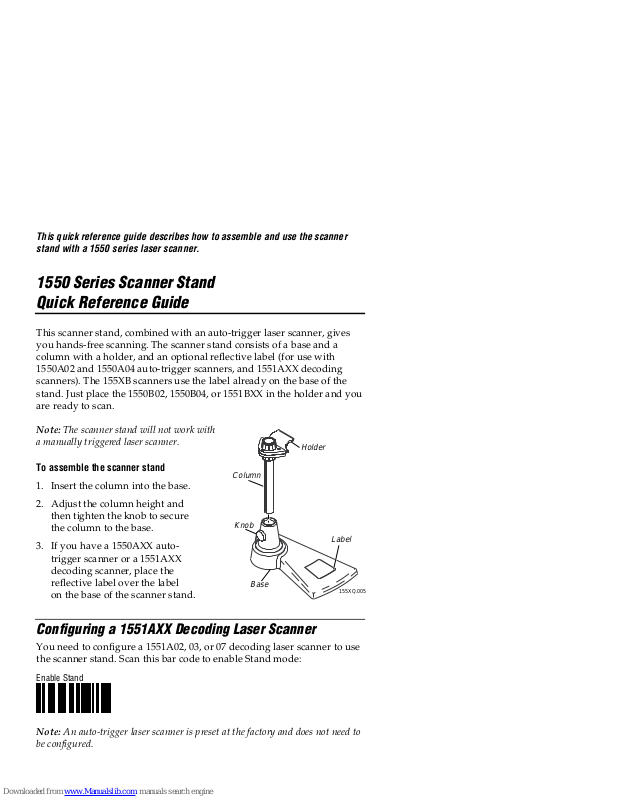

This quick reference guide describes how to assemble and use the scanner
stand with a 1550 series laser scanner.
1550 Series Scanner Stand
Quick Reference Guide
This scanner stand, combined with an auto-trigger laser scanner, gives
you hands-free scanning. The scanner stand consists of a base and a
column with a holder, and an optional reflective label (for use with
1550A02 and 1550A04 auto-trigger scanners, and 1551AXX decoding
scanners). The 155XB scanners use the label already on the base of the
stand. Just place the 1550B02, 1550B04, or 1551BXX in the holder and you
are ready to scan.
Note: The scanner stand will not work with
a manually triggered laser scanner.
Holder
To assemble the scanner stand
1. Insert the column into the base.
2. Adjust the column height and
then tighten the knob to secure
the column to the base.
3. If you have a 1550AXX autotrigger scanner or a 1551AXX
decoding scanner, place the
reflective label over the label
on the base of the scanner stand.
Column
Knob
Base
Label
155XQ.005
Configuring a 1551AXX Decoding Laser Scanner
You need to configure a 1551A02, 03, or 07 decoding laser scanner to use
the scanner stand. Scan this bar code to enable Stand mode:
Enable Stand
Note: An auto-trigger laser scanner is preset at the factory and does not need to
be configured.

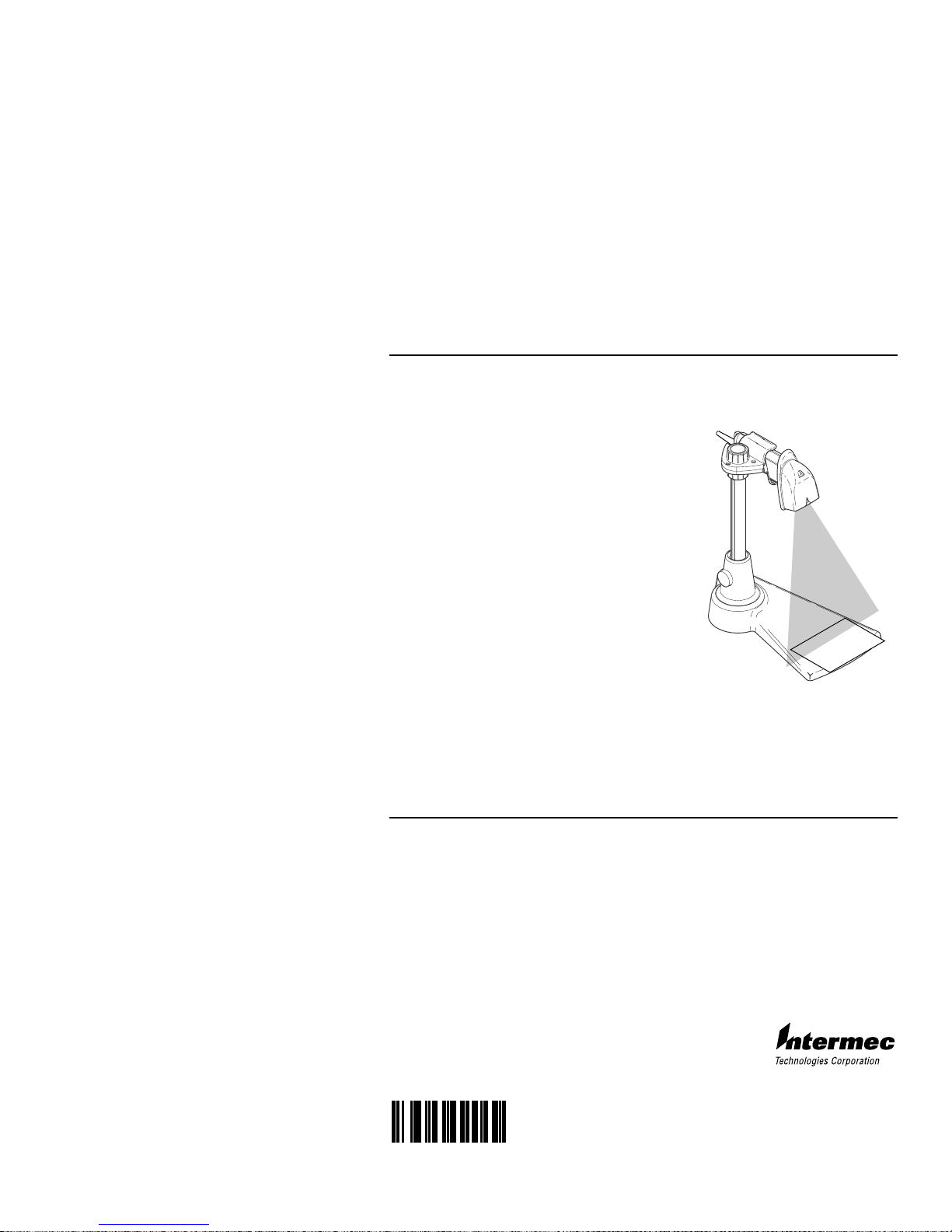

Inserting the Scanner and Scanning Hands-Free
1. Place the scanner handle on the
bottom ledge of the holder and
then rotate the handle into the
holder until it snaps into place.
2. Align the scanner and adjust the
column height so that the
scanner’s pulsating laser beam
covers the entire label on the base
of the stand.
Note: The 1550A02, 04 and
1551AXX scanners must use the
reflective label. Place the reflective
label that was shipped with the
scanner stand over the label on the
base of the stand.
3. To scan a bar code label, place the bar code right-side up over the
label on the base of the stand.
When the terminal or scanner beeps, the bar code has been read.
*HI*
155XQ.004
Hand-Held Scanning
If you remove the scanner from the stand, it will immediately reset to
hand-held scanning. When you return the scanner to the stand, it will
resume a pulsating laser beam and scan bar codes placed over the label
on the base of the stand.
If you use a 1551AXX decoding laser scanner for extended hand-held
scanning, disable Stand mode to conserve power.
To disable Stand mode
If you have a 1551AXX decoding laser scanner,
scan this bar code:
Disable Stand
6001 36th Avenue West
P.O. Box 4280
Everett, WA 98203-9280
© 1998 Intermec
All Rights Reserved
P/N 063792-003
