Intermec 1550 Quick Reference Manual

P/N 065548-003

1550 Laser Scanner

Quick

Reference

Guide

Intermec Technologies Corporation
6001 36th Avenue West
P.O. Box 4280
Everett, WA 98203-9280

U.S. service and technical support: 1-800-755-5505
U.S. media supplies ordering information: 1-800-227-9947

Canadian service and technical support: 1-800-688-7043
Canadian media supplies ordering information: 1-800-268-6936

Outside U.S. and Canada: Contact your local Intermec service
supplier.

The information contained herein is proprietary and is provided
solely for the purpose of allowing customers to operate and/or
service Intermec manufactured equipment and is not to be
released, reproduced, or used for any other purpose without the
written permission of Intermec.

Information and specifications in this manual are subject to
change without notice.

 1998 by Intermec Technologies Corporation
All Rights Reserved

The word Intermec, the Intermec logo, JANUS, IRL, TRAKKER,
Antares, Adara, Duratherm, EZBuilder, Precision Print,
PrintSet, Virtual Wedge, and CrossBar are either trademarks or
registered trademarks of Intermec Technologies Corporation.

Throughout this manual, trademarked names may be used.
Rather than put a trademark ( or ) symbol in every
occurrence of a trademarked name, we state that we are using
the names only in an editorial fashion, and to the benefit of the
trademark owner, with no intention of infringement.

Contents

Overview of the 1550 Laser Scanner 1

Unpacking the 1550 Laser Scanner 2

Understanding the 1550 Features 3

Connecting to an Intermec Product 4

Operating the 1550 Laser Scanner 7

Troubleshooting the 1550 Laser Scanner 10

Maintaining the 1550 Laser Scanner 11

Accessories 12

Regulatory Statements for Canada and

the United States 13

Light 3
Electrical Rating 3

Scanning Tips 7
Hands-Free Scanning 9

Industry Canada Compliance 13
Federal Communications Commission

Compliance 13
Laser Compliance and Precaution 14
Nonincendive Information for Canada and the US 15

Regulatory Statements For Users Outside of Canada and

the United States 17

European Union Compliance 17
Agency Approvals 17
Additional EMI/RFI Compliance 17
Laser Compliance and Precaution 17

Patents 19

iii

Code 39 Nugget

D>JI

This quick reference guide provides basic operating procedures and
safety instructions. Keep this guide near your scanner for reference.

Overview of the 1550 Laser Scanner

The Intermec 1550 laser scanner delivers quick, effortless bar
code scanning. These colors and configurations are available:

Model Color and Configuration

1550B0100 Blue with Intermec interface and standard

optics.

1550B0102 Blue with Intermec interface and long-range

optics.

1550B0104 Blue with Intermec interface and high-visibility

optics.

1550B0105 Blue with Intermec interface and high density

optics.

1550B0200 Blue with Intermec interface, standard optics,

and configured for auto-trigger mode.

1550B0300 Light gray with Intermec interface and

standard optics.

1550B0400 Light gray with Intermec interface, standard

optics, and configured for auto-trigger mode.

1

Colors and Configurations (continued)

Model Color and Configuration

1550B0500 Blue with other manufacturer’s interface and

standard optics.

1550B0502 Blue with other manufacturer’s interface and

long-range optics.

1550B0504 Blue with other manufacturer’s interface and

high-visibility optics.

1550B0505 Blue with other manufacturer’s interface and

high-density optics.

1550B5100 Blue with Intermec interface, standard optics,

and a nonincendive certification for use with
Intermec models J2010NI and JG2010NI.

Unpacking the 1550 Laser Scanner

Your 1550 laser scanner was thoroughly tested and inspected
before it was shipped from the factory. The shipping box
contains the laser scanner and this guide.

Note: You must order the appropriate interface cables separately. See
“Connecting to an Intermec Product” later in this document.

If any of these items are missing or damaged, please contact
your local Intermec representative. Retain the shipping box in
case you need to return the scanner for service.

2

Code 39 Nugget

D>JI

Understanding the 1550 Features

The 1550 laser scanner is easy to install and operate. Please
acquaint yourself with the important parts of the scanner before
continuing.

Light

Scan
window

Trigger

155XQG.001

Cable

Light

The light indicates the status of the scanner.

Color Description

Yellow The device is scanning.
Green The bar code has been successfully scanned.
None The device is not scanning.

Electrical Rating

The 1550B01XX, 02XX, 03XX, 04XX, and 51XX laser scanner
electrical ratings are

The 1550B05XX laser scanner electrical rating is R 4,5 to 12,0V;
125 mA.

R 4,5 to 5,5V; 125 mA.

3

Connecting to an Intermec Product

You can connect the 1550 laser scanner to these Intermec
products:

• 9450 RF Vehicle-Mount Terminals

• 95XX Network Terminals

• 97XX Wedge Readers

• JANUS™ 2010 Hand-Held Computers (J2010 and JG2010)

• JANUS™ 2050 Vehicle-Mount Computers (J2050 and

JG2050)

• TRAKKER® Antares™ 242X Terminals (T242X)

• TRAKKER® 944X Portable Terminals

• TRAKKER® 9465 RF Portable Terminals

You must purchase an interface cable to connect the scanner to a
reader/terminal. Use this table to determine the cable to order:

Reader/Terminal Length Cable Connector P/N

944X 6 ft (1.83m) 6 Pin Modular, Blue Cap 063694
95XX 6 ft (1.83m) 9 Pin D-Sub, Blue Cap 063698
95XX 25 ft (7.63m) 9 Pin D-Sub, Blue Cap 064045
946X, 9450 6 ft (1.83m) 11 Pin Sealed, Blue Cap 063697
946X, 9450 25 ft (7.63m) 11 Pin Sealed, Blue Cap 064047
97XX, J2010,

JG2010, T242X
97XX, J2010,

JG2010, T242X
97XX, J2010,

JG2010, T242X
97XX, J2010,

JG2010, T242X
97XX, J2010,

JG2010, T242X

6 ft (1.83m) 10 Pin Modular, Blue Cap 063695

15 ft (4.57m) 10 Pin Modular, Blue Cap 065601

25 ft (7.63m) 10 Pin Modular, Blue Cap 064044

6 ft (1.83m) 10 Pin Modular, Gray Cap 064029

25 ft (7.63m) 10 Pin Modular, Gray Cap 064043

4

Code 39

Nugget

D>JI

Cable Connectors (continued)

Reader/Terminal Length Cable Connector P/N

J2050, JG2050 6 ft (1.83m) 11-Pin Sealed, Blue Cap 064051
J2050, JG2050 25 ft (7.63m) 11-Pin Sealed, Blue Cap 064052
MaxiLAN CX,

MaxiLAN DX,
MicroBAR NX,
MaxiBAR, and
other
manufacturer
reader/terminal

MaxiLAN CX,
MaxiLAN DX,
MicroBAR NX,
MaxiBAR, and
other
manufacturer
reader/terminal

6 ft (1.83m) 9 Pin Squeeze D-Sub,

Blue Cap

25 ft (7.63m) 9 Pin Squeeze D-Sub,

Blue Cap

063696

064046

5

To connect the scanner to a reader/terminal

1. Turn off the reader/terminal.

2. Connect the modular plug on the interface cable into the
bottom of the scanner handle.

3. Tighten the screw using a medium-sized, straight-slot
screwdriver to secure the plug in the scanner handle.

4. Connect the other end of the cable to the reader/terminal.

Note: The cable connector plug for the reader/terminal will vary
according to the cable you ordered.

Scanner
handle

Modular
plug

Screw

Interface
cable

155XQG.002

See “Operating the 1550 Laser Scanner” in the next section to
learn basic scanning operation, scanning tips, and how to scan
hands-free using the scanner stand.

6

Code 39

Nugget

D>JI

Operating the 1550 Laser Scanner

Before you start scanning, make sure the power to the
reader/terminal is on and all cable connections are secure.

1. Aim the scanner at a slight angle or pitch to the bar code and
press the trigger. To help you center the laser beam on the
correct bar code, the scanners with long-range or
high-visibility optics have a marker beam that will appear
when you pull the trigger.

2. When you get a successful read the laser beam turns off, the
scanner beeps once, and the light turns green.

Scanning Tips

Adjust the scanner distance to the bar code and the position of
the laser beam to make sure every bar and space is scanned.

*HI* *HI*

INCORRECT CORRECT

155XQG.006

7

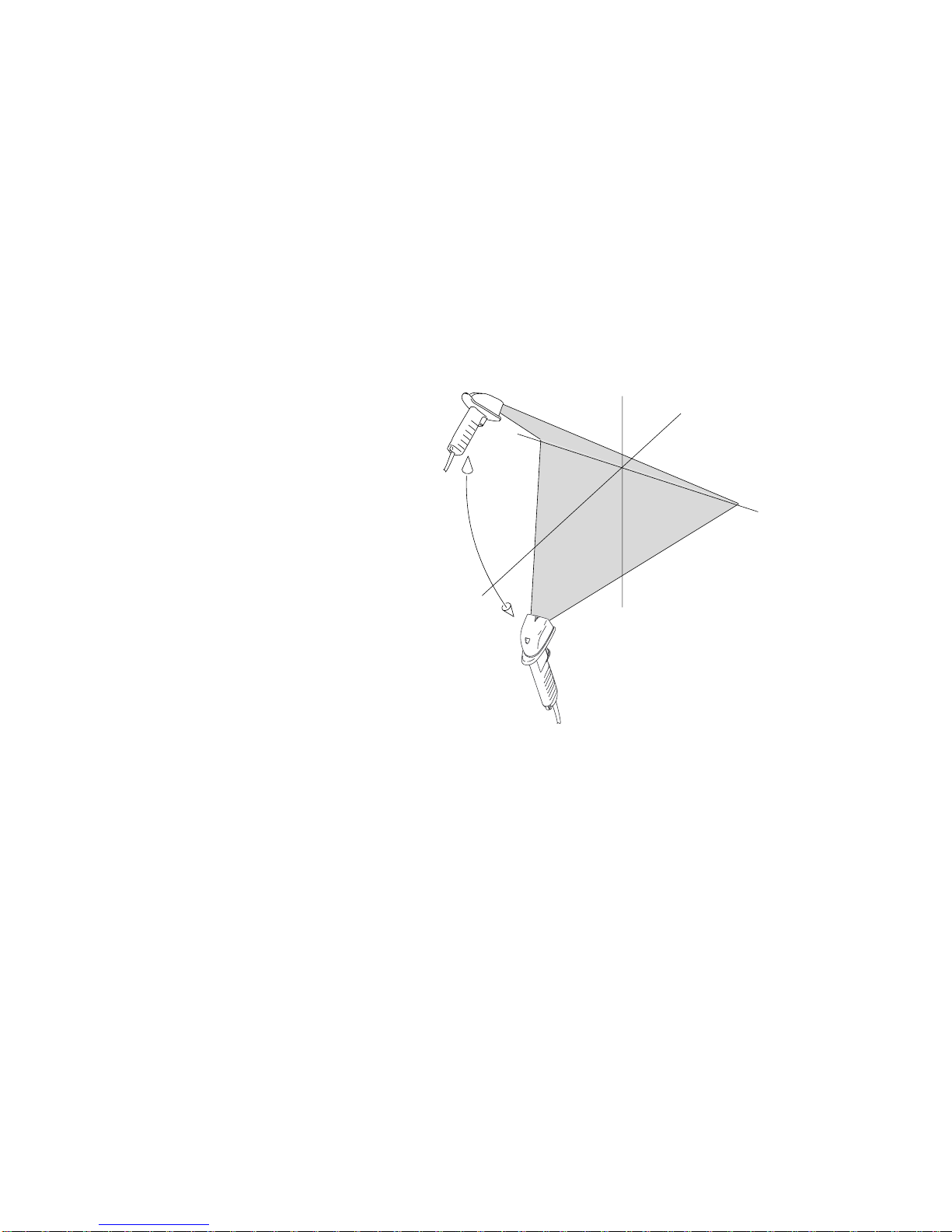

Hold the scanner at a slight angle or pitch to the bar code. The
laser beam will quickly read the bar code.

*123*

Vertical
reading
angles (pitch)

155XQG.003

For scanners with long-range or high-visibility optics, use the
marker beam to center the scanner’s laser beam on the bar code
you want to scan.

8

Code 39

Nugget

D>JI

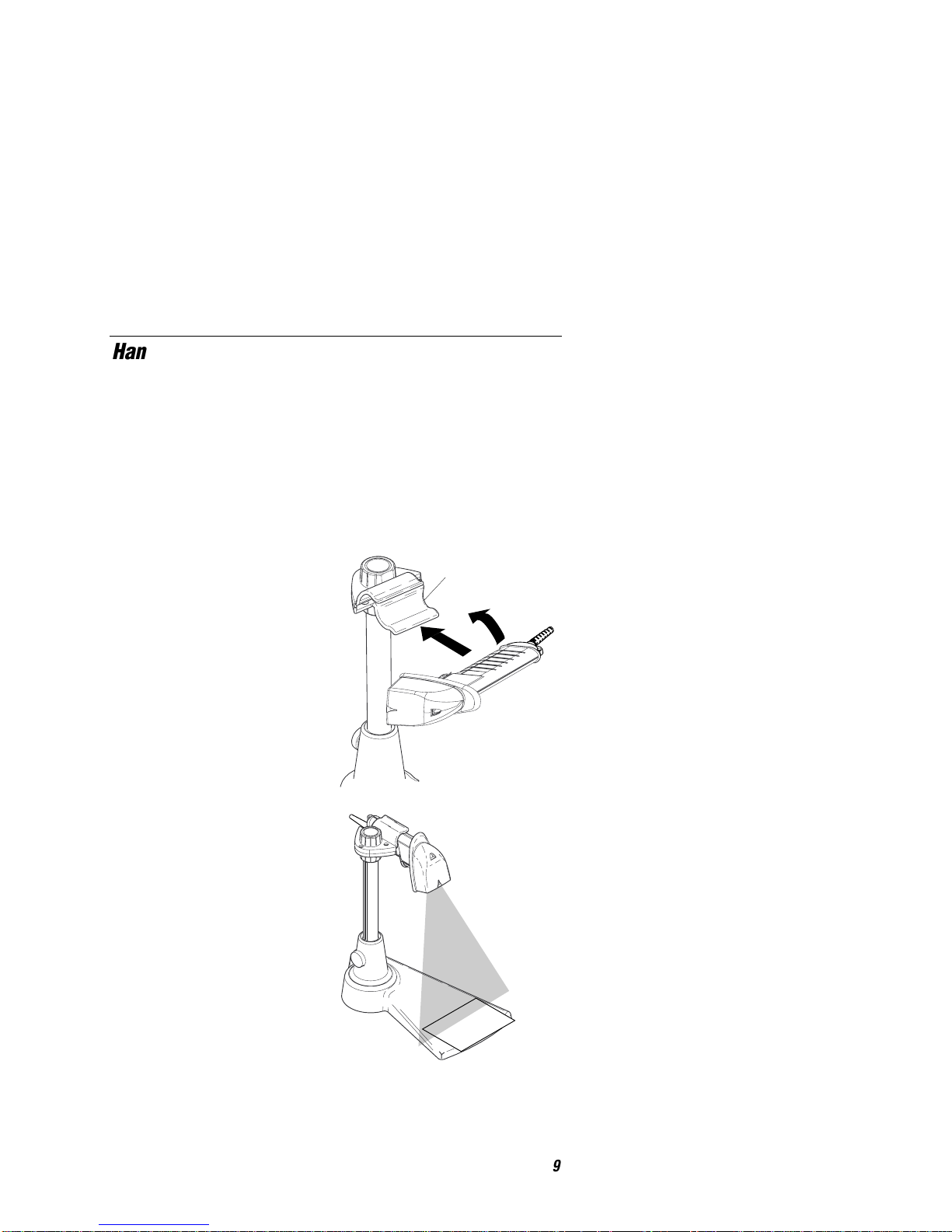

Hands-Free Scanning

If you have an auto-trigger scanner (1550B0200 or 1550B0400),
you can use the scanner stand for hands-free scanning. To order
a scanner stand, see “Accessories” later in this guide.

Note: Using the IRL Z command for remote triggering will not work
with the 1550 scanner.

To scan a bar code using the scanner stand

1. Place the scanner
handle on the bottom
ledge of the holder and
then rotate the handle
in the holder until it
locks into place.

2. Align the scanner and
adjust the column
height so that the
pulsating laser beam
covers the entire label
on the base of the
stand.

Holder

155XQG.005

3. To scan a bar code,
place it right-side up
over the label on the
base of the stand.

When the reader/terminal
beeps, the bar code has
been successfully read.

Note: If your scanner stand
does not have a small magnet
in the holder, you need to
upgrade your stand using
upgrade kit part number 066799.

*HI*

155XQG.004

9

Troubleshooting the 1550 Laser Scanner

This table lists common scanner problems and their solutions.

Problem Solution

Scanner cannot read
certain bar codes.

The reader/terminal was not set up to read
this type of bar code, or the bar code is
damaged, covered up, or poor quality.

Scan another bar code on a similar item. If it
scans, clean the bar code giving you trouble.

If you are still unable to scan the bar code,
enable other bar code symbologies in the
reader/terminal.

Scanner does not
read bar codes
quickly and
sometimes requires
multiple scans.

Scanner does not
read “shiny” bar
codes.

Scanner does not
emit a beam and
does not operate.

Clean the window with a cotton cloth
moistened with an ammonia or water
solution. Dry with a soft cotton cloth or allow
to air dry.

Make sure the bar code is free of dirt and
grime. Then scan at a slight angle to the bar
code (see “Scanning Tips” earlier in this
guide). The laser beam will quickly read the
bar code.

Scan at a slight angle or pitch to the bar code
(see “Scanning Tips” earlier in this guide). The
laser beam will quickly read the bar code.

The scanner is not receiving power. Make
sure the scanner cables are securely plugged
in and the terminal is on. Replace damaged
cables.

If you continue to encounter problems operating your scanner,
contact your local Intermec representative.

10

Code 39

Nugget

D>JI

Maintaining the 1550 Laser Scanner

Water or grime on the window of the scanner distorts the laser
beam and may impair performance. Moving from one
temperature extreme to another causes condensation to form on
the optical surfaces and also affects scanner performance.

Follow these guidelines to maintain the scanner:

• Clean the window with a cotton cloth moistened with an
ammonia or water solution. Dry with a soft cotton cloth or
allow to air dry.

• Do not use a dry tissue to wipe the window. This causes
small scratches on the window that will gradually affect
performance.

• Do not immerse the unit in water.

• Operate and store in an environment with 5% to 95% relative

humidity.

• Operate in temperatures within -22° to 122° F (-30° to 50° C)
and store in temperatures within -40° to 158° F (-40° to 70° C).

11

Accessories

H

P

Y

i

p

W

P

T

y

V

P

Y

t

a

D

P

T

y

P

I

t

N

mag

s

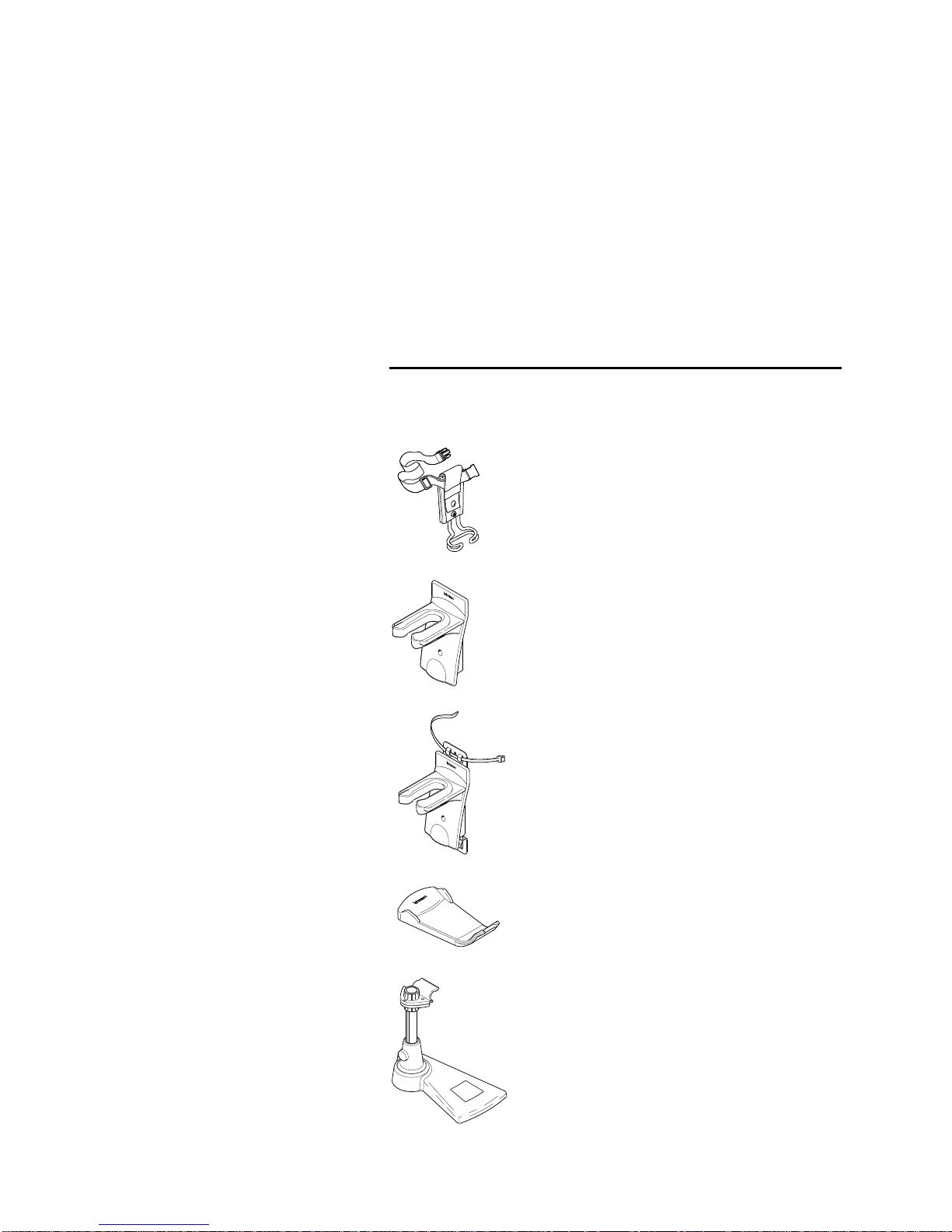

These accessories are available for your 1550 laser scanner. To
order an accessory, call your local Intermec representative.

olster and Belt

art No. 063793

ou can store your scanner on you when it is not

n use. The holster can be used with the belt

rovided or with any regular belt.

all-Mount Scanner Holder

art No. 063909

he wall-mount is a convenient way to store

our scanner when it is not in use.

ehicle-Mount Scanner Holder

art No. 063910

ou can attach the vehicle-mount

o a post or surface of a vehicle with tie-wraps

nd double-stick tape.

esk-Mount Scanner Holder

art No. 063812

he desk-mount is a convenient way to store
our scanner on your desk.

Scanner Stand

art No. 063799

f you have an auto trigger scanner, you can use
he scanner stand for hands-free scanning.

ote: If your scanner stand does not have a small

net in the holder, you need to upgrade your

tand using upgrade kit part number 066799.

12

Code 39

Nugget

D>JI

Regulatory Statements for Canada and
the United States

These regulatory statements apply to the 1550 laser scanner.

Industry Canada Compliance

This Class B digital apparatus meets all requirements of the
Canadian interference-causing equipment regulations.

Cet appareil numérique de la Classe B respecte routes les
exigences du règlement sur le matérial du Canada.

Federal Communications Commission Compliance

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that can cause
undesired operation.

This equipment is intended for operation in a commercial
environment, in compliance with the requirements for a Class A
digital device, pursuant to Part 15 of the FCC Rules, and it must
not be used in a residential environment; however, it has also
been tested and found to comply with the more stringent
requirements for a Class B device, pursuant to Part 15 of the
FCC Rules. It generates, uses, and can radiate radio frequency
energy. If not installed and used in accordance with the
instruction manual, it may cause interference to radio
communications. If this equipment causes interference, the user
will be required to correct the interference at the user’s own
expense.

Note: In order to maintain compliance with FCC Rules, the I/O cables
that interconnect between the device and any peripheral (such as a
reader, etc.) must be as specified by Intermec.

13

Laser Compliance and Precaution

WARNING

p

f

perf

y

f up

p

p

j

q

p

jusq

The 1550 laser scanner complies with the following standards
for laser safety:

CDRH - Class II Laser Product (CFR 21 Subpart J)

This product has a maximum output of 1 mW at 630-680 nm.

Warning

There are no user serviceable
scanner. Use o

ormance of procedures other than those specified
herein ma
o

to 1 mW at 630-680 nm.

Avertissement

Cette scanneur à laser ne contient
révisibles
ou d'a
autres

l'irradiation laser nuisible de
630-680 nm.

ustements ou de performances des procédures

ue ceux précisés dans cette documentation

ourrait avoir comme résultat l'exposition à

controls or adjustments or

result in hazardous laser light exposure

ar l'utilisateure. L'emploi de commandes

arts inside this laser

as de pièces

u' à 1 mW à

Note: There are no controls or adjustments provided for routine
operation or maintenance of the 1550.

Remarque: Aucun appareil de contrôle ou d'ajustement n'est fourni
pour les opérations de routine ou de maintenance de l'appareil 1550.

UL Information. The 1550 is UL Listed (UL 1950/C22.2 No.

950) when used with Intermec’s other UL Listed readers.

14

Code 39

WARNING

g

g

g

p

g

g

p

p

Nugget

D>JI

Nonincendive Information for Canada and the US

The following information pertains only to 1550 when ordered
with the Hazardous Location Protection option (1550B5100).
These units are marked Model 1550NI. No other configuration
of this product is suitable for use in Division 2 locations.

The 1550NI is UL Listed as Nonincendive (UL-1604 and C22.2
#213) only when connected to Intermec’s models J2010NI and
JG2010NI. This information is suitable for use in the following
hazardous locations:

Division 2

Class I - Groups A, B, C, and D
Class II - Groups F and G
Class III
Temperature Code T4A
Maximum Operating Ambient: 50°C

Note: Hazardous Locations are defined in articles 500-503 of the
National Electrical Code (NEC).

Warning

The 1550NI is rated Nonincendive as lon
is not abused or dama
to its operating instructions. If these conditions
are not met, this device must not be o
a Division 2 environment.

Le 1550NI est classé Non incendiaires aussi
lon

temps qu’il ne subit pas d’abus ou de
domma
son mode d’em

as remplies, cet appareil ne doit pas être utilisé

dans un environnement de Division 2.

es et qu’il est utilisé en conformité avec

loi. Si ces conditions ne sont

as it

ed and is used accordin

erated in

15

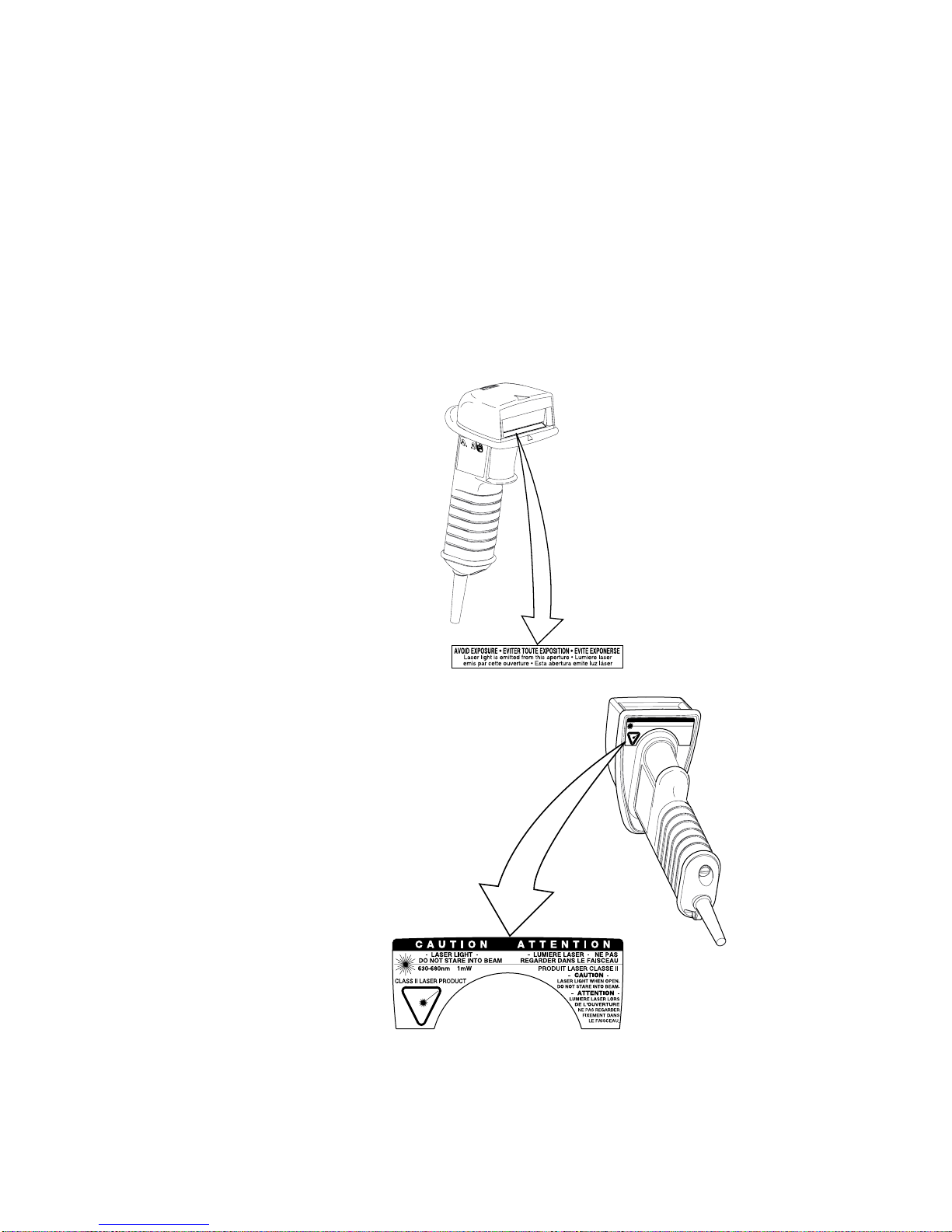

These labels provide important laser safety information.

LASER LIGHT IS EMITTED FROM THIS APERTURE

AVOID EXPOSURE • EVITER TOUTE EXPOSITION

LUMIERE LASER EMIS PAR CETTE OUVERTURE

Listed
Accessory

2

UL 1950

729T

Complies with FCC Part 15 Rules

geprüfte
Sicherheit

CISPR 22 Class B

Conforms toUS DHHS 21 CFR

Subchapter J.

PROTECTED BY U.S. PATENTS:

5,115,120 ; 5,015,831 ;

5,422,472 ; 5,386,105; 5,260,554 ;

5,210,397 ; 5,200,597

NO USER SERVICEABLE PARTS.

OPENING VOIDS WARRANTY.

155XQG.012

CAUTION ATTENTION

- LUMIERE LASER - NE PAS

- LASER LIGHT ­REGARDER DANS LE FAISCEAU

DO NOT STARE INTO BEAM
670nm LASER DIODE

PRODUIT LASER CLASSE II

1.0mW MAX

- CAUTION -

- ATTENTION -

LASER LIGHT WHEN OPEN.
DO NOT STARE INTO BEAM.

LUMIERE LASER LORS
DE L'OUVERTURE
NE PAS REGARDER

FIXEMENT DANS

LE FAISCEAU.

CLASS II LASER PRODUCT

155XQG.007

USA/CANADA

16

Code 39

Nugget

D>JI

Regulatory Statements For Users Outside
of Canada and the United States

These regulatory statements apply to the 1550 laser scanner.

European Union Compliance

This product complies with EN 55022, EN
50082-1, EN 60950, and EN 60825-1 as required by
the EMC Directive 89/336/EEC as amended by
92/31/EEC and by the Low Voltage Directive
73/23/EEC as amended by 93/68/EEC.

Agency Approvals

The 1550 is UL Listed (UL 1950/C22.2 No. 950) and TÜV GS
licensed (EN 60950 and EN 60825-1) for safety.

Additional EMI/RFI Compliance

This device meets the Class B limit requirements of CISPR 22.

Laser Compliance and Precaution

The 1550 laser scanner complies with the following standards
for laser safety:

IEC 825-1 / EN 60825-1 - Class 2 Laser Product
(1 mW, 630-680 nm)

The 1550 is provided with one of the labels illustrated later in
this guide. If the appropriate label is not installed, locate the
sheet of labels that was shipped with your 1550 and place the
appropriate label over the existing label.

17

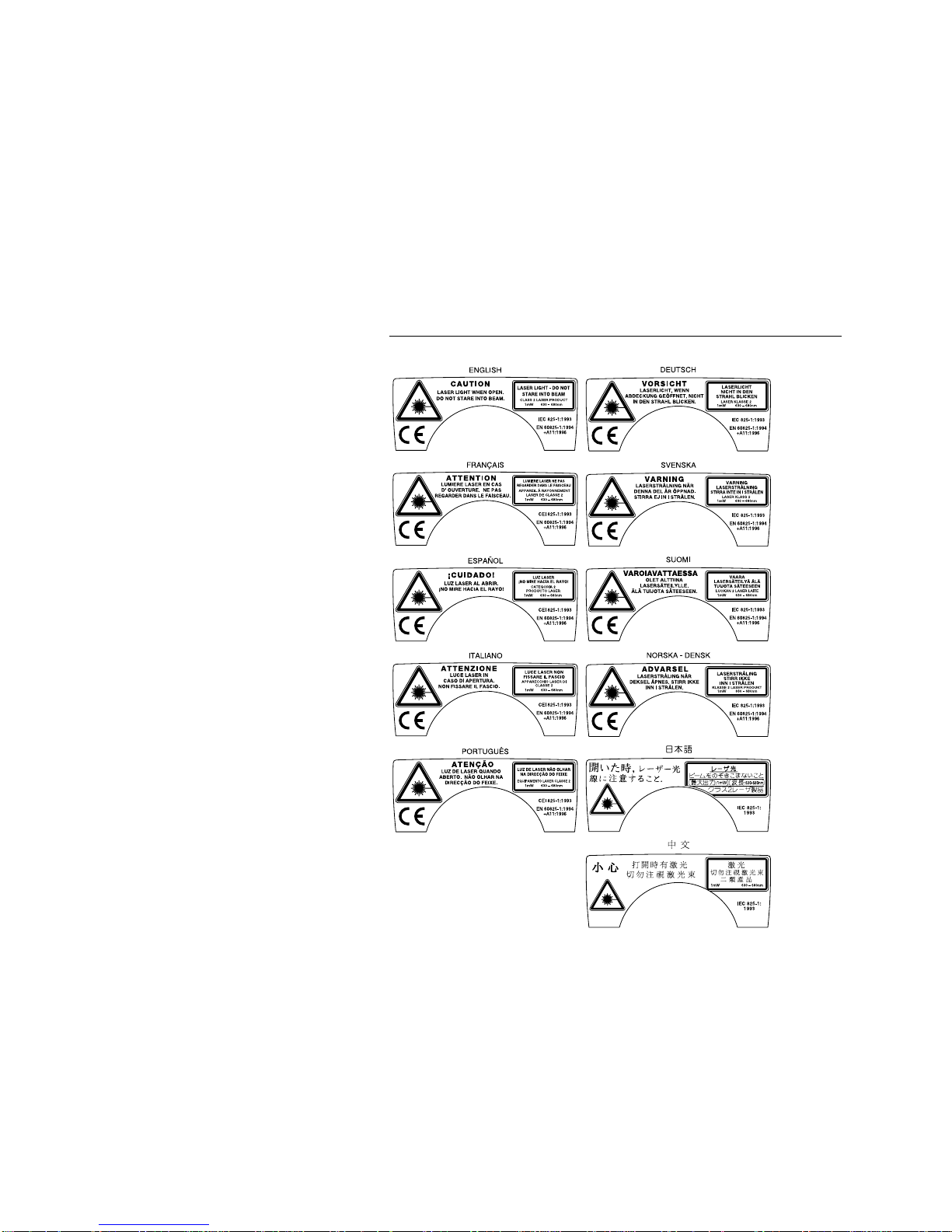

Laser Safety Labels

155XQG.015

18

Patents

The 1550 laser scanner is covered by one or more of these U.S.
Patents:

4,360,798; 4,369,361; 4,387,297; 4,496,831; 4,593,186; 4,603,262;
4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,816,660; 4,845,350;
4,896,026; 4,923,281; 4,992,717; 5,017,765; 5,047,617; 5,113,445;
5,140,144; 5,149,950; 5,168,148; 5,168,149; 5,180,904; 5,247,162;
5,250,792; 5,262,627; 5,280,163; 5,280,164; 5,304,786; 5,304,788;
5,367,151; 5,373,148,; 5,396,053; 5,408,081; 5,410,139; 5,436,440;
5,468,949; 5,479,000.

Other U.S. and foreign patents pending.

19
