Unpacking the Imager

When you remove the imager from its box, save the box and
shipping material in case you need to ship or store the imager.

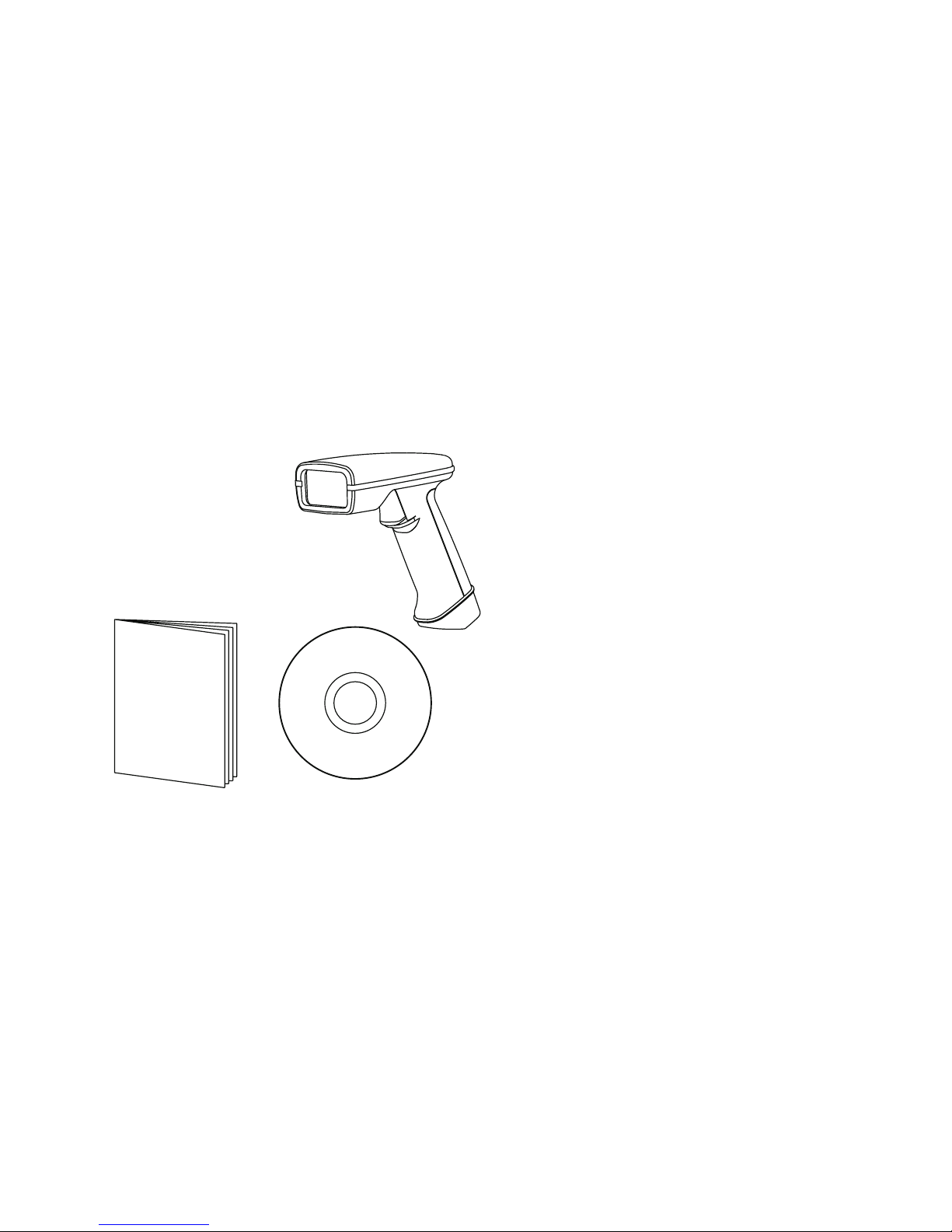

1470B Imager Shipping Box Contents

The imager shipping box contains:

• 1470B Imager (standard or high density)

• CD with Visual Menu and QuickView

• 1470B Imager Quick Start Guide (P/N 067055)

You can also order these optional accessories:

• Power supply and power cords

• Battery pack

• Communication cables for a keyboard wedge interface,
RS-232 interface, 241X terminal, or 700 Series computer

• Holder or scanner stand

• 1470/1471 Imager User’s Manual (P/N 067054)

1470B Imager Quick Start Guide 5

147XU07.eps

Configuring the Imager

You need to program the imager for your interface before you
can transmit bar code data to your computer. You can configure
the imager for:

• a keyboard wedge interface. See the next section, “Keyboard
Wedge Interface.”

• a serial port (RS-232) interface. RS-232 is the default
configuration; however, you still need to program the imager
for the RS-232 interface. See “Serial/RS-232 Interface” on
page 8.

Note: The RS-232 interface is only compatible
with applications that can retrieve data from the
computer’s COM port.

Keyboard Wedge Interface

1 Connect the power supply (4 to 9V) to the keyboard wedge

interface cable and plug in the power supply.

Or, charge and install the battery pack in the imager.

The imager beeps twice.

147XG06.eps

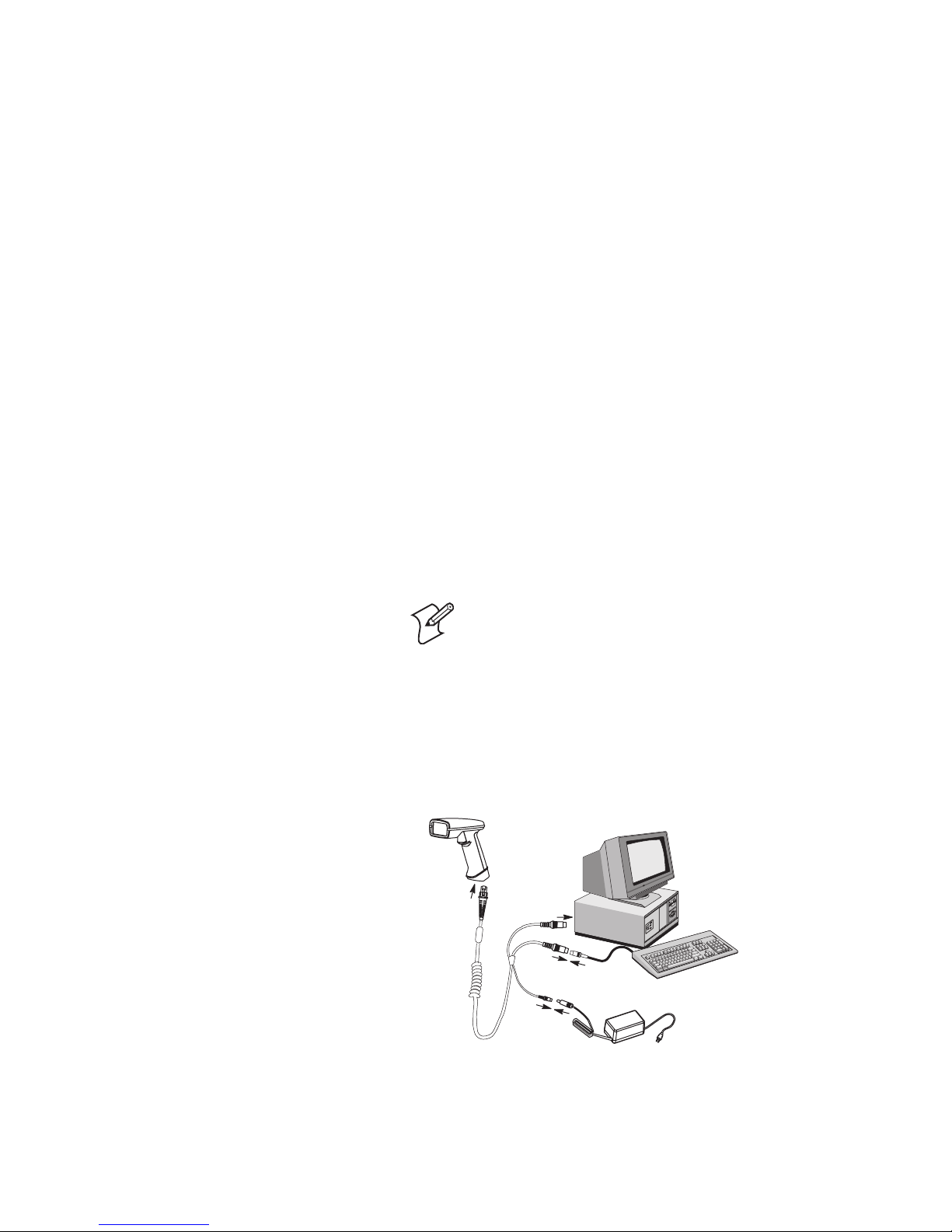

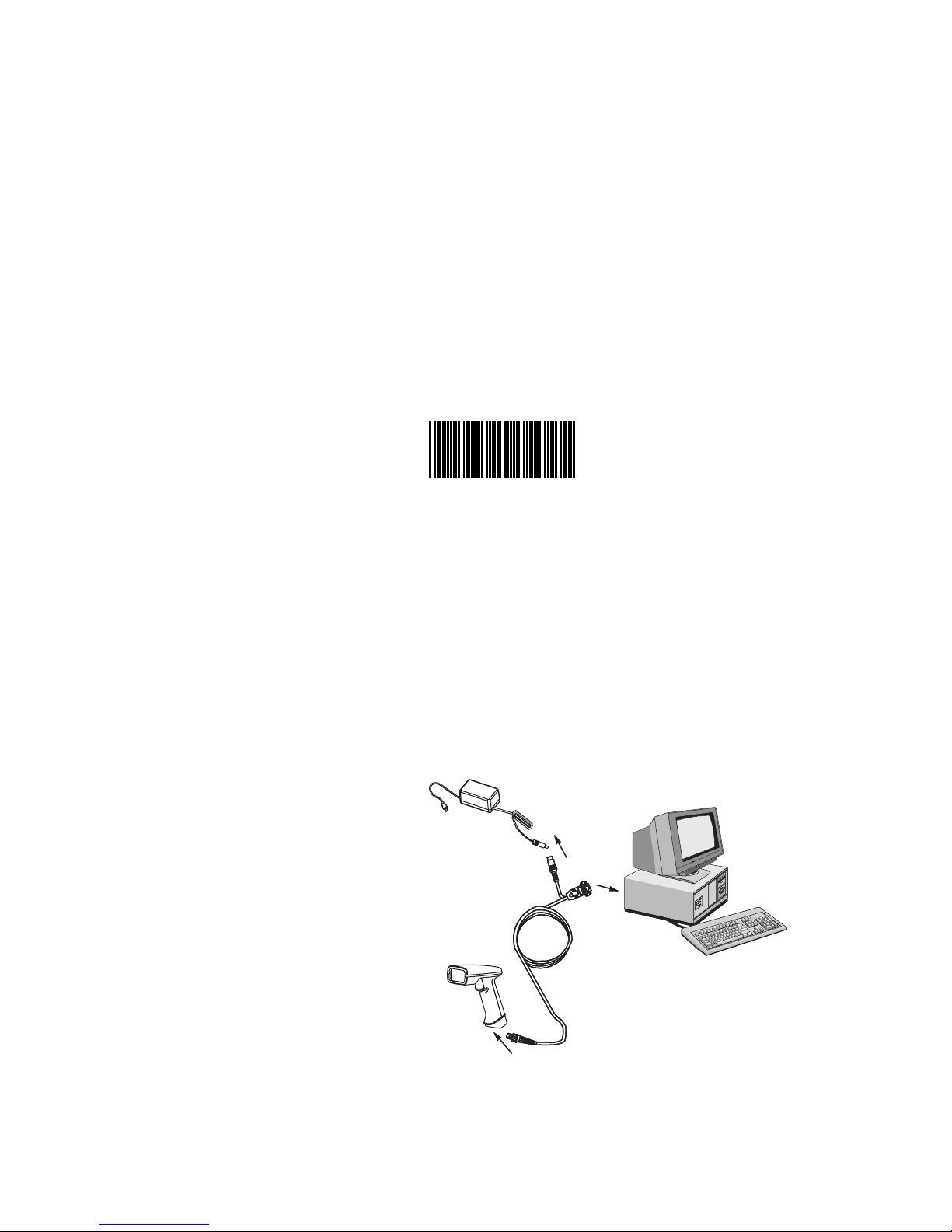

Keyboard Wedge Interface: This illustration shows connecting the
power supply, but you can also charge and install the battery pack in the
imager.

6 1470B Imager Quick Start Guide

2 Connect the keyboard wedge interface cable to the imager.

Note: Do not connect the cable to your computer
yet.

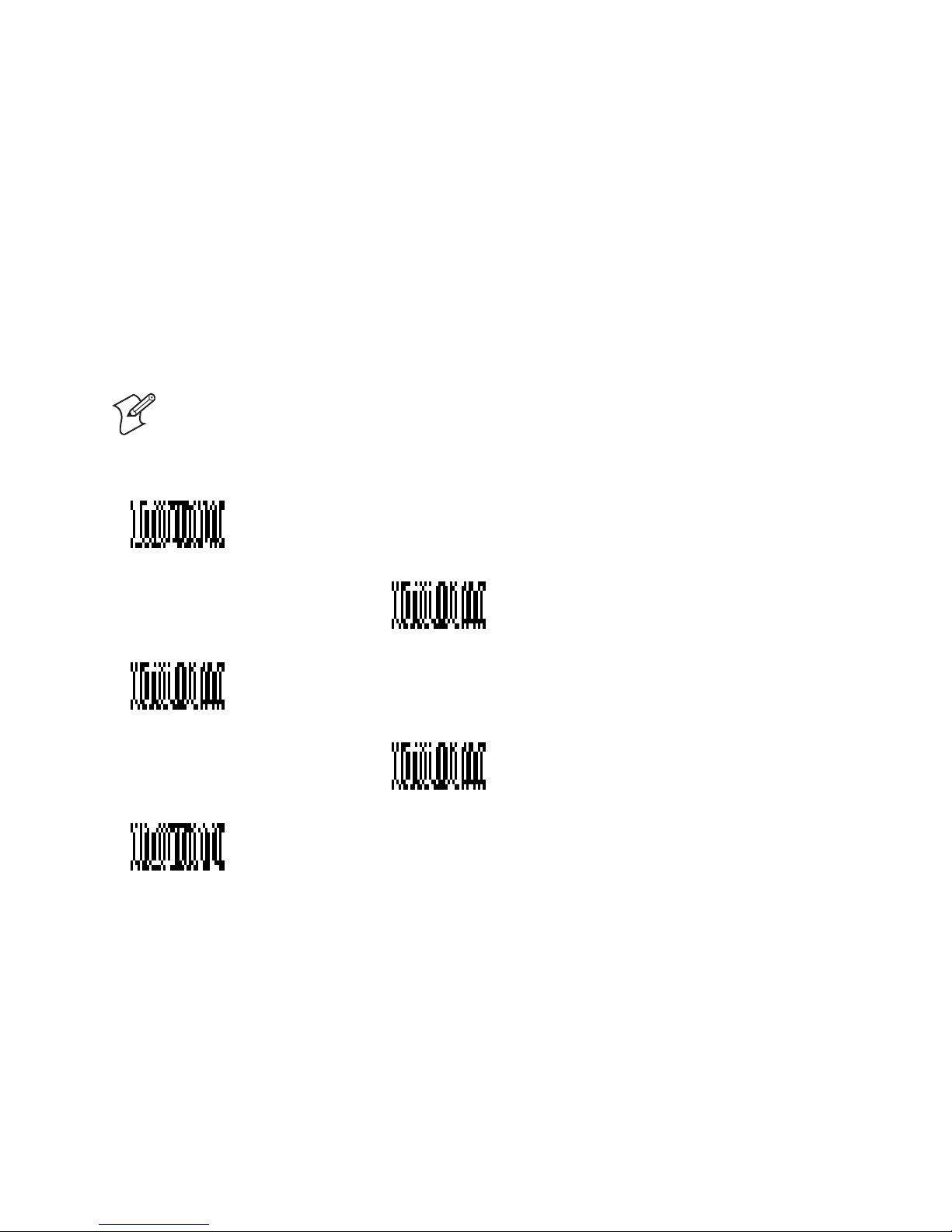

3 Scan these bar codes in order:

Terminal ID

0

0

3

Save

The imager beeps twice during the configuration process.

4 Turn off power to the computer.

5 Disconnect the keyboard cable from the back of the

computer.

6 Connect the computer and the keyboard to the keyboard

wedge interface cable.

7 Turn on power to the computer and wait for it to boot.

8 Open a keyboard application, such as Notepad.

1470B Imager Quick Start Guide 7

9 Scan the following test bar code to make sure that the imager

works.

Code 39 Test Bar Code

BC321

The imager should beep once, and “BC321” should appear in
the keyboard application.

The imager is now connected and ready to communicate with
your computer. To program the 1470 for other keyboard wedge
interfaces, see “Terminal Interface” in Chapter 3 of the
1470/1471 Imager User’s Manual.

Serial/RS-232 Interface

1 Connect the power supply (4 to 9V) to the serial interface

cable and plug in the power supply.

Or, charge and install the battery pack in the imager.

The imager beeps twice.

147XG07.eps

Serial/RS-232 Interface: This illustration shows connecting the power
supply, but you can also charge and install the battery pack in the imager.

8 1470B Imager Quick Start Guide

2 Connect the serial interface cable to the imager.

Note: Do not connect the cable to your computer
yet.

3 Scan these bar codes in order:

Terminal ID

0

0

0

Save

The imager beeps twice during the configuration process.

4 Turn off power to the computer.

5 Connect the serial interface cable to the computer.

6 Turn on power to the computer.

7 Open your application.

1470B Imager Quick Start Guide 9

8 Scan the following test bar code to make sure that the imager

works.

Code 39 Test Bar Code

BC321

The imager should beep once, and “BC321” should appear in
your application.

The imager is now connected and ready to communicate with
your computer. To program the communication parameters for
a serial interface, see “Communication Settings” in Chapter 3 of
the 1470/1471 Imager User’s Manual.

Scanning a Label

The imager’s view finder projects a bright red aiming beam that
corresponds to the imager’s horizontal field of view. The aiming
beam should be centered over the bar code, but it can be
positioned in any direction for a good read.

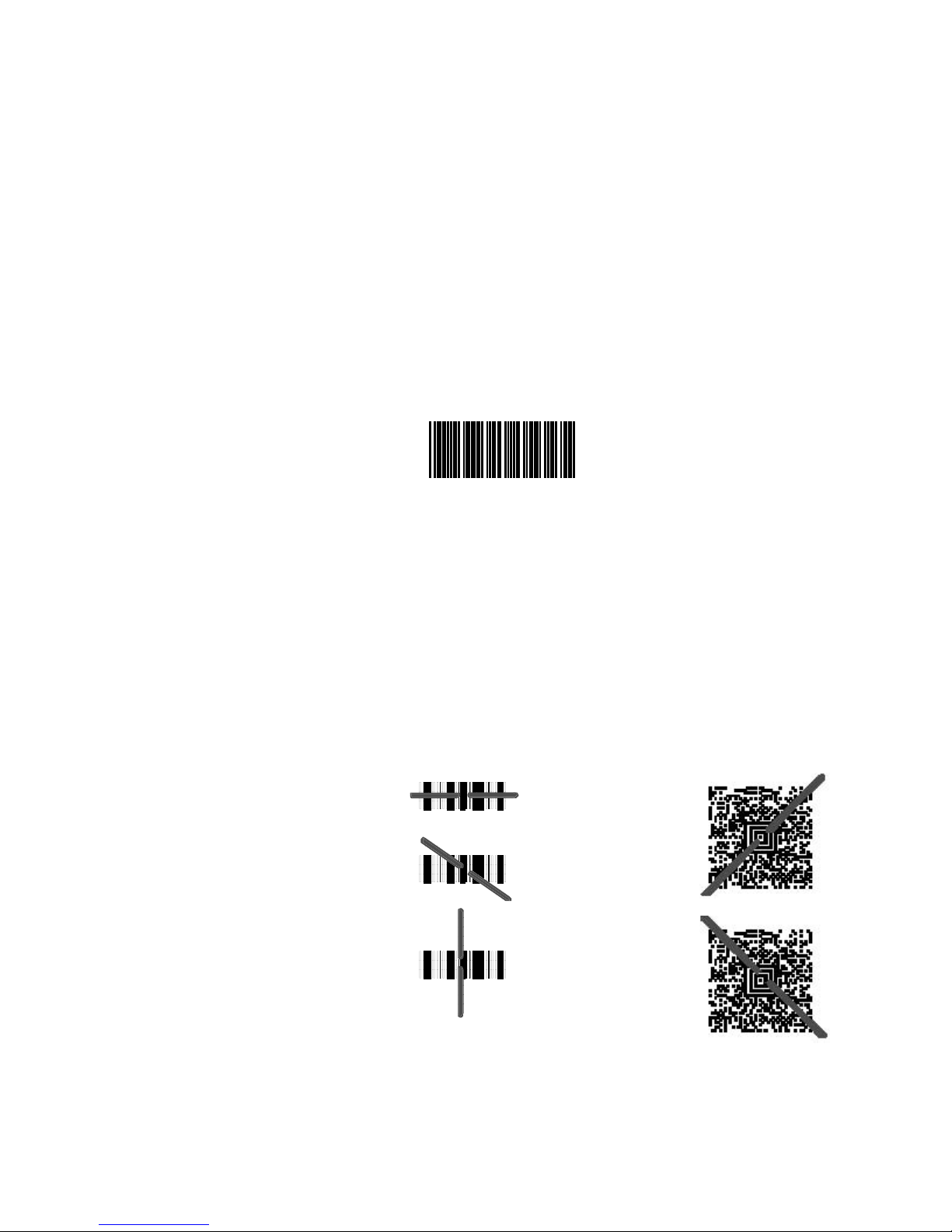

Linear Bar Code 2D Matrix Bar Code

10 1470B Imager Quick Start Guide

Where to Go From Here

Now that your imager is working, you may need additional
information:

• The 1470/1471 Imager User’s Manual (P/N 067054) contains
information you may need to configure, operate, and
troubleshoot the 1470B imager.

• The CD that ships with the imager contains the Visual Menu
and QuickView utilities that allow you to set advanced
configuration parameters.

The user’s manual is available as a .pdf file on the CD that
shipped with the imager or on the Intermec web site at
www.intermec.com. To order a printed user’s manual, contact
your local Intermec representative.

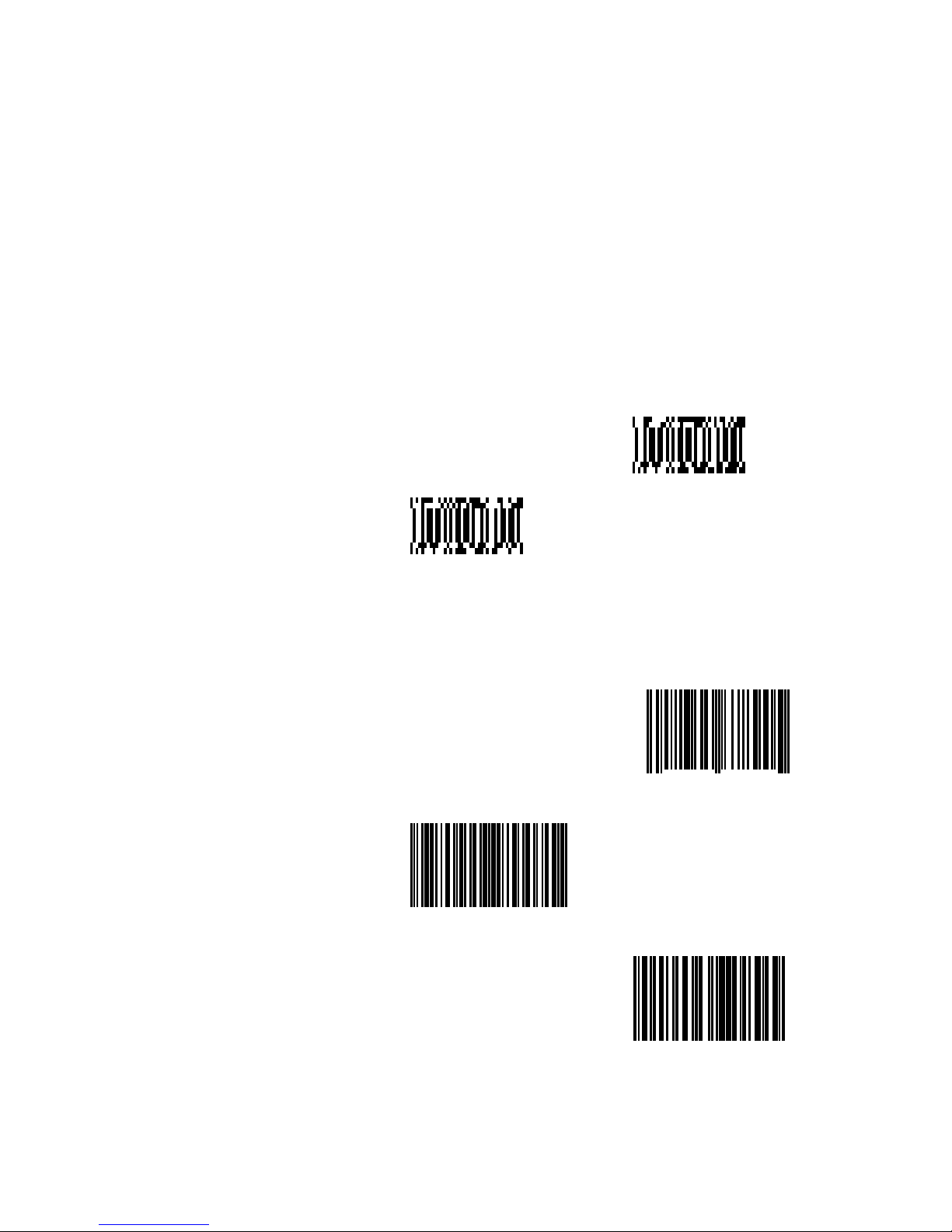

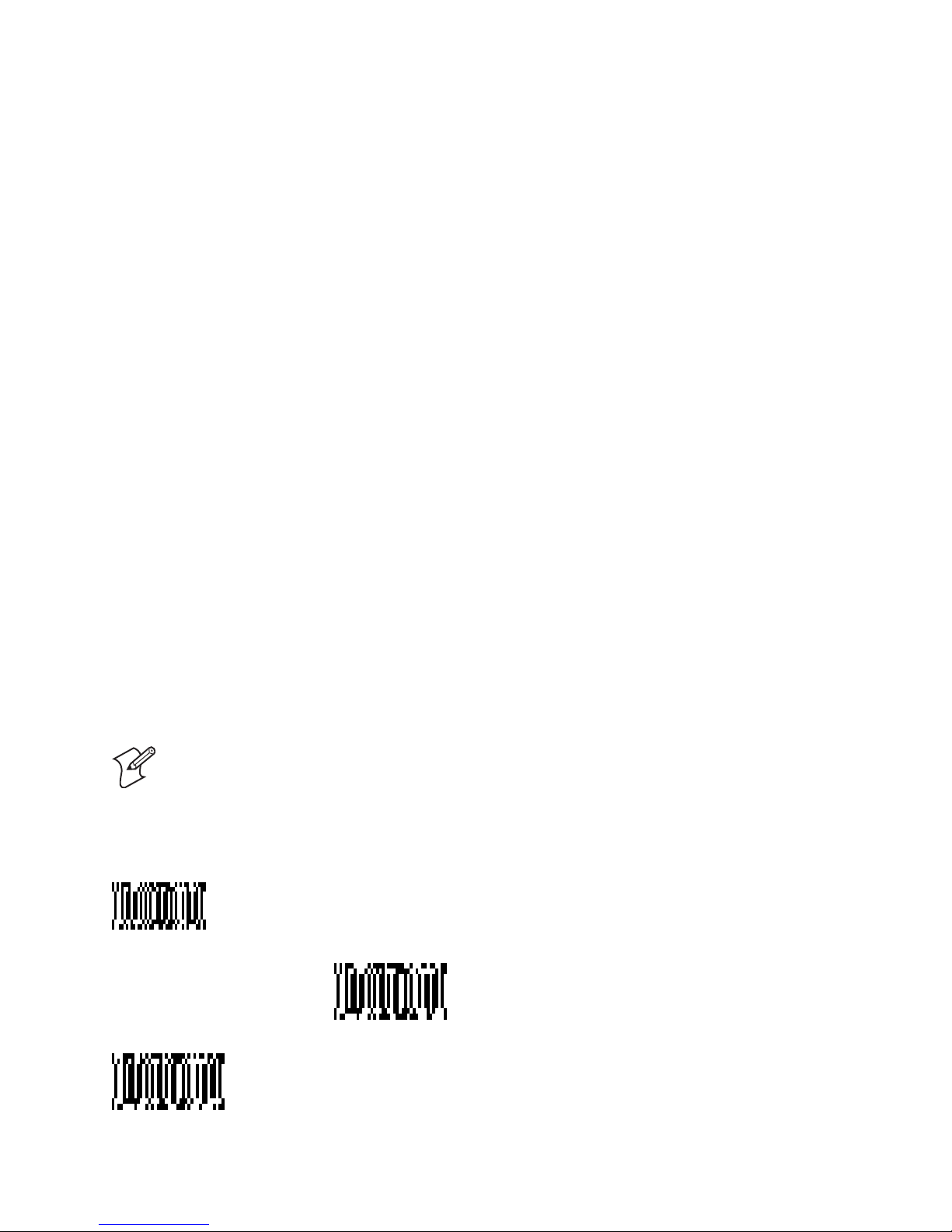

Useful Bar Codes

For more information on these bar codes, see the 1470/1471
Imager User’s Manual.

Note: Scanning the Factory Default Settings bar
code will clear all existing settings and restore the
imager to its factory default state. You will need to
reconfigure the imager for a keyboard wedge or
serial/RS-232 interface.

Factory Default Settings

Scan Stand Off

1470B Imager Quick Start Guide 11

Scan Stand On

Useful Bar Codes (continued)

Presentation Mode On

Presentation Mode Off

Test Bar Codes

Use these test bar codes to verify which bar codes your imager is
configured to read.

I 2 of 5

012345678905

UPC-A

12345 67890

0

5

12 1470B Imager Quick Start Guide

Code 128

123456789

Test Bar Codes (continued)

EAN 13

0 123456 789012

CodaBar

A1234567890B

Aztec

Code 39

*ABC*

ABC

PDF417

Car Registration

Package Label

1470B Imager Quick Start Guide 13

Maxicode

Package Label

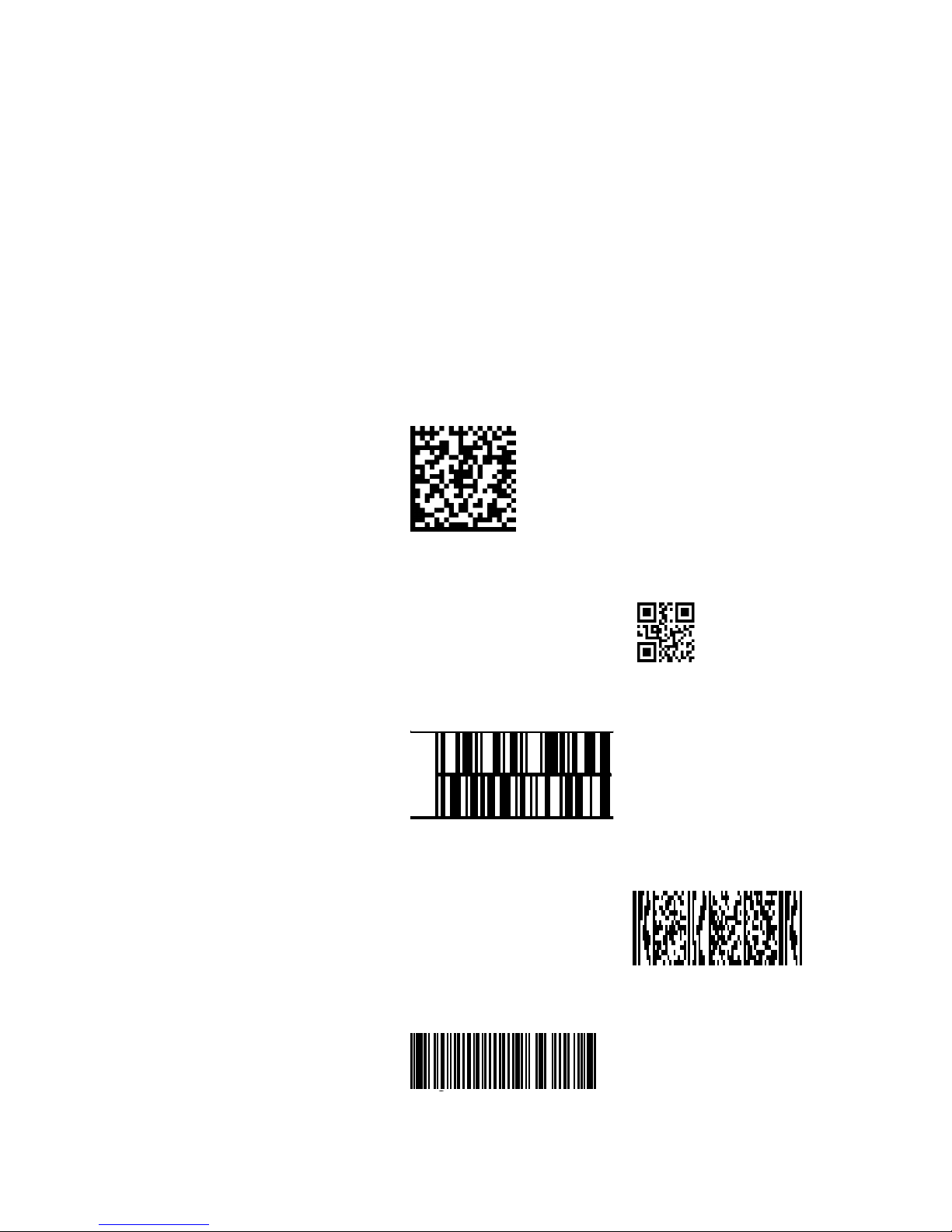

Test Bar Codes (continued)

Data Matrix

Test Symbol

Code 49

QR Code

Numbers

1234567890

MicroPDF417

Test Message

Code 93

14 1470B Imager Quick Start Guide
