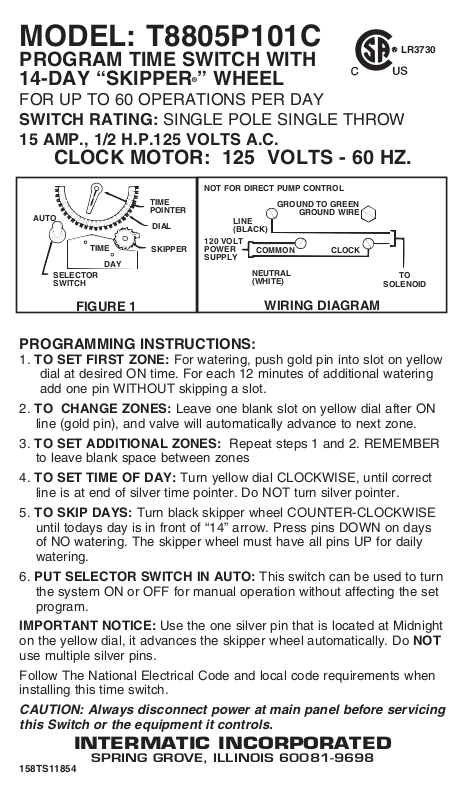

Intermatic T8805P101C Owner's Manual

MODEL: T8805P101C

PROGRAM TIME SWITCH WITH

LR3730

14-DAY “SKIPPER®” WHEEL

FOR UP TO 60 OPERATIONS PER DAY

SWITCH RATING: SINGLE POLE SINGLE THROW
15 AMP., 1/2 H.P.125 VOLTS A.C.

CLOCK MOTOR: 125 VOLTS - 60 HZ.

TIME

AUTO

SELECTOR
SWITCH

TIME

POINTER

DIAL

SKIPPER

DAY

FIGURE 1

PROGRAMMING INSTRUCTIONS:

1. TO SET FIRST ZONE: For watering, push gold pin into slot on yellow
dial at desired ON time. For each 12 minutes of additional watering
add one pin WITHOUT skipping a slot.

2. TO CHANGE ZONES: Leave one blank slot on yellow dial after ON
line (gold pin), and valve will automatically advance to next zone.

3. TO SET ADDITIONAL ZONES: Repeat steps 1 and 2. REMEMBER
to leave blank space between zones

4. TO SET TIME OF DAY: Turn yellow dial CLOCKWISE, until correct
line is at end of silver time pointer. Do NOT turn silver pointer.

5. TO SKIP DAYS: Turn black skipper wheel COUNTER-CLOCKWISE
until todays day is in front of “14” arrow. Press pins DOWN on days
of NO watering. The skipper wheel must have all pins UP for daily
watering.

6. PUT SELECTOR SWITCH IN AUTO: This switch can be used to turn
the system ON or OFF for manual operation without affecting the set
program.

IMPORTANT NOTICE: Use the one silver pin that is located at Midnight
on the yellow dial, it advances the skipper wheel automatically. Do NOT
use multiple silver pins.

Follow The National Electrical Code and local code requirements when
installing this time switch.

CAUTION: Always disconnect power at main panel before servicing
this Switch or the equipment it controls.

INTERMATIC INCORPORATED

158TS11854

SPRING GROVE, ILLINOIS 60081-9698

NOT FOR DIRECT PUMP CONTROL

120 VOLT
POWER
SUPPLY

GROUND TO GREEN

LINE
(BLACK)

GROUND WIRE

COMMON CLOCK

NEUTRAL
(WHITE)

WIRING DIAGRAM

TO

SOLENOID
