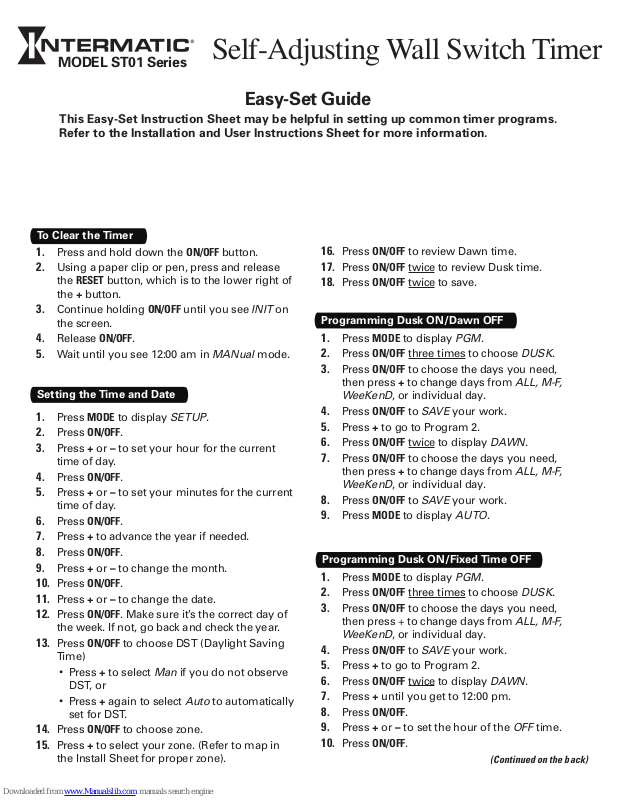

MODEL ST01 Series
Self-Adjusting Wall Switch Timer
Easy-Set Guide
This Easy-Set Instruction Sheet may be helpful in setting up common timer programs.
Refer to the Installation and User Instructions Sheet for more information.
To Clear the Timer
Press ON/OFF to review Dawn time.
Press and hold down the ON/OFF button.
1.
Using a paper clip or pen, press and release
2.
the RESET button, which is to the lower right of
the + button.
Continue holding ON/OFF until you see INIT on
3.
the screen.
Release ON/OFF.
4.
Wait until you see 12:00 am in MANual mode.
5.
Setting the Time and Date
1.
Press MODE to display SETUP.
Press ON/OFF.
2.
3.
Press + or – to set your hour for the current
time of day.
4.
Press ON/OFF.
Press + or – to set your minutes for the current
5.
time of day.
Press ON/OFF.
6.
Press + to advance the year if needed.
7.
Press ON/OFF.
8.
Press + or – to change the month.
9.
10.
Press ON/OFF.
11.
Press + or – to change the date.
12.
Press ON/OFF. Make sure it’s the correct day of
the week. If not, go back and check the year.
13.
Press ON/OFF to choose DST (Daylight Saving
Time)
Press + to select Man if you do not observe
•
DST, or
Press + again to select Auto to automatically
•
set for DST.
Press ON/OFF to choose zone.
14.
Press + to select your zone. (Refer to map in
15.
the Install Sheet for proper zone).
16.
Press ON/OFF twice to review Dusk time.
17.
Press ON/OFF twice to save.
18.
Programming Dusk ON/Dawn OFF
Press MODE to display PGM.
1.
Press ON/OFF three times to choose DUSK.
2.
Press ON/OFF to choose the days you need,
3.
then press + to change days from ALL, M-F,
WeeKenD, or individual day.
Press ON/OFF to SAVE your work.
4.
Press + to go to Program 2.
5.
Press ON/OFF twice to display DAWN.
6.
Press ON/OFF to choose the days you need,
7.
then press + to change days from ALL, M-F,
WeeKenD, or individual day.
Press ON/OFF to SAVE your work.
8.
Press MODE to display AUTO.
9.
Programming Dusk ON/Fixed Time OFF
Press MODE to display PGM.
1.
Press ON/OFF three times to choose DUSK.
2.
Press ON/OFF to choose the days you need,
3.
then press + to change days from ALL, M-F,
WeeKenD, or individual day.
Press ON/OFF to SAVE your work.
4.
Press + to go to Program 2.
5.
Press ON/OFF twice to display DAWN.
6.
Press + until you get to 12:00 pm.
7.
Press ON/OFF.
8.
Press + or – to set the hour of the OFF time.
9.
Press ON/OFF.
10.
(Continued on the back)
Page 2
Press + or – to set the minutes of the OFF time.
11.
Press ON/OFF to choose the days you need,
12.
then press + to change days from ALL, M-F,
WeeKenD, or individual day.
Press ON/OFF to SAVE your work.
13.
Press MODE to display AUTO.
14.
Programming Fixed Time ON/Fixed Time OFF
Press MODE to display PGM.
1.
Press ON/OFF button three times to choose
2.
DUSK.
Press + to change it to 12:00 pm.
3.
Press ON/OFF.
4.
Press + or – to set the hour for the ON time.
5.
Press ON/OFF.
6.
Press + or – to set the minutes.
7.
Press ON/OFF to choose the days you need,
8.
then press + to change days from ALL, M-F,
WeeKenD, or individual day.
Press ON/OFF to SAVE your work.
9.
Press + to go to Program 2
10.
Press ON/OFF twice to display Dawn.
11.
Press + to change it to 12:00 pm.
12.
Press ON/OFF.
13.
Press + or – to set the hour for the OFF time.
14.
Press ON/OFF.
15.
Press + or – to set the minutes.
16.
Press ON/OFF to choose the days you need,
17.
then press + to change days from ALL, M-F,
WeeKenD, or individual day.
Press ON/OFF to SAVE your work.
18.
Press MODE button to display AUTO.
19.
