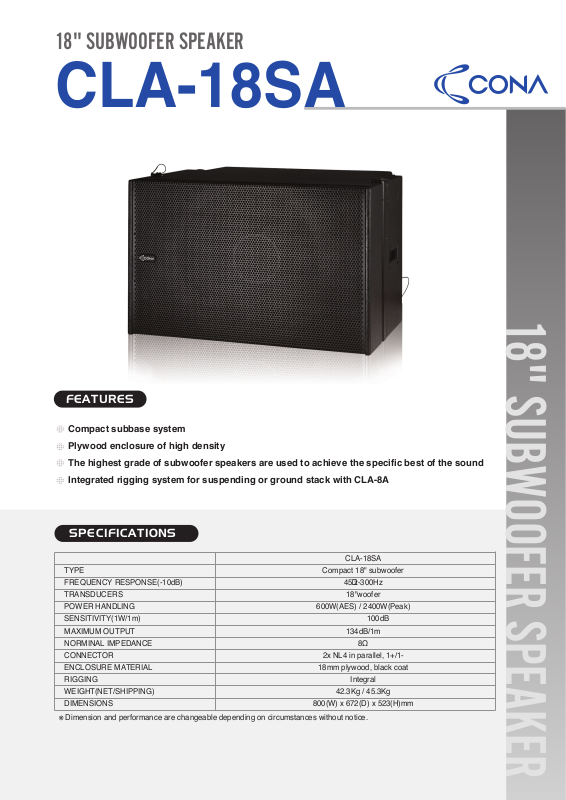

Inter-M CLA-18SA User Manual
18" SUBWOOFER SPEAKER
CLA-18SA
18" SUBWOOFER SPEAKER
FE AT UR ES
Compact subbase system
Plywood enclosure of high density
The highest grade of subwoofer speakers are used to achieve the specific best of the sound
Integrated rigging system for suspending or ground stack with CLA-8A
SP EC IF IC AT IO NS
CLA-18SA
TYPE Compact 18" subwoofer
FREQUENCY RESPONSE(-10dB) 45Ｈz-300Hz
TRANSDUCERS 18"woofer
POWER HANDLING 600W(AES) / 2400W(Peak)
SENSITIVITY(1W/1m) 100dB
MAXIMUM OUTPUT 134dB/1m
NORMINAL IMPEDANCE 8Ω
CONNECTOR 2x NL4 in parallel, 1+/1-
ENCLOSURE MATERIAL 18mm plywood, black coat
RIGGING Integral
WEIGHT(NET/SHIPPING) 42.3Kg / 45.3Kg
DIMENSIONS 800(W) x 672(D) x 523(H)mm
※ Dimension and performance are changeable depending on circumstances without notice.
18" SUBWOOFER SPEAKER
dB SPL
1
10
100
90
80
70
60
5
0
4
0
3
0
2
0
10
0
-10
20Hz501002005001K2K5K10K20K
Ohm
2
00
1
00
90
8
0
70
6
0
50
4
0
30
2
0
1
0
9
8
7
6
50
1
002005001K2K5K10K20K20Hz
CLA-18SA
PE RF OR mA NC E CU Rv E
▶
Frequency Respone ON-AXIS
DI mE NS IO NA l
▶
Impedance VS. Respone
Inter-M Corporation
- OFFICE: 653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
- TEL: +82-2-2289-8140~8, FAX : +82-2-2289-8149
- Home page: http://www.inter-m.com
- E-mail: overseas@inter-m.com
www.cona.co.kr
