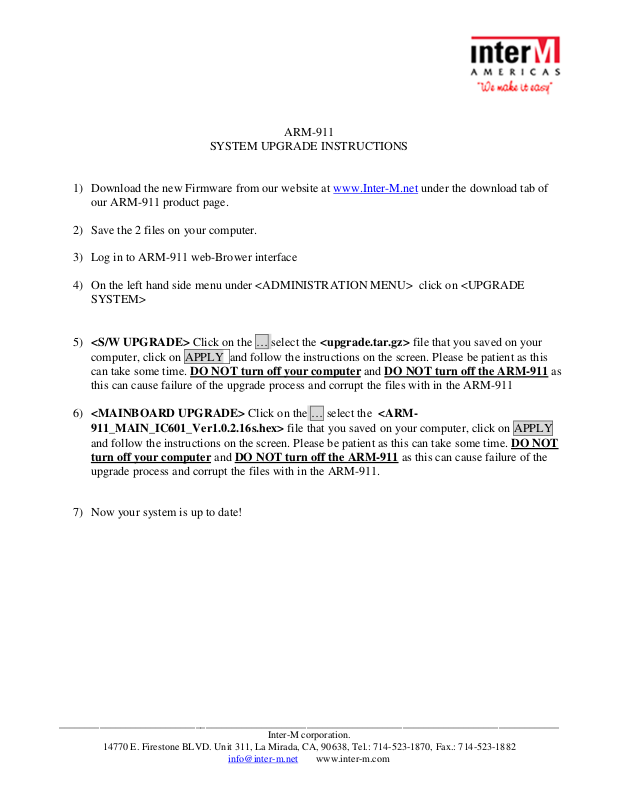

Inter-M ARM-911 Upgrade Instructions

ARM-911

SYSTEM UPGRADE INSTRUCTIONS

1) Download the new Firmware from our website at www.Inter-M.net under the download tab of
our ARM-911 product page.

2) Save the 2 files on your computer.

3) Log in to ARM-911 web-Brower interface

4) On the left hand side menu under <ADMINISTRATION MENU> click on <UPGRADE
SYSTEM>

5) <S/W UPGRADE> Click on the … select the <upgrade.tar.gz> file that you saved on your
computer, click on APPLY and follow the instructions on the screen. Please be patient as this
can take some time. DO NOT turn off your computer and DO NOT turn off the ARM-911 as
this can cause failure of the upgrade process and corrupt the files with in the ARM-911

6) <MAINBOARD UPGRADE> Click on the … select the <ARM-
911_MAIN_IC601_Ver1.0.2.16s.hex> file that you saved on your computer, click on APPLY
and follow the instructions on the screen. Please be patient as this can take some time. DO NOT
turn off your computer and DO NOT turn off the ARM-911 as this can cause failure of the
upgrade process and corrupt the files with in the ARM-911.

7) Now your system is up to date!
