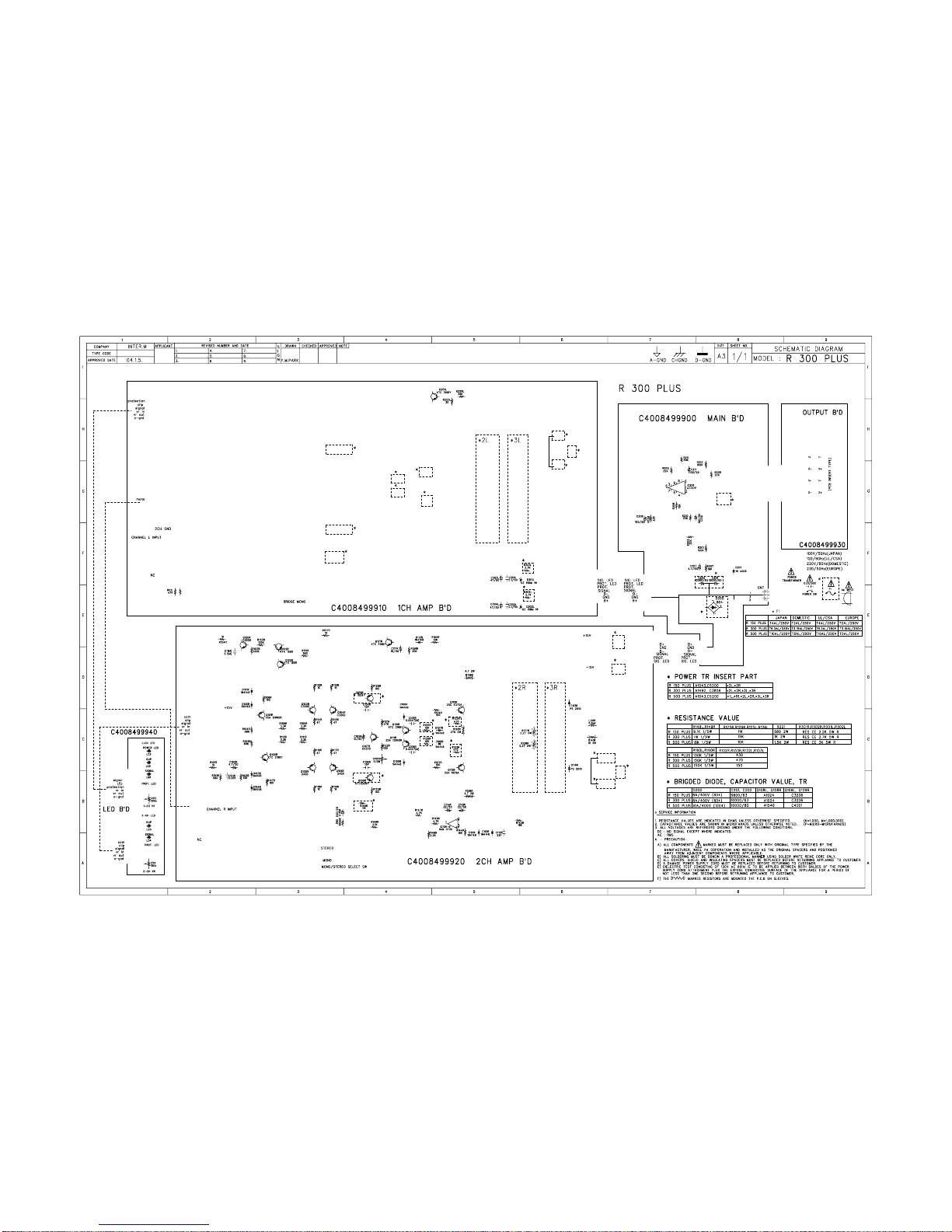

Inter-m Amplifier 300PLUS, R-150PLUS, Amplifier 500PLUS, R-300PLUS, R-500PLUS Service Manual
SERVICE
MANUAL
R-150PLUS/300PLUS/500PLUS
AMPLIFIER
REFERENCE
Ref No. Part No. Description Value Qty
D200
2058100988 DIODE BRIDGE PBU 804
804 1
C203 3639474255
CAP TL 474K 250V K
474/250 1
CN10 4355923806
CONNECTOR WAFER 06P(J.ST)
6P 1
CN5 4355923807
CON WAFER 07P JST (3.96)
7P 1
CN7 4355923803
CONNECTOR WAFER 03P(J.ST)
3P 1
D201-202 2058100996
DIODE RECTIFIER LT1N4006(4007)
1N 4006 2
C208 3409210141-T
CAP AF RSG 100UF 25V 6 P
100/25 1
C207 3409247991-T
CAP AF RSG 4.7UF 100V 5 P
4.7/100 1
C211 3409210141-T
CAP AF RSG 100UF 25V 6 P
100/25 1
C210 3409210171-T
CAP AF RSG 100UF 50V 8 P
100/50 1
C201-202
3419568281 CAP AF 6800UF 63V 30P JAMICON
6800/63 2
GND1 6505958210
GND TERMINAL
GND PLATE 1
R201 3009104973
RES CF 100K 1/5W J N
100K 1
R202-205 3009223973
RES CF 22K 1/5W J N
22K 4
R206-207 3009183973
RES CF 18K 1/5W J N
18K 2
R221
3039681572-F RES MO 680 2W J N
680k 2W 1
R220 3009223973
RES CF 22K 1/5W J N
22K 1
R208 3009223973
RES CF 22K 1/5W J N
22K 1
R209 3009471973
RES CF 470 1/5W J N
470 1
R212 3009104973
RES CF 100K 1/5W J N
100K 1
R210 3009223973
RES CF 22K 1/5W J N
22K 1
R211 3009563973
RES CF 56K 1/5W J N
56K 1
RY1 5528009950
RELAY HR-CR3A23 DC 24VH
RLY DC24V 1
IC201 2118050410
IC TA7317P TOSHIBA
TA7317P 1
CN4 4355923804
CONNECTOR WAFER 04P (J.ST)
WAFHW4P3.96 1
C101L 3509102231-A
CAP CE YB 1000PF 50V K AXIAL
0.001 1
C07L C301L C302L 3509104530-T
CAP CE F 0.1UF 50V Z
0.1/50 3
C03L C04L 3509101231-A
CAP CE B 100PF 50V K AXIAL
100P 2
C104L C106L C160L 3529150311-A
CAP CE SL 15PF 50V J AXIAL
15P 3
C08L 3529100311-A
CAP CE SL 10PF 50V J AXIAL
10P 1
C112L 3529330311-A
CAP CE SL 33PF 50V J AXIAL
33P 1
C05L 3529050311-A
CAP CE SL 5P 50V C AXIAL
5P 1
AN5 4355464911
CON ASS'Y 7P JST
7P 1
L101L 2648099920
COIL INDUCTOR 0.6UH
0.6uH 1
AN11-1 4355465109
CON ASS'Y 3P SHIELD
3P 1
AN2 4355465202
CON ASS'Y 6P SHIELD(3P)
6P 1
D101L D102L D103L 2058304100
DIODE IN4148M
1N4148 11
D104L D106L D107L
D108L D109L D110L
D111L D112L
D113L D114L 2058100110
DIODE RL207 PYUNG CHANG
PS 2010 2
C105L C117L 3409210071-T
CAP AF RSG 10UF 50V 5 P
10/50 2
C118L C119L 3409247991-T
CAP AF RSG 4.7UF 100V 5 P
4.7/100 2
C113L C114L 3409222071-T
CAP AF RSG 22UF 50V 5 P
22/50 2
C115L 3409222141-T
CAP AF RSG 220UF 25V J 8 P
220/25 1
C102L 3409247971-T
CAP AF RSG 4.7UF 50V 5 P
4.7/50 1
ELECTRICAL PARTS LIST ( R - 150 PLUS )
MAIN B'D (C4008499900)
1CH AMP B'D (C4008499910)
C01L C02L C06L 3409247071-T
CAP AF RSG 47UF 50V 6 P
47/50 5
C303L C304L
JK9 C4438097210
JACK PHONE(4P) JY-6313(J.T)
PHONE 4P 1
JK3 4438189310
XLR JACK(F) JY-5033A(J.T)
XLR 3P(F) 1
C108L C109L 3609472120-T
CAP MA 0.0047UF 100V J
0.0047(M) 2
C116L 3609104122-T
CAP MA 0.1UF 100V J SMALL
0.1(M) 1
IC10L 2118010232
IC NJM072D JRC
NJM 072D 1
IC2L 2118010432
IC NJM2068DD JRC
NJM 2068D 1
PO2 2438007993
POSISTOR PTFM04BE222Q2N34B0
27 1
R137L R138L 3059278674
RES CE RGC3 0.27 3W(NOBLE)
0.27 5W 2
R132L R133L
3009431973 RES CF 430 1/5W J N
430 2
R120L R123L 3089101275
RES NFR 100 1/4W J R PHILKO
100 2
R124L R127L 3009101973
RES CF 100 1/5W J N
100 2
R152L 3009104973
RES CF 100K 1/5W J N
100K 1
R130L R135L 3089100275
RES NFR 10 1/4W J R PHILKO
10(NFR) 2
R141L 3039100575-T
RES MO 10 2W JR
10 2W 1
R103L R155L 3009123973
RES CF 12K 1/5W J N
12K 2
R122L 3009151973
RES CF 150 1/5W J N
150 1
R153L R160L 3009154973
RES CF 150K 1/5W J N
150K 2
R159L R158L 3009123973
RES CF 12K 1/5W J N
12K 2
R106L R107L 3009181973
RES CF 180 1/5W J N
180 2
R143L R144L 3009183973
RES CF 18K 1/5W J N
18K 2
R101L R112L R113L 3009102973
RES CF 1K 1/5W J N
1K 5
R118L R119L
R146L 3009222973
RES CF 2.2K 1/5W J N
2.2K 1
R301L R302L
3059222774 RES CE 2.2K 5W
2.2K 5W 2
R128L 3039271575-T
RES MO 270 2W J RADIAL
270 2W 1
R07L R08L 3009563973
RES CF 56K 1/5W J N
56K 2
R09L 3009470973
RES CF 47 1/5W J N
47 1
R148L 3009273973
RES CF 27K 1/5W J N
27K 1
R108L R109L R110L 3009332973
RES CF 3.3K 1/5W J N
3.3K 4
R111L
R150L 3009391973
RES CF 390 1/5W J N
390 1
R226L 3009393973
RES CF 39K 1/5W J N
39K 1
R223L 3009302973
RES CF 3K 1/5W J N
3K 1
R129L R136L 3039479575-T
RES MO 4.7 2W J RADIAL
4.7 2W 2
R03L R04L R05L R06L 3002100953
RES CF 10K 1/5W F N
10K 4
R145L R147L 3009472973
RES CF 4.7K 1/5W J N
4.7K 2
R121L 3009471973
RES CF 470 1/5W J N
470 1
R114L R115L R116L 3009470973
RES CF 47 1/5W J N
47 4
R117L
R01L R02L 3009473973
RES CF 47K 1/5W J N
47K 2
R154L R157L 3009102973
RES CF 1K 1/5W J N
1K 2
R151L 3009561973
RES CF 560 1/5W J N
560 1
R102L 3009563973
RES CF 56K 1/5W J N
56K 1
R156L 3009303973
RES CF 30K 1/5W J N
30K 1
R161L 3039681575-T
RES MO 680 2W J RASIAL
680 2W 1
R104L R105L 3009683973
RES CF 68K 1/5W J N
68K 2
R125L R126L
3009113973 RES CF 11K 1/5W J N
11K 2
R149L
3009912973 RES CF 9.1K 1/5W JN
9.1K 1
SVR1L 3248347120-T
RES SEMI RH063MCS2R
470B 1
TP1L 1
TP2L TP 1
Q112L 2028407990
KTC4370A-Y-U
2SC 4370A 1
Q116L 2028407122
TR NPN 2SC5200 TOSHIBA
5200 1
Q103L Q104L Q120L 2008606108-T
KTC3200-BL-AT
C3200 3
Q107L 2028407990
KTC4370A-Y-U
C4370 1
Q109L
2008606107-T KTC3206-Y-AT
C3206 1
Q102L Q110L Q121L 2008606104-T
TR NPN KTC3198-Y-AT TO-92
KTC 3198Y 4
Q201L
Q101L Q111L 2008606105-T
TR NPN KTA1266-Y-AT TO-92
2SA 1266GR 2
Q113L 2028107984
KTA1659A-Y-U
2SA 1659A 1
Q105L Q106L 2008206106-T
KTA2400-GR-AT
KTA2400-GR-AT 2
Q117L 2028107118
TR PNP 2SA1943 TOSHIBA
1943 1
Q122L Q123L 2008206105-T
TR PNP KTA1268-GR-AT TO-92
KTA 1268 2
Q108L
2008206997-T KTA1024-Y-AT
A1024 1
D301L D302L 2058502150
DIODE ZENER UZ-15BM(1N5245B)
UZ 15BM 1W 2
C101R 3509102231-A
CAP CE YB 1000PF 50V K AXIAL
0.001 1
C07R C301R C302R 3509104530-T
CAP CE F 0.1UF 50V Z
0.1/50 3
C03R C04R 3509101231-A
CAP CE B 100PF 50V K AXIAL
100P 2
C104R C106R C160R 3529150311-A
CAP CE SL 15PF 50V J AXIAL
15P 3
C112R 3529330311-A
CAP CE SL 33PF 50V J AXIAL
33P 1
C05R 3529050311-A
CAP CE SL 5P 50V C AXIAL
5P 1
CN9 4355464811
CON ASS'Y 6P JST
6P 1
L101R 2648099920
COIL INDUCTOR 0.6UH
0.6uH 1
AN11 4428594903
LA5268/LAB0640/2.5MM-03P
3P 1
AN1 4355465209
CON ASS'Y 6P SHIELD(3P)
6P 1
D101R D102R D103R 2058304100
DIODE IN4148M
1N4148 11
D104R D106R D107R
D108R D109R D110R
D111R D112R
D113R D114R 2058100110
DIODE RL207 PYUNG CHANG
PS 2010 2
C105R C117R 3409210071-T
CAP AF RSG 10UF 50V 5 P
10/50 2
C118R C119R 3409247991-T
CAP AF RSG 4.7UF 100V 5 P
4.7/100 2
C113R C114R 3409222071-T
CAP AF RSG 22UF 50V 5 P
22/50 2
C115R 3409222141-T
CAP AF RSG 220UF 25V J 8 P
220/25 1
C102R 3409247971-T
CAP AF RSG 4.7UF 50V 5 P
4.7/50 1
C01R C02R C06R 3409247071-T
CAP AF RSG 47UF 50V 6 P
47/50 5
C303R C304R
JK1 C4438097210
JACK PHONE(4P) JY-6313(J.T)
PHONE 4P 1
JK4 4438189310
XLR JACK(F) JY-5033A(J.T)
XLR 3P(F) 1
C108R C109R 3609472120-T
CAP MA 0.0047UF 100V J
0.0047(M) 2
C116R 3609104122-T
CAP MA 0.1UF 100V J SMALL
0.1(M) 1
IC10R 2118010232
IC NJM072D JRC
NJM 072D 1
IC2R 2118010432
IC NJM2068DD JRC
NJM 2068D 1
PO1 2438007993
POSISTOR PTFM04BE222Q2N34B0
27 1
R137R R138R 3059278674
RES CE RGC3 0.27 3W(NOBLE)
0.27 5W 2
R132R R133R
3009431973 RES CF 430 1/5W J N
430 2
R120R R123R 3089101275
RES NFR 100 1/4W J R PHILKO
100 2
R124R R127R 3009101973
RES CF 100 1/5W J N
100 2
R152R 3009104973
RES CF 100K 1/5W J N
100K 1
R130R R135R 3089100275
RES NFR 10 1/4W J R PHILKO
10(NFR) 2
R141R 3039100575-T
RES MO 10 2W JR
10 2W 1
R103R R155R 3009123973
RES CF 12K 1/5W J N
12K 2
2CH AMP B'D (C4008499920)
R122R 3009151973
RES CF 150 1/5W J N
150 1
R153R R160R 3009154973
RES CF 150K 1/5W J N
150K 2
R159R R158R 3009123973
RES CF 12K 1/5W J N
12K 2
R106R R107R 3009181973
RES CF 180 1/5W J N
180 2
R143R R144R 3009183973
RES CF 18K 1/5W J N
18K 2
R101R R112R R113R 3009102973
RES CF 1K 1/5W J N
1K 5
R118R R119R
R146R 3009222973
RES CF 2.2K 1/5W J N
2.2K 1
R301R R302R
3059222774 RES CE 2.2K 5W
2.2K 5W 2
R128R 3039271575-T
RES MO 270 2W J RADIAL
270 2W 1
R10R 3009563973
RES CF 56K 1/5W J N
56K 1
R148R 3009273973
RES CF 27K 1/5W J N
27K 1
R108R R109R R110R 3009332973
RES CF 3.3K 1/5W J N
3.3K 4
R111R
R150R 3009391973
RES CF 390 1/5W J N
390 1
R129R R136R 3039479575-T
RES MO 4.7 2W J RADIAL
4.7 2W 2
R03R R04R R05R R06R 3002100953
RES CF 10K 1/5W F N
10K 4
R145R R147R 3009472973
RES CF 4.7K 1/5W J N
4.7K 2
R121R 3009471973
RES CF 470 1/5W J N
470 1
R114R R115R R116R 3009470973
RES CF 47 1/5W J N
47 4
R117R
R01R R02R 3009473973
RES CF 47K 1/5W J N
47K 2
R154R R157R 3009102973
RES CF 1K 1/5W J N
1K 2
R151R 3009561973
RES CF 560 1/5W J N
560 1
R102R 3009563973
RES CF 56K 1/5W J N
56K 1
R156R 3009303973
RES CF 30K 1/5W J N
30K 1
R104R R105R 3009683973
RES CF 68K 1/5W J N
68K 2
R125R R126R
3009113973 RES CF 11K 1/5W J N
11K 2
R149R
3009912973 RES CF 9.1K 1/5W JN
9.1K 1
SVR1R 3248347120-T
RES SEMI RH063MCS2R
470B 1
S3 4618001110
SW SV10020-0202-9T-SN
SLIDE SW 1
TP1 1
TP2 TP 1
Q112R 2028407990
KTC4370A-Y-U
2SC 4370A 1
Q116R 2028407122
TR NPN 2SC5200 TOSHIBA
5200 1
Q103R Q104R Q120R 2008606108-T
KTC3200-BL-AT
C3200 3
Q107R 2028407990
KTC4370A-Y-U
C4370 1
Q109R
2008606107-T KTC3206-Y-AT
C3206 1
Q102R Q110R Q121R 2008606104-T
TR NPN KTC3198-Y-AT TO-92
KTC 3198Y 3
Q101R Q111R 2008606105-T
TR NPN KTA1266-Y-AT TO-92
2SA 1266GR 2
Q113R 2028107984
KTA1659A-Y-U
2SA 1659A 1
Q105R Q106R 2008206106-T
KTA2400-GR-AT
2400 2
Q117R 2028107118
TR PNP 2SA1943 TOSHIBA
1943 1
Q122R Q123R 2008206105-T
TR PNP KTA1268-GR-AT TO-92
KTA 1268 2
Q108R
2008206997-T KTA1024-Y-AT
A1024 1
D301R D302R 2058502150
DIODE ZENER UZ-15BM(1N5245B)
UZ 15BM 1W 2
JK5-6 4438091710
JACK SPEAKON (PCB INSERT TYPE)
JACK SPEAKON 2
C501-504 3609104122-T
CAP MA 0.1UF 100V J SMALL
0.1/100(M) 4
R501-504 3039470575-T
RES MO 47 2W J RADIAL
47 2W 4
SP1 4438190410
BINDING POST(2P)
BINDING POST 1
SP2 4438190420
BINDING POST(2P)
BINDING POST 1
OUTPUT B'D (C4008499930)
AN4 4355465007
CON ASS'Y 4P JST
WAFHW4P3.96 1
CN1-2 4428595006
LW5267/LWB0640/2.5MM-06P
6P 2
GND2 6505958210
GND TERMINAL
GND PLATE 1
LD4 2300032105
LED LTL-1CHG-021A LITEON
LED GRE 1
LD1 LD3 LD5 LD7 2300030105
LED LTL-1CHE-021A LITEON
LED RED 4
LD6 2300032105
LED LTL-1CHG-021A LITEON
LED GRE 1
LD2 2300032105
LED LTL-1CHG-021A LITEON
LED GRN 1
R505 3009102973
RES CF 1K 1/5W J N
1K 1
R506-507 3009472973
RES CF 4.7K 1/5W J N
4.7K 2
VR3-4 3228070100
VR RK16311E0Z0113B
10Kb 2
LED B'D (C4008499940)
Loading...
