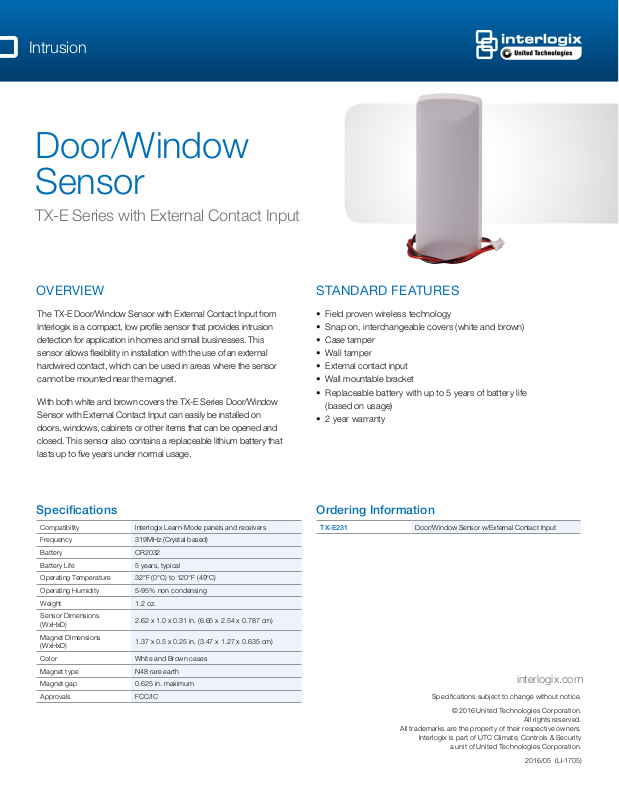

Interlogix TX-E231 Specsheet

Intrusion

Door/Window
Sensor

TX-E Series with External Contact Input

OVERVIEW

The TX-E Door/Window Sensor with External Contact Input from
Interlogix is a compact, low profile sensor that provides intrusion
detection for application in homes and small businesses. This
sensor allows flexibility in installation with the use of an external
hardwired contact, which can be used in areas where the sensor
cannot be mounted near the magnet.

With both white and brown covers the TX-E Series Door/Window
Sensor with External Contact Input can easily be installed on
doors, windows, cabinets or other items that can be opened and
closed. This sensor also contains a replaceable lithium battery that
lasts up to five years under normal usage.

Specifications

Compatibility Interlogix Learn-Mode panels and receivers

Frequency 319MHz (Crystal based)

Battery CR2032

Battery Life 5 years, typical

Operating Temperature 32°F (0°C) to 120°F (49°C)

Operating Humidity 5-95% non condensing

Weight 1.2 oz.

Sensor Dimensions
(WxHxD)

Magnet Dimensions
(WxHxD)

Color White and Brown cases

Magnet type N48 rare earth

Magnet gap 0.625 in. maximum

Approvals FCC/IC

2.62 x 1.0 x 0.31 in. (6.65 x 2.54 x 0.787 cm)

1.37 x 0.5 x 0.25 in. (3.47 x 1.27 x 0.635 cm)

STA N DAR D FE ATU R ES

• Field proven wireless technology

• Snap on, interchangeable covers (white and brown)

• Case tamper

• Wall tamper

• External contact input

• Wall mountable bracket

• Replaceable battery with up to 5 years of battery life
(based on usage)

• 2 year warranty

Ordering Information

TX-E231 Door/Window Sensor w/External Contact Input

interlogix.com

Specifications subject to change without notice.

© 2016 United Technologies Corporation.

All rights reserved.

All trademarks are the propert y of their respective owne rs.

Interlogix is part of UTC Climate, Controls & Security

a unit of United Technologies Corporation.

2016/05 (LI-1705)
