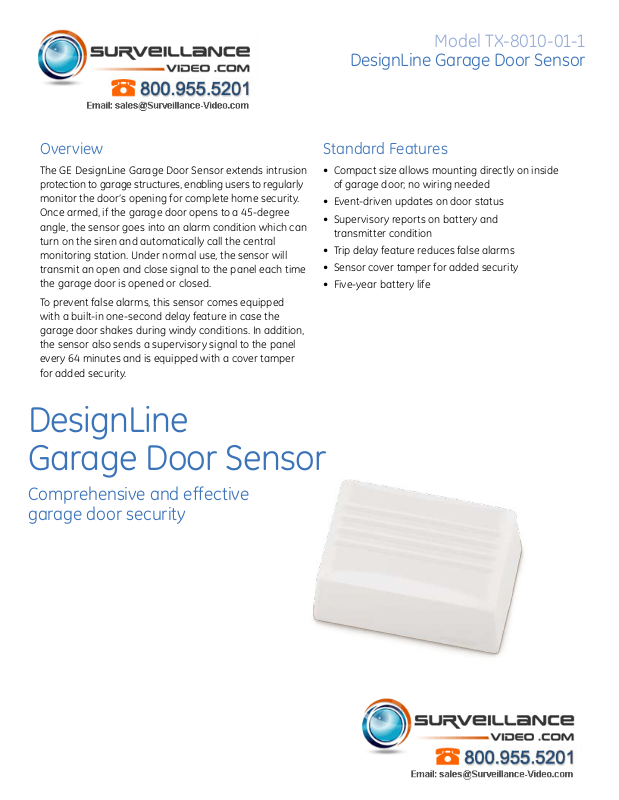

Interlogix TX-8010-01-1 Specsheet

GE

Model TX-8010-01-1

Security

Overview

The GE DesignLine Garage Door Sensor extends intrusion
protection to garage structures, enabling users to regularly
monitor the door’s opening for complete home security.
Once armed, if the garage door opens to a 45-degree
angle, the sensor goes into an alarm condition which can
turn on the siren and automatically call the central
monitoring station. Under normal use, the sensor will
transmit an open and close signal to the panel each time
the garage door is opened or closed.

To prevent false alarms, this sensor comes equipped
with a built-in one-second delay feature in case the
garage door shakes during windy conditions. In addition,
the sensor also sends a supervisory signal to the panel
every 64 minutes and is equipped with a cover tamper
for added security.

DesignLine Garage Door Sensor

Standard Features

• Compact size allows mounting directly on inside
of garage door; no wiring needed

• Event-driven updates on door status

• Supervisory reports on battery and
transmitter condition

• Trip delay feature reduces false alarms

• Sensor cover tamper for added security

• Five-year battery life

DesignLine
Garage Door Sensor

Comprehensive and effective
garage door security

Installation

Installation of the DesignLine Garage Door Sensor is quick and easy,
with just a few steps and minimal tools required.

Specifications

Battery CR2032, 3 VDC, 225 mAh, Lithium Coin Cell
Typical Battery Life 5 years
Transmitter Frequency 319.508 MHz (crystal-controlled)
Transmitter Frequency Tolerance +/- 8 kHz
Bandwidth 24 kHz
Modulation Type Amplitude Shift Key (ASK)
Unique ID Codes 16 million
Peak Field Strength Typical 35,000 uV/m @ 3m
Tilt Switch Angle 45 degrees
Supervisory Interval 64 minutes
Operating Temperature 10 degrees F (-12 degrees C) to 120 degrees F (49 degrees C)
Enclosure PC-540
Weight 0.63 oz. (18g)
Dimensions 1.70 in. (4.32cm) long x 1.10 in. (2.76 cm) wide x 0.91 in. (23.2cm) tall
Colors Belgian Grey
FCC Standard FCC Part 15

Ordering Information

TX-8010-01-1 DesignLine Garage Door Sensor
