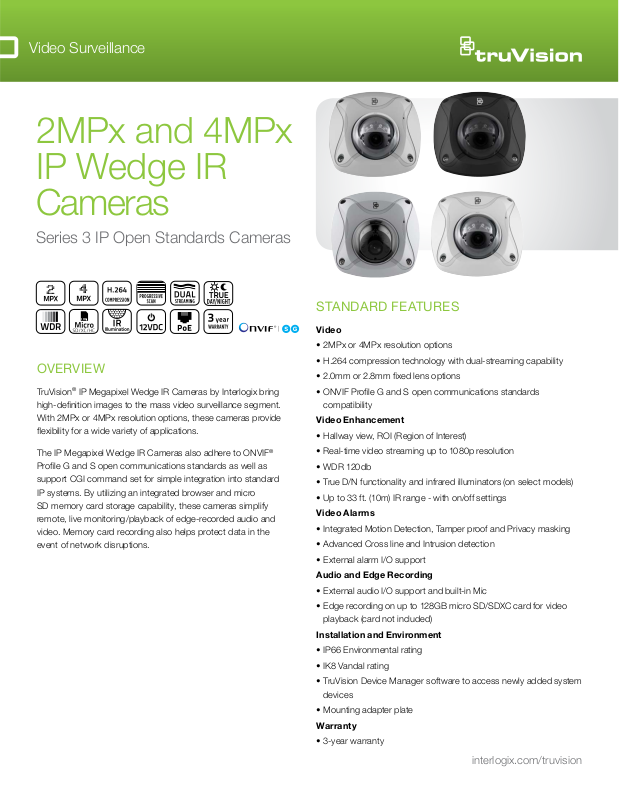

Page 1
Video Surveillance
2MPx and 4MPx
IP Wedge IR
Cameras
Series 3 IP Open Standards Cameras
OVERVIEW
TruVision® IP Megapixel Wedge IR Cameras by Interlogix bring
high-definition images to the mass video surveillance segment.
With 2MPx or 4MPx resolution options, these cameras provide
flexibility for a wide variety of applications.
The IP Megapixel Wedge IR Cameras also adhere to ONVIF
Profile G and S open communications standards as well as
support CGI command set for simple integration into standard
IP systems. By utilizing an integrated browser and micro
SD memory card storage capability, these cameras simplify
remote, live monitoring/playback of edge-recorded audio and
video. Memory card recording also helps protect data in the
event of network disruptions.
®
STANDARD FE ATURES
Video
• 2MPx or 4MPx resolution options
• H.264 compression technology with dual-streaming capability
• 2.0mm or 2.8mm fixed lens options
• ONVIF Profile G and S open communications standards
compatibility
Video Enhancement
• Hallway view, ROI (Region of Interest)
• Real-time video streaming up to 1080p resolution
• WD R 120db
• True D/N functionality and infrared illuminators (on select models)
• Up to 33 ft. (10m) IR range - with on/off settings
Video Alarms
• Integrated Motion Detection, Tamper proof and Privacy masking
• Advanced Cross line and Intrusion detection
• External alarm I/O support
Audio and Edge Recording
• External audio I/O support and built-in Mic
• Edge recording on up to 128GB micro SD/SDXC card for video
playback (card not included)
Installation and Environment
• IP66 Environmental rating
• IK8 Vandal rating
• TruVision Device Manager software to access newly added system
devices
• Mounting adapter plate
Warranty
• 3-year warranty
interlogix.com/truvision
Page 2
Dimensional Diagrams
2.09 in.
TVW-5301, TVW-5302, TVW-5303, TVW-5304, TVW-5305 IP Wedge Camera (mounting adapter plate included)
3.29 in. (83.5mm)
3.81 in.
(145mm)
(79.3mm)
1.45 in.
(55.4mm)
3.91 in.
(149mm)
Page 3

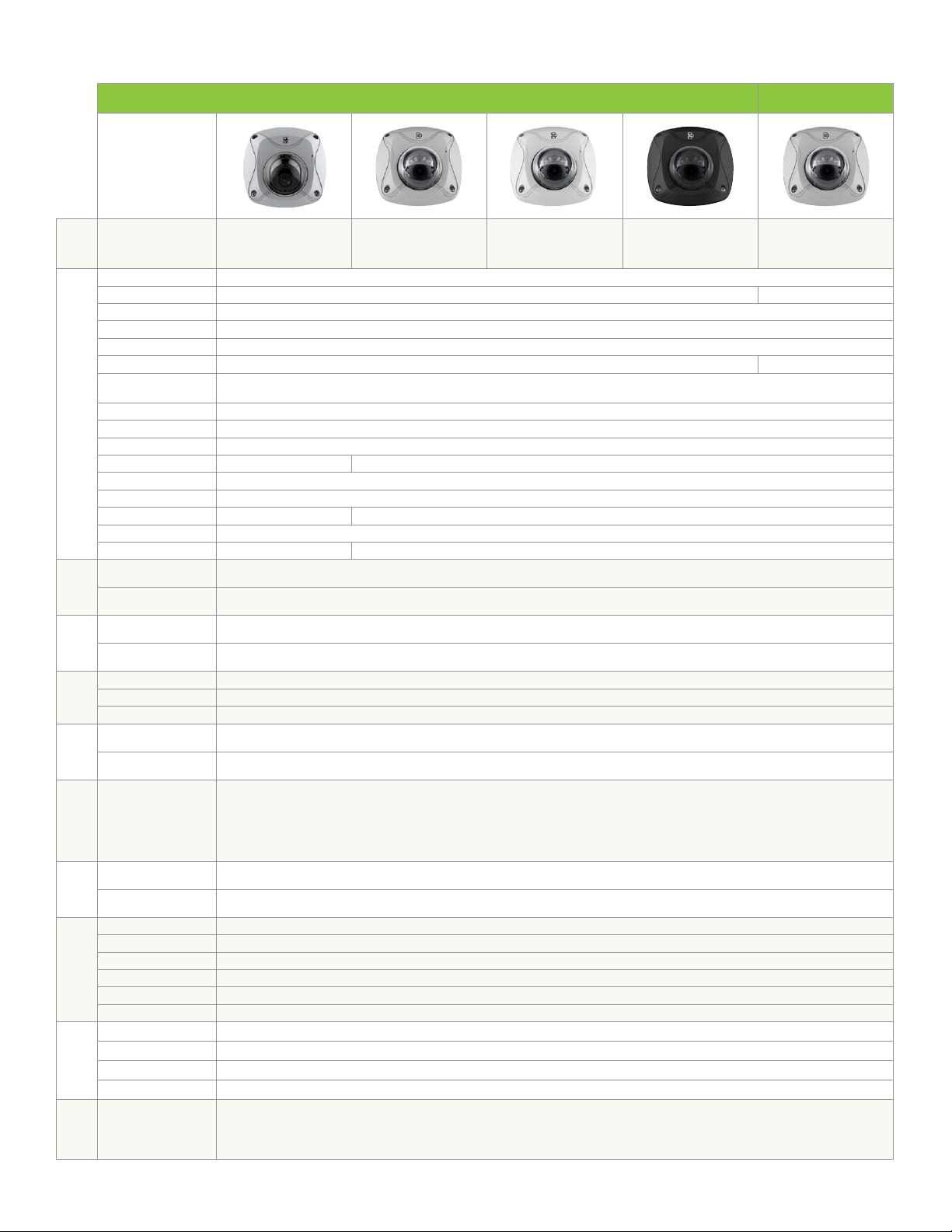

Specifications
PART NO.
Housing
Sensor 1/3" Progessive Scan CMOS
Resolution 2MPx 4MPx
Day/Night IR cut filter
IP Compression H.264 / MJPEG
Multiple Streaming Dual Stream
Maximum Resolution 1920 x 1080 2688 x 1520
Maximum Real-Time
Resolution (@fps)
Video Bit Rate
Camera
Wide Dynamic Range
Digital Noise Reduction
Minimum Illumination
Digital S/N Ratio 50 dB (AGC Off)
Auto Exposure (shutter) 1/3 s to 1/10,000 s
Lens 2mm @ f2.0 2.8mm @ f2.0
Focus Fixed
IR Range N/A 33 ft. (10m)
Ethernet Port 1 RJ45 10/100 Mbps auto-negotiate
TVW-5301 TVW-5302 TVW-5303 TVW-5304 TVW-5305
Gray Gray White Black Gray
1920 x 1080 @ 25/30 fps
256 Kbps - 16 Mbps
WDR (120 dB)
3D-NR
0.01 lux @ f1.2, AGC On 0.01 lux @ f1.2, AGC On; 0 lux with IR
Network Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos, IPv6
Network
Media Micro SD/SDHC/SDXC slot
Local
Capacity Up to 128GB
Storage
Input 1 Mic-in, Built-in Mic
Output 1
Audio
Audio bit rate (protocol) G.722.1, G.711ulaw, G.711alaw, MP2L2 and G.726
Intelligence Motion Detection, Tamper Proof, Privacy Mask, Dual VCA, Intrusion Detection, Cross Line, Hallway View, ROI
Alarms
Input/Output 1 in / 1 out
Camera
Standard ONVIF® (Profile G/S), PSIA, CGI
Interoperability
Display Mode Flipped horizontally (up/down), vertically (right/left) or centered, Hallway view, ROI (Region of Interest)
Display
On Screen Dispaly (OSD) Text ovelay
Voltage Input 12VDC, PoE (IEEE802.3-af)
Power Consumption 5W
Current 0.42A
Auxiliary Output N/A
Electrical/
Mechanical
Dimensions 3.86 x 3.49 x 12.94 in. (98 x 89 x 329mm)
Weight 0.9 lbs. (409g)
Storage Temperature -22°F~140°F (-30°C~60°C)
Operating Temperature -22°F~140°F (-30°C~60°C)
Environmental Rating IP66
Environmental
Vandal Rating IK8
Compliance FCC, CE, UL, WEEE, RoHS, REACH
Regulation
Page 4
2MPx and 4MPx
IP Wedge IR Cameras
Series 3 IP Open Standards Cameras
Ordering Information
TruVision® Wedge Fixed Lens Camera, 2MPx, True
TVW-5301
TVW-5302
TVW-5303
TVW-5304
TVW-5305
D/N, WDR, 2mm, Built-in Mic, Audio, Alarm, Micro
SD/SDHC/SDXC Slot, PoE (802.3-af)/12VDC, IP66,
IK8, Gray
TruVision IR Wedge Fixed Lens Camera, 2MPx, True
D/N, WDR, 10M IR, 2.8mm, Built-in Mic, Audio, Alarm,
Micro SD/SDHC/SDXC Slot, PoE (802.3-af)/12VDC,
IP66, IK8, Gray
TruVision IR Wedge Fixed Lens Camera, 2MPx, True
D/N, WDR, 10M IR, 2.8mm, Built-in Mic, Audio, Alarm,
Micro SD/SDHC/SDXC Slot, PoE (802.3-af)/12VDC,
IP66, IK8, White
TruVisionIR Wedge Fixed Lens Camera, 2MPx, True
D/N, WDR, 10M IR, 2.8mm, Built-in Mic, Audio, Alarm,
Micro SD/SDHC/SDXC Slot, PoE (802.3-af)/12VDC,
IP66, IK8, Black
TruVision IR Wedge Fixed Lens Camera, 4MPx, True
D/N, WDR, 10M IR, 2.8mm, Built-in Mic, Audio, Alarm,
Micro SD/SDHC/SDXC Slot, PoE (802.3-af)/12VDC,
IP66, IK8, Gray
Accessories
TVD-BB3 TruVision Dome Back Box
TVD-BB3A TruVision Dome Angled Back Box
TVW-2G-AD Double Gang Electrical Box Adapter Plate
TVW-AWB-1 Outdoor Angled Back Box for Wedge
TVW-AWB-2 Indoor Angled Back Box for Wedge
TVD-LWB-1 TruVision Dome Bracket, L-shape
TVD-LWB-AD TruVision LWB Bracket Adapter to TVD-SNB-BB
TVD-M2-WM
DR-RWM Wall Mount (use w/DR-RWM-AD Adapter)
DR-RWM-AD
TVD-CB2
TVW-DVM
TVD-SNB
TVD-SNB-BB
TVD-M-CMA
TVD-M-PMA
TVD-PPB
TruVision Dome Wall Mount (use w/DR-RWM-AD
Adapter)
Adapter for TVD Plastic Dome to DR & TVD-M2-WM
Wall Mount Bracket
TruVision Dome 2-Inch Cap Base, requires TVD-M2WEBM which is included (use w/TVW, TVD-SNB,
TVD-PPB)
Dual View Mount for Wedge (use w/TVD-PPB and
TVD-SNB)
TruVision Dome Swan Neck Bracket (use w/TVDCB5A, TVD-CB3, TVD-CB2 TVW-DVM)
TruVision TVD-SNB Back Box, 4-directional Conduit,
Indoor & Outdoor
TruVision Corner Mount Adapter (use w/TVD-SNB,
TVC VF/Motor Lens IP Bullet Cameras and TVD-HDTVI/Analog VF Bullet Cameras)
TruVision Pole Mount Adapter (use w/TVD-SNB, TVC
VF/Motor Lens IP Bullet Cameras and TVD-HD-TVI/
Analog Bullet Cameras)
TruVision Dome Pendant-Mount Bracket (use w/TVDCB5A, TVD-CB3, TVD-CB2, TVW-DVM)
interlogix.com
Specifications subject to change without notice.
© 2016 United Technologies Corporation.
All trademarks are the property of their respective owners.
Interlogix is part of UTC Climate, Controls & Security,
a unit of United Technologies Corporation.
All rights reserved.
2016/10 (GSP-1752)
