Interlogix TVW-3116 Installation

TruVision

11/31

Series
Camera Installation
Guide

P/N 1072907-EN • REV B • ISS 24APR15

Wi-Fi IP

Copyright

© 2015 United Technologies Corporation,
Interlogix is part of UTC Building & Industrial S ystems, a unit of United

Technologies Corporation. All right s reserved.

Trademarks and patent s

Trade names used in this document may be trademarks or registered t rademarks
of the manufacturers or vendors of the respectiv e products.

Manufacturer

Interogix
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representat ive:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

N4131

This equipment has been tested and found to comply wit h the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limi ts are designed to
provide reasonable protection against harmf ul interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with t he instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not oc cur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user i s encouraged
to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equi pment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

4. Consult the dealer or an experienced r adio technician for help.

CC Caution

To assure continued compliance, use only shiel ded interface cables when
connecting to computer or peripheral devi ces. Any changes or modifications not
expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference

(2) This Device must accept any interference received, including int erference that

Bulgaria

None

General authorization requir ed for

France

Outdoor use;

Military Radiolocation use. Refarmi ng

Luxembourg

None

General authorization required for

may cause undesired operation.

Any changes or modifications not expressly approv ed by the party responsible for
compliance could void the user’s authority t o operate the equipment.

Federal Communication Commission (FCC) Radiation Expo sure Statement
This equipment complies with FCC radiation ex posure set forth for an

uncontrolled environment. In order t o avoid the possibility of exceeding the FCC
radio frequency exposure limits, human pr oximity to the antenna shall not be less
than 20 cm (8 inches) during normal operation.

R&TTE Compliance Statement

This equipment complies with all the requirement s of DIRECTIVE 1999/5/CE OF
THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio
equipment and telecommunication termi nal Equipment and the mutual
recognition of their conformity (R&TT E). The R&TTE Directive repeals and
replaces in the directive 98/13/EEC (Telec ommunications Terminal Equipment
and Satellite Earth Station Equipment) as of April 8, 2000.

Safety

This equipment is designed with the utmost car e for the safety of those who
install and use it. However, special attenti on must be paid to the dangers of
electric shock and static electricit y when working with electrical equipment. All
guidelines of this and of the computer manufact ure must therefore be allowed at
all times to ensure the safe use of the equipment.

National Restrictions

This device is intended for home and office use in all EU countr ies (and other
countries following the EU directiv e 1999/5/EC) without any limitation except for
the countries mentioned below:

Country Restriction Reasons/remarks

limited to 10 mW
e.i.r.p. within the
band 2454-

2483.5 MHz.

outdoor use and public service

of the 2.4 GHz band has been ongoing
in recent years to allow current relaxed
regulation. Full im plementation
planned 2012

network and service supply(not for
spectrum).

Annex 3 B and A Wideband Data Transmission systems 2400.0-2483.5 MHz:

Norway

Implemented

This subsection does not apply for the

Italy

Implemented

The public use is subject to general

Russian

Limited

1. SRD with FHSS modulation

Ukraine

Limited

e.i.r.p. ≤100 mW wit h built-in antenna

The following information shall also be included in the case of radio equipment

Country Restriction Reasons/remarks

geographical area within a radius of
20 km from the centre of Ny-Ålesund.

authorization by the respective servi ce
provider.

Federation

implem entation

implem entation

1.1. Maximum 2.5 mW e.i. r.p.

1.2. Maximum 100 mW e.i.r. p.
Permitted for use SRD for outdoor
applications without restricti on on
installation height only for purposes of
gathering telemetry information f or
automated monitoring and resources
accounting systems. Permitted to use
SRD for other purposes for outdoor
applications only when the installati on
height is not exceeding 10 m ab ove
the ground surface. 1.3 maximum
100 mW e.i.r.p. indoor applications.

2. SRD with DSSS and other than
FHSS wideband modulation

2.1. Maximum mean e.i.r.p. density is
2 mW/MHz. Maximum 100 mW e.i.r.p.

2.2. Maximum mean e.i.r.p. density is
20 mW/MHz. Maximum 100 mW
e.i.r.p. It is permitted to use SRD for
outdoor applications only for purposes
of gathering telem etry information for
automated monitoring and resources
accounting systems or security
system s.

2.3. Maximum mean e.i.r.p. density is
10 mW/MHz. Maximum 100 mW
e.i.r.p. indoor applications.

with amplification f actor up to 6 dBi.

intentionally emitting radi o waves:

(a) frequency band(s) in which the radio equi pment operates;

2012/19/EU (WEEE directive): Products marked with this

2006/66/EC (battery directive): Thi s product contains a

For contact informati on, see www.interlogix.com or

(b) maximum radio-frequency power transmitted i n the frequency band(s) in
which the radio equipment operates.

symbol cannot be disposed of as unsorted munici pal waste
in the European Union. For proper recycling, return this
product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designat ed
collection points. For more informati on see:
www.recyclethis.info.

battery that cannot be disposed of as unsorted muni cipal
waste in the European Union. See the product
documentation for specifi c battery information. The battery
is marked with thi s symbol, which may i nclude lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg) . For
proper recycling, return the battery to your supplier or to a
designated collection point. For more inf ormation see:
www.recyclethis.info.

Contact

information

www.utcfssecurityproducts.eu.

Content

Introduction 7

Product overview 7

Installation 7

Installation environment 7
Package contents 8
Cable requirements 11
Camera description 11
Setting up the camera 12

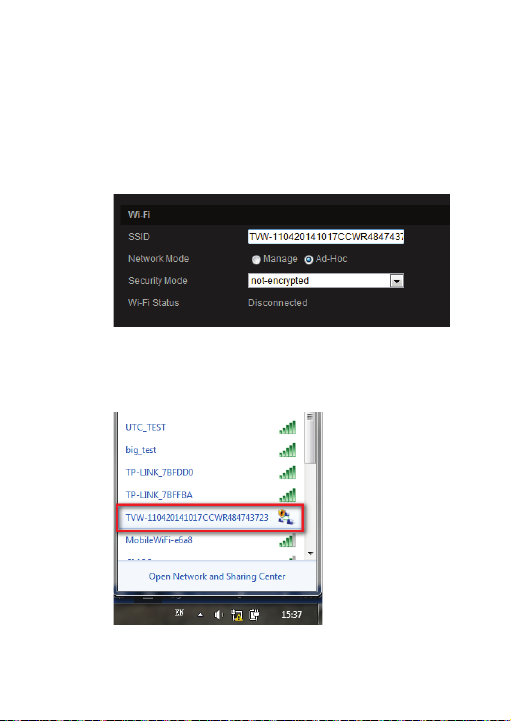

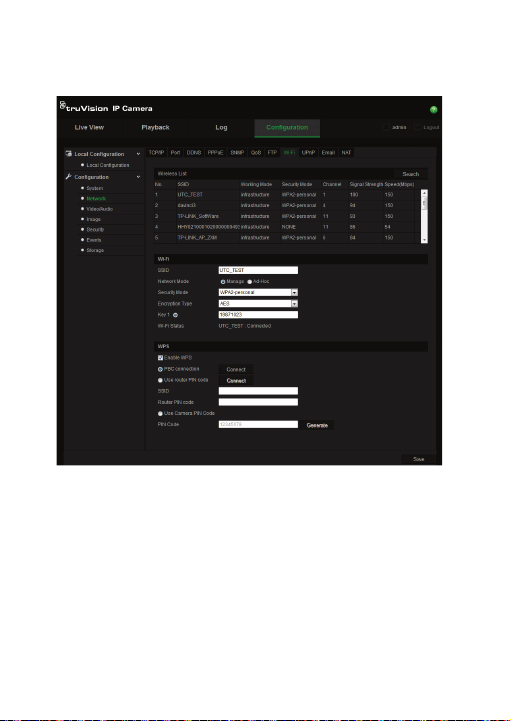

Setting up Wi-Fi transmission 12
Accessing the SD card 19

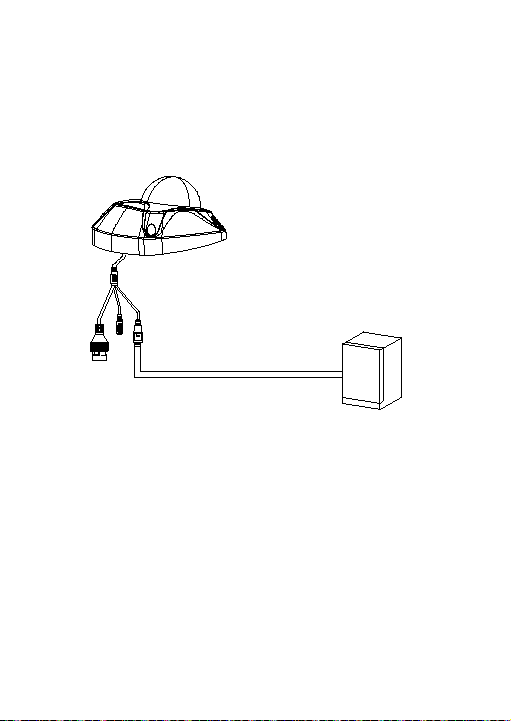

Connecting a speaker 20

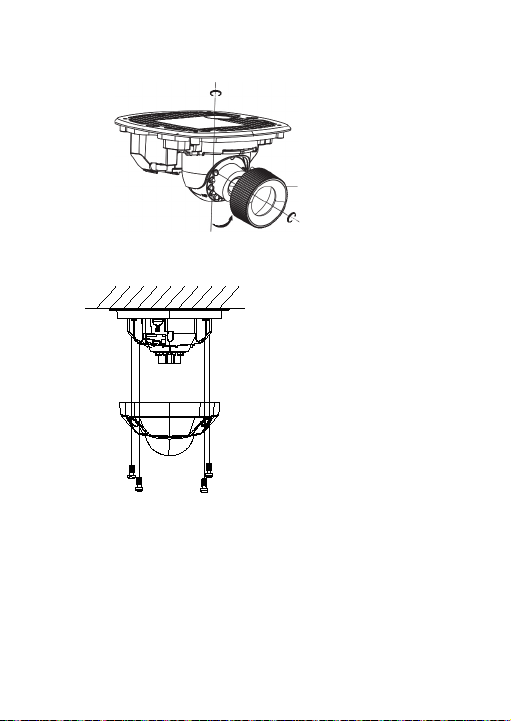

Mounting the wedge camera 21
Using the camera with a recorder 23
Using the camera with TruVision Navigator 24
Ensuring corrosion resistance 24

Specifications 25

TruVision IP wedge cameras 25

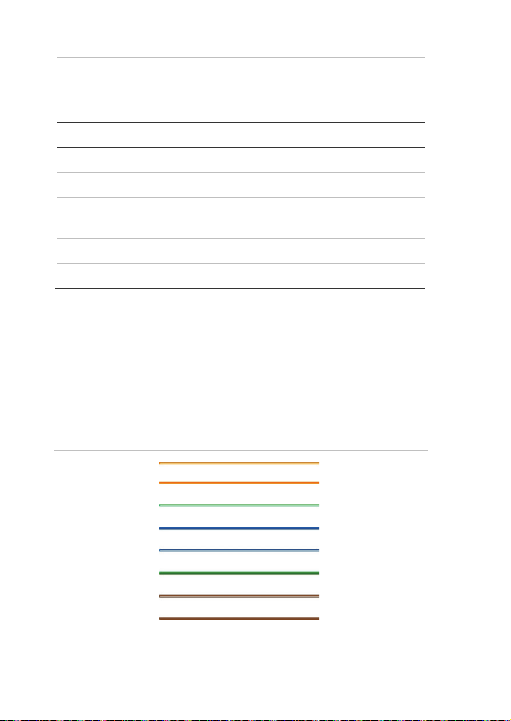

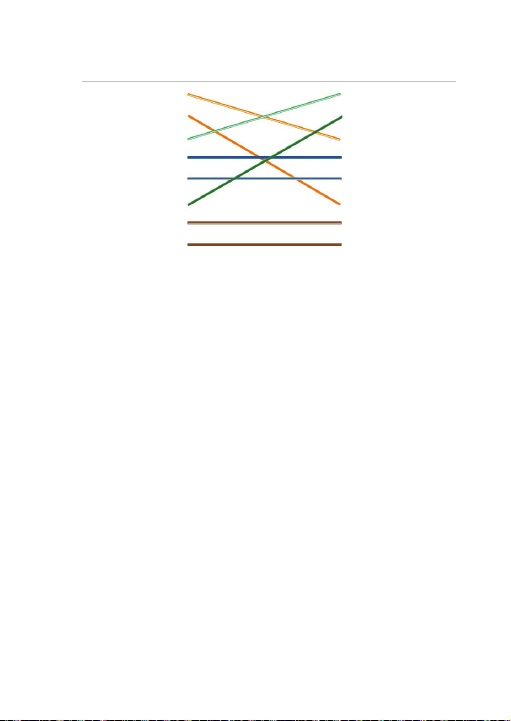

Pin definitions 26

6 Installation Guide

Introduction

Product overview

This is the installation guide for TruVision 11-31 Series Wi-Fi IP
camera models:

 TVW-1103 (1.3MPX Wi-Fi, 2.8mm lens, Grey, PAL)

 TVW-3103 (1.3MPX Wi-Fi, 2.8mm lens, Grey, NTSC)

 TVW-1104 (1.3MPX Wi-Fi, 2.8mm lens, White, PAL)

 TVW-3104 (1.3MPX Wi-Fi, 2.8mm lens, White, NTSC)

 TVW-1105 (3MPX Wi-Fi, 2.8mm lens, Grey, PAL)

 TVW-3105 (3MPX Wi-Fi, 2.8mm lens, Grey, NTSC)

 TVW-1106 (3MPX Wi-Fi, 2.8mm lens, White, PAL)

 TVW-3106 (3MPX Wi-Fi, 2.8mm lens, White, NTSC)

 TVW-1116 (3MPX Wi-Fi, 6mm lens, White, PAL)

 TVW-3116 (3MPX Wi-Fi, 6mm lens, White, NTSC)

Installation

This section provides information on how to install the cameras.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be
done by qualified service personnel. Always use a proper
PoE switch or a 12 VDC UL listed Class 2 or CE certified

Installation Guide 7

power supply to power the camera. Do not overload the
power cord or adapter.

• Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.

• Temperature: Do not operate the camera beyond the
specified temperature, humidity or power source ratings.
The operating temperature of the camera is between -30
to +60°C (-22 to 140°F). Humidity is below 90%.

• Moisture: Do not expose the camera to rain or moisture,
or try to operate it in wet areas. Turn the power off
immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the
camera and also create the danger of electric shock.

• Servicing: Do not attempt to service this camera yourself.
Any attempt to dismantle or remove the covers from this
product will invalidate the warranty and may also result in
serious injury. Refer all servicing to qualified service
personnel.

• Cleaning: Do not touch the sensor modules with fingers. If
cleaning is necessary, use a clean cloth with some ethanol
and wipe the camera gently. If the camera will not be used
for an extended period of time, put on the lens cap to
protect the sensors from dirt.

Package contents

Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use the
unit; contact the supplier immediately. If the unit is returned, it
must be shipped back in its original packaging.

8 Installation Guide

IP wedge camera

Camera

Installation manual

CD with Configuration
Manual and TruVision Device
Finder

Template A for mounting

Screws

with the converter pan

Template B for mounting
without the converter pan

Drywall anchor

Φ7.5 x 24.5mm (3 pcs)

Screw M4

(4 x 25mm (3 pcs)

Installation Guide 9

Water joint: provide water
resistance to network
connection.

12 VDC connector: DC jack
socket to terminal connectors
with positive and negative
indicators.

Screws C: M4×8, 2pcs Tamper-resistant

Lens alignment tool

hex wrench

Converter pan

WEEE and battery
disposal

CAUTION: Use direct plug-in UL listed power supplies marked
Class 2/CE certified or LPS (limited power source) of the
required output rating as listed on the unit.

CAUTION: Risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to the
instructions.

10 Installation Guide

Cable requirements

6. Base

9

2

1

6

8

7

3

5

4

1

0

1

1

For proper operation, adhere to the following cable and power
requirements for the cameras. Category 5 cabling or better is
recommended. All network cabling must be installed according
to applicable codes and regulations.

Camera description

Figure 1: IP wedge camera

1. Camera cover/housing

2. Lens

3. SD card

4. Ethernet RJ45 PoE port

5. Power supply

7. Alarm and Audio port

8. Reset/WPS button

9. Converter pan

10. Antenna

11. Microphone

Installation Guide 11

Setting up the camera

Note: If the light source where the camera is installed

experiences rapid, wide variations in lighting, the camera may
not operate as intended.

To quickly put the camera into operation:

1. Prepare the mounting surface.

2 Mount the camera using the appropriate fasteners. See

“Mounting the wedge camera” on page 21.

3. Set up the camera’s network and streaming parameters so
that the camera can be controlled over the network. For
further information, please refer to the “TruVision IP
Camera Configuration Manual”.

4. Program the camera to suit its location. For further
information, please refer to the “TruVision 11/31 Series IP
Camera Configuration Manual”.

Setting up Wi-Fi transmission

For setting up the Wi-Fi transmission, please refer to the
“TruVision 11/31 Series IP Camera Configuration Manual” for
details.

Wi-Fi transmission distance

The Wi-Fi transmission distance/range of the camera is
approximately 50 m (164 ft.) in open air applications.

Note: The transmission distance may vary due to the presence

of physical obstacles, such as trees, walls, elevators, fire doors,
furniture, etc. Avoid very solid walls and metallic objects in the
transmission path. Other Wi-Fi networks (for example Wi-Fi,
WiMAX) operating on 2.4 GHz and certain types of devices
(e.g., microwave oven point-to-point Wi-Fi transmission) can

12 Installation Guide

cause interference with your network. The result would lead to a
reduction in transmission distance/range.

Access the camera via a Wi-Fi network (Ad-Hoc
mode)

Note: The camera is i n Ad-Hoc mode by default. The SSID is

the serial number.

1. Power up the camera.

2. From your computer, search for the SSID that was set up

for the camera for Ad-Hoc mode. Select the SSID to
connect the camera.

Installation Guide 13

3. When connected, open TruVision Device Finder or Device
Manager and change the IP address of the camera to that
of the same subnet of the router.

Note: The computer Wi-Fi IP address should also be in the
same subnet.

14 Installation Guide

4. Log on the camera via web browser and browse to the Wi-

Fi page.

5. Select the desired Wi-Fi and enter the key, if required.

Installation Guide 15

6. Click Save to save the settings.

7. When the camera is connected to the router, the ad-hoc is
disconnected. On the laptop, select the Wi-Fi router and
connect it.

8. Open the device finder to check the WLAN IP address of
the camera. Log in to the camera to see live view.

16 Installation Guide

Access the camera via a network cable

When configuring the Wi-Fi settings for the first time, connect
the camera to the router via a network cable and then ope n the
web browser to complete the Wi-Fi setup by clicking Save.

Installation Guide 17

When the Wi-Fi Status changes from “Disconnected” to
“Connected”, the Wi-Fi connection is set up successfully.

WPS

The camera provides WPS (Wi-Fi Protected Setup) feature to
easily set up a Wi-Fi connection to a Wi-Fi router.

18 Installation Guide

PBC mode: Push the WPS button on the Wi-Fi router. The
WPS indicator will flash. (The WPS settings may be different
per device. Please refer to the Wi-Fi router User Manual for
details). Then check the PBC checkbox and click the Connect
button. The camera and the Wi-Fi router are automatically
connected.

PIN mode: The PIN code is printed on the Wi-Fi router device.
Enter the PIN code in the Router PIN Code bar and check the

Use Router PIN Code. Then click Connect to connect the

camera to the Wi-Fi router.

You can generate the PIN code on the camera side and
configure the Wi-Fi router to finish the connection setting.
(Please check the Wi-Fi router User Manual for details). Please
note that the PIN code expiration time is 120 seconds.

Accessing the SD card

Insert a Micro SD card with up to 64GB for local storage as a
backup in case, for example, the network fails (see Figure 1 on
page 11). The SD card is not supplied with the camera.

Video and log files stored on the Micro SD card can only be
accessed via the web browser. You cannot access the card
using TruVision Navigator or a recording device.

Installation Guide 19

Connecting a speaker

Audio Output

GND

The camera has a built-in microphone to the collect audio input
signal. For audio output, please connect an external speaker to
the Audio Output and GND interface of the camera. The
speaker is not supplied with the camera.

Note: The speaker need be powered correctly with a power
supply. Please check the speaker specification and user
manual for more details.

20 Installation Guide

Mounting the wedge camera

A

To mount the wedge camera on a wall or ceiling:

1. Drill the holes for the mounting hardware in the mounting

surface using the supplied drill template. To route the
cables from the base of the camera, drill a cable access
hole in the mounting surface.

2. Mount the converter pan to the mounting surface (optional).

Note: If required, you can remove the tab (A) on the side
of the converter pan to pass the cables through.

3. Loosen the screws with the tamper-resistant hex wrench

(supplied) to remove the camera cover.

Installation Guide 21

4. Mount the camera base to the converter pan or mounting
surface, depending on the installation.

5. Use the supplied lens alignment tool to adjust the pan
[±30°], tilt [0 to 80°], and rotation direction [0 to 360°].

22 Installation Guide

Pan

Tilt

Adjusting tool

Rotation

6. Re-attach the dome cover to the camera.

Using the camera with a recorder

Please refer to the recorder user manuals for instructions on
connecting and operating the camera with these systems.

Installation Guide 23

Using the camera with TruVision Navigator

silicone sealant

A camera must be connected to an Interlogix NVR or hybrid
DVR in order to be operated by TruVision Navigator. Please
refer to the TruVision Navigator user manual for instructions on
operating the camera with the TruVision Navigator.

Ensuring corrosion resistance

For normal outdoor or indoor applications, the camera has an
IP66 dust and water protection rating. Please follow the
installation instructions in the manual to mount the camera as
required.

When installing the camera in a corrosive environment, such as
marine ships, coastal sites, or chemical factories, please use
silicone sealant (purchased separately) to seal the microphone
hole. The typical cure time is about one to two hours in the
temperature range between 40 and 100°F (5 and 40°C).

24 Installation Guide

The camera housing and hardware are designed and

Electrical

Voltage input

Power consumption

Wi

Wi

Frequency range

Communication
bandwidth

Security

Transmission rate

Transmission range

manufactured to ensure corrosion protection. However, it is
necessary to seal the cable connection during the installation
work. Following all local codes, use electrical tape or a
corrosion-resistant conduit box to connect the cables as
required.

Note: Sealing the microphone hole impacts the sensitivity of
camera audio input.

Specifications

TruVision IP wedge cameras

Installation Guide 25

12 VDC, PoE (IEEE 802.3af)

Max. 5 W

-Fi parameters

-Fi standard IEEE802.11b/g/n

2.4 to 2.4835 GHz

64/128-bit WEP, WPA/WPA2, WPA-

Support 20/40 MHz

PSK/WPA2-PSK, WPS

11b: 11Mbps, 11g: 54Mbps, 11n: up

to 150Mbps

Up to 50 m

* It varies depending on the actual
working environment.

Transmit

output power 11b: 17±1.5 dBm @ 11Mbps

Miscellaneous

Connectors

Operating temperature

Dimensions (L × W × H)
Weight

Environmental rating

11g: 14±1.5 dBm @ 54Mbps
11n: 12.5±1.5 dBm

DC jack flying lead, RJ45 flying lead

-30 to +60°C (-22°F to +140°F)

98 × 89 × 329 mm

(3.86 ×3.49 × 12.94 in.)

407 g (0.89 lbs.)

IP66

Pin definitions

There are eight wires on a standard UTP/STP cable and each
wire is color-coded. The following graphics show the pin
allocation and color of straight and crossover cable connection:

Figure 2: Straight-through cable

1 White/Orange

2 Orange Orange 2

3 White -Green White -Green 3

4 Blue Blue 4

5 W hite/Blue White/Blue 5

6 Green Green 6

7 White/Brown White/Brown 7

8 Brown Brown 8

White/Orange 1

26 Installation Guide

Figure 3: Cross-over cable

1 White/Orange
2 Orange Orange 2
3 Whit e-Green White-Green 3
4 Blue Blue 4
5 White/Blue White/Blue 5
6 Green Green 6
7 White/Brown White/Brown 7
8 Brown Brown 8

Please make sure your connected cables have the same pin
assignment and color as above before deploying the cables in
your network.

White/Orange 1

Installation Guide 27

28 Installation Guide
