Interlogix TVB-1103, TVB-3101, TVB-3103, TVD-1101, TVD-3101 Installation Manual
...
TruVision 11/31
Series IP Camera
Installation Guide
P/N 1072857A-EN • REV 1.0 • ISS 29AUG14
Copyright © 2014 United Technologies Corporation,
Interlogix is part of UTC Building & Industrial
Systems, a unit of United Technologies
Corporation. All rights reserved.
Trademarks and
patents
Trade names used in this document may be trademarks
or registered trademarks of the manufacturers or
vendors of the respective products.
Manufacturer Interogix
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923,
USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
N4131
FCC compliance Class A: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
ACMA compliance Notice! This is a Class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take
adequate measures.
Canada This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe A est conforme à
la norme NMB-0330 du Canada.
European Union
directives
12004/108/EC (EMC directive): Hereby, UTC Fire &
Security declares that this device is in compliance with
the essential requirements and other relevant
provisions of Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon
the purchase of equivalent new equipment, or dispose
of it at designated collection points. For more
information see: www.recyclethis.info.
Contact information For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.
Installation Guide 1
Content
Introduction 2
Product overview 2
Installation 4
Installation environment 4
Package contents 5
Cable requirements 11

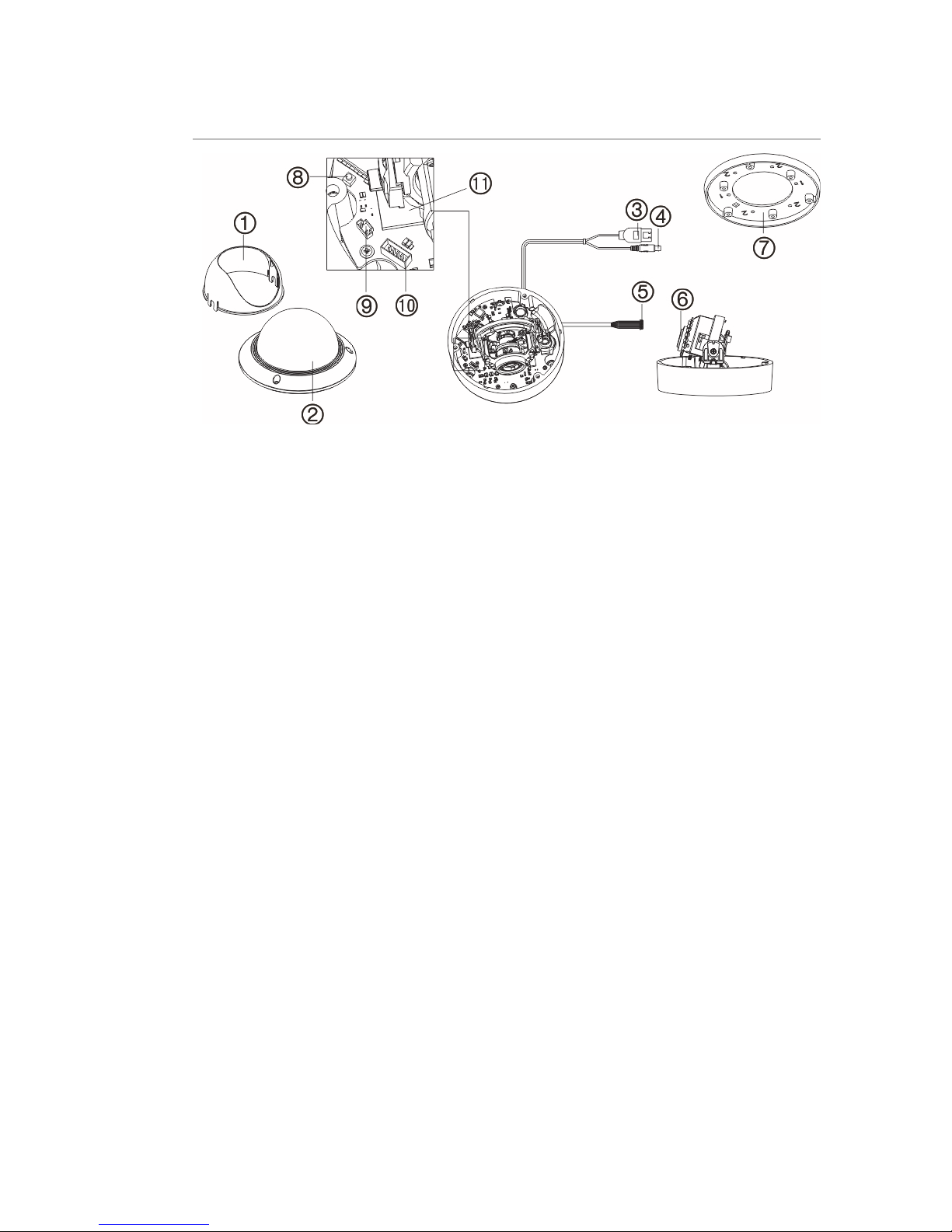

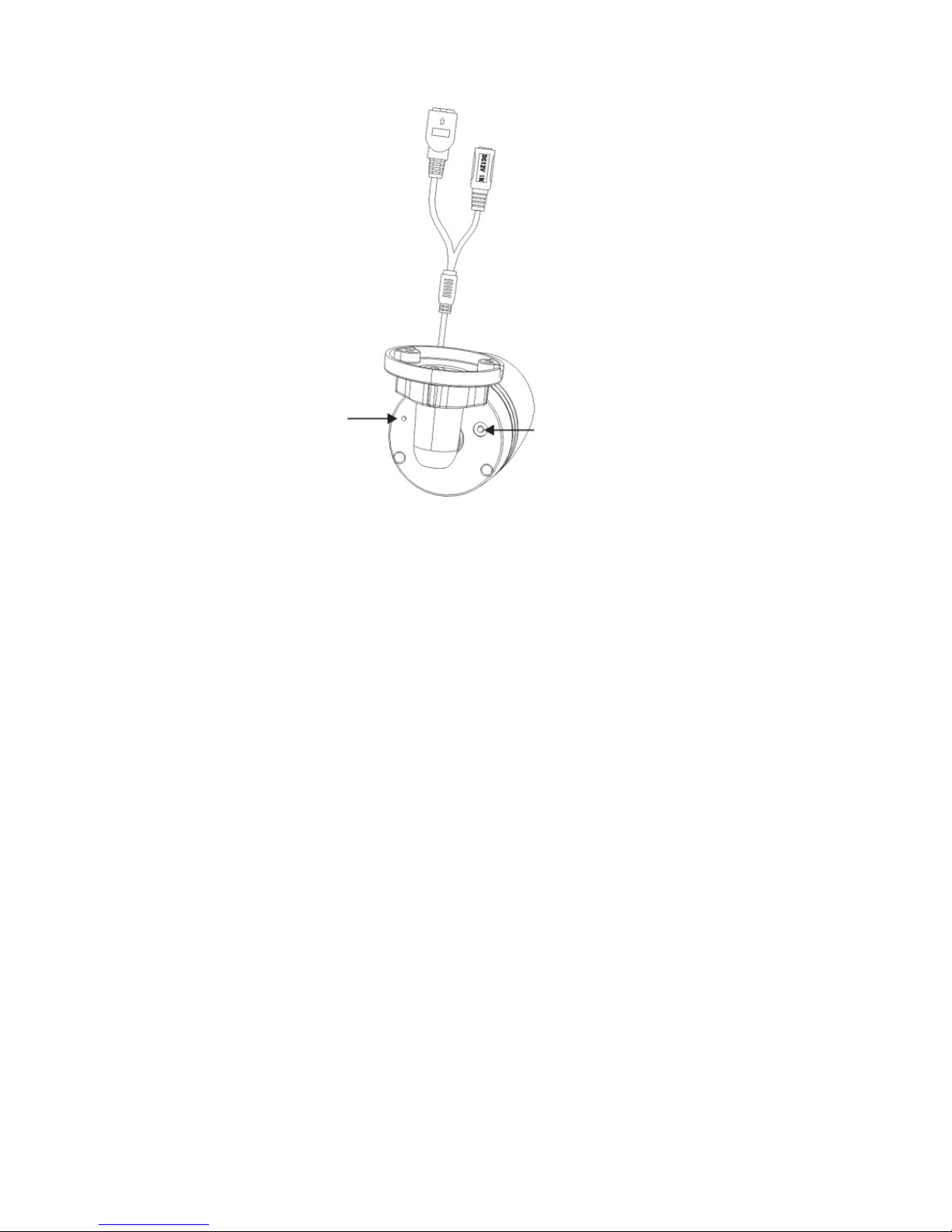

Camera description 11
Setting up the camera 15
Accessing the SD card 16

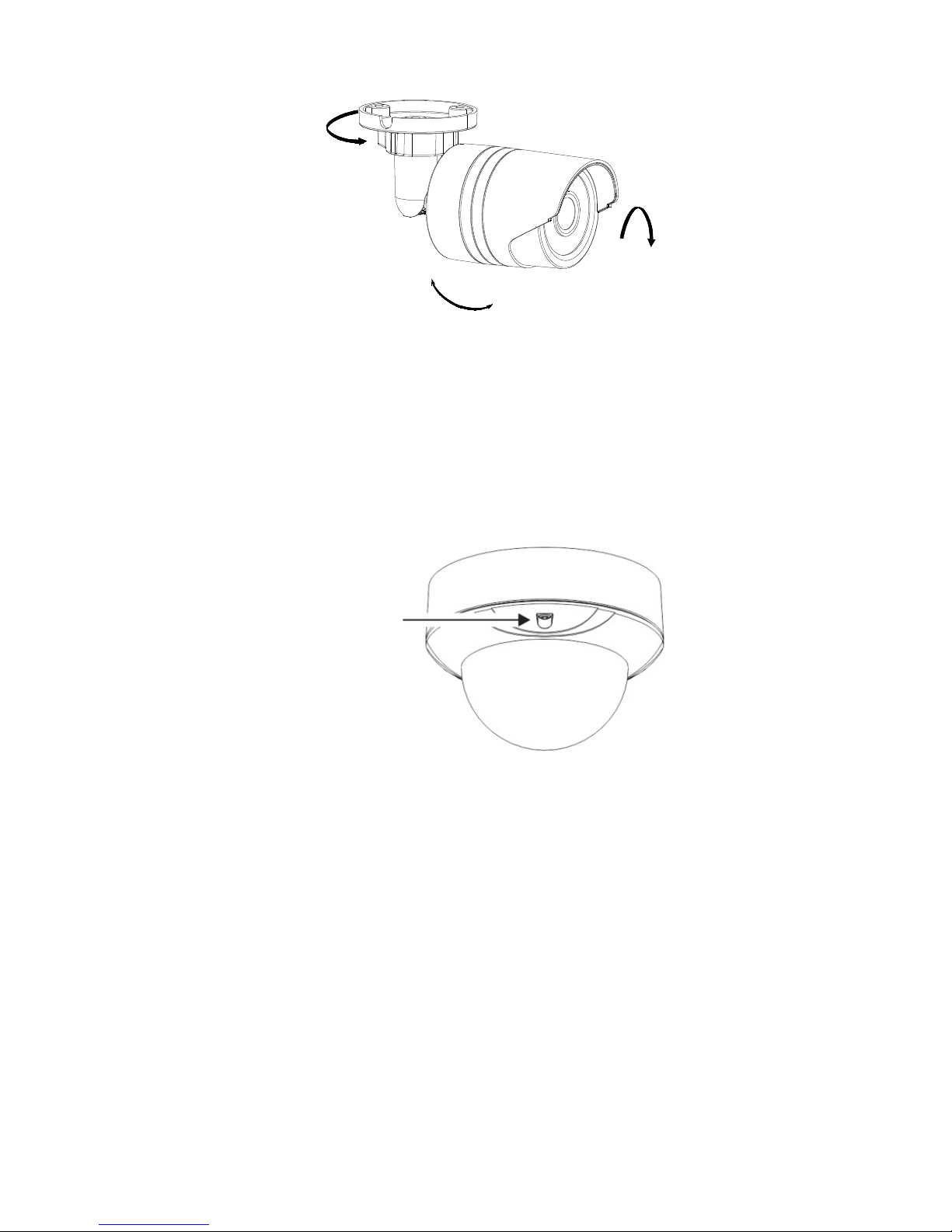

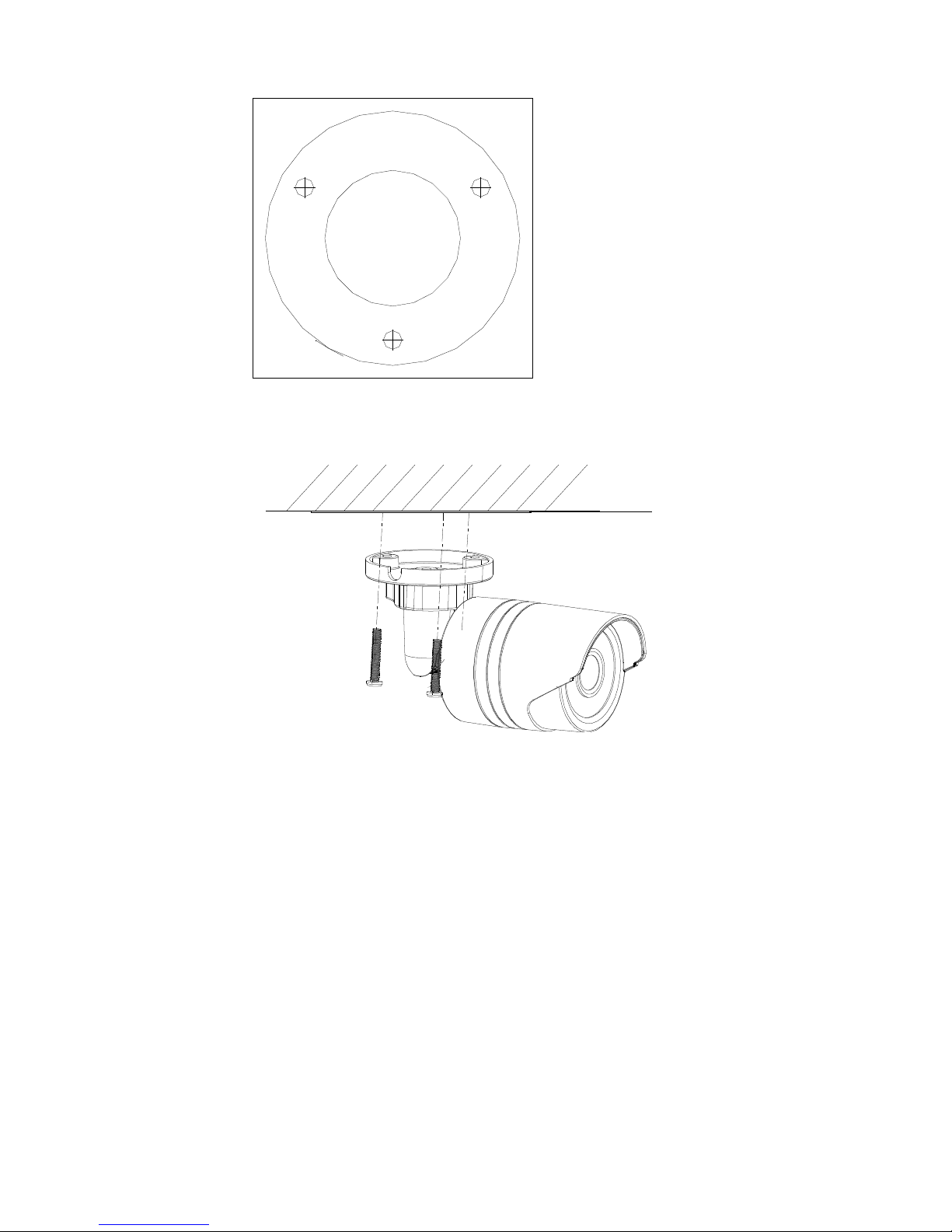

Mounting the mini bullet camera 16

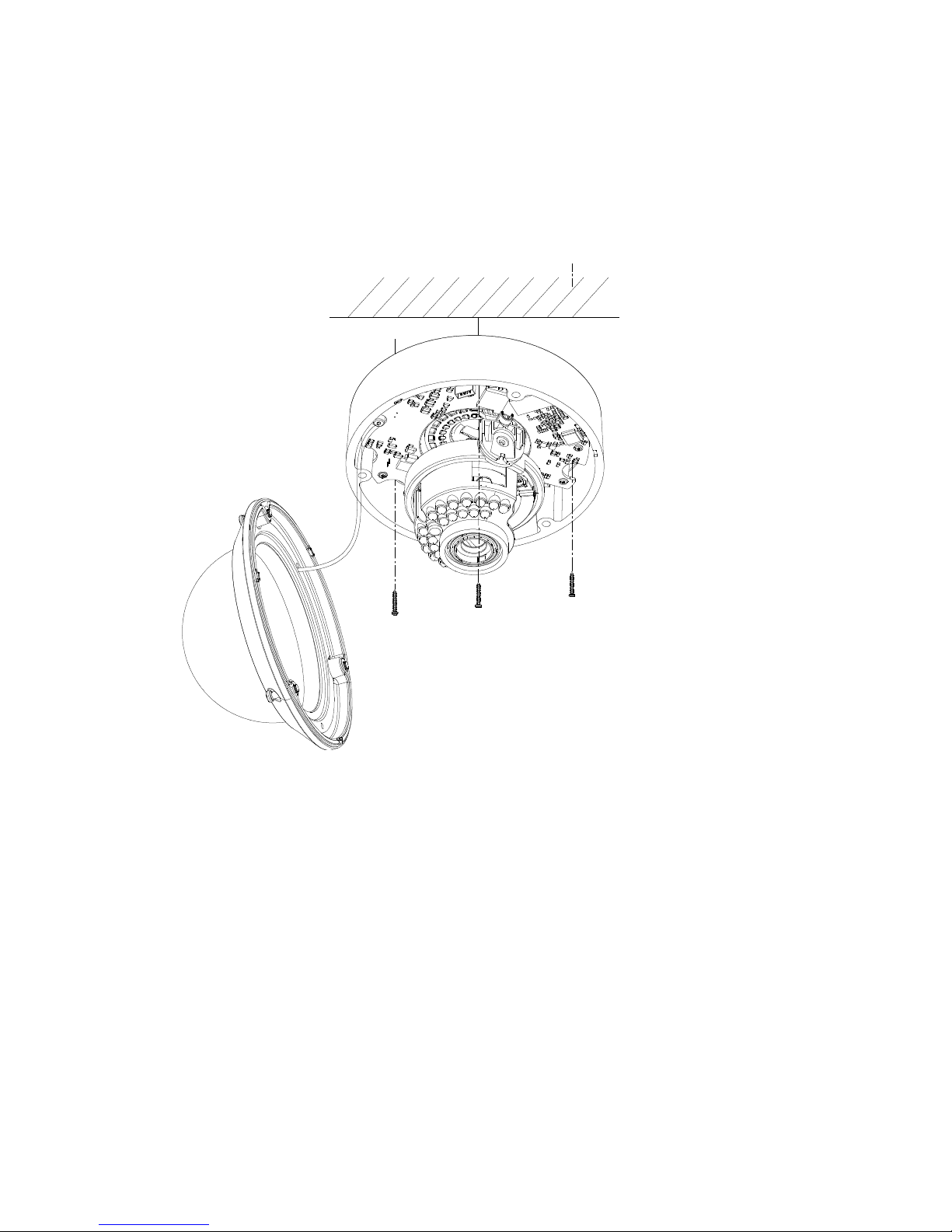

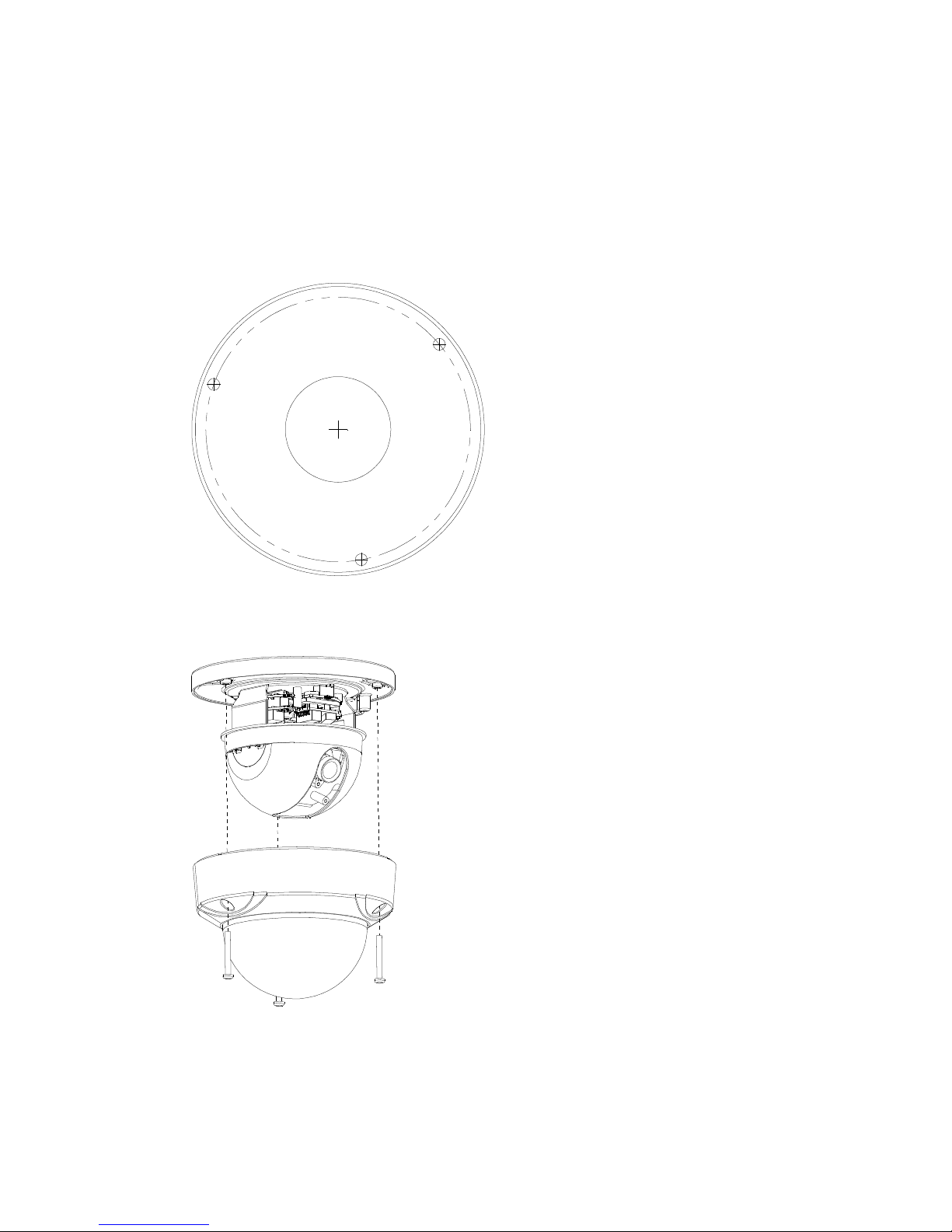

Mounting the VF dome camera 18
Mounting the indoor mini dome camera 22

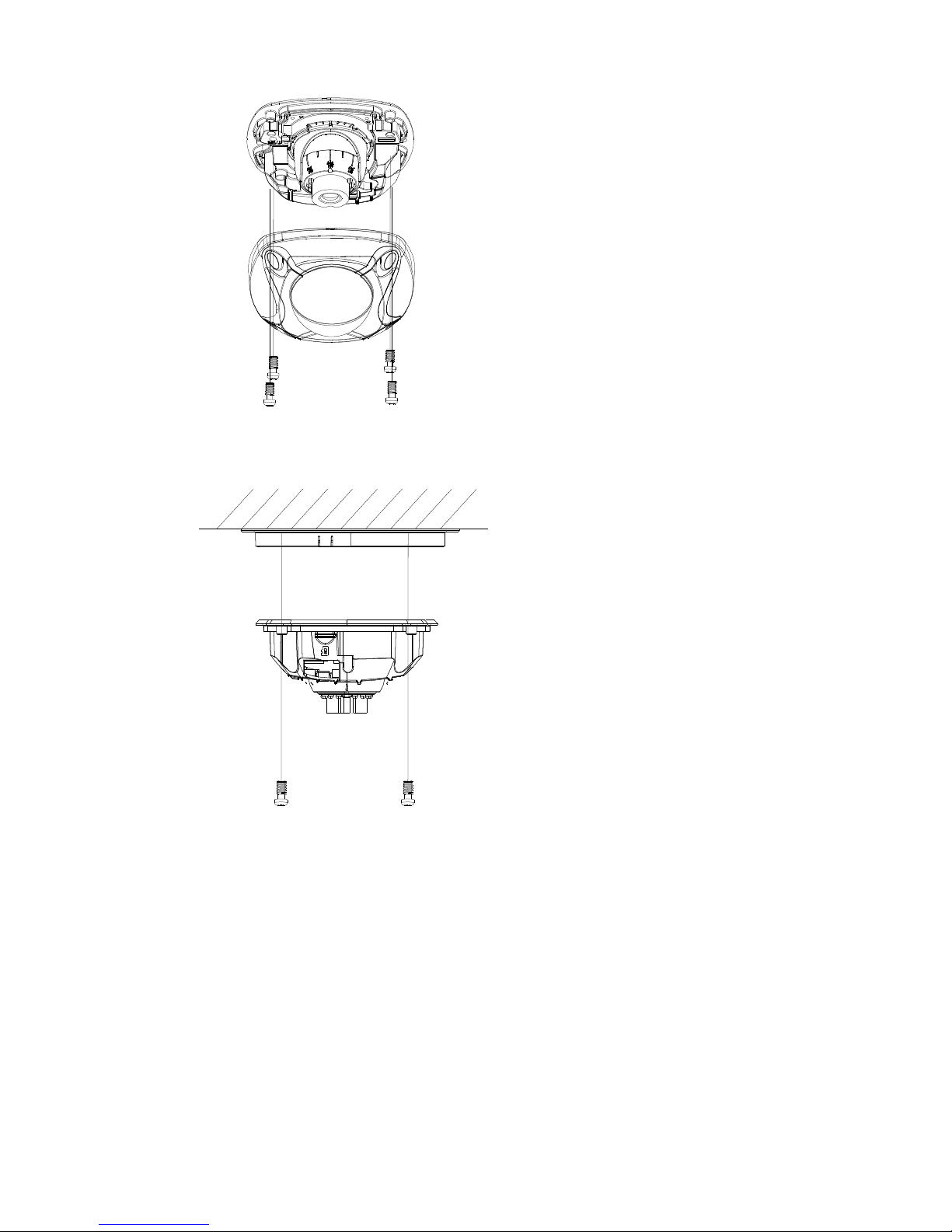

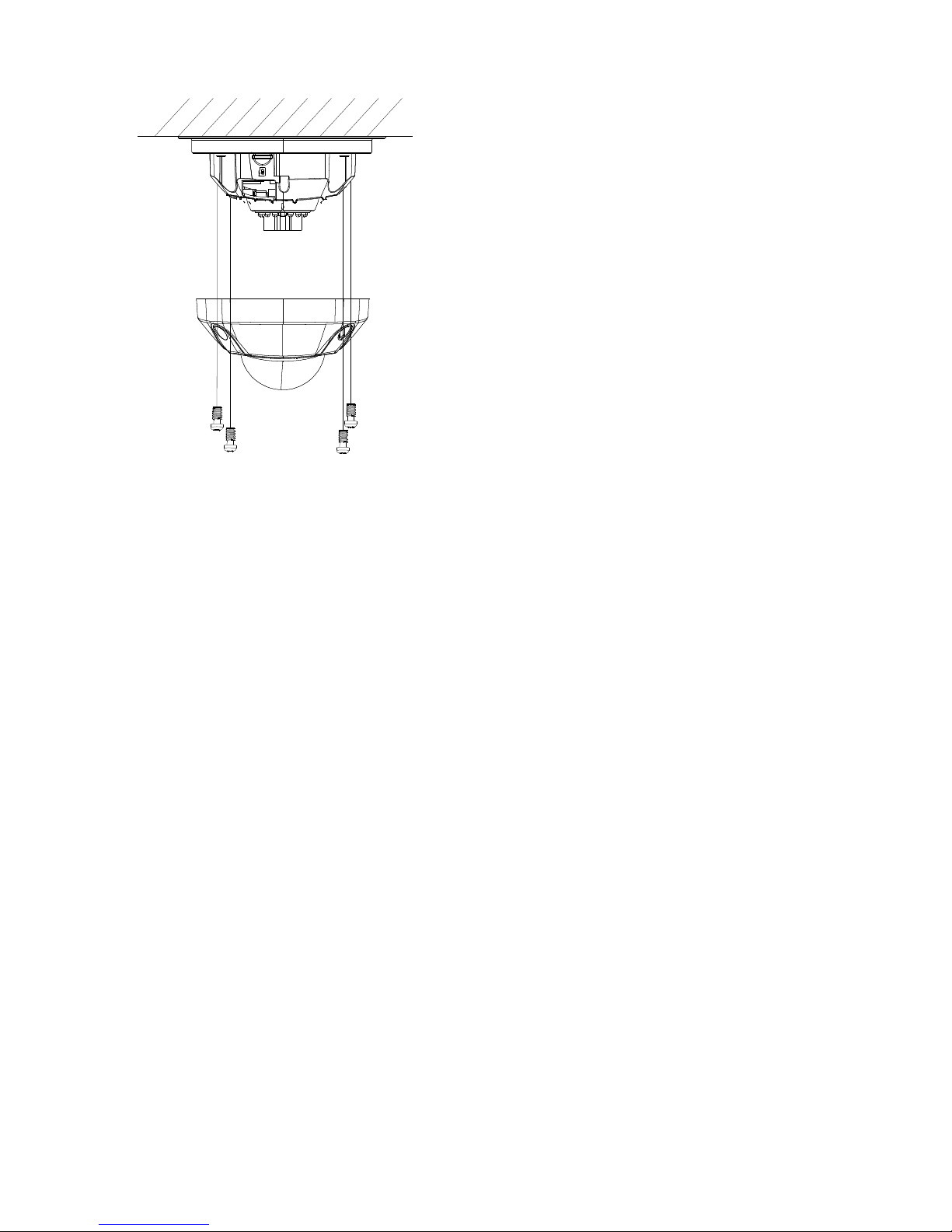

Mounting the wedge dome camera 24
Using the camera with a recorder 26
Using the camera with TruVision Navigator 26
Specifications 27
TruVision IP mini bullet cameras 27
TruVision IP indoor mini dome 27
TruVision IP wedge cameras 28
TruVision IP VF mini dome cameras 28
Pin definitions 29
2 Installation Guide
Introduction
Product overview
This is the installation guide for TruVision 11/31 Series IP
camera models:
TVB-1101 (1.3MPX bullet, 6mm lens, PAL)
TVB-3101 (1.3MPX bullet, 6mm lens, NTSC)
TVB-1102 (3MPX bullet, 6mm lens, PAL)
TVB-3102 (3MPX bullet, 6mm lens, NTSC)
TVB-1103 (1.3MPX bullet, 4mm lens, PAL)
TVB-3103 (1.3MPX bullet, 4mm lens, NTSC)
TVD-1101 (1.3MPX indoor mini dome, PoE, PAL)
TVD-3101 (1.3MPX indoor mini dome, PoE, NTSC)
TVD-1102 (3MPX indoor mini dome, PoE, PAL)
TVD-3102 (3MPX indoor mini dome, PoE, NTSC)
TVD-1103 (1.3MPX VF mini dome, PAL)
TVD-3103 (1.3MPX VF mini dome, NTSC)
TVD-1104 (3MPX VF mini dome, PAL)
TVD-3104 (3MPX VF mini dome, NTSC)
TVD-1105 (1.3MPX indoor mini dome, PoE/12VDC,
PAL)
TVD-3105 (1.3MPX indoor mini dome, PoE/12VDC,
NTSC)
TVD-1106 (3MPX indoor mini dome, PoE/12VDC, PAL)
Installation Guide 3
TVD-3106 (3MPX indoor mini dome, PoE/12VDC,
NTSC)
TVW-1101 (1.3MPX wedge, 2.8mm lens, PAL)
TVW-3101 (1.3MPX wedge, 2.8mm lens, NTSC)
TVW-1102 (3MPX wedge, 2.8mm lens, PAL)
TVW-3102 (3MPX wedge, 2.8mm lens, NTSC)
TVW-1110 (3MPX wedge, 2.8mm lens, Marine, PAL)
TVW-3110 (3MPX wedge, 2.8mm lens, Marine, NTSC)
TVW-1111 (3MPX wedge, 4mm lens, Marine, PAL)
TVW-3111 (3MPX wedge, 4mm lens, Marine, NTSC)
TVW-1112 (3MPX wedge, 6mm lens, Marine, PAL)
TVW-3112 (3MPX wedge, 6mm lens, Marine, NTSC)
TVW-1113 (3MPX wedge, 2.8mm, Marine, White, PAL)
TVW-3113 (3MPX wedge, 2.8mm, Marine, White, NTSC)
TVW-1114 (3MPX wedge, 4mm, Marine, White, PAL)
TVW-3114 (3MPX wedge, 4mm, Marine, White, NTSC)
TVW-1115 (3MPX wedge, 6mm, Marine, White, PAL)
TVW-3115 (3MPX wedge, 6mm, Marine, White, NTSC)
4 Installation Guide
Installation
This section provides information on how to install the
cameras.
Installation environment
When installing your product, consider these factors:
• Electrical: Install electrical wiring carefully. It should be
done by qualified service personnel. Always use a proper
PoE switch or a 12 VDC UL listed Class 2 or CE certified
power supply to power the camera. Do not overload the
power cord or adapter.
• Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.
• Temperature: Do not operate the camera beyond the
specified temperature, humidity or power source ratings.
The operating temperature of the camera is between -30
to +60°C (-22 to 140°F). Humidity is below 90%.
• Moisture: Do not expose the camera to rain or moisture,
or try to operate it in wet areas. Turn the power off
immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the
camera and also create the danger of electric shock.
• Servicing: Do not attempt to service this camera
yourself. Any attempt to dismantle or remove the covers
from this product will invalidate the warranty and may
also result in serious injury. Refer all servicing to qualified
service personnel.
• Cleaning: Do not touch the sensor modules with fingers.
If cleaning is necessary, use a clean cloth with some
ethanol and wipe the camera gently. If the camera will not
Installation Guide 5
be used for an extended period of time, put on the lens
cap to protect the sensors from dirt.
Package contents
Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use
the unit; contact the supplier immediately. If the unit is
returned, it must be shipped back in its original packaging.

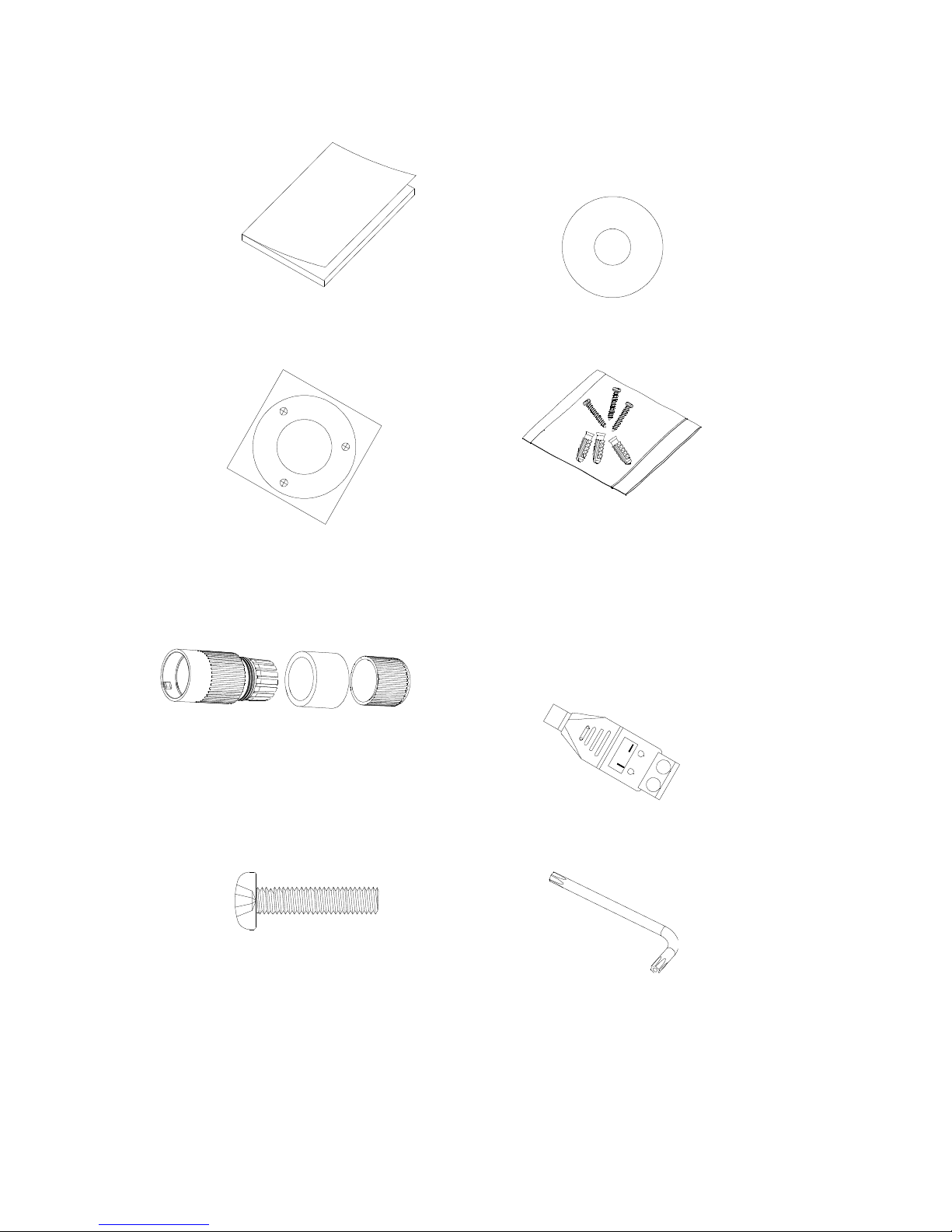

IP mini bullet camera
Camera
Installation manual
CD with Configuration
manual and TruVision
Device Finder
6 Installation Guide

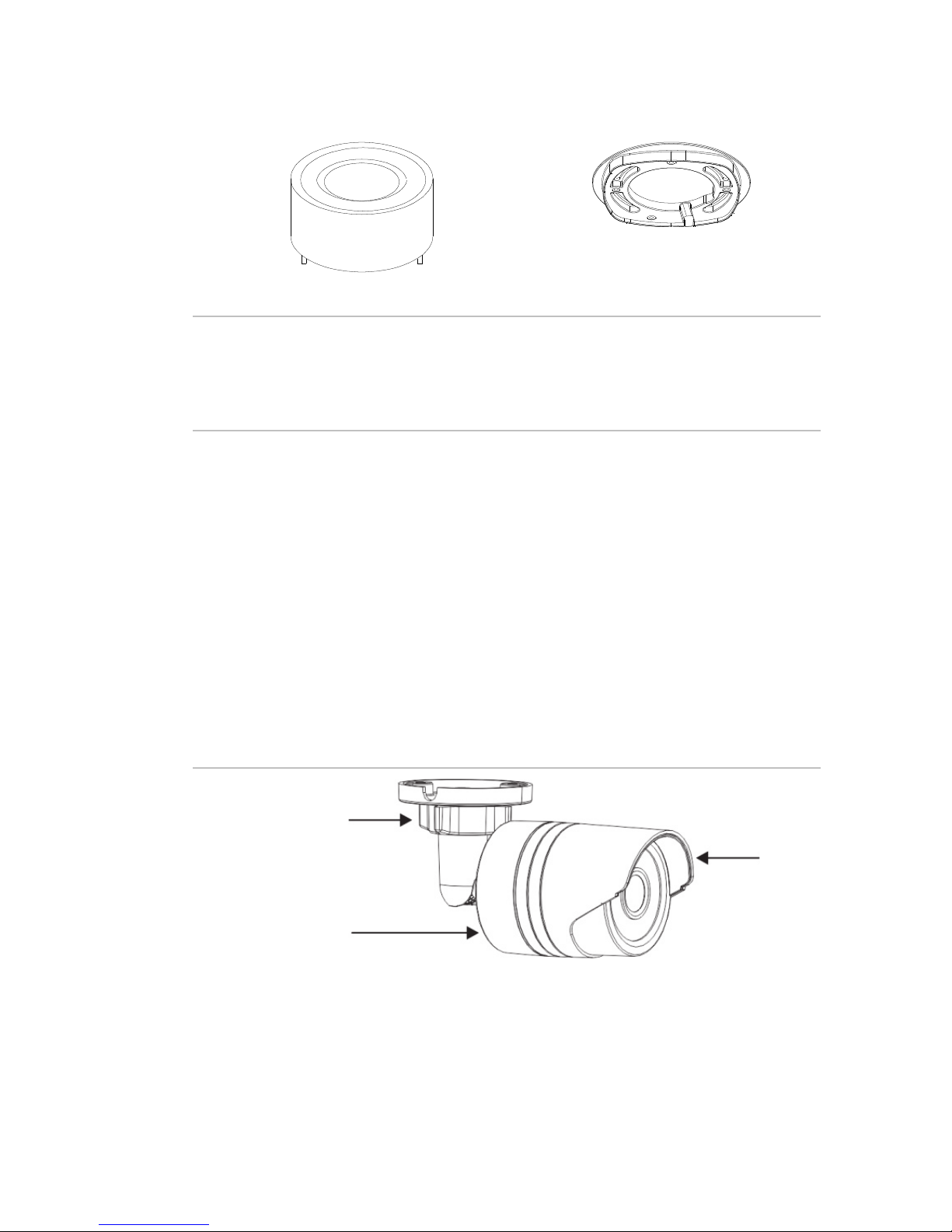

Template
Screws
Water joint: provide water
resistance to network
connection.
12 VDC Connector: DC
jack socket to
terminal connectors
with positive and
negative indicators.

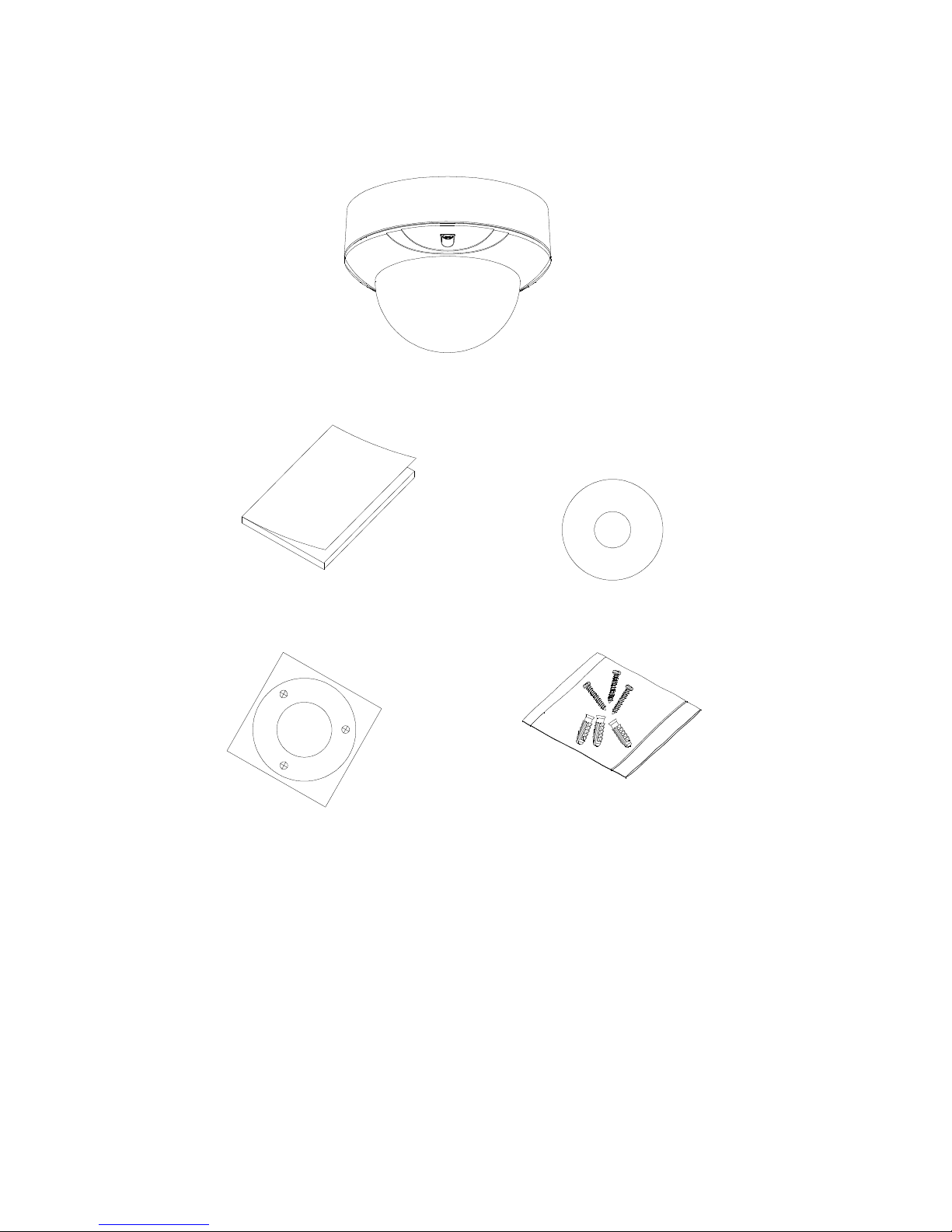

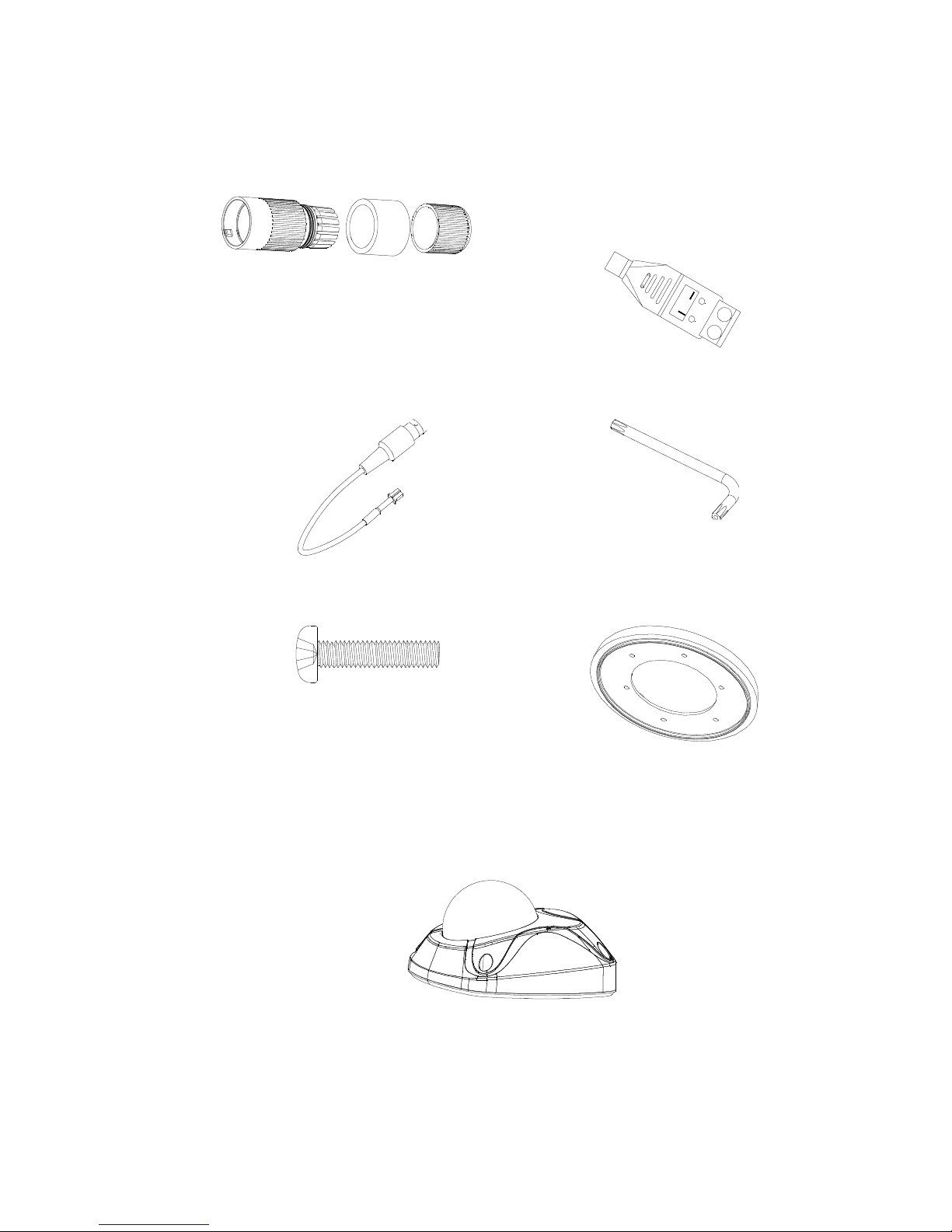

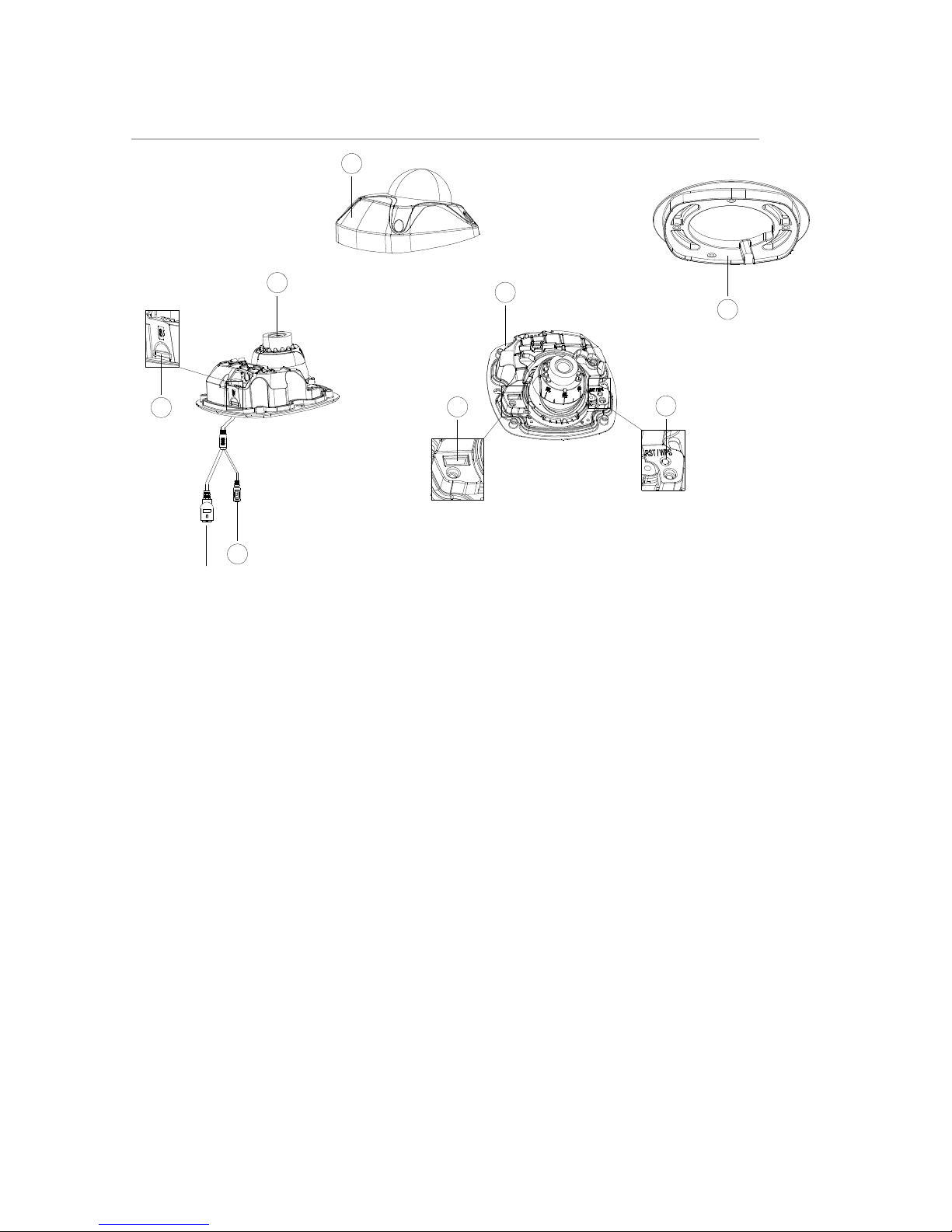

IP indoor mini dome camera
Camera
Installation Guide 7
Installation manual
CD with Configuration
manual and TruVision
Device Finder
Template
Screws
Water joint: provide water
resistance to network
connection.
12 VDC Connector: DC
jack socket to
terminal connectors
with positive and
negative indicators
(TVD-1105 / 3105 / 1106
/ 3106 only).
Screws B
Wrench
