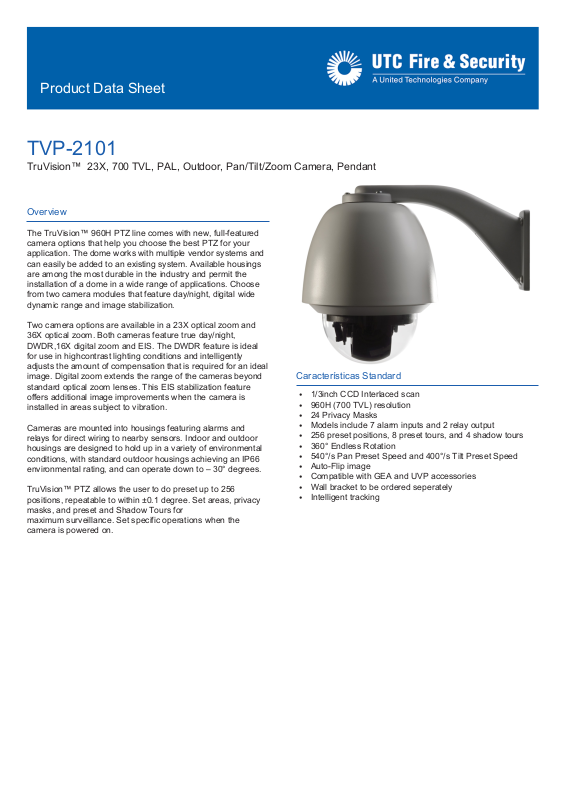

Interlogix TVP-2101 Specsheet
Product Data Sheet
TVP-2101
TruVision™ 23X, 700 TVL, PAL, Outdoor, Pan/Tilt/Zoom Camera, Pendant
Overview
The TruVision™ 960H PTZ line comes with new, full-featured
camera options that help you choose the best PTZ for your
application. The dome works with multiple vendor systems and
can easily be added to an existing system. Available housings
are among the most durable in the industry and permit the
installation of a dome in a wide range of applications. Choose
from two camera modules that feature day/night, digital wide
dynamic range and image stabilization.
Two camera options are available in a 23X optical zoom and
36X optical zoom. Both cameras feature true day/night,
DWDR,16X digital zoom and EIS. The DWDR feature is ideal
for use in highcontrast lighting conditions and intelligently
adjusts the amount of compensation that is required for an ideal
image. Digital zoom extends the range of the cameras beyond
standard optical zoom lenses. This EIS stabilization feature
offers additional image improvements when the camera is
installed in areas subject to vibration.
Cameras are mounted into housings featuring alarms and
relays for direct wiring to nearby sensors. Indoor and outdoor
housings are designed to hold up in a variety of environmental
conditions, with standard outdoor housings achieving an IP66
environmental rating, and can operate down to – 30° degrees.
TruVision™ PTZ allows the user to do preset up to 256
positions, repeatable to within ±0.1 degree. Set areas, privacy
masks, and preset and Shadow Tours for
maximum surveillance. Set specific operations when the
camera is powered on.
Características Standard
E 1/3inch CCD Interlaced scan
E 960H (700 TVL) resolution
E 24 Privacy Masks
E Models include 7 alarm inputs and 2 relay output
E 256 preset positions, 8 preset tours, and 4 shadow tours
E 360° Endless Rotation
E 540°/s Pan Preset Speed and 400°/s Tilt Preset Speed
E Auto-Flip image
E Compatible with GEA and UVP accessories
E Wall bracket to be ordered seperately
E Intelligent tracking
TVP-2101
TruVision™ 23X, 700 TVL, PAL, Outdoor, Pan/Tilt/Zoom Camera, Pendant
Especificações Técnicas
Camera
Sensor Size 1/3‘’
Sensor Scan: Interlaced
Sensor Type: CCD
Total pixels (H x V): PAL: 1020 × 596 / NTSC:1020 × 508
Effective pixels (H x V): PAL: 976 × 582 / NTSC:976 × 494
Resolution (color): 700 TVL
Resolution (B&W): 700 TVL
Synchronization system: Internal
Electronic shutter: 1/3 to 1/10,000s
Digital S/N ratio: 52 dB (AGC OFF)
Video signal: 1.0Vp-p
Certification:
UL, CE, FCC, C-tick, REACH, RoHS, HALT,
WEEE
Lighting performance
Wide Dynamic Range: DWDR
WDR in dB: 128X
Digital noise reduction: 3D DNR
Highlight compensation
(HLC):
No
Day/Night: True Day/Night
Motorized IR Cut Filter: Yes
Color sensitivity: 0.1Lux @(F1.6,AGC ON)
B/W sensitivity: 0.01Lux @(F1.6,AGC ON)
IR sensitivity: NA
IR Range: No
IR Wavelength: 850 nm
B/W trigger: 4.0 lux
IR trigger: No
Housing
Camera type: Pendant
IP rating: IP66
Outdoor: Yes
Rugged: Yes
Vandal proof: Yes
Cable management: Yes
PTZ
Pan:
Tilt:
Pan Manual Speed: 0.1° to 300°/s
Pan Preset Speed: 540°/s
Tilt Manual Speed: 0.1° to 240°/s
Tilt Preset Speed: 400°/s
Endless Pan: Yes
Auto-flip: Yes
Optical zoom: 23X
Digital zoom: 16X
Presets: 256
PTZ Protocol: Interlogix-485, Pelco-P, Pelco-D
Lens
Mount type: Camera Block
Control type: Zoom Lens
Focal length: 4.0 to 92 mm
F-stop: F1.6 to F3.7
Autoiris: Yes
Varifocal: Yes
Zoom lens: Yes
Autofocus: Yes
Power consumption
PSU included: No
Voltage Input: 24 VAC
Current: Max. 1.5A
Power Consumption: Max. 35W
Audio
Audio: Two-way
Built-in microphone: No
Audio compression: No
Camera Analytics
Motion Detection: No
Privacy Masking: 24
Alarm
Alarm Input: 7
Alarm Output: 2
Mechanical/ Environmental
Dimensions: Ø 220 × 266 mm (86.6 × 104 in.)
Weight: 3.5kg (7.7 lb.)
Cold start Temperature: -30°C (-22°F)
Operating Temperature: -30° to 65°C (-22° to 149°F)
Storage Temperature: NA
Suitable accessories
Brackets: GEA-102
Housings: No
Power Supplies: ATD-6814-PSU
Como Encomendar
Referência Descrição
TVP-2101 TruVision™ 23X, 700 TVL, PAL, Outdoor, Pan/Tilt/Zoom
TVP-2102 TruVision™ 23X Pan/Tilt/Zoom Camera, Surface Mount,
TVP-2103 TruVision™ 23X, 700 TVL, PAL, Indoor, Pan/Tilt/Zoom
TVP-2104 TruVision™ 36X, 700 TVL, PAL, Outdoor, Pan/Tilt/Zoom
TVP-2105 TruVision™ 36X, 700 TVL, PAL, Indoor, Pan/Tilt/Zoom
TVP-2106 TruVision™ 36X, 700 TVL, PAL, Indoor, Pan/Tilt/Zoom
Camera, Pendant mount
Indoor, PAL
Camera, Flush Mount
Camera, Pendant mount
Camera, Surface Mount
Camera, Flush Mount
Como empresa inovadora a UTC Fire & Security reserva-se ao direito de alterar especificações
sem aviso prévio.Para saber mais sobre novas especificações de produto visite a UTC Fire &
Security online em www.utcfssecurityproducts.com.pt ou contacte o seu representante UTC
Fire & Security.
TVP-2101-2014-02-28 07:35:30 Released :20-DEC-13
