Interlogix TVN-5032-4T-R User Manual

TruVision NVR 50 User Manual
P/N 10725604-EN • REV B • ISS 18MAR13
Copyright
© Interlogix is part of UTC Climate Controls & Security, a unit of United
Technologies
Trademarks and
patents
The Other trade names used in this document may be trademarks or registered
trademarks of
Manufacturer
UTC Fire & Security Americas Corporation, Inc. 2955 Red Hill Avenue, Costa Mesa, CA 92626
Authorized EU manufacturing representative: UTC Fire & Security B.V. Kelvinstraat
Certification
FCC compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device that may cause undesired operation.
FCC compliance
Class B: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rule designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and us ed in acc ordanc e with the instructi
There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by user is encouraged to try to correct the interference by one or more of the following measures:
Notice!
cause radio interference in which case the us er m a y be required to take adequate measures.
European Union
directives
12004/108/EC (EMC directive):
device is in compliance or with the essential requiremen provisions of Directive 2004/108/EC.
2002/96/EC (WEEE directive):
disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local su equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive):
disposed of as product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, to a designated collection point. For more information see: www.recyclethis.info.
Contact information
For contact information, see www.utcfireandsecurity.com.
2013 UTC Fire & Security Americas Corporation, Inc.
Corporation. All rights reserved.
TruVision NVR 50 and logo are trademarks of United Technologies.
the manufacturers or vendors of the respective products.
-5923, USA
7, 6003 DH Weert, The Netherlands
N4131
must accept any interference received, including interference
s. These limits are
ons, may cause harmful interference to radio communications.
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
ACMA compliance
This is a Class A product. In a domestic environment this product may
Hereby, UTC Fire & Security declares that this
Products marked with this symbol cannot be
unsorted municipal waste in the European Union. See the
This product contains a battery that cannot be
turning the equipment off and on, the
ts and other relevant
pplier upon the purchase of
return the battery to your supplier or
Content
Chapter 1 Product introduction 1
Product overview 1
Chapter 2 Installation 3
Installation environment 3 Unpacking the TVN 50 and its accessories 3 Back panel 4 Wiring the keypad 5 RS-485 ports 8 RS-232 port 8 Monitor connections 8 Audio inputs and output 8 Brackets 9
Chapter 3 Getting started 11
Turning on and off the NVR 11 Using the setup wizard 12
Chapter 4 Operating instructions 17

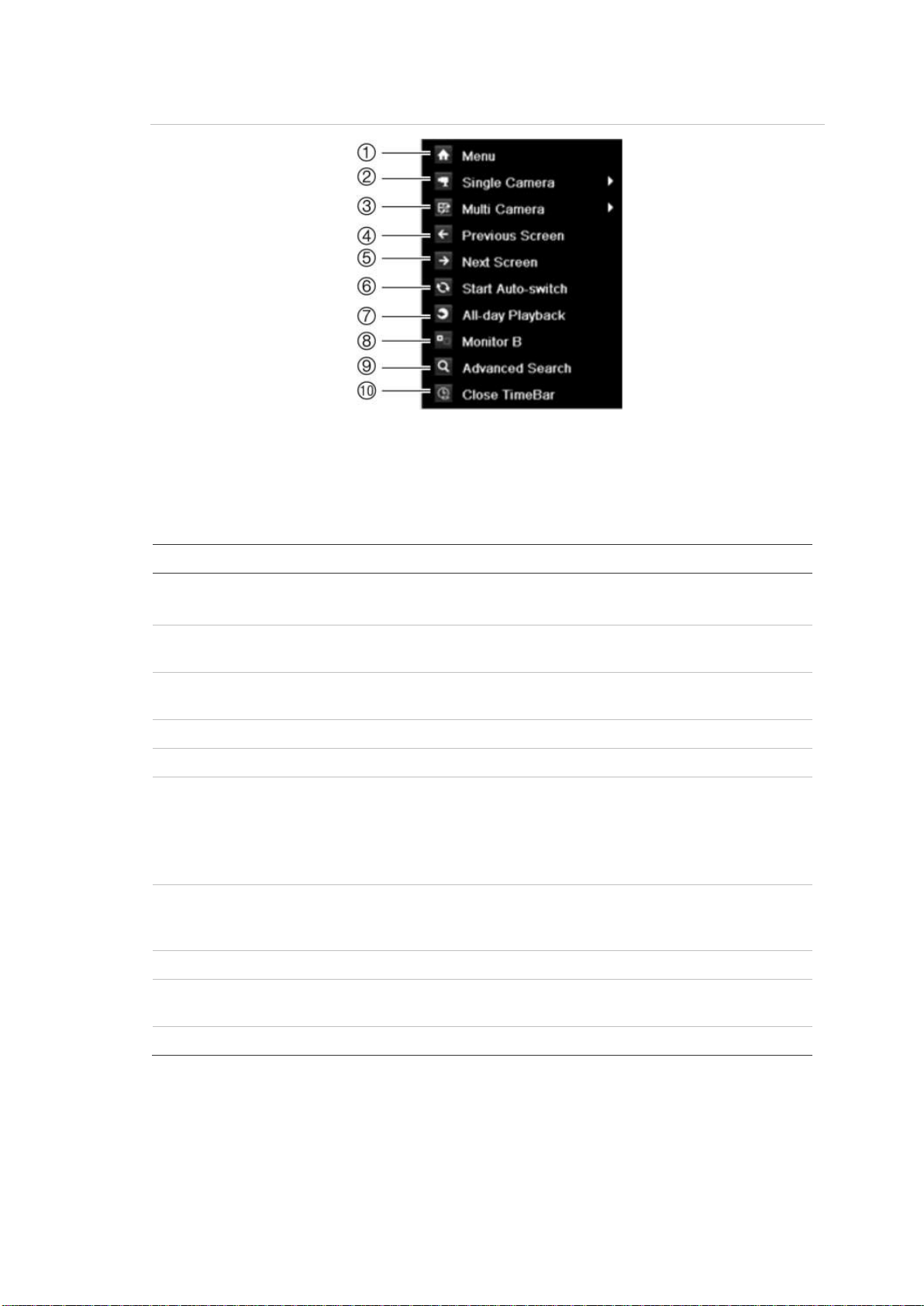

Controlling the TVN 50 17 Using the front panel 17 Using the mouse 19 Using the IR remote control 20 Menu overview 22
Chapter 5 Live view 27
Description of live view 27 Video output 27 Audio output 28 Controlling live view mode 28 Multiview format 30 Sequencing cameras 31 Accessing frequently used commands 31 Configuring live view 33 General settings 36 Configuring time and date 38
Chapter 6 Controlling a PTZ camera 41

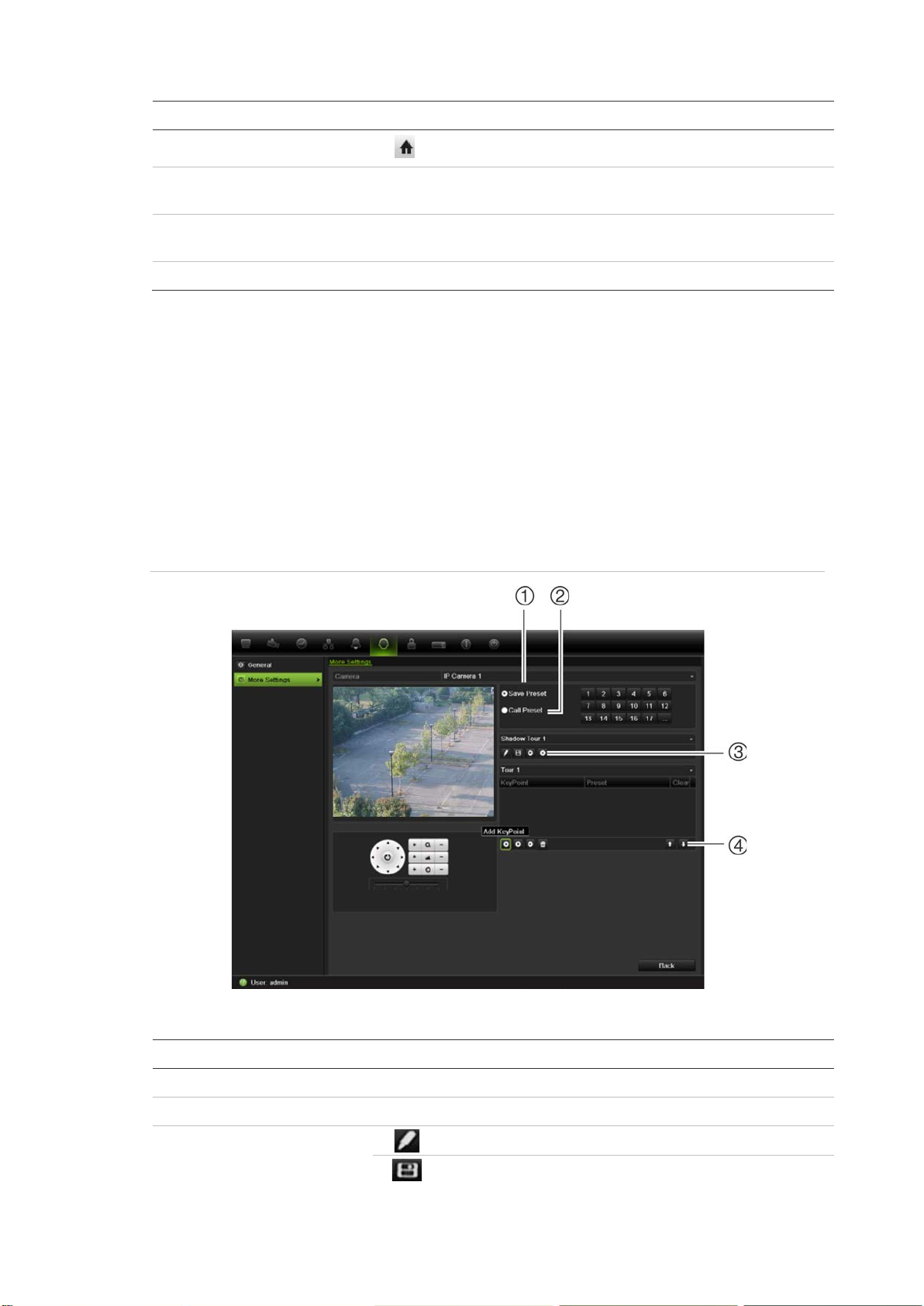

Configuring PTZ settings 41 Calling up presets, tours and shadow tours 42 Setting and calling up presets 43 Setting and calling up preset tours 45 Setting and calling up a shadow tour 47
TruVision NVR 50 User Manual i
Chapter 7 Playing back a recording 49

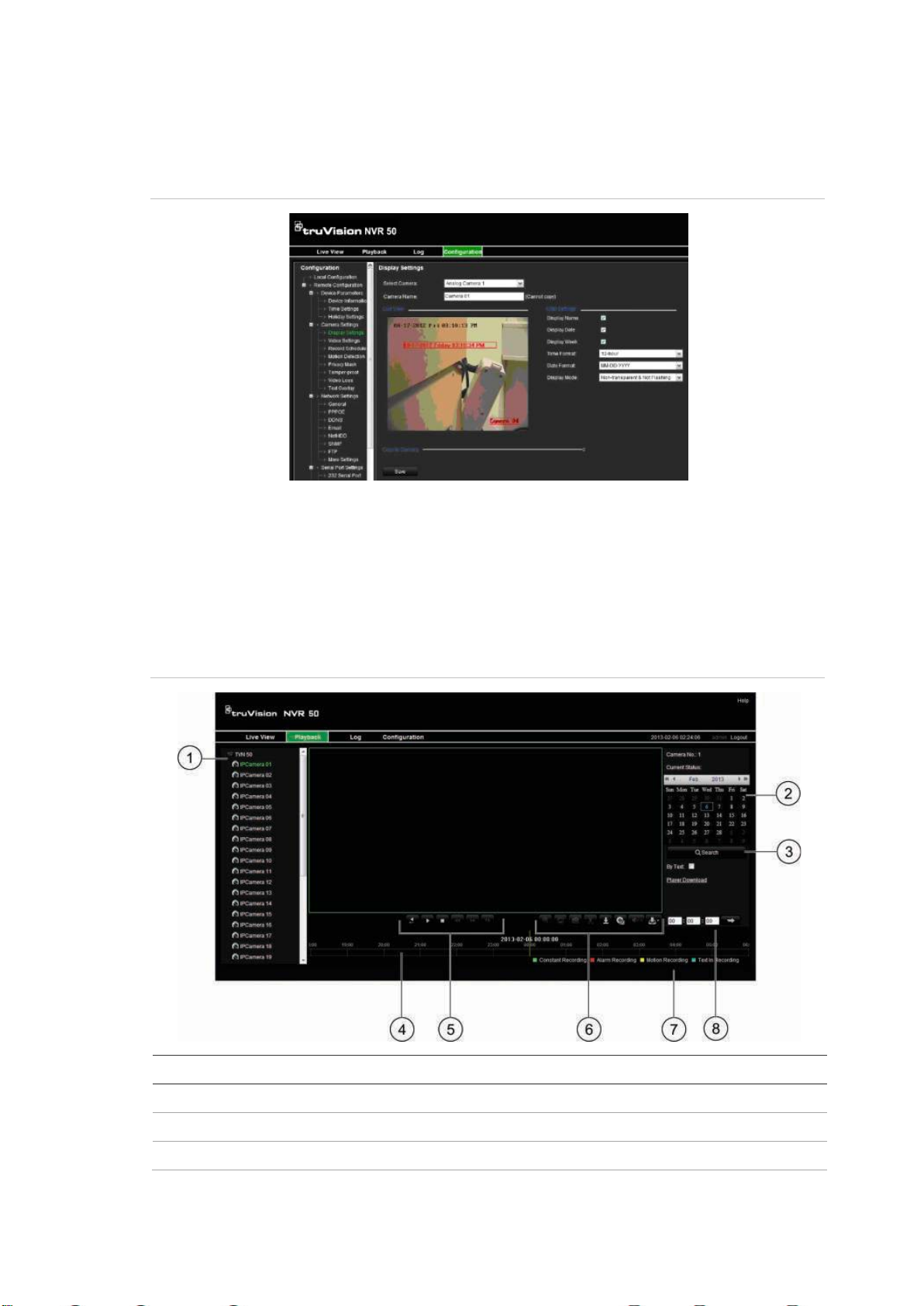

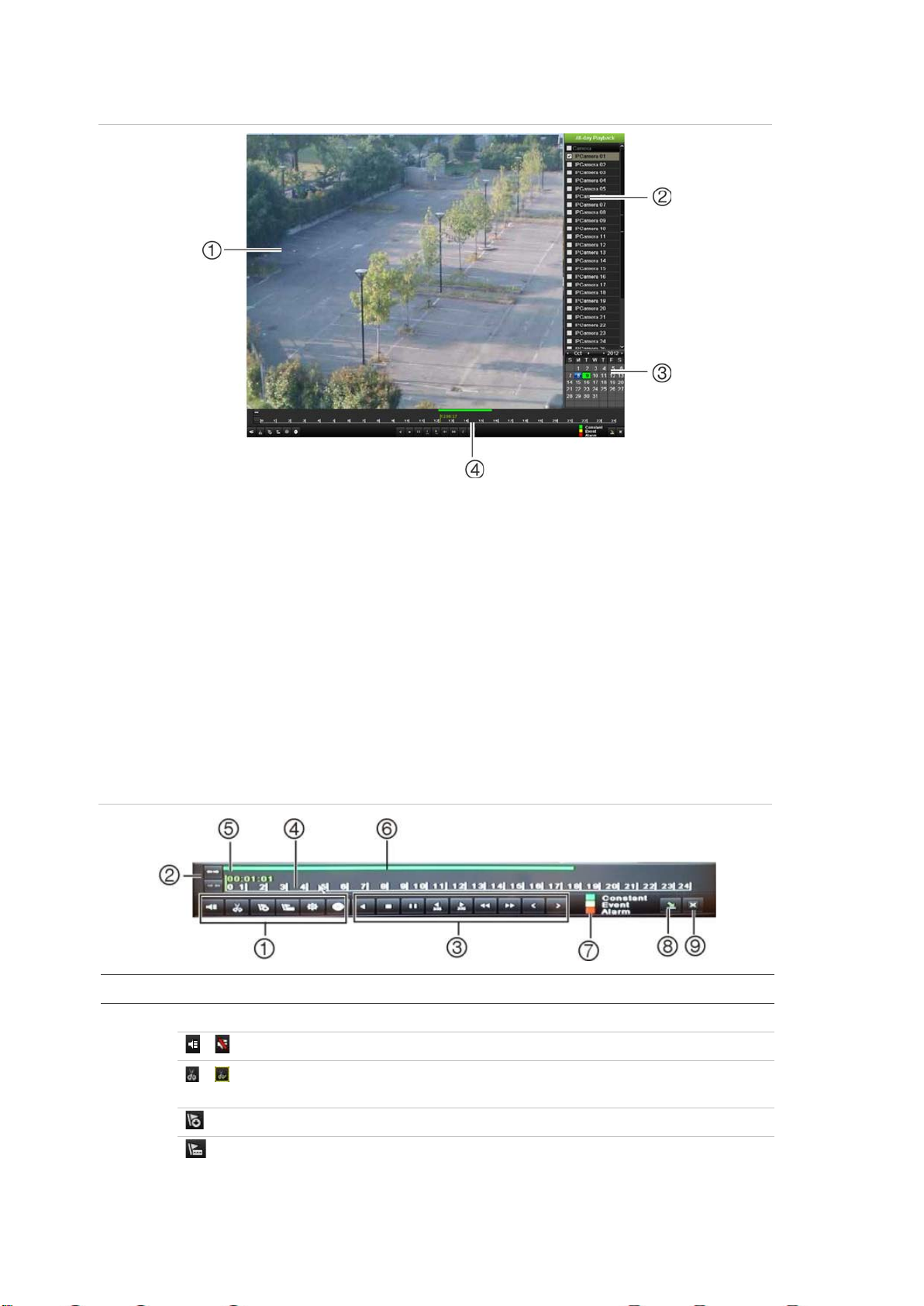

Overview of the playback window 49 Instant playback 51 All-day playback 52 Searching recorded video 53 Playing back recordings by time and video type 54 Playing back recordings by event 55 Creating and playing back bookmarked recordings 56 Slideshow of snapshots 57 Playing back recordings from the system log 57 Playing back frame-by-frame 58 Digital zoom in playbac k 59
Chapter 8 Archiving recorded files 61
Archiving files 61 Creating and archiving video clips 64 Archiving snapshots 64 Managing backup devices 65 Playing back archived files on a PC 65
Chapter 9 Using the web browser 67
Windows Vista and 7 users 67 Accessing the web browser 68 Web browser overview 68 Using the web browser to configure the device 70 Searching and playing back recorded video 71 Searching for event log s 73 Controlling a PTZ dome camera in the web browser 73 Capturing text insertions 74 Text overlay 75 Using a network storage system 75
Chapter 10 Recording 77
Initializing recording settings 77 Defining a recording schedule 79 Daily schedules 80 Holiday schedules 82 Motion detection schedules 82 External alarm schedules 83 Protecting recorded files 83 Configuring redundant recording 85
Chapter 11 Alarm settings 87
Description of alarm notification types 87 Setting up motion detection 88 Setting up external alarms 90 Triggering or cleari ng alarm out puts ma nually 93 Setting up system notifications 93
ii TruVision NVR 50 User Manual
Detecting video loss 94 Detecting video tampering 94
Chapter 12 Network settings 97
Configuring general network settings 97 Configuring PPPoE 98 Configuring DDNS 99 Configuring an NTP server 99 Configuring e-mail 100 Configuring SNMP 101 Configuring the FTP server 101 Configuring a remote alarm host 101 Configuring multicast 102 Configuring the server and HTTP ports 102 Configuring the RTSP service port 102 Checking network status 103 Exporting network packet data 104 Port forwarding 104
Chapter 13 HDD management 105
Initializing HDDs 105 Controlling disk space on the HDD 105 Setting up HDD groups 106 Setting the HDD property 107 Checking HDD status 107 Configuring HDD alarms 108 Managing eSATA 108 Checking the S.M.A.R.T. information 108
Chapter 14 Camera settings 111
Configuring the camera OSD settings 111 Setting up privacy masking 112 Adjusting video image settings 113
Chapter 15 NVR management 115
Configuring the RS-232 port 115 Updating system firmw ar e 116 Restoring default settings 117 Viewing system information 117 Searching system logs for events 119
Chapter 16 User management 121
Adding a new user 121 Customizing a user’s access privileges 122 Deleting a user 124 Modifying a user 124 Changing the Admin password 124
TruVision NVR 50 User Manual iii
Chapter 17 iTVRmobile 125
Setup and login 125 Live view 126 Controlling a PTZ camera 127 Device management 129 Favorites 130 Local configuration 130 Change passwords 130 Snapshots 130
Appendix A Specifications 131 Appendix B PTZ protocols 133 Appendix C Port forwarding information 135 Appendix D KTD-405 keypad 137
Supported firmware 137 Wiring the keypad 137 Setting up the keypad to work with the TVN 50 138 Operating the keypad 140
Appendix E Maximum pre-recording times 145 Appendix F Supported PTZ commands 147 Appendix G Default menu settings 149
Glossary 157 Index 159
iv TruVision NVR 50 User Manual
TVN
TVN
TVN
TVN
TVN
TVN
TVN
TVN
TVN
TVN
Chapter 1
Product introduction

Product overview

This is the TruVision NVR 50 (TVN 50) User Manual for models:
Table 1: Product codes
-5032-4T TruVision TVN 50, 32 channels, 4 TB storage, North American power cord
-5032-8T TruVision TVN 50, 32 channels, 8 TB storage, North American power cord
-5032-12T TruVision TVN 50, 32 channels, 12 TB storage, North American power cord
-5032-16T TruVision TVN 50, 32 channels, 16 TB storage, North American power cord
-5032-2TEA TruVision TVN 50, 32 channels, 2 TB storage, EU + UK power cords
-5032-4TEA TruVision TVN 50, 32 channels, 4 TB storage, EU + UK power cords
-5032-8TEA TruVision TVN 50, 32 channels, 8 TB storage, EU + UK power cords
-5032-12TEA TruVision TVN 50, 32 channels, 12 TB storage, EU + UK power cords
-5032-16TEA TruVision TVN 50, 32 channels, 16 TB storage, EU + UK power cords
-5032-4TAZ TruVision TVN 50, 32 channels, 4 TB storage, ANZ power cords
The TruVision™ NVR 50 is a versatile, user-friendly embedded network video recorder (NVR) allowing end-users to record up to 32 cameras with a maximum total input bandwidth of 80Mbps, while providing integration with the UTC portfolio of security solutions, and offering a seamless product experience within the TruVision brand.
Its dual streaming functionality allows the user to set up different settings for recording and streaming video in live view mode.
The TruVision NVR 50 can fully integrate with the license-free TruVision Navigator software, which is ideal for most commercial applications. TVN 50’s easy and intuitive-to-use web browser interface enables remote configuration and secure viewing, searching, and playing back of video from computers connected via the Internet.
TruVision NVR 50 User Manual 1
0BChapter 1: Product introduction
2 TruVision NVR 50 User Manual
Chapter 2
Installation
This section describes how to install the TVN 50 unit.

Installation environment

When installing your product, consider these factors:
Ventilation
Temperature
Moisture
Chassis load Ventilation: Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions. Ensure that the location planned for the installation of the unit is well ventilated.
Temperature: Consider the unit’s operating temperature (-10 to +55 ºC, 14 to 131 °F) and noncondensing humidity specifications (10 to 90%) before choosing an installation location. Extremes of heat or cold beyond the specified operating temperature limits may reduce the life expectancy of the NVR. Do not install the unit on top of other hot equipment. Leave 44 mm (1.75 in.) of space between rack-mounted TruVision NVR 50 units.
Moisture: Do not use the unit near water. Moisture can damage the internal components. To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.
Chassis: Equipment weighing less than 15.9 kg (35 lb.) may be placed on top of the unit.

Unpacking the TVN 50 and its accessories

When you receive the product, check the package and contents for damage, and verify that all items are included. There is an item list included in the package. If any of the items are damaged or missing, please contact your local supplier.
TruVision NVR 50 User Manual 3
1BChapter 2: Installation
Items shipped with the product include:
IR (infrared) remote control
Two AAA batteries for the remo te c ontr ol
AC power cords
USB mouse
NVR
CD with software and manuals
TruVision NVR 50 Quick Start Guide
TruVision NVR 50 User Manual (on CD)

Back panel

Figure 1 on page 5 shows the back panel connections and describes each connector on a typical TVN 50 network video recorder. Details may vary for specific models.
Before powering up the NVR, connect the cameras and a main monitor for basic operation.
4 TruVision NVR 50 User Manual
1BChapter 2: Installation
16. Connect to ground.
Figure 1: Back panel connections
1. Connect one CCTV monitor (BNC-type connectors): Main monitor.
2. Connect one audio input to RCA connectors.
3. Connect to a RS-232 de vic e.
4. Connect to a network.
5. Connect to an optional eSATA device such as SATA HDD, CD/DVD-RM.
6. Connect to a power cord.
7. Connect to speakers for audio output.
8. Connect to a VGA monitor.
9. Connect to an HDTV. The HDMI connection supports both digital audio and video.
10. Connect to an optional USB device such as a mouse, CD/DVD burner or HDD.
11. Terminate the line to the dome cameras using this RS-485 switch. Default is Off.
12. Connect to a PTZ control.
13. Connect to a keyboard (KTD-405 shown).
14. Connect up to 16 alarm input cables to relay outputs.
15. Connect up to four alarm relay outputs.

Wiring the keypad

The keypad uses RS-485 simplex wiring. The signal is transferred by a single twisted pair line. A shielded STP CAT5 network cable is recommended. Ground one end of the cable, either the first or last device on the RS-485 line.
The maximum number of devices that can be installed in one bus is 255, with a maximum cable length of 1200 m. The cable length can be expanded using a signal distributor.
Both the first and the last device in series should be terminated with 120 Ohm resistance to minimize line reflections. See Figure 2 below.
TruVision NVR 50 User Manual 5
1BChapter 2: Installation
2. I/O box
2. I/O box
4. See section “RS-485 ports” on page 8
Figure 2: RS-485 bus serial wiring (KTD-405 keypad shown)
1. Keypad
3. See section “RS-485 ports” on page 8
Use an RS-485 signal distributor for a star wiring configuration. See Figure 3 on page 6.
Figure 3: Star wiring with RS-485 signal distributor
Correct:
1. Keypad
6 TruVision NVR 50 User Manual
3. RS-485 distributor
1BChapter 2: Installation
2. I/O box
2. I/O box
4. See section “RS-485 ports” on page 8
Incorrect:
1. Keypad
3. See section “RS-485 ports” on page 8
Use an RS-485 signal distributor to increase the maximum number of devices on the bus as well as the total range. Each distributor output provides another RS­485 bus, extending the output an addi tional 1200 m. Up to 31 NVRs can be connected to each output. See Figure 4 below.
Figure 4: Expanding the system with an RS-485 signal d istributor
1. Keypad
Caution: Most signal distri butor s are uni dir ec t i onal . This me ans that the signal only flows from the input towards the outputs. Consequently it is not possible to connect several keypads.
See section “RS-485 p ort s” below to configure the RS-485 port communication settings.
TruVision NVR 50 User Manual 7
3. RS-485 distributor
1BChapter 2: Installation

RS-485 ports

There are two RS-485 ports on the rear panel of the NVR. See Figure 5 below for the serial pin outs.
Dome RS-485: A and B: Connect pan, tilt, zoom control of PTZ dome cameras. A = +, B = ­C and D: Not used G: Ground of dome camera G: Ground of keypad
Keyb: Connect the keypad.
Figure 5: RS-485 pins

RS-232 port

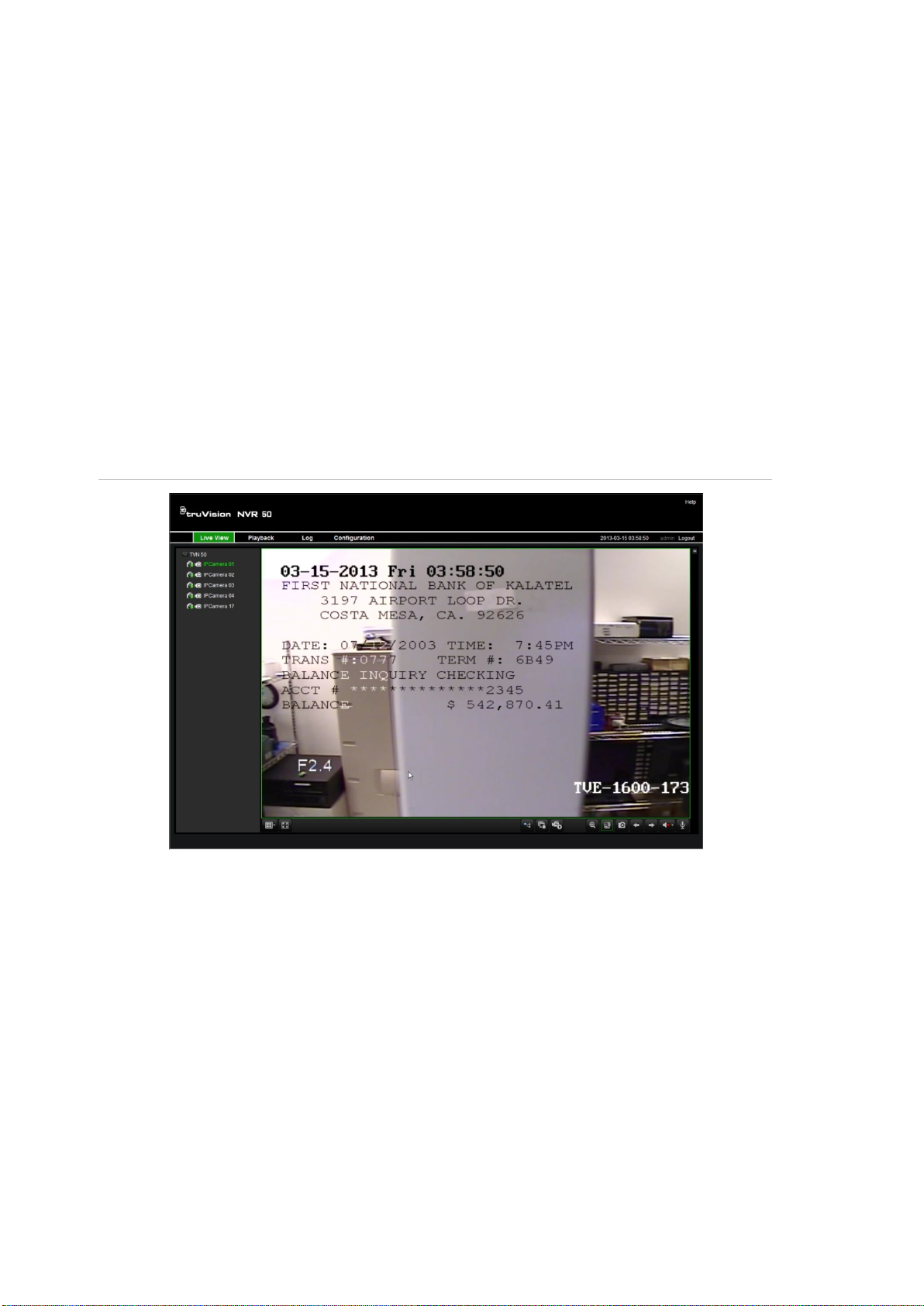

Use the RS-232 port to connect CBR-PB3-POS (point-of-sale) and ATM devices to the NVR.

Monitor connections

Connect the unit to a monitor via a 75-ohm video coaxial cable with the BNC connector. The unit provides a 1 Vp-p CVBS signal. See Figure 1 on page 5 for connecting a monitor to a TVN 50.
The TVN 50 supports up to 1920 × 1080 / 60 Hz resolution in VGA. The monitor resolution should be at least 800 × 600. Adjust your monitor accordingly to this resolution.

Audio inputs and output

The unit is equipped with 1 audio input and two audio outputs. Both the audio outputs and the audio inputs are line-level.
8 TruVision NVR 50 User Manual
1BChapter 2: Installation
Audio input
Audio output
RCA jack, 315 mV, 40 kohms. Unbalanced
RCA jack, 315mV, 600 ohms. Unbalanced
Note: Line-level audio requires amplification.

Brackets

The NVR is easily rack-mountable with the purchase of the TVR-RK-1 rack­mount kit. See Figure 6 below. Contact your local supplier to order it.
Figure 6: Rack-mount installation
Attach the small front rack ears to the unit (screws supplied)
Attach the NVR to the front rails (screws not included)
To install the racks:
1. Attach the two small front-rack mou nt ear s to the NVR (screws supplied).
2. Attach the two large rear support brackets (not supplied) to the rear rails.
3. Attach the NVR to the front rails (screws not supplied).
Caution:
Do not rack-mount the TVN 50 without the rear rails installed. Failure to install the rear rails can damage the NVR.
TruVision NVR 50 User Manual 9
1BChapter 2: Installation
10 TruVision NVR 50 User Manual
Chapter 3
Getting started

Turning on and off the NVR

Before starting the power up process, connect at least one monitor to the video out or the VGA interface. Otherwise, you will not be able to see the user interface and operate the device.
The TVN 50 auto-detects the video mode (PAL or NTSC) on startup. It is equipped with a universal power supply that will auto-sense 110/240 V,
60/50 Hz.
Note: It is recommended that an uninterruptible power supply (UPS) is used in
conjunction with the device.
To turn on the NVR:
Turn on the NVR using the power switch on the back panel. The power LED illuminates. A splash screen appears indicating that the NVR is starting up.
Once the NVR is powered up, the indicator bar on the front panel will light up green. The Start Up Wizard window will appear.
To turn off the NVR:
1. In live view mode, right-click the mouse and click Menu. The main menu screen appears.
2. Select the Power Manager icon.
3. In the Shutdown popup menu, select Shutdown. Click Yes to confirm shutdown.
To reboot the NVR:
1. In live view mode, right-click the mouse and click Menu. The main menu screen appears.
2. Select the Power Manager icon.
3. In the Shutdown popup menu, select Reboot. Click Yes to confirm shutdown.
TruVision NVR 50 User Manual 11
2BChapter 3: Getting started

Using the setup wizard

The TVN 50 has an express installation wizard that lets you easily configure basic NVR settings when first used. It configures all cameras simultaneously. The configuration can then be customized as required.
By default the setup wizard will start once the NVR has loaded. It will walk you through some of the more important settings of your NVR.
Any changes you make to a setup configuration page are saved when you exit the page and return to the main wizard page.
Note: If you want to set up the NVR with default settings only, click Next in each screen until the end.
To quickly set up the TVN 50:
1. Connect all the devices required to the back panel of the NVR. See Figure 1 on page 5.
2. Turn on the unit using the power switch on the back panel.
3. Select the preferred language for the system from the dropdown list and then click Next.
4. Enable or disable the option to start the wizard automatically when the NVR is turned on. Click Next.
5. Administrator configuration: Navigate to the Admin Passw or d edit box and click the edit box with the
mouse, or press Enter on the front panel or remote control, to display the virtual keyboard. Enter the de faul t ad min password, 1234.
Note: You must enter an admin password. To change the Admin password,
check New Admin password and enter the new password and confirm it. Caution: It is strongly recommended that you change the password of the
administrator. Do not leave 1234 as the default password. Write it down in a safe place so that you do not forget it. If you should forget the password to your NVR, contact your supplier with the serial number of your NVR to obtain a secure code to reset your NVR.
Click Next.

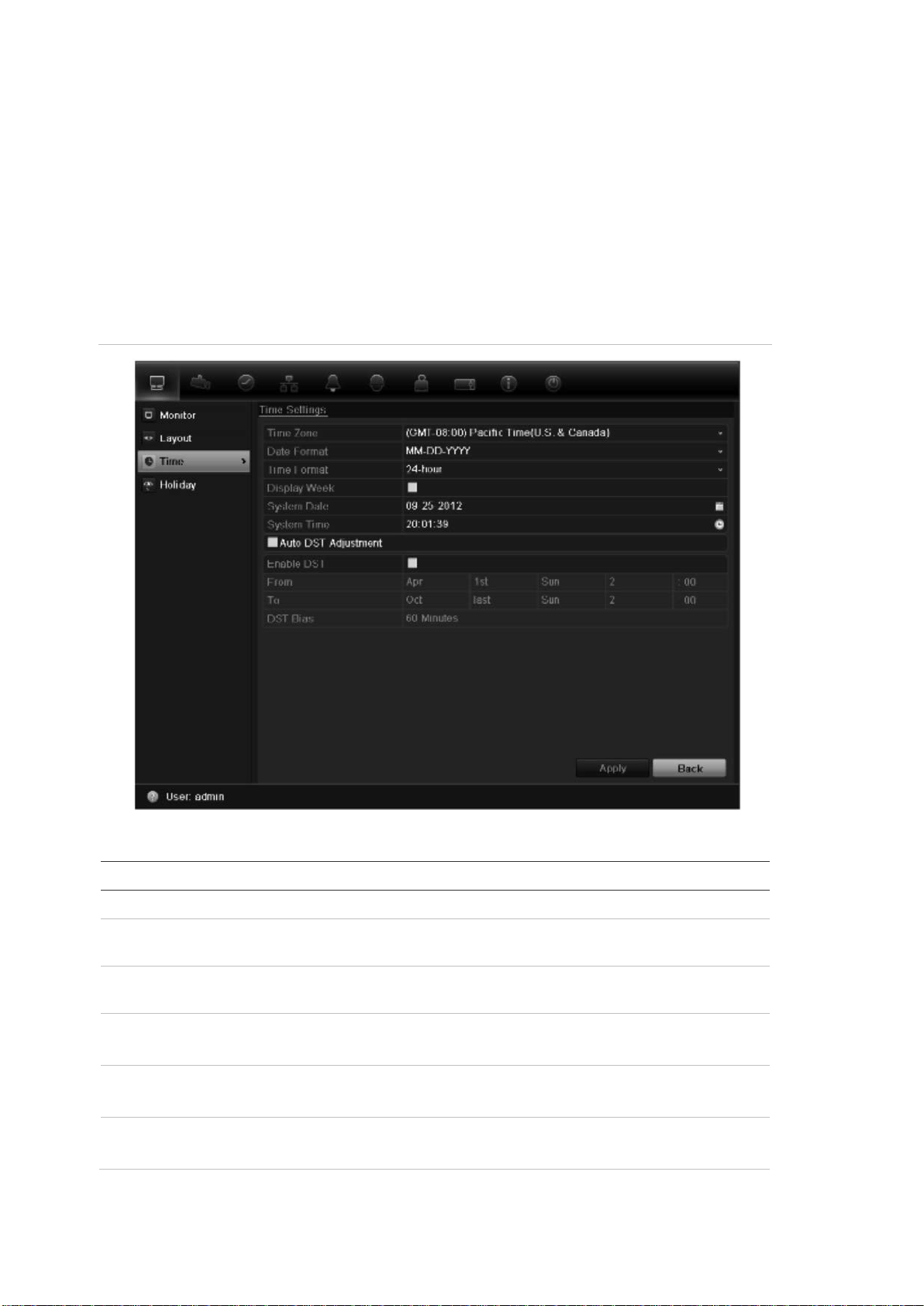

6. Time and date c onfi guration: Select the desired time zone, date format, system time and system date. Note: Daylight savings time (DST) cannot be configured from the Wizard. See
“Configuring time and date” on page 38 for more information on DST.
12 TruVision NVR 50 User Manual
2BChapter 3: Getting started
Note: The system time and date are visible on screen. However, they do not appear in recordings.
Click Next to move to the next page, or Previous to return to the previous page.
7. Network configuration: Configure your network settings such as the NIC type, Enable or Disable
DNCP,IP address, subnet mask and default gateway. Enter the preferred DNS server address as well as the alternate one to use.
Click Next to move to the next page, or Previous to return to the previous page.
8. HDD management: Configure your HDD settings as required. You can group HDDs and assign cameras to a group. See “Setting up HDD
groups” on page 106 for further information. You can also set up a drive for redundant recording . See “Configuring redundant recording” on page 85.
TruVision NVR 50 User Manual 13
2BChapter 3: Getting started
After configuring your HDD settings, click Initialize and Next to move to the next page, or Previous to return to the previous page.
9. Adding IP Camera: Click Search to find any online cameras. Select the IP camera to be added,
enter User name and Admin password, then click the Add button. Click, Next to move to the Recording Configuration screen.

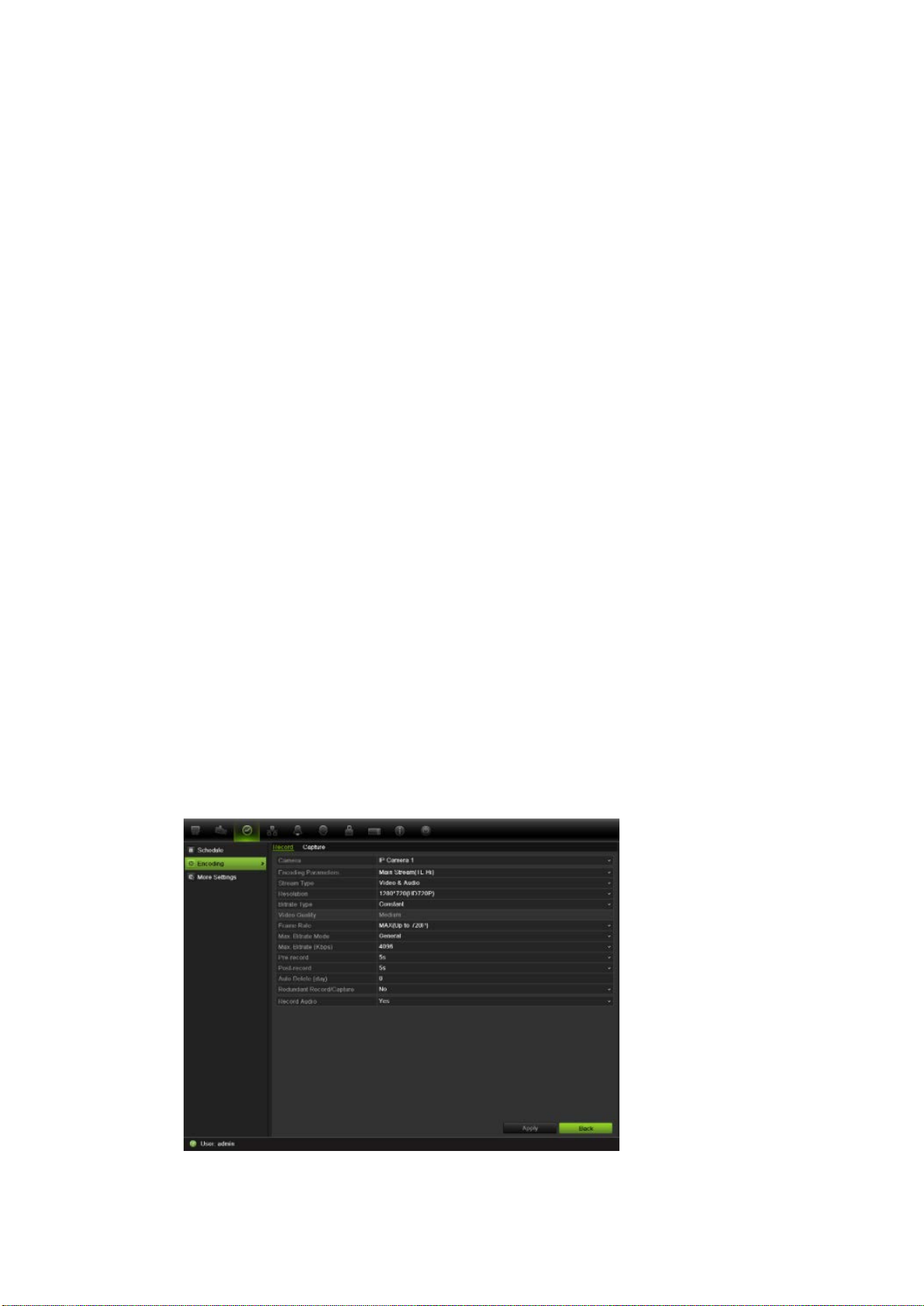

10. Recording configuration: Configure your recording settings as required. The settings apply to all
cameras connected to the NVR.
Check the Constant Recording checkbox for the NVR to record continuously all day. If left unchecked, the NVR will not record.
Check the TL-Hi check box and select its image resolution and frame rate. Check the TL-Lo check box and select its image resolution and frame rate. To record motion det e c ti on events, check Event (Motion).
14 TruVision NVR 50 User Manual
2BChapter 3: Getting started
To record alarm events, check Alarm.
11. When all the required changes have been entered, a page appears showing all the settings.
Click Finish to exit the Wizard. The NVR is now ready to use.
TruVision NVR 50 User Manual 15
2BChapter 3: Getting started
16 TruVision NVR 50 User Manual
Chapter 4
Operating instructions

Controlling the TVN 50

There are several ways to control the NVR:
Front panel control
Mouse control
IR remote control
KTD-405 keypad control (see Appendix)

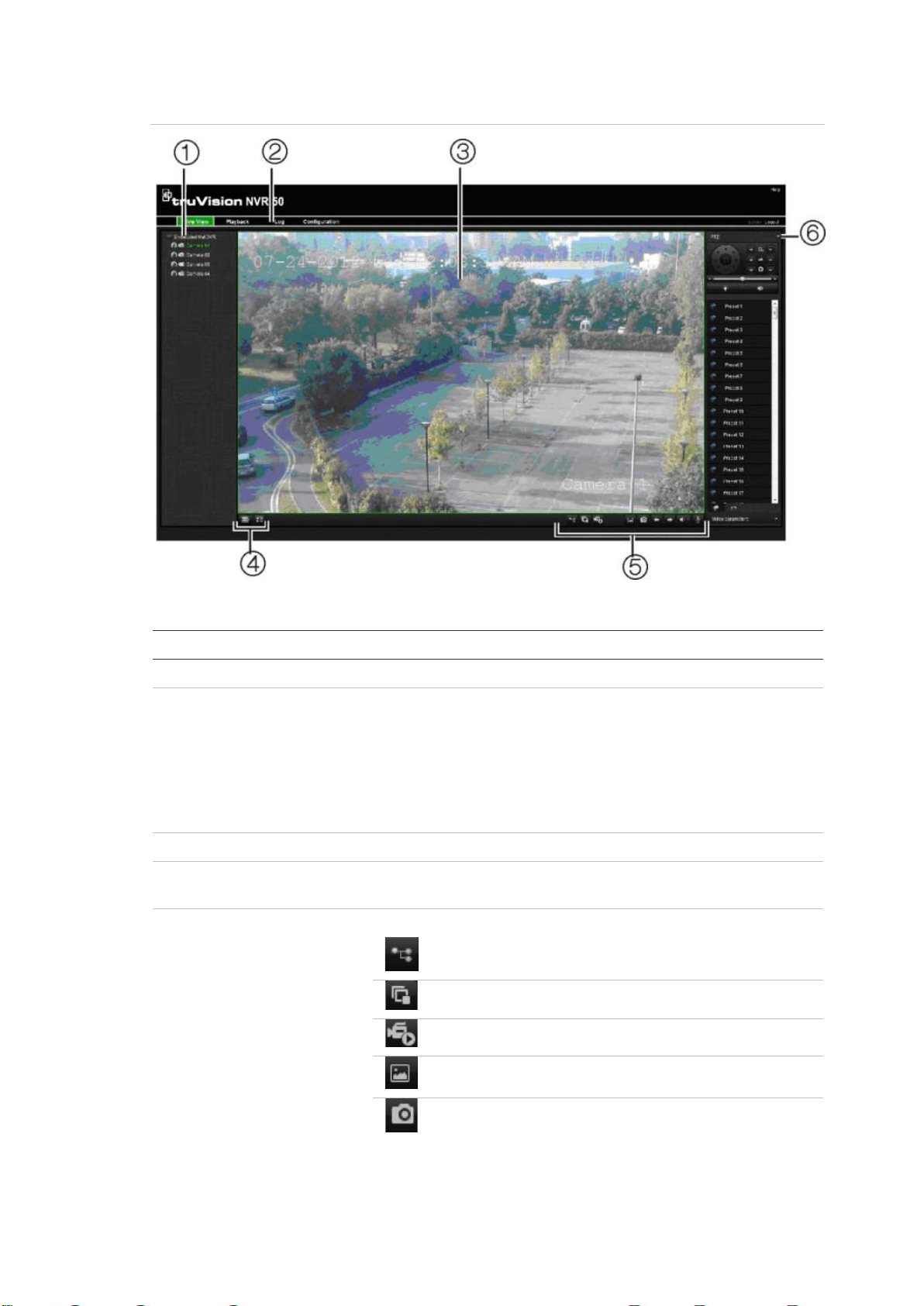

Web browser control
You can use your preferred control method for any procedure, but in most cases we describe procedures using mouse terminology. Optional control methods are given only when they differ substantially from mouse control method s.

Using the front panel

The function buttons on the front panel control can be used to operate many, but not all, of the main functions of the NVR. The LED indicators light up or flash to alert you of various conditions. The functions available can be limited by setting passwords. See Figure 7 below for more in for mation.
TruVision NVR 50 User Manual 17
3BChapter 4: Operating instructions
Item
1.
2.
3.
4.
5.
6.
Figure 7: Front panel
The controls on the front panel include:
Table 2: Front Panel Elements
Name Description
Status LEDs Power: Green indicates the NVR is working correctly.
Red indicates a fault.
Alarm: Indicates an external alarm status or motion. Tx/Rx: Tx/Rx indicator blinks green when network
connection is functioning properly. HDD: HDD indicator blinks red when data is being read
from or written to the HDD. Ready: Green indicates the device is functioning
properly. Archive: Archive indicator blinks green when record
files or snapshots are being exported to a USB or
eSATA device. IR receiver Receiver for IR remote. Front Panel Lock You can lock or unlock the front panel with a key. Display buttons Display: Toggles through the various multiviews: full,
quad, 1+5, 1+7, 9, and 16.
Sequence: Starts/stops sequencing in live view mode.
A: Selects monitor VGA/A in live view mode
B: Selects monitor A/B in live view mode
F1: In all-day playback, click to start and stop video
clipping.
F2: In live view mode, click to display/hide the time bar.
In all-day playback, click to hide/display the playback
control toolbar. Numeric buttons Switch between different cameras in live, PTZ control or
playback modes. USB Interfaces Universal Serial Bus (USB) ports for additional devices
such as a USB mouse and USB Hard Disk Drive (HDD).
18 TruVision NVR 50 User Manual
3BChapter 4: Operating instructions
Item
7.
8.
9.
1
Name Description
Menu and Search buttons
Playback buttons
Direction
Enter button The ENTER button is used to confirm selection in any of
Menu: Enter/exit the main menu. Search: Enter the advanced search menu.
: Jump back to the oldest available video and starts
the playback.
: Pause playback. : Instantly playback the currently selected file.
Default time is 1 minute.
Live: Switch to live view mode. Replay: Replay the current file in playback Starts at the
beginning of the file. The DIRECTION buttons are used to navigate between
different fields and items in menus. In the Playback mode, the left and right button is used to
speed up and slow down recorded video. In Live View mode, these buttons can be used to cycle
through channels. In PTZ control mode, it can control the movement of the
PTZ camera.
the menu modes. Show the PTZ control toolbar when in live view mode. In Playback mode, it can be used to play or pause the
video. In single-frame Playback mode, pressing the button will
advance the video by a single frame.
PTZ buttons Zoom: Use + and – for digital zoom.
Preset: Call up preprogrammed preset positions. Tour: Call up preprogrammed shadow tours.
0. Archive button Press once to enter quick archive mode. Pres s twice to start archiving. Indicator blinks green when data is being written to backup device.

Using the mouse

The USB mouse provided with the TVN 50 can be used to operate all the functions of the NVR, unlike the front pan el which has limited functionality. The USB mouse lets you navigate and make changes to settings in the user interface.
Connect the mouse to the TVN 50 by plugging the mouse USB connector into the USB port on the front or back panel. The mouse is immediately operational and the pointer should appear.
Note: Use a USB 1.1 or higher mouse.
TruVision NVR 50 User Manual 19
3BChapter 4: Operating instructions
Item
Left
Right button Scroll
Move the pointer to a command, option, or button on a screen. Click the left mouse button to enter or confirm a selection.
You can purchase a spare mouse by ordering part number TVR-MOUSE-1 TruVision™ DVR Model 5032 Mouse.
See Table 3 below for a descr ipt ion of the mouse buttons.
Table 3: Mouse buttons
Description
button Single-Click Live view: Select a camera to display the quick

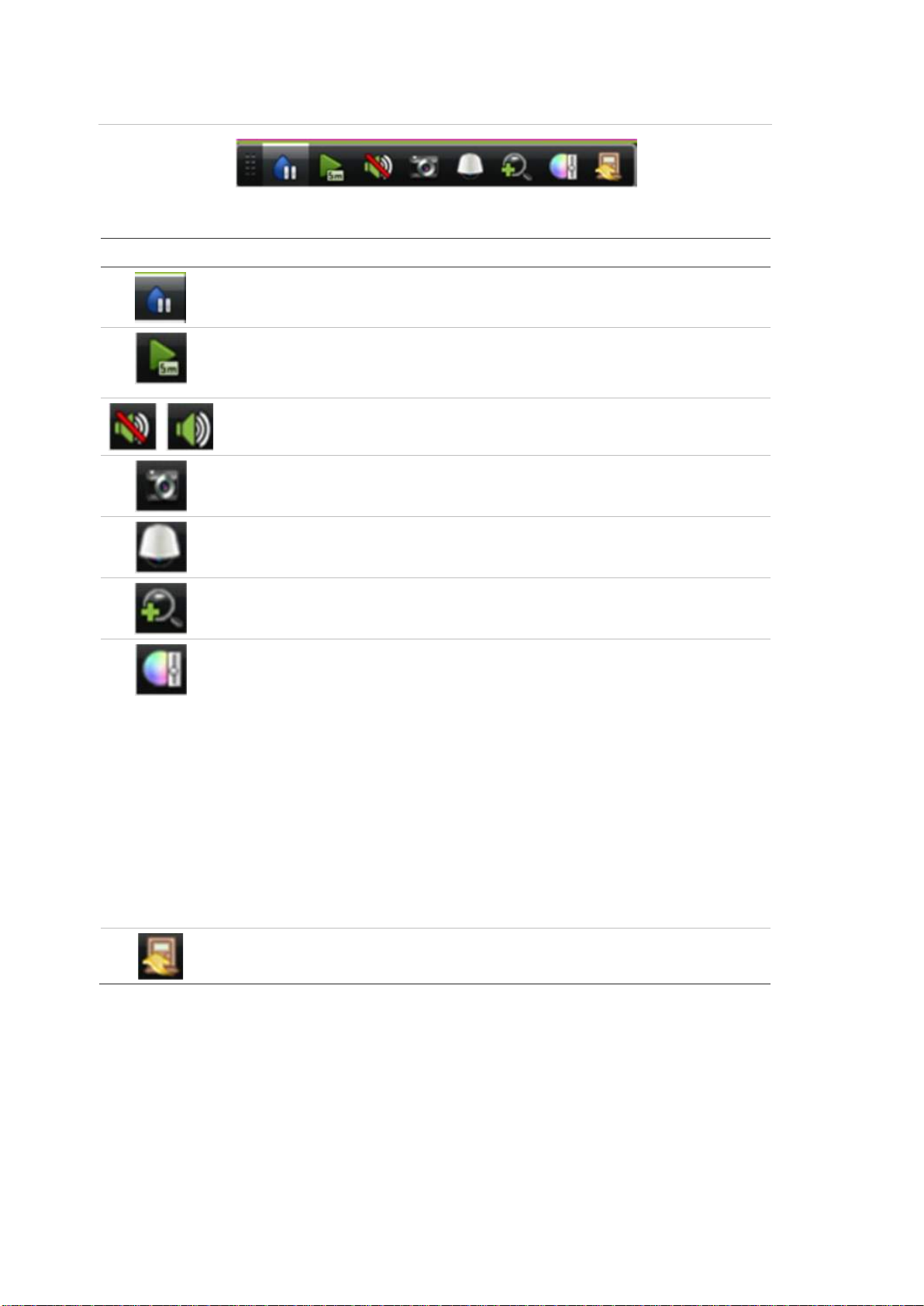

access toolbar (see “Accessing frequently used commands” on page 31).
Menu: Select a component of a menu, such as a button or an input field. This is similar to pressing the Enter button on the remote/front panel controls.
Double-Click Live view: Switch between single screen and multi-
screen mode in live/ playback mode.
Click and Drag Live view: Drag channel/time bar.
PTZ control: Adjust pan, tilt and zoom. Tamperproof, privacy masking and motion
detection functions: Select the target area. Digital zoom-in: Drag and select target area.
Single-Click Live view: Display menu.
Menu: Exit the current menu and return to higher
level.
-wheel Scroll Up Live view: Return to the previous screen. Menu: Move the selection to the previous item.
Scroll Down Live view: Move to the next screen.
Menu: Move the selection to the next item.

Using the IR remote control

The TVN 50 is supplied with an infra red (IR) remote control unit. Like the mouse, it can be used to operate all of the main functions of the TVN 50.
The IR remote control can be programmed with a unique device ID address so that the controller will only be able to communicate with NVRs with that address. No programming is necessary if using a single TVN 50.
The device ID address only applies when using a remote control and not when using a keypad.
You can purchase a remote control by ordering part number TVR-REMOTE-1 TruVision™ DVR Model 5032 IR Remote Control.
20 TruVision NVR 50 User Manual
3BChapter 4: Operating instructions
Item
Description
1
Acknowledge an alarm.
2
Enable/disable the IR remote control to control the
3
Select a camera, and enter a number in a menu option.
4
Switch between the different multiviews.
5
Switch between monitors A and B.
6
Return to live view mode.
7
Activate the main menu.
8
Start /stop sequencing.
9
In Menu mode: Use left or right arrow arrow buttons to edit entry.
In PTZ mode: Use to control PTZ. In Playback mode: Use to control playback speed.
10
Confirm selection.
11
Use to control zoom of camera le
12
Enter preprogrammed three
13
Enter preprogrammed three
14
Use to control focus of camera lens.
Figure 8: IR remote control
. Alarm . Device . Numeric buttons . Display . Mon A and Mon B . Live . Menu . Seq . , , ,
. OK . Zoom + and ­. Preset
TVN 50.
buttons to select and up or down
ns.
-digit code to call up a preset. . Tour . Focus + and -
TruVision NVR 50 User Manual 21
-digit code to call up shadow tour.
3BChapter 4: Operating instructions
Item
Description
15
Use to control playback (Rewind, Pause, Play, and Fast Forward).
16
Open the Search menu.
17
Replay the selected file from the beginning.
18
Eject the
19
Press once to enter quick archive mode. Press twice to start archiving.
. Playback control . Search . Replay . Eject . Archive
CD or DVD disk.
Aim the remote control at the IR receiver located at the front of the unit to test operation.
To connect the remote control to the TVN 50:
1. Press the Menu button on the front panel or right-click the mouse and select the Menu button. The main menu screen appears.
2. Click Display Mode Settings > Monitor.
3. Check the device address value. The default value is 255. This device address is valid for all IR controls.
4. On the remote control press the Device button.
5. Enter the device address value. It must be the same as that on the TVN 50.
6. Press OK on the remote control.
To place batteries into the IR remote control:
1. Remove the battery cover.
2. Insert the batteries. Make sure that the positive (+) and negative (−) poles are correctly placed.
3. Replace the battery cov er .
Troubleshooting the remote control:
If the IR remote control is not functioning properly, perform the following tests:
Check the battery polarity.
Check the remaining charge in the batteries.
Check that the IR remote control sensor is not masked.
If the problem still exists, please contact your administrator.

Menu overview

The TVN 50 has an icon-driven menu structure that allows you to configure the unit’s parameters. Each command icon displays a screen that lets you edit a group of settings. Most menus are available only to system administrators.
22 TruVision NVR 50 User Manual
3BChapter 4: Operating instructions
Display mode settings Camera management
Video schedule

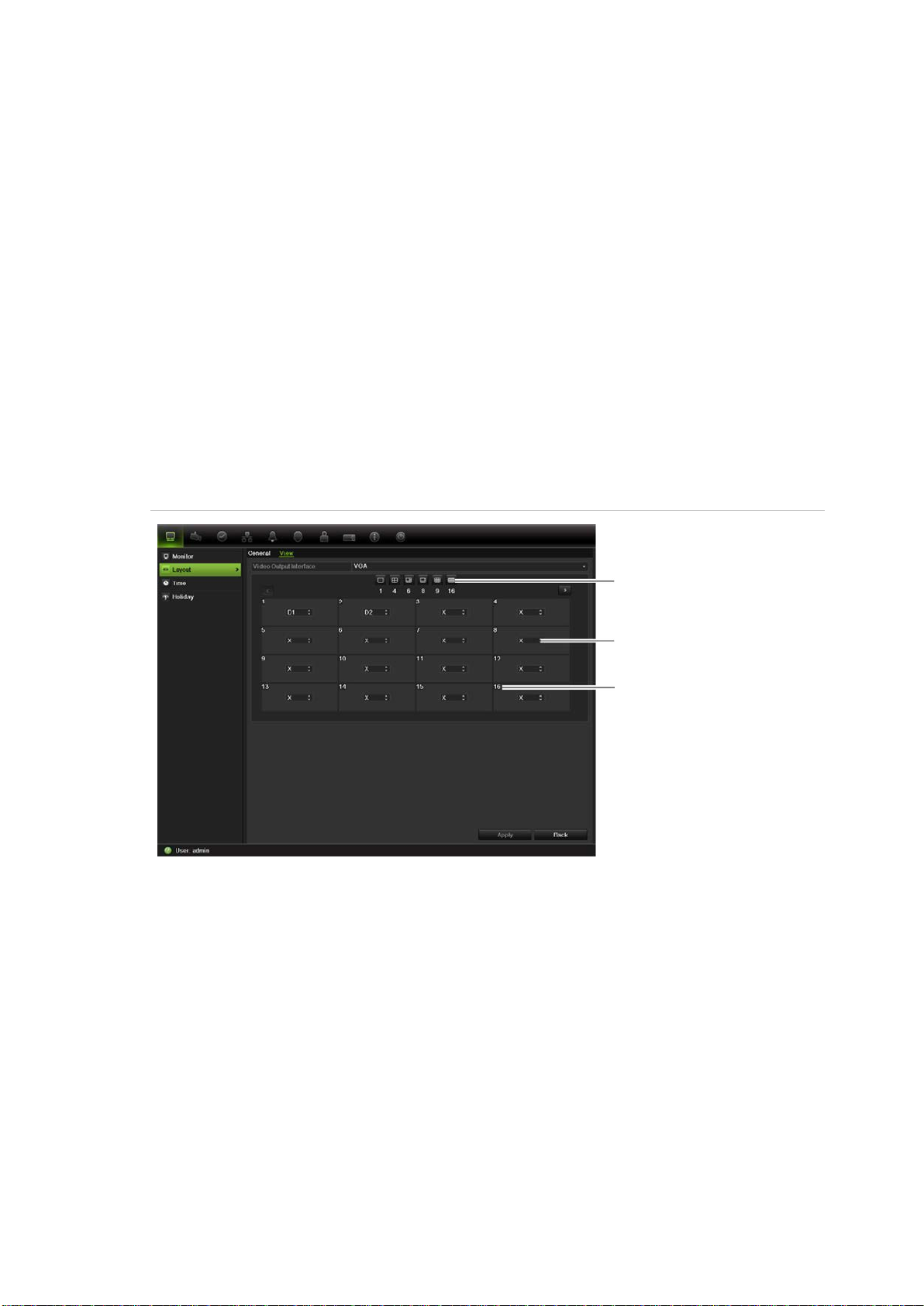

The screen is divided into three sections. The currently selected command icon and submenu item are highlighted in green. See Figure 9 below.
You must be in live view mode to access the main menu.
Figure 9: Menu structure
1. Menu toolbar: Setup options available for the selected menu function. Move the mouse over a command icon and click to select it. See Table 4 below for a description of the icons.
2. Submenu panel: Submenus for the selected menu function are displayed. Click an item to select it.
3. Setup menu: All the details for the selected submenu are displayed. Click a field to make changes.
Table 4: Description of the menu toolbar icons
Icon Name Description

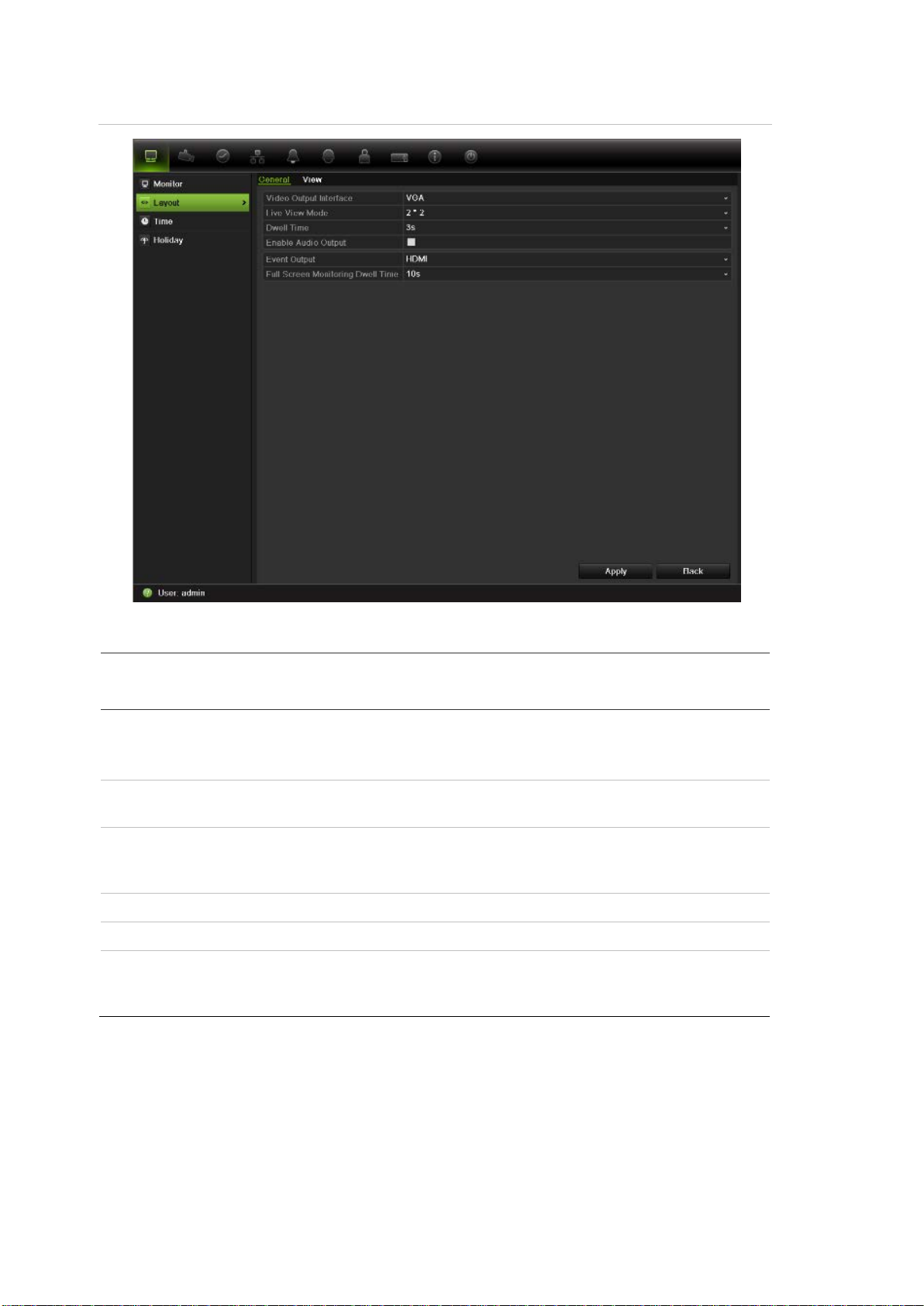

Configures dis p lay settings including system date and time,
Configures recording settings including recording
audio output, device name, dwell time, schedule, language and display formats. See “Configuring live view” on page 33 and “Holiday schedules” on page 82.
Configures camera settings including motion detection,
video image adjustments, video loss, and camera title. See Chapter 14 “Camera settings” on page 111.
schedules, record quality, auto delete mode, and recording mode. See Chapter 10 “Recording” on page 77.
TruVision NVR 50 User Manual 23
3BChapter 4: Operating instructions
Network settings
Alarm settings
PTZ settings
User management
System Help information
Power manager
Icon Name Description
Configures standard network settings including IP address,
Configures alarm settings including alarm input, relay
Configures PTZ settings including RS-485 settings. See
Configures users, passwords, and access privileges. See
settings Configures system settings including RS-232 settings,
Provides reference information to the various toolbars,
e-mail notifications, DDNS s etup, and ad vanced network settings. See Chapter 12 “Network settings” on page 97.
output, remote alert, pre-alarm and post-alarm seconds. See Chapter 11 “Alarm settings” on page 87.
Chapter 6 “Controlling a PTZ cam er a” on page 41.
Chapter 16 “User management” on page 121.
firmware upgrade, hard drive settings, and boot log. See Chapter 13 “HDD management” on page 105 and Chapter 15 “NVR management” on page 115.
menus, and keys within the interface.
Provides access to logout, reboot and shutdown options.
See “Turning on and off the NVR” on page 11.
To access the main menu:
1. In live view press the Menu button on the remote control or front panel.
- Or ­Right-click the mouse and select Menu from the pop-up menu. The main menu screen appears. The Display screen appears by default.
2. Click the required menu icon to display its submenu options. Modify the configuration parameters as required.
3. Click Apply to save the settings.
4. Click Back to return to live view.
Using the soft keyboard
A keyboard will appear on-screen when you need to enter characters in a screen option. Click a key to input that character.
Figure 10: The soft keyboard
24 TruVision NVR 50 User Manual
Loading...
+ 138 hidden pages
