Chapter 1

Product introduction

Product overview

The TruVision NVR 21 (TVN 21) series is a v ers at ile, us er-fr iendly embedded network
video recorder (NVR) series. The standard series supports up to 8 or 16 channels and
up to 4 SATA hard drives.

The TVN21S model includes an 8 or 16 channels version and an embedded PoE
switch that allows TruVision cameras to be connected in a plug and play manner.
Simply plug in the IP camera to automatically power and connect it, assign the IP
address, as well as set it up using default values. The embedded 8/16 PoE switch
provides a maximum PoE wattage of respect ively 120 W and 200 W.

The TVN 21P series supports up to 8, 16, or 32 channels and up to 8 SATA hard
drives. The full TVN 21 series provides integration with the UTC portfolio of security
solutions, and offers a seamless user experience within the TruVision brand.

The TVN 21 series can be configured and operat ed t hr ough its on-screen display
(OSD), web browser, mobile applications, TruVision Navigator software, or third party
software using the TruVision SDK.

The recorder can be fully managed by the license-f r ee TruVision Navigator software ­ideal for most commercial applications. It’s easy and intuitive web browser interface
enables remote configuration, viewing and searching of video on any TruVision
recorders.

Default settings to access the device

Default user names and passwords

See Table 1 on page 2 for the list of default user names and pas s words. Go to
Chapter 16 “User management” on page 114 for f urther information.

TruVision NVR 21 (SP) User Manual 1

Chapter 1: Product introduction

User

Administrator
Operator

Guest

HTTP port: 80

Server/Client software port: 8000

Table 1: Default user names and passwords

Description

There can only be one administrator.

The user name is admin. The name cannot be modified.
The default password is 1234.

The default user name is “operator.”

The default password is 2222.

The default user name is “gue st.”

The default password is 3333.

Note: The default passwords should be changed for security reasons.

Default network settings

The network settings are:

• IP address - 192.168.1.82

• Subnet mask - 255.255.255.0

• Gateway address - 192.168.1.1

• Ports:
When using the browser:
RTSP port: 554

When using TruNav:
RTSP port: 554

Go to “Using the web browser” on page 125 for further information.

2 TruVision NVR 21 (SP) User Manual

Chapter 2

Physical installation

This section describes how to install the recorder.

Installation environment

When installing your product, consider t hes e factors:

• Ventilation

• Temperature

• Moisture

• Chassis load

Ventilation: Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions. Ensure t hat the location planned for the installation of the
unit is well ventilated.

Temperature: Consider the unit’s operating temperature (-10 to +55 ºC, 14 to 131 °F)
and noncondensing humidity specif ic at ions (10 to 90%) before choosing an installation
location. Extremes of heat or cold bey ond t he s pec if ied operating temperature limits
may reduce the life expectancy of the recorder. Do not install the unit on top of other
hot equipment. Leave 44 mm (1.75 in.) of s pac e between rack-mounted DVR units.

Moisture: Do not use the unit near water. Moisture can damage the internal
components. To reduce the risk of fire or electric shock, do not expose this unit to rain
or moisture.

Chassis: Equipment weighing less th an 15.9 kg (35 lb.) may be placed on top of the
unit.

Unpacking the recorder and its accessories

When you receive the product, check the package and contents for damage, and verify
that all items are included. There is an item list included in the package. If any of the
items are damaged or missing, please c ontact your local supplier.

TruVision NVR 21 (SP) User Manual 3

Chapter 2: Physical installation

Items shipped with the product include:

• IR (infrared) remote control

• Two AAA batteries for the remote control

• AC power cords

• USB mouse

• Brackets

• Recorder

• Hard Drive Kits

• CD with software and manuals

• TruVision NVR 21 Quick Start Guide

• TruVision NVR 21 User Manual (on CD)

• TruVision Recorder Operator Guide (on CD)

Back panel

The figures below show the back panel connections and describe each connector on a
typical NVR 21 digital video recorder. Details may vary for specific models.

Before powering up the recorder, insert t he hard dr ives and connect a main monitor for
basic operation. Once all required connections are done, enter the relevant data in the
setup wizard (see page 12).

Note: For every hardwired alarm input, connect one wir e t o the input connection with

the alarm number label and one wire to a ground con nection (labeled G).

4 TruVision NVR 21 (SP) User Manual

Chapter 2: Physical installation

12. Not used.

Figure 1: Back panel connections

TVN 21S back panel connections

1. Connect one CCTV monitor (BNC-type
connectors).

2. Connect one audio input to RCA connectors.

3. Connect to a RS-232 device.

TruVision NVR 21 (SP) User Manual 5

10. Universal Serial Bus (USB). Connect to an
additional device such as a USB mouse,
CD/DVD burner, or USB HDD.

11. Not used.

Chapter 2: Physical installation

supports both digital audio and video.

2. I/O box

4. Connect to a network.

5. Connect to an optional eSATA device such as
SATAN HDD, CD/DVD-RM.

6. Connect to a power cord.

7. Connect to speakers for audio output.

8. Connect to a VGA monitor.

9. Connect to an HDTV. The HDMI connection

13. Connect to a keyboard (KTD-405 shown).

14. Connect up to 16 alarm inputs.

15. Connect up to four alarm relay outputs.

16. Connect to ground.

17. 8/16/32 PoE ports .

Wiring the keypad

The keypad uses RS-485 simplex wiring. The signa l is transferred by a single twisted
pair line. A shielded STP CAT5 network cable is recommended. Ground one end of the
cable, either the first or last dev ice on the RS-485 line.

The maximum number of devices that can be installed in one bus is 255, with a
maximum cable length of 1200 m. The cable length c an be expanded using a signal
distributor.

Both the first and the last device in series should be t er minated with 120 Ohm
resistance to minimize line reflections. See Figure 2 below.

Figure 2: RS-485 bus serial wiring (KTD-405 keypad shown)

1. Keypad

3. See section “RS-485 ports” on page 8

Use an RS-485 signal distributor for a star wiring configuration. See Figure 3 on page 7.

6 TruVision NVR 21 (SP) User Manual

Chapter 2: Physical installation

2. I/O box

4. See section “RS-485 ports” on page 8

2. I/O box

Figure 3: Star wiring with RS-485 signal distributor

Correct:

1. Keypad

Incorrect:

1. Keypad

3. RS-485 distributor

3. See section “RS-485 ports” on page 8

Use an RS-485 signal distributor to increase the maximum number of devices on the
bus as well as the total range. Each distributor out put pr ovides another RS-485 bus,
extending the output an additional 1200 m . Up to 31 recorders can be connected to
each output. See Figure 4 below.

TruVision NVR 21 (SP) User Manual 7

Chapter 2: Physical installation

2. I/O box

4. See section “RS-485 ports” on page 8

Figure 4: Expanding the system with an RS-485 signal distributor

1. Keypad

3. RS-485 distributor

Caution: Most signal distributors are unidirection al. This means that the signal only
flows from the input towards the outputs. Consequently it is not possible to connect
several keypads.

See section “RS-485 ports” below to configure the RS-4 85 por t communication settings.

RS-485 ports

There are two RS-485 ports on the rear panel of t he recorder. See Figure 5 below for
the serial pin outs.

• Dome RS-485:
A and B: Connect pan, tilt, zoom control of PT Z dom e c amer as. A = +, B = ­C and D: Not used
G: Ground of dome camera
G: Ground of keypad

• Keyb: Connect the keypad.

8 TruVision NVR 21 (SP) User Manual

Chapter 2: Physical installation

Figure 5: RS-485 pins

RS-232 port

Use the RS-232 port to connect text interface devices or for us e by technical support.

PoE ports

Connect up to eight or 16 IP cameras to the embedded PoE ports depending on the
TVN 21S model.

Monitor connections

Connect the unit to a monitor via an appropriate cable with the VGA/HDMI connector.
The recorder provides a 1 Vp-p CVBS signal.

The recorder supports up to 1280 × 1024 / 60 Hz resolution in VGA/HDMI. The monitor
resolution should be at least 800 × 600. Adjust your monitor accordingly to this
resolution.

The VGA or HDMI monitor can be used as the main monitor of the recorder. The BNC
video output can be used as spot or alarm monitor.

Rack mounting

The TVN 21 and 21S have a 1.5U desk based chassis. The TVN 21P has a 2U desk
based chassis. Both can be easily rack-mountable with the purchase of the TVR-RK-1
rack-mount kit. Contact your local supplier to order t he k it . See Figure 6 below.

TruVision NVR 21 (SP) User Manual 9

Chapter 2: Physical installation

Figure 6: TVN 21S rack-mount installation

To install the racks:

1. Attach the two small front-rack mount ears (A) to the NVR. The screws are supplied.

2. Attach the two large rear support brackets (not supplied) to the rear rails (B).

3. Attach the NVR to the front rails (C). The screws are not supplied.

10 TruVision NVR 21 (SP) User Manual

Chapter 3

Getting started

Powering on the recorder

Before starting the recorder, connect at least one monitor. Otherwise, you w ill not be
able to see the user interface and operate the device.

The recorder auto-detects the v ideo mode (PAL or NT S C) on s tartup.
It comes equipped with a universal power supply that will auto-sense 110/ 240 V,

60/50 Hz.

Note: It is recommended that an uninterruptible power supply (UPS) is used in

conjunction with the device.

To turn on the recorder:

Turn on the recorder using the power switch on the back panel. Once it is powered up,
the status LEDs on the front panel will light up.

To turn off the recorder:

1. In live view mode, right-click the mouse and click Menu. The main menu window
appears.

2. From the menu toolbar, click Shutdown.

3. In the Shutdown popup menu, select Shutdown. Click Yes to confirm shutdown.
You will be requested to enter the Admin password.

To reboot the recorder:

1. In live view mode, right-click the mouse and click Menu. The main menu window
appears.

2. Select the Shutdown icon.

3. In the Shutdown popup menu, select Reboot. Click Yes to confir m s hut down.
You will be requested to enter the Admin password.

TruVision NVR 21 (SP) User Manual 11

Chapter 3: Getting started

The startup wizard

The recorder has an express installati on wizard that lets you easily configure basic
recorder settings when first used. It configures all cameras to default settings. The
configuration of each camera and recorder c an be cus tomized as required.

By default the startup wizard will start once the recorder has loaded. It will walk you
through some of the more important sett ings of your recorder.

Any changes you make to a setup configuration page are saved when you exit the page
and return to the main wizard page.

Note: If you want to set up the recorder with default sett ings only, click Next in each
screen until the end.

To use the Startup wizard:

1. To launch the startup wizard without rebooting the device, go to Menu > Device

Management > General Settings and click ‘Start wizard’.

2. Select the preferred language for the system and resolution from the dropdown list
and then click Next.

3. Enable or disable the option to start the wiz ard automatically when the recorder is
turned on. Click Next.

4. User configuration:
You can change the admin password and create add itional users.
Mouse: Navigate to the Admin Password edit box. Click the box to display the virtual

keyboard and enter the default admin pass word, 1234.
Front panel or remote control: Navigate to t he A dm in Pas sword edit box using the

navigation buttons. Press Enter on t he front panel or remote control to display the
virtual keyboard. Enter the default ad min pas sword, 1234.

Note: You must enter an admin password. To change the Admin passw or d, check

New Admin password and enter the new pas sword and confirm it.

12 TruVision NVR 21 (SP) User Manual

Chapter 3: Getting started

Caution: It is strongly recommended that you change the password of the
administrator. Do not leave 1234 as the default pas sword. Write it down in a safe
place so that you do not forget it. If you should forget the password to your recorder,
contact your supplier with the serial number of your recorder to obtain a secure code
to reset it.

Click Next.

5. Time and date configuration:
Select the desired time zone, date format, system time, and system date.
If Daylight saving time (DST) is required, check Enable DST and enter the desired

summer and winter times.

Note: The system time and date are visible on screen. However, they do not
appear in recordings.

Click Apply and t hen Next to move to the next page or click Previous to return to
the previous page.

6. Network configuration:
Configure your network settings s uch as the NIC type, IP address, subnet mask,

and default gateway. Enter the pref er red DNS s er ver address as well as the
alternate one to use.

TruVision NVR 21 (SP) User Manual 13

Chapter 3: Getting started

Click Next to move to the next page, or Previous to return to the previous page.

7. HDD management:
The hard drives are initialized at the factory. However if you wish to clear all data,

click Initialize to initialize the HDD and Next to move to the next page, or Previous
to return to the previous page.

8. Adding IP cameras:
Note: You do not need to search for PoE cameras. They are automatically

recognized when plugged in.
Click Search to find any available IP cameras on the LAN.

There are two ways to add an IP camera to the recorder system:
Manually: Enter the IP address of the IP cam era to be added. Select the appropriate

protocol, stream number, and manag ement port and then enter User name and
Admin password, and then click the Add button. Click, Next to move to the next
page.

Automatically: Select the desired I P c am eras from the search results list. Click

Quick Add to add the selected cameras to the recorder system wit hout modifying

the camera configuration. The search list will display all supported IP cameras that
are located on the LAN.

Click Next to move to the next page, or Previous to return to the previous page.

9. Recording configuration:
Configure your default recor ding settings as required. The settings apply to all

cameras connected to the recorder.

14 TruVision NVR 21 (SP) User Manual

Chapter 3: Getting started

Check the Constant Recording checkbox for the recorder to record continuously all
day. If left unchecked, the recorder will not rec or d.

Check the desired time lapse check box, TL-Hi or TL-Lo.
To record motion detection events, c heck Event (Motion).
To record alarm events, check Alarm.
Click Next to move to the next page, or Previous to return to the previous page.
Note: You can configure the recording parameters of each individual camera for the

different recording schedules in the rec or ding menu.

10. When all the required changes have been entered, a summary page appears
showing all the settings.

Click Finish to exit the Wizard. The recorder is now ready to use.
For a description of the recorder main menu, s ee “Menu overview” on page 24.

Caution: Important! Your TruVision device is delivered with default user name and

password credentials for initial access, easy configuration, and auto discovery. For
security reasons, it is highly rec omm ended t o c hange the default credentials.

TruVision NVR 21 (SP) User Manual 15

Chapter 4

Operating instructions

Controlling the recorder

There are several ways to control the recorder:

• Front panel control. See “Using the front panel” below.

• Mouse control. See “Using the mouse” on page 20.

• IR remote control. See “Using the IR remote control” on page 21.

• TVK-800 keypad (from TVK-800 firmware vers ion 1. 0i). Please refer t o the user
manual for more information.

• Web browser control (TruVision Navigat or, TVRmobile). See Chapter 18 “Using the
web browser” on page 125 for more information on using the web browser. Please
refer to the TruVision Navigator and TVRmobi le user m anuals for more information.

• Software (TruVision Navigator, TVRmobile or other v ideo managem ent or
integration software platforms). Please refer to the relevant user manuals of the
individual software platforms for more infor m at ion.

You can use your preferred control method for any procedure, but in most cases we
describe procedures using the mouse. Optional control methods are given only when
they differ substantially from the mouse c ontrol methods.

Using the front panel

The function buttons on the front panel contr ol can be used to operate most, but not all,
of the main functions of the recorder. The LED indic ators light up to alert you of various
conditions. The functions available can be limited by setting passwords. See Figure 9
on page 17 for more information.

16 TruVision NVR 21 (SP) User Manual

Chapter 4: Operating Instructions

Item

1

2

3

In or another alarm such as motion or tampering. A steady green

4

5

The DIRECTION buttons are used to navigate between different

6

mode use this button to zoom in and out. Also use them to

Figure 7: Front panel

16-channel model:

The controls on the front panel include:

Table 2: Front Panel Elements

Name Description

. Channel buttons Switch between different cameras in live, PTZ control or

playback modes.

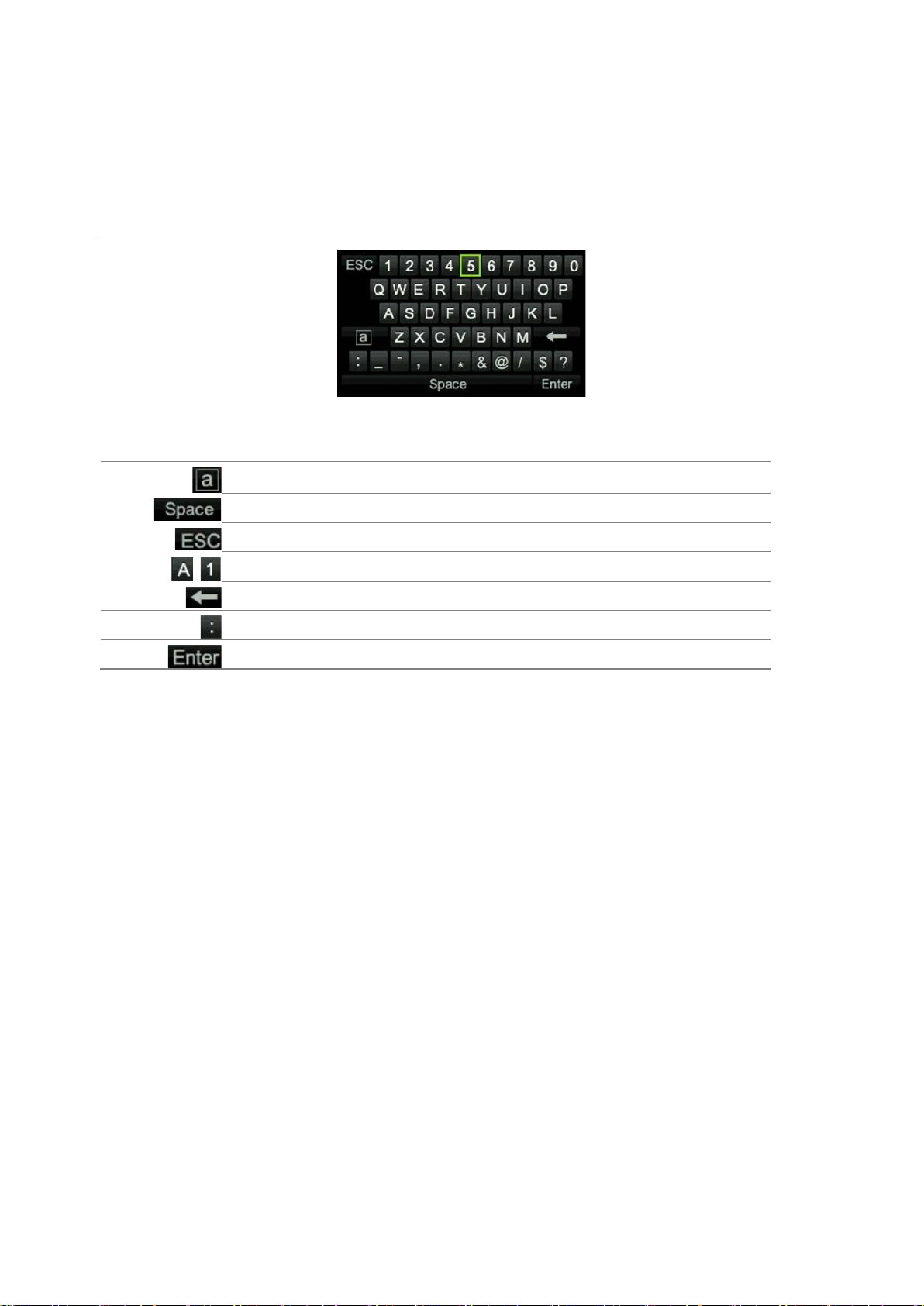

Use the soft keyboard to enter numerals 0 to 9.

. USB Interfaces Universal Serial Bus (USB) ports for additional devices such as

a USB mouse, CD/DVD burner, and USB Hard Disk Drive
(HDD).

. Status LEDs Power: A flashing green light indicates the recorder is working

correctly. Red indicates a fault.
Alarm: A steady red light indicates that there is a sensor Alarm

light means there is no alarm.
Tx/Rx: Flashing green indicates a normal network connection.

No light indicates that it is not connected to a network.
HDD: HDD indicator blinks red when data is bei ng read fr om or

written to the HDD. A steady red light indicates an HDD
exception or error.

Ready: A steady green light indicates that the recorder is
functioning properly.

Archive: Blinking green indicates archiving is in progress.

. Archive button Press once to enter quick archive mode. Press twice to start

archiving. Indicator blinks green when data is being written to
backup device.

. Direction

Enter button The ENTER button is used to confirm selection in any of the

. PTZ buttons Zoom +/-: In live view mode, playback mode, and PTZ control

TruVision NVR 21 (SP) User Manual 17

fields and items in menus.

menu modes.
See Table 3 on page 19 for a detailed description of these

buttons by different tasks.

Chapter 4: Operating Instructions

Item

navigate within menus.

Also use to scroll between calendar months and to navigate in a

7
8

9

mode, stop

the current

: In playback mode, start playing the current file. Starts at

10

11

Name Description

Preset: In PTZ Control mode, press Preset and a numeric

button to call the specified preset.
Also use to edit holiday mode, video search mode, HDD

selection mode, user management mode, bookmark
management, and bookmark search.

Tour: In PTZ Control mode, press Tour and a numeri c button to
call the specified shadow tour.

text field.
See Table 3 on page 19 for a detailed description of all these

buttons for different tasks.

. IR receiver Receiver for IR remote.

To connect the remote control to the recorder, press the Device
button, enter the device address, and press Enter . See Using
the IR remote control on page 21 for more informati on.

. Menu and Search buttons Menu: Enter/exit the main menu.

Search: In live view, enter the advanced search menu.

. Playback buttons See Table 3 on page 19 for a detailed description of all these

buttons for different tasks.

Reverse: In live view mode, use to play back the earliest
video. In playback mode, playback a camera in the reverse
direction.

Pause: In live vie w, freeze the last image of the live
display for all active cameras displayed. In playback
playback.

Play: In live view mode, play all-day playback of
camera (upper-left video tile if in multiview mode). In playback
mode, play back a camera in the forward direction. In search
mode, play back a selected video or view a snapshot. In PTZ
mode, do an auto tour.

Live: Switch to live view mode.
Replay

the beginning of the file.

. Front panel lock You can lock or unlock the front panel with a key.
. Display buttons See Table 3 on page 19 for a detailed description of all these

buttons for different tasks.
Display: In multiview mode, toggle through the various

multiviews (full, quad, 1+5, 1+7, 9, and 16).
In HDD information mode and user management mode delete a

selected item. In PTZ mode, delete a selected key point. In Log
Search mode, display the details of a log file in Log Search
result.

Seq: In Live View mode, start/stop sequencing cameras on the
current monitor.

A: In Live View mode, select the main monitor.

18 TruVision NVR 21 (SP) User Manual

Chapter 4: Operating Instructions

Item

Management mode, pop up the Permission screen of a selected
item in User Management > User > User Management. Delete a

Task

Live view mode

Playback mode

down recorded video. The up and down buttons are used to

, press to advance the video

Name Description

B: In Live View mode, select the event monitor.
F1: In Playback mode, click to start and stop video clipping. For

audio, press F1 and a numerical button to play the audio of the
specified camera in live view.

In System Information mode, get the DDNS URL. In User

selected item from USB flash drive. Exit the virtual keypad.
F2: In live view mode, all-day playback, and playback modes

press to display or hide the time or control bar. In PTZ mode,
stop all ongoing operations. Select or deselect an item. Enter a
selected folder of the external storage device, such as a USB
flash drive used for archi ving.

Table 3: Front panel button functions by task

Button

Direction Press to cycle through channels.

Enter Press to show the PTZ control toolbar.

Reverse Press to play the earliest video file of the current camera

Pause Press to freeze the last image of the live display for all

Play Press to play 24-hour playback of the current camera

Live Press to switch to live view mode.
Seq Press to start/stop sequencing cameras on the current

Menu Press to enter the main menu.

Button function

(upper-left video tile if in multiview mode).

active cameras displayed.

(upper-left video tile if in multiview mode).

monitor. Hold the Seq button for three seconds to start and
stop sequencing.

Direction The left and right buttons are used to speed up and slow

jump recorded video forwards or backwards by 30 s.

Enter Press the button to pause the video. Press again to restart

the video.
In single-frame Playback mode

by a single frame.

Reverse Press to play back a camera in reverse direction.

In Picture Playback mode, view pictures in reverse
direction.

Pause In Playback mode, stop playback.
Play In Playback mode, play back a camera in the forward

direction.

TruVision NVR 21 (SP) User Manual 19

Chapter 4: Operating Instructions

Task

Pause mode

PTZ control mode

Menu navigation

Item

Left button

Button

Direction The left and right buttons are used to jump recorded video

Direction Press to control the movement of the PTZ camera.

Zoom +/- Press to zoom in and out.
Preset Press Preset and a numeric button to call the specified

Tour Press Tour and a numeric button to call the specified

Play Press to do an auto tour.

Display Press to delete a selected key point from the PTZ Set ting >

Direction Press to navigate between different fields and items in

Menu Enter/exit the main menu.
Enter Press to confirm the selection in any of the menu modes.

Button function

forwards or backwards by one frame. The up and down
buttons are used to jump recorded video forwards or
backwards by one second.

preset.

shadow tour.

More Settings> Tour > Key Point list.

menus.

Using the mouse

The USB mouse provided with the recorder can be use d t o oper ate all the functions of
the unit, unlike the front panel whic h has limit ed functionality. The USB mouse lets y ou
navigate and make changes to settings in t he us er interface.

Connect the mouse to the recorder by plugging the mou s e USB connector into the USB
port on the back panel or the front panel. The mouse is immediately operational and the
pointer should appear.

Note: Use a USB 2.0 mouse.

Move the pointer to a command, option, or button on a window. Click the left mouse
button to enter or confirm a selection.

You can purchase a spare mouse by ordering part number TVR-MOUSE-1.
See Table 6 below for a description of the m ouse buttons.

Table 4: Mouse buttons

Description

Single-Click Live view : Select a camera to display the live view toolbar.

20 TruVision NVR 21 (SP) User Manual

Menu: Select a component of a menu, such as a button or
an input field. This is similar to pressing the Enter button
on the remote/front panel controls.

Double-Click Live vi ew: Switch between single screen and multi-screen

mode in live/ playback mode.

Chapter 4: Operating Instructions

Item

Right button

Scroll

Description

Click and Drag Live vi ew: Drag channel/time bar.

PTZ control: Adjust pan, tilt, and zoom.
Tamperproof, privacy masking and motion detection

functions: Select the target area.
Digital zoom-in: Drag and select target area.

Single-Click Live vi ew: Display menu.

Menu: Exit the current menu and return to higher level.

-wheel Scroll Up Live vi ew: Return to the previous window.
Menu: Move the selection to the previous item.

Scroll Down Live view : Move to the next window.

Menu: Move the selection to the next item.

Using the IR remote control

The recorder is supplied wit h an infrared (IR) remote control unit. Like the mouse, it can
be used to operate all of the main functions of the unit .

The IR remote control can be programmed w it h a unique device ID address so that the
controller will only be able to communicate with recorders with that address. No
programming is necessary if using a single recorder.

The device ID address only applies when using a remote control and not when using a
keypad.

You can purchase a replacement remote cont r ol by ordering part number TVR­REMOTE-1.

TruVision NVR 21 (SP) User Manual 21

Chapter 4: Operating Instructions

Item

Description

1

Acknowledge an alarm.

2

Enable/disable the IR remote control to control the

3

Select a camera, and enter a number in a menu option.

4

Switch between the different multiview formats

5

Switch

6

Return to

7

Activate the main menu.

8

Start /stop sequencing.

9

In Menu mode: Use left or right arrow buttons to select and up or down
arrow buttons to edit entry .

In PTZ mode:
In Playback mode: Use to control playback speed.

10

Confirm selection.

11

Use to control zoom of camera lens.

12

Enter preprogrammed three

13

Enter preprogrammed three

14

Use to control focus of camera lens.

Figure 8: IR remote control

. Alarm
. Device
. Numeric buttons
. Display
. Mon A and Mon B
. Live
. Menu
. Seq
. , , ,

. OK
. Zoom + and -

recorder.

.

between monitors A and B.

live view mode.

Use to control PTZ.

. Preset
. Tour

-digit code to call up a preset.

-digit code to call up shadow tour.

. Focus + and -

22 TruVision NVR 21 (SP) User Manual

Chapter 4: Operating Instructions

Item

Description

15

Use to control playback (Rewind, Pause, P

16

Open the Search menu.

17

Replay the selected file from the beginning.

18

Eject the CD or DVD disk.

19

Press once to enter quick

. Playback control
. Search
. Replay
. Eject
. Archive

lay, and Fast Forward).

archive mode. Press twice to start archiving.

Aim the remote control at the IR receiver located at the front of the unit to test
operation.

To change the address of the remote control to the recorder:

1. Press the Menu button on the front panel or right-click the mouse and select the

Menu button. The default display menu window appears.

2. Click Device Management > General Settings.

3. Check the remote control ID value. The default value is 255. This device address is
valid for all IR controls.

Note: The recorder will respond to any remote c ontrol that has an address between
1 and 255.

4. On the remote control press the Device button.

5. Enter the device address value. It m ust be t he s ame as that on the recorder.

6. Press the OK button on the remote control.

To place batteries into the IR remote cont ro l:

1. Remove the battery cover.

2. Insert the batteries. Make sure that the positive (+) and negative (−) poles are
correctly placed.

3. Replace the battery cover.

Troubleshooting the re m ote c ont r ol

If the IR remote control is not functioning properly, perform the following tests:

• Check the battery polarity.

• Check the remaining charge in the batteries.

• Check that the IR remote control sensor is not m as ked.

If the problem still exists, please contact your administrator.

TruVision NVR 21 (SP) User Manual 23

Chapter 4: Operating Instructions

Display Settings

video format, resolution,

Camera Setup

OSD, privacy masking,

Menu overview

The recorder has an intuitive structure that allows you to configure the unit’s
parameters quickly and efficiently. Each command icon displays a window that lets you
edit a group of settings. Most menus are available on ly to system administrators.

The window is divided into three sections. T he c urr ently selected command icon and
submenu item are highlighted in green. See Figure 12 below.

You must be in live view mode to access the main menu.

Figure 9: Menu structure

1. Menu toolbar: Setup options available for the selected menu function. Move the mouse over a
command icon and click to select it. See Table 5 below for a description of the icons.

2. Submenu panel: Submenus for the selected menu function are displayed. Click an item to select it.

3. Setup menu: All the details for the selected submenu are displayed. Click a field to make changes.

Note: See Table 3 on page 17 for the description on how to access the menu options
using the front panel.

Table 5: Description of the menu toolbar icons

Icon Name Description

Configures display settings including

Configures camera settings including snapshot resolution

video output interface, dwell time, multiview format, and
camera sequencing. See Chapter 9 “Display settings” on
page 51.

and quality, camera settings including
tampering, restricted access, motion detection setup, PTZ
setup, preset tours and show tours, V-stre am encoding. See
Chapter 10 “Camera setup” on page 55

24 TruVision NVR 21 (SP) User Manual

Chapter 4: Operating Instructions

Network

Recording

Alarm and Event
Setup

output,

event

Device Management
Storage Management

User Management

System Information

Help

Shutdown

Icon Name Description

Settings Configures standard network settings including IP address,

Configures recording settings including instant replay

email notifications, DDNS setup, and advanced network
settings. See the Chapter 11 “Network settings” on page 72.

duration, recording schedule, and manual recor di ng . See
Chapter 12 “Recording” on page 83.

Configures alarm settings including alarm input, alarm
manual trigger, buzzer settings, alarm notifications, video
loss, and alarm host setup. See Chapter 13 “Alarm and

setup” on page 89.

Configures system settings including system date and time,

DST, language, menu timeout, impor t/export config files,
firmware upgrade, holiday schedules, text insertion, and RS­232 settings. See Chapter 14 “Device management” on page

96.

Configures HDD information, storage mode, S.M.A.R.T.

settings, and bad sector detection. See Chapter 15 “Storage
management” on page 103.

Configures users, passwords, and access privileges. See

Chapter 16 “User management” on page 114.

Displays device information, camera setup information,

Provides reference information to the various toolbars,

Provides access to logout, reboot, and shutdown options.

recording setup information, alarm inputs information, alarm
outputs information, network information, HDD information,
and log search. See Chapter 17 “System information” on
page 119.

menus, and keys within the interface.

See “Powering on the recorder” on page 11.

To access the main menu:

1. In live view, press the Menu button on the remote cont r ol or front panel.

- Or ­Right-click the mouse and select Menu from the pop-up menu.
The main menu window appears. The Display Settings window appears by default.

2. Click the required menu icon to display its submenu options. Modify the
configuration parameters as required.

3. Click Apply t o s ave the settings.

4. Click Exit to leave the menu setup and return to live view.

TruVision NVR 21 (SP) User Manual 25

Chapter 4: Operating Instructions

Switch to lowercase/upper

Space

Exit the soft keyboard

Alphanumeric characters

Backspace

Punctuation

Confirm selection

The soft keyboard

A keyboard will appear on-screen when you need t o enter characters in a window
option. Click a key to input that character.

Figure 10: The soft keyboard

Description of the keys in the soft keyboard:

case

Exiting the main menu

Press the Menu button on the front panel to exit the current menu window and return to
live view, or click Exit in a main menu, or right-click using the mouse.

26 TruVision NVR 21 (SP) User Manual

Icon

Chapter 5

Live view

Description of live view

Live view mode is the normal operating mode of the unit where you watch live images
from the cameras. The recorder automat ically enters into live view mode once powered
up. On the monitor you can see whether a recordi ng is in progress and, if set up to do
so, the current date and time, as well as the camera name.

Status information

Information on the system and camera st at us is dis played as icons on the main and
auxiliary monitors. The camera stat us icons ar e shown for each camera. Each icon
represents information on a specific item. These icons include:

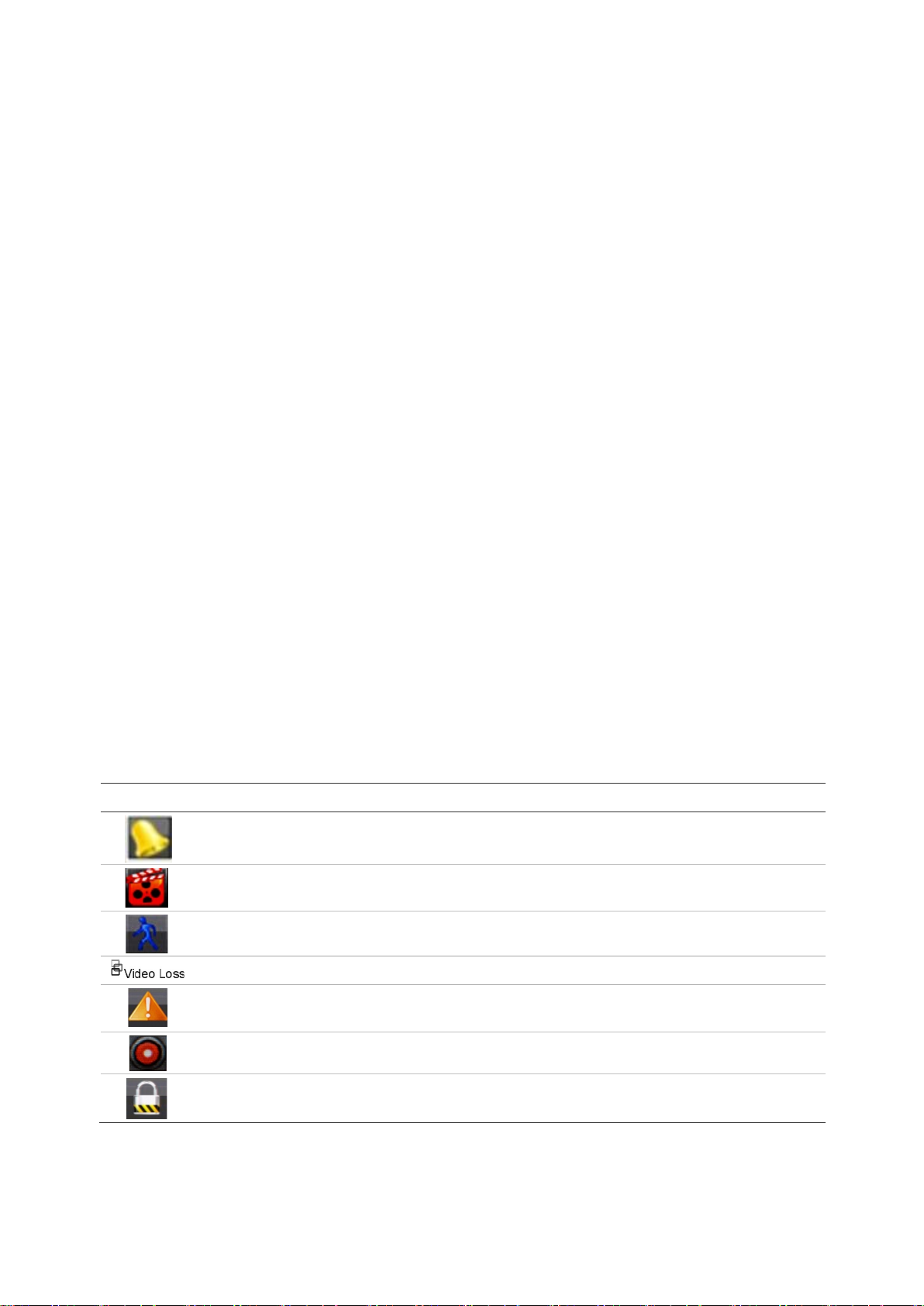

Table 6: Description of the on-screen status icons

Description

Indicates an alarm.

Indicates that a camera channel is being recorded.

Indicates a motion detection event.

Indicates a video loss event.
Indicates alarm and system notifications. Clicking the icon opens a window that lists the

alarms and notifications.
Indicates manual recording.

Indicates that live view is locked from the front panel. Mouse actions are still allowed.

The recorder can display more than one icon at the s am e t ime. See “General settings”
on page 98 to display or hide these icons.

27 TruVision NVR 21 (SP) User Manual

Chapter 5: Live View

1.

2.

3.

4.

The system status is displayed on the front panel by the status LEDs.

Video output

The recorder automatically c hec ks the monitor outputs used on startup.
If an HDMI monitor is used, it will be the main output. If HDMI and VGA monit or s are

both connected to the recorder, both will be main monitors; they will both show the
same view.

Live view mouse menu

Many features of live view can be quickly accessed by placing the cursor on a live
image and clicking the right-button of the mouse. T he m ouse menu appears (see
Figure 11 below).

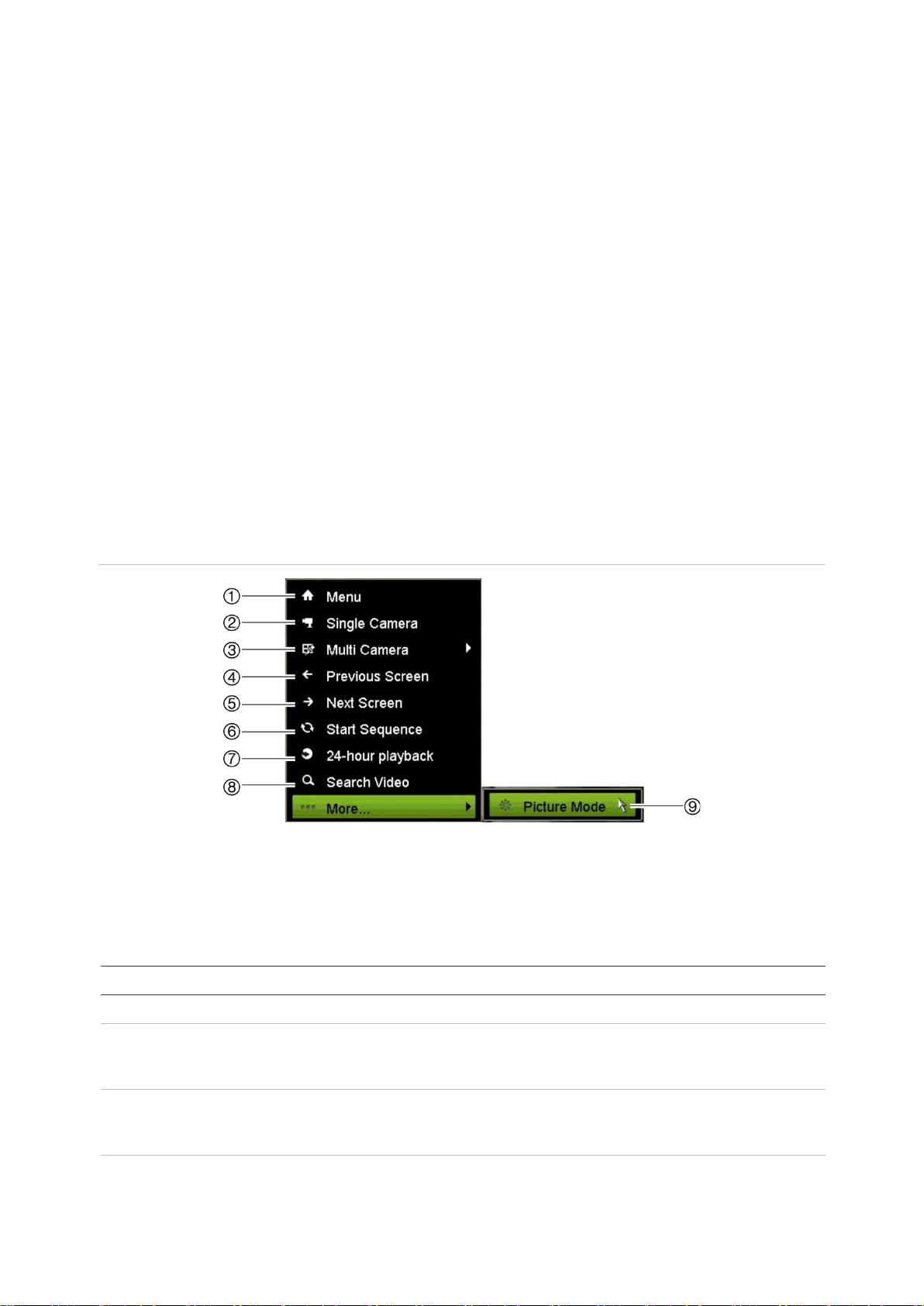

Figure 11: The mouse menu for the main monitor

The list of commands available depends on w hich monitor is active; main or auxiliary
(monitor B). See Table 7 below. The default settings of these c om mands are provided
in the appendix under “Default menu settings” on page 146.

Table 7: Mouse menu for monitor A (main monitor)

Name Description

Menu Enter the Main menu.
Single Camera Switch to a full-screen view for the selected camera from the

dropdown list. See “Single and multiview display ” on page 29 for
more information.

Multi Camera Switch between the different multiview options from the dropdown

list. See “Single and multiview display ” on page 29 for more
information.

Previous Screen Displays the previous camera.

28 TruVision NVR 21 (SP) User Manual

Chapter 5: Live View

5.

6.

7.

8.

9.

Name Description

Next Screen Displays the next camera.
Start Sequence Turn on sequence mode. The window automatically sequences

between cameras. To set up the sequence dwell time, go to Menu >
Display Settings > Display > Sequence Dwell Time and select a
value.

24-hour Playback Playback the recorded video of the selected day from the selected

camera. The current day is selected by default.
Search Video Enter the advanced video search menu.
Picture Mode Select Standard, Bright, Soft, or Vivid mode to display.

Single and multiview display mode

The recorder has single and multiview f orm ats. The number of multiview display modes
available depends on the recorder model.

Single view display
format

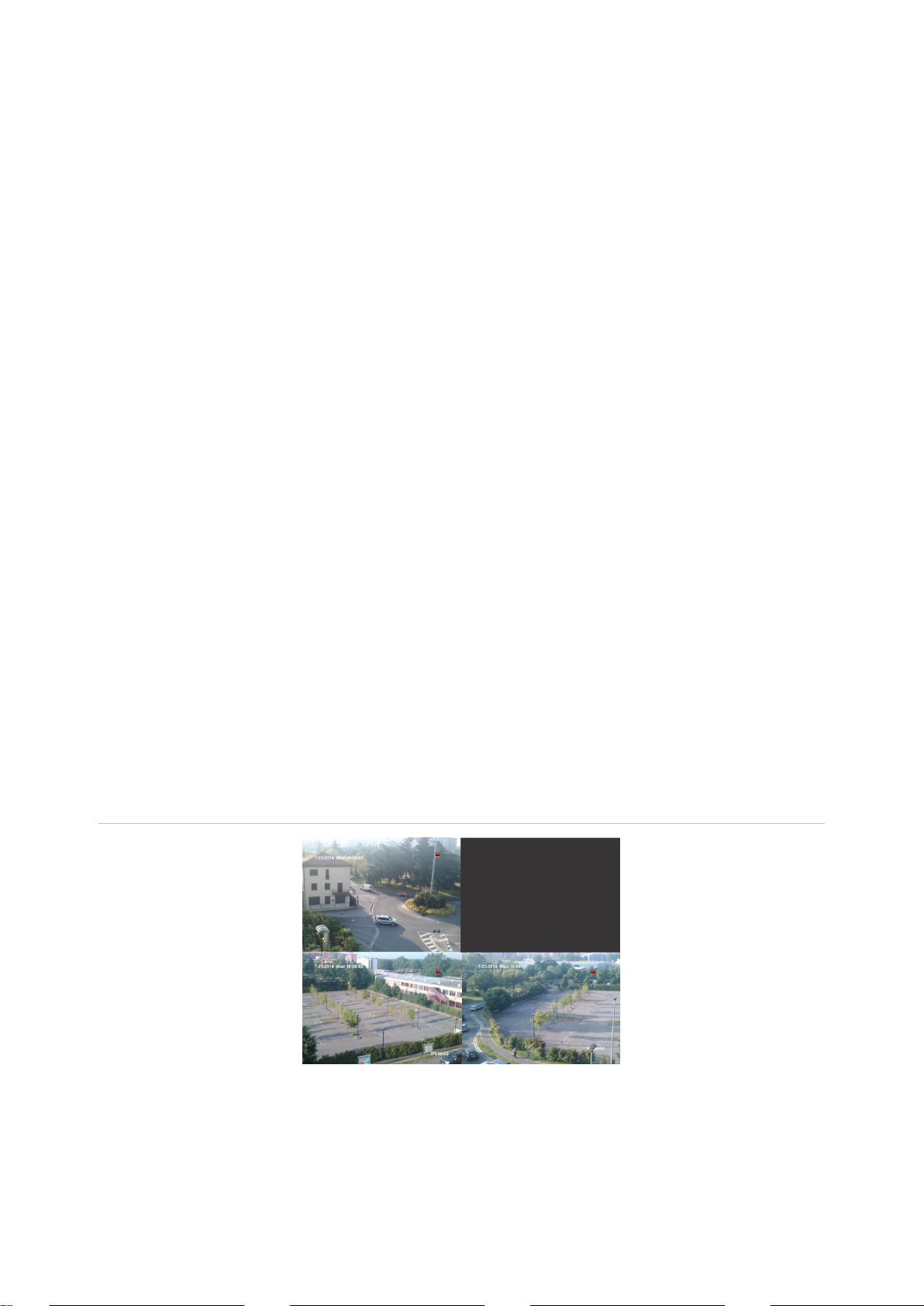

Multiple view display
format

Press the numeric button on the front panel to switch to the corresponding
camera display. For example, press button 10 to view camera 10.

-Or­Right-click the mouse and select Single Camera from the menu. Select the

required camera from the list.
Press the Display button on the front panel to cycle through different display

formats.

-Or­Right-click the mouse and select Multi Camera from the menu. Select the

desired multiview display layout.

Sequencing cameras

The sequencing feature allows a camer a to be displayed briefly on screen, before
advancing to the next camera in the sequence list. Sequencing can only be done in
single-view display mode.

The default sequence displays each camera in numerical order. However, each camera
on the main and event monitors can have a pre-programmed dwell time and sequence
order. See “Layout” on page 53 for more information.

Note: Dwell time must not be set to zero for sequencing to function.

TruVision NVR 21 (SP) User Manual 29

Chapter 5: Live View

time

ther information.

Sequencing cameras using the front panel:

Select the camera where you want to start sequencing. Press the Seq button on the
front panel to start sequencing. Press it again to st op s equencing.

Sequencing cameras using the mouse:

Select the camera where you want to start sequencing. Right-click the mouse and
select Start Sequence to start the sequencing. Right-click again and select Stop

Sequence to stop sequencing.

Live view toolbar

The live view toolbar in live view lets y ou quickly access regularly used commands.
Position the cursor over a video image and left- click the m ouse. The toolbar appears
(see Figure 12 on page 30).

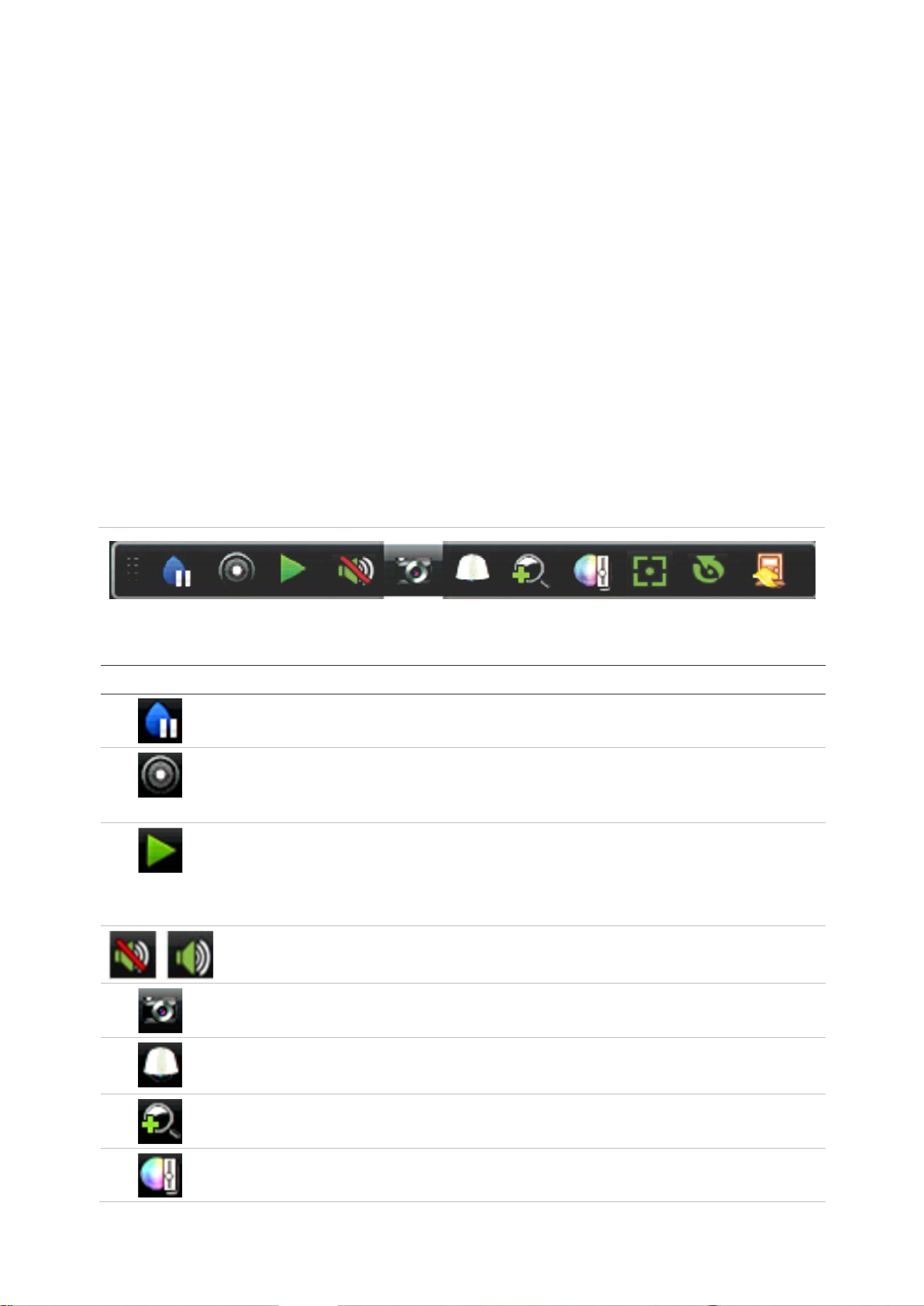

Figure 12: Live view toolbar

Table 8: Description of the live view toolbar icons

Icon Description

Pause: Freeze the live image of the selected camera. Although the image pauses,

and date information does not. The system clock continues to run.
Start Manual Recording: Start/stop manual recording.

The icon is red when manual recording is enabled. See “Recording schedule” on page
83 for information on setting up this function.

Instant Playback: Playback the recorded video from the last five minutes. If no
recording is found, then there was no recording made in the last five minutes.

Click the icon and select the desired camera. Click OK.
See “Modify the instant replay duration” on page 86 For more informati on.
Audio On: Enable/Disable audio output. The audio opti on mus t alre ady have been

setup in the Display menu.

Snapshot: Capture a snapshot of a video image. The image is saved on the unit. See
“Slideshow of snapshots” on page 36 for more information.

PTZ Control: Enter PTZ control mode.
See “Configuring PTZ settings” on page 67 for more information.

Digital Zoom: Enter digital zoom. See “Digital zoom” on page 31 for fur

Image Settings: Enter the image settings menu to modify the image lighting levels.

There are two options:

30 TruVision NVR 21 (SP) User Manual

Chapter 5: Live View

or IP cameras. This function helps to maintain lens focus accuracy over prolong periods

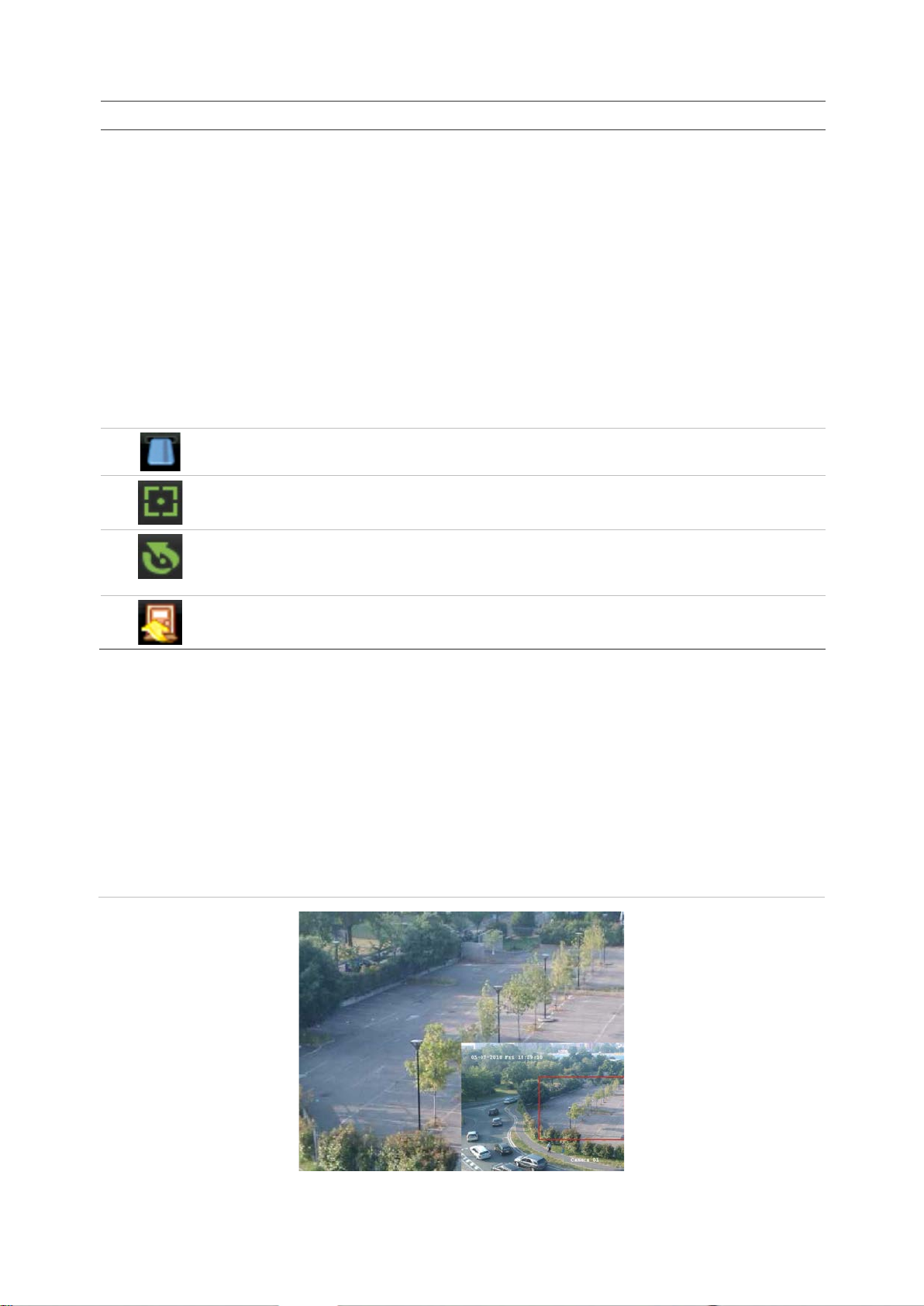

Icon Description

Preset Mode: These are preconfigured image lighting levels. Select one of the four

options depending on current lighting conditions:

- Standard: Use in standard lighting situations.

- Indoor: Use indoors.

- Dim Light: Use when the light level is low.

- Outdoor: Use when outdoors. The contrast and saturation values are high.

Customize: Modify brightness, contrast, saturation, and hue values. Click Restore to

restore image settings to previous values.
Click Restore to restore image settings to previous values. Click Default to return to

default values.
These settings can also be modified from the Camera Setup > Image menu (see page

“Image settin gs” on page 62.
Show Text: Display inserted text on screen. The color of the text can be changed:

Black, white, or pink.

Auxiliary Focus: Automatically focus the camera lens for the sharpest picture.

Lens Initialization: Initialize the lens of a camera with a motorized lens, such as PTZ

of time.

Close Toolbar: Close the toolbar.

Digital zoom

You can easily zoom in or out of a camera image in live view mode and playback using
the digital zoom command. The zoom command magnifies the camera image four
times. See Figure 13 below.

Figure 13: Digital zoom window

TruVision NVR 21 (SP) User Manual 31

Chapter 5: Live View

1.

To quickly zoom in/out on a camera image:

1. Left-click the mouse on the desired camera. The live view toolbar appears.

2. Click the digital-zoom icon. The digital view window appears.

3. Left-click the mouse and drag the red square to the area of interest, or press the
arrow buttons on the front panel to position the red s quare. The selected area is
magnified.

4. To exit digital zoom, right-click the mouse.

PTZ preset and tours

When in live view you can quickly call up the list of existing presets, preset tours, and
shadow tours by using the front panel, remot e c ont r ol, mouse, and keypad.

Front panel Press Enter. PTZ control panel appears.
Mouse Left-click the mouse on the desired camera image. The live view toolbar appears.

Click the PTZ control icon to enter PTZ mode. The PTZ control panel appears.
Remote control Press the OK button. The PTZ control panel appears.
Keypad Press the Enter button on the keypad.

If the display was in multiview format, it changes to full-screen format for the selected
camera. See Figure 14 below for a description of the PT Z c ontrol panel.

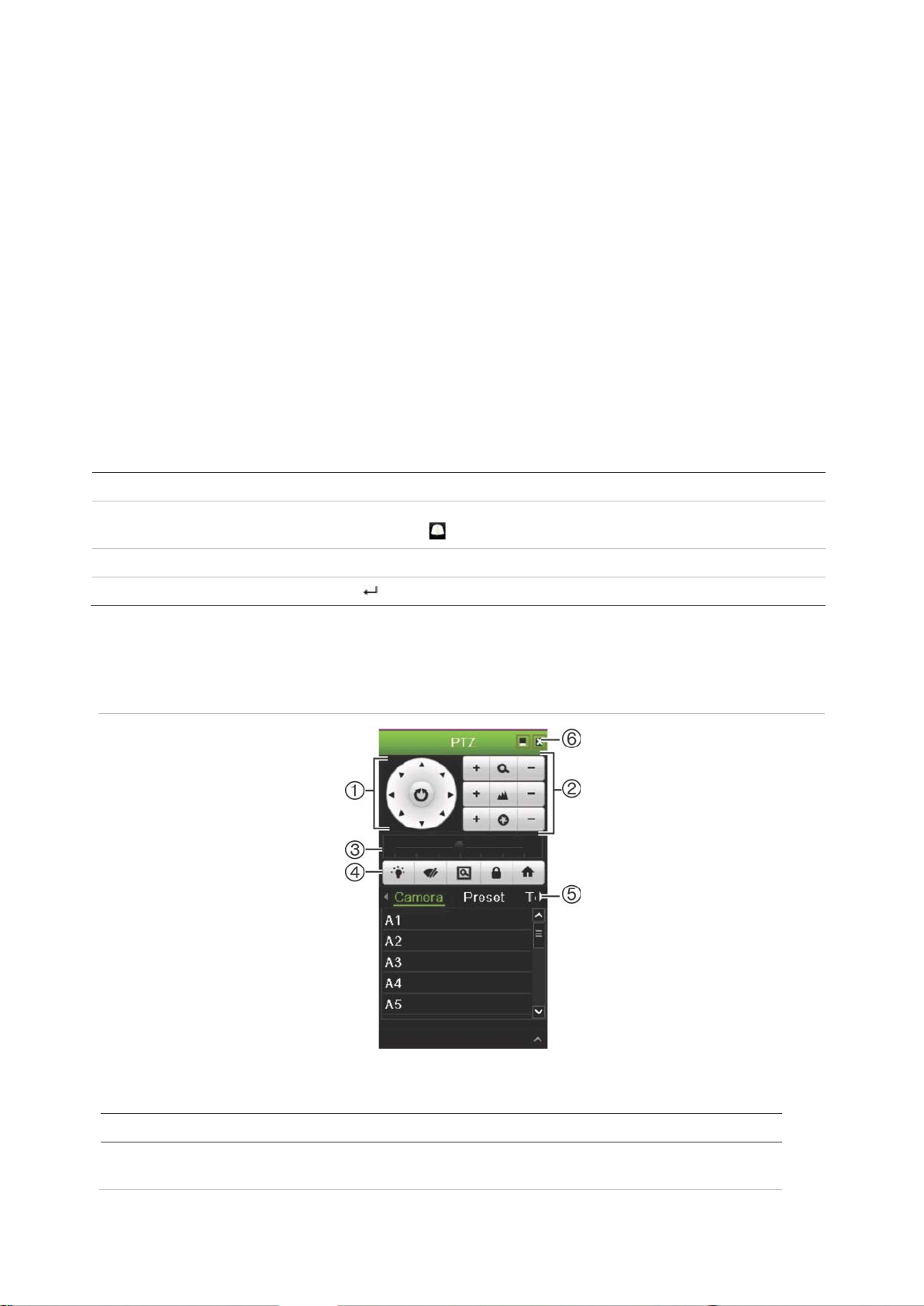

Figure 14: PTZ control panel

Table 9: Description of the PTZ control panel

Name Description

Directional pad/auto-

scan buttons

32 TruVision NVR 21 (SP) User Manual

Controls the movements and directions of the PTZ. The center
button is used to start auto-pan by the PTZ dome camera.

Chapter 5: Live View

2.

3.

4.

is

5.
6

Name Description

Zoom, focus, and iris Adjusts zoom, focus, and iris.
PTZ movement Adjusts the speed of PTZ movement.
Toolbar

Select PTZ command Displays the desired function from the scroll bar: camera, preset,

preset tour or shadow tour.

. Exit Exits the PTZ control panel.

Turns on/off camera light (not used).
Turns on/off camera wiper (not used).

Zoom area.
Centers the PTZ dome camera image. This command

not supported on all PTZ dome cameras.
Jumps to the home position.

To call up a preset:

1. In live view, left-click the mouse and select the PTZ control icon in the quick access

toolbar. The PTZ control panel appears. Select the desired camera from the toolbar.
– Or –
On the front panel, select the desired camera and press Enter to call up the quick

access toolbar. The PTZ control panel appears.

2. Scroll the toolbar to Preset and double-click the desired preset from the list. The

camera immediately jumps to the preset posit ion.

To call up a preset tour:

1. In live view, left-click the mouse and select the PTZ control icon in the live view

toolbar. The PTZ control panel appears. Select the desired camera from the toolbar.
– Or –
On the front panel, select the desired camera and press Enter to call up the live

view toolbar. The PTZ control panel appears.

2. Scroll the toolbar to Tour and double-click the desired preset tour from the list. The

camera immediately carries out the preset tour movement.

To call up a shadow tour:

1. In live view left-click the mouse and select the PTZ Control icon in the live view

toolbar. The PTZ control panel appears. Select the desired camera from the toolbar.
– Or –
On the front panel, select the desired camera and press Enter to call up the live

view toolbar. The PTZ control panel appears.

2. Scroll the toolbar to Shadow Tour and double-click the shadow tour from the list.

The camera immediately carries out the shadow tour movement.

TruVision NVR 21 (SP) User Manual 33

Chapter 6

Searching files

This chapter describes how to search and playback recorded videos as well as search
them by time, events, bookmarks, and snapshot s.

Search video menu

You can easily search and play back recorded v ideos by time and date, events,
bookmarks, and snapshots.

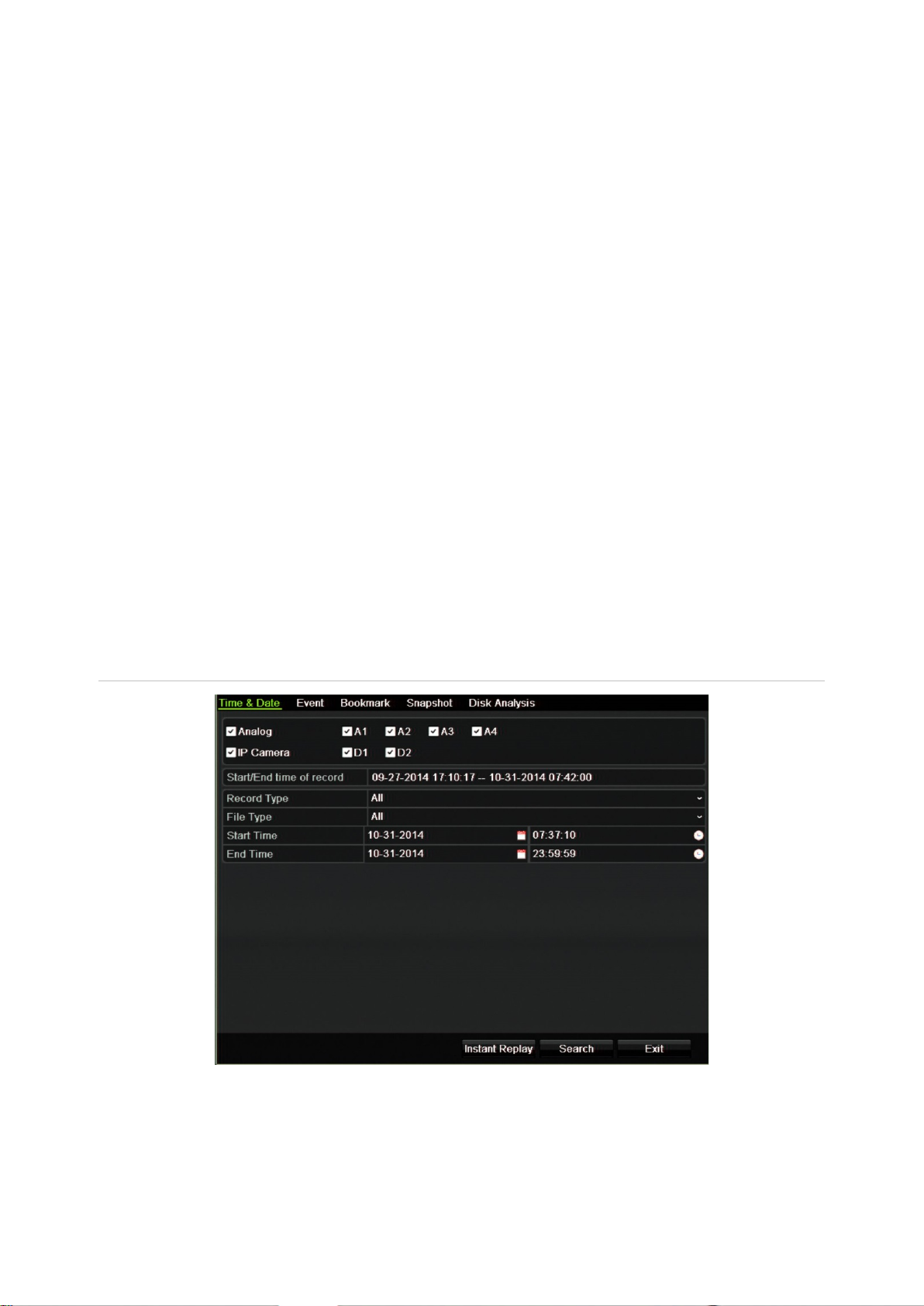

Figure 15: The Search menu

The Search window has five submenus that allow you to carry out different sear c hes by
theme:

34 TruVision NVR 21 (SP) User Manual

Chapter 6: Searching files

Search type

Time and date

Event
Bookmark

Snapshot

Description

Search all video by time and date of recording.

Search only event recorded files. Files can be searched by alarm inputs, text

insertion, or intelligent alarms.

Search recor de d fil es with bookmarks.
Search snapshots.

Search results

A search will usually produce a list of recording files, which may extend to several
pages. The files are listed by date and time. The most recent file is listed first. You can
then select a file to play it back. See Figure 16 on page 35 for an example of a search.

A recording file can be up to 1GB in size. Every day at midnight a new recording file is
started, and each event is also stored as a separate recording file. For more de t ails
about how to archive multiple reco r di n g f iles , ple ase reference the Archivin g
instructions in the appendices of the user manual.

Only one file can be played back at a time.

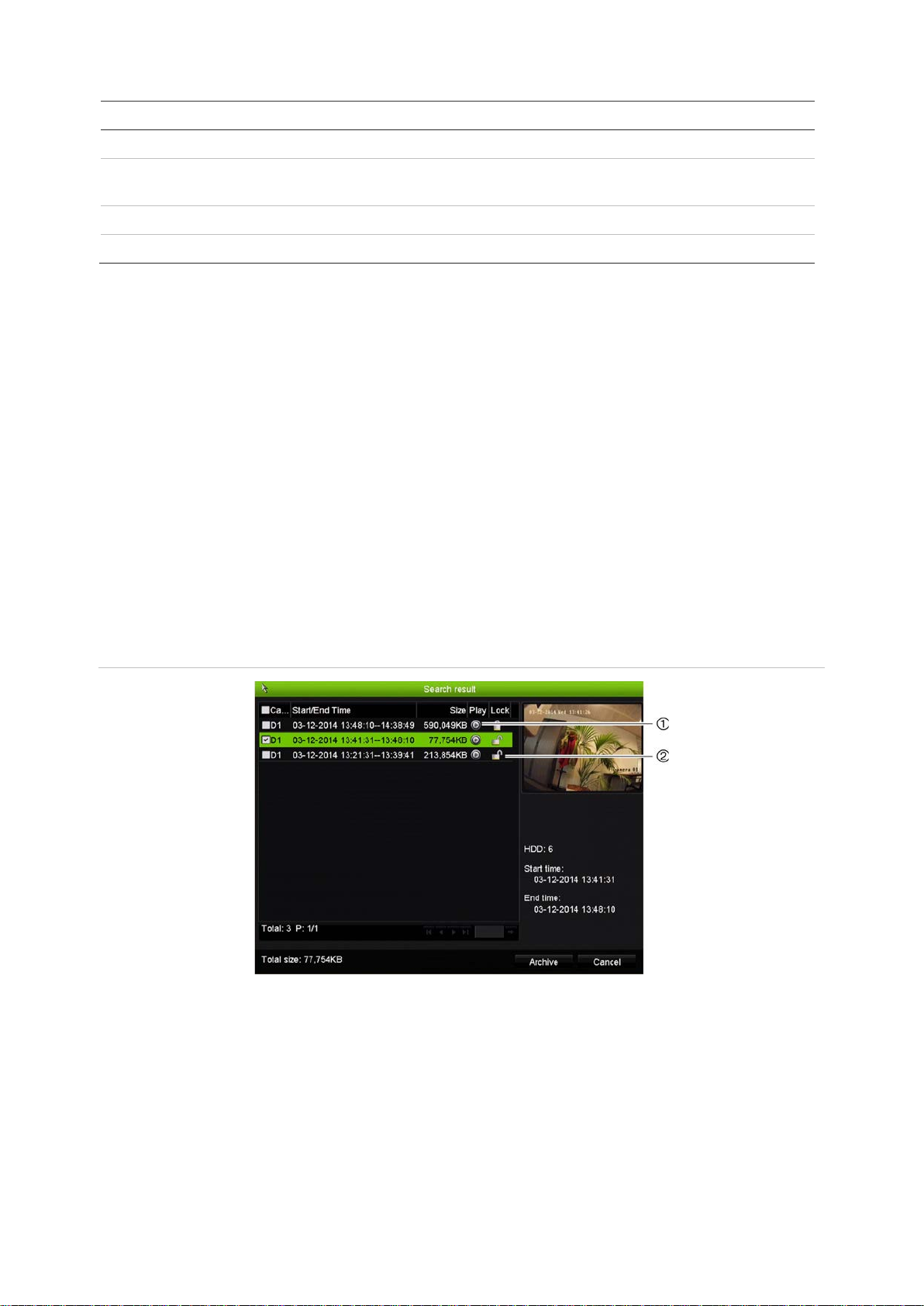

Figure 16: Example of a search result list

1. Click to playback the selected video.

2. Click to lock recording to prevent it from being
overwritten.

TruVision NVR 21 (SP) User Manual 35

Chapter 6: Searching files

Search and play back recordings by time and video type

You can search recorded video by time and video type, such as continuous recordings,
alarms, and all recordings. Video can be played back simultaneously across several
cameras.

To search archived video files:

1. In live view right-click the mouse on the desired video pane and select Search

Video. The Search menu appears.

2. Select the desired cameras, record type, file type as well as start and end times of
the recording.

3. Click Search. The list of search results appears.

4. Click to play back the search results:

To immediately access archived footage:

1. In the Search menu, click the “Time & Date” tab.

2. Select the desired cameras, record type, f ile type as well as start and end times of
the recording. Up to four cameras can be selected.

3. Click Go. The simultaneous playbac k of up t o four cameras for the indicated time
will start.

Search and play back recordings by event

You can search recorded video by event type: text insertion, intelligent alarms, and
alarm input.

To play back search results:

1. In live view right-click the mouse on the desired video pane and select Search

Video. The Search menu appears.

2. In the Search menu, click the “Event” tab.

3. Select the desired event type as well as star t and end times of the recording.

4. Select the desired alarm inputs or channels.
If you selected “Intelligent Alarm” as the event type, select the required IP cameras.

5. Click Search. The list of search results appears.

6. Select the desired video from the list.

7. In the search results window, you can:

- Click Play to playback the footage

- Click Archive to archive results

36 TruVision NVR 21 (SP) User Manual

Chapter 6: Searching files

- Click Details to display more inf or mation about an event.

Note: You can modify the pre- and post-play periods of a recording.

Search bookmarked recordings

For information on creating bookmark s , s ee “Creat ing bookmarks” on page 46

To search for a bookmark:

1. In live view right-click the mouse on the desired video pane and select Search

Video. The Search menu appears.

2. In the Search menu, click the “Bookmark” tab.

3. Select the desired cameras as well as st art and end times of the recording to be
searched. Also select the type of bookmark to be searched.

If searching for customized bookmark s , enter a keyword from the bookmark name.
Click Search. The list of bookmarks appears.

4. Select the desired bookmark from the list.

5. Select a bookmark and do one of the following:
Click the Edit button to edit a bookmark’s name.

- Or ­Click the Delete button to delet e a bookm ark .

- Or ­Click the Play button to play back a bookmark.

Search snapshots

You can search video snapshots. See “Live view mouse menu” on page 28 on how to
create snapshots.

To search for snapshots:

1. In live view right-click the mouse on the desired video pane and select Search

Video. The Search menu appears.

2. In the Search menu, click the “Snapshot” t ab.

3. Select the desired cameras as well as st art and end times of the recording to be
searched.

4. Click Search. The list of snapshots appears .

5. Select a snapshot to see it in the thumbnail window. Click its Play button to see
it in full-screen mode.

TruVision NVR 21 (SP) User Manual 37

Chapter 6: Searching files

6. When in full-screen mode, move the cursor to the right edge of the window to see
the complete list of snapshots found in the search. Click their Play buttons to see
them in full-screen mode.

7. To see a slideshow of all the snapshots found, click the  or  buttons on the
snapshot toolbar to sequence forwards or backwards through the shots.

Log search

You can open video footage from the results of a log search. Refer to “Search the
system log” on page 123 for more information.

38 TruVision NVR 21 (SP) User Manual

Chapter 7

Playback functionality

The recorder lets you quickly locate and play back recorded video. There are multiple
ways to play back video:

 Instant playback of the most recently recorded video
 24-hour playback of one day’s recorded video
 Search video by specific time, events, bookmarks, or snapshot s (see Chapter 6

“Searching files” on page 34 for further information)

 Launch playback of video associated to searc hed events
The recorder continues to record the liv e view from a camera while simultaneously

playing back video on that camera display. You must have the access privilege to play
back recordings (see “Customize a user’s access privileges” on page 115 for more
information).

TruVision NVR 21 (SP) User Manual 39

Chapter 7: Playback functionality

insertion.

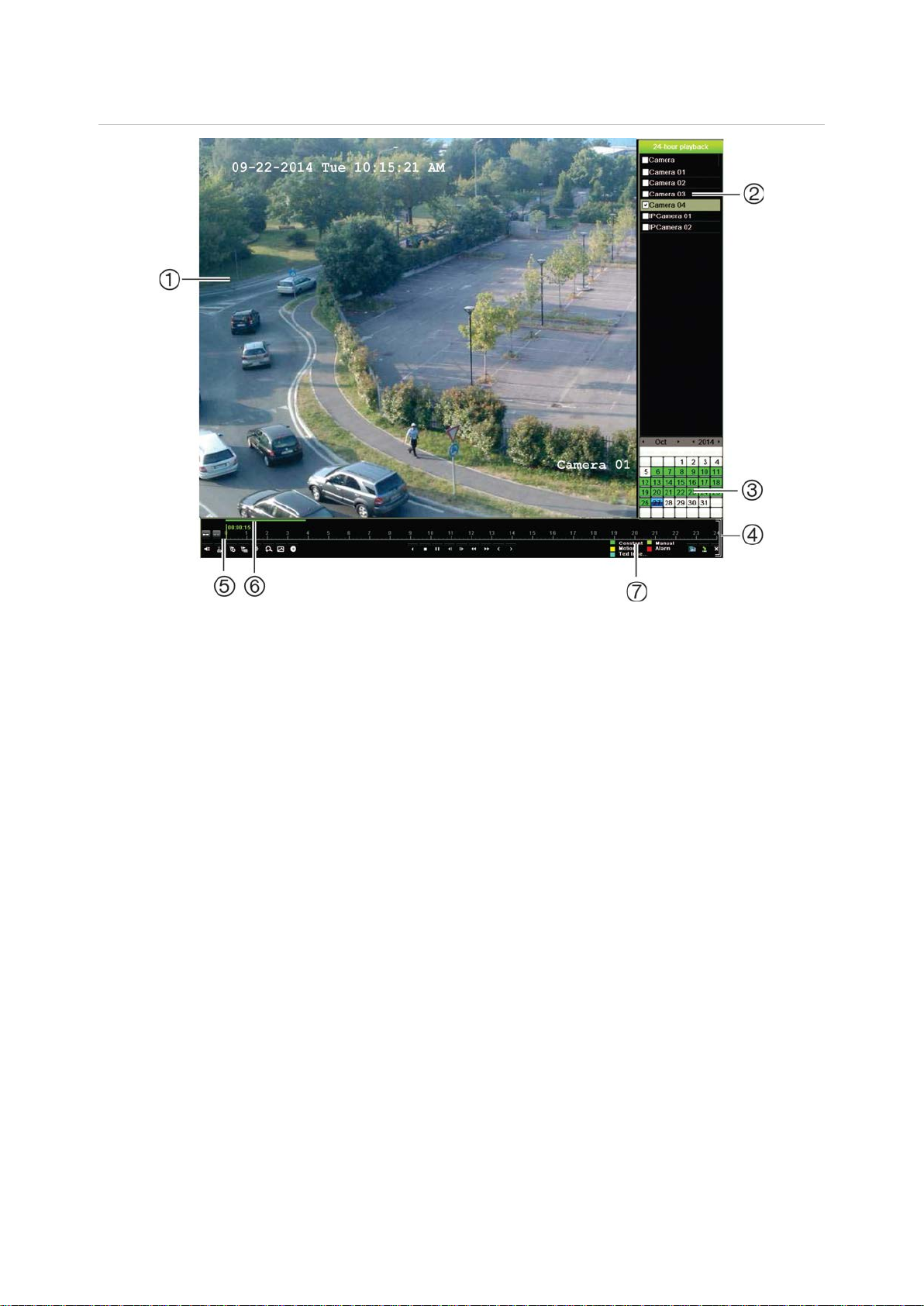

Figure 17: Playback window (24-hour playback shown)

1. Playback viewer.

2. Camera panel. Select the cameras for
playback. Move the mouse over the area to
display the list of cameras available.

3. Calendar panel.
Blue: Current date
Green/Yellow/Red: Recordings available
on the recorder.

4. Playback control toolbar. See Figure 18
on page 41 for more information.

5. Time bar: Time of actual playback . This is only
displayed in 24-hour playback.

6. 24-hour recording progress bar: This bar
displays how much of the 24-hour period has
been recorded.

7. Recording type: Description of the color coding
of recording types that appear in the playback
progress bar. Green indicates constant
recording. Red indicates alarm recording. Yellow
indicates motion recording. Pale green indicates
manual recording. Pale blue indicates text

The playback control toolbar

It is easy to manually control playbac k using the playback control toolbar. See
Figure 18 on page 41.

Note: The playback control toolbar does not appear for i nstant playback.

40 TruVision NVR 21 (SP) User Manual

Chapter 7: Playback functionality

Item

1

2

3

4

5

6

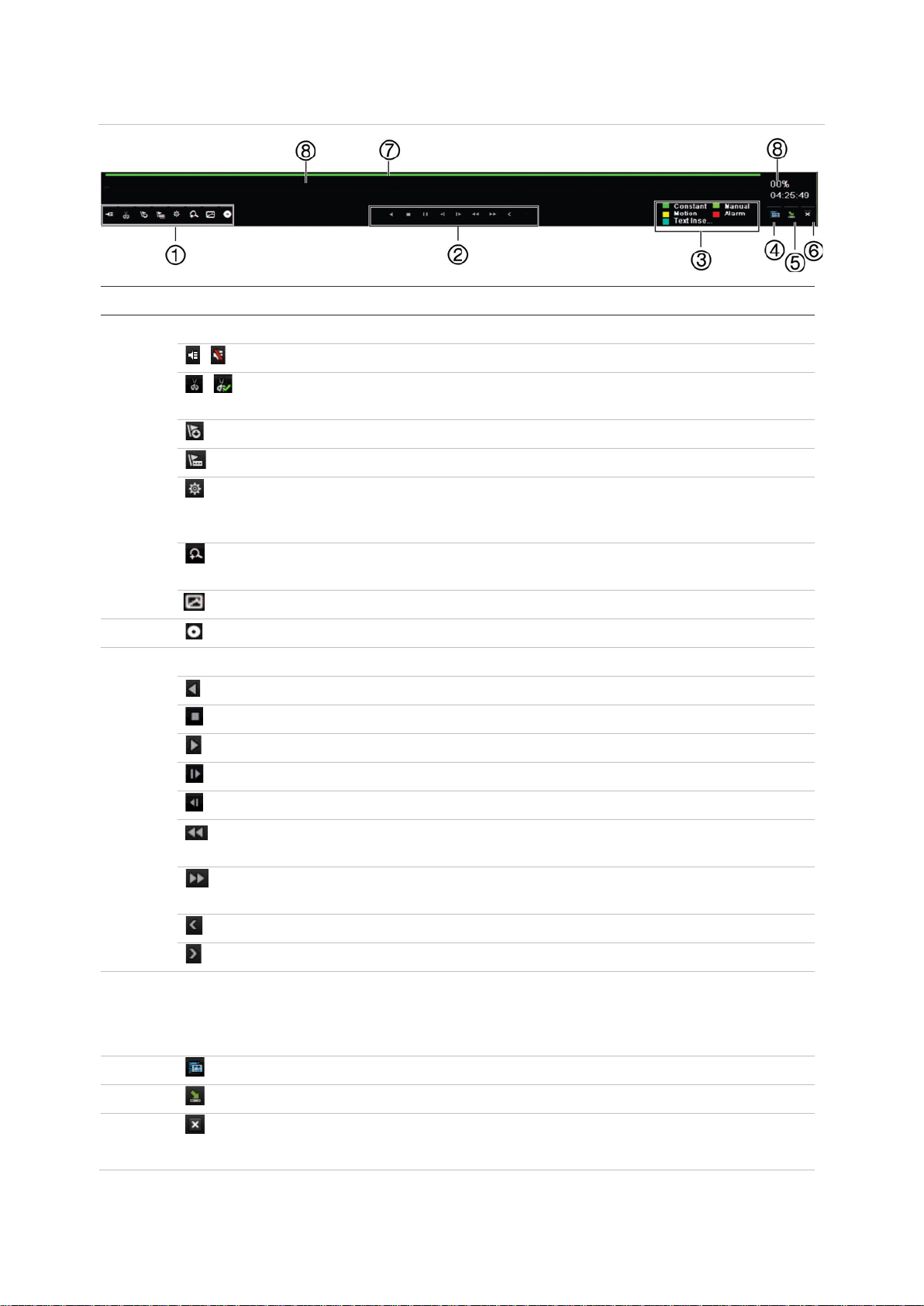

Figure 18: Playback control toolbar (Search playback example shown)

Description

. Audio and video contr ol tool bar:

/ Audio on/off.

/ Start/stop a video clip during playback. Sections of a recording can be saved to an

external storage device.

Add default bookmark.

Add customized bookmark.

Bookmark management.

Click to see the list of bookmarks and their times. They can be renamed or
deleted.

Digital zoom.

Click to enter the digital zoom function. Click again to exit.

Motion search icon.

Archive files.

. Playback control toolbar:

Reverse play the recording. Click again to pause.

Stop playback. Time displayed is 00:00:00.

Play recording.

Fast forward playback by the configured skip time (default is 30 seconds).
Reverse playback by the configured skip time (default is 30 seconds).

Decrease playback speed: Options available are: ½ speed, ¼ speed, 1/8 speed,

single frame.

Increase playback speed. Options available are: 2X speed, 4X speed, 8X speed,

32X speed.
Play previous file/day/event recording.
Play next file/day/event recording in the search result.

. Recording type: Description of the color coding of the five recording types that appear in

the playback progress bar. Green indicates continuous recording. Yellow indicates motio n
detection. Blue indicates text insertion. Pale green indicates manual recording. Red

indicates alarm recording.
. Call up the Search window to search for recorded video files.
. Hide the playback control toolbar.
. For 24-hour playback mode, quit playback and return to live view.

For playback from search mode, quit playback and return to the search window.

TruVision NVR 21 (SP) User Manual 41

Chapter 7: Playback functionality

Item

7

8

Name

1

2

3

4

5

6

7

Description

. Playback bar: This bar displays the playback recording. It indicates in color the type of

recording. Constant recording is shown in the example above.
. Timeline: Allows you to jump forwards or backwards in time. The timeline moves left

(oldest video) to right (newest video). Click a location on it for where you want playback to

start.

In 24-hour playback, the cursor shows the actual time.

In search playback, the cursor is a ball. The actual playback time of the ball position and

how much playback has already played are also displayed.

Playback mouse menu

You can quickly access playback options by placing t he c urs or on a playback image on­screen and clicking the right-button of the mous e. The playback pop-up menu appears
(see Figure 19 below). T he list of options available depends on the type of playback.

Figure 19: The playback pop-up menus

24-hour playback: Search result playback:

Description

. Camera Select a camera for pl ayback.
. Video Se arc h Return to the Search window.
. Digital Zoom Enter the digital zoom function for the selected camera.
. Skip Time Modify the playback skip time.
. Capture Capture a snaps hot of the video.
. Control Panel Hide or display the playback control toolbar.
. Exit Return to live view or video search.

42 TruVision NVR 21 (SP) User Manual

Chapter 7: Playback functionality

Instant playback

Use the live view toolbar to perform instant replay of a predefined period (default time is
five minutes). This can be useful to review an event that has just happened. Only one
camera at a time can be selected.

You can modify the playback period in the Instant Replay Duration menu. See page 86
for further information.

To instantly replay recorded video:

1. In live view mode, left-click the mouse on the desired camera image. The live vie w
toolbar appears. Click the Instant Playback icon .

2. Click the Channel icon and select the desired camera from the drop-down list.
Click OK.

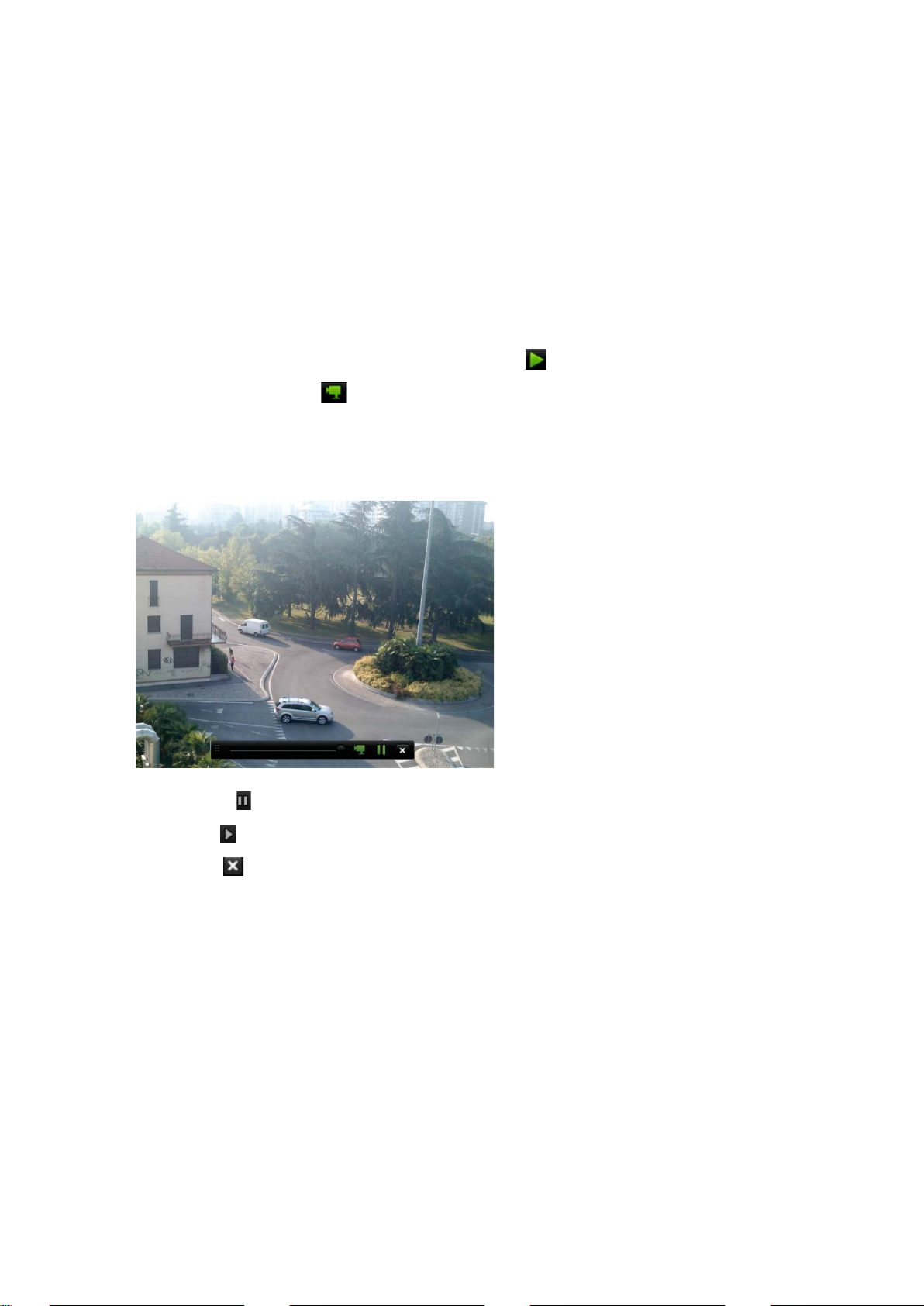

Playback starts immediately. The Instant P layback scroll bar appears under the
selected camera.

3. Click Pause on the toolbar to pause playback .
Click Play to restart playback.
Click Stop to stop playback and return to live view.

24-hour playback

Use this option to access one day of video recordings for the selected camera.
Playback starts at midnight and runs for t he 24-hour period. 24-hour playback is shown
in full-screen view. See Figure 18 on page 41 for a description of the playback control
toolbar. For the current day, play bac k will also start at midnight and runs until the most
recent recordings.

TruVision NVR 21 (SP) User Manual 43

Chapter 7: Playback functionality

• Using the mouse:

1. In live view mode right-click the mouse on the desired c amera image. In the mouse
toolbar, click 24-hour Playback.

The playback screen appears. By default, the camera is in full-screen mode.

2. To select more than one camera for synchronous playback or to select playback
from a different day, move the mouse to the right edge of the screen. The camera
list and calendar appear. Check the desired cameras and/or another day. Up to 8
cameras can be selected.

Playback starts immediately you have select ed the camera and times.

Note: A message appears if there are no recordings found during this period.

3. Use the playback control toolbar to manually control playback.

4. Click Exit to return to live view.
– Or –
Right-click the mouse and click Exit from the mouse menu to return to the previous

window.

• Using the front panel:

1. Select the camera for playback and press t he Play button. Playback from the
selected camera starts immediately.

Note: Synchronous playback is only available using the mouse. If live view was

showing multiview, only the camera in t he top-left channel on screen will be played
back.

2. To select a different camera for play back, pr es s the numerical button of the desired
camera.

3. Press Live to return to live view.

Playback speed and skip time

Use the direction buttons on the front panel to modify the playback speed, and to jump
forwards or backwards.

The default skip time is 30 seconds. However, you can easily change it.

To set the playback skip time:

1. In playback mode, right-click the mouse and click Skip Time on the pop-up menu.
The Skip Time menu appears.

2. Select a skip time between 10 and 300 seconds. The def ault skip time is 30
seconds.

44 TruVision NVR 21 (SP) User Manual

Chapter 7: Playback functionality

To change the playback speed:

From the front panel:

Press the left and right buttons to speed up and slow down recorded video.

From the playback window using the mouse:

Click and to speed up and slow down recorded video.

To skip forwards or backwards during playback:

From the front panel:

Press the up and down buttons to jump recorded video f or wards and backwards by a
set skip time.

From the playback window using the mouse:

Click and to jump recorded video forwards and backwards by a set skip time.
— Or —
Click a location on the timeline for where y ou want playback to start.

Playing back frame-by-frame

You can play back a selected video at different s peeds . This allows you to carefully
examine an event frame-by-frame as it happens.

The current frame rate is shown on the right of t he playback control toolbar.

To play back frame-by-frame:

• Using a mouse:

1. In playback mode click the Speed Down button in the playback control toolbar
until the speed changes to single frame.

2. Click the Pause button to advanc e the video frame by frame.

• Using the front panel:

1. In playback mode move the left direction button to left to scroll down through the
speed changes until single frame.

2. Press Enter to advance the video frame by frame.

TruVision NVR 21 (SP) User Manual 45

Chapter 7: Playback functionality

Digital zoom in playback

You can zoom in on an image during playback to see it in greater detail. There are two
ways to perform digital zoom in playback.

To digitally zoom-in during playback:

1. In playback mode, right-click the mouse and select Digital Zoom in the pop-up
menu.

— Or —
Click the Digital Zoom icon in the playback contr ol t oolbar.
The playback control toolbar disappea rs . The digital zoom window appears.

2. Left-click the mouse and drag the red square in the digital zoom window to the area
of interest, or move the joystick on the front panel to posit ion t he r ed s quare. The
selected area is magnified.

3. Right-click the mouse to quit the digita l zoom mode and return to full-screen
playback mode. The playback control toolbar reappears.

Creating bookmarks

You can bookmark the important scenes in a recorded file for later reference.
Bookmarks flag the start of a scene. Up to 64 bookmarks can be saved in a video file.

There are two types of bookmarks:

• Default bookmark : All default bookmarks have the same generic name,
“BOOKMARK”.

• Customized bookmark : The bookmark is given a name for easy identificat ion.
The same name can be used for several bookmar ks .

You can search both types.

To create a bookmark:

1. Open a 24-hour playback window or the playback window from a search result.

2. In the playback recording, click the timeline bar where you want the bookmark to be.
The green time line jumps to this position. Click t he button for the type of bookmark
you want, and enter the bookmark name if required.

In the playback recording from a search, c lick t he s c roll bar where you want the
bookmark to be. The scroll bar ball jumps t o this position. Click the button for the
type of bookmark you want, and enter the bookmar k name if required. The
bookmark is saved.

3. Click the bookmark management button to see the list of bookmarks saved. The
name of a bookmark can be edited. The bookmark can als o be deleted.

46 TruVision NVR 21 (SP) User Manual

Chapter 8

Archiving files

Archive recorded files on an external device such as USB flash drive, USB HDDs or a
DVD burner. You must be in live view to arc hive v ideo. A c cess t o archive commands
may require a password.

Before starting to archive files, ensure that you have the backup device connected to
the recorder. It can be detected autom at ic ally by the recorder.

Note: The recorder supports USB DVD and USB HD on the front and back USB ports.

Archiving files

There are two ways to archive files:
Quick Archive button: Quick ar chive lets you archive recorded files quickly by using

the Archive button on the front panel. The recorder then downloads all the recorded
files on the unit to fill the available memory space on the media. This option is not
available via the mouse.

Search results window: In many search results windows there is an “Archive” button.
Click it to bring you to the archive window of the selected video in the search result.

Quick Archive

To archive recorded video using Quick Archive:

1. Insert the backup device into the recorder.
If using a USB memory drive, insert the device into the US B port on the front panel.

If more than one media type is found, the USB device takes precedence over the
others.

2. Press Archive on the front panel or remote control to open the quick archive
window.

3. Click Start or press Archive on the front panel again. The unit starts to download
all the files listed.

TruVision NVR 21 (SP) User Manual 47

Chapter 8: Archiving files

1.

2.

3.

4.

Note: If there is a capacity limitation on the backup dev ice, only the most recent files
will be backed up.

A message will appear to confirm when the download is c omplete.

Archive menu

You can insert a mini-USB hub to the USB port to attach a mouse for navigation or a
USB drive for archiving. However, t he unit may not support all types of USB hubs.

The Archive options available may depend on the type of backup device selected.

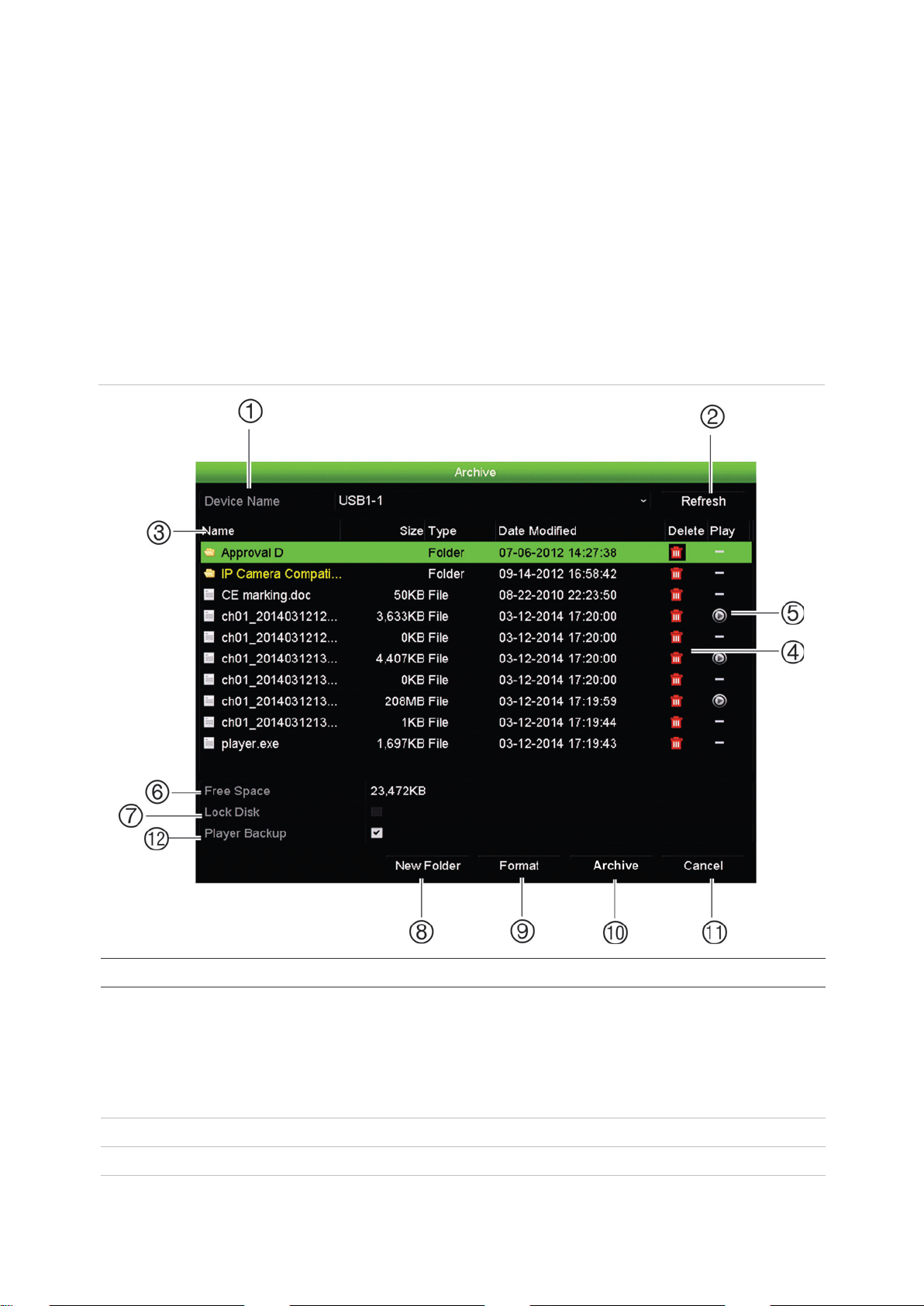

Figure 20: Example of an archive menu

Function Description

Device name Select one of the storage media for archiving. If the backup device is not

recognized:

• Click the Refresh button

• Reconnect device

• Check for compatibility from vendor
Refresh Refresh the search results if any parameters have been modified.
Name Files found on the backup device are listed.
Delete Click to delete a selected file from the backup device.

48 TruVision NVR 21 (SP) User Manual

Chapter 8: Archiving files

5.

6.

7.

8.

9.

10.

11.

12.

Function Description

Play Click to play selected file.
Free space Free space available on the backup device is displayed.
Seal disc Select to prevent other files being recorded onto the disc.
Include Player Select to automatically include the Player tool when archiving files.
New folder Create a new folder on the backup device. Files from the recorder can be

archived to a specific folder.
Format Format the USB/eSATA drive.
Archive Start downloading selected files onto the backup device.
Cancel Cancel search and return to previous menu.

To export recorded files to a backup device:

1. Connect the backup device to the recorder.
If using a USB memory drive, insert the device int o the USB port on the front panel.

If using a digital video disk (DVD) or eSATA drive, insert the disc into the DVD drive.
If both media are found in the recorder, the USB device takes precedence over the
DVD.

2. In live view mode press the Search button on the front panel or remote control.

- Or ­Right-click the mouse and select Advanced Search.
The Advanced Search window appears.

3. Select the cameras and search parameters r equired.

4. Click Search. The list of results appears.

5. Select the files to export.

Note: You can click the Play button to verify that the selected files are the files to

export.

6. Click Archive. The Archive window appears.

7. Select the storage medium to export to from t he drop-down list.

8. Click Archive to begin the backup process.

Create and archive video clips

You can save important scenes in a recorded file for later reference by creating video
clips of selected portions of the file during playback. When an intruder, for example,
crosses in front of several cameras you can save the video clip of the intruder’s path
across these cameras in a single file.

Up to 30 video clips can be made from a recording.

TruVision NVR 21 (SP) User Manual 49

Chapter 8: Archiving files

Note: This feature is only available using the mouse.
To export video clips during playback:

1. Connect the backup device to the recorder.

2. Search for the required files to play back. See “Search and play back recordings by
time and video type” on page 36

3. Select the file or files to play back and click Play. Playback starts immediately.

4. Click the playback timeline where you want the video clip to start and click the Start

Clipping button.

5. Click the playback timeline wher e you want the video clip to stop and click the End

Clipping button.

6. Repeat for additional clips.

7. Exit playback mode. A message appears asking if you want to save the video clips.

8. Click Yes to archive the clips. The Archiv e window appears.
Click No to exit and return to the search res ult s window. The clips are not saved.

9. In the Archive window select from the drop-down list the backup device to be used.

10. Click Archive. File downloading starts.
Note: You can create a new folder for the video clips. Pr ess the New Folder button

and enter the folder name.

Playing back archived files on a PC

Use the standard file player software, TruVision Player, to play back t he ar c hived video
on your PC. It is downloaded automatic ally from the recorder when archiving files onto
a backup device.

Note that in some cases a limited file player is included in the recorder. If so, when
opening the file player on your PC, t he software will prompt a message stating that a
full version of the player is available for download from our website.

50 TruVision NVR 21 (SP) User Manual

Chapter 9

Display settings

Use the Display Settings menu to modify how the camera images appear on screen.

Display settings

Use the Display Settings menu to adjust t he s ettings related to the local monitor output
of the recorder, such as selecting the main and ev ent monitors, multiview layout,
display the monitor time bar, sequence dwell time options, and enable or disable the
local audio output. See Figure 21 on page 52.

The recorder can use the BNC, HDMI and VGA output s independently. The outputs of
the recorder are managed A+B+Spot, meaning t hat The HDMI or VGA monitor can be
used to display the menu. The output that does not control the monitor can display live
or recorded video. The BNC output of the recorder can be used as a spot monitor. Note
that the BNC output is also used as source for the TVN21 V-stream encoding.

TruVision NVR 21 (SP) User Manual 51

Chapter 9: Display settings

BNC Output Standard
Picture Setting

BNC Output Brightness

VGA

HDMI

Display Status Icons

Time

screen relative

Enable Time

Video Output Interface

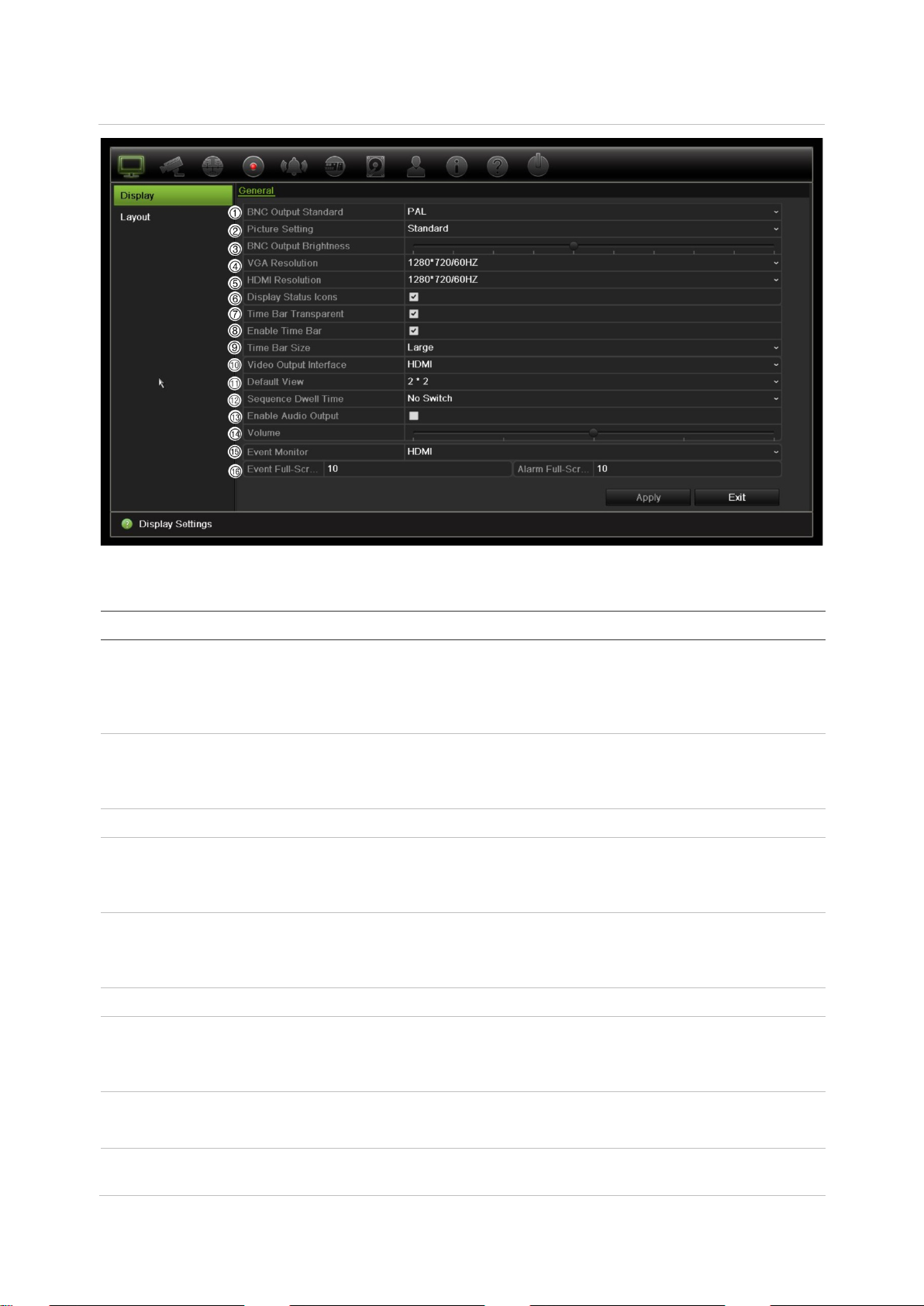

Figure 21: Display Settings window

Table 10: Description of the Display setup window

Option Description

1.

Define the desired output mode. The BNC output can be used as spot

monitor and also produces the image that is used
Select one of the options from the drop-down list: PAL or NTSC, and

click Apply.

2.

Define the desired output mode.

Select one of the options from the drop-down list: Standard, Bright, Soft,
or Vivid, and click Apply.

3.

4.

Resolution Define the resolution of the selected monitor.

Define the desired brightness by using the slider.

Select one of the options from the drop-down list and click Apply. The
selected resolution must be the sa me as that o f the monit or .

5.

Resolution Define the resolution of the selected monitor.

Select one of the options from the drop-down list and click Apply. The
selected resolution must be the sa me as that o f the monit or .

6.

7.

8.

9.

52 TruVision NVR 21 (SP) User Manual

Define whether the status icons are displayed. Default is Enable.

bar Transparent Select the transparency of the monitor outp ut t ime bar on

to the background to make the time bar easier to read.
Check the box to enable/disable. Default is Disable.

bar Select whether the monitor output time bar appears on screen.

Check the box to enable/disable. Default is Enable.

Select the desire d v ideo out pu t int er fac e to ap pl y: VGA/HDMI/BNC.

Default is HDMI.

Chapter 9: Display settings

Default View

Sequence Dwell Time

Enable Audio Output

Volume

Event Monitor

Event Full Screen
Monitoring Dwell Time

Alarm Full Screen
Monitoring Dwell Time

Option Description

10.

11.

12.

13.

14.

15.

16.

The factory default multiview format displays all channels (4x4 layout for

the 8/16-channel NVR 21S).

Set the length of time for which a camera image is displayed on the

selected monitor before moving to the next camera during sequencing.
Default is off (“No Switch”).

Select whether to hear audio from cameras in both live and playback

mode. However, in order to be able to hear audio in playback, y ou must
enable the audio output setting. Default is Disable.

Check the box to enable/disable audio output.

Define the desired volume by using the slider.

Select which monitor will be the event monitor showing full screen

monitoring in case of events: HDMI/VGA or BNC.
Set the length of time during which an image is displayed on the event

monitor in full screen in case of an event. Default is 10 seconds.
Set the length of time during which an image is displayed on the event

monitor in full screen in case of an alarm. Default is 10 seconds.

Layout

The Layout window allows you to define the layout of each of the different views as they
are shown when selecting the different liv e v iews or the sequencing order.

The cameras are sequenced in numeric or der by default. You can change the order of
the cameras for all monitors.

The camera order in the different views is cons istent. This means that if Channel 2 is
the first camera shown in the single camera view then it will also be the top left camera
of the 4-channel view.

You can switch the channel of a camera with that of another camera in the system. This
lets you, for example, have the images of camera 1 appear on c hannel 10, and the
images of camera 10 appear on channel 1. This f eat ur e is us ef ul when you want to
watch the sequence of images from specific cameras so that they are next to each
other on-screen.

See Figure 22 on page 54. Each video tile displays both the order of the camera on
screen and the camera number.

TruVision NVR 21 (SP) User Manual 53

Chapter 9: Display settings

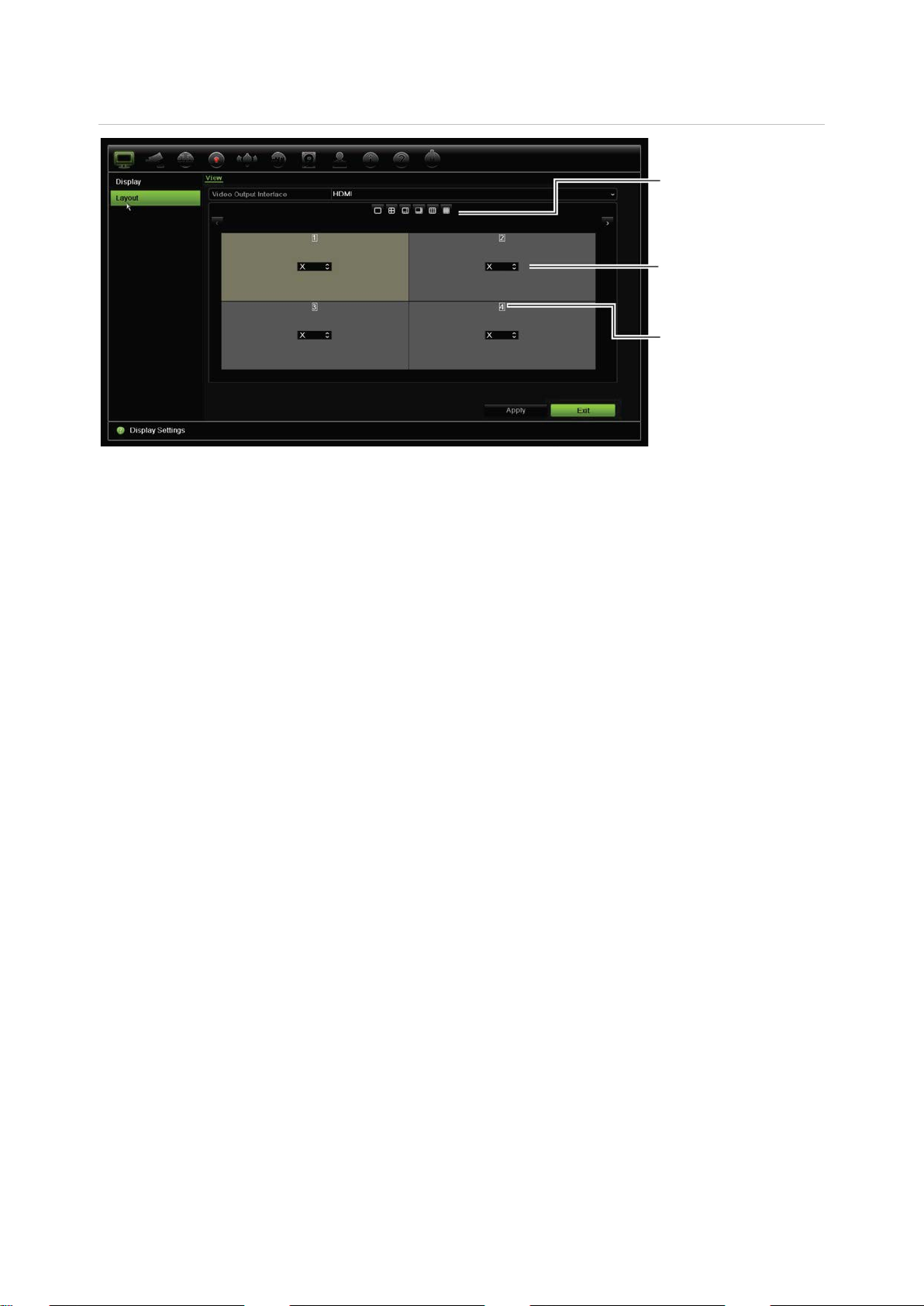

Figure 22: Camera layout window

Multiview
layout
selection bar

Camera order
in the
sequence

Camera
number
selection

54 TruVision NVR 21 (SP) User Manual

Chapter 10

Camera setup

Use the Camera Setup menu to configure IP camer as . You can also configure the
camera status, OSD, snapshots, recording settings, image settings, P oE setup, motion
detection, privacy masking, camera tampering, restrict access, PTZ configurations and
VCA settings.

Note: Not all settings are available for IP cameras. For adv anced IP camera settings,
please consult the IP camera web browser interface.

Supported IP cameras

The NVR supports TruVision and UltraV iew IP cameras as well as TVE encoders. It
supports a wide range of third party IP cameras t hr ough compliancy with the Onvif and
PSIA standards for open camera communication.

IP camera status

The IP camera status menu allows you to add, edit and r emove cameras to the
recorder, as well as update the cameras’ firmware or change its admin passwords.

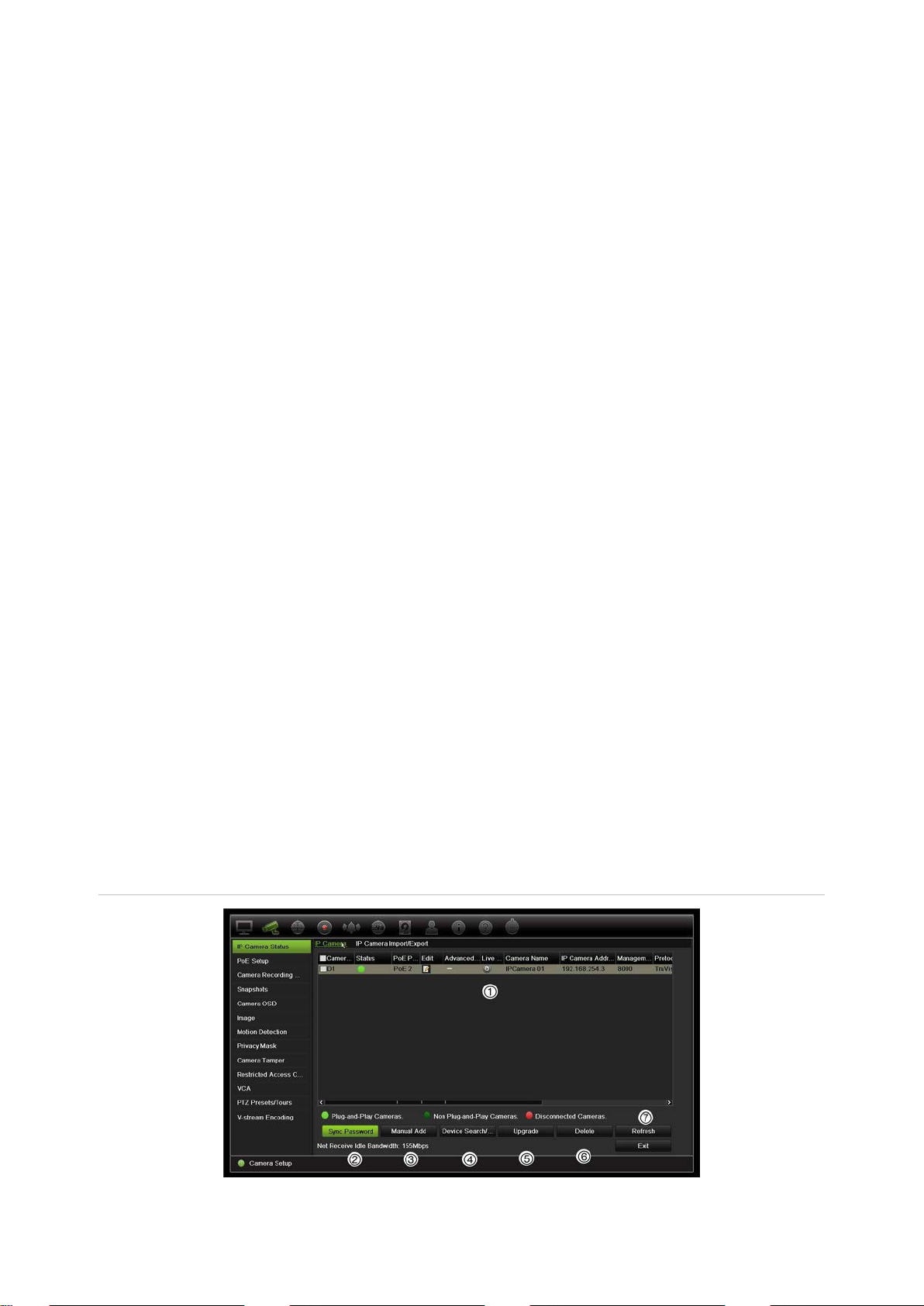

Figure 23: IP camera window

TruVision NVR 21 (SP) User Manual 55

Chapter 10: Camera setup

IP camera list
Sync Password

Manual Add

Add a camera manually to the recorder by entering its IP address and other

Device Search/Add

Upgrade
Delete

Refresh

Table 11: Description of the IP camera window

Option Description

1.

2.

3.

4.

5.

6.

7.

Delete the selected IP camera from the list.

This shows the list of IP cameras added to the recorder. The camera

information shown is: Camera No., Status, PoE port, Edit, Advanced Set,
Live View, Camera Name, IP Camera Address, Manage Port, Protocol,
Device Model, Serial Number, and Firmware.

Sets all connected TruVision IP cameras to the same admin password as

the recorder.

required information.

Search the network for available TruVision or other natively supporte d IP

cameras. Add an IP camera to the recorder system.

Upgrade IP camera software. Insert USB flash drive in the recorder and

select the upgrade file. The camera will automatically reboot once the
software is upgraded.

Update the information displayed on a camera in the recorder device list.

To automatically add an IP camera:

1. From the menu toolbar, click Camera Setup > IP Camera Status.

2. Click Device Search/Add to search for any supported IP cameras locat ed in the
recorder LAN.

Note: If cameras still have default settings, they might have the same IP addresses.
This creates an IP conflict. Use the Edit button to assign a different IP address to
each camera. Before adding the IP camera to the recorder, use the Edit button to
assign a different IP address to each camera. Ensure that for each camera to
successfully connect the cameras.

3. Check the boxes of the cameras that y ou want to add to the recorder.

4. Click Add to add the selected cameras to the list of devices in the recorder. Click

Done when complete in order to return to the main window.

The cameras are added to the end of the list of devices.

5. To test if a camera connection is operational, select the desired camera from the list
of devices connected to the recorder and click Live. A pop-up window should
appear showing the camera’s live view.

To manually add an IP camera:

1. From the menu toolbar, click Camera Setup > IP Camera Status.

2. Click Manual Add. In the pop-up window, enter the camera details such as the IP
camera address/domain, protocol, management port, user name, and password.
Click OK.

The camera is added to the end of the list of devices.

56 TruVision NVR 21 (SP) User Manual

Chapter 10: Camera setup

Note: Only one camera can be manually added at a time.

Using RTSP custom protocols

Many IP cameras can stream video using RTSP. The recorder allows you to define
RTSP custom protocols per camera type and to add cameras to the recorder via RTSP.

To configure RTSP custom protocols:

1. From the menu toolbar, click Camera Setup > IP Camera Status.

2. Click Manual Add. In the pop-up window, enter the camera details such as the IP
camera address/domain, protocol, management port, user name, and password.
Click OK.

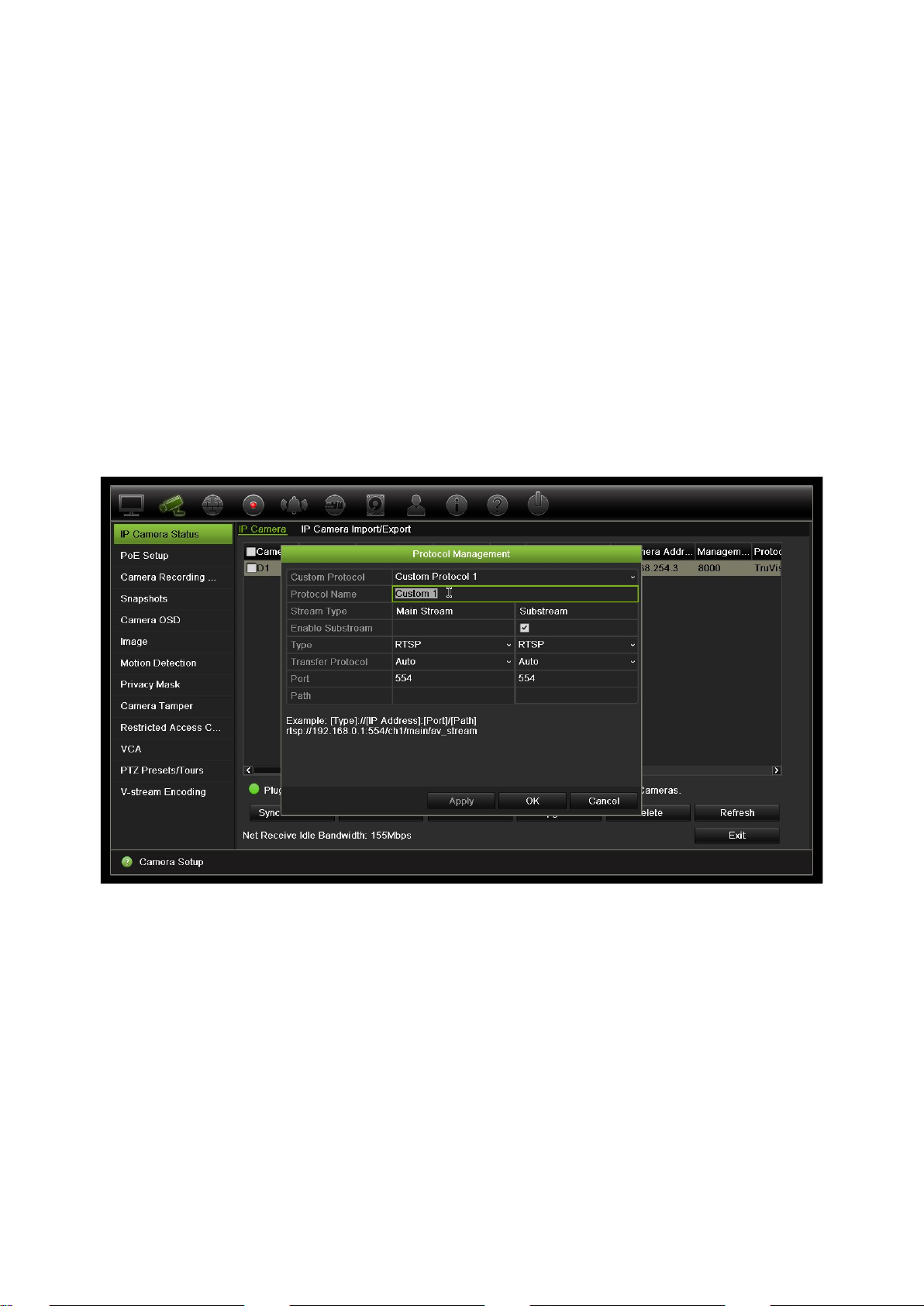

3. Create a Custom Protocol by clicking on Protocol. Select your parameters.

4. Click Apply t o s ave the settings.

Note: When adding cameras via RTSP, only video st ream ing is available, no other

functionality will be supported by the recorder.

PoE power budget

It is important when installing IP cameras to calc ulat e the total power consumption
required so that it is less than the pow er budget of t he NVR switches. The NVR lets you
easily track on-screen the current and remaining power consumption for all cameras
directly connected to its switches. See Figure 24 on page 58.

TruVision NVR 21 (SP) User Manual 57

Chapter 10: Camera setup

remaining allocated PoE power budget (green) shown.

Recorde

TVN

TVN

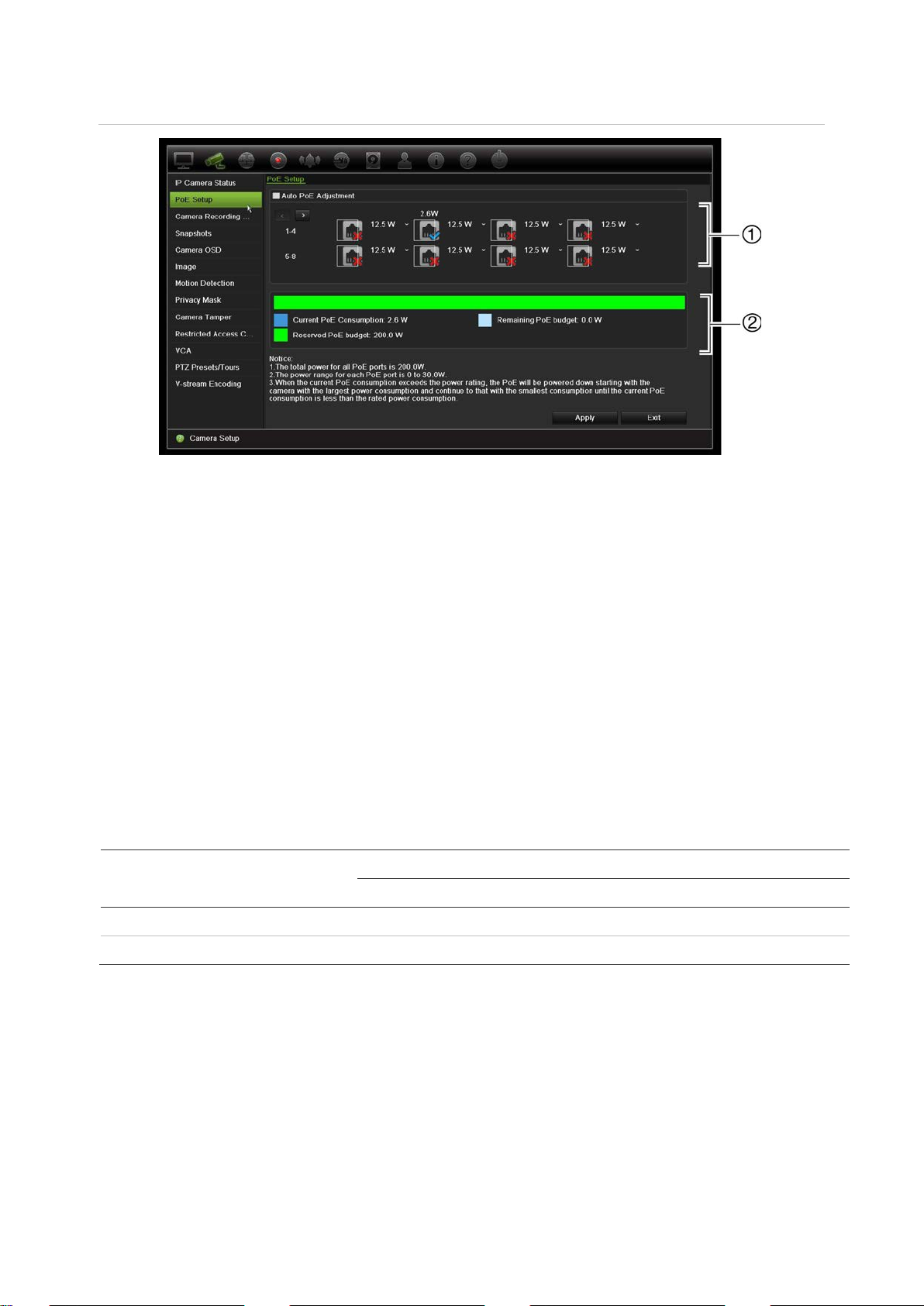

Figure 24: PoE power budget information on IP cameras

1. Select the PoE type required for each camera.

2. Dynamic tracking of the current PoE power consumption (blue), unallocated PoE power (white), and

The IP cameras will specify which type of PoE they require. You c an s et up each
camera individually for no PoE, P oE-at, PoE-af, 12.5 W or 15 W. A PoE port can
support up to 30 W maximum.

The recorder has a maximum of 8 or 16 PoE ports, depending on the model. The total
PoE power budget for the 8-channel recorder is 120 W, and that for the 16-channel
recorder is 200 W.

The PoE-af port can support between 0 and 15.4 W and the PoE -at por t can support
between 0 and 30 W. See Table 12 below for a description of the maximum num ber of
IP cameras that can be connected depending on the PoE type used.

Table 12: Maximum number of IP cameras that can be connected by PoE power consumption

r Total PoE

power budget

-2108S 120 - 8 7 4

-2116S 200 16 - 12 6

12.5 W 15 W PoE-af PoE-at

Maximum number of IP cameras connected

Note: The PoE power specifications are the PoE power available at the recorder.

However, depending on the cable length and c able quality you can experience a loss of
PoE power. Ensure that this is taken into account when configuring the system.

To display the PoE power consumption information:

1. From the menu toolbar, click Camera Management > Camera > PoE Setup.

2. Select the PoE type required for each camer a: No PoE, PoE-af, PoE-at, 12.5 W or

15.0 W.

58 TruVision NVR 21 (SP) User Manual

Chapter 10: Camera setup

3. Click Apply t o s ave the settings and then click Back to return to live view.

Automatically allocating PoE power

The recorder can be set up to automatically allocate PoE power depending on each
camera’s needs. Note that if the f ull PoE budget (120/200W) is used on the first seven
ports, for example, PoE port 8 will no longer be powered.

To set up auto PoE:

1. From the menu toolbar, click Camera Management > Camera > PoE Setup .

2. Check Auto PoE.

3 Click Apply to save the settings and then click Back to return to live view.Camera

recording settings

The camera recording settings allow you to def ine the configuration per camera per
stream recording mode.

Camera recording settings

The camera recording settings allow you to def ine the configuration per camera per
stream recording mode.

To configure recording settings:

1. From the menu toolbar, click Camera Recording Settings.

2. Select the camera you want to configure.

TruVision NVR 21 (SP) User Manual 59

Chapter 10: Camera setup

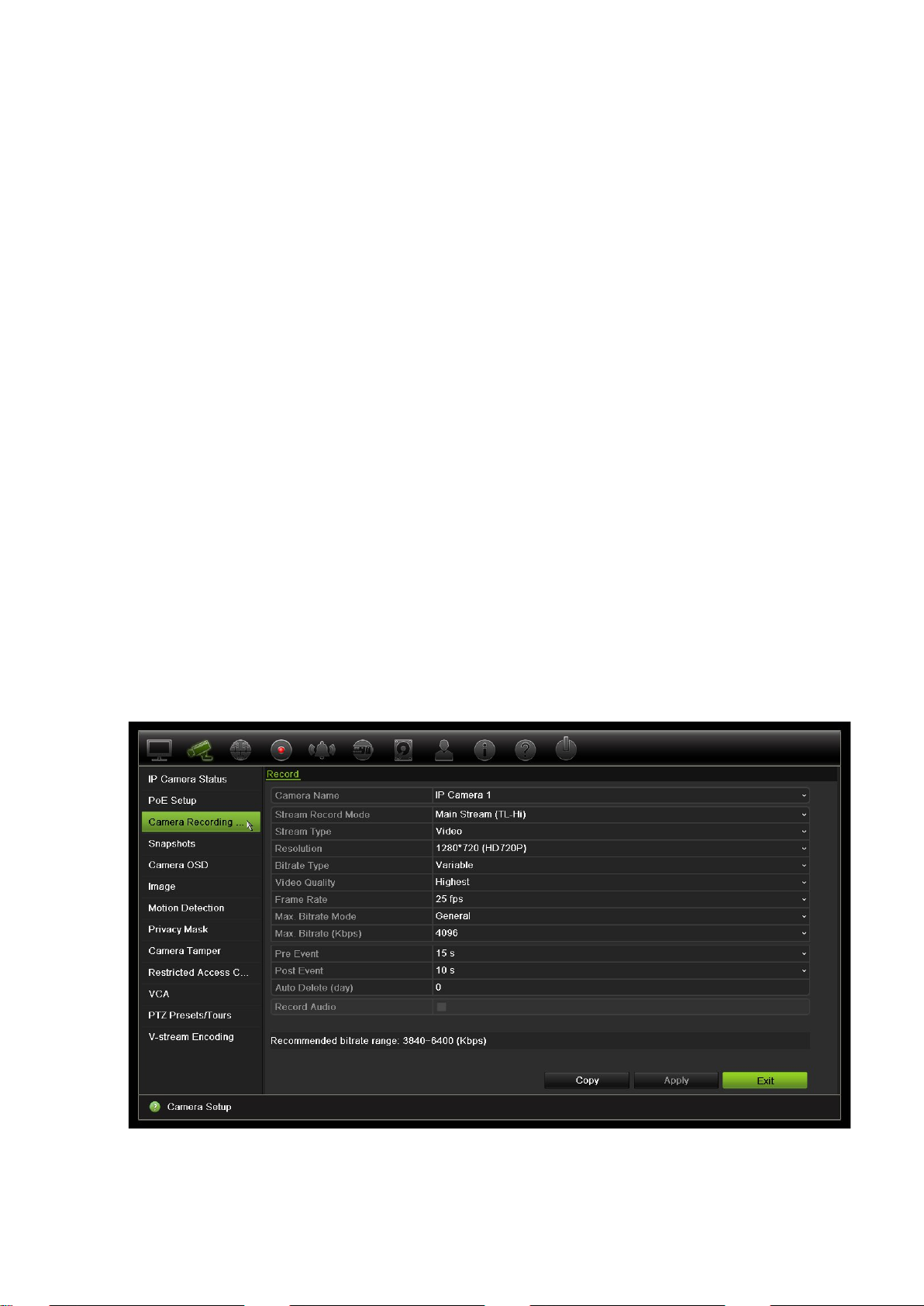

3. Configure the following recording sett ings (options available depend on the camera
model):

• Stream Record Mode: Select one of the stream types to configure the recording

parameters of that record mode: Mainstream (TL-Hi) (default ) , M ainstream (TL­Lo), Mainstream (Event), Mainstream (Alarm), or Substream.

• Stream Type: Select the type of stream to record, either video or video and

audio.

• Resolution: Select the resolution of the recording. Options include: 1920*1080

(1080P), 1280*720 (HD720P), 960*57 6 ( 960H), 704*576 (4CIF), 640*480 (VGA),
352*288 (CIF).

• Bitrate Type: Select Variable (default) or Constant. If “Variable” is selected, the

bandwidth can vary depending on video qual ity and the bandwidth required. If
“Constant” is selected the video stream ing is always at the maximum bit rate
selected.

• Video Quality: Select the quality at which to record. If “Constant” is selected as

the bit rate type, this option is unavailable.

If a low video quality is selected, the image quality is poor er and the bandwidth

required is reduced thereby allowing recordin g over a longer period of time.

• Frame Rate: Select the recording frame rate.

• Max. Bitrate mode: Select the general (Default) or customized option.

• Max. Bitrate (kbps): If the customized maximum bit rate mode was s elected,

enter the value here. It must be between 32 and 4096 kbps. It is calculated from
the frame rate and time required. Default is 1792.

• Pre Event: This is the time the camera starts recording before the event. Select

the time in seconds from the list to start pre-recording before the event. Default
is 5 seconds.

The maximum pre-recording times available de pend on the constant bit rate.

See “Maximum storage times” in the appendix.

• Post Event: This is the time the camera continues to record after the ev ent.

Select the time in seconds from the list to stop post-recording after the event.
Default is 5 seconds.

• Auto Delete (day): Select t he num ber of days after which recorded video from

the specified camera is permanently deleted from the HDD. A “day” is defined as
the 24-hour period from when the auto delete mode (AD M ) was set.

The maximum number of days that can be set is 365. However, the actual

number of days permitted depends on the HDD capac it y. If the value is set to ‘0’,
the option is disabled. Default is disable.

• Record Audio: Enable to record sound with the images. Default is enable.

4. Click Apply t o s ave the settings.

5. Click Apply t o s ave the settings.

60 TruVision NVR 21 (SP) User Manual

Chapter 10: Camera setup

Snapshots

You can define the image quality and resolutio n of snapshots for each camera.
Snapshots can be taken at any time during live view or playback, or can be created
when an alarm occurs and sent by email or sent to an FTP server.

To configure snapshots:

1. From the menu toolbar, click Camera Setup > Snapshots.

2. Select the desired camera.

3. Select the snapshot resolution from the drop-down list.
Select QCIF, CIF, 4CIF, or Maximum. Maximum is the maximum available

resolution from the camera. For IP cameras, this is the resolution being recorded.

4. Select the snapshot quality from the drop-down list (low, medium or high).

5. Click Apply to save the settings.

6. To copy the settings to other cameras, click Copy and select the desired camer as .
Click OK.

7. Click Exit to return to live view.

Camera OSD

The recorder lets you configure which information is displayed on-screen for each
individual camera.

The on-screen display (OSD) settings appear in live view mode and include the camera
name, time and date. They are part of the image and are therefore also recorded.

To configure the OSD settings:

1. From the menu toolbar, click Camera Setup > Camera OSD.

TruVision NVR 21 (SP) User Manual 61

Chapter 10: Camera setup

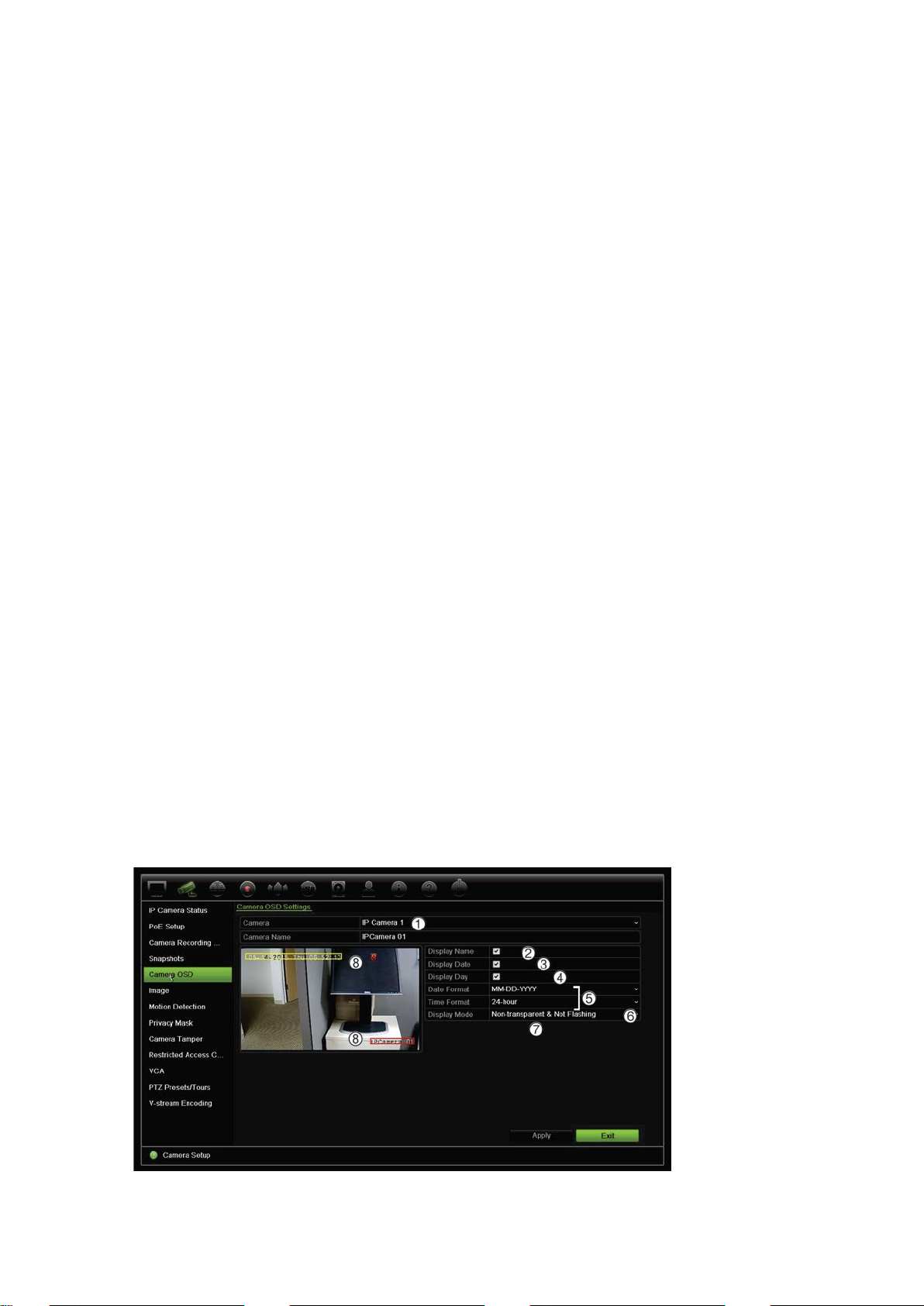

2. Enter a name for the camera (1), if required. The name c an have up to 32
alphanumeric characters.

3. Check the Display Name (2), Display Date (3), and Display Day (4) boxes to
display the camera name, date, and week.

4. Select a date format and a time format (5).

5. Select how you want the camera information displayed (6).
Select one of the options from the drop-down list. Default is non-transparent/non-

flashing.

• Transparent & Flashing

• Transparent & Not flashing

• Non-transparent & Flashing

• Non-transparent & Not flashing

6. There are two colored text boxes in the camera view window; one f or the camera
name (red box) and the other for the date/time (yellow box). Using the mouse, click
and drag a text box to the display position (8).

7. To copy the settings to other cameras, click Copy and select the desired cameras.
Click OK.

8. Click Apply t o save the sett ings and t hen c lick Exit to return to live view.

Image settings

The Image tab allows you to adjust image sett ings for each individual camera channel.
You may need to adjust the camera image depending on the location background in

order to get the best image quality.
The system has image settings for frequently encountered lighting conditions;

Standard, Indoor, Dim Light and Outdoor. You can also manually adjust the brightness,
contrast, saturation, hue, and saturat ion values.

You can modify the digital noise redu c tion (DNR) value to improve image quality. This
function removes image noise from a video signal, which can be more pronounced in
low light conditions.

Note: These options can also be modified from the image settings button on the live
view toolbar (see “Live view toolbar” on page 30).

To adjust display settings:

1. From the menu toolbar, click Camera Setup > Image.

2. Select the camera for which to adjust the video image settings (Standard, Indoor,
Dim Light, or Outdoor).

3. Adjust the brightness, contrast, s aturation, hue, sharpness and digital noise
reduction values by dragging each scroll bar.

62 TruVision NVR 21 (SP) User Manual

Chapter 10: Camera setup

Click the Default button to ret ur n image s et ting values to the default position.

4. Click Apply t o save the sett ings and t hen c lick Exit to return to live view.

Motion detection

The motion detection menu allows you to enable or disable motion detection for
each camera, as well as create motion grid s, set the sensitivity of the motion
detection and link motion detection to a specific action. To set up motion
detection:

1. From the menu toolbar, click Camera Setup > Motion.

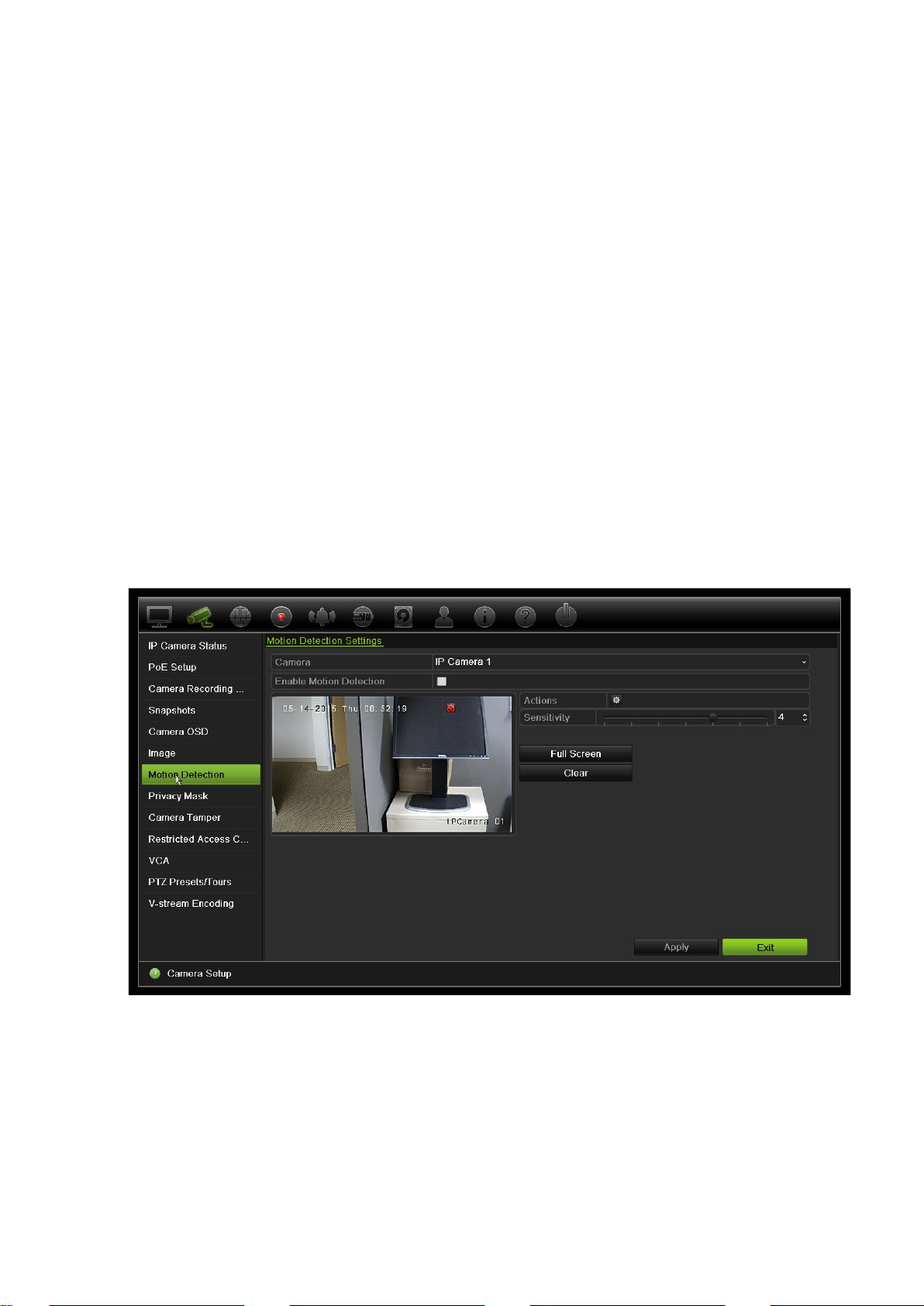

Areas covered by the red grid are sensitive to motion detection.

2. Select the camera to detect motion. Each camera must b e set up individually.

3. Check Enable Motion Detection. If this is not enabled, motion will not be recorded.

4. Select the areas on-screen to be sensitive to motion.
Click and drag the mouse cursor across the window to deselect areas sensitive to

motion detection.

Click Full Screen to activate the whole screen or Clear to clear the screen.

5. Set the sensitivity level.
Drag the Sensitivity scroll bar to the desired sensitivity level. Default is 3.

6. Specify the target size.
In the Target Size option, specify how many gr id squares must be activated before

motion is detected. Enter a value between 0 and 255 squares. Default is 1 square.

TruVision NVR 21 (SP) User Manual 63

Chapter 10: Camera setup

7. Select the cameras that will start the motion recor ding schedule once motion is
detected.

Click Actions. The Actions window appears. Click the Trigger Channel tab and
select the cameras that will record w hen a motion alarm is triggered. Click Apply to
save the settings.

8. Select the arming schedules for motion detect ion.
In the Actions window, click the A rming Schedule tab and select the day of the

week and the time periods during the day when motion detection can trigger the
given actions. You can schedule up to eight t ime periods in a day. Default is 24
hours. Note that when motion detection is enab led, motion events will alway s trigger
event recording, regardless of the arming sc hedule.

Click Apply to save the settings. Clic k Copy to copy t he sett ings t o other days of
the week.

Note: Time periods defined cannot overlap.

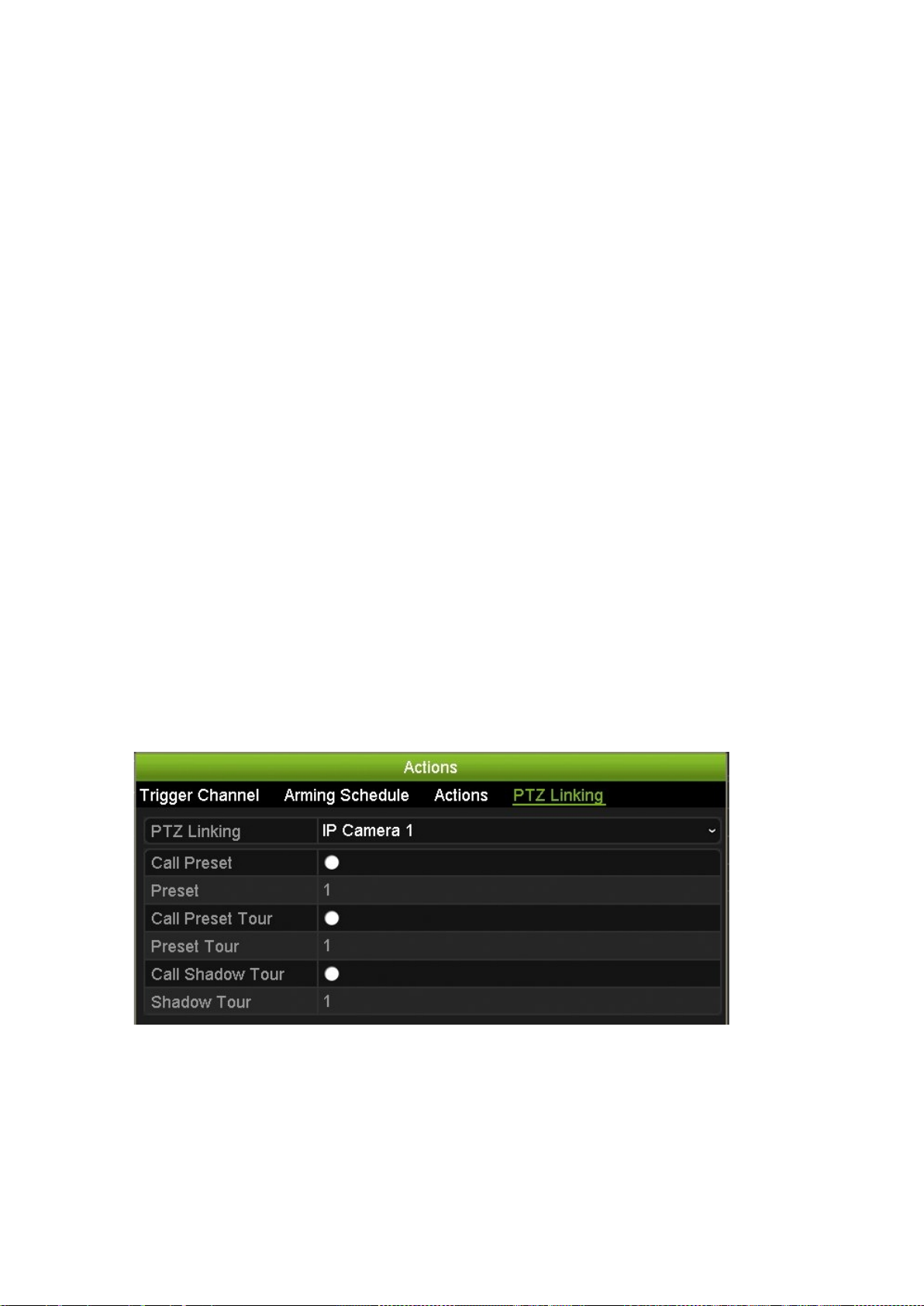

9. Link the corresponding action to mot ion detection.
In the Actions window, click the Actions tab to define the method by which you want

the recorder to notify you of the alarm ( see page 92 for the list of alarm notification
types available). “Notify Alarm Host ” is the def ault s election. More than one option
can be selected.

Click Apply t o save settings.

10. Click OK to return to the motion detection settings window.

11. Click Exit to return to live view.

Privacy mask

You can define an area on screen to remain hidden from view and recording. For
example, you can choose to block the view of a camera when overlooking residential
premises. This hidden area is referred to as privacy masking. Privacy masking cannot
be viewed in live view or recorded mode, and appears as a black area on the video
image.

For IP cameras, the amount of privacy masks is determined by the amount supported
by the camera.

To setup a privacy mask:

1. From the menu toolbar, click Camera Setup > Privacy Mask.

2. Select the camera for which to set up privacy mas k ing.

3. Check the Enable Privacy Mask box to enable the feature.

4. Set up the mask area. Up to four areas can be set.

64 TruVision NVR 21 (SP) User Manual

Chapter 10: Camera setup

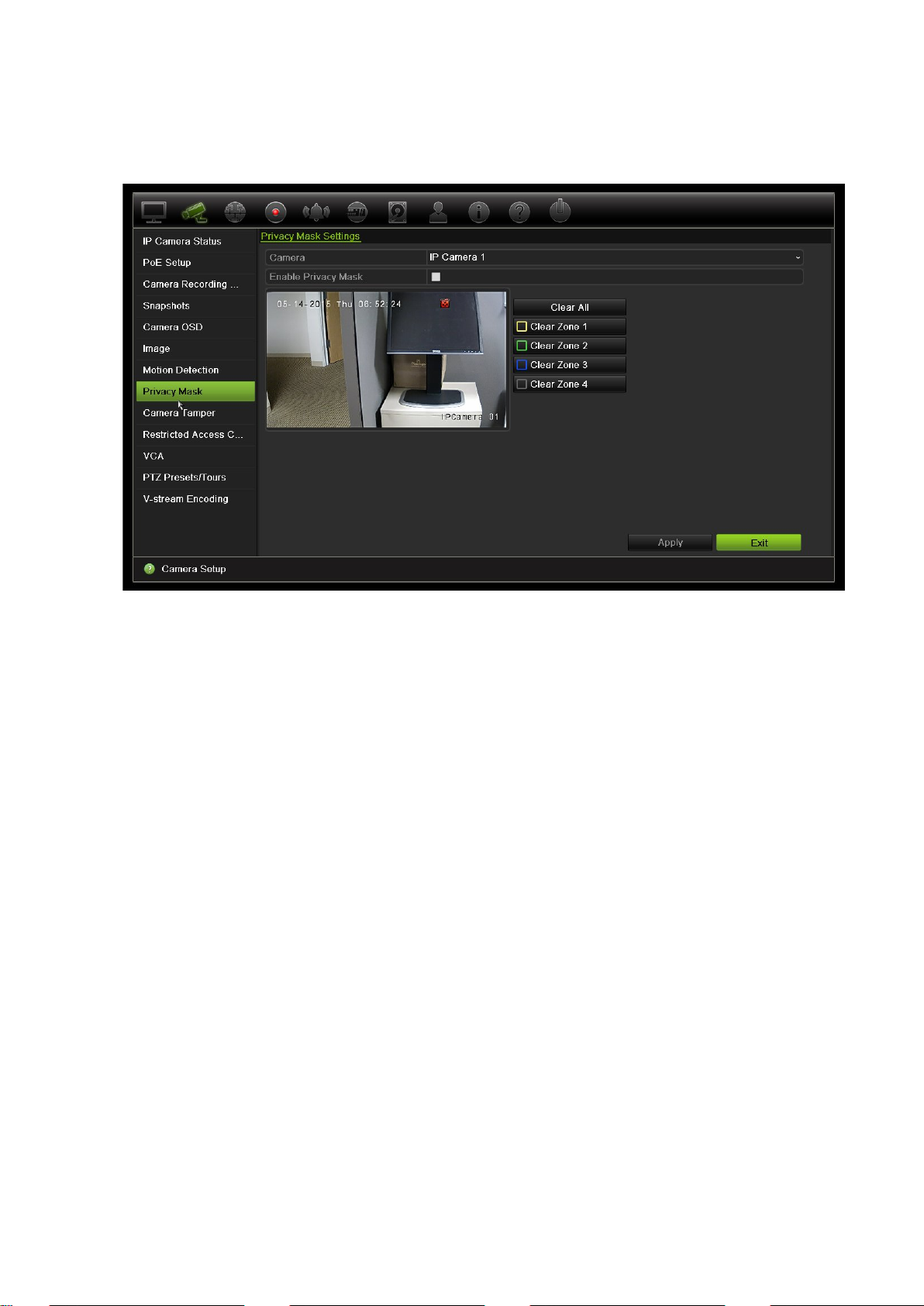

Using the mouse, click and drag a privacy-mask box in the camera view window
over the desired area. You can set up to four areas f or privacy masking. Masked
areas are dimmed and outlined in four different colors. Click Apply to save sett ings.

To delete a mask, check the desired mask and click Clear for that color mask.

5. To copy the settings to other cameras, click Copy and select the desired cameras.
Click OK.

6. Click Apply t o save the sett ings and t hen c lick Exit to return to live view.

Camera tamper

You can setup the recorder to alert you when the c amer a view has changed such as
when someone has deliberately blocked the camer a view by spraying paint on the lens
or by moving the camera. Tampering detection only applies when the whole image is
covered and all light is blocked. You cannot select a specific area of the camera screen
to detect tampering.

Note: It is strongly recommended not to configure for video tampering when using PTZ

dome cameras.

To set up video tampering detection:

1. From the menu toolbar, click Camera Setup > Camera Tamp er.

2. Select a camera to configure for video loss det ec tion.

3. Check the Enable Tamper-proof box to enable the feature.

4. Select the tamper detection sensitiv ity level by clicking the sensitivity scroll bar.
Higher sensitivity is to the right of t he bar.

TruVision NVR 21 (SP) User Manual 65

Chapter 10: Camera setup

5. Select the recording schedules for the tamper.
Click Actions and then select the Arming Schedule tab to select the day of the

week and the time periods during the day when motion can be recorded. You can
schedule up to eight time periods in a day. Def ault is 24 hours.

Click Apply t o s ave the settings. Click Copy to copy the settings to other days of
the week and holiday period.

Note: The time periods defined cannot overlap.

6. Select the response method to an external alar m.
Click Actions and then select the Actions tab to select the method by which you

want the recorder to notify you of the alarm: Full-screen monitoring, Enable alarm
audio, Notify alarm host, Send email, and T rigger alarm output. See page 92 for the
list of alarm notification types.

Click Apply t o save settings and t hen OK to return to the main window.

7. Click Exit to return to live view.

Restricted access camera

Restricted access cameras are cameras that are only visible to specific users.
There may be occasions when you want to cont r ol who can see a camera image on a

local monitor, such as if there is a camera locat ed in a changing room. The recorder
lets you select which camera (or cameras) is not displ ayed on the local monitor unless
the user is logged in and has permission to view the camera images. A restricted
access camera is not displayed on screen w hen no us er is logged in. Instead a person
walking by sees a black screen. See Figure 25 below.

Figure 25: Example of a restricted access camera image

66 TruVision NVR 21 (SP) User Manual

Chapter 10: Camera setup

To set up a camera for a restricted access view:

1. From the menu toolbar, click Camera Setup > Restrict ed Access Camera.

2. Check which IP camera or cameras you want to have res t r icted access and click

Apply.

3. Click Exit to return to live view.

VCA Setup

The configuration of each individual VCA event is done in the camera browser. Within
the recorder you are able to link actions to a VCA alarm from IP cameras that support
this feature.

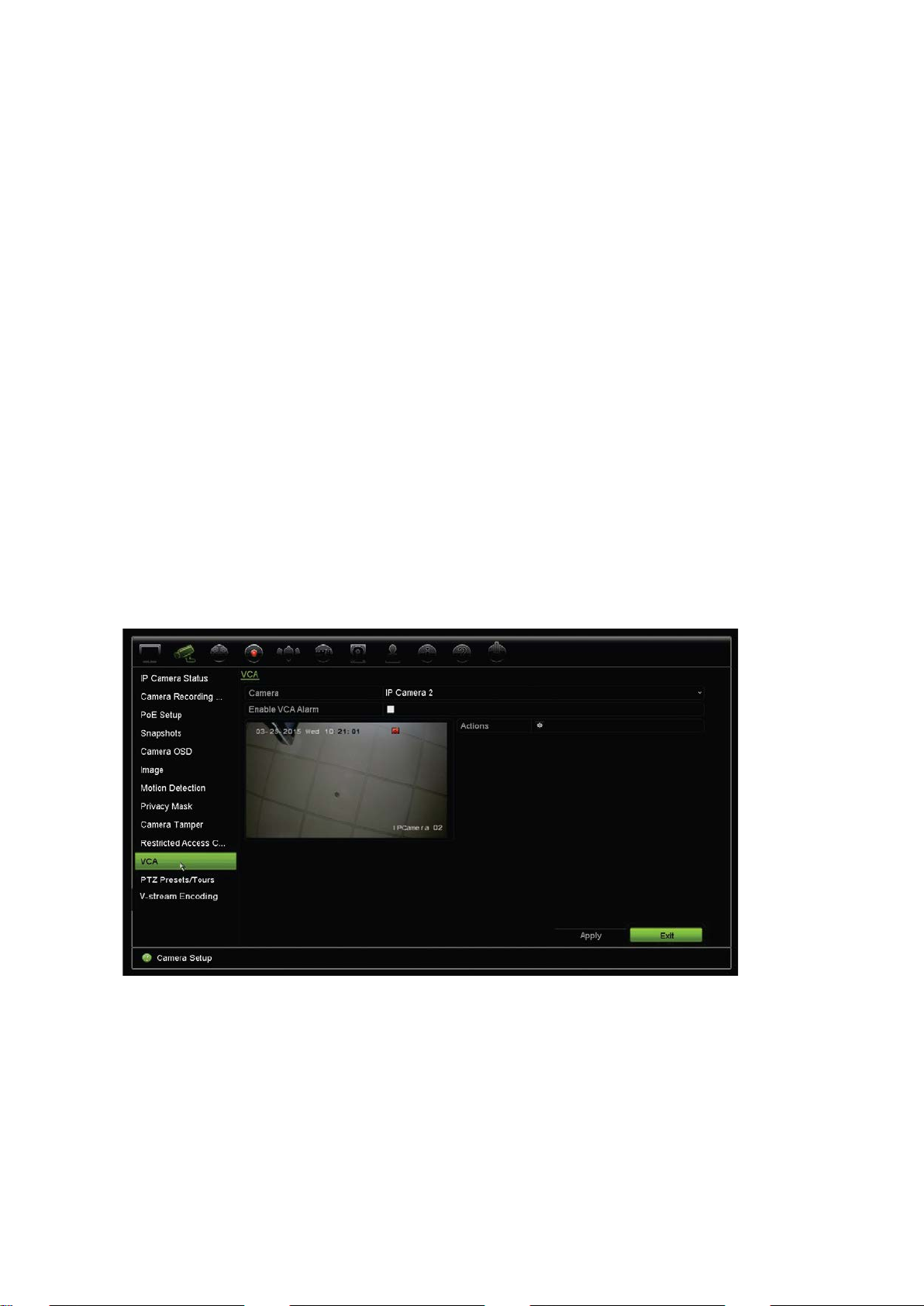

To setup VCA alarm actions:

1. From the menu toolbar, click Camera Setup > VCA.

2. Select the camera for which to set up the VCA alarm.

3. Check the Enable VC A Ala r m box to enable the feature.

4. Click the Actions button to define which act ions are r equired with the VCA events
from each camera.

5. Click Apply t o save the sett ings and t hen c lick Exit to return to live view.

Note: VCA events do not trigger recordings; they are marked in t he r ec order and allow

you to easily find the assisted video. It is recommended t o us e continuous recording or
to enable motion detection in combination with VCA events.

TruVision NVR 21 (SP) User Manual 67

Chapter 10: Camera setup

1

2

3

4

PTZ presets and tours

Presets are previously defined locations of a PT Z dome cam era. It allows you to quickly
move the PTZ dome camera to a desired position. They are configured and modified
from the Camera Setup > PTZ Presets/Tours window (see Figure 26 below).

Tours are series of presets. Shadow tours allow you to record the manual movement of
a PTZ and follow the same tour at a later date.

Note: The PTZ dome camera used must be able to support a preset command.

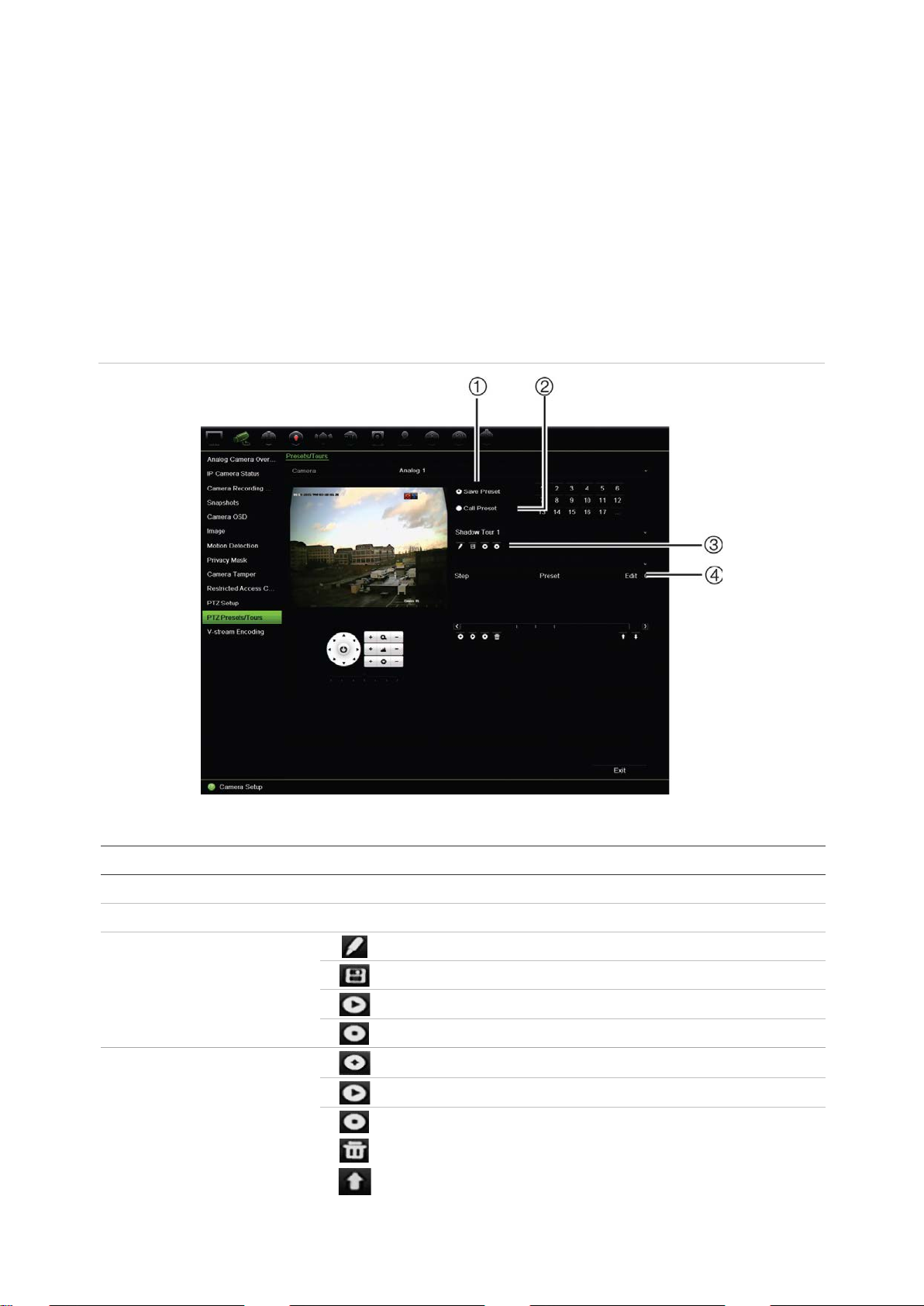

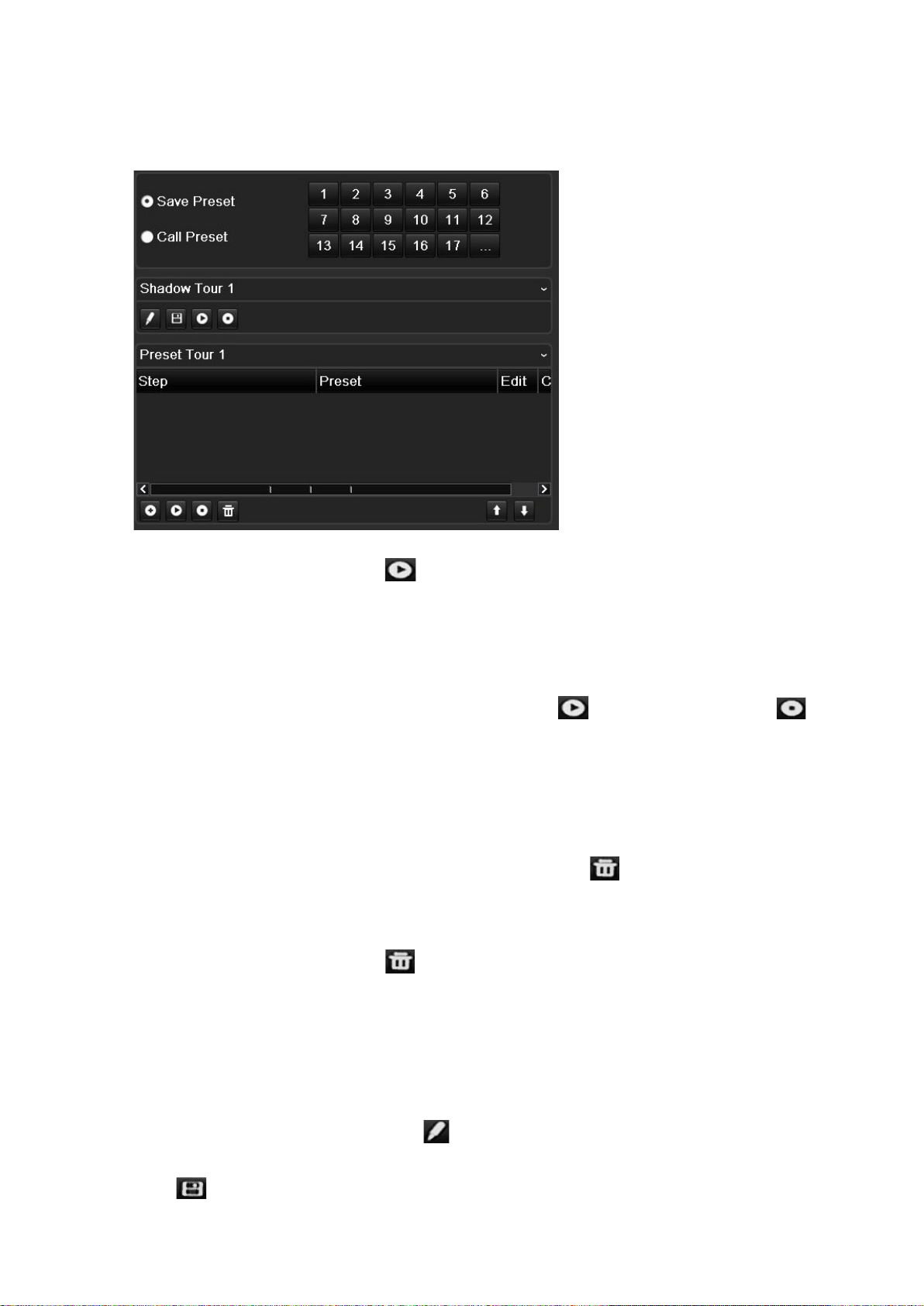

Figure 26: PTZ configuration window

Table 13: Description of the PTZ configuration window

Name Description

. Save preset Saves preset.
. Call preset Calls up pre-existing preset.
. Shadow tour toolbar

. Preset tour toolbar

Starts recording the shadow tour.
Saves the shadow tour.
Starts the selected shadow tour.
Deletes the selected shadow tour.
Adds a step to a selected preset tour.
Starts the selected preset tour.
Stops the selected preset tour.
Deletes all the preset tour steps.
Scroll up the list.

68 TruVision NVR 21 (SP) User Manual

Chapter 10: Camera setup

Name Description

Scroll down the list.

To set up a preset:

1. From the menu toolbar, click Camera Setup > PTZ P reset/Tours.

2. Use the directional, zoom, focus, and iris buttons to position the camera in the
desired preset location.

3. Check Save Preset and enter a preset number. The preset is enabled and stored in
the camera.

If the desired preset number is larger than the 17 numbers listed, click […]. The
Preset window appears. Select a preset number from the dropdown list and click the

OK button to save changes.

Note: Presets can be overwritten.

4. Click Exit to return to live view.

To call up a preset:

1. From the menu toolbar, click Camera Setup > PTZ P reset/Tours.

2. Check Call Preset and enter the preset number to call up. The camera immediately
moves to that preset position.

3. Click Exit to return to live view.

To delete a preset:

1. From the menu toolbar, click Camera Setup > PTZ P reset/Tours.

2. From the preset list, select a preset number, and click to delete the selected the
preset.

3. Click Exit to return to live view.

To call up a preset tour:

1. From the menu toolbar, click Camera Setup > PTZ P reset/Tours.

2. Check Call Preset and enter the preset number to call up. The camera immediately
moves to that preset position.

3. Click Exit to return to live view.

To set up a preset tour:

1. From the menu toolbar, click Camera Setup > PTZ P reset/Tours.

2. Select the preset tour number.

3. In the preset tour toolbar, click to add a step to the preset tour. The Step w indow
appears. Select the preset number, dwell time and speed of the step. Click OK to
save the settings.

TruVision NVR 21 (SP) User Manual 69

Chapter 10: Camera setup

Note: A preset tour should have at least two presets .

4. Repeat step 3 to configure other steps in the pres et tour.

5. In the preset tour toolbar, click to call up the preset tour.

6. Click Exit to return to live view.

To call up a preset tour:

1. Click the PTZ Settings icon on the menu toolbar and sel ect More Settings.

2. Select the desired preset tour from the list and click to start the tour. Click
to stop the preset tour.

3. Click Back to return to live view.

To delete a preset tour:

1. From the menu toolbar, click Camera Setup > PTZ P reset/Tours.

2. From the preset tour list, select a tour num ber and click to delete the selected
the preset tour.

– Or –
In the preset tour toolbar, click to delete all the preset tours.

3. Click Exit to return to live view.

To set up a shadow tour:

1. From the menu toolbar, click Camera Setup > PTZ P reset/Tours.

2. Select the shadow tour from the drop-down list.

3. To record a new shadow tour, click and use the directional buttons on the PTZ
control panel to move the camera along the desired path.

4. Click to save the shadow tour.

70 TruVision NVR 21 (SP) User Manual

Chapter 10: Camera setup

Note: The shadow tour can be overwritten.

5. Click Exit to return to live view.

To call up a shadow tour:

1. From the menu toolbar, click Camera Setup > PTZ P reset/ Tours.

2. Select the shadow tour from the list and click to start the tour. Click to stop
the shadow tour.

3. Click Exit to return to live view.

V-Stream Encoding

If the available bandwidth is limited, you can remot ely view several channels in
real time with one stream over the web browser or VMS (Video Management
System), such as TruVision navigator, us ing t he V-stream encoding option ("V"
stands for "virtual"). When enabled, you can s ee the output from the cameras on
a remote client monitor in one stream.

Note: It is not recommended to use the V-stream feature when a CVBS monitor

is used as a main monitor because the BNC main monitor and the V-stream
use the same output.

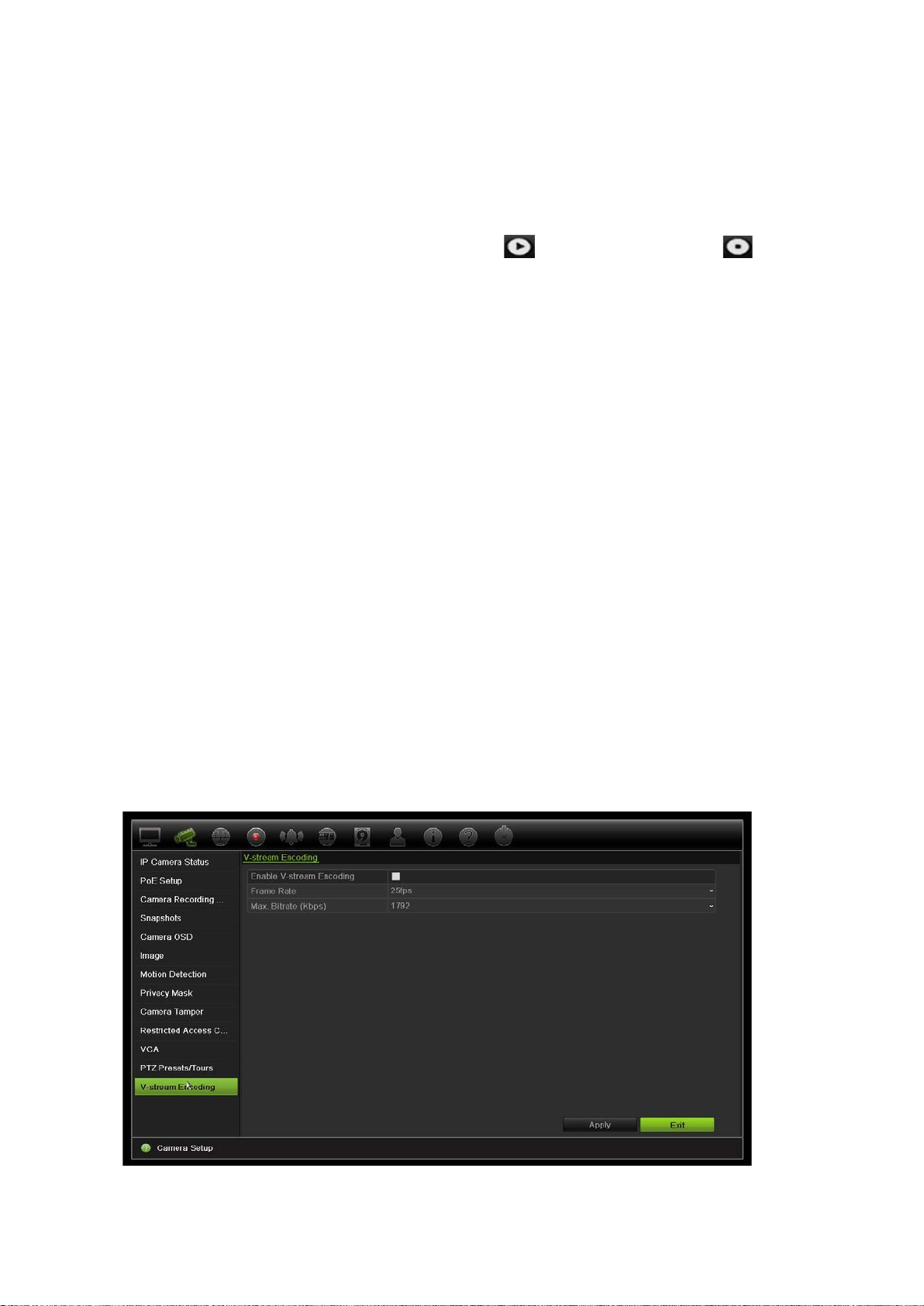

To setup V-Stream encoding:

1. From the menu toolbar, click Camera Setup > V-Stream Encoding.

2. Check the Enable V-Stream Encoding box to enable the feature.

3. Select the Frame Rate from the drop-down menu.

4. Select the Max. Bitrate from the drop-down m enu.

TruVision NVR 21 (SP) User Manual 71

Chapter 11

Network settings

The Network settings menu allow s y ou to manage all n etwork related aspects of the
recorder including general network settings, DDNS, NTP synchronization, email setup,
and FTP server setup.

Additionally, the Net Detect and Network statistics menus provide you with a useful and
efficient tool to analyze the behavior of the recorder on the network.

You must correctly configure your recorder’s net work settings before using it over the
network in order to:

 Connect IP cameras to it
 Connect to the recorder over the LAN
 Connect to the recorder over the internet

Network settings

Note: As every network configuration may differ, please contact your Network

Administrator or ISP to see if your recorder requires specific IP addresses or port
numbers.

To configure general network settings:

1. From the menu toolbar, click Network Settings > Network Settings.

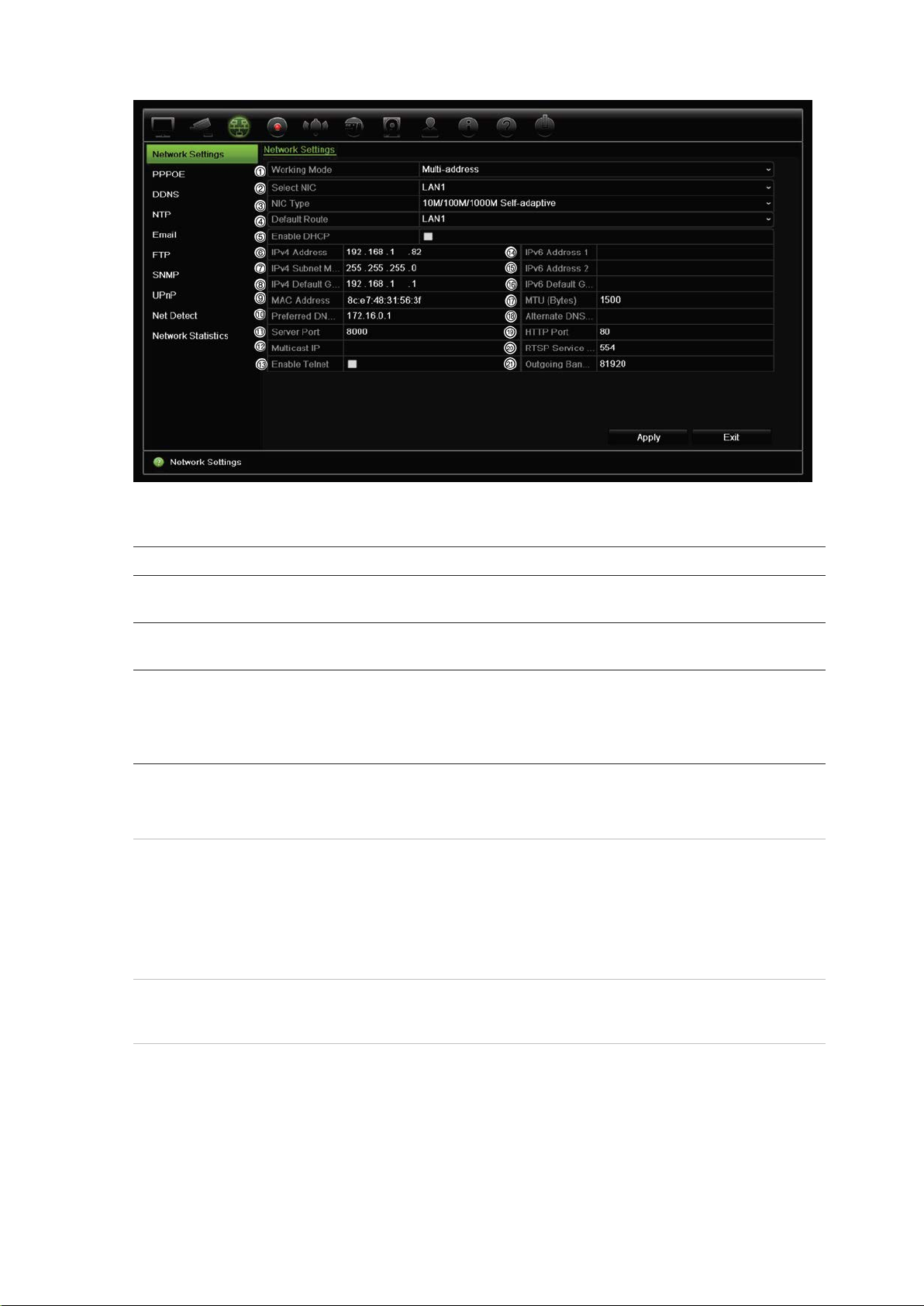

72 TruVision NVR 21 (SP) User Manual

Working Mode

NIC Type

to a

Inte
Address

Bridge PoE
Camera Network

Enable DHCP

to automatically obtain an IP address and other network settings from that

IPv4 Address

Enter the IP address for the recorder. This is the LAN IP address of the

IPv4 Subnet Mask

will be recognized

Chapter 11: Network settings

2. Enter the required settings:

Option Description

1.

2.

3.

4.

5.

rnal NIC IPv4

Select from Multi-address, Load Balance, and Net Fault Tolerance. This

option is not available on the TVN 21S.

Network interface card (NIC) is a device used to connect the recorder

network. Select the NIC type used from the drop-down list.
This is only available for TVN 21S. Enter the internal NIC IPv4 address.

This is the IP address of the recorder's internal network managing only
the PoE port camera s. This is not the LAN IP address.

Default value is 192.168.254.1.
This is only available for TVN 21S. Check this box to enable the Bridge

PoE Camera Network.
Default value is Enable.

DHCP (Dynamic Host Configurati on Pr otocol) is a protocol for assigning

an IP address dynamically to a device each time it connects to a network.
Check this box if you have a DHCP server running and want your recorder

server. The DHCP server is typically available in your router.
Default value is Disable.

6.
recorder.

Default value is 192.168.1.82.

7.

Enter the subnet mask for your network so the recorder

within the network.
Default value is 255.255.255.0.

TruVision NVR 21 (SP) User Manual 73

Chapter 11: Network settings

IPv4 Default
G

MAC Address

The MAC address is a unique identifier of your

Preferred DNS
Server

Server Port

Multicast IP
Enable Telnet

IPv6 A
IPv6 A

IPv6 Default
G
MTU (bytes)

Alternate DNS
Server

HTTP Port

RTSP Service

designed for use in entertainment and communications systems to control
streaming media servers. The default value is 1025.

Outgoing
Bandwidth

Option Description

8.

9.

3.

4.

5.

13.

14.

Enter the IP address of your network gateway so the recorder will be

ateway

Use the server port for remote client software access. The port range is

Enter a D-class IP address between 22 4. 0. 0.0 to 239.255.255.255. Only

ddress 1 Enter the IPv6 address for the recorder.

recognized within the network. This is typically the IP address of your
router. Consult your router user manual or contact your ISP to get the
required information on your gateway.

Default value is 192.168.1.1.

Displays the MAC address.

recorder and it cannot be changed.
Enter the preferred domain name server to use with the recorder. It must

match the DNS server information of your router. Check your router’s
browser interface or contact your ISP for the information.

between 1024 and 65535.
Enter the server port value. The default value is 8000.

specify this option if you are using the multicast function. Some routers
prohibit the use of multicast function in case of a network storm.

For Technical Support purposes only. For security reasons, the Telnet

port is disabled by default.

Default value is fe80::240:30ff:fe48:2975/64.

15.

16.

17.

18.

19.

20.

21.

ddress 2 Enter the IPv6 address for the recorder.

Enter the IPv6 address of your network gateway so the recorder will be

ateway

Enter a value between 500 and 9676. Default is 1500.

By default the HTTP port value is 80.

recognized within the network. This is typically the IP address of your
router.

Enter the alternate domain name server to use with the recorder.

The RTSP (Real Time Streaming Protocol) is a network control protocol

Outgoing Bandwidth. The default value is 81920.

3. Click Apply t o save the settings and Exit to return to live view.

PPPoE settings

Although not usually used, you can connect the recor der directly to a DSL modem. To
do this, you need to select the PPPoE option in the network settings. Contact your ISP
to get the user name and password.

74 TruVision NVR 21 (SP) User Manual

Chapter 11: Network settings

To configure PPPoE settings:

1. From the menu toolbar, click Network Settings > PPPoE.

2. Check the enable PPPoE box.

3. Enter your user name and password and confirm the password.

4. Click Apply and manual ly reboot the recorder to save the settings.

DDNS settings

DDNS servers allow you to connect to your r ec order using a fixed address. This fixed
address needs to be registered with a DNS serv ice. The DDNS setup menu allows you
to enable or disable DDNS and to configure it using ez DDNS, No-IP or DynDNS.

Note: Some service providers block the default RTSP streaming port 554 used for
video streaming, so if you are not receiving video images over the internet, you may
need to change it to another value. See Appendix C “Port forwarding information” on
page 137 for more information. See “Port f orwarding information” in the appendix for
more information.

There are three ways to set up a DDNS account:

• ezDDNS: A free-of-charge service included w it h your recorder and fully managed
within the recorder interface

• DynDNS: A third-party service where users need to appl y for a DynDNS account on
the Dyn.com website.

• No-IP: A third-party service where users need to apply for a no-IP account on t he
no-ip.com website

TruVision NVR 21 (SP) User Manual 75

Chapter 11: Network settings

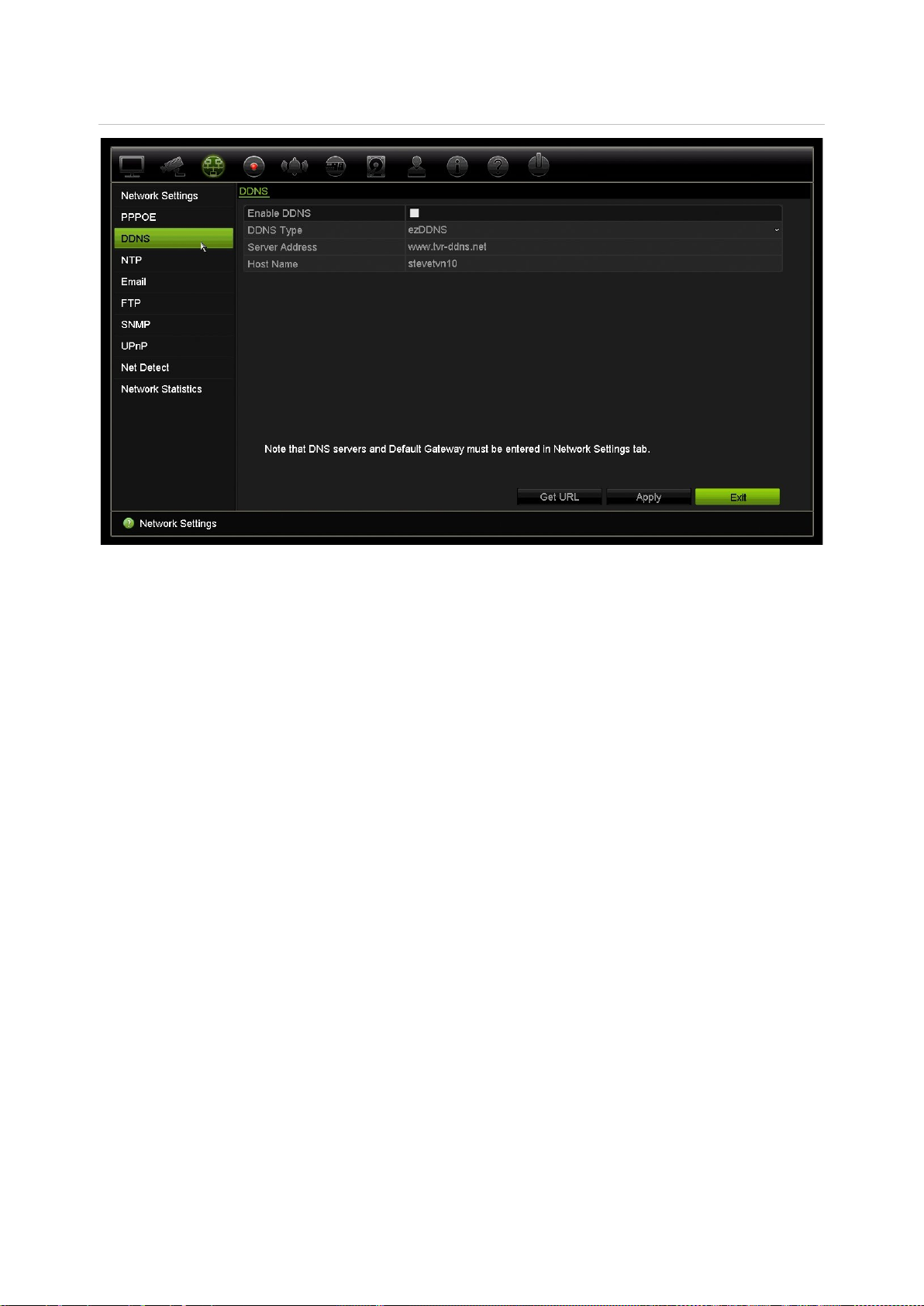

Figure 27: ezDDNS setup window

Note: You cannot have two recorders with the same host name.

To set up DDNS:

1. From the menu toolbar, click Network Settings > DDNS.

2. Check the Enable DDNS box to enable this feature.

3. Select one of the DDNS types listed:
ezDDNS: Click the Get URL button. The URL address to access the unit is

displayed. If no host name is specified, the DDNS will allocate one automatically.
The maximum length for the host name field is 64 charac t er s . This limit does not

include tvn-ddns.net. An example of a host nam e could be max64chars.tvr-ddns.net.

- Or ­DynDNS: Select DynDNS and enter the server address for DynDNS. In the

recorder domain name field, enter the domain n ame obtained from the DynDNS
web site. Then enter your user name and passw or d regis t er ed in t he DynDNS
network.

For example:

Server address: members.dyndns.org
Domain: mycompanydvr.dy ndns .org
User name: myname
Password: mypassword

- Or -

76 TruVision NVR 21 (SP) User Manual

Chapter 11: Network settings

NO-IP: Enter server address (for example, dy nupdat e.no-ip.com). In the host name
field, enter the host obtained from the NO-IP w eb site. Then enter the user name
and password that are registered w ith the No-IP network.

4. Ask your ISP service provider for your DNS server address or look it up in the
browser interface settings of your r outer.

Go to Network Settings and enter the preferred and alternat e DNS ser ver
addresses as well as the default gateway address.

5. Click Apply t o save the settings and click Exit to return to liv e v iew .

NTP server settings

A Network Time Protocol (NTP) server can also be configured on your recorder to keep
the date and time current and accurate.

Note: If the device is connected to a public network, y ou should us e a NT P ser ver that
has a time synchronization function, suc h as the server at the National Time Center (IP
Address: 210.72.145.44) or europe.nt p.pool.org. If the device is setup in a more
customized network, NTP softw ar e c an be used to est ablish a NTP server used for time
synchronization.

To set up an NTP server:

1. From the menu toolbar, click Network Settings > NTP.

2. Check the NTP box to enable feature. It is disabled by default.

3. Enter the NTP settings:

• Interval (min): Time in minutes to synchronize w it h the NTP server. The value

can be between 1 and 10080 minutes. Default is 60 minutes.

• NTP Server: IP address of the NTP server.

• NTP Port: Port of the NTP server.

4. Click Apply t o save the settings and click Exit to return to liv e v iew .

E-mail settings

The recorder can send email notificati ons of alarms or notifications through the network.

Note: Ensure that the DNS address has been set up correctly beforehand.
To configure email settings:

1. From the menu toolbar, click Network Settings > Email.

2. Enter the required settings.

TruVision NVR 21 (SP) User Manual 77

Chapter 11: Network settings

Option

E
Authentication

Check the box if your mail server requires authentication and enter the

User

Password

SMTP S

SMTP P

Enable SSL
Sender

Sender’s A

Select R

Receiver

Receiver’s

Include Snapshot

Interval

Description

nable Server

Name If the mail server requires authentication, enter the login user name.

If the mail server requires authentication, enter the login password.
erver Enter the SMTP server’s IP address.
ort Enter the SMTP port. The de fa ult TCP/IP port for SMTP is 25.

Check the box to enable SSL if it is required by the SMTP server. This

Enter the name o f the send er o f the emai l.

ddress Enter the sender’s email address.

eceivers Select an email recipient. Up to three receivers can be selected.

Name Enter the name of the receiver of the email.

Address Enter the email address of the receiver.

login user name and password.

feature is optional.

Check the Attach JPEG File box if you want to send an email with

attached alarm images.

Select an interval range in the Interval box.

The interval range represents the time range in between the alarm
images being sent. For example, if you set the interval range at two
seconds, the second alarm image will be sent two seconds after the
first alarm image

3. Click Test to the test email settings.

Note: We recommend that you test the email settings after ent er ing values in the

email window.

4. Click Apply t o save the settings and click Exit to return to liv e v iew .

Note: We recommend that you test the email settings after ent er ing values in the Email

window.

Configure an FTP server to store snapshots

You can upload your snapshots to an FTP serv er for storage.

Note: It is not possible to stream video to an FTP site.
To configure the FTP server settings:

1. From the menu toolbar, click Network Settings > FTP.

2. Check the Enable FTP box.

3. Enter the FTP server information.

4. Select the directory to use (root, parent, or secondary). If Parent or Secondary were
selected, select the desired options for them.

78 TruVision NVR 21 (SP) User Manual

Chapter 11: Network settings

5. Click Apply t o save the settings and click Exit to return to liv e v iew .

SNMP settings

SNMP is a protocol for managing devices on net works. When you enable SNMP in the
menu, network management syst em s can ret rieve recorder status information from the
recorder via SNMP.

When you set the trap address and trap port in the recorder menu to the network
management system’s IP address and port num ber, and set up the network
management system as trap receiver, tr ap not ifications (such as startup) are sent from
the recorder to the network management sys tem.

Before configuring this function, you must first install the SNMP software.

To configure SNMP protocol settings:

1. From the menu toolbar, click Network Settings > SNMP.

2. Check the Enable SNMP box.

3. Enter the required settings.

4. Click Apply t o save the settings and click Exit to return to liv e v iew .

UPnP settings

The recorder supports UPnP (Universal Plug and Play). This feature lets the recorder
automatically configure its own port forwarding, if this feature is also enabled in the
router.

You can select one of two methods to set up UPnP:
Automatic mapped type: The recorder automatically uses the free ports available that

were set up in the Network Settings menu.
Manual mapped type: You enter the particular external port settings and IP addresses

required to connect to the desired router (s ee Figure 28 on page 80).

TruVision NVR 21 (SP) User Manual 79

Chapter 11: Network settings

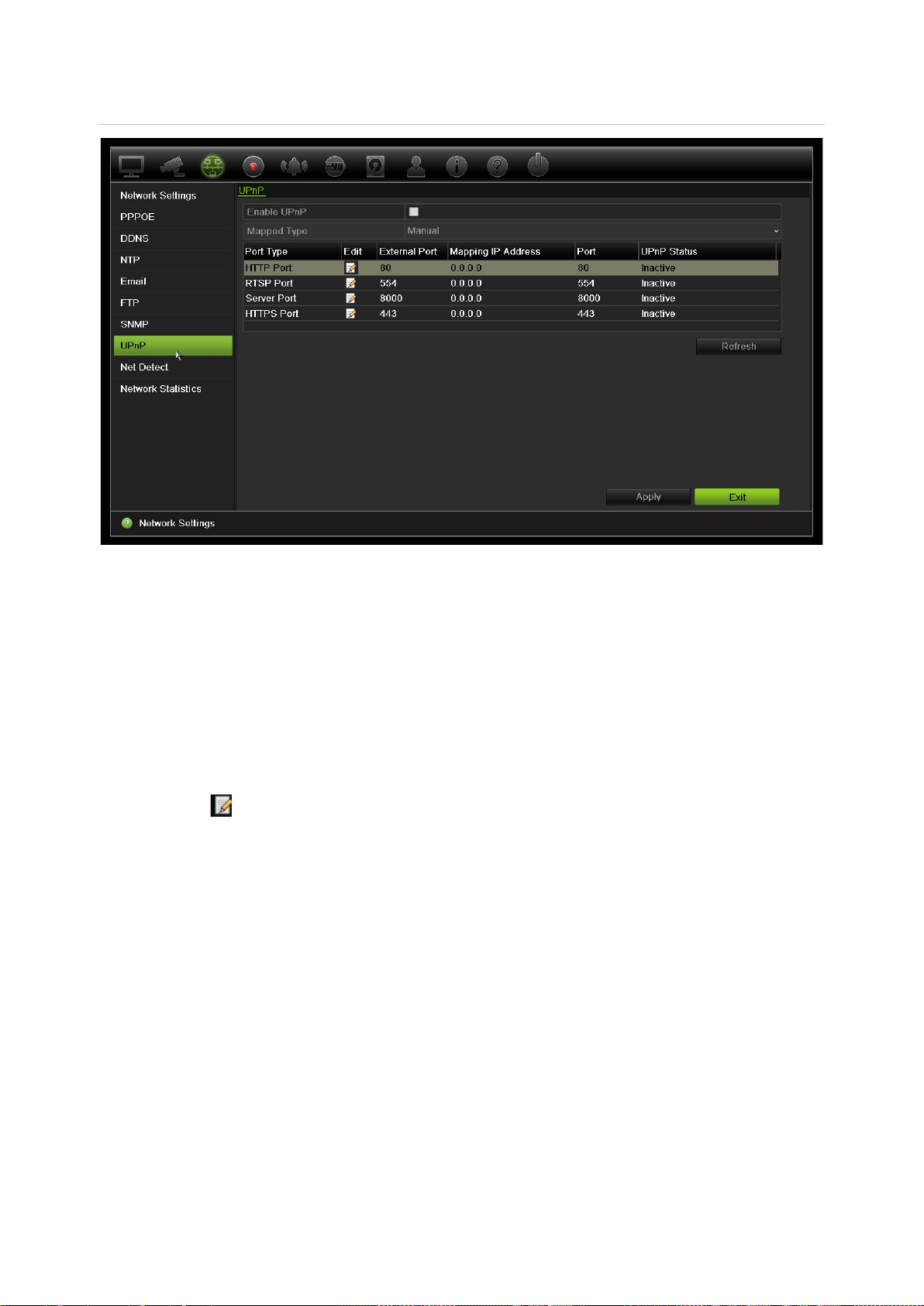

Figure 28: UPnP auto configuration screen

To enable UPnP:

1. Connect the recorder to the router.
Note: The router must support UPnP and this option must be enabled.

2. From the menu toolbar, click Network Settings > UPnP.

3. Check the Enable UPnP box.

4. From Mapped Type, select Auto or Manual.
If Manual is selected, enter the external ports and IP addresses required. Click the

Edit icon to change the values.

5. Click Apply t o save the settings and click Exit to return to liv e v iew .

Network status

You can easily check network traffic in order t o obtain information about the recorder
such as its linking status, MAC address, MT U, sending/receiving rate, and NIC type.

The Network Detection window shows the network traffic between the recorder and
your local network. However, the t r af fic between the plug and play cameras and the
NVR 21S is not shown.

You can also check the network connection status by testing its delay and packet loss.

80 TruVision NVR 21 (SP) User Manual

Chapter 11: Network settings

To check network traffic:

1. From the menu toolbar, click Network Settings > Net Detect. The Traffic window
appears. The information displayed is refreshed once a second.

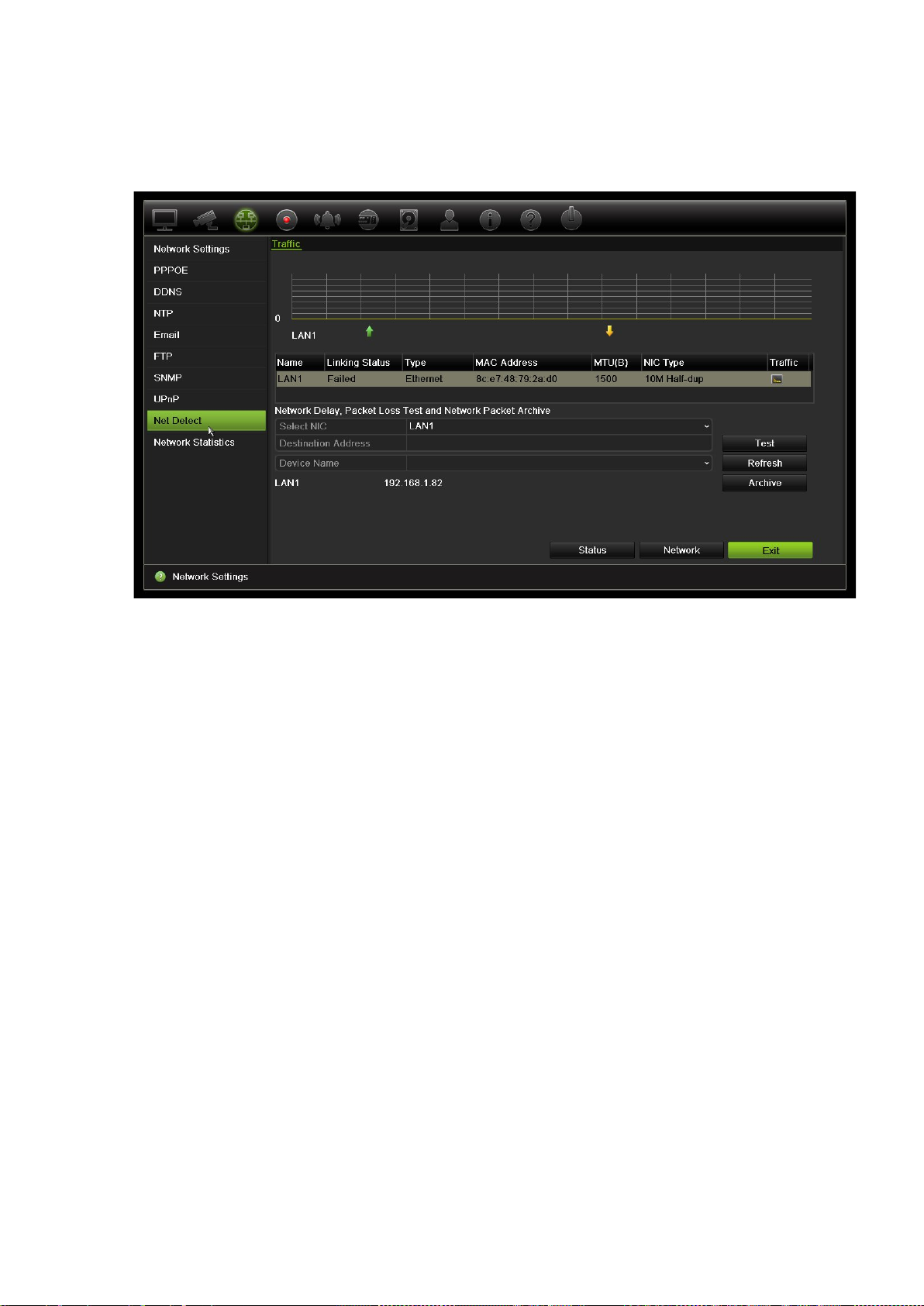

To check network delay and packet loss:

1. From the menu toolbar, click Network Settings > Net Detect.

2. Under the section “Network Delay, Packet Loss Test”, select the NIC to use and
enter the destination address. Click Test.

The test result appears in a pop-up window .

3. If you need to check the current network parameter s, click the Network button to
get an overview. The current values for NIC type, DHCP, IPv4 address, IPv4 subnet
mask, IPv4 default gateway are shown as well as the preferred DNS server and
alternate DNS server if used.

The NIC Type and Enable DHCP options can be changed. Click Apply to save any
changes made and then click OK to return to the main window.

4. Click Exit to return to live view.

To check network status:

1. When all the network parameters hav e been s et , click the Status button to confirm
that all parameters are operating correct ly.

TruVision NVR 21 (SP) User Manual 81

Chapter 11: Network settings

Archive network packet data

When the recorder is connected to a network, you can archive the captured data packet
to a USB-flash drive, SATA/eSATA CD-RW and other local backup devices.

To archive network packet data:

1. From the menu toolbar, click Network Settings > Net Detect.

2. Under the section “Network Packet Archive”, click Refresh to get a list of the local
backup devices available. Select one from the list.

3. Click Archive. Up to 1M of data can be exported at a time.

4. Click Exit to return to live view.

Network statistics

You can easily check the bandwidth that is being used by remote live view and
playback.

To check network statistics:

1. From the menu toolbar, click Network Settings > Net Statistics.

2. The latest information is displayed on the bandwidth used by remote live view and
playback as well by Net Receive Idle and Net Send Idle. Click Refresh to update
the information.

3. Click Exit to return to live view.

82 TruVision NVR 21 (SP) User Manual

Chapter 12

Recording

Use the Recording menu to define the camera record ing schedules, modify the instant
playback duration, setup Auto Archive Settings and Review the Auto Archive Status,
and to select the cameras for manual recording.

Recording schedule

Defining a recording schedule lets y ou specify when the recorder records video and
which pre-defined settings are used. Each camera c an be configured to have its own
recording schedule.

The schedules are visually presented on a map for easy reference. See Figure 29 on
page 84 for a description of the recording schedule window.

Note: If a camera is set up for continuous recording, it will still switch to event recording

or alarm recording if motion, events are t riggered or to alarm recording when alarms are
triggered. This can be turned off in the indiv idual action settings for each individual
alarm if needed.

TruVision NVR 21 (SP) User Manual 83

Chapter 12: Recording

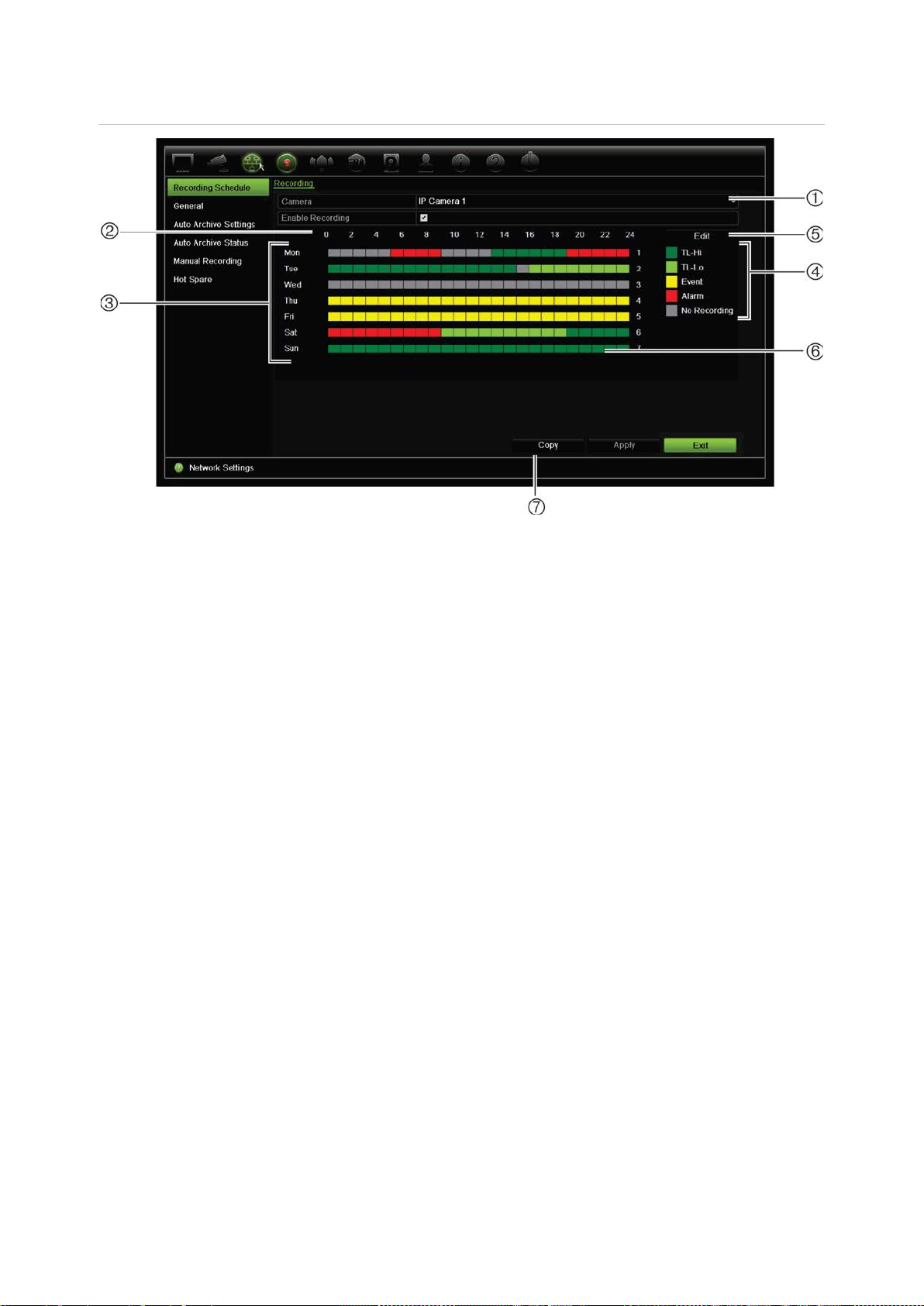

Figure 29: Description of the recording schedule window

1. IP Camera. Select a camera.

2. Schedule time. Represents the 24-hour cycle during which a schedule is selected.

3. Schedule map. There are eight days to select: Sunday (Sun), Monday (Mon), Tuesday (Tue),
Wednesday (Wed), Thursday, (Thu), Friday (Fri), Saturday (Sat), and Holiday (if enabled)..

4. Recording type. There are five types of recording to select, which are color-coded:
 TL Time lapse (Green squares): Record of a specific day. Each green square in the timeline

represents an hour in the 24-hour period.

 TL-Hi (Dark green): High quality time lapse. Records high quality video.
 TL-Lo (Bright green): Low quality time lapse. Records low quality video. This could be used, for

example, for night recordings when few events or alarms are expected. Saving the video in low
quality helps save resources on the HDD.

 Event (Yellow): Records only events, such as motion detection and POS/ATM text insertion.
 Alarm (Red): Records only alarms.
 None (Grey): No recording during this period.

5. Edit button. Click to modify schedules and to copy schedules to other days of the week.

6. Timeline. There is a 24-hour time line for each day. Up to eight recording periods can be scheduled
during the 24-hour period.

7. Copy button. Click to copy schedules between cameras.

Define a schedule from the recording schedule window

To set up a daily recording schedule:

1. Select a camera.

2. Check the Enable Recording box to indicate that video from this camera is to be
recorded.

84 TruVision NVR 21 (SP) User Manual

Chapter 12: Recording

3. Click a record type in the legend to activate that record type. The cursor changes to
a pen.

4. Drag the pen cursor across desired hours and days in the schedule overview to
mark those times with that specific recor d mode. To mark areas with a different
record type, click on a different record type to activate it.

5. Click Apply to save the set tings and Exit to return live view.

Define a schedule from the Edit menu

To set up a daily recording schedule:

1. From the menu toolbar, click Recording > Recording Schedule.

2. Select a camera.

3. Check the Enable Recording box.

4. Click Edit. The following window is displayed:

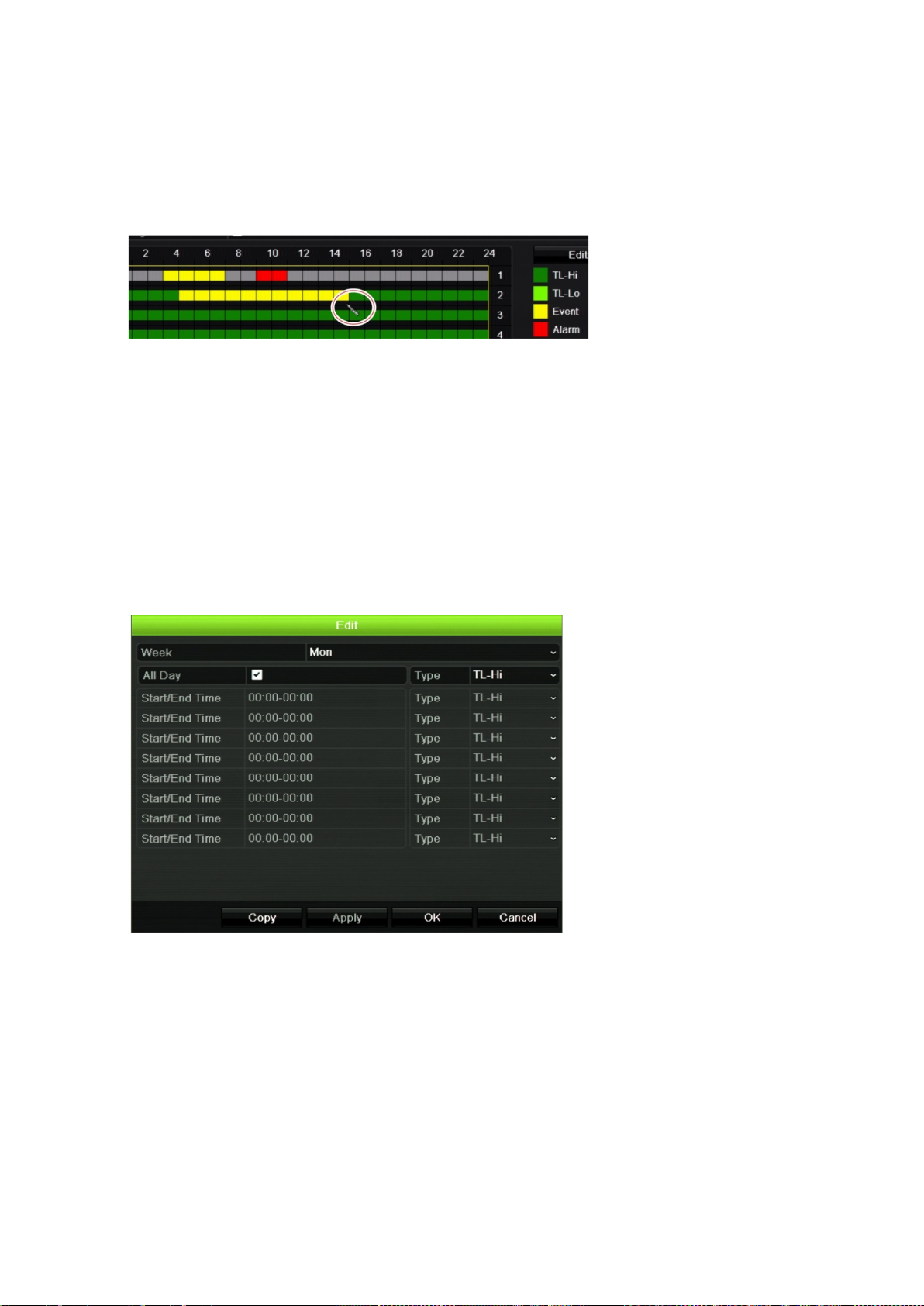

5. Select the day of the week (1) for which you want to set up the schedul e.
You can define a different schedule for each day of the week.

6. Set the start and end time for recording.
Define a time period by entering a start ( lef t column) and end (right column) time.

You can schedule up to eight time periods. Click A ll Day to record all day.
Note: Time periods defined cannot overlap.

TruVision NVR 21 (SP) User Manual 85

Chapter 12: Recording

7. Select a recording type.
This setting instructs the recorder to begin recording when an alarm is triggered.

The recording type can be based on time and trigger ed by motion detection and/or
an alarm. If set to TimeLapse (TL-Hi or TL-Lo), the recorder records continuously.

8. Click Apply to save sett ings.

9. Repeat steps 4 to 8 for other days of the week or to copy the schedule settings to
another day.

To copy the current schedule settings t o another day of the week, click Copy. Select
the number of the day of the week to which t o copy the schedule. Click OK to save
changes and return to the Edit window.

10. Repeat steps 4 to 9 for the other cameras.

11. Click Apply to save the set tings and OK to return to the schedule window.
The recording schedule window appears showing the schedule selected (see

Figure 29 on page 84 for an example).

Modify the instant replay duration

The live view toolbar in live view lets you quickly replay recorded v ideo for a
preprogrammed period. You can easily change this preprogrammed time period. See
page 30 for more information on the live v iew toolbar.

To modify the preprogrammed time of t his instant replay, go to Recording > General.
Select one of the times from the drop-dow n list (5, 10, 20, or 30 minutes) and click

Apply. Default is 5 minutes.

Manual recording

The recorder lets you manually record video during liv e view. This can be useful if you
know that the recorder is not currently recording and y ou see somet hing of interest on a
camera screen that should be recorded.

Once a manual recording is started, the recordin g c ont inues until it is manually stopped.
If an alarm occurs during a manual recording, the alarm recording has priority over the
manual recording. If a scheduled recording is already in progress when a manual
recording is started, it continues t o r ecor d as s c heduled.

You can check to see if a camera is recording manua lly by looking at the icon on the
live view toolbar. The icon is red when manually recording. Default is off.

There are two ways to start and stop a manual recording:

• Use the live vie w toolbar

86 TruVision NVR 21 (SP) User Manual

Chapter 12: Recording

You can start/stop manual recording for each camer a individually. Position the
cursor over a camera image and left- click the mouse to display the live view
toolbar. Click the manual record icon to start or stop manual recording. The icon is
red when recording.

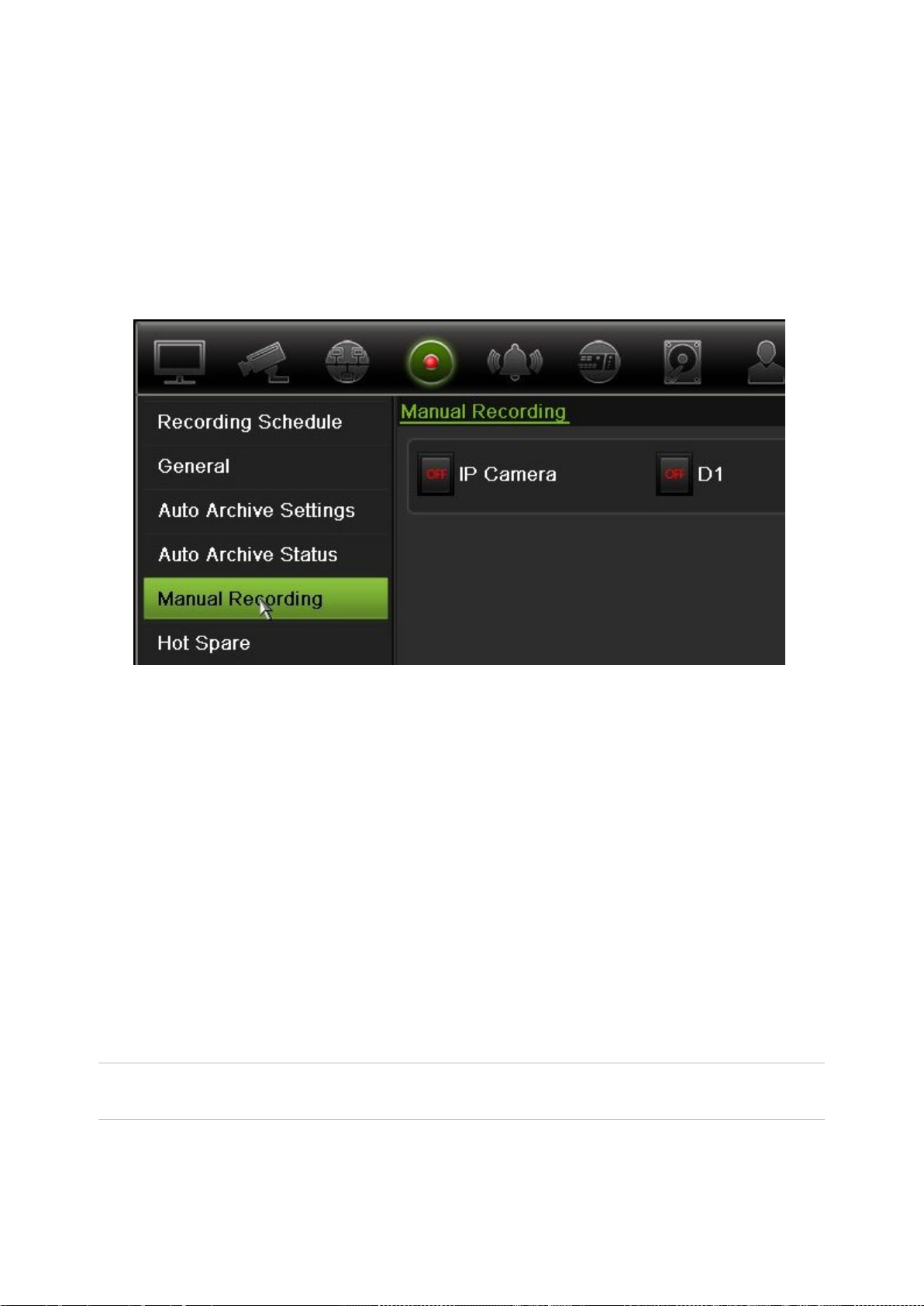

• Use the configuration menu

This option lets you select more than one camera at a t ime. Go to Recording >

Manual Recording to access the manual recording menu and check the boxes of

the cameras to start or stop manual recording.

Hot Spare

You can set up a spare recorder to act as a slave unit (hot spare) for up to four master
TVN 21(S/P) master units. This slave unit will continua lly monitor the master units and if
one of the master units should fail, it can then take over recording until the failed unit
comes back online. Once the failed unit is back operating normally again, the slave unit
will send its recordings to the HDDs of the recovered unit so that no recordings are
missing.

The hot spare unit can only backup one master unit at a time. If more than one unit
should fail, the hot spare unit will only backup the unit that failed first.

All units must have the same number of channels.
You can mix TVN 21 and TVN 21P units but you cannot include TVN 50s.

WARNING: Camera connected to the T V N 21S as P oE por t s c annot be inc luded in a
hot spare function.

In order to have the failover functionality working properly, the following point s m us t be
taken into account:

TruVision NVR 21 (SP) User Manual 87

Chapter 12: Recording

• A stable network connection is required

• There must be at least 10 Mbps of unallocated bandwidth available with the main

recorder. The main and failover recorder s m ust have equal camera counts

• Ideally the failover recorder must have equal storage capacity to the main recorder
to accommodate for long outage times of the m ain recor der.

To set up a hot spare recorder:

1. From the menu toolbar, click Recording > Hot Spare.

2. First set up the master recorders.
For each master recorder, check the Normal Mode box and Enable. Enter the IP

address and password for each recorder.

3. Set up the hot spare recorder.
Check the Recovery Unit box.

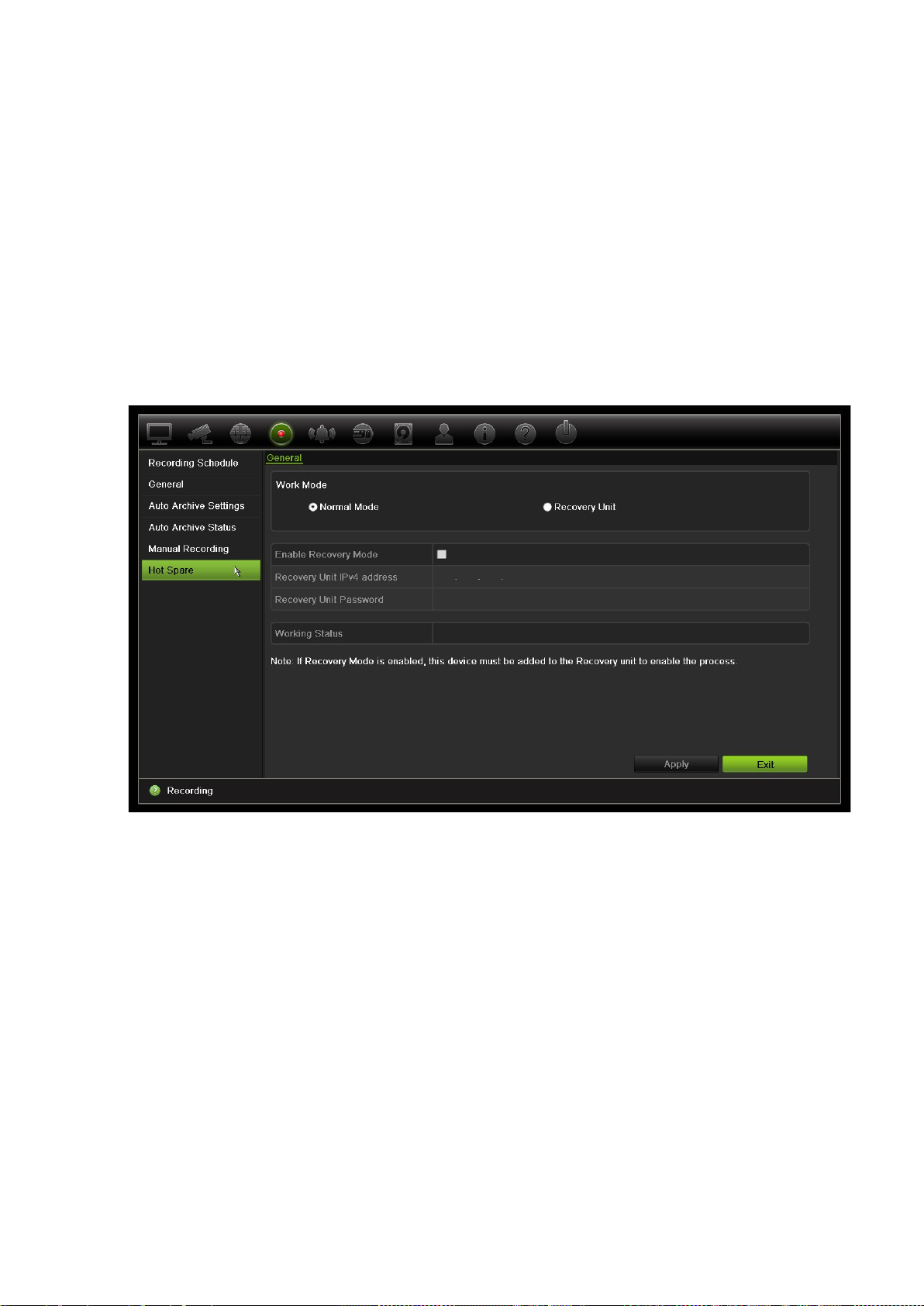

Note: Once the hot spare is enabled, it must be added to the server in order for it to

become available.

4. Click Apply t o s ave the settings.

5. Click Exit to return to live view, or continue configuring the recorder settings.

88 TruVision NVR 21 (SP) User Manual

Chapter 13

Alarm and event setup

This chapter describes the alarm and event setup menu and provides more information
on the different types of alarms and connect ed res ponses. Alarms are all notifications
related to either physical alarm inputs on rec or ders and cameras or anything that does
not work as expected: device errors, network issues, and video loss.

Set up alarm inputs

The recorder can be configured to record when an alarm is triggered by an external
alarm device (for example, PIR detector, dry contacts…). A inputs are marked A for
analog and are physical inputs of the recorder. D inputs are marked as D for digital and
are physical inputs on the IP cameras.

To set up external alarms:

1. From the menu toolbar, click Alarm & Event Setup > Alarm Input.

2. Select the alarm input number of a camera, which corresponds to the connector on
the back panel of the recorder, and enter the name of the input, if requir ed.

3. Select the alarm input type, NO (normally open) or NC (normally closed). Default is
NO.

TruVision NVR 21 (SP) User Manual 89

Chapter 13: Alarm and event setup

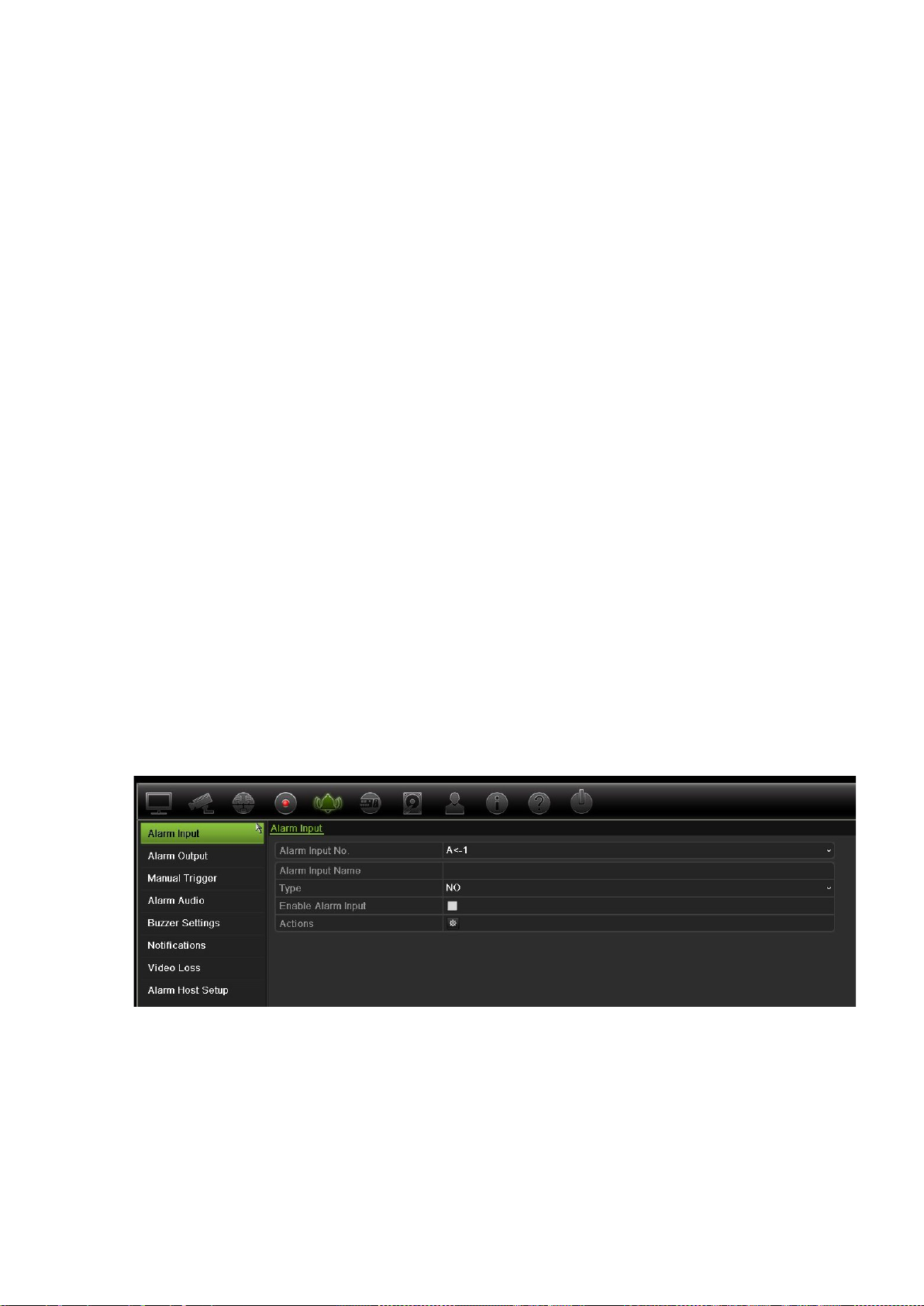

4. Check the Enable Alarm Input box and click Actions to set up the rules for the
cameras to be triggered, their alarm schedules, method of alarm notification and
PTZ linking function.

5. Select the cameras to be triggered when an ex ternal alarm is detected.
In the Actions window, click the Trigger Channel tab and then select the cameras

to be triggered for recording when an alarm is detected. Click Apply to save the
settings.

6. Select the recording schedules for the external alarm.
In the Actions window, click the A rming Schedule tab and select the day of the

week and the time periods during the day when motion can be recorded. You can
schedule up to eight time periods in a day. Def ault is 24 hours.

Click Apply t o s ave the settings. Click Copy to copy these settings to other days of
the week.

Note: The time periods defined cannot overlap.

7. Select the response method to an external alar m.
In the Actions window, click the Actions tab to define the method by which you want

the recorder to notify you of the alarm. Select one or more of the six notification
types. See “Alarm notification ty pes” on page 92 for a description of these alarm
notification methods.

Click Apply t o save the settings.

8. Select the PTZ camera function required in response t o an external alarm.
In the Actions window, click the PTZ Linking tab. Select the PTZ camera and enter

the preset, preset tour or shadow tour that is triggered when the alarm is detected.

Click Apply to save the set tings.

9. Click OK to return to the alarm input window.

10. Click Exit to return to live view.

90 TruVision NVR 21 (SP) User Manual

Chapter 13: Alarm and event setup

Set up alarm outputs

You can connect the recorder to an alarm system, such as a siren or intrusion system,
which is then activated when an alarm is triggered. You can select how long the alarm
signal remains active as well as schedule w hen alarm out puts can be triggered. A
outputs are marked A for analog and are physical outputs of the recorder. D outputs are
marked as D for digital and are physical outputs on the IP cameras.

To set up an alarm output:

1. From the menu toolbar, click Alarm & Event Setup > Alarm Output.

2. Select the alarm output.

3. Select a timeout option between 5 and 600 seconds or select “Manually Clear”.
The timeout setting lets you define how long an alarm signal remains active after the

alarm has ended. If you select Manually Clear, the alarm signal remains active until
it is manually acknowledged by pressing the alarm button on the front panel or
remote control (see “Triggering or clearing alarm outputs manually” below).

4. Select the recording schedules for the alarm out put .
Click the Actions button and select the day of the week and the time periods during

the day when motion can be recorded. You can s c hedule up t o eight time periods in
a day. Default is 24 hours.

Click Apply t o s ave the settings. Click Copy to copy the settings to other days of
the week and holiday period.

Note: The time periods defined cannot overlap.

5. Click OK to return to the alarm output window.

6. Click Copy to copy these settings to other cameras, if r equired, and then click

Apply to save the changes.

7. Click Exit to return to live view.

Manual trigger

The manual trigger menu allows y ou to manually trigger outputs of the recorder.

To trigger or clear alarm outputs manually:

1. From the menu toolbar, click Alarm & Event Setup > Manual Trigger.

2. Select the desired alarm output and click the f ollowing buttons:
Trigger / Clear: Trigger an alarm output or stop an alarm output. As there is only

one alarm output available, the “Trigger A ll” button just triggers the one output.
Clear All: Stop all alarm outputs at onc e.

3. Click Exit to return to live view. The alarm is silenced.

TruVision NVR 21 (SP) User Manual 91

Chapter 13: Alarm and event setup

- Or -
Press the Alarm button on the front panel or remote control. The alarm is silenced.

Alarm Audio

The Alarm Audio menu allows you to review and edit recorded audio files.

Buzzer settings

When an alarm is triggered by the system or a camer a, the recorder can be set up to
respond with a warning buzzer. The buzzer t ime is t he time that it takes for the recorder
to time-out the buzzer when a continuous alarm occurs. For example, when a physical
alarm input is continuously triggered, the buzzer will time out after the time specified.
Select Alarm & Event Setup > Buzzer Settings and select a buzzer time limit for the
system and camera alarms. Select Mute, 5 s , 10 s, 20 s, 30 s, 60 s, 120 s, 240 s, or
Constant. Default is mute.

Alarm notification types

When setting up the rules for alarm detection, you can specify how you want the
recorder to notify you about an alarm or event. You can select more than one
notification type.

Not all notifications types are available for all types of alarms.
You can quickly check the system status by look ing at the status LEDs on the front

panel.
The alarm notification types are:

• Display Event Icon: When an alarm is triggered in the sy stem, an icon appears on
screen to also alert you. See “Status information” on pa ge 27 for further information.

• Event Hint Settings: Click on the settings button to choose your Hint Sett ings.

• Event Priority: Select the Event Priority from Text In < Motion or Text In > Motion.

• Notification Type: Select HDD Full, HDD Error, Network Disconnected, Duplicate

IP Address Found, Illegal Login, Abnormal Record, and PoE Power Overload.

• Enable Alarm Audio: Triggers an audible beep when a notification or alarm is
detected by the system or a camera.

• Notify Alarm Host: Sends a signal to TruVision Nav igator or other software
applications when an alarm or notification is detected.

92 TruVision NVR 21 (SP) User Manual

Chapter 13: Alarm and event setup

• Send Email: Sends an email when an alarm or notification is detected. See ““E-mail
settings” on page 77 for information on how to configure the recorder to send an
email.

• Trigger Alarm Output: Triggers an alarm output or multiple alarm outputs when a
notification is detected for an ext er nal alarm. See “Types of system alarm
notifications” below for information on configuring an alarm output.

To set up system notifications:

1. From the menu toolbar, click Alarm & Event Setup > Notification.

2. Select a system alarm notification type.

3. Check one or more response method: Display event icon, notification type, enable
alarm audio, notify alarm host, send email, and t r igger alarm output.

Note: The list of options available depends on the sy s tem alarm selected.

4. Repeat steps 2 and 3 for other system notif ication types.

5. Click Apply t o save the sett ings.

6. Click Exit to return to live view.

Types of system alarm notifications

The different types of system alarm notif ic at ions are:

• HDD Full: All installed HDDs ar e full and will not record any more video.

• HDD Error: Errors occurred while files were being written to the HDD, there is no

HDD installed, or the HDD had failed to initialize.

• Network Disconnected: Discon nected network cable.

• Duplicate IP Address Found: There is an IP address conflict with another system
on the network.

• Illegal Login: Wrong user ID or password used.

• Input/output Video Standard Mismatch: Indicates a mismatch between camera

settings and camera capabilities. For example, a camera channel set to 1080p while
the recorder does not support that resolution.

• Abnormal Record: HDD cannot recor d any more files. This could be due to the
overwrite option being disabled so recorded f iles are locked and cannot be deleted.

• PoE Power Overload: PoE power overload detected.

Detect video loss

Video may be lost if the camera develops a fault, is disc onnec t ed, or is damaged. You
can set up the recorder to detect video loss and trigger a system notification.

TruVision NVR 21 (SP) User Manual 93

Chapter 13: Alarm and event setup

To setup video loss detection:

1. From the menu toolbar, click Alarm & Event Setup > Video Loss.

2. Select a camera to configure for video loss det ec tion.

3. Check the Enable Video Loss Alarm box to enable the feature.

4. Click the Actions button to enter the Actions window.

5. Set the arming schedule for detecting video loss.
Click the Actions tab and select the schedule of when you want video loss

detection to be enabled. The schedule can be set f or all week or any day of the
week with up to 8 time periods per day. Click Apply to save the settings.

6. Select the alarm response method.
Click the Arming Schedule tab and select how you want the recorder to notify you

of video loss. Select: Full-screen monitoring, enable alarm host, send email, and
trigger alarm host. See page ““Types of system alarm notifications” on page 93 for
the descriptions. Click Apply to save the settings.

7. Click OK to return to the main window

8. Click Copy to copy these settings to other cameras, if r equired, and then click

Apply to save the changes.

9. Click Exit to return to live view.

Alarm host setup

If an alarm host is set, the recorder sends a signal to the host when an alarm is
triggered. An example of an alarm host is t he T r uV ision Navigator server. Note that
alarm host applications need to have the T ruV ision r ecorder SDK implemented in order
to successfully receive notificat ions from the recorder.

To set up an alarm host:

1. From the menu toolbar, click Alarm & Event Setup > Alarm Host Setup.

2. Enter Alarm Host IP and Alarm Host Port values.
Alarm host IP represents the IP of the remote P C where the Network Video

Surveillance software installed. T he alarm host port value must be the same as
software’s alarm monitor port. Up to three alarm hosts can be set. For each alarm
host, the default port is 5001, 5002, and 5003.

94 TruVision NVR 21 (SP) User Manual
