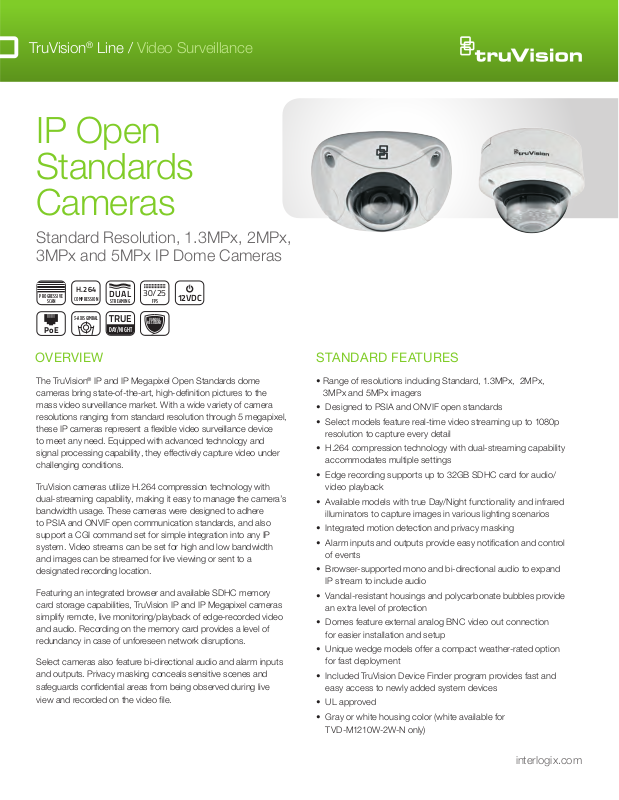

Interlogix TVD-M3225V-2-N-R Specsheet
TruVision® Line / Video Surveillance
TRUE
IP Open
Standards
Cameras
Standard Resolution, 1.3MPx, 2MPx,
3MPx and 5MPx IP Dome Cameras
PROGRESSIVE
SCAN
PoE
H.264
COMPRESSION
3-AXIS GIMBAL
DUAL
STREAMING
DAY/NIGHT
30/25
FPS
VANDAL
RESISTANT
12VDC
OVERVIEW
The TruVision® IP and IP Megapixel Open Standards dome
cameras bring state-of-the-art, high-definition pictures to the
mass video surveillance market. With a wide variety of camera
resolutions ranging from standard resolution through 5 megapixel,
these IP cameras represent a flexible video surveillance device
to meet any need. Equipped with advanced technology and
signal processing capability, they effectively capture video under
challenging conditions.
TruVision cameras utilize H.264 compression technology with
dual-streaming capability, making it easy to manage the camera’s
bandwidth usage. These cameras were designed to adhere
to PSIA and ONVIF open communication standards, and also
support a CGI command set for simple integration into any IP
system. Video streams can be set for high and low bandwidth
and images can be streamed for live viewing or sent to a
designated recording location.
Featuring an integrated browser and available SDHC memory
card storage capabilities, TruVision IP and IP Megapixel cameras
simplify remote, live monitoring/playback of edge-recorded video
and audio. Recording on the memory card provides a level of
redundancy in case of unforeseen network disruptions.
Select cameras also feature bi-directional audio and alarm inputs
and outputs. Privacy masking conceals sensitive scenes and
safeguards confidential areas from being observed during live
view and recorded on the video file.
STANDARD FE ATUR ES
• Range of resolutions including Standard, 1.3MPx, 2MPx,
3MPx and 5MPx imagers
• Designed to PSIA and ONVIF open standards
• Select models feature real-time video streaming up to 1080p
resolution to capture every detail
• H.264 compression technology with dual-streaming capability
accommodates multiple settings
• Edge recording supports up to 32GB SDHC card for audio/
video playback
• Available models with true Day/Night functionality and infrared
illuminators to capture images in various lighting scenarios
• Integrated motion detection and privacy masking
• Alarm inputs and outputs provide easy notication and control
of events
• Browser-supported mono and bi-directional audio to expand
IP stream to include audio
• Vandal-resistant housings and polycarbonate bubbles provide
an extra level of protection
• Domes feature external analog BNC video out connection
for easier installation and setup
• Unique wedge models offer a compact weather-rated option
for fast deployment
• Included TruVision Device Finder program provides fast and
easy access to newly added system devices
• UL approved
• Gray or white housing color (white available for
TVD-M1210W-2W-N only)
interlogix.com
0.3346 in.
(8.5mm)
1.9685 in.
(50mm)
2.9528 in.
(75mm)
6.2205 in.
(158mm)
2.9528 in.
(75mm)
20
3.5433 in.
(90mm)
7.0079 in.
(178mm)
8.2677 in.
(210mm)
1.428 in.
(36.27mm)
0.3346 in.
(8.5mm)
1.9685 in.
(50mm)
2.9528 in.
(75mm)
7.185 in.
(182.5mm)
6.2205 in.
(158mm)
20.9244 in.
(531.48mm)
8.2677 in.
(210mm)
4.7244 in.
(120mm)
2.3622 in.
(60mm)
0.3543 in.
(9mm)
4-08.5
4.7717 in.
(121.2mm)
3.3067 in.
(83.99mm)
4.7244 in.
(120mm)
2.3622 in.
(60mm)
0.3543 in.
(9mm)
3.3067 in.
(83.99mm)
2.3622 in.
7.0079 in.
(178mm)
1.428 in.
(36.27mm)
20.9244 in.
(531.48mm)
8.2677 in.
(210mm)
2.3622 in.
(60mm)
1.428 in.
(36.27mm)
4-08.5
20.9244 in.
(531.48mm)
8.2677 in.
(210mm)
4.7717 in.
(121.2mm)
3.3067 in.
(83.99mm)
Application
4.48 in.
(114mm)
3.66 in.
(93mm)
2.05 in.
(52.2mm)
3.83 in.
(97.49mm)
3.30 in.
(84.04mm)
Delivering detailed images in a variety of environments that need it most, TruVision
®
IP and IP Megapixel cameras are
specically designed for applications that require high-quality IP images. When paired with IP devices, these cameras
provide ideal surveillance for environments such as retail, banking, airports or gaming where detailed image capture
is critical for effectively monitoring people and transactions.
Dimensional Diagrams
Indoor Vandal Dome Low-Profile Mini Vandal Dome
4.48 in.
(114mm)
1.83 in.
.59 in.
(15mm)
(46.5mm)
3.66 in.
(93mm)
2.05 in.
(52.2mm)
3.93 in.
(99.99mm)
3.30 in.
(84.04mm)
3.83 in.
(97.49mm)
Accessories
TVD-M2-WM Indoor Dome Wall Mount TVD-M2-FM Indoor Dome Flush Mount
9.8819 in.
(251mm)
TVD-M2-WEBM Indoor Wedge Electrical Box AdaptorTVD-M2-PNDT Indoor Dome Pendant Mount
3.3067 in.
(90mm)
3.5433 in.
20
(83.99mm)
(60mm)
8.2677 in.
(210mm)
4.7244 in.
15
(120mm)
7.0079 in.
(178mm)
0.3543 in.
(9mm)
6-M4
(83.5mm)
3.2874 in.
20.9244 in.
(531.48mm)
5.315 in.
(135mm)
(46mm)
1.811 in.
1.428 in.
(36.27mm)
3.2874 in.
(83.5mm)
8.2677 in.
(210mm)
7.185 in.
(182.5mm)
6.2205 in.
(158mm)
0.3346 in.
(8.5mm)
4-08.5
(121.2mm)
4.7717 in.
(50mm)
1.9685 in.
