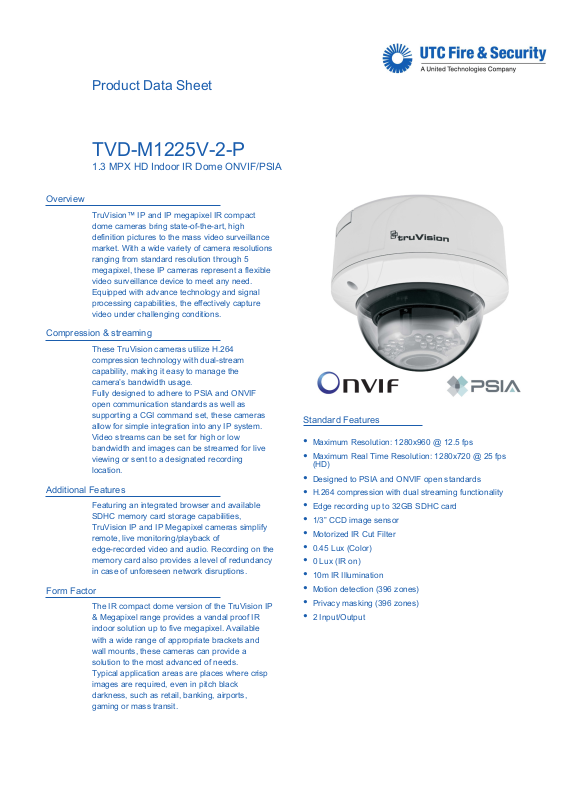

Product Data Sheet
TVD-M1225V-2-P
1.3 MPX HD Indoor IR Dome ONVIF/PSIA
Overview
TruVision™ IP and IP megapixel IR compact
dome cameras bring state-of-the-art, high
definition pictures to the mass video surveillance
market. With a wide variety of camera resolutions
ranging from standard resolution through 5
megapixel, these IP cameras represent a flexible
video surveillance device to meet any need.
Equipped with advance technology and signal
processing capabilities, the effectively capture
video under challenging conditions.
Compression & streaming
These TruVision cameras utilize H.264
compression technology with dual-stream
capability, making it easy to manage the
camera’s bandwidth usage.
Fully designed to adhere to PSIA and ONVIF
open communication standards as well as
supporting a CGI command set, these cameras
allow for simple integration into any IP system.
Video streams can be set for high or low
bandwidth and images can be streamed for live
viewing or sent to a designated recording
location.
Additional Features
Featuring an integrated browser and available
SDHC memory card storage capabilities,
TruVision IP and IP Megapixel cameras simplify
remote, live monitoring/playback of
edge-recorded video and audio. Recording on the
memory card also provides a level of redundancy
in case of unforeseen network disruptions.
Form Factor
The IR compact dome version of the TruVision IP
& Megapixel range provides a vandal proof IR
indoor solution up to five megapixel. Available
with a wide range of appropriate brackets and
wall mounts, these cameras can provide a
solution to the most advanced of needs.
Typical application areas are places where crisp
images are required, even in pitch black
darkness, such as retail, banking, airports,
gaming or mass transit.
Standard Features
E
Maximum Resolution: 1280x960 @ 12.5 fps
Maximum Real Time Resolution: 1280x720 @ 25 fps
E
(HD)
E
Designed to PSIA and ONVIF open standards
E
H.264 compression with dual streaming functionality
E
Edge recording up to 32GB SDHC card
E
1/3” CCD image sensor
E
Motorized IR Cut Filter
E
0.45 Lux (Color)
E
0 Lux (IR on)
E
10m IR Illumination
E
Motion detection (396 zones)
E
Privacy masking (396 zones)
E
2 Input/Output
TVD-M1225V-2-P
1.3 MPX HD Indoor IR Dome ONVIF/PSIA
Specifications
Camera
Sensor:1.3 MPx 1/3'' Progressive Scan CCD
Day/Night:Motorized IR Cut Filter
IR LEDs (Range):Yes (10m)
IP Compression/Standard:H.264 PSIA/ONVIF
Maximum Resolution (@ FPS):1280 X 960 (12,5 FPS)
Maximum Real Time Resolution (@ FPS):1280 X 720 (25 FPS)
Dual Streaming:Yes
Video Bit Rate:32 Kbps to 8 Mbps, adjustable
Sensitivity:0.45 Lux (Color) 0 Lux (IR On)
S/N Ratio:> 50 dB
Auto Exposure (shutter):1/25s to 1/100,000s
Composite Output (BNC):PAL, 1.0 Vp-p @ 75 ohm
Lens :2.7-9mm, F1.4 Autoiris
Electrical
Voltage Input:12 VDC PoE (IEEE 802.3af)
Power Consumption:7.5 Watts (9.5 Watts IR on)
I/O Connection:Terminal Plug RJ45
Network
Network Protocols:TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTCP, PPPoE, SMTP, NTP
Ethernet/IP:CoS 802.1 p/Q, QoS, IPv4
PoE IEEE:802.3af
LocalStorage
Media:SDHC (Secure locked card slot)
Capacity:Up to 32GB
Audio G.711
Input:1 ch. 3.5 mm audio interface (2.0 - 2.4 Vp-p, 1 kOhm)
Output:1 ch. 3.5 mm audio interface (Line level, 600 Ohm)
Audio Bitrate:16Kbps
Camera Analytics
Motion Detection:On-board 396 zones per camera
Privacy Masking:On-board 396 zones per camera
Alarm
Alarm Input:2
Alarm Output:2 Form C alarm relay
I/O Connection:Terminal Plug
Mechanical/ Environmental
Dimensions:140 × 120 mm (5.5 x 4.7 in.)
Weight:1.3kg (2.8lbs)
Storage Temperature:-20 to 70°C (-4 to 158°F)
Operating Temperature:-10°C to 60°C (14 to 140°F)
Environmental Rating:Indoor Vandal-Resistant
PC Requirements
Intel-based PC:1 Ghz or faster
Memory:1 GB RAM
Operating System:Windows® XP, Vista or 7
CGI:Direct X 9.0 or later
Browser:Microsoft Internet Explorer 6.0 or later
Ordering Information
Part No. Description
TVD-M1225V-2-P
As a company of innovation, UTC Fire & Security reserves the right to change product specifications without notice. For the latest
product specifications, visit UTC Fire & Security online or contact your sales representative.
IPS-NO-TVD-M1225V-2-P-2015-06-3 10:20:05
