Intrusion
Simon® XTi-5
Self-contained, wireless,
security system
OVERVIEW
The next generation of Simon XTi builds on the reliability of the
original by adding a larger display and updated housing. This
self-contained security system provides color LCD touch screen
convenience, at-a-glance system status, and easy to use iconbased system operation all at a cost conscious price point.
The Simon XTi-5 is ideally suited for monitoring the security and
safety of houses, condominiums and apartments. The ability to
add on Z-Wave
the Interlogix
and real-time look-ins — make it a perfect solution for whole home
security and comfort management.
All these functions can also be controlled remotely using Web
portal and mobile applications powered by Alarm.com
enabled device (laptop, smartphone or tablet) provides access to
Simon XTi-5’s functionality and even includes lifestyle-enhancing
information such as the current outdoor temperature and a
four-day weather forecast.
The Simon XTi-5 panel comes standard with 40 wireless zones,
or it can be set up with 38 wireless zones and two built-in
hardwired supervised burglary zones (normally-closed loop only).
The built-in radio receiver works with both crystal and SAW Learn
Mode sensors.
®
lights, thermostats and door locks, in addition to
®
Image Sensor — for viewing recorded snap shots
®
. Any Web-
New design
with larger
5-inch
screen
STANDARD FE ATURES
• Simple, no button interface; All interaction occurs via
a 5-inch color LCD with graphical user interface (GUI)
• At-a-glance status of home and property
• Actionable status icons
– Identify door/window open
– Last motion detected
– “My property” icon status; covers all non-window,
non-interior motion changes
• Menu-based system programming and test
• 40 wireless zones — two can be hardwired
(normally-closed loop only)
• Built-in PSTN 2-way voice capability (over Cellular with
optional module)
• Supports both crystal and SAW LearnMode sensors,
repeaters
• Supports 2-way RF products (version-specific)
• Chime feature for monitoring door, window or
motion activity
• 1 master access code and 8 programmable
user access codes of 3 to 6 digits
• SIA or CID central station reporting formats and
Voice Event Notification reporting via PSTN (native)
and/or optional Cellular and IP modules
• Program panel with built-in touch screen or
Enterprise Downloader software v4.4 or later
• Expansion options
– Internet-based interactivity (with third-party providers)
– Support for on-premises remote control with optional
talking touchpad or touch screen accessories
– Compatible with the Interlogix Image Sensor, providing
on-screen image display
interlogix.com/simonxti
FEATURES DESIGNED TO SECURE YOUR
HOME AND PROTECT YOUR FAMILY
Safe
Two-way communication – microphone for emergency two-way
communication with monitoring station personnel
Battery backup – backup power supply keeps the system
operational during power failures
Effective
Emergency fast-action buttons – in monitored systems quickly
summon Fire, Medical or Police assistance
Integrated siren – siren is compliant with UL listing requirements on
sound output, to provide effective alert notice throughout the home
Hear clearly – speaker for voice audio status messages and
prompts, live communications with monitoring station personnel
and configurable “voice chimes”
Convenient
Easy to read – large 5” color LCD touch screen provides “At-aGlance” status of home and property
User friendly – simple, easy to understand and operate, icon driven,
touch screen interface — great for users of all ages
Stay connected – control lights, thermostats, door locks and
other Z-Wave
and value
®
enabled devices for enhanced convenience, safety
At-A-Glance Home Status
Quick, at-a-glance home status provides a complete view of home
systems including security, indoor temperature and weather.
Electronic Keypad
Offers user-friendly system control and operation via the
electronic keypad.
OPTIONAL SERVICE
Options to make the most of your system
With the optional cellular reporting and Alarm.com® features,
®
Simon
XTi-5 enables remote monitoring and control of your security
system for convenient and effective home protection.
• Receive voice, email or text message reports
• Remote lighting, locks and thermostat control
• Monitor household activity in real time
• Arm/Disarm Simon XTi from anywhere
• Image capture and display via wireless Image Sensors
• Powered by Alarm.com for advanced interactive home services
– Optional HVAC, lighting, and lock control devices with
programmable options help promote energy savings
– Four-day weather forecast adds value and lifestyle convenience
– Z-Wave door lock support and indicator status
Thermostatic Control
Thermostatic control makes it easy to set automation
schedules in conjunction with lighting and security events
to help save energy and reduce utility bills.
Menu-Based System Programming
Menu-based system programming and testing enables fast
and accurate installation of the panel and supported devices.
Specifications
Electrical
Required transformer
Fuse Non-replaceable transformer fuse
Backup batteries 6VDC, 2100mAh, NIMH (600-XTI-BAT)
Backup time 24 hours (fully charged)
Battery test 10 seconds under load every 4 hours
Touch Screen
Radio receiver
Type SAW-controlled superheterodyne
Frequency 319.5 MHz/ Bandwidth 350 kHz
Sensitivity 110 dBm nominal
Nom. range without
GSM module present Approx. 1100-ft. open-air receiving range
Nom. range with GSM
module present Approx. 800-ft. open-air receiving range
Telephone/modem
Dialing DTMF or pulse
Modem Modified Bell 103 (110 or 300 bps)
Telephone interface Line seizure relay
Inputs/outputs
Total input zones
Auxiliary power
Siren output 1 Hardwire Interior Siren (5.1 to 9VDC)
Digitized voice
Digitization type
Playback rate 88,200 bits/second
Environmental
Operating temperature 32°F~122°F (0°C~49°C)
Relative humidity 90% max. (non-condensing)
Physical
Color White
Dimensions (LxWxD) 5.97 x 7.24 x 1.71 in. (151 x 183 x 43 mm)
Weight, without battery 1.0 lb. (454 g)
Installation Wall mount
Construction, chassis ABS
Class II, 9VAC, 3.34A, 60 Hz (60899,
60-899-CN in Canada)
5” diagonal (4.3” x 2.5”), Resistive Touch
Screen; 480x272 resolution, 64k colors
40 or 38 wireless and 2 hardwire
(normally-closed loop only)
Unregulated 5.1 to 12VDC; power-limited
to 250mA (maximum) @ 10VDC
Continuous Variable Slope Data
(CVSD) Modulation
Ordering Information
Simon® XTi-5 Packages
80-632-3N-XT5 Simon X Ti Starter Kit (5” touch screen)
80-649-3N-XT5
80-632-3N-CN-XT5
80-632-3N-MN-XT5
80-649-3N-XT5-TS
Accessories (sample list of compatible devices)
TX-1012-01-1 Micro Crystal Door/Window Sensor
60-362N-10-319.5 Crystal Door/Window Sensor
TX- E101 4-Button Chrome Keyfob
TX-4200-01-1 Wireless Personal Panic Device
60-807-95R SAW Pet Immune Motion Sensor
13-949 Interior Siren
13-950 Exterior Siren
60-924-RF-TS Two-Way Talking Touch Screen
60-924-RF-TS-FR French Two-Way Talking Touch Screen
TX-6310-01-1 Carbon Monoxide
TX- E231
TX-6010-01-1 Smoke Detector
TX-E601 Flood/Freeze Sensors
600-1048-XT-LTE-VZ
600-1048-XT-ZX-TM
600-1048-XT-ZX-AT
600-1048-XT-ZX-VZ
600-1048-XT-ZX-RG
600-9400-IMAG Image Sensor
13-CT32 Z-Wave Thermostat
IS-ZW-AM-1
IS -Z W-LM-1 Z-Wave Plug-in Lamp Module
IS -Z W- OM-1 Z-Wave Outdoor Module
IS-ZW-WS-1 Z-Wave In-wall On/Off Switch
Simon XTi Crystal 3/1/1 Kit (5” touch
screen)
Simon XTi Canadian Starter Kit (5” touch
screen)
®
Monotronics
Simon XTi Starter Kit (5”
touch screen)
Simon XTi (5” touch screen) w/one TwoWay Touch Screen (available early 2017)
Door/Window Sensor w/External Contact
Input
LTE Radio for XT/XTi w/Z-Wave
®
and
Image Sensor Ready for Verizon® Network
HSPA Radio for XT/XTi w/Z-Wave and
Image Sensor Ready for T-Mobile
HSPA Radio for XT/XTi w/Z-Wave and
Image Sensor Ready for AT&T
®
Network
™
Network
CDMA Radio for XT/XTi w/Z-Wave and
Image Sensor Ready for Verizon Network
HSPA Radio for XT/XTi w/Z-Wave and Image Sensor Ready for Rogers
™
Network
Z-Wave Plug-in Fluorescent Light and
Appliance Module
Regulatory
FCC Part 15, Part 68
UL
985, 1023, 1635/ULC Listing
ORD-C102319-74,ULC-S545-M89
CSFM California State Fire Marshall
CP01-2007
Simon® XTi-5
Self-contained, wireless
security system
Synchronized homes to keep families
connected, protected and a whole lot more.
The Simon XTi-5 is designed to support a variety of devices that heighten security and
enhance convenience. These accessories make it easy to customize systems that meet
each user’s specific needs and priorities.

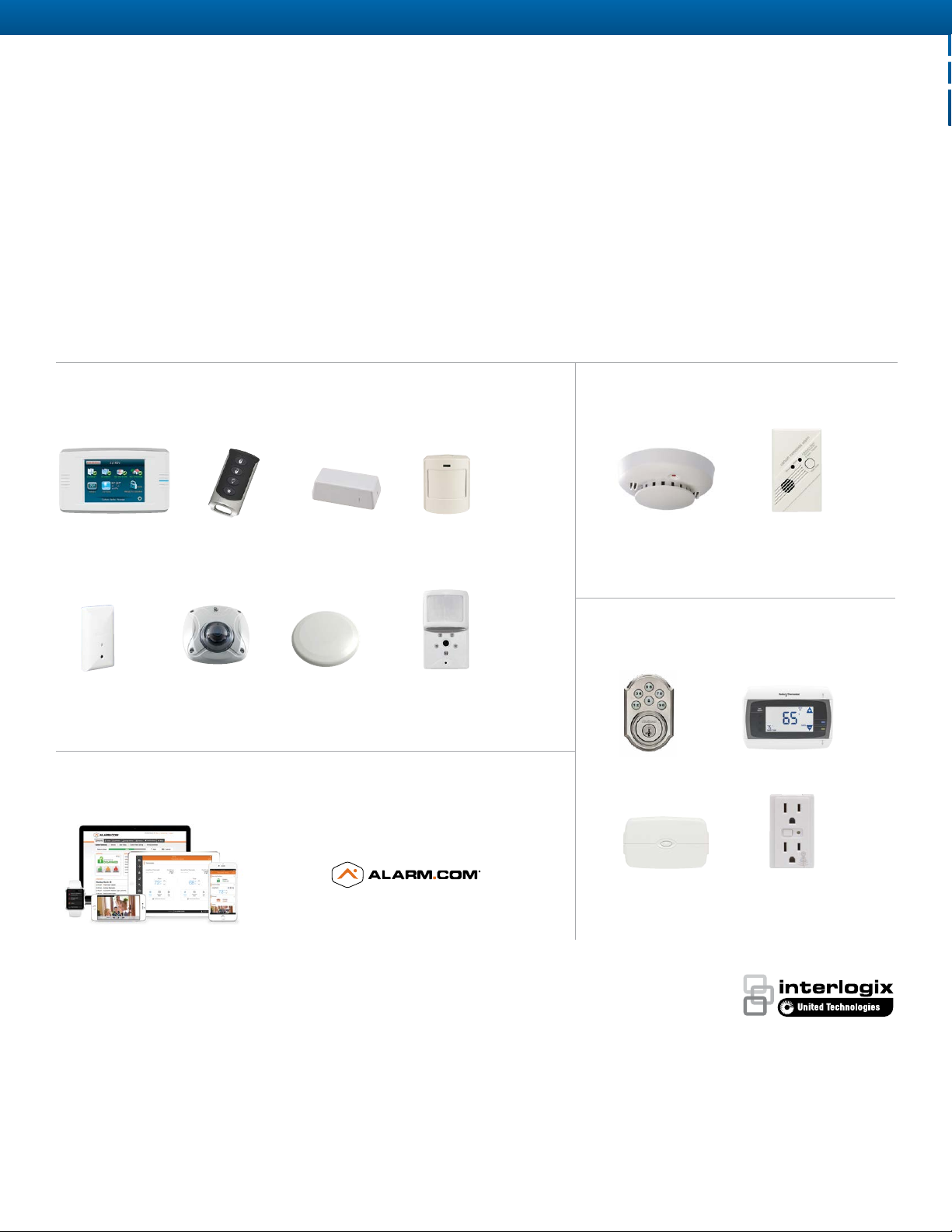

SECURITY
Two-Way Talking
Touch Screen
Glassbreak sensor
Keyfob Door/Window
sensors
Video camera Image sensorEnvironmental
sensor
INTERACTIVE HOME SERVICES
PIR motion detector
LIFE SAFETY
Smoke and heat
detector
LIFESTYLE
Locks
Carbon Monoxide
detector
Thermostats
powered by
Interactive
Services
Z-W av e® is a registered US Trademark of Zensys A/S.
Complies with FCC and Industry Canada regulations.
Appliance/Lamp
modules
Lighting
interlogix.com
Specifications subject to change without notice.
© 2016 United Technologies Corporation.
All trademarks are the property of their respective
owners. Interlogix is part of UTC Climate, Controls &
Security, a unit of United Technologies Corporation.
All rights reserved.
20 16/ 06 (L I-17 96 )
