Magnetic Contacts

Security

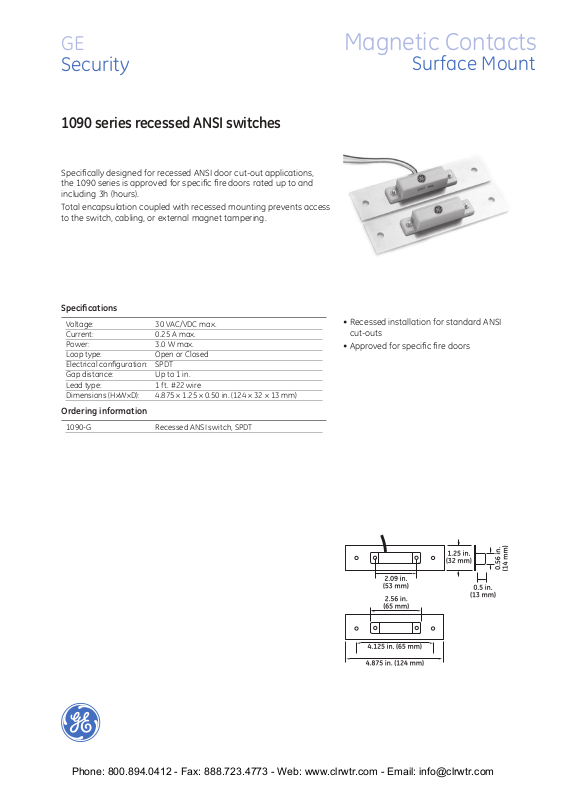

1090 series recessed ANSI switches

Specifically designed for recessed ANSI door cut-out applications,
the 1090 series is approved for specific fire doors rated up to and
including 3h (hours).

Total encapsulation coupled with recessed mounting prevents access
to the switch, cabling, or external magnet tampering.

Specifications

Voltage: 30 VAC/VDC max.
Current: 0.25 A max.
Power: 3.0 W max.
Loop type: Open or Closed
Electrical configuration: SPDT
Gap distance: Up to 1 in.
Lead type: 1 ft. #22 wire
Dimensions (HxWxD): 4.875 x 1.25 x 0.50 in. (124 x 32 x 13 mm)

Surface Mount

• Recessed installation for standard ANSI
cut-outs

• Approved for specific fire doors

Ordering information

1090-G Recessed ANSI switch, SPDT
