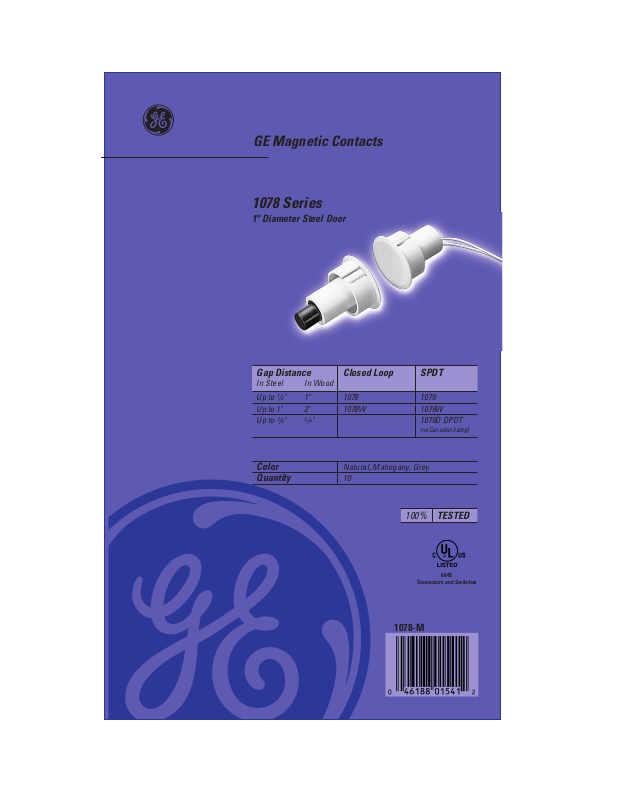

Interlogix 1078 User Manual
GE Magnetic Contacts
1078 Series
1" Diameter Steel Door
Gap Distance Closed Loop SPDT
In Steel In Wood
Up to 1/2" 1" 1078 1076
Up to 1" 2" 1078W 1076W
3
3
/8"
Up to
/4" 1076D DPDT
(no Canadian listing)
Color
Quantity
Natural, Mahogany, Grey
10
100% TESTED
Connectors and Switches
1078-M
604S
1078 Series
1
" Diameter Steel Door with Wire Leads
Installation Instructions
1. Drill appropriate diameter and depth holes for contact and magnet for contact
2. Connect contact leads to security system loop and test for continuity.
3. Lightly coat the contact and magnet with RTV mounting compound (part number 1905)
UL Specifications
Number Type Configuration
1076W Open or Closed SPDT Up to 1" 2"
(no Canadian listing)
1078W Closed N/O Up to 1" 2"
1
/8" for contact and 1" x 11/2" for magnet).
(1" x 1
and insert into respective holes.
.05"
1.20"
30.5mm
1.3mm
1.51"
38.4mm
.63"
16mm
.38"
9.7mm
24.1mm
.95"
Magnet
Part No. 1921
(included)
.63"
16mm
.99"
25.1mm
1.12"
28.4mm
.5"
12.7mm
Part Loop Electrical Gap Distance
In Steel In Wood
1076 Open or Closed SPDT Up to
1076D Open or Closed DPDT Up to
1078 Closed N/O Up to
1
/
2
"1"
3
/
8
"
1
/
2
"1"
3
/
4
"
**
FORM A (1078, 1078W) FORM C (1076, 1076W)
Voltage: 100V AC/DC max Voltage: 30V AC/DC max
Current: 0.5A max Current: 0.25A max
Power: 7.5W max Power: 3.0W max
* Gap specifications are nominal and may vary ± 20%. Gap specifications are for switch to make.
Break distance is approximately 1.1 to 1.5 times make.
** European Union Specifications: 48V AC/DC max., 0.5 Amp
WARNING: Each electrical rating is an individual maximum and cannot be exceeded!
C-UL Specifications
All Contacts: 30V DC, 50 mA max Gap Specifications:
See UL Gap Specifications
www.GE-Interlogix.com 2266 Second Street North
1040683 Rev A 01/03
12345 SW Leveton Drive
Tualatin, OR 97062
Phone: 503-692-4052
USA & Canada: 800-547-2556
Technical Service: 800-648-7424
Faxback: 800-483-2495
North St. Paul, MN 55109
Phone: 651-777-2690
USA & Canada: 800-777-5484
Technical Service: 800-777-2624
Made in Taiwan
*
