Interlink electronic VersaPoint RF User Manual

USERS GUIDE

 Compatible with the new RemotePoint RF

Users Guide

Version 1.1

 100-foot range

 360° navigation

 Sleek and elegant

 8 address pairs to eliminate interference

VERSAPOINT RF WIRELESS KEYBOARD

VersaPointRF® Wireless Keyboard Users Guide

Version 1.1

Interlink Electronics, the 6 dot logo, VersaPoint and VersaPad are registered trademarks of

2001 © Interlink Electronics, Inc. All Rights Reserved.

Interlink ELectronics, Inc. All other trademarks are the property of their respective owners.

Protected by the following U.S. and Foreign patents: 4,489,302; 5,296,837; 5,302,936; 5,659,334;

5,828,363; 5,847,639; 6,084,572; and one or more of the following International Patent Applications:

DE-4236187A1; EP-91-120226.5; and other U.S. and International patents pending.

P/N 90-15730 1/01

USERS GUIDE

Table of Contents

1. Introduction .................................................... Page 1

2. Getting Started ............................................... Page 2

System Requirements
Installing the Keyboard Batteries
Connecting the Receiver
Selecting an Address
Positioning the Receiver

3. Using the Keyboard ....................................... Page 6

Function (Fn) Key
Numeric Keypad
Status Indicators
Keyboard Range
Battery Life

4. Using VersaPoint® Pressure

Pointing Technology ...................................... Page 9

Moving the Cursor
Click Buttons

5. Troubleshooting ........................................... Page 10

Appendix A  General Specifications
Appendix B  Technical Support
Appendix C  Warranty
Appendix D  FCC Certification

Canadian conformance

1. Introduction

USERS GUIDE

About the

VersaPointRF

Wireless

Keyboard

Included in

the Box:

Optional

Equipment

Your new VersaPointRF Wireless Keyboard

®

combines pointing mouse functionality with touch
typing, all in a convenient wireless package. Its
perfect for relaxed Internet browsing, video
conferencing, or everyday computing.

§ VersaPointRF Wireless Keyboard

§ VersaPointRF Wireless Keyboard receiver with

6 cable for USB connection

§ VersaPointRF Wireless Keyboard Users Guide*

with tear out Registration Card

§ 4  AA alkaline batteries

§ RemotePointRF

Interlinks cordless pointing device is the perfect
companion for your RF keyboard. If your system
does not include one, contact your dealer today.

*Note: If your package includes a CD ROM, the

Users Guide is located on the CD

1

VERSAPOINT RF WIRELESS KEYBOARD

2. Getting Started

System

Requirements

Installing the

Keyboard

Batteries

Connecting

the Receiver

§ IBM PC compatible computer

§ USB port available

§ Microsoft Windows 98 or higher

1. Turn the keyboard over onto its face.

2. By pressing the latch tab toward the center of the

keyboard, pry open the battery door with your
fingers.

3. Insert 4 AA alkaline batteries (included) with the

positive (+) and negative (-) orientation as shown
inside the compartment (negative is at the flat
end of the battery and goes toward the spring).

4. Replace the battery door by ensuring both

retaining tabs fit into their slots and the latch tab
snaps into place.

1. Shut down Windows and turn off your computer.

2. Locate an enabled USB port on the back of your

computer.

3. Plug the connector on the end of the receiver

cable into the USB port on your computer.

4. Start Windows and follow the on-screen instruc-

tions to enable/install the Windows drivers for
the USB. keyboard and mouse as needed.

2

USERS GUIDE

Selecting an

Address

Changing

the

Keyboard

Address

The address on which your keyboard and receiver
communicate is pre-set at the factory. The factory
setting is address 1. In most situations this will never
need adjustment. However, if you are operating
several RF devices in close proximity, or there are
interfering sources, you may need to change the
address from the factory setting. We recommend that
you first try the system out to be sure that you need to
change addresses. There are 8 possible addresses to
choose from. The 8 addresses are selected thru 4
switches. Both the keyboard and receiver must be set
to the same address.

1. Open the battery door on the backside of the key-

board and remove the batteries. (See Installing
the Keyboard Batteries section on the previous

page). Notice the
cutout hole in the center
of the battery compart­ment, visible once the
batteries are removed.

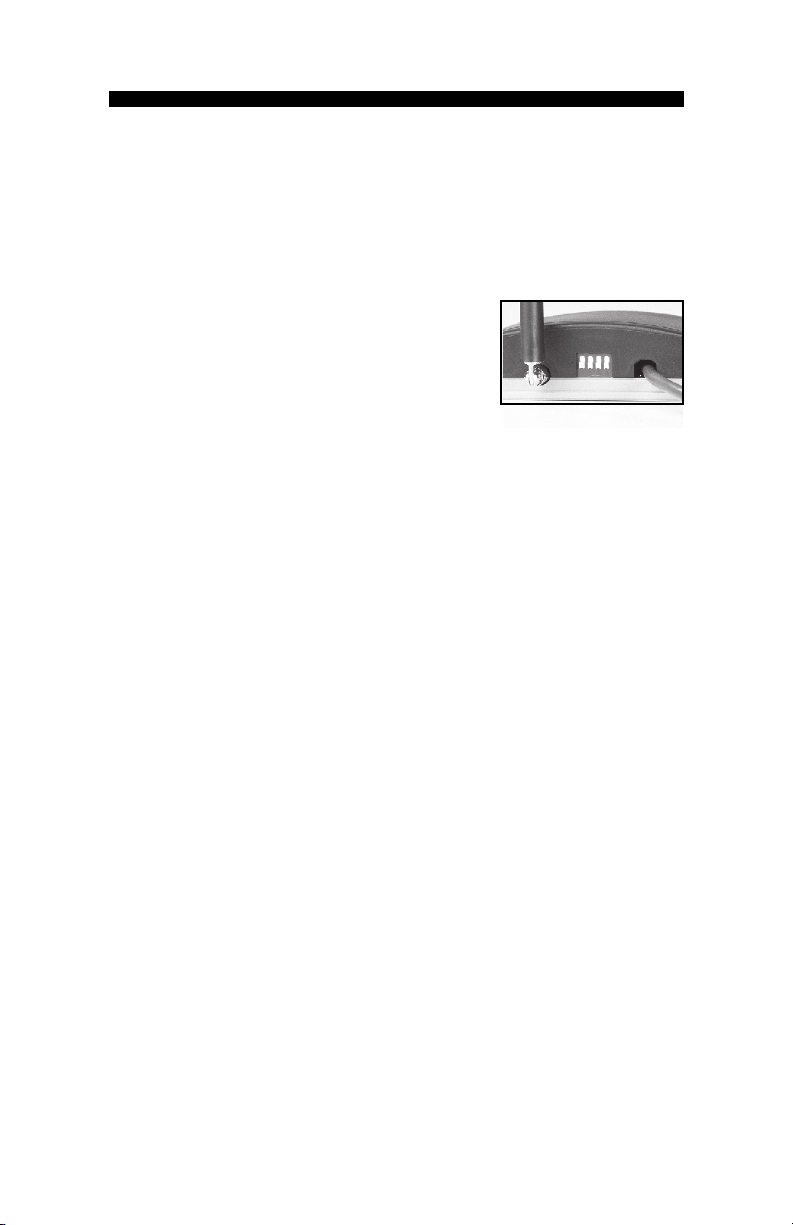

2. Use a small pointed tool

(such as a pencil) to set
the switches that are
located inside the cutout
hole. Address selection is
made per the chart below
(which is labeled inside the battery door cover).

3
