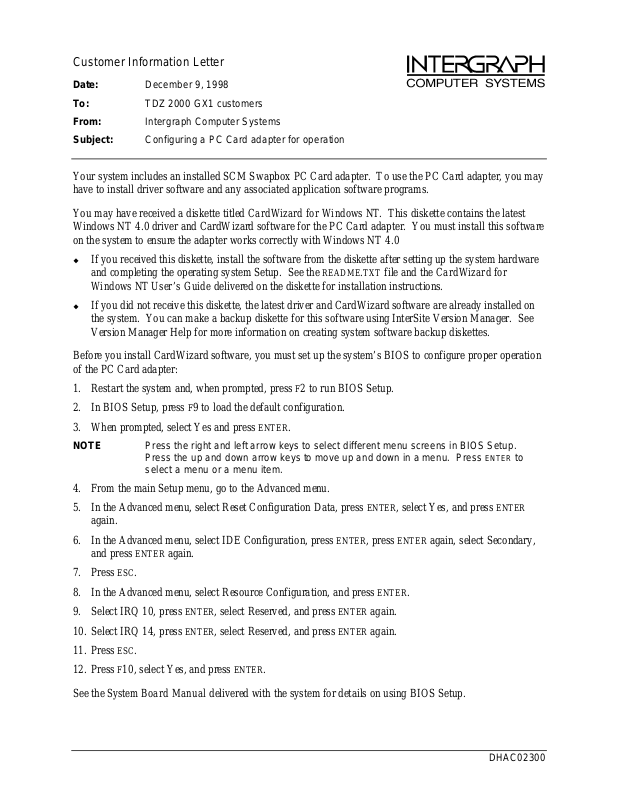

Customer Information Letter
Date: December 9, 1998
To: TDZ 2000 GX1 customers
From: Intergraph Computer Systems
Subject: Configuring a PC Card adapter for operation
Your system includes an installed SCM Swapbox PC Card adapter. To use the PC Card adapter, you may
have to install driver software and any associated application software programs.
You may have received a diskette titled CardWizard for Windows NT. This diskette contains the latest
Windows NT 4.0 driver and CardWizard software for the PC Card adapter. You must install this software
on the system to ensure the adapter works correctly with Windows NT 4.0
u If you received this diskette, install the software from the diskette after setting up the system hardware
and completing the operating system Setup. See the README.TXT file and the CardWizard for
Windows NT User’s Guide delivered on the diskette for installation instructions.
u If you did not receive this diskette, the latest driver and CardWizard software are already installed on
the system. You can make a backup diskette for this software using InterSite Version Manager. See
Version Manager Help for more information on creating system software backup diskettes.
Before you install CardWizard software, you must set up the system’s BIOS to configure proper operation
of the PC Card adapter:
1. Restart the system and, when prompted, press F2 to run BIOS Setup.
2. In BIOS Setup, press F9 to load the default configuration.
3. When prompted, select Yes and press ENTER.
NOTE Press the right and left arrow keys to select different menu screens in BIOS Setup.
Press the up and down arrow keys to move up and down in a menu. Press ENTER to
select a menu or a menu item.
4. From the main Setup menu, go to the Advanced menu.
5. In the Advanced menu, select Reset Configuration Data, press ENTER, select Yes, and press ENTER
again.
6. In the Advanced menu, select IDE Configuration, press ENTER, press ENTER again, select Secondary,
and press ENTER again.
7. Press ESC.
8. In the Advanced menu, select Resource Configuration, and press ENTER.
9. Select IRQ 10, press ENTER, select Reserved, and press ENTER again.
10. Select IRQ 14, press ENTER, select Reserved, and press ENTER again.
11. Press ESC.
12. Press F10, select Yes, and press ENTER.
See the System Board Manual delivered with the system for details on using BIOS Setup.
DHAC02300
Page 2
Page 2 of 2
After restarting the system and logging on to Windows NT, install CardWizard software, using the default
settings during Setup. See the documentation delivered with the PC Card adapter for detailed CardWizard
installation and configuration instructions.
NOTE If you reinstall Windows NT 4.0 Service Pack 3 software on a system with a PC Card
adapter, you must install the CardWizard software after installing Service Pack 3
software. If you do not do this, you may experience problems when using the PC Card
adapter. This is an exception to the general rule that you must reinstall Service Pack 3
software any time you change hardware or software components on a system.
Depending on your system’s configuration, you may have to reserve an interrupt request (IRQ) for a PC
Card device inserted in the PC Card adapter.
