Dual-Core Intel® Xeon® Processor LV and Intel

3100 Chipset

Development Kit

User’s Manual

January 2007

Order Number: 315 879-002

Lega l Li nes and Discl a imers

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHAT SOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELA T ING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications.

Intel may make changes to specifications and product descriptions at any time, without notice. Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the

present e d subject m att er. The f urnishing o f do cu m ents a nd ot h er mat e ri als a nd i nfo rm ati on do es n ot provide any license, expre ss o r impl ied, by es topp el or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different processor families. See http://www.intel.com/products/processor_number for details.

The Intel® Pentium® M Processor and Intel® 3100 Chipset Development Kit may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order. Copies of documents which have an order number and are referenced in this document, or other Intel literature may be obtained by calling

1-800-548-4725 or by visiting Intel's website at http://www.intel.com. Intel and Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. BunnyPeople, Celeron, Celeron Inside, Centrino, Centrino logo, Core Inside, Dialogic, FlashFile, i960, InstantIP, Intel, Intel logo, Intel386, Intel486,

Intel740, IntelDX2, IntelDX4, IntelSX2, Intel Core, Intel Inside, Intel Inside logo, Intel. Leap ahead., Intel. Leap ahead. logo, Intel NetBurst, Intel NetMerge, Intel NetStructure, Intel SingleDriver, Intel SpeedStep, Intel StrataFlash, Intel Viiv, Intel vPro, Intel XScale, IPLink, Itanium, Itanium Inside, MCS, MMX, Oplus, OverDrive, PDCharm, Pentium, Pentium Inside, skoool, Sound Mark, The Journey Inside, VTune, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chipset Development Kit User’s Manual January 2007 2 Order Nu mber: 315879 - 00 2

Contents

1.0 Product Description...................................................................................................7

1.1 Overview ..........................................................................................................7

1.1.1 Feature Summary ...................................................................................7

1.1.2 Board Layout ..........................................................................................9

1.2 Processors........................................................................................................ 11

1.3 System Memory................................................................................................11

1.3.1 DDR2-400 DIMM Slot Populations.............................................................11

1.3.2 DDR2 DIMM Ordering Overview................................................................13

1.4 Intel

1.5 Supported Operating Systems.............................................................................21

1.6 Supported BIOS Features...................................................................................22

1.7 Power Supply....................................................................................................23

1.8 Thermal and Mechanical Components...................................................................23

1.9 Physical and Mechanical Board Specifications ........................................................26

1.10 Debug Ports .....................................................................................................26

1.11 Real Time Clock (RTC), CMOS SRAM, and Battery..................................................26

2.0 Platform Setu p ........................................................................................................27

2.1 Connecting the Wires.........................................................................................27

2.2 Connecting Other Peripherals..............................................................................31

2.3 Connect Power..................................................................................................34

2.4 Turning On and Resetting the Board ....................................................................37

3.0 Technical Reference ................................................................................................38

3.1 Memory Resources ............................................................................................38

3.2 DMA Channels ..................................................................................................38

3.3 Fixed I/O Map ...................................................................................................38

3.4 Interrupts .......................................................................................................38

3.5 PCI Conventional Interrupt Routing Map...............................................................39

3.6 Connectors.......................................................................................................40

3.7 Jumper Block.................................................................................................... 44

3.8 Mechanical Considerations..................................................................................47

3100 Chipset........................................ ...................................................15

1.4.1 On-Board Peripherals..............................................................................15

1.4.2 On-Board I/O.........................................................................................16

1.4.3 I/O Slots for Expansion Capabilities ..........................................................18

1.4.4 Rear Panel I/O Connectors.......................................................................19

1.4.5 Hardware Server Management Features ....................................................20

1.6.1 ACPI.....................................................................................................22

1.8.1 Heatsinks..............................................................................................24

1.9.1 Mounting Holes......................................................................................26

2.1.1 Connect SATA cables .............................................................................. 28

2.1.2 Plugging In Memory............................... .................................................28

2.1.3 Connecting the Processor ........................................................................29

2.1.4 Connecting Heatsinks and Fans................................................................29

2.2.1 Add-in Connectors..................................................................................31

2.2.2 Rear Panel Connectors............................................................................32

2.2.3 Connecting a Floppy Drive.......................................................................33

2.2.4 Changing and/or Updating the BIOS Chip ..................................................33

2.2.5 Changing the CMOS Battery and Clearing CMOS......................................... 34

3.6.1 Back Panel Connectors............................................................................40

3.6.2 Component Side Connectors ................................................................... 40

3.8.1 Form Factor...........................................................................................47

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 3

Dual-Core Intel

Xeon® Processor LV and Intel® 3100 Chipset Development Kit

Contents

3.9 Electrical Considerations.....................................................................................48

3.9.1 DC Loading............................................................................................48

3.9.2 Add-in Board Considerations ...................................................................49

3.9.3 Fan Connector Curr ent Capability..............................................................49

3.9.4 Power Supply Considerations ...................................................................49

3.10 Thermal Considerations .....................................................................................49

4.0 Overview of BIOS Features......................................................................................51

4.1 Introduction......................................................................................................51

4.2 Resource Configuration.......................................................................................52

4.2.1 PCI Auto Configuration............................................................................52

4.3 System Management BIOS (SMBIOS) ..................................................................52

4.4 Legacy USB Support...........................................................................................52

4.5 BIOS Updates ...................................................................................................53

4.5.1 Language Support .................................................................................53

4.6 Boot Options ....................................................................................................53

4.6.1 CD-ROM Boot ........................................................................................53

4.6.2 Network Boot.........................................................................................53

4.6.3 USB Boot...............................................................................................54

4.6.4 Booting without Attached Devices ..... .......................................................54

4.6.5 Changing the Boot Device........................................................................54

4.7 BIOS Security Features ......................................................................................54

5.0 Error Message s an d Bee p Co de s...............................................................................55

5.1 Speakers..........................................................................................................55

5.2 BIOS Beep Codes ..............................................................................................55

5.3 BIOS Error Messages .........................................................................................55

5.4 Port 80h POST Codes ........................................................................................55

Figures

1 Board Components.................................................................................................... 9

2 Four-DIMM Implementation .......................................................................................13

3 Example of Single-Rank DIMM Population ........................ ............................................14

4 Example of Singl e-Rank and Dual-Rank DIMM Mixing Population.....................................14

5 Example of Dual-Rank DIMM Population ......................................................................14

6Intel

7 PCI On-Board Video Chip...........................................................................................16

8 Floppy Drive Connector .............................................................................................16

9 Front Panel Header...................................................................................................17

10 XDP Connector.........................................................................................................17

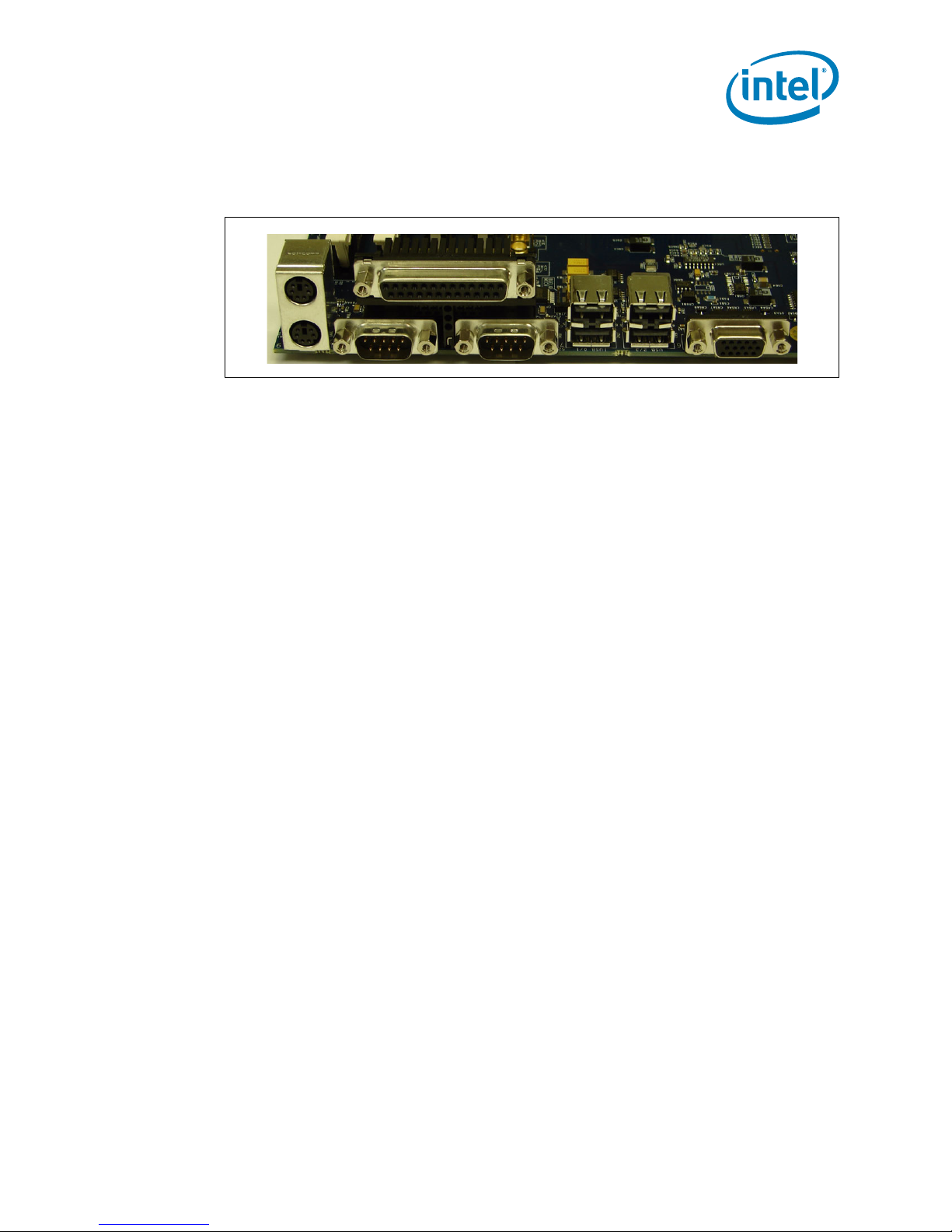

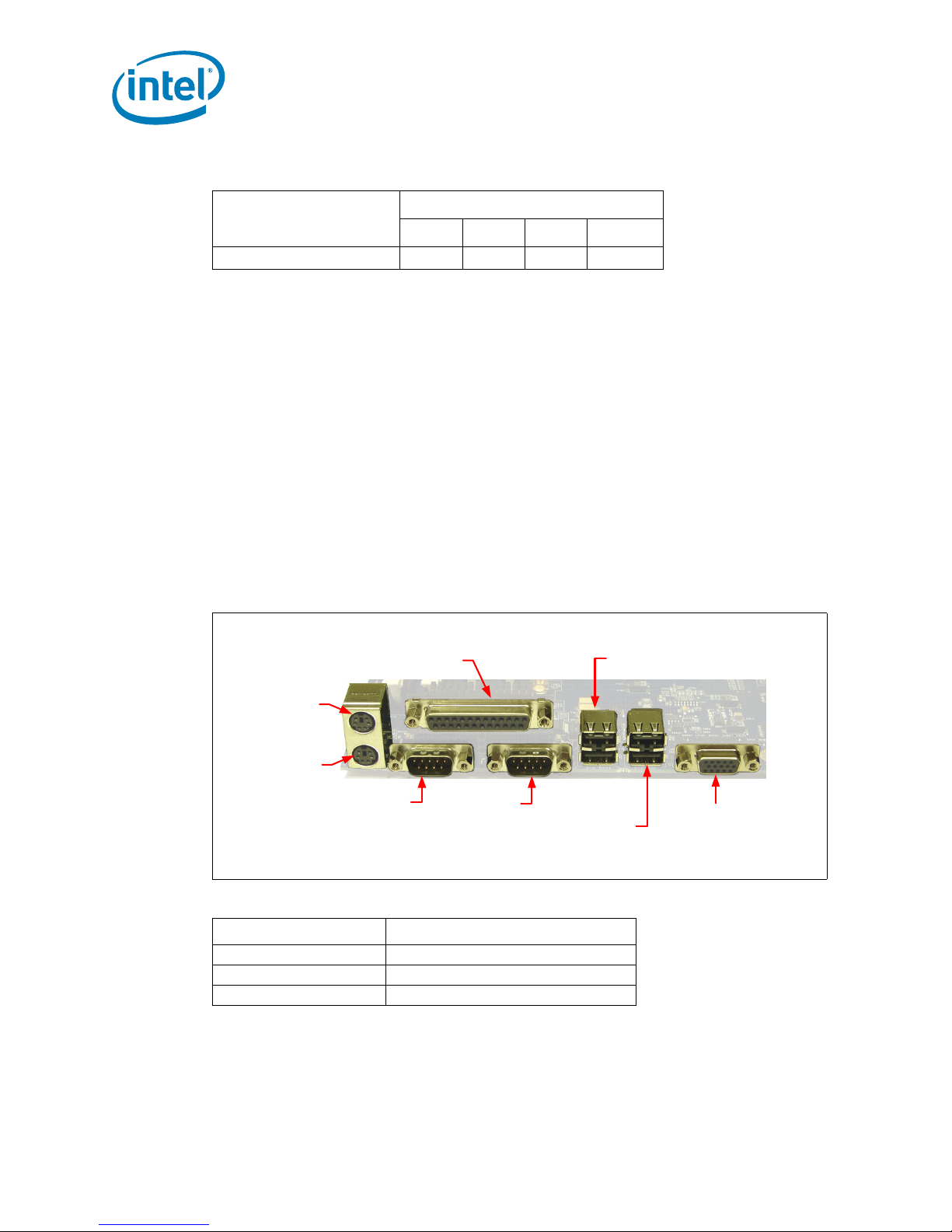

11 Rear Panel I/O Connectors.........................................................................................19

12 Intel

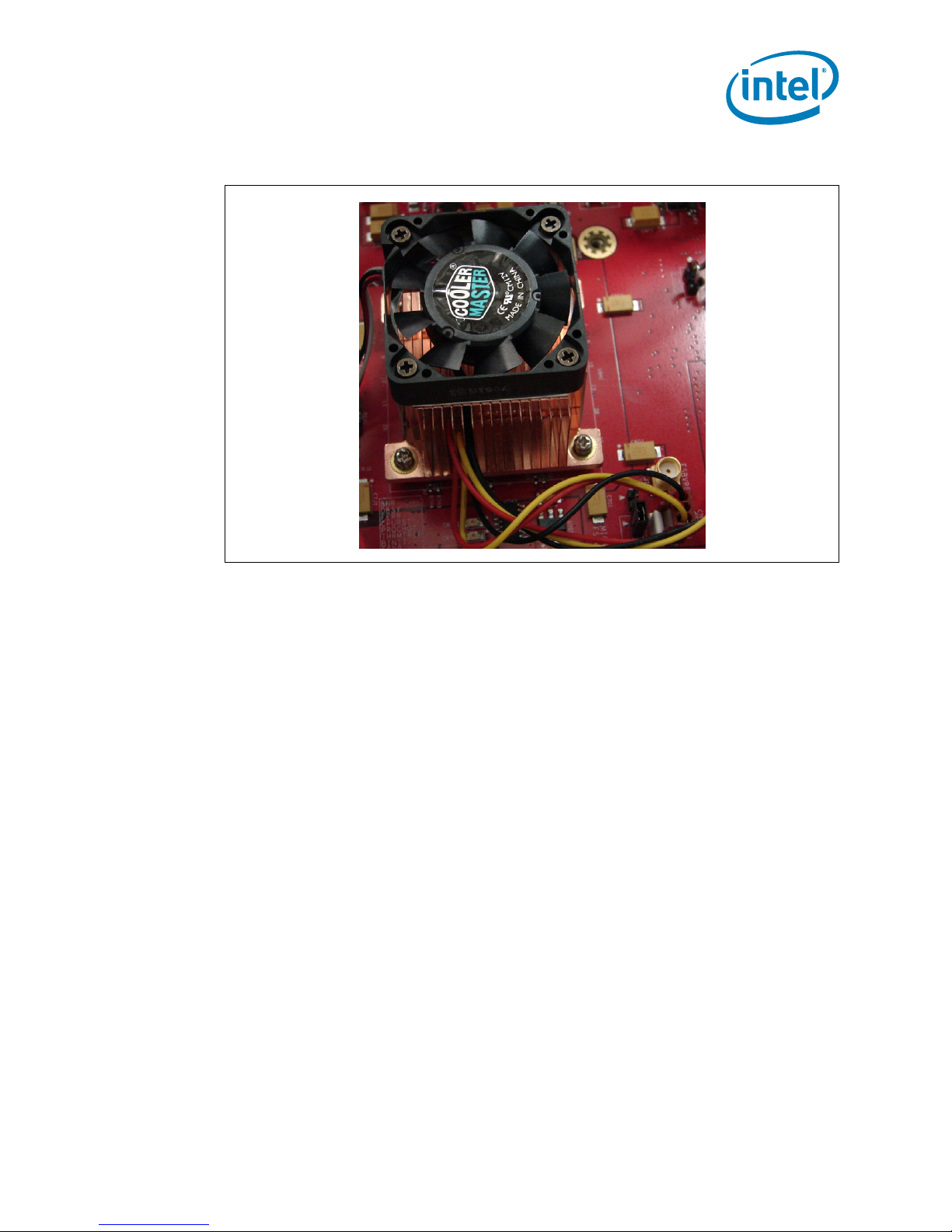

13 Processor Active Heatsink..........................................................................................25

14 Intel

15 SATA Ports ..............................................................................................................28

16 DIMM Sockets..........................................................................................................29

17 Processor Socket......................................................................................................29

18 Processor Fan Mounting Bracket.................................................................................30

19 Screwing the Processor Fan into the Mounting Bracket...................................................30

20 Fan Power Connectors...............................................................................................31

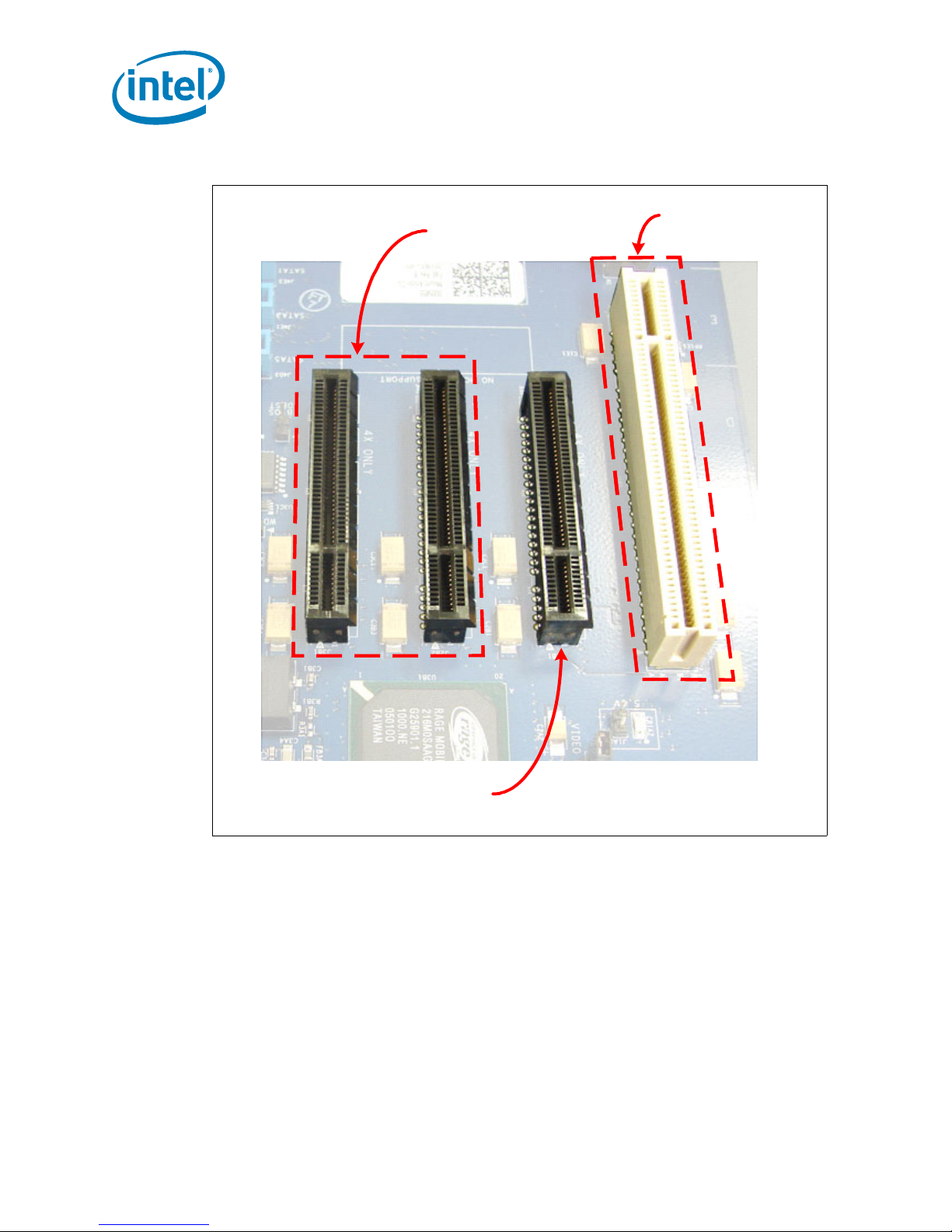

21 PCI Express* Connectors...........................................................................................32

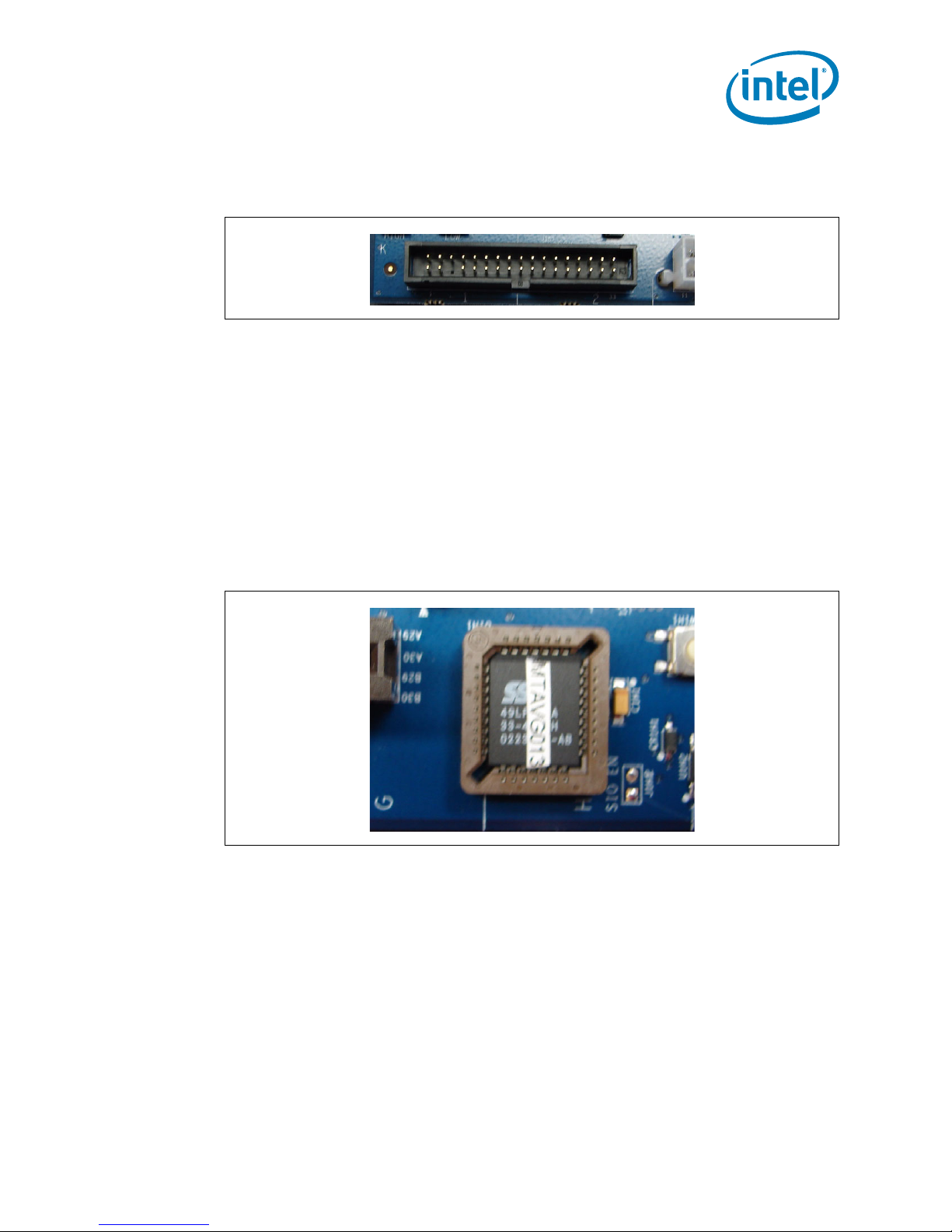

22 Floppy Drive Connector .............................................................................................33

23 Firmware Hub ..........................................................................................................33

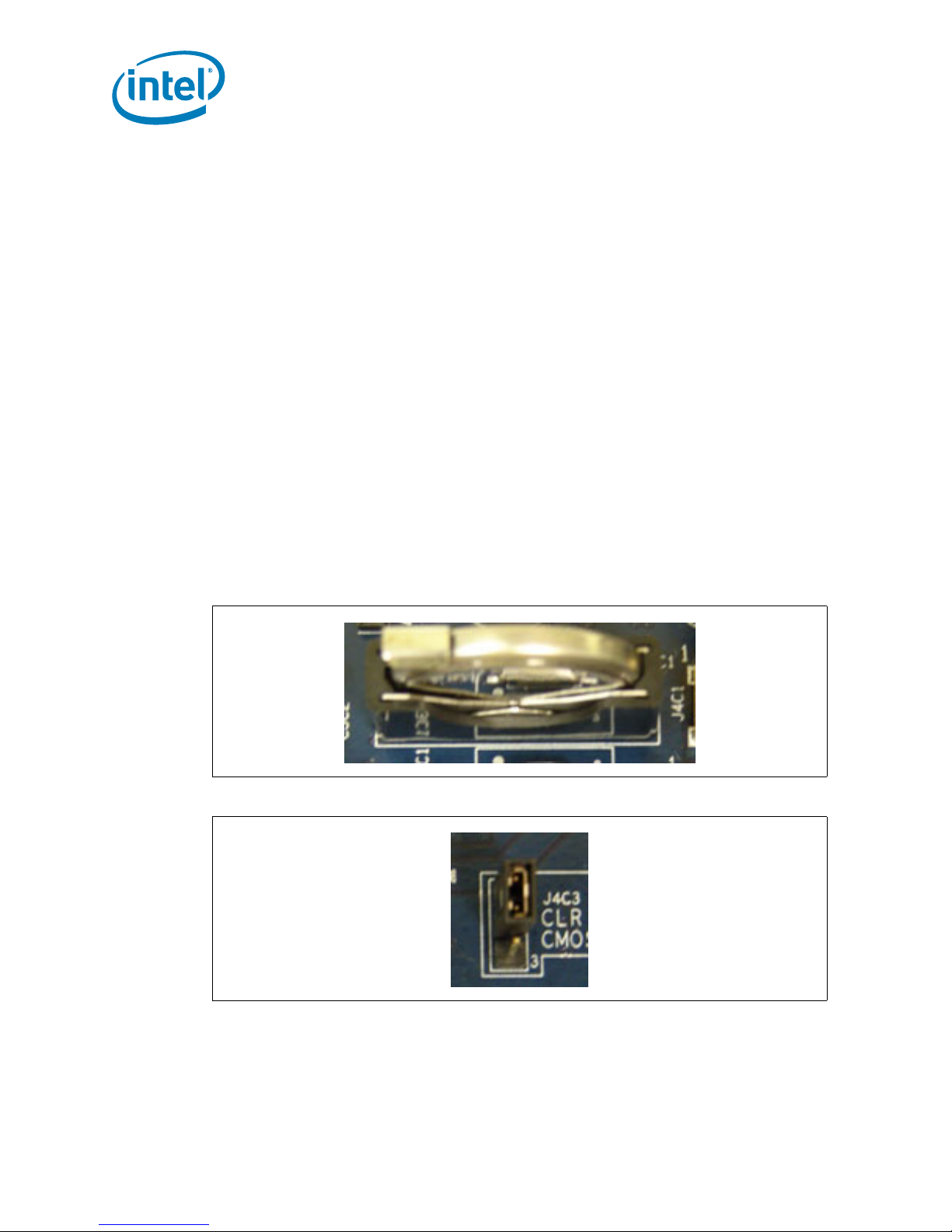

24 CMOS Battery..........................................................................................................34

3100 Chipset Block Diagram.............................................................................15

3100 Chipset Active Heatsink ...........................................................................24

3100 Chipset Passive Heatsink Design ...............................................................26

Dual-Core Intel User’s Manual January 2007 4 Order Nu mber: 315879 - 00 2

Xeon® Processor LV and Intel® 3100 Chipset Development Kit

Contents

25 CMOS Clear Jumper..................................................................................................34

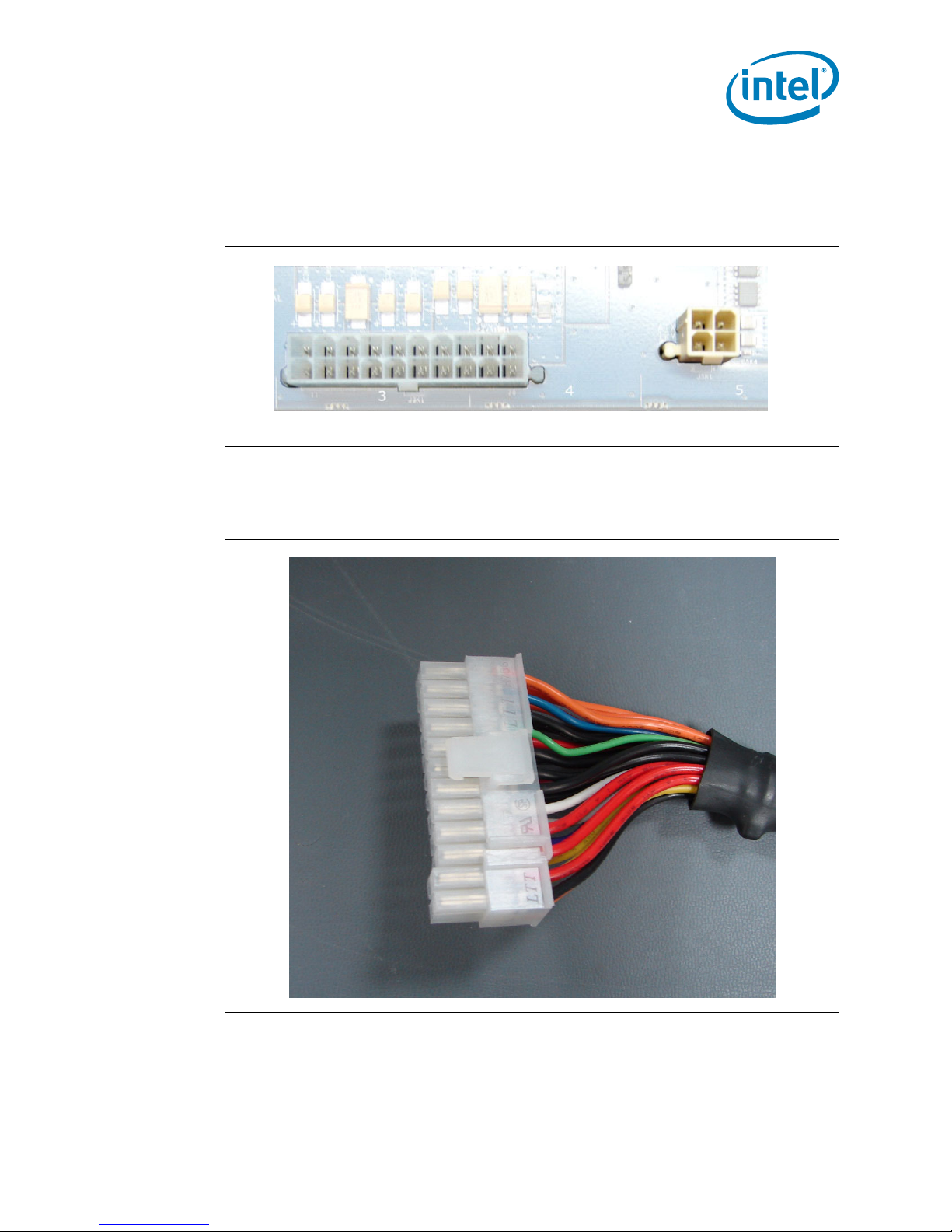

26 Power Connector......................................................................................................35

27 ATX Power Connector...............................................................................................35

28 Power Connector Cables............................................................................................ 36

29 Power and Reset Buttons ..........................................................................................37

30 Back Panel Connectors...................................................... ........................................40

31 ATX Power Connector...............................................................................................41

32 SATA Power Connector .............................................................................................41

33 Front Panel Connector .............................................................................................42

34 Jumper Block Locations and Pin Connectors.................................................................44

35 Form Factor ............................................................................................................48

36 Menu Bar ................................................................................................................51

Tables

1 Feature Summary ......................................................................................................7

2 Development Kit Contents ...........................................................................................8

3 Component Layout Description ....................................................................................9

4 Supported Microprocessors........................................................................................ 11

5 Supported DDR2-400 DIMM Populations......................................................................11

6 Supported BIOS Features..........................................................................................22

7 Effects of Pressing the Power Switch...........................................................................22

8 Thermal and Mechanical Components .........................................................................23

9 DMA Channels.........................................................................................................38

10 I/O x APIC Interrupts ............................................................................................... 39

11 PCI Interrupt Routing Map PCI Interrupt Source...........................................................40

12 Front Chassis Fan and Rear Chassis Fan Connectors .....................................................40

13 Main Power Connector Pin.........................................................................................41

14 SATA Power Connector .............................................................................................42

15 Auxiliary Front Panel Power and Reset Connector Pin .................................................... 42

16 Front Panel Connector ..............................................................................................42

17 Jumper Block Locations.............................................................................................45

18 DC Loading Characteristics Mode................................................................................49

19 Fan Connector Current Capability...............................................................................49

20 BIOS Setup Program Menu Bar ..................................................................................51

21 BIOS Setup Program Function Keys............................................................................51

22 Beep Code Types.....................................................................................................55

23 BIOS Error Messages................................................................................................55

24 Port 80h POST Code Ranges......................................................................................56

25 Typical Port 80h POST Sequence................................................................................56

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 5

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chipset Development Kit

Revision History

Date Revision Description

January 2007 002 Changed order of steps in Chapter 2.0, “Platform Set up ”.

December 2006 001 Initial public release.

Revision History

Dual-Core Intel User’s Manual January 2007 6 Order Nu mber: 315879 - 00 2

Xeon® Processor LV and Intel® 3100 Chipset Development Kit

Product Description

1.0 Product Description

1.1 Overview

1.1.1 Feature Summary

Table 1 summarizes the major features of the Customer Reference Board (CRB).

Table 1. Feature Summar y

Feature Description

Form Factor ATX (12.00 inches by 10.75 inches)

Processors

Memory

Chipset Intel Video On-board PCI ATI Rage* Mobility Video Chip I/O Control Low Pin Count (LPC) Bus I/O Controller

USB

Per ipheral Interfaces

BIOS

LAN Support Supports Dual Port PCI Express* Gigabit NIC

Expansion Capabilities

Hardware Mo ni t or Sub sys t em

Dual-Core Intel (Additional processor support can be found in Figure 4, “Supported

Microprocessors” on page 11 .)

Support for 400 MHz DDR2 Registered ECC Support for up to 16 GB of system memory Support for registered ECC only

3100 Chip se t

Support for USB 1.1 and 2.0 devices T otal of four USB ports UHCI or EHCI configurations

Two serial ports One parallel port Total of six SATA Ports (two available modes):

• Enhanced IDE mode- Utilizes four SATA ports

• AHCI mode- Utilizes Six SATA ports One floppy drive interface PS/2* keyboard and mouse ports

Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, SMBIOS, and Intel® Active Management Technology (Intel® AMT )

Three PCI Express* x4 bus add-in card connectors One PCI 32/33 bus add in card connector compliant with Specification 2.2

Hardware monitoring and fan control ASI Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Four fan connectors Four fan sense inputs use to monitor fan activity Fan speed control

Xeon® Processor LV

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 7

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Table 2 describes what is included in the Development Kit.

Table 2. Development Kit Contents

Feature Description

PCB CRB, Dual- Core Intel® Xeon® Processor LV and Intel Processor Dual-Core Intel Memory Two 1 GB DDR2 DIMMs Chipset Intel® 3100 Chipset Processor Heatsink Coolermaster* Active Heatsink Network Card Intel PC I Express* Gigabit N IC Firmwa re Hub Socketed Fir mw are Hub (BIOS) Software Driver CD

Additional Peripherals

Xeon® Proces sor LV

Standoffs (with installation hardware) for Benchtop use

Warning:

Placing the board on an unknown surface without standoffs may short the CRB and result in damage. If CRB is not mounted in a chassis, Intel recommends using provided Standoffs to prevent risk of the bottom of the CRB sh orting on a conduc tive surface.

Product Description

3100 Chipset

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 8 Order Number:315879-002

3100 Chip se t

Product Description

1.1.2 Board Lay out

Figure 1 shows the location of the major components.

Figure 1. Board Components

21 3568

39 37

38 36

11 12 13 14 15 16

2526272829

17 18

19 20

21 22

B5793-01

Table 3 lists the components shown in Figure 1.

Table 3. Component Layout Description (Sheet 1 of 2)

Callout Description

132-bit/33 MHz PCI connector 2 Port B x4 on l y PC I E xp r e ss* using x8 c o nn e c to r 3 Port A x4 only PCI Express* using x8 connector (A1)

5 Port A x4 only PCI Express* using x8 connector (A0) 6CMOS battery 7 Power button 8Reset button

9 On-board speaker 10 Back panel 15 Pin VGA connector 11 USB ports (2) 2 top / 3 bottom

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 9

On-board PCI ATI Rage* Mobility Video Chip if available (if not on-board a PCI add-in Card is supplied)

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Table 3. Component Layout Description (Sheet 2 of 2)

Callout Description

12 USB ports (2) 0 top / 1 bottom 13 Serial com port 2 14 Parallel port 15 Serial com port 1 16 PS/2* top = mouse / bottom = keyboard 17 DIMM0 18 DIMM1 19 DIMM2 20 DIMM3 (closest to edge of board) 21 AUX FAN 1 22 XDP connector 23 JTAG connector 24 AUX FAN 0 25 Intel 26 Processor with active fan plugged into processor FAN 27 ATX 12 V for SATA power 28 ATX power connector 29 Floppy drive connector 30 Port 80 seven segment display s 31 Port 80 chip 32 Firmw ar e hub (BI OS ) 33 Plug For validation only 34 SATA port 0 35 SATA port 1 36 SATA port 2 37 SATA port 3 38 SATA port 4 39 SATA port 5

3100 Chipset with active fan Connected to FAN1

Product Description

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 10 Order Number:315879-002

3100 Chip se t

Product Description

1.2 Processors

The CRB is designed to support the following processors with a 667MHz FSB speed. Use only the processors listed below in Table 4. Use of unsupported processors can

damage the CRB, the process or, and the power supp ly.

Note: In this document Processor refers to all processor SKUs listed in Table 4.

Table 4. Supported Microprocessors

Intel® Pentium® M Processor 745 (1.8 GHz) Intel® Pentium® M Processor LV 738 (1.4 GHz) Intel® Celeron® M Processor ULV 373 (1.0 GHz) 400 MHz No Intel® Celeron® M Processor 370 (1.5 GHz) 400 MHz No Intel® Celeron® Processor (1.66 GHz) Dual-Core Int el® Xeon® Processor LV ( 2.16 GHz, 2.0 GHz, 1.66 GHz) 667 MHz Yes Dual-Core Intel® Xeon® Processor ULV (1.66 GHz) 667 MHz Yes

1.3 System Memory

The CRB has four DIMM sockets and supports the following memory features:

• DDR2-400 MHz registered ECC

•SEC/DED

• Up to four ranks of memory

• Minimum total s ystem memory: 512 MB, maximum of 16 GB

• ECC DIMMs, 8 bits ECC

• Single ch ann el op erati on on ly

• Supports x4 and x8 DDR2- 512 Mb and DDR2 -1 Gb t echno l ogies a nd x4 DDR 2-2 Gb technologies

Microprocessor

FSB

Speed

400 MHz No 400 MHz No

667 MHz Yes

Parity

1.3.1 DDR2-400 DIMM Slot Populations

Table 5 shows the supported DDR2-400 DIMM populations.

Table 5. Supported DDR2-400 DIMM Populations

DIMM Configuration DIMM0 DIMM1 DIMM2 DIMM3

1 Single-rank Empty Emp t y Empty Single-rank 1 Dual-rank Empty Empty Empty Dual-rank 2 Single-rank Empty Empty Single-rank Single-rank 1 Dual-rank, 1 Single-rank Empty Empty Single-rank Dual- rank 2 Dual-rank Empty Empty Dual-rank Dual-rank

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 11

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Table 5. Supported DDR2-400 DIMM Populations

DIMM Configuration DIMM0 DIMM1 DIMM2 DIMM3

3 Single-rank Empty Single-rank Single-rank Single-rank 1 Dual-rank, 2 Single-rank Empty Single-rank Single-rank Dual-rank 4 Single-rank Single-rank Single-rank Single-rank Sing le-rank

Product Description

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 12 Order Number:315879-002

3100 Chip se t

Product Description

1.3.2 DDR2 DIMM Ordering Overview

Figure 2 shows the DIMM ordering and location.

Figure 2. Four-DIMM Implementation

Single-Rank DIMMs utilize all 4 DIMMs

Fill Fourth Fill Thi rd Fill Se cond Fill First

Dual-Rank DIMMs

Intel® 3100

Chipset

I M M

Note: Figure 2, “Four-DIMM Implementation” on page 13 * signifies that the chipselect is also

routed to these DIMMS.

The platform requires DDR2-400 DIMMs to be populated in order, starting with the DIMM furthest from Intel

page 13). In addition, dual-rank DIMMs must be populated farthest from Intel

Chipset when a combination of single-rank and dual-rank DIMMs are used. This recommendation is based on the chip select and on-die termination signals routing requirements of the DDR2-400 interface. Intel recommends that you check for correct DIMM placement during BIOS initialization and that all designs follow the DIMM ordering, clock enable routing, command clock routing, and chip select routing shown in Figure 2 on page 13. This addressing must be maintained to be compliant with the BIOS code.

3100 Chipset in a “fill-farthest” approach (see Figure 2 on

I M M

3100

The two DIMMs that are provided with the development kit are 1Gb sing le-ran k DIMMs. If other memory is used follow the illustrations in Figure 3, Figure 4, and Figure 5.

Figure 3 shows how to populate four single-rank DIMMs. Figure 4 shows how to

populate one dual-rank and two single-rank DIMMs. Figure 5 shows how to populate two dual-rank DIMMs.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 13

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Figure 3. Example of Single-Rank DIMM Population

Product Description

Single Rank DIMM 2

Intel® 3100

Chipset

Single Rank DIMM 0

Single Rank DIMM 1

Figure 4. Example of Single-Rank and Dual-Rank DIMM Mixing Population

Single Rank DIMM 1

Empty 0

Intel® 3100

Chipset

Single Rank DIMM 2

Figure 5. Example of Dual-Rank DIMM Population

Single Rank DIMM 3

Dual Rank DIMM 3

Dual Rank DIMM 2

Empty 0

Intel® 3100

Chipset

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 14 Order Number:315879-002

3100 Chip se t

Empty 1

Dual Rank DIMM 3

Product Description

1.4 Intel® 3100 Chi pse t

Figure 6. Intel

3100 Chipset Block Diagram

Processor

WDT

Serial ATA

6 Drives

SM Bus x2

PCI 32/33

2 UART

4 USB-2 .0

38 GPIOs

LPC

Intel®3100 Chipset

IICH IMCH

Port B

PCI Express*

1x4 or 4x1

* Other names and brands may be claimed as the property of others.

FSB

Single-Me m ory

Channel

EDMA

Port A

PCI Exp ress*

1x8 configurable as 2x4 or 2x1

Registered ECC

DDR2 400

B5990-01

1.4.1 On-Bo ar d Peripheral s

Super I/O and PCI Video are included as on-board peripherals.

1.4.1.1 Super I/O

Super I/O includes a Low Pin Count (LPC) driven Super I/O device that can be disabled by removing a resistor.

1.4.1.2 PCI Video

An ATI Rage* Mobility-M integrated video controller is located on the 32-bit, 33 MHz PCI bus. Figure 7, “PCI On-Board Video Chip” on page 16 is a picture of the on board chip.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 15

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Figure 7. PCI On-Board Video Chip

1.4.2 On-Board I/O

The following sections include all of the on-board I/O.

1.4.2.1 Serial ATA (SATA)

The CRB provides a total of six SATA interface connectors.

• Four usable SATA connectors in a SATA mode (BIOS setting) (SATA 0-3)

• Six SATA ports available in an AHCI mode (BIOS setting) (SATA 0-5)

• There are no RAID Capabilities on the chipset. Of course SW RAID is always and option.

Product Description

1.4.2.2 Serial Connector

The CRB has one 10-pin, dual-row header.

• Provides the COM3 port from the Super I/O

1.4.2.3 Floppy Drive

The CRB supplies a 34-pin, dual-row header.

• Floppy drive support comes from Super I/O

• The BIOS setup program configures the floppy drive interface

Figure 8. Floppy Drive Connect or

1.4.2.4 LPC Debug Port

The CRB includes one 60-pin card edge connector for LPC.

• Aligned with PCI connector (used for Intel Validation Only)

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 16 Order Number:315879-002

3100 Chip se t

Product Description

1.4.2.5 Front Panel Control Pins

The CRB includes a 10-pin, dual-row header.

• Provides Power Switch pins

• Provides Reset Switch pins

•Provides LED Power-On pins

• Provides LED HD Status pins

Figure 9. Front Pa ne l He a d e r

Front Panel Heade r

1.4.2.6 XDP Connector

The CRB includes one 60-pin XDP connector. XDP stands for Extended Debug Port and can be used for debugging and testing components of the board.

Figure 10. XDP Connect or

B5786- 0

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 17

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

1.4.2.7 USB

The CRB has a 10-pin, dual-row header to route two USB Ports to an external USB connector.

• Allows two USB 1.1 or 2.0 ports to be routed to the dual-stack rear I/O or optionally to the 10-pin header from the internal I/O. These USB ports are Port 2 and Port 3. Rear panel ports 2 and 3 are not simultaneously functional.

• By default, routing for USB is to the dual-stack header on the rear panel I/ O.

• In conjunction with the rear panel USB Ports there are only a total of four USB ports.

More information is available in Section 1.4.4.3, “USB Ports” on page 19.

1.4.3 I/O Slots for Expansion Capabilities

1.4.3.1 PCI Express*

The CRB provides a total of 3 x4 PCI Express* ports.

• Port A provides two x4 connections through two x8 connectors

• Port B provides one x4 connection through one x8 connector

• 32-bit ECRC (Port A only) stays with packet ensuring correct data at destination

• 256 opportunistic combining for read completions to improve performance

• ONLY Port A provides posted writes between each x4 port

• ONLY Port A provides memory-to-I/O DMA

Product Description

Note: The PCI Express* Ports are x8 connectors, but ONLY have the functionality of a x4

connector. This enables you to use a x8 card on the CRB but it has the bandwidth and functionality of the x4.

Warning: Hot-Plug is NOT supported on this platform.

1.4.3.2 PCI

The CRB provides one PCI slot. It has the following characteristics:

• Specification 2.2 compliant

•32-bit

•33 MHz

• 120 MB/s throughput

• 64-bit addressing through the DAC protocol

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 18 Order Number:315879-002

3100 Chip se t

Product Description

1.4.4 Rear Panel I/O Connectors

Figure 11. Rear Panel I/O Connectors

1.4.4.1 Serial COM ports

The CRB provides two Serial COM Ports.

• 9-pin male D-sub connectors

• COM1 port (closest to PS/2 ports on left, when looking at the back panel) and COM2 port (closest to the USB ports)

1.4.4.2 PS2 Mouse and Keyboard Connectors

The CRB has two stacked circular DIN PS2 connectors. Turn off power before a keyboard or mouse is connected or disconnected.

• One for the keyboard (bottom)

• One for the mouse (top)

1.4.4.3 USB Ports

The rear panel provides two dual-stacked USB 2.0 ports. They cannot be run in both modes simultaneously. Internal logic determines which interface is used.

• Total of four USB 2.0 ports

•Two USB modes

—UHCI —EHCI

• Two Universal Host Controller Interfaces (USB 1.1)

— Two ports for each controller — Accessible by I/O space — Running voltage requirement: 3.3V

• One Enhanced Host Controller Interface (USB 2.0)

— Four ports — Accessible by memory space — Running voltage requirement: 400mV

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 19

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

1.4.4.4 Parallel Port

The CRB provides one parallel port on the rear panel. The Parallel Port can be viewed in

Figure 11, “Rear Panel I/O Connectors” on page 19

• 25-pin female D-sub connector (above COM ports)

1.4.4.5 VGA Port

The CRB provides one VGA connector for on-board video.

• 15-pin male D-sub connector

• On-board ATI RAGE Mobility PCI video

• If no “on-board Video”, a PCI video card is supplied with kit

1.4.5 Hardware Server Management Fe at ures

The CRB provides several server management features like a voltage monitor and temperature monitor. It also provides control for overall protection of the platform.

1.4.5.1 Voltage Monitor

The CRB uses a Heceta* 7 (LM93 ) to monitor and communicate through the SMBus.

Product Description

1.4.5.2 Watch Dog Timer (WDT)

The Watch Dog Timer (WDT) provides output from the Intel® 3100 Chipset to gener a te one of th e fo l lo wi ng:

• PCI_RESET

•Illuminate an LED

1.4.5.3 Sleep States and Soft Off

• S0, S3 and S5 sleep states

• Soft off capability (S5) — Operating system dependent — Requires a complete OS boot when the system wakes

1.4.5.4 Wake Events

• Power switch

1.4.5.5 Hardware Clock Throttling

• Provides support for hardware clock throttling through STOPCLK#

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 20 Order Number:315879-002

3100 Chip se t

Product Description

1.4.5.6 Fan Power Connection

• Direct +12 V DC power connectors

• One processor fan connector (CPUFAN)

• One fan for Intel

3100 Chipset (Fan1)

• Two auxiliary fan connectors (AUXFAN)

1.4.5.7 On Board Switches

The CRB has the following momentary push button switches to provide state control:

•Power

• Reset

• Wake (this button is not functional)

• Port 80/81

1.4.5.8 Trusted Platform Module (TPM)

The Trusted Platform Module (TPM) is a component of the platform that is specifically designed to enhance platform security above and beyond the capabilities of today’s software. It provides protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages of operation, for instance, when the keys are being used in an unencrypted plain text form. The TPM is specifically designed to shield unencrypted keys and platform authentication information from software-based attacks.

1.5 Supported Operating Systems

The CRB is validated with the following operating systems:

•DOS — BIOS supports the installation and booting of the DOS* 6.22 operating system

•Linux* — BIOS supports the installation and booting of both Red Hat Enterprise Linux*

Version 3 and 4 and Linux Monta Vista Pro* and Monta Vista Carrier*.

•QNX*

• Microsoft Windows XP*

• Microsoft Embedded XP*

• Microsoft Windows Vista* (once available)

• Microsoft Windows Server 2003*

•Free BSD

Note: Operating systems are to be purchased by the customer and are not distributed with

this development k it.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 21

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Product Description

1.6 Supported BIOS Features

The BIOS has an AMI* core with the following components:

Table 6. Supported BIOS Features

Name of BIOS component Description

PCI 2.3 The BIOS is PCI 2.3 compliant. SCSI boot The BIOS supports booting from a plug in SCSI device, if present. LAN boot The BIOS supports booting from a plug in Ethernet device, if present. Fiber-channel boot The BIOS supports booting from a plug in fiber-channel device, if present. Serial ATA boot The BIOS supports booting from a Serial ATA hard drive. CD-ROM boot The BIOS supports booting from a Serial ATA CD-ROM. USB boot The BIOS supports booting from a USB boot device. Floppy boot The BIOS supports booting from a floppy drive

PXH

PCI Express*

USB The BIOS supports the USB 1.1 and USB 2.0 interfaces. CMOS Header The BIOS supports recognizing the clear CMOS header. ECC support The BIOS detects and supports ECC memory. Watchdog Timer (WDT) The BIOS provides watch dog timer support.

APIC and ACPI Control

Patch Update Mechanism

FSB Error Handling Control The BIOS has the capability to enable and/or disable FSB error handling.

The BIOS initializes and supports a PXH riser card if it is plugged into a PCI-E* slot on the CRB.

The BIOS initializes and supports PCI Express* cards that are plugged into the CRB.

The ability to enable and disable APIC and ACPI is present in the BIOS. Control is also required for OS plug and play features. The BIOS supports the following ACPI states:

• G0(S0) – Working

• G1(S3) – Sleeping [Suspend to RAM]

• G2(S5) – Soft Off

The BIOS supports C0, C1, C1E and C2 states. The Patch Update Mechanism is used to upgrade and/or install micro-code

patches into BIOS is supported.

1.6.1 ACPI

ACPI gives the OS direct control over the power management and plug-and-play functions of the platform. The use of ACPI with this CRB requires an OS that provides full ACPI support.

Table 7. Effects of Pressing the Power Switch (Sheet 1 of 2)

If the System is in this state...

Off (ACPI G2/G5 - soft off)

On (ACPI G0 - working state)

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 22 Order Number:315879-002

3100 Chip se t

...and the power switch is

pressed for

Less than four second

Less than four seconds

...the system enters this

Power-on (ACPI G0 - working state)

Soft-off/Standby (ACPI G1 - sleeping state)

state

Product Description

Table 7. Effects of Pressing the Power Switch (Sheet 2 of 2)

If the System is in this state...

On (ACPI G0 - working state)

Sleep (ACP I G1 - sleeping state)

...and the power switch is

pressed for

More than four seconds

Less than four seconds

More than four seconds

1.6.1.1 System States and Power States

Under ACPI, the OS directs all system and device power state transitions by managing devices in and out of low-power states based on user preferences and knowledge of how devices are being used by applications. Devices that are not being used can be turned off. The OS uses information from applications and user settings to put the system as a whole into a low-power state.

1.7 Power Supply

The platform may not come with a power supply. If one is not provided please use a standard off-the-shelf ATX12V power supply with a power rating of 450 W. (Customer may use a smaller power supply as this is more power than necessary. This CRB total system power is typically running at less then 100 W.)

1.8 Thermal and Mechanical Components

...the system enters this

Fail Safe Power-off (ACPI G2/G5 - soft off )

Wake-up (ACPI G0 - working state)

Power-off (ACPI G2/G5 - soft off )

state

Table 8. Thermal and Mechanical Components

Name Description

Standard Processor Thermal Solution Mounting

Processor Fan

Intel

3100 Chipset Heatsink

Active Intel

Power Measurement

Fan Heade rs The CRB provides three fan headers.

Solder Down Anchors

Iso-chiller Attachment

3100 Chipset Heatsink

The CRB supports full power processor thermal solution mounting provisions as deleanated in the processor thermal design guide.

The CRB provides a fan header for the processor that includes 12 V with tachometer .

The CRB supports the Intel requirements.

The CRB provides mounting provisions and a fan header for an active

Intel

3100 Chipset thermal solution.

The CRB provides a means for power measurement for the following components:

• Processor

•Intel

•DDR2

The CRB provides solder down anchors for the Intel The Intel

The iso-chiller attachment for the processor uses the iso-chiller kit and should be mounted using the standard heatsink mounting holes. The Intel heatsink mounting holes for attachment.

3100 Chipset heatsink mounting

3100 Chipset

3100 Chipset in cludes active heatsink mounting holes.

3100 Chipset uses the iso-chiller kit and has active

3100 Chipset.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 23

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

1.8.1 Heatsinks

There are bot h passive and active heatsink designs.

1.8.1.1 Active Heatsinks

Active hea tsi nk s (Figure 12 and Figure 13) use power and are powered by the platform.

Figure 12. Intel

3100 Chipset Active Heatsink

Product Description

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 24 Order Number:315879-002

3100 Chip se t

Product Description

Figure 13. Processor Active Heatsink

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 25

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

1.8.1.2 Passive Heatsinks

Passive heatsinks (Figure 14) require no power and can replace active heatsinks in appropriate environments. We are only exemplifying a passive Heatsink for the chipset, as there are multiple passive heatsink designs for the Processor that can be used (provided appropriate airflow) and are described in the Thermal Design Guide in which your Intel representative can provide to you.

Figure 14. Intel

3100 Chipset P assi ve He a tsi nk Design

Product Description

1.9 Physical and Mechanical Board Specifications

1.9.1 Mounting Holes

The CRB provides non-plated mounting holes with top and bottom ground rings in locations that correlate with the ATX 2.3 specification. The size of the CRB is approximately 10.75 inches long by 12 inches wide.

1.10 Debug Ports

The CRB provides an XDP header that can be used to debug the processor and the

Intel

3100 Chipset.

1.11 Real Time Clock (RTC), CMOS SRAM, and Battery

A coin-cell battery (CR2032) powers the real time clock (RTC) and CMOS memory. The battery has an estimated life of three years when it is not plugged into a wall socket. When the platform is plugged in, the standby current from the power supply extends the l i fe of t h e b at t er y. Th e cl o c k i s a c cu r a t e t o ± 13 minut e s / year at 25º C with 3.3 VS B applied.

Note: If the battery and AC power fail, at boot-up the system will prompt you to either load

optimized defaults or enter BIOS and manually adjust your BIOS settings.

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 26 Order Number:315879-002

3100 Chip se t

Platform Setup

2.0 Platform Setup

Note: Before connecting power make sure that the CRB (Customer Reference Board) is either

mounted in a chassi s or is on a non-c ond ucti v e sur fac e to prev ent g round i ng. Ens ur e a safe work environment. Make sure you are in a static-free environment. Before removing any components from their anti-static packaging. The evaluation board is susceptib le to el ectrostat ic dis charge, which may ca use prod uct fail ure or unp redic table operation.

Caution: Connecting the wrong cable or reversing a cable may damage the evaluation board and

may damag e the dev ice be ing co nnect ed. Sinc e the boar d is no t in a prote ctiv e chas sis, use caution when connecting cables to this product.

2.1 Connecting the Wire s

Note: When you receive the CRB, all jumpers are correctly set and it is ready to boot.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 27

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

2.1.1 Connect SATA cables

1. There are six SATA (Serial ATA Figure 15) connectors on the CRB. Connect the cables to the appropriate drive sequentially starting from connector Port SATA 0

Figure 15. SATA Ports

through connector Port SATA 5. These connectors are located in coordinate E4.

Platform Setup

Note: Intel recommends that your boot drive be connected to SATA Port 0.

2.1.2 Plugging In Memory

Note: Refer to section Section 1.3 for memory specific information refer to Figure 16 for

DIMM loca tion while r ead in g belo w step s.

1. Beginning with DIMM 3, (the DIMM connector closest to the edge of the CRB, furthest from Intel that the end clips are moved outward to the open position.

2. Gently push the DIMM into the socket until you hear or feel the side clips lock into the side of the DIMMs.

3. Continue adding memory to the system sequentially starting from DIMM 3to DIMM

Note: The specific DIMM configurations are found in Section 1.3.2.

3100 Chipset) line up the DIMM with the slot and make sure

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 28 Order Number:315879-002

3100 Chip se t

Platform Setup

Figure 16. DIMM Sockets

2.1.3 Connecting the Processor

Figure 17 shows an empty processor socket.

Figure 17. Processor Socket

DIMM 0

DIMM 1

DIMM 2

DIMM 3

B5788-0

1. For Pin Grid Array (PGA) sockets, look at the bottom of the processor to locate which corner of the processor does not have a PIN in it.

2. Figure 17 shows the pin missing on the PGA479M socket.

3. In order to insert the processor into the socket, line up the corner that does not have a pin and insert the processor into the socket.

Note: Do NOT force the pins of the processor into the socket, as it may cause damage to the

processor. Insertion of the processor should be smooth and gentle, when aligned correctly.

4. Hold down the processor with your finger and use a small flat head screw driver to turn the locking screw clockwise 180 degrees, to the locked position. Next to the sides of the screw on the socket, there are diagrams of a closed lock and an open lock indicating if the socket is locked or unlocked.

2.1.4 Conn ec t ing Heats i nk s and Fans

1. The active heatsink for Intel® 3100 Chipset should already be connected to the CRB. If this is not the case, plug the fan connector into the “FAN1” connector located in the coor din ate F7 .

2. Connect the active CoolerMaster* heatsink to the processor and then plug the fan into “CPUFan”.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 29

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Platform Setup

a. Mount the self-adhesive square metal bracket (Figure 18, found in the

CoolerMas ter* box ) on the bott om of the CRB undern eath the Dual-Core Intel® Xeon® Processor LV. This bracket lines up with the four holes making a square around the processor and provides the nut for the fan screws to plug into.

Note: If there is more than one bracket provided in the CoolerMaster* box, use the bracket

with the appr opri ate le ngth nu t t hre ads. These brac ke ts co rr ela te wi th th e hei ght o f the processor in the socket. Figure 19 shows how the bracket mounts to the bottom of the CRB.

Figure 18. Processor Fan Mounting Bracket

b. Place the fan on top of the processor and screw i t into the bracket as shown in

Figure 19.

Figure 19. Screwing the Processor Fan into the Mounting Bracket

c. Plug the fan connector into the mothe rboard. T his conn ector is in co ordin ate H8

and labeled “CPUFAN”. Any other fans that you wish to use can be connected to “AUX FAN 0” and/or “AUX FAN 1”. These are located next to “CPUFAN”. These connectors are shown in Figure 20.

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 30 Order Number:315879-002

3100 Chip se t

Platform Setup

Figure 20 . Fan Pow er C o nnectors

2.2 Connecting Other Peripherals

2.2.1 Add-i n Connector s

1. Connect your PCI Express* add-in cards into the appropriate Port A or Port B x4 PCI Express* slot (Figure 21).

Note: The PCI Express* connectors on this CRB are x8 connectors, but only utilize a x4

configuration.

2. Connect your PCI Cards into the PCI 32/33 slot. The connector is the white connector on the CRB located in coordinates 1B through 1E.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 31

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Figure 21. PCI Express* Connectors

Platform Setup

PCI 32/33

PCI-E Port A

2.2.2 Rear Pan el Co nnectors

1. Connect a USB or PS/2* keyboard and/or mouse to the back panel connectors are shown in Section 1.4.4, “Rear Panel I/O Connectors” on page 19.

2. If you are using the on-board video, connect your monitor to the 15-pin VGA connector.

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 32 Order Number:315879-002

PCI-E Port B

3100 Chip se t

B5791-0

Platform Setup

2.2.3 Connecting a Floppy Drive

Figure 22. Floppy Drive Connector

In order to connect a floppy drive, plug the cable into the socket shown in Figure 22 by guiding the keyed plug into the keyed socket. Connect the other end of this cable to the floppy drive and providing it power from the power supply.

2.2.4 Changing and/or Updating the BIOS Chip

In order to change the BIOS chip (see Figure 23, “Firmware Hub” on page 33, which is located in Section 2.2.4, “Changing and/or Updating the BIOS Chip” on page 33 and is component called out as number 32) without damaging the pins use an EEPROM chip removal tool. Remove the BIOS chip by inserting the pinchers of the tool in each open corner of the socket, close the pinchers around the chip and pull the chip out carefully. Use a BIOS burn-in tool to update the firmware, then reinsert the chip by aligning the dot on the BIOS chip with the triangle on the socket and gently pressing the chip into place.

Figure 23. Firmware Hub

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 33

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Platform Setup

2.2.5 Changing t he CMOS Battery and Cl earing CMOS

2.2.5.1 Changing the battery

a. With the board shut down (power supply still in on position), remove the battery

and replace with a new battery. picture in Figure 24, “CMOS Battery” on

page 34.

Note: CMOS batteries rarely go bad, but a good indication that one is bad is that after

unpluggi ng the s yste m an d pl ug ging it i n ag ain, you ha v e to r es tore y ou r BIO S se tting s and system time. This will occur every time power is removed from the powers supply.

2.2.5.2 Clearing the CMOS

a. With System shutdown unplug the power supply and/or switched the Power

supply switch to the off position (no power to board).

b. Remove jumper J4C3, shown in Figure 25, “CMOS Clear Jumper” on page 34.

from pins 1 and 2 and place it on pins 2 and 3. c. Leave the Jumper in place for approximately a minute d. Remove the jumper from pins 2 and 3 and place it back on pins 1 and 2.

Tip: If the CMOS did not clear at this point, make sure power is removed from platform and

leave the jumper on pins 2 and 3 for a longer duration to assure CMOS is cleared. The board should bring up a setup prompt before booting to either go with defaults or enter BIOS.

Figure 24. CMOS Battery

Figure 25. CMOS Clear Jumper

2.3 Connect Power

Note: Not all Kits come with a power supply, therefore please use a standard ATX Power

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 34 Order Number:315879-002

supply and connect as described below

3100 Chip se t

Platform Setup

1. Remove the extra four-pin connector (shown connected to 20 pin connector in

Figure 27 on page 35), if atta ched , by sl idi ng i t o ut of the g roo ve tha t atta ch es i t t o

the main connector. This connector is NOT to be used. Intel recommends adding a label to prevent use.

Figure 26. Power Conne ct or

B5790-0

Warning: The four-pin connector tied to the main ATX connector is not to be used! The colors of

the wires in this connector are one yellow, one black, one red and one o range. These are different voltages then used on the CRB and will DAMAGE the CRB if used.

Figure 27. ATX Power Connector

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 35

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Figure 28. Power Connector Cables

This connector is

NOT

USED

Platform Setup

This connector is

USED

B5792-0

2. Plug the main connector into the motherboard located in coordinate K3-4 making sure that the plug clip lines up with the clip lock and the connector pins fit easily into their appropriate slots.

Warning: Do NOT force the ATX power plug into the connector, it should go in easily when

plugged in correctly. Plugging it in incorrectly will result in severe DAMAGE to the CRB.

3. Plug the four-pin connector that has two yellow wires and two black wires into the four-pin connector that is approximately 1 inch to the right of the main ATX power connector in coordinate K5.

4. Plug in the power connectors from each of the hard drives and disc drives.

5. Plug the power cable into the back of the power supply leaving the switch in the off position (switch pushed down to the side with the “0” on it) and PLUG THE CORD INTO THE WALL ONCE THE BOARD IS SETUP. You can also turn the power supply switch to the on “1” position once the CRB is setup.

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 36 Order Number:315879-002

3100 Chip se t

Platform Setup

2.4 Turning On and Resetting the Board

There are two momentary switches on the CRB located in C4. One switch is the power on switch (labeled PWR “SW4C1”) and the other switch is reset (labeled RESET “SW4C2”). These buttons are shown in Figure 29, “Power and Reset Buttons” on

page 37.

Figure 29. Power and Reset Buttons

Note: The power switch is also used to wake a system that is in a sleep state. Note: Refer to section Section 3.6.2.3, “Front Panel Connector ” on page 42 for information

on setup case switches and LEDs.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 37

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

3.0 Technical Reference

3.1 Memory Resources

Technical Reference

Detailed memory information for addressable memory and memory maps can be found in the Intel

3100 Chipset External Design Specification.

3.2 DMA Channels

The DMA Channels below specify Partial DMA channels that are routed to specific devices as well as other channels that are available.

Table 9. DMA Channels

Data Channel Data Width System Resource

08 Open 1 8 Parallel Port 28 Diskette Drive 3 8 Parallel Port (for ECP or EPP) 4 8 or 16 bits DMA Controller 516 bits Open 616 bits Open 716 bits Open

3.3 Fixed I/O Map

Refer to the Intel® 3100 Chipset External Design Specification for this information.

3.4 Interrupts

Interrupts can be routed through the I/O xAPIC and supports a total of 24 interrupts. The I/O xAPIC is supported by Microsoft Windows XP*. Table 10 on page 39 provides the interrupts and there correlating functions.

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 38 Order Number:315879-002

3100 Chip se t

Technical Reference

Table 10. I/O x APIC Interrupts

IRQ System Resource

NMI I/O channel check

0 Reserved, interval timer 1 Reserved, keyboard buffer full 2 Reserved, cascade input from slave PIC 3 User available 4COM1 5 User available 6 Diskette drive 7LPT1 8Real-time clock

9 User available 10 User available 11 User available 12 On-board mouse port (if present, else available) 13 Reserved, math coprocessor 14 Primary Serial ATA 15 Secondary Serial ATA 16 User available (through PIRQA) 17 User available (through PIRQB) 18 User available (through PIRQC) 19 User available (through PIRQD) 20 User available (through PIRQE) 21 User available (through PIRQF) 22 User available (through PIRQG) 23 User available (through PIRQH)

Notes:

1. Default but can be changed to another IRQ.

2. Available in APIC mode only.

3.5 PCI Conventional Interrupt Routing Map

This section describes interrupt sharing and how the interrupt signals are connected between the PCI Conventional bus connectors and on-board PCI Conventional devices. The PCI Conventional specification describes how interrupts can be shared between devices attached to the PCI Conventional bus. In most cases, the small amount of latency added by interrupt sharing does not affect the opera tion or throughput of the devices. In some special cases where maximum performance is needed from a device, a PCI Conventional device should not share an interrupt with other PCI Conventional devices. Use the following information to avoid sharing an interrupt with a PCI Conventional add-in card.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 39

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Technical Reference

Table 11. PCI Interrupt Routing Map PCI Interrupt S our ce

Intel® 3100 Chipset PIRQ Signal Name

PIRQA# PIRQB# PIRQC# PIRQD#

PCI bus connector 1 INTA INTB INTC I NTD

3.6 Connectors

Warning: Only the following connectors have over-current protection: back panel USB, front

panel USB, and PS/2* connector. The other internal connectors are not over-current protected and should connect only

to devices inside the computer’s chassis, such as fans and internal peripherals. Do not use these connectors to power devices external to the computer’s chassis. A fault in the load presented by the external devices can damage the computer, the power cable, and the external device s. This section describes the connectors. The connectors can be divided into these groups:

• Back pa ne l con n ect o rs

• Component side connectors

3.6.1 Back Pane l Co nnectors

Figure 30 shows the location of the back panel connectors for the CRB.

Figure 30. Back P anel Co nnectors

Parallel Port

Mouse

Keyboard

Serial com

Port 1

Table 12. Front Chassis Fan and Rear Chassis Fan Connecto rs

Pin Connector

1 Control 2+12 V 3Tach

Serial com

Port 2

USB Ports (2)

2 = Top 3 = Bottom

USB Ports (2) 0 = Top 1 = Bottom

15-pin VGA on-

Board Video

B5787-01

3.6.2 Component Side Connectors

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 40 Order Number:315879-002

3100 Chip se t

Technical Reference

1 3

3.6.2.1 Power Supply Connectors

The CRB has two power supply connectors. The main power connector and the SATA power connector.

• Main power is supplied through a 2 x10 connector. The CRB requires a standard ATX12V powe r supp ly.

Figure 31. ATX Power Connector

Table 13. Main Power Connector Pin

Pin Signal Name Pin Signal Name

1 +3.3 V 11 3.3 V 2 +3.3 V 12 -12 V 3 Ground 13 Ground 4 +5 V 14 PS-ON 5 Ground 15 Ground 6 +5 V 16 Ground 7 Ground 17 Ground 8 PWRGD (P ower Good) 18 -5 V 9 +5 V (Standby) 19 +5 V

10 +12 V 20 +5 V

• The SATA power connector uses a 2 x2 connector.

Figure 32. SATA Power Connector

B5790-0

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 41

2 4

B5988-0

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Table 14. SATA Power Connector

1 3 5 7 9

Pin Signal Name Pin Signal Name

1GND312 V 2GND412 V

3.6.2.2 Add-in Card Connectors

The CRB has the following add-in card connectors:

• 2 x4 PCI Express* slots which are Port A

• 1 x4 PCI Express* slot which is Port B

•1 32-bit PCI slot

Table 15. Auxiliary Front Panel Power and Reset Connector Pin

Pin Signal Name In/Out Description

1 HDR_BLNK_GRN Out Front panel green LED 2 Not connected 3 HDR_BLNK_YEL Out Front panel yellow LED

Technical Reference

3.6.2.3 Front Panel Connector

This section describes the functions of the front panel connector. Table 16 lists the signal names of the front panel connector. Figure 33 is a connection diagram for the front panel connector.

Figure 33. Front Panel Connector

Table 16. Front Panel Connector

Pin Signal Name In/Out put Description

1 HD_AC T_L E D_ P OUT Po wer s id e of ha rd d riv e act i vity LED 2 HD_ACT_LED_N OUT Ground side of hard drive activating LED 3 FRNTPNL_PWR_LED POWER OUT Power side of power on LED 4 FRNTP NL _P W R _L ED Gr ound OUT Ground 5 P ower Butto n p in (1) Power Button Pin 6 FP_PWR_BTN_N (2) Power But ton Pin 2

2 4 6 8

B5987-0

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 42 Order Number:315879-002

3100 Chip se t

Technical Reference

Tabl e 16. Front Panel C onnector

7 FP_RST_BTN_N IN Pin (1) for Reset Button 8 Reset Ground pin out Pin(2) for reset Button 9 Ground Ground

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 43

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Technical Reference

3.7 Jumper Block

Warning: Do not move jumpers when the power is on. Always turn off the power and unplug the

power cord from the computer before changing a jumper setting. Otherwise, the CRB will be damaged.

Figure 34 shows the location of the jumper blocks. Figure 17, “Jumper Block Locations” on page 45 describes the jumper settings for the platform.

Figure 34. Jumper Block Locations and Pin Connectors

Front

Panel

USB 2/3

EE DD

CC BB AA

Stealth

card

header

Port 80

displays

SERIAL #3

BCE F

Y V

G H

O P

B5803-01

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 44 Order Number:315879-002

3100 Chip se t

Technical Reference

Table 17. Jumper Block Locations (Sheet 1 of 3)

Location Jumper/Header Name Ref Des Description

Clears CMOS

D CMOS Clear Jumper J4C3

1-2: Normal

2-3: Clea r

FSB Clock Frequency Override

(Host Clock Jumper)

3100 Chipset PLLSEL0

Intel

Jumper

J4G2 Open 166 MHz 2-3

1-2 133 MHz

J7A3

Open 100 MHz

Enable on Board Video

OO Enable Video Jumper J2A1

1-2: Enable

Open: Disable

M Processor Fan Override Jumper J8H1

3100 Ch ipset Fan

Intel

Override Jumper

FWH VPP Jumper (validation

Only)

J7G2

J2H2

1-2: Full Speed

Open: Heceta* Controlled

1-2: Full Speed

Open: Heceta* Controlled

1-2: Normal

Open: N/A

Manual VID Select

N CPU0 VID Override Jumper J8J1

1-2: Manual Select

Open: CPU Select

Default

Position

1-2

Open

1-2

Open

CPU0 VID Jumper

Short = 0; Open = 1

Intel

3100 Chipset internal

1.5 VR en able

Software Configuration Port

Address Jumper

J8J2

J4C5

J7B2

G Test Mo de Jumper J7B1

JJ Top Swap Jumper J3D2

KK BIOS Destination Jumper J3D1

DD Top Block Lock Jumper J1G1

Watch Dog Timer (WDT) Board

Reset

J3C1

HH No Reboot Jumper J4D2

Voltage Select Jumper J7G3

CCA

VID[5] VID[4] VID[3] VID[2] VID[1] VID[0]

1-2 3-4 5-6 7-8 9-10 11-12

1-2: Disa bl e Intel

Open: Enable Intel

3100 Chipset 1.5 V VR

1-2: 0x2 E / 0x2F

Open: 0x4E / 0x4F

1-2: Test Mode

Open: Normal

1-2: A1 6 Top Swap

Open: Normal

1-2: Offs e t

Open: Normal

1-2: FW H T o p Block Loc k

Open: Normal

1-2: WDT T riggers B oard Reset

Open: WDT Trigge rs LED Only

1-2: No Reboot

Open: Normal

1-2: CPU_VCCA = 1.5 V

2: CPU_VCCA = 1.8 V

Open

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 45

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Table 17. Jumper Block Locations (Sheet 2 of 3)

Technical Reference

Location Jumper/Header Name Ref De s Description

Optional Intruder Switch Header

NN Intruder Detect Header J3B2

1: MICH_IN T RU DER HDR_N

2: GND

Access to CPU_GTLR EF

R CPU_GTLREF Hea der J7H2

1: Grou nd

2: CPU_GTLREF

Access to CPU Thermal Diode

Processor Thermal Diode

Header

J9F2

1: CPU_T HRM_DC 2: CPU_TH RM _DA

3: Grou nd

Access to Intel

3100 Chipset Thermal

Intel

Diode Header

J9F1

3100 Chipset Thermal Diode 1: MICH_THRM_DC 2: MICH_T HR M _D A

3: Grou nd

Inject CPU BPM0 Signal

P Processor BPM0 Inject Header J9J1

1: CPU_BPM0 input (apply 3.3 V here)

2: Grou nd

Inject CPU BPM3 Signal

O Processor BPM3 Inject Header J9H4

1: CPU_BPM0 input (apply 3.3 V here)

2: Grou nd

Inject IMCH_STPC LK_ N Signa l

VStop Clock Inject HeaderJ5G1

1: IMCH_STPCLK_N input (apply 3.3 V here)

2: Grou nd

Header (validation Only)

3100 Chipset FSB Vref

Intel

Header (validation Only)

DDR DIM M Vref He ader

(validation Only)

3100 Chipset DDR V

Intel

REF

J7C1

J7G1

J7C2

Access to DDR V

1: DDR_MICH_VREF

2: Grou nd

Access to FSB_VREF

1: FSB_VREF

2: Grou nd

Access to DDR_DIMM_VREF

1: DDR_DIMM_VREF

2: Grou nd

Wake Event Header

II Wake Event Header J4D1

1: FP_SLP_HDR_N

2: Grou nd

SMBUS Access Header

BB VSBY SMBUS Segment Header J2G6

1: SMB_ DATA

2: GND

3: SMB_CLK

SMBUS Access Header

EE PCI SMBUS Segment Header J2G5

1: SMB_ DATA

2: GND

3: SMB_CLK

SMBUS Access Header

Z IMCH SMBUS Segment Header J2G3

1: SMB_ DATA

2: GND

3: SMB_CLK

REF

Default

Position

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 46 Order Number:315879-002

3100 Chip se t

Technical Reference

Table 17. Jumper Block Locations (Sheet 3 of 3)

Location Jumper/Header Name Ref Des Description

SMBUS Access Header

AA DIMM SMBUS Segment J2G7

NN 5.0 V Header J1A2

A 3.3 V Header J1A1

B 5.0 V Standby Header J3A1

Y1.05 V HeaderJ4G1

WCPU V

C1.5 V HeaderJ4C2

Q VCC1.8 J9K1

Board EEPROM SMBUS

Segment

Header J 4K1

J2G4

1: SMB_DATA

2: GND

3: SMB_CL K

SMBUS Access Header

1: SMB_DATA

2: GND

3: SMB_CL K

1: Ground

2: 5.0 V

1: Ground

2: 3.3 V

1: Ground

2: 5.0 V Standby

1: Ground

2: 1.05 V

1: Ground

2: CPU_VCC

1: 1.5 V

2: Ground

1.1.8 V

2.Ground

Default

Position

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

Open

Do not short

3.8 Mechanical Considerations

3.8.1 Form Factor

The CRB is designed to fit into an ATX-form-factor chassis. Figure 35 illustrates the mechanical form factor for the CRB. Dimensions are given in inches. The outer dimensions are 10.75 inches by 12 inches, which means that the CRB is actually about an inch longer in depth measuring from the back panel across. Location of the I/O connectors and mounting holes correlate with the ATX specification.

January 2007 User’s Manual Order Nu mber: 315879 - 00 2 47

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Figure 35. Form Factor

Technical Reference

10.75”

PCI

Port

FWH

PCI Express*

Ports

SATA

Connectors

Power co nn ec tor s

Processor

12”

Back P ane l C onnectors

Intel® 3100

Chipset

DDR2 Memory

Dimms

3.9 Electrical Considerations

3.9.1 DC Loading

Table 18 lists the DC loading characteristics of the CRB. This data is based on a DC

analysis of all active components within the CRB that impact its power delivery subsystems. The analysis does not include PCI add-in cards. Minimum values assume a light load placed on the CRB that is similar to an environment with no applications running and no USB current draw. Maximum values assume a load placed on the CRB that is similar to a heavy gaming environment with a 500 mA current draw per USB port. These calculations are not based on specific processor values or memory configurations but are based on the minimum and maximum current draw possible from the CRB’s power delivery subsystems to the processor, memory, and USB ports.

Refer to the datasheets for overall system power requirements of the add-in cards (e.g., PCI). The selection of a power supply at the system level is dependent on the system’s usage model and not necessarily tied to a particular processor.

Dual-Core Intel® Xeon® Processor LV and Intel User’s Manual January 2007 48 Order Number:315879-002

3100 Chip se t

Technical Reference

Table 18. DC Loading Characteristics Mode

DC Power

+3.3 V +5 V +12 V -12 V +5 VSB

Minimum Loading 300 W 5 A 11 A 19 A 0 A

Maximu m L oading 500 W 25 A 27 A 36 A 0.40 A

DC Current at:

0.34 A (S0 )

1.25 A (S3 )

0.34 A (S0 )

1.25 A (S3 )

3.9.2 Add-in Board Considerations

The CRB is designed to provide 2 A (average) of +5 V current for each add-in board. There is a total of three x4 PCI Express* slots and one PCI 32/33 add-in board.

3.9.3 Fan Connector Current Capability

Warning: The processor fan must be connected to the processor fan connector, not to a chassis

fan connector. Connecting the processor fan to a chassis fan connector may result in on-board component damage that will halt fan operation.

Table 19. Fan Connector Current Capability

Fan Connector Maximum Available Current

CPU Fan 3.0 A

Fan 1 3.0 A Aux Fan 0 3.0 A Aux Fan 1 3.0 A

3.9.4 Power Supply Considerations

Warning: The +5 V standby line for the power supply must be capable of providing adequate

+5 V standby cu rr ent . Fa ilu r e to d o so ca n dam ag e t h e po we r su ppl y . The t ota l am oun t of standby current required depends on the wake devices supported and manufacturing options.

The power supply must comply with the following recommendations found in the indicated sections of the ATX form factor specification.

• The voltage relationship between 3.3 VDC and +5 VDC power rails

• The current capability of the +5 VSB line

• All timing parameters

• All voltage tolerances

3.10 Thermal Considerations

This CRB features a thermal protection circuit in the processor voltage regulator area. This circuit protects the processor voltage regulator from overheating and damaging the CRB. Please consult the specific processor datasheet for details about the thermal runoff features supported by the processors paired with the Intel triggering temperature level causes the processor to enter a throttling mode (slowing down the processor if it exceeds its maximum operating temperature) and allow the processor voltage regulator to cool down.

3100 Chipset. The

January 2007 User’s Manual Order Nu mb er: 315879-002 49

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

Technical Reference

Note: Use a proc essor heatsink that provides omni-directional airflow (similar to the type

shown in Section 1.8.1.2) to maintain required airflow across the processor voltage regulator area.

Note: When using BIOS Setup program options to increase processor voltage and frequency

above the supported ranges, the temperature in the processor voltage regulator area rises. This area of the CRB requires increased airflow. Direct airflow over the processor voltage regulator is crucial to preventing throttling and keeping the processor voltage regulator area cool. This is particularly important when using liquid cooling.

Note: All responsibility for determining the adequacy of any thermal or system design

remains solely with the reader. Intel makes no warranties or representations that merely following the instructions presented in this document results in a system with adequate thermal performance.

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t User’s Manual January 2007 50 Order Number: 315879-002

Overview of BIOS Features

4.0 Overview of BIOS Features

4.1 Introduction

The BIOS is stored in the Firmware Hub (FWH) and can be updated using a BIOS flash programming tool. The FWH contains the BIOS Setup program, Power On Self Test (POST), the PCI auto-configuration utility, and plug-and-play support.

The BIOS displays a message during POST identifying the type of BIOS and a revision code.

The BIOS Setup program can be used to view and change the BIOS settings for the CRB. The BIOS Setup program is accessed by pressing the <DELETE> key after the POST test and memory test begins and before the operating system begins to boot. The menu bar is shown below.

Figure 36. Menu Bar

Table 20 lists the BIOS setup program menu features.

Table 20. BIOS Setup Program Menu Bar

Main ADVANCED PCIPnP BOOT SECURITY CHIPSET EXIT

Displays

processor and

memory

configurations

Configures

advanced

features and

settings

Setup for

PCI and PCI

Express*

Table 21. BIOS Setup Program Function Keys

BIOS Setup Program Function Key Description

< or > Selects a different menu screen (moves the cursor left or right)

^ or ν Selects an item (moves the cursor up or down)

Enter Executes command or selects the submenu

F7 Discard changes F8 Load fail safe defaults F10 Save the current values and exits the BIOS setup program ESC Exits the menu

Load the optimal default configuration values for the current menu

Selects boot

options and

configurations

Sets

passwords

and security

features

Configures

different

major

components

Saves or

discard

changes to

setup

program

options

January 2007 User’s Manual Order Nu mb er: 315879-002 51

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

4.2 Resource Configuration

4.2.1 PCI Auto Configuration

The BIOS automatically configures PCI devices. Currently on the CRB there is a 32/33 PCI add-in card socket. Auto configuration lets a user insert or remove PCI cards without having to manually configure the system. When a user turns on the system after adding a PCI card, the BIOS automatically configures interrupts, the I/O space, and other system resources. Any interrupts set to AVAILABLE in Setup are considered to be available for use by add-in card.

4.3 System Management BIOS (SMBIOS)

SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.

The main component of SMBIOS is the Management Information Format (MIF) databas e, whic h con tains in for mation a bout the co mputing syst em and i ts compon ents. Using SMBIOS, a system administrator can obtain the system types , capabilities, operational status, and installation dates for system components. The MIF database defines the data and provides the method for accessing this information. The BIOS enables applications such as third-party management software to use SMBIOS. The BIOS stores and reports the following SMBIOS information:

• BIOS data, such as the BIOS revision level

• Fixed-system data, such as peripherals, serial numbers, and asset tags

• Resource data, such as memory size, cache size, and processor clock frequency

• Dynamic data, such as event detection and error logging

Overview of BIOS Features

Non-Plug and play operating systems, such as Microsoft Windows NT*, require an additional interface for obtaining the SMBIOS information. The BIOS supports an SMBIOS table interface for such operating systems. Using this support, an SMBIOS service-level application running on a non-Plug and Play operating system can obtain the SM BI OS inf or m at i o n .

4.4 Legacy USB Support

Legacy USB support enables USB devices to be used even when the operating system’s USB drivers are not yet available. Legacy USB support is used to access the BIOS Setup program, and to install an operating system that supports USB.

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t User’s Manual January 2007 52 Order Number: 315879-002

Overview of BIOS Features

Legacy USB support operates as follows:

1. When you apply power to the computer, legacy support is disabled.

2. POST begins.

3. Legacy USB support is enabled by the BIOS allowing you to use a USB keyboard to enter and configure the BIOS Setup program and the maintenance menu.

4. POST completes.

5. The operating system loads. While the operating system is loading, USB keyboards and mice are recognized and may be used to configure the operating system.

After the operating system loads the USB drivers, all legacy an d non-legacy USB devices are recognized by the operating system, and Legacy USB support from the BIOS is no l on ge r use d .

To install an operating system that supports USB, follow the operating system’s installation instructions.

4.5 BIOS Updates

The BIOS can be updated using the following tools:

• Using a BIOS burn-in tool (or flash programmer) is the best method to update the BIOS for the CRB. These BIOS updates are available through your FAE. Floppy and USB BIOS Upgrades can also be performed.

Note: Review the instructions distributed with the upgrade utility before attempting a BIOS

update.

4.5.1 Language Support

The BIOS Setup program and help messages are supported in US English. Additional languages are available in the Integrator’s Toolkit utility. Check the Intel website for details.

4.6 B oo t Opti on s

In the BIOS Setup program, the user can choose to boot from a diskette drive, hard drives, CD- ROM, USB or a network. The default setting is for the Floppy to be the first, and the Hard Drive to be the second.

4.6.1 CD-ROM Boot

Booting from CD-ROM is supported in compliance to the El Torito bootable CD-ROM format specification. Under the Boot menu in the BIOS Setup program, ATAPI CD-ROM is lis te d as a bo ot de vi ce. Bo ot devic es are de fin ed in pri ori ty o rder. Acco rdi ngl y, if ther e is not a bootable CD in the CD-ROM drive, the system attempts to boot from the next defined drive. Refer to Section 4.6.5, “Changing the Boot Device” on page 54 for how to change this setting.

4.6.2 Network B oot

A network can be selected as a boot device provided you have plugged in the PCI Express* Intel gigabit NIC. This selection allows booting from a network add-in card with a remote boot ROM installed.

January 2007 User’s Manual Order Nu mb er: 315879-002 53

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

In order to boot from the LAN, enter the BIOS and select LAN boot as your first boot device. Refer to Section 4.6.5, “Changing the Boot Device” on page 54 for how to change this setting.

4.6.3 USB Boo t

• In order to boot from a USB device, Enter BIOS and select USB boot as your first boot device.

Note: Have USB device plugged in when changing this BIOS setting

4.6.4 Booting without Attached Devices

For use in embedded applications, the BIOS has been designed so that after passing the POST, the operating system loader is invoked even if the following devices are not present:

•Video adapter

•Keyboard

•Mouse

4.6.5 Changing the Boot Device

Overview of BIOS Features

Pressing the <Delete> key during POST causes the BIOS menu to be displayed. Using your arr ow k eys mo ve ov er to <B OOT > and th en arr ow down to <Boot Devic e Prior it y> and then select which device you would like to boot first and second.

Note: Please follow the instructions on the right side of the BIOS screen to navigate and

change BIOS settings.

4.7 BIOS Security Features

The BIOS includ es securi ty featur es that restr ict acc ess to the BIOS Setup program and who can boot the computer. A supervi sor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions:

• The supervisor password gives unrestricted access to view and change all the Setup options in the BIOS Setup program. This is the supervisor mode.

• The user pa ss wo r d give s r est ri c te d acce ss to vie w and cha ng e Set u p opt ions in t he BIOS Setup program. This is the user mode.

• If only the supervisor password is set, pressing the <Enter> key at the password prompt of the BIOS Setup program allows the user restricted access to Setup.

• If both the supervisor and user passwords are set, users can enter either the supervisor password or the user password to access Setup. Users have access to Setup respective to which password is entered.

• Setting the user password restricts who can boot the computer. The password prompt is displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, the user can enter either password to boot the computer.

• For enhanced security, use different passwords for the supervisor and user passwords.

• Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to 16 characters in length.

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t User’s Manual January 2007 54 Order Number: 315879-002

Error Messages and Beep Codes

5.0 Error Messages and Beep Codes

5.1 Speakers

The CRB-mounted speaker provides audible error message (beep code) information during POST. The location of the on-board speaker is coordinate D4.

5.2 BIOS Beep Codes

Whenever an error occurs during POST, the BIOS exerts and error tone which indicates the problem.

Table 22. Beep Code Types

Type Pattern Frequency

Memory Error Three long beeps 1280 Hz

Thermal W arnin g

Four alternating beeps: High tone, low tone, high

tone, low tone

High tone: 2000 Hz

Low ton e: 1600 Hz

5.3 BIOS Error Messages

Table 23 lists the error messages and provides a brief description of each.

Table 23. BIOS Error Messages

Error Message Explanation

CMOS Battery Low The battery may be losing power. Replace the battery soon.

CMOS Checksu m Ba d

Memory Size Decreased

No Boot Device Available System did not find a device to boot.

The CMOS checksum is incorrect. CMOS memory may have been corrupted. Run Setup to reset val ues.

Memory size has decreased since the last boot. If no memory was removed then memory may be bad.

5.4 Port 80h POST Codes

During the POST, the BIOS generates diagnostic progress codes (POST-codes) to I/O port 80h. If the POST fails or execution stops, the last POST code generated by the BIOS is left at port 80h. This code is useful for determining the point where an error occurred.

January 2007 User’s Manual Order Nu mb er: 315879-002 55

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t

The following tables provide information about the POST codes generated by the BIOS:

• Table 2 4 lists the Port 80h POST code ranges

• Table 2 5 lists the Port 80h POST sequence

Table 24. Port 80h POST Code Ranges

Range (Hex) Category/Subsystem

00 – 0F Debug codes: Can be used by any PEIM/driver for debug. 10 – 1F Host Processors: 1F is an unrecoverable processor error. 20 – 2F Memory/Chi ps et: 2F is no me mo ry d et ect ed o r no use ful me m or y dete c ted . 30 – 3F Rec ov ery: 3F ind i c ated recovery failur e. 40 – 4F Reserved for future use.

50 – 5F

60 – 6F Reserved for future use (for new busses). 70 – 7F Output Devices : A l l output consol es. 7F is an unrecov erable err o r. 80 – 8F Reserved for future use (new output console codes). 90 – 9F Input d evices: Keyboard/ Mouse. 9F is an unrecoverable error. A0 – AF Reserved for future use (new input console codes).

B0 – BF

C0 – CF Reserved for future use.

D0 – DF Boot device selection.

E0 – FF F0 – FF

I/O Busses: PCI, USB, ISA, ATA, etc. 5F is an unrecoverable error. Start with PCI.

Boot Devices: Includes fixed media and removable media. BF is an unrecoverable error.

FF processor exception. E0 – EE: Miscellaneous codes. EF boot/S3: resume failure.

Error Messages and Beep Codes

Table 25. Typical Port 80h POST Sequence (Sheet 1 of 2)

POST Code Description

21 Initializing a chipset component 22 Reading SPD from memory DIMMs 23 Detecting presence of memory DIMMs 25 Configuring memory 28 Testing memory 34 Loading recover y capsul e E4 Entered DXE p hase 12 Starting Application proce sso r initia lizatio n 13 SMM initialization 50 Enumerating PCI busses 51 Allocating re source s to PCI bus 92 Dete cting the presence of the keyboard 90 Resetting keyboard 94 Clearing ke yboard i n p ut buffer 95 Keyboard Self Test EB Calling Video BIOS 58 Resetting USB bus

Dual-Core Intel® Xeon® Processor LV and Intel® 3100 Chip se t User’s Manual January 2007 56 Order Number: 315879-002

Error Messages and Beep Codes

Table 25. Typical Port 80h POST Sequence (Sheet 2 of 2)

POST Code Description

5A Resetting PATA/SATA bus and all devices

92 Detecting the presence of the keyboard 90 Resetti ng keybo a rd 94 Clearing keyboard input buffer

5A Resetting PATA/SATA bus and all devices

28 Testing memory 90 Resetti ng keybo a rd 94 Clearing keyboard input buffer E7 Waiting for user input 01 INT 19 00 Rea d y to boot

January 2007 User’s Manual Order Nu mb er: 315879-002 57
