User's Guide Before You Begin
Chapter 1 Before You Begin
Please read this section before you start using your computer.
1.1 Checking What You Received
Your notebook package should contain the following items:
• The Notebook.
• AC Adapter.
• AC Power Cord.
• Driver CD Disc (Including Drivers and
User’s Guide).
• Battery Pack.
Note: You should keep the original factory carton and packing materials in case you
need to ship the unit back for servicing.
Page 1-1
Before You Begin User's Guide
1.2 Examining Your Computer
Before you start using your computer, you need to get acquainted with your notebook's
main features and interfaces:
Internal Microphone (Optional)
Web Cam Lens (Optional)
Web Cam LED (Optional)
Two Speakers
Nine System Buttons
ODD Drive
Touch Pad
Page 1-2
Panoramic View
LCD Screen
Power Button
Keyboard
Fingerprint Reader (Optional)
Two Click Buttons
Four Status LEDs
User's Guide Before You Begin
Front View
Two Power LEDs
Headphone Jack (SPDIF)
Microphone Jack
Rear View
VGA Connector
RJ11 Fax/Modem Connector (Optional) DC-In Jack
Kensington Lock
Battery Pack
Page 1-3
Before You Begin User's Guide
Media Card Slot (for MMC/ SD/ MS/ MS-Pro
Cards)
Two USB Connectors
HDMI Connector (Optional)
USB Connector
Eject Button
Left View
RJ45 LAN Connector
Ventilation Holes
PCI Express Card Slot
Right View
ODD Drive
Emergency Hole
Page 1-4
User's Guide Before You Begin
Bottom View
Compartment Door (for Mini-PCI Express and
HDD Modules)
Ventilation Holes
Two Battery Latches
Compartment Door (for Memory Modules,
Heatsink, and CPU)
Battery Pack
Warning: For better ventilation of heat generated and gathered inside the system unit,
you are advised not to block the ventilation holes. For notebook with
ventilation holes on the system chassis, please avoid putting system unit on
fabric surfaces when it is powered on. Fabric surfaces not only tend to
block the ventilation holes located on the system chassis, fabric threads
(especially from carpets and rugs) would invariably come off and get inside
the system unit which in turn would deteriorate the overall performance of
the system’s ventilation.
Page 1-5
Before You Begin User's Guide
Note: Some external USB devices consume more power than this system unit can
provide. In this case, these USB devices have their own power cords. To make
sure this kind of USB devices can function properly, please connect these
devices to the AC source first before connecting to the system unit.
Stereo Jack:
Your headphone jet should
have this type of connector
as shown here.
Your microphone jet should
Mono Jack:
have this type of connector
as shown here.
Two Types of Audio Jack
Page 1-6
User's Guide Before You Begin
1.3 The Two Power LEDs
The Power LED
Below is how the LED would behave in different situations:
Off System is powered off, or in Hibernate mode.
On System is in full operation.
Blinking System is in Standby mode.
The Battery LED
Below is how the LED would behave in different situations:
Purple
Blue
Off
Red Blinking
Battery pack is being recharged: fast-charge or pre-charge.
Battery pack is in full power capacity.
Battery pack is not under recharge.
• Battery pack is consuming down to 10% level.
• Battery pack error.
Note: The Two Power LEDs are located near the front side of system unit. For exact
location, please refer to the Front View diagram in Chapter 1.2.
For more details on Standby and Hibernate, please refer to Power Options (of
Windows System) in the Control Panel of your Microsoft Windows operating
system.
Page 1-7
Before You Begin User's Guide
1.4 The Four Status LEDs
The Wireless LAN LED
This LED would be lit when the Wireless LAN is powered on. For details on
how to power on and power off the Wireless LAN, please refer to Chapter 1.10.
The Caps Lock LED
The LED would be lit when the keyboard is in Caps Lock mode. In this mode,
all characters you type are in uppercase.
The Num Lock LED
This LED would be lit when the keyboard is in Num Lock mode. In this mode,
the embedded numeric keypads can be used.
The HDD/ODD Access LED
This LED would be lit when system is accessing the HDD and/or ODD drive.
Note: The Four Status LEDs are located near the two click buttons. For exact
location, please refer to the Panoramic View diagram in Chapter 1.2.
Page 1-8
User's Guide Before You Begin
1.5 The Power Button
The Power Button
This Power Button is programmable by user. For detail on how to program this
button, please refer to the Power Options of Control Panel in Windows
System.
Note: The Power Button is located near the top left of keyboard. For exact location,
please refer to the Panoramic View diagram in Chapter 1.2.
Page 1-9
Before You Begin User's Guide
1.6 The Nine System Buttons
Email Button
Press this button to activate the email function.
Internet Button
Press this button to activate the internet function.
Media Player Button
Press this button to activate the media player function.
Play/Pause Button
Press this button to play or pause media playback.
Stop Button
Press this button to stop media playback.
Previous Track Button
Press this button to skip to the previous track/chapter of media playback.
Page 1-10
Next Track Button
Press this button to skip to the next track/chapter of media playback.
Mute/Un-mute Button
Press this button to mute and un-mute audio volume.
Volume Button
Press this button to increase (+) and decrease (−) audio volume.
User's Guide Before You Begin
Note: The Nine System Buttons are located near the top of keyboard. For exact
location, please refer to the Panoramic View diagram in Chapter 1.2.
Page 1-11
Before You Begin User's Guide
A
A

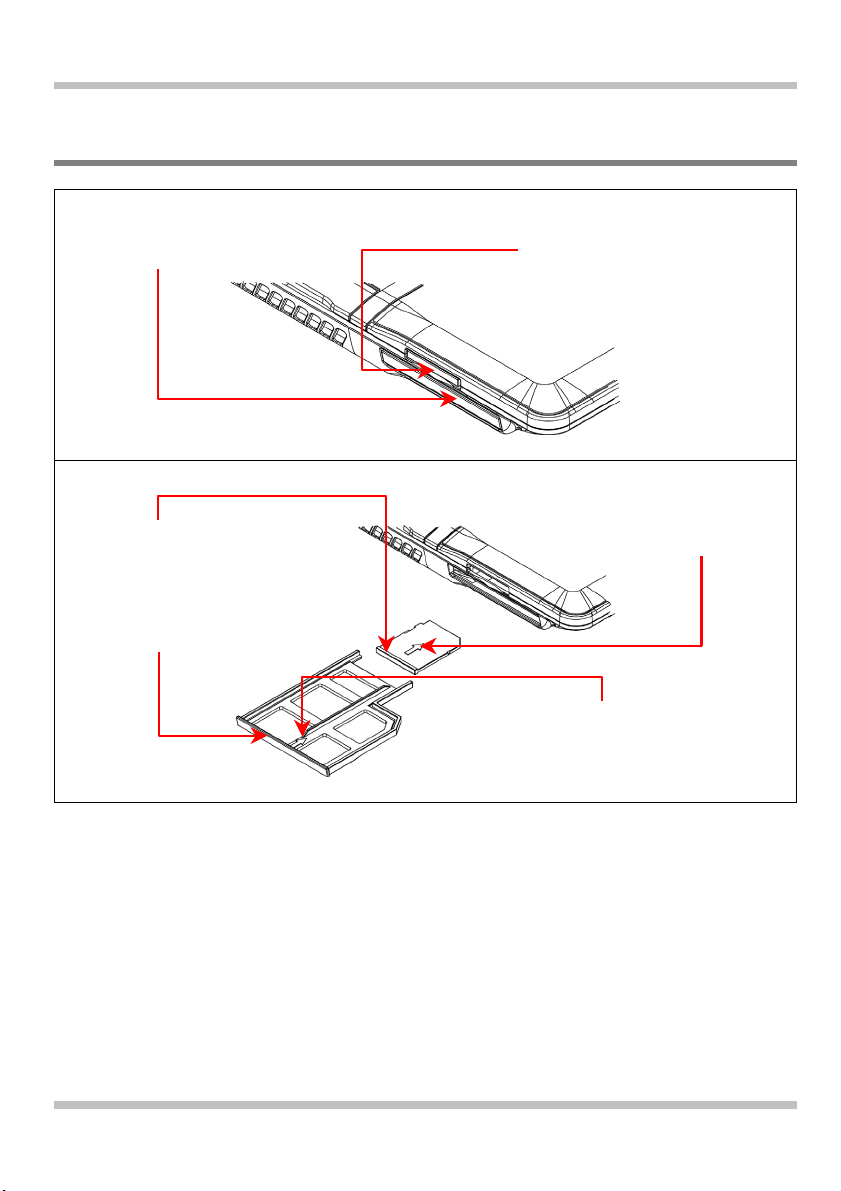

1.7 Attention On PCI Express And Media Card Sockets
The PCI Express Card slot door is
now inserted into the system unit.
The Media Card slot door is now
inserted into the system unit.
The Media Card slot door is now
taken out from the system unit.
The PCI Express slot door is now
taken out from the system unit.
rrow on topside of PCI Express
Card slot door.
rrow on topside of
Media Card slot door.
Please observe below safety measures:
• When PCI Express Card is not inserted into the PCI Express Card slot, make sure this
slot is covered by the “PCI Express Card slot door” as supplied together with this
notebook. The purpose of this “PCI Express Card slot door” is to prevent foreign
matters from entering into the system unit through this slot, when PCI Express Card is
not inserted. When inserting this “PCI Express Card slot door”, please make sure the
arrow is on the topside as shown above. Inserting this door upside down may cause
damage to your notebook.
Page 1-12
User's Guide Before You Begin
• When no card (MMC/ SD/ MS/ MS-Pro Cards) is inserted into the media card slot,
make sure this card slot is covered by the “media card slot door” as supplied together
with this notebook. The purpose of this “media card slot door” is to prevent foreign
matters from entering into the system unit through this card slot, when no card is
inserted. When inserting this “media card slot door”, please make sure the arrow is on
the topside as shown above. Inserting this door upside down may cause damage to
your notebook.
Page 1-13
Before You Begin User's Guide
1.8 Operating Temperature
Operating Temperature : 10ºC to 35ºC.
1.9 The Scroll Area On Touch Pad
The scroll area
The system touch pad has a scroll area immediately to the right of the vertical bar. Design
of traditional touch pads requires end-users to push their fingertips upward or downward
on the scroll area to respectively scroll up and scroll down. Your system touch pad offers
an unique feature different from other more traditional design; whereby you can rest your
fingertips on the upper portion or lower portion of the scroll area to scroll up and scroll
down respectively.
Page 1-14
User's Guide Before You Begin

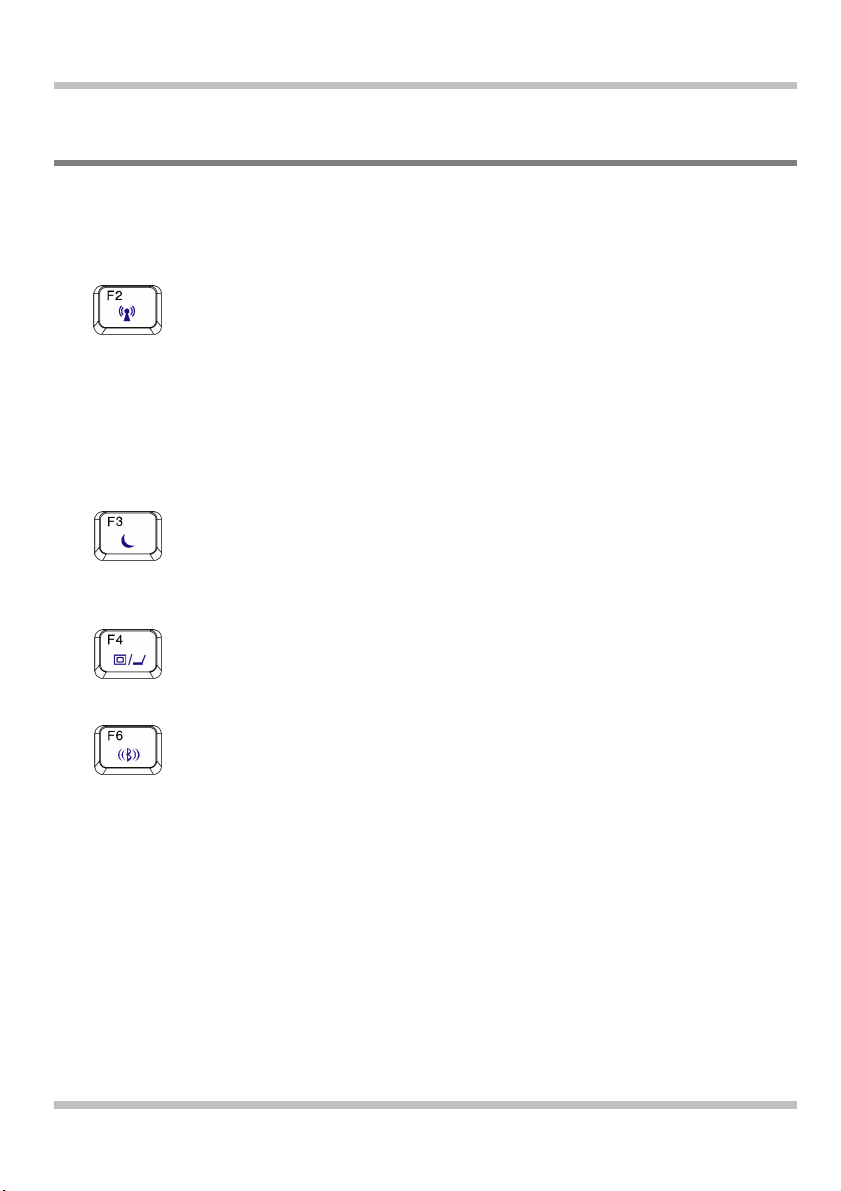

1.10 The <Fn> Key
The <Fn> Function Key is located near the bottom-left corner of the keyboard. This key is
used together with other keys to activate certain pre-defined functions. To activate these
functions, press and hold down <Fn> together with the keys described below:
Wireless LAN Switch
Press this key combination (Fn+F2) to power on and power off the Wireless
LAN module. Powering on the Wireless LAN by pressing this key
combination (Fn+F2) does not automatically activate the Wireless LAN
function. After powering on, you need to activate the Wireless LAN function
through Windows™. The main purpose of this key combination (Fn+F2) is to
provide you a quick way to turn off the power of Wireless LAN when entering
venues like airplanes, airports, and hospitals where the usage of Wireless LAN
is prohibited or not advisable.
Sleep Switch
Press this key combination (Fn+F3) to enter sleep mode. In sleep mode, the
LCD display and selected devices would be switched off for less energy
consumption.
LCD/CRT Switch
Press this key function combination (Fn+F4) to switch between LCD only,
CRT only, and LCD/CRT simultaneously.
Bluetooth Switch
Press this key combination (Fn+F6) to power on and power off the
Bluetooth® module. Powering on the Bluetooth® by pressing this key
combination (Fn+F6) does not automatically activate the Bluetooth®
function. After powering on, you need to activate the Bluetooth® function
through Windows™. The main purpose of this key combination (Fn+F6) is to
provide you a quick way to turn off the power of Bluetooth® when entering
venues like airplanes, airports, and hospitals where the usage of Bluetooth® is
prohibited or not advisable.
Page 1-15
Before You Begin User's Guide
Brightness Increasing
Press this key combination (Fn+F7) to increase brightness of LCD display.
Brightness Decreasing
Press this key combination (Fn+F8) to decrease the brightness of LCD
display.
Touch Pad Switch
Press this key combination (Fn+F9) to switch off and to switch on the touch
pad function. When the touch pad function is switched off, the touch pad
device still can work temporarily for three to five seconds during system
reboots into Windows™ operating system, or resumes from standby or
hibernation.
Mute/Un-Mute Switch
Press this key combination (Fn+F10) to mute and un-mute the audio volume.
Volume Increase
Press this key combination (Fn+F11) to increase the audio volume.
Page 1-16
Volume Decrease
Press this key combination (Fn+F12) to decrease the audio volume.
NumLock Switch
Press this key combination (Fn+ ) to activate or deactivate the
embedded numeric keypads.
Break Switch
Press this key combination (Fn+ ) to break the MS-DOS application
program you are running. Its function is the same as the industry standard
“break” key.
User's Guide Before You Begin
Print Screen Switch
Press this key combination (Fn+ ) to capture the screen image. Its
function is the same as the industry standard “Prt SC” key.
System Request Switch
Press this key combination (Fn+ ) to execute system request. Its function
is the same as the industry standard “Sys Rq” key.
Note: The proper way to activate Wireless LAN, and Bluetooth® is as below:
1) Press this key combination (Fn+F2) to power on Wireless LAN.
2) Press this key combination (Fn+F6) to power on Bluetooth®.
3) Activate the application programs in Windows™.
The effective range of the system Bluetooth® is 10 meters.
Page 1-17
Before You Begin User's Guide
This page is left blank intentionally.
Page 1-18
User's Guide Battery
Chapter 2 Battery
2.1 Battery Pack
Your notebook is equipped with a high-energy rechargeable Lithium Ion (Li-Ion) battery
pack. Battery life will vary depending on the product configuration, product model,
applications loaded on the product, power management settings of the product, and the
product features used by the customer. As with all batteries, the maximum capacity of this
battery will decrease with time and usage.
2.2 Recharging The Battery Pack
Your notebook supports both on-line and off-line recharge. Follow the procedure below to
recharge battery:
• Make sure the battery pack is installed in the notebook.
• Connect the AC adapter to the notebook and to an electrical outlet.
When a battery pack is being recharged, the battery LED (located near the front side of the
system unit) would be lit. For details on the LED, please refer to Chapter 1.3. When the
notebook is OFF, a depleted Li-Ion battery will take three hours to recharge.
Page 2-1
Battery User's Guide
2.3 Questions And Answers
Q: I can feel a mild heat next to the battery pack during recharge. Is it normal?
A: The battery will generate heat during recharging and discharging. There is a
protection circuit inside the notebook to prevent overheating. User needs not to
worry.
Q: My battery operation time is not as long as it should be. Why?
A: The battery is heat sensitive and can only be charged to its maximum if the battery
and its environmental temperature remain within 15-25°C (59-77°F). The more the
temperature deviates from this range during recharging, the less chance there is for
the battery to be fully charged. In order to recharge the pack to its full capacity,
users are requested to cool down the unit by unplugging the AC Adapter. Wait until
it is cooled down. Then plug in the AC Adapter to start recharging again.
Q: I did not use my spare battery for a few days. Even though it was fully recharged,
there wasn't as much power left as a newly charged one. Why?
A: The batteries will self-discharge (1% per day for Li-Ion) when they are not being
recharged. To make sure a battery pack is fully charged, recharge before use.
Always keep the battery inside the notebook and have the AC adapter connected
whenever possible.
Q: I did not use my spare battery for months. I have problem in recharging it.
A: If you happen to leave your battery pack to go through an extended period of self-
discharge, say more than three months, the battery voltage level will become too
low and needs to be Pre-Charged (to bring the battery voltage level high enough)
before it automatically (for Li-Ion only) resumes its normal Fast Charge. Pre-
Charge may take 30 minutes. Fast Charge usually takes 2~3 hours.
Page 2-2
User's Guide Battery
2.4 Battery Maintenance
To maintain the battery pack's maximum capacity, you should occasionally let the
notebook deplete its battery power completely before recharging.
To carry out a complete depletion of the battery, disconnect the AC adapter and let your
notebook consume the remaining battery power. To speed up the depletion, use the HDD
as much as possible, and the LCD should be set as bright as possible. When the battery is
empty, wait for the notebook to cool down (especially the battery). The temperature should
be within 15-25°C (59-77°F). Then insert the AC adapter to recharge the battery.
2.5 Power Consumption
The Windows™ operating system has incorporated the latest state-of-the-art ACPI
(
Advanced Configuration Power Interface) power management methodology. In order to
fully utilize the power of your battery packs, it would be a good idea for you to spend
sometime to acquire a basic understanding of the power management concept from your
operating system.
In Windows™ Operating Systems, you can go through Power Options of the Control
Panel according to the version of Windows™ Operating System the notebook applies.
We shall not describe them in details.
Page 2-3
Battery User's Guide
2.6 Reducing Power Consumption
Although your notebook (together with the operating system) is capable of power
conservation, there are measures you can take to reduce the power consumption:
• Use the AC power whenever possible.
• Lower the intensity of the LCD backlight. A very bright screen translates to higher
power usage.
• Try to use the HDD to read and write files, instead of using the external USB
FDD.
Note: Whenever system is powered on or powered off, make sure the battery pack is
installed in the battery pack compartment.
2.7 Removing The Battery Pack
This battery pack can easily be removed and replaced. Make sure that the computer is
properly shutdown before changing the battery pack. If you would like to change the
battery pack while power is on, make sure this battery pack is not the only electrical source
to the system unit. Follow the steps below to remove the battery pack.
To insert the battery pack, reverse the steps above.
• Make sure the system is properly
shutdown.

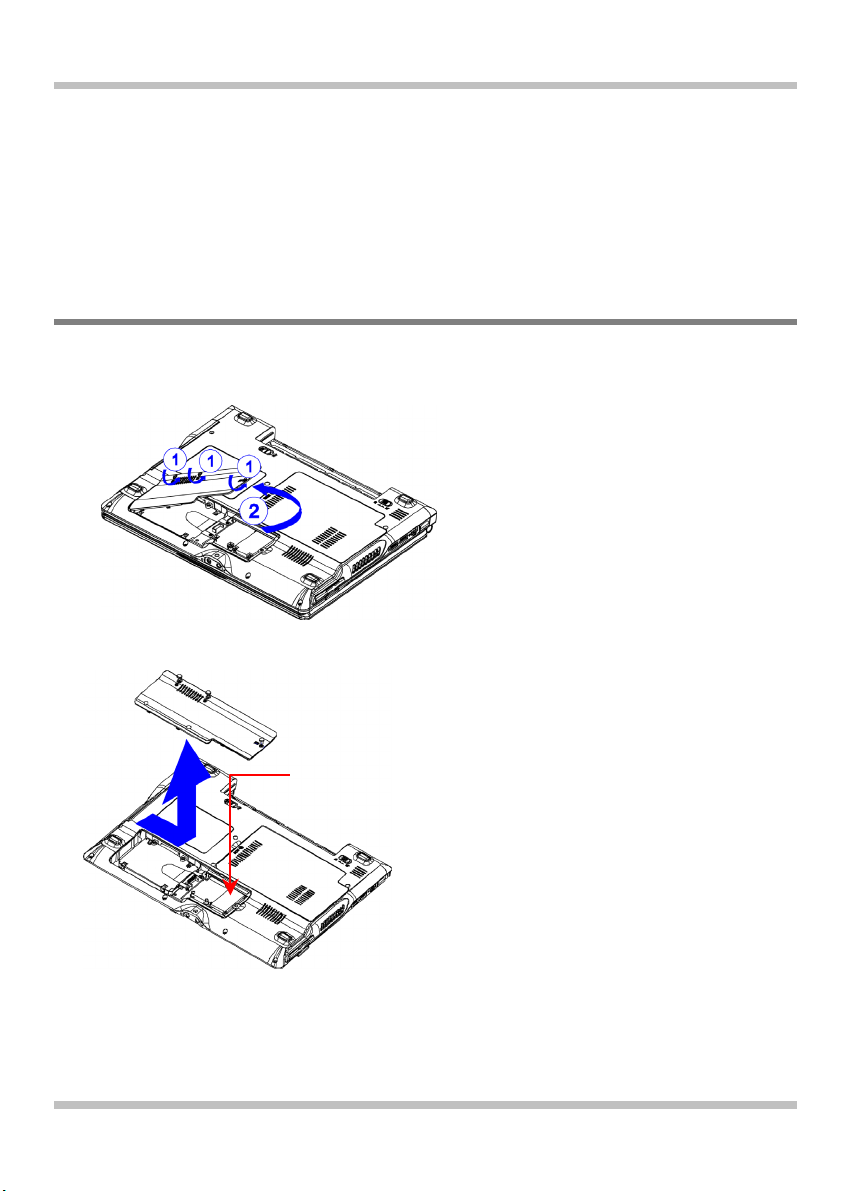

• Flip the system upside down as
shown.
• Push the battery latch to unlock
position as shown by #1.
• Push the battery latch to unlock
position as shown by #2.
• Maintain the battery latches in unlock
positions.
• Remove the battery pack as shown
by #3.
Page 2-4
User's Guide Memory
Chapter 3 Memory
Your notebook is equipped with a configurable memory unit. The industry standard
JEDEC DDR2 S.O.DIMM memory module sockets are available for memory upgrade to
8192MB. The table below illustrates some of the possible ways system memory can be
configured.
Your notebook supports the below industry standard memory modules: PC5300 (DDR2-
667), and PC6400 (DDR2-800). If it occurs that different standards of memory module are
installed into the system (with one module in socket#1 and another in socket#2), the overall
speed would be downgraded to the lower standard of the two standards.
Total Memory Socket#1 Socket#2
512MB 0MB 512MB
512MB 512MB 0MB
1024MB 0MB 1024MB
1024MB 512MB 512MB
1024MB 1024MB 0MB
1536MB 512MB 1024MB
1536MB 1024MB 512MB
2048MB 1024MB 1024MB
4096MB 2048MB 2048MB
8192MB 4096MB 4096MB
Note: Depend on the edition of Windows operating system your notebook applies, the
minimum memory requirement would vary. It is recommended that if you use
Windows Vista™ operating system, your system memory should be at least
1024MB.
Page 3-1
Memory User's Guide
Groove for indicating the
orientation of the module
1.25” max
DDR2 S.O. DIMM Memory Module
Page 3-2
User's Guide Memory
3.1 Removing Memory Module
Below is the procedure on how to remove the memory module.
Memory
Modules
• Make sure the system is properly
shutdown.
• Flip the system upside down as
shown.
• Remove the battery pack as shown
in Chapter 2.
• Remove the screw as shown by #1.
• Tilt up the compartment door as
shown by #2.
• Slide and remove the compartment
door as shown.
• You can see two memory sockets
with one socket overlapping the
other socket.
Page 3-3
Memory User's Guide

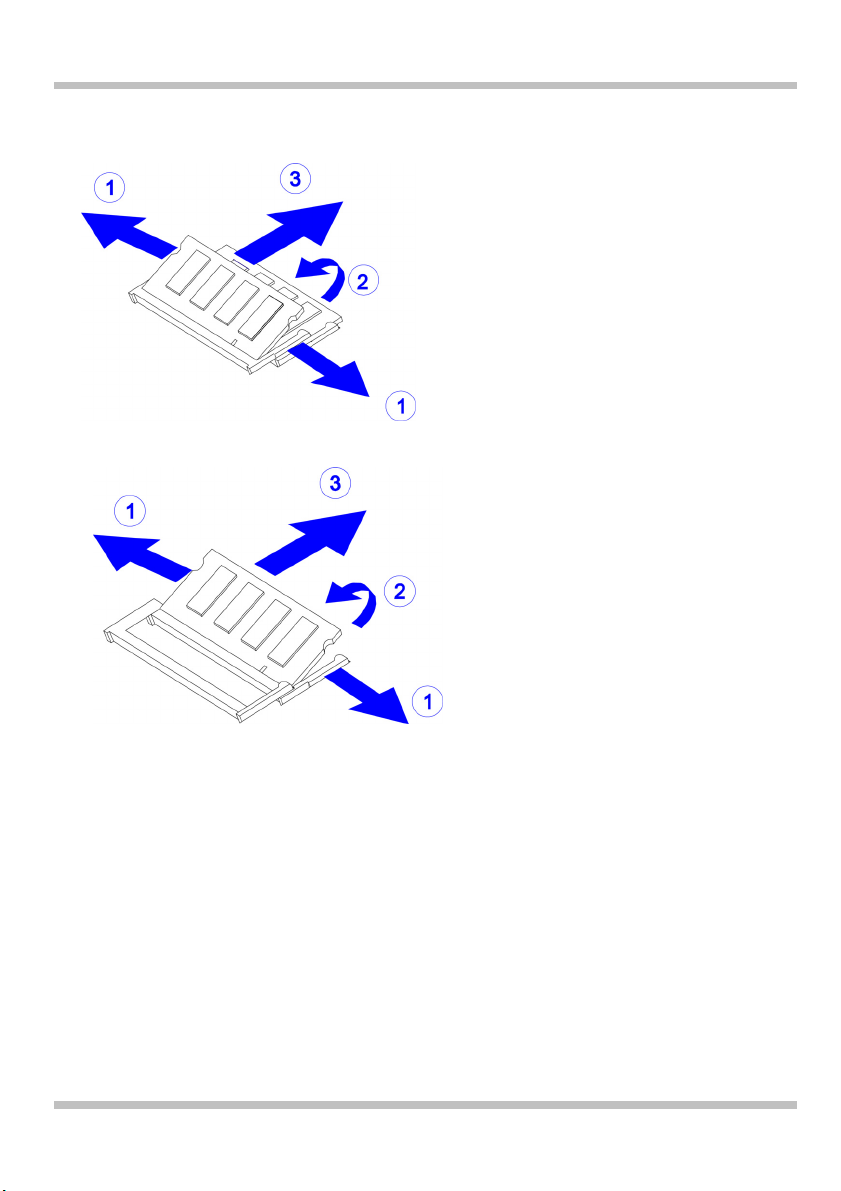

• Press the spring-locks sideways as
shown by #1.
• The first memory module would pop
up as shown by #2.
• Remove the first memory module as
shown by #3.
• Press the spring-locks sideways as
• The second memory module would
• Remove the second memory module
To insert the memory modules, reverse the steps above.
shown by #1.
pop up as shown by #2.
as shown by #3.
Page 3-4
User's Guide Mini-PCI Express Module
Chapter 4 Mini-PCI Express Module
Depending on model, your notebook may be equipped with an optional Mini-PCI
Express module. The Mini-PCI Express module supports wireless LAN function.
4.1 Removing Mini-PCI Express Module
Below is the procedure on how to remove the Mini-PCI Express module.
Mini-PCI
Express Module
• Make sure the system is properly
shutdown.
• Flip the system upside down as
shown.
• Remove the battery pack as shown
in Chapter 2.
• Remove the three screws as shown
by #1.
• Tilt up the compartment door as
shown by #2.
• Slide and remove the compartment
door as shown.
Page 4-1
Mini-PCI Express Module User's Guide

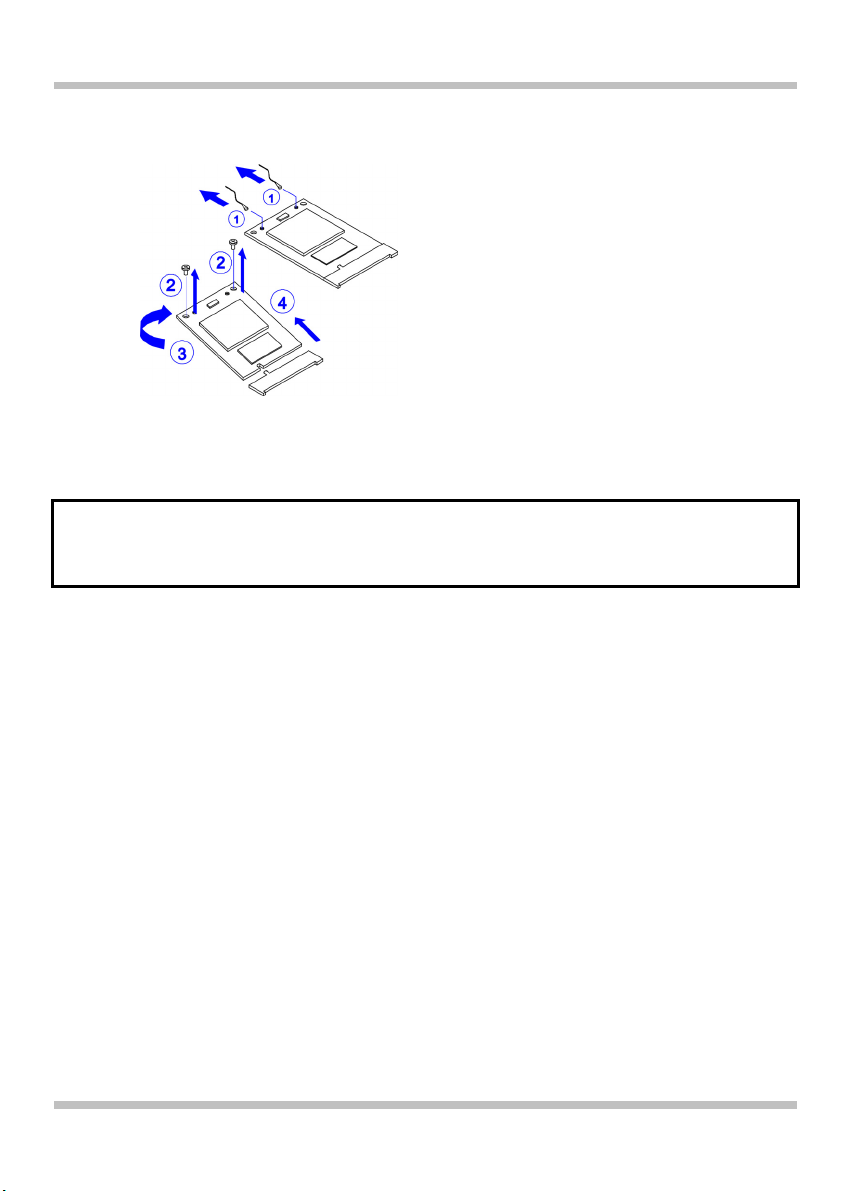

• Disconnect the two cables as shown
by #1.
• Remove the two screws as shown by
#2.
• The Mini-PCI Express module would
pop up as shown by #3.
• Remove the Mini-PCI Express
module as shown by #4.
• Note, there are different types of
mini-PCI Express module. Externally,
they look slightly different; especially
on the locations of the cable
connections.
To insert the Mini-PCI Express module, reverse the steps above.
Note: Depend on the different types of mini-PCI Express module, some modules are
with two cables, while some modules are with three cables.
Page 4-2
User's Guide The Hard Disk Drive
Chapter 5 The Hard Disk Drive
Your notebook is equipped with an industry standard 2.5”/9.5mm hard disk drive.
5.1 Removing The Hard Disk Drive
Below is the procedure on how to remove the hard disk drive.
• Make sure the system is properly
shutdown.
• Flip the system upside down as shown.
• Remove the battery pack as shown in
Chapter 2.
• Remove the three screws as shown by
#1.
• Tilt up the compartment door as shown
by #2.
HDD Drive
• Slide and remove the compartment
door as shown by #1.
• Remove the two screws as shown by
#2.
• Pull the belt in a lateral direction to
unlock the HDD module as shown by
#3.
Page 5-1
The Hard Disk Drive User's Guide
• Tilt up the HDD module as shown by
#1.
• Remove the HDD module as shown by
#2.
To insert the HDD drive, reverse the steps above.
• Remove the four screws as shown by
#1.
• Remove the HDD drive as shown by
#2.
Page 5-2
User’s Guide Appendix A
Appendix A - Agency Regulatory Notices
A.1 Safety Instructions
CAUTION: Please read these safety instructions carefully.
CAUTION: Please keep this User's Manual for future reference.
CAUTION: Please disconnect this equipment from AC outlet before
cleaning. DO NOT use liquid or sprayed detergent for cleaning. Use a clean
moistened cloth.
CAUTION: The wall socket used should be positioned near the equipment
and should be easily accessible.
CAUTION: Please keep this equipment free from humidity.
CAUTION: Place the equipment on a reliable surface at all times. A drop or
fall can cause severe damage.
WARNING: The openings of the enclosure are for air ventilation and are
meant to protect the equipment from overheating. DO NOT COVER THE
VENTILATION OPENINGS.
Page A-1
Appendix A User's Guide
CAUTION: Verify the voltage of the power source before connecting the
unit to any power outlet.
WARNING: DO NOT step on or place anything over the power cord.
CAUTION: All cautions and warnings on the equipment should be noted.
WARNING: If the equipment is not used for a long period of time,
disconnect the equipment from the power source to avoid damage from power
spikes.
WARNING: NEVER pour any liquid into any openings; a fire or electrical
shock is possible.
WARNING: For safety reasons, other than pre-designated ports, doors, and
the equipment should be opened only through qualified service personnel.
CAUTION: If one of the following situations should arise, the equipment
should be checked by an authorized technician:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to excessive moisture.
d. The equipment does not work well, or you fail to get it to work
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
Page A-2
according to user's manual.
User’s Guide Appendix A
CAUTION: DO NOT LEAVE THE EQUIPMENT IN TEMPERATURES
BELOW -20ºC(-4ºF) OR ABOVE 60ºC(140ºF). IT MAY CAUSE
DAMAGE TO THE EQUIPMENT.
WARNING: Never install modem/telephone wiring during a lightning
storm.
WARNING: Never install modem/telephone jacks in wet locations unless
the jack is specially designed for wet locations.
WARNING: Never touch un-insulated modem/telephone wires or terminals
unless the modem/telephone line has been disconnected at the network
interface.
CAUTION: Use caution when installing or modifying modem/telephone
lines.
WARNING: Avoid using a modem/telephone (other than a cordless type)
during an electrical storm. There may be a remote risk of electric shock from
lightning.
WARNING: This computer contains an internal lithium battery-powered
real-time circuit. There is a risk of explosion and injury if the battery is
incorrectly replaced or handled. Do not attempt to recharge, disassembled,
immerse in water, or dispose of it in fire. Replacement should be done through
your notebook dealer.
Page A-3
Appendix A User's Guide
WARNING: THE CD-ROM/DVD-ROM IN THIS NOTEBOOK
EMPLOYS A LASER SYSTEM.
a. To ensure proper use of this product, please read the relevant
instructions carefully and retain for future reference.
b. Should the unit ever require maintenance, contact your local dealer.
c. Use of controls, adjustments or the performance of procedures other
than those specified may result in hazardous radiation exposure.
d. To prevent direct exposure to Laser Beam, do no try to open the
enclosure.
CAUTION: The internal CD-ROM/DVD-ROM drive is classified as a
CLASS 1 LASER PRODUCT. Label is located on the outside of the CD-
ROM/DVD-ROM drive with the following wordings:
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
WARNING: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
Explosionsgefahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.
WARNING: Your notebook contains a Ni-MH or Li-Ion battery pack.
There is a risk of fire and chemical burn if the battery pack is handled
improperly. Do not disassemble, crush, puncture, short external contact, dispose
of in water or fire, or expose it to temperature higher than 60ºC.
Page A-4
User’s Guide Appendix A
WARNING: Handle the battery pack very carefully. Avoid touching the
metal leads on the connector of the battery case.
CAUTION: Use only approved AC Adapter with your notebook. Using the
wrong type of AC Adapter may cause serious damage to your notebook.
CAUTION: The AC Adapter can accept a line voltage ranging from 100V to
240V and is compatible with most international power sources. If you are
unsure whether your power source is compatible, please contact the local dealer
for assistance.
CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger
telecommunication line cord.
CAUTION: For continued protection against risk of fire, Replace only with
same type and rating of fuse.
CAUTION: If the computer is not sold to German area, please use only the
local recognized power supply cords that are recommended by the
manufacturer.
WARNING: Don't expose your notebook to excessive heat or coldness
(frost). Don't drop, spill fluids or open the exterior of the case. This can damage
the notebook and void the warranty.
Page A-5
Appendix A User's Guide
A.2 Agency Notice
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by the manufacturer responsible for compliance may
void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI
connector hoods to maintain compliance with FCC Rules and Regulations.
Page A-6
User’s Guide Appendix A
FCC RF Radiation Exposure Statement
• This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
• This equipment complies FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
• If this device is going to be operated in 5.15 ~5.25GHz frequency range, then it is
restricted in indoor environment only.
USA and Canada Safety Requirements And Notices
The FCC with its action in ET Docket 93-62 has adopted a safety standard for human
exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified
equipment. The Intel PRO/Wireless LAN MiniPCI Adapter products meet the Human
Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992. Proper
operation of this radio according to the instructions found in this manual will result in
exposure substantially below the FCC’s recommended limits.
The following safety precautions should be observed:
• Do not touch or move antenna while the unit is transmitting or receiving.
• Do not hold any component containing the radio such that the antenna is very close or
touching any exposed parts of the body, especially the face or eyes, while transmitting.
• Do not operate the radio or attempt to transmit data unless the antenna is connected; if
not, the radio may be damaged.
Use in specific environments:
• The use of wireless devices in hazardous locations is limited by the constraints posed
by the safety directors of such environments.
• The use of wireless devices on airplanes is governed by the Federal Aviation
Administration (FAA).
• The use of wireless devices in hospitals is restricted to the limits set forth by each
hospital.
Antenna use:
• In order to comply with FCC RF exposure limits, low gain integrated antennas should
be located at a minimum distance of 20 cm (8 inches) or more from the body of all
persons.
• High-gain, wall-mount, or mast-mount antennas are designed to be professionally
installed and should be located at a minimum distance of 30 cm (12 inches) or more
from body of all persons. Please contact your professional installer, VAR, or antenna
manufacturer for proper installation requirements.
Page A-7
Appendix A User's Guide
Explosive Device Proximity Warning
Warning: Do not operate a portable transmitter (such as a wireless network device) near
unshielded blasting caps or in an explosive environment unless the device has been
modified to be qualified for such use.
Use On Aircraft Caution
Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency
wireless devices because their signals could interfere with critical aircraft instruments.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Avis Canadien
Cet appareil numerque de la classe B respecte toutes les exigences du Reglement sur le
materiel brouilleur du Canada.
Canada Radio Frequency Interference Requirements
This Class B digital apparatus complies with Canadian ICES-003, Issue 2, and RSS-210,
Issue 4 (Dec. 2000).
“To prevent radio interference to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.”
Cet appareil numérique de la classe B est conforme à la norme NMB-003, No. 2, et CNR210, No. 4 (Dec. 2000).
“Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une
licence, il doit être utilizé à l’intérieur et devrait être placé loin des fenêtres afin de fournir
un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installé à
l’extérieur, il doit faire l’objet d’une licence.”
Page A-8
User’s Guide Appendix A
European Union Notice
Product with the CE Marking comply with the EMC Directive (2004/108/EC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community and
if this product has telecommunication functionality, the R&TTE Directive (1999/5/EC).
Compliance with these directives implies conformity to the following European Norms (in
parentheses are the equivalent international standards and regulations):
• EN55022 (CISPR 22)⎯ Electromagnetic Interference
• EN55024 (IEC61000-4-2,3,4,5,6,8,11)⎯ Electromagnetic Immunity
• EN61000-3-2⎯ (IEC61000-3-2)-Power Line Harmonics
• EN61000-3-3⎯ (IEC61000-3-3)-Power Line Flicker
• EN60950 (IEC60950) ⎯ Product Safety
For devices with built-in wireless equipment, the following additional standards apply:
• ETSI301489-17: General Emissions for Radio Equipment
• EN60950: Safety
• ETSI300328-2: Technical Requirements for Radio Equipment
CE Caution: Due to the fact that the frequencies used by 802.11b/802.11g wireless
LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are
designed for use only in specific countries or regions, and are not allowed to be operated in
countries or regions other than those of designated use. As a user of these products, you are
responsible for ensuring that the products are used only in the countries or regions for
which they were intended and for verifying that they are configured with the correct
selection of frequency and channel for the country or region of use. And deviation from
permissible settings and restrictions in the country or region of use could be an
infringement of local law and may be punished as such.
Page A-9
Appendix A User's Guide
The wireless LAN device can currently be used indoors only in the following departments
of mainland France.
01 Ain 36 Indre 69 Rhône
02 Aisne 37 Indre et Loire 70 Haute Saône
03 Allier 39 Jura 71 Saône et Loire
05 Hautes Alpes 41 Loir et Cher 72 Sarthe
08 Ardennes 42 Loire 75 Paris
09 Ariège 45 Loiret 77 Seine et Marne
10 Aube 50 Manche 78 Yvelines
11 Aude 54 Meurthe et Moselle 79 Deux Sèvres
12 Aveyron 55 Meuse 82 Tarn et Garonne
16 Charente 57 Moselle 84 Vaucluse
19 Corrèze 58 Nièvre 86 Vienne
2A Corse Sud 59 Nord 88 Vosges
2B Haute Corse 60 Oise 89 Yonne
21 Côte d’Or 61 Orne 90 Territoire de Belfort
24 Dordogne 63 Puy du Dôme 91 Essonne
25 Doubs 64 Pyrénées Atlantique 92 Hauts de Seine
26 Drôme 65 Haute Pyrénées 93 Seine St Denis
27 Eure 66 Pyrénées Orientales 94 Val de Marne
32 Gers 67 Bas Rhin
35 Ille et Vilaine 68 Haut Rhin
The wireless LAN device cannot currently be used in any departments of mainland France
other than those listed above.
Maximum allowable EIRP 802.11b wireless LAN cards in the mainland departments of
France not shown in the table above are as follows: (See the ART website at www.arttelecom.fr for information on the French overseas territories.)
Frequency Ranges (MHz) Indoors Outdoors
2400 – 2446.5 10 mW Not permitted
2446.5 – 2483.5 100 mW 100 mW on private property
with Ministry of Defense
approval
Japanese Notice
Page A-10
User’s Guide Appendix A
DGT Statement
U.S. Regulations Governing the Use of Modems
This equipment complies with Part 68 of the FCC Rules. On this equipment is a label that
contains, among other information, the FCC registration number and
Number (REN) for this equipment. You must, upon request, provide this information to
your telephone company.
If your telephone equipment harms the telephone network, the Telephone Company may
discontinue your service temporarily. If possible, they will notify in advance. But, if
advance notice is not practical, you will be notified as soon as possible. You will be
informed of your right to file a compliant with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or
procedures that could affect proper operation of your equipment. If they do, you will be
notified in advance to give you an opportunity to maintain uninterrupted telephone service.
The FCC prohibits this equipment to be connected to party lines or coin-telephone service.
In the event that this equipment should fail to operate properly, disconnect the equipment
from the phone line to determine if it is causing the problem. If the problem is with the
equipment, discontinue use and contact your dealer or vendor.
The FCC also requires the transmitter of a FAX transmission be properly identified (per
FCC Rules Part 68, Sec 68.381 (C) (3)).
Ringer Equivalence
Page A-11
Appendix A User's Guide
Japanese Modem Notice
U.K. Modem Compliance Information
This modem is approved by the secretary of state at the Department of Trade and Industry
for connection to a single exchange line of the public switched telephone network run by
certain licensed public telecommunication operators or system connected there to (Direct
exchange lines only, not shared service or 1-1 carrier systems).
modem is also suitable for connection to Private Automatic Branch Exchange (PABX),
This
which return secondary proceeding indication.
If this modem is to be used with a PBX which has extension wiring owned by BT,
connection of the modem the PBX can only be carried out by BT; or by the authorized
maintainer of the PBX unless the authorized maintainer has been given 14 days written
notice that the connection is to be made by another person; and that period of notification
has expired.
This modem is suitable for use only on telephone lines proved with Loop Disconnect or
Multi-Frequency Dialing Facilities.
Users of this modem are advised that the approval is for connection to the PSTN via the
telephone line interface supplied with it. Connection of a modem to the PSTN by any other
means will invalidate the approval.
There is no guarantee of correct working in all circumstances. Any difficulties should be
referred to your supplier.
Some network operators require that intended users of their network request permission to
connect and for the installation of an appropriate socket.
Ringer Equivalence Number (REN) of this modem is 1. REN is guide to the
The
maximum number of apparatus that can simultaneously be connected to one telephone line.
The REN value of each apparatus is added together, and should not exceed 4. Unless
otherwise marked, a telephone is assumed to have a REN of 1.
Page A-12
User’s Guide Appendix A
This modem is only approved for use of the following facilities:
• Storage of telephone numbers for retrieval by a predator mined code.
• Initial proceed indication detection.
• Automatic calling / automatic answering.
• Tone detection.
• Loud-speaking facility.
This modem is not approved for connection to U.K./private speech-band services. This
modem does not support an automatic re-dial function. Any other usage will invalidate the
approval of your modem, if as a result, it then ceases to confirm to the standards against
which approval was granted. The approval of this modem is invalidated if the apparatus is
subject to modification in any material way not authorized by the BABT or if it is used
with, or connected to external software that have not been formally accepted by BABT.
Page A-13
Appendix A User's Guide
This page is left blank intentionally.
Page A-14
Loading...
