Intel SBC-776 User Manual
SBC-776
Full-sized Intel FC-370 Pentium III CPU
Card with Intel 815E chipset, Dual LAN,
Audio, SCSI, LCD & 4 USB.
Copyright Notice
This document is copyrighted, 2001. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.
The material is this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON, assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.
Part No. 2047776000 SBC-776 1st. Edition
Printed in T aiwan May ., 2001
Acknowledgments
All other product names or trademarks are properties of their
respective owners.
AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.
A ward is a trademark of A ward Software International, Inc.
IBM, PC/A T , PS/2, and VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium III are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.RTL is
a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and T echnologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated T echnology Express, Inc.
SiS is a trademark of Silicon Integrated Systems Corp.
VIA is a trademark of VIA T echnology, Inc.
A Message to the Customer
AAEON Customer Services
Each and every AAEON product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new AAEON equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name AAEON has
come to be known.
Y our satisfaction is our primary concern. Here is a guide to
AAEON's customer services. T o ensure you get the full benefit of
our services, please follow the instructions below carefully.
Technical Support
W e want you to get the maximum performance from your products.
So if you run into technical difficulties, we are here to help. For the
most frequently asked questions, you can easily find answers in
your product documentation. These answers are normally a lot
more detailed than the ones we can give over the phone.
So please consult this manual first. If you still cannot find the
answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our
dealers are well trained and ready to give you the support you need
to get the most from your AAEON products. In fact, most problems
reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from AAEON
engineers every business day. We are always ready to give advice
on application requirements or specific information on the installation and operation of any of our products.
Product Warranty
AAEON warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for
two years from the date of shipment.
This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel authorized by AAEON, or which have been subject to misuse, abuse,
accident or improper installation. AAEON assumes no liability
under the terms of this warranty as a consequence of such events.
Because of AAEON's high quality-control standards and rigorous
testing, most of our customers never need to use our repair service.
If an AAEON product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs,
you will be billed according to the cost of replacement materials,
service time, and freight. Please consult your dealer for more
details.
If you think you have a defective product, follow these steps:
1 . Collect all the information about the problem encountered. (For
example, CPU type and speed, AAEON products used, other
hardware and software used, etc.) Note anything abnormal and
list any on-screen messages you get when the problem occurs.
2 . Call your dealer and describe the problem. Please have your
manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA
(return material authorization) number from your dealer. This
allows us to process your return more quickly .
4 . Carefully pack the defective product, a fully-completed Repair
and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container.
A product returned without proof of the purchase date is not
eligible for warranty service.
5. Write the RMA number visibly on the outside of the package
and ship it prepaid to your dealer.
Packing list
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 SBC-776 Half- size Single Board Computer Card
• 1 Quick Installation Guide
• 1 Support CD contains the followings:
-- User's Manual (this manual in PDF file)
-- Ethernet driver and utilities
-- VGA driver and utilities
-- Audio driver and utilities
• 1 floppy disk drive interface cable (34-pin, pitch 2.0mm)
• 1 IDE hard disk drive cable (40-pin, pitch 2.54mm)
• 1 parallel port (26-25-pin, pitch 2.0mm) and serial port (10-9 pin,
pitch 2.0mm) adapter kit.
• 1 bag of screws and miscellaneous parts
If any of these items are missing or damaged, contact your distributor or sales representative immediately.
Notice
Dear Customer,
Thank you for purchasing the SBC-776 board. This user's
manual is designed to help you to get the most out of the SBC-776,
please read it thoroughly before you install and use the board. The
product that you have purchased comes with an two-year limited
warranty , but AAEON will not be responsible for misuse of the
product. Therefore, we strongly urge you to first read the manual
before using the product.
T o receive the latest version of the user manual, please visit our
Web site at:
Http:\\WWW.AAEON.COM
http://www.aaeon.com
Contents
Chapter 1: General Information.........................................1
Introduction.......................................................2
Features .................................................................................... 3
Specifications ........................................................................... 4
Board layout ............................................................................. 7
Board dimensions ..................................................................... 8
Chapter 2: Installation ..........................................................9
Safety Precautions...........................................................1 0
Removing the CPU..................................................10
Installing the CPU ............................................................... 11
Installing SDRAM...................................................12
Jumpers..............................................................13
Connectors .............................................................................. 14
Locating Jumpers and Connectors............................................15
Mechanical Drawing................................................17
VGA or AGP VGA Header Select (JP1).................................19
Clear CMOS (JP2) .................................................................19
Watchdog Timer (JP3) ............................................................20
COM2 RS-232/422/485 Setting (JP4)......................................21
DiskOnChip Address Select (JP5).................................... ..22
Function Select Header (JP6) .................................................24
CPU/DIMM Speed Select Header (JP7) ............................... 25
LCD Panel's Voltage Setting (JP8) ....................................... 27
COM2 RS-232/422/485 Setting (JP4).....................................28
LCD or VGA Enable Header (JP10) .....................................29
VGA Connector (CN6)........................................................... 29
IDE Hard Drive Connector (CN7) .........................................30
USB Connector (CN9, CN10)...............................31
Audio Connector (CN11) ........................................................3 2
Floppy Drive Connector (CN12).........................................33
PS/2 Keyboard and Mouse Connector(CN13) .......................33
Parallel Port Connector (CN14).............................................. 34
COM1 & COM2 Serial Port (CN15, CN16)..........................35
SCSI Connector (CN21) .........................................................36
100Base-Tx Fast Ethernet Connector (CN22, CN20)............37
ATX Power Connector (CN23)..............................38
Speaker/BuzzerConnector (CN24)..........................38
Fan Power Connector (CN25, CN26, CN27)...........................39
LCD Backlight Power Connector (CN28)...............40
TFT LCD Panel Connector (CN29)......................40
PS/2 Keyboard Header (CN31)............................41
PS/2 Mouse Header (CN32)................................41
Chapter 3: Award BIOS Setup...........................................42
Starting setup............................................................ ......43
Setup keys.......................................................................44
Getting help ......................................................................... 4 5
Main setup menu .....................................................................46
Standard CMOS setup ............................................................48
Advanced BIOS features ........................................................ 53
Advanced CHIPSET features ................................................ 58
Integrated Peripherals...............................................61
Power management setup.......................................................67
PNP/PCI congfiguration setup................................................72
PC Health Status......................................................74
Frequency/Voltage Control........................................75
Load Fail-Safe Defaults............................................76
Load Optimized Defaults..........................................77
Set Supervisor Password.......................................78
Set User Password...............................................79
Save and Exit Setup............................................80
Exit & Save......................................................81
Chapter 4: Drivers and Utilities .......................................82
Installing Drivers Attention Notice....................................83
Software Installation Utilities........................................85
Intel 82562ET LAN Driver............................................86
Advansys 38C0800 SCSI Driver............................................89
Intel 82559ER LAN Driver...........................................91
VGA Driver...............................................................93
Ultra ATA Storage Driver................................................94
Audio Driver............................................................95
General
Information
This chapter gives background
information of the mainboard.
Sections Include:
• Board Specifications
• Layout and Dimensions
1
CHAPTER
Chapter 1 General Information 1
Introduction
The SBC-776 is an all-in-one Single Board Computer (SBC) capable
of handling the Intel Celeron 300~766MHz (with system bus
frequencies of 66MHz) and Pentium III 500~850 MHz (with system
bus frequencies of 100MHz). Reliability , performance, flexibility are
essential qualities for SBC's and SBC-776 offers all of these.
Onboard is the versatile Intel 815E chipset, controlling LAN, LCD,
and AUDIO. The VGA has a display memory size of 4 MB, with
resolutions up to 1024 x 768 at 256K. Ethernet connections can be
easily carried out through two RJ-45 connectors.
This full-sized SBC supports M-Systems DiskOnChip 2000 family
of flash disk products that are small, plug and play, solid state disks
in a standard 32-pin DIP package with capabilities ranging from
8MB to 288MB. There are also three 168-pin DIMM sockets
providing a maximum of 512MB. A compact flash connector is
provided on the solder side of the board.
The additional Advansys ASC38C0800, Ultra II Wide SCSI coordinates up to 15 devices that are simultaneously connected to your
mainboard. Connection with the onboard chipset is made through
a 68-pin SCSI connector.
SBC-776 supports two IDE devices, two floppy disks, four USB
ports, two serial ports that can be configured as COM1, COM2,
COM3 and COM4. The single bidirectional parallel port can
support SPP, ECP and EPP modes. The standard A TX power
connector enables this full-sized SBC to be operated without any
backplane if necessary.
2 SBC-776 User Manual
Features
• Supports Intel Celeron /Pentium III FC-370 CPUs
• High Speed AGP 2X for VGA function onboard
(Intel 815E built in)
• T wo 10/100 Base-T Fast Ethernet (Intel 815 E built in and Intel 82559ER)
• Supports H/W status monitoring
• Integrated AC-97 2.1 SoundBlaster compatible PCI 3D Audio
• Onboard Intel 815E controller supports 18/36-bit TFT panel
• Supports Compact Flash Memory
• Four USB ports onboard
• Two COM ports onboard
• Ultra II Wide SCSI interface onboard
• Supports DiskOnChip
Chapter 1 General Information 3
Specifications
Standard LPX-size SBC functions
• CPU: FC-370 Pentium III (Coppermine), Celeron, and compatible CPUs
(With system bus frequencies of 66/100/133MHz).
• CPU socket: Intel Socket 370
• Bus interface: PICMG Compliant
• BIOS: A ward 4 MB Flash BIOS
• Chipset: Intel 815E
• I/O chipset: Winbond W83627HF . Fully 16-bit I/O decoded
• ISA bus interface: Winbond W83626 LPC to ISA bridge Full ISA bus
function except master mode support
• Memory : Onboard three 168 pins DIMM socket supports up to
512Mbytes SDRAM (PC-133 SDRAM supported).
• Enhanced IDE: Supports two IDE channel. Support Ultra DMA/ 100
mode with data transfer rate of 100MB/sec.
• FDD interface: Supports two floppy disk drives, 5.25" (360KB and
1.2MB) and/or 3.5" (720KB, 1.44MB, and 2.88MB).
• Parallel port: One bi-directional parallel ports. Supports SPP , ECP, and
EPP modes.
• Serial port: One RS-232 and one RS-232/422/485 serial port. Ports can be
configured as COM1, COM2, COM3, COM4, or disabled individually
and of which one and be configured as RS-232/422/485 (COM2).
(16C550 equivalent).
• KB/Mouse connector : 6-pin mini-DIN connector supports PC/A T
keyboard and PS/2 mouse and wake on KBD function.
• USB connectors: 10-pin onboard connector supports four USB ports.
• Battery: Lithium battery for data retention
• Watchdog timer: Can generate a system reset, IRQ15, or NMI.
Software selectable time-out interval (1 sec. ~ 255 min., 1 sec./step or
1 min./step)
• DMA: 7 DMA channels (8237 equivalent)
4 SBC-776 User Manual
• Interrupt: 15 interrupt levels (8259 equivalent)
• Power management: Supports A TX power supply . I/O peripheral
support power saving and doze/standby/suspend modes. APM 1.2
compliant.
• H/W status monitoring: Embedded in W83267HF supports power,
supply voltages, and temperature monitoring.
Flat Panel/CRT Interface
• Chipset: embedded In Intel 815E
• Chipset output VGA signal: AGP 4X
• Display memory: Share system memory 4MB SDRAM (Max)
• Display type: Supports non-interlaced CRT and up to 18/36 bit LCD (TFT ,
LCD, only). Can display both CRT and Flat Panel simultaneously.
• Resolution: Up to 1024 x 768 @ 256 K colors
Audio Interface
• Chipset: Intel 815E
• Audio interface: One 14 pin header (2.00mm)
• Codec: ALC 200
Ethernet Interface
• Chipset: Intel 815E embedded in ICH2 and Intel 82559ER
• Ethernet interface : 82559ER does not support WOL and AOL
82562ET support WOL and do not support AOL
82562EM support WOL and AOL. 776 offers 82559ER and 82562 ET on
board.
Compact Flash socket onboard
• Compact flash connector onboard support type 2 CFD
Chapter 1 General Information 5
Ultra Wide II SCSI Interface
• Chipset: AdvanSys ASC38C0800
• Connector: 68-pin internal
• T ermination: Auto termination
SSD Interface
• One 32-pin DIP socket supports M-Systems DiskOnChip 2000 series
Mechanical and environmental
• Power supply voltage: A TX power supply
• Operating temperature: 32 to 140o F (0 to 60o C)
• Board size: 13.3"(L) x 4.8"(W) (338mm x 122mm)
• Weight: 1.2 lb. (0.3 Kg)
6 SBC-776 User Manual
Board Layout
CN26
CN24
JP10
JP1
JP5
CN33
JP7
CN2
CN3
CN4
CN7
CN5
CN12
JP2
JP8
CN28
CN29
CN9
W83977F-A
W
inbond
CN30
CN10
JP9
JP3
JP4
CN21
CN11
CN32
CN34
CN15
CN25
CN27
CN14
CN16
CN6
CN20
CN22
CN13
CN31
CN23
JP6
Chapter 1 General Information 7
Board Dimensions
8 SBC-776 User Manual
W83977F-A
W
inbond
2
CHAPTER
Installation
This chapter describes how to set up the
main board hardware, including instructions on setting jumpers and connecting
peripherals, switches, and indicators. Be
sure to read all the safety precautions
before you begin the installation procedure.
SBC-776 Chapter 2 9
SBC-776
Safety precautions
Warning! Always completely disconnect the power cord from
your chassis whenever you are working on it. Do
not make connections while the power is on
because sensitive electronic components can be
damaged by the sudden rush of power . Only
experienced electronics personnel should open the
PC chassis.
Caution! Always ground yourself to remove any static charge
before touching the CPU card. Modern electronic
devices are very sensitive to static electric charges.
Use a grounding wrist strap at all times. Place all
electronic components on a static-dissipative surface
or in a static-shielded bag when they are not in the
chassis.
Removing the CPU
The SBC-776 all-in-one CPU module supports most Pentium III/
Celeron or 586 CPUs. The system's performance depends on the
CPU you choose. You can install or upgrade the CPU in the board's
PGA socket by following the procedures outlined below . If your
system has an existing CPU, you need to remove it before installing
the new CPU.
Removing a CPU
1. Disconnect power from the chassis, and unplug all connections
to the CPU card. Then, remove the CPU card from the chassis
by following the instructions in the user's manual for your
chassis.
2 . Lift the CPU out of the PGA socket. The old chip may be
difficult to remove. Y ou may find spray chip lubricant, designed
for pin-grid-array (PGA) devices, and a chip puller helpful.
These are available at electronics hobbyists' supply stores.
10 SBC-776 Manual
BC-599/596
Installing A CPU
T o install the CPU, follow the instructions that came with it. If no
documentation was provided, the general procedures for installing
a CPU are outlined below:
1 . Lubricate the pins on the CPU with lubricant for PGA devices.
This makes the CPU slide in much easier and greatly reduces
the chance of damaging the pins and other components.
2 . Carefully align the CPU so that it is parallel to the socket. Make
sure that the notch on the corner of the CPU matches the notch
on the inside of the socket.
3 . Gently push the CPU into the socket. There will probably be a
small gap between the CPU and the socket even when it is fully
seated. DO NOT USE EXCESSIVE FORCE!
When you install a new CPU, you may have to adjust other
settings on the board, such as CPU type, CPU clock, and PCI
speed, to accommodate it. Make sure that the settings are correct
for your CPU. Improper settings may damage the CPU.
SBC-776 Chapter 2 11
SBC-776
Installing DRAM (DIMMs)
System Memory
The SBC-776 contains three sockets for 168-pin dual inline memory
module (DIMM). The socket uses 3.3 V unbuffered synchronous
DRAM (SDRAM). DIMM is available in capacities of 16, 32, 64, 128
or 256 MB. The socket can be filled in the DIMM of any size,
giving your SBC-776 single board computer between 16 and 512
MB of memory.
Supplementary information about DIMM
SBC-776 can accept PC-133 SDRAM DIMM Module(with or
without parity).
Single-sided modules are typically 16 or 64 MB; double-sided
modules are usually 32, 128 or 256 MB.
Memory Installation Procedures
T o install DIMM, first make sure the two handles of the DIMM
socket are in the "open" position. i.e. The handles remain outward.
Slowly slide the DIMM module along the plastic guides on both
ends of the socket. Then press the DIMM module right down into
the socket, until you hear a click. This is when the two handles
have automatically locked the memory module into the correct
position of the DIMM socket. (See Figure below) T o take away the
memory module, just push both handles outward, and the memory
module will be ejected by the mechanism in the socket.
12 SBC-776 Manual
BC-599/596
Jumpers
Jumpers Function
JP1 VGA or AGP VGA Select Header
JP2 Clear CMOS Selection
JP3 Watchdog Function Select
JP4 RS-232/422/485 COM 2 Setting
JP 5 DiskOnChip Address Selection
JP6 Function Select
JP 7 CPU/DIMM Speed Select
JP8 LCD Panel's Voltage Setting
JP9 RS-232/422/485 COM2 Setting
JP10 LCD or VGA Enable Header
SBC-776 Chapter 2 13
SBC-776
Connectors
Connector Function
CN2,3,4 SDRAM Slot
CN5 AGP Slot
CN6 VGA Connector
CN7 Primary IDE Connector
CN8 Compact Flash
CN9,10 USB Dual Port Header
CN11 Audio Connector
CN12 Floppy Drive Connector
CN13 PS/2 Keyboard and Mouse Connector
CN14 Parallel Port Connector
CN15 COM 1 Serial Port
CN16 COM 2 Serial Port
CN20,22 LAN RJ-45 Connector
CN21 SCSI Connector
CN23 ATX Power Supply
CN24 Speaker/Buzzer
CN25 System FAN 1 Connector
CN26 CPU Fan Connector
CN27 System FAN 2 Connector
CN28 LCD Backlight Power Connector
CN29 TFT LCD Panel Connector
CN31 PS/2 Keyboard Header
CN32 PS/2 Mouse Header
14 SBC-776 Manual
BC-599/596
Locating Jumpers and Connectors
W
W83977F-A
CN26
CN33
CN11
CN32
CN34
CN15
JP6
CN25
CN27
CN23
CN14
CN16
CN6
CN20
JP9
CN21
JP4
JP3
CN10
CN30
CN9
CN29
CN28
JP8
JP2
CN12
CN5
CN7
CN22
CN13
CN31
JP5
JP1
JP10
JP7
CN4
CN3
CN2
CN24
inbond
SBC-776 Chapter 2 15
SBC-776
CN8
Locating Jumpers and Connectors
16 SBC-776 Manual
BC-599/596
Mechanical Drawing
W
W83977F-A
inbond
SBC-776 Chapter 2 17
SBC-776
Mechanical Drawing
18 SBC-776 Manual
BC-599/596

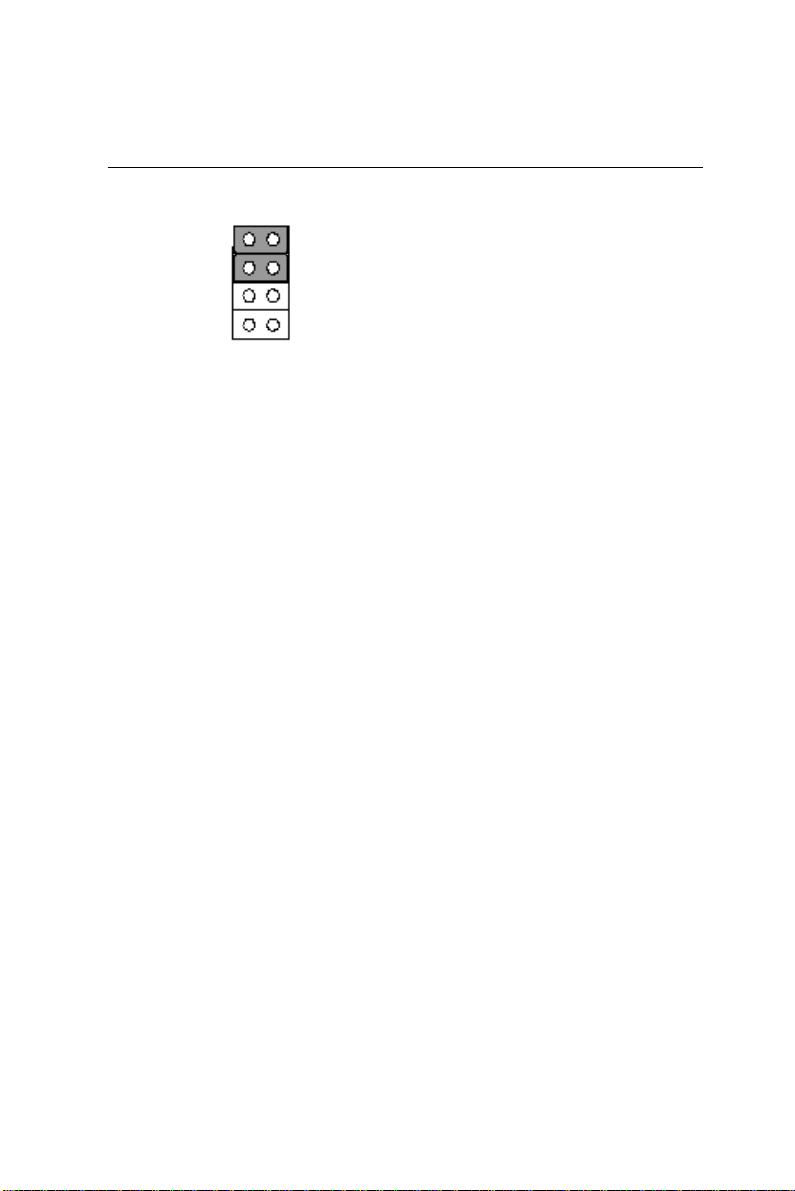

VGA or AGP VGA Header Select (JP 1)
Select AGP VGA
1 2
3 4
5 6
7 8
9 10
11 12
13 14
Select on board VGA
1 2
3 4
5 6
7 8
9 10
11 12
13 14
Clear CMOS (JP2)
You can use JP2 to clear the CMOS data if necessary. T o reset the
CMOS data, place a jumper on JP2 for just a few seconds, then
remove the jumper.
Clear CMOS (J2P)
Clear CMOS Protect*
JP2
1 2 3
*default
1 2 3
SBC-776 Chapter 2 19
SBC-776
Watchdog Timer Function Select (JP3)
The mainboard is equipped with a watchdog timer that resets the CPU
or generates an interrupt if processing comes to a standstill for whatever
reason. This feature ensures system reliability in industrial stand-alone
and unmanned environments.
Reset
1 2
3 4
5 6
IRQ15
1 2
3 4
5 6
NMI
1 2
3 4
5 6
20 SBC-776 Manual
BC-599/596
