Intel® RAID Controller RS3UC080J
Hardware User Guide
A document providing an overview of product features, specification data, and
hardware installation instructions
Rev 1.0
November 2016
Intel Server Products and Solutions
Intel® RAID Controller RS3UC080J Hardware User Guide
<Blank Page>
Intel® RAID Controller RS3UC080J Hardware User Guide
Date Published
Revision
Revision Change Description
Nov 2016
1.0
Initial release
Document Revision History
i
Intel® RAID Controller RS3UC080J Hardware User Guide
Disclaimers
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this
document.
Intel disclaims all express and implied warranties, including without limitation, the implied warranties of
merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from
course of performance, course of dealing, or usage in trade.
This document contains information on products, services and/or processes in development. All information
provided here is subject to change without notice. Contact your Intel representative to obtain the Hardware
User Guide.
The products and services described may contain defects or errors known as errata which may cause
deviations from published specifications. Current characterized errata are available on request.
Intel, the Intel logo, are trademarks of Intel Corporation in the U.S. and/or other countries.
*Other names and brands may be claimed as the property of others
© Intel Corporation
ii
Intel® RAID Controller RS3UC080J Hardware User Guide
Document Title
Description
What to Do when Unable to Enter BIOS
Article ID#: 000059999- If the Intel or OEM logo screen displays during POST, the BIOS
12 Gbps SAS or 6G SATA Data Transfer
Article ID# 000008025 - How and where the controller supports 12-Gbps SAS (6G
TA-1085—4Kn and 512e Advanced
Article ID# 000006173 - TA-1085—4Kn and 512e Advanced Format with Intel® RAID
Preface
This document provides an overview of product features, specification data, and hardware installation
instructions for the Intel® RAID Controller RS3UC080J.
Document Organization
This document includes the following chapters and glossary:
• Chapter 1 – Product Overview – provides a product overview of the features set and support
specifications
• Chapter 2 – General Feature Overview
• Chapter 3 – Hardware Installation – provides the product installation instructions
• Chapter 4 – Safety and Regulatory
• Glossar y of Te r ms
Reference Documents and Online Articles
The following documents are available for download and will be useful to set up and use your Intel RAID
controller.
Or Intel® RAID BIOS Console During
Boot for Intel® Server Boards
Controller Support for Intel RAID
Controllers
Format with Intel® RAID and Server
Boards
entry or Intel® RAID BIOS console command prompts are not visible. To gain access to
these prompts, you need to disable the logo screen.
SATA) data transfers
and Server Boards
Product Support Collateral Documents
In addition to this User Guide, Intel provides documentation, device driver updates, and utilities that may be
necessary and/or useful for operation and support of the product described herein. Additional collateral
documents supporting this product can be downloaded from the following Intel web sites:
For product documentation, go to the following Intel web site:
http://www.intel.com/content/www/us/en/search.html?keyword=rs3uc080j&toplevelcategory=Support
For product device drives and other software utilities, go to the following Intel web site:
https://downloadcenter.intel.com/product/97264/Intel-RAID-Controller-RS3UC080J
iii
Intel® RAID Controller RS3UC080J Hardware User Guide
Table of Contents
1 Product Overview ........................................................................................................................................................ 1
1.1 RAID Controller Layout............................................................................................................................................................. 2
1.2 Feature Set .................................................................................................................................................................................... 3
1.3 Performance Features ............................................................................................................................................................... 3
1.4 Device Support Limits ............................................................................................................................................................... 3
1.5 RAID Controller Specifications .............................................................................................................................................. 3
1.6 SAS/SATA Standards and Communication Protocols ................................................................................................. 4
1.7 Safety Characteristics .............................................................................................................................................................. 4
1.8 Electrical Characteristics ........................................................................................................................................................ 4
1.8.1 Operating and Nonoperating Conditions for the Intel® RAID Controller ................................................... 4
2 General Feature Overview ......................................................................................................................................... 5
2.1 Benefits of the SAS Interface ................................................................................................................................................. 5
2.2 Summary of 12Gb/s Intel® RAID Controller Characteristics ...................................................................................... 5
2.2.1 SAS Features ....................................................................................................................................................................... 5
2.2.2 SATA III Features ................................................................................................................................................................ 5
2.2.3 Usability Features ............................................................................................................................................................. 5
2.2.4 Flexibility Features ............................................................................................................................................................ 6
2.3 Intel® 12 Gb/s SAS 3.0 Expander Support ........................................................................................................................ 6
2.3.1 SAS Expander Configuration ....................................................................................................................................... 6
3 Hardware Installation ................................................................................................................................................. 8
3.1 RAID Controller Installation ................................................................................................................................................... 9
3.1.1 Requirements ..................................................................................................................................................................... 9
3.1.2 Packing List .......................................................................................................................................................................... 9
3.1.3 Installation Instructions ................................................................................................................................................. 9
4 Safety and Regulatory (Class A) ............................................................................................................................ 12
4.1 Product Safety Compliance ................................................................................................................................................ 12
4.2 Product EMC Compliance – Class A Compliance ....................................................................................................... 12
4.3 Product Environmental Compliance ................................................................................................................................ 12
Appendix A. Glossary ................................................................................................................................................. 14
iv
Intel® RAID Controller RS3UC080J Hardware User Guide
List of Figures
Figure 1. Intel® RAID Controller RS3UC080J .............................................................................................................................. 1
Figure 2. RAID Controller Layout ................................................................................................................................................. 2
Figure 3. Connector Types of each supported SAS Expander Card ........................................................................................ 7
Figure 4 RAID Controller Installation (insert controller in slot) ............................................................................................ 10
Figure 5 RAID Controller Installation (insert riser card) ......................................................................................................... 10
Figure 6 RAID Controller Installation (controller installed) ................................................................................................... 11
List of Tables
Table 1. Feature Set ....................................................................................................................................................................... 3
Table 2. Performance Features .................................................................................................................................................... 3
Table 3. Device Support Limitations ........................................................................................................................................... 3
Table 4. RAID Controller Specifications ...................................................................................................................................... 3
Table 5. Supported Intel SAS Expander Options ...................................................................................................................... 6
v
Intel® RAID Controller RS3UC080J Hardware User Guide
1 Product Overview
The Intel® RAID Controller RS3UC080J is an 8-port SAS/SATA adapter card capable of supporting up to 240
SAS/SATA drives.

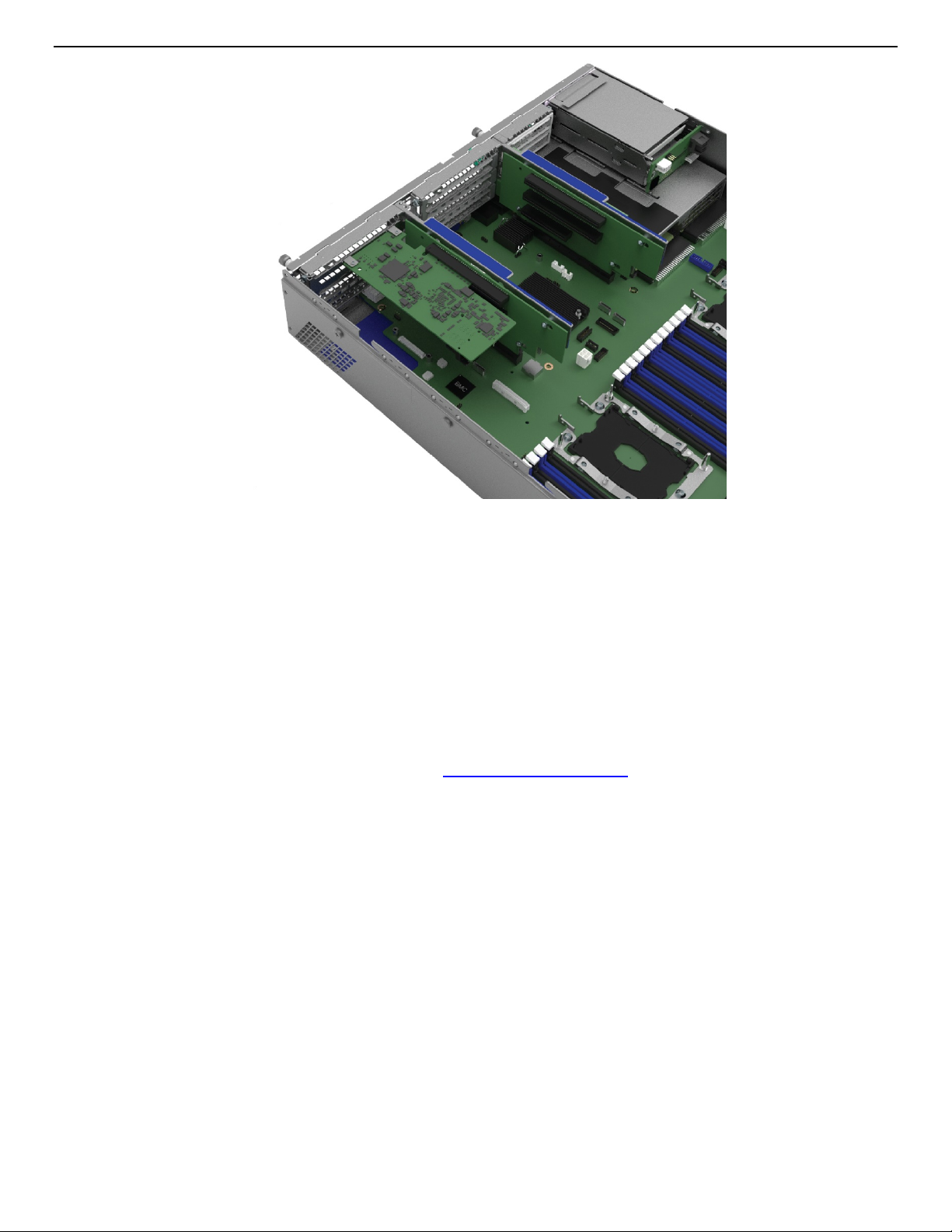

Figure 1. Intel® RAID Controller RS3UC080J
The Intel® RAID Controller RS3UC080J is ideal for direct-attached storage environments where no RAID
capabilities are required. It uses the LSI 3008 SAS controller and it can reach over 1 million IOPs.
1
Intel® RAID Controller RS3UC080J Hardware User Guide
Top
P0 – Ports 0 - 3
P1 – Ports 4 - 7
Bottom Side
1.1 RAID Controller Layout
Side
2
Figure 2. RAID Controller Layout
1.2 Feature Set
Feature
RS3UC080J
I/O Processor
LSISAS3008: PCIe* to 12Gb/s SAS Controller
RAID Levels
N/A
Cache Memory
N/A
Form Factor
MD2
Drive Interface Connectors
2 internal 4-port Mini-SAS HD SFF-8643 connectors
x8 PCI Express* 3.0
Data Transfer Rates
12, 6, & 3 Gbps per port SAS and 6 & 3 Gbps per port SATA
Operating Temperature
Maximum ambient: 65C
Operating System
Microsoft Window*, Linux* (SuSE*, Red Hat*) FreeBSD*, VMWare*
Drive Types
12G SAS, 6G SAS, 3G SAS, 6G SATA and 3G SATA
Maximum Physical Devices
240
Management utilities
Yes
Standard Warranty
3 years, AWR options
Specification
RS3UC080J
PCI Express host data transfer rate
8GT/s per lane
Drive data transfer rate
Up to 12Gb/s per lane SAS, up to 6Gb/s per lane SATA
Maximum queue tags per drive
As many as the drive can accept
Specification
RS3UC080J
Maximum devices per controller
240
Maximum enclosures
42 total (maximum 32 per mini SAS HD connector)
Specification
RS3UC080J
SAS controller and processor
Broadcom* SAS3008 IOC Controller
Operating voltage
+3.3 V, +12 V
Card size
PCI Express card size (64.39 mm x 139.16 mm)
Array interface to the host
PCIe* 3.0
Intel® RAID Controller RS3UC080J Hardware User Guide
Table 1. Feature Set
PCIe* Interface
PCIe Performance up to 8 GT/s per lane
1.3 Performance Features
Table 2. Performance Features
Maximum number of concurrent commands 10,240
1.4 Device Support Limits
Table 3. Device Support Limitations
1.5 RAID Controller Specifications
The following table lists the specifications for the Intel® RAID Controller RS3UC080J
Table 4. RAID Controller Specifications
3
Intel® RAID Controller RS3UC080J Hardware User Guide
Specification
RS3UC080J
PCI Express bus data transfer
Up to 8GT/s per lane
x8 lane width
Serial port
4-pin RS232-compatible connector (for manufacturing use only)
SAS ports
2 internal 4-port Mini-SAS HD SFF8643 connectors
Size of flash ROM for firmware
16 MB
rate
1.6 SAS/SATA Standards and Communication Protocols
The Intel® RAID Controller RS3UC080J supports the ANSI Serial Attached SCSI standard, version 3.0. In
addition, the controller supports the SATA III protocol defined by the Serial ATA specification, version 3.0.
Supporting both the SAS interface and the SATA interface, the SAS controller is a versatile controller that
provides the backbone of both server and high-end workstation environments.
Each port on your RAID controller supports SAS devices, S ATA devices, or both, by using the following
protocols:
• SAS Serial SCSI Protocol (SSP), which enables communication with other SAS devices
• SATA, which enables communication with other SATA devices
• Serial Management Protocol (SMP), which communicates topology management information directly
with an attached SAS expander device
• Serial Tunneling Protocol (STP), which enables communication with SATA devices through an attached
expander
SAS technology brings a wealth of options and flexibility with the use of SAS devices and SATA devices within
the same storage infrastructure. However, SAS devices and SATA devices bring individual characteristics that
make each one a more suitable choice depending on the requirements of the given operating environment
and storage needs. The Intel® RS3UC080J RAID Controller provides the flexibility to combine these two
storage technologies on the same controller and within the same enclosure. However combining different
rotational speed drives is not supported.
1.7 Safety Characteristics
All 12Gb/s Intel® RAID Controllers meet or exceed the requirements of UL flammability rating 94 V0. Each
bare board is also marked with the supplier name or trademark, type, and UL flammability rating.
1.8 Electrical Characteristics
1.8.1 Operating and Nonoperating Conditions for the Intel® RAID
Controller
Operating (thermal and atmospheric) limits are as follows:
• Relative humidity range is 20 percent to 80 percent noncondensing
• Airflow must be at least 200 linear feet per minute (LFPM) to avoid operating the SAS3008 processor
above the maximum ambient temperature
• Temperature range: +10°C to +55°C
Non-operating (such as storage and transit) limits are as follows:
• Relative humidity range is 5 percent to 90 percent noncondensing.
• Temperature range: –40°C to +70°C.
4
Intel® RAID Controller RS3UC080J Hardware User Guide
2 General Feature Overview
2.1 Benefits of the SAS Interface
SAS is a serial, point-to-point, enterprise-level device interface that leverages the proven SCSI protocol set.
SAS is a convergence of the advantages of SATA , SCSI, and Fiber Channel, and it is the mainstay of the
enterprise and high-end workstation storage markets.
The SAS interface uses the proven SCSI command set to ensure reliable data transfers, while providing the
connectivity and flexibility of point-to-point serial data transfers. The serial transmission of SCSI commands
eliminates clock-skew challenges. The SAS interface provides improved performance, simplified cabling,
smaller connectors, lower pin count, and lower power requirements when compared to the original parallel
SCSI.
SAS controllers leverage a common electrical and physical connection interface that is compatible with Serial
ATA (SATA) technology. The SAS protocols and the SATA III protocols use a common thin, 7-wire connector.
The SAS/SATA III connector and cable are easier to manipulate, allow connections to smaller devices, and do
not inhibit airflow. The point-to-point SATA III architecture eliminates inherent difficulties created by the
legacy ATA master-slave architecture, while maintaining compatibility with existing ATA firmware.
2.2 Summary of 12Gb/s Intel® RAID Controller Characteristics
2.2.1 SAS Features
• Support for 12 Gb/s, 6Gb/s, and 3Gb/s SAS data transfers per PHY
• Support for SMP to communicate topology-management information
• Support for SSP to enable communication with other SAS devices
• Support for STP to enable communication with SATA devices through an attached expander
• Provide a serial, point-to-point, enterprise-level storage interface
• Simplify cabling between devices
• Provide a scalable interface that supports up to 240 devices through the use of expanders
• Supports wide ports that consist of two, four or eight PHYs
• Supports narrow ports consisting of a single PHY
• Transfer data by using SCSI information units
2.2.2 SATA III Features
• Supports SATA III data transfers of 6Gb/s
• Supports STP data transfers of 6Gb/s
• Provide a serial, point-to-point storage interface
• Simplify cabling between devices
• Eliminate the master-slave construction used in parallel ATA
• Permit addressing of multiple SATA targets through an expander
2.2.3 Usability Features
• Drive spin-up sequencing control
• Support for the internal SAS Sideband signal SFF-8485 (SGPIO) interface
5
Intel® RAID Controller RS3UC080J Hardware User Guide
Intel Product Code
SAS 3.0 12 Gb/s expander
2.2.4 Flexibility Features
• Flexible programming interface to tune I/O performance
• Permit mixed connections to SAS targets or SATA III targets
• Leverage compatible connectors for SAS connections and SATA III connections
• Permit grouping of up to eight PHYs into a single SAS wide port
• Permit programming of the World Wide Name
2.3 Intel® 12 Gb/s SAS 3.0 Expander Support
For system configurations that require more than 8 physical drives, the Intel® RAID Controller RS3UC080J
has support for the following Intel® RAID Expanders:
Table 5. Supported Intel SAS Expander Options
Product Description
iPC – RES3FV288
®
SAS Expander RES3FV288
Intel
iPC – RES3TV360
Intel® SAS Expander RES3TV360
• Featuring 6Gbps data aggregation for 12Gbps data transfer with 6Gb/s devices
• Low Profile MD2 PCIe* add-in card form factor
• 28 internal ports and 8 external ports
• Power from PCIe x1
• Mini-SAS HD (SFF-8643) Connectors
Kit includes: (1) SAS Expander card, (2) HD-HD 250mm Expander-to-RAID card cables, PCI
brackets for Low profile and Full height
SAS 3.0 12 Gb/s expander
• Featuring 6Gbps data aggregation for 12Gbps data transfer with 6Gb/s devices
• Internal mount mid-plane form factor
• 36 internal ports supporting point-to-pont 12, 6, and 3 Gb/s data transfer rates
• RA 4-pin power connector
• Mini-SAS HD (SFF-8643) Connectors
Kit includes: (1) SAS expander card; (1) 130mm Power cable; (1 set) Expander-to-backplane
cables: (4) HD-HD 165mm, (1) HD-HD 300mm, (1) HD-HD 250mm; (3) Rubber Pads;
mounting screws
2.3.1 SAS Expander Configuration
Supported Intel SAS Expanders include an array of multiport mini-SAS HD (SFF-8643) connectors. Some are
used as Output connectors to a backplane, while others are used as Input connectors from the RAID
Controller. The following diagrams identify the connector types for each supported SAS expander card.
6
Intel® RAID Controller RS3UC080J Hardware User Guide
Intel® SAS Expander RES3FV288
Intel® SAS Expander RES3TV360
Figure 3. Connector Types of each supported SAS Expander Card
7
Intel® RAID Controller RS3UC080J Hardware User Guide
3 Hardware Installation
Warnings
Heed safety instructions: Before working with your server product, whether you are using this guide or any
other resource as a reference, pay close attention to the safety instructions. You must adhere to the assembly
instructions in this guide to ensure and maintain compliance with existing product certifications and
approvals. Use only the described, regulated components specified in this guide. Use of other
products/components will void the UL listing and other regulatory approvals of the product and will most
likely result in noncompliance with product regulations in the region(s) in which the product is sold.
System power on/off: The power button DOES NOT turn off the system AC power. To remove power from
the system, you must unplug all AC power cords from the server system before you open the chassis, add, or
remove any components.
Hazardous conditions, devices and cables: Hazardous electrical conditions may be present on power,
telephone, and communication cables. Turn off the server and disconnect the power cord,
telecommunications systems, networks, and modems attached to the server before opening it. Otherwise,
personal injury or equipment damage can result.
Installing or removing jumpers: A jumper is a small plastic encased conductor that slips over two jumper
pins. Some jumpers have a small tab on top that you can grip with your fingertips or with a pair of fine needle
nosed pliers. If your jumpers do not have such a tab, take care when using needle nosed pliers to remove or
install a jumper; grip the narrow sides of the jumper with the pliers, never the wide sides. Gripping the wide
sides can damage the contacts inside the jumper, causing intermittent problems with the function controlled
by that jumper. Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper,
or you may bend or break the pins on the board.
Electrostatic Discharge (ESD)
Electrostatic discharge can cause damage to your computer or the components within it. ESD can occur
without the user feeling a shock while working inside the system chassis or while improperly handling
electronic devices like processors, memory or other storage devices, and add-in cards.
Intel recommends the following steps be taken when performing any procedures described within this
document or while performing service to any computer system.
• Where available, all system integration and/or service should be performed at a properly equipped ESD
workstation
• Wear ESD protective gear like a grounded antistatic wrist strap, sole grounders, and/or conductive shoes
• Wear an anti-static smock or gown to cover any clothing that may generate an electrostatic charge
• Remove all jewelry
• Disconnect all cables and cords attached to the server before performing any integration or service
• Touch any unpainted metal surface of the chassis before performing any integration or service
• Hold all circuit boards and other electronic components by their edges only
• After removing electronic devices from the system or from their protective packaging, place them
component side up on to a grounded anti-static surface or conductive foam pad. Do not place electronic
devices on to the outside of any protective packaging.
8
Intel® RAID Controller RS3UC080J Hardware User Guide
3.1 RAID Controller Installation
3.1.1 Requirements
The following items are required to install an Intel® RAID Controller:
• Intel® RAID Controller
• Intel server board based server system with support for an Intel RAID Controller
• Internal SAS/SATA data cables
• SAS drives or SATA drives
3.1.2 Packing List
1 – Intel RAID Controller
2 – Low profile mounting bracket
3 – Attention Document
4 – Warranty Document
Note: Intel RAID Products do not include SAS / SATA data cables. Appropriate SAS / SATA data cables may
be included with your server system or must be purchased separately.
3.1.3 Installation Instructions
1. Unpack the Intel® RAID Controller.
Unpack your RAID Controller. Inspect it for damage. If it appears damaged, contact your Intel Customer
and Technical Support representative.
2. Turn off the power to the computer, and disconnect the AC power cords
3. Remove the computer cover. Refer to the system documentation for instructions.
4. Install the RAID Controller.
a) Remove the riser card (the controller can be installed on any riser card)
b) Remove the filler panel
c) Insert the controller in the desired slot. Press down gently, but firmly to make sure that the card is
seated correctly in the slot.
Secure the bracket with the bracket screw.
9
Intel® RAID Controller RS3UC080J Hardware User Guide
Figure 4 RAID Controller Installation (insert controller in slot)
d) Insert back the riser card, press down gently, but firmly
Figure 5 RAID Controller Installation (insert riser card)
10
Intel® RAID Controller RS3UC080J Hardware User Guide
Figure 6 RAID Controller Installation (controller installed)
5. Install SAS and / or SATA drives in the host computer case. Refer to the documentation for the devices
for any pre-installation configuration requirements.
6. Connect internal SAS / SATA data cables to appropriate Drives/Backplane/or Expander card
7. Carefully route SAS / SATA data cables back to the Intel RAID Controller
8. Attach SAS / SATA data cables to the Intel RAID Controller
9. Reinstall the computer cover, and reconnect the AC power cords to the system
The hardware installation is now complete and the Intel RAID Controller is ready to be configured. For
complete Intel RAID Controller configuration information, refer to the Intel® RAID Software Users Guide
available to download from the Intel Support Site: http://support.intel.com
11
Intel® RAID Controller RS3UC080J Hardware User Guide
4 Safety and Regulatory (Class A)
Intel RAID products typically have a variety of individual component level certifications; however final
regulatory compliance is based on the combination of the RAID card being integrated within an Intel Server
System.
Intended Application – The RAID products are evaluated as Information Technology Equipment (ITE), which
are intended to be integrated into Intel server systems that will be installed in offices, schools, computer
rooms, and similar commercial type locations. The suitability of this product for other product categories and
environments (such as: medical, industrial, telecommunications, NEBS, residential, alarm systems, test
equipment, etc.), other than an ITE application, may require further evaluation.
4.1 Product Safety Compliance
• UL60950 – CSA 60950(USA / Canada)
• EN60950 (Europe)
• IEC60950 (International)
• CB Certificate & Report, IEC60950 (report to include all country national deviations)
• CE - Low Voltage Directive 2006/95/EC (Europe)
4.2 Product EMC Compliance – Class A Compliance
• FCC /ICES-003 - Emissions (USA/Canada) Verification
• CISPR 22 – Emissions (International)
• EN55022 - Emissions (Europe)
• EN55024 - Immunity (Europe)
• CE – EMC Directive 2004/108 EC (Europe)
• VCCI Emissions (Japan)
• AS/NZS 3548 Emissions (Australia / New Zealand)
• BSMI CNS13438 Emissions (Taiwan)
• KC Certification (Korea)
4.3 Product Environmental Compliance
Intel has a system in place to restrict the use of banned substances in accordance with worldwide regulatory
requirements. A Material Declaration Data Sheet is available for Intel products. For more reference on
material restrictions and compliance you can view Intel’s Environmental Product Content Specification at
http://supplier.intel.com/ehs/environmental.htm.
• Europe - European Directive 2002/95/EC
o Restriction of Hazardous Substances (RoHS)
Threshold limits and banned substances are noted below.
Quantity limit of 0.1% by mass (1000 PPM) for:
Lead, Mercury, Hexavalent Chromium,
Polybrominated Biphenyls Diphenyl Ethers (PBB/PBDE)
Quantity limit of 0.01% by mass (100 PPM) for:
Cadmium (who owns submitting declaration.
12
Intel® RAID Controller RS3UC080J Hardware User Guide
• California Code of Regulations, Title 22, Division 4.5, Chapter 33:
Best Management Practices for Perchlorate Materials
• China – Restriction of Hazardous Substances (China RoHS)
• WEEE Directive (Europe)
• Packaging Directive (Europe)
• REACH Directive (Europe)
13
Glossary
Term
Description
Acronym for Basic Input/Output System. Software that provides basic read/write capability. Usually kept as firmware
(ROM
The system BIOS on the motherboard of a computer boots and
acts as an extension of the system BIOS.
Refers to the way a computer is set up, the combined hardware components (computer, monitor, keyboard, and
peripheral
r system, or the software settings that allow the hardware components to
communicate with each other.
A program that permits a microprocessor (through the operating system) to direct the operation of a peripheral
device.
domain
validation
A software procedure in which a host queries a device to determine its ability to communicate at the negotiated data
rate.
A group of physical drives that combines the storage space on the drives into a single segment of storage space. A
hot spare drive does not actively participate in a drive group.
Acronym for Electronically Erasable Programmable Read-Only Memory. It is a memory chip that typically stores
configuration information, as it provides stable storage for long periods without
reprogrammed. See NVRAM.
external SAS
device
A SAS device installed outside the computer cabinet. These devices are connected using specific types of shielded
cables.
An acronym for Fusion-Message Passing Technology architecture. Fusion-MPT consists of several main elements:
Fusion
these architectures. Fusion
Channel and SCSI devices.
The computer system in which a RAID controller is installed. It uses the RAID controller to transfer information to
and from devices attach
host adapter
board
A circuit board or integrated circuit that provides a device connection to
An idle, powered on, standby drive that is ready for immediate use in case of drive failure. A hot spare does not
contain
spare pool for all arrays managed by the
When a drive fails, the controller firmware automatically replaces and rebuilds th
hot spare. Data can be rebuilt only from virtual drives
level 0), and the hot spare must have sufficient capacity.
internal SAS
device
A SAS device
main memor y
The part of computer memor y that is directly accessible by the CPU (usually synonymous with RAM).
Acronym for nonvolatile random access memory. An EEPROM (electronically erasable read-only memory) chip that
stores configuration information. See EEPROM.
Acronym for peripheral component interconnect. A high-performance, local bus specification that allows the
connection of devices directly to computer memory. The PCI Local Bus allows transparent upgrades from 32-bit data
path at 33 MHz to 64-bit data path at 33 MHz, and from 32-bit data path at 66 MHz to 64-bit data path at 66 MHz.
Acronym for peripheral component interconnect Express. A high-performance, local bus specification that allows the
connection
on two pairs of
unifying I/O architecture for various systems: desktops, workstations, mobile, server, communications, and
embedded devices.
peripheral
devices
A piece of hardware (such as a video monitor, drive, printer, or CD-ROM) used with a computer and under the control
of the computer. SCSI peripherals are controlled through an Intel® RAID Controller (host adapter).
The interface required to transmit and receive data packets transferred across the SAS bus.
Each PHY can form one side of the physical link in a connection with a PHY on a different
link
differential pair receives
transmission in both the receive and the transmit directions.
Intel® RAID Controller RS3UC080J Hardware User Guide
BIOS
configuration
device driver
drive group
EEPROM
Fusion-MPT
architecture
host
-based).
controls the system. The BIOS on your host adapter
devices) that make up a compute
electricity and can be
-MPT firmware, the Fiber Channel and SCSI hardware, and the operating system-level drivers that support
-MPT architecture offers a single binary, operating system driver that supports both Fiber
ed to the SCSI bus.
the computer system.
hot spare
NVRAM
PCI
PCI Express
PHY
any user data. A hot spare can be dedicated to a single redundant array or it can be part of the global hot-
controller.
e data from the failed drive to the
with redundancy (RAID levels 1, 5, 6, 10, 50, and 60; not RAID
installed inside the computer cabinet. These devices are connected by using a shielded cable.
of devices directly to computer memory. PCI Express is a two-way, serial connection that transfers data
point- to-point data lines. PCI Express goes beyond the PCI specification in that it is intended as a
SAS device. The physical
contains four wires that form two differential signal pairs. One differential pair transmits signals, while the other
signals. Both differential pairs operate simultaneously and allow concurrent data
14
Intel® RAID Controller RS3UC080J Hardware User Guide
Term
Description
Acronym for Redundant Array of Independent Disks (originally Redundant Array of Inexpensive Disks). An array
(group) of multiple independent drives managed together to yield higher reliability, performance, or both exceeding
that of a single drive. The RAID array appears to the controller as a single storage unit. I/O
several drives can be accessed simultaneously. Redundant
data protection.
Acronym for Serial Attached SCSI. A serial, point-to-point, enterprise-level device interface that leverages the proven
SCSI protocol set. The SAS interface provides improved
pin
electrical
The
the Serial
interface and the
server and high
devices, or both.
Any device that conforms to the SAS standard and is attached to the SAS bus by a SAS cable. This includes SAS RAID
controllers (host adapters) and SAS peripherals.
Acronym for Serial Advanced Technology Attachment. A physical storage interface standard, S ATA is a serial link that
provides point
system and permit smaller chassis designs.
Acronym for Serial Management Protocol. SMP communicates topology management information directly with an
attached SAS expander device. Each PHY on the controller can function as an SMP initiator.
Acronym for Serial SCSI Protocol. SSP enables communication with other SAS devices. Each PHY on the SAS
controller can function as an SSP initiator.
Acronym for Serial Tunneling Protocol. STP enables communication with a S ATA device through an attached
expander. Each PHY on the SAS controller can function as an STP initiator.
RAID
SAS
SAS device
SATA
SMP
SSP
STP
is expedited because
RAID levels (RAID levels 1, 5, 6, 10, 50, and 60) provide
performance, simplified cabling, smaller connections, lower
count, and lower power requirements when compared to parallel SCSI. SAS controllers leverage a common
and physical connection interface that is compatible with Serial ATA.
SAS controllers support the ANSI Serial Attached SCSI Standard, Version 2.0. In addition, the controller supports
ATA III (SATA III) protocol defined by the Serial ATA Specification, Version 3.0. Supporting both the SAS
SATA III interface, the SAS controller is a versatile controller that provides the backbone of both
-end workstation environments. Each port on the SAS RAID controller supports SAS devices, SATA
-to-point connections between devices. The thinner serial cables allow for better airflow within the
15
Loading...
