Intel RMFBU4 Quick Installation User's Manual

Thank you for buying an Intel® RAID Maintenance Free Backup Unit 4. The Intel® RAID
Maintenance Free Backup Unit 4 supports the Intel® RAID Controller RS3DC040 and
RS3DC080. The following information will help you assemble your Intel® RAID
Maintenance Free Backup Unit 4 and install components.

Perform all installation work at an electrostatic discharge (ESD)-safe workstation that
meets the requirements of EIA-625, Requirements for Handling Electrostatic
Discharge Sensitive Devices. You must perform all actions in accordance to the latest
revision of the IPC-A-610 ESD-recommended practices.

This guide and other supporting documents are located on the web at:

http://www.intel.com/support.

H24048-001

Intel® RAID Maintenance Free Backup
Unit 4 Quick Installation User's Guide

Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»

адрес: 125480, г.Москва, ул.Туристская, д.33/1; site: https://andpro.ru тел: [phone] email: [e-mail]

При обращении используйте промокод AND-PDF и получите скидку.

(This page is intentionally left blank.)

Table of Contents

General Installation Process ........................................................................................................ 2

Reference Documents .................................................................................................................... 7

Unpack the RMFBU4 Module ......................................................................................... 2

Prepare the Host Computer ........................................................................................... 2

Remove the RAID Controller from the Computer .............................................. 2

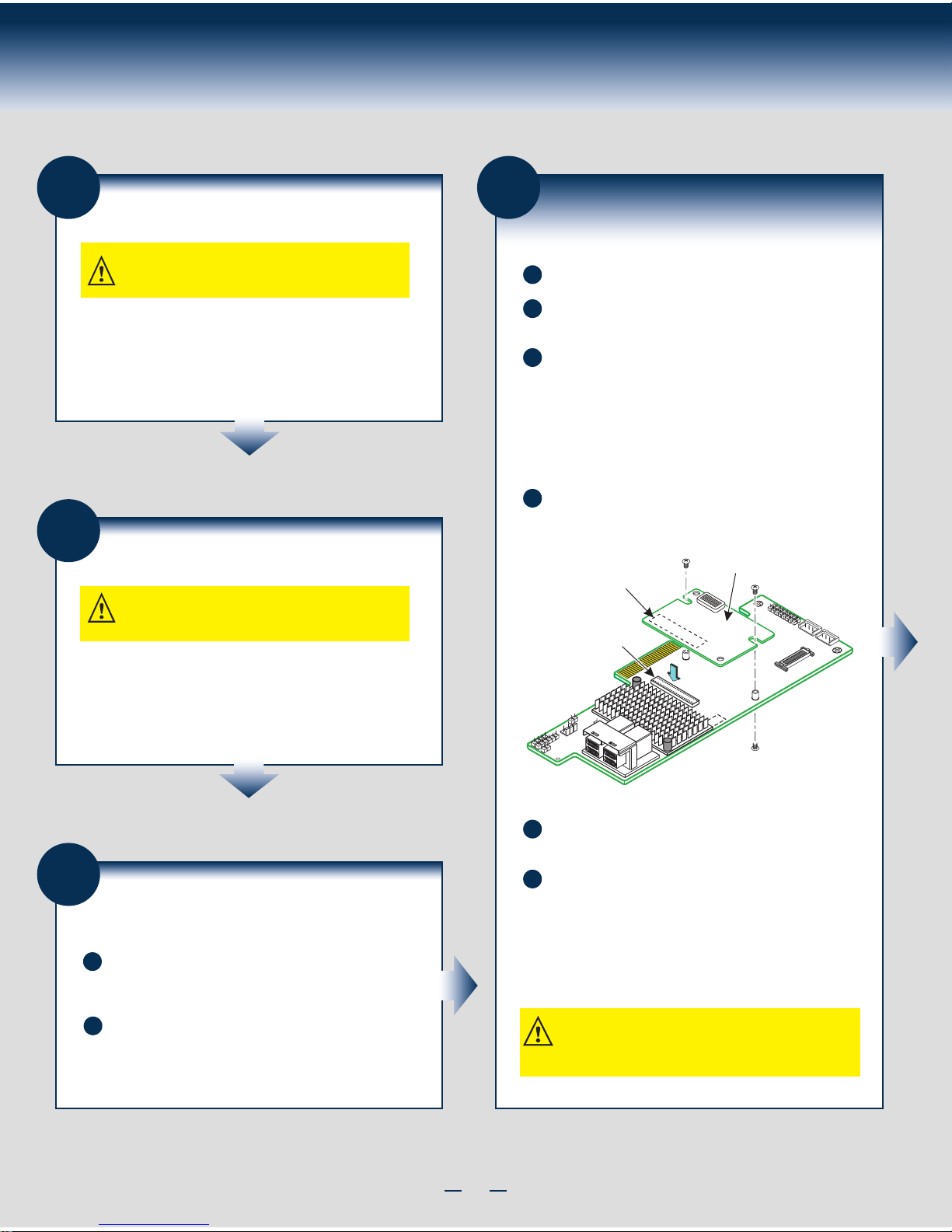

Attach the RMFBU4 Module to the RAID Controller ......................................... 2

Install the Clip on the Remote Mount Board .......................................................... 3

Attach the Super Capacitor Pack Module to the Clip ........................................ 3

Connect the RMFBU4 Module to the Remote Super Capacitor Pack

Module (Valid for Remote Mount Board) ................................................................ 4

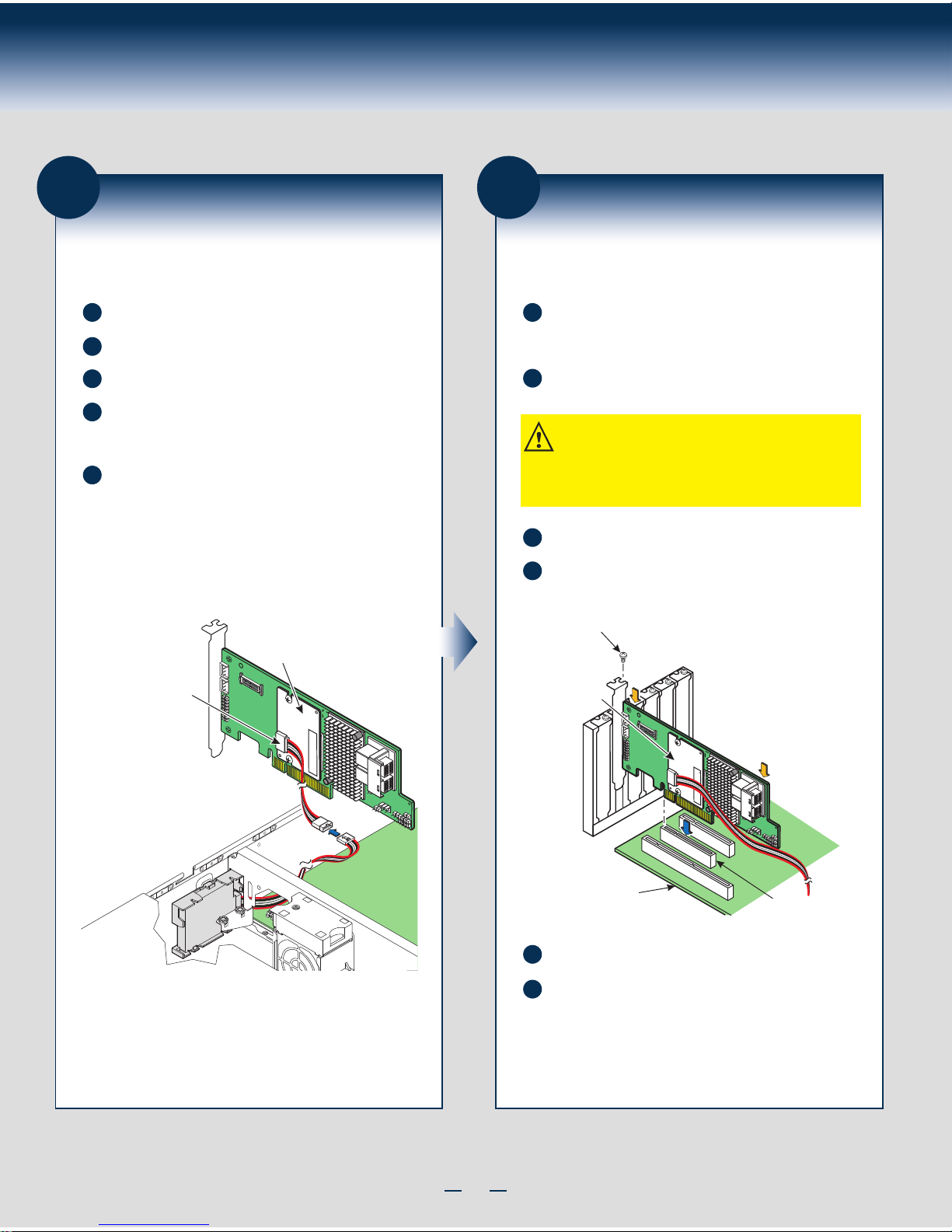

Reinstall the RAID Controller on the Motherboard (Valid for Remote

Mount Board) ......................................................................................................................... 4

Install the Remote Mount Board on the Motherboard ..................................... 5

Mount the Super Capacitor Pack Module to the Intel® Server Chassis....5

Connect the RMFBU4 Module to the Remote Super Capacitor Pack

Module (Valid for Intel® Server Chassis) ................................................................. 6

Reinstall the RAID Controller on the Motherboard (Valid for Intel®

Server Chassis) ..................................................................................................................... 6

Product Overview ............................................................................................................................. 1

i

ii

Warning

Read all caution and safety

statements in this document
before performing any of the
instructions. Also see the Intel®

Server Board and Server Chassis
Safety Information document at:

http://www.intel.com/support/
motherboards/server/sb/cs-010770
.htm for complete safety information.

Warning

Installation and service
of this product to be
performed only by
qualified service personnel
to avoid risk of injury from
electrical shock or energy
hazard.

Caution

Observe normal ESD
[Electrostatic Discharge]
procedures during system
integration to avoid possible
damage to server board and/or
other components.

Tools Required

Anti-static
wrist strap

Phillips*
screwdriver

Intel® is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as
the property of others. Copyright © 2013, Intel Corporation. All rights reserved.
