Intel® RAID Expander Card
RES3TV360 Hardware User's
Guide
Intel Order Number: H40805-002
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
адрес: 125480, г.Москва, ул.Туристская, д.33/1; site: https://andpro.ru тел: +7 (495) 545-4870 email: info@andpro.ru
При обращении используйте промокод AND-PDF и получите скидку.
ii Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
DISCLAIMER
IINFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY
INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS
PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL
ASSUMES NO LIABILITY WHATSOEVER AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY
OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT.
A "Mission Critical Application" is any application in which failure of the Intel Product could result,
directly or indirectly, in personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S
PRODUCTS FOR ANY SUCH MISSION CRITICAL APPLICATION, YOU SHALL INDEMNIFY AND
HOLD INTEL AND ITS SUBSIDIARIES, SUBCONTRACTORS AND AFFILIATES, AND THE
DIRECTORS, OFFICERS, AND EMPLOYEES OF EACH, HARMLESS AGAINST ALL CLAIMS
COSTS, DAMAGES, AND EXPENSES AND REASONABLE ATTORNEYS' FEES ARISING OUT
OF, DIRECTLY OR INDIRECTLY, ANY CLAIM OF PRODUCT LIABILITY, PERSONAL INJURY,
OR DEATH ARISING IN ANY WAY OUT OF SUCH MISSION CRITICAL APPLICATION,
WHETHER OR NOT INTEL OR ITS SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN,
MANUFACTURE, OR WARNING OF THE INTEL PRODUCT OR ANY OF ITS PARTS.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked
"reserved" or "undefined". Intel reserves these for future definition and shall have no responsibility
whatsoever for conflicts or incompatibilities arising from future changes to them. The information
here is subject to change without notice. Do not finalize a design with this information.
The products described in this document may contain design defects or errors known as errata
which may cause the product to deviate from published specifications. Current characterized errata
are available on request.
Copies of documents which have an order number and are referenced in this document, or other
Intel literature, may be obtained by calling 1-800-548-4725, or go to:
http://www.intel.com/design/literature.htm.
Intel warranties that this product will perform to its published specifications. However, all computer
systems are inherently subject to unpredictable system behavior under various environmental and
other conditions.
This product is not intended to be the sole source for any critical data and the user must maintain a
verified backup. Failure to do so or to comply with other user notices in the product user guide and
specification documents may result in loss of or access to data.
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide iii
Regulatory Compliance Statements
Federal Communications Commission Radio Frequency Interference Statement
Attention: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. However, if this equipment
does cause interference to radio or television equipment reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/television technician for help.
• Use a shielded and properly grounded I/O cable and power cable to ensure compliance of
this unit to the specified limits of the rules.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.
UL Compliance Statement
Intel® products are are recognized under the Component Recognition Program of UL
to UL 60950-1 Second Edition and IEC-60950-1 Second Edition standards, file numbers E175975.
Special International Committee on Radio Interference Compliance Statement (CISPR 22)
This product has been found to comply with the requirements of the Information Technology Equipment -- Radio Disturbance Characteristics -- Limits and Methods of
Measurement (CISPR 22).
iv Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
European Union Compliance Statement
This Information Technology Equipment has been tested and found to comply with
EMC Directive 89/336/EEC, as amended by 92/31/EEC and 93/68/EEC, in accordance
with:
• EN55022 (1998+A1:2000+A2:2007) Emissions:
– Class A ITE radiated and conducted emissions
• EN55024 (1998+A1:2001+A2:2010) Immunity:
– EN61000-4-2 (2009) Electrostatic discharge: ±4 kV contact, ±8 kV air
– EN61000-4-3 (2010) Radiated immunity: 3V/m
– EN61000-4-4 (2004) Electrical fast transients/burst: ±1 kV AC, ±0.5 kV I/O
– EN61000-4-5 (2006) Surges: ±1 kV differential mode, ±2 kV common mode
– EN61000-4-6 (2009) Conducted immunity: 3 V
– EN61000-4-11 (2004) Supply dips and variations: 30% and 100%
• EN50581 (2012) Technical Documentation:
– For the assessment of electrical and electronic products with respect to the
restriction of hazardous substances
In addition, all equipment requiring U.L. listing has been found to comply with EMC
Directive 73/23/EEC as amended by 93/68/EEC in accordance with EN60950 with
amendments A1, A2, A3, A4, A11.
Australian/New Zealand Compliance Statement
This device has been tested and found to comply with the limits for a Class A digital
device, pursuant to the Australian/New Zealand standard AS/NZS 3548 set out by the
Spectrum Management Agency.
Canadian Compliance Statement
This Class A digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations (ICES-003).
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement
sur le matériel brouilleur du Canada (ICES-003).
Japanese Compliance (Voluntary Control Council Initiative)
This equipment complies to class A Information Technology equipment based on VCCI
(Voluntary Control Council for Interface). This equipment is designed for home use but
it may causes radio frequency interference problem if used too near to a television or
radio. Please handle it correctly per this documentation.
Korean Compliance (KCC) Statement
Intel
®
products are tested and certified by KCC:
RES3TV360
This equipment is home use (Class A) electromagnetic wave suitability equipment and
to be used mainly at home and it can be used in all areas.
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide v
Taiwan Compliance
This equipment complies to class A Information Technology equipment based on VCCI
(Voluntary Control Council for Interface). This equipment is designed for home use but
it may causes radio frequency interference problem if used too near to a television or
radio. Please handle it correctly per this documentation.
vi Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
Table of Contents
Regulatory Compliance Statements ........................................................................iii
About This Guide ........................................................................................................1
What You Need to Know Before You Begin .......................................................................... 1
Terminology Used in this Guide ............................................................................................ 1
Kit Contents and System Requirements ..................................................................2
Kit Contents ........................................................................................................................... 2
System Requirements ........................................................................................................... 2
About Your RAID Expander .......................................................................................3
Standard RAID Expander Features ....................................................................................... 3

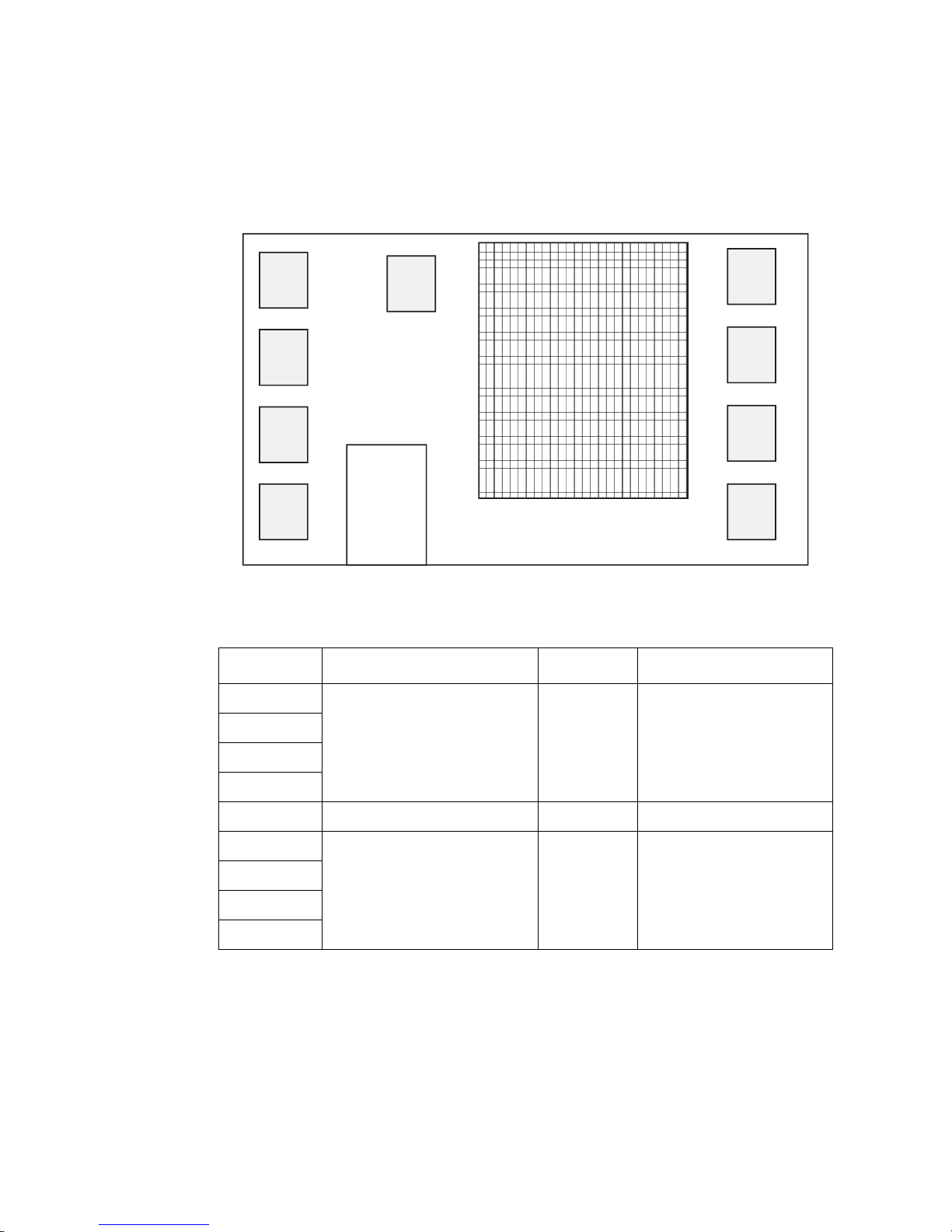

Major Components ................................................................................................................ 4
Compatible Devices .............................................................................................................. 4
Block Diagram ....................................................................................................................... 5
Board Dimensions ................................................................................................................. 6
Mechanical Information .........................................................................................................6
About the Intel
®
RAID Expander RES3TV360 ...................................................................... 7
Installing and Connecting the RAID Expander ........................................................8
Before You Begin .................................................................................................................. 8
Selecting Disk Drives and Cables ......................................................................................... 8
Disk Drives ....................................................................................................................8

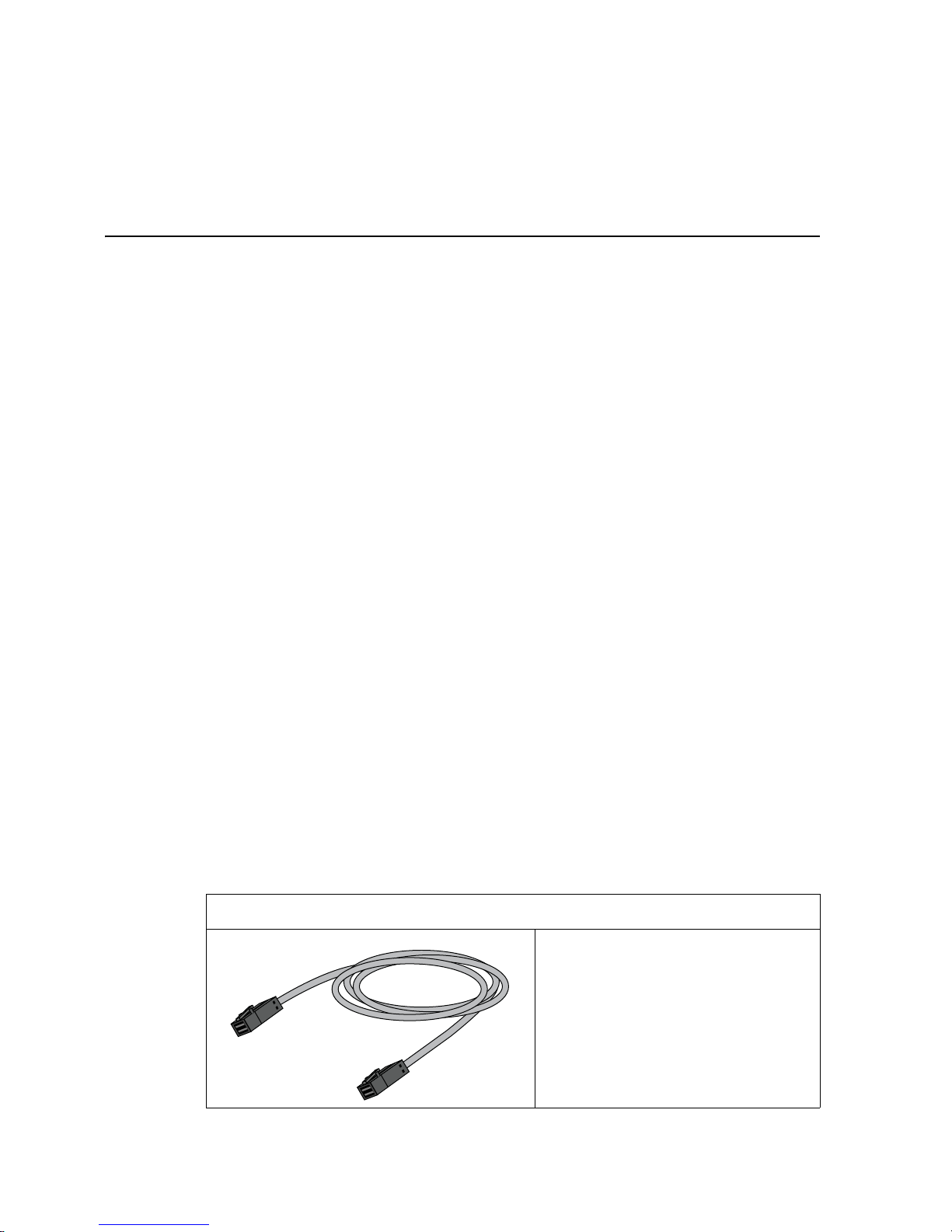

Cables ........................................................................................................................... 8
Installing the RAID Expander .............................................................................................. 10
Configuring the RAID Expander ..............................................................................12
Solving Problems ......................................................................................................13
Troubleshooting Checklist ................................................................................................... 13
A. Safety Information ................................................................................................14
Electrostatic Discharge (ESD) ............................................................................................. 14
B. Technical Specifications .....................................................................................15
Environmental Specifications .............................................................................................. 15
DC Power Requirements ..................................................................................................... 15
Current Requirements ......................................................................................................... 16
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide 1
1 About This Guide
This Installation and User's Guide explains how to install and configure your RAID
Expander RES3TV360 in a RAID system.
What You Need to Know Before You Begin
You should be familiar with computer hardware, data storage, and Serial Attached SCSI
(SAS) and Serial ATA (SATA) technology.
You should also be familiar with RAID controllers, modules, expanders, and related
support devices.
Terminology Used in this Guide
Many of the terms and concepts referred to in this guide are known to computer users by
multiple names. This guide uses these terms:
• Expander Card (also known as adapter, board, or I/O card)
• Disk drive (also known as hard disk, hard drive, or hard disk drive)
• Solid State Drive (also known as SSD or non-rotating storage media)
• Enclosure (also known as storage enclosure, JBOD enclosure, or expander)
2 Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
2 Kit Contents and System
Requirements
This section lists the contents of your RAID Expander kit and the system requirements for
successfully installing and using your expander card.
Kit Contents
• RAID Expander
• Three installation screws and three rubber bumpers
System Requirements
• An Intel
®
Server Board based on the Intel® Xeon® processor E5-2600 v3 product
family
• Available RA 4-pin power connector
• SAS and SATA hard drives up to 12 Gb/s speed
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide 3
3 About Your RAID Expander
This section provides an overview of the features of your RAID Expander.
Standard RAID Expander Features
• Support for both SAS and SATA devices
• 12 Gb/s, 6 Gb/s, 3 Gb/s, or 1.5 Gb/s data transfer rate
• Nine SFF-8643 mini-SAS-HD internal connectors providing 36 SAS/SATA ports
• Supports 8 inputs and 28 outputs configuration
• Output mini-SAS connectors support sideband SGPIO per the SFF-8485
specification
• Power from an RA 4-pin power connector
• On-board screw holds allow the expander card to be mounted on a chassis wall
inside a server system
• Provides a low-latency connection to create and maintain transparent access to each
connected SAS/SATA physical drive
• Staggered spin-up
• Native Command Queuing
• Allows multiple initiators to address a single target
• Supports cascaded expander products
• Each port on the expander card supports SAS devices, SATA II devices, or both
using SSP, SMP, and STP
— Serial SCSI Protocol (SSP) to enable communication with other SAS devices
— Serial Management Protocol (SMP) to share topology management information
with expanders
— Serial Tunneling Protocol (STP) support for SATA II through expander
interfaces
— SAS protocol, described in the Serial Attached SCSI (SAS) Standard, version
2.0
— SFF-8485 protocol, using the Serial GPIO (SGPIO) interface provided by the
expander
• Enclosure Management
— On-board temperature sensor
—SGPIO
4 Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
— SES enclosure services that monitor temperature, system power supplies, and
control system fans
Major Components
• 36-port 12 Gb/s SAS-3 Expander Chip
— Provides 36 PHYs
G Any PHYs may be combined into wide port(s)
G Any PHY can be SAS or SATA attached
— Supports multiple data rates and auto-negotiation between the following:
G 3.0 Gb/s, 6.0 Gb/s, and 12.0 Gb/s SAS
G 3.0 Gb/s and 6.0 Gb/s SATA
— Supports SSP, STP, and SMP
— Supports the SAS protocol described in the Serial Attached SCSI (SAS)
Standard, version 3.0r5
— Activity and fault indicators per PHY
— Provides a low-latency connection router to efficiently create and maintain
connections
— Supports T10-Based and Phy-Based Zoning for storage partitioning
— Allows any number of Phys to be included in a wide port
• Flash ROM – A 128-Mbit Quad SPI flash ROM is used to accommodate expander
card firmware.
• Heartbeat LED – A green LED provides a heartbeat with a 1-second blink rate to
indicate the expander has booted properly.
• SAS connectors – The RES3TV360 RAID Expander provides internal SAS
connectors as shown in
SAS Connectors on page 9.
Compatible Devices
• 2.5-inch and 3.5-inch SAS-3, SAS-2, and SATA drives
• Non-disk devices including SAS expanders
• Supports drives of mixed capacity
• SAS-3 and SAS-2 host controllers (RAID and Non-RAID)
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide 5
Block Diagram
AF006523
6 Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
Board Dimensions
This table below lists the board dimensions of your RAID Expander RES3TV360.
Mechanical Information
The figure below shows the physical package information for the RAID Expander
RES3TV360. All dimensions are in inches.
Dimension RAID Expander RES3TV360
Height 2.165"
Length 8.405"
PCB Thickness 0.062"
Max Component Height, Top Side 0.570"
Max Component Height, Bottom Side 0.120"
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide 7
About the Intel® RAID Expander RES3TV360
The RAID Expander RES3TV360 is a RAID expander with these features:
Form Factor 2.165” x 8.405"
Data transfer rate 12 Gb/s per port
Phys (Unified Serial Ports) 36
Connectors, internal 1 mini-SAS HD x1
2 mini-SAS HD x4
(SFF-8643) 36 ports input or output
Maximum number of disk drives up to 24 direct-attached
Enclosure Support SES-3
Thermal Sensor Processor temperature
Encryption No
AF006524
8 Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
4 Installing and Connecting the
RAID Expander
This section explains how to install your RAID Expander and connect it to internal disk
drives.
Before You Begin
• Read Safety Information on page 14.
• Familiarize yourself with your product's physical features (see Standard RAID
Expander Features on page 3).
• Ensure that you have the right number of drives and cables for your application (see
Selecting Disk Drives and Cables on page 8).
Selecting Disk Drives and Cables
Disk Drives
Y our RAID Expander supports SAS and SAT A disk drives, Solid State Drives (SSDs), and
SAS tape drives.
Cables
Use the cables shown below.
Cables
Internal HD mini-SAS to HD mini-SAS
(SFF-8643 to SFF-8643) – Connects to a
backplane or enclosure.
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide 9
SAS Connectors
This section shows the internal SAS connectors.
Connector Description Type Comment
CN0 2x4 HD mini-SAS internal SFF-8643 CN0 – SAS ports (0-3)
CN1 – SAS ports (4-7)
CN2 – SAS ports (8-11)
CN3 – SAS ports (12-15)
CN1
CN2
CN3
CN4 1x1 HD mini-SAS internal SFF-8643 CN4 – SAS ports (16-19)
CN5 2x4 HD mini-SAS internal SFF-8643 CN5 – SAS ports (20-23)
CN6 – SAS ports (24-27)
CN7 – SAS ports (28-31)
CN8 – SAS ports (32-35)
CN6
CN7
CN8
CN3
CN2
CN1
CN0
CN4
CN5
CN6
CN7
CN8
A
B
G
H
C
D
E
F
I
AF006527
10 Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
Installing the RAID Expander
This section describes how to install the RAID Expander into your computer cabinet or
server.
Follow the steps below to install your RAID Expander card and connect your internal
storage device.
Caution: Follow the instructions carefully when connecting the connectors from the SAS expander
to the connectors on the midplane. Each connector is pre-programmed at the factory to
provide specific drive identification mapping. Improper connections may provide
undesirable drive mappings.
1. Turn off the power to the system, all drives, enclosures, and system components.
Remove the power cord(s).
2. Remove the server cover. For instructions, see your server system documentation.
3. Remove the release paper on the card bumpers and adhere them to the designated
locations on the bottom of the card.
4. Insert the expander card into the area between the fans and midplane. When
installed properly, the expander card bumpers should rest securely on the chassis
floor.
5. Using a Philips head screwdriver, secure the card to the standoffs on the chassis
with the three screws provided in the kit.
AF006528
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide 11
6. Connect serial cables between the expander card and internal disk drive, as
required.
7. Close your computer cabinet, reconnect the power cord and network cables, then
power up the system.
AF006535
12 Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
5 Configuring the RAID Expander
After physically installed into a server system, the Intel® RAID Expander RES3TV360 is
transparent to users in RAID configurations. Refer to the technical specification or user
guide of the RAID controller co nn ec te d to this expander card to know how to configure a
RAID system.
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide 13
6 Solving Problems
This section provides basic troubleshooting information and solutions for solving
problems with your RAID Expander.
Troubleshooting Checklist
If you encounter difficulties installing or using your RAID Expander, check these items
first:
• With your computer powered off, check the connections to each disk drive, power
supply, LED connector, and so on.
• Try disconnecting and reconnecting disk drives from the expander.
• Did the RAID controller driver install correctly?
• If you have external disk drives (or other devices), are they powered on?
14 Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
Appendix A: Safety Information
To ensure your personal safety and the safety of your equipment:
• Keep your work area and the computer clean and clear of debris.
• Before opening the system cabinet, unplug the power cord.
Electrostatic Discharge (ESD)
Caution: ESD can damage electronic components when they are improperly handled, and can
result in total or intermittent failures. Always follow ESD-prevention procedures when
removing and replacing components.
To prevent ESD damage:
• Use an ESD wrist or ankle strap and ensure that it makes skin contact. Connect the
equipment end of the strap to an unpainted metal surface on the chassis.
• Avoid touching the expander against your clothing. The wrist strap protects
components from ESD on the body only.
• Handle the expander by its bracket or edges only. Avoid touching the printed circuit
board or the connectors.
• Put the expander down only on an anti-static surface such as the bag supplied in
your kit.
• If you are returning the expander to Intel
®
Product Support, put it back in its anti-
static bag immediately.
If a wrist strap is not available, ground yourself by touching the metal chassis before
handling the expander or any other part of the computer.
Intel® RAID Expander Card RES3TV360 Hardware User’s Guide 15
Appendix B: Technical Specifications
Environmental Specifications
Note: Yo ur RAID Expander requires adequate airflow to operate reliably. The recommended
airflow is 200 LFM (linear feet per minute), minimum to avoid operating above the
maximum ambient temperature. Forced airflow is required.
• The thermal and atmospheric characteristics are:
• The storage and transit environment conditions are:
Note: Ambient temperature is measured 1” from the expander processor.
DC Power Requirements
Ambient temperature with forced airflow 0°C to 55°C
Relative humidity 20% to 80%, non-condensing
Altitude Up to 3,000 meters
Ambient temperature with forced airflow -30°C to 80°C (dry bulb)
Relative humidity 5% to 90%, non-condensing
Mean Operating Time Between Failures number (MTBF):
electrical components
2M hours at 40°C
Connector Description Requirements
4-pin Molex DC Voltage 12V
16 Intel® RAID Expander Card RES3TV360 Hardware User’s Guide
Current Requirements
Product Typical Current
RAID Expander RES3TV360 1.34A @ 12 VDC
RAID Expander RES3TV360 All power is supplied to the RES3TV360 RAID
Expander through a remote RA 4-pin 12V
power connector. The +12 V rail is used to
generate the other required voltage rails of
3.3V, 1.8V, 1.005V, and 0.925V and +1.8 V.
The max operation power is TBD W.
Loading...
