Intel R2308WFTZSR User Manual

Intel® Server S2600WF Product Family

Intel® Server Board S2600WF Product Family Intel® Server Chassis R1000WF and R2000WF Product Families Intel® Server System R1000WF and R2000WF Product Families Intel® Server System R2000WFTF Product Family

Configuration Guide

A reference document to identify available Intel® Server building blocks, integrated systems, accessories, and spare parts associated with the Intel® Server S2600WF product family.

Rev 2.0

April 2019

Intel® Server Products and Solutions

Intel® Server S2600WF Product Family Configuration Guide

Date Published

Revision

Revision Change Description

June 2017

1.0

Production release

July 2017

1.1

Updated iPC A2U8X25S3DPDK2

Added Intel® Visual Compute Accelerators VCA1585LMV in section 8

August 2017

1.2

Updated product ordering information for AXXRMM4LITE2

Updated Images: A2U8X25S3DPDK2, A2U8X25S3PHS, A2UREARHSDK2

October 2017

1.3

Added Intel® Server Board S2600WFQ information throughout document

Corrected all 2U system BOMs and product feature reference tables to include third riser card option

October 2017

1.3.1

Corrected kit content definitions for the two IFT Carrier Accessory Kits

Updated chassis illustrations in cable guide sections

Document Revision History

Updated cable kit information for 4 port switch for 1U systems Added 1U and 2U back panel illustrations in section 1.2 and 1.3 Updated A2UHANDLKIT illustration in sections 6 and 7

Updated cables required for second fabric processor with AWF1PFABKITM and AWF1PFABKITP Updated product ordering information for AXXRMFBU6 Updated RAID information in section 5 Updated note for R2000WFXXX description, deleted optical drive support Removed A2UHANDLKIT3 handle Updated SAS drive configuration note Updated 2U system information on hot-swap drive bays F2U12X35S3PH Updated information in table Drive Bay #1, 2 & 3 - SAS / SATA / NVMe Cable Guide for Switch Add in Cards Updated RAID information on Intel® Server Board S2600WFT to include Intel® Embedded Server RAID Technology 2 1.60

with optional RAID 5 key support

Added R2312WFQZS to the section 2U 12 x 3.5” - R2312WFxxx SAS / SATA Data Cable Guide (with No SAS Expander) Added R2312WFQZS to the section 2U 12 x 3.5” - R2312WTxxx SAS / SATA Data Cable Guide (with SAS Expander) Updated 2U systems have three riser card A2UL8RISER2 included on the configuration Updated product ordering information for RSP3MD088F Updated chipset information for S2600WFQ on the table The Intel® Server Board S2600WF family Updated chipset information and notes for Intel Server Board S2600WFQ Updated order code Information for R2312WFQZS Updated resources in Table 4 Updated image for X527DA40CPG1P5 Updated product name for AXX1300TCRPS Updated label OCP* module note for all 1U and 2U systems Added a note of only S2600WF0 and S2600WFQ support on the quad OCP* expansion modules Added note for AWF1PFABKITM and AWF1PFABKITP Added adjustment note for A1UFULLRAIL, A1USHRTRAIL, AXXFULLRAIL, AXXSHRTRAIL Added 1 x A2UX8X4RISER on the 2U systems: R2312WF0NP, R2312WFTZS, R2312WFQZS, R2224WFQZS, R2224WFTZS Updated SAS/SATA/NVMe* Data Cable Guide section

Added 1U/2U fabric CPU clip accessory kit FXXCPUCLIPF Made additional corrections/clarification to NVMe* cable guide sections.

3

Intel® Server S2600WF Product Family Configuration Guide

Date Published

Revision

Revision Change Description

Clarified SAS cable support for 1U system configurations that include SAS ROC modules with vertical connectors

December 2017

1.3.2

Corrected NVMe* cable lengths for onboard Oculink connectors routed to drive bay 1 of 2.5” drive configurations

January 2018

1.4

Added 1U/2U Intel® Virtual Raid on CPU (Intel® VROC) key for Intel® SSD only

Corrected the MM# for RSP3GD016J

August 2018

1.5

Added R2000WFTF information

Updated MM# for R1208WFTYS, R2308WFTZS, R2208WF0ZS, R2208WFTZS, R2208WFQZS, R2312WF0NP, and R2312WFTZS

December 2018

1.6

Updated RAID websites in section 5.5

Edited and formatted for clarity

February 2019

1.7

Added Intel® Server System R1000WFTF product family

April 2019

2.0

Added S2600WFxR information including support for 2nd Gen Intel® Xeon® processor Scalable family and Intel® Optane™ DC persistent memory

Removed Intel® Server System R1000WFTF product family

Added 1U 4 port Switch accessory cable kit A1U4PSWCXCVK Updated information on the table 1U 8 x 2.5” – R1208WFxxx SAS / SATA / NVMe* Data Cable Guide for Switch Updated information for cable AXXCBL850HDHRS Updated Maximum Supported Processor Thermal Design Power (TDP) for Table 6. R2000WF Features Corrected the MM# for A2U8X25S3DPDK2

Added DVDROM drive AXXSATADVDROM Added DVD+/-RW ROM drive AXXSATADVDRWROM Added 4-port PCIe* SSD retimer AIC AXXP3RTX16040 Added accessory cable kit A1U4PRTCXCXK Added accessory cable kit A2U4PRTCXCXK Updated section 4.4, 4.6.1, 4.6.2, 4.7.1.1, 4.7.1.2, and 4.7.3.2

Updated Table 1 51xx Gold processor memory capacity Updated Table 12 to add for 2.5” NVMe* support for R2312WFQZS Removed the support for up to two NVMe* drives for R2312WFQZS Updated the note in R2312WFQZS product table for optional accessories Updated MM# for FR1UFAN10PW Updated information on the first sentence for Chapter 4 SAS/SATA/NVMe* Data Cable Guide Added R1208WFXXX and R2312WFXXX Updated Table 11. Server chassis (KDK) product family summary Added SATA optical drive power cable and bay mounting kit for R1304WFTYS, R1208WFTYS, R2308WFTZS, R2208WF0ZS, and R2208WFTZS. Updated product description for AXXSATADVDROM and AXXSATADVDRWROM

Updated MM# for R1304WFTYS and R2224WFTZS Added optical cable AXXCBL880SATA Updated formatting and edited for clarity

4

Intel® Server S2600WF Product Family Configuration Guide

Disclaimers

Intel technologies’ features and benefits depend on system configuration and may require enabled hardware, software, or service activation. Performance varies depending on system configuration. No computer system can be absolutely secure. Check with your system manufacturer or retailer or learn more at intel.com.

You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Intel disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade.

This document contains information on products, services and/or processes in development. All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product specifications.

Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by visiting

www.intel.com/design/literature.htm.

Intel, the Intel logo, Xeon, and Xeon Phi are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.

5

Intel® Server S2600WF Product Family Configuration Guide

Table of Contents

1. Intel® Server Family Overview ............................................................................................................................................................................................. 13

1.1 Configuration Overview ...................................................................................................................................................................................................................... 14

1.1.1 Processor Support ................................................................................................................................................................................................................................. 15

1.1.2 Memory Support .................................................................................................................................................................................................................................... 19

1.1.3 System Configuration Notes ............................................................................................................................................................................................................. 19

1.2 Additional Information and Software ............................................................................................................................................................................................ 20

1.3 Intel® Server Board S2600WF Product Family .......................................................................................................................................................................... 21

1.4 Intel® Server Board S2600WFTF Product Family ..................................................................................................................................................................... 24

1.5 Intel® Server System R1000WF Product Family ....................................................................................................................................................................... 27

1.6 Intel® Server System R2000WF Product Family ....................................................................................................................................................................... 30

1.7 Intel® Server System R2000WFTF Product Family .................................................................................................................................................................. 35

1.8 Available Server Board, Chassis, and System SKU Summary ............................................................................................................................................. 39

2. Server Building Block Options ............................................................................................................................................................................................. 41

2.1 Intel® Server Board S2600WF Product Family Options ........................................................................................................................................................ 43

2.2 Intel® Server Chassis Product Family Options ........................................................................................................................................................................... 45

3. Server System Configurations ............................................................................................................................................................................................. 50

3.1 Intel® Server System R1000WF Product Family – (1U Rack Mount System) ................................................................................................................ 51

3.2 Intel® Server System R2000WF Product Family – (2U Rack Mount System) ................................................................................................................ 59

4. SAS/SATA/NVMe* Data Cable Guide .................................................................................................................................................................................. 82

4.1 Cable Connector Types ....................................................................................................................................................................................................................... 83

4.2 1U/2U Server System SAS/SATA/NVMe* Cable Kits .............................................................................................................................................................. 84

4.2.1 Cable Kit Product Code Decoder Examples ................................................................................................................................................................................ 85

4.2.2 Cable Kit Order Information .............................................................................................................................................................................................................. 85

4.2.3 Cable Recommendations.................................................................................................................................................................................................................... 90

4.3 1U 4 x 3.5” – R1304WFxxx SAS/SATA Data Cable Guide ..................................................................................................................................................... 91

4.4 1U 8 x 2.5” – R1208WFxxx SAS/SATA/NVMe* Data Cable Guide ..................................................................................................................................... 92

4.5 2U 8 x 3.5” – R2308WFxxx SAS/SATA Data Cable Guide ..................................................................................................................................................... 93

4.6 2U 12 x 3.5 – R2312WFxxx SAS/SATA/NVMe* Data Cable Guide .................................................................................................................................... 94

4.6.1 2U 12 x 3.5” - R2312WFxxx SAS/SATA/NVMe* Data Cable Guide (with no SAS Expander) .................................................................................. 94

6

Intel® Server S2600WF Product Family Configuration Guide

4.6.2 2U 12 x 3.5” - R2312WTxxx SAS/SATA/NVMe* Data Cable Guide (with SAS Expander) ........................................................................................ 95

4.7 2U 2.5” Front Mount Drive Bay Cable Guide .............................................................................................................................................................................. 97

4.7.1 2U - 8x2.5” Drive Bay Module #1 – Cable Guide (with no SAS Expander) ..................................................................................................................... 98

4.7.2 2U - 8x2.5” Drive Bay Module #2 – Cable Guide (with no SAS Expander) .................................................................................................................. 101

4.7.3 2U - 8x2.5” Drive Bay Module #3 – Cable Guide (with no SAS Expander) .................................................................................................................. 103

4.7.4 2U 2.5” Front Mount Drive Configurations – Cable Guide (with SAS Expander) ...................................................................................................... 106

5. 1U/2U System Optional Accessories ............................................................................................................................................................................... 108

5.1 2U Rear Mount Hot Swap Drive Bay Accessory Kits ............................................................................................................................................................. 108

5.2 1U/2U PCIe* Riser Card Accessory/Spare FRU Options ..................................................................................................................................................... 109

5.2.1 1U Riser Card Options ...................................................................................................................................................................................................................... 109

5.2.2 2U Riser Card Options ...................................................................................................................................................................................................................... 110

5.3 2U 8x2.5” Drive Bay Module Options ......................................................................................................................................................................................... 111

5.4 Intel® Ethernet Network Adapters for OCP* ............................................................................................................................................................................ 113

5.5 Intel® RAID Add-In Cards, Modules, and Accessories .......................................................................................................................................................... 115

5.6 Power Supply Modules and Power Cords ................................................................................................................................................................................ 126

5.7 1U/2U Rack Mount Kits .................................................................................................................................................................................................................... 128

6. 1U/2U Miscellaneous Accessory Options ....................................................................................................................................................................... 131

7. 1U/2U Spare and Replacement Parts (FRUs) ................................................................................................................................................................. 137

8. Intel® Visual Compute Accelerators .................................................................................................................................................................................. 140

Appendix A. Glossary .............................................................................................................................................................................................................. 141

7

Intel® Server S2600WF Product Family Configuration Guide

List of Tables

Table 1. 1st Gen Intel® Xeon® processor Scalable family feature comparison ........................................................................................................................................ 16

Table 2. 1

Table 3. 2

Table 4. Product family reference collaterals ....................................................................................................................................................................................................... 20

Table 5. Intel® Server Board S2600WF product family features .................................................................................................................................................................. 22

Table 6. Intel® Server Board S2600WFTF product family features ............................................................................................................................................................. 25

Table 7. Intel® Server System R1000WF product family features ............................................................................................................................................................... 29

Table 8. Intel® Server System R2000WF product family features ............................................................................................................................................................... 33

Table 10. Intel® Server System R2000WFTF product family features table ............................................................................................................................................ 37

Table 11. Server board product family summary ............................................................................................................................................................................................... 39

Table 12. Server chassis (KDK) product family summary ................................................................................................................................................................................ 39

Table 13. Server system (BIK) product family summary .................................................................................................................................................................................. 40

Table 14. Intel® Server Board S2600WF product family options ................................................................................................................................................................. 43

Table 15. Intel® Server Chassis R1304WFXXX product specifications and configuration requirements .................................................................................... 46

st

Gen Intel® Xeon® processor Scalable family with integrated Intel® Omni-Path Fabric feature comparison ...................................................... 17

nd

Gen Intel® Xeon® processor Scalable family feature comparison ....................................................................................................................................... 18

Table 16. Intel® Server Chassis R1208WFXXX product specifications and configuration requirements .................................................................................... 47

Table 17. Intel® Server Chassis R2000WFXXX product specifications and configuration requirements .................................................................................... 48

Table 18. Intel® Server Chassis R2312WFXXX product specifications and configuration requirements .................................................................................... 49

Table 19. Intel® Server System R1304WF0YS product specifications and configuration requirements .................................................................................... 52

Table 20. Intel® Server System R1304WF0YSR product specifications and configuration requirements ................................................................................. 53

Table 21. Intel® Server System R1304WFTYS product specifications and configuration requirements .................................................................................... 54

Table 22. Intel® Server System R1304WFTYSR product specifications and configuration requirements ................................................................................. 55

Table 23. Intel® Server System R1208WFTYS product specifications and configuration requirements .................................................................................... 56

Table 24. Intel® Server System R1208WFTYSR product specifications and configuration requirements ................................................................................. 57

Table 25. Intel® Server System R1208WFQYSR product specifications and configuration requirements ................................................................................. 58

Table 29. Intel® Server System R2308WFTZS product specifications and configuration requirements .................................................................................... 60

Table 30. Intel® Server System R2308WFTZSR product specifications and configuration requirements ................................................................................. 61

Table 31. Intel® Server System R2208WF0ZS product specifications and configuration requirements .................................................................................... 62

Table 32. Intel® Server System R2208WF0ZSR product specifications and configuration requirements .................................................................................. 63

Table 33. Intel® Server System R2208WFTZS product specifications and configuration requirements .................................................................................... 64

8

Intel® Server S2600WF Product Family Configuration Guide

Table 34. Intel® Server System R2208WFTZSR product specifications and configuration requirements ................................................................................. 65

Table 35. Intel® Server System R2208WFQZS product specifications and configuration requirements .................................................................................... 66

Table 36. Intel® Server System R2208WFQZSR product specifications and configuration requirements ................................................................................. 67

Table 37. Intel® Server System LFRB2208WFTF801 product specifications and configuration requirements ....................................................................... 68

Table 38. Intel® Server System LFRB2208WFTF601 product specifications and configuration requirements ....................................................................... 69

Table 39. Intel® Server System LFRB2208WFTF401 product specifications and configuration requirements ....................................................................... 70

Table 40. Intel® Server System R2312WF0NP product specifications and configuration requirements .................................................................................... 71

Table 41. Intel® Server System R2312WF0NPR product specifications and configuration requirements ................................................................................. 72

Table 42. Intel® Server System R2312WFTZS product specifications and configuration requirements .................................................................................... 73

Table 43. Intel® Server System R2312WFTZSR product specifications and configuration requirements ................................................................................. 74

Table 44. Intel® Server System R2312WFQZS product specifications and configuration requirements .................................................................................... 75

Table 45. Intel® Server System LFRB2312WFTF801 product specifications and configuration requirements ....................................................................... 76

Table 46. Intel® Server System LFRB2312WFTF601 product specifications and configuration requirements ....................................................................... 77

Table 47. Intel® Server System LFRB2312WFTF401 product specifications and configuration requirements ....................................................................... 78

Table 48. Intel® Server System R2224WFQZS product specifications and configuration requirements .................................................................................... 79

Table 49. Intel® Server System R2224WFTZS product specifications and configuration requirements .................................................................................... 80

Table 50. Intel® Server System R2224WFTZSR product specifications and configuration requirements ................................................................................. 81

Table 51. Single-port SATA cable connector ........................................................................................................................................................................................................ 83

Table 52. Multiport mini SAS HD cable connectors ........................................................................................................................................................................................... 83

Table 53. PCIe* OCuLink cable connectors ........................................................................................................................................................................................................... 83

Table 54. Intel® Omni-Path cable connectors ...................................................................................................................................................................................................... 83

Table 55.Data cable connector identification ....................................................................................................................................................................................................... 84

Table 56. SATA/SAS/NVMe* data cable kit description and order information ................................................................................................................................

.... 85

Table 57. Data cable guide for Intel® Server System R1304WFxxx ............................................................................................................................................................. 91

Table 58. Data cable guide for Intel® Server System R1208WFxxx ............................................................................................................................................................. 92

Table 59. Data cable guide for Intel® Server System R2308WFxxx ............................................................................................................................................................. 93

Table 60. Data cable guide (no SAS expander) for Intel® Server System R2312WFxxx...................................................................................................................... 94

Table 61. SAS expander option .................................................................................................................................................................................................................................. 95

Table 62. Data cable guide (with SAS expander) for Intel® Server System R2312WFxxx .................................................................................................................. 96

Table 63. Drive bay module #1 SAS/SATA cable guide ................................................................................................................................................................................... 98

Table 64. Drive bay module #1 NVMe* cable guide ........................................................................................................................................................................................... 99

9

Intel® Server S2600WF Product Family Configuration Guide

Table 65. Drive bay module #2 SAS/SATA cable guide ................................................................................................................................................................................ 101

Table 66. Drive bay module #2 NVMe* cable guide ........................................................................................................................................................................................ 102

Table 67. Drive bay module #3 SAS/SATA cable guide ................................................................................................................................................................................ 103

Table 68. Drive bay module #3 NVMe* cable guide ........................................................................................................................................................................................ 104

Table 69. SAS expander option ............................................................................................................................................................................................................................... 106

Table 70. Front mount drive cable guide............................................................................................................................................................................................................. 107

Table 71. 2U rear-mount hot-swap drive bay accessory kits ...................................................................................................................................................................... 108

Table 72. 1U riser card option .................................................................................................................................................................................................................................. 109

Table 73. 2U riser card options ................................................................................................................................................................................................................................ 110

Table 74. 8x2.5” drive bay module accessory kits ........................................................................................................................................................................................... 112

Table 75. Intel® Ethernet Network Adapters for OCP* ................................................................................................................................................................................... 114

Table 76. Intel® Integrated RAID module RMS3 product family – SAS 3.0 (12 Gb/s) ........................................................................................................................ 115

Table 77. Intel® RAID controller add-in cards – SAS 3.0 (12 Gb/s) ........................................................................................................................................................... 118

Table 78. Intel® RAID accessory options .............................................................................................................................................................................................................. 122

Table 79. Power supply modules and power cords ........................................................................................................................................................................................ 126

Table 80. Rack mount kits .......................................................................................................................................................................................................................................... 128

Table 81. Miscellaneous accessory options ....................................................................................................................................................................................................... 131

Table 82. Spare and replacement parts ............................................................................................................................................................................................................... 137

10

Intel® Server S2600WF Product Family Configuration Guide

List of Figures

Figure 1. Intel® Server S2600WF product family overview ............................................................................................................................................................................. 13

Figure 2. Intel® Xeon® processor Scalable family generation identification ............................................................................................................................................ 15

Figure 3. Intel® Server Board S2600WF onboard features .............................................................................................................................................................................. 21

Figure 4. Intel® Server Board S2600WFTF onboard features ........................................................................................................................................................................ 24

Figure 5. Intel® Server System R1000WF feature set identification ............................................................................................................................................................ 27

Figure 6. 1U, 3.5” x 4 drive configuration (Intel® Server System R1304xxx) ............................................................................................................................................ 28

Figure 7. 1U, 2.5" x 8 drive configuration (Intel® Server System R1208WFxxx)...................................................................................................................................... 28

Figure 8. 1U system back panel .................................................................................................................................................................................................................................. 28

Figure 9. Intel® Server System R2000WF feature set identification ............................................................................................................................................................ 30

Figure 10. 2U, No drive bays, chassis only building block (Intel® Server Chassis R2000WFxxx) .................................................................................................... 31

Figure 11. 2U, 3.5" x 8 drive configuration (Intel® Server System R2308WFxxx) ................................................................................................................................... 31

Figure 12. 2U, 3.5" x 12 drive configuration (Intel® Server System R2312WFxxx – storage configuration) ............................................................................... 31

Figure 13. 2U, 2.5" x 8 drive configuration (Intel® Server System R2208WFxxx) ................................................................................................................................... 32

Figure 14. 2U, 2.5" x 16 drive configuration (Intel® Server System R2208WFxxx + 8 drive accessory kit) ................................................................................. 32

Figure 15. 2U, 2.5" x 24 drive configuration (Intel® Server System R2224WFxxx – storage configuration) ............................................................................... 32

Figure 16. 2U System back panel with optional 2 x 2.5” hot swap drive bay .......................................................................................................................................... 33

Figure 20. Intel® Server System R2000WFTF feature set identification .................................................................................................................................................... 35

Figure 21. 2U, 2.5" x 8 drive configuration (Intel® Server System LFRB2208WFTFxxx) ...................................................................................................................... 36

Figure 22. 2U, 3.5" x 12 drive configuration (Intel® Server System LFRB2312WFTFxxx – storage configuration) .................................................................. 36

Figure 23. System back panel for Intel® Server System R2000WFTF with optional 2 x 2.5” hot-swap drive bay ................................................................... 36

Figure 24. Illustration of building block options ................................................................................................................................................................................................

Figure 25. Intel® Server Chassis options ................................................................................................................................................................................................................. 45

Figure 26. Intel® Server System options .................................................................................................................................................................................................................. 50

Figure 27. Intel® Server System R1000WF product family ............................................................................................................................................................................. 51

Figure 28. R2308WFxxx SAS/SATA backplane (no NVMe* support) .......................................................................................................................................................... 93

Figure 29. R2312WFxxx SAS/SATA backplane .................................................................................................................................................................................................... 94

Figure 30. SAS 3.0 12 Gb/s expander ....................................................................................................................................................................................................................... 95

Figure 31.2.5” front mount drive bay and 8 x 2.5” combo hot-swap backplane ................................................................................................................................... 97

Figure 32. SAS expander module identification and placement ............................................................................................................................................................... 106

11

.. 41

Intel® Server S2600WF Product Family Configuration Guide

Figure 33. SAS expander port mapping ............................................................................................................................................................................................................... 107

Figure 34. 2U rear-mount hot-swap drive bay accessory ............................................................................................................................................................................. 108

Figure 35. R2208WF based system with front I/O module bay assembly ............................................................................................................................................ 111

Figure 36. 2U 2.5" drive identification for each drive bay ............................................................................................................................................................................. 111

Figure 37. Intel® Ethernet Network Adapter for OCP* installation ............................................................................................................................................................ 113

12

Intel® Server S2600WF Product Family Configuration Guide

1. Intel® Server Family Overview

This document provides a catalog of available Intel® server products, accessories, and spares in the Intel® Server S2600WF product family.

Intel® Server S2600WF Product Family

Intel® Server Board

S2600WF Family

Building Blocks

Server Chassis Server Boards

R1000WF Product Family

Intel® Server Chassis

R1000WF Product Family

Intel® Server Chassis

R2000WF Product Family

R2000WFTF Product Family

Figure 1. Intel® Server S2600WF product family overview

Server Systems

Intel® Server System

13

Intel® Server S2600WF Product Family Configuration Guide

1.1 Configuration Overview

The Intel Server S2600WF product family is offered as both building block options and integrated systems.

• Server building blocks:

o Intel® Server Board S2600WF family – A family of server board only products (server building block option and spare FRU). o Intel® Server Chassis R1000WF product family – A family of 1U rack mount server chassis only products. o Intel® Server Chassis R2000WF product family – A family of 2U rack mount server chassis only products.

• Integrated server systems:

o Intel® Server System R1000WF product family – A family of 1U rack mount server chassis integrated with an Intel Server Board

S2600WF option.

o Intel® Server System R2000WF product family – A family of 2U rack mount server chassis integrated with an Intel Server Board

S2600WF option.

o Intel® Server System R2000WFTF product family – A family of 2U rack mount server chassis integrated at level L9 with an Intel®

Server Board S2600WFTF, processors, and memory.

Important Note: All product order codes ending with ‘R’ identify new product versions that are available as of revision 2.0 of this document. While product order codes not ending with ‘R’ may be referenced within this document, only product order codes ending in ‘(R)’ cover both SKU derivations. (i.e. S2600WFT(R) covers S2600WFT and S2600WFTR.)

14

Intel® Server S2600WF Product Family Configuration Guide

1.1.1 Processor Support

The Intel® Server S2600WF product family has support for 1st and 2nd Gen Intel® Xeon® processor Scalable family as identified in Figure 2.

Figure 2. Intel® Xeon® processor Scalable family generation identification

Note: In 2019, Intel released the 2nd Gen Intel® Xeon® processor Scalable family. To enable support for the new processor family, Intel created an

updated system software stack including the system BIOS and other system firmware.

In support of the 2nd Gen Intel Xeon processor Scalable family, Intel began pre-loading the supporting system software stack onto all server boards in

nd

the Intel® Server S2600WF product family. All server boards with pre-loaded system software stacks compatible with the 2

Gen Intel® Xeon®

processor Scalable family can be identified by a product order code ending in ‘R’.

nd

Existing server boards in the Intel® Server S2600WF product family with product codes that do NOT end in ‘R’ can be made to support the 2

Gen Intel® Xeon® processor Scalable family by updating the system software stack. A system update package (SUP) with the latest system software stack can be downloaded from https://downloadcenter.intel.com

.

15

Intel® Server S2600WF Product Family Configuration Guide

Feature

81xx

Platinum

61xx Gold

51xx Gold

41xx

Silver

31xx

Bronze

# of Intel® UPI links

3 3 2 2 2

Intel® UPI speed

10.4 GT/s

9.6 GT/s

Supported topologies

2S-2UPI

8S-3UPI

2S-2UPI

Node controller support

Yes

No

# of memory channels

6 6 6 6 6

Max DDR4 speed

2666 MT/s

2400 MT/s

2133 MT/s

Memory capacity

768 GB

1.5 TB (select SKUs)

768 GB

1.5 TB (select SKUs)

768 GB

RAS capability

Advanced

Standard

Intel® Turbo Boost Technology

Yes

No

Intel® Hyper-Threading Technology

Yes

No

Intel® AVX-512 ISA support

Yes

Intel® AVX-512 - # of 512b FMA units

2 2 1 1 1

# of PCIe* lanes

48

The Intel® Server Board S2600WFTF has support for the following Intel® Xeon® processor Scalable family processors:

• Intel® Xeon® Silver 4106H processor

• Intel® Xeon® Gold 6130H processor

• Intel® Xeon® Platinum 8160H processor

Note: Previous generation Intel® Xeon® processors and previous-generation processor heat sinks are not compatible on server boards described in this document.

Table 1. 1st Gen Intel® Xeon® processor Scalable family feature comparison

2S-3UPI 4S-2UPI 4S-3UPI

4S-2UPI

16

Intel® Server S2600WF Product Family Configuration Guide

Feature

81xxF

Platinum

61xxF

Gold

# of cores

≥ 24

< 24

# of Intel® Omni-Path Fabric ports

1

# of Intel® UPI links

2

Intel® UPI speed

10.4 GT/s

Supported topologies

2S-2UPI

Node controller support

No

# of memory channels

6

Max DDR4 speed

2666 MT/s

Memory capacity

768 GB

1.5 TB (select SKUs)

768 GB

1.5 TB (select SKUs)

RAS capability

Standard

Intel® Turbo Boost Technology

Yes

Intel® Hyper-Threading Technology

Yes

Intel® AVX-512 ISA support

Yes

Intel® AVX-512 - # of 512b FMA units

2

# of PCIe* lanes

48

Table 2. 1st Gen Intel® Xeon® processor Scalable family with integrated Intel® Omni-Path Fabric feature comparison

17

Intel® Server S2600WF Product Family Configuration Guide

Feature

82xx

Platinum

62xx Gold

52xx Gold

42xx

Silver

32xx

Bronze

# of Intel® UPI links

3 3 2 2 2

Intel® UPI speed

10.4 GT/s

9.6 GT/s

Supported topologies

2S-2UPI

8S-3UPI

2S-2UPI

Node controller support

Yes

No

# of memory channels

6 6 6 6 6

Max DDR4 speed (1 DPC)

2933 MT/s

2666 MT/s

2400 MT/s

2133 MT/s

Max DDR4 speed (2 DPC)

2666 MT/s

2400 MT/s

2133 MT/s

Intel® Optane™ DC persistent memory support

Yes 1

4215 only 1

No

Memory capacity

1 TB

4.5 TB (select SKUs)

1 TB

4.5 TB (select SKUs)

1 TB

4.5 TB (select SKUs)

1 TB

RAS capability

Advanced

Standard

Intel® Turbo Boost Technology

Yes

No

Intel® Hyper-Threading Technology

Yes

No

Intel® AVX-512 ISA support

Yes

Intel® AVX-512 - # of 512b FMA units

2 2 1 1 1

Intel® AVX-512 VNNI

Yes

# of PCIe* lanes

48

Table 3. 2nd Gen Intel® Xeon® processor Scalable family feature comparison

2S-3UPI 4S-2UPI 4S-3UPI

2 TB (select SKUs)

1

Intel® Optane™ DC persistent memory module is supported only by Intel® Server Boards S2600WFTR, S2600WF0R, and S2600WFQR with a 2nd Gen Intel® Xeon® Scalable processor.

2S-3UPI 4S-2UPI 4S-3UPI

2 TB (select SKUs)

4S-2UPI

2 TB (select SKUs)

18

Intel® Server S2600WF Product Family Configuration Guide

1.1.2 Memory Support

The Intel® Server Board S2600WF product family has support for the following memory:

• Registered DDR4 (RDIMM), Load Reduced DDR4 (LRDIMM)

• Memory data transfer rates (Processor dependent. See Table 1, Table 2, and Table 3.)

o DDR4 ECC RDIMM up to 2933 MT/s o DDR4 ECC LRDIMM up to 2933 MT/s o DDR4-compatible DDDC Intel® Optane™ DC persistent memory module up to 2666 MT/s

• DDR4 standard voltage of 1.2 V

Note: Intel® Optane™ DC persistent memory module is supported only by Intel® Server Boards S2600WFTR, S2600WF0R, and S2600WFQR with a 2nd Gen Intel® Xeon® Scalable processor.

The Intel® Server Board S2600WFTF product family has support for the following memory:

• Registered DDR4 (RDIMM), Load Reduced DDR4 (LRDIMM)

• Memory data transfer rates (Processor dependent. See Table 1 and Table 2.)

o DDR4 ECC RDIMM up to 2666 MT/s o DDR4 ECC LRDIMM up to 2666 MT/s

• DDR4 standard voltage of 1.2 V

1.1.3 System Configuration Notes

• Single processor configurations require the processor to be installed in the processor #1 socket.

• Processor #2 must be installed to use any of its 12 associated DIMM slots.

• To ensure systems meet necessary airflow and thermal requirements, the processor #2 heat sink must be installed at all times, with or without

a processor present.

• Support for riser card slots 2 and 3 requires that two processors be installed.

• Riser card slots 1 and 2 can provide a maximum power of 75 W to each installed riser cards. PCIe* add-in cards that require more power than

is available directly from the riser card must route the additional power directly to the add-in card from either of the two onboard 12V auxiliary power connectors using a 12V-AUX Power Cable available as a standalone accessory (AXXGPGPUCABLE) or included with some riser card accessory kits.

19

Intel® Server S2600WF Product Family Configuration Guide

For this information or software

Use this document or software

For in-depth technical information about this product family

Intel® Server Board S2600WF Technical Product Specification

Safety and Regulatory Compliance Information for Intel® Server System 4600/2600/2400/1600 Families

For system integration and service instructions

Intel® Server System R1000WF Product Family System Integration and Service Guide

Intel® Server System R2000WFTF Product Family System Integration and Service Guide

For server configuration guidance and compatibility

Intel® Server Configurator Tool (http://serverconfigurator.intel.com/)

For system firmware updates, onboard device drivers, and software

Download Center (https://downloadcenter.intel.com/search?keyword=S2600WF)

For system power budget guidance

Intel® Server Board S2600WF Product Family Power Budget and Thermal Configuration Tool (https://downloadcenter.intel.com/download/27100/)

For a complete list of supported processors, memory, add-in cards,

Intel® Server Board S2600WF family support site

server-boards/intel-server-board-s2600wf-family.html)

Product warranty Information

Warranty Terms and Conditions (https://www.intel.com/content/www/us/en/support/services/000005886.html)

1.2 Additional Information and Software

For additional information about this family of products or any of their supported accessories, refer to the following resources available at

http://www.intel.com/support

.

Table 4. Product family reference collaterals

Intel® Server System R1000WF Product Family Technical Product Specification Intel® Server System R2000WF Product Family Technical Product Specification Intel® Server System R2000WFTF Product Family Technical Product Specification Intel® Remote Management Module 4 (Intel® RMM4) and BMC Embedded Web Console User Guide Intel® Remote Management Module 4 Technical Product Specification Intel® Server System BIOS Setup Utility Guide Intel® Server System R2000WFTF IPTrak PIT Users Guide Intel® Server Platform Specification Update

Intel® Server System R2000WF Product Family System Integration and Service Guide

and peripherals

20

(https://www.intel.com/content/www/us/en/support/server-products/server-boards/dual-socket-

Intel® Server S2600WF Product Family Configuration Guide

1.3 Intel® Server Board S2600WF Product Family

Figure 3. Intel® Server Board S2600WF onboard features

Note: Figure 3

Table 5 for a complete list of features supported on a given server board option.

Table 5 lists the features of the available server boards in the Intel® Server Board S2600WF product family.

21

provides an overview of available server board features. Some features may not be present on all available server board options. See

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Board Feature

S2600WFT(R)

S2600WF0(R)

S2600WFQ(R)

Processor

• (2) – LGA3647-0 (Socket P) processor sockets

Intel® System TPS for maximum supported TDP.

Memory

• (24) – total DIMM slots (12 per processor)

• DDR4-compatible Intel® Optane™ DC persistent memory module, up to 2666 MT/s, 1.2 V 1

Intel® C62x Series Chipset

Intel® C624 Chipset

Intel® C628 Chipset

Intel® QAT

No

Supported

Intel® Omni-Path Fabric

Supported

Onboard LAN

Dual Port RJ45 10 GbE

No

OCP* Module

• Dual Port 10Gb RJ45 –

• Quad Port 1Gb RJ45 – iPC I357T4OCPG1P5

Dual Port SFP+ – iPC X527DA2OCPG1P5

• Quad Port 1Gb RJ45 – iPC I357T4OCPG1P5

Dual Port SFP+ – iPC X527DA2OCPG1P5

Intel® Integrated SAS Module

Supported

Onboard PCIe* NVMe*

• (4) – OCuLink connectors

(accessory option)

• (4) – OCuLink connectors

option)

• (2) – OCuLink connectors

option)

Onboard SATA

• (12) – SATA 6 Gbps ports (6 Gb/s, 3 Gb/s and 1.5 Gb/s transfer rates supported)

• (4) – SATA 6 Gbps ports (6 Gb/s, 3 Gb/s and

SATA; these cables are used only for Intel® QAT.

Riser Card

Concurrent support for up to three riser cards

Riser #3 (2U systems only) – PCIe* 3.0 (CPU 2 x12) – 2 slot riser card available

Table 5. Intel® Server Board S2600WF product family features

• Supports (1) or (2) processors from the 1st or 2nd Gen Intel® Xeon® processor Scalable family (Platinum, Gold, Silver, and Bronze). Note: Previous generation Intel® Xeon® processors are not supported.

• Maximum supported Thermal Design Power (TDP) of up to 205 W (board only)

Note: Intel® Server Systems based on this server board family may support a lower maximum Thermal Design Power (TDP). See the appropriate

o (6) – memory channels per processor o (2) – DIMMs per channel

• DDR4 Registered DIMM (RDIMM) and Load Reduced DIMM (LRDIMM), up to 2933 MT/s (dependent on processor), 1.2 V

Support

iPC 557T2OCPG1P5

• Dual Port SFP+ – iPC 527DA2OCPG1P5

• Intel® VMD support

• Intel® RSTe/Intel® VROC support

o (2) – single port 7-pin SATA connectors o (2) – M.2 connectors – SATA/PCIe* o (2) – 4-port mini-SAS HD (SFF-8643) connectors

• Embedded SATA Software RAID

o Intel® RSTe 5.0 o Intel® Embedded Server RAID Technology 2 1.60 with optional RAID 5 key support

• Riser #1 – PCIe* 3.0 x24 (CPU1 x16, CPU2 x8) – 2 and 3 slot riser card options available

• Riser #2 – PCIe* 3.0 x24 (CPU2 x24) – 2 and 3 slot riser card options available

•

22

• Quad Port SFP+ – iPC X527DA4OCPG1P5

• Dual Port 10Gb RJ45 – iPC X557T2OCPG1P5

•

• Intel® VMD support

• Intel® RSTe/Intel® VROC support (accessory

• Quad Port SFP+ – iPC X527DA4OCPG1P5

• Dual Port 10Gb RJ45 – iPC X557T2OCPG1P5

•

• Intel® VMD support

• Intel® RSTe/Intel® VROC support (accessory

1.5 Gb/s transfer rates supported)

o (2) – single port 7-pin SATA connectors o (2) – M.2 connectors – SATA/PCIe*

• Embedded SATA Software RAID

o Intel® RSTe 5.0

Note: 4-port mini-SAS HD connectors are present on S2600WFQ but are not configured as

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Board Feature

S2600WFT(R)

S2600WF0(R)

S2600WFQ(R)

Video

Integrated 2D video controller

• (1) – 14-pin internal connector for optional front panel video support

USB

• (3) – external USB 3.0 ports

(1) – internal 10-pin connector for optional 2x USB 2.0 port front panel support

Serial Port

• (1) – external RJ-45 serial-A port connector

• (1) – internal DH-10 serial-B port header for optional front or rear serial port support

Server Management

• Integrated baseboard management controller, IPMI 2.0 compliant

• Advanced server management via Intel® RMM4 Lite – iPC AXXRMM4LITE2 (accessory option)

Security

• Trusted platform module 2.0 (Rest of World) – iPC AXXTPMENC8 (accessory option)

• Trusted platform module 2.0 (China Version) – iPC AXXTPMCHNE8 (accessory option)

System Fan

• (6) – system fans supported in two different connector formats: hot swap (2U) and cabled (1U)

o (6) – 6-pin hot swap capable managed system fan connectors (sys_fan 1-6) – used for 2U system configuration

•

• 16MB of DDR4 video memory

• (1) – DB-15 external connector

• (1) – internal type-A USB 2.0 port

• (1) – internal 20-pin connector for optional 2x USB 3.0 port front panel support

•

• Support for Intel® Server Management software

• Dedicated onboard RJ45 management port

o (6) – 10-pin managed system fan headers (sys_fan 1-6) – used for 1U system configuration

1 Intel® Optane™ persistent memory module is supported only by Intel® Server Boards S2600WFTR, S2600WF0R, and S2600WFQR with 2nd Gen Intel® Xeon® Scalable processor.

23

Intel® Server S2600WF Product Family Configuration Guide

1.4 Intel® Server Board S2600WFTF Product Family

Figure 4. Intel® Server Board S2600WFTF onboard features

24

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Board Feature

Description

Processor

• (2) – LGA3647-0 (Socket P) processor sockets

o Intel® Xeon® Platinum 8160H processor

Memory

• (24) – total DIMM slots (12 per processor)

• DDR4 standard voltage of 1.2 V

Intel® C62x Series Chipset

Intel® C624 Chipset

Intel® Platform Firmware Resilience

Yes

Protect-in-Transit

Yes

Intel® Quick Assist Technology

No

Intel® Omni-Path Fabric Support

No

Onboard LAN

Dual Port RJ45 10GbE

OCP* Module Support

• Dual Port 10Gb RJ45 – iPC 557T2OCPG1P5

• Dual Port SFP+ – iPC 527DA2OCPG1P5

Intel® Integrated SAS Module

Supported

Onboard PCIe* NVMe* Support

• (4) – OCuLink connectors

Intel® RSTe/Intel® VROC support (accessory option)

Onboard SATA

• (12) – SATA 6 Gbps ports (6 Gb/s, 3 Gb/s and 1.5 Gb/s transfer rates supported)

o Intel® Embedded Server RAID Technology 2 1.60 with optional RAID 5 key support

Riser Card

Concurrent support for up to three riser cards

Riser #3 (2U systems only) – PCIe* 3.0 (CPU 2 x12) – 2 slot riser card available (low-profile add-in cards only)

Video

• Integrated 2D video controller

(1) – 14-pin internal connector for optional front panel video support

Table 6. Intel® Server Board S2600WFTF product family features

• Supports (1) or (2) of the following processors from the Intel® Xeon® processor Scalable family

o Intel® Xeon® Silver 4106H processor o Intel® Xeon® Gold 6130H processor

o (6) – memory channels per processor o (2) – DIMMs per channel

• Registered DDR4 (RDIMM), Load Reduced DDR4 (LRDIMM)

• Memory data transfer rates up to 2666 MT/s (dependent on processor)

• Intel® VMD support

•

o (2) – single port 7-pin SATA connectors o (2) – M.2 connectors – SATA / PCIe* o (2) – 4-port mini-SAS HD (SFF-8643) connectors

• Embedded SATA Software RAID

o Intel® RSTe 5.0

• Riser #1 – PCIe* 3.0 x24 (CPU1 x16, CPU2 x8) – 2 and 3 slot riser card options available

• Riser #2 – PCIe* 3.0 x24 (CPU2 x24) – 2 and 3 slot riser card options available

•

25

• 16MB of DDR4 video memory

• (1) – DB-15 external connector

•

Intel® Server Board Feature

Description

USB Support

(3) – external USB 3.0 ports

• (1) – internal 10-pin connector for optional 2x USB 2.0 port front panel support

Serial Port Support

• (1) – external RJ-45 serial-A port connector

• (1) – internal DH-10 serial-B port header for optional front or rear serial port support

Server Management

Integrated baseboard management controller, IPMI 2.0 compliant

• Advanced server management via Intel® RMM4 Lite – iPC AXXRMM4LITE2 (accessory option)

Security

• Trusted platform module 2.0 (Rest of World) – iPC AXXTPMENC8 (accessory option)

• Trusted platform module 2.0 (China Version) – iPC AXXTPMCHNE8 (accessory option)

System Fan

• (6) – system fans supported in two different connector formats: hot swap (2U) and cabled (1U)

(6) – 6-pin hot swap capable managed system fan connectors (sys_fan 1-6) – used for 2U system configuration

Antenna Support

RFID near field antenna, I-PEX connector

Intel® Server S2600WF Product Family Configuration Guide

•

• (1) – internal type-A USB 2.0 port

• (1) – internal 20-pin connector for optional 2x USB 3.0 port front panel support

•

• Support for Intel® Server Management software

• Dedicated onboard RJ45 management port

• (6) – 10-pin managed system fan headers (sys_fan 1-6) – used for 1U system configuration

•

26

Intel® Server S2600WF Product Family Configuration Guide

1.5 Intel® Server System R1000WF Product Family

This section gives an overview of the available systems in the Intel® Server System R1000WF product family. The “xxx” notation defines the specific product model or code. For complete configuration details, see Section 3.1.

Figure 5. Intel® Server System R1000WF feature set identification

27

Intel® Server S2600WF Product Family Configuration Guide

Figure 6. 1U, 3.5” x 4 drive configuration (Intel® Server System R1304xxx)

Figure 7. 1U, 2.5" x 8 drive configuration (Intel® Server System R1208WFxxx)

Figure 8. 1U system back panel

28

Intel® Server S2600WF Product Family Configuration Guide

Feature

Description

Chassis Type

1U rack mount chassis

Server Board

Intel® Server Board S2600WF product family

Maximum Supported Processor Thermal

Up to 165 W

System TPS for maximum supported TDP.

External I/O Connections

• DB-15 video connectors

(2) – USB 3.0 connectors on front panel (non-storage system configurations only)

Internal I/O Connectors/Headers

• (1) – Type-A USB 2.0 connector (1) – DH-10 serial port B connector

System Fans

• (6) – managed 40 mm dual rotor system fans

• One power supply fan for each installed power supply module

Riser Card Support

Support for two riser cards:

• (2) full height/half-length add-in cards via Risers #1 and #2

Power Supply Options

The server system can have up to two power supply modules installed, providing support for the following power configurations:

• DC 750 W Gold

Drive Bay Options

• Hot-swap backplane options:

o 8 x 2.5” SAS/SATA/NVMe* hot swap drive bays + front panel I/O

Supported Rack Mount Kit Accessory

• AXXELVRAIL – Enhanced value rack mount rail kit – 424 mm max travel length, 59 kg max supported weight

• AXX1U2UCMA2– Cable management arm (CMA) (supported with AXXFULLRAIL only)

Table 7. Intel® Server System R1000WF product family features

Design Power (TDP)

Note: Intel® Server Systems in this family may support a lower maximum Thermal Design Power (TDP). See the appropriate Intel®

o Front and back

• RJ-45 serial port A connector on back panel

• Dual RJ-45 network interface connectors (S2600WFT-based systems only)

• Dedicated RJ-45 server management port on back panel

• (3) – USB 3.0 connectors on back panel

•

• Riser #1 – PCIe* 3.0 x24

• Riser #2 – PCIe* 3.0 x24

With two riser cards installed, up to two possible add-in cards can be supported (one x16 PCIe* 3.0 add-in card slot per riser card):

1+0, 1+1 redundant power, and 2+0 combined power. (3) power supply options:

• AC 1100 W Platinum

• AC 1300 W Platinum

o 4 x 3.5” SAS/SATA backplane o 8 x 2.5” combo backplane – SAS/SATA/NVMe

Note: All available backplane options have support for SAS 3.0 (12 Gb/sec).

• Storage bay options:

o 4 x 3.5” SAS/SATA hot swap drive bays + front panel I/O

Options

29

• A1UFULLRAIL – 1U premium rail kit with CMA support – 780 mm max travel length, 18 kg max supported weight

• A1USHRTRAIL – 1U premium rail kit without CMA support – 780 mm max travel length, 18 kg max supported weight

• AXX2POSTBRCKT – Two post fixed mount bracket kit

Intel® Server S2600WF Product Family Configuration Guide

1.6 Intel® Server System R2000WF Product Family

This section gives an overview of the available systems in the Intel® Server System R2000WF product family. The “xxx” notation defines the specific product model or code. For complete configuration details, see Section 3.2.

Figure 9. Intel® Server System R2000WF feature set identification

30

Intel® Server S2600WF Product Family Configuration Guide

Figure 10. 2U, No drive bays, chassis only building block (Intel® Server Chassis R2000WFxxx)

.

Figure 11. 2U, 3.5" x 8 drive configuration (Intel® Server System R2308WFxxx)

Figure 12. 2U, 3.5" x 12 drive configuration (Intel® Server System R2312WFxxx – storage configuration)

31

Intel® Server S2600WF Product Family Configuration Guide

Figure 13. 2U, 2.5" x 8 drive configuration (Intel® Server System R2208WFxxx)

Figure 14. 2U, 2.5" x 16 drive configuration (Intel® Server System R2208WFxxx + 8 drive accessory kit)

Figure 15. 2U, 2.5" x 24 drive configuration (Intel® Server System R2224WFxxx – storage configuration)

32

Intel® Server S2600WF Product Family Configuration Guide

Feature

Description

Chassis Type

2U rack mount chassis

Server Board

Intel® Server Board S2600WF product family

Maximum Supported Processor Thermal

Up to 205 W

External I/O Connections

• DB-15 video connectors

(1) – USB 2.0 connector on rack handle (storage configurations only)

Internal I/O Connectors/Headers

• (1) – Type-A USB 2.0 connector

• (1) – DH-10 serial port B connector

System Fans

• (6) – managed 60 mm hot swap capable system fans

• Integrated fans included with each installed power supply module

Figure 16. 2U System back panel with optional 2 x 2.5” hot swap drive bay

Table 8 describes the features of the 2U server system configurations. Storage system configurations include R2312WFxxxx and R2224WFxxxx. Nonstorage system configurations include R2308WFxxxx, R2208WFxxxx, and R2208WFxxxx +8 (base 8 drive system with 8 drive add in module).

Table 8. Intel® Server System R2000WF product family features

Design Power (TDP)

33

Note: Intel® Server Systems in this family may support a lower maximum Thermal Design Power (TDP). See the appropriate Intel® System TPS for maximum supported TDP.

o Front and back (non-storage system configurations only)

• RJ-45 serial port A connector

• Dual RJ-45 network interface connectors (S2600WFT-based systems only)

• Dedicated RJ-45 server management NIC

• (3) – USB 3.0 connectors on back panel

• (2) – USB 3.0 connectors on front panel (non-storage system configurations only)

•

Intel® Server S2600WF Product Family Configuration Guide

Feature

Description

Riser Card Support

Support for three riser cards:

• (2) low profile add in cards via riser #3 (option)

Power Supply Options

The server system can have up to two power supply modules installed, providing support for the following power configurations:

o DC 750 W Gold

Drive Bay Options

• Hot-swap backplane options:

o 2 x internal fixed mount 2.5” SSDs (all system models)

Supported Rack Mount Kit Accessory

• AXXELVRAIL – Enhanced value rack mount rail kit – 424 mm max travel length, 59 kg max supported weight

• AXXCMA2– Cable management arm (supported with AXXFULLRAIL only)

• Riser #1 – PCIe* 3.0 x24 - up to 3 PCIe slots

• Riser #2 – PCIe* 3.0 x24 - up to 3 PCIe slots

• Riser #3 – PCIe* 3.0 x16 – up to 2 PCIe slots – Low profile cards only (optional)

With three riser cards installed, up to eight possible add-in cards can be supported:

• (4) full height/half-length + (2) full height/half-length add-in cards via Risers #1 and #2

1+0, 1+1 redundant power, and 2+0 combined power.

• (3) power supply options:

o AC 1100 W Platinum o AC 1300 W Titanium

o 8 x 3.5” SAS/ SATA o 8 x 2.5” combo backplane – SAS/SATA/NVMe* o 8 x 2.5” Dual Port SAS o 12 x 3.5” SAS/ SATA (supports up to 2 NVMe drives)

Note: All available backplane options have support for SAS 3.0 (12 Gb/sec).

• Storage bay options:

o 8 x 3.5” SAS/SATA hot swap drive bays o 12 x 3.5” SAS/SATA hot swap drive bays (supports up to 2 NVMe drives) o 8 x 2.5” SAS/SATA/NVMe hot swap drive bays o 16 x 2.5” SAS/SATA/NVMe hot swap drive bays o 24 x 2.5” SAS/SATA/NVMe swap drive bays o 2 x 2.5” SATA SSD back of chassis hot-swap drive bays (accessory option)

Options

• AXXFULLRAIL – 2U premium rail with CMA support – 800 mm max travel length, 45 kg max supported weight

• AXXSHRTRAIL – 2U premium rail without CMA support – 788 mm max travel length, 45 kg max supported weight

• AXX2POSTBRCKT – Two post fixed mount bracket kit

34

Intel® Server S2600WF Product Family Configuration Guide

1.7 Intel® Server System R2000WFTF Product Family

This section gives an overview of the available systems in the Intel® Server System R2000WFTF product family. The “xxx” notation defines the specific product model or code. For complete configuration details, see Section 3.2.

Figure 17. Intel® Server System R2000WFTF feature set identification

35

Intel® Server S2600WF Product Family Configuration Guide

Figure 18. 2U, 2.5" x 8 drive configuration (Intel® Server System LFRB2208WFTFxxx)

Figure 19. 2U, 3.5" x 12 drive configuration (Intel® Server System LFRB2312WFTFxxx – storage configuration)

Figure 20. System back panel for Intel® Server System R2000WFTF with optional 2 x 2.5” hot-swap drive bay

36

Intel® Server S2600WF Product Family Configuration Guide

Feature

Description

Chassis Type

2U rack mount chassis

Server Board

Intel® Server Board S2600WFTF product family

Maximum Supported Processor Thermal Design Power (TDP)

Up to 150 W

External I/O Connections

• DB-15 video connectors

(1) – USB 2.0 connector on rack handle (storage configurations only)

Internal I/O Connectors/Headers

• (1) – Type-A USB 2.0 connector (1) – DH-10 serial port B connector

System Fans

• (6) – managed 60 mm hot swap capable system fans

• Integrated fans included with each installed power supply module

Riser Card Support

Support for three riser cards:

(2) low profile add in cards via riser #3 (option)

Power Supply Options

The server system can have up to two power supply modules installed, providing support for the following power configurations:

AC 1300 W Titanium

Remote Management

Intel® Remote Management Module 4 (Intel® RMM4) Lite activation key

Table 9. Intel® Server System R2000WFTF product family features table

o Front and back (non-storage system configurations only)

• RJ-45 serial port A connector

• Dual RJ-45 network interface connectors (S2600WFT-based systems only)

• Dedicated RJ-45 server management NIC

• (3) – USB 3.0 connectors on back panel

• (2) – USB 3.0 connectors on front panel (non-storage system configurations only)

•

• Riser #1 – PCIe* 3.0 x24 – up to 3 PCIe slots

• Riser #2 – PCIe* 3.0 x24 – up to 3 PCIe slots

• Riser #3 – PCIe* 3.0 x16 – up to 2 PCIe slots – Low profile cards only (optional)

With three riser cards installed, up to eight possible add-in cards can be supported:

• (4) full height/half-length + (2) full height/half-length add-in cards via Risers #1 and #2

•

1+0, 1+1 redundant power, and 2+0 combined power. (1) power supply option:

•

37

Intel® Server S2600WF Product Family Configuration Guide

Feature

Description

Drive Bay Options

Hot-swap backplane options:

o 2 x internal fixed mount 2.5” SSDs (all system models)

Supported Rack Mount Kit Accessory

• AXXELVRAIL – Enhanced value rack mount rail kit – 424 mm max travel length, 59 kg max supported weight

• AXXCMA2– Cable management arm (supported with AXXFULLRAIL only)

•

o 8 x 2.5” combo backplane – SAS/SATA/NVMe* o 8 x 2.5” dual port SAS o 12 x 3.5” SAS/ SATA (supports up to 2 NVMe drives)

Note: All available backplane options have support for SAS 3.0 (12 Gb/sec).

• Storage bay options:

o 12 x 3.5” SAS/SATA hot-swap drive bays (supports up to 2 NVMe drives) + storage front panel o 8 x 2.5” SAS/SATA/NVMe hot-swap drive bays + PFR front panel o 16 (8+8 accessory) x 2.5” SAS/SATA/NVMe hot-swap drive bays + PFR front panel o 2 x 2.5” SATA SSD back of chassis hot-swap drive bays (accessory option)

Options

• AXXFULLRAIL – 2U premium rail with CMA support – 800 mm max travel length, 45 kg max supported weight

• AXXSHRTRAIL – 2U premium rail without CMA support – 788 mm max travel length, 45 kg max supported weight

• AXX2POSTBRCKT – Two post fixed mount bracket kit

38

Intel® Server S2600WF Product Family Configuration Guide

Code (iPC)

# of

sockets

# of

Slots

# of

Slots

Onboard

LAN ports

Onboard

(6 Gb)

Onboard

Ports

Intel® SAS

support

Intel® Ethernet

for OCP* Support

Video

Support

Fan Support

S2600WF0(R)

2

24 3 0

12 4 Yes

Yes

No

Up to 6

S2600WFT(R)

2

24 3 2

12 4 Yes

Yes

No

Up to 6

S2600WFQ(R)

2

24 3 0 4 2

Yes

Up to 6

Code (iPC)

Level

Chassis

Factor

Server

Option

Drive

Factor

# of

(front)

2.5”

Support

# of SSDs

(rear)

# of PCIe*

Slots

Riser

Power

Modules

Rails

RAID

Expander

R1304WFXXX

L3

1U

Opt

3.5”/2.5”

4

No

N/A

Opt (up to 2)

N/A

Opt

N/A

R1208WFXXX

L3

1U

Opt

2.5” 8 Yes

N/A

Opt (up to 2)

N/A

Opt

N/A

R2000WFXXX

L3

2U

Opt

Opt (up to 8)

Opt

R2312WFXXX

L3

2U

Opt

3.5”/2.5”

12

Opt

Opt (up to 8)

Opt

1.8 Available Server Board, Chassis, and System SKU Summary

The following tables provide an overview of available Intel product codes for building blocks and systems within the Intel® S2600WF product family. Each line item identifies key features supported in the shipping Intel SKU. Additional order code information and full product descriptions for each option are provided in later sections.

The following terms are used in the tables:

• N/A: Not applicable.

• Opt: Accessory option sold separately.

• Yes: Option included.

• KDK: Knock Down Kit – Intel term for a chassis only product (L3).

• BIK: Server board in KDK – Intel term for integrated (L6 and L9) system product.

• L3: Server System Building Block - Chassis components only (KDK). No server board installed.

• L6: Integrated system – Chassis and server board, with no processors, memory, or storage devices.

• L9: Integrated system – Chassis and server board, with processors and memory, no storage devices, some accessory options included. See

server system configurations in Chapter 3 for product code specific details. The L9 systems listed are part of the Intel® Data Center Blocks with Firmware Resilience product.

Table 10. Server board product family summary

Intel Product

CPU

DIMM

Riser

10GbE

SATA ports

NVMe*

RAID Module

Network Adapter

Onboard

Intel® QAT

Onboard System

Table 11. Server chassis (KDK) product family summary

Intel Product

Note: The Intel Server Chassis R2000WF can support all available 8x2.5” drive bay accessory options.

39

Integration

Form

Board

Form

Drives

NVMe*

Drives

Add-in Card

3rd

Supply

SAS

Intel® Server S2600WF Product Family Configuration Guide

(iPC)

Factor

Option

Factor

(front) 1

Support

(rear)

# of

Slots

Riser

Modules

Rails

RAID

Expander

Included

L6 Systems

R1304WFTYS(R)

1U

S2600WFT(R)

3.5”/2.5”

4

No

N/A

2

N/A

1x 1100W AC

Opt

N/A

No

R1304WF0YS(R)

1U

S2600WF0(R)

3.5”/2.5”

4

No

N/A

2

N/A

1x 1100W AC

Opt

N/A

No

R1208WFTYS(R)

1U

S2600WFT(R)

2.5”

8

Up to 8

N/A

2

N/A

1x 1100W AC

Opt

N/A

No

R2308WFTZS(R)

2U

S2600WFT(R)

3.5”/2.5”

8

No

Opt

8

Yes

1x 1300W AC

Opt

N/A

No

R2312WF0NP(R)

2U

S2600WF0(R)

3.5”/2.5”

12

Up to 2

Opt

8

Yes

Opt

No

R2312WFTZS(R)

2U

S2600WFT(R)

3.5”/2.5”

12

Up to 2

Opt

8

Yes

1x 1300W AC

Opt

No

R2312WFQZS

2U

S2600WFTQ

3.5”/2.5”

12

No

Opt

8

Yes

1x 1300W AC

Opt

No

R2208WFTZS(R)

2U

S2600WFT(R)

2.5”

8

Up to 8

Opt

8

Yes

1x 1300W AC

Opt

No

R2208WF0ZS(R)

2U

S2600WF0(R)

2.5”

8

Up to 8

Opt

8

Yes

1x 1300W AC

Opt

No

R2208WFQZS(R)

2U

S2600WFQ(R)

2.5”

8

Up to 8

Opt

8

Yes

1x 1300W AC

Opt

No

R2224WFTZS(R)

2U

S2600WFT(R)

2.5”

24

Up to 24

Opt

8

Yes

1x 1300W AC

Opt

No

R2224WFQZS

2U

S2600WFQ

2.5”

24

Up to 24

Opt

8

Yes

1x 1300W AC

Opt

No

L9 Systems

LFRB2208WFTF801

2U

S2600WFTF

2.5”

8

Up to 8

Opt

8

Yes

2x 1300W

Opt

Yes

LFRB2208WFTF601

2U

S2600WFTF

2.5”

8

Up to 8

Opt

8

Yes

2x 1300W

Opt

Yes

LFRB2208WFTF401

2U

S2600WFTF

2.5”

8

Up to 8

Opt

8

Yes

2x 1300W

Opt

Yes

LFRB2312WFTF801

2U

S2600WFTF

3.5”/2.5”

12

Up to 2

Opt

8

Yes

2x 1300W

Opt

Yes

LFRB2312WFTF601

2U

S2600WFTF

3.5”/2.5”

12

Up to 2

Opt

8

Yes

2x 1300W

Opt

Yes

LFRB2312WFTF401

2U

S2600WFTF

3.5”/2.5”

12

Up to 2

Opt

8

Yes

2x 1300W

Opt

Yes

Table 12. Server system (BIK) product family summary

Intel Product Code

Chassis

Form

Server Board

Drive Form

# of

Drives

2.5”

NVMe*

# of SSD

Drives

PCIe*

Add-in

Card

3rd

Power Supply

SAS

Memory

Processor

1

All front drive bays are 12Gb SAS capable.

40

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Chassis R1000WF

2. Server Building Block Options

Server building blocks are offered to provide the option of choosing from available Intel® server components to create a custom system configuration from the chassis up. Each building block component and optional accessory is purchased separately and assembled by a system integrator. At a minimum, a base functional server system using building blocks requires the following:

• 1U or 2U Intel® Server Chassis

• Intel® Server Board S2600WF product family option

• Power supply module(s)

• SATA/NVMe* data cables

• Power cord(s)

• Rack mount kit – rails or fixed mount

• Processor

• Memory

• Storage devices

Power supply modules

PCIe* riser cards

Intel® Server Board S2600WF

Intel® Server Chassis R2000WF

Figure 21. Illustration of building block options

41

Intel® Server S2600WF Product Family Configuration Guide

Note: Preconfigured L9 systems are also offered and require only the addition of power cords and storage devices to become a functional server. L9 systems are a part of the Intel® Data Center Block with Firmware Resilience product.

Optional Intel accessories that can be added include the following:

• Riser cards options

• Intel® SAS/SAS RAID support – PCIe* add-in card or module and appropriate SAS data cable(s)

• Intel® Ethernet Network Adapter for OCP* - to add additional features without losing a PCIe add-in slot

• Intel® Remote Management Module Lite key – to add advanced server management features

See Chapter 5 for all available options.

42

Intel® Server S2600WF Product Family Configuration Guide

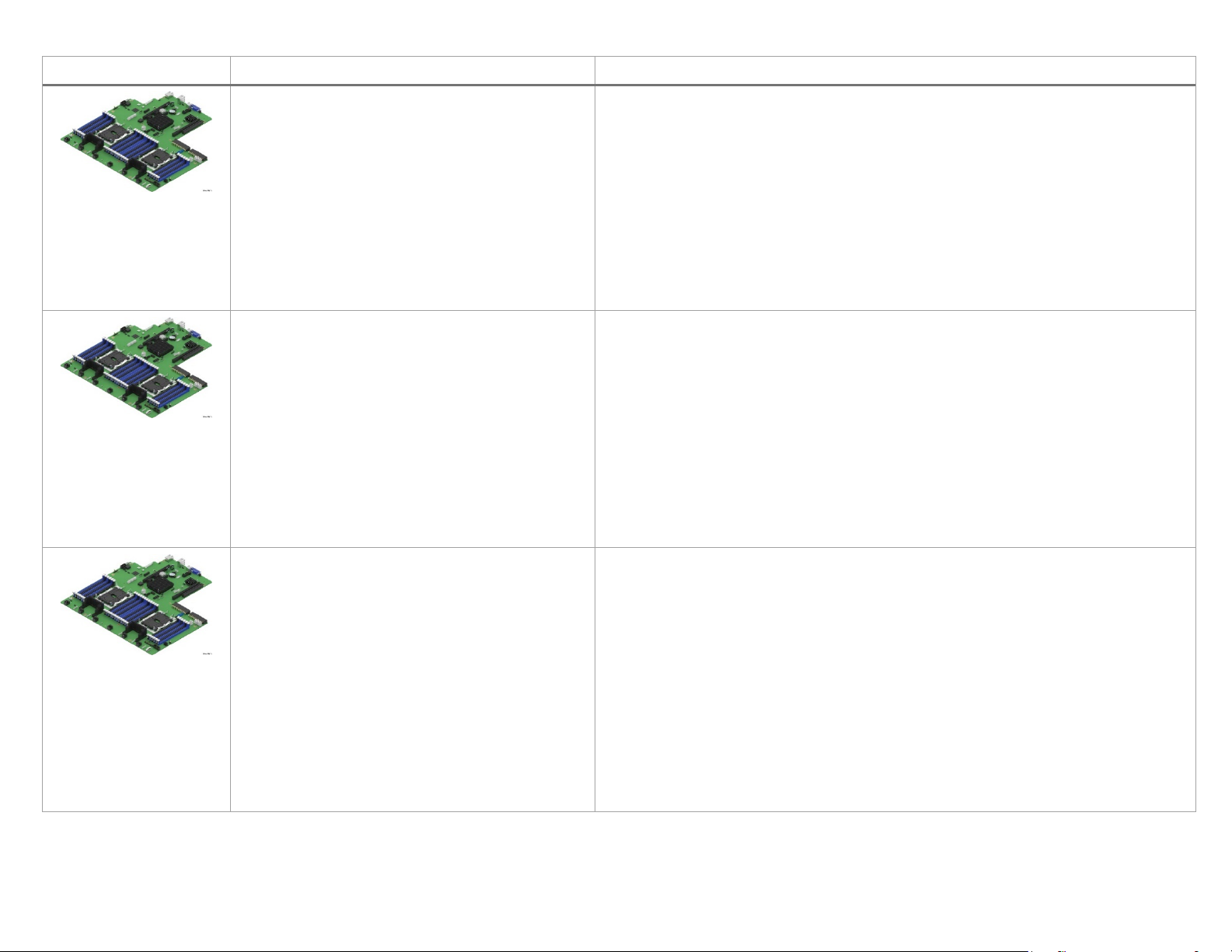

Product Image

Details

Description

Intel® Server Board S2600WFT

iPC

S2600WFT

MM#

952641

UPC

00735858344463

EAN

5032037105255

MOQ

1

Product type

Server board only Building block/spare FRU

Packaged gross wt.

3.3 kg (7.3 lb)

Un-packaged net wt.

1.7 kg (4.2 lb)

See Table 5 for the complete feature set. Unique board features include:

Intel® Server Board S2600WFTR

iPC

S2600WFTR

MM#

986004

UPC

00735858406772

EAN

5032037151030

MOQ

1

Product type

Server board only Building block/spare FRU

Packaged gross wt.

3.3 kg (7.3 lb)

Un-packaged net wt.

1.7 kg (4.2 lb)

See Table 5 for the complete feature set. Unique board features include:

Intel® Server Board S2600WF0

iPC

S2600WF0

MM#

952644

UPC

00735858344470

EAN

5032037105262

MOQ

1

Product type

Server board only Building block/spare FRU

Packaged gross wt.

3.3 kg (7.3 lb)

Un-packaged net wt.

1.7 kg (4.2 lb)

See Table 5 for the complete feature set. Unique board features include:

2.1 Intel® Server Board S2600WF Product Family Options

Table 13. Intel® Server Board S2600WF product family options

• Intel® C624 chipset

• Onboard dual-port RJ45 10 GbE LAN

• (4) – onboard PCIe* NVMe* OCuLink connectors

• (12) – SATA 6 Gbps ports

Box includes: (1) server board

Note: All necessary mounting hardware, cabling, and shielding ship with the chassis and

optional accessory kits.

• Intel® C624 chipset

• Onboard dual-port RJ45 10 GbE LAN

• (4) – onboard PCIe* NVMe* OCuLink connectors

• (12) – SATA 6 Gbps ports

• Support for Intel® Optane™ DC persistent memory module

Box includes: (1) server board

Note: All necessary mounting hardware, cabling, and shielding ship with the chassis and

optional accessory kits.

• Intel® C624 chipset

• No onboard LAN

• (4) – onboard PCIe* NVMe* OCuLinkconnectors

• (12) – SATA 6 Gbps ports

Box includes: (1) server board

Note: All necessary mounting hardware, cabling, and shielding ship with the chassis and

optional accessory kits.

43

Intel® Server S2600WF Product Family Configuration Guide

Product Image

Details

Description

Intel® Server Board S2600WF0R

iPC

S2600WF0R

MM#

986005

UPC

00735858406796

EAN

5032037151054

MOQ

1

Product type

Server board only Building block/spare FRU

Packaged gross wt.

3.3 kg (7.3 lb)

Un-packaged net wt.

1.7 kg (4.2 lb)

See Table 5 for the complete feature set. Unique board features include:

Intel® Server Board S2600WFQ

iPC

S2600WFQ

MM#

952645

UPC

00735858344456

EAN

5032037105248

MOQ

1

Product type

Server board only Building block/spare FRU

Packaged gross wt.

3.3 kg (7.3 lb)

Un-packaged net wt.

1.7 kg (4.2 lb)

See Table 5 for the complete feature set. Unique board features include:

drives.

Intel® Server Board S2600WFQR

iPC

S2600WFQR

MM#

986006

UPC

00735858406819

EAN

5032037151078

MOQ

1

Product type

Server board only Building block/spare FRU

Packaged gross wt.

3.3 kg (7.3 lb)

Un-packaged net wt.

1.7 kg (4.2 lb)

See Table 5 for the complete feature set. Unique board features include:

• Intel® C624 chipset

• No onboard LAN

• (4) – onboard PCIe* NVMe* OCuLinkconnectors

• (12) – SATA 6 Gbps ports

• Support for Intel® Optane™ DC persistent memory module

Box includes: (1) server board

Note: All necessary mounting hardware, cabling, and shielding ship with the chassis and

optional accessory kits.

• Intel® C628 chipset

• Support for Intel® QuickAssist Technology (Intel® QAT)

• No onboard LAN

• (2) – onboard PCIe* NVMe* OCuLinkconnectors

• (4) – SATA 6 Gbps ports

Box includes: (1) server board and (1) Intel QAT cable

Note: All necessary mounting hardware, cabling, and shielding ship with the chassis and

optional accessory kits. OCuLink connectors from CPU1 can be used for NVMe drives. OCuLink connectors from CPU2 are used for the Intel QAT link and do not work for NVMe

44

• Intel® C628 chipset

• Support for Intel® QuickAssist Technology (Intel® QAT)

• No onboard LAN

• (2) – onboard PCIe* NVMe* OCuLinkconnectors

• (4) – SATA 6 Gbps ports

• Support for Intel® Optane™ DC persistent memory module

Box includes: (1) server board and (1) Intel QAT cable

Note: All necessary mounting hardware, cabling, and shielding ship with the chassis and

optional accessory kits. OCuLink connectors from CPU1 can be used for NVMe drives. OCuLink connectors from CPU2 are used for the Intel QAT link and do not work for NVMe drives.

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Chassis R1000WF

2.2 Intel® Server Chassis Product Family Options

The product tables found in this section provide order code information and detailed descriptions for each available 1U and 2U Intel server chassis building block option. The lower sections of each table identify:

• Included – The ship along components of the specified chassis product code (product BOM).

• Required items – Hardware required to be installed to the base system to achieve basic functionality using the default system feature set.

Required items are sold separately.

• Optional accessories – Some of the available accessories that can be installed to enhance the basic feature set of the server board/chassis. Optional accessories are sold separately. Additional accessories can be found in Chapter 5.

Note: Items identified with an iPC (Intel Product Code) are orderable building block options, accessories, or spare FRUs. In an effort to provide the complete product bill of materials, the ship along components list in each product table include items identified by description and by iPN (Intel Part Number). The iPN information is provided for reference only. These components are not orderable as spares or accessories.

Intel® Server Chassis R2000WF

Figure 22. Intel® Server Chassis options

45

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Chassis R1304WFXXX

1U, 4 x 3.5” HDD or 4 x 2.5” SSD SATA/SSD front mount drives

iPC

R1304WFXXX

MM#

952622

UPC

00735858344722

EAN

5032037105439

MOQ

1

Product type

Chassis only

Chassis form factor

1U rack mount

Packaged gross wt.

19 kg (41.9 lb)

Un-packaged net wt.

10.3 kg (22.7 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Intel® Server Board S2600WF (choose one)

• Intel® Ethernet Network Adapter for OCP* -

Table 14. Intel® Server Chassis R1304WFXXX product specifications and configuration requirements

(4) – 3.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

• (1) 12 Gb SAS backplane – iPC FR1304S3HSBP

• (4) 3.5” hot swap drive tool less carriers – iPC FXX35HSCAR2

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

• 260 mm front panel cable – iPN J25698-xxx (1) – Pre-installed front I/O panel assembly (1 x VGA and 2 x USB)

• 620 mm USB 3.0 cable – iPN H76899-xxx

• 400 mm video cable – iPN H62114-xxx

(1) – Server board to backplane 150mm I2C cable – iPN H91171-xxx (1) – 850mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 350mm backplane power cable – iPN H82100-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU carriers – iPN H72851-xxx (2) – 1 slot PCIe x16 Riser Card – iPN H88399-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x Server board and riser card mounting screws

o iPC S2600WFT(R) o iPC S2600WF0(R) o iPC S2600WFQ(R)

• Power supply module(s) (choose one type) – (2) common modules required for redundancy o 1300W AC power supply module –

iPC AXX1300TCRPS

o 1100W AC power supply module -

iPC AXX1100PCRPS

o 750 W DC power supply module -

iPC AXX750DCCRPS

• Power cord(s) – See Section 5.6

• Rack mount kit – See Section 5.7

• (1) or (2) 1

st

or 2nd Gen Intel® Xeon® processor Scalable family – see Section 1.1.1 for details on processor support

• ECC DDR4 memory (RDIMM or LRDIMM)

See Section 5.4 for available options

• Intel® RAID Card/Module – See Section 5.5 for options

• SAS/SATA data cables – Cable selection is dependent on desired storage option. See Chapter 4 for available cable options

• Intel® Remote Management Module 4 Lite for advanced management features – iPC AXXRMM4LITE

• Storage drives

• DDDC DDR-compatible Intel® Optane™ DC

persistent memory module (supported by Intel® Server Boards S2600WFTR, S2600WF0R, and S2600WFQR with a 2

nd

Gen Intel® Xeon® Scalable processor)

See Chapters 5 and 6 for all available accessory options.

46

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Chassis R1208WFXXX

1U, 8 x 2.5” HDD or 4 x 2.5” SSD SATA/SSD/NVMe* front mount drives

iPC

R1208WFXXX

MM#

952621

UPC

00735858390316

EAN

5032037138574

MOQ

1

Product type

Chassis only

Chassis form factor

1U rack mount

Packaged gross wt.

18.5 kg (40.9 lb)

Un-packaged net wt.

10.3 kg (22.7 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Intel® Server Board S2600WF (choose one)

• Intel® Ethernet Network Adapter for OCP* -

Table 15. Intel® Server Chassis R1208WFXXX product specifications and configuration requirements

(8) – 2.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

• (1) SAS/NVMe* Combo backplane – iPC F1U8X25S3PHS

• (8) 2.5” hot swap drive tool less carriers – iPC FXX35HSCAR3

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

• 260 mm front panel cable – iPN J25698-xxx (1) – Pre-installed front I/O panel assembly (1x VGA and 2x USB)

• 620 mm USB 3.0 cable – iPN H76899-xxx

• 400 mm video cable – iPN H62114-xxx

(1) – 200mm backplane I2C cable – iPN H91170-xxx (1) – 650mm mini SAS HD Cable – iPC AXXCBL650HDHRT (1) – 850mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 400mm backplane power cable – iPN H82099-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU carriers – iPN H72851-xxx (2) – 1 slot PCIe x16 Riser Card – iPN H88399-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x Server board and riser card mounting screws

o iPC S2600WFT(R) o iPC S2600WF0(R) o iPC S2600WFQ(R)

• Power supply module(s) (choose one type) – (2) common modules required for redundancy o 1300W AC power supply module –

iPC AXX1300TCRPS

o 1100W AC power supply module -

iPC AXX1100PCRPS

o 750 W DC power supply module -

iPC AXX750DCCRPS

• Power cord(s) – See Section 5.6

• Rack mount kit – See Section 5.7

• (1) or (2) 1

st

or 2nd Gen Intel® Xeon® processor Scalable family – see Section 1.1.1 for details on processor support

• ECC DDR4 memory (RDIMM or LRDIMM)

See Section 5.4 for available options

• Intel® RAID Card/Module – See Section 5.5 for options

• SAS/SATA data cables – Cable selection is dependent on desired storage option. See Chapter 4 for available cable options

• Intel® Remote Management Module 4 Lite for advanced management features – iPC AXXRMM4LITE

• Storage drives

• DDDC DDR-compatible Intel® Optane™ DC

persistent memory module (supported by Intel® Server Boards S2600WFTR, S2600WF0R, and S2600WFQR with a 2

nd

Gen Intel® Xeon® Scalable processor)

See Chapters 5 and 6 for all available accessory options.

47

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Chassis R2000WFXXX

2U, no front mount drives

iPC

R2000WFXXX

MM#

952623

UPC

00735858344746

EAN

5032037105453

MOQ

1

Product type

Chassis only

Chassis form factor

2U rack mount

Packaged gross wt.

19 kg (41.9 lb)

Un-packaged net wt.

13.3 kg (29.3 lb)

Chassis dimensions

712 x 439 x 89 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 2U Chassis with Quick Reference Label affixed to top

• Intel® Server Board S2600WF (choose

Front storage bay option

Table 16. Intel® Server Chassis R2000WFXXX product specifications and configuration requirements

cover

(1) – Pre-installed tandard control panel assembly

(board only – iPC FXXPANEL2)

o 300 mm front panel cable – iPN H34381-xxx

(1) – Pre-installed front I/O panel assembly (1x VGA and 2x

USB 3.0)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – Standard 2U air duct iPN H90554-xxx (6) – 60 mm hot swap system fan – iPC FR2UFAN60HSW (2) – CPU heat sink – iPC H38569-xxx (2) – CPU heat sink “No CPU” label insert – iPN J16115-xx (2) – Standard CPU carrier – iPN H72851-xxx (1) – 3x Intel® RAID Maintenance Free Backup unit

mounting bracket – iPN H18238-00x (16) – DIMM slot blank – iPN G75158-xxx (1) – 175 mm I2C cable – iPN H91172-xxx (1) – 250 mm I2C cable – iPN H91166-xxx (1) – 400/525/675 mm HSBP power cable –

iPN H82108-xxx

(1) – Internal fixed mount 250 mm SSD drive power cable -

iPN J29245-xxx

(2) – Riser card mounting brackets supporting up to 3 riser

cards (riser cards sold separately – see Section 5.2) (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly –

iPN H23961-00x Server board and riser card mounting screws Spares for each screw type included

one)

o iPC S2600WFT(R) o iPC S2600WF0(R) o iPC S2600WFQ(R)

• Power supply module(s) (choose one type) – (2) common modules required for redundancy o 1300W AC power supply module –

iPC AXX1300TCRPS

o 1100W AC power supply module -

iPC AXX1100PCRPS

o 750 W DC power supply module -

iPC AXX750DCCRPS

• Power cord(s) – See Section 5.6

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Gen Intel® Xeon®

processor Scalable family – see Section

1.1.1 for details on processor support

• ECC DDR4 memory (RDIMM or LRDIMM)

• Up to (3) 8 x 2.5” drive bay modules:

o SAS/SATA/NVMe* combo – iPC A2U8X25S3PHS o Dual port SAS – iPC A2U8X25S3DPDK2

• 8 x 3.5” drive bay module – iPC A2U8X35S3HSDK1 (Reuses control panel and front I/O panel. Includes SAS/SATA data cables and peripheral power cable)

Rear storage bay option

• Up to (2) hot swap SATA SSDs – iPC A2UREARHSDK2

Riser Cards – Up to (3) can be installed concurrently

• Risers Slots #1 and #2 – Available riser cards include:

o 3-slot riser card, (3) x8 PCIe* 3.0 slots – iPC A2UL8RISER2 o 2-slot riser card, (1) x16 PCIe* slot and (1) x8 PCIe* slot – iPC

A2UL16RISER2

• Riser Slot #3 – Available riser cards include:

o 2-slot riser card, (1) low profile x8 PCIe* 3.0 slot and (1) low profile

x8 PCIe* 2.0 slot – iPC A2UX8X4RISER

Other

• SAS/SATA/NVMe data cables – Cable selection is dependent on desired storage option. See Chapter 4 for available cable options

• Intel® RAID Card/Module – See Section 5.5 for options

• SAS Expander Options – See Sections 4.6.2 and 4.7.4

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for

available options

• Intel® Remote Management Module 4 Lite RoHS free key for advanced management features - iPC AXXRMM4LITE2

• DDDC DDR-compatible Intel® Optane™ DC persistent memory module (supported by Intel® Server Boards S2600WFTR, S2600WF0R, and S2600WFQR with a 2

nd

Gen Intel® Xeon® Scalable processor)

48

See Chapters 5 and 6 for all available accessory options.

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server Chassis R2312WFXXX

2U, 2 x 3.5” HDD or 12 x 2.5” SSD SATA/SAS front mount drives (support for up to 2 NVMe* drives)

iPC

R2312WFXXX

MM#

952624

UPC

00735858390309

EAN

5032037138567

MOQ

1

Product type

Chassis only

Chassis form factor

2U rack mount

Packaged gross wt.

19 kg (41.9 lb)

Un-packaged net wt.

13.3 kg (29.3 lb)

Chassis dimensions

712 x 439 x 89 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 2U Chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Intel® Server Board S2600WF (choose one)

Rear storage bay option

Table 17. Intel® Server Chassis R2312WFXXX product specifications and configuration requirements

(12) – 3.5” hot-swap drive bays with drive carriers and blanks. Includes:

o (1) SAS/NVMe* combo backplane – iPC F2U12X35S3PH o (12) 3.5” hot swap drive tool less carriers – iPC FXX35HSCAR2

(1) – Storage Rack Handle Assembly – iPC A2UHANDLKIT

o 1 set Storage Rack Handles o Mini-front panel (board only – iPN G28538-xxx) o 410 mm front panel cable – iPN H26893-xxx o 640 mm front panel USB 2.0 cable iPN H20005-xxx

(1) – 175 mm Backplane I2C Cable – iPN H91172-xxx (1) – 800 mm Mini SAS HD Cable iPC AXXCBL800HDHD (1) – 875 mm Mini SAS HD Cable iPC AXXCBL875HDHD (1) – 525/675 mm Backplane power cable – iPN H82097-xxx (1) – Standard 2U air duct – iPN H90554-xxx (6) – Hot swap system fans – iPC FR2UFAN60HSW (16) – DIMM slot blanks – iPN G75158-00x (1) – Power supply bay blank insert (2) – AC Power Cord retention strap assembly – iPN H23961-00x (2) – CPU heat sinks – iPC FXXCA78X108HS (2) – CPU heat sink “NO CPU” mylar spacer insert – iPN J16115-XXX (2) – Standard CPU carrier – iPN H72851-xxx (1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket –

iPN H18238-00x (1) – 175 mm I2C cable – iPN H91172-xxx (1) – Internal fixed mount 250 mm SSD drive power cable –

iPN J29245-xxx

(2) – Riser Card mounting brackets supporting up to 3 riser cards (riser

cards sold separately – see Section 5.2) (1) – Power supply bay blank insert Server Board and Riser Card mounting screws

o iPC S2600WFT(R) o iPC S2600WF0(R) o iPC S2600WFQ(R)

• Power supply module(s) (choose one type) – (2) common modules required for redundancy o 1300W AC power supply module –

iPC AXX1300TCRPS

o 1100W AC power supply module -

iPC AXX1100PCRPS

o 750 W DC power supply module -

iPC AXX750DCCRPS

• Power cord(s) – See Section 5.6

• Rack mount kit – See Section 5.7

• (1) or (2) 1

st

or 2nd Gen Intel® Xeon®

processor Scalable family – see Section

1.1.1 for details on processor support

• ECC DDR4 memory (RDIMM or LRDIMM)

• Up to (2) hot swap SATA SSDs – iPC A2UREARHSDK2

Riser Cards – Up to (3) can be installed concurrently

• Risers Slots #1 and #2 – Available riser cards include:

o 3-slot riser card, (3) x8 PCIe* 3.0 slots –

iPC A2UL8RISER2

o 2-slot riser card, (1) x16 PCIe* slot and (1) x8 PCIe*

slot – iPC A2UL16RISER2

• Riser Slot #3 – Available riser cards include: o 2-slot riser card, (1) low profile x8 PCIe* 3.0 slot

and (1) low profile x8 PCIe* 2.0 slot – iPC A2UX8X4RISER

Other

• SAS/SATA/NVMe data cables – Cable selection is dependent on desired storage option. See Chapter 4 for available cable options

• Intel® RAID Card/Module – See Section 5.5 for options

• SAS Expander Options – See Sections 4.6.2 and 4.7.4

• Intel® Ethernet Network Adapter for OCP* - See

Chapter 5.4 for available options

• Intel® Remote Management Module 4 Lite RoHS free key for advanced management features – iPC AXXRMM4LITE2

• DDDC DDR-compatible Intel® Optane™ DC persistent memory module (supported by Intel® Server Boards S2600WFTR, S2600WF0R, and S2600WFQR with a

nd

Gen Intel® Xeon® Scalable processor)

2

See Chapters 5 and 6 for all available accessory options.

49

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R2000WF product family

3. Server System Configurations

The Intel® Server S2600WF product family includes several integrated server system options that include a 1U or 2U chassis with different hot swap drive bay configurations, a specific server board, power supply module, and riser cards. At a minimum, building a functional server from one of these options requires the following:

• Rack mount kit – rails or fixed mount

• Power cord(s)

•

Processor(s) Memory

•

Storage drives

Intel® Server System R1000WF product family

(R1208WFxxxx shown)

(R2312WFxxxx shown)

Figure 23. Intel® Server System options

Also offered are preconfigured L9 systems that require only the addition of power cords and storage devices to become a functional server. L9 systems are a part of the Intel® Data Center Block with Firmware Resilience product.

Optional Intel accessories that can be added include:

• Second power supply module to add power redundancy

• Intel® RAID support – PCIe* add-in card or module and appropriate SAS data cable(s)

• Intel® RAID Maintenance Free Backup unit – Intel RAID backup accessory

• Intel® Ethernet Network Adapter for OCP* - to add additional features without losing a PCIe add-in slot

• Intel® Remote Management Module Lite key – to add advanced server management features

See Chapters 5 and 6 for a full list of available options.

50

Intel® Server S2600WF Product Family Configuration Guide

*R1208WFxxxx shown

3.1 Intel® Server System R1000WF Product Family – (1U Rack Mount System)

The product tables found in this section provide order code information and detailed descriptions for each available 1U and 2U Intel server chassis building block option. The lower sections of each table identify:

• Included – The ship along components of the specified chassis product code (product BOM).

• Required items – Hardware required to be installed to the base system to achieve basic functionality using the default system feature set.

Required items are sold separately.

• Optional accessories – Some of the available accessories that can be installed to enhance the basic feature set of the server board/chassis. Optional accessories are sold separately. Additional accessories can be found in Chapter 5.

Note: Items identified with an iPC (Intel Product Code) are orderable building block options, accessories, or spare FRUs. In an effort to provide the complete product bill of materials, the ship along components list in each product table include items identified by description and by iPN (Intel Part Number). The iPN information is provided for reference only. These components are not orderable as spares or accessories.

This product family offers two levels of server system integration:

• L6 – Integrated system: Chassis and server board, with no processors, memory, or storage devices.

• L9 – Integrated system: Chassis and server board, with processors and memory, no storage devices.

Figure 24. Intel® Server System R1000WF product family

51

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R1304WF0YS

1U, Intel® Server Board S2600WF0, 4 x 3.5” HDD or 4 x 2.5” SSD SAS/SATA front mount drives

iPC

R1304WF0YS

MM#

952626

UPC

00735858344715

EAN

5032037105422

MOQ

1

Product type

L6 integrated system

Chassis form factor

1U rack mount

Packaged gross wt.

20.6 kg (45.3 lb)

Un-packaged net wt.

12.3 kg (27.1 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 18. Intel® Server System R1304WF0YS product specifications and configuration requirements

(1) – Intel® Server Board S2600WF0 (no onboard LAN) – iPC S2600WF0 (2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC F1UL16RISER3 (4) – 3.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

o (1) 12 Gb SAS backplane – iPC FR1304S3HSBP o (4) 3.5” hot swap drive tool less carriers – iPC FXX35HSCAR2

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

o 260 mm front panel cable – iPN J25698-xxx

(1) – Pre-installed front I/O panel assembly (1 x VGA and 2 x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – 150 mm backplane I2C cable – iPN H91171-xxx (1) – 850 mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 350 mm backplane power cable – iPN H82100-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (1) – 1100W power supply module - iPC AXX1100PCRPS (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU Carriers – iPN H72851-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

nd

Scalable family (support for 2

Gen Intel Xeon processor Scalable family requires a system software stack update from

http://downloadcenter.intel.com

)

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1100W AC power supply module to support power redundancy – iPC AXX1100PCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS Data cable – Depending on the location of the SAS Data controller, a new data cable may be necessary. See Chapter 4.

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Storage drives

See Chapters 5 and 6 for all available accessory options.

52

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R1304WF0YSR

1U, Intel® Server Board S2600WF0R, 4 x 3.5” HDD or 4 x 2.5” SSD SAS/SATA front mount drives

iPC

R1304WF0YSR

MM#

986047

UPC

00735858406826

EAN

5032037151085

MOQ

1

Product type

L6 integrated system

Chassis form factor

1U rack mount

Packaged gross wt.

20.6 kg (45.3 lb)

Un-packaged net wt.

12.3 kg (27.1 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 19. Intel® Server System R1304WF0YSR product specifications and configuration requirements

(1) – Intel® Server Board S2600WF0R (no onboard LAN) – iPC S2600WF0R (2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC F1UL16RISER3 (4) – 3.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

o (1) 12 Gb SAS backplane – iPC FR1304S3HSBP o (4) 3.5” hot swap drive tool less carriers – iPC FXX35HSCAR2

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

o 260 mm front panel cable – iPN J25698-xxx

(1) – Pre-installed front I/O panel assembly (1 x VGA and 2 x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – 150 mm backplane I2C cable – iPN H91171-xxx (1) – 850 mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 350 mm backplane power cable – iPN H82100-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (1) – 1100W power supply module - iPC AXX1100PCRPS (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU Carriers – iPN H72851-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

Scalable family

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1100W AC power supply module to support power redundancy – iPC AXX1100PCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS Data cable – Depending on the location of the SAS Data controller, a new data cable may be necessary. See Chapter 4.

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Storage drives

• DDR4-compatible Intel® Optane™ DC persistent

nd

memory module (requires an installed 2

Gen Intel

Xeon Scalable processor)

See Chapters 5 and 6 for all available accessory options.

53

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R1304WFTYS

1U, Intel® Server Board S2600WFT, 4 x 3.5” HDD or 4 x 2.5” SSD SAS/SATA front mount drives

iPC

R1304WFTYS

MM#

975884

UPC

00735858344708

EAN

5032037105415

MOQ

1

Product type

L6 integrated system

Chassis form factor

1U rack mount

Packaged gross wt.

20.6 kg (45.3 lb)

Un-packaged net wt.

12.3 kg (27.1 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 20. Intel® Server System R1304WFTYS product specifications and configuration requirements

(1) – Intel® Server Board S2600WFT (dual 10 GbE LAN) – iPC S2600WFT (2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC F1UL16RISER3 (4) – 3.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

o (1) 12 Gb SAS backplane – iPC FR1304S3HSBP o (4) 3.5” hot swap drive tool less carriers – iPC FXX35HSCAR2

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

o 260 mm front panel cable – iPN J25698-xxx

(1) – Pre-installed front I/O panel assembly (1 x VGA and 2 x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) –150 mm backplane I2C cable – iPN H91171-xxx (1) – 850 mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 350 mm backplane power cable – iPN H82100-xxx (1) – SATA optical drive power cable 300 mm – iPN H23901-001 (1) – SATA optical drive bay mounting kit – iPN H19168-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (1) – 1100W power supply module - iPC AXX1100PCRPS (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU Carriers – iPN H72851-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

nd

Scalable family (support for 2

Gen Intel Xeon processor Scalable family requires a system software stack update from

http://downloadcenter.intel.com

)

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1100W AC power supply module to support power redundancy – iPC AXX1100PCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS Data cable – Depending on the location of the SAS Data controller, a new data cable may be necessary. See Chapter 4.

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Storage drives

See Chapters 5 and 6 for all available accessory options.

54

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R1304WFTYSR

1U, Intel® Server Board S2600WFTR, 4 x 3.5” HDD or 4 x 2.5” SSD SAS/SATA front mount drives

iPC

R1304WFTYSR

MM#

986048

UPC

00735858406833

EAN

5032037151092

MOQ

1

Product type

L6 integrated system

Chassis form factor

1U rack mount

Packaged gross wt.

20.6 kg (45.3 lb)

Un-packaged net wt.

12.3 kg (27.1 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 21. Intel® Server System R1304WFTYSR product specifications and configuration requirements

(1) – Intel® Server Board S2600WFTR (dual 10 GbE LAN) – iPC S2600WFTR (2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC F1UL16RISER3 (4) – 3.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

o (1) 12 Gb SAS backplane – iPC FR1304S3HSBP o (4) 3.5” hot swap drive tool less carriers – iPC FXX35HSCAR2

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

o 260 mm front panel cable – iPN J25698-xxx

(1) – Pre-installed front I/O panel assembly (1 x VGA and 2 x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) –150 mm backplane I2C cable – iPN H91171-xxx (1) – 850 mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 350 mm backplane power cable – iPN H82100-xxx (1) – SATA optical drive power cable 300 mm – iPN H23901-001 (1) – SATA optical drive bay mounting kit – iPN H19168-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (1) – 1100W power supply module - iPC AXX1100PCRPS (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU Carriers – iPN H72851-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

Scalable family

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1100W AC power supply module to support power redundancy – iPC AXX1100PCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS Data cable – Depending on the location of the SAS Data controller, a new data cable may be necessary. See Chapter 4.

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Storage drives

• DDR4-compatible Intel® Optane™ DC persistent

nd

memory module (requires an installed 2

Gen Intel

Xeon Scalable processor)

See Chapters 5 and 6 for all available accessory options.

55

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R1208WFTYS

1U, Intel® Server Board S2600WFT, 8 x 2.5” SSD SATA/SAS/NVMe* front mount drives

iPC

R1208WFTYS

MM#

975886

UPC

00735858344814

EAN

5032037105521

MOQ

1

Product type

L6 integrated system

Chassis form factor

1U rack mount

Packaged gross wt.

21.4 kg (47.1 lb)

Un-packaged net wt.

13.1 kg (28.9 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 22. Intel® Server System R1208WFTYS product specifications and configuration requirements

(1) – Intel® Server Board S2600WFT (dual 10GbE LAN) – iPC S2600WFT (2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC F1UL16RISER3 (8) – 2.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

o (1) SAS/NVMe* Combo backplane – iPC F1U8X25S3PHS o (8) 2.5” hot swap drive tool less carriers – iPC FXX35HSCAR3

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

o 260 mm front panel cable – iPN J25698-xxx

(1) – Pre-installed front I/O panel assembly (1x VGA and 2x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – 200mm backplane I2C cable – iPN H91170-xxx (1) – 650mm mini SAS HD Cable – iPC AXXCBL650HDHRT (1) – 850mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 400mm backplane power cable – iPN H82099-xxx (1) – SATA optical drive power cable 300 mm – iPN H23901-001 (1) – SATA optical drive bay mounting kit – iPN H19168-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (1) – 1100W power supply module - iPC AXX1100PCRPS (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU carriers – iPN H72851-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

nd

Scalable family (support for 2

Gen Intel Xeon processor Scalable family requires a system software stack update from

http://downloadcenter.intel.com

)

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1100W AC power supply module to support power redundancy – iPC AXX1100PCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS Data cable – Depending on the location of the SAS Data controller, a new data cable may be necessary. See Chapter 4.

• PCIe* OCuLink data cables (1 per NVMe* drive) - See Chapter 4

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Storage drives o Up to (8) SAS/SATA/NVMe drives supported

See Chapters 5 and 6 for all available accessory options.

56

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R1208WFTYSR

1U, Intel® Server Board S2600WFTR, 8 x 2.5” SSD SATA/SAS/NVMe* front mount drives

iPC

R1208WFTYSR

MM#

986007

UPC

00735858406604

EAN

5032037150866

MOQ

1

Product type

L6 integrated system

Chassis form factor

1U rack mount

Packaged gross wt.

21.4 kg (47.1 lb)

Un-packaged net wt.

13.1 kg (28.9 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 23. Intel® Server System R1208WFTYSR product specifications and configuration requirements

(1) – Intel® Server Board S2600WFTR (dual 10GbE LAN) – iPC S2600WFTR (2) – Riser card assembly with 1 slot PCIe x16 riser card –

iPC F1UL16RISER3

(8) – 2.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

o (1) SAS/NVMe* Combo backplane – iPC F1U8X25S3PHS

o (8) 2.5” hot swap drive tool less carriers – iPC FXX35HSCAR3

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

o 260 mm front panel cable – iPN J25698-xxx

(1) – Pre-installed front I/O panel assembly (1x VGA and 2x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – 200mm backplane I2C cable – iPN H91170-xxx (1) – 650mm mini SAS HD Cable – iPC AXXCBL650HDHRT (1) – 850mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 400mm backplane power cable – iPN H82099-xxx (1) – SATA optical drive power cable 300 mm – iPN H23901-001 (1) – SATA optical drive bay mounting kit – iPN H19168-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (1) – 1100W power supply module - iPC AXX1100PCRPS (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU carriers – iPN H72851-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

Scalable family

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1100W AC power supply module to support power redundancy – iPC AXX1100PCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS Data cable – Depending on the location of the SAS Data controller, a new data cable may be necessary. See Chapter 4.

• PCIe* OCuLink data cables (1 per NVMe* drive) - See Chapter 4

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Storage drives

• Up to (8) SAS/SATA/NVMe drives supported

• DDR4-compatible Intel® Optane™ DC persistent

nd

memory module (requires an installed 2

Gen Intel

Xeon Scalable processor)

See Chapters 5 and 6 for all available accessory options.

57

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R1208WFQYSR

1U, Intel® Server Board S2600WFQR, 8 x 2.5” SSD SATA/SAS/NVMe* front mount drives

iPC

R1208WFQYSR

MM#

986059

UPC

00735858406918

EAN

5032037151177

MOQ

1

Product type

L6 integrated system

Chassis form factor

1U rack mount

Packaged gross wt.

21.4 kg (47.1 lb)

Un-packaged net wt.

13.1 kg (28.9 lb)

Chassis dimensions

712 x 439 x 43.2 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 1U chassis with Quick Reference Label affixed to top cover

• Power cord(s) – See Section 5.6

Note: 4-port mini-SAS HD connectors are present on

Table 24. Intel® Server System R1208WFQYSR product specifications and configuration requirements

(1) – Intel® Server Board S2600WFQR (Intel® QAT support) – iPC S2600WFQR (2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC F1UL16RISER3 (8) – 2.5” hot-swap drive bays with drive carriers and drive blanks. Includes:

o (1) SAS/NVMe* Combo backplane – iPC F1U8X25S3PHS

o (8) 2.5” hot swap drive tool less carriers – iPC FXX35HSCAR3

(1) – Pre-installed standard control panel assembly

(board only – iPC FXXFPANEL2)

o 260 mm front panel cable – iPN J25698-xxx

(1) – Pre-installed front I/O panel assembly (1x VGA and 2x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – 200mm backplane I2C cable – iPN H91170-xxx (1) – 650mm mini SAS HD Cable – iPC AXXCBL650HDHRT (1) – 850mm mini SAS HD cable – iPC AXXCBL850HDHRT (1) – 400mm backplane power cable – iPN H82099-xxx (1) – 290 mm Intel QAT cable – iPN J61138-xxx (1) – Air duct – iPN H90054-xxx (6) – Dual rotor system fans – iPC FR1UFAN10PW (1) – 1100 W power supply module - iPC AXX1100PCRPS (2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx (2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx (2) – Standard CPU carriers – iPN H72851-xxx (8) – DIMM slot blanks – iPN G75158-xxx (1) – Chassis Stiffener Bar – iPN J16623-xxx (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x Spares for each screw type included

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon®

processor Scalable family

• ECC DDR4 memory (RDIMM or LRDIMM)

S2600WFQ but are not configured as SATA; these cables are used only for Intel® QAT. An add-in SAS card or module is needed to support SATA/SAS front devices.

Note: By default the front drive bays are cabled to onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1100 W AC power supply module to support power redundancy – iPC AXX1100PCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS Data cable – Depending on the location of the SAS Data controller, a new data cable may be necessary. See Chapter 4.

• PCIe* OCuLink data cables (1 per NVMe* drive) - See Chapter 4

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Storage drives o Up to (8) SAS/SATA/NVMe drives supported

• DDR4-compatible Intel® Optane™ DC persistent

nd

memory module (requires an installed 2

Gen Intel

Xeon Scalable processor)

58

See Chapters 5 and 6 for all available accessory options.

Intel® Server S2600WF Product Family Configuration Guide

3.2 Intel® Server System R2000WF Product Family – (2U Rack Mount System)

The product tables found in this section provide order code information and detailed descriptions for the specified L6 Integrated 2U Intel server system. The lower sections of each table identify:

• The ship along components of the specified chassis product code – (product BOM)

• Required Items – The options required to be installed to the base system to achieve basic functionality using the default system feature set

• Optional Accessories – Some of the available accessories which can be installed to enhance the basic feature set of the server board /

chassis. Additional accessories can be found in Chapter 4

NOTES:

• Each required item and optional accessory are sold separately for the specified Intel L6 server system

• Items identified as iPC (Intel Product Code), are an orderable building block option, accessory or spare FRU

• In an effort to provide the complete product bill of materials, the ship along components list in each product table will include items identified

by description and by iPN (Intel Part Number). The iPN information is provided for reference only. These components are not orderable as a spare or accessory.

• L6 – Integrated system: Chassis and server board, with no processors, memory, or storage devices

• L9 - Integrated system: Chassis and server board, with processors and memory, no storage devices.

Figure 20. Intel® Server System R2000WF – L6 integrated 2U system (R2312WFxxx shown)

59

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R2308WFTZS

2U, Intel® Server Board S2600WFT, 8 x 3.5” HDD or 8 x 2.5” SSD SATA/SAS front mount drives

iPC

R2308WFTZS

MM#

975887

UPC

00735858344807

EAN

5032037105514

MOQ

1

Product type

L6 integrated system

Chassis form factor

2U rack mount

Packaged gross wt.

22.9 kg (50.3 lb)

Un-packaged net wt.

16.3 kg (35.9 lb)

Chassis dimensions

712 x 439 x 89 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 2U Chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 25. Intel® Server System R2308WFTZS product specifications and configuration requirements

(1) – Intel® Server Board S2600WFT (dual 10 GbE LAN) – iPC S2600WFT (2) – PCIe Riser card brackets. Includes:

o (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2

o (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER

(8) – 3.5” hot-swap drive bays with drive carriers and blanks. Includes:

o (1) 12Gb SAS backplane – iPC A2U8X35S3HSDK1 o (8) 3.5” hot-swap drive tool less carriers – iPC FXX35HSCAR2

(1) – Standard control panel assembly (board only – iPC FXXFPANEL2)

o 300 mm front panel cable – iPN H34381-xxx

(1) – Front I/O panel assembly (1 x VGA and 2 x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – 175 mm backplane I2C cable – iPN H91172-xxx (1) – 730 mm mini SAS HD cable iPC AXXCBL730HDHD (1) – 875 mm mini SAS HD cable iPC AXXCBL875HDHD (1) – 400 mm Backplane power cable – iPN H82099-xxx (1) – SATA optical drive power cable 300 mm – iPN H23901-001 (1) – SATA optical drive bay mounting kit – iPN H19168-xxx (1) – Standard 2U air duct – iPN H90554-xxx (6) – Hot swap system fans – iPC FR2UFAN60HSW (8) – DIMM slot blanks – iPN G75158-00x (1) – 1300W AC power supply module – iPC AXX1300TCRPS (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x (2) – CPU heat sinks – iPC FXXCA78X108HS (2) – CPU heat sink “NO CPU” Mylar* spacer insert – iPN J16115-XXX (2) – Standard CPU carrier – iPN H72851-xxx (1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket –

iPN H18238-00x

(1) – 250 mm fixed mount SSD power cable – iPN J29245-xxx

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

nd

Scalable family (support for 2

Gen Intel Xeon processor Scalable family requires a system software stack update from

http://downloadcenter.intel.com

)

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1300W AC power supply module to support power redundancy – iPC AXX1300TCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS data cables – Depending on the location of the SAS data controller, new data cables may be necessary. See Chapter 4.

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Rear mount hot-swap drive bay accessory kit – iPC A2UREARHSDK2

• Storage drives

See Chapters 5 and 6 for all available accessory options.

60

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R2308WFTZSR

2U, Intel® Server Board S2600WFTR, 8 x 3.5” HDD or 8 x 2.5” SSD SATA/SAS front mount drives

iPC

R2308WFTZSR

MM#

986052

UPC

00735858406871

EAN

5032037151139

MOQ

1

Product type

L6 integrated system

Chassis form factor

2U rack mount

Packaged gross wt.

22.9 kg (50.3 lb)

Un-packaged net wt.

16.3 kg (35.9 lb)

Chassis dimensions

712 x 439 x 89 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 2U Chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 26. Intel® Server System R2308WFTZSR product specifications and configuration requirements

(1) – Intel® Server Board S2600WFTR (dual 10 GbE LAN) – iPC S2600WFTR (2) – PCIe Riser card brackets. Includes:

o (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2

o (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER

(8) – 3.5” hot-swap drive bays with drive carriers and blanks. Includes:

o (1) 12Gb SAS backplane – iPC A2U8X35S3HSDK1 o (8) 3.5” hot-swap drive tool less carriers – iPC FXX35HSCAR2

(1) – Standard control panel assembly (board only – iPC FXXFPANEL2)

o 300 mm front panel cable – iPN H34381-xxx

(1) – Front I/O panel assembly (1 x VGA and 2 x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – 175 mm backplane I2C cable – iPN H91172-xxx (1) – 730 mm mini SAS HD cable iPC AXXCBL730HDHD (1) – 875 mm mini SAS HD cable iPC AXXCBL875HDHD (1) – 400 mm Backplane power cable – iPN H82099-xxx (1) – SATA optical drive power cable 300 mm – iPN H23901-001 (1) – SATA optical drive bay mounting kit – iPN H19168-xxx (1) – Standard 2U air duct – iPN H90554-xxx (6) – Hot swap system fans – iPC FR2UFAN60HSW (8) – DIMM slot blanks – iPN G75158-00x (1) – 1300W AC power supply module – iPC AXX1300TCRPS (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x (2) – CPU heat sinks – iPC FXXCA78X108HS (2) – CPU heat sink “NO CPU” Mylar* spacer insert – iPN J16115-XXX (2) – Standard CPU carrier – iPN H72851-xxx (1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket –

iPN H18238-00x

(1) – 250 mm fixed mount SSD power cable – iPN J29245-xxx

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

Scalable family

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1300W AC power supply module to support power redundancy – iPC AXX1300TCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS data cables – Depending on the location of the SAS data controller, new data cables may be necessary. See Chapter 4.

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Rear mount hot-swap drive bay accessory kit – iPC A2UREARHSDK2

• Storage drives

• DDR4-compatible Intel® Optane™ DC persistent

nd

memory module (requires an installed 2

Gen

Intel Xeon Scalable processor)

See Chapters 5 and 6 for all available accessory options.

61

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R2208WF0ZS

2U, Intel® Server Board S2600WF0, 8 x 2.5” SATA/SAS/NVMe* front mount drives

iPC

R2208WF0ZS

MM#

975888

UPC

00735858344739

EAN

5032037105446

MOQ

1

Product type

L6 integrated system

Chassis form factor

2U rack mount

Packaged gross wt.

22.4 kg (49.2 lb)

Un-packaged net wt.

15.8 kg (34.7 lb)

Chassis dimensions

712 x 439 x 89 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 2U Chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 27. Intel® Server System R2208WF0ZS product specifications and configuration requirements

(1) – Intel® Server Board S2600WF0 (no onboard LAN) – iPC S2600WF0 (2) – PCIe* riser card brackets. Includes:

o (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2 o (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER

(8) – 2.5” hot-swap drive bays with drive carriers and blanks. Includes:

o (1) SAS/NVMe combo backplane – iPC F2U8X25S3PHS o (8) 2.5” hot-swap drive tool less carriers – iPC FXX25HSCAR3

(1) – Standard control panel assembly (board only – iPC FXXFPANEL2)

o 300 mm front panel cable – iPN H34381-xxx

(1) – Front I/O panel assembly (1 x VGA and 2 x USB)

o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx

(1) – 250 mm backplane I2C cable – iPN H91166-xxx (2) – 730 mm mini SAS HD cable – iPC AXXCBL730HDHD (1) – 675 mm backplane power cable – iPN H82108-XXX (1) – SATA optical drive power cable 300 mm – iPN H23901-001 (1) – SATA optical drive bay mounting kit – iPN H19168-xxx (1) – Standard 2U Air duct – iPN H90554-xxx (6) – Hot swap system fans – iPC FR2UFAN60HSW (8) – DIMM slot blanks – iPN G75158-00x (1) – 1300W AC power supply module – iPC AXX1300TCRPS (1) – Power supply bay blank insert (2) – AC power cord retention strap assembly – iPN H23961-00x (2) – CPU heat sinks – iPC FXXCA78X108HS (2) – CPU heat sink “NO CPU” Mylar* spacer insert – iPN J16115-XXX (2) – Standard CPU carrier – iPN H72851-xxx (1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket –

iPN H18238-00x

(1) – 250 mm fixed mount SSD power cable – iPN J29245-xxx

• Rack mount kit – See Section 5.7

• (1) or (2) 1st or 2nd Intel® Xeon® processor

nd

Scalable family (support for 2

Gen Intel Xeon processor Scalable family requires a system software stack update from

http://downloadcenter.intel.com

)

• ECC DDR4 memory (RDIMM or LRDIMM)

onboard SATA only ports. An add-in SAS card or module is needed to support SAS devices.

• Second 1300W AC power supply module to support power redundancy – iPC AXX1300TCRPS

• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4 for available options

• Intel® 12G SAS RAID module and Intel® RAID Maintenance Free Backup unit - See Chapter 5.5 for available options

• SAS data cables – Depending on the location of the SAS data controller, new data cables may be necessary. See Chapter 4.

• PCIe* OCuLink data cables (1 per NVMe* drive) - See Chapter 4

• 8 x 2.5” drive bay module upgrade kit – See Section 4.7 for available options

• SATA upgrade key for Intel® Embedded Server Technology 2 RAID 5 support – iPC RKSATA4R5

• Rear mount hot-swap drive bay accessory kit – iPC A2UREARHSDK2

• Storage drives

See Chapters 5 and 6 for all available accessory options.

62

Intel® Server S2600WF Product Family Configuration Guide

Intel® Server System R2208WF0ZSR

2U, Intel® Server Board S2600WF0R, 8 x 2.5” SATA/SAS/NVMe* front mount drives

iPC

R2208WF0ZSR

MM#

986050

UPC

00735858406857

EAN

5032037151115

MOQ

1

Product type

L6 integrated system

Chassis form factor

2U rack mount

Packaged gross wt.

22.4 kg (49.2 lb)

Un-packaged net wt.

15.8 kg (34.7 lb)

Chassis dimensions

712 x 439 x 89 mm (L x W x H)

Package dimensions

983 x 577 x 260 mm (L x W x H)

Included

Required Items (sold separately)

Optional Accessories (sold separately)

(1) – 2U Chassis with Quick Reference Label affixed to top cover

Spares for each screw type included

• Power cord(s) – See Section 5.6

Note: By default the front drive bays are cabled to

Table 28. Intel® Server System R2208WF0ZSR product specifications and configuration requirements

(1) – Intel® Server Board S2600WF0R (no onboard LAN) – iPC S2600WF0R (2) – PCIe* riser card brackets. Includes:
