Intel R200LH2, R2000LT2 Service Manual

Download

Intel® Server System R2000LH2/LT2

Family Service Guide

A Guide for Technically Qualified Assemblers of Intel® identified Subassemblies/Products

Order Number: G42282-005

Disclaimer

Information in this document is provided in connection with Intel products. No license, express or implied, by estoppel or

otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of

Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale

and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or

infringement of any patent, copyright or other intellectual property right. Intel products are not designed, intended or authorized

for use in any medical, life-saving, or life sustaining applications or for any other application in which the failure of the Intel

product could create a situation where personal injury or death may occur. Intel may make changes to specifications and product

descriptions at any time, without notice.

Intel server boards contain a number of high-density VLSI and power delivery components that need adequate airflow for cooling.

Intel’s own chassis are designed and tested to meet the intended thermal requirements of these components when the fully

integrated system is used together. It is the responsibility of the system integrator that chooses not to use Intel developed server

building blocks to consult vendor datasheets and operating parameters to determine the amount of airflow required for their

specific application and environmental conditions. Intel Corporation cannot be held responsible if components fail or the server

board does not operate correctly when used outside any of their published operating or non-operating limits.

Intel, Intel Pentium, and Intel Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United

States and other countries.

* Other names and brands may be claimed as the property of others.

ii Intel® Server System R2000LH2/LT2 Service Guide

Safety Information

重要安全指导

Safety Information

Important Safety Instructions

Read all caution and safety statements in this document before performing any of the instructions. See also Intel Deployment Toolkit 3.0 CD and/or at

http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.

Wichtige Sicherheitshinweise

Lesen Sie zunächst sämtliche Warnund Sicherheitshinweise in diesem Dokument, bevor Sie eine der Anweisungen ausführen. Beachten Sie hierzu auch die Sicherheitshinweise zu Intel Serverplatinen und Servergehäusen auf der Intel

http://www.intel.com/support/motherboards/server/sb/cs-010770.htm

Consignes de sécurité

Lisez attention toutes les consignes de sécurité et les mises en garde indiquées dans ce document avant de suivre toute instruction. Consultez Intel Information sur le Intel

http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.

Server Boards and Server Chassis Safety Information on the Intel® Server

Server Deployment Toolkit 3.0 CD oder unter

Server Deployment Toolkit 3.0 CD ou bien rendez-vous sur le site

Server Boards and Server Chassis Safety

Instrucciones de seguridad importantes

Lea todas las declaraciones de seguridad y precaución de este documento antes de realizar cualquiera de las instrucciones. Vea Intel el Intel

http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.

在执行任何指令之前，请阅读本文档中的所有注意事项及安全声明。和/或

http://www.intel.com/support/motherboards/server/sb/cs-010770.htm 上的

and Server Chassis Safety Information（《Intel® 服务器主板与服务器机箱安全信息》）。

Server Deployment Toolkit 3.0 CD y/o en

Server Boards and Server Chassis Safety Information en

Intel® Server Boards

Intel® Server System R2000LH2/LT2 Service Guide iii

Warnings

Heed safety instructions: Before working with your server product, whether

you are using this guide or any other resource as a reference, pay close attention to the safety instructions. You must adhere to the assembly instructions in this guide to ensure and maintain compliance with existing product certifications and approvals. Use only the described, regulated components specified in this guide. Use of other products/components will void the UL listing and other regulatory approvals of the product and will most likely result in noncompliance with product regulations in the region(s) in which the product is sold.

System power on/off: The power button DOES NOT turn off the system AC power. To remove power from the system, you must unplug the AC power cord from the wall outlet. Make sure the AC power cord is unplugged before you open the chassis, add, or remove any components.

Hazardous conditions, devices and cables: Hazardous electrical conditions may be present on power, telephone, and communication cables. Turn off the server and disconnect the power cord, telecommunications systems, networks, and modems attached to the server before opening it. Otherwise, personal injury or equipment damage can result.

Electrostatic discharge (ESD) and ESD protection: ESD can damage disk drives, boards, and other parts. We recommend that you perform all procedures in this chapter only at an ESD workstation. If one is not available, provide some ESD protection by wearing an antistatic wrist strap attached to chassis ground - any unpainted metal surface - on your server when handling parts.

ESD and handling boards: Always handle boards carefully. They can be extremely sensitive to ESD. Hold boards only by their edges. After removing a board from its protective wrapper or from the server, place the board component side up on a grounded, static free surface. Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface.

Installing or removing jumpers: A jumper is a small plastic encased conductor that slips over two jumper pins. Some jumpers have a small tab on top that you can grip with your fingertips or with a pair of fine needle nosed pliers. If your jumpers do not have such a tab, take care when using needle nosed pliers to remove or install a jumper; grip the narrow sides of the jumper with the pliers, never the wide sides. Gripping the wide sides can damage the contacts inside the jumper, causing intermittent problems with the function controlled by that jumper. Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the pins on the board.

iv Intel® Server System R2000LH2/LT2 Service Guide

Preface

Intel® Server System R2208LT2HKC4

With Intel® Server Board S4600LT2 and 8" x 2.5" hot swap hard drive bay

Intel® Server System R2304LT2HVC

With Intel® Server Board S4600LT2 and 4" x 3.5" hot swap hard drive bay

Intel® Server System R2304LH2HKC

With Intel® Server Board S4600LH2 and 4" x 3.5" hot swap hard drive bay

Intel® Server System R2208LH2HKC2

With Intel® Server Board S4600LH2 and 8" x 2.5" hot swap hard drive bay

For in-depth technical information about

Intel® Server System R2000LH2/LT2 Family Technical Product Specification

For supported Intel® spares and

Intel® Server System R2000LH2/LT2 Family Quick Installation User’s Guide

For supported Intel® spares and

Spares and Configuration Guide

For server configuration guidance and

Intel® Server Configurator tool

Preface

About this Manual

This manual is written for system technicians who are responsible for troubleshooting, upgrading, and repairing this server system. It provides a brief overview of the features of the server board/chassis, a list of accessories or other components you may need, troubleshooting information, and instructions on how to add and replace components on the Intel R2000LH2/LT2 family products. For the latest revision of this manual, go to

http://www.intel.com/p/en_US/support

Table 1. Intel® Server System R2000LH2/LT2 family product list

Product Code Description

Server System

Manual Organization

Chapter 1 provides a brief overview of the Intel® Server System R2000LH2/LT2 family. In this chapter, you will find a list of the server system features, and figures of the system and components to help you identify your system components and their locations.

Chapter 2 provides instructions on adding and replacing components. Use this chapter for step-bystep instructions and diagrams for installing or replacing components such as the fan, power supply, and front panel board, among other components.

Chapter 3 provides instructions on using the utilities that are shipped with the board or that may be required to update the system. This includes information for navigating through the BIOS Setup screens, performing a BIOS update, and resetting the password or BIOS defaults.

At the back of this document, you will find appendices on safety, “getting help”, and warranty information.

Additional Information and Software

For additional information about this family of products or any of their supported accessories, refer to the following resources available at http://www.intel.com/p/en_US/support/

Table 2. Server System References

For this information or software Use this Document or Software

this product.

See the section on the web page titled, “Architecture/Specifications”.

accessories

Intel® Server System R2000LH2/LT2 Service Guide v

See the section on the web page titled, “System Integration/User Guides/Compatibility”.

See the section on the web page titled, “Documents & Guides”.

Preface

compatibility

For system power budget guidance

Power Budget Analysis Tool

For software to manage your Intel® Server

Intel® Server Management Software

For system firmware updates and onboard

Firmware and Drivers

Product Safety and Regulatory document

Intel® Server Products - Product Safety and Regulatory Compliance Document

For this information or software Use this Document or Software

System.

device drivers

See the section on the web page titled, “Software/Code”.

See the section on the web page titled, “Regulations/Certification/Compliance”.

vi Intel® Server System R2000LH2/LT2 Service Guide

Table of Contents

Safety Information ..................................................................................................................................... iii

Preface .......................................................................................................................................................... v

1 Server System Features ........................................................................................................................ 1

Server System Feature Overview ........................................................................................................... 1

Wattage Limitation of the PCI Loading ................................................................................................. 3

Power Rating .......................................................................................................................................... 3

Server System Components .................................................................................................................... 3

Hot Swap Hard Drive Bay and Front Panel Options .............................................................................. 4

Front Panel ............................................................................................................................................. 4

Back Panel .............................................................................................................................................. 5

Server Board Components ...................................................................................................................... 6

System Recovery Jumpers ...................................................................................................................... 8

Peripheral Devices .................................................................................................................................. 9

2 Hardware Installations and Upgrades .............................................................................................. 12

Before You Begin ................................................................................................................................. 12

Tools and Supplies Needed ........................................................................................................ 12

System Reference ....................................................................................................................... 12

Cable Routing ....................................................................................................................................... 12

For system with 4 x 3.5" hot swap hard drive bay ...................................................................... 12

For system with 8 x 2.5" hot swap hard drive bay ...................................................................... 14

Fan Connections ................................................................................................................................... 15

Removing and Installing the Front Bezel (Optional) ........................................................................... 16

Removing the Front Bezel .......................................................................................................... 16

Installing the Front Bezel............................................................................................................ 16

Removing and Installing the Front Fan Bezel ...................................................................................... 17

Removing the Front Fan Bezel ................................................................................................... 17

Installing the Front Fan Bezel..................................................................................................... 17

Removing and Installing the Rack Handles ......................................................................................... 18

Removing the Rack Handles ...................................................................................................... 18

Installing the Rack Handles ........................................................................................................ 18

Removing and Installing the Power Supply Module(s) ........................................................................ 19

Removing the Power Supply Module(s) ..................................................................................... 19

Installing a Power Supply Module(s) ......................................................................................... 19

Removing and Installing the System Cover ......................................................................................... 19

Removing the System Cover ...................................................................................................... 19

Installing the System Cover ........................................................................................................ 20

Removing and Installing the Front End Module .................................................................................. 21

Removing the Front End Module ............................................................................................... 21

Installing the Front End Module ................................................................................................. 21

Removing and Installing the PCI Riser Assembly ............................................................................... 22

Removing the PCI Riser Assembly ............................................................................................ 22

Installing the PCI Riser Assembly .............................................................................................. 22

Installing and Removing a PCI Add-in Card........................................................................................ 23

Installing a PCI Add-in Card ...................................................................................................... 23

Removing a PCI Add-in Card..................................................................................................... 24

Intel® Server System R2000LH2/LT2 Service Guide vii

Table of Contents

Removing and Installing the Air Duct .................................................................................................. 25

Removing the Air Duct ............................................................................................................... 26

Installing the Air Duct ................................................................................................................ 26

Removing and Installing Processor ...................................................................................................... 27

Removing Processor Heatsink(s) ................................................................................................ 27

Installing the Processor ............................................................................................................... 27

Installing Processor Heatsink(s) ................................................................................................. 29

Removing the Processor ............................................................................................................. 30

Installing and Removing the Memory .................................................................................................. 30

Installing Memory ...................................................................................................................... 30

Removing Memory ..................................................................................................................... 31

Installing and Removing Hard Drive ................................................................................................... 31

Installing a Hard Disk Drive into 3.5" Hot Swap Hard Drive Carrier ........................................ 31

Installing a Hard Disk Drive into 2.5" Hot Swap Hard Drive Carrier ........................................ 33

Installing and Removing a Slimline Optical Drive .............................................................................. 35

Installing a Slimline Optical Drive ............................................................................................. 35

Removing a Slimline Optical Drive ........................................................................................... 36

Installing and Removing the Intel

Before Installing Intel

Installing Intel Removing Intel Installing and Removing the Intel

Installing the Intel

Install the Intel

Removing the Intel

I/O Expansion Module ..................................................................................... 37

I/O Expansion Module .............................................................................................. 38

RMM4 Lite ................................................................................................. 40

RMM4 NIC ..................................................................................................... 40

RMM4 Lite ............................................................................................... 41

RMM4 NIC ............................................................................................... 41

I/O Expansion Module ................................................................. 36

I/O Expansion Module at the Left Edge of the Board (Optional) ........ 37

Remote Management Module 4 ................................................... 39

Installing and Removing an Internal Solid State Drive ........................................................................ 41

Installing a Solid State Drive ...................................................................................................... 41

Removing a Solid State Drive .................................................................................................... 42

Installing and Removing the Intel

Installing the Intel

Removing the Intel

RAID Smart Battery ................................................................................... 43

RAID Smart Battery ................................................................................. 44

RAID Smart Battery .................................................................... 43

Installing and Removing the Server Board .......................................................................................... 44

Removing the Server Board........................................................................................................ 45

Installing the Server Board ......................................................................................................... 45

Replacing the Backup Battery .............................................................................................................. 46

Replacing a Redundant Fan Module .................................................................................................... 47

Replacing the Backplane ...................................................................................................................... 48

Removing the Backplane ............................................................................................................ 48

Installing the Backplane ............................................................................................................. 48

Replacing the Lower Fan Board ........................................................................................................... 49

Removing the Lower Fan Board ................................................................................................. 49

Installing the Lower Fan Board .................................................................................................. 50

Replacing the Front Video and USB Module ....................................................................................... 51

Removing the Front Video and USB Module ............................................................................ 51

Installing the Front Video and USB Module .............................................................................. 51

Installing and Removing the LCP Module ........................................................................................... 52

Installing the LCP Module.......................................................................................................... 52

Removing the LCP Module ........................................................................................................ 53

Install the Bezel (Optional) .................................................................................................................. 54

Install the System into Rack (Optional) ............................................................................................... 54

viii Intel® Server System R2000LH2/LT2 Service Guide

Table of Contents

Installing the Chassis into Rack .................................................................................................. 55

Removing the Chassis from Rack ............................................................................................... 56

3 Server Utilities .................................................................................................................................... 58

Using the BIOS Setup Utility ............................................................................................................... 58

Starting Setup ............................................................................................................................. 58

Setup Navigation Keyboard Commands .................................................................................... 58

Setup Screen Menu Selection Bar .............................................................................................. 59

BIOS Setup Utility Screens ........................................................................................................ 59

Map of Screens and Functionality .............................................................................................. 60

Appendix A: Regulatory and Compliance Information ........................................................................ 62

Appendix B: Safety Information ............................................................................................................. 63

Appendix C: Installation/Assembly Safety Instructions ....................................................................... 64

Appendix D: Getting Help ........................................................................................................................ 65

Warranty Information ................................................................................................................. 65

Appendix E: Intel

Server Issue Report Form ....................................................................................... 66

Appendix F: Warranty ............................................................................................................................. 70

Limited Warranty for Intel

Chassis Subassembly Products ............................................................... 70

Extent of Limited Warranty.................................................................................................................. 70

Warranty Limitations and Exclusions .................................................................................................. 70

Limitations of Liability ............................................................................................................... 71

How to Obtain Warranty Service ......................................................................................................... 71

Telephone Support ...................................................................................................................... 71

Returning a Defective Product.................................................................................................... 71

Intel® Server System R2000LH2/LT2 Service Guide ix

List of Figures

Figure 1. Intel® Server System R2000LH2/LT2................................................................................. 1

Figure 2. Intel® Server System R2000LH2/LT2 Components .............................................................. 3

Figure 3. 3.5" Hot Swap Hard Drive Bay - 4 Drive Configuration ....................................................... 4

Figure 4. 2.5" Hot Swap Hard Drive Bay - 8 Drive Configuration ....................................................... 4

Figure 5. Front Panel Options ......................................................................................................... 4

Figure 6. Back Panel Feature Identification ....................................................................................... 5

Figure 7. Server Board Connector and Component Locations ............................................................. 7

Figure 8. Configuration Jumpers ..................................................................................................... 8

Figure 9. Optional Peripherals (4x3.5-inch hard drive bays as shown) .................................................. 9

Figure 10. Front Bezel (Front View) .............................................................................................. 10

Figure 11. 4 x 3.5-inch Hard Drive Backplane Components (Front View) .......................................... 10

Figure 12. 4 x 3.5-inch Hard Drive Backplane Components (Rear View) ........................................... 11

Figure 13. 8 x 2.5-inch Hard Drive Backplane Components (Front View) .......................................... 11

Figure 14. 8 x 2.5-inch Hard Drive Backplane Components (Rear View) ........................................... 11

Figure 15. Cable Routing – 4 x 3.5" Hot Swap HDD ........................................................................ 13

Figure 16. Cable Routing – 8 x 2.5" Hot Swap HDD ........................................................................ 14

Figure 17. System Fan Order ........................................................................................................ 15

Figure 18. Connecting the Fan Power Cables to the Fan Board and PDB ............................................ 15

Figure 19. Removing the Front Bezel ............................................................................................. 16

Figure 20. Installing the Front Bezel .............................................................................................. 16

Figure 21. Removing the Front Fan Bezel ....................................................................................... 17

Figure 22. Installing the Front Fan Bezel ........................................................................................ 17

Figure 23. Removing the Rack Handle ........................................................................................... 18

Figure 24. Installing the Rack Handle ............................................................................................ 18

Figure 25. Removing the Power Supply Module .............................................................................. 19

Figure 26. Installing the Power Supply Module ............................................................................... 19

Figure 27. Removing the System Cover ......................................................................................... 20

Figure 28. Installing the System Cover ........................................................................................... 20

Figure 29. Removing the Front End Module ................................................................................... 21

Figure 30. Installing the Front End Module ..................................................................................... 21

Figure 31. Removing the PCI Riser Assembly ................................................................................ 22

Figure 32. Installing the PCI Riser Assembly .................................................................................. 22

Figure 33. Installing a Half-Length PCI Add-In Card ....................................................................... 23

Figure 34. Installing a Full-Length PCI Add-In Card ....................................................................... 24

Figure 35. Removing a Half-Length PCI Add-In Card ..................................................................... 24

Figure 36. Removing a Full-Length PCI Add-In Card ...................................................................... 25

Figure 37. Removing the Air Duct ................................................................................................. 26

Figure 38. Installing the Air Duct .................................................................................................. 26

Figure 47. Installing Memory ........................................................................................................ 31

Figure 48. Installing Hard Disk Drive – Removing 3.5" HDD carrier ................................................. 32

Figure 49. Installing Hard Disk Drive – Removing 3.5" HDD interface bracket ................................... 32

Figure 50. Installing Hard Disk Drive – Installing 3.5" HDD ............................................................ 32

Figure 51. Installing Hard Disk Drive – Installing 2.5" HDD ............................................................ 33

Figure 52. Installing Hard Disk Drive – Inserting 3.5" HDD Assembly .............................................. 33

Figure 53. Installing Hard Disk Drive – Removing 2.5" HDD carrier ................................................. 34

Figure 54. Installing Hard Disk Drive – Removing Plastic Drive Blank .............................................. 34

Figure 55. Installing Hard Disk Drive – Installing 2.5" HDD ............................................................ 34

x Intel® Server System R2000LH2/LT2 Service Guide

List of Figures

Figure 56. Installing Hard Disk Drive – Inserting 2.5" HDD assembly ............................................... 35

Figure 57. Installing the Plastic Guide to the Optical Drive ............................................................... 35

Figure 58. Installing an Optical Drive ............................................................................................ 36

Figure 59. Removing the Slimline Optical Drive ............................................................................. 36

Figure 60. Installing Intel® I/O Expansion Module........................................................................... 37

Figure 61. Installing Intel® I/O Expansion Module........................................................................... 38

Figure 62. Removing Intel® I/O Expansion Module ......................................................................... 39

Figure 63. Installing the Intel® RMM4 Lite ..................................................................................... 40

Figure 64. Installing the Intel® RMM4 NIC .................................................................................... 40

Figure 65. Removing the Intel® RMM4 NIC ................................................................................... 41

Figure 66. Installing a SSD ........................................................................................................... 42

Figure 67. Removing a SSD .......................................................................................................... 43

Figure 68. Installing the Intel® RAID Smart Battery ........................................................................ 44

Figure 69. Removing the Intel® RAID Smart Battery ....................................................................... 44

Figure 70. Removing the Server Board ........................................................................................... 45

Figure 71. Installing the Server Board ............................................................................................ 46

Figure 72. Replacing the Backup Battery ........................................................................................ 47

Figure 73. Replacing a system fan ................................................................................................. 48

Figure 74. Removing the backplane ............................................................................................... 48

Figure 75. Installing the backplane ................................................................................................ 49

Figure 76. Removing the Lower Fan Board .................................................................................... 50

Figure 77. Installing the Lower Fan Board ...................................................................................... 50

Figure 78. Removing the front video and USB Module .................................................................... 51

Figure 79. Installing the front video and USB Module...................................................................... 52

Figure 80. Installing the LCP Module ............................................................................................ 53

Figure 81. Removing the LCP Module ........................................................................................... 54

Figure 82. Slides Component ........................................................................................................ 55

Figure 83. Install Slides to Rack .................................................................................................... 55

Figure 84. Install Inner Member to Chassis ..................................................................................... 56

Figure 85. Install Chassis to Fixed Slides ........................................................................................ 56

Figure 86. Extend Slides ............................................................................................................... 57

Figure 87. Remove Inner Member from Chassis .............................................................................. 57

Intel® Server System R2000LH2/LT2 Service Guide xi

List of Tables

Table 1. Intel® Server System R2000LH2/LT2 family product list .............................................................. v

Table 2. Server System References............................................................................................................... v

Table 3. Intel® Server System R2000LH2/LT2 Feature Summary ............................................................... 1

Table 4. Wattage Limitation of the PCIe Loading ........................................................................................ 3

Table 5. Power Rating of the Power Supply ................................................................................................. 3

Table 6. Hard Disk Drive Options ................................................................................................................ 9

Table 7. BIOS Setup: Keyboard Command Bar ......................................................................................... 58

Table 8. Screen Map ................................................................................................................................... 60

xii Intel® Server System R2000LH2/LT2 Service Guide

Server System Features

Server System

Integrated Server Board

Feature

Description

 3.43 inches (87.3 mm) high  Support up to four Intel® Xeon® processors E5-4600 product family with a Thermal Design Power

 48 DIMM slots – Three DIMMs/Channel – Four memory channels per processor

 Video – Back Panel + Front Panel

1 Server System Features

This chapter briefly describes the main features of the Intel® Server System R2000LH2/LT2 family. This includes illustrations of the products, a list of the server system features, and diagrams showing the location of important components and connections on the server systems.

Figure 1. Intel® Server System R2000LH2/LT2

Server System Feature Overview

Table 3 summarizes the features of the server systems.

Table 3. Intel® Server System R2000LH2/LT2 Feature Summary

Intel® Server System R2000LH2 product family Intel® Server Board S4600LH2

Intel® Server System R2000LT2 product family Intel® Server Board S4600LT2

Dimensions

Processor Support

Memory

Chipset Intel® C600-A chipset with support for optional Storage Option Select keys

 17.24 inches (438.0 mm) wide  28.0 inches (712.0 mm) deep

(TDP) of up to 130 W.

 Unbuffered DDR3 and registered DDR3 DIMMs  Memory DDR3 data transfer rates of 800, 1066, 1333 MT/s and 1600 MT/s  DDR3 standard I/O voltage of 1.5V and DDR3 Low Voltage of 1.35V

External I/O connections

Intel® Server System R2000LH2/LT2 Service Guide 1

 RJ-45 Serial- A Port  S4600LH2 - 2 RJ-45 Network Interface Connectors supporting 10/100/1000Mb  S4600LT2 - 2 RJ-45 Network Interface Connectors supporting 100/1000/10000Mb

Server System Features

Feature

Description

 USB 2.0 connectors - 4 on back panel + 2 on front panel

 One Type-A USB 2.0 connector  Eleven managed system fans

 Integrated 2D Video Controller

 One low-profile eUSB 2x5 pin connector to support low-profile eUSB solid state devices

 Integrated Baseboard Management Controller, IPMI 2.0 compliant

The system is shipped with two power supplies with support below options.

4" x 3.5" SATA/SAS Hot Swap Hard Drive Bays + Optical Drive support

 Extended Value rack mount rail kit (AXXELVRAIL)

Internal I/O connectors/headers

Optional I/O Module Support

System Fans

Riser Cards Support for two riser card slots. Each riser card slot has support for three PCIe x16 slots

Video

On-board storage controllers and options

Security Trusted Platform Module (Optional)

Server Management

 One internal USB header  One DH-10 Serial-B port connector

The following I/O modules utilize a single proprietary on-board connector. An installed I/O module can be supported in addition to standard on-board features and any add-in expansion cards.

 Quad port 1 GbE based on Intel  Dual port 10GBase-T Ethernet module based on Intel® Ethernet Controller I350 –

AXX10GBTWLIOM

 Dual SFP+ port 10GbE module based on Intel® 82500 10 GbE controller – AXX10GBNIAIOM  Single Port FDR speed InfiniBand* module with QSFP connector – AXX1FDRIBIOM

 One power supply fan for each installed power supply module

 16 MB DDR3 Memory

 Two single port SATA connectors capable of supporting up to 6 GB/sec  Two 4-port mini-SAS connectors capable of supporting up to 3 GB/sec SAS/SATA

 Intel

RAID C600 Upgrade Key support providing optional expanded SATA/SAS RAID capabilities

 Support for Intel® Server Management Software (version TBD)  Intel® Remote Management Module 4 support (optional)

 Intel

Remote Management Module 4 Lite support (optional)

Ethernet Controller I350

Power Supply Options

Storage Bay Options

Rack Mount Kit Options

 1600W (1+1) Redundant Hot-swap Capable  1600W (1+0 or 2+0) Non-Redundant   8" x 2.5" SATA/SAS Hot Swap Hard Drive Bays

 Premium rack mount rail kit (AXXPRAIL), will be available at post launch

CAUTION: THE MAXIMUM RECOMMENDED SERVER WEIGHT FOR THE RACK RAILS CAN BE FOUND at http://www.intel.com/support/motherboards/server/sb/CS-033655.htm

. EXCEEDING THE MAXIMUM RECOMMENDED WEIGHT OR MISALIGNMENT OF THE SERVER MAY RESULT IN FAILURE OF THE RACK RAILS HOLDING THE SERVER. Use of a mechanical assist to install and align server into the rack rails is recommended.

2 Intel® Server System R2000LH2/LT2 Service Guide

Wattage Limitation of the PCI Loading

Table 4 summarizes the wattage limitation of the PCI loading.

Table 4. Wattage Limitation of the PCIe Loading

VIN Power Supply Configuration Maximum PCI Loading

Server System Features

90 – 140VAC

(AC low-Line)

180 – 264VAC

(AC high-line)

1600W (1+1) Redundant Hot-swap Capable

1600W (1+0 or 2+0) Non-Redundant

1600W (1+1) Redundant Hot-swap Capable

1600W (1+0 or 2+0) Non-Redundant

Power Rating

Table 5 summarizes the power rating of the power supply.

Table 5. Power Rating of the Power Supply

VIN Total Available Power

100~127VAC

(AC low-Line)

200~240VAC

(AC high-line)

Server System Components

This section helps you identify the components of your server system. If you are near the system, you can also use the Quick Reference Label provided on the inside of the chassis cover to assist in identifying components.

260W

450W

1120W

1600W

Figure 2. Intel® Server System R2000LH2/LT2 Components

Intel® Server System R2000LH2/LT2 Service Guide 3

Server System Features

Label

Description

Label

Description

Hot Swap Hard Drive Bay and Front Panel Options

Figure 3. 3.5" Hot Swap Hard Drive Bay - 4 Drive Configuration

Front Panel

A System ID Button w/Integrated LED F System Status LED

B NMI Button (recessed, tool required for use) G Power Button w/Integrated LED

C NIC-1 Activity LED H Hard Drive Activity LED

Not Used

E System Cold Reset Button J NIC-2 Activity LED

Figure 4. 2.5" Hot Swap Hard Drive Bay - 8 Drive Configuration

Not Used

Figure 5. Front Panel Options

4 Intel® Server System R2000LH2/LT2 Service Guide

Server System Features

Label

Description

Label

Description

USB Ports

I/O Module Ports/Connectors (Optional)

USB Ports

Add-in adapter slots from Riser Card

I/O Module Ports/Connectors (Optional)

RMM4 NIC Port (Optional)

Video Connector

Power Supply Module #2

NIC – 1

Power Supply Module #1

NIC – 2

Add-in adapter slots from Riser Card

RJ45 Serial-A Port

Back Panel

Figure 6. Back Panel Feature Identification

Intel® Server System R2000LH2/LT2 Service Guide 5

Server System Features

Description

Manufacturing Mode jumper

Riser Card slot #1

Serial ‘A’ Port (RJ45)

CPU #4 DIMM slots – Memory Banks N and P

NIC 2

CPU #4 socket

NIC 1

Front Panel Video connector

(Option) RMM4 Lite connector

Front Panel header (SSI compatible)

CPU #2 DIMM slots – Memory Banks G and H

CPU #4 Fan connector

CPU #1 DIMM slots – Memory Banks A and B

CPU #4 DIMM slots – Memory Banks R and T

(Option) I/O Module connector

Main Power Slot #2

(Option) eUSB Solid State Device (SSD) connector

Main Power Slot #1

Rear System Fan #2 connector

CPU #3 DIMM slots – Memory Banks J and K

Server Board Components

This section helps you identify the components and connectors on the server board.

F Video connector AM CPU #1 Fan connector

6 Intel® Server System R2000LH2/LT2 Service Guide

Server System Features

Description

Rear System Fan #1 connector

CPU #3 Fan connector

4 Port SATA/SAS connector (Drives 4-7)

CPU #2 Fan connector

4 Port SATA/SAS connector (Drives 0-3)

Fan board power connector

(Option) Intel® RAID C600 Upgrade Key connector

PDB signal connector

(Option) mSATA port

LCP connector

2 Stacked USB 2.0 ports

3-pin Hot Swap Backplane SMBus* connector

2 Stacked USB 2.0 ports

CPU #3 socket

System ID LED

CPU #3 DIMM slots – Memory Banks L and M

System Status LED

Riser Card slot #2

POST Code Diagnostic LEDs

Backup Battery

SATA only port #0

CPU #2 socket

Internal Serial Port

CPU #2 DIMM slots – Memory Banks E and F

Internal USB port

(Option) RMM4 NIC connector

Password Clear jumper

(Option) TPM connector

BIOS Recover jumper

Serial A jumper

BIOS Default jumper

BMC force update

ME Force Update jumper

CPU #1 DIMM slots – Memory Banks C and D

CPU #1 socket

CPLD programming header

P Type-A USB 2.0 connector AW 4-pin IPMB connector

Y SATA only port #1 BF (Option) I/O Module connector

Figure 7. Server Board Connector and Component Locations

Intel® Server System R2000LH2/LT2 Service Guide 7

Server System Features

If pins 2-3 are selected, the serial-A configuration is in Data Carrier

normal system operation.

If pins 2-3 are selected, the Integrated BMC Force Update Mode is

operation.

If pins 2-3 are selected, administrator and user passwords are cleared

should be selected on 1-2 for normal system operation.

If pins 2-3 are selected, the system can only boot from EFI-bootable

system operation.

If pins 2-3 are selected, the BIOS settings are cleared on the next

operation.

If pins 2-3 are selected, the ME Force Update Mode is enabled. These pins should be selected on 1-2 for normal system operation.

System Recovery Jumpers

A Serial A Jumper (J33)

BMC Force Update (J37)

C Password Clear (J73)

D BIOS Recover (J74)

E BIOS Default (J75)

F ME Force Update (J81)

Jumper Name Jumper Purpose

Figure 8. Configuration Jumpers

8 Intel® Server System R2000LH2/LT2 Service Guide

Detect (DCD) mode. These pins should be selected on 1-2 for

enabled. These pins should be selected on 1-2 for normal system

within five to ten seconds after the system is powered on. These pins

recovery media with the recovery BIOS image. The main system BIOS will not boot. These pins should be selected on 1-2 for normal

reset. These pins should be selected on 1-2 for normal system

Peripheral Devices

Asset Tag

Slimline Optical Drive Bay

Video Port

USB Ports

Front Control Panel

Hard Disk Drive Bays

Intel® Server System

Supported Hard Drive Type

Maximum Hard Drive Number

R2304LH2/LT2

3.5" or 2.5"

R2208LH2/LT2

2.5"

The Intel® Server System R2000LH2/LT2 provides locations and hardware for installing hard drives, CD-ROM drive, or DVD-ROM drive. The following figure shows the available options:

Server System Features

Figure 9. Optional Peripherals (4x3.5-inch hard drive bays as shown)

Hard Disk Drive Carriers

The Intel® Server System R2000LH2/LT2 ships with either 3.5" or 2.5" hard disk drive carrier, and with different maximum number of hard disk drives; see the table below for details:

Table 6. Hard Disk Drive Options

Note: SAS drives are only supported when proper Intel RAID Module is installed.

For instructions on installing hard drives, see Installing and Removing Hard Drive.

Note: Drives can consume up to 17 watts of power each. Drives must be specified to run at a maximum ambient temperature of 45°C.

Note: The Intel

Server System R2000LH2/LT2 does not support all SAS or Serial ATA (SATA) hard

drives. For a web link to a list of supported hard drives, see Additional Information and Software.

RAID C600 Upgrade Key or Intel® Integrated

Intel® Server System R2000LH2/LT2 Service Guide 9

Server System Features

SAS/SATA Hot-swap Connectors

Slimline Optical Drive Carrier

The slimline optical drive carrier can be used with a single slimline optical drive. One slimline carrier is included with your server system; the optical drive must be purchased separately.

The drive in the optical drive carrier is NOT hot-swappable. The system power must be turned off to insert or remove the slimline optical drive carrier. For instructions on installing an optical drive, see

Installing and Removing a Slimline Optical Drive.

To use one of the drives provided by Intel

 Slimline DVD-ROM Drive: AXXSATADVDROM  Slimline DVD-RW Drive: AXXSATADVDRWROM

Note: For a complete list of supported peripherals, go to http://serverconfigurator.intel.com/sct_app.aspx

, use the following order codes:

Bezel

The front bezel is available as optional accessory for the server system:

Figure 10. Front Bezel (Front View)

Hot-Swap SAS/SATA Backplane

The Hot-Swap SAS/SATA backplane serves as an interface between the mother board and the system drives. The following diagrams show the location for each connector found on the backplane.

4 x 3.5" Hard Drive Backplane

Figure 11. 4 x 3.5-inch Hard Drive Backplane Components (Front View)

10 Intel® Server System R2000LH2/LT2 Service Guide

Power Connector

SGPIO Connector

I2C Connector

SATA Connectors

Figure 12. 4 x 3.5-inch Hard Drive Backplane Components (Rear View)

SAS/SATA Hot-swap Connectors

Power Connectors

Mini-SAS Connectors

I2C Connector

8 x 2.5" Hard Drive Backplane

Server System Features

Figure 13. 8 x 2.5-inch Hard Drive Backplane Components (Front View)

Figure 14. 8 x 2.5-inch Hard Drive Backplane Components (Rear View)

Advanced Management Options

Intel® Remote Management Module 4

The Intel and provides additional server management functionality to the server board.

This module provides a dedicated web server for viewing server information and remote control of the system. It also provides Remote KVM Redirection and USB Media Redirection allowing USB devices attached to the remote system to be used on the managed server. For instructions on installing the Intel

Removing the Intel

Remote Management Module 4 plugs into a dedicated connector on the server board

Remote Management Module 4.

Remote Management Module 4, see Installing and

Intel® Server System R2000LH2/LT2 Service Guide 11

Hardware Installations and Upgrades

2 Hardware Installations and Upgrades

Before You Begin

Before working with your server product, pay close attention to the Safety Information at the beginning of this manual.

Note: Whenever you service the system, you must first power down the server and unplug all peripheral devices and the AC power cord.

Tools and Supplies Needed

 Phillips* (cross head) screwdriver (#1 bit and #2 bit)  Needle nosed pliers  Anti-static wrist strap and conductive foam pad (recommended)

System Reference

All references to left, right, front, top, and bottom assume the reader is facing the front of the chassis as it would be positioned for normal operation.

Note: The Intel

Server System R2304LH2 is shown for illustration purposes in this document.

Cable Routing

When you add or remove components from your server system, make sure your cables are routed correctly before reinstalling the server system cover. Use caution to make sure no cables or wires are pinched and that the airflow from the fans is not blocked. Use the figures below to determine the correct cable routing.

Note: Red lines are for power connection, dot lines are for optional device connection.

For system with 4 x 3.5" hot swap hard drive bay

Note:

1. To activate the port SCU1 (4-7) on the server board, a proper Intel must be installed. For instructions, see Intel

2. A second SSD is supported when the optical drive is NOT in use.

RAID C600 Upgrade Key Installation Guide.

RAID C600 Upgrade Key

12 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Figure 15. Cable Routing – 4 x 3.5" Hot Swap HDD

Intel® Server System R2000LH2/LT2 Service Guide 13

Hardware Installations and Upgrades

For system with 8 x 2.5" hot swap hard drive bay

Note:

1. To activate the port SCU1 (4-7) on the server board, a proper Intel must be installed. For instructions, see Intel

2. A second SSD is supported when the optical drive is NOT in use.

RAID C600 Upgrade Key Installation Guide.

RAID C600 Upgrade Key

Figure 16. Cable Routing – 8 x 2.5" Hot Swap HDD

14 Intel® Server System R2000LH2/LT2 Service Guide

Fan Connections

Use the figures below to determine the proper fan connections.

Hardware Installations and Upgrades

Figure 17. System Fan Order

Figure 18. Connecting the Fan Power Cables to the Fan Board and PDB

Intel® Server System R2000LH2/LT2 Service Guide 15

Hardware Installations and Upgrades

Removing and Installing the Front Bezel (Optional)

Removing the Front Bezel

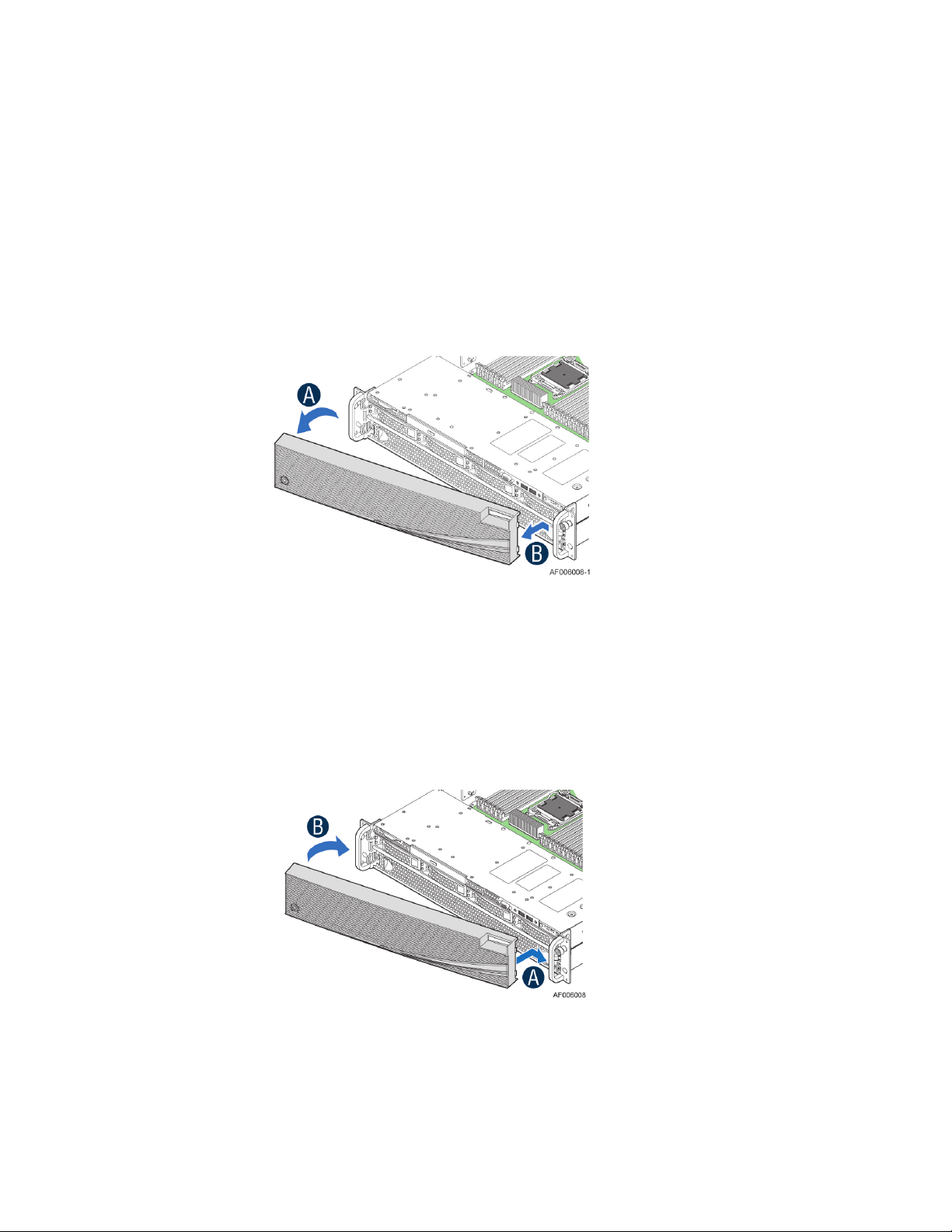

If your system includes a front bezel, follow these steps to remove the front bezel:

1. Unlock the bezel if it is locked.

2. Remove the left end of front bezel from rack handle (see letter A).

3. Rotate the front bezel anticlockwise to release the latches on the right end from the rack

handle (see letter B).

Figure 19. Removing the Front Bezel

Installing the Front Bezel

Note: Before installing the bezel, you must install the rack handles.

1. Lock the right end of the front bezel to the rack handle (see letter A).

2. Rotate the front bezel clockwise till the left end clicks into place (see letter B).

3. Lock the bezel if needed.

Figure 20. Installing the Front Bezel

16 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Removing and Installing the Front Fan Bezel

Removing the Front Fan Bezel

Follow these steps to remove the front fan bezel:

1. Loosing the two screws on left and right end (see letter A).

2. Remove the front fan bezel from the chassis (see letter B)

Figure 21. Removing the Front Fan Bezel

Installing the Front Fan Bezel

1. Slide in the bezel (see letter A). .

2. Secure the bezel to the chassis with the two screws on left and right end as shown (see

letter B).

Figure 22. Installing the Front Fan Bezel

Intel® Server System R2000LH2/LT2 Service Guide 17

Hardware Installations and Upgrades

Removing and Installing the Rack Handles

Removing the Rack Handles

Remove the two screws holding the rack handle in place, and remove the rack handle from the server system as shown.

Figure 23. Removing the Rack Handle

Installing the Rack Handles

Align the rack handle with the two holes on the side of the server system and attach the rack handle to the server system with two screws as shown.

Figure 24. Installing the Rack Handle

18 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Removing and Installing the Power Supply Module(s)

Removing the Power Supply Module(s)

1. Push the green latch in the direction shown while pulling out of the system by the handle.

Figure 25. Removing the Power Supply Module

2. Repeat step 1 to remove the second power supply module.

Installing a Power Supply Module(s)

1. Insert the power supply module into the power supply cage and push all the way until it clicks

into place.

Figure 26. Installing the Power Supply Module

2. Repeat step 1 to install the second power supply module.

Removing and Installing the System Cover

Removing the System Cover

The server system must be operated with the system cover in place to ensure proper cooling. You will need to remove the top cover to add or replace components inside of the server. Before removing the top cover, power down the server and unplug all peripheral devices and the power cable(s).

Intel® Server System R2000LH2/LT2 Service Guide 19

Hardware Installations and Upgrades

Note: A non-skid surface or a stop behind the server system may be needed to prevent the server system from sliding on your work surface.

1. Observe the safety and ESD precautions at the beginning of this book.

2. Turn off all peripheral devices connected to the server. Turn off the server.

3. Disconnect the power cord.

4. Remove the screws (see letter A).

5. Depress the latches (see letter B).

6. Slide the cover back and lift upward.

Figure 27. Removing the System Cover

Installing the System Cover

1. Place system cover onto the chassis and slide forward to engage recessed edge at front of

cover (see letter A).

2. Tighten the screw at front (see letter B).

Figure 28. Installing the System Cover

20 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Removing and Installing the Front End Module

Before removing or installing the PCI riser assembly, please make sure following steps are performed:

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the rack handles. For instructions, see Removing the Rack Handles.

3. Remove the system cover. For instructions, see Removing the System Cover.

Removing the Front End Module

1. Disconnect any cables attached to the front end module.

2. Removing the six screws securing the front end module from the chassis (see letter A).

3. Slide the front end module in forward and remove it from the chassis (see letter B).

Figure 29. Removing the Front End Module

Installing the Front End Module

1. Push the front end module into place (see letter A).

2. Secure the front end module with six screws (see letter B).

Figure 30. Installing the Front End Module

3. Connect any required cables, please refer to Cable Routing.

Intel® Server System R2000LH2/LT2 Service Guide 21

Hardware Installations and Upgrades

Removing and Installing the PCI Riser Assembly

Before removing or installing the PCI riser assembly, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

Removing the PCI Riser Assembly

1. Disconnect any cables attached to any add-in cards, pull up the release lever (see letter A).

2. Grasp the riser assembly with both hands and pull up to remove from system (see letter B).

Figure 31. Removing the PCI Riser Assembly

Warning: Place the riser assembly upside down or sideway to avoid damage to the riser card connector.

Do one of the following:

— If you need to add or replace a PCI add-in card, see Installing and Removing a PCI Add-in Card.

— If you removed the PCI riser assembly for another procedure, continue with that procedure.

Installing the PCI Riser Assembly

1. Position the riser card connector edge over the server board riser socket (see letter A).

2. Press down the release lever to install the riser assembly into the riser socket (see letter B).

3. Push on the board edge above the connector to ensure the connector is seated.

Figure 32. Installing the PCI Riser Assembly

22 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

4. Connect any cables to add-in cards that require them. See your add-in card documentation for

information and add-in card requirements.

Installing and Removing a PCI Add-in Card

Before removing or installing a PCI add-in card, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

Installing a PCI Add-in Card

Installing a Half-Length PCI Add-in Card

1. Remove the filler panel from the add-in card slot and install the provided proper bracket as

shown (see letter A).

2. Insert add-in card until it sits in the riser connector (see letter B).

3. Secure add-in card with screw as shown (see letter C).

Figure 33. Installing a Half-Length PCI Add-In Card

Intel® Server System R2000LH2/LT2 Service Guide 23

Hardware Installations and Upgrades

Installing a Full-length PCI Add-in Card

1. Remove the screw (See letter A), install and secure the provided proper bracket as shown (see

letter B)

2. Remove the filler panel from the add-in card slot and remove the screw as shown (see letter C).

3. Insert add-in card until it sits in the riser connector (see letter D).

4. Secure the add-in card with screw

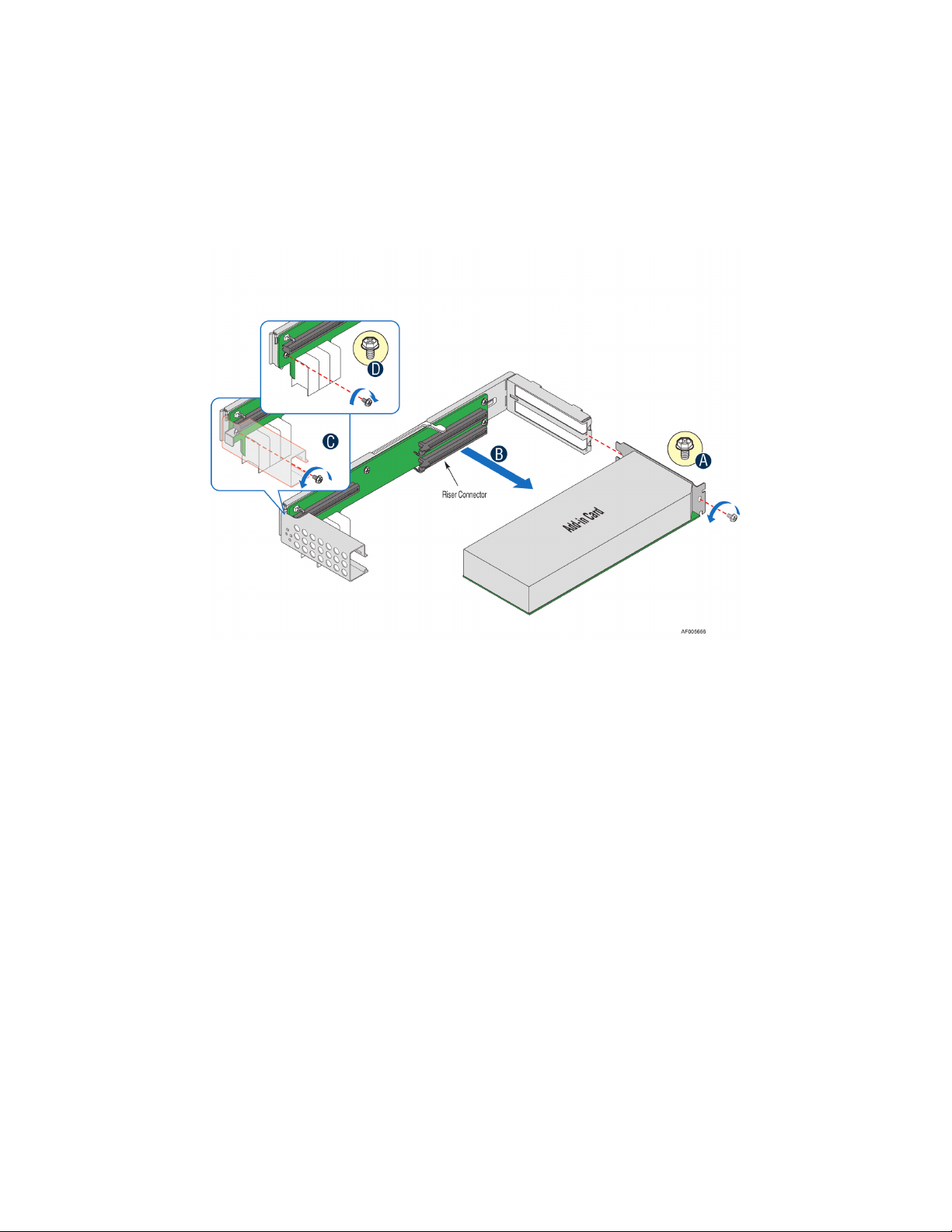

Figure 34. Installing a Full-Length PCI Add-In Card

as shown (see letter E).

Removing a PCI Add-in Card

Removing a Half-Length PCI Add-in Card

1. Remove the screw as shown (see letter A).

2. Remove the PCI add-in card from the riser card connector (see letter B).

Figure 35. Removing a Half-Length PCI Add-In Card

Note: Make sure that all empty add-in card slots have filler panels installed.

24 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Removing a Full-Length PCI Add-in Card

1. Remove the screw as shown (see letter A).

2. Remove the PCI add-in card from the riser card connector (see letter B).

3. Remove the screw and the bracket for full-length PCI add-in card as shown (see letter C)

4. Install the screw as shown (see letter D)

Figure 36. Removing a Full-Length PCI Add-In Card

Note: Make sure that all empty add-in card slots have filler panels installed.

Removing and Installing the Air Duct

Always operate your server system with the air duct in place. The air duct is required for proper airflow within the server system.

Before removing or installing the air duct, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

4. Remove the power supply modules. For instructions, see Removing the Power Supply Module(s).

Intel® Server System R2000LH2/LT2 Service Guide 25

Hardware Installations and Upgrades

Removing the Air Duct

1. Loosen the thumbscrew under the power supply cage at the rear of the system.

2. Lift up the tilt bay and fully open it to 110 degrees (see letter A).

3. Bend and slide out the air duct (see letter B).

4. Remove the air duct from the chassis (see letter C).

Figure 37. Removing the Air Duct

Installing the Air Duct

1. Bend and slide in the air duct (see letter A).

2. Install air duct into the chassis (see letter B).

3. Flip down the power supply (see letter C).

Figure 38. Installing the Air Duct

26 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Removing and Installing Processor

The heatsink has thermal interface material (TIM) on the underside of it. Use caution so that you do not damage the thermal interface material. Use gloves to avoid sharp edges.

Removing Processor Heatsink(s)

The heatsink is attached to the server board/processor socket with captive fasteners. Using a #2 Phillips* screwdriver, loosen the four screws located on the heatsink corners in a diagonal manner using the following procedure:

1. Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by giving it two rotations and

stop (see letter A). (IMPORTANT: Do not fully loosen.)

2. Proceed to screw 2 and loosen it by giving it two rotations and stop (see letter B). Similarly,

loosen screws 3 and 4. Repeat steps A and B by giving each screw two rotations each time until all screws are loosened.

3. Lift the heatsink straight up (see letter C).

Figure 39. Removing Processor Heatsink

Installing the Processor

Caution: Processor must be appropriate: You may damage the server board if you install a processor that is inappropriate for your server. For a web link to the list of compatible processor(s), see “Additional Information and Software

Caution: ESD and handling processors: Reduce the risk of electrostatic discharge (ESD) damage to the processor by doing the following: (1) Touch the metal chassis before touching the processor or server board. Keep part of your body in contact with the metal chassis to dissipate the static charge while handling the processor. (2) Avoid moving around unnecessarily.

Caution: Protective socket cover needs to be removed for proper cooling of the processor; failure to remove the cover could result in damage to the system.

1. Open the Socket Lever. Push down the lever handle on the OPEN 1st side and away from the

socket to release it (see letter A). Repeat the steps to release the lever on the other side (see letter B).

Intel® Server System R2000LH2/LT2 Service Guide 27

”.

Hardware Installations and Upgrades

Figure 40. Installing Processor – Open the Socket Lever

2. Open the Load Plate. Press the locking lever slightly to raise the load plate (see letter A). Open

the load plate all the way (see letter B).

Figure 41. Installing Processor – Open the Load Plate

3. Install the Processor. Take the processor out of the box and remove the protective shipping

cover (see letter A). Orient the processor with the socket so that the processor cutouts match the four orientation posts on the socket (see letter B). Note location of gold key at corner of processor (see letter C).

Figure 42. Installing Processor – Install the Processor

Note: The underside of the processor has components that may damage the socket pins if installed improperly. Processor must align correctly with the socket opening before installation. DO NOT DROP processor into socket!

4. Remove the Cover. Press the cover to remove it. Save the protective cover.

28 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Figure 43. Installing Processor – Remove the Cover

5. Close the Load Plate. Carefully lower the load plate over the processor.

Figure 44. Installing Processor – Close the Load Plate

6. Latch the Locking Lever. Push down on the locking lever on the CLOSE 1st side (see letter A).

Slide the tip of the lever under the notch in the load plate (see letter B). Make sure the load plate tab engages under the socket lever when fully closed. Repeat the steps to latch the locking lever on the other side (see letter C). Latch the levers in the order as shown.

Figure 45. Installing Processor – Latch the Locking Lever

Installing Processor Heatsink(s)

1. Remove the protective film on the TIM if present (see letter A).

2. Align heatsink fins to the front and back of the chassis for correct airflow. Airflow goes from

front-to-back of chassis (see letter B).

Each heatsink has four captive fasteners and should be tightened in a diagonal manner using the following procedure:

3. Using a #2 Phillips* screwdriver, start with screw 1 and engage screw threads by giving it two

rotations and stop (see letter C). (Do not fully tighten.)

Intel® Server System R2000LH2/LT2 Service Guide 29

Hardware Installations and Upgrades

4. Proceed to screw 2 and engage screw threads by giving it two rotations and stop (see letter D).

Similarly, engage screws 3 and 4.

5. Repeat steps C and D by giving each screw two rotations each time until each screw is lightly

tightened up to a maximum of 8 inch-lbs torque (see letter E).

Figure 46. Installing Processor Heatsink

Removing the Processor

1. Remove the processor heatsink, see Figure 39

2. Open the socket lever, see Figure 40

3. Open the load plate, see Figure 41

4. Remove the processor.

Installing and Removing the Memory

Before installing or removing the memory, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the power supply modules. For instructions, see Removing the Power Supply Module(s).

4. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

5. Remove the air duct. For instructions, see Removing the Air Duct.

Installing Memory

1. Locate the DIMM sockets. Make sure the clips at either end of the DIMM socket(s) are pushed

outward to the open position (see letter A).

30 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

2. Holding the DIMM by the edges, remove it from its anti-static package. Position the DIMM

above the socket. Align the notch on the bottom edge of the DIMM with the key in the DIMM socket (see letter B).

3. Insert the bottom edge of the DIMM into the socket (see letter C). When the DIMM is inserted,

push down on the top edge of the DIMM until the retaining clips snap into place (see letter D). Make sure the clips are firmly in place (see letter E).

Figure 47. Installing Memory

Removing Memory

1. Locate the DIMM sockets. Gently spread the retaining clips at each end of the socket. The

DIMM lifts from the socket.

2. Holding the DIMM by the edges, lift it from the socket, and store it in an anti-static package.

Installing and Removing Hard Drive

Caution: If you do not install all drives, empty drive bays must be occupied by carriers with plastic drive blank provided to maintain proper system cooling.

Installing a Hard Disk Drive into 3.5" Hot Swap Hard Drive Carrier

1. Remove the drive carrier by pressing the green button and opening the lever (see letter A).

Slide the carrier out (see letter B).

Intel® Server System R2000LH2/LT2 Service Guide 31

Hardware Installations and Upgrades

Figure 48. Installing Hard Disk Drive – Removing 3.5" HDD carrier

2. Remove the four screws securing the HDD interface bracket and remove the HDD interface

bracket (see letter C).

Figure 49. Installing Hard Disk Drive – Removing 3.5" HDD interface bracket

3. Install the hard disk drive using the same four screws as shown. Make sure the connector end of

the drive matches the backplane connector (see letter D).

Figure 50. Installing Hard Disk Drive – Installing 3.5" HDD

For installing 2.5" Hard Disk Drive as an option:

Break off the tab on the HDD interface bracket (see letter d1). Install the HDD interface bracket from top. Secure the bracket with three screws as shown (see letter d2). Slide the 2.5" HDD into the bracket to align the screw holes with the right and left rail (see letter d3). Secure the hard disk drive using the four screws for 2.5" HDD (see letter d4).

32 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

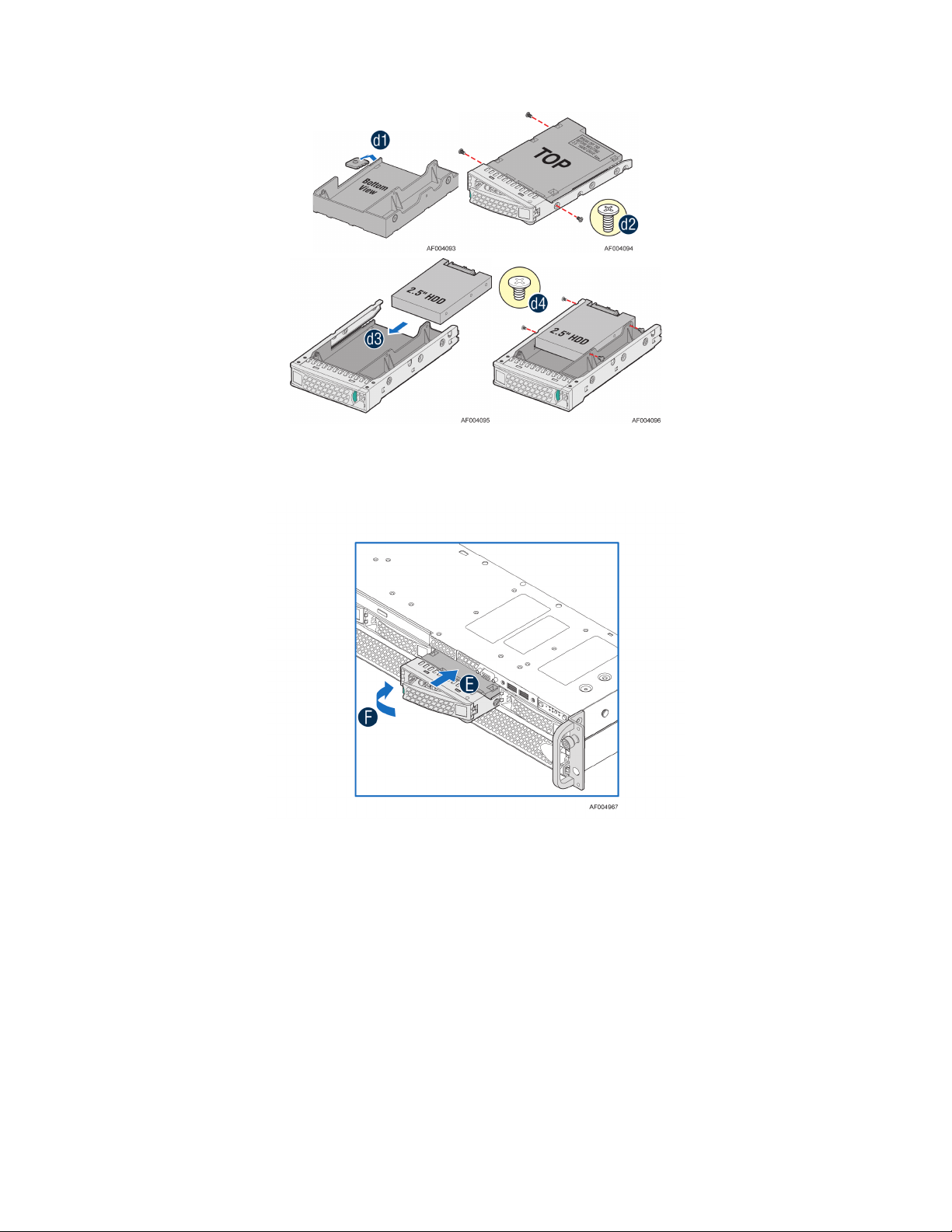

Figure 51. Installing Hard Disk Drive – Installing 2.5" HDD

4. With the lever open, insert the hard disk drive assembly into the chassis (see letter E). Push in

the lever to lock it into place (see letter F).

Figure 52. Installing Hard Disk Drive – Inserting 3.5" HDD Assembly

Installing a Hard Disk Drive into 2.5" Hot Swap Hard Drive Carrier

1. Remove the drive carrier by pressing the green latch to unlock (see letter A). Pull out the black

lever and slide the carrier out (see letter B).

Intel® Server System R2000LH2/LT2 Service Guide 33

Hardware Installations and Upgrades

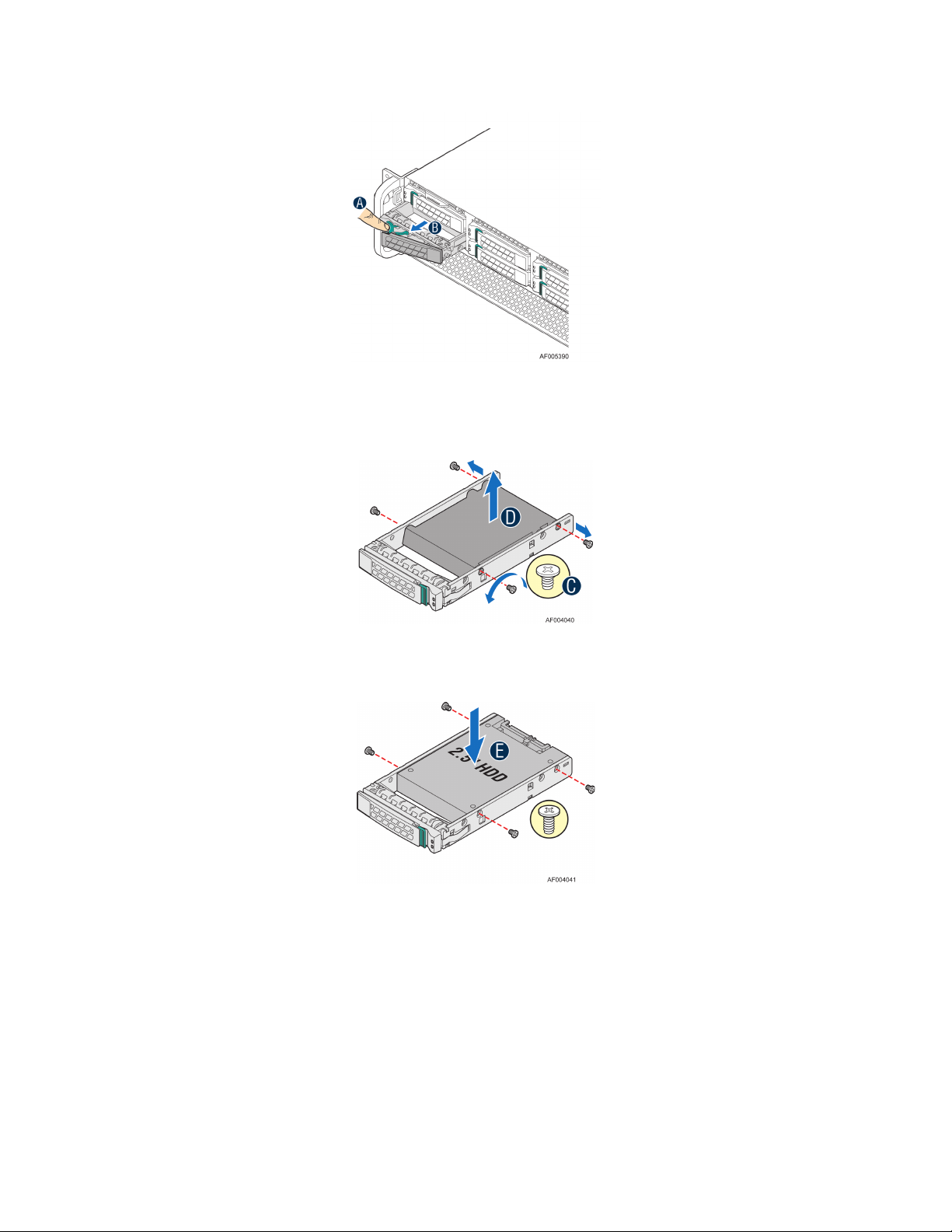

Figure 53. Installing Hard Disk Drive – Removing 2.5" HDD carrier

2. Remove the four screws securing the plastic drive blank from the 2.5" HDD carrier (see letter

C). Disengage the plastic drive blank from the HDD carrier. Remove the plastic drive blank from the 2.5" HDD carrier (see letter D).

Figure 54. Installing Hard Disk Drive – Removing Plastic Drive Blank

3. Install the hard disk drive using the four screws as shown. Make Sure the connector end of the

drive matches the backplane connector (see letter E).

Figure 55. Installing Hard Disk Drive – Installing 2.5" HDD

4. With the lever open, insert the hard disk drive assembly into the chassis, then push in the lever

to lock it into place (see letter F).

34 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Figure 56. Installing Hard Disk Drive – Inserting 2.5" HDD assembly

Installing and Removing a Slimline Optical Drive

Cautions: The slimline optical drive is NOT hot-swappable. Before removing or replacing the drive, you must first take the server out of service, turn off all peripheral devices connected to the system, turn off the system by pressing the power button, and unplug the AC power cord from the system or wall outlet.

To maintain proper system cooling, a filler panel must be installed if you do not install a device at this location.

Before installing or removing the slimline optical drive, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

Installing a Slimline Optical Drive

1. Install the plastic guide onto the back of the drive and attach with two screws as shown (see

letter A).

Figure 57. Installing the Plastic Guide to the Optical Drive

2. Insert the optical drive into chassis opening and push all the way until it stops (see letter B).

Connect the cables as shown (see letter C).

Intel® Server System R2000LH2/LT2 Service Guide 35

Hardware Installations and Upgrades

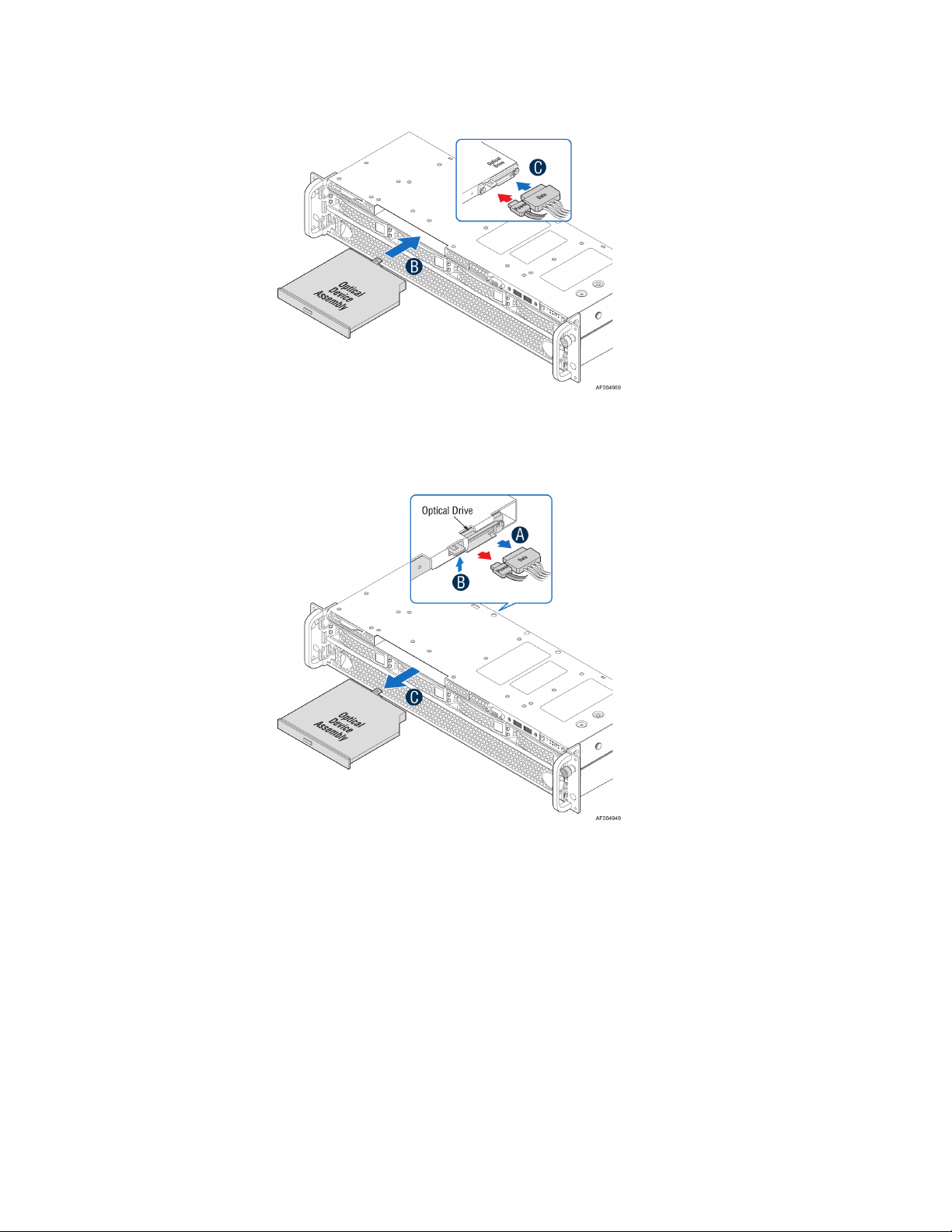

Figure 58. Installing an Optical Drive

Removing a Slimline Optical Drive

1. Remove the cables (see letter A). Slide the optical drive out (see letter B and C).

Figure 59. Removing the Slimline Optical Drive

2. If no device will be installed in this location, install a filler panel in this location.

Installing and Removing the Intel® I/O Expansion Module

Before installing or removing the Intel® I/O expansion module, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the power supply modules. For instructions, see Removing the Power Supply

Module(s).

4. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

36 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

5. Remove the air duct. For instructions, see Removing the Air Duct.

Before Installing Intel® I/O Expansion Module at the Left Edge of the Board (Optional)

1. Install the module to the provided bracket (see letter A).

2. Secure the module to the bracket with the three screws (see letter B).

3. Install the provided connector converter (see letter C).

Figure 60. Installing Intel

I/O Expansion Module

Installing Intel® I/O Expansion Module

1. Remove the screw securing the filler panel from the chassis and remove the filler panel (see

letter A).

2. Position the module over the server board, fit the front of the module into the back panel slot

(see letter B).

3. Attach the module to the server board connector (see letter C).

4. Secure the module with the two screws as shown (see letter D).

Intel® Server System R2000LH2/LT2 Service Guide 37

Hardware Installations and Upgrades

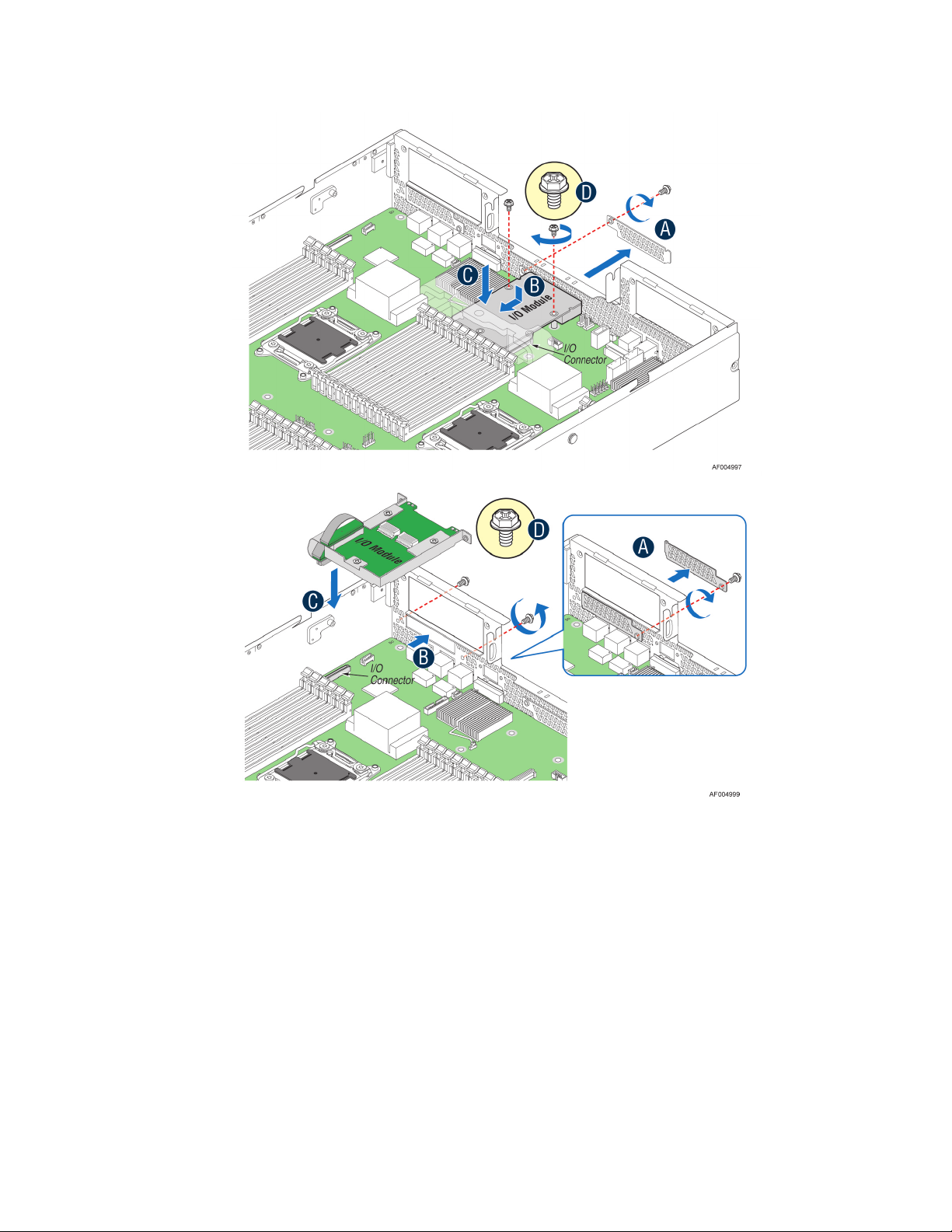

Figure 61. Installing Intel

I/O Expansion Module

Removing Intel® I/O Expansion Module

1. Remove the two screws as shown (see letter A).

2. Remove the module out of the server system (see letter B and C).

3. Install the I/O expansion module filler panel into the system back panel and secure it to the

chassis with the screw (see letter D).

38 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Figure 62. Removing Intel® I/O Expansion Module

Installing and Removing the Intel® Remote Management Module 4

Before installing or removing the Intel® Remote Management Module 4, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the power supply modules. For instructions, see Removing the Power Supply

Module(s).

4. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

Intel® Server System R2000LH2/LT2 Service Guide 39

Hardware Installations and Upgrades

5. Remove the air duct. For instructions, see Removing the Air Duct.

Installing the Intel® RMM4 Lite

Locate the RMM4 Lite connector next to onboard NIC port, carefully pick up the Intel® RMM4 Lite module, and match the alignment pin of the module and the connector on server board. Press to install.

Figure 63. Installing the Intel® RMM4 Lite

Install the Intel® RMM4 NIC

1. Connect the cable to the server board (see letter A).

2. Secure the module with the two screws as shown (see letter B).

3. Connect the cable to the module (see letter C).

Figure 64. Installing the Intel® RMM4 NIC

40 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Removing the Intel® RMM4 Lite

Pull up the RMM4 Lite module to remove it from the mother board.

Removing the Intel® RMM4 NIC

1. Remove the cable to the module (see letter A).

2. Remove the two screws as shown and remove the module out of the server system (see letter B).

3. Remove the cable to the server board (see letter C).

Figure 65. Removing the Intel® RMM4 NIC

Installing and Removing an Internal Solid State Drive

Before installing or removing the Solid State Drive, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the rack handles. For instructions, see Removing the Rack Handles.

4. Slide the front end module in forward a bit. For instructions, see Removing the Front End Module.

Installing a Solid State Drive

1. Remove the two screws to release the Solid State Drive carrier (see letter A)

2. Place the Solid State Drive in the carrier (see letter B).

3. Secure the Solid State Drive with the four screws (see letter C).

4. Slide the Solid State Drive carrier into the chassis (see letter D).

5. Secure the Solid State Drive carrier with the two screws (see letter E).

6. Connect cables (see letter F).

Intel® Server System R2000LH2/LT2 Service Guide 41

Hardware Installations and Upgrades

Figure 66. Installing a SSD

Removing a Solid State Drive

1. Disconnect cables (see letter A).

2. Remove the two screws to release the Solid State Drive carrier (see letter B).

3. Pull the Solid State Drive up to remove from the air duct (see letter C).

4. Remove the four screws to release the Solid State Drive (see letter D).

5. Pull the Solid State Drive up to remove from the carrier (see letter E).

6. Secure the Solid State Drive carrier to chassis with the two screws.

42 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

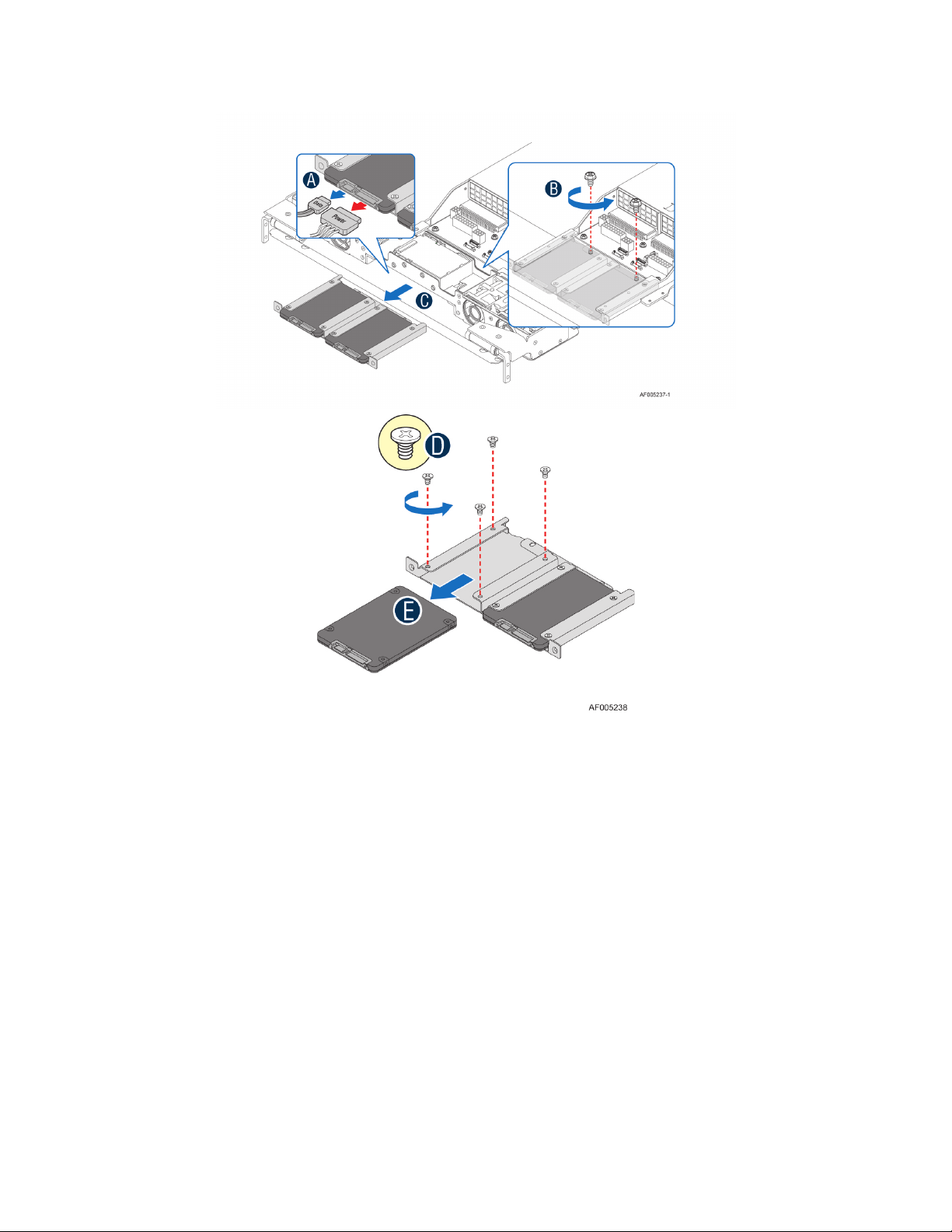

Figure 67. Removing a SSD

Installing and Removing the Intel® RAID Smart Battery

Before installing or removing the Intel® RAID Smart Battery, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

Installing the Intel® RAID Smart Battery

1. Connect the cable between the BBU and the RAID card. For details, see Intel® RAID Smart

Battery User’s Guide.

2. Position the battery against chassis (see letter A).

3. Align the tabs on the plastic battery holder with the mounting holes in the chassis and slide in

the plastic battery holder until the tabs engage with the mounting holes (see letter B).

Intel® Server System R2000LH2/LT2 Service Guide 43

Hardware Installations and Upgrades

Figure 68. Installing the Intel® RAID Smart Battery

Removing the Intel® RAID Smart Battery

1. Slide out the plastic battery holder (see letter A).

2. Lift the battery up to remove it from the server chassis (see letter B).

Figure 69. Removing the Intel® RAID Smart Battery

Installing and Removing the Server Board

Before installing or removing the server board, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

44 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the power supply modules. For instructions, see Removing the Power Supply Module(s).

4. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

5. Remove the air duct. For instructions, see Removing the Air Duct.

6. Remove the processor heatsink(s). For instructions, see Removing Processor Heatsink(s).

7. Remove the processor(s). For instructions, see Installing or Replacing the Processor.

8. Remove the memory. For instructions, see Removing Memory.

9. Remove all the Intel

I/O expansion module(s). For instructions, see Removing Intel® I/O Expansion

Module.

10. Remove Intel

Remote Management Module 4.

Intel

Remote Management Module 4. For instructions, see Installing and Removing the

Removing the Server Board

1. Disconnect all cables from the server board.

2. Remove the thirteen screws from the server board (see letter A).

3. Lift the server board from the server system (see letter B).

Figure 70. Removing the Server Board

Installing the Server Board

1. Place the server board into the server system (see letter A).

2. Secure the server board with thirteen screws (see letter B).

Intel® Server System R2000LH2/LT2 Service Guide 45

Hardware Installations and Upgrades

Figure 71. Installing the Server Board

3. Connect all power cables to the server board.

Replacing the Backup Battery

The lithium battery on the server board powers the RTC for up to 10 years in the absence of power. When the battery starts to weaken, it loses voltage, and the server settings stored in CMOS RAM in the RTC (for example, the date and time) may be wrong. Contact your customer service representative or dealer for a list of approved devices.

Warning: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions.

Advarsel: Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.

Advarsel: Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes kun batteri som anbefalt av apparatfabrikanten. Brukt batteri returneres apparatleverandøren.

Varning: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

Varoitus: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the power supply modules. For instructions, see Removing the Power Supply

Module(s).

4. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

5. Remove the air duct. For instructions, see Removing the Air Duct.

6. Locate the battery on the server board.

7. Gently press the metal clip as shown to release the battery (see letter A).

8. Remove the battery from the plastic socket (see letter B).

46 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Figure 72. Replacing the Backup Battery

9. Dispose of the battery according to local ordinance.

10. Remove the new lithium battery from its package, and, being careful to observe the correct

polarity, insert it in the battery socket.

Note: You will need to run the BIOS Setup to restore the configuration settings to the RTC.

Replacing a Redundant Fan Module

1. Remove the system cover if needed. For instructions, see Removing the System Cover.

2. Pull system fan straight up to remove it from the fan holder.

3. Replace the system fan by guiding it into the slot and firmly pressing down to ensure that it is properly seated.

Intel® Server System R2000LH2/LT2 Service Guide 47

Hardware Installations and Upgrades

Figure 73. Replacing a system fan

Replacing the Backplane

Before removing or installing the backplane, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove all hot-swap drive carriers, regardless of whether or not a drive is installed in the carrier.

Removing the Backplane

1. Disconnect all cables from the backplane.

2. Remove the screw (see letter A).

3. Pull up the backplane (see letter B).

4. Remove the backplane from the server chassis (see letter C).

Figure 74. Removing the backplane

Installing the Backplane

1. Hold the backplane only by the edges. Do not push or pull on any components on the backplane.

Position the backplane in place at the front of the server system (see letter A).

48 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

2. Slide the backplane into the server system guides (see letter B).

3. Secure the backplane with the screw as shown (see letter C).

Figure 75. Installing the backplane

4. Connect cables to backplane, please refer to Cable Routing.

Replacing the Lower Fan Board

Before removing or installing the lower fan board, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove system the fan modules connected to the lower fan board. For instructions, see Replacing

a Redundant Fan Module.

4. Remove the rack handles. For instructions, see Removing the Rack Handles.

5. Remove the front end module. For instructions, see Removing the Front End Module.

Removing the Lower Fan Board

1. Disconnect all cables from the lower fan board.

2. Remove the screws (see letter A).

3. Remove the lower fan board from the server chassis (see letter B).

Intel® Server System R2000LH2/LT2 Service Guide 49

Hardware Installations and Upgrades

Figure 76. Removing the Lower Fan Board

Installing the Lower Fan Board

1. Hold the lower fan board only by the edges. Do not push or pull on any components on the

lower fan board. Position the lower fan board in place at the front of the server system (see letter A).

2. Secure the lower fan board with the screws as shown (see letter B).

Figure 77. Installing the Lower Fan Board

3. Connect cables to the lower fan board; please refer to Cable Routing.

50 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Replacing the Front Video and USB Module

Before removing or installing the front video and USB module, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the power supply modules. For instructions, see Removing the Power Supply Module(s).

4. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

5. Remove the air duct. For instructions, see Removing the Air Duct.

Removing the Front Video and USB Module

1. Disconnect video and USB cables from server board (see letter A).

2. Remove the two screws as shown (see letter B).

3. Slide the module out (see letter C).

4. Remove the two screws as shown, slide the front USB header out (see letter D).

Figure 78. Removing the front video and USB Module

Installing the Front Video and USB Module

1. Secure the front USB header to the module with two screws as shown (see letter A).

2. Insert the front video and USB module into chassis (see letter B).

3. Secure the front video and USB module to chassis with two screws (see letter C).

4. Install the video and USB cables to the server board as shown (see letter D).

Intel® Server System R2000LH2/LT2 Service Guide 51

Hardware Installations and Upgrades

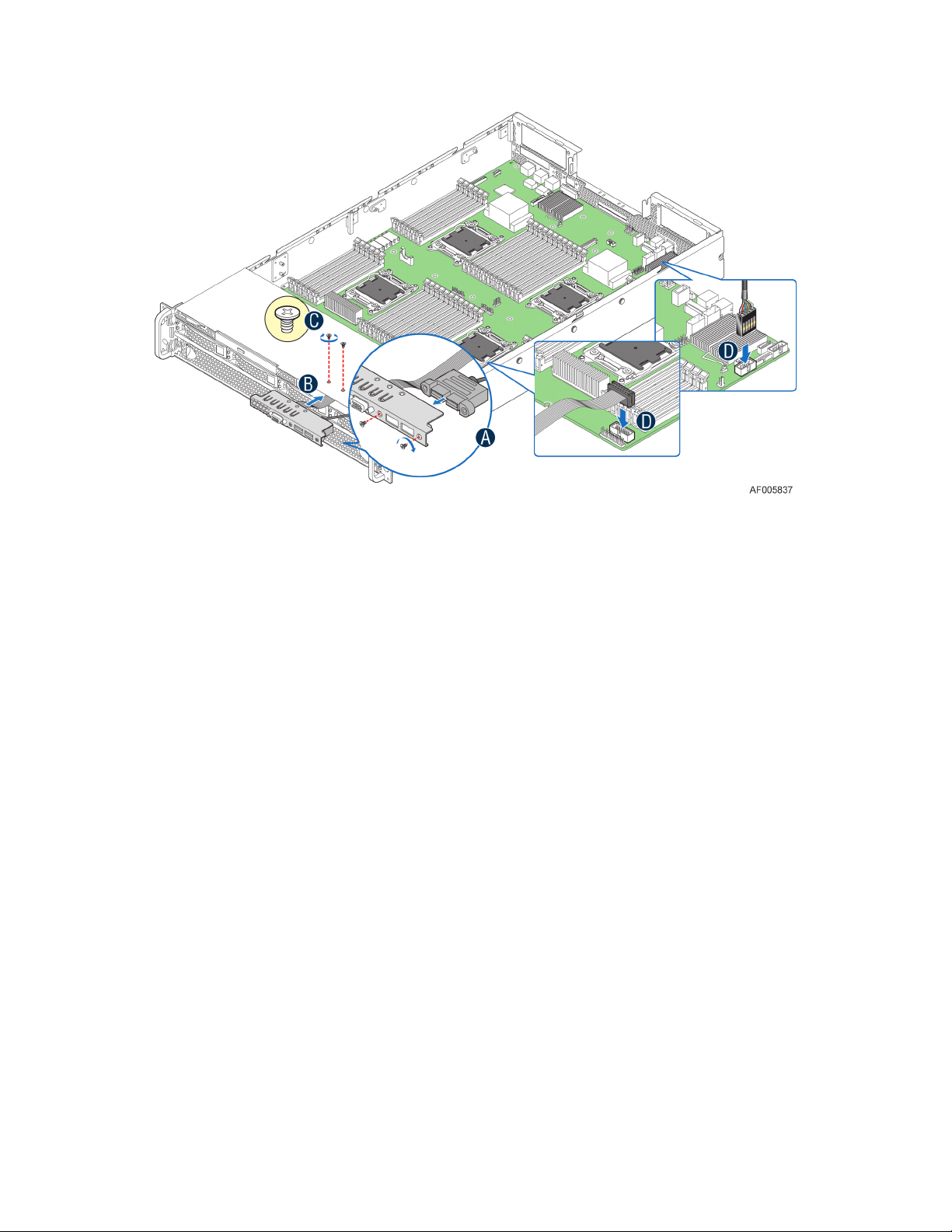

Figure 79. Installing the front video and USB Module

Installing and Removing the LCP Module

Before installing or removing the LCP module, please make sure following steps are performed.

1. Ensure the AC power cord(s) are disconnected from the system.

2. Remove the system cover. For instructions, see Removing the System Cover.

3. Remove the power supply modules. For instructions, see Removing the Power Supply Module(s).

4. Remove the PCI riser assemblies. For instructions, see Removing the PCI Riser Assembly.

5. Remove the air duct. For instructions, see Removing the Air Duct.

Installing the LCP Module

1. Remove the front video and USB module. For instructions, see Removing the Front Video and

USB Module.

2. Secure the front USB header to the module with two screws as shown (see letter A).

3. Insert the LCP module into chassis (see letter B).

4. Secure the LCP module to chassis with two screws (see letter C).

5. Install the LCP and USB cables to the server board as shown (see letter D).

52 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Figure 80. Installing the LCP Module

Removing the LCP Module

1. Disconnect LCP and USB cables from server board (see letter A).

2. Remove the two screws as shown (see letter B).

3. Slide the module out (see letter C).

4. Remove the two screws as shown, slide the front USB header out (see letter D).

5. Install the front video and USB module. For instructions, see Installing the Front Video and

USB Module.

Intel® Server System R2000LH2/LT2 Service Guide 53

Hardware Installations and Upgrades

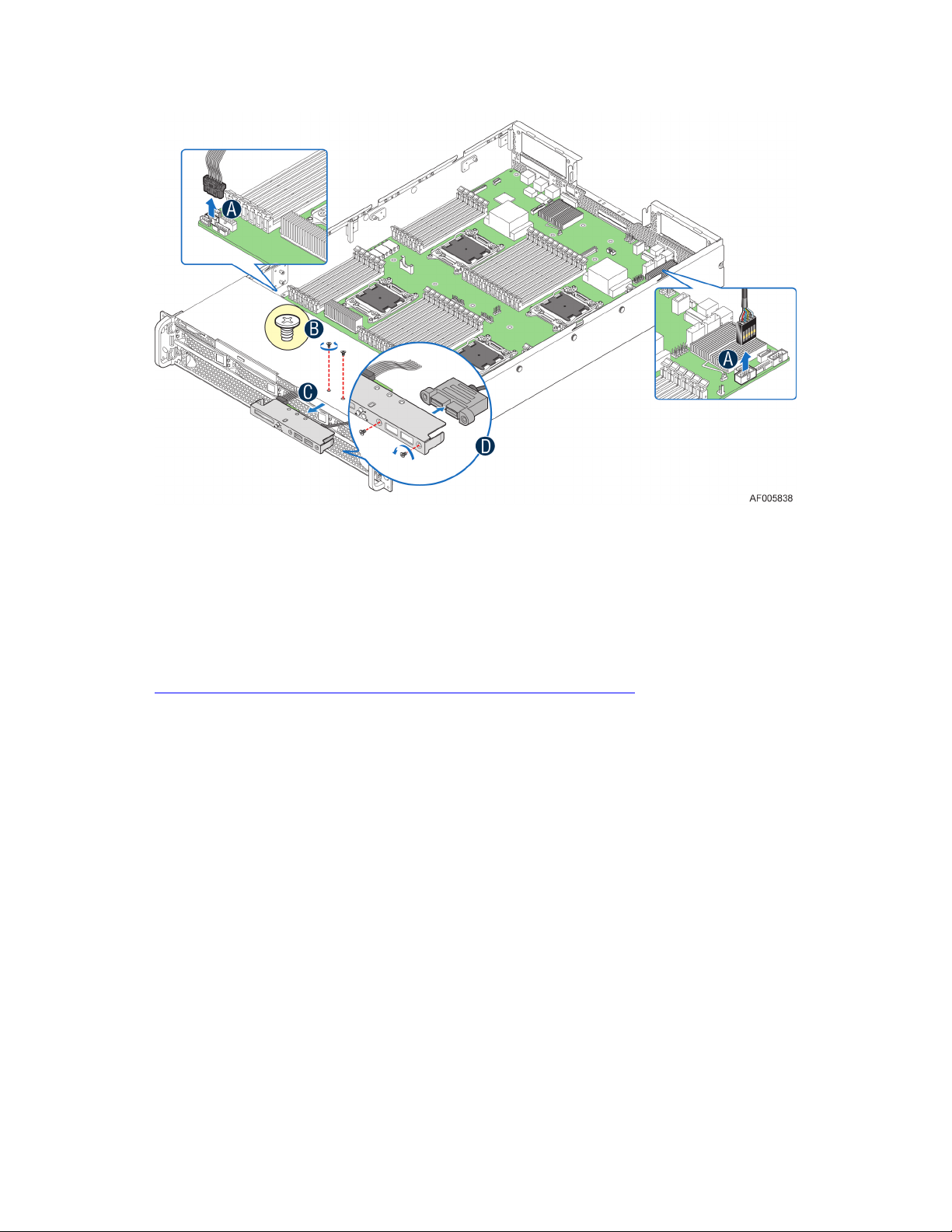

Figure 81. Removing the LCP Module

Install the Bezel (Optional)

Install the System into Rack (Optional)

Caution: The maximum recommended server weight for the rack rails can be found at

http://www.intel.com/support/motherboards/server/sb/CS-033655.htm

recommended weight or misalignment of the server may result in failure of the rack rails holding the server. Use of a mechanical assist to install and align server into the rack rails is recommended.

Note: The Extended Value rack mount rail kit (AXXELVRAIL) supports the system weight of ~65lbs fully loaded. However, the rail travel limitation does not allow removal of the top cover during normal operation, impacting hot swapping of the system fans. The Premium rack mount rail kit (AXXPRAIL) will be available at post launch to eliminate the hot swap fan limitation.

This section helps you to install the system into a rack with AXXELVRAIL.

. Exceeding the maximum

54 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Label

Description

Label

Description

Front Bracket

Inner Member

Outer Member

Safety Locking Pin

Rear Bracket

Release Button

Figure 82. Slides Component

Installing the Chassis into Rack

1. Pull release button to remove inner member from slides.

2. Align brackets to desired vertical position on rack and insert fasteners.

3. Move ball retainer to the front of slides.

Figure 83. Install Slides to Rack

Intel® Server System R2000LH2/LT2 Service Guide 55

Hardware Installations and Upgrades

4. Align inner member key holes to standoffs on chassis, move inner member as shown below.

Figure 84. Install Inner Member to Chassis

5. Pull the release button in the inner member to release the lock and allow the chassis to close.

Figure 85. Install Chassis to Fixed Slides

Removing the Chassis from Rack

1. Fully extend the slides until it is in the locked position, pull the release button to release lock

and disconnect inner member from slides.

56 Intel® Server System R2000LH2/LT2 Service Guide

Hardware Installations and Upgrades

Figure 86. Extend Slides

2. Press safety locking pin to release inner member from chassis.

Figure 87. Remove Inner Member from Chassis

Intel® Server System R2000LH2/LT2 Service Guide 57

Server Utilities

Key

Option

Description

<Enter>

Execute Command

The <Enter> key is used to activate submenus when the selected feature is a submenu, or to

<Esc>

Exit

The <Esc> key provides a mechanism for backing out of any field. When the <Esc> key is

<Esc> key is pressed in any major menu, the exit confirmation window is displayed and the

↑

Select Item

The up arrow is used to select the previous value in a pick list, or the previous option in a Select Item

The down arrow is used to select the next value in a menu item’s option list, or a value

Select Menu

The left and right arrow keys are used to move between the major menu pages. The keys

3 Server Utilities

Using the BIOS Setup Utility

This section describes the BIOS Setup Utility options, which is used to change server configuration defaults. You can run BIOS Setup with or without an operating system being present.

Starting Setup

To enter the BIOS Setup using a keyboard (or emulated keyboard); press the <F2> function key during boot time when the OEM or Intel

logo is displayed. The following message is

displayed on the diagnostics screen and under the Quiet Boot logo screen:

Press <F2> to enter setup

When the Setup Utility is entered, the Main screen is displayed. However, serious errors cause the system to display the Error Manager screen instead of the Main screen.

Setup Navigation Keyboard Commands

The bottom right portion of the Setup screen provides a list of commands that are used to navigate through the Setup utility. These commands are displayed at all times.

Each Setup menu page contains a number of features. Each feature is associated with a value field, except those used for informative purposes. Each value field contains configurable parameters. Depending on the security option chosen and in effect by the password, a menu feature’s value may or may not be changed. If a value cannot be changed, its field is made inaccessible and appears grayed out.

Table 7. BIOS Setup: Keyboard Command Bar

display a pick list if a selected option has a value field, or to select a subfield for multivalued features like time and date. If a pick list is displayed, the <Enter> key selects the currently highlighted item, undoes the pick list, and returns the focus to the parent menu.

pressed while editing any field or selecting features of a menu, the parent menu is reentered.

When the <Esc> key is pressed in any submenu, the parent menu is re-entered. When the

user is asked whether changes can be discarded. If “No” is selected and the <Enter> key is pressed, or if the <Esc> key is pressed, the user is returned to where they were before <Esc> was pressed, without affecting any existing settings. If “Yes” is selected and the <Enter> key is pressed, the setup is exited and the BIOS returns to the main System Options Menu screen.

menu item's option list. The selected item must then be activated by pressing the <Enter> key.



58 Intel® Server System R2000LH2/LT2 Service Guide

field’s pick list. The selected item must then be activated by pressing the <Enter> key.

have no effect if a sub-menu or pick list is displayed.

Server Utilities

Key

Option

Description

<Tab>

Select Field

The <Tab> key is used to move between fields. For example, <Tab> can be used to move

Change Value

The minus key on the keypad is used to change the value of the current item to the previous

Change Value

The plus key on the keypad is used to change the value of the current menu item to the next

<F9>

Setup Defaults

Pressing the <F9> key causes the following to display:

Load Optimized Defaults?

<F10>

Save and Exit

Pressing the <F10> key causes the following message to display:

Save configuration and reset?

from hours to minutes in the time item in the main menu.

value. This key scrolls through the values in the associated pick list without displaying the full list.

value. This key scrolls through the values in the associated pick list without displaying the full list. On 106-key Japanese keyboards, the plus key has a different scan code than the plus key on the other keyboards, but will have the same effect.

Yes No

If “Yes” is highlighted and <Enter> is pressed, all Setup fields are set to their default values. If “No” is highlighted and <Enter> is pressed, or if the <Esc> key is pressed, the user is returned to where they were before <F9> was pressed without affecting any existing field values.

If “Yes” is highlighted and <Enter> is pressed, all changes are saved and the Setup is exited. If “No” is highlighted and <Enter> is pressed, or the <Esc> key is pressed, the user is returned to where they were before <F10> was pressed without affecting any existing values.

Setup Screen Menu Selection Bar

The Setup Screen Menu selection bar is located at the top of the BIOS Setup Utility screen. It displays tabs showing the major screen selections available to the user. By using the left and right arrow keys, the user can select the listed screens. Some screen selections are out of the visible menu space, and become available by scrolling to the left or right of the current selections displayed.

BIOS Setup Utility Screens

The following sections describe the screens available in the BIOS Setup utility for the configuration of the server platform.

For each of these screens, there is an image of the screen with a list of Field Descriptions which describe the contents of each item on the screen. Each item on the screen is hyperlinked to the relevant Field Description. Each Field Description is hyperlinked back to the screen image.

These lists follow the following guidelines:

Yes No

 The text heading for each Field Description is the actual text as displayed on the BIOS Setup

screen. This screen text is a hyperlink to its corresponding Field Description.

 The text shown in the Option Values and Help Text entries in each Field Description are the

actual text and values are displayed on the BIOS Setup screens.

Intel® Server System R2000LH2/LT2 Service Guide 59

Server Utilities

Categories (Top Tabs)

2nd Level Screens

3rd Level Screens

Main Screen (Tab)

Advanced Screen (Tab)



Processor Configuration

Memory Configuration

Memory RAS and Performance

Mass Storage Controller 

PCI Configuration



Serial Port Configuration



USB Configuration

System Acoustic and Performance [Non-BMC Only]

Hardware Monitor

Realtime Temperature and Voltage Security Screen (Tab)

 In the Option Values entries, the text for default values is shown with an underline. These values

do not appear underline on the BIOS Setup screen. The underlined text in this document is to serve as a reference to which value is the default value.

 The Help Text entry is the actual text which appears on the screen to accompany the item when

the item is the one in focus (active on the screen).

 The Comments entry provides additional information where it may be helpful. This information

does not appear on the BIOS Setup screens.

 Information enclosed in angular brackets (< >) in the screen shots identifies text that can vary,

depending on the option(s) installed. For example, <Amount of memory installed> is replaced by the actual value for “Total Memory”.

 Information enclosed in square brackets ([ ]) in the tables identifies areas where the user must

type in text instead of selecting from a provided option.

 Whenever information is changed (except Date and Time), the systems requires a save and reboot

to take place in order for the changes to take effect. Alternatively, pressing <ESC> discards the changes and resumes POST to continue to boot the system according to the boot order set from the last boot.

Map of Screens and Functionality

There are a number of screens in the entire Setup collection. They are organized into major categories. Each category has a hierarchy beginning with a top-level screen from which lowerlevel screens may be selected. Each top-level screen appears as a tab, arranged across the top of the Setup screen image of all top-level screens.

There are more categories than will fit across the top of the screen, so at any given time there will be some categories which will not appear until the user has scrolled across the tabs which are present.

The categories and the screens included in each category are listed below, with links to each of the screens named.

Table 8. Screen Map



[Except S1200BT]

Configuration

[With BMC Only]

60 Intel® Server System R2000LH2/LT2 Service Guide

Configuration

[Non-BMC Only]

Status

Server Utilities

Categories (Top Tabs)

2nd Level Screens

3rd Level Screens

Server Management Screen (Tab)



Console Redirection



System Information

[With BMC Only]

BMC LAN Configuration

Boot Options Screen (Tab)



CDROM Order

 Hard Disk Order



Floppy Order



Network Device Order



BEV Device Order



Add EFI Boot Option

 Delete EFI Boot Option

Boot Manager Screen (Tab)

Error Manager Screen (Tab)

[Non-BMC Only]

View Event Log Screen

Exit Screen (Tab)

Intel® Server System R2000LH2/LT2 Service Guide 61

Appendix A: Regulatory and Compliance Information

Please refer to the Server Products Regulatory and Safety document for the product regulatory compliance reference. The document can be downloaded from

http://www.intel.com/support/motherboards/server/

62 Intel® Server System R2000LH2/LT2 Service Guide

Appendix B: Safety Information

Please refer to the Server Products Regulatory and Safety document for the Safety Information. The document can be downloaded from http://www.intel.com/support/motherboards/server/

Intel® Server System R2000LH2/LT2 Service Guide 63

Appendix C: Installation/Assembly Safety Instructions

Please refer to the Server Products Regulatory and Safety document for the Installation/Assembly Safety Instructions. The document can be downloaded from

http://www.intel.com/support/motherboards/server/

64 Intel® Server System R2000LH2/LT2 Service Guide

Appendix D: Getting Help

If you encounter an issue with your server platform, please follow these steps to obtain support on your product.

1 Get connected to our support web page for 24x7 support when you need it to get the latest and

most complete technical support information on all Intel

Enterprise Server and Storage

Platforms. Information available at the support site includes:

 Latest BIOS, firmware, drivers, and utilities  Product documentation, Installation, and Quick Start Guides  Full product specifications, technical advisories, and errata  Compatibility documentation for memory, hardware add-in cards, chassis support matrix,

and operating systems

 Server and chassis accessory parts list for ordering upgrades or spare parts  A searchable knowledgebase to search for product information throughout the support site

2 Send an email to Intel

’s technical support center using the following online form if you still

cannot obtain a solution to your issue.

3 Lastly, you can contact an Intel

phone numbers. Charges may apply. Intel

support representative using one of the following support

customer support suggests filling out the issue

report form to better service the issue.

Intel

now offers Channel Program members around-the-clock 24x7 technical phone support on

server boards, server chassis, server RAID controller cards, and Intel® Server

Intel Management.

Note: You must login in to the reseller site to obtain the 24x7 number.

Warranty Information

To obtain warranty information, visit the following Intel® website:

http://www.intel.com/support/motherboards/server/sb/cs-010807.htm

Intel® Server System R2000LH2/LT2 Service Guide 65

Appendix E: Intel® Server Issue Report Form

Issue Report Form (Rev 3.6)

Note: Filling out this form completely is required for any escalation.

Customer Contact Information:

Customer Support Case#:

Intel® Server Board or System:

(Example: S2400BB, R2000BB)

Server Chassis:

(Example P4000M. If third-party chassis used, indicate make and model.)

Base Board Information: (Some information maybe found by accessing BIOS & going through the Server Management menu > System Information)

Baseboard PBA/TA/AA # (Example: 123456-789):

- can be found on the white sticker label on the baseboard.

System BIOS Version:

Intel

Remote Management Module Firmware Version (if applicable):

BMC Version:

FRU/SDR Version:

Has the latest BIOS been tried? (Yes/No):

Has the latest BMC been tried? (Yes/No):

Has the latest RMM Firmware been tried? (Yes/No):

Has the latest FRU/SDR been tried? (Yes/No):

Processor information:

Type Speed sSpec Thermal Solution

Processor 1

Processor 2

66 Intel® Server System R2000LH2/LT2 Service Guide

Appendix E: Intel® Server Issue Report Form

Thermal solution (heatsink) examples:

(1U, Passive w/air ducting, and so on)

Memory:

Manufacturer Part Number DRAM Part Number On Intel tested list?

Add-in adapters (Example: NICs, Management Adapters, Serial Expansion Cards, PCI-Express* Adapters, RAID Controllers, SCSI Controllers, and so on):

Type Slot Manufacturer Model Fir mware

Other third party hardware (Example: Example: KVM, Chassis, and so on):

Description/Use Manufacturer Model Fir mware

Storage Devices (Example: SCSI, SATA, SAS, USB, Tape, and so on):

Manufacturer Model Type Size Firmware In Hot Swap Bay?

Intel® Server System R2000LH2/LT2 Service Guide 67

Appendix E: Intel® Server Issue Report Form

Manufacturer Model Type Size Firmware In Hot Swap Bay?

Operating System Information (Example: RedHat* Enterprise Linux, Microsoft Windows Server 2003* Service pack 1, OEM CD):

Manufacturer:

Version:

Language version (English, Arabic, and Chinese (Simplified)):

Service Pack Level or Kernel Revision:

Distribution (OEM/Retail):

Intel

RAID Controller: (Example SRCU42E)

RAID controller part number (PBA number):

RAID controller firmware version:

Has the latest RAID firmware been tried? (Yes/No):

RAID driver version:

Has the latest RAID driver been tried? (Yes/No):

RAID volumes configuration (disks & RAID level):

RAID volume use (Boot device/Data Volume):

Is BBU (Battery Backup Unit) installed? (Yes/No):

BBU part number:

Detailed description of issue:

68 Intel® Server System R2000LH2/LT2 Service Guide

Appendix E: Intel® Server Issue Report Form

Troubleshooting tried:

Steps to replicate the issue:

Issue impact statements:

Do you have any potential Intel system, or component purchases that this issue is holding up? If yes, please provide a brief description below.

Do you have systems already purchased that are not being delivered to your customers because of this issue? If yes, please provide a brief description below.

Have you returned systems or components to your place of purchase because of this issue? If yes, please provide a brief description below.

*All other brands and names are property of their respective owners.

Intel® Server System R2000LH2/LT2 Service Guide 69

Appendix F: Warranty

Limited Warranty for Intel® Chassis Subassembly Products

Intel® warrants that the Products (defined herein as the Intel® chassis subassembly and all of its various components and software delivered with or as part of the Products) to be delivered hereunder, if properly used and installed, will be free from defects in material and workmanship and will substantially conform to Intel (3) years after the date the Product was purchased from an Intel Software of any kind delivered with or as part of products is expressly provided "as is" unless specifically provided for otherwise in any software license accompanying the software.

If any Product furnished by Intel warranty period for reasons covered by this Limited Warranty, Intel

 REPAIR the Product by means of hardware and/or software; OR  REPLACE the Product with another Product; OR  REFUND the then-current value of the Product if Intel

the Product.

If such Product is defective, transportation charges for the return of Product to buyer within the

USA will be paid by Intel

. For all other locations, the warranty excludes all costs of shipping, customs clearance, and other related charges. Intel or to replace Product or to refund the then-current value of the Product.

In no event will Intel

be liable for any other costs associated with the replacement or repair of Product, including labor, installation or other costs incurred by buyer and in particular, any costs relating to the removal or replacement of any product soldered or otherwise permanently affixed to any printed circuit board.

This Limited Warranty, and any implied warranties that may exist under state law, apply only to the original purchaser of the Product.

's publicly available specifications for a period of three

which is the subject of this Limited Warranty fails during the

will have reasonable time to make repairs

authorized distributor.

, at its option, will:

is unable to repair or replace

Extent of Limited Warranty

Intel® does not warrant that Products to be delivered hereunder, whether delivered standalone or integrated with other Products, including without limitation semiconductor components, will be free from design defects or errors known as “errata”. Current characterized errata are available upon request.

This Limited Warranty does not cover damages due to external causes, including accident, problems with electrical power, usage not in accordance with product instructions, misuse, neglect, alteration, repair, improper installation, or improper testing.

Warranty Limitations and Exclusions

These warranties replace all other warranties, expressed or implied including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Intel expressed warranties beyond those stated here. Intel

disclaims all other warranties, expressed

or implied including, without limitation, implied warranties of merchantability and fitness for a

70 Intel® Server System R2000LH2/LT2 Service Guide

makes no

Appendix F: Warranty

particular purpose. Some jurisdictions do not allow the exclusion of implied warranties, so this limitation may not apply.

All expressed and implied warranties are limited in duration to the limited warranty period. No warranties apply after that period. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you.

Limitations of Liability

Intel®’s responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement, or refund, as set forth above. These remedies are the sole and exclusive remedies for any breach of warranty. Intel consequential damages resulting from any breach of warranty under another legal theory including, but not limited to, lost profits, downtime, goodwill, damage to or replacement of equipment and property, and any costs of recovering, reprogramming, or reproducing any program or data stored in or used with a system containing this product. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights that vary from jurisdiction to jurisdiction.

Any and all disputes arising under or related to this Limited Warranty shall be adjudicated in the following forums and governed by the following laws: for the United States of America, Canada, North America, and South America, the forum shall be Santa Clara, California, USA, and the applicable law shall be that of the State of California, USA; for the Asia Pacific region, the forum shall be Singapore and the applicable law shall be that of Singapore; for Europe and the rest of the world, the forum shall be London and the applicable law shall be that of the United Kingdom. In the event of any conflict between the English language version and any other translated version(s) of this Limited Warranty, the English language version shall control.

is not responsible for direct, special, incidental, or

How to Obtain Warranty Service

To obtain warranty service for this Product, you may contact Intel® or your authorized distributor.

 North America and Latin America: To obtain warranty repair for the product, please go

to the following website to obtain instructions:

http://www.intel.com/support/motherboards/warrantysupport.htm

 In Europe and in Asia: Contact your original authorized distributor for warranty service.

Any replacement Product is warranted under this written warranty and is subject to the same limitations and exclusions for the remainder of the original warranty period.

Telephone Support

If you cannot find the information you need on Intel®'s website (http://www.intel.com), call your local distributor or an Intel® Customer Support representative.

See Appendix D: Getting Help for telephone numbers.

Returning a Defective Product

Before returning any product, call your authorized dealer/distribution authority.

Intel® Server System R2000LH2/LT2 Service Guide 71

Intel R200LH2, R2000LT2 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

重要安全指导

Safety Information

Important Safety Instructions

Wichtige Sicherheitshinweise

Consignes de sécurité

Instrucciones de seguridad importantes

Warnings

Preface

About this Manual

Manual Organization

Additional Information and Software

1 Server System Features

Server System Feature Overview

Wattage Limitation of the PCI Loading

Power Rating

Server System Components

Hot Swap Hard Drive Bay and Front Panel Options

Front Panel

Back Panel

Server Board Components

System Recovery Jumpers

Peripheral Devices

2 Hardware Installations and Upgrades

Before You Begin

Tools and Supplies Needed

System Reference

Cable Routing

For system with 4 x 3.5" hot swap hard drive bay

For system with 8 x 2.5" hot swap hard drive bay

Fan Connections

Removing and Installing the Front Bezel (Optional)

Removing the Front Bezel

Installing the Front Bezel

Removing and Installing the Front Fan Bezel

Removing the Front Fan Bezel

Installing the Front Fan Bezel

Removing and Installing the Rack Handles

Removing the Rack Handles

Installing the Rack Handles

Removing and Installing the Power Supply Module(s)

Removing the Power Supply Module(s)

Installing a Power Supply Module(s)

Removing and Installing the System Cover

Removing the System Cover

Installing the System Cover

Removing and Installing the Front End Module

Removing the Front End Module

Installing the Front End Module

Removing and Installing the PCI Riser Assembly

Removing the PCI Riser Assembly

Installing the PCI Riser Assembly

Installing and Removing a PCI Add-in Card

Installing a PCI Add-in Card

Installing a Half-Length PCI Add-in Card

Installing a Full-length PCI Add-in Card

Removing a PCI Add-in Card

Removing a Half-Length PCI Add-in Card

Removing a Full-Length PCI Add-in Card

Removing and Installing the Air Duct

Removing the Air Duct

Installing the Air Duct

Removing and Installing Processor

Removing Processor Heatsink(s)

Installing the Processor

Installing Processor Heatsink(s)

Removing the Processor

Installing and Removing the Memory

Installing Memory

Removing Memory

Installing and Removing Hard Drive

Installing a Hard Disk Drive into 3.5" Hot Swap Hard Drive Carrier

Installing a Hard Disk Drive into 2.5" Hot Swap Hard Drive Carrier

Installing and Removing a Slimline Optical Drive

Installing a Slimline Optical Drive

Removing a Slimline Optical Drive

Installing and Removing the Intel® I/O Expansion Module
