Intel R2000SC Series Quick Installation User's Manual

Thank you for buying an Intel® Server System. The following information will help you
assemble your Intel® Server System and install components.

If you are not familiar with ESD [Electrostatic Discharge] procedures used during
system integration, see the complete ESD procedures described in your Service Guide.

This guide and other supporting documents are located on the web at:

http://www.intel.com/support.

G71872-002

Intel® Server System R2000SC Family
Quick Installation User's Guide

(This page is intentionally left blank.)

i

Table of Contents

General Installation Process ........................................................................................................ 2

Reference ............................................................................................................................................ 10

System Overview .............................................................................................................................. 1

Preparing the System ....................................................................................................... 2

Remove the Top Cover ..................................................................................................... 2

Remove the Air Duct ......................................................................................................... 2

Remove Processor Heatsink(s) ................................................................................... 2

Install the Processor(s) ................................................................................................... 3

Install Processor Heatsink(s) ........................................................................................ 3

Install Memory Modules ................................................................................................... 4

Install Hard Drives .............................................................................................................. 5

Install Optical Drive ............................................................................................................ 6

Install the Air Duct .............................................................................................................. 6

Install Add-in Card ............................................................................................................... 7

Install Rack Handles ........................................................................................................... 7

Install Intel® RAID C600 Upgrade Key (optional) ............................................... 7

Install Intel® Remote Management Module 4 (optional) ................................ 7

Install Intel® RAID Smart Battery (optional) ......................................................... 7

Install Second Power Supply Module (optional) ................................................. 8

Install Bezel (optional) ...................................................................................................... 8

Install the Top Cover ......................................................................................................... 8

Finishing Up ............................................................................................................................ 8

Software .................................................................................................................................. 9

ii

Warning

Read all caution and safety

statements in this document
before performing any of the
instructions. Also see the Intel®

Server Board and Server Chassis
Safety Information document at:

http://www.intel.com/support/
motherboards/server/sb/cs-010770
.htm for complete safety information.

Warning

Installation and service
of this product to be
performed only by
qualified service personnel
to avoid risk of injury from
electrical shock or energy
hazard.

Caution

Observe normal ESD
[Electrostatic Discharge]
procedures during system
integration to avoid possible
damage to server board and/or
other components.

Tools Required

Anti-static
wrist strap

Phillips*
screwdriver

Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the
property of others. Copyright © 2012, Intel Corporation. All rights reserved.

Thermal Operation and Configuration Requirements

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and
configuration guidelines:

• Ambient in-let temperature cannot exceed 35º C and should not remain at this maximum level for long periods of time.
Doing so may affect long term reliability of the system.

• The CPU-1 processor + CPU heatsink must be installed first.

• Memory Slot population requirements:
NOTE: Specified memory slots either can be populated with a DIMM or supplied DIMM Blank (DIMM blanks are only
provided in systems that require them). Memory population rules apply when installing DIMMs.

▪ DIMM Population Rules on CPU-1

Install DIMMs in order; Channels A, B, and C. Start with 1st DIMM slot (blue) on each channel, then 2nd slot.

▪ DIMM Population Rules on CPU-2
Install DIMMs in order; Channels D, E, and F. Start with 1st DIMM slot (blue) on each channel, then 2nd slot.

• All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied drive
blank.

• The air duct must be installed at all times.

• In single power supply configurations, the second power supply bay must have the supplied filler blank installed at all
times.

• The system top-cover must be installed at all times.

1

System Overview

Intel® Server System R2000SC Family

8 x 3.5" Hot Swap Hard Drive Bay Option

12 x 3.5" Hot Swap Hard Drive Bay Option

Hot Swap Hard Drive Bay Options

* R2308SC2SHDR as shown

System Features and Components

Hot Swap
Hard Drive Bays

System Fans

CPU1

CPU2

1+1 Redundant
Power Supply
Modules

Server Board

Air Duct

Optical Drive Bay
(Optional)

Front Control Panel

Useful Information:

• The system must be configured with two CPUs to enable PCIe slot 5 (blue color).

• The mini-SAS connector labeled SCU_1 requires an 8-port SATA/SAS Intel

®

RAID C600 Upgrade Key to be functional.

• DIMM channels D-F can only be used in dual processor configurations.

2

General Installation Process

The installation instructions in this section are for common components of Intel® Server System
R2000SC family.

Minimum Hardware Requirements

• Memory Type:

Minimum of one 1 GB, 240-pin, RDIMM or UDIMM, DDR3-1066,

DDR3-1333, or DDR3-1600.

• Processor:

Intel® Xeon® Processor E5-2400 product family.

• Hard Disk Drives: SATA

For a complete list of compatible processors, heatsinks, and memory, see

http://www.intel.com/p/en_US/support.

To avoid integration difficulties and possible board damage, your system must
meet the following minimum requirements:

1

Preparing the System

Observe normal ESD (Electrostatic Discharge)
procedures.

Place your Intel® Server System on a flat anti-static
surface to perform the following integration procedures.
Observe ESD procedures before reaching inside to make
server board connections or install components.

IMPORTANT!

Before proceeding
further, check your
Intel

®

Server System
for disconnected or
loose cables and
components that
may have occurred
during shipping.

2

Remove the Top Cover

B

Remove the four screws.

A

A

B

B

Slide the cover backward
and lift up.

3

Remove the Air Duct

Removing air duct by lifting
straight up.

4

Remove Processor Heatsink(s)

The heatsink is attached to the server board / processor socket with captive fasteners.

Lift the heatsink straight up.

A

B

C

CAUTION: The heatsink has thermal interface material (TIM) on the underside
of it. Use caution so that you do not damage the thermal interface material.

Use gloves to avoid sharp edges.

Using a #2 Phillips* screwdriver, loosen the four screws located on the
heatsink corners in a diagonal manner using the following procedure:

Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by
giving it two rotations and stop. (IMPORTANT: Do not fully loosen.)

Proceed to screw 2 and loosen it by giving it two rotations and stop.
Similarly, loosen screws 3 and 4.

Repeat steps A and B by giving each screw two rotations each time
until all screws are loosened.

Processor

Socket

AIRFLOW

Chassis Front

2

3

1

4

A

B

C

3

General Installation Process

6

Install

Processor Heatsink(s)

A

B

C

D

If a protective film covers the thermal interface material
(TIM) on the underside of the heatsink, remove the
protective film.

Align the heat sink fins to the front and back of the
chassis for correct airflow. Airflow goes from
front-to-back of chassis.

Using a #2 Phillips* screwdriver, finger-tighten
each fastener diagonally, according to the
white-circled numbers.

Securely re-tighten each fastener again in
the same order as performed in Step C.

Server

Board

CPU 2 Heat Sink

CPU 1 Heat Sink

A
I
R
F
L
O
W

A
I
R
F
L
O
W

Processor

Socket

Chassis Front

2

3

1

4

CAUTION:
Do not
over-tighten
fasteners.

NOTE: Heatsink
styles may vary

TIM

A

B

B

C

D

Install the Processor(s)

B. Open the Load Plate

Open the load plate as shown.

A

B

A

B

Push the rear tab with your finger tip to bring
the front end of the load plate up slightly.

C. Remove the
Processor
Protective Cover

A

A

Take the processor
out of the box and
remove the protective
shipping cover.

A. Open the Socket Lever

1. When opening a socket,
DO NOT TOUCH the gold
socket wires.

2. When unpacking a processor,
hold by the edges only to
avoid touching the gold
contact wires.

CAUTION:

A

B

Rotate the lever open all the way.

A

B

Push the lever handle down and away
from the socket to release it.

Install the Processor(s) ... continued

A

Orientation Posts

Orientation Notches

A

E. Close Load Plate and Socket Lever

A

Close the socket lever.

C

B

A

B

C

Close the load plate all the way as shown.

Remove the protective cover after it been automatically disengaged
from the load plate.

Orient the processor with the socket so that the
orientation notches on the processor align with
the two orientation posts on the socket.

D. Install the Processor

CAUTION: The underside
of the processor has
components that may damage
the socket wires if installed
improperly.

DO NOT DROP processor
into the socket!

Components

Processor must align correctly
with the socket opening before
installation.

Install the
processor as
shown.

5

4

General Installation Process

7

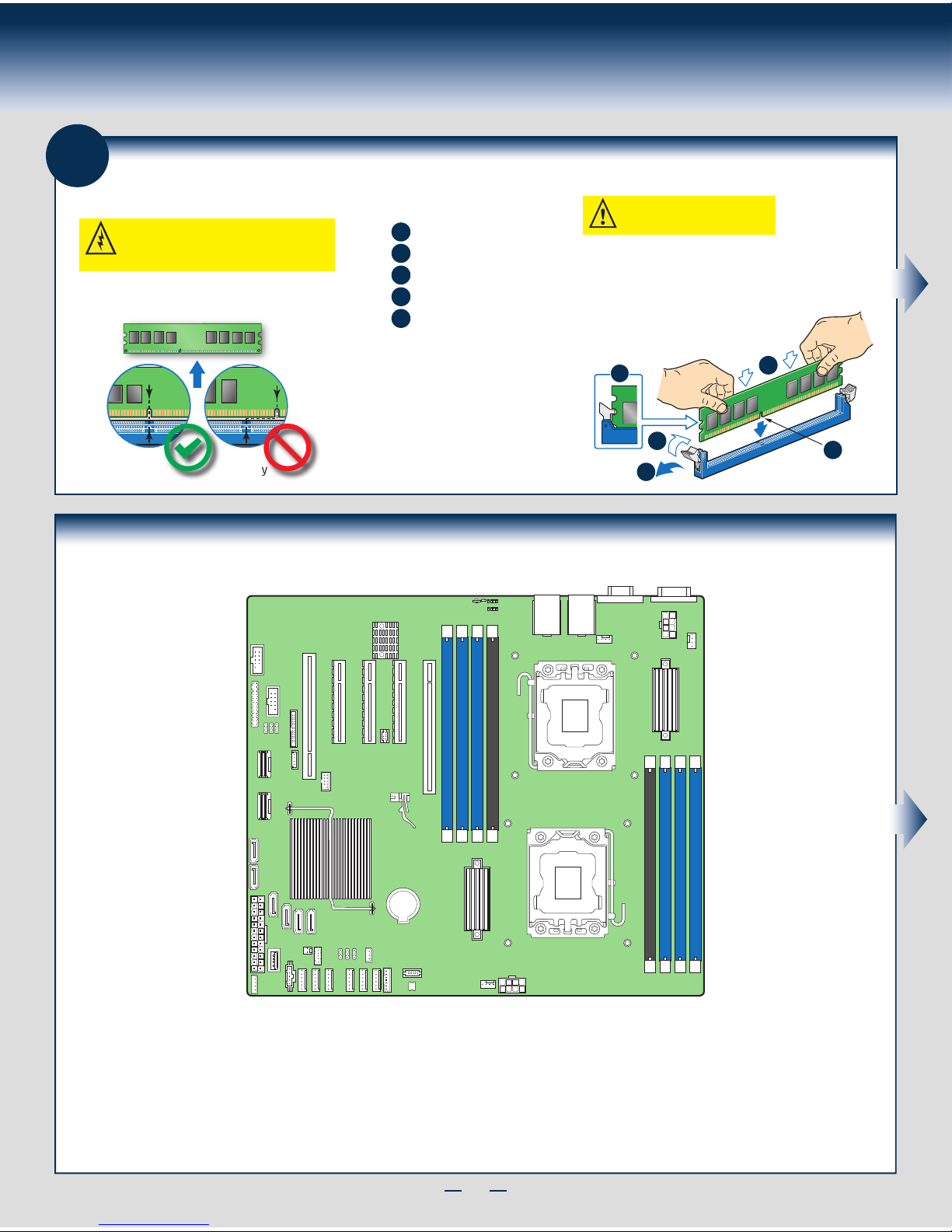

Install Memory Modules

DDR3 DIMM Memory Identification:

Other

Memory

DDR3

CAUTION: Observe normal ESD (ElectroStatic
Discharge) procedures to avoid possible damage to
system components.

DIMM notch and socket bump must align as shown below.

To Install DIMMs:

Open both DIMM socket levers.

C

A

D
E

Note location of alignment notch.

B

CAUTION: Avoid touching contacts
when handling or installing DIMMs.

A

C

D

B

E

IMPORTANT! Visually check that each latch is fully closed and correctly engaged
with each DIMM edge slot.

Push down firmly on the DIMM until it snaps into place and both levers close.

Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.

Install Memory Modules... Continued

Memory Configurations and Population Order:

Intel® Server Board S2400SC

For best performance, a minimum of three DIMMs per CPU is recommended, populated in the blue slot of each memory channel.
In a single-processor configuration, always populate A1 DIMM first.

In a dual-processor configuration, always populate A1 DIMM first for CPU 1 and D1 DIMM first for CPU2.

Note: For additional memory configurations, see the Service Guide on the Intel

®

Server Deployment Toolkit CD that accompanies your Intel® Server System

S2400SC

,

or go to http://www.intel.com/support/motherboards/server/.

Memory sizing and configuration is supported only for qualified DIMMs approved by Intel. For a list of supported memory, see the tested memory list at:

http://www.intel.com/support/motherboards/server/.

CPU 2 Socket

CPU 1 Socket

DIMM_A1

DIMM_B1

DIMM_C1

DIMM_C2

DIMM_F2

DIMM_F1

DIMM_E1

DIMM_D1

5

General Installation Process

8

Install

Hard Drives

0

1

2

3

4

5

6

7

8

9

10

11

2.5" HDD

d3

Hard Drive Numbering Diagram

Drive 0 Primary

A

B

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

A

B

Remove the drive carrier by pressing the

green button and opening the lever.

d1

d4

E

F

d2

d3

Slide the carrier out.

C

Remove the four screws securing the
plastic drive blank and remove the
plastic drive blank.

Install the plastic drive blankfrom
top. Secure the bracket with three
screws as shown.

Slide the 2.5" HDD into the plastic
drive blank to align the screw holes
with the right and left rail.

Break off the tab on the
plastic drive blank.

Install 2.5" Hard Drive as option:

Secure the hard disk drive using
the four screws for 2.5" HDD.

3.5´´ HDD

D

D

Install the hard disk drive using the same
four screws as shown. Make sure the
connector end of the drive matches the
backplane connector.

With the lever open, insert the hard disk drive assembly into
the chassis.

Push in the lever to lock it into place.

d1

Bottom

View

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

d2

F

E

12 x 3.5’’ hard drive bay as shown

8 x 3.5’’ hard drive bay as shown

CAUTION: If you don't install
all drives, empty drive bays
must be occupied by carriers
with plastic drive blank
provided to maintain proper
system cooling.

0

1

2

3

4

5

6

7

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

C

d4

2.5" HDD

6

General Installation Process

9

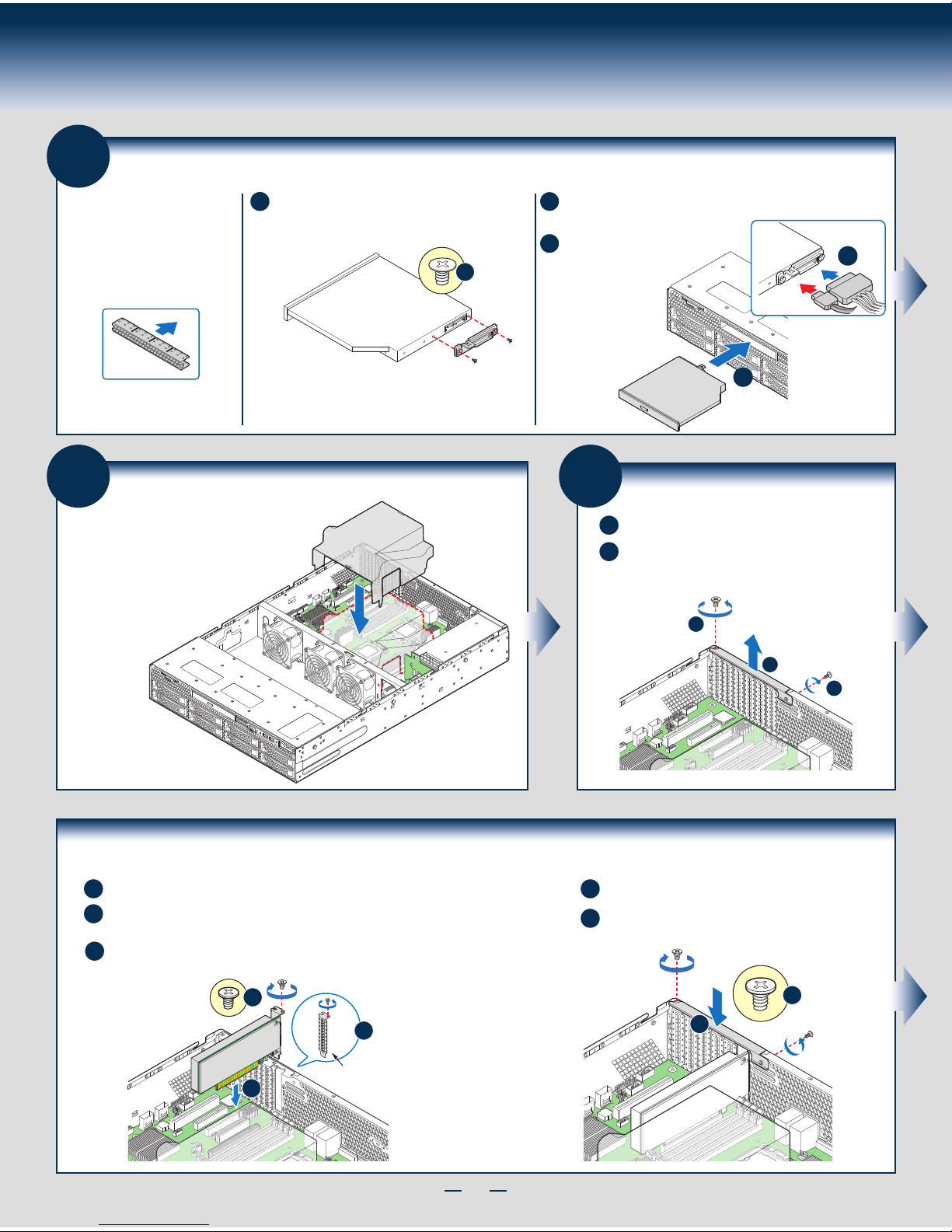

Install Optical Drive

A

B

IMPORTANT NOTE: If you do not
install a device at this location,
install the optical device bay filler
panel shown below. This is
required to maintain proper
system cooling.

Rear View

of Optical

Drive

A

Install the plastic guide onto the back
of the drive and attach with two screws
as shown.

Insert the optical drive into chassis opening
and push all the way until it stops.

C

Connect the cables as
shown.

Optical

Device

Assembly

B

Data

Power

Optical

Drive

C

11

Install Add-in Card

A

Remove the screw.

B

Slide the retention device and lift upward.

A

A

B

Install Add-in Card ... continued

C

Push out the filler Panel from the chassis and remove it.

D

Position riser card edge connector over the server board socket then press down
uniformly until it seats in riser socket.

F

Install the retention device.

G

Tighten the screw.

E

Tighten the screw.

Add-in Card

Filler Panel

E

C

D

Add-in Card

F

G

10

Install the Air Duct

NOTE: Use care to avoid
pinching system cables.

Install processor air duct as shown.

7

General Installation Process

12

Install Rack Handles

NOTE: Rack handles are required to install the bezel. For detailed
instructions, see the Service Guide.

13

Install Intel® RAID C600 Upgrade
Key (optional)

Locate the white 4-pin key header. Carefully pickup the Intel

®

RAID C600 Upgrade

Key. Match the Key and connector orientation and press down to install.

STOR_UPG_KEY

14

Install

Intel® Remote Management Module 4 (

optional)

Locate the RMM4 Lite connector, carefully
pickup the Intel

®

RMM4 Lite module,
match the alignment pin of the module
and the connector on server board, then
press to install.

Install Intel® RMM4 NICInstall Intel® RMM4 Lite

A

Remove the filler Panel and Retention Device refer to STEP 11.

B

Connect one end of the flex cable
to the RMM4 connector on the
RMM4 NIC module.

C

Attach the RMM4 module with two screws as shown.

Fasten the bracket with one screw as shown.

D

E

Connect the opposite end of the
flex cable to the RMM4 connector
on the server board.

Note: The cable connectors are
keyed and can only go in one way.

RMM4

Lite

Connector

RMM4 NIC

Connector

B

Filler Panel

Retention Device

A

C

D

E

15

Install Intel® RAID Smart Battery (optional)

A

Position the battery against the side wall.

B

Align the tabs on the plastic battery holder with the mounting holes in the
chassis and slide the plastic battery holder toward the front of the system
until the tabs engage with the mounting holes.

A

B

8

General Installation Process

16

Install Second Power Supply Module (optional)

A

B

Use the 'finger hole' to remove the
filler panel.

Insert the power supply module into the power
supply cage and push all the way until it clicks
into place.

To remove a power supply module, push the
green latch in the direction shown while pulling
out of the system by the handle.

A

Finger Hole

B

17

Install Bezel (optional)

A
B

Lock the right end of the front bezel to the rack handle.

Rotate the front bezel clockwise till the left end clicks into place.
Lock the bezel if needed.

Note: Before installing the bezel, you must install the rack handles.

A

B

18

Install the Top Cover

A

B

Place the top cover on system and slide towards the
front of the chassis until the recessed front edge is fully engaged.

Install the three screws at the front and torque to 7-9in-lbs. Then
install the screw at the back and torque to 7-9in-lbs.

B

A

A

Recessed
Edge

19

Finishing Up

Before installing your operating system, you must finish your system
installation, make I/O connections, and plug in power cord(s).

1. Verify the system top cover is installed.

2. Install the server into the rack using the instructions provided with the rack
mounting kit.

3.

Connect your USB keyboard/mouse, video and other I/O cables/devices

as shown.

Then connect the power cord(s).

CAUTION: This system must be operated with the TOP COVER installed to
ensure proper cooling.

1

st

Power
Supply
Module

2

nd

Power
Supply
Module

Serial A

Serial

Port B

(optional)

Add-in Card Slots

Video

USB

NIC 1

NIC 2

9

General Installation Process

20

Software

• BIOS, Drivers, and Operating System Installation

B. Configure your RAID Controller:

C. Install your Operating System:

D. Install Operating System Drivers:

A.

Update the System Software:

E. Install Intel® System Management Software (optional):

2. Use the Wizard to access the latest versions on the Internet and update the BIOS, firmware, FRUSDRs, and Intel® RMM4. Note: You may also download files on a USB key.

1. Boot from the Intel

®

Server Deployment Toolkit CD.

If using a RAID card, use the instructions provided with the RAID controller. If using on-board RAID, you must activate RAID in the BIOS setup. See the Intel

®

Server Board

S2400SC Technical Product Specification for more information.

Use the instructions provided with the RAID controller and with the operating system.

With the operating system running, insert the Intel

®

Server Deployment Toolkit CD. If using a Microsoft Windows* operating system, the Express Installer will autorun and

allow you to select the appropriate drivers to install. On other operating systems, browse the CD folders to locate and install the driver files.

Download the latest version of the Intel® System Management Software from http://www.intel.com/go/servermanagement and use the instructions provided at that link to
install the software.

Note: The FRUSDR utility must be run for full server configuration.

* Other brands and names may be claimed as the property of others..

10

Reference

Front Panel Controls and Indicators

Standard Control Panel

GF

H

I

J

C
D

A

E

B

HIJ

A B C D E F G

Your system may include one of two front control panel types.The
features of each are as follows:

A. ID Button with integrated LED
B. NMI Button
C. LAN-1 Activity LED
D. LAN-3 Activity LED
E. System Cold Reset Button

F. System Status LED
G. Power Button with integrated LED
H. HDD Activity LED
I. LAN-4 Activity LED
J. LAN-2 Activity LED

System Fan Connection

FAN

1

FAN

2

FAN

3

CPU 1 Socket

Air F l o w

11

Reference

Intel® Server Board S2400SC Component Layout

See your Intel® Server System S2400SC Service Guide for expanded component and connection information.

A complete list of accessories and spares can be found at: http://www.intel.com/support.

Status LED

ID LED

Diagnostic LED

NIC1
USB1
USB0

NIC2
USB3
USB2

VGA Serial A

SYS FAN_7

CPU 2 Power

CPU 2 Fan

CPU 1 Power

Slot 2 ( PCI 32)

Slot 3 ( PCI e Gen 2)

Slot 4 ( PCI e Gen 3)

Slot 5 ( PCI e Gen 3)

Slot 6 ( PCI e Gen 3)

Front Panel

RMM4 NIC

Storage
Upgrade
Key

CPU 1 Fan

SYS FAN_3

SYS FAN_1

SYS FAN_2

SYS FAN_5

SYS FAN_6

SYS FAN_4

TPM

eUSB SSD

PMBus

LCP

Battery

HDD LED

SATA 5

SATA 4

SATA 1

SATA 0

SATA_SGPIO

DIMM_A1

DIMM_B1

DIMM_C1

DIMM_C2

DIMM_F2

DIMM_F1

DIMM_E1

DIMM_D1

CPU 2 Socket

CPU 1 Socket

Main Power

USB 6

IPMB

Serial B

USB 4/5

HSBP_I

2

C

RMM4 LITE

SATA 3

SATA 2

SCU 0

SCU 1

12

Reference

System Cabling Diagram

R2308SC2SHFN

Power

Supply

(One 600w

Fixed)

FAN 1 FAN 2 FAN 3

8 x 3.5" HSBP

0-3 4-7

Optical Drive

Front Panel

Front Panel USB

I2C

13

Reference

System Cabling Diagram

R2308SC2SHDR

FAN 1 FAN 2 FAN 3

8 x 3.5" HSBP

0-3 4-7

Optical Drive

Front Panel

Front Panel USB

I2C

Power

Supply

(Two 460w

CRPS)

PDB

14

Reference

System Cabling Diagram

R2312SC2SHGR

12 x 3.5" HSBP

Interposer

Board

FAN 1 FAN 2 FAN 3

Front Panel

I2C

Power

Supply

(Two 750w

CRPS)

PDB

(This page is intentionally left blank.)

G71872-002
