Intel R2000GZ series, R2000GL series Installation Manual

Intel® Server System R2000GZ/GL Product Family Quick Installation User's Guide

Thank you for buying an Intel® Server System. The following information will help you assemble your Intel® Server System and install components.

If you are not familiar with ESD [Electrostatic Discharge] procedures used during system integration, see the complete ESD procedures described in your Service Guide.

This guide and other supporting documents are located on the web at:

http://www.intel.com/support.

2.5" hard drive bay system as shown

G31061-004

(This page is intentionally left blank.)

Table of Contents

System Overview .............................................................................................................................. 1

General Installation Process ........................................................................................................ 2

Preparing the System ....................................................................................................... 2

Remove the Top Cover ..................................................................................................... 2

Remove the Air Duct ......................................................................................................... 2

Remove Processor Heatsink(s) ................................................................................... 2

Install the Processor(s) ................................................................................................... 3

Install Processor Heatsink(s) ........................................................................................ 4

Install Memory Modules ................................................................................................... 4

Install Hard Drives .............................................................................................................. 5

Install Optical Drive ............................................................................................................ 7

Install the Air Duct .............................................................................................................. 7

Remove Add-in Card Riser Assembly ....................................................................... 7

Install Add-in Card(s) ......................................................................................................... 7

Install Add-in Card Riser Assembly ........................................................................... 8

Install Rack Handles .......................................................................................................... 8

Install Intel® I/O Expansion Module (optional) ..................................................... 8

Install Intel® RAID C600 Upgrade Key (optional) ............................................... 8

Install Intel® RAID Smart Battery (optional) ......................................................... 8

Install Second Power Supply Module (optional) ................................................. 9

Install Bezel (optional) ...................................................................................................... 9

Install the Top Cover ......................................................................................................... 9

Finishing Up ............................................................................................................................ 9

Software ............................................................................................................................... 10

Reference ............................................................................................................................................ 11

Warning

Caution

Tools Required

Read all caution and safety

statements in this document before performing any of the instructions. Also see the Intel®

Server Board and Server Chassis Safety Information document at:

http://www.intel.com/support/ motherboards/server/sb/cs-010770 .htm for complete safety information.

Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the property of others. Copyright © 2012, Intel Corporation. All rights reserved.

Installation and service of this product to be performed only by qualiﬁed service personnel to avoid risk of injury from electrical shock or energy hazard.

Observe normal ESD [Electrostatic Discharge] procedures during system integration to avoid possible damage to server board and/or other components.

Phillips* screwdriver

Anti-static wrist strap

Thermal Operation and Conﬁguration Requirements

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and conﬁguration guidelines:

• Ambient inlet temperature cannot exceed 35º C and should not remain at this maximum level for long periods of time.

Doing so may affect long term reliability of the system.

• The CPU-1 processor + CPU heatsink must be installed ﬁrst. The CPU-2 heatsink must be installed at all times,

with or without a processor installed.

• Memory Slot population requirements:

NOTE: Speciﬁed memory slots can be populated with a DIMM or supplied DIMM Blank. Memory population rules apply when installing DIMMs.

– DIMM Population Rules on CPU-1

Install DIMMs in order; Channels A, B, C, and D. Start with 1 then slot 3 (24 DIMM board). Only remove DIMM blanks when populating the slot with a DIMM.

– DIMM Population on CPU-2 Install DIMMs in order; Channels E, F, G, and H. Start with 1st DIMM slot (blue) on each channel, then slot 2,

then slot 3 (24 DIMM board). Only remove DIMM blanks when populating the slot with a DIMM.

The following system conﬁgurations require the speciﬁc memory slots be populated at all times using a DIMM or supplied DIMM blank:

– System Conﬁguration: 24x 2.5" hard drive bay or 12x 3.5" hard drive bay conﬁguration + 24 DIMM server board Memory slots 2 and 3 populated on all memory channels. – System Conﬁguration: 16x 2.5" hard drive bay or 8x 3.5" hard drive bay conﬁguration + 24 DIMM server board Memory slot 3 populated on all memory channels. – System Conﬁguration: 24x 2.5" hard drive bay or 12x 3.5" hard drive bay conﬁguration + 16 DIMM server board Memory slot 2 populated on all memory channels.

• All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied

drive blank.

DIMM slot (blue) on each channel, then slot 2,

• The air duct must be installed at all times.

• In single power supply conﬁgurations, the second power supply bay must have the supplied ﬁller blank installed at

all times.

• The system top-cover must be installed at all times. The only exception to this requirement is to hot replace a failed

system fan, in which case the top cover can be removed for no more than three minutes at a time.

System Overview

Intel® Server System R2000GZ/GL Product Family

System Features and Components

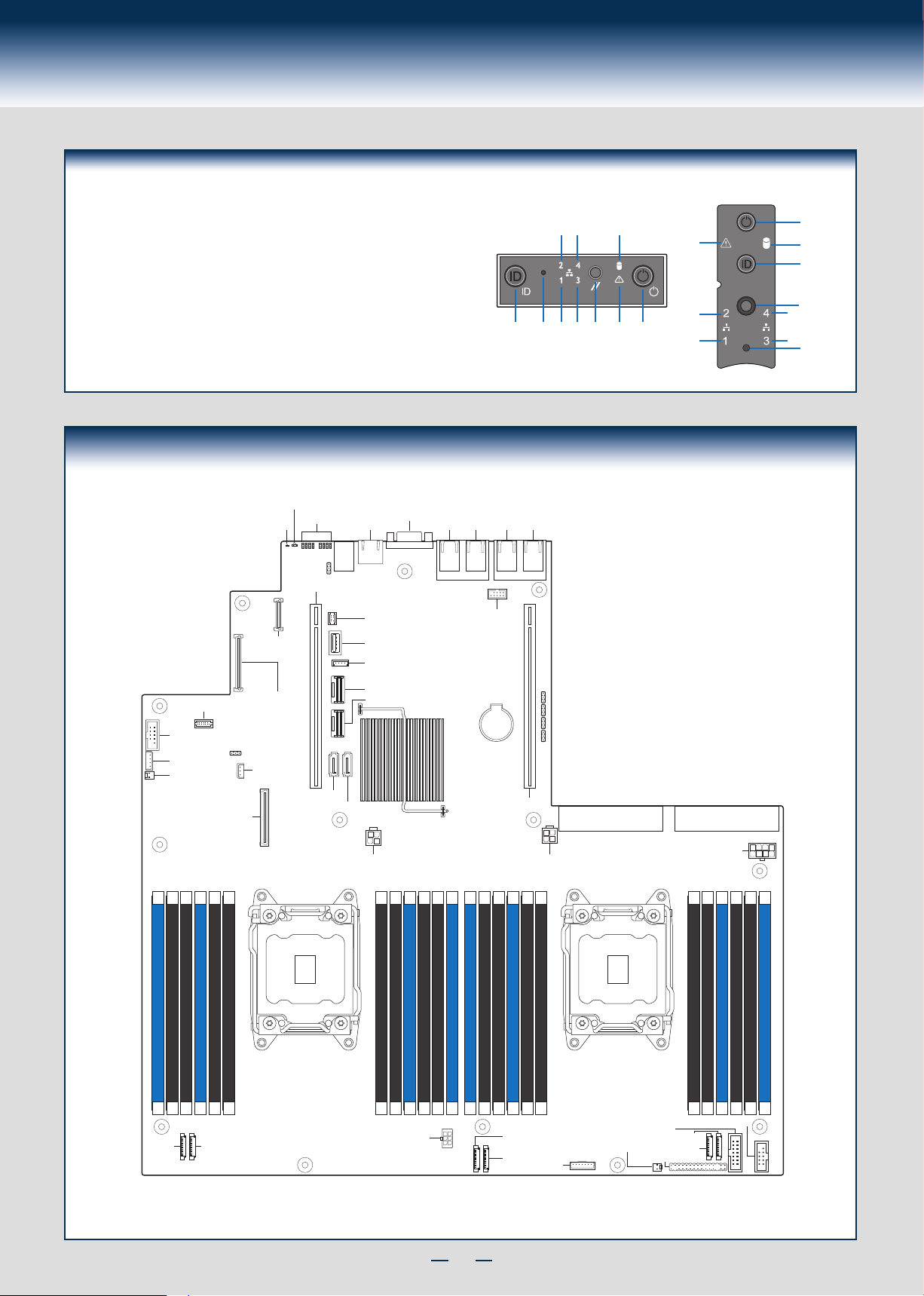

Server Board

CPU2

CPU1

Add-in Card Riser Assembly

System Fans

Hot Swap Hard Drive Bays

Optical Drive Bay

Front Control Panel

* 2.5" Hard Drive Bay system as shown

Useful Information:

• Riser Slot 2 is not functional without having two processors installed.

• The SCU1 (4-7) port requires an Intel

RAID C600 Upgrade Key installed to be functional.

1+1 Redundant Power Supply Modules

Air Duct

General Installation Process

The installation instructions in this section are for common components of Intel® Server System R2000GZ/GL Product Family.

Minimum Hardware Requirements

To avoid integration difﬁculties and possible board damage, your system must meet the following minimum requirements:

• Processor:

Intel® Xeon® processor E5-2600 product family.

• Memory Type:

Minimum of one 512MB DDR3 1066/1333 MHz UDIMM or one 1GB DDR3 800/1066/1333/1600 MHz RDIMM.

• Hard Disk Drives: SATA

For a complete list of compatible processors, heatsinks, and memory, see

http://www.intel.com/support.

Remove the Top Cover

Remove the four screws.

Slide cover back and lift upward.

Preparing the System

Observe normal ESD (Electrostatic Discharge) procedures.

Place your Intel® Server System on a ﬂat anti-static surface to perform the following integration procedures. Observe ESD procedures before reaching inside to make server board connections or install components.

Remove the Air Duct

Carefully push in the two latches on the air duct.

Rotate the back edge of the air

duct up to disengage the two tabs from fan bulkhead.

IMPORTANT!

Before proceeding further, check your

Intel

Server System for disconnected or loose cables and components that may have occurred during shipping.

Remove Processor Heatsink(s)

CAUTION: The heatsink has thermal interface material (TIM) on the underside of it. Use caution so that you do not damage the thermal interface material.

Use gloves to avoid sharp edges.

The heatsink is attached to the server board/processor socket with captive fasteners. Using a #2 Phillips* screwdriver, loosen the four screws located on the

heatsink corners in a diagonal manner using the following procedure:

Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by

giving it two rotations and stop. (IMPORTANT: Do not fully loosen.) Proceed to screw 2 and loosen it by giving it two rotations and stop.

Similarly, loosen screws 3 and 4.

Repeat steps A and B by giving each screw two rotations each time until all screws are loosened.

Lift the heatsink straight up.

Processor

Socket

General Installation Process

FOXCONN LGA2011 ILM 17562

Install the Processor(s)

A. Open the Socket Lever B. Open the Load Plate

Push down the lever and slide away from the socket to

release it. Repeat step A to release the lever on the other side.

OPEN 1st

NO CPU

Install the Processor(s) ... continued

C. Install the Processor

CAUTION: The underside of the processor has components that may damage the socket pins if installed improperly. Processor must align correctly with the socket opening before installation. DO NOT DROP processor into socket!

Components

Press the locking lever slightly to raise the

load plate.

Open the load plate all the way.

NOTE: Release the levers in the

order as shown.

NO CPU

CLOSE 1s t

OPEN 1st

NO CPU

Save the protective cover.

CAUTION: When unpacking a processor, hold by the edges only to avoid touching the gold contact pins.

Take the processor out of the box and remove the protective shipping cover.

Orient the processor with the socket so that the processor cutouts match the four orientation

posts on the socket.

Note location of gold key at corner of processor.

Install the Processor(s) ... continued

D. Remove the Cover

Press the cover to remove it.

Save the protective cover.

E. Close the Load Plate

Carefully lower the load plate over the processor.

F. Latch the Locking Lever

Push down the locking lever.

Slide the tip of the lever under the notch in the load plate.

Make sure the load plate tab engages under the socket lever when fully closed.

Repeat the steps to latch the locking lever on the other side.

NOTE: Latch the levers in the order as shown.

General Installation Process

Install Processor Heatsink(s)

CAUTION: The heatsink has thermal interface material (TIM) on the underside of it. Use caution so that you do not damage the thermal interface material.

Use gloves to avoid sharp edges.

Remove the protective ﬁlm on the TIM if present.

Align heatsink ﬁns to the front and back of

the chassis for correct airﬂow. Airﬂow goes from front-to-back of chassis.

Each heatsink has four captive fasteners and should be tightened in a diagonal manner using the following procedure:

Using a #2 Phillips* screwdriver,

start with screw 1 and engage screw threads by giving it two rotations and stop. (Do not fully tighten.)

Proceed to screw 2 and engage screw

threads by giving it two rotations and stop. Similarly, engage screws 3 and 4.

Repeat steps C and D by giving each

screw two rotations each time until each screw is lightly tightened up to a maximum of 8 inch-lbs torque.

AIRFLOW

TIM

Chassis Front

NOTE: Heatsink styles may vary.

CAUTION: Do not over-tighten fasteners.

Processor

Socket

Install Memory Modules

DDR3 DIMM Memory Identiﬁcation:

CAUTION: Observe normal ESD (ElectroStatic Discharge) procedures to avoid possible damage to system components.

DIMM notch and socket bump must align as shown below.

DDR3

Other

Memory

Install Memory Modules ... Continued

Memory Conﬁgurations and Population Order:

Intel® Server Board S2600GZ

DIMM_C1

DIMM_C2

DIMM_C3

DIMM_D1

DIMM_D2

DIMM_D3

For best performance, a minimum of four DIMMs per CPU is recommended, populated in the blue slot of each memory channel.

In a single-processor conﬁguration, always populate A1 DIMM ﬁrst.

In a dual-processor conﬁguration, always populate A1 DIMM ﬁrst for CPU1 and E1 DIMM ﬁrst for CPU2.

NOTE: For additional memory conﬁgurations, see the Service Guide on the Intel Server System, or go to http://www.intel.com/support.

DIMM_B3

DIMM_B2

DIMM_B1

DIMM_A3

DIMM_A2

DIMM_A1

DIMM_G1

DIMM_G2

DIMM_G3

DIMM_H1

DIMM_H2

DIMM_H3

CPU2 SocketCPU1 Socket

Server Deployment & Management DVD that accompanied your Intel®

DIMM_F3

DIMM_F2

DIMM_F1

DIMM_E3

DIMM_E2

DIMM_E1

Memory sizing and conﬁguration is supported only for qualiﬁed DIMMs approved by Intel. For a list of supported memory, go to:

http://serverconﬁgurator.intel.com.

General Installation Process

2.5" HDD

Install Memory Modules ... Continued

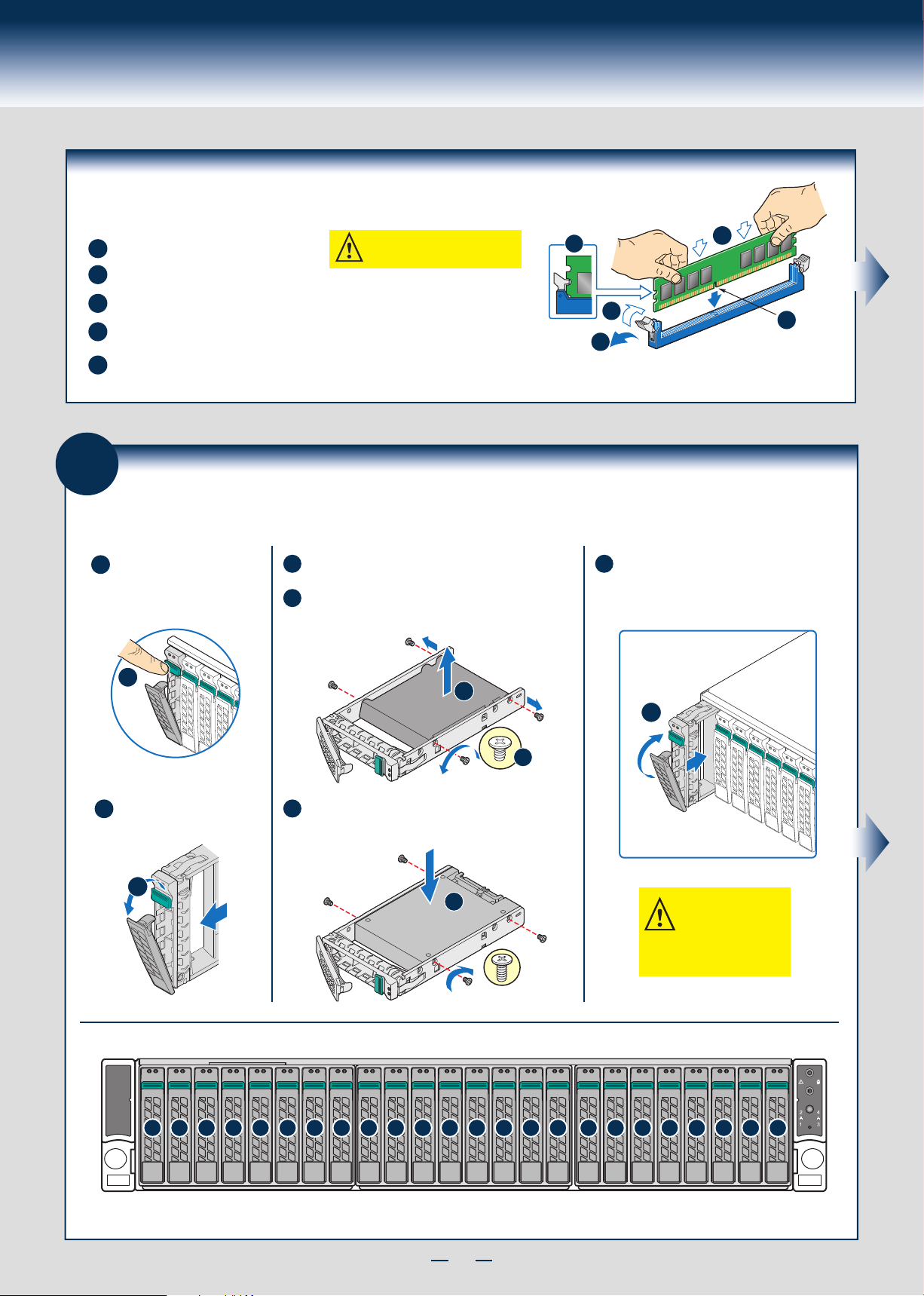

To Install DIMMs:

Open both DIMM socket levers.

Note location of alignment notch.

Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.

Push down ﬁrmly on the DIMM until it snaps into place and both levers close.

IMPORTANT! Visually check that each latch is fully closed and correctly engaged with

each DIMM edge slot.

CAUTION: Avoid touching contacts when handling or installing DIMMs.

Install

Press the unlock.

Hard Drives

green

latch to

Pull out the black lever and slide the carrier out.

2.5" Hard Drive Carrier (For system with 2.5" hard drive bay only)

Remove the four screws from the 2.5" HDD carrier.

Disengage and remove the plastic drive blank from the

HDD carrier.

With the lever open, insert the hard disk drive

assembly into the chassis, then push in the lever to lock it into place.

Install the hard disk drive using the four screws as shown.

Make sure the connector end of the drive matches the backplane connector.

CAUTION: If you don't install all drives, empty drive bays must be occupied by carriers with plastic drive blank provided to maintain proper system cooling.

1 2

Drive 0 Primary

Hard Drive Numbering Diagram

6 7

9 10

12 13 14 15

17 18 19 20 21 22 23

24 x 2.5" hard drive bay as shown

General Installation Process

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

2.5" HDD

Install

Hard Drives ... Continued

3.5" Hard Drive Carrier (For system with 3.5" hard drive bay only)

Remove the drive carrier by pressing the green button

and opening the lever.

Slide the carrier out.

Install the hard disk drive using the same

four screws as shown. Make sure the connector end of the drive matches the backplane connector.

3.5´´ HDD

Remove the four screws securing the

HDD interface bracket and remove the HDD interface bracket.

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

With the lever open, insert the hard disk drive assembly into

the chassis.

Push in the lever to lock it into place.

CAUTION: If you don't install all drives, empty drive bays must be occupied by carriers with plastic drive blank provided to maintain proper system cooling.

Install 2.5" Hard Drive as option:

Break off the tab on the HDD interface bracket.

Install the HDD interface bracket

from top. Secure the bracket with three screws as shown.

Bottom

View

Slide the 2.5" HDD into the

bracket to align the screw holes with the right and left rail.

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

TOP

Hard Drive Numbering Diagram

Secure the hard disk drive using

the four screws for 2.5" HDD.

2.5" HDD

8 x 3.5’’ hard drive bay as shown

Drive 0 Primary

12 x 3.5’’ hard drive bay as shown

General Installation Process

Install Optical Drive

Install the plastic guide onto the back of the drive and attach with two screws as shown.

Install the Air Duct

Lower front edge of the air duct to engage the two tabs

on the fan bulkhead.

Carefully push in the two latches on the air duct.

Push down the air duct into place.

Use care to avoid pinching system cables.

Rear View

of Optical

Drive

Insert the optical drive into chassis opening

and push all the way until it stops.

Optical

Connect the cables as

shown.

Optical

Device

Assembly

Remove Add-in Card

Drive

Data

Power

IMPORTANT NOTE: If you do not install a device at this location, install the optical device bay ﬁller panel shown below. This is required to maintain proper system cooling.

Riser Assembly

Grasp the riser assembly with both hands and pull up to remove from system.

CAUTION:

Place the riser assembly upside down to avoid damage to the riser card connector.

Riser Card Connector

Install Add-in Card(s)

• Full-height PCIe Card Shown

NOTE: Add-in card install sequence for low-proﬁle add-in cards is the same.

Remove the ﬁller panel from the add-in card slot and

remove the screw as shown. Insert add-in card until it seats in the riser connector.

Secure add-in card with screw as shown.

NOTE: Make sure that all empty add-in card slots have ﬁller panels installed.

CAUTION:

Observe normal ESD precautions when installing add-in cards.

Add-in Card

REMOVE Filler Panel

Riser Connector

General Installation Process

STOR_UPG_KEY

I/O Module

Add-in Card

Install Add-in Card Riser Assembly

Slide back the card guide on the air duct. Pull up the blue plastic pin out of the card guide.

Position the riser card edge connector over the server board

riser socket and align the two hooks on the back edge of the riser assembly with the slots on the back of the chassis, then press straight down into riser socket.

Slide forward the card guide to lock in the back edge of the

add-in card. Insert the blue plastic pin into the card guide to secure the

add-in card.

NOTE:

- Step A, B, D, and E are only needed when a full-length PCI card is installed on the riser assembly.

- Riser Slot 2 is not functional without having two processors installed.

Install Rack Handles

NOTE: Rack handles are required to install the bezel. For detailed instructions, see the product Service Guide available on the Intel® Server Deployment & Management DVD.

Install Intel® I/O Expansion Module (optional)

Squeeze the sides of the I/O module

bay ﬁller plate, and pull it away from the chassis back panel.

Fit the front of the module into the

back panel slot and align the I/O Module over the three stand-offs.

Hooks (2)

Slots (2)

Install Intel® RAID C600 Upgrade Key (optional)

Locate the white 4-pin key header next to Riser Slot 1. Carefully pickup the Intel Match the Key and connector orientation and press down to install.

RAID C600 Upgrade Key.

Carefully press down the I/O

module to engage connectors.

Secure the module with the three

screws as shown.

NOTE: If included, remember to install the EMI shield.

Install Intel® RAID Smart Battery (optional)

Locate the mounting holes

inside the chassis and reposition all cables routed over the fan bulkhead. Position the battery against the side wall and through the opening in the fan bulkhead.

Align the tabs on the plastic

battery holder with the mounting holes in the chassis and slide the plastic battery holder toward the front of the system until the tabs engage with the mounting holes.

I/O Connector

Fan Bulkhead

General Installation Process

Install Second Power Supply Module (optional)

Use the 'ﬁnger hole' to remove the ﬁller panel.

Finger Hole

Insert the power supply module into the power

supply cage and push all the way until it clicks into place.

Install Bezel (optional)

NOTE: Before installing the bezel, you must install the rack handles.

Lock the right end of the front bezel to the rack handle.

Push in the left side of the bezel until it clicks into place.

Lock the bezel if needed.

Power Supply Removal:

Pull out the module from the chassis by holding the handle and pressing the green latch in the direction shown.

Install the Top Cover

Place the top cover on system and slide towards the front of the chassis until the recessed front edge is fully engaged.

Install the three screws at the front and torque to 7-9in-lbs. Then install the screw at the back and torque to 7-9in-lbs.

Finishing Up

Before installing your operating system, you must ﬁnish your system installation, make I/O connections, and plug in power cord(s).

1. Verify the system top cover is installed.

2. Install the server into the rack using the instructions provided with the rack mounting kit.

Connect your USB keyboard/mouse, video and other I/O cables/devices

as shown.

Then connect the power cord(s).

CAUTION: This system must be operated with the TOP COVER installed to ensure proper cooling.

Power

Supply

Module

Recessed Edge

Serial Port B (optional) Add-in Card Slots

Supply Module

Power

NIC 2 NIC 4

NIC 1 NIC 3

Network

Serial

Port A

Video USB

Ports

Intel

NIC Port

RMM4

Intel ® I/O

Module

(optional)

General Installation Process

Software

A. Update the System Software:

Update the System BIOS, ME Firmware, BMC Firmware, and FRU & SDR data, using the latest versions posted for this product at

http://www.intel.com/support.

NOTE: The FRUSDR utility must be run for full platform management functionality.

B. Conﬁgure your RAID Controller:

If using a RAID card, use the instructions provided with the RAID controller. If using on-board RAID, you must activate RAID in the BIOS setup. See the Intel R2000GZ/GL Service Guide for more information.

C. Install your Operating System:

Use the instructions provided with the RAID controller and with the operating system.

D. Install Operating System Drivers:

With the operating system running, insert the Intel autorun and allow you to select the appropriate drivers to install. On other operating systems, browse the DVD folders to locate and install the driver ﬁles.

E. Install Intel® System Management Software (optional):

Download the latest version of the Intel® System Management Software from http://www.intel.com/go/servermanagement and use the instructions provided at that link to install the software.

* Other brands and names may be claimed as the property of others.

• BIOS, Drivers, and Operating System Installation

Server Deployment & Management DVD. If using a Microsoft Windows* operating system, the Express Installer will

Server System

Reference

Front Panel Controls and Indicators

Standard Control Panel

Your system may include one of two front control panel types.The features of each are as follows:

A. ID Button with integrated LED B. NMI Button (recessed, tool required) C. LAN-1 Activity LED D. LAN-3 Activity LED E. System Cold Reset Button

F. System Status LED G. Power Button with integrated LED H. HDD Activity LED I. LAN-4 Activity LED J. LAN-2 Activity LED

A B C D E F G

Intel® Server Board S2600GZ/GL Component Layout

Status

LED

TPM Connector

Serial B

IPMB HDD LED

SAS Module

Connector

ID LED

Riser Slot 1

RMM4

NIC

I/O Expansion

Module

Connector

HSBP I

Diagnostic LEDs

USB

SATA 0

SATA 1

12V Power 1

Serial A

Video

RMM4 Lite

Internal USB

Storage Upgrade Key

SCU0 (0-3) SCU1 (4-7)

Optional

NIC4 NIC3

eUSB SSD

NIC2 NIC1

Riser Slot 2

Optional

12V Power 2

HIJ

Main Power 2 Main Power 1

HSBP Power

Connector

G H

DIMM_C1

DIMM_C2

DIMM_C3*

DIMM_D1

DIMM_D2

System

Fan 1

System

Fan 2

DIMM_D3*

CPU 1 Socket

ODD/SSD Power Connector

DIMM_B3*

DIMM_B2

DIMM_B1

DIMM_A3*

DIMM_A2

DIMM_A1

DIMM_G1

DIMM_G2

DIMM_G3*

System

Fan 3

System

Fan 4

DIMM_H1

DIMM_H2

DIMM_H3*

LCP

CPU 2 Socket

Front Panel Video

Chassis Intrusion

* - For server systems integrated with Intel® Server Board S2600GZ only.

See your Intel® Server System R2000GZ/GL Service Guide for expanded component and connection information.

Front Panel USB

System Fan 6 System Fan 5 Front Panel

DIMM_F3*

DIMM_F2

DIMM_F1

DIMM_E3*

DIMM_E2

DIMM_E1

Reference

System Fan Connection

FAN 1 FAN 2 FAN 3 FAN 4 FAN 5

A complete list of accessories and spares can be found at http://www.intel.com/support.

Air F l o w

Reference

System Cabling Diagram For system with 8 x 3.5” hard drive bay:

NOTES: To activate the port SCU1 (4-7) on the server board, a proper Intel® RAID C600 Upgrade Key must be installed. For instructions, see Intel® RAID C600 Upgrade Key Installation Guide.

A second SSD is supported when the optical drive is NOT in use. For cable routing, please refer to Page 14.

Intel® Integrated RAID Module

Power Supply

I2C

Server

Board

SSD

Mount on Air Duct

BBU

8 x 3.5" HSBP

Optical Drive

Front Panel

Front Panel Video

Front Panel USB

Reference

System Cabling Diagram For system with 12 x 3.5” hard drive bay:

Intel® Integrated RAID Module

Intel® RAID Expander Card RES2SV240

Installed into PCIe Riser Card

Power Supply

SSD SSD

I2C

Server

Board

Mount on Air Duct

BBU

12 x 3.5" HSBP

Front Panel

Interposer

Board

Reference

System Cabling Diagram For system with 8 x 2.5” hard drive bay:

NOTES: To activate the port SCU1 (4-7) on the server board, a proper Intel® RAID C600 Upgrade Key must be installed. For instructions, see Intel® RAID C600 Upgrade Key Installation Guide.

A second SSD is supported when the optical drive is NOT in use. For cable routing, please refer to Page 17.

Intel® Integrated RAID Module

Power Supply

SSD

I2C

Server

Board

Mount on Air Duct

BBU

8 x 2.5" HSBP

Front Panel

Front Panel Video

Optical Drive

Front Panel USB

Reference

System Cabling Diagram For system with 16 x 2.5” hard drive bay:

NOTE: A second SSD is supported when the optical drive is NOT in use. For cable routing, please refer to Page 17.

Intel® Integrated RAID Module

Power Supply

SSD

Server

Board

Mount on Air Duct

BBU

SAS Expander

C D E F

8 x 2.5" HSBP 8 x 2.5" HSBP

I2C

Front Panel

Front Panel Video

Optical Drive

Front Panel USB

Reference

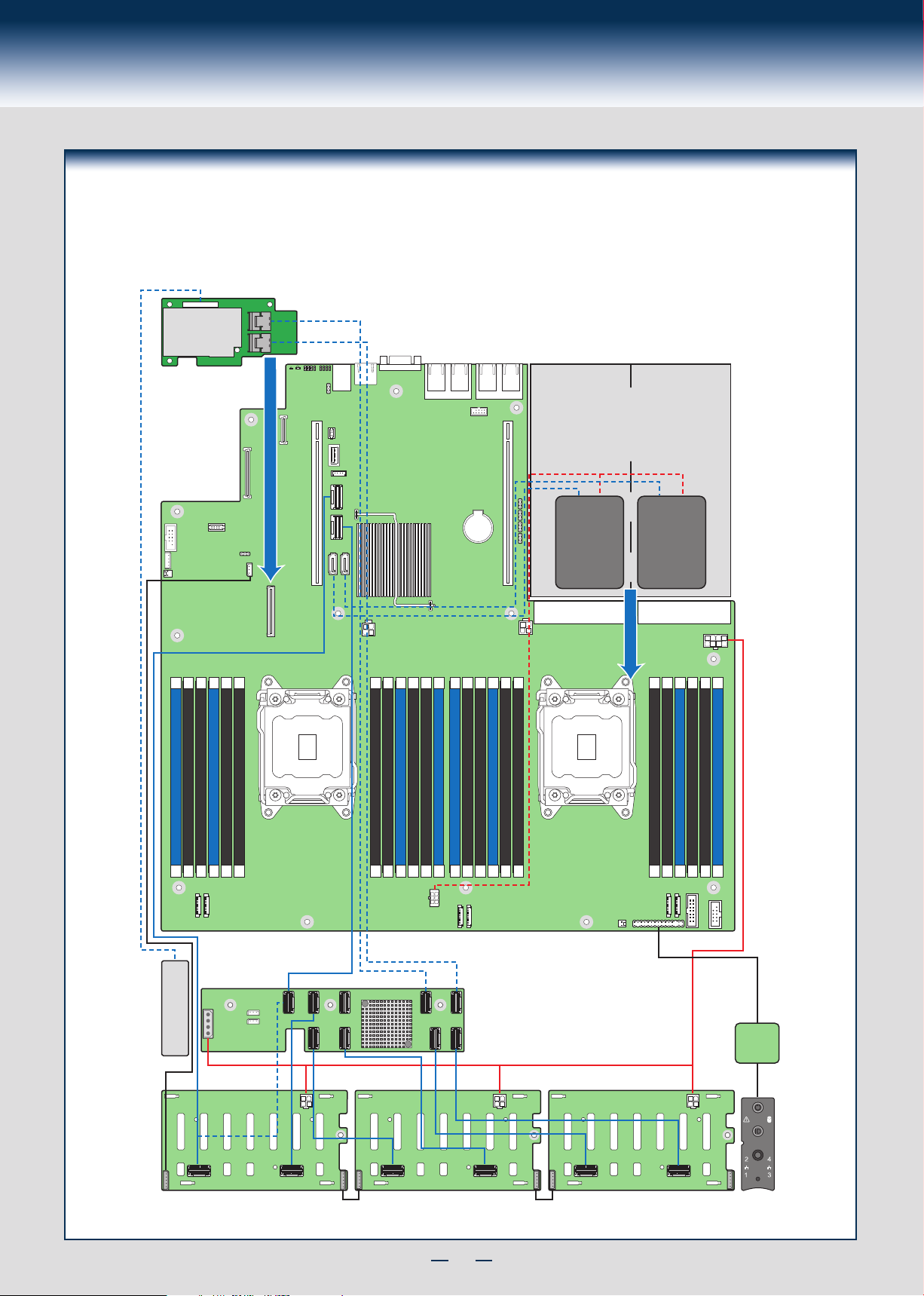

System Cabling Diagram For system with 24 x 2.5” hard drive bay:

NOTE: To activate the port SCU1 (4-7) on the server board, a proper Intel® RAID C600 Upgrade Key must be installed. For instructions, see Intel® RAID C600 Upgrade Key Installation Guide.

Intel® Integrated RAID Module

Power Supply

SSD SSD

Server

Board

Mount on Air Duct

BBU

A B

SAS Expander

C D E

H I

8 x 2.5" HSBP 8 x 2.5" HSBP 8 x 2.5" HSBP

I2C

Front Panel

Interposer

Board

G31061-004

Intel R2000GZ series, R2000GL series Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
