Introduction
Wi th the growing amount of information that travels on your local area network (LAN), confidential information has become a target for intruders bo th ins ide and outside your company. These intruders may be employees, visitors to your company, or a hacker who breaks through your firewall.
Intel® Packet Prot ect helps protect Internet P rotocol (IP) traffic as it travels betwe en computers on your LA N . This protects confidential data from being retrieved by intruders.
In this chapter, you’ll find information about:
• Packet Protect overview
• How Packet Protect works
• Getting started
1
What is Intel
Packet Protect is designed to protec t the confidentiality and authenticity of IP traffic on your LAN.
Packet Protect can assist you in creating a departmental solution fo r your secu­rity concerns.
Many data compromises are attempted from within a company firewall. Unless you protect informati on as it travels on th e network, it can be received by unwanted users.
For example, employees retrieving confidential designs from a Research & De velopment department server use Packet Protect to encrypt the inform ation while it travels on the LAN. Encryption protects the confi dentiality of the infor­mation. Each employee’s computer can also verify the integrity of the informa­tion upon receipt.
Pa cket P r ote ct?
Packet Protect Features
Packet Protect enables you to:
• Protect confidentiality and authenticity of IP traffic on your LAN using Internet Protocol Security (IPSec), including Internet Key Exchange (IKE).
• Offlo a d se cu r ity task s to an Int el PRO/100 S Management or Server Adapt er to optimize network performance.
Complete Your Security Solution
If you need to protect data stored on a computer, u se operating syst em features comb in e d w ith Pack et Prote ct. Pack et Prot ec t protects da ta t rave ling between comput ers, not while it ’s store d on a com puter. You should use your operating system features or network infrast ructure element to provide access control to certain areas of the computers on the network.
Hardware Acceleration
Imple menti ng an I PSec solut io n can increa se CPU uti lizat i on fo r comp uter s th at use the IPSec software. This is common when implementing any IPSec solution because of the intense computation required to encrypt, decrypt, and validate packets. Howe ver, there is a way to offload secur ity tasks from the CP U .
You can combine Packet Protect with the use of an Intel PRO/100 S Manage­ment o r Serv er Adap ter t o reduc e CP U ut iliz at io n. Th is fr ee s CPU ut il i zati on fo r other tasks, while reducing the impact to network performance.
Domestic and Export Ve rsions
Packet Protect i s availabl e in both domestic and export v ersions. The export ver­sion supports DES (56-bit) encryption only. The domestic version, available in the United States and Canada, supports DES and 3DES (168-bit) encryption.
2
Additional Information
This Packet Protect User’s Guide in Adobe Acrobat* format can be found in the Packet Protect directory on the product CD-ROM. Packet Protect help can be found in the Help directory on the product CD-ROM.
Introduction
3
How Pac k et Protect Works
Packet Protect hel ps you protect network traffic that is sent from one server or client to another. Packet Protect uses these steps to protect informa tion traveling on the ne tw ork:
1. Activate IKE (Internet Key Ex ch ange ). Neg ot iates par am e ters fo r se cu re communication.
2. Activate IPSec (Internet Protocol Security). Protects the communication using the security par am eters it negotiated successfully using IKE.
What is IP Security?
Internet Protocol (IP) Securit y (commonly called IPSec) is a set of standa rd pro­tocols used to protect t h e confidentiality and authenticity of IP communicati ons. IPSec accomplishes this using the following:
• Encryption. Protects confidentiality of inform ation traveling on the net­work . Each packet is encrypted so that unwanted recipient s can’t interpret it. Packet Protect uses DES 56-bit and 3DES 168-b it encrypti on algorithms (3DE S in U .S . and Ca na d a versio n only) .
•Integrity. Protects the authenticity of the information traveling on the net­work by verifying that each packet was unchanged in transport. Packet Pro­tect uses MD5 and SHA-1 authentication algorithms for bot h ESP and AH auth entication.
• An ti-re pl a y protection. Protects the network by preventi ng an intruder from successfully repeatedly sending an identical packet in an attempt to confuse the system.
For more information about IPSec, see “Appendix A — IKE and IPSec” on page 53.
What is Internet Key E xch ang e?
Inter net K ey Exc han ge ( IKE) is a s ta nda rd pro toc ol use d t o ne go tiat e a pro tect ed communication. Ne gotiation is the first pha se in setting u p a secure communi ca­tion. IKE verifies the identity of the computers using pre-shared keys. Then it negotiates a set of se curity settings to protect the communication.
IKE is a pro to col t hat ope rate s i ns ide a f ra me wo rk def i ne d by I SAK MP ( Inter net Security Associati on Key Management Protocol) and is used to support the establishment of Security Associations.
For mo re information about IKE, see “Appendix A — IKE and IPSec” on page 53.
4
The Process
If two com puters require security, each time they attempt to communicate wit h each o ther Packet Protect foll ows these steps to attempt a protected comm unica­tion:
1. Ea ch co mput er uses IK E to ver i fy that the oth er is th e comp ute r i t clai ms to
2. I f i den tit y v erif i ca tion i s s ucces sf ul i n Step 1, the tw o com p uters use IKE t o
3. If the agreement is successful in Step 2, both computers will use the agreed
As long as the protected communication is active, the two computers can exchange information, without repeating Steps 1 and 2 (up to the pre-defined time and size limits — se e Table 6 on page 34 for more information).

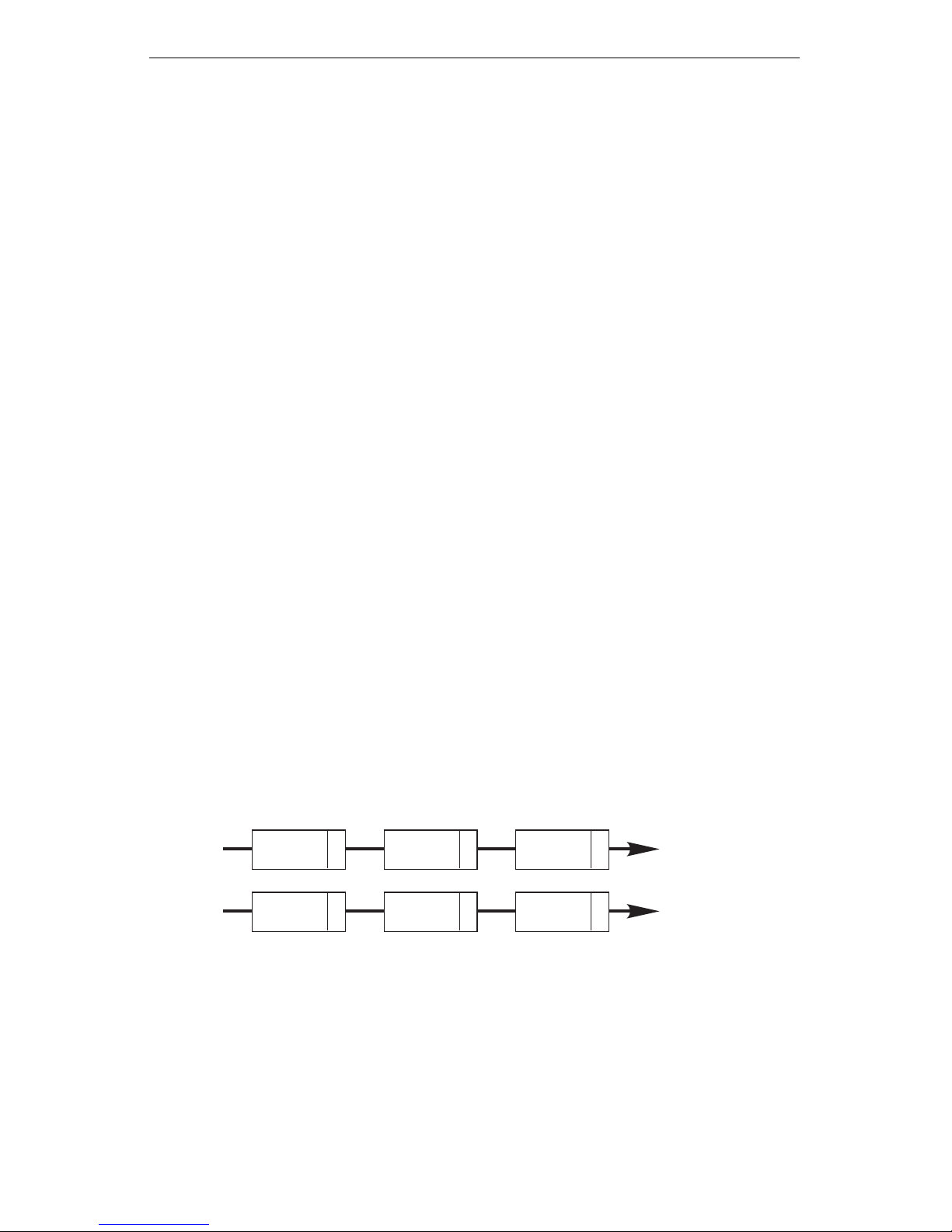

The following diagram shows the roles of IKE and IPSec.
Introduction
be.
agree upon the IPSec sett ings to use.
upon IPSec settings to protect the data as it travels.
Step 1: IKE Verif ies Pre-shared Key
Step 2: I KE Negotiates IPSec Settings
Step 3: IPSec Protect s the Communication
5
Get Started
To start using Pac ket Protect
1. Evaluate your network arch itecture and decide which areas require Packet Protect. For details, see “Developing Your Depl oyment Model” on pag e 8.
2. Install Packet Protect on those computer s that require security. For deta ils, see “Install Packet Protect” on page 17.
3. Set up security settings for each computer where you installed Packet Pro­tect. For details, see Chapter 3, “Configuring Securi ty S ettings” on page 21.
6
2
Installi ng Packet Prote ct
To set up yo u r netwo rk in prepa ra tion fo r deploy ing se cu rity, there ar e several things to cons ider. This cha pter gui de s you th rough th e set up process so you can begin deplo ying se cu rity m os t effe ctively.
In this chapter, you’ll find information about:
• De veloping your deployment model.
• Setting up Intel
• Installing Packet Protect.
network adapters.
7
Developing Your Deployment Model
In order to use Packet Protect successfully, you must develop a deployment model that fulfills your s ecurity needs on your ne twork. There are sev eral stages to consider in deve loping your deployment model.
• Review your network architecture and corporate security guidelines.
• Assign security behavior roles to computers that you want to use Packet Protect.
• Develop a strategy for using pre-shared keys.
• Under stand the Default Rule.
• Consi der exceptions to the Default Rule.
This discussion represents only an overview of some of the issues that should be considered when deploying Packet Protect in your enterprise. For more detailed information about depl oyment models , please refer t o “Scalable Deployment of IPSec in Corporate I ntranets”white paper from t he Intel Architecture Labs Inter­net Building Blocks Initiative. This white paper can be found at:
ftp://download. intel.com/ ial/home/ibbi/ipsec_122.pdf
Review Your Network Arch itecture and
Corporate Security Guidelines
The amount of confide ntial information traveling on your net work grows as more employees use your corporate network. This poses a security risk if som e­one breaks through your firewal l, or someone already behind your f irewall has access to the network—those people can access confidential information. For example, an intruder can mimic an IP address and receive inform ation that was intended for someo ne else at that IP address. Or, an intruder can use software to view data as it travels on your LAN.
You can deploy Packet Protect in the areas of your network that transmit sensi ­tive informati on. Some areas of your network might require the additional pro­tection provided b y Packet Protect, while other areas might not. Use your corp orate security guidelines to help determine w h ich areas of your network require Packet Protect.
Perhaps you have a server that stores hi ghly confidential information, such as corporate financial figures or e-comm erce transact ions. You can use your o per­ating system’s tools to help protect data stored on the server’ s hard disk, but what ab out when other computers access that information? Use Pac k et Protect
8
Installing Packet Protect
to protect your highly confidential in formation as it travels t o and from the server.
Assign security behavior roles to computers that you wan t to use Packet Protect
Packet Protect use s default secur ity behavior t o determine how a com puter will communicate with other computers on the network. There are three default behaviors: Secure Responder, Secure Initiator and Lockdown.
Secure Responder
A computer with the default behavior of Secure Responder alw ays initiates and accep t s tra ffi c th at is not secu red. H ow ever, it wil l accep t a secur e co m m u nica­tion if it is initiated by another computer. Of course, the negotiation will succeed only if one th e pr opos als in the li st of f ere d b y the ini t iator can be matc hed by the respond er.
Secure Responder is a likely behavior for the majority of workstations in a net­work. Communicati ons will always be allowed in the clear between computers that are Secure Responders or Secure Initiators, but will communicate securely with a computer (usually a server) with Lockdown default behavior.
Secure Initiator
A computer with the default behavior of Secure Initiator will always attemp t to initiate secure communications on all outbound traffic. Even if an inbound com­muni ca ti on flow is ini tiated in th e cl ea r, the respon se da ta flow wi ll ca u se the comput er to initiate a secure session. Ho w ever, if a secure session cannot be in i­tiated, the computers will fallb ack to communicat ing in the clear.
Secure Initiator behavior is appropriate for both workstations and servers . Com­pute rs who wish to use peer-to-peer secure communications can use S ecure Ini-
9
tiator behavior. Also, many servers can use this behavior as well, as long as the fallback behavi or is acceptable for your network.
Secure Initiator is similar to Secure Responder, exc ept that all outb ound traffic will result in an attempt to negotiate parameters for security.
Lockdown
A computer with Lockdown behavior will alw ays initiate and respond securely to all data flows. If the negotiatio n fails on either computer, then traf fic will be denied.
Lockdown behavior is used for serv ers with high content value, as it requires security for all data transmissions.
Communicat ing with non-Packet Protect computers
It is comm on to not use Packet Protect on all the computers in your network. While the secur it y th at P acke t Pro te ct can provi de is ben ef ici al , th ere are se v er al reasons to limit the computers on your netw ork that use Packet Protect, such as:
• Only a limited number of com puters on your network require se cure com­munications.
• In order to minimize CPU utilization, you want to limit use of Packet Pro­tect to computers that already have PRO /100S Management or Server adapters.
Comput ers tha t use the defa ul t beha vio r of Sec ur e Responde r or Sec ur e Initi at or will always be able to communicate in the clear with computers in your network that do not use Packet Protect.
Comput ers that use the default behavior of Lockdown will not be able to co m­municate with computers in your network that do not use Packet Protect.
Develop a strategy for handling pre-shared keys

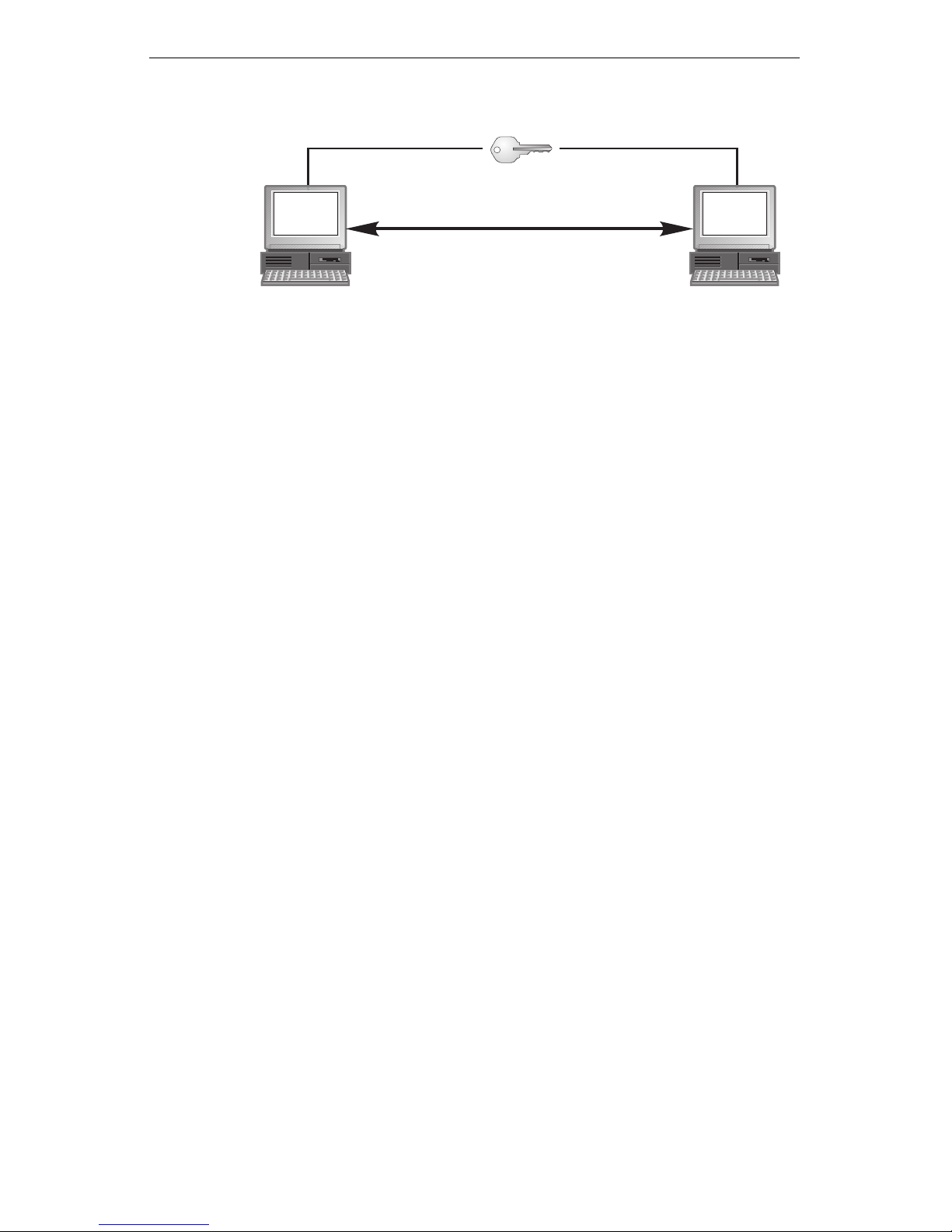

When two computers attempt secure communication, they negotiate parameters for the communicati on. In addition to using their default behavior, described in the previous section, they also exchange a st ring of characters known as a p re­shared key.
When the computers begin to negotiate parameters, they compare their pre­shared ke y s. If bo th comp ute rs hav e th e s ame p re -s hared ke y, th en the co mput er s will go ahead and negotiate parameters for the session. If the comput ers have a different pre- shared key, then the negotiati on for secure communication will cease.
Once the pre-shared keys have been compared and matched between the two comput ers, the IKE protocol generates secure, secret session keys. N o one can find out what these session keys are, even if the y know what the pre-shared ke y is. Although pre-shared keys are sometimes called passwords, they do not ac t like p ass wor ds. Ev e n when you k no w wha t t he pre- sh ared k e y is , y ou canno t us e that key to intercept or decrypt the information that is being transmitted.
10
Installing Packet Protect
Sharing keys
It’s importa nt when yo u are developing your depl oyment model that you decide how to handle the distribution of the pre-shared key. Some networks use a widely-published key, known as a “group key” or the “pre-shared key on the wall.” In this strategy, you make the pre-shared available to everyone. This way, all com puters will be configured to use the same key. This ensures that when secure communications are requested, then IK E will be able to negotiate secure communications when the keys are matc hed between two co m puters.
In addition to “group key,” some enterprises may want to u se additional, more private pre-shared keys in cert ain instances. For example, the president and the chief financial officer of a corporation may wish to send secured tr ansmissions to each other. In this instanc e, each of these computers would use the gr oup key as part of their standa rd Syst em P olicy, but would create a special rule to cov e r communications just between them. (See “Consider exceptions to the Default Rule” for more information on implementing this scenario.) In this case, they might li k ely cho ose a more sec ret pr e- sh ared k e y th at just t he t wo comput er s u se with each other.
Understand the Default Rule
Every computer that uses Packet Pro tect has a single Sys tem Policy. Each Sys­tem Policy initially contains a single Default Rule. The Default Rule is quite simple:
For Everybody, use the De fa u lt Se c ur ity Act io n . If the rule fails, Allow Communication without Security.
Note: For computers that use the Lockdown behavior wth the
Default Rule, if the rule fails then fallback action.
See “The D efault Rule” on page 26 for more information .
Note:
See “What is a Rule?” on page 25 for more information about rules in Packet Protect.
If you want to have secure communication between a Packet Protect computer and a Windows 2000* computer, you must use the Default Rule. Intel recommends that yo u do not delete the Default Rule.
Deny Communication
is the
Consider exceptions to the Default Rule
Many enterprises may find that b y careful consideration of th e default behavior roles, a widely publis hed pre-shared key, and the Default Rule, they can meet their security requirements without extra effo rt. This model is quite workable and provides adequate security. It is also simple to deploy and maintain.
11
Some enterprises may wish to create additional rules that govern communica­tions between two spe c ific computers.
Earlier, we introduced a scenario where the president and chief financial officer of a company wished to implement extra security for their communications. For this scenario, a new rule is needed. Let’s compare a possible rule for this sce­nario to the S ys te m Po li cy ’s Defau lt Rule :

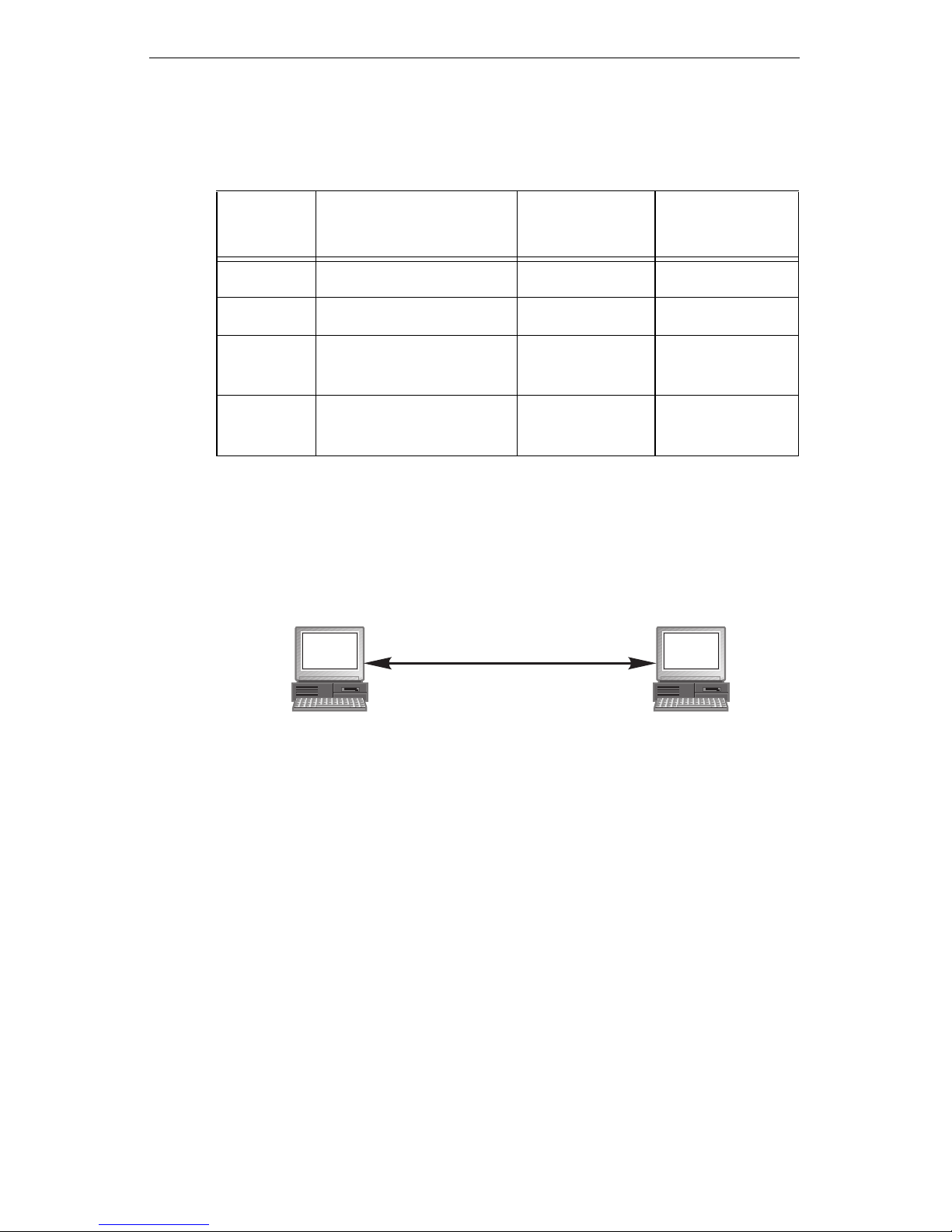

Property New Rule Default Rule
Table 1: Rule Comparison
Destination Workgroup
Security Action New Security Action: Up
Rule Failure Deny Communication. Allow communication in
Authentication Use a new pre-shared
President and CFO only Everybody
Default Sec ur ity Action: to 15 m inutes or 50 MB, whichever occurs first. Then, a new security association is negotiated.
key, known only to these two comput ers.
Up to 8 h ours , then a n ew
security association is
negotiated.
the clear.
Use the System Policy’s
settings
In addition to these rules, both the president and the Chief Financial Officer woul d hav e the Sec ure In it ia to r de faul t beha vio r. The ru le mi ght al so wan t t o us e more se cure options, such as perfect forward secrecy , whic h provides a very secure neg otiation of session keys. There are many oth er security options that can be chosen when you create a security action for this rule. See “Customize Security Actions” on page 33 for more infor mation on optio ns for security actions.
By compar ing the new ru le and the default rule, you can see how the new rule provides an extra m easure of security. The new security action is much more limited. Longer time and/or size limi ts on a security action can give an intr uder an opportunity to intercept and possibly corrupt pack ets. By denying c om m uni­cation in case of rul e failure, you ensure that communication between these t w o computers will never occur in the clear.
What are the Trade-offs?
A very important part of developing your deployment model is to consider not only the initial deployment, but maintaining the System Policies on all the com­puters that use Packet Protect in your network.
Clearly, the simplest model we discussed will be the easiest to deplo y and main­tain. When all computers u se the same defa ults—Default Rule, security action,
12
Installing Packet Protect
fallback to clear communicatio n, same pre-shared key—then you’ll be able to gain adequate security with minimum impact to your network.
If you decide on a more complex deployment model, you should consider the benefits of the extra security that you have against the costs of maintaining and running the mod el. There are two ar eas that you should evaluate—maintenance and CPU utilization.
Maintenance
If you are considering a deployment model with many customizations and spe­ciali zed rules , be aw are of t he t ime a nd ef for t requir ed f or on going m aint ena nce. Becau se each computer with Packet Protect must be configured individually, custom izations require more effort to keep each computer up-t o -date.
Let’s consider the previous example of the special rule for the president and Chief Financial Officer of the corporation. In ord er for this rule to work as designe d, all a sp ect s of t he rul e mus t ma tch, or commun ic ation wil l b e de nied. I f the president’s computer uses a different setting in the security action from the CFO’s computer, then a secur ity association cannot be negotiated and there fore all com m unication is denied. Consider then that it might take several days for the president and CFO to even discover that their communications haven’t been taking place, as assumed.
Even a new computer for the president could prevent secure communication from happening. For example, when you set up this special rule, you identified the two computers to Packet Protect by the names of the com puters. The presi­dent’s new computer has a ne w nam e. When the pres ident and the CFO attempt to communicate the next time, th e rule will fail, because of the computer name.
You c an imagine how difficult it can bec o me to maintain specialized rules, desti ­nation workgro ups, and security actions in your network. Intel recommends that you begin by using the simple, default model for secure communications. Over time, you may consider customizations to enhance secure communications in spec ial cases.
CPU Utilization
Anoth er ve ry impo rt ant f ac to r to co nsi der i s t he eff ec t of I PSec on y our net wo rk , as well as the individual computers using Packet Protect . Generally, you can assume that when you choose most sophisticated security options, there will be impac t on your network.
One example is choosing to use ESP (Encapsulation Security Payload) and AH (Authen ti cat ion H eade r) aut hen tica ti on t ogeth er. While th is combi na tion a f fo rds extra protecti on, you must consider that when you use both of these methods, you cannot offload any processing to the adapter, and thus CPU utilization incre ases. H owever, if you use jus t ES P au th en tication wi t h th e ap p ropri ate adapter, you can take adv antage of the hardware of fload and get better CPU util ­itzation.
You must also consider the adap ters that are installed in you r Packet Protect comput ers. Only the Intel PRO /100 S Server Adapter and Intel PRO/ 100 S Man-
13
agemen t A dapter can perform hardware offloading. If you ha ve other Intel PRO/ 100 Ada pters in Packet Protect computers, you won’t be able to offload any pro­cessing, thus i ncreasing CPU utilization and potent ially slo w ing that co mputer’s netw ork performance.
Other security opti ons are considered “costly” as well. Perfect Forward Secrecy is very secure, but if used widely throughout the network, there can be a signifi­cant effect on servers that have a lot of secure traffic.
Conclusion
Hopefully, this section provided some guidelines for you to consider as you develop your deployment model. There are no hard-and-fast rules that you must follo w. However , Inte l r eco mmends tha t you be gin your use of IPSe c an d Pa ck et Protect slowly in your enterprise. You should consid er starting with a small group that use t he same pre-shared key and default System Policy. When you’ve had a chance to evaluate this first implementation phase, you can then decide how to expand your use of Packet Prote ct.
14
Set Up Intel Adapters
Before you install Packet Protect, install the necessary Intel adapters on your servers and client s that will use Packet Protect. Packet Protect only operates with Intel adapters that are configured to use Intel drivers.
Inst a ll Intel Ad apte r s
Packet Protect works with Intel adapters that are designed to offload CPU-inten­sive tasks to the adapter. This helps reduce the impact to network perform ance and CPU utilization. Intel adapters that support the offload capab ilities include the following:
• Intel PRO/100 S Server Adapter
• Intel PRO/100 S Managem ent Adapter
Installing Packet Protect
Note:
Note:
Although Intel adapters can be installed on var ious operating syste ms , P a cket Protect suppo rts only Windo ws NT* 4.0 with Service Pack 5.
Packet Protect also works with the following Intel adapters, but security tasks will not offload to these adapters, and net­work performance will be affected.
PR O/10+ PCI LAN adapter PRO/10 0B LAN ad ap t e r PRO/100B T4 LAN adapter PRO/100+ LAN adapter PRO/100+ Management adapter PRO/100+ Server adapter PRO/100+ Dual Port Server adapter PRO/100 CardBus II PRO/100 RealPort PRO/100 LAN+Modem56 CardBus II PRO/100 LAN+Modem56 RealPort
TM
CardBus II
TM
Cardbus II
Install Intel adap ters for the servers and clients that use Pa cket Protect.
T o install Intel adapters
1. Refer to the Installation Guide that came with the adapters for information about installati on
2. After installation, verify network access for each compute r that will use Packe t Pr otect b y che cking t he Link a nd Act i vit y LEDs o n the ada pter. You can also double-click Network Neighborhood on a computer’s desk top to verify that ot her are as of the net wo rk are vi sible.
Configure Intel Adapters
Afte r you install adapters in the com puters that will use Packet Protect, config­ure them, as necessary, before you install Packet Protect. For e xam ple, you
15
migh t in stall m ultipl e adapt ers on a se rve r. Then you mi gh t te am tho se ad ap ters together to take advantage of adapter fault tolerance or adaptive load balancing.
Mult ip le A d apters
If you install multiple adapters in one computer, note the following:
• Install multiple adapters before installing Packet Protect.
• Each co m puter has only one sec urity policy. This me ans that the same security settings will apply to all of the adapters in one computer.
• If you use at least one Intel PRO/100 S Server or Management adapter in a comput er, Packet Protect will be able to off load encryption and authentica­tion tasks to that ad apter.
• If you need to add or remove an adapter f rom a team after you install Packet Protect, you must uninstall Packet Protect from that computer, add or remo ve the necessary adapters, and then reinstall Packet Protect.
When you uninstall Packet Protect, you lose all of your customized infor­mation, including rules and security actions. When you reinstall Packet Protect, you will only have the single Default Rule in your System Policy.
Adapter Teaming
Adapter Teaming and Packet Protect work together only for computers with Wi ndows NT operating system installed. If you set up Adapter Teamin g for mul­tiple adapters, keep the following in mind:
• Conf igure Adapter Teami ng before installing Packet Protect.
• Refer to the previous page to make sure all adapters in the team are either offload-enabled Intel adapt ers, or appear in the list of compat ible Intel adapters on the previous page.
• If you need to add or remove an adapter from a team after you install Packet Protect, you must uninstall Packet Protect from that computer, add or remo ve the necessary adapters, and then re-install Packet Protec t.
• Consi der using high-speed adapters to limit upgrading.
16
Install Packet Protect
Before you insta ll Packet Protect on your computer, make sure the computer meets the following system requirements . Packet Protect computers can be serv­ers or workstations.
System Requirements
Befor e installing Packet Protect, make sure your computers meet these require­ments:
• Windows NT 4.0 with Service Pack 5 or 6a (or higher)
• 40 MB available disk space
• 32 MB RAM minimu m, 64M B RA M re commended
®
• 200 MHz Pentium
• Intel adapter (PRO/100 family)
Note
: See “Install Intel Adapters” on page 15 for information on
choosi ng an Intel ada pter.
processor performance level or higher recomm ended
Installing Packet Protect
Licensing
All installations are subject t o the end user’s acceptance of the applicable In tel Softw are License Agr eement.
Install Packet Protect
You wil l need the information detailed in the follo w ing table during Packet Pro­tect installati on at each compute r. To complete the installa tion most efficiently, gather the foll owing information before you begin.
Information
You N eed
Default behavior
Table 2: Required Information
Description
Decide how you want the computer to communicate with other computers on the network:
• Secure Responder
• Secure Initiator
•Lockdown For more information about these settings, see “Default Behaviors for Packet Protect Computers” on page 22.
Pre-shared key Enter a pre-shared key the computer will use to
communicate securely with other IPSec computers. A pre-shared key is similar to a secret password.
17
To install Packet Protect
1. Verify that the computer you have chosen meets the minimum require­ments detailed under “Sy stem Requiremen ts” on page 17.
2. Insert th e pr oduct C D- R OM in to the CD-ROM driv e at the comput er wher e you want to install Packet Protect.
3. Browse to the CD-ROM using Windows Explorer.
4. Doubl e-click d:\packet protect\setup.exe, where d:\ is t he drive of your CD­ROM drive.
5. Follow the dialog bo x instructions on the screen.
Ke ep a confidential record of the information you enter. If you need to reinstall Pac ket Protect lat er, you will need to re-ent er this information.
Notes:
If the static IP address or the DNS name of the computer changes, you must re store t he S yste m Policy. Yo u wi ll lose all your customizations when you restore the System Policy. Also, if there are other computers in the network that have rules that apply to the computers whose IP address or DNS name changes, the rules of those computers need to be changed. For information on restoring the System Policy, see “Restore t he Syst em Policy” on page 42.
You can also install from a mapped drive where you have stored the Packet Protect installation file s.
If you already have adapter teaming installed on the system, there’s no need to re-enter the TCP/IP settings during Packet Protect installation (you are not prom pted for this informa­tion).
To verify that Packet Protect is installed and running on a computer:
1. At the taskbar on the computer, select Settings > Contro l Panel.
2. Doub le -c lick Se r vi ces and ver ify that Int el Polic y A ge n t is st arted .
If Intel Policy Agent doesn’t appear in the list, Packet Protect has b een shut dow n or is not function ing properly. See “Turn Security on Manually for an Existing Computer” on page 47 for detai ls about restarting P acket Protect .
See the chapter “Troubleshooting and FAQs” on page 49 for general trouble­shooting guidelines and a list of common Packet Protect installation problems and their solutions.
18
View Your Security Settings
Duri ng installation, you set up basic security settings for the computer—the authent i cati on meth od and the de faul t be ha vior for t he clie nt . To view your secu ­rity settings, double-click Intel(R) Packet Protect at the Control Panel. The authentication setting and default behavior you chose during installation appear in the Security tab.
Installing Packet Protect
See the next chapter for information on editing basic settings and configuring advanc ed secu r ity sett ings.
19
20
3
Configuring Security Settings
If you have install ed Pac ket Protect, you have already set up basic security set­tings for the computer. You may view or edit these settings using Packet Protect. Optionally, you may als o use the Advanced setti ngs in Packet Protect, if you are familiar with encryption and authentication settings, to configure the security poli cy tha t co m e s w ith Pack et Protect.
In this chapter, you’ll find information about:
• Understanding default security behavior (basic settings).
• Setting up your System Policy (adva nced settings).
21
Understand Default Security Behavior
Duri ng installat ion, you selected a default beha vior for your computer to use for all comm unications. You also entered a pre- shared key that matches the pre-shared key on other computers in the netw ork so the com puter can commu­nicate securely with other computers possessing the same pre-shared key.
Default Behaviors in Packet Protect
In order to operate with security settings, your computer needs to know how to communicate with other IPSec-enabled computers. In the absence of a rule that match es a s pe ci fic co mmuni cat io n need , Pa ck et Pr ot ect us es de fa ult beh a viors t o determine how IPSec computers use security. If a matching rule exists on the two co mput ers th at are attem ptin g to c omm unicat e, th e defa ult beh a vior w ill not be used. The table below describes the default beh aviors available with Packet Protect.
: You can set up specific security policies with rules to apply to
Notes
specific types of comm unications using advanced security settings. See “Set up Your System Policy” on page 25 for more information. You cannot make any changes to Packet Protect on a com­puter unless you are logged on as users cannot modify Packet Protect settings.
administrator
. Individual
Table 3: Default Behaviors for Packet Protect Computers
Default
Behavior Description
Secure Responder
(Example: workstations)
Computers with this behavior initiate communication without security (in the clear), but will attempt to negotiate a secure communication if one is requested. For example, if a Secure Responder workstation attempts to a ccess a file server and tha t file server requ e s ts a secure communication, the workstation will resp ond in a secure manner.
If two worksta tions are configured with this setting and they atte mpt to communicate with each other, the communication is allowed without security (in the cle ar) . Als o, Secure Resp ond ers a nd computers that are not IPSec-enabled communicate without security .
22
Configuring Security Settings
Table 3: Default Behaviors for Packet Protect Computers
Default
Behavior Description
Secure Initiato r
(Example: servers)
Lockdown
(Example : servers that require strict security)
Compute rs with this behavi o r req uest security for all commun ica ti ons , but don’t requ ire it. For exam pl e , a Secure Initiato r server always initiates communications by requesting security. If the negotiation for a secure communication is unsuccessful, the Secure Initiator server com m unic ates with out se cur ity (in the clea r).
Computers with this behavior communication. Lockdown computers do not communicate withou t s ecurity, that is, they do not communicate in the clear.
Only use Lockdown if a computer will be accessed by a very limited number of computers, and those computers are all properly set up with Packet Protect. If a backup to another comp uter on the network is scheduled auto matically, it will fail unless the other computer is also security-enabled.
require
security for
all
23
To change the default behavior for a Packe t Protect computer
1. Click Start > Settings > Control Panel.
2. Clic k Intel
Packet Protect. The Packet Protect Security tab appears:
3. To change the behavior for your computer, use the Behavior drop-do w n list to choose one of these behavior s: Secure Responder, Secure Initiator, or None.
4. To change the pre-shared ke y, type a new key in Pre-Shared key bo x.
5. When you ar e finished viewing and making changes in the Security tab, click OK.
24
Set up Your System Policy
You set up basic security settings when you install Pack et Protect. If you are familiar with encry ption and authentication settings you can use the advanced settings in Packet Protect to configure specific security settings to apply to dif­ferent types of communi cation. Packet Protect comes with a system policy that contains advanced security settings.
What is a Policy?
A policy helps determine how the computers you manage communicat e w ith each other and with other computers on the network. Policies contain one or more ru les and use rul es to specify how computers on the LAN com municate in a protected way. Your Packet Protect policy comes with pre-defined rules. Each rule has its own set of conditions that, if matched, apply defined security set­tings. You can edit the pre-defined rules or create new rules for your policy.
What is a Rule?
Configuring Security Settings
A rule defines how you want to communicate with other computers on the net­work. For example, one rule can define how to communicate with a file server using sp eci fi c se cur ity s et tings . An oth er can d ef i ne an enti re g roup of comput er s for which communication will always be allowed “in the clear ” (without secu­rity).
The rules in your system policy are listed in the Policy Editor. To view the Pol­icy Editor, cli ck Ad va nc ed on th e Secur i t y Tab.
25
Every rule contains the information described in the following tab le.
Rule Setting Description
Table 4: Rule Settings
Destination workgroup
Security acti on Colle ction of security se t tings used when ne goti a ti ng a
Rule failure Definition of what happens when the rule is applied,
Authentication Definition of how your computer verifies the other
: All rule s s pecify All IP f or the Traffi c Gr oup. If a rul e is applied,
Note
Collection of computers with which a computer communicates.
commun ication.
but the communication is not negotiated successfully. You can allow the communication to occur unsecured, or deny the communication.
computer’s pre-shared key when the rule is applied. You can use the authentication settings already specified for your computer (on the Security tab), or use custom settings for th e rul e (p rop ose a pre-shared key).
the security settings apply to all IP traffic between the two computers communicating. Refer to the readme file on the product CD-ROM for a list of ports and protocols that are always sent unprotected in order for Packet Protect to func­tion.
The Default Rule
When you install Packet Protect, the default rule is created . The Def ault Rule has these properties:
• Destination Workgroup Everybody.
• Security Action Default Action.
26
Applies to every computer in the LAN.
The sta ndar d se curity ac tion, w hich us e s a time limit of 8 hours. Refe r to “Customize Security Actions” on page 33 for detailed inform ation about security actio ns.
• If rule fails Allow Communication without Security.
• Rule authentication Use Sys tem Po licy’s settings.
Importance of Rule Order
Configuring Security Settings
If the computers cannot negotiate a secure communication, then communication is allowed without any security. For comp uters that use the Lockdown behavior—if the rule fails, then communication is denied.
When Packet Protect was installed, each computer was set up to use a pre-shared key. When two computers attempt to communicate securely using a pre-shared key, each computer must have the same key entered. If these keys do not match, the rule cannot be authenticated by the computers and it will fail.
The System Policy typically contains one or m ore rules. Place the rules in the order you want them applie d. If you have one general rule and also an exception to that ru le, pla ce the excepti o n be fore th e g en eral ru le ; otherw i se , the spe ci fic rule is never applied.
It is cr iti cal tha t you or der rules appr opria te ly to en sure t he y beh av e as ex pec ted. The following example shows what might happen if the rules are not in the cor­rect order.
Example of rule ordering
Suppose you have created a destination workgroup for the finance managers at your co m p a ny. You ne ed to send sen s itive information to th e m a na gers, so yo u have created a rule with hig h security settings. You decide tha t if one of the finance managers does not meet the security action settings, you do not want to transmit information. Y ou also have the Default Rule with security settings to use when communicating with everyone on the LAN. However, if the settings fail to be negotiated, you will still allow the communication to take plac e w ith­out security. The rules you have created appear in the table below.
Table 5 : Correct Ord ering for Rules
Rule Name
To Finance Management
Default Rule Everybody DES+MD5+None Allow
Destination
Workgroup
Finance Managers
Security Action If rule fails
3DES+SHA1+None Deny
27
The rule ordering abov e requires the Finance Managers workgroup to have a rule listing your computer and the 3DES +SHA1+None security action in or der to negotiate secur e com munication. If the Finance Managers workgroup does not ha ve a matchin g rule, communica tion will be denied.
Notice the importance of rule order. If the Default Rule was ordered before the To Finance Management rule, communication with Finance manager worksta ­tions would be allowed “in the clear” (with no security) even if the Finance Managers workgroup does not have a mat ching rule for communication with R&D using the 3DES+ SHA1+None algorithms. In this case, the general rule woul d be applied first, and the spec ific rule would never be applied.
For ins tr uc tions on ho w t o order rul es, see “ Ste p 3: O rder t he Rul es ” on page 31. The next section explains more about how Packet Protect computers use rules.
For information about security algorithms and about their notation, see “About algorithm notation” on page 36.
How Does the System Policy Work?
The System Policy defines a collection of rules that describes the security set­tings to enforce under certain situations. When a comput er attempts communi­cation, Packet Protect evaluates a number of things before allowing the communication.
The following example describes how the policy w orks:
1. MyComputer attempts to communica te with MyServ er with a rule using the 3DES+SHA1+None encryption algorithms.
2. If a rule match is found, MyComputer proposes the security action set­tings and authentica tion settings that you defined for that rule. The two comput ers negotiate the securit y settings. If that security settings negotia­tion is successful, the two comput ers communicate using the agreed upon settings. If that negotiation fails, the communication fails or is allowed unsecured, depending on the if rule fails specification. If a rule match isn’t found, the system proposes the pre-shared key assigned for that computer’s w orkgroup. It the n proposes pre-de fined secu­rity settings such as default settings that are used for all communications. See “Appendix A — IKE and IPSec” on page 53 for more information.
Note:
If the destination computer uses Packet Protect, it also searches its policy for a rule with settings that ma tch. If your computer and the destination computer have matching rules, the communication is allowed secure according to the speci­fied security action settings.
Add Rules to the System Policy
Addin g rules to your policy is optional. If you are unsure whether you need new new rules, see “What is a Policy?” on page 25 for more information.
Crea ting a new rule involves several steps:
28
Configuring Security Settings
1. Viewing the System Policy.
2. Defining a new rule for the System Policy.
3. Ordering the rules.
In gen eral, follow these guid elines when you make rules:
• When you add a rule to comput er A’s policy for secur e communication with computer B, you mus t add a matching rule in computer B’s policy for secure communication with computer A . Otherwise, the rule w ill fail and communication will be denied or allo we d unsecure (depending on the If rule fails setting for both workgroups’ rules).
• If you add two rules that include some of the same computers (for example, one ru les lists computer A as the destination workgroup, and another rule lists Everybody – all computers on the network – as the destination work­group), you must order the specific rule before t he general rule. Otherwise, the specific rule will never be applied. See “Imp ortance of Rule Order” on page 27 for more information.
Step 1: View the System Policy
1. At the Control Panel, click Intel Packet Protect.
2. On the Security tab, click Advanced... . The Policy Editor dialog box
appears:
29
Step 2: Define a new rule for t he policy
1. Click New Rule. The New Rule dialog box appears.
2. In the Rule Name text box, type a name for the rule.
3. In the D estination workgroup text box, sel ect the group of com puters for which you want this rule to apply.
The list includes destination workgroups that are already created (either as part of the Default Rule or that you crea ted). If you want to view, edit, or create a destination workgr oup, see “Customize Destination Workg roups” on pag e 31 fo r m ore info r m ation .
4. In the Sec uri t y acti on te x t bo x, sel ect the gro up of sec ur ity se tt in gs th at you want to define for this rule.
The list includes sec urity actions you have already created and p re-defined security actions that come with Packet Protect. I f you want to view, edit, or create a secu rity ac tion, se e “Cu stom iz e Securi ty Ac tions ” on page 33 fo r more i nformation.
5. In the If rule fails text bo x, select whether to deny or allow a com m unica­tion if this rule is matched, but the comm unication fails to negotiate.
6. In the Authenticatio n area, decide whether you want to use the default set­tings or propose custom authentication settings.
You spec ified the default settings when you installed Packet Protect (dis­played on the Security tab).
7. Click OK.
8. Repeat steps 2 through 7 to ad d m ore rules to the System Policy.
30
Configuring Security Settings
Step 3: Order the Rules
1. On the Policy Editor dialog box, click a rule.
2. Click Move Up or Move Down to move t he rule up or down one line. You can also select a rule and drag it up or down.
The rules are applied in the order in which they are listed. The rule at the top of th e lis t is appl ie d befor e al l ru les bel ow it , for example.
See “Im portance of Rule Order” on page 27 for more information about order­ing rules.
T o modify a rule
In order to apply your rule to a communication, the computer with which you are attempting commun ication must have a rule with mat ching settings . If you have already coordinated rules with the other computers with which you wish to communicate, modifying your rule will require modi fication to rules for other comput ers.
1. Before you modify a rule, check the fol lowing:
• If you have already set up matching rules for other IPSec computers,
DO NOT follow the steps below .
• If you have not set up matching rules for other IPSec compu ters, con-
tinue with the steps bel ow.
2. In the Policy Editor dialog box, select rule you want to modify.
3. Click Edi t Rule. The Edit Rule dial og box appears.
4. Make changes, as neces sary, then click OK.
Customize Destination Workgroups
A destina ti on work gro up is a col le ctio n of co mput er s with w hich you r co mput er communicates. For example, if your computer requires specific security when communicating with the Research & Dev elopment Workgroup, your policy must include a rule with security settings that specifies th e R esearch & Develop­ment Workgr oup as the destination workgroup, and Research & Develo pm ent comput ers must have a rule specifyi ng the same security settings and your com­puter as the destination workgroup.
The following destination workgrou ps are available:
• Eve rybody: Use this destination workgroup when you wan t the rule to apply to communication with all computers on your LAN.
• Destination workgroups you create.
If a comp uter or group of computers you need is not in the destination work­group list, create a new destination workgroup.
To create a new destination workgroup
1. On the Policy Editor dialog box, select the rule for which you want a new destination workgroup.
31
2. Click Edi t Rule. The Edit Rule dial og box appears.
3. Click Customize Destination. The Customize Destination Workgroups dia­log box appears.
4. Click New.
5. In the Destination workgroup box, type a new name for the destination workgroup.
6. To add computers to the destination workgroup, in the Add computers by text box, sel ect how you want to identify computers for addition to the des­tinat ion workgroup: by IP addre ss or by computer name.
: Check with your network administrator to determine how to
Note
add computers to a workgroup. If the computer you want to add to this workgroup has a permanent (or static) IP addresses, you should probably add computers to the work­group by IP address. If the computer you want to add uses s dynamic IP addresses (where a temporary IP address is assigned to a computer for each session), then you should probably add computers to the workgroup by computer name.
7. Type the computer name or IP address for a computer you want to add to the wo rkgroup.
8. Click Add>>.
9. Repeat st eps 5 through 8 for eac h computer you want to add.
10. If you need to del ete a com p uter fr om th e des tinat i on wor kgrou p, se le ct the comput er from the list on the righ t, then click <<Re m ove.
11. If desired, continu e adding destinat ion workgroups by clicking New again and repeating Steps 4-7 .
12. Click OK. The s elec te d de stin at io n w ork group app ear s aut omat i call y i n the Edit Rule dialog box.
32
Configuring Security Settings
Destination workgroups can be used in multiple rules. If you modify a desti na­tion workgroup, other rules may be affected.
Before you modif y a destination w orkgroup, check the followin g :
• If you have used the destination workgroup in any other rules, do not
follow the steps below. See “M odify Destination Workgroups or Secu­rity Actions” on page 41 for more information.
• If you have not used the desti nation workgroup in any other rule, con-
tinue with the steps bel ow.
To modify a destination wor kgroup
1. In the Cus tomize Des ti na tion Workgro ups dial og box , sel ec t the de st in atio n work group you want to mod ify.
2. Make changes, as neces sary, then click OK.
Customize Security Actions
You must specify a security action for each rule. This sectio n defines the secu­rity settings you can apply when two comput ers communicate .
Packet Protect pro vides six pre-defined security actions, described below. Se e “Available Setti ngs for Security Actions ” on page 34 for detailed information about the security settings listed here.
•Clear Use to co m municate completely in the cl ear, without any security.
• Default Action Use to get an act i on th at pro vid es a high level of secu rity, alon g wit h a high
level of int erope ra b ility. The default acti o n is a rich se t of IPS e c propo s als that includes var ious levels of ESP (Encapsula tion Security P ayload) encryption, ESP authen tication, and AH authentication. It provide s a maxi­mum level of interoperabili ty with non-Packet Protect implem entations of IPSec.
•Deny Use to deny any communications between two computers.
• Initiate Clear, Secure Responder Use when you want to initiate communications in the clear and will attempt
to negotiate a secure connection if requested. This security action is most appropriate for workstations.
• Secure Initiator, Fallback Clear Use when you wan t to request security for all communi cations, but do not
require it. If a secur e connection cannot be negotiated, then the co m muni­cation will be in the clear. This security action is appropriate fo r servers.
• Secure Initiator, Fallback Deny Use when you wan t to require security for all communications. If a sec ure
33
connection cannot be negotiated, then the communication request is denied. This security action is approp riate for serv ers.
Remember that two computers att em p ting to commun icate must agree on cer-
tain settings in order to communicate using IPSec.
The Requires Matc h? colum n in the table below indicates whether the source and destination comput ers must have the same security setting..
Table 6: Available Settings for Security Ac tions
Security
Setting Description
Time lim it The length of time (in minutes or hours) the
protected communication can be active before the system renegotiates. To increase protection, lower the time limit (to a minimum of 10 minutes). Th is makes the system re­negotiate a new security association more often, but increases network traffic. You may specify a time limit, size limit, or both. This setting is optional.
If two computers re quire different time lim its, the communication is re-negotiated w hen the lower tim e limit is re ach ed. If a tim e l imit is not defined, the default is 8 hours.
Size limit The amount of data (in MB) that can be
transferred during a security association before the system renegotiates. To increase protection, lower the size limit (to a minimum of 20 MB). This make s the sys tem ren egoti ate a new security association more often, but increases network traffic. You may specify a time limit, size limit, or both. This setting is optional.
Requires
Match?
No
No
34
If two computers attempting to communicate require different size limits, the security association expires when it reaches the lower size limit. If you specify a size limit only, an 8­hour time limit is appli ed auto matically. The default is no size limit. There is no maximu m size limit for a security association.
Configuring Security Settings
Table 6: Available Settings for Security Ac tions
Security
Setting Description
Perfect forward secrecy
The sys t em p ropo ses a second set of keys for the security association (instead of using the first set of keys used to verify identific ation). Packet Protect is designe d to agree on any of the settings (including none), but it proposes the setting yo u select.
: DO NOT use per fect forward se c rec y if
Note
your computers will need to co mmunicate securely with Windows* 2000 I PSec comput­ers or any other non-Packet Protect IPSec comp uters. Th is setting is not compatible with non-Packet Protect IPSec computers and may caus e communication to fail.
Anti-r eplay protection
The system does not accept repeated packets; that is, packets that the system already received. This helps protect against an intruder sending the same packets repeatedly in an attempt to confuse an application. Always use this option because it increases the le ve l of prot ectio n with v ery littl e impact on network traffic.
Requires
Match?
No
No
Use algorithms in order of preference
Note:
Combinations of algorithms a computer must
Yes use for a com m uni cati on: ESP en cry ption, ESP authentication, and AH authentication. Packet Protect proposes the algorithm list (in order of preference) to the destination computer du ring negot iat ion.
T wo compu ters attemptin g to com municate securely m u st agree on an algorithm combination
.
If your computer needs to communicate securely to a mixed domesti c and e xport group of computer s, make su re your pol­icies have compatible encryption settings. Computers using the export version can use DES encryption only . If computers using the export version re ceive a policy specifying 3DES encryption, they will actually use DES encryption for the com­munication. Consider including both DES (56-Bit) and 3DES (168-Bit) encryption in your security actions.
35
About algori thm notation
Each security action can specify algorit hms to use for encr yption and authenti­catio n. Ther e ar e three cat ego ries (E n cr yptio n , ES P [En caps ul a tion Se cu ri ty Payload] Authentication, and AH [Authentication H eader] Authentication.
At least one of these categories must be used in a security action, or you can use two or even all three.
IPSec and Packet Protect use a kind of “shorthand” notati on for describing the algorithms used in a security action—Encryptio n value + ESP val u e + A H value. For example, i f you create a security action that uses DES for Encryptio n, SHA1 for ES P, and do not use AH, this would be shown as DES+ SH A 1+None.
To create a new security action
1. On the Policy Editor dialog box, select the rule for which you want a new security action.
2. Click Edi t Rule. The Edit Rule dial og box appears.
3. Click Cust om ize Security. The Customize Security Actions dialog box appears.
4. Click New.
5. In the Se c ur ity acti on list bo x , ty pe a new nam e fo r th e secur it y ac tion.
6. Specify a time and/or size limit for the security association. Refer to Table 6, “Available Settings for Security Actions,” on page 34 for detailed infor m ation abo u t th ese item s .
7. If applicable, select the Perfect Forward Secrecy check box.
: DO NOT use Perfect Forward Secrecy if your computers will
Note
need to communicate securely with W indows 2000 IPSec computers or any other non-Packet P r otec t I PSec computers .
8. Select Anti-replay protection. (Always select th is setting because it increases network pr otection with very little impact on network tr affic— see Table 6 on page 34 for details.)
9. Add alg orithms to the preference list for the securi ty action:
• In the Encryption, ESP Authentication, and AH Authentication list
box es, select which algorithms you want to propose for the security action. You must select at least one algorit hm from any of the lists.
• Click Add. Repeat this step for each algorithm combi nation you want to add.
10. If you n eed to rem o ve an algorithm combination from the preference list, select the combination from the list on the right, then click Remove.
11. To indicate your order of preference, move the algorithm combinations to the correct location on the list by selecting an algorithm combination and clicking Move Up or Move Down. Move the most important selection to the top of the list and continue in descending order of importance.
36
Configuring Security Settings
12. To continue adding s ecurity actions, click New again and repeat Steps 5-11.
13. When you f inish, clic k OK. The selected security action appears automati­cally in the New Rule dialog box.
To modify a security action
Security actions can be used in m ultiple rules. If you modify a security action, other rules may be af fected.
1. Before you modify a security acti on, check the foll owing:
• If you have used the security action in any other rules, DO NOT fol-
low t he s tep s below . See “ Modi fy De st inat ion Workgrou ps o r Secur it y Acti ons” on page 41 for instructions.
• If you have not used the security action in any other rule, continue
with th e steps below.
2. In the Customize Sec urity Action dialog box, select the security act ion you want to modify.
3. Make changes, as neces sary, then click OK.
37
38
4
Making Changes
Be carefu l whe n you mak e ch ang es t o your pol ic y. The sett in gs yo u modi fy may be used for more than one rule in your policy. This means changes you make may affect other rules in your policy, a nd m ay even require changes to policies for other Packet Protect computers.
In this chapter, you’ll find information about:
• Modif ying rules.
• Modif ying custom destination workgroups and custom sec urity actions.
• Deleting rules.
• Rest oring the system policy.
39
Modify the System Policy
Modif ying a computer’s Sys tem Policy may impact policies that belong to other clients with which your computer communicates using Packet Protect. In order to apply your rule to a security association, the co mputer with which you are attem pting communication must have a rule with matching settings. If you have already coordinate d rules with these ot her computers, m odifying your rul e w ill require modificat ion to the rules f or the other computers. Contact the network admin istr ato r if you ha ve an y que st ions o r co nce rns abo ut modif yi ng rul es i n the System Policy.
You may edi t the Default Rul e that comes with your Packet Protect System Pol­icy (see “The Defau lt Rule” on page 26 for a descri ption of the Defa ult Rule).
Notes:
You should car efully consider the possibl e e ffects of c han gi ng the Def ault Rule . If y ou modif y the De fau lt Rule ext ensiv el y on a computer, then you run the risk of that computer not being able to successfully negotiate a secure transmission with another computer in your network.
If y ou ha ve to re-ins tal l Packet Pro tec t f or any reaso n, or need to recreate the Default Rule, y ou will lose y our customizations and will have to specify them again.
T o modify a rule
1. Dete rm ine which of the other computers on the LAN have a matching rule for the rul e yo u wil l edit. You need this in fo r m at ion lat er.
2. On the Policy Editor dia log box, select the rule you w ant to modify.
3. Click Edi t Rule. The Edit Rule dial og box appears.
4. Make changes as necessary.
5. If you cli ck any of the Customize buttons to make cha nges, see “Modify Destination Workgroups or Security Actions” for mo re information.
6. Click OK.
7. Go to the other computers that have a matching rule for the rule you just modified (if you do not administer the other computers, coordinate the needed rule changes with the other administrator). Complete steps 2-6 on each of the other computers to update the settings so the rules have match­ing settings.
Note:
40
You must change matching rules on other computers when you modify your rules. Otherwise, when the computers attempt to communica te, the rule may fail and the security settings are not us ed.
Modi fy Destination Workgroups or Sec urity Act ions
Destination workgroups and security actions can be used in multiple rules. If you modi fy these items, other rul es may be affected. Follow these steps to ensu re that you address other affected ru les.
Dete rmine which other computers on the LAN have a matching rule for the rule you will edit. You will need this information later.
To edit destination workgroups or security act ions:
1. Dete rm ine which o ther rules that use the destination workgroup or security action you wish to modify. You will need this information late r.
2. On the Policy Editor dia log box, select the rule containing the des tination work group or security actio n you w ant to edit.
3. Click Edi t Rule. The Edit Rule dial og box appears.
4. Click Cust om ize Destination or Customize Secur ity, de pending on what you wan t to edit. The appropriate dialog box appears.
5. Selec t th e item yo u wa nt to m od i fy.
Making Changes
6. Make changes as necessary.
7. When you are finished, click OK. Any rule that uses the destination workgroup or security actio n y ou just
modified will also use the modified settings.
8. Administer the other computers that have a rule matching any of the rules that use the modified destin ation workgroup or secur ity action. (If you do not administer the other computers, coordinate the needed rule changes with the other adm inistrator.) Compl e te steps 2-7 to update the settings in the ma tc hi n g ru le .
Note
Delete a Rule
Caution:
To de le te a ru le:
: You must change matching rules on other computers when
you modify your rules. Otherwise, when the computers attempt to communica te, the rule fails and the security set­tings are not used.
After you delete a rule, you cannot recover its information.
1. On the Policy Editor dialog box, select the rule you want to delete.
2. Click Delete Rule.
3. Click Yes to confirm the deletion.
Note
: If other computers have a rule that matches the one you just
deleted, you should delete the m atching rule in the System Policy of those computers.
41
Restore the System Policy
If the System Policy on your computer has been extensively modified, you may find that your computer can not always negotiate a secure communic ation with another computer on the LAN.
When thi s occurs, you shoul d consider removing your customi zations and returning to the original System Policy, with its Default Rule. You will lose all of your customizations, including customized desti nation workgroups and secu­rity actions.
To restore the System Policy
1. Disp la y th e Intel Pa ck et Pro tect Se c ur i t y Tab.
2. Click Recreate Now. All your customizatio ns are removed and you now have the default System Policy on your computer.
42
5
Maintaining Packet Protect
You need to perform certain tasks to ensure that Packet Protect is running smoothly on their network.
In this chapter, you’ll find information about:
• Monito ring Packet Protect computers.
• Setting Up Compatible Policies
• Installing a new adapter for a Packet Protect c om puter.
• Working with other security products.
• Turning security on.
• Turning securit y off.
43
Monitor Packet Protect Computers
View Status at a Packet Protect Client
At each computer, you can verify if Packet Protect is running.
To verify whether Packet Protect is runni ng
1. At the taskbar on the computer, select Settings > Contro l Panel.
2. Doub le -c lick Se r vi ces and ver ify that Int el Polic y A ge n t is st arted .
If Intel Policy Agent doesn’t appear in the list, Packet Protect has b een shut dow n or is not function ing properly. See “Turn Security on Manually for an Existing Computer” on page 47 for detai ls about restarting P acket Protect .
44
Set Up Compatible Policies
Two Packet Protect-enabled computers m ust agree on certain settings in order to communicate in a protected way. These settin gs m u st be agreed upon by both comput ers. I t beco mes i nc rea singl y d if f i cult to set up an IPSe c s ecuri ty sy stem if there is a different network administrator who manages computers with which you need to communicate using Packet Protect.
Cont act the ot h er netw or k admi ni strato r w h o is also us ing Pac ke t Prote ct to coordinate the management of Packet Protect compute rs. One of you may need to updat e your cl i ent ’ s Sys tem Pol ic y to be com pati bl e wi th th e o the r com pu ter’s System Policy.
Two computers must use compatible settings for the following:
• Authe ntication. Both computers mus t use the same method to authenticate each other’s i d entity (e.g., both computers must use the same pre-shared key)
• IPSec. Both computers must use compatible IPSec settings. See “Custom­ize Security Actions” on page 33 and “How Packet Protect Uses IPSec” on page 59 fo r a lis t o f the requ ir ed sett in g s.
45
Work with Other Security Products
On your ne twork, there may be installations of an IPSec product othe r than Pac ket Protect. If this is the case, make sure that the security settings used by your com puters match the security settings used by the other IPSec compute rs. This is because two IPSec-enabled com puters must agree on these security set­tings in order to communicate in a protected way.
You migh t be m anaging both security product deployments, in which case you can verify the settings that need to match. If another network administrator man­ages th e secur ity com p u ters usi ng a different pro duct, contac t th at netw or k admi ni strato r to verify th e se tting s.
: If the other network adm inistrator manages Windows* 2000
Note
IPSec computers, you will need to create a separate destina­tion w orkg roup for each Windows 2000 IPSe c co mpu t er. This will maximize IPS ec interoperability.
In order to communicate with a Packet Protect computer using IPS ec, the two computers must use compatible settings for the following:
• Authentication. Bot h com p uters must use pr e-shared keys (the pr e-shared key must be th e same for both computers ) to authenticate each other’s iden­tity.
• IKE. Both computers mu st use compatible IKE set tings. See “How Packet Protect Uses IKE” on page 55 for a list of settings.
• IPSec. Both computers must use compatible IPSec settings. See “Custom­ize Security Actions” on page 33 and “How Packet Protect Uses IPSec” on page 59 fo r a lis t o f the requ ir ed sett in g s.
Note:
If you decide to install Packet Protect for a computer that cur­rently uses a different IPSec product, uninstall the other prod­uct, then install Packet Protect. For more information about installation, see “Install Security for a New Com puter” on page 47.
46
Turn Security On for a Computer
After general deployment of Packet Protect, you might need to turn security on for a computer if the computer is new and hasn’t had Packet Protect installed befo re. Or, you might need to manual ly turn Packet Protect on for an existing comp u te r if Packet Pro tect was turne d o ff prev io usly.
Install Security for a New Computer
If a new computer requires Packet Protect, follo w the instruct ions under “Install Packet Protect” on page 17.
Turn Security on Manually for an Existing Computer
Afte r installation, Packet P rotect is desig n ed to start automatically upon system startup. If for some reason Packet Protect isn’t running, you can re start it.
If you turned off security for a client and are now turning it back on, make sure you reverse whatever method you used to turn it off. See “Turn Security Off for a Comput er” on page 48 for details about the ways you can turn o ff Packet Pr o­tect at a client.
T o manually turn Packet Protect on
1. At the taskbar on the computer, select Settings > Contro l Panel.
2. Doub le-cl ick Ser vices.
3. Select Intel Policy Agent and click Start.
47
Turn Security Off for a Computer
There ma y be cases when you need to remove security from a client. For exam­ple, when the compute r no longer requi res protected traffic. There are tw o w ays you can remove secur ity from a client:
1. Shut down Packet Protect at the computer
2. Uninstall Packet Protect at the computer
Shut Down Packet P rotect at a Computer
Pac ket Protect is de signed to run automatically every time the computer starts. You can shut down Packet Protect for the current session, or you can change the computer setup so Packet Protect doesn’t run each time the computer starts.
To shut down Packet Protect for the current comp uter session
1. At the taskbar on the computer, select Settings > Contro l Panel.
2. Doub le-cl ick Ser vices.
3 Select Inte l Po licy Ag e nt and cl ick Sto p.
Note:
If you want to turn security on later, man ually restart Packet Protect. See “Turn Security on Manually for an Existing Com­puter” for more information.
Uninstall Packet Protect from a Computer
Uninstalling Pack et Protect from a computer permanently removes all Packet Protect-related files, including IPSec, IKE, policies, and related Packet Protect program files.
To uninstall Packet Protect
1. At the taskbar on the computer, select Settings > Contro l Panel.
2. Double-click Add/Remove Programs.
3. On the Install/Uninstall tab, Select Packet Protect and click Add/Remove. Follow the prompts to uninstall Packet Protect.
Caution:
When you uninstall Packet Protect, you lose all your customi­zations.
48
6
Troubleshooting and FAQs
This ch apter details tips for troubleshooting Packet Protec t. This chapter also provides a list of frequently asked questions about the product.
49
Troubleshooting
Communica ti on fails
If a Packet Pr otect computer cannot comm unicate with another co m puter, c heck the following:
• Verify that each computer’s basic security settings are set to allow commu­nication. If the computers are using advanced securit y settings, ve rify that the com puters have matching rules. The rules must allow for a match betw ee n ESP and AH se tting s fo r th e se curity ac tion.
• If usin g pr e-s ha red ke ys , v er ify t hat ea ch com puter is s et up to use the sam e pre-shared key when communicating with each another. Note that pre-shared keys ar e case-sensitive.
• At the client, verify that Packet Protect is running. Click the Start button on the taskbar, se lect Settings > Control Panel. Double-click Services and ver­ify that Intel Policy Agent is started.
Communicat ion fails when passing through a firewall
Depend ing on the type of firewall, IPSec ma y affect the deployment in different ways:
• Some f i re wa ll s b lock o uts id e- in traffic wi tho ut per fo rmi ng n etw ork a ddr es s translation (NAT). These firewalls can sometimes be configured to allow IPSec traffic to flow from within the network.
• Proxying firewalls use HTTP, Telnet, FTP and other application proxies or SOCKS to forward traffic. With these f irewalls, IPSec cannot be used to protect traff ic end-to-end. IPSec can be used within the local LAN, but all outside traffic will remain unprotected .
• If a gateway or firewall is pre sent doing network address translat ion, IPSec cannot be applied since IPSec packets are encrypted and integrity-pro­tected, making address and port substitution impossible.
The ef fe ct s of IP Sec o n f irewall pol ic ies v a ry g reatl y o n th e type a nd g oal s o f the firewalls. Refer to your firewall vendor for information on IPSec support.
Packet Protect doesn’t start automatically upon startup
At the computer, make sure that Packe t Protect is s tarted as a s ervice. See “Turn Security On for a Compute r” on page 47.
Multicast, Broadcast , and IGMP traffic isn’t protected
Multicast traffic is always unprotected when you use Packet Protect because of IPSec standards. In addition, IGMP traffic is unprotected.
50
Troubleshoot ing and FAQs
I changed the IP address or DNS name of a computer, now it can’t communicate on the network
If you have custom rules, there may be other computers in t he network that have an old IP address or DNS nam e of a computer in their rules. These rules must be modified to reflect the IP address/DNS name change.
I think som e transmi tted i nfor mati on is unp rote cted and it shouldn’t be
• Check the security action settings of both computers to make sure they match . Also try to determine which rule is being applied t o the communica­tion . If the rule is set to a llow the commu nication if the rule fa ils, the com­pute rs will transmit data “in the clear” (without security).
• Check the default behavior. If both computers use Secure Respond er or No Security, they will always communicate in the clear. If none of the rules applies to the communication, the communication is unprotected if the default behavior is Secure Initiator or Secure Responder.
• When a computer begins co m munication with another computer, the first few seconds are allowed in the clear if the rule be ing used as a fallback clear setting or if there are no matching rules and the behavior is Secure Initia to r or Secu r e R es p on d er.
• The fol lowing por ts al w ays allow t raffic to pass in the clear:
• UDP port 53 (for DNS traffic)
• UDP port 68 to UDP port 67 (for DHCP)
• UDP port 137 to UDP port 137 (NetBIOS nam e service)
• UDP port 138 to UDP po rt 138 (Ne tBIOS datagram serive)
• TCP any port to TCP port 389 (LDAP directory access)
51
Frequently Asked Questions (FAQs)
What is Packet Protect?
Packet Protect hel ps protect Internet Protocol (IP) traffic as it travels between computers on your LAN.
What is IPSec?
Internet Protocol (IP) Security is a set of protocols used to help secure the exchange of IP data. For more information about IPSec, see “Appendix A — IKE and IPSec” on page 53.
What is IK E ?
Internet Key Exchange is a protocol used to verify the identity of computers and negotiate a protected communication. For more information about IKE, see “Appendix A — IKE and IPSec” .
How does Packet Protect work with multiple adapters?
Pac ket Protect can work with multiple adapters that you inst all in one computer. If you use an Intel
offloads encryption tasks to an y of these adapters. For more information, see “Mul tiple A d ap ters” on pa ge 16.
PRO/100 S Management or Server adapter, Packet Protect
How does Packet Protect work with Adapter Teaming?
Adapter Teaming and Packet Protect work together only for computers with Windows NT
*
operating systems installed. For more informati on, see “Adapter
Teaming” on page 16.
How does implementing Packet Protect affect my network perfor­mance?
Like an y I PSec solut ion , Pac ke t Pr otect dec rease s ne tw ork per form ance be cau se of the intense computation required to encrypt, decrypt , and v alidate packets. Use Pa cket Protect wit h an Intel PRO/100 S Management or Server Adapter to reduce the impact on processor utilization and networ k traffic . Packet Prote ct is designed to offloa d processor-intensive tasks (ESP and AH algorithm calcula­tions) to these Intel adapters tha t are installe d in a computer. This frees up the comput er’s processor util ization for othe r tasks, reducing the impact to the net­work performance.
How can I tell if Packet Protect is running?
From th e Start menu, se le ct Se ttin gs > Contro l P ane l. Double- cl ic k Serv ices and verify that Intel Policy Agent is started.
Why isn’t Multicast, Broadcast, and IGMP traff ic protected
Multicast traffic is always unprotected when you use Packet Protect because of IPSec standards. In addition, IGMP traffic is unprotected.
52
A
Appendix A — IKE and IPSec
A protected communication using Packet Protect involves I n ternet Key Exchange (I KE) and In terne t Pro tocol Sec ur ity ( IPS ec). Thi s a ppendi x d esc ribe s details about IKE and IPSec, and how the technologies work together to protect information as it travels on your network.
In this appe ndix, you’ll find the following information:
• An overview of IKE and IPSec.
• How Packet Protect uses IKE.
• How Packet Prote ct uses IPSec.
For mo re information ab out IKE and IPSec, including applicable RFCs, see Internet Engineering Task Force IPSec Working Gr oup Web site at http://www.ietf.org.
53
Intel® Packet Protect User’s Guide
IKE and IPSec Work Together
Packet Protect use s IK E and IPSec to protect packets tr aveling on the network:
• IKE — Negotiates the security settings to be used by IPSec for protection of the communication.
• IPSec — Protects the packets traveli ng between two computers that ar e attem pting to communicate.
The following diagram illustrates how Packet Protect uses IKE and IPSec together to protect a communi cation between two computers
Step 1: IKE ve rifies pre-sha red keys
Step 2: I KE Negotiates IPSec Settings
Step 3: IPSec Protect s Packets
.
54
How Pac k et Protect Uses IKE
IKE is a set of standard protocols developed by the Internet Engineering Task Force (IETF). IKE is used to authenticate a nd negotiate a pr otected communica­tion. Using IK E is a tw o step pr oc ess:
1 IK E v erifies t he pre-shared keys of the two comp uters that ar e attempting
to communicate.
2 IKE negotiates a set of security settings to be used by IPSec. Each com puter must agree upon the secur ity settings before IKE can establish a
protected communication for IPSec.
Identity Negotiation Settings
When IKE negotiates security for two computers, it requires that the following be compatible:
• IKE se ttings
• Authentication method
IKE Settings
IKE settings are agreed upon by the tw o computers that are attempt ing to verify each other’s pre-shared key. They are used to protect the IKE negotiation trans­actions. Th i s allows th e tw o computers to negotia te with ou t comp ro m i sing secret key or password informati on.
The diagram below shows the steps that Packet Protect performs to protect a communication. The IKE settings are used during Steps 1 and 2.
IKE settings protect IKE pre-shared key verification and n eg otiati o n steps
Step 1: I KE Verifies Pre-shared Keys
Step 2: I KE Negotiates IPSec Settings
Step 3: IPSec Protect s Packets
Packet Protect use s pre-define d IK E settings, des igned for maximum compati­bility with computers that us e Packet Protec t and other IPSec products.
If two Packet Protect computers attempt to communicate, the y use the same default IKE settings. If one of the computers is managed by a different IPSec product, make sure that the IKE settings match. If necessary, make changes to
55
Intel® Packet Protect User’s Guide
the IKE settings in the other IPSec product. The following table describes the pre-defined IKE set tings for each computer that uses P acket Protect.
Table 7: Pre-Defined IKE Settings
Preferred
Order
Encryption Hashing
Diffie-
Hellman
1 DES (56-bit) MD5 768-Bit 2 DES (56-bit) SHA-1 768-Bit 3 3DES (168-bit)
MD5 1024-Bit
Domestic v ersion only
4 3DES (168-bit)
SHA-1 1024-Bit
Domestic v ersion only
A compute r th at requ est s a prot ect ed communi cat ion pro pos es i ts lis t of IKE set ­tings to the computer with which it is trying to communicate. The IKE settings are proposed in order of preference, but the responding computer can agree on any of the proposed comb inations. The responding comput er must ha ve one of the com b inations defined, or the co mmunication is not allowed using IPSec.
So urce compu ter
Propose s defined IK E settings
NOTE:
Authentication Method
IKE re qu ir es that two co m pu t ers use th e sam e au th entic ation method to verify each other’s identity. Packet Protect supports the following:
• Pre- sh ared ke ys — If using pre- shared keys, the two computers attempt­ing to communicate must propose the same pre-shared key, otherw ise they cannot communicate us ing IPSec. If you change the pre-shared key for a workgroup, remember that this changes the pre-shared key used for all
56
Destination computer
Picks which IKE settings to use from the s ource computer’s list
The IKE settings used by Packet Protect cannot be customized. If you require different settings for a communication with a computer that uses a different IPSec product, change the IKE settings in the other product to match one of the IKE setting combin ations used by Pa cket Protect (as noted in the above table).
communications for all computers in the workgroup.
IPSec Settings
Afte r IKE verifies the ident ity of each computer, it negotiates w hich IPSec set ­tings to use to protect the communication after negotiation. Packet Protect comes with pre-defined IPSec options, or you can create your own.
Each com puter must agree upon the IPSec setti ngs to use before IKE can estab­lish a protected communication for data transfer.
Secure communication using the same pre-shared key
Pre-defined IPSec Settings
Packet Protect comes with pre-defined IPSec settings, called security actions. These security actio ns are designed for maximum compatibility between com­puters using Packet Protect and other IPSec products.
A compute r th at requ est s a prote ct ed co mmunic at io n propos es it s IPSec set tings to the computer with which it is trying to communicate. The IPSec settings include a list of algorithm combinations that appear i n order of prefere nce. The other computer must al low one of the se defined algorithm combin ations, other­wise, the communication is not allowed using IPSec.
For a description of t he individual IPSec settin gs and how you might use them, see “Available Settin gs for Security A ctions” on pag e 34.
Custom IPSec Settings
Although it is recommended that you use the pre-defined IPSec settings (secu­rity a ct ions) th at com e with P ac ke t Prot ec t, you can al so c reat e yo ur ow n to m eet your custom corp orate security guidelines. If you create your own, keep in mind that t wo c omput er s mus t agr ee o n ce rtai n se ttin gs i n o rde r to c omm unicat e u sing IPSec.
For more information about creating your own IP Sec security actions, see “Cus­tomiz e Securi ty Ac tions ” on page 33.
57
Intel® Packet Protect User’s Guide
Examples
The following diagram illustrates failed IKE negotiations due to mismatched settings.
Pre-shared key = 123456
Default IKE s e ttings
/SHA-1
DES
Pre-shared key = 777777
Default IKE s e ttings
/SH A-1
3DES
The following diagram illustrates successful IKE negotiations due to matched settings
Pre-shared key = 12345 6
Def aul t IKE se ttin g s
/SHA-1
3DES
Pre-shared key = 12345 6
Def aul t IKE se ttin g s
/SHA-1
3DES
58
How Pac k et Protect Uses IPSec
IPSec is a set of standard protocols developed by the Internet Engineering Task Force (IETF). IPSec is used to protect the privacy and integrity of IP communi­cations. It protects IP communications using algorithms that perform encryption and authentication tasks, as well as other features that enfor ce additional protec­tion.
If IKE successfully negotiates a pr otected communication, it passes the agreed upon information to the IPSec driver used by Packet Protect. Then, the IPSec driver uses that information to determine how to protect the IP com m unication.
Security Associations
IP com munications use a security contract or security association when they are protected using IPSec . After a security association is set up between two com ­puters, the computers can exchange data and IPSec will protect that data using one or more of ESP encryption, ESP authentication, or AH authentication algo­rithms
The diagram below shows the steps that Packet Protect performs to protect a communication. The security association is establi shed in Step 3.
Step 1: IKE Verif ies Pre-shared Key
Step 2: I KE Negotiates IPSec Settings
Step 3: IPSec Protects Packets
Security association
For mor e infor mat io n abou t eac h IPSec set t ing, se e “IP Sec Settin gs” on page 57 and “Customize Security Actions” on page 33.
Security Association Lifetimes
Securi ty a ss ociat i ons expi re if th ey re ac h th e max imum thr es hol d de fi ned for the communic at ion. Pac ke t P ro tect is de signe d to au to m a ticall y re-neg o tia te t h e security association when it is about to expire ( usually when it reaches approxi­mately 80% of its lifetime), if one of the following is true:
• The security action is currently in use, that is, data is being transferred cur­rently.
• The security action has been used recently, that is, data was transferred using that security association.
59
Intel® Packet Protect User’s Guide
Packet Protect re-negotiates the IPSec settings only; it doesn’t need to re-verify the identity of the computers because it is already known. This helps reduce net­work traf fic by reducing extra key generation.
If the security association is not renewed automatically and consequently exp ires, a securi ty association between the same computers will requi re both IKE steps: pre-shared key verification and IPSec negotiation.
How IPSec Protects Packets
IPSec applies the sele cted algorithms to each packet that is protected by IPSec. The algorithms provide one of the following protection features:
• Encryption and privacy
• Integrity
• T im e and size limits
• Anti-replay protection
The following secti ons describe some technical det ail about encryption and integrity protection. The other features of IPSec ar e described in “Customize Security Actions” on page 33.
Encryption
Use enc ryption to prote ct the confidentiality of packets. Encryption encodes packets so they are unreadable unless the receiver has the proper key to decode the packets.
If a packet is encrypt ed using ESP encryption (DES or 3DES algorithms), it is unreadable while in transit. Other types of encryption can protect the confidenti­ality of information while stored on a computer – Pac ket Protect is designed to protect the co nfid e ntiali ty of infor m at io n whil e tr avel ing on th e ne t wo rk . The following diagram shows unencrypted and encrypted pack ets traveling on the network.
*&e# x2q%z k4!ht68
pear apple banana
Encrypted pack­ets
Packets “in the clear”
If the packets pass th rough any routers or switches, the encrypted packets ar e relayed without requi ring IPSec on those devices.
Integrity
Data integrity verifies that the packet was unch anged during transport over the netw ork. It also verifies that other packets where not inserted into the packet flow. This helps prevent a computer from accepting packets from an intruder who is attempting to send packets on the netw ork.
60
Use in tegrity features to prote ct the authenticity of packets, that is, verify that the packet was unchanged during transport over the network. Inte grity featur es also verify that no other packets we re inserted into the packet flow.
Packet Protect uses ESP and AH algorithms (MD5 or SHA-1) to protect the integrity of packets.
The following diagram shows two sets of packets traveling on the network. The first set uses integrity protection; the second set does not.
Verified packets
Unverifi ed pack­ets
Intruder
XX
changes packets
61
Intel® Packet Protect User’s Guide
62
Appendix B — Interoperability
B
with Microsoft Windows* 2000
An ov erview of interoperabil ity between Windows 2000 comp uters and Packet Protect computers.
63
Interoperability with Windows* 2000
By default, IPSec is not enabled in Windows 2000. W indows 2000 is installed with “N o Security” as the IPSec default a ction. You can use the IP Security Pol ­icy Ma nagement tool to activate IPSec in Wind ows 2000.
Windows 2000 has three IPSec default behaviors—Server, Secure Server, and Client— that you can choose from when you configure the computer.
Currently, Packet Protect interoperates with Windows 2000 using a pre-shared key. How ever, because Windows 2000 default authentication mechanism is Ker­bero s, whic h is not su pported by Packet Protect, the authentication must be changed to use pre-shared keys. Be sure to use the same pre-shared keys on Wi ndows 2000 computers as Packet Protect-enabled co mp uters for proper interoperability.
Tips: If you have Windows 2000 computers and want them to communicate
securely with Packet Protect-enabled computers, you must use the Default Rule that is set up with the Packet Protect System Policy. Do not erase or modify the Default Rule for best results.
For maximum interoperability, be sure to place each Windows 2000 computers in its own Destination Workgroup.
Creating P olicies
To create custom IPSec policies in Windows 2000
1. On t h e taskbar, click Start and select Settings > Control Panel.
2. Double-click Network and Dial-up Connections.
3. Right-click Local A rea Connection and select Properties.
4. Click Advanced and select the Options tab.
5. Under Optional settings, click IP security.
6. Click Properties.
7. Clic k Use thi s IP secur it y poli c y, and then s el ect the I PSec pol icy y ou wa nt to
use.
You can also use the IPSecurity Policies snap-in in the Microsoft Management Console ( MMC) . Set it to use th e l oca l co mput er , right - click th e pol ic y you wan t to use, and then click Assign.
You must be a me mber of the Adminis trators group to set IPSec polici es. If a comput er par ti cipa te s in a Windows 2 000 do mai n, the comput er may r ecei v e t he IPSec policy from Active Directory, overriding the local IPSec policy. In this case, the options are disabled and you cannot change them from t he local com­puter.
64
Appendix C — Network
C
Software License Agreement
This appendix details the following:
• Network Sof tware License Agre ement
• Intel Automated Customer Support
65
Network Software License Agreement
IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. Do not use or load this software and any associated materials (collectively, the “Software”) until you
have carefully read the following terms and conditions. By loading or using the Software, you agree to the terms of this Agreement. If you do not wish to so agree, do not install or use the Software.
LICENSE
and you may make one back-up copy of the Software, subject to these conditions:
1. This Software is li cen se d for use only in conjunction with Intel component products. Use of the
Software in conjunction with non-Intel component products is not licensed hereunder.
2. You may not copy, modify, rent, sell, distribute or transfer any part of the Software except as
provided in this Agreement, and you agree to prevent unauthorized copying of the Software.
3. You may not reverse engineer, decom pile, or disassemble the Software.
4. You may not sublicense or permit simultaneous use of the Software by more than one user.
5. The So ftw are ma y c ontai n th e sof tw are or othe r prope rty of th ird par t y supp li ers , some of wh ich may
be identified in, and licensed in accordance with, any enclosed “license.txt” file or other text or fil e.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS
with Intel or its suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. You may not remove any copyright notices from the Software. Intel may make changes to the Softwar e, or to items referenced therein , at an y time without notice, but is not obligated to support or update the Software. Except as otherwise expressly provided, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. You may transfer the Software only if the recipient agrees to be fully bound by these terms and if you retain no copies of the Software.
LIMITED MEDIA WARRANTY
Intel warrants the media to be free from material physical defects for a period of ninety (90) days after deliver y b y Intel. If such a defect is found, return the media to Intel for replacement o r alternate de li v­ery of the Software as Intel may select.
EXCLUSION OF OTHER WARRANTIES WARE IS PROVIDED "AS IS" WITHOUT ANY EXPRESS OR IMPLIED WARRANTY OF ANY KIND INCLUDING W ARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, OR FITNESS FOR A PART ICULAR PURPOSE. Intel does not warrant or assume responsibility
for the accuracy or completeness of any informatio n, text, graphics, links or other items contained within the Software.
. Y ou may copy the Software onto a single computer for your personal, non-commercial use,
. Title to all copies of the Software remains
. If the Software has been delivered by Intel on physical media,
. EXCEPT AS PROVIDED ABOVE, TH E SOFT-
LIMITATION OF LIABILITY FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, LOST PROFITS, BUSINESS INTERRUPTION, OR LOST INFORMATION) ARISING OUT OF THE USE OF OR IN A BILITY TO USE THE SOFTWARE, EVEN IF IN TEL HAS BEEN ADVISED O F THE POSSI­BILITY OF SUCH DAMAGES. SOME JURISDICTIONS PROHIBIT EXCLUSION OR LIMITA­TION OF LIABILITY FOR IMPLIED WARR ANTIES OR CONSEQUENTIAL OR INCIDENTAL DAMA GES, SO THE ABOVE LIMIT ATION MA Y NOT APPLY TO YOU. YOU MA Y ALSO HAVE OTHER LEGAL RIGHTS THAT VARY FROM JURISDICTI ON TO JURISDICTION.
TERMINATIO N O F THIS AGREEMENT violate its terms. Upon termination, you will immediately destroy the Software or return all copies of the Software to Intel.
66
. IN NO EVENT SHALL INTEL OR ITS SUPPLIERS BE LIABLE
. Intel may terminate this Agreement at any time if you
Appen di x C — N etw ork S of tw are Li ce nse
Intel Automated Customer Support
You can reach Intel’s automated support service s 24 hours a day, every da y at no charge. The services contain the most up-to-date informati on about Intel products. You can access installation instructions, troubleshooting information, and general product information.
Readme Files on Your Product Disk
To review the readme topics, insert the PRO /100 S Server or Management adapter disk in a disk drive, switch to that dri ve, and type:
SETUP /README and then press Enter.
Web and Internet Sites
Support: http://support.intel.com Network Products: http://www.intel.com/ network Corporate: http://www.intel.com FTP Host: download.intel.com FTP Directory: /support/network/adapter/
Customer Support Technicians
US and Canad a: 1-916-377-7000 (7:00 - 17:00 M-F Pacific Time)
Worldwide access: Intel has technical suppo rt centers worldwide. Many of the cen ters are staffed by t echnicians who speak the local languages. For a list of a ll Intel support centers, the telephone numbers, and the ti m es they are open, go to:
http://support. intel.com/support/9089.htm.
67
68
G
Glossary
3DES
Triple Data Encryption Standard, or Triple DES. An encryption standard used to encode data w h ile it trav els on a net­work . 3DES uses 168-bit keys to encrypt data.
3DES is avai la bl e only in the do m estic version of Packet Protect.
AH
Authentication Header. A protocol of veri­fying the integrity of packets, that is, the packets are known to be from th e originat­ing computer. Packet Protect uses MD5 and SHA-1 to authenticate packets.
anti-replay
Protection against receiving repeat data trans m itted on th e netwo rk . T hi s he lps prevent an intruder from successfully sending the same data in an attempt to confu se the sy s t e m (fo r examp le , th e com­puter could repeat the task of restarting a server).
authentication
The process of verifying the id entity of a compute r. Packet Protect authenticates a computer using pre-shared keys. It helps verify that a computer is who it claims to be.
cryptography
The science of protecting the privacy of data by encoding the data so it is unread­able to anyone who doesn’t have a secr et key to decode it .
CPU utilizati on
A measurement of the average load on a compute r’s processor. As processor usage increases due to security tasks, users may notice slower performance. Intel PRO/100 S Management and Server Adapters are designed to offload the secu­rity o v er head f ro m P ack et Prot ec t by us in g a special on-board processor, thereby redu cing pr ocess o r utiliz ation.
decryption
The un-en cod ing of e ncr ypt ed da ta us in g a secret password or k ey.
69
DES
Data Encryption Standard. A n encryption standard used to protect data confidential­ity by encoding the data before it travels on a network.Packet Protect supports 56­bit DE S an d 16 8- bit 3D ES (3 D E S avail­able in the United States and Canada only).
destinat ion workgroup
A logical collection of comput ers (server s and clients) that you define in Packet Pro­tect. Destination workgroups contain lists of computers with which a computer in the source workgroup may want to communi­cate using IPSec.
Dest ination workgroups in Packet Protect are dif fe rent fro m workgr oups i n Wi ndows operating syst ems.
default behavior
The setting for a workgroup specified in Packet Protect that determines how a com­puter communicates using IPSec.
Diffie-Hellman
A method of sharing a secret key between two computers.
DNS
Domain Name Se rver. The network of Domain Name Serv ers that resolve fully qualified domain names (FQDNs) to their corresponding IP addresses.
encryption
The process of protecting data confidenti­ality by encoding the data so it is unread­able t o a ny one who doesn’t hav e the se cre t key to decode it. You can read data if it isn’t encrypted, but you can’t read data while it’s encrypted.
ESP
Encapsulation Security Payload. A method of protecting the confidentiality and/or inte grity of data. ESP can be used
to protect data confidentiality by encrypt­ing the data using DES or 3DES. ESP can also be used to verify the origination of data by au the nt icat ing the dat a us ing MD5 or SHA-1.
FQDN
Full y Q ualifie d D omai n N ame. Th e unique name given to a computer or device. When addres sing information or requests, it’s often easier to remember a fully q ual ified domai n na me rat he r t ha n a n IP address. Because computers communi­cate using IP addresses, DNS software matche s the fully quali fied domain name to its corresponding IP address so users can communicate using the domain name and the IP address.
ICMP
Interne t Co ntr ol M essage Pr oto col. A ty pe of IP protocol used to transmit data that typically contains error or expla natory information. For example, the ping com­mand uses ICMP to transmit data about network connectivity.
IETF
Internet Engineering Task Force. The organization that is developi ng and stan­dardizing IKE and IPSec.
IKE
Internet Key Exchange. A protocol b uilt on standards that is used to negotiate a protected communication.
IKE is a subset profile of ISAKMP/Oak­ley. It is bei ng developed by the Internet Engineering Task Force (IETF).
intruder
An unwanted visitor fr om inside or out­side your company who may try to stea l inform ation or harm your network.
IP
Internet Protocol. A set of rules that
70
Glossary
describe how computers transmit data with a destination address.
IP address
A seri es of numbe rs that identifies a con­nection point or dev ice on an IP network. Each connection point and device needs a uniq ue IP address to communicate using IP. For example, 192. 168.1.1 is a sample IP address.
IPSec
Internet Protocol (IP) Security. A set of protoc ols us ed to he lp se cur e th e e xc han ge of IP da ta . IPSe c i s bei ng d e vel ope d b y the Internet Engineering Task Force (IETF).
key
A set of bytes tha t enc ry pt or dec ryp t da ta. Ke ys allow y ou to protect data from being read by an intruder on the network. Keys can be symm etric or asymmetric and asymmetric keys can be either public or private.
LAN
Local Area Network. A communications network usually located within a building or sma ll n um b er of buildin gs . Fo r exa m ­ple, com puters and printers at many com ­panies are connected to a LAN.
lockdown
A description of a defau lt behavior fo r a computer that uses Packet Protect. A Lockd own computer initiates an d replies to all communications by request ing secu­rity; it on ly com munic at es usin g IPS e c (requires that the other c omputer also uses IPSec). A common use for this setting is a server that requires very restricted access.
MD5
Message Digest Algorithm. An algorithm often used to verify the integrity of pack­ets traveling on a network. The algorithm transforms any numb e r of bytes into a
fixed number of bytes; no other set of bytes produces the same result.
network
One or more compu te rs tha t ar e conne ct ed together for communication purpose s.
offload
The assignment of algorit hm computa­tions from software to hardware. Packet Protect offl o ad s secur it y tasks to In te l PRO/100 S Managem ent and Server adapters to speed proces sing and increase network performance.
packet
A piece of data th at tra vels on th e networ k. Each packet contains the data being trans­mitted, along with a destination address. Packet Protect protects packets as they travel on the network using IPSec.
perfect f orward secrecy
The generation of an additional key pair to be used during data transf er. This he lps guarantee that no keys are re-used. Using perfect forward secrecy increases protec­tion, but generates more CPU utilization.
policy
A colle ction of security settings an d rules that are applied to a group of compu ters.
port
A connection point used by IP applica­tions. For example, a Web server typically sends and re ce i v es inf or mat ion on por t 8 0.
pre-shared key
A secret password that a computer pre­sents to help verify its identity. Pre-shared keys are used during negotiation of a secure com m unication. Each computer must pre sent the same pre -shared key in order to communication using IPSec.
protocol
A set of guidelines that describe how net-
71
works or applications communicate. If the set of rules are followed, information can be processed correct ly. This allo w s com­pute rs and hardware devices to communi­cate with one another e ven if they’re different from one another.
rule
A definition of the security settings to apply when a computer communicates with a de stina tion co m p uter us in g a speci ­fied protocol.
secure initiator
A description of a defau lt behavior fo r a computer that uses Packet Protect. A Secure Initiator computer initiates com­munications by requesting security and responds to communication request s w ith­out security (“in the clear”). A common use for this setting is a server that doesn’t require the strict control of the Lockdown setting.
secure responder
A description of a defau lt behavior fo r a computer that uses Packet Protect. A Secure R e sponder compu ter initiates com­munications without security (“in the clear” ), b u t can re spo nd t o com muni ca tion requests with security. A common use for this setting is a w orkstation.
the existing security association).
security assoc iation lifetime
The duration of a security association. A lifetime can be limited by t im e or by the amount of d ata transmitted.
SHA-1
Secure Hash Algorithm. An algorithm often used to verify the integrit y of pack­ets traveling on a network. The algo rithm transforms any number of bytes into a fixed number of bytes.
traff ic
Packets travel ing on the network.
workgrou p
A logica l collection of computers (servers and clients) that you define in Packet Pro­tect.
W o rkgro ups i n Pac ke t Pro tect ar e di f f erent from wor kgroups in Wi ndows operating system s.
security action
A collection of IPSec settings that are pro­pose d wh en two computers attempt to communi ca te. P a ck et Pr ote ct uses se cur ity actions when a rule is matched for a com­munication.
security association
A secur ity contract between two comput­ers. Wh ile the security association is active (8 ho u rs is the de fa ult), th e tw o comput ers can send data without re-ne go­tiating a communication (as long as the data being sent uses a pr otocol defined in
72
Index A
adapters
installing 15 teaming and 16
use multip le 16 algorithms and securit y actions 35 Anti-replay protection 4 anti-replay protection 35 authentication
of rules 26
C clients
failed communication between 50
turn off security for 48
turn o n se c u ri ty for 4 7
uninsta ll ing Packet Protect from 48 configu re adapters for Packet Protect 15 customize
destina tion workgroups 31
Index
D Data Encrypt ion Standard 60
data integrity 60 DES. See Data Encryption Standard destina ti on workgroups
customize 31
modify 33
modify after policy distribution 41 domestic ver sion of Packet Protect 2
E Encapsulat ion Security Payload 60
encryption algorithms 35 encryption of data packets 4, 60 ESP. See Encapulation Securi ty Payload export version of Packet Protect 2
F FAQs. See Frequent ly Asked Questi ons
firewall
using Packet Protect with 50 firewa lls 5 0 Frequentl y Asked Question s 49
73
Intel® Packet Protect User’s Guide
G gateway 50
glossary 69
H hardware
acceler ati on 2 hardware acceleration 2 help file for Packe t P rotect 3
I IKE. See Internet Key Exchange
installation
more information ii
notes ii integr it y of data packets 4 Interne t Key Exchange
authentication 56
definition 4
how it works with IPSec 54
how Packet Protect uses 55
settings 55 Internet Protocol Security
data integrity and 60
definition 4
encryption of data packets 60
how it protects packets 59, 60
how it works with IKE 54
how Packet Protect uses 59
securit y associations and 59
settings 57 Internet Protocol traffic
protect ion of 1
traffic not protected by Packet Protect 50, 52 interoper ability with other security products 46 introduction 1–6 intruder s 1 IP. See Internet Protcol IPSec. See Internet Protocol Security
L LAN. See Local Area Network
Local Area Network 1 Lockdown workgroup behavior 23
74
N network addr ess transl ati on 50
O ordering rules 27
other security products
inter ope rability with 43 overview 2 overvie w of Packet Protect 2
P Packet Protect
administrator and client versions 3
domestic and export versi ons 2
features 2
frequently asked questions 49
get started 6
getting started 6
how it works 4
HTML help 3
introduction 1
prepari ng for installation 8
purpose 2
troubl eshooting 49
work with other IPSec products 46 perfect forward secrecy 35 policy
definition of 25
modifyi ng aft er distribution 40
set up compatible policies 45
Index
R readme fil es ii
rules
authentication setting 26
definition of 25
delete after policy distribution 41
If rule fails 26
importance of order 25, 27
ordering 31
S Secure Initiator workgroup behavior 23
Secure Responder workgroup behavior 22 security action
customize 33
75
Intel® Packet Protect User’s Guide
security actions
create new 36
customize 33
definition of 26
modify after policy distribution 41 service s on the Worl d Wide Web ii size limit and security actions 34 support ser vices 67
T time limi t and security actions 34
troubl eshooting 49
more information ii
U uninstalling
Packet Protect at clients 48
V view
status at cli ents 44 W
workgroups
customize security actions 33
modify dest ination workgroups 31
76
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
