Intel® Server Board S1200SP
Intel® Server System R1000SPO
Intel® Server Chassis P4304XXSHCN/ P4304XXSFCN/
P4000XXSFDR
Product Family
Configuration Guide
A Reference document used to assist with ordering parts and accessories available to configure an Intel’s server
system based on the Intel® Server S1200SP product family.
Revision 1.2
July 29, 2016
Intel® Server Boards and Systems
Intel® Server S1200SP Family Configuration Guide
<This page is intentionally left blank.>
Date Published
Revision
Revision Change Description
November 2015
1.0
First Public Release.
March 2016
1.1
Added R1000SPO product information.
April 2016
1.11
Removed all the references to 4U rack support.
July 2016
1.2
Added R1000SPO product weight information, Rail kit information
Intel® Server S1200SP Family Configuration Guide
Document Revision History
i
Intel® Server S1200SP Family Configuration Guide
Disclaimer
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.
Intel disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular
purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade.
This document contains information on products, services and/or processes in development. All information provided here is subject to change
without notice. Contact your Intel representative to obtain the latest Configuration Guide.
The products and services described may contain defects or errors known as errata which may cause deviations from published specifications.
Current characterized errata are available on request.
Intel, and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.
*Other names and brands may be claimed as the property of others
© 2016 Intel Corporation.
ii
Intel® Server S1200SP Family Configuration Guide
Table of Contents
1 Intel® Server S1200SP Product Family Overview ................................................................................................................................................................. 1
1.1 Intel® Server S1200SP Product Family Naming Convention ............................................................................................................................................................... 3
1.2 Intel® Server Board S1200SP Product Family Overview ....................................................................................................................................................................... 5
1.3 Supported Intel® Server Chassis Overview ................................................................................................................................................................................................. 6
1.4 Intel® Server System R1000SPO Overview ................................................................................................................................................................................................. 7
2 Server Building Block Configuration ........................................................................................................................................................................................ 8
2.1 Intel® Server Board S1200SP Product Family SKUs ................................................................................................................................................................................ 9
2.2 Intel® Server Chassis Building Block Options – General Purpose Pedestal ................................................................................................................................ 10
3 Server System Configuration ...................................................................................................................................................................................................14
3.1 Intel® Server System R1000SPO Options – 1U Rack Mount System ............................................................................................................................................. 14
4 SAS / SATA Data Cable Guide ..................................................................................................................................................................................................18

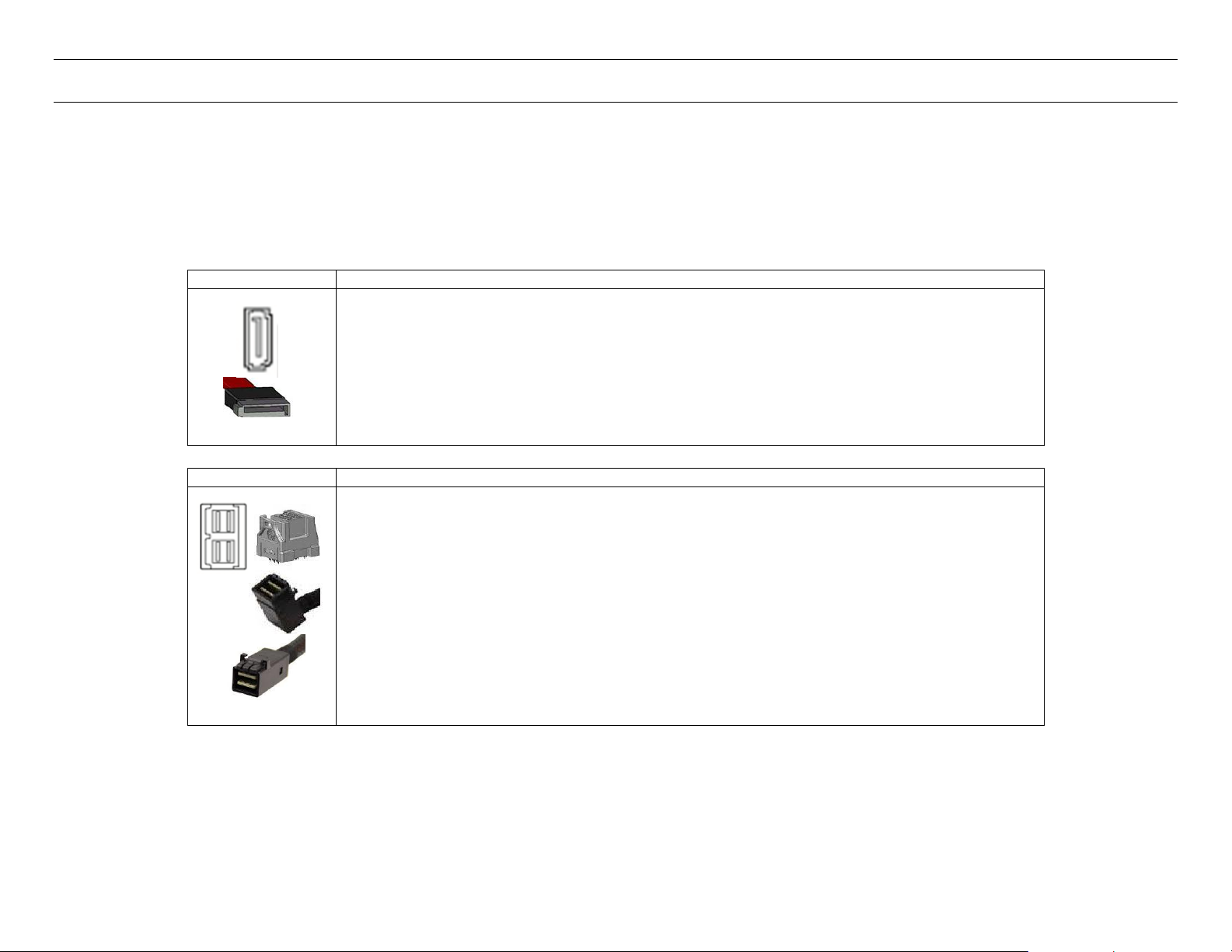

4.1 SAS / SATA Data Cable Connector Types ................................................................................................................................................................................................. 18
4.2 Intel® Server Chassis P4000XXSFDR SAS / SATA Cable Guide ........................................................................................................................................................ 19
4.3 Intel® Server System R1000SPO SAS / SATA Cable Guide ................................................................................................................................................................. 20

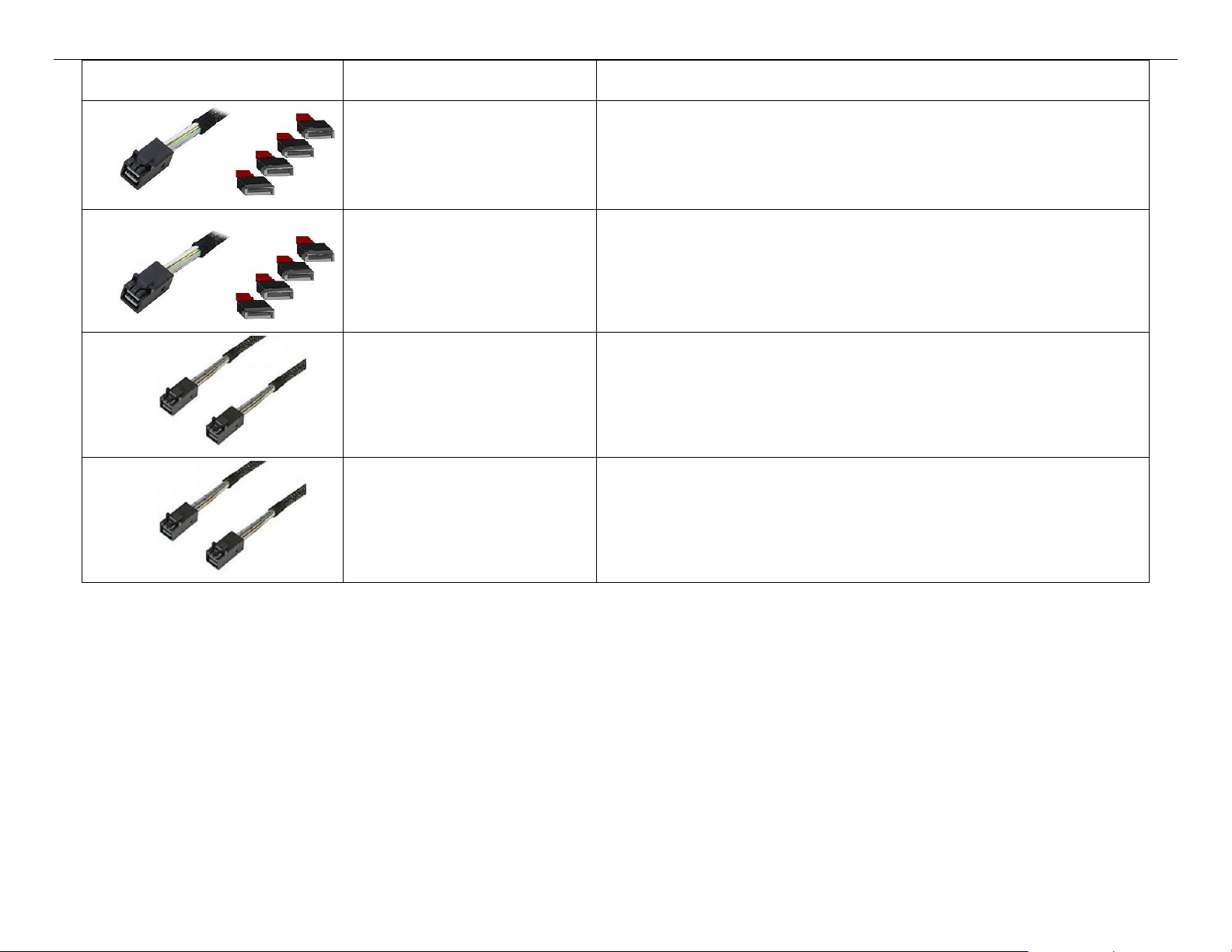

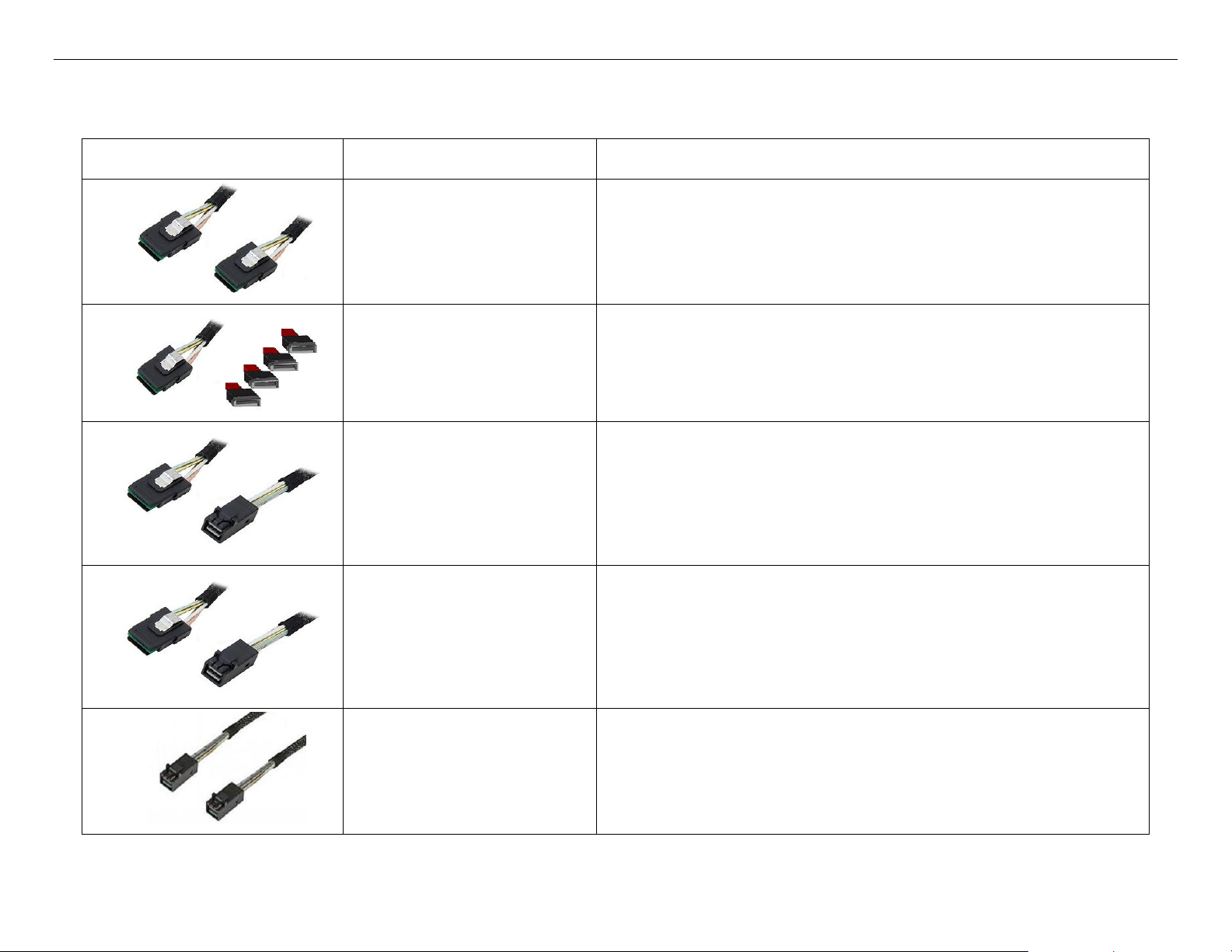

4.4 Intel® SAS / SATA Data Cable Kits ............................................................................................................................................................................................................... 21
5 Configuration Options ...............................................................................................................................................................................................................23
5.1 Drive Bay Module Options .............................................................................................................................................................................................................................. 23
5.2 Front Bezel Accessory Kits .............................................................................................................................................................................................................................. 24

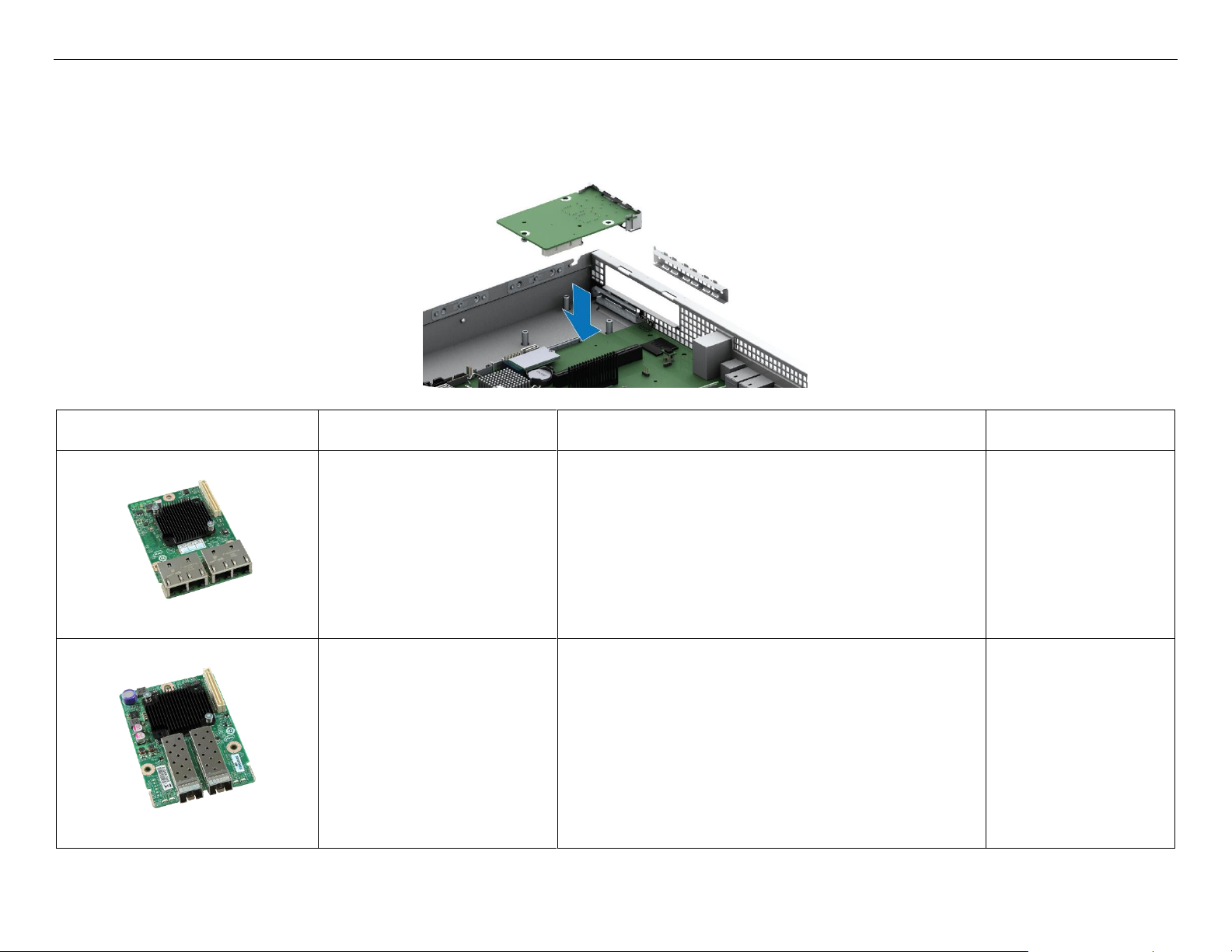

5.3 Intel® I/O Module Accessories ........................................................................................................................................................................................................................ 25
5.4 Intel® SAS RAID Add-in Cards, Modules, and Accessories.................................................................................................................................................................. 26
5.5 Rack Mount Kits .................................................................................................................................................................................................................................................. 30
6 Miscellaneous Accessory Options ..........................................................................................................................................................................................31

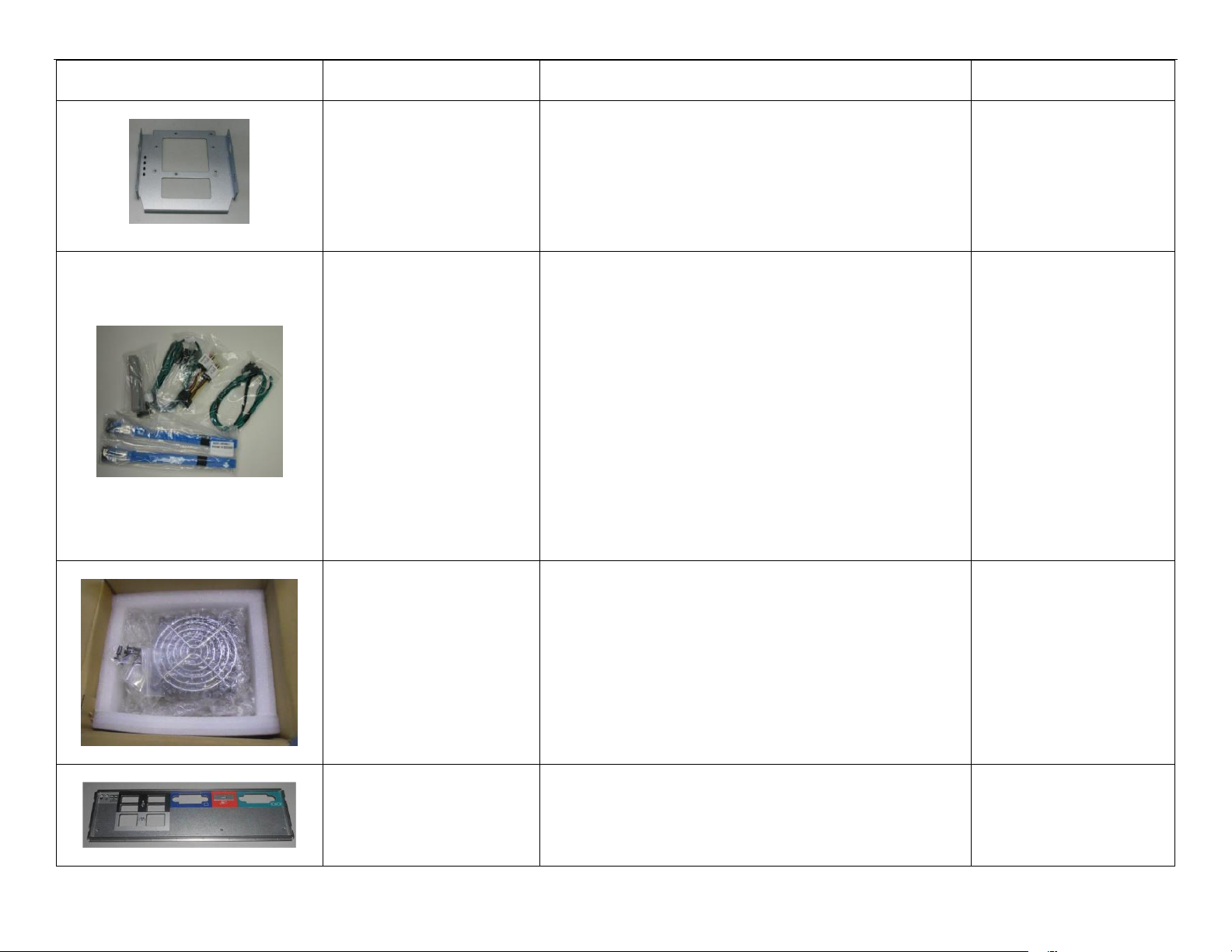

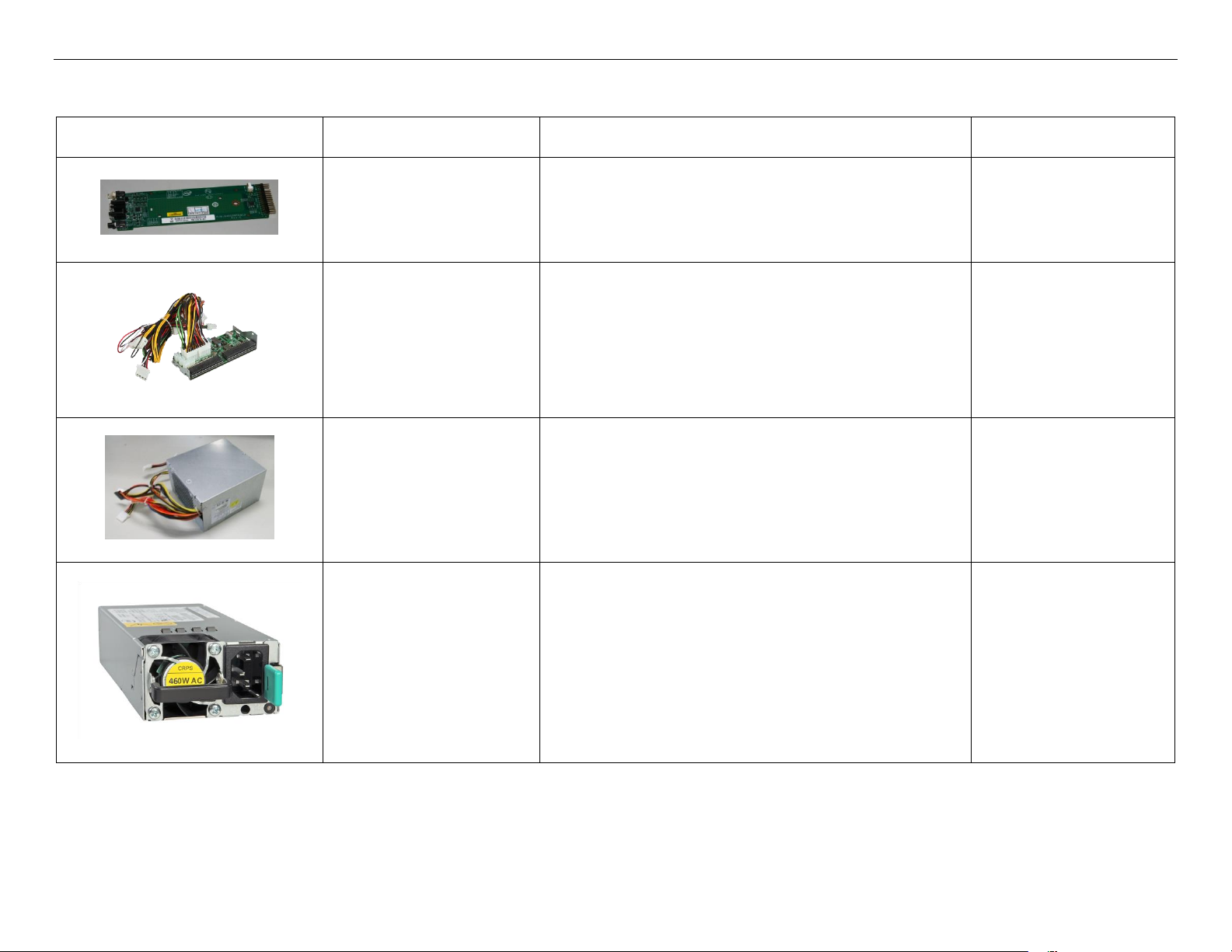

7 Spare and Replacement Parts (FRUs) .....................................................................................................................................................................................33
iii
Intel® Server S1200SP Family Configuration Guide
7.1 Tower Server System Spare FRUs ................................................................................................................................................................................................................ 34
7.2 1U Rack Server System Spare FRUs ........................................................................................................................................................................................................... 37
8 Extended Warranty ....................................................................................................................................................................................................................39
Appendix A. Glossary of Terms ..................................................................................................................................................................................................40
iv
Intel® Server S1200SP Family Configuration Guide
List of Tables
Table 1. Product Family Reference Collaterals............................................................................................................................................................................................................ 2
Table 2. Storage Data Cable Kit Description and Order Information .............................................................................................................................................................. 21
v
Intel® Server S1200SP Family Configuration Guide
<This page is intentionally left blank.>
vi
Intel® Server S1200SP Family Configuration Guide
Intel® Server S1200SP Product Family
Intel® Server Board
S1200SP Product Family
Intel® Server Chassis
P4304XXSHCN
Intel® Server Chassis
P4304XXSFCN
Intel® Server Chassis
P4000XXSFDR
Intel® Server System
R1208SPOSHOR
Intel® Server System
R1304SPOSHBN
Intel® Server System
R1304SPOSHOR
1 Intel® Server S1200SP Product Family Overview
This document is provided to assist Intel customers with identifying the right Intel server system and available accessories, enabling them to create
a unique server platform that meet their unique server requirements.
The Intel® Server S1200SP product family is offered as both building block options and integrated systems. The product family consists of the
following:
Server Building Blocks:
• Intel® Server Board S1200SP product family – Server Board only (Building block option and spare FRU)
• Intel® Server Chassis P4304XXSHCN, P4304XXSFCN, & P4000XXSFDR – Pedestal Server Chassis only
L6 Integrated Server Systems: Intel® Server System R1000SPO product family
• Intel® Server System R1304SPOSHBN, R1304SPOSHOR, & R1208SPOSHOR – 1U Rack Mount Server System integrated with an Intel® Server
Board S1200SPO
The Intel® Server S1200SP product family supports the following processors and memory:
• Intel® Xeon® processor E3-1200 v5 series product family
Note: Previous generation Intel® Xeon® processors are not supported.
• Intel® Core® processor i3 series product family
• DDR4 ECC UDIMM
1
Intel® Server S1200SP Family Configuration Guide
For this information or software
Use this Document or Software
For in-depth technical information about this product
family
• Intel® Server Board S1200SP Technical Product Specification
• Intel® Server Chassis P4000XXSFDR Technical Product Specification
• Intel® Server System BIOS Setup Utility Guide
• Product Safety and Regulatory Compliance
http://www.intel.com/content/www/us/en/support.html
For system integration instructions and service guidance
Intel® Server Chassis P4000XXSFDR System Integration and Service Guide
http://www.intel.com/content/www/us/en/support/server-products/server-chassis/000007847.html
For server configuration guidance and compatibility
Intel® Server Configurator tool: http://serverconfigurator.intel.com
For system power budget guidance
Intel® Server S1200SP Product Family Power Budget Tool:
http://www.intel.com/content/www/us/en/support/server-products/000017502.html?wapkw=s1200sp
For system firmware updates, onboard device drivers, and
software to manage your Intel® Server System.
https://downloadcenter.intel.com/search?keyword=S1200SP
For a complete list of supported processors, memory, addin cards, and peripherals:
http://www.intel.com/content/www/us/en/support/server-products/serverboards/000017642.html?wapkw=s1200sp
Additional Information and Software
For additional information about this family of products or any of their supported accessories, refer to the following resources available at:
http://www.intel.com/support.
Table 1. Product Family Reference Collaterals
2
Intel® Server S1200SP Family Configuration Guide
Chassis Type
R = Rack mount
P = Pedestal chassis
Server board identifier
SPO = Intel® Server Board S1200SPO
Chassis height
1 = 1U
4 = 4U
Chassis Length
S = short
Drive Form Factor
2 = 2.5”
3 = 3.5”
Hard Drive Model
F = Fixed
H = Hot-swappable
# of drives
04 = 4
08 = 8
Power Supply Model
B = Fixed, 350W
C = Fixed, 365W
D = CRPS, 460W
O = Mini ERPS, 450W
Fan and Fan Speed
N = Non-redundant PS (Fixed or 1CRPS with non-redundant fans)
R = Redundant PS
Intel® Server Chassis
R
Intel® Server System
1 3 04
SPO
S
H
Chassis
Type
Chassis
height
Drive Form
Factor
# of
drives
Server
board
Chassis
Length
Hard Drive
Model
B
Power Supply
Model
N
Fan and Fan
Speed
1.1 Intel® Server S1200SP Product Family Naming Convention
3
Intel® Server S1200SP Family Configuration Guide
4
Figure 1. Intel® Server System R1000SPO Feature Set Identification
Intel® Server S1200SP Family Configuration Guide
S1200SPL
S1200SPS
S1200SPO
Board Form Factor
uATX (9.6” x 9.6”)
uATX (9.6” x 9.6”)
uATX (9.6” x 9.6”)
Procesor Support
Intel® Xeon® processor E3-1200 v5 series
Intel® Core®processor i3 series
Intel® Xeon® processor E3-1200 v5 series
without HD Graphic
Intel® Xeon® processor E3-1200 v5 series
without HD Graphic
Intel® Chipset
C236
C232
C236
DIMM Slots
4 4 4
DIMM Type
DDR4 UDIMM
DDR4 UDIMM
DDR4 UDIMM
PCIe 3.0 Add-in Card Support
1 – PCIe 3.0 x8 elec, x16 mech
1 – PCIe 3.0 x4 elec, x8 mech
1 – PCIe 3.0 x8 elec, x8 mech
1 – PCIe 3.0 x8 elec, x16 mech
1 – PCIe 3.0 x4 elec, x8 mech
1 – PCIe 3.0 x8 elec, x8 mech
1 – PCIe 3.0 x8 elec, x16 mech with Riser
Card support
Riser Card Support
No
No
Yes
Intel® Integrated SAS RAID Module
Support
Yes
No
Yes
Intel® I/O Module Support
No
No
Yes
On-Board Storage Options
8 – 6Gb SATA Ports
1 – M2 SATA Connector
6 – 6Gb SATA Ports
8 – 6Gb SATA Ports
1 – M2 SATA Connector
On-Board Network Connectivity
Dual Intel® i210 Gigabit Ethernet
Dual Intel® i210 Gigabit Ethernet
Dual Intel® i210 Gigabit Ethernet
Intel® Server Board S1200SPL
Intel® Server Board S1200SPS
Intel® Server Board S1200SPO
1.2 Intel® Server Board S1200SP Product Family Overview
The server board product family consists of three server board models: S1200SPL, S1200SPS and S1200SPO.
Figure 2. Intel® Server Board S1200SP product family
The following table provides an overview of available server board options for the Intel® Server Board S1200SP product family. Each line item
identifies key features of the specified server board. Order code information and full product descriptions for each option are provided in later
sections.
5
Intel® Server S1200SP Family Configuration Guide
iPC – P4304XXSFCN
iPC – P4304XXSHCN
iPC – P4000XXSFDR
A. 365W Fixed Power Supply
B. I/O Ports
C. Alternate RMM4 Knockout
D. PCI Add-in Board Slot Covers
E. AC Input Power Connector
F. Serial Port knockout
G. A Kensington* Cable Lock Mounting Hole
H. Padlock Loop
I. Alternate RMM4 Knockout
J. Front Control Panel
K. Alternate 5.25" Peripheral Bays
L. 92x38mm System Rear Fan
M. Fixed Hard Drive Bays
A. 365W Fixed Power Supply
B. I/O Ports
C. Alternate RMM4 Knockout
D. PCI Add-in Board Slot Covers
E. AC Input Power Connector
F. Serial Port knockout
G. A Kensington* Cable Lock Mounting Hole
H. Padlock Loop
I. Alternate RMM4 Knockout
J. Front Control Panel
K. 5.25" Peripheral Bays
L. 92x38mm System Rear Fan
M. 4x3.5” Hot-swap HDD cage
A. 460W Hot Swap Power Supply (Two)
B. AC Input Power Connector (Two)
C. I/O Ports
D. RMM4 Knockout
E. PCI Add-in Board Slot Covers
F. Alternate Serial Port Knockout
G. A Kensington* Cable Lock Mounting Hole
H. Padlock Loop
I. Alternate RMM4 Knockout
J. Front Control Panel
K. 5.25" Peripheral Bays
L. 92x38mm System Rear Fan
M. Fixed Hard Drive Bays
N. PCI Zone System Fan
1.3 Supported Intel® Server Chassis Overview
The Intel Server Board S1200SP product family supports the following chassis only server building block options. Note that the chassis
P4000XXSFDR is been newly introduced to support S1200SP board famly, the chassis P4304XXSFCN and P4304XXSHCN are existing chassis
products that are compatible with S1200SP board family.
Figure 3. General Purpose Pedestal Intel® Server Chassis
6
Intel® Server S1200SP Family Configuration Guide
iPC – R1304SPOSHBN
iPC – R1304SPOSHOR
iPC – R1208SPOSHOR
Chassis Form Factor
1U Rackable
1U Rackable
1U Rackable
Server Board Form Factor support
uATX (9.6” x 9.6”)
uATX (9.6” x 9.6”)
uATX (9.6” x 9.6”)
# of Storage Drives
4 hotswapable, 2 internal 2.5” SSDs
4 hotswapable, 2 internal 2.5” SSDs
8 hotswapable
Storage Drive Form Factor
3.5”
3.5”
2.5”
Hot Swap Storage Drive Support
Yes
Yes
Yes
Power Supply
1 – 350W AC Fixed Mount
2 – 450W AC miniERPS
2 – 450W AC miniERPS
Support for Power Redundancy
No
Yes
Yes
# of System Fans 3 3
3
1.4 Intel® Server System R1000SPO Overview
The following table provides an overview of available 1U rackable L6 integrated systems preconfigured with an Intel Server Board S1200SP. Each
line item identifies key features supported by the specified system. Order code information and full product descriptions for each option are
provided in later sections.
7
Figure 4. Intel® Server System R1000SPO
Intel® Server S1200SP Family Configuration Guide
Chassis
Server Board
Server Building Blocks
2 Server Building Block Configuration
Server building blocks are offered to give Intel customers the option to configure and assemble a unique server system from the bare chassis up.
Each building block component and optional accessory is purchased separately. At a minimum, building up a functional server system using
building blocks will require the following:
• Intel Server Chassis: P4304XXSFCN, P4304XXSHCN, or P4000XXSFDR
• Intel® Server Board S1200SP: S1200SPL, S1200SPS
• SAS / SATA Data cables
• Power cord(s)
• Processor
• Memory
• Storage Drives
Optional Intel® accessories that can be added include the following: See Chapter 0 for available options.
• SAS / SAS RAID support – PCIe* add-in card or module + Appropriate SAS Data cable(s)
• Intel® I/O Module
• Intel® Remote Management Module 4 Lite
8
Intel® Server S1200SP Family Configuration Guide
Intel® Product Code (iPC)
Order Information
Product Description
Product Type
iPC – DBS1200SPL
MM# - 944682
UPC - 00735858306386
EAN - 5032037079846
MOQ - 5
Intel® Server Board S1200SPL
• 1 CPU Socket
• 4 DDR4 UDIMM slots (Unbuffered) 2 channels native
• 3 PCIe* 3.0 Slots
• Dual Gigabit Ethernet ports (Intel® i210)
• Intel® Integrated SAS RAID Module Support
• 8 SATA 6G ports via chipset
• SATADOM support on SATA4 port
• SATA M.2 support (2242 form factor)
• USB 3.0 support – 2 External Ports (rear) , 2 ports via onboard cable header
• TPM Header
• Integrated BMC Graphics
• Display port
• Base Manageability features based on IPMI 2.0 and dedicated management NIC
port onboard
• Can be upgraded to support remote KVM & Media redirection
Included:
1 – Server Board
4 – SATA Data Cables
1 – I/O Shield
1 – Attention Document
1 – Quick Start User’s Guide
1 – Quick Configuration Label
Server Board only
• Building block
option
• Spare FRU
iPC – DBS1200SPS
MM# - 944683
UPC - 00735858306393
EAN - 5032037079853
MOQ - 5
Intel® Server Board S1200SPS
• 1 CPU Socket
• DDR4 UDIMM slots (Unbuffered) 2 channels native
• PCIe* 3.0 Slots
• Dual Gigabit Ethernet ports (Intel® i210)
• USB 3.0 support – 2 External Ports (rear)
• SATA 6G ports via chipset
• SATADOM support on SATA4 port
• Integrated BMC Graphics
• Base Manageability features based on IPMI 2.0
Included:
1 – Server Board
4 – SATA Data Cables
1 – I/O Shield
1 – Attention Document
1 – Quick Start User’s Guide
1 – Quick Configuration Label
Server Board only
• Building block
option
• Spare FRU
2.1 Intel® Server Board S1200SP Product Family SKUs
9
Intel® Server S1200SP Family Configuration Guide
Intel® Product Code (iPC)
Order Information
Product Description
Product Type
iPC – DBS1200SPO
MM# - 944684
UPC - 00735858306409
EAN - 5032037079860
MOQ - 5
Intel® Server Board S1200SPO
• 1 CPU Socket
• 4 DDR4 UDIMM slots (Unbuffered) 2 channels native
• 3 PCIe* 3.0 Slots
• Dual Gigabit Ethernet ports (Intel® i210)

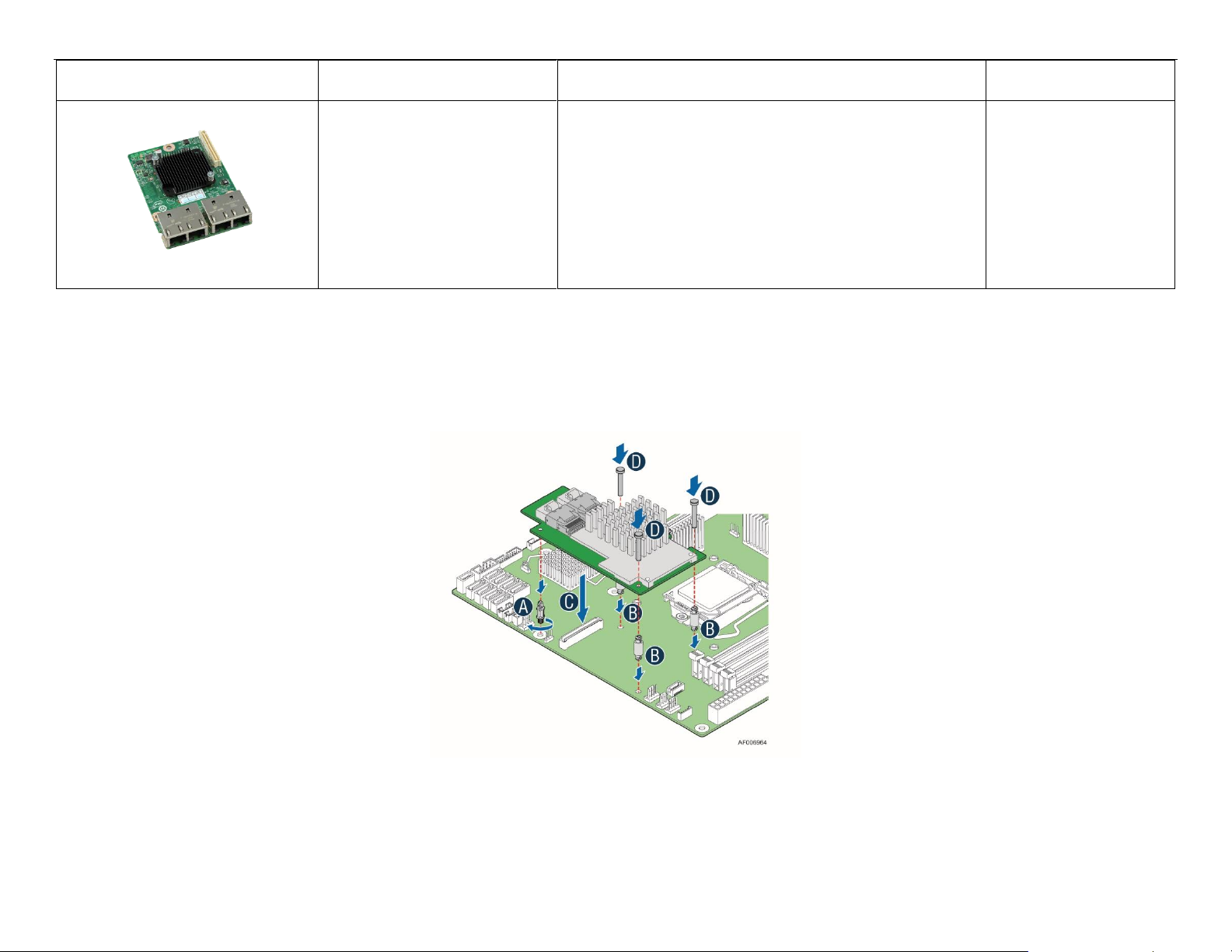

• IO module support
• 8 SATA 6G ports via chipset
• SATADOM support on SATA4 port
• SATA M.2 support (2242 form factor)
• USB 3.0 support – 2 External Ports (rear) , 2 ports via onboard cable header
• TPM Header
• Integrated BMC Graphics
• Base Manageability features based on IPMI 2.0 and dedicated management NIC
port onboard
• Can be upgraded to support remote KVM & Media redirection
Included:
1 – Server Board
4 – SATA Data Cables
1 – Attention Document
1 – Quick Start User’s Guide
1 – Quick Configuration Label
Server Board only
• Building block
option
• Spare FRU
2.2 Intel® Server Chassis Building Block Options – General Purpose Pedestal
The product tables found in this section provide order code information and detailed descriptions for each available Intel® server chassis building
block option. The lower sections of each table identify:
• The ship along components of the specified chassis product code – (product BOM)
• Required Items – Hardware required to be installed to the base system to achieve basic functionality using the default system feature set
• Optional Accessories – Some of the available accessories which can be installed to enhance the basic feature set of the server board / chassis.
Additional accessories can be found in Chapter 5.
NOTES:
• Each required item and optional accessory is sold separately from the specified Intel® server building block.
• Items identifed as iPC (Intel Product Code), are an orderable building block option, accessory or spare FRU.
• In an effort to provide the complete product bill of materials, the ship along components list in each product table will include items
identified by description and by iPN (Intel® Part Number). The iPN information is provided for reference only. These components are not
orderable as a spare or accessory.
10
Intel® Server S1200SP Family Configuration Guide
Intel® Product Code (iPC):
P4304XXSFCN
Pedestal Chassis – 4 x 3.5” Fixed Mount Drives, 1 x 365W
power
Order Code Information:
MM# - 911754
UPC - 00735858219358
EAN - 5032037016933
MOQ – 1
Product Type: Chassis Only
Chassis Form Factor: Pedestal
Chassis dimensions: L=560 mm, W=438 mm, H=173 mm
Packaged Gross Weight: 17.8 Kgs, 39.3 Lbs
Un-packaged Net Weight: 12.3 Kgs, 27.2 Lbs
Outer Box Dimensions: L=698mm, W=553mm, H=375mm
Product Definition and Configuration Requirements
Intel® product code P4304XXSFCN includes the following
components:
(1) Pedestal Chassis
(1) Front Panel assembly with cables
(1) 365W Fixed Mount Power
(1) System fan assembly
(4) fixed mount drive trays
(4) Plastic chassis foot paddle
(2) ODD Slide Rail Assemblies
(1) 200mm chassis intrusion switch cable
(2) 150mm dual SATA Drive power cable
(1) Quick Install Users Guide
(1 set) Server board mount rubber bumpers
(1 set) Server board mounting screws
Required Items – Sold Separately:
• Intel® Server Board S1200SP (choose one)
o S1200SPL
o S1200SPS
• Power Cord(s)
• 1 Boxed w/Heatsink Intel® processor (choose
one)
o Intel® Xeon® Processor E3-1200 v5 family
o Intel® Core® processor i3 family
• DDR4 memory (UDIMM)
Optional Intel® Accessories – Sold
Separately:
• SATA/SAS data cables. See Section 4.2 for
more information.
See Chapter 5 for all available accessory options.
11
Intel® Server S1200SP Family Configuration Guide
Intel® Product Code (iPC):
P4304XXSHCN
Pedestal Chassis – 4 x 3.5” Hot Swap Drives, 1 x 365W power
Order Code
Information:
MM# - 911765
UPC - 00735858219365
EAN - 5032037016940
MOQ - 1
Product Type: Chassis Only
Chassis Form Factor: Pedestal
Chassis dimensions: L=560 mm, W=438 mm, H=173 mm
Packaged Gross Weight: 18.9 Kgs, 41.6 Lbs
Un-packaged Net Weight: 17.1 Kgs, 37.7 Lbs
Outer Box Dimensions: L=698mm, W=553mm, H=375mm
Product Definition and Configuration Requirements
Intel® product code P4304XXSHCN includes the following
components:
(1) Pedestal Chassis
(1) Front Panel assembly with cables
(1) 365W Fixed Mount Power Supply
(1) System fan assembly
(1) 4 x 3.5” drive hot swap
(4) 3.5” Hot swap drive carriers
(4) Plastic chassis foot paddle
(2) ODD Slide Rail Assemblies
(1) 450mm SATA data cable
(1) 600mm I2C data cable
(1) 450mm SGPIO data cable
(1) 200mm chassis intrusion switch cable
(1) Quick Install Users Guide
(1 set) Server board mount rubber bumpers
(1 set) Server board mounting screws
Required Items – Sold Separately:
• Intel® Server Board S1200SP (choose one)
o S1200SPL
o S1200SPS
• Power Cord(s)
• 1 Boxed w/Heatsink Intel processor (choose
one)
o Intel® Xeon® Processor E3-1200 v5
product family
o Intel® Core® processor i3 product family
• DDR4 memory (UDIMM)
Optional Intel® Accessories – Sold
Separately:
• SATA/SAS data cables. See Section 4.2 for
more information.
See Chapter 5 for all available accessory options.
12
Intel® Server S1200SP Family Configuration Guide
Intel® Product Code (iPC):
P4000XXSFDR
Pedestal Chassis – 4 x 3.5” Fixed Mount Drives, Dual 460W
power
Order Code
Information:
MM - 944468
UPC - 00735858306485
EAN - 5032037079945
MOQ - 1
Product Type: Chassis Only
Chassis Form Factor: Pedestal
Chassis dimensions: L=560mm, W=438mm, H=173mm
Packaged Gross Weight: 17.1 Kgs, 37.7 Lbs
Un-packaged Net Weight: 14.6 Kgs, 32.2 Lbs
Outer Box Dimensions: L=698mm, W=553mm, H=375mm
Product Definition and Configuration Requirements
Intel® product code P4000XXSFDR includes the following
components:
(1) Pedestal Chassis
(1) Front Panel assembly with cables
(2) 460W Power Supply Modules
(1) System rear fan assembly
(1) System PCIe zone fan assembly
(4) fixed mount drive trays
(4) Plastic chassis foot paddle
(2) ODD Slide Rail Assemblies
(1) 200mm chassis intrusion switch cable
(2) 150mm dual SATA Drive power cable
(1) SATA cable for onboard M.2 connector
(1) USB 3.0 cable
(1 set) Server board mount rubber bumpers
(1 set) Server board mounting screws
Required Items – Sold Separately:
• Intel® Server Board S1200SP (choose one)
o S1200SPL
o S1200SPS
• Power Cord(s)
• 1 Boxed w/Heatsink Intel® processor (choose
one)
o Intel® Xeon® Processor E3-1200 v5
product family
o Intel® Core® processor i3 product
family
• DDR4 memory (UDIMM)
Optional Intel® Accessories – Sold
Separately:
• SATA/SAS data cables. See Section 4.2 for
more information.
See Chapter 5 for all available accessory options.
13
Intel® Server S1200SP Family Configuration Guide
3 Server System Configuration
Intel offers L6 integrated 1U Rack Mount server systems that include a server board, power supply modules, and hot swap drive bays options.
To make an L6 based system operational and allow for installation in to a rack, the following components need to be purchased separately and
added to the shipping L6 system configuration:
• Power Cord(s)
• Processor
• Memory
• Storage Drives
• Rack Mount Rail Kit
Intel offers optional accessories to enhance the basic feature set of the L6 system. Some of the available options include:
• SAS / SAS RAID support – PCIe* add-in card or module + Appropriate SAS Data cable(s)
• Intel® I/O Module
• Intel® Remote Management Module Lite
See chapter 5 for a complete list of available options.
3.1 Intel® Server System R1000SPO Options – 1U Rack Mount System
The product tables found in this section provide order code information and detailed descriptions for the specified L6 integrated 1U Intel server
system. The lower sections of each table identify:
• The ship along components of the specified chassis product code – (product BOM)
• Required Items – Hardware required to be installed to the base system to achieve basic functionality using the default system feature set
• Optional Accessories – Some of the available accessories which can be installed to enhance the basic feature set of the server board / chassis.
Additional accessories can be found in Chapter 0
NOTES:
• Each required item and optional accessory is sold separately from the specified Intel L6 server system
• Items identifed as iPC (Intel Product Code), are an orderable building block option, accessory or spare FRU
• In an effort to provide the complete product bill of materials, the ship along components list in each product table will include items
identified by description and by iPN (Intel Part Number). The iPN information is provided for reference only. These components are not
orderable as a spare or accessory.
14
Intel® Server S1200SP Family Configuration Guide
Intel Product Code (iPC):
R1304SPOSHBN
1U – 4 x 3.5” Hot Swap Drives, one 350w fixed power
Order Code Information:
MM# - 944471
UPC – 00735858306492
EAN – 5032037079952
MOQ – 1
Product Type: L6 Integrated System
Chassis Form Factor: 1U rack mount
Chassis dimensions: L= 535mm, W= 428m, H= 43.5mm
Outer Box Dimensions: L= 716mm, W= 576mm, H= 195mm
Packaged Gross Weight: 11.6 Kgs, 25.6 Lbs
Un-packaged Net Weight: 7.77 Kgs, 17.14 Lbs
Product Definition and Configuration Requirements/Options
Intel product code R1304SPOSHBN includes the following components:
(1) –1U Chassis
(1) – Intel® Server Board S1200SPO –iPC BBS1200SPO
(1) – Riser card assembly – iPN H87808-XXX
(1) – 350W fixed power supply – iPN E86365-XXX
(1) – 3.5” Hot-swap drive bays with drive carriers and drive blanks. Includes
(1) 12 Gb SAS backplane – iPC FR1304S3HSBP2
(4) 3.5” hot swap drive trays – iPC FXX35HSCAR
(3) – System fans – iPN G63402-00x
(1) – Heatsink – iPN E49069- 00X
(1) – Standard control panel assembly
(1) – Front I/O Panel assembly (1 x VGA and 2 x USB) iPN - H91347-XXX
(1) – SATA Optical drive bay with filler panel – (optical drive sold separately)
(2) – Chassis handle (1 set) installed – iPN H19171-00x
(1) – Quick Reference Label, Attention Document
Cables: Front Panel cable, USB 3.0 cable, Power cables, SATA cables, SATA
to miniSAS HD cables.
Required Items – Sold
Separately:
• Rack Mount Kit
• 1 Intel processor (choose one)
o Intel® Xeon® Processor
E3-1200 v5 product
family
o Intel® Core® processor i3
product family
• DDR4 memory (ECC UDIMM)
• Power Cord(s)
Optional Intel Accessories – Sold Separately
• Intel® 12G SAS RAID module + RMFBU
• SAS Data cable – Depending on the location of the
SAS Data controller, a new data cable may be
necessary. See Section 4.3 for more information.
• Intel® I/O Module
See Chapter 5 for all available accessory options.
15
Intel® Server S1200SP Family Configuration Guide
Intel Product Code (iPC):
R1304SPOSHOR
1U – 4 x 3.5” Hot Swap Drives, dual 450W hot swap power
Order Code Information:
MM# - 944476
UPC – 00735858306508
EAN – 5032037079969
MOQ – 1
Product Type: L6 Integrated System
Chassis Form Factor: 1U rack mount
Chassis dimensions: L= 535mm, W= 428m, H= 43.5mm
Outer Box Dimensions: L= 716mm, W= 576mm, H= 195mm
Packaged Gross Weight: 12.8 Kgs, 28.24 Lbs
Un-packaged Net Weight: 8.87 Kgs, 19.57 Lbs
Product Definition and Configuration Requirements/Options
Intel product code R1304SPOSHOR includes the following components:
(1) –1U Chassis
(1) – Intel® Server Board S1200SPO – iPC BBS1200SPO
(1) – Riser card assembly – iPN H87808-XXX
(2) – 450W redundant power supply – iPN G28822-XXX
(1) – Power Distribution Board – iPN J11254-XXX
(4) – 3.5” Hot-swap drive bays with drive carriers and drive blanks. Includes:
(1) 12 Gb SAS backplane – iPC FR1304S3HSBP2
(4) 3.5” hot swap drive trays – iPC FXX35HSCAR
(3) – System fans – iPN G63402-00x
(1) – Heatsink – iPN E49069- 00X
(1) – Standard control panel assembly
(1) – Front I/O Panel assembly (1 x VGA and 2 x USB) ) iPN - H91347-XXX
(1) – SATA Optical drive bay with filler panel – (optical drive sold separately)
(2) – Chassis handle (1 set) installed – iPN H19171-00x
(1) – Quick Reference Label, Attention Document
Cables: Front Panel cable, USB 3.0 cable, Power cables, SATA cables,SATA
to miniSAS HD cables.
Required Items – Sold
Separately:
• Rack Mount Kit
• 1 Intel processor (choose one)
o Intel® Xeon® Processor
E3-1200 v5 product
family
o Intel® Core® processor i3
product family
• DDR4 memory (ECC UDIMM)
• Power Cord(s)
Optional Intel Accessories – Sold Separately
• Intel® 12G SAS RAID module + RMFBU
• SAS Data cable – Depending on the location of the
SAS Data controller, a new data cable may be
necessary. See Section 4.3 for more information.
• Intel® I/O Module
16
Intel® Server S1200SP Family Configuration Guide
Intel Product Code (iPC):
R1208SPOSHOR
1U – 8 x 2.5” Hot Swap Drives, dual 450W hot swap power
Order Code Information:
MM# - 944477
UPC – 00735858306515
EAN – 5032037079976
MOQ – 1
Product Type: L6 Integrated System
Chassis Form Factor: 1U rack mount
Chassis dimensions: L= 535mm, W= 428m, H= 43.5mm
Outer Box Dimensions: L= 716mm, W= 576mm, H= 195mm
Packaged Gross Weight: 13. Kgs, 28.68 Lbs
Un-packaged Net Weight: 9.09 Kgs, 20.06 Lbs
Product Definition and Configuration Requirements/Options
Intel product code R1208SPOSHOR includes the following components:
(1) –1U Chassis
(1) – Intel® Server Board S1200SPO –iPC BBS1200SPO
(1) – Riser card assembly – iPN H87808-XXX
(2) – 450W redundant power supply – iPN G28822-XXX
(1) – Power Distribution Board –iPN J11254-XXX
(8) – 2.5” Hot-swap drive bays with drive carriers and drive blanks. Includes
(1) 12 Gb SAS backplane – iPC F1U8X25S3HSBP
(8) 2.5” hot swap drive trays – iPC FXX25HSCAR2
(3) – System fans – iPN G63402-00x
(1) – Heatsink – iPN E49069- 00X
(1) – Standard control panel assembly
(1) – Front I/O Panel assembly (1 x VGA and 2 x USB) ) iPN - H91347-XXX
(1) – SATA Optical drive bay with filler panel – (optical drive sold separately)
(2) – Chassis handle (1 set) installed – iPN H19171-00x
(1) – Quick Reference Label, Attention Document
Cables: Front Panel cable, USB 3.0 cable, Power cables, SATA cables,SATA
to miniSAS HD cables.
Required Items – Sold
Separately:
• Rack Mount Kit
• 1 Intel processor (choose
one)
o Intel® Xeon® Processor
E3-1200 v5 product
family
o Intel® Core® processor
i3 product family
• DDR4 memory (ECC UDIMM)
• Power Cord(s)
Optional Intel Accessories – Sold Separately
• Intel® 12G SAS RAID module + RMFBU
• SAS Data cable – Depending on the location of the
SAS Data controller, a new data cable may be
necessary. See Section 4.3 for more information.
• Intel® I/O Module
17
Intel® Server S1200SP Family Configuration Guide
Description
7-pin Single Port SATA
Support for up to 6 GB/sec SATA devices
Where used:
• On the server board
• 6Gb/sec 4x3.5” Hot-Swap Backplane (iPC FUP4X35HSDK, FUP4X35HSBP)
• SATA Optical Drive – CD/DVD
• SATA DOM
Description
SFF-8643
Support for up to 12 Gb/Sec SAS and 6 Gb/sec SATA devices
Where used:
• 12Gb/sec 4x3.5” Hot-Swap Backplane (iPC FUP4X35S3HSDK, FUP4X35S3HSBP)
• All 12 Gb/sec SAS RAID Controllers
• All 12 Gb/sec SAS Expander Cards
4 SAS / SATA Data Cable Guide
Following SAS / SATA data cables may need to be ordered separately to match the desired system configuration.
4.1 SAS / SATA Data Cable Connector Types
There are three storage interface connector types used within this product family:
Single Port SATA Connector
Multiport MiniSAS HD Connectors
18
Intel® Server S1200SP Family Configuration Guide
Description
SFF-8087
Support for up to 6 Gb/Sec SAS / SATA devices
Where used:
• 6Gb/sec 8x3.5” Hot-Swap Backplane (iPC FUP8X35HSDK, FUP8X35HSBP)
• All 6 Gb/sec SAS RAID Controllers
• All 6 Gb/sec SAS Expander Cards
From
To
onboard SATA
4x3.5” fixed drive
Default in chassis
G14960-001(600mm)
G14959-001(450mm)
4x3.5” 6Gb/s backplane
iPC FUP4X35HSDK, FUP4X35HSBP
Default in chassis
G14960-001(600mm)
G14959-001(450mm)
From
To
onboard SATA
6G RAID card
12G RAID card
8x3.5” 6Gb/s backplane
iPC FUP8X35HSDK, FUP8X35HSBP
(2) AXXE3PED8DCBL, includes:
G14989-003(480mm)
(2) AXXE38DRVCBL, includes:
G14989-003(480mm)
(1) AXXCBL570HDMS
(1) AXXCBL340HDMS
4x3.5” 12Gb/s backplane
iPC FUP4X35S3HSDK, FUP4X35S3HSBP
(1) AXXE3RACK8DCBL, includes:
H66180-002(270mm)
H66179-002(530mm)
(1) AXXCBL570HDMS
(1) AXXCBL650HDHD
8x3.5” 12Gb/s (Two 4x3.5” 12Gb/s backplanes)
iPC FUP4X35S3HSDK, FUP4X35S3HSBP
(1) AXXE3RACK8DCBL, includes:
H66180-002(270mm)
H66179-002(530mm)
(1) AXXCBL570HDMS
(1) AXXCBL340HDMS
(1) AXXCBL380HDHD
(1) AXXCBL650HDHD
Multiport MiniSAS Connector
When connecting a 6Gb/sec SAS Controller or SAS Expander to a 12 Gb/sec capable hot swap backplane, the data cables used will need a SFF8643 connector on one end of the cable and a SFF-8087 connector on the other. See Table 2. Storage Data Cable Kit Description and Order
Information for appropriate cable kits.
4.2 Intel® Server Chassis P4000XXSFDR SAS / SATA Cable Guide
The cables included in the Intel® Server Chassis P4000XXSFDR (iPN G14960-001 for 600mm and G14959-001 for 450mm) can support the
connection from onboard SATA ports to the 4x3.5” fixed drives (default in P4000XXSFDR), or from onboard SATA ports to the 4x3.5” 6Gb/s
backplane (iPC FUP4X35HSDK, FUP4X35HSBP).
The server chassis P4000XXSFDR also supports 8x3.5” 6Gb/s hot-swappable drives, or 4x3.5”/8x3.5” 12Gb/s hot-swappable drives. The cables
needed to be ordered separately are listed in the table.
19
Intel® Server S1200SP Family Configuration Guide
From
To
Onboard SATA
6G RAID module
12G RAID module
R1304SPOSHBN
R1304SPOSHOR
FR130412GCBL H66178-002(550mm)
Included in the system
(1) AXXCBL730HDMS
(1) AXXCBL730HDHD
R1208SPOSHOR
(1) AXXE3RACK8DCBL, includes:
H66180-002(270mm)
H66179-003(530mm)
Included in the system
(1) AXXCBL570HDMS
(2) AXXCBL340HDMS
(1) AXXCBL380HDHD
(2) AXXCBL650HDHD
4.3 Intel® Server System R1000SPO SAS / SATA Cable Guide
The following table lists the cables need to be ordered separately, except the cables connecting to onboard SATA.
20
Figure 5. Intel® Server System R1000SPO Cable Routing
Intel® Server S1200SP Family Configuration Guide
Order Information
Description
iPC - AXXE38DRVCBL
MM# - 928729
UPC - 00735858263603
EAN - 5032037052832
MOQ - 1
Cable kit for two, 350mm and 550mm long, miniSAS 8087 to miniSAS 8087.
Required in pedestal chassis when connecting from 6Gb raid module to SATA 6Gb
backplane miniSAS 8087 (8 drives).
See section above for usage.
iPC - AXXE3PED8DCBL
MM# - 943593
UPC - 00735858306584
EAN - 5032037080040
MOQ - 1
480 mm long, cable kit (2 cables included), 7pin SATA to SFF-8087
Required in pedestal chassis when connecting from onboard 7pin SATA ports to
SATA 6Gb backplane miniSAS 8087 (8 drives).
See section above for usage.
iPC - AXXCBL570HDMS
MM# - 944202
UPC - 00735858306614
EAN - 5032037080071
MOQ - 2
570 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8087.
See section above for usage.
iPC - AXXCBL340HDMS
MM# - 944203
UPC - 00735858306621
EAN - 5032037080088
MOQ - 2
340 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8087.
See section above for usage.
iPC – AXXCBL650HDHD
MM# – 937129
UPC – 00735858284752
EAN – 5032037065047
MOQ – 1
650 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643
See section above for usage.
4.4 Intel® SAS / SATA Data Cable Kits
Table 2. Storage Data Cable Kit Description and Order Information
21
Intel® Server S1200SP Family Configuration Guide
Order Information
Description
iPC - AXXE3RACK8DCBL
MM# - 943592
UPC - 00735858306577
EAN - 5032037080033
MOQ - 1
270 mm and 530 mm long, cable kit (2 cables included), 7pin SATA to SFF-8643
Required to connect onboard 7pin SATA ports to 1U miniSAS HD connectors (SFF-
8643) on 8x2.5” backplane. Shipped by default with R1208SPOSHOR.
See section above for usage. Used in both pedestal chassis and 1U system.
iPC - FR130412GCBL
MM# - 943591
UPC - 00735858306560
EAN - 5032037080026
MOQ - 2
550 mm long, cable kit (2 cables included), 7pin SATA to SFF-8643
Required to connect onboard 7pin SATA ports to 1U miniSAS HD connectors (SFF-
8643) on 4x3.5” backplane. Shipped by default with
R1304SPOSHBN/R1304SPOSHOR.
Used in 1U system.
iPC - AXXCBL380HDHD
MM# - 936427
UPC - 00735858284738
EAN - 5032037065023
MOQ - 2
380 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643
See section above for usage.
iPC - AXXCBL730HDHD
MM# - 936178
UPC - 00735858284745
EAN - 5032037065030
MOQ - 2
730 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643
See section above for usage.
22
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - FUP4X35HSDK
Demo only
MM# - 911885
UPC - 00735858219440
EAN - 5032037016230
MOQ - 1
3.5" Hot Swap Drive Kit for P4000 server chassis
Includes: Drive Cage, Hot Swap Back Plane, 4 Hot Swap Drive
carriers, data cables, I2C cable, and ID filler
• Pedestal accessory kit
iPC - FUP8X35HSDK
Demo only
MM# - 915608
UPC - 00735858235907
EAN - 5032037030663
MOQ - 1
8x3.5" Hot Swap Drive Cage Kit for P4000 server chassis
Includes: Drive Cage, Hot Swap Back Plane, 8 Hot Swap Drive
Carriers, data cables, I2C cable, and ID filler panel
• Pedestal accessory kit
iPC - FUP4X35S3HSDK
Demo only
MM# - 936623
UPC - 00735858289993
EAN - 5032037068833
MOQ - 1
3.5" Hot Swap Drive Kit for P4000 server chassis
Includes: Drive Cage, Hot Swap Back Plane, 4 Hot Swap Drive
carriers, I2C cable, IMPB cable, 4 SATA cables and ID filler
• Pedestal accessory kit
5 Configuration Options
The following sections identify available accessory kits supported within the Intel® S1200SP product family.
5.1 Drive Bay Module Options
23
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - FUPBEZELFIX
Demo only
MM# - 911886
UPC - 00735858219457
EAN - 5032037016254
MOQ - 1
Pedestal Bezel (Fixed HDD version)
Fits P4000 with fixed hard disks
• Pedestal accessory kit
iPC - FUPBEZELHSD
Demo only
MM# - 911896
UPC - 00735858219464
EAN - 5032037016261
MOQ - 1
Pedestal Bezel (HS HDD version )
Fits P4000 with HS drive bays installed, version with door for drive
bays)
• Pedestal accessory kit
iPC - A1UBEZEL
Demo only
MM# - 917983
UPC – 00735858241120
EAN – 5032037035873
MOQ - 1
1U locking Bezel A1UBEZEL for 1U family of rack chassis
• 1U accessory kit
5.2 Front Bezel Accessory Kits
24
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - AXX4P1GBPWLIOM
Demo only
MM# - 917911
UPC - 735858241083
EAN - 5032037035835
MOQ - 1
Quad port 1GbE I/O expansion module based on Intel® Ethernet
Controller I350 (PCIe 2.0 (5GT/s))
Includes three screws, port label sticker
1U accessory
iPC - AXX10GBNIAIOM
Demo only
MM# - 917905
UPC - 735858241090
EAN - 5032037035842
MOQ - 1
Dual SFP+ port 10GbE IO module based on Intel® 82599 10
Gigabit Ethernet Controller
Supports direct connect or transceiver.
Cables/transceivers not included.
Includes three screws, port label sticker.
1U accessory
5.3 Intel® I/O Module Accessories
Intel® Server Board S1200SPO and Intel® Server System R1000SPO product family support Intel® I/O Modules in the table below. The illustration
shows how the I/O module is installed to the server board.
25
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - AXX10GBTWLIOM3
Demo only
MM# - 941869
UPC – 735858296656
EAN – 5032037072472
MOQ - 1
Dual port, RJ-45, 10GbE I/O Expansion module. Intel X540. PCIe
2.0
1U accessory
5.4 Intel® SAS RAID Add-in Cards, Modules, and Accessories
Intel® Server Board S1200SP product family support Intel® Integrated SAS RAID Modules. The Intel® Server Board S1200SPL board support
modules on both PCIe* slot and Mezzenine slot, the Intel® Server Board S1200SPS board support modules on PCIe* slot. The illustration below
shows how the SAS RAID module is installed to the server board.
Figure 6. Installing Intel® Integrated SAS RAID Mudules
26
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - RMS25JB040
Demo only
MM# - 917088
UPC - 00735858239011
EAN - 5032037033794
MOQ - 5
Intel® Integrated RAID Module RMS25JB040
SAS 6GB, 4 internal ports, LSI2308
Accessory kit
iPC - RMS25JB080
Demo only
MM# - 917087
UPC - 00735858239004
EAN - 5032037033787
MOQ - 5
Intel® Integrated RAID Module RMS25JB080
SAS 6GB, 8 internal ports, LSI2308
Accessory kit
iPC - RMS25KB040
Demo only
MM# - 924453
UPC - 00735858239011
EAN - 50320370337945
MOQ - 5
Intel® Integrated RAID Module RMS25KB040
SAS 6GB, 4 internal ports, LSI2308
Accessory kit
iPC - RMS25KB080
Demo only
MM# - 924452
UPC - 00735858239004
EAN - 50320370337875
MOQ - 5
Intel® Integrated RAID Module RMS25KB080
SAS 6GB, 8 internal ports, LSI2308
Accessory kit
iPC - RMS25PB040
Demo only
MM# - 924869
UPC - 00735858238953
MOQ - 5
Intel® Integrated RAID Module RMS25PB040
SAS 6GB, 4 internal ports,LSI2208, DDR3 1GB, optional Flash
based Cache protection
Accessory kit
27
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - RMS25PB080
Demo only
MM# - 924868
UPC - 00735858238946
MOQ - 5
Intel® Integrated RAID Module RMS25PB080
SAS 6GB, 8 internal ports, LSI2208, DDR3 1GB, optional Flash
based Cache protection
Accessory kit
iPC - RMS25PB080N
Demo only
MM# - 922597
UPC - 00735858248587
EAN - 5032037043328
MOQ - 5
Intel® Integrated RAID Module RMS25PB080N
SAS 6GB, 8 internal ports, LSI2208, DDR3 1GB
Accessory kit
iPC - RMS3CC040
Demo only
MM# - 932473
UPC - 00735858276849
EAN - 5032037060455
MOQ - 5
Intel® Integrated RAID Module RMS3CC040
SAS 12GB, 4 internal ports, LSI3108, DDR3 1GB
Accessory kit
iPC - RMS3CC080
Demo only
MM# - 932474
UPC - 00735858276832
EAN - 5032037060448
MOQ - 5
Intel® Integrated RAID Module RMS3CC080
SAS 12GB, 8 internal ports, LSI3108, DDR3 1GB
Accessory kit
28
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - RMS3HC080
Demo only
MM# - 932469
UPC - 00735858276818
EAN - 5032037060424
MOQ - 5
Intel® Integrated RAID Module RMS3HC080
SAS 12GB, 8 internal ports, LSI3008
Accessory kit
iPC - RMT3PB080
Demo only
MM# - 924870
UPC - 00735858238960
MOQ - 5
Intel® Integrated RAID Module RMT3PB080
SATA 6GB, 8 internal ports, LSI2208, DDR3 1GB, optional Flash
based Cache protection
Accessory kit
iPC – RMS3JC080
Demo only
MM# - 932472
UPC – 00735858276825
EAM - 5032037060431
MOQ - 5
Intel® Integrated RAID Module RMS3JC080
A 12-Gb eight internal port SAS 3.0 mezzanine card with I/O
Controller (IOC), entry-level RAID 0,1, JBOD mode, and PCIe
Generation 3.
Accessory kit
iPC - RKSATA8R5
Demo only
MM# - 916348
UPC - 00735858238885
EAN – 5032037033664
MOQ - 5
Intel® RAID Upgrade Key RKSATA8R5
Enables LSI SATA SW RAID 5
Accessory kit
29
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - AXXRSBBU9
Demo only
MM# - 919738
UPC – 00735858220286
MOQ - 5
Intel® RAID Smart Battery AXXRSBBU9
Provides optional battery backup for mainstream RS25, RMS25,
RT3 and RMT3 family RAID products.
Accessory kit
iPC - AXXRMFBU5
Demo only
MM# - 933907
UPC - 00735858276801
EAN – 5032037060417
MOQ - 5
Intel® RAID Maintenance Free Backup Unit AXXRFMBU5
Super-capacitor module and flash memory card designed to help
protect data in dynamic memory during a power failure or system
crash event.
Accessory kit
iPC - AXXRMFBU2
Demo only
MM# - 926341
UPC – 007358582445415
MOQ - 5
Intel® RAID Maintenance Free Backup Unit
Provides optional battery backup for mainstream RMS25, and
RMT3 family RAID products.
Accessory kit
Intel Product Code
Order Information
Product Description
Product Type
iPC – AXXVPSRAIL
Demo Only
MM# - 928722
UPL – 00735858265324
EAN - 5032037053280
MOQ – 1
Value Plus Short Rail
• 424mm max travel length
• 129 lbs (59 Kg) max support weight
• Front and rear mounting bracket adjustment distance:
609mm to 705mm
• Stab-in system install
• x8 #10-32 screws to mount rail kit on rack flange (screw kit
come with rail kit assembling)
• No cable management arm support
1U accessory kit
5.5 Rack Mount Kits
30
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - AXXRMM4LITE2
Demo only
MM# - 946514
UPC - 00735858307413
EAN - 5032037080750
MOQ - 1
Intel® Remote Management Module RMM4 LITE - Remote KVM
upgrade Key (RoHS free)
Accessory kit
iPC - AXXRMM4LITE
Demo only
MM# - 911660
UPC - 00735858219297
EAN - 5032037014946
MOQ - 1
Intel® Remote Management Module RMM4 LITE - Remote KVM
upgrade Key
Accessory kit
iPC - AXXTPME3
Demo only
MM# - 922115
UPC - 00735858219310
EAN - 5032037015196
MOQ - 1
Intel® TPM Trusted Platform Module for E3 platform
Accessory kit
iPC - AXXSATADVDROM
Demo only
MM# - 937569
UPC -– 00735858197663
EAN - 5032037015127
MOQ - 1
Slimline SATA DVDROM Drive
• Includes 880mm SATA cable.
• A peripheral power cable is included with the systems that
have support for optical drives.
• Optical drives are not supported in R2312WT & R2224WT
based systems.
1U accessory kit
6 Miscellaneous Accessory Options
31
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - AXXSATADVDRWROM
Demo only
MM# - 937575
UPC - 00735858197670
EAN - 5032037015134
MOQ - 1
Slimline SATA DVD+/-RW ROM Drive
• Includes 880mm SATA cable.
• A peripheral power cable is included with the systems that
have support for optical drives.
• Optical drives are not supported in R2312WT & R2224WT
based systems.
1U accessory kit
32
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - FXX35HSCAR
Demo only
MM# - 936192
UPC - 00735858289412
EAN – 5032037068390
MOQ - 8
3.5” HDD Hot Swap Carrier Spares
• Spare FRU
iPC - FPWRCABLENA
Demo only
MM# - 879287
UPC - 00735858181129
EAN – 5032037015738
MOQ - 1
North American Power Cord Spare
• Spare FRU
7 Spare and Replacement Parts (FRUs)
System integrators and distributors may choose to hold additional stock of individual system components. Intel® makes available the following
Spare and Replacement Parts (FRUs) compatible with the specified Intel® server family.
33
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - FXXFPANELR
Demo only
MM# - 946534
UPC –00735858307444
EAN - 5032037080781
MOQ - 1
Front Panel Board Spare
• For use on P4000XXSFDR chassis
• RoHS free
• Different from FXXFPANEL by 0.6mm offset of reset and
power buttons
Pedestal Spare FRU
iPC - AP4000E3V5PDB
Demo only
MM# - 943589
UPC - 00735858306546
EAN - 5032037080002
MOQ - 1
P4000 Power Distribution Board Spare
For P4000XXSFDR chassis
Pedestal Spare FRU
iPC - FUP365SNRPS
Demo only
MM# - 911884
UPC - 00735858219433
EAN - 5032037016223
MOQ - 1
365W Pedestal Fixed PSU Spare
For P4304XXSFCN/P4304XXSHCN chassis
Pedestal Spare FRU
iPC - FXX460GCRPS
Demo only
MM# - 915603
UPC - 00735858235846
EAN - 5032037030595
MOQ - 1
460W Cold Redundant Power Supply Spare 80Plus Gold
Efficiency
For P4000XXSFDR chassis
Pedestal Spare FRU
7.1 Tower Server System Spare FRUs
34
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - FUP4X35NHDK
Demo only
MM# - 912770
UPC - 00735858219488
EAN - 5032037016247
MOQ - 4
Fixed Drive Carrier for Fixed Pedestal Chassis
Pedestal Spare FRU
iPC - FUPSESK
Demo only
MM# - 912774
UPC - 00735858219525
EAN - 5032037016285
MOQ - 1
Chassis Maintenance Kit for P4000S Chassis (Electrical Spare
Kit)
• These parts in the kit can be used with S1200SP:
• 1x intrusion cable, 200mm
• 3x SATA power cables, one 4- pin ATX power header to 2
SATA power headers, 150mm
• 1x SATA Cable, one right angle header to one vertical
header, 600mm (4 cables)
• 1xSGPIO Cable, one 5-pin header to one 5-pin header and
one 4-pin header
• 1x I2C Cable, one 5-pin header to one 3 pin header, 600mm
• These parts in the kit cannot be used with S1200SP:
• 1x Front Panel Cable, 920mm
• 1x USB Cable, one 2x5 pin header to two USB type A female
headers, 950mm, USB 2.0 cable
• 1xSATA power adaptor extend cable, 24-pin header to 24-
pin header, 630mm
Pedestal Spare FRU
iPC - FUPSNHFANE3
Demo only
MM# - 912772
UPC - 00735858219501
EAN - 5032037016308
MOQ - 1
92mm Rear Fan Kit
Includes:
(1) 92 mm fan
(1) rear vent cover
Spare for P4000 Pedestal* Chassis
Pedestal Spare FRU
iPC - AS1200SPSIOS
Demo only
MM# - 944200
UPC - 00735858306591
EAN - 5032037080057
MOQ - 10
I/O Shield for Intel® Server Board S1200SPS
Pedestal Spare FRU
35
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - AS1200SPLIOS
Demo only
MM# - 944201
UPC - 00735858306607
EAN - 5032037080064
MOQ - 10
I/O Shield for Intel® Server Board S1200SPL
Pedestal Spare FRU
iPC - FUP4X35HSBP
Demo only
MM# - 913595
UPC - 00735858220033
EAN - 5032037019279
MOQ - 1
4x3.5” 6Gb Hard Drive Hot Swap Backplane Spare for P4000
Chassis
Includes: (1) 4x3.5” backplane board
Pedestal Spare FRU
iPC - FUP8X35HSBP
Demo only
MM# - 916353
UPC - 00735858222792
EAN - 5032037033480
MOQ - 1
8x3.5" 6Gb Hard Drive Hot Swap Backplane Spare for P4000
Chassis
Includes: (1) 8x3.5” backplane board
Pedestal Spare FRU
iPC - FUP4X35S3HSBP
Demo only
MM# - 936423
UPC - 00735858289979
EAN - 5032037068819
MOQ - 1
Spare 4x3.5" 12Gb Hard Drive Hot Swap Backplane for P4000
Chassis
Includes: (1) 4x3.5” backplane board
Pedestal Spare FRU
36
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - F1UE3PASSHS
Demo only
MM# - 928921
UPC - 00735858262538
EAN - 5032037051767
MOQ - 1
Passive Heatsink Spare
Includes: (1) passive heatsink and (1) back plate
For board used in 1u rack chassis
1U spare FRU
iPC - FR1304E3V5MSK
Demo only
MM# - 943587
UPC - 00735858306522
EAN - 5032037079983
MOQ - 1
Mechanical Spares Kit for R1304SPOSHBN and R1304SPOSHOR
1U spare FRU
iPC - FR1304E3V5ESK
Demo only
MM# - 943588
UPC - 00735858306539
EAN - 5032037079990
MOQ -1
Electrical Spares Kit for R1304SPOSHBN and R1304SPOSHOR
1U spare FRU
iPC - AXX1UPCIEX16R2
Demo only
MM# - 946511
UPC - 00735858307390
EAN - 5032037080736
MOQ -1
PCI-e riser card for 1U rack system, 1 x16 physical x8 electrical
slot (RoHS free)
1U spare FRU
7.2 1U Rack Server System Spare FRUs
37
Intel® Server S1200SP Family Configuration Guide
Intel Product Code
Order Information
Product Description
Product Type
iPC - FR1000E3FAN
Demo only
MM# - 928726
UPC - 00735858266949
EAN - 5032037053624
MOQ -1
Spare fan used in 1U rack system
1U spare FRU
iPC - F1U450WPSU
Demo only
MM# - 921471
UPC - 00735858247962
EAN 5032037042840
MOQ = 1
450W AC miniERP 80+ Gold efficiency power supply spare
1U spare FRU
iPC - F1U450WPDB2
Demo only
MM# - 946513
UPC - 00735858307406
EAN -– 5032037080743
MOQ - 1
450W AC miniERP 80+ Gold Efficiency Power Supply PDB and
Cage Spare
1U spare FRU
iPC - FR1304S3HSBP2
Demo only
MM# - 947357
UPC - 00735858309264
EAN - 5032037081856
MOQ -1
1u 4x3.5 12G SAS backplane (RoHS free)
1U spare FRU
iPC - F1U8X25S3HSBP
Demo only
MM# - 934888
UPC - 00735858288798
EAN - 5032037068079
MOQ – 1
1u 8x2.5 12G SAS backplane
1U spare FRU
38
8 Extended Warranty
Order Information
Description
iPC - SVCEWUPSY
MM# - 911293
MOQ - 1
Two years extended warranty for Intel® Server Systems or Intel® Server Knock Down Kits+ Intel®
Server Boards that support single processor
iPC - SVCEWUPBD
MM# - 911292
MOQ - 1
Two years extended warranty for Intel® Server Boards that support single processor
iPC - SVCEWRAID
MM# - 911298
MOQ - 1
Two years extended warranty for Intel® RAID Controllers. Batteries are not included in the
Extended Warranty.
Intel® Server S1200SP Family Configuration Guide
39
Intel® Server S1200SP Family Configuration Guide
Acronym or Term
Definition
Acronym or Term
Definition
CRPS
Common Redundant Power Supply
QSFP
Quad Small Form factor Pluggable
EAN
International Article Number (Barcode)
RAID
Redundant Array of Independent Drives
FDR Infiniband
Fourteen Data Rate Infiniband
Required Option
Hardware that must be added to the shipping
configuration for the system to operate
FRU
Field Replaceable Unit
RMFBU
RAID Maintenance Free Backup Unit
iPC
Intel® Product Code
RMM4 Lite
Intel® Remote Management Module 4 Lite
Activation key
iPN
Intel® Part Number
ROC
RAID on Chip
KDK
Knock-Down-Kit – (Chassis only product)
RSTe
Intel® Rapid Stroage Technology
KVM
Keyboard / Video / Mouse
SAS
Serial Attached SCSI
MM
Master Material order number
SATA
Serial ATA
MOQ
Mimimum Order Quantity
SFP
Small Form factor Pluggable
NVMe
NVM Express – based on Non-Volatile
Memory Host Controller Interface
Specification (NVMHCI)
SKU
Stock Keeping Unit
Optional
Accessory
Hardware that can be added to the system to
enhance the default feature set of the
shipping configuration
SSD
Solid State Drive
UPC
Universal Product Code ( Barcode)
Appendix A. Glossary of Terms
A list of Acronyms and Terms used throughout this document
40
Loading...
