Intel® Server Board S2600CW Product Family Intel

Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family

Spares/Accessories List and Configuration Guide

A reference guide to assist with ordering parts and accessories available to configure an Intel Sever System based on the Intel® Server Board S2600CW and Intel® Server Chassis P4304XXMFEN2/P4304XXMUXX product families.

Revision 2.3

Feb. 2017

Intel® Server Boards and Systems

Date Published Revision

Change Description

September 2013

1.0

First Public Release

Content update:

• Updated pictures and chassis contents; updated MM# for DBS2600CW2; cosmetic edits

Content update:

Updated chapter cabling guide and DBS2600CW2 MM#

Document changes

• Added section 2.4 Software Security - McAfee® Antivirus for Intel® Server Systems

Document changes

Updated with Refresh SKUs

Document changes

Document Upgrade

Updated SAS/SATA data cable guide

April , 2016

2.1

Support for Intel® Xeon® E5-2600 v4 included

Document changes:

February 2017

2.3

Rails information updated on table 27

November 2014 1.21

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Document Revision History

August 2015 1.41

October 2015 1.42

December 2015 1.5

January 2016 1.6

February 2016 2.0

August 2016 2.2

•

• Added AXXTPM6 and AXXTPM7 modules

• New document format

• New product definition/data tables

• New graphics

• Improved guidance for configuration requirements

• Improved descriptions for product family definition

•

Updated the amount of Dual power Connector Cable iPN – G22872-00x included on the P4304XXMUXX and P4304XXMFEN2 chassi to two instead of one

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Disclaimer

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product specifications and roadmapsThe products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Intel®, Xeon®, Pentium®, and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

iii

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Table of Contents

1. INTEL® SERVER FAMILY OVERVIEW ........................................................................................................................................................................................................... 1

1.1 PRODUCT FAMILY SUMMARY CHART .............................................................................................................................................................................................................. 6

2. SERVER BUILDING BLOCK CONFIGURATION ........................................................................................................................................................................................... 7

2.1 INTEL® SERVER BOARD S2600CW PRODUCT FAMILY SKUS ..................................................................................................................................................................... 8

iPC – DBS2600CW2R .......................................................................................................................................................................................................................................... 8

iPC – DBS2600CWTR .......................................................................................................................................................................................................................................... 8

iPC – DBS2600CW2SR ....................................................................................................................................................................................................................................... 9

iPC – DBS2600CWTSR ....................................................................................................................................................................................................................................... 9

2.2 INTEL® CHASSIS P4000 PRODUCT FAMILY SKUS ...................................................................................................................................................................................... 10

iPC – P4304XXMFEN2 ...................................................................................................................................................................................................................................... 11

iPC – P4304XXMUXX ........................................................................................................................................................................................................................................ 12

3. SAS/SATA DATA C ABLE GUIDE ................................................................................................................................................................................................................... 13

3.1 SAS/SATA DATA CABLE CONNECTOR TYPES ............................................................................................................................................................................................ 13

3.2 SERVER SYSTEM CABLE GUIDE ................................................................................................................................................................................................................... 14

3.2.1 Fixed HDDs SAS/SATA Cable Guide ................................................................................................................................................................................................. 15

3.2.2 4x3.5” Hot-swap HDD SAS/SATA Cable Guide ................................................................................................................................................................................ 17

3.2.3 8x3.5” Hot-swap HDD SAS/SATA Cable Guide ................................................................................................................................................................................ 18

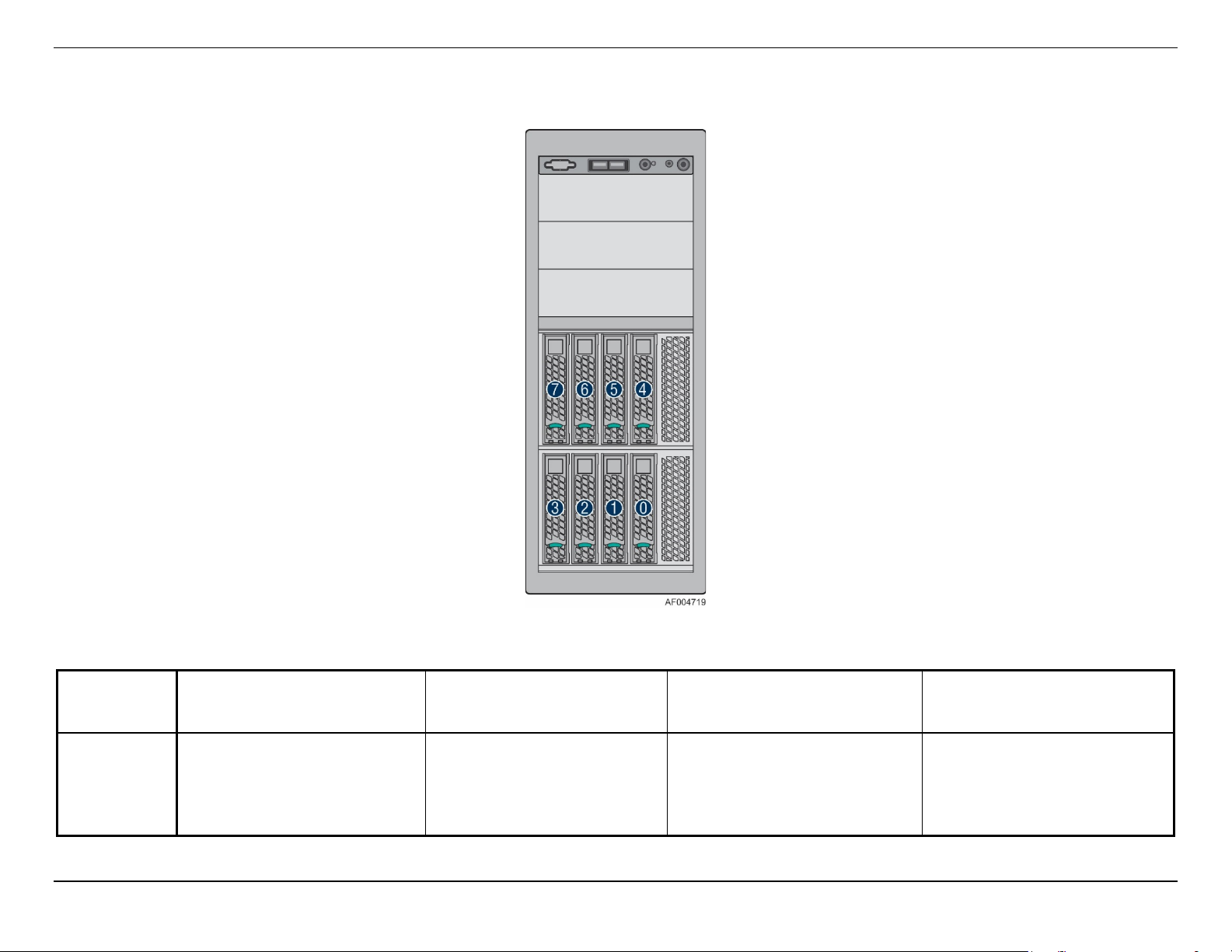

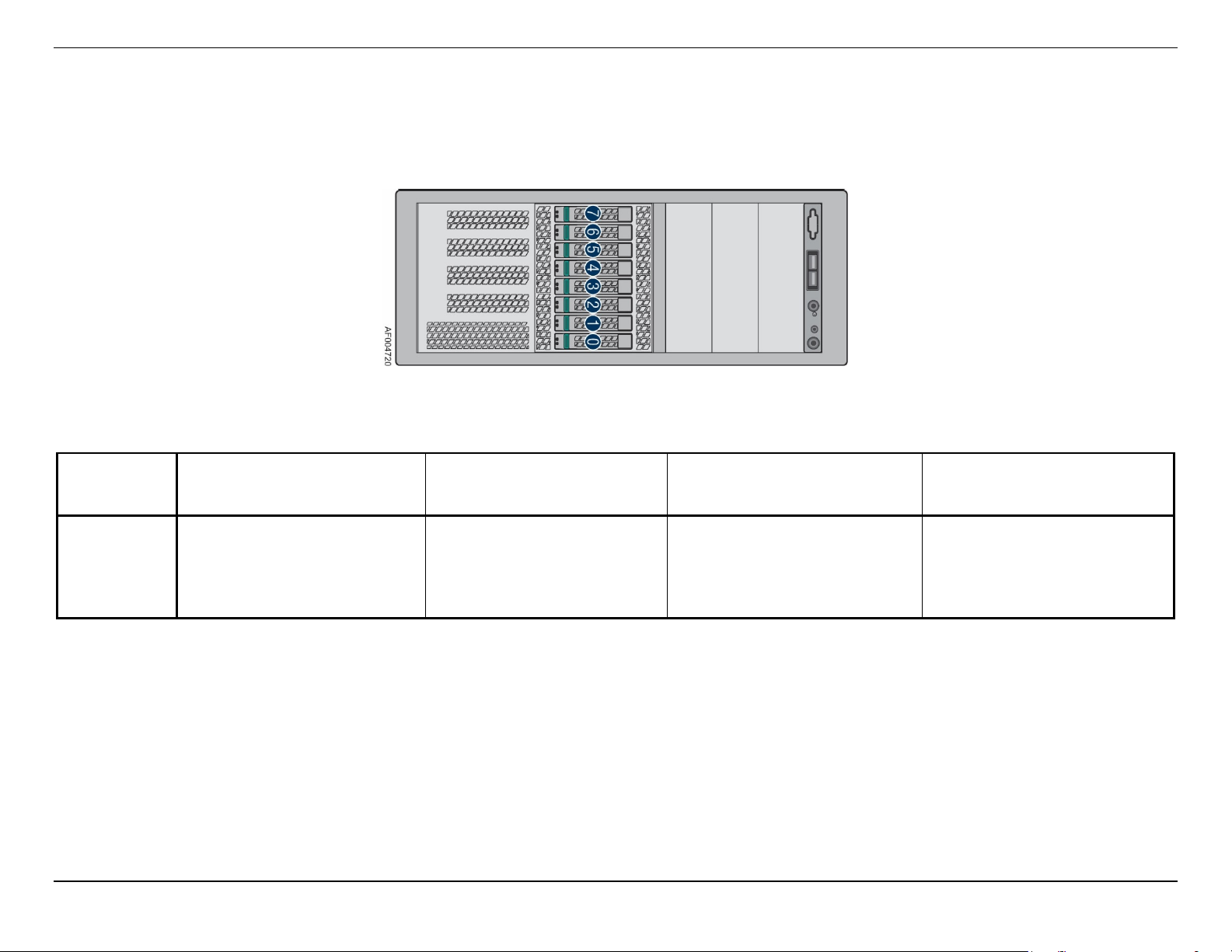

3.2.4 8x2.5” Hot-swap HDD SAS/SATA Cable Guide ................................................................................................................................................................................ 19

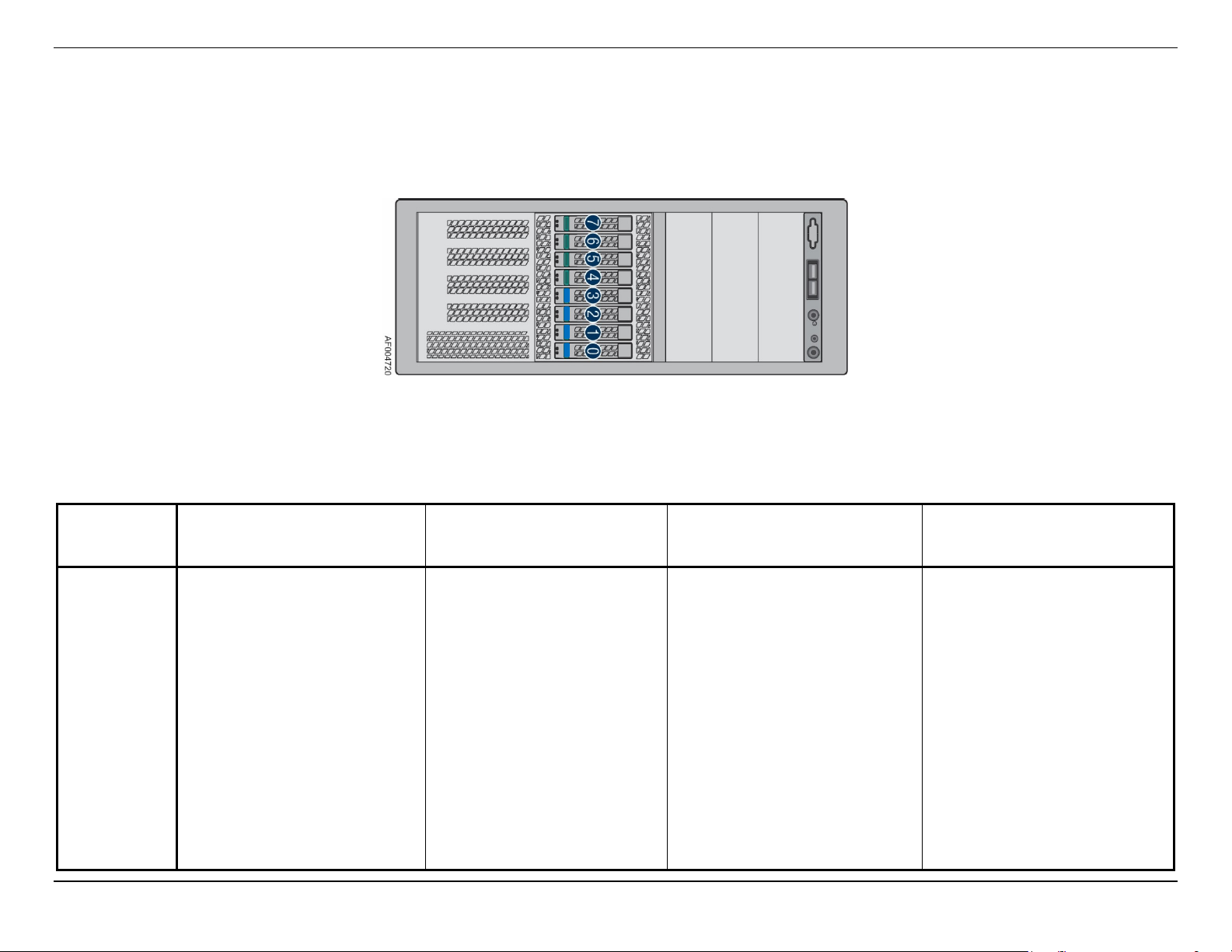

3.2.5 16x2.5” Hot-swap SAS/SATA HDD Cable Guide .............................................................................................................................................................................. 20

iPC – RES3FV288 ............................................................................................................................................................................................................................................... 21

iPC – RES3TV360 ............................................................................................................................................................................................................................................... 21

3.2.6 8x2.5” Hot-swap HDD SAS/SATA Cable Guide for Combo PCIe* SFF (NVMe) SSD / SAS Backplane ( iPC FUP8 X25 S3H SDK) ..................................... 23

3.2.7 16x2.5” Hot-swap SAS/SATA HDD with Combo PCIe* SFF (NVMe) SSD / SAS Backplane (iPC FUP8X25S3HSDK) cable guide .................................. 24

3.3 INTEL® SAS / SATA DATA CABLE KITS ...................................................................................................................................................................................................... 25

4. INTEL SERVER SYSTEM CONFIGURATION OPTIONS ............................................................................................................................................................................ 27

4.1 INTEL® SAS/SATA BACKPLANE OPTIONS .................................................................................................................................................................................................. 27

iPC - FUP4X35S3HSBP ..................................................................................................................................................................................................................................... 27

iPC - FXX8X25S3HSBP ..................................................................................................................................................................................................................................... 27

iPC - FUP4X35S3HSDK..................................................................................................................................................................................................................................... 27

iPC - FUP8X25S3HSDK..................................................................................................................................................................................................................................... 27

iPC - FUP8X25S3NVDK..................................................................................................................................................................................................................................... 28

iPC - FXX35HSADPB ......................................................................................................................................................................................................................................... 28

iPC - FXX25HSCAR ............................................................................................................................................................................................................................................ 28

4.2 LOCKING FRONT BEZEL ACCESSORY KIT ..................................................................................................................................................................................................... 29

iPC - FUPBEZELHSD2....................................................................................................................................................................................................................................... 29

4.3 INTEL® SAS RAID ADD-IN CARDS, EXPANDERS AND ACCESSORIES ........................................................................................................................................................ 30

4.3.1 Intel® RAID Controller Add-in Cards – SAS 3.0 (12Gb/s) ............................................................................................................................................................... 30

iPC - RS3GC008 ................................................................................................................................................................................................................................................. 30

iPC - RS3SC008 .................................................................................................................................................................................................................................................. 30

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

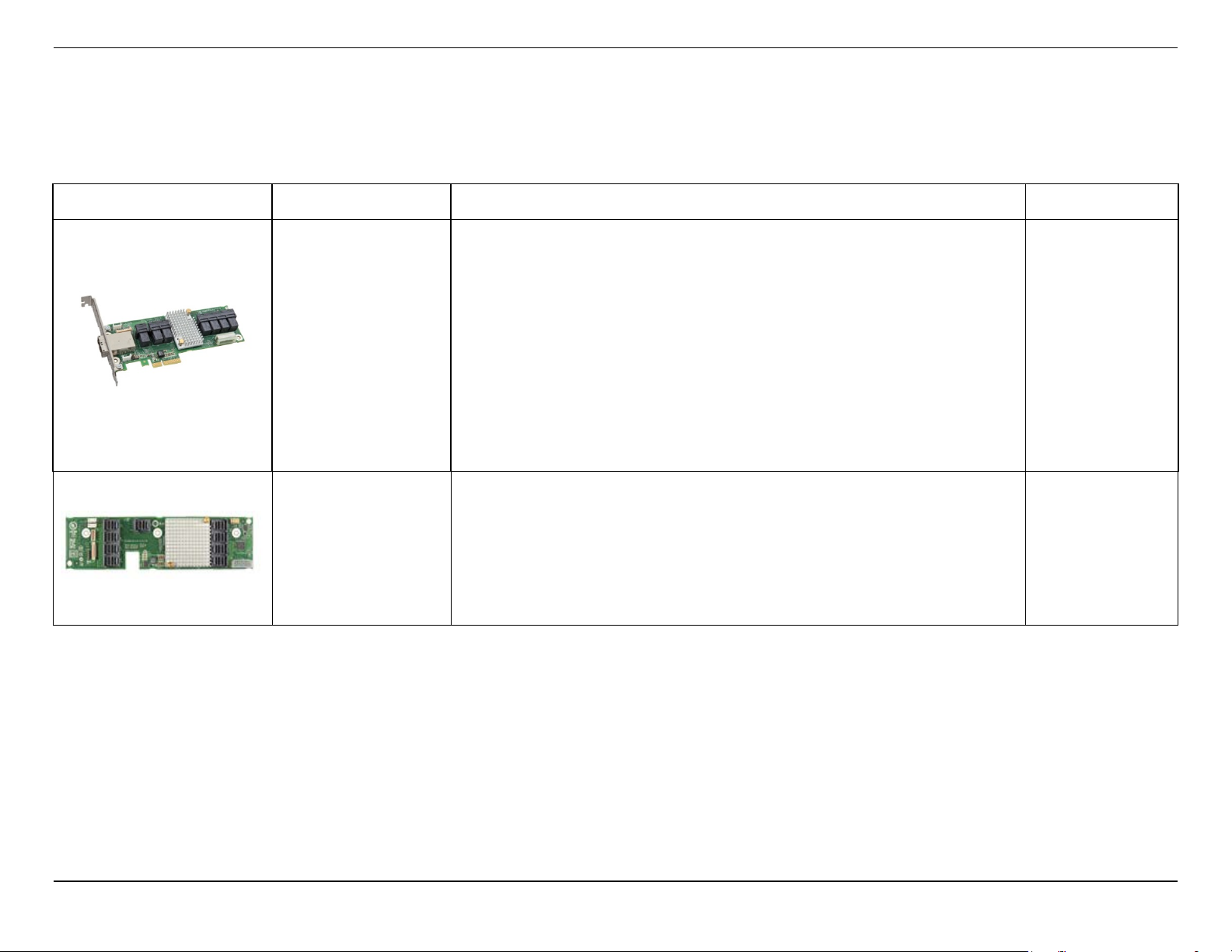

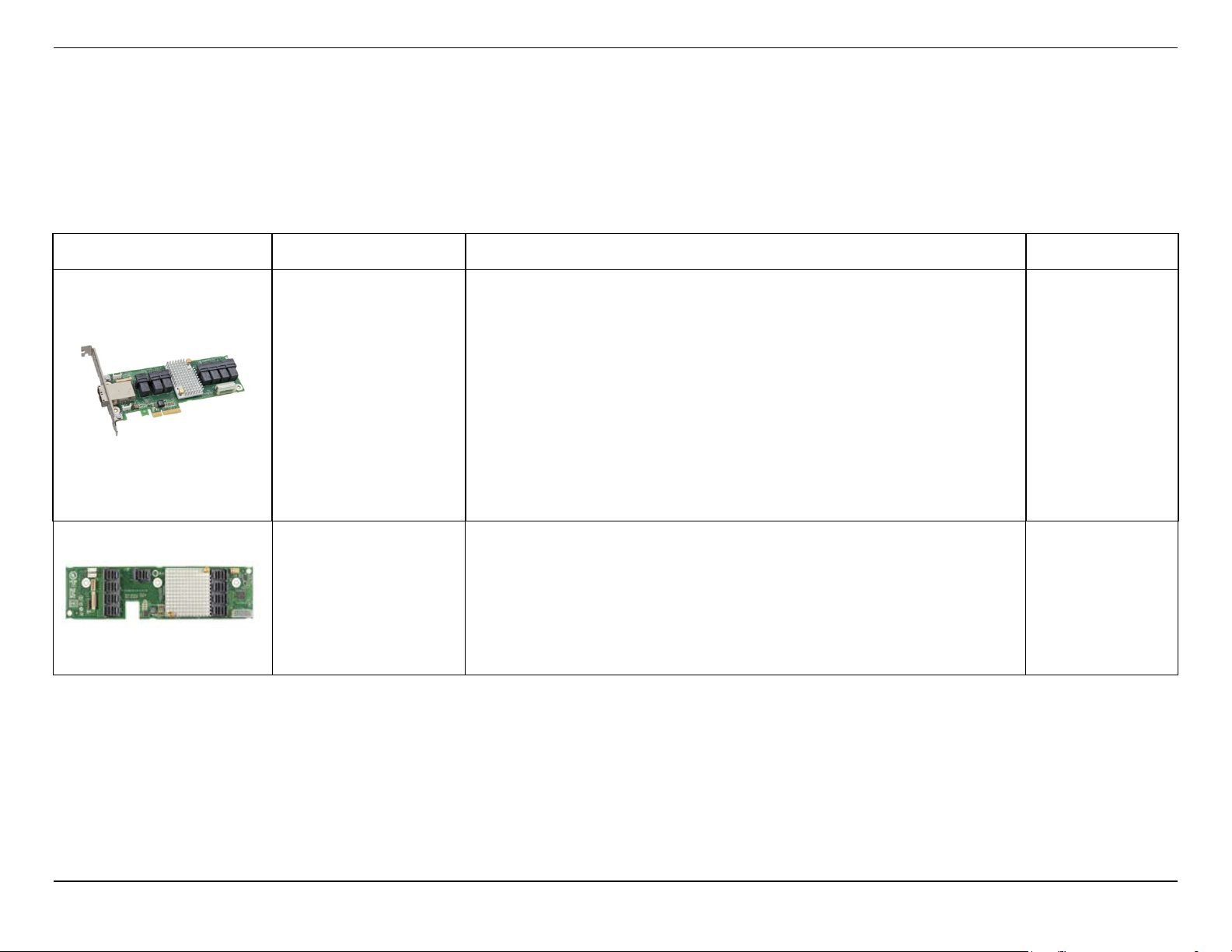

4.3.2 Intel® SAS Expanders ........................................................................................................................................................................................................................... 31

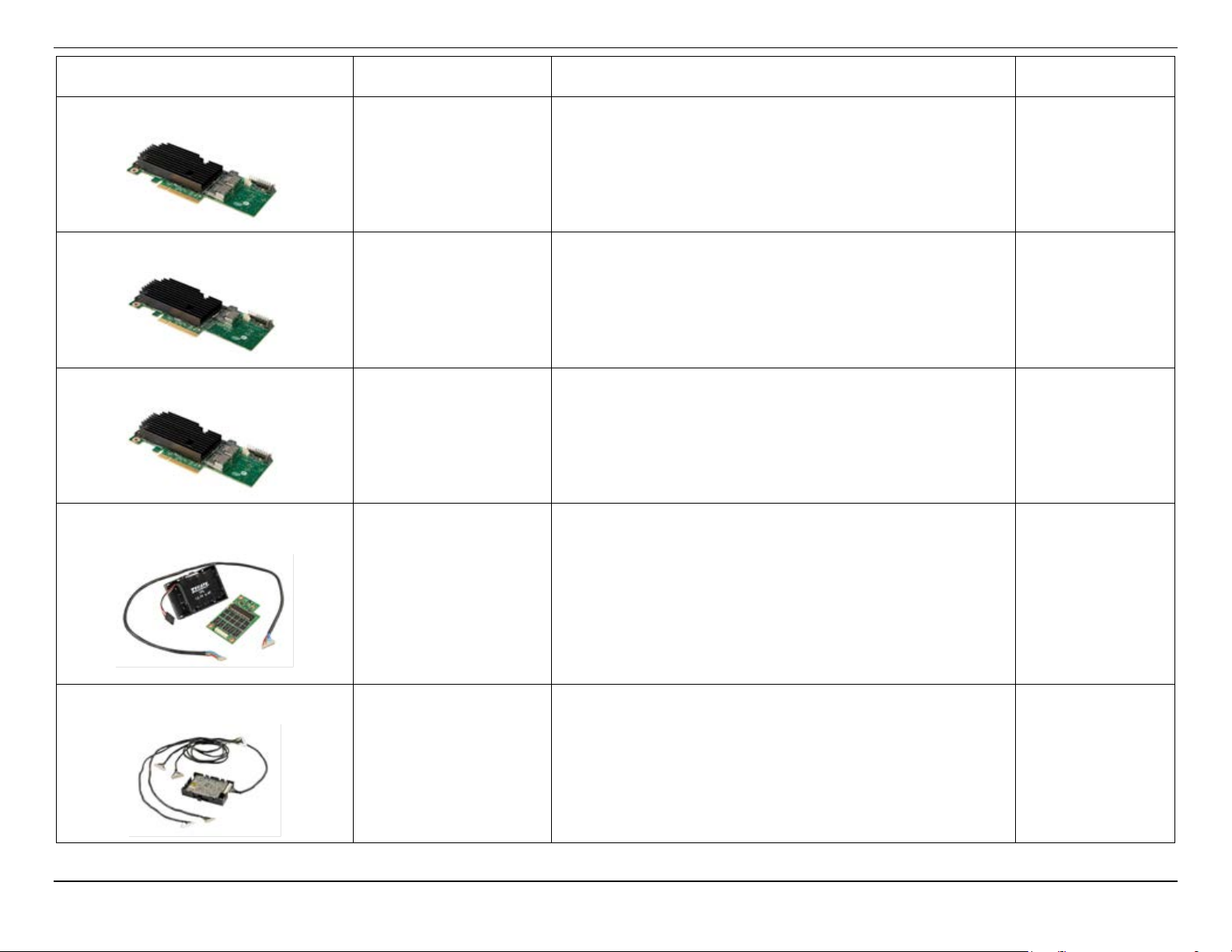

4.3.3 Intel® RAID Accessoried Options ........................................................................................................................................................................................................ 32

iPC - RKSATA4R5 .............................................................................................................................................................................................................................................. 32

iPC - AXXRPFKHY5 ........................................................................................................................................................................................................................................... 32

iPC - RMS25KB080 ............................................................................................................................................................................................................................................ 32

iPC - RMS25KB040 ............................................................................................................................................................................................................................................ 32

iPC - RMS25PB080 ............................................................................................................................................................................................................................................ 33

iPC - RMS25PB040 ............................................................................................................................................................................................................................................ 33

iPC - RMT3PB080 ............................................................................................................................................................................................................................................... 33

iPC - AXXRMFBU2 ............................................................................................................................................................................................................................................. 33

iPC - AXXRSBBU9 .............................................................................................................................................................................................................................................. 33

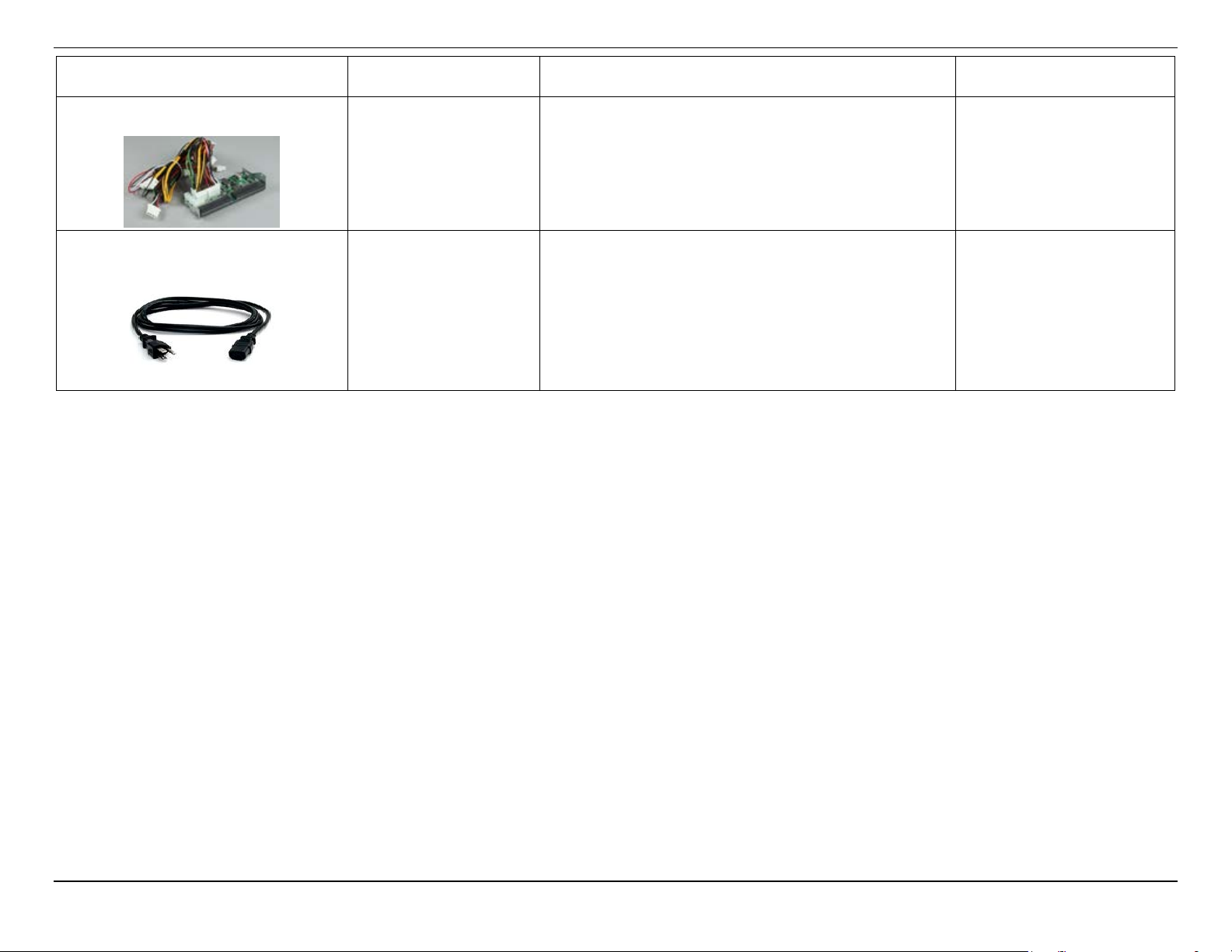

4.4 INTEL® POWER SUPPLY MODULE AND POWER CORDS .............................................................................................................................................................................. 34

iPC – FXX750PCRPS ......................................................................................................................................................................................................................................... 34

iPC - FXX1600PCRPS ....................................................................................................................................................................................................................................... 34

iPC - FUPNRPSADP .......................................................................................................................................................................................................................................... 34

iPC – FUPCRPSCAGE....................................................................................................................................................................................................................................... 34

iPC - FUPPDBHC2 .............................................................................................................................................................................................................................................. 35

iPC - FPWRCABLENA ....................................................................................................................................................................................................................................... 35

4.5 RACK OPTIONS .............................................................................................................................................................................................................................................. 36

4.5.1 Rack Bezel Accessories ........................................................................................................................................................................................................................ 36

iPC - AUPBEZEL4UF ......................................................................................................................................................................................................................................... 36

iPC - AUPBEZEL4UD ......................................................................................................................................................................................................................................... 36

4.5.2 Rack Mount Kits...................................................................................................................................................................................................................................... 37

iPC - AXXELVRAIL ............................................................................................................................................................................................................................................. 37

iPC –AXX3U5UPRAIL ........................................................................................................................................................................................................................................ 37

iPC –AXX3U5UCMA ........................................................................................................................................................................................................................................... 37

5. M ISCEL L ANEOUS ACC ESSORY OPTIONS ................................................................................................................................................................................................ 38

iPC - AXXRMM4LITE .......................................................................................................................................................................................................................................... 38

iPC - AXXTPME5 ................................................................................................................................................................................................................................................ 38

iPC – AXXTPME6................................................................................................................................................................................................................................................ 39

iPC – AXXTPME7................................................................................................................................................................................................................................................ 39

iPC - BXSTS200C ............................................................................................................................................................................................................................................... 40

iPC - BXSTS200P ............................................................................................................................................................................................................................................... 40

iPC - AUPCWPBTP ............................................................................................................................................................................................................................................ 40

iPC - AUPMCOPROBR ...................................................................................................................................................................................................................................... 40

6. SPARE AND REPLACEMENT PARTS (FRUS) ............................................................................................................................................................................................ 41

iPC -FUP550SNRPS .......................................................................................................................................................................................................................................... 41

iPC - FXXFPANEL .............................................................................................................................................................................................................................................. 41

iPC - FUPBEZELFIX2 ......................................................................................................................................................................................................................................... 41

iPC - A4UCWDUCT ............................................................................................................................................................................................................................................ 41

iPC - AXXCWIOS ................................................................................................................................................................................................................................................ 41

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

iPC - FUP4X35NHDK ......................................................................................................................................................................................................................................... 42

iPC - FUPMMSK .................................................................................................................................................................................................................................................. 42

iPC - FUPMESK .................................................................................................................................................................................................................................................. 42

iPC - FUPMLHSFAN ........................................................................................................................................................................................................................................... 42

iPC - FUPNHFANCPU ........................................................................................................................................................................................................................................ 43

iPC - FUPMNHFANPCI ...................................................................................................................................................................................................................................... 43

7. SOF TWARE SECURITY - MCAFEE® ANTIVIRUS FOR INTEL® SERVER SYSTEMS* ...................................................................................................................... 44

7.1 HOW TO ORDER IT ......................................................................................................................................................................................................................................... 44

7.2 MCAFEE® ANTIVIRUS FOR INTEL® SERVER SYSTEMS SKUS .................................................................................................................................................................... 44

8. EXTENDED WARRANTY .................................................................................................................................................................................................................................. 45

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

List of Tables

Table 1. Product Family Reference Collaterals ......................................................................................................................................................................... 2

Table 2. Server Board Product Family Summary ..................................................................................................................................................................... 6

Table 3. Server Chassis & Server System Product Family Summary .............................................................................................................................. 6

Table 4. Intel® Server Board S2600CW Product Family SKUs .......................................................................................................................................... 8

Table 5. Intel® Server Chassis P4000 Product Family SKUs .......................................................................................................................................... 11

Table 6. Single Port SATA Connector ........................................................................................................................................................................................ 13

Table 7. Multiple Channel MiniSAS HD Connectors ............................................................................................................................................................ 13

Table 8. Multiple Channel MiniSAS Connectors .................................................................................................................................................................... 14

Table 9. Cable connector types .................................................................................................................................................................................................... 14

Table 10. Fixed HDD Configuration SATA Cable Guide .................................................................................................................................................... 15

Table 11. 4x3.5” Hot-swap HDD Configuration Cable Guide ............................................................................................................................................ 17

Table 12. 8x3.5” Hot-swap HDD Configuration Cable Guide ............................................................................................................................................ 18

Table 13. 8x2.5” Hot-swap HDD Configuration Cable Guide ............................................................................................................................................ 19

Table 14. 16x2.5” Hot-swap HDD Cable Guide (with no SAS Expander) .................................................................................................................... 20

Table 15. SAS Expanders compatible with Intel® Server Boards S2600CW Family .............................................................................................. 21

Table 16. Hot-swap HDD Cable Guide (with SAS Expander) .......................................................................................................................................... 22

Table 17. Combo Backplane Module Placement – 8 x 2.5” front drive configurations ........................................................................................... 23

Table 18. Combo Backplane Module Placement – 16 x 2.5” front drive configurations ......................................................................................... 24

Table 19. Storage Data Cable Kit Description and Order Information .......................................................................................................................... 25

Table 20. Intel® SAS Bridge Board ............................................................................................................................................................................................. 27

Table 21. List of Front Bezel Accessory Kit ............................................................................................................................................................................. 29

vii

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Table 22. List of Intel® RAID Controller Add-in Cards – SAS 3.0 (12Gb/s) ................................................................................................................ 30

Table 23. SAS Expanders compatible with Intel® Server Boards S2600CW Family .............................................................................................. 31

Table 24. List of Intel® RAID Accessoried Options .............................................................................................................................................................. 32

Table 25. Intel® Power Supply Module And Power Cords ................................................................................................................................................ 34

Table 26. List of Rack Bezel Accessories................................................................................................................................................................................. 36

Table 27. List of Rack Mount Kits ................................................................................................................................................................................................ 37

Table 28. List of Miscellaneous Accessory Options ............................................................................................................................................................. 38

Table 29. List of Spare and Replacement Parts .................................................................................................................................................................... 41

Table 30. McAfee® Antivirus for Intel® Server Systems SKUs ....................................................................................................................................... 44

Table 31. Extended Warranty ........................................................................................................................................................................................................ 45

Table 32. A list of Acronyms and Terms used throughout this document .................................................................................................................... 46

viii

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

1. Intel® Server Family Overview

This document is provided to assist Intel customers with identifying the right Intel® Server System and available accessories, enabling them to create a unique server platform that meets their unique server requirements.

The Intel® Server Board S2600CW product family is offered as building block of an integrated system. The product family consists of the following:

Intel® Server S2600CW Product Family

Intel® Server Board S2600CW

Intel® Server Chassis P4304XXMFEN2 Intel® Server Chassis P4304XXMUXX

Server Building Blocks:

• Intel® Server Board S2600CW – Server Board only (Building block option and spare FRU) Refer to Table 4 for board SKUs

• Intel® Server Chassis P4304XXMFEN2, P4304XXMUXX – Pedestal Server Chassis

The Intel® Server Board S2600CW product family supports the following processors and memory:

• Intel® Xeon® processor E5-2600 v3 and Intel® Xeon® processor E5-2600 v4 product families

o NOTE: Previous generation Intel® Xeon® processors are not supported.

• DDR4 ECC RDIMM 1600, 1866, 2133 MT/s

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

• Intel

Server Board S2600CW Technical Product Specification

For system integration instructions and service

Intel® Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide

Intel® Server Configurator tool

For system firmware updates, onboard device

For a complete list of supported processors,

S2600CW dirvers, firmware and utilities

Additional Information and Software

For additional information about this family of products or any of their supported accessories, refer to the following resources available at

http://www.intel.com/support.

Table 1. Product Family Reference Collaterals

For this information or software Use this Document or Software

For in-depth technical information about this product family

guidance

For server configuration guidance and compatibility

For system power budget guidance

drivers, and software to manage your Intel® Server System.

memory, add-in cards, and peripherals check THOL at:

• Intel

• Intel® Remote Management Module 4 (Intel® RMM4) and Integrated BMC User Guide

• Intel® Remote Management Module 4 Technical Product Specification

• Intel® I/O Expansion Modules Hardware Specification

• Intel® Server Platform Firmware Specification Update

http://www.intel.com/content/www/us/en/motherboards/server-motherboards/server-board-s2600cw.html

Third Party reference chassis

Operating System Compatibility

https://www-ssl.intel.com/content/www/us/en/motherboards/server-motherboards/server-boards2600cw.html?wapkw=intel+server+board+s2600cw+family

Tested Hardware and Operating Systems List

Drivers, Firmware and utilities

Server System P4000M Product Family Technical Product Specification

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Figure 1. Intel® Server Board Feature Set Identification

(SAS 0-3 and SAS 4-7) are installed only on S2600CW2SR and S2600CWTSR SKUs

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Label

Description

550W fixed power supply

I/O ports

Alternate RMM4 knockout

PCI add-in board slot covers

AC input power connector

Serial ports knockout

A cable lock mounting hole

Padlock loop

Alternate RMM4 knockout

Front control panel

5.25” peripheral bays

CPU zone system fan (fixed system fan 2)

Fixed hard drive carrier tray

PCI zone system fan (fixed system fan 1)

PCI card retainer

Figure 2. Intel® Server Chassis P4304XXMFEN2 Feature Set Identification

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Label

Description

Filler 1 for one hot-swap power supply module

Filler 2 for one hot-swap power supply module

I/O ports

Alternate RMM4 knockout

PCI add-in board slot covers

Serial ports knockout

A cable lock mounting hole

Padlock loop

Alternate RMM4 knockout

Hot-swap system fan 5

Front control panel

Hot-swap system fan 4

5.25” peripheral bays

Hot-swap system fan 3

Hot-swap system fan 2

Fixed hard drive carrier tray

Hot-swap system fan 1

PCI card retainer

Figure 3. Intel® Server Chassis P4304XXMUXX Feature Set Identification

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Onboard

Ports

Onboard

Controller

Server Board only

S2600CW2R

2x1GbE

S2600CWTR

2x10GbE

S2600CW2SR

2x1GbE

Yes

S2600CWTSR

2x10GbE

Yes

Chassis Form

Factor

Power Supply

Modules

Air

Duct

Chassis Only

Yes

Opt

1.1 Product Family Summary Chart

The Intel® Server Board S2600CW product family consist in four Intel® Server Board options: DBS2600CW2R, DBS2600TR, DBS2600CW2SR, and DBS2600CWTSR. See Table 2 for the feature set summary of each server board option.

The S2600CW2R SKU offers dual 1GbE NIC ports. The S2600CWTR SKU offers dual 10GbE NIC ports. The S2600CW2SR SKU offers dual 1GbE NIC ports and onboard SAS controller. The S2600CWTSR SKU offers dual 10GbE NIC ports and onboard SAS controller.

The following tables provide an overview of the available Intel product codes for building blocks within the Intel® Server Board S2600CW product family. Each line item identifies key features supported in the shipping Intel SKU. Additional order code information and full product descriptions for each option are provided in later sections.

Table 2. Server Board Product Family Summary

Terms used in the table:

NA – Not Applicable Opt – Not Included - Accessory option sold separately Yes – Option included

Intel Product Code

# of CPU

sockets

# of DIMM

Slots

Table 3. Server Chassis & Server System Product Family Summary

Intel Product Code

P4304XXMFEN2 4U 2 x fixed

P4304XXMUXX 4U 5 x hot-swap

Fans Bezel

# of Add- in

Cards Slots

Fixed drive

bezel

Hot-swap

drive bezel

RJ45 LAN

1 x Fixed 550W

Supports up to 2x

hot-swap 750W or

1600W

SAS

Yes

2. Server Building Block Configuration

Intel® Server Chassis P4000

Intel® Server Board S2600CW

Server building blocks are offered to give Intel customers the option to configure and assemble a unique server system from the basic components, allowing for maximu customization. Each building block component and optional accessory is purchased separately. At a minimum, building up a functional server system using building blocks will require the following:

• Intel® Server Chassis P4000 product family

• Intel® Server Board S2600CW product family

• Hot-swap or Fixed power supply module

NOTE: (The Intel® Server Chassis P4304XXMFEN2 already includes a fixed PSU, while the Intel® Server Chassis P4304XXMUXX requires the purchase and installation of one or two Hot-Swap PSU)

• Power cord(s)

NOTE: Chassis shipped to the US & Canada will contain North American power cord(s).

• Processor(s)

• Memory

• Storage drives

• SATA cables

Optional Intel accessories that can be added include the following:

• SAS / SAS RAID support provided by either a - PCIe* add-in card or module + and appropriate SAS data cable(s).

• Intel® I/O Module

• Intel® Remote Management Module 4 Lite

Refer to section 4 for available options.

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel Product Code

MM# - 943803

1.375 Kgs, 3.03 Lbs

MM# - 943805

1.41 Kgs, 3.11 Lbs

2.1 Intel® Server Board S2600CW Product Family SKUs

Table 4. Intel® Server Board S2600CW Product Family SKUs

iPC – DBS2600CW2R

iPC – DBS2600CWTR

(iPC)

Order Information

UPC - 00735858309219

EAN -

5032037081801

MOQ - 5

Board Dimensions:

SSI EEB 12" x 13"

Packaged Gross Weight (Five boards package)

10.7 Kgs, 23.6 Lbs

Un-packaged Net Weight (Single board)

UPC - 00735858309202

EAN -

5032037081795

MOQ - 5

Board Dimensions:

SSI EEB 12" x 13"

Packaged Gross Weight (Five boards package)

10.7 Kgs, 23.6 Lbs

Un-packaged Net Weight (Single board)

Product Description Product Type

Intel® Server Board S2600CW2R

• Support for dual Intel

• Intel® C612 Chipset

• 16 DDR4 DIMM Slots

• Dual Integrated 1Gb ports with Intel

• Integrated Baseboard Management controller with IPMI 2.0 support

• Optional advanced management features activated by AXXRMM4LITE key

• Dedicated management port onboard

• 6 PCIe* slots

o One x4 PCIe* Gen 2 from PCH o One x8 PCIe* Gen 3 from CPU 1 o Two x16 PCIe* Gen 3 from CPU 0 o Two x16 PCIe* Gen 3 from CPU 1

• 8 SATA through 2 Mini SAS HD ports

• 2 SATA 6G AHCI ports

Xeon E5-2600 v3 and v4 processor families

Virtualization Technology

Intel® Server Board S2600CWTR

• Support for dual Intel

• Intel® C612 Chipset

• 16 DDR4 DIMM Slots

• Dual Integrated 10Gb ports with Intel

• Integrated Baseboard Management controller with IPMI 2.0 support

• Optional advanced management features activated by AXXRMM4LITE key

• Dedicated management port onboard

• 6 PCIe* slots

o One x4 PCIe* Gen 2 from PCH o One x8 PCIe* Gen 3 from CPU 1 o Two x16 PCIe* Gen 3 from CPU 0 o Two x16 PCIe* Gen 3 from CPU 1

• 8 SATA through 2 Mini SAS HD ports

• 2 SATA 6G AHCI ports

Xeon E5-2600 v3 and v4 processor families

Virtualization Technology

Server Board only

• Building block

option

• Spare FRU

Server Board only

• Building block

option

• Spare FRU

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel Product Code

(iPC)

Intel® Server Board S2600CW2SR

8 SAS through 2 Mini-SAS HD ports from LSI3008

Intel® Server Board S2600CWTSR

8 SAS through 2 Mini-SAS HD ports from LSI3008

Order Information Product Description Product Type

iPC – DBS2600CW2SR

iPC – DBS2600CWTSR

MM# - 943804

UPC -

00735858309226

EAN -

5032037081818

MOQ - 5

Board Dimensions:

SSI EEB 12" x 13"

Packaged Gross Weight (Five boards package)

10.7 Kgs, 23.6 Lbs

Un-packaged Net Weight (Single board)

1.41 Kgs, 3.11 Lbs

MM# - 943806

UPC -

00735858309233

EAN -

5032037081825

MOQ - 5

Board Dimensions:

SSI EEB 12" x 13"

Packaged Gross Weight (Five boards package)

10.7 Kgs, 23.6 Lbs

Un-packaged Net Weight (Single board)

1.375 Kgs, 3.03 Lbs

• Support for dual Intel

• Intel® C612 Chipset

• 16 DDR4 DIMM Slots

• Dual Integrated 1Gb ports with Intel

• Integrated Baseboard Management controller with IPMI 2.0 support

• Optional advanced management features activated by AXXRMM4LITE key

• Dedicated management port onboard

• 6 PCIe* slots

o One x4 PCIe* Gen 2 from PCH o One x8 PCIe* Gen 3 from CPU 0 o One x8 PCIe* Gen3 from CPU 1 o One x16 PCIe* Gen 3 from CPU 0 o Two x16 PCIe* Gen 3 from CPU 1

• LSI 3008 Battery-less 12G SAS hardware RAID

• 8 SATA through 2 Mini SAS HD ports

• 2 SATA 6G AHCI ports

•

• Support for dual Intel

• Intel® C612 Chipset

• 16 DDR4 DIMM Slots

• Dual Integrated 10Gb ports with Intel

• 2 PCIe* 3.0 x24 capable slots and 2 PCIe* 3.0 x16 capable slot (not PCI-SIG*

compatible)

• Integrated Baseboard Management controller with IPMI 2.0 support

• Optional advanced management features activated by AXXRMM4LITE key

• Dedicated management port onboard

• 6 PCIe* slots

o One x4 PCIe* Gen 2 from PCH o One x8 PCIe* Gen 3 from CPU 0 o One x8 PCIe* Gen3 from CPU 1 o One x16 PCIe* Gen 3 from CPU 0 o Two x16 PCIe* Gen 3 from CPU 1

• LSI 3008 Battery-less 12G SAS hardware RAID

• 8 SATA through 2 Mini SAS HD ports

• 2 SATA 6G AHCI ports

•

Xeon E5-2600 v3 and v4 processor families

Virtualization Technology

Xeon E5-2600 v3 and v4 processor families

Virtualization Technology

Server Board only

• Building block

option

• Spare FRU

Server Board only

• Building block

option

• Spare FRU

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

2.2 Intel® Chassis P4000 Product Family SKUs

The product tables found in this section provide order code information and detailed descriptions for each available Intel Server Chassis building block option. The lower sections of each table identify:

• The components which are included with the specified chassis product code.

• Required Items – Hardware required to be installed to the base system to achieve basic functionality using the default system feature set

• Optional Accessories – Some of the available accessories which can be installed to enhance the basic feature set of the server board / chassis.

Additional accessories can be found in the following sections.

NOTES:

• Each required item and optional accessory is sold separately from the specified Intel server building block.

• Items identifed as iPC (Intel Product Code), are an orderable building block option, accessory or spare FRU.

• In an effort to provide the complete product bill of materials, the included components list in each product table will include items identified by

description and by iPN (Intel Part Number). The iPN information is provided for reference only. These components are NOT orderable as a spare or accessory.

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel Product Code (iPC):

Product Definition and Configuration Requirements

Intel product code P4304XXMFEN2 includes the

Required Items – Sold Separately:

Optional Intel Accessories – Sold Separately:

iPC – P4304XXMFEN2

Table 5. Intel® Server Chassis P4000 Product Family SKUs

Product Type: Chassis Only

Order Code Information:

MM# - 936416

UPC - 00735858292658

EAN - 5032037070980

MOQ - 1

Chassis Form Factor: 4U Pedestal mount (Rackable) Chassis dimensions: L=612mm, W=173mm, H=438mm Packaged Gross Weight: 21.8 Kgs, 48 Lbs Un-packaged Net Weight: 16 Kgs, 35.2 Lbs Outer Box Dimensions: L=813mm, W=348mm, H=577mm

following components: (1) - 4U Pedestal Chassis (1) - Standard Control Panel – iPC FXXFPANEL (1) - Fixed 550W PSU – iPC FUP550SNRPS (4) - Fixed 3.5”/2.5” drive sleds - iPC FUP4X35NHDK (1) - Fixed 120mm system fan - iPC FUPNHFANCPU (1) - Fixed 120mm system fan - iPC FUPMNHFANPCI (1) - Processor/Memmory air duct – iPC A4UCWDUCT (1) - Fixed bezel – iPC FUPBEZELFIX2 (1) - Attention documention (2) – Dual power Connector Cable iPN – G22872-00x (1) – MiniSAS HD to 4 ports SATA 7 pins cable – iPN

H19948-00x (1) – Chassis plastic Foot iPN – G35111-00x (1) – Set of standoffs for Motherboard iPN – G35101-

00x (1) – Bumper pad for Motherboard iPN – G35112-00x (1) – Set of 5mm screws for Motherboad iPN – G35096

• Intel® Server Board S2600CW (choose one) o iPC DBS2600CW2R – with dual 1GbE NIC

ports

o iPC DBS2600CWTR – with dual 10GbE NIC

ports

o iPC DBS2600CW2SR – with dual 1GbE NIC

ports and onboard SAS controller

o iPC DBS2600CWTSR – with dual 10GbE NIC

ports and onboard SAS controller

• Power Cord(s)

NOTE: Chassis shipped to the US & Canada will contain North American power cords.

• 1 or 2 Intel® Xeon® E5-2600 v3 or v4 product family

processors

• ECC DDR4 memory (RDIMM)

•

SATA cables

• Intel® I/O Module – See Chapter 5 for options.

• Intel® SAS RAID Card / Module – See Section 4.3 for

options.

• Rack options - See 4.5 Section for options.

• iPC AXXRMM4LITE – Intel® Remote Management

Module Lite key. For advanced management features

• Storage Drives

See Chapter 4 for all available accessory options.

Intel Product Code (iPC):

iPC – P4304XXMUXX

Product Definition and Configuration Requirements

Intel product code P4304XXMUXX includes the

Required Items – Sold Separately:

Optional Intel Accessories – Sold Separately:

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

following components: (1) – 4U Chassis (1) - Standard Control Panel – iPC FXXFPANEL (1) - Power Distribution Board – iPC FUPPDBHC2 (1) – Power Supply Cage – iPC FUPCRPSCAGE (5) – Redundant/Hot swap 80mm system fans - iPC

FUPMLHSFAN (4) - Fixed 3.5”/2.5” drive sleds - iPC FUP4X35NHDK (1) – Processor/Memmory air duct – iPC A4UCWDUCT (1) – Hot swap bezel with lock – iPC FUPBEZELHSD2 (1) – Fixed EMI cover (1) - Attention documention (2) – Dual power Connector Cable iPN – G22872-00x (1) – MiniSAS HD to 4 ports SATA 7 pins cable –

AXXCBL450HD7S (1) – Chassis plastic Foot iPN – G35111-00x (1) – Set of standoffs for Motherboard iPN – G35101-

00x (1) – Bumper pad for Motherboard iPN – G35112-00x (1) – Set of 5mm screws for Motherboad iPN – G35096

Order Code Information:

MM# - 937011

UPC - 00735858289962

EAN - 5032037068802

MOQ - 1

Product Type: Chassis Only Chassis Form Factor: 4U rack mount Chassis dimensions: L=612mm, W=173mm, H=438mm Packaged Gross Weight: 23.8 Kgs, 52.4 Lbs Un-packaged Net Weight: 15.5 Kgs, 34.2 Lbs Outer Box Dimensions: L=813mm, W=348mm, H=577mm

• Intel® Server Board S2600CW (choose one) o iPC DBS2600CW2R – with dual 1GbE NIC

ports

o iPC DBS2600CWTR – with dual 10GbE NIC

ports

o iPC DBS2600CW2SR – with dual 1GbE NIC

ports and onboard SAS controller

o iPC DBS2600CWTSR – with dual 10GbE NIC

ports and onboard SAS controller

• Power Cord(s)

NOTE: Chassis shipped to the US & Canada will contain North American power cords.

• 1 or 2 Intel® Xeon® E5-2600 v3 or v4 product family

processors

• Intel® I/O Module – See Chapter 5 for options.

• Intel® SAS RAID Card / Module – See Section 4.3 for

options.

• Power supply - See 0 Section for options.

• SAS/SATA backplane - See Section 4.1 for options.

• Hot swap drive cages - See Section 4.1 for options.

• iPC AXXRMM4LITE – Intel® Remote Management

Module Lite key. For advanced management features

• Storage Drives

See Chapter 4 for all available accessory options.

• ECC DDR4 memory (RDIMM)

•

SATA cables

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List


Description

7-pin Single Port SATA


Description

SFF-8643

3. SAS/SATA Data Cable Guide

By default, the chassis will include one AXXCBL450HD7S cable that can be routed from the motherboard to each of four HDDs. SAS data cables may need to be ordered separately when adding a SAS RAID module, SAS RAID PCIe* add-in card and/or Hot-Swap Backplanes to the system. SAS / SATA data cables are NOT included with any of the chassis.

3.1 SAS/SATA Data Cable Connector Types

There are three storage interface connector types used within this product family:

Table 6. Single Port SATA Connector

Support for up to 6 Gb/sec SATA devices

Where used:

- On the server board

- SATA Optical Drive – CD/DVD

- SATA DOM

Table 7. Multiple Channel MiniSAS HD Connectors

Support for up to 12 Gb/Sec SAS and 6 Gb/sec SATA devices PCIe* (NVMe) SFF support associated with Intel Accessory Kit iPC FUP8x25S3NVDK

Where used:

- 12Gb/sec 4x3.5” Hot-Swap Backplane (iPC FUP4X35S3HSDK, FUP4X35S3HSBP)

- 12Gb/sec 8x2.5” Hot-Swap Backplane (iPC FUP8X25S3HSDK , FXX8X25S3HSBP)

- All 12 Gb/sec SAS RAID Controllers

- All 12 Gb/sec SAS Expander Cards

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List


Description

Table 8. Multiple Channel MiniSAS Connectors

SFF-8087 Support for up to 6 Gb/sec SAS / SATA devices

Where used:

- 6Gb/sec 8x3.5” Hot-Swap Backplane (iPC FUP8X35HSDK, FUP8X35HSBP)

- All 6 Gb/sec SAS RAID Controllers

- All 6 Gb/sec SAS Expander Cards

When connecting a 6Gb/sec SAS Controller or SAS Expander to a 12 Gb/sec capable hot swap backplane, the data cables used will need an SFF-8643 connector on one end of the cable and a SFF-8087 connector on the other. See Table 19. Storage Data Cable Kit Description and Order Information for appropriate cable kits

3.2 Server System Cable Guide

Product tables in this section will reference SAS/SATA cables using different connector types to meet the connection and routing requirements for the specified system configuration. Each cable reference and product code will identify the connector type at each end of the cable using the following identifiers: HR, HD,

MS and 7[S|R|P]. The following table identifies the cable connector types and their identifiers.

Table 9. Cable connector types

HR = Right Angle SFF-8643 Mini SAS HD Connector

HD = Straight SFF-8643 Mini SAS HD Connector

MS = Straight SFF-8087 Mini SAS Connector (compatible with 6Gb/sec SAS controllers and expanders)

7[S|R|P] =7-pin Single Port SATA (Support for up to 6 GB/sec SATA devices).

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Cables for On-Board SAS Controller

Hard Drive

Cables for 12 Gb SAS RAID

Drive

Cables for 6 Gb SAS RAID

Drive

Cable Connections:

two cables

Cable Connections:

two cables

Cable Kit Product Code Example - AXXCBL950HDMS

AXXCBL – Identifies an accessory cable kit 950 – identifies the length of the cable in millimeters HD – identifies that one end of cable connector has SFF-8643 connector MS – identifies that the other end of cable connector has SFF-8087 connector 7[S|R|P] – identifies that the other end of cable connector has single port SATA

Drive numbering in the system illustrations is for general reference only. Actual drive numbering will be dependant on SAS / SATA controller configuration and how they are cabled to the backplane. Each installed backplane will include a multi-port data connector for each for drive group. Each table in the following sections identifies the cable connections and recommended cable lengths for each supported storage controller option in the specified system. Each “recommended” cable length for a given connector pair provides enough cable to attach the two devices with the least amount of excess cable, resulting in the cleanest cable routing. See Table 19. Storage Data Cable Kit Description and Order Information for appropriate cable kits to use on your system.

3.2.1 Fixed HDDs SAS/SATA Cable Guide

One Mini-SAS cable - iPC AXXCBL450HD7S is included in the server chassis while the other cables must be ordered separately, as needed. One addtional set of HDD trays - iPC FUP4X35NHDK is needed for a fixed 8x3.5” or fixed 8x2.5” hard drive configuration since the Intel® Server Chassis is shipped with only 4 HDD trays.

Table 10. Fixed HDD Configuration SATA Cable Guide

Drive

Support

Cables for On-Board SATA Capable

Controller to Hard Drive

SATA -> HDD

Fixed

4x3.5”

450mm HD --- 7S (1) AXXCBL450HD7S Cable included with the server chassis

on S2600CW2SR or S2600CWTSR to

SAS onboard-> HDD 450mm HD --(1) AXXCBL450HD7S Cable included with the server chassis

PCIe* add-in card to Hard

SAS Add-in card -> HDD 900mm HD --(1) AXXCBL900HD7R Cable must be ordered separately. The kit includes

PCIe* add-in card to Hard

SAS Add-in card -> HDD 740mm MS --(1) AXXCBL740MS7P Cable must be ordered separately. The kit includes

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Cables for On-Board SAS Controller

Hard Drive

Cables for 12 Gb SAS RAID

Drive

Cables for 6 Gb SAS RAID

Drive

Cable Connections:

FUPMESK

Cable Connections:

separately.

Cable Connections:

separately.

Cable Connections:

FUPMESK

Cable Connections:

Drive

Support

Fixed

8x3.5”

Fixed

4x2.5”

Fixed

8x2.5”

Cables for On-Board SATA Capable

Controller to Hard Drive

SATA -> HDD sSATA-> HDD 450mm HD --- 7S (2) AXXCBL450HD7S One cable is included with the server chassis while another cable must be ordered separately. The kit includes two cables. Requires 2 extra power adapter cables included in Electrical Maintenance Kit

SATA -> HDD 450mm HD --(1) AXXCBL450HD7S Cable included with the server chassis

SATA -> HDD sSATA -> HDD 450mm HD --- 7S (2) AXXCBL450HD7S One cable is included with the server chassis while another cable must be ordered separately. The kit includes two cables. Requires 2 extra power adapter cables included in Electrical Maintenance Kit

on S2600CW2SR or S2600CWTSR to

SAS onboard -> HDD 450mm HD --- 7S (2) AXXCBL450HD7S One cable is included with the server chassis while another cable must be ordered separately. The kit includes two cables. Requires 2 extra power adapter cables included in Electrical Maintenance Kit FUPMESK

SAS onboard -> HDD 450mm HD --- 7S (1) AXXCBL450HD7S Cable included with the server chassis

FUPMESK

PCIe* add-in card to Hard

SAS Add-in card -> HDD 900mm HD --- 7S (2) AXXCBL900HD7R Cables must be ordered separately. The kit includes two cables. Requires 2 extra power adapter cables included in Electrical Maintenance Kit

FUPMESK

SAS Add-in card -> HDD 900mm HD --(1) AXXCBL900HD7R Cable should be ordered

SAS Add-in card -> HDD 900mm HD --- 7S (2) AXXCBL900HD7R Cables must be ordered separately. The kit includes two cables. Requires 2 extra power adapter cables included in Electrical Maintenance Kit

FUPMESK

PCIe* add-in card to Hard

SAS Add-in card -> HDD 740mm HD --- 7S (2) AXXCBL740MS7P Cables must be ordered separately. The kit includes two cables. Requires 2 extra power adapter cables included in Electrical Maintenance Kit FUPMESK

SAS Add-in card -> HDD 740 MS --(1) AXXCBL740MS7P Cable should be ordered

SAS Add-in card -> HDD 740mm HD --- 7S (2) AXXCBL740MS7P Cables must be ordered separately. The kit includes two cables. Requires 2 extra power adapter cables included in Electrical Maintenance Kit

FUPMESK

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Cables for On-Board SAS

S2600CWTSR to Backplane

SATA -> BP

Only one required.

SAS onboard-> BP

Only one required.

SAS Add-in card -> BP

Only one required.

SAS Add-in card -> BP

Only one required.

3.2.2 4x3.5” Hot-swap HDD SAS/SATA Cable Guide

The 4x3.5” hot-swap hard drive configuration is an upgrade option that requires a hot-swap hard drive cage kit - iPC FUP4X35S3HSDK. The Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS must to be ordered separately.

Drive Support

Hot-swap 4x3.5”

Table 11. 4x3.5” Hot-swap HDD Configuration Cable Guide

Cables for On-Board SATA

Controller to Backplane

380mm HD --- HD (1) AXXCBL380HDHD The kit includes two cables.

Figure 4. SATA/SAS 0-4

Controller on S2600CW2SR or

380mm HD --- HD (1) AXXCBL380HDHD The kit includes two cables.

Cables for 12 Gb SAS RAID

PCIe* add-in card to Backplane

650mm HD --- HD (1) AXXCBL650HDHD The kit includes two cables.

Cables for 6 Gb SAS RAID PCIe*

add-in card to Backplane

650mm HD --- MS (1) AXXCBL650HDMS The kit includes two cables.

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Cables for On-Board SAS

S2600CWTSR to Backplane

SATA -> BP

The kit includes two cables

SAS onboard -> BP

SAS Add-in card -> BP

3.2.3 8x3.5” Hot-swap HDD SAS/SATA Cable Guide

The 8x3.5” hot-swap hard drive configuration is an upgrade option that requires two hot-swap hard drive cage kits - iPC FUP4X35S3HSDK. The Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS must be ordered separately.

Drive Support

Top and

Bottom

Hot-swap

4x3.5”

Cables for On-Board SATA Controller to Backplane

sSATA -> BP 380mm HD --- HD (2) AXXCBL380HDHD

Figure 5. SATA/SAS 0-7

Table 12. 8x3.5” Hot-swap HDD Configuration Cable Guide

Controller on S2600CW2SR or

380mm HD --- HD (2) AXXCBL380HDHD The kit includes two cables

Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane

650mm HD --- HD (2) AXXCBL650HDHD The kit includes two cables

Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane

650mm HD --- MS (2) AXXCBL650HDMS The kit includes two cables

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Cables for On-Board SAS

S2600CWTSR to Backplane

SATA -> BP

The kit includes two cables

SAS -> BP

SAS Add-in card -> BP

3.2.4 8x2.5” Hot-swap HDD SAS/SATA Cable Guide

The 8x2.5” hot-swap hard drive configuration is an upgrade option that requires a hot-swap hard drive cage kit - iPC FUP8X25S3HSDK. The Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS must be ordered separately. Note: For data cable information associated with Intel® Accessory Kit FUP8X25S3NVDK, see section 3.2.6

Figure 6. SATA/SAS 0-7

Table 13. 8x2.5” Hot-swap HDD Configuration Cable Guide

Drive Support

Hot-swap

8x2.5”

Cables for On-Board SATA Controller to Backplane

sSATA -> BP 380mm HD --- HD (2) AXXCBL380HDHD

Controller on S2600CW2SR or

380mm HD --- HD (2) AXXCBL380HDHD The kit includes two cables

Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane

650mm HD --- HD (2) AXXCBL650HDHD The kit includes two cables

Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane

650mm HD --- MS (2) AXXCBL650HDMS The kit includes two cables

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Cables for On-Board SAS

S2600CWTSR to Backplane

SATA -> BP

The kit includes two cables

SAS onboard -> BP

SAS Add-in Card -> BP

Top Drive Cage

Bottom Drive Cage

3.2.5 16x2.5” Hot-swap SAS/SATA HDD Cable Guide

The 16x2.5” hot-swap hard drive configuration is an upgrade option that requires two hot-swap hard drive cage kits - iPC FUP8X25S3HSDK. The Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS must be ordered separately. Note: For data cable information associated with Intel® Accessory Kit FUP8X25S3NVDK, see section 3.2.6

Figure 7. SATA/SAS 0-15

3.2.5.1 16x2.5” Hot Swap HDD SAS/SATA Cable Guide (with No SAS expander)

For S2600CW2SR and S2600CWTSR,16x2.5” drives can be used without the need to install an expander or additional RAID PCIe card. The 16 drives will be split in two different groups of 8 drives each; one managed by the On-Board SATA controller and the other managed by the On-Board SAS controller.

Drive Support

Top and

Bottom

Hot-swap

8x2.5”

Table 14. 16x2.5” Hot-swap HDD Cable Guide (with no SAS Expander)

Cables for On-Board SATA Controller to Backplane

sSATA-> BP 380mm HD --- HD (2) AXXCBL380HDHD per cage

Controller on S2600CW2SR or

380mm HD --- HD (2) AXXCBL380HDHD per cage The kit includes two cables

Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane

650mm HD --- HD (2) AXXCBL650HDHD per cage The kit includes two cables

Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane

650mm HD --- MS (2) AXXCBL650HDMS per cage The kit includes two cables

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

SAS 3.0 12 Gb/s expander

•

SAS 2.0 12 Gb/s expander

3.2.5.2 16x2.5” Hot Swap HDD SAS/SATA Cable Guide (with SAS expander)

SAS drive configurations consisting of more than 8 drives may require the addition of a SAS Expander card. In a 16x2.5” system configuration, the SAS expander RES3FV288 must be installed in any available PCIe add-in slot, or when using RES3TV360, the card must be installed between the system fans and the backplane of the HDD cages. Intel provides two SAS expander options to support this drive configuration:

Table 15. SAS Expanders compatible with Intel® Server Boards S2600CW Family

Intel Product Code Order Information

Product Description Product Type

• Featuring 6Gbps data aggregation for 12Gbps data transfer with 6Gb/s

iPC – RES3FV288

RAID Expander

Intel

RES3FV288

MM# – 932895

UPC – 00735858287548

EAN – 5032037067287

MOQ - 5

devices

• Low Profile MD2 PCIe* add-in card form factor

• 28 internal ports and 8 external ports

• Redundant dual-port capable for HA and high performance systems

• Power from PCIe x1

• HD Mini-SAS 8643 Connectors

Kit includes: (1) SAS Expander card, (2) HD-HD 250mm Expander-to-RAID card cables, PCI brackets for Low profile and Full height

Required (sold separately): HD-HD SAS DATA Cables – Expander to

Accessory Kit

backplane – See Table 16

iPC – RES3TV360

Intel® RAID Expander

RES3TV360

MM# – 932894

UPC –00735858287364

EAN – 5032037067102

MOQ - 5

• 36-port, 12 Gb/s-capable expander card

Kit includes: (1) 12 Gb/s SAS Expander card, (2) Cables to connect to 24-ports on nearby drive backplane

Required (sold separately): HD-HD SAS Expander-to-RAID Data Cables for connecting – See Table 16

• Accessory Kit

Note: The onboard SATA ports are not compatible with SAS Expander cards. The onboard SATA ports can only be cabled directly to a specified backplane or HDD

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Cables for On-Board SAS

Expander to Backplane

N/A With RES3FV288 Expander

With RES3FV288 Expander

Table 16. Hot-swap HDD Cable Guide (with SAS Expander)

Drive Support

Cables for On-Board SATA Controller to Backplane

Top and

Bottom

Hot-swap

8x2.5”

Controller on S2600CW2SR or S2600CWTSR + 12 Gb SAS

installed on PCIe slot:

- Use cables in Expander Kit to

attach SAS ROC to Expander Card.

- To connect the expander to

Backplane use cable (2) AXXCBL650HDHD per cage. The kit includes two cables.

With RES3TV360 Expander installed in the space between the system fans and backplanes:

- Use cables in Expander Kit to

attach Expander to backplane.

- For connect the SAS ROC to

Expander use cable (2) AXXCBL380HDHD. The kit includes two cables.

Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane

installed on PCIe slot:

- Use cables in Expander Kit to

attach PCIe SAS card to Expander Card.

- To connect the expander to

Backplane use cable (2) AXXCBL650HDHD per cage. The kit includes two cables.

With RES3TV360 Expander installed in the space between the system fans and backplanes:

- Use cables in Expander Kit to

attach Expander to backplane.

- For connect the PCIe SAS to

Expander use cable (2) AXXCBL380HDHD. The kit includes two cables.

Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane

installed on PCIe slot:

- Use cables in Expander Kit to

attach PCIe SAS card to Expander Card.

- To connect the expander to

Backplane use cable (2) AXXCBL650HDMS per cage. The kit includes two cables.

With RES3TV360 Expander installed in the space between the system fans and backplanes:

- Use cables in Expander Kit to

attach Expander to backplane.

- For connect the PCIe SAS to

Expander use cable

(2) AXXCBL650HDMS.

The kit includes two cables.

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Cables for On-Board SAS

S2600CWTSR to Backplane

Hot-swap

options

3.2.6 8x2.5” Hot-swap HDD SAS/SATA Cable Guide for Combo PCIe* SFF (NVMe) SSD / SAS Backplane (iPC FUP8X25S3HSDK)

The 8x2.5” combo backplane kit is capable of supporting a combination of both SAS devices and up to four PCIe* SFF (Small Form Factor) (NVMe) SSD drives. All eight drive connectors are capable of supporting a SAS device, but only four include SFF8639 connectors that can support PCIe* SFF (NVMe) SSDs. Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS need to be ordered separately.

Figure 8 SATA/SAS 0-7

Table 17. Combo Backplane Module Placement – 8 x 2.5” front drive configurations

Drive Support

Cables for On-Board SATA Controller to Backplane

8x2.5” Combo

SAS / SATA +

PCIe* SSD

SFF (NVMe)

12 Gb SAS

PCIe* cables

included in

accesory kit.

For SAS/SATA

capable

SATA -> BP sSATA -> BP 380mm HD --- HD (2) AXXCBL380HDHD The kit includes two cables.

Use PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

support see

the following

Controller on S2600CW2SR or

SAS onboard -> BP 380mm HD --- HD (2) AXXCBL380HDHD The kit includes two cables.

Use PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane

SAS Add-in card -> BP 650mm HD --- HD (2) AXXCBL650HDHD The kit includes two cables.

Use PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane

SAS Add-in card -> BP 650mm HD --- MS (2) AXXCBL650HDMS The kit includes two cables.

Use PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Hot-swap

Bay

Top Drive Cage

Bottom Drive Cage

3.2.7 16x2.5” Hot-swap SAS/SATA HDD with Combo PCIe* SFF (NVMe) SSD / SAS Backplane (iPC FUP8X25S3HSDK) cable guide

The 8x2.5” combo backplane kit is capable of supporting a combination of both SAS devices and up to four PCIe* SFF (Small Form Factor) (NVMe) SSD drives All eight drive connectors are capable of supporting a SAS device, but only four include SFF8639 connectors that can support PCIe* SFF (NVMe) SSDs The PCIe* x16 interface add-in card MUST be installed on a x16 PCIe physical/electrical slot. Refer to the S2600CW Family TPS for more information. The system is limited to supporting only one combo backplane kit in addition to one or two other backplane options.

Figure 9. SATA/SAS 0-15

Table 18. Combo Backplane Module Placement – 16 x 2.5” front drive configurations

Drive Support

8x2.5”

Hot-swap

8x2.5” Combo

SAS / SATA +

PCIe* SSD SFF

(NVMe)

Cabling options

are the same for

Top and Bottom

Cables for On-Board SATA Controller to Backplane

SATA -> BP sSATA -> BP 380mm HD --- HD (2) AXXCBL380HDHD per cage The kit includes two cables.

Use PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

Cables for On-Board SAS Controller on S2600CW2SR or S2600CWTSR to Backplane

SAS onboard-> BP 380mm HD --- HD (2) AXXCBL380HDHD per cage The kit includes two cables.

Use PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane

SAS Add-in card -> BP 650mm HD --- HD (2) AXXCBL650HDHD per cage The kit includes two cables.

Use PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane

SAS Add-in card -> BP 650mm HD --- MS (2) AXXCBL650HDMS per cage The kit includes two cables.

Use PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

3.3 Intel® SAS / SATA Data Cable Kits

Table 19. Storage Data Cable Kit Description and Order Information

Intel Product Code Order Information Product Description

iPC - FXXSSIPWR

iPC - AXXRJ45DB93

iPC - AXXCBL380HDHD

iPC - AXXCBL450HD7S

MM# - 936430 UPC - 00735858289702 EAN - 5032037068642 MOQ - 10

MM# - 920430 UPC - 00735858242820 EAN - 5032037037525 MOQ - 1

MM# - 936427 UPC - 00735858284738 EAN - 5032037065023 MOQ - 1

Power adapter/dongle for chassis with limited space access for board power connectors NOTE: not required in Intel chassis

Serial adapter Kit with the following cables:

1040mm Serial 10pin header to DB9 Cable

520mm Serial 10pin header to DB9 Cable

100mm DCD RJ45 to DB9 Cable

100mm DSR RJ45 to DB9 Cable

380mm long, cable kit (2 cables included).

Straight SFF8643 to straight SFF8643

Used for connecting Hot Swap drive cages to mainboard SATA ports.

MM# - 936428 UPC - 00735858287388 EAN - 5032037067126 MOQ - 1

450mm long, cable kit (2 cables included).

Straight SFF8643 to straight 7-pin SATA.

Used to connect fixed SATA drives to mainboard SATA ports. Spare for cables shipped with chassis.

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel Product Code Order Information Product Description

iPC - AXXCBL650HDMS

iPC - AXXCBL650HDHD

iPC - AXXCBL900HD7R

iPC - AXXCBL740MS7P

MM# - 927237 UPC - 735858266963 EAN - 5032037053631 MOQ - 1

MM# - 937129 UPC - 735858284752 EAN - 5032037065047 MOQ - 1

MM# - 937316 UPC – 735858286640 EAN – 5032037066549 MOQ – 1

MM# - 914239 UPC – 735858220743 EAN – MOQ – 1

650mm long, cable kit (2 cables included).

Straight MiniSAS-HD (SFF8643) to straight Mini-SAS (SFF8087)

Used to connect 6G/s SAS cards (with SFF-8087 connectors) to backplanes

650mm long, cable kit (2 cables included).

Straight MiniSAS-HD (SFF8643) to straight MiniSAS-HD (SFF8643)

Used to connect 12G/s SAS cards (with SFF-8643 connectors) to backplanes

Cable kit with two 730 mm cables for straight MiniSAS-HD (SFF8643) to right angle 7-pin connectors

Cable Kit with two 740mm cables.

Each cable has a Mini-SAS (SFF8087) connector on one end and four 7-Pin (SATA style) connectors on the other

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

(1) - ID filler panel

4. Intel Server System Configuration Options

The following sections identify available accessory kits supported within the Intel® S2600CW product family.

4.1 Intel® SAS/SATA Backplane Options

Table 20. Intel® SAS Bridge Board

Intel Product Code Order Information Product Description Product Type

iPC - FUP4X35S3HSBP

iPC - FXX8X25S3HSBP

iPC - FUP4X35S3HSDK

iPC - FUP8X25S3HSDK

MM# - 936423 UPC - 00735858289979 EAN - 5032037068819 MOQ - 1

MM# - 934890 UPC - 00735858288804 EAN - 5032037068086 MOQ - 1

MM# - 936623 UPC - 00735858289993 EAN - 5032037068833 MOQ - 1

MM# - 936425 UPC - 00735858290005 EAN - 5032037068840 MOQ - 1

Spare 4x3.5" Hot Swap Backplane for use with P4000 server chassis

Spare 8x2.5" Single Port Hot Swap Backplane for use with P4000 server chassis

3.5" Hot Swap Drive Kit for P4000 server chassis

Includes: (1) - Drive Cage (1) - Hot Swap Back Plane - iPC - FUP4X35S3HSBP (4) - 3.5 “Hot Swap Drive carriers - iPC FXX35HSCAR

(1) - I

C cable

8x2.5” Hot Swap Drive Cage Kit for P4000 server chassis

Includes: (1) - Drive Cage (1) - Hot Swap Back Plane - iPC – FXX8X25S3HSBP (8) - 2.5 “Hot Swap Drive carriers - iPC FXX25HSCAR

(1) - I

C cable

(1) - Power adaptor cable accessory

• Accessory kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

(1) - PEM cable

Intel Product Code Order Information Product Description Product Type

8x2.5” Hot Swap PCIe COMBO Drive Cage Kit

This accessory kit enables support for 2.5” SFF PCIE SSDs (NVMe)

iPC - FUP8X25S3NVDK

MM# - 936426 UPC - 00735858290012 EAN - 5032037068857 MOQ - 1

Includes: (1) - Drive Cage (1) - Hot Swap COMBO Back Plane (8) - 2.5 “Hot Swap Drive carriers - iPC FXX25HSCAR (2) - 600mm long PCI data cables (1) - PCIe slot adaptor board (1) – I2C cable (1) - Power adaptor cable accessory (1) - ID filler panel

• Accessory kit

iPC - FXX35HSADPB

MM# - 912771 UPC - 00735858219495 EAN - 5032037016391 MOQ - 8

Includes: (8) - 3.5” hot-swap HDD carrier (1 set) - screws

3.5” HDD Hot Swap Drive Carrier

• Accessory kit

iPC - FXX25HSCAR

MM# - 918807 UPC - 00735858241182 EAN - 5032037035910

MOQ - 8

2.5” HDD Hot Swap Drive Carrier spares

Includes: (8) - 2.5” hot-swap HDD carrier (1 set) - screws

• Accessory kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

4.2 Locking Front Bezel Accessory Kit

The Front Bezel is made of black molded plastic and uses a snap-on design. When installed, its design allows for maximum airflow to maintain system cooling requirements. The front bezel includes a keyed locking mechanism which can be used to prevent unauthorized access to installed storage devices and front I/O ports.

Table 21. List of Front Bezel Accessory Kit

Intel Product Code Order Information Product Description Product Type

iPC - FUPBEZELHSD2

MM# - 925749 UPC - 00735858254656 EAN - 5032037035880 MOQ - 1

Figure 10. Installing the Front Bezel to the Chassis

Bezel Spare

Bezel Spare FUPBEZELHSD2 for P4000 Chassis Supporting Hot Swap HDDs. Contains bezel with door, lock, keys.

• Accessory kit

• Spare FRU for

P4304XXMUXX

Refer to Intel® Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family Service Guide for installation information.

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

SAS Data cables not included . Must be purchased separately

4.3 Intel® SAS RAID Add-in Cards, Expanders and Accessories

Intel® RAID offers a broad portfolio of RAID solutions designed to address the storage-related challenges of the modern datacenter as well as small businesses. The Intel® S2600CW Server Board product family includes support for the latest generation of 12Gb/s SAS Intel® RAID add-in cards, modules, expanders, and accessories. Previous 6Gb/s Intel® RAID cards are also supported. Refer to the published Tested Hardware and OS List for a full list of validated Intel RAID cards. Additional information for Intel® RAID products can be found at the following Intel web sites:

http://www.intel.com/content/www/us/en/servers/raid/integrated-raid-module-rms3-family-brief.html http://www.intelraid.com

4.3.1 Intel® RAID Controller Add-in Cards – SAS 3.0 (12Gb/s)

Table 22. List of Intel® RAID Controller Add-in Cards – SAS 3.0 (12Gb/s)

Intel Product Code Order Information Product Description Product Type

iPC - RS3GC008

iPC - RS3SC008

MM# - 928220 UPC - 735858267175 EAN - 5032037053839 MOQ - 5

MM# - 928223 UPC - 735858266956 EAN - 5032037068567 MOQ - 5

Intel® RAID Controller RS3GC008

• Low Profile, half length, (MD2 Compliant) PCIe* add-in card

• Entry Level SAS Card

• 8 external SAS / SATA ports

• LSI* SAS3008 IOC

• RAID Levels – JBOD (SAS Connectivity)

NOTE: SAS Data cables are not included. Must be purchased separately.

Intel® RAID Controller RS3SC008

• Low Profile, half length, (MD2 Compliant) PCIe* add-in card

• 8 external SAS / SATA ports

• LSI* SAS3108 ROC

• RAID Levels – 0, 1, 5, 6, 10, 50, and 60

• Embedded 1GB DDR3 Cache Memory

• Supports Maintenance Free Backup Unit AXXRMFBU4.

NOTE:

• Accessory Kit

4.3.2 Intel® SAS Expanders

SAS 3.0 12 Gb/s expander

•

SAS 2.0 12 Gb/s expander

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Table 23. SAS Expanders compatible with Intel® Server Boards S2600CW Family

Intel Product Code Order Information

Product Description Product Type

• Featuring 6Gbps data aggregation for 12Gbps data transfer with 6Gb/s

iPC – RES3FV288

RAID Expander

Intel

RES3FV288

MM# – 932895

UPC – 00735858287548

EAN – 5032037067287

MOQ - 5

devices

• Low Profile MD2 PCIe* add-in card form factor

• 28 internal ports and 8 external ports

• Redundant dual-port capable for HA and high performance systems

• Power from PCIe x1

• HD Mini-SAS 8643 Connectors

Kit includes: (1) SAS Expander card, (2) HD-HD 250mm Expander-to-RAID card cables, PCI brackets for Low profile and Full height

Required (sold separately): HD-HD SAS DATA Cables – Expander to backplane –

Accessory Kit

See Table 16

iPC – RES3TV360

Intel® RAID Expander

RES3TV360

MM# – 932894

UPC –00735858287364

EAN – 5032037067102

MOQ - 5

• 36-port, 12 Gb/s-capable expander card

Kit includes: (1) 12 Gb/s SAS Expander card, (2) Cables to connect to 24-ports on nearby drive backplane

Required (sold separately): HD-HD SAS Expander-to-RAID Data Cables for connecting – See Table 16

• Accessory Kit

Note: The onboard SATA ports are not compatible with SAS Expander cards. The onboard SATA ports can only be cabled directly to a specified backplane or HDD

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

4.3.3 Intel® RAID Accessoried Options

Intel Product Code Order Information Product Description Product Type

iPC - RKSATA4R5

Table 24. List of Intel® RAID Accessoried Options

iPC - AXXRPFKHY5

iPC - RMS25KB080

MM# - 916346 UPC - 735858238861 EAN - 5032037033640 MOQ - 5

MM# - 933690 UPC - 00735858276856 EAN - 5032037060462 MOQ - 5

MM - 924454 UPC - 00735858239028 EAN - 5032037033800 MOQ - 5

Intel® RAID C600 Upgrade Key RKSATA4R5

RAID activation key. Activates RSTe SW RAID 0/1/10/5 and LSI* SW RAID 0/1/10/5 (enables LSI* SWR5), Black.

Intel® RAID Hybrid RAID 5 activation key

A RAID premium feature key that enables hybrid RAID 5 capability for select Intel® Server Boards with integrated SAS I/O controllers. Grey.

Intel® Integrated RAID Module RMS25KB080

PCIe Slot, LSI2308 I/O Controller, 8P Internal SAS, LSI IR-based RAID 0,1,1E Requires PCIex8 slot

• Accessory Kit

iPC - RMS25KB040

MM - 924455 UPC - 00735858239035 EAN - 5032037033817 MOQ - 5

Intel® Integrated RAID Module RMS25KB040

PCIe Slot, LSI2308 I/O Controller, 4P SAS, LSI IR-based RAID 0,1,1E Requires PCIe x8 slot

• Accessory Kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel® RAID Maintenance Free Backup Unit

Intel Product Code Order Information Product Description Product Type

iPC - RMS25PB080

iPC - RMS25PB040

iPC - RMT3PB080

iPC - AXXRMFBU2

MM# - 924868 UPC - 00735858238946 EAN - 5032037033725 MOQ - 5

MM# - 924869 UPC - 00735858238953 EAN - 5032037033732 MOQ - 5

MM# - 924870 UPC - 735858238960 EAN - 5032037033749 MOQ - 5

MM# - 926341 UPC - 00735858244541 EAN - 5032037039116 MOQ - 5

Intel® Integrated RAID Module RMS25PB080

PCIe Slot, LSI2208 ROC, 8P Internal SAS/SATA, LSI MegaRAIDbased Firmware, 1GB DDR3, RAID 0,1,10,5,50,6,60 Requires PCIe x8 slot

Intel® Integrated RAID Module RMS25PB040

PCIe Slot, LSI2208 ROC, 4P Internal SAS/SATA, LSI MegaRAIDbased Firmware, 1GB DDR3, RAID 0,1,10,5,50,6,60 Requires PCIex8 slot

Intel® Integrated RAID Module RMT3PB080

PCIe Slot, LSI2208 ROC, 8P Internal SATA (only), LSI MegaRAIDbased Firmware, 512MB DDR3, Restricted to use only SATA drives, R0,1,10,5,50,6,60 Requires PCIe* x8 slot

Maintenance Free Backup Unit for Intel® Intergraded RAID Modules of the RS25, RMS25, RT3 and RMT3 Families. (Supercapacitor module)

Includes supercapacitor module, NAND flash module, cables and bracket.

• Accessory Kit

iPC - AXXRSBBU9

MM# - 919738 UPC - 00735858220286 EAN - 5032037039567 MOQ - 5

Intel® RAID Smart Battery AXXRSBBU9

Intel® RAID Smart Battery AXXRSBBU9 provides optional battery backup for mainstream RS25 family RAID products.

Includes Battery, mounting bracket and cables.

• Accessory Kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

P4000 Non-Redundant Power Supply adaptor kit

Locker

4.4 Intel® Power Supply Module And Power Cords

Table 25. Intel® Power Supply Module And Power Cords

Intel Product Code Order Information Product Description Product Type

iPC – FXX750PCRPS

iPC - FXX1600PCRPS

iPC - FUPNRPSADP

iPC – FUPCRPSCAGE

MM# - 915606 UPC - 735858243650 EAN - 5032037038294 MOQ - 1

MM# - 912769 UPC - 00735858219471 EAN - 5032037016278 MOQ - 1

MM# - 915607 UPC - 00735858235891 EAN - 5032037030656 MOQ - 1

750W Common Redundant Power Supply (CRPS) spare 80Plus Platinum efficiency.

Power cord sold separately

1600W AC Common Redundant Power Supply 80Plus Platinum-Efficiency

Power cord sold separately

Includes: Bracket Screws

Common Pedestal CRPS PSU cage assembly (cage, adaptor bracket, screws, supporting bulkhead, 1x blank filler)

• Building block option

• Spare FRU for

P4304XXMUXX

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Spare FRU for North

Intel Product Code Order Information Product Description Product Type

iPC - FUPPDBHC2

iPC - FPWRCABLENA

MM# - 936420 UPC - 00735858290036 EAN - 5032037068871 MOQ - 1

MM# - 879287 UPC - 00735858181129 EAN - 5032037015738 MOQ - 1

Spare Power Distribution Board (High Current) for P4000CW server chassis. Used with FXX750PCRP, or FXX1600PCRPS power supplies.

North American Power Cord Spare

• Building block kit

• Spare FRU for

P4304XXMUXX

•

American customers

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

(2) - Rack handles

Included: snap in door with lock and key

4.5 Rack Options

The Intel® Server Chassis P4304XXMFEN2/P4304XXMUXX can be converted to rack system with the rack bezel kit and rack rail option. Refer to Intel® Server Chassis P4000 Family Service Guide for intallation information.

4.5.1 Rack Bezel Accessories

Table 26. List of Rack Bezel Accessories

Intel Product Code Order Information Product Description Product Type

Rack Bezel frame

iPC - AUPBEZEL4UF

MM# - 915636 UPC - 00735858235976 EAN - 5032037030731 MOQ - 1

Rack bezel kit for converting P4000 pedestal server chassis to rack chassis. Includes: (1) - Bezel frame

• Accessory kit

iPC - AUPBEZEL4UD

MM# - 915637 UPC - 00735858235983 EAN - 5032037030748 MOQ - 1

Rack Bezel Door

Rack bezel accessory for P4000M/P4000L/P4000L-WS chassis in rack configuration - security door only. Requires rack bezel frame - iPC AUPBEZEL4UF to be installed.

• Accessory kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Value Rail Kit, half extension, extended inner slide Advanced rail kit for P4000 Server Chassis used when

MM# - 915635

MOQ - 1

4.5.2 Rack Mount Kits

CAUTION: Exceding the rail kit’s specified maximum weight limit or misalignment of the server in the rack may result in failure of the rack rails, causing damage

to the systems or personal injury. Using two people or the use of a mechanical assist tool to install and align the server into the rack is highly recommended.

Table 27. List of Rack Mount Kits

Intel Product Code Order Information Product Description Product Type



iPC - AXXELVRAIL

MM# - 920970 UPC - 735858244367 EAN - 5032037038980 MOQ - 1

iPC –AXX3U5UPRAIL

MM# - 915634 UPC - 735858236119 EAN - 5032037030892 MOQ - 1

member from rack

 Tool-less chassis attachment (optional screws)  Tools required to attach rails to rack  1/2 extension from rack Tool-less chassis attachment

(optional screws)

 Works for Intel 2U/4U Rack Chassis and System

families



converting Pedestal chassis to 4U rack chassis.

 Tool-less installation  Full extension from rack  Stab in system installation  Optional cable management arm support

 Includes: 2 rails

• Accessory kit

iPC –AXX3U5UCMA

UPC - 735858236126 EAN - 5032037030908

Rack Cable Management for use with Advanced Rail Kit AXX3U5UPRAIL for Intel® Server Chassis P4000 Family.

• Accessory kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel® Remote Management Module 4 Lite Activation

information.

Intel® Trusted Platform Module (TPM)

5. Miscellaneous Accessory Options

Table 28. List of Miscellaneous Accessory Options

Intel Product Code Order Information Product Description Product Type

iPC - AXXRMM4LITE

iPC - AXXTPME5

MM# - 911660 UPC - 735858219297 EAN - 5032037014946 MOQ - 1

MM# - 919737 UPC - 00735858240352 EAN - 5032037035088 MOQ - 1

key

Installation of this activation key on to the server board enables support for the following advanced server management features:

• Integrated KVM with media Redirection

Refer to the Intel Remote Management Module 4 and Integrated Web Console Users Guide for more

A TPM is a hardware-based security device that addresses the growing concern of boot process integrity and offers better data protection. TPM protects the system start-up process by ensuring it is tamper-free before releasing system control to the operating system. A TPM device provides secured storage to store data, such as security keys and passwords. In addition, a TPM device has encryption and hash functions.

AXXTPME5 implements TPM as per TPM PC Client specifications revision 1.2 by the Trusted Computing Group (TCG)

• Accessory kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel Product Code Order Information Product Description Product Type

Intel® Trusted Platform Module (TPM)

A TPM is a hardware-based security device that

iPC – AXXTPME6

MM# – 947921

UPC – 00735858314534

EAN – 5032037086059

MOQ – 1

iPC – AXXTPME7

MM# – 947922

UPC – 00735858314541

EAN – 5032037086066

MOQ – 1

addresses the growing concern of boot process integrity and offers better data protection. TPM protects the system start-up process by ensuring it is tamper-free before releasing system control to the operating system. A TPM device provides secured storage to store data, such as security keys and passwords. In addition, a TPM device has encryption and hash functions.

AXXTPME6 implements TPM as per TPM PC Client specifications revision 2.0 by the Trusted Computing Group (TCG)

Intel® Trusted Platform Module (TPM)

Note: AXXTPME7 is compatible for use in China

AXXTPME7 implements TPM as per TPM PC Client specifications revision 2.0 by the Trusted Computing Group (TCG)

• Accessory kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel Product Code Order Information Product Description Product Type

iPC - BXSTS200C

MM# - 915970 UPC - 00735858221818 EAN - 5032037014496 MOQ - 1

Intel Boxed Thermal Solutions, heat sink combo with removable fan. For use with 2U/3U/4U/5U non-Intel chassis.

• Accessory kit

iPC - BXSTS200P

iPC - AUPCWPBTP

iPC - AUPMCOPROBR

MM# - 915972 UPC - 00735858221795 EAN - 5032037014472 MOQ - 1

MM# - 936421 UPC - 00735858289566 EAN - 5032037068529 MOQ - 2

MM# - 926364 UPC - 00735858257046 EAN - 5032037049139 MOQ - 1

Intel Boxed Thermal Solutions, passive 25.5mm heat sink. For use with 1U non-Intel chassis.

Spare/Accessory tower passive heat sinks, 92mm x 100mm. 2 are required with Intel® Server Board S2600CW in P4000 chassis if two processors are installed.

Notes: minimum order quantity 2.

Bracket for securing full length GPU cards to fan bulkhead, for use in P4000 chassis, includes 1 bracket, 2 GPGPU power cables, 2 Xeon PHI specific brackets and 5 screws for GPGPU fixture.

• Accessory kit

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

MM# - 936419

MOQ - 1

MM# -936422

MOQ - 50

6. Spare and Replacement Parts (FRUs)

Table 29. List of Spare and Replacement Parts

Intel Product Code Order Information Product Description Product Type

iPC -FUP550SNRPS

iPC - FXXFPANEL

iPC - FUPBEZELFIX2

iPC - A4UCWDUCT

MM# - 915602 UPC - 00735858235839 EAN - 5032037030588 MOQ - 1

MM# - 915982 UPC – 00735858222419 EAN - 5032037018968 MOQ - 1

MM# - 925750 UPC - 00735858254663 EAN - 5032037047593 MOQ - 1

UPC - 00735858290029 EAN - 5032037068864

550W Fixed 80Plus Silver efficiency power supply spare.

Power cord sold separately

Front Panel board spare for P4000 server chassis

Bezel spare for P4000 server chassis with fixed drives (no door)

Spare Airduct for S2600CW server board support in P4000 chassis family

• Spare FRU for

P4304XXFEN2

• Spare FRU

iPC - AXXCWIOS

UPC - 735858289986 EAN - 5032037068826

I/O Shield spare/accessory for Intel® Server Board S2600CW

• Spare FRU

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Chassis Maintenance kit for P4000M Server

cable screw x2, M2x10 Intrusion cable

Intel Product Code Order Information Product Description Product Type

iPC - FUP4X35NHDK

MM# - 912770 UPC - 735858219488 EAN - 5032037016247 MOQ - 4

Fixed Drive Carrier spare for P4300 server chassis (also compatible with 2.5” HDDs/SSDs)

• Spare FRU

iPC - FUPMMSK

iPC - FUPMESK

iPC - FUPMLHSFAN

MM# - 915638 UPC - 735858235990 EAN - 5032037030755 MOQ - 1

MM# - 915653 UPC - 735858236003 EAN - 5032037030762 MOQ - 1

MM# - 915620 UPC - 735858235969 EAN - 5032037030724 MOQ - 1

Chassis– (Mechanical Spares Kit)

Includes EMI cover, ODD rail, PCI card retainer {4x 3.5" EMI cover, 8x 3.5" EMI cover, ODD rail x4, #6-32 screw x20, M3x12 USB

Chassis Maintenance kit for P4000 Server Chassis– (Electric Spares Kit)

Includes power cable extension, 1x4 -> 2x2 power adaptor cable accessory (for 2.5" HDD connector)

80mm system fan kit for P4000 server chassis includes fan, fan holder, for use in redundant cooling configuration.

• Spare FRU

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Intel Product Code Order Information Product Description Product Type

iPC - FUPNHFANCPU

MM# - 919572 UPC - 735858236034 EAN - 5032037030793 MOQ - 1

Fixed Fan Spare Kit for P4000 chassis for CPU area fan.

Includes: (1) 120mm fixed fan.

• Spare FRU

iPC - FUPMNHFANPCI

MM# - 919575 UPC - 00735858236041 EAN - 5032037030809 MOQ - 1

Fixed Fan spare kit for P4000 chassis for PCI area fan.

Includes: (1) 120mm fixed fan.

• Spare FRU

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

SKU Name

Description

Supported Operating Systems

1 year license (30-day grace period at the end of the term),

*Renewal option available for 1- and 3- year terms.

P1 Operating Systems from the server Tested

3 year license (30-day grace period at end of the term).

*Renewal option available for 1- and 3- year terms.

1 year renewal of existing license. Renewal option available.

3 year renewal of existing license. Renewal option available.

7. Software Security - McAfee® Antivirus for Intel® Server Systems*

McAfee® Antivirus for Intel® Server Systems Accessory is a software accessory offered with the Intel® Server Board S2600CW Product family as an orderable SKU. McAfee® Antivirus for Enterprise provides world class malware detection with proactive protection against attacks.

The McAfee® Antivirus for Intel® Server Systems Accessory consists of the latest version of either McAfee® VirusScan Enterprise (Windows) or

VirusScan Enterprise for Linux and contains either a 1 (one)- or 3 (three) –year downloadable license with 1(one) or 3 (three) year renewals at the end of the

licensing term.

7.1 How to order it

Customers have the opportunity to purchase McAfee® Antivirus for Intel® Server Systems from an Intel authorized distributor. Upon placing an order for one or more McAfee® Antivirus for Intel® Server Systems SKU(s) and registering their purchase, customer will receive a certificate from McAfee, asking them to register the software. Once registered, they a grant letter from McAfee that includes download instructions will be provided. Go to http://www.intelserveredge.com/mcafeeaccessory/

*Note: This accessory will only be offered from the Intel site with a qualifying Intel® Server System purchase. Learn more at

http://www.intelserveredge.com/mcafeeaccessory/

for more information.

7.2 McAfee® Antivirus for Intel® Server Systems SKUs

McAfee®

Table 30. McAfee® Antivirus for Intel® Server Systems SKUs

SWMAVSE1YR

SWMAVSE3YR

SWMAVSERN1YR

SWMAVSERN3YR

Two download options: McAfee® VirusScan Enterprise or McAfee® VirusScan Enterprise for Linux*.

Hardware, Memory, Operating System List (THOL).

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

8. Extended Warranty

Image Oder Infromation Description

iPC - SVCEWDPSY

Table 31. Extended Warranty

MM# - 911295

MOQ - 1

iPC - SVCEWDPBD

MM# - 911294

MOQ - 1

Two year extended warranty for Intel® Server Systems or Intel® Server Knock Down Kits + Intel® Server Boards that support two processors. Intel® RAID controller extended warranty is purchased separately.

Two year extended warranty for Intel® Server Boards that support two processors.

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List

Acronym or Term

Definition

Acronym or Term

Definition

CRPS

Common Redundant Power Supply

QSFP

Quad Small Form factor Pluggable

DMN

Dedicated Management Network

RAID

Redundant Array of Independent Drives

EAN

International Article Number (Barcode)

Required Option

Hardware that must be added to the shipping

EMI

Electromagnetic Interference

RMFBU

RAID Maintenance Free Backup Unit

ESRT2

Intel® Embedded Server RAID Technology 2

RMM4 Lite

Intel® Remote Management Module 4 Lite

FDR Infiniband

Fourteen Data Rate Infiniband

ROC

RAID on Chip

FRU

Field Replaceable Unit

RSTe

Intel® Rapid Stroage Technology

GPGPU

General Purpose computing on Graphics

SAS

Serial Attached SCSI

iPC

Intel Product Code

SATA

Serial ATA

iPN

Intel Product Number

SATA DOM

Serial ATA Disk On Module

LCP

Intel® Local Control Panel

SFP

Small Form factor Pluggable

JBOD

Just a bunch of drives

SKU

Stock Keeping Unit

KVM

Keyboard / Video / Mouse

SSD

Solid State Drive

MM#

Master Material order number

UPC

Universal Product Code ( Barcode)

MOQ

Mimimum Order Quantity

NVMe

NVM Express – based on Non-Volatile

Optional Accessory

Hardware that can be added to the system to

PCBA

Printed Cricuit Board Assembly

Glossary of Terms

Table 32. A list of Acronyms and Terms used throughout this document

configuration for the system to operate

Activation key

Processing Unit

Memory Host Controller Interface Specification (NVMHCI)

enhance the default feature set of the shipping configuration

Intel S2600CW, P4304XXMFEN2, P4304XXMUXX Spares/accessories List And Configuration Manual

Specifications and Main Features

Frequently Asked Questions
