Intel
Configuration Guide and Spares/Accessories List
A reference guide to assist customers in ordering the necessary components to
configure the P4000 family of Intel® Server Chassis.
Server Chassis P4000 Family
Revision 2.3
July 2014
Revision History
Aug’11 – Rev 0.5: First Revision.
Sept’11 – Rev 0.7: First SKU definition.
Sept’11 – Rev 0.9: Added more pictures.
Oct’11 – Rev 0.95: Refined photos and descriptions.
Nov’11 – Rev 0.97: Final photos and descriptions.
Jan’12 – Rev 0.99: Added all UPM B SKU and UPS A/B details
Jan’12 – Rev 1.0: Updated pictures, ordering details, descriptions.
Jan’12 – Rev 1.1: Removed all NA SKUs; final revision for book open.
Feb’12 – Rev 1.2: Updated entire section of VMware* and Symantec*.
May’12 – Rev 1.3: Updated description details.
Jul ’12 – Rev 1.4: Clarified power cable extension for connecting 24-pin power cable to S2600CO board for
use in P4000M chassis is included in air duct kit FCOUPMAD
Nov ’12 – Rev1.5: Updated Bezel support matrix; removed End of Life FFPANEL. Added detailed cable
information.
Dec’12 – Rev 1.6: Updated pictures for brackets supporting double width GPGPU cards. Removed End of
Life “on site repair” options, End of Life VMware* options, and End of Life Symantec* options.
®
Feb’13 – Rev 1.7: Updated AUPLCOPROBR and AUPMCOPROBR bra c ket kits for Intel
coprocessors.
Xeon Phi™
April’13 – Rev 1.8: Corrected a typo “FFPUPSAS” with “FFPUPSAD”. Added EOL announcement for some
SKUs.
Aug’13 – Rev 1.9: Added EOL announcement for FUPBEZELFIX and FUPBEZELHSD.
Jan’14 – Rev 2.0: Added S1200V3RP board support; corrected a typo “AUPMGPURBR” with
“AUPMGPUBR”.
May’14 – Rev 2.1: Added EOL announcement for AUPLGPUBR and AUPMGPUBR.
Jun’ 14 – Rev 2.2: Corrected some typo.
July’14 – Rev 2.3: Corrected typo for Power Supply product name.
ii
Disclaimers
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL PRODUCTS. NO LICENSE, EXPRESS
OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS
DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL
ASSUMES NO LIABILITY WHATSOEVER AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO
SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT.
A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in
personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL
APPLICATION, YOU SHALL INDEMNIFY AND HOLD INTEL AND ITS SUBSIDIARIES, SUBCONTRACTORS AND
AFFILIATES, AND THE DIRECTORS, OFFICERS, AND EMPLOYEES OF EACH, HARMLESS AGAINST ALL CLAIMS COSTS,
DAMAGES, AND EXPENSES AND REASONABLE ATTORNEYS' FEES ARISING OUT OF, DIRECTLY OR INDIRECTLY,
ANY CLAIM OF PRODUCT LIABILITY, PERSONAL INJURY, OR DEATH ARISING IN ANY WAY OUT OF SUCH MISSION
CRITICAL APPLICATION, WHETHER OR NOT INTEL OR ITS SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN,
MANUFACTURE, OR WARNING OF THE INTEL PRODUCT OR ANY OF ITS PARTS.
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the
absence or characteristics of any features or instructions marked "reserved" or "undefined". Intel reserves these for future
definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The
information here is subject to change without notice. Do not finalize a design with this information.
The products described in this document may contain design defects or errors known as errata which may cause the product to
deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be
obtained by calling 1-800-548-4725, or go to: http://www.intel.com/design/literature.
Intel and Xeon are trademarks of Intel Corporation in the U.S. and/or other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2014 Intel Corporation. All rights reserved.
iii
TABLE OF CONTENTS
PRODUCT ORDER CODE INFORMATION ......................................................................................................................... 1
1.1 PRODUCT DESCRIPTIONS – OVERVIEW ....................................................................................................................... 1
1.2 PRODUCTION ORDER CODES FOR INTEL
®
SERVER CHASSIS AND INTEL® SERVER SYSTEMS .................................. 2
SP ARES AND ACCESSORIES ORDER CODES .............................................................................................................. 13
1.3 SYSTEM SPARES AND ACCESSORIES ........................................................................................................................ 13
1.4 POWER SUBSYSTEM SPARES .................................................................................................................................... 29
iv
PR ODUCT ORDER CODE INFORMATION
1.1 Product Descriptions – Overview
Products based on the Intel® Server Chassis P4000 are offered as both integrated systems (Known as
BIKs or Board in KDKs) and as standalone chassis (Known as KDKs or Knock Down Kits) at production.
This Configuration Guide focuses on the P4000 chassis family SKUs (KDKs). The rest of the integrated
systems (board in KDK) are included in each system’s Configuration Guide documents.
Pedestal Chassis Product SKUs have three different lengths based on which Intel
®
Server Board is
supported:
The short version (21'') of the chassis supports uATX, ATX, and CEB form factor motherboards.
The medium depth version (25'') of the chassis supports CEB and EEB form factor motherboards.
The long version (27'') of the chassis supports S2400 family, S2600 family, and S1200 family
motherboards that do not follow EEB form factor.
The table below describes the Intel
®
Server Boards validated with the respective Pedestal Chassis
Product SKUs.
S1200V3RP
S1200BT
S1400FP
S2400SC
P4000S
P4000M
S2400GP S2600CP
X X X X
X X X X
S2600CO
S2600IP
S2600CR
P4000L
P4000L-WS
X
X
Note: P4000 family Chassis and Systems shipped to the US and Canada will contain North American
power cords. North American customers no longer need to order SKUs ending in “NA” to receive power
cords on S1200, S1400, S2400, and S2600 family products.
1
1.2 Production Order Codes for Intel
®
Server Chassis and Intel® Server Systems
Not included in chassis: Processors, DDR3 main memory, hard drives, and other customer
configuration items are not included in the following SKUs.
Product Code
MM
UPC
EAN
MOQ
P4208XXMHGC
916310
00735858235723
5032037030472
1
P4304XXMHEN
916336
Description
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 2.5" Hot-Swap
HDDs, 750W Cold-Redundant Power Supplies and Redundant Cooling.
Includes:
8x 2.5" Hot-Swap Drive Carriers, 2x 750W Common Redundant Power
Supply (Platinum Efficiency), 5x 80mm hot-swap fans, one 480mm
miniSAS cable with one vertical miniSAS header and four vertical SATA
headers, one 100mm Hot Swap Backplane power cable with one 4-pin
ATX power header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have airduct. AUPMGPUBR
(MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
Phi™ coprocessor cards.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot Swap
HDDs, 550W Fixed Power Supply and 2x 120mm Fixed Fans.
Includes:
®
1x Intel
17.24" x 24.9") ,4x 3.5" Hot Swap Drive Carriers, 1x 550W Fixed nonredundant Power Supply (Silver Efficiency), 2x 120mm fixed fans. one
480mm miniSAS cable with one vertical miniSAS header and four vertical
SATA headers, one 100mm Hot Swap Backplane power cable with one 4pin ATX power header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
Phi
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
Server Chassis P4304XXMHEN- Pedestal form factor (6.81" x
™
coprocessor cards.
®
Xeon
®
Xeon
2
Product Code
MM
UPC
Description
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 2.5" Hot-Swap
HDDs, 750W Cold-Redundant Power Supplies and non-Redundant
Cooling.
Includes:
8x 2.5" Hot-Swap Drive Carriers, 2x 750W Common Redundant Po wer
P4208XXMHGR
916312
00735858235747
5032037030496
1
Supply (Platinum Efficiency), 2x 120mm fixed fans, one 480mm miniSAS
cable with one vertical miniSAS header and 4 vertical SATA headers, one
100mm Hot Swap Backplane power cable with one 4-pin ATX power
header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel® Xeon
Phi™ coprocessor cards.GPGPU cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot-Swap
HDDs, 750W Cold-Redundant Power Supplies and Redundant Cooling.
Includes:
P4308XXMHGC
916320
00735858235693
5032037030441
1
8x 3.5" Hot-Swap Drive Carriers, 2x 750W Common Redundant Po wer
Supply (Platinum Efficiency), 5x 80mm hot-swap fans, one 480mm
miniSAS cable with one vertical miniSAS header and 4 vertical SATA
headers, one 100mm Hot Swap Backplane power cable with one 4-pin
ATX power header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
™
coprocessor cards.
Phi
®
Xeon
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Fixed HDDs,
1x 750W Redundant-capable Power Supplies and non-Red undant
Cooling.
Includes:
8x 3.5" Fixed Drive Carriers, 750W Redundant-capable Power Supply
P4308XXMFGN
916330
00735858235679
5032037030427
1
(Platinum Efficiency), 2x 120mm fixed fans,two 150mm SATA power
cables with one 4-pin ATX power header and 2 vertical SATA power
headers, four 600mm SATA cables , each cable has one vertical SATA
header and one right angle SATA header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
3
Product Code
MM
UPC
Description
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot-Swap
HDDs, 1x 550W Fixed Power Supplies and non-Redundant Cooli ng
Includes:
P4308XXMHEN
916335
00735858235655
5032037030403
1
8x 3.5" Hot-Swap Drive Carriers, 550W Fixed Power Supply (Silver
Efficiency), 2x 120mm fixed fans, one 480mm miniSAS cable with one
vertical miniSAS header and 4 vertical SATA headers, one 100mm Hot
Swap Backplane power cable with one 4-pin ATX power header and o ne
2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct .
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Fixed HDDs,
1x 550W Fixed Power Supplies and non-Redundant Co oling.
Includes:
P4308XXMFEN
916337
00735858235631
5032037030380
1
8x 3.5" Fixed Drive Carriers, 550W Fixed Power Supply (Silver
Efficiency), 2x 120mm fixed fans, two 150mm SATA power cables with
one 4-pin ATX power header and 2 vertical SATA power headers, four
600mm SATA cables, each cable has one vertical SATA header and one
right angle SATA header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 2.5" Hot Swap
HDDs, 460W Redundant Power Supplies and non-Redundant Cooli ng.
Includes:
8 x 2.5" Hot Swap Drive Carriers, 460W Redundant Power Supplies (Gold
P4208XXMHDR
916313
00735858235754
5032037030502
1
Efficiency), 2x 120mm fixed fans, one 480mm miniSAS cable with one
vertical miniSAS header and 4 vertical SATA headers, one 100mm Hot
Swap Backplane power cable with one 4-pin ATX power header and o ne
2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
™
coprocessor cards.
Phi
®
Xeon
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
4
Product Code
MM
UPC
Description
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 2.5" Hot Swap
HDDs, 550W Fixed Power Supply and non-Redundant Cooling.
Includes:
8 x 2.5" Hot Swap Drive Carriers, 550W Fixed non-redundant Power
P4208XXMHEN
916315
00735858235778
5032037030526
1
Supply (Silver Efficiency), 2x 120mm fixed fans, one 480mm miniSAS
cable with one vertical miniSAS header and 4 vertical SATA headers, one
100mm Hot Swap Backplane power cable with one 4-pin ATX power
header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 2.5" Hot-Swap
HDDs, 1200W Cold-Redundant Power Supplies and Redundant Cooling.
Includes:
P4216XXMHJC
916974
00735858235792
5032037030540
1
16 x 2.5" Hot-Swap Drive Carriers, 2x 1200W Common Redundant Power
Supply (Platinum Efficiency), 5x 80mm hot-swap fans, one 480mm
miniSAS cable with one vertical miniSAS header and 4 vertical SATA
headers, one 100mm Hot Swap Backplane power cable with one 4-pin
ATX power header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct .
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot-Swap
HDDs, 1200W Cold-Redundant Power Supplies and Redundant Cooling.
Includes:
8 x 3.5" Hot-Swap Drive Carriers, 2x 1200W Common Redundant Power
P4308XXMHJC
916316
00735858235815
5032037030564
1
Supply (Platinum Efficiency), 5x 80mm hot-swap fans, one 480mm
miniSAS cable with one vertical miniSAS header and 4 vertical SATA
headers, one 100mm Hot Swap Backplane power cable with one 4-pin
ATX power header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
™
coprocessor cards.
Phi
®
Xeon
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
5
Product Code
MM
UPC
Description
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 2.5" Hot-Swap
HDDs, 750W Cold-Redundant Power Supplies and Redundant Cooling.
Includes:
P4216XXMHGC
916309
00735858244558
5032037039123
1
16 x 2.5" Hot-Swap Drive Carriers, 2x 750W Common Redundant Power
Supply (Platinum Efficiency), 5x 80mm hot-swap fans, one 480mm
miniSAS cable with one vertical miniSAS header and 4 vertical SATA
headers, one 100mm Hot Swap Backplane power cable with one 4-pin
ATX power header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 2.5" Hot-Swap
HDDs, 750W Cold-Redundant Power Supplies and non-Redundant
Cooling.
Includes:
16x 2.5" Hot-Swap Drive Carriers, 2x 750W Common Redundant Power
P4216XXMHGR
916311
00735858244565
5032037039130
1
Supply (Platinum Efficiency), 2x 120mm fixed fans, one 480mm miniSAS
cable with one vertical miniSAS header and 4 vertical SATA headers, one
100mm Hot Swap Backplane power cable with one 4-pin ATX power
header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct .
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
™
coprocessor cards.
Phi
®
Xeon
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 2.5" Hot Swap
HDDs, 550W Fixed Power Supply and non-Redundant Cooling.
Includes:
16 x 2.5" Hot Swap Drive Carriers, 550W Fixed non-redundant Power
P4216XXMHEN
916314
00735858244572
5032037039147
1
Supply (Silver Efficiency), 2x 120mm fixed fans, one 480mm miniSAS
cable with one vertical miniSAS header and 4 vertical SATA headers, one
100mm Hot Swap Backplane power cable with one 4-pin ATX power
header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct .
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
™
coprocessor cards.
Phi
®
Xeon
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
6
Product Code
MM
UPC
Description
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot-Swap
HDDs, 750W Cold-Redundant Power Supplies and non-Redundant
Cooling.
Includes:
8x 3.5" Hot-Swap Drive Carriers, 2x 750W Common Redundant Po wer
P4308XXMHGR
916327
00735858244589
5032037039154
1
Supply (Platinum Efficiency), 2x 120mm fixed fans, one 480mm miniSAS
cable with one vertical miniSAS header and 4 vertical SATA headers, one
100mm Hot Swap Backplane power cable with one 4-pin ATX power
header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
®
Xeon
Phi™ coprocessor cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot-Swap
HDDs, single 750W Cold-Redundant Power Supplies and non-Redund ant
Cooling.
Includes:
P4308XXMHGN
916328
00735858244596
5032037039161
1
8x 3.5" Hot-Swap Drive Carriers, 1x 750W Common Redundant Po wer
Supply (Platinum Efficiency), 2x 120mm fixed fans, one 480mm miniSAS
cable with one vertical miniSAS header and 4 vertical SATA headers, one
100mm Hot Swap Backplane power cable with one 4-pin ATX power
header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
™
coprocessor cards.
Phi
®
Xeon
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Fixed HDDs,
750W Cold-Redundant Power Supplies and non-Red undant Cooling.
Includes:
8x 3.5" Fixed Drive Carriers, 2x 750W Common Redundant Power Supply
P4308XXMFGR
916329
00735858244602
5032037039178
1
(Platinum Efficiency), 2x 120mm fixed fans, two 150mm SATA power
cables with one 4-pin ATX power header and 2 vertical SATA power
headers, four 600mm SATA cables , each cable has one vertical SATA
header and one right angle SATA header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
7
Product Code
MM
UPC
Description
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot-Swap
HDDs, 460W Cold-Redundant Power Supplies and non-Redundant
Cooling.
Includes:
P4308XXMHDR
916331
00735858244619
5032037039185
1
8x 3.5" Hot-Swap Drive Carriers, 2x 460W Common Redundant Po wer
Supply (Platinum Efficiency), 2x 120mm fixed fans, one 480mm miniSAS
cable with one vertical miniSAS header and 4 vertical SATA headers, one
100mm Hot Swap Backplane power cable with one 4-pin ATX power
header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot-Swap
HDDs, single 460W Cold-Redundant Power Supplies and non-Redund ant
Cooling.
Includes:
P4308XXMHDN
916332
00735858244626
5032037039192
1
8x 3.5" Hot-Swap Drive Carriers, 1x 460W Common Redundant Po wer
Supply (Platinum Efficiency), 2x 120mm fixed fans, one 480mm miniSAS
cable with one vertical miniSAS header and 4 vertical SATA headers, one
100mm Hot Swap Backplane power cable with one 4-pin ATX power
header and one 2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) needs to be ordered to support add-in
GPGPU cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Fixed HDDs,
460W Cold-Redundant Power Supplies and non-Red undant Cooling.
Includes:
8x 3.5" Fixed Drive Carriers, 2x 460W Common Redundant Power Supply
P4308XXMFDR
916333
00735858244633
5032037039208
1
(Platinum Efficiency), 2x 120mm fixed fans, two 150mm SATA power
cables with one 4-pin ATX power header and 2 vertical SATA power
headers, four 600mm SATA cables , each cable has one vertical SATA
header and one right angle SATA header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) needs to be ordered to support add-in
GPGPU cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
8
Product Code
MM
UPC
Description
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Fixed HDDs,
single 460W Cold-Redundant Power Supplies and non-R ed undant
Cooling.
Includes:
P4308XXMFDN
916334
00735858244640
5032037039215
1
8x 3.5" Fixed Drive Carriers, 1x 460W Common Redundant Power Supply
(Platinum Efficiency), 2x 120mm fixed fans,two 150mm SATA power
cables with one 4-pin ATX power header and 2 vertical SATA power
headers, four 600mm SATA cables , each cable has one vertical SATA
header and one right angle SATA header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) needs to be ordered to support add-in
GPGPU cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB and EEB form factor server boards with 3.5" Hot-Swap
HDDs, 1x 550W Fixed Power Supplies and non-Redundant Cooling.
Includes:
4x 3.5" Hot-Swap Drive Carriers, 550W Fixed Power Supply (Silver
P4304XXMHEN
916336
00735858244657
5032037039222
1
Efficiency), 2x 120mm fixed fans, one 480mm miniSAS cable with one
vertical miniSAS header and 4 vertical SATA headers, one 100mm Hot
Swap Backplane power cable with one 4-pin ATX power header and o ne
2x2 header.
Note: This chassis is compatible with multiple server board SKUs. As
such the specific airduct and cables for that server board needs to be
ordered separately. This chassis does not have any airduct.
AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards.
AUPMCOPROBR (MM#926364) is required to support add-in Intel
®
Xeon
Phi™ coprocessor cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
®
Intel
Server Chassis P4304XXSFCN (Entry Pedestal Chassis w/ 4 Fixed
Drive Carriers, 365W non-redundant power supply). Include two SATA
power cables. Each cable has one 4-pin ATX power header and two
P4304XXSFCN
911754
00735858219358
5032037016933
vertical SATA power headers.
Note: This chassis supports S1200BTL and S1200BTS boards only. No
air duct required for S1200BTL and S1200BTS to be used in this chassis.
This chassis does not support add-in GPGPU cards.
1
9
Product Code
MM
UPC
Description
EAN
MOQ
®
Intel
Server Chassis P4304XXSHCN (Entry Pedestal Chassis w/ 4 x Hot
Swap (3.5”) HDD Drive Kit, 365W non-redundant power supply).
It includes four 450mm SATA cables with one vertical and one right angle
7-pin SATA headers.
P4304XXSHCN
911765
00735858219365
5032037016940
Note: this chassis supports S1200BTL and S1200BTS server boards
only.
No air duct required for S1200BTL and S1200BTS to be used in this
chassis. This chassis does not support add-in GPU cards.
1
A general purpose pedestal chassis targeted at small to medium business
supporting CEB form factor server boards with 3.5" Fixed HDDs, 1x 550W
Fixed Power Supply and non-Redundant Cooling.
Includes:
P4304XXSFEN
916306
00735858244138
5032037038768
1
4x 3.5" Fixed Drive Carriers, 550W Fixed Power Supply (Silver
Efficiency), 2x 92mm fixed fans, two SATA power cables. Each cable has
one 4-pin ATX power header and two vertical SAT A power headers.
Note:This chassis supports S2400SC server boards only. The required
air duct FSCUPSAD (MM#915621) must be orderd separately . This
chassis does not have any airduct.This chassis does not support add-in
GPGPU cards.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB form factor server boards with 3.5" Hot-Swap HDDs, 1x
550W Fixed Power Supplies and non-Redundant Cooling.
Includes:
4x 3.5" Hot-Swap Drive Carriers, 550W Fixed Power Supply (Silver
P4304XXSHEN
916304
00735858244121
5032037038751
1
Efficiency), 2x 92mm fixed fans, four 450mm SATA cables with one
vertical and one right angle 7-pin SATA headers.
Note: This chassis supports S2400SC server boards only. The required
air duct FSCUPSAD (MM#915621) must be orderd separately. This
chassis does not have any airduct.This chassis does not support add-in
GPGPU cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
10
Product Code
MM
UPC
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB form factor server boards with 3.5" Fixed HDDs, 460W
Cold-Redundant Power Supplies and non-Redundant Cooling.
Includes:
P4304XXSFDR
916302
00735858244114
5032037038744
1
P4304XXSHDR
916171
00735858244107
5032037038737
1
4x 3.5" Fixed Drive Carriers, 2x 460W Common Redundant Power Supply
(Platinum Efficiency), 2x 92mm fixed fans, two SATA power cables. Each
cable has one 4-pin ATX power header and two vertical SATA power
headers.
Note: This chassis supports S2400SC and S1400FP server boards only.
For S2400SC, the required air duct FSCUPSAD (MM#915621) must be
orderd separately. For S1400FP, the required air duct FFPUPSAD
(MM#921665) must be ordered separately. This chassis does not have
any airduct.This chassis does not support add-in GPGPU cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
A general purpose pedestal chassis targeted at small to medium business
supporting CEB form factor server boards with 3.5" Hot-Swap HDDs,
460W Cold-Redundant Power Supplies and non-Red undant Cooling.
Includes:
4x 3.5" Hot-Swap Drive Carriers, 2x 460W Common Redundant Po wer
Supply (Platinum Efficiency), 2x 92mm fixed fans, It includes four 450mm
SATA cables with one vertical and one right angle 7-pin SATA headers.
Note: This chassis supports S2400SC and S1400FP server boards only.
For S2400SC, the required air duct FSCUPSAD (MM#915621) must be
orderd separately. For S1400FP, the required air duct FFPUPSAD
(MM#921665) must be ordered separately. This chassis does not have
any airduct.This chassis does not support add-in GPGPU cards.
Description
A general purpose pedestal chassis targeted at small to medium business
supporting CEB form factor server boards with 3.5" Fixed HDDs, Single
460W Cold-Redundant Power Supply and non-Redundant Cooling.
Includes:
P4304XXSFDN
916303
00735858244664
5032037039239
1
4x 3.5" Fixed Drive Carriers, 1x 460W Common Redundant Power Supply
(Platinum Efficiency), 2x 92mm fixed fans, two SATA power cables. Each
cable has one 4-pin ATX power header and two vertical SATA power
headers.
Note: This chassis supports S2400SC and S1400FP server boards only.
For S2400SC, the required air duct FSCUPSAD (MM#915621) must be
orderd separately. For S1400FP, the required air duct FFPUPSAD
(MM#921665) must be ordered separately. This chassis does not have
any airduct.This chassis does not support add-in GPGPU cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
11
Product Code
®
MM
UPC
Description
EAN
MOQ
A general purpose pedestal chassis targeted at small to medium business
supporting CEB form factor server boards with 3.5" Hot-Swap HDDs,
single 460W Cold-Redundant Power Supply and non-Redundant Cooling.
Includes:
4x 3.5" Hot-Swap Drive Carriers, 1x 460W Common Redundant Po wer
P4304XXSHDN
916301
00735858244671
5032037039246
1
Supply (Platinum Efficiency), 2x 92mm fixed fans, four 450mm SATA
cables with one vertical and one right angle 7-pin SATA headers.
Note: This chassis supports S2400SC and S1400FP server boards only.
For S2400SC, the required air duct FSCUPSAD (MM#915621) must be
orderd separately. For S1400FP, the required air duct FFPUPSAD
(MM#921665) must be ordered separately. This chassis does not have
any airduct.This chassis does not support add-in GPGPU cards.
Note: End of Life (EOL) has been announced for this SKU. See
PCN112161 for details.
Intel
Server Component Extended Warranty
Extended Warranty SKU for single processor Systems
Extends Warranty from 3 years to 5 years
Can be applied to the following SKUs:
SVCEWUPSY
911293
1
R1304BTLSFAN, R1304BTLSFANNA, R1304BTLSHBN,
R1304BTLSHBNNA, R1304BTSSFAN, R1304BTSSFANNA,
P4304BTLSFCN, P4304BTLSFCNNA, P4304BTLSHCN,
P4304BTLSHCNNA, P4304BTSSFCN, P4304BTSSFCNNA,
P4304XXSFCN, P4304XXSHCN, P4304XXSFEN, P4304XXSHEN,
P4304XXSFDN, P4304XXSFDR, P4304XXSHDN, P4304XXSHDR
®
Server Systems or Intel® Server
SVCEWDPSY
911295
1
Two year extended warranty for Intel
Knock Down Kits + Intel
®
Intel
RAID controller extended warranty is purchased separately.
®
Server Boards that support two processors.
Can be applied to the following SKUs:
P4216XXMHJC, P4216XXMHGC, P4208XXMHGC, P4216XXMHG R,
P4208XXMHGR, P4208XXMHDR, P4216XXMHEN, P4208XXMHEN,
P4308XXMHJC, P4308XXMHGC, P4308XXMHGR, P4308XXMHGN,
P4308XXMFGR, P4308XXMFGN, P4308XXMHDR, P4308XXMHDN,
P4308XXMFDR, P4308XXMFDN, P4308XXMHEN, P4304XXMHEN,
P4308XXMFEN
12
S
P ARES AND ACCESSORIES ORDER CODES
1.3 System Spares and Accessories
Product Code
MM
UPC
EAN
MOQ
Description
AXXELVRAIL
920970
00735858244367
5032037038980
00735858236119
00735858236126
00735858222419
00735858244695
00735858219440
1
AXX3U5UPRAIL
915634
5032037030892
1
AXX3U5UCMA
915635
5032037030908
1
FXXFPANEL
915982
5032037018968
1
A4ULCP
921029
5032037039260
1
FUP4X35HSDK
911885
5032037016230
1
Value Rail Kit, half extension. Works for 438mm wide
Intel 2U/4U Rack Chassis and System families (H2000,
R2000LH/R2000LT, and P4000M/P4000L/P4000L-WS).
Advanced rail kit for P4000M/P4000L/P4000L-WS Server
Chassis used when converting Pedestal chassis to 4U
rack chassis, and full extension rails are needed.
Includes two rails.
Rack Cable Management AXX3U5UCMA (For Use with
Advanced Rail Kit AXX3U5UPRAIL for Intel
Chassis P4000M/P4000L/P4000L-WS Family).
Front Panel board spare for P4000, R1000, R2000 server
chassis.
LCP Module (local control panel)
Enables system to display critical errors from SEL for
instant diagnostic. Also allows custom message for
branding.
3.5" Hot Swap Drive Kit for P4000 server chassis.
Includes: Drive Cage, Hot Swap Backplane, 4 Hot Swap
Drive carriers, data cables, I
2
C cable, and ID filler.
®
Server
13
Product Code
MM
UPC
Description
EAN
MOQ
8x3.5" Hot Swap Drive Cage Kit for P4000 server
chassis.
FUP8X35HSDK
915608
Includes: Drive Cage, Hot Swap Backplane, 8 Hot Swap
Drive Carriers, data cables, I
2
C cable, and ID filler panel
00735858235907
5032037030663
1
8x2.5 Hot Swap Drive Cage Kit for P4000 server chassis.
FUP8X25HSDKS
915819
00735858235914
5032037030670
Includes: Drive cage, Hot Swap Backplane, 8 Hot Swap
Drive carriers, data cables, I
power adaptor cable accessory.
Note: The customer need 2 units of FUP8X25HSDKS to
upgrade fix drive chassis into 2.5” Hot Swap drive
chassis.
2
C cable, ID filler panels, and
1
8x2.5 Hot Swap Drive Cage Kit for use in
P4000L/P4000L-WS when converting 5.25" drive cage
FUP8X25HSDKO
915611
area to gain extra HS HDDs.
Includes: Drive cage, Hot Swap Backplane, (8) Hot Swap
Drive carriers, data cables, I2C cable.
00735858236102
5032037030885
1
3.5” HDD Hot Swap Drive Carrier spares for R1300,
R2300, or P4300 chassis families.
FXX35HSADPB
912771
00735858219495
5032037016391
8
2.5” HDD Hot Swap Drive Carrier spares for R1200,
FXX25HSCAR
R2200, or P4200 chassis families.
918807
00735858241182
5032037035910
8
14
Product Code
MM
UPC
EAN
MOQ
Bezel spare for P4000 server chassis with fixed drives
(no door).
FUPBEZELFIX
911886
00735858219457
5032037016254
1
FUPBEZLFIX2
925750
FUPBEZELHSD
911896
00735858219464
5032037016261
1
FUPBEZELHSD2
925749
Note: FUPBEZELFIX is compatible to P4304XXSFCN
(911754) with TA number G15844-005, -004, -003, -002
and -001, P4304XXSHCN (911765) with TA number
G21447-004, -003, -002 and -001 exclusively. All rest
chassis with fixed drives are compatible with
FUPBEZELFIX2.
Note: End of Life (EOL) has been announced for this
SKU. See PCN 112473 for details.
Bezel spare for P4000 server chassis with fixed drives
(no door).
Note: FUPBEZELFIX2 is not compatible to
P4304XXSFCN (911754) with TA number G15844-005, 004, -003, -002 and -001, P4304XXSHCN (911765) with
TA number G21447-004, -003, -002 and -001.
Bezel spare for P4000 server chassis with Hot Swap
HDDs (w/door for HS bays)
(fits P4304, P4308, P4208, and P4216 with HS drive
bays installed)
Note: FUPBEZELHSD is compatible to P4304XXSFCN
(911754) with TA number G15844-005, -004, -003, -002
and -001. P4304XXSHCN (911765) with TA number
G21447-004, -003, -002 and -001 exclusively. All rest
chassis are compatible with FUPBEZELHSD2.
Note: End of Life (EOL) has been announced for this
SKU. See PCN 112473 for details.
Bezel spare for P4000 server chassis with Hot Swap
HDDs (with door for hot swap bays)
(fits P4304, P4308, P4208, and P4216 with hot swap
drive bays installed)
Note: FUPBEZELHSD2 is not compatible to
P4304XXSFCN (911754) with TA number G15844-005,
-004, -003, -002, and -001, P4304XXSHCN (911765)
with TA number G21447-004, -003, -002, and -001.
Description
15
Product Code
MM
UPC
EAN
MOQ
Rack bezel kit for converting P4000 pedestal server
chassis to rack chassis.
Includes: Bezel frame and two rack handles.
AUPBEZEL4UF
915636
00735858235976
5032037030731
1
Description
Image will be available soon
For demo only
AUPBEZEL4UD
915637
00735858235983
5032037030748
1
FUP4X35NHDK
912770
00735858219488
5032037016247
1
FUPSMSK
912773
00735858219518
5032037016292
1
FUPSESK
912774
00735858219525
5032037016285
1
Rack bezel accessory for P4000M/P4000L/P4000L-WS
chassis in rack configuration – security door only.
Fixed Drive Carrier spare for P4300 server chassis
(compatible with 2.5'' HDDs/SSDs).
Chassis Maintenance kit for P4000S server chassis
(Mechanical Spares Kit)
Includes mechanical parts – including:
IO Bracket (without knockouts)
IO Bracket (w/USB and D Sub knockout)
Baseboard Insulators – uATX and ATX
BBU Bracket
Intrusion Switch Bracket
CDROM Filler Panel
ODD latch w/2 screws
Rack Handles (set)
Fan Holder Assembly
CPU Ducts
Air Dams
Chassis Maintenance kit for P4000S (Electrical Spare
Kit)
Includes:
1x Front Panel Cable, 920mm
1x USB Cable, one 2x5 pin header to two USB type
A female headers, 950mm
1x intrusion cable, 200mm
3x SATA power cables, one 4- pin ATX power
header to 2 SATA power headers, 150mm
16
Product Code
MM
UPC
Description
EAN
MOQ
1x SATA extension Cable, one right angle header to
one vertical header, 600mm
1xSGPIO Cable, one 5-pin header to one 5-pin
header and one 4-pin header.
1x I
2
C Cable, one 5-pin header to one 3 pin header,
600mm
1xSATA power adaptor extension cable, 24-pin
header to 24-pin header, 630mm
Chassis Maintenance kit for P4000M (Mechanical Spares
Kit)
Including EMI cover, ODD rail, PCI card retainer, 4x 3.5"
EMI cover, 8x 3.5" EMI cover, ODD rail x4, #6-32 screw
x20, M3x12 USB cable screw x2, M2x10 Intrusion cable.
FUPMMSK
915638
00735858235990
5032037030755
1
17
Product Code
MM
UPC
EAN
MOQ
Description
18
For demo only
Product Code
MM
UPC
Description
EAN
MOQ
Chassis Maintenance kit for P4000M (Electric Spares
Kit).
Includes:
2x SATA power cables, one 4-pin ATX power
header to two SATA power headers, 150mm
2x SAS cables, one mini SAS header to four SATA
vertical headers without SGPIO , 600mm
1x SATA cable, 1x mini SAS header to 4x SATA
vertical headers with SGPIO , 600mm
FUPMESK
1x I
915653
00735858236003
1x I
5032037030762
1
1x Hot Swap Backplane adapter power cable, one
2
C cable, one 5-pin header to one 3-pin header,
600mm
2
C cable, one 5-pin header to one 5-pin header,
200mm
1x4 pin header to one 2x2 pin header, 100mm
2x GPGPU power cables, one 2x2 pin header to
one 2x4 pin header plus one 2x3 pin header,
1100mm
5x fan signal cables for fan 1 to 5, 350mm
1x intrusion cable, 200mm
1x front panel cable, 920mm
1x USB Cable, one 2x5 pin header to two USB type
A female headers, 950mm
Chassis Maintenance kit for P4000L/P4000L-WS server
chassis (Mechanical Spares Kit).
Includes EMI cover, PCI card retainer, 4x 3.5" EMI cover,
8x 3.5" EMI cover, ODD rail x4, #6-32 screw x20, M3x12
USB cable screw x2, M2x10.
FUPLMSK
915654
00735858236010
5032037030779
1
19
Product Code
MM
UPC
EAN
MOQ
Description
20
Product Code
MM
UPC
Description
EAN
MOQ
For demo only
Chassis Maintenance kit for P4000L/P4000L-WS.
Includes:
2x SATA power cables, one 1x4 pin natural ATX
power header to two SATA power headers, 150mm
1x I
2
C cable, one 5 pin header to one 3 pin header,
600mm
FUPLESK
1x I
915655
00735858236027
5032037030786
1
1x Hot Swap Backplane adapter power cable, one 4
1x SAS cable, one mini SAS header to four right
2
C cable, one 5 pin header to one 5 pin header,
200mm
pin header to one 2x2 pin header, 100mm
angle SATA headers, 480mm
4x GPGPU power cables, one 2x2 pin header to
one 2x4 pin header plus one 2x3 pin header,
1100mm.
1x SPDIF cable, 4 pin header to one RCA header,
520mm
1x front video cable, one 14 pin header to one DB15
21
Product Code
MM
UPC
Description
EAN
MOQ
header, 1100mm
1x serial cable, one 10 pin header to one DB9
header. 390mm
5xfan cables, for fan 1 to 5. 280mm
1x intrusion cable. 200mm
1x front panel cable, 920mm
1x USB cable. One 2x5 header to two USB type A
female headers , 950mm
®
S2600CO
AUPM1394CBL
1394 Cable and mounting kit (unique for Intel
Server Board).
919563
00735858240024
5032037034760
1
AXX2IOS
I/O Shield accessory for Intel
and S2400SC2 Server Boards.
®
S2600CP2, S2400GP2,
919757
735858239264
5032037034036
50
AXX4IOS
I/O Shield accessory for Intel
®
and S2400GP4 Server Boards.
S2600CP4, S2600IP4,
919758
00735858238939
5032037033718
50
I/O Shield accessory for Intel
®
S2600CO Server Board.
AS2600COIOS
919562
00735858240017
5032037034753
50
3.5" Hot Swap Backplane spare (for P4304 server
FUP4X35HSBP
913595
chassis)
Includes: 3.5" backplane board
00735858220033
5032037019279
1
22
Product Code
MM
UPC
EAN
MOQ

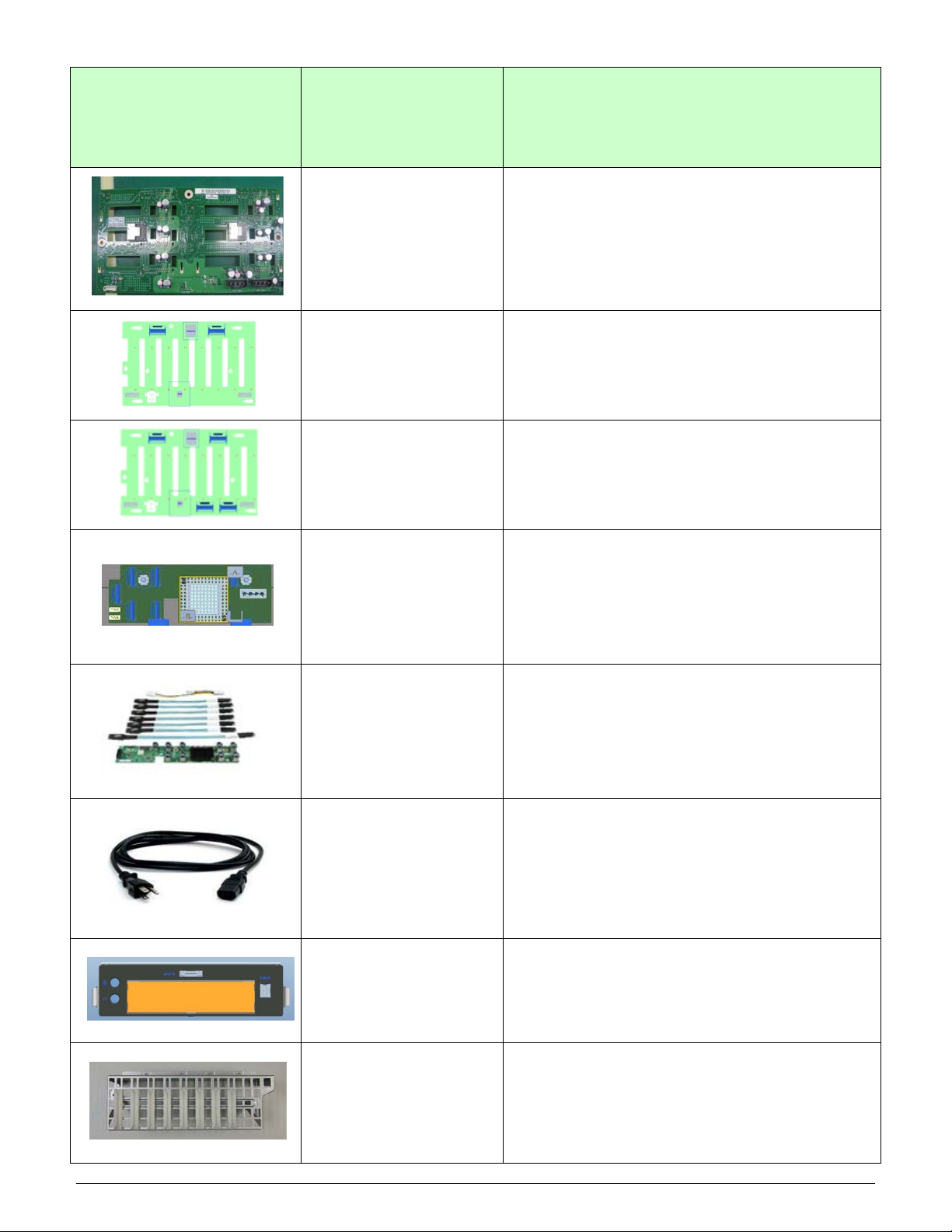

Hot Swap Backplane spare for 8x3.5" Drive Cage Kit
FUP8X35HSBP
916353
00735858222792
5032037033480
1
FUP8X35HSDK for use with P4000 server chassis.
Includes: (1) 3.5” backplane board
Description
FXX8X25HSBP
917973
735858240987
5032037035736
1
FXX8X25DPBP
917974
735858240994
5032037035743
1
RES2CV240
918934
735858241175
5032037035903
1
RES2CV360
918935
735858241168
5032037035897
1
Spare 8x2.5" Hot Swap Backplane for use with R2200,
and P4200 Chassis families.
Includes: (1) 8x2.5” backplane board
Spare 8x2.5" Dual Port Hot Swap Backplane for use with
R2200, and P4200 Chassis families.
Includes: (1) 8x2.5” backplane board, dual port
Integrated 24-port 6G SAS expander, compatible with
R2200 family and P4000M/P4000L of chassis (only
supported in 2.5” drive 2U or 4U chassis).
Includes 3 screws and bumpers, 4 cables and power
cable.
Recommended to use with two 8x 2.5” Hot Swap
Backplanes (total 16 drives).
Integrated 36-port 6G SAS expander, compatible with
R2200 family and P4000M/P4000L family of chassis
(only supported in 2.5” drive 2U or 4U chassis).
Includes 3 screws and bumpers, 6 Mini-SAS cables and
power cable.
Recommended to use with three 8x 2.5” Hot Swap
Backplanes (total 24 drives)
North American Power Cord Spare
FPWRCABLENA
879287
00735858181129
1
AUPLWSFIO
920851
00735858244701
5032037039277
1
AUPLGPUBR
920612
00735858244480
5032037039055
1
Front IO Panel for Intel Workstation P4000CR2 system
with audio, eSATA, and 1394B ports, spare.
Bracket for securing full length double width GPU cards
to fan bulkhead, for use in P4000L/P4000L-WS, includes
1 bracket, four 1100mm GPGPU power cables, screws.
Each GPGPU power cable has one 2x2 pin header to
one 2x3 pin header plus one 2x1 header and one 2x3 pin
header. The 2x3 header plus the 2x1 header can
combine to a standard 2x4 pin header per GPGPU card’s
23
Product Code
MM
UPC
Description
EAN
MOQ
requirement.
Note: End of Life (EOL) has been announced for this
SKU. See PCN112953 for details.
Bracket for securing full length double width GPU cards
to fan bulkhead, for use in P4000M, includes 1 bracket,
AUPMGPUBR
920613
00735858244428
5032037039048
1
two 1100mm GPGPU power cables, screws. Each
GPGPU power cable has one 2x2 pin header to one 2x3
pin header plus one 2x1 header and one 2x3 pin header.
The 2x3 header plus the 2x1 header can combine to a
standard 2x4 pin header per GPGPU card’s requirement.
Note: End of Life (EOL) has been announced for this
SKU. See PCN112953 for details.
Bracket for securing full length double width GPU cards
to fan bulkhead, for use in P4000M, includes 1 bracket, 2
GPGPU power cables, 2 Intel
®
Xeon Phi™ Coprocessor
PCI Express* Card extension brackets, and screws.
AUPMCOPROBR
926364
00735858257046
5032037049139
1
Bracket for securing full length double width GPU cards
to fan bulkhead, for use in P4000L/P4000L-WS, includes
1 bracket, 4 GPGPU power cables, 4 Intel
®
Xeon Phi™
Coprocessor PCI Express* Card extension brackets,
AUPLCOPROBR
screws.
926365
00735858257053
5032037049146
1
®
heat sink, SRC-B tower passive,
®
4U pedestal server
®
server
AUPSRCBTP
915293
The production Intel
98mmx100mm, required for production Intel
boards S2600CP, S2600CO4/S2600COE and S2600IP
to be used in production Intel
chassis with up to 135W CPU installed.
00735858238724
5032037033497
2
24
Product Code
MM
UPC
Description
EAN
MOQ
®
heat sink, SRC-B tower active,
®
S2600CR
®
Server
®
4U
AUPSRCBTA
915294
00735858236164
The production Intel
98mmx100mm, required for production Intel
workstation board to be used in production Intel® 4U
workstation chassis P4000L-WS series, or Intel
Board 2600COE to be used in production Intel
pedestal chassis P4000M with 150W CPU installed.
5032037030939
2
ASCUPSFLFANKIT
919713
00735858236058
Fan kit to support full length PCI cards in P4000S server
chassis for use with S2400SC board.
Includes; Fan mounting bracket for drive bay, PCI card
support, fan mounting rivets.
5032037030816
1
Fan spare for P4000S server chassis used with S1200BT
boards (92x33mm fan mounts to rear of chassis).
FUPSNHFANE3
912772
00735858219501
5032037016308
1
80mm system fan kit for P4000M/P4000L server chassis
includes fan, fan holder, for use in redundant cooling
configuration.
FUPMLHSFAN
915620
00735858235969
5032037030724
1
Fixed Fan Spare Kit for CPU area for P4000M, or CPU
area for P4000L-WS.
Includes: (1) 120mm fixed fan
FUPNHFANCPU
MM# 919572
00735858236034
5032037030793
1
25
Product Code
MM
UPC
Description
EAN
MOQ

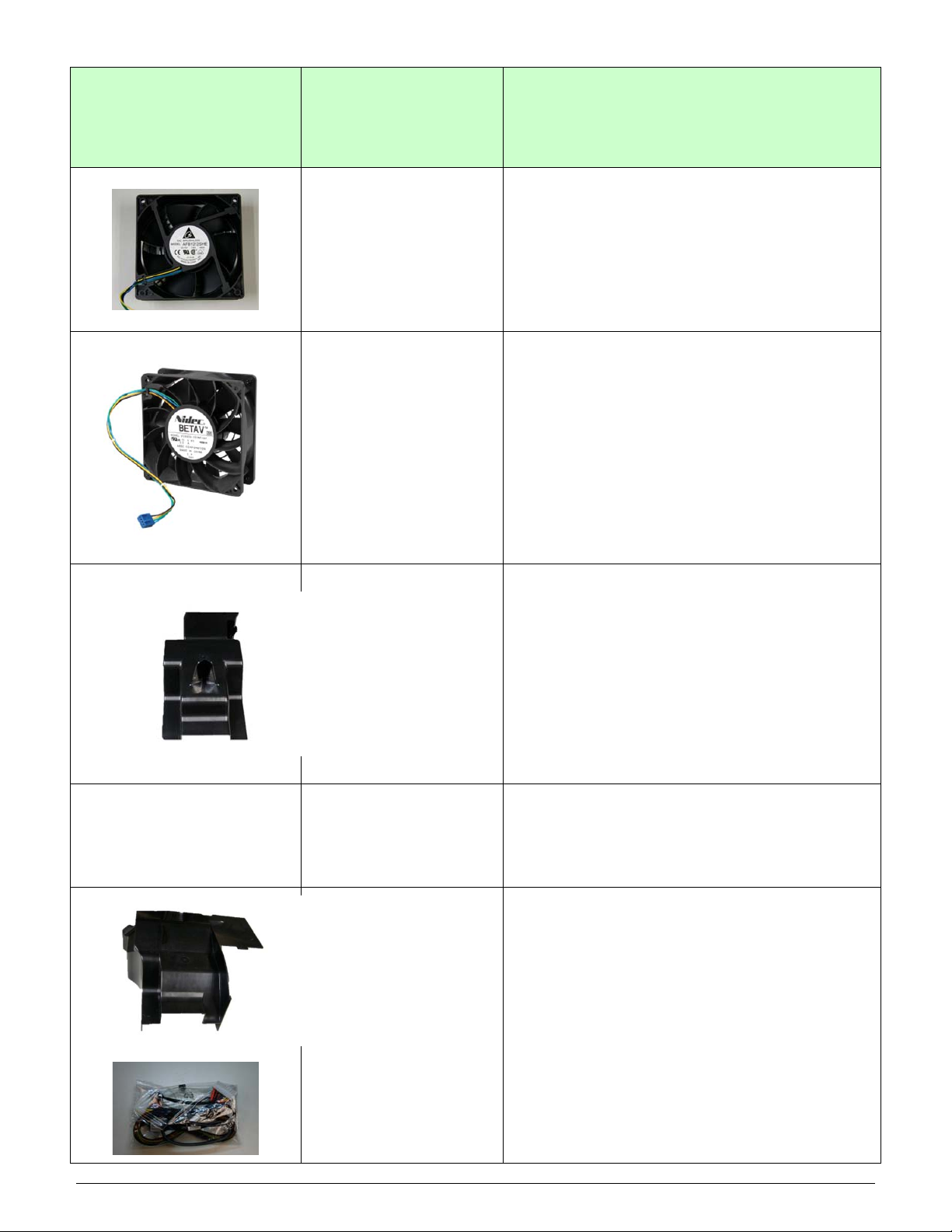

Fixed Fan spare kit for P4000M for PCI area fan or
P4000L-WS for PCI area fan.
FUPMNHFANPCI
Includes: (1) 120mm fixed fan
MM# 919575
00735858236041
5032037030809
1
Fan spare for P4000S server chassis used with
S2400SC CEB boards.
Includes: (1) 92x32mm fan
FUPSNHFANE5
915617
00735858236096
5032037030878
1
With
FSCUPSAD
915621
00735858225250
5032037030854
1
FFPUPSAD
921665
00735858247955
5032037042833
1
FSCUPMAD
915622
00735858225274
5032037030861
1
Air duct for Intel
®
Server Board S2400SC to be used
Intel® Server Chassis P4000S.
Note: Common cables are remained in P4000S chassis
package.
Accessory – dedicated air duct for Intel
®
Server Board
S1400FP in Intel® Server Chassis P4000S.
Air duct and unique cable kit for Intel
®
Server Board
S2400SC to be used Intel® Server Chassis P4000M.
Included cables:
1x SAS cable, one mini SAS header to four right
angle SATA headers. 600mm.
1x power extension cable. One 24 pin header to
one 24 pin header. 630mm.
1x miniSAS extension cable. One miniSAS header
to one miniSAS header. 650mm.
Note: Common cables are remained in P4000M chassis
package.
26
With
With
Product Code
MM
UPC
Description
EAN
MOQ
Air duct and unique cable kit for Intel
S2600CP to be used Intel
®
Server Chassis P4000M.
®
Server Board
Included cables:
4x SAS/SATA cables. One right angle SAS header
to one vertical header.450mm.
FCPUPMAD
915623
00735858225267
5032037030823
1
1x miniSAS cable. One miniSAS header to four
SAS/SATA right angle headers plus one SGPIO
header. 480mm.
1x SGPIO cable. One 5 pin header to one 5 pin
header. 450mm.
1x power extension cable. One 24 pin header to
one 24 pin header. 630mm.
Note: Common cables are remained in P4000M chassis
package.
Air duct and unique cable kit for Intel
®
Server Board
S2400GP to be used Intel® Server Chassis P4000M.
Included cables:
4xSATA cables. Oneright angleright angle SATA
header to one vertical SATA header.450mm
FGPUPMAD
915633
00735858236089
5032037030847
1
1x SAS cable. One miniSAS header to 4 right angle
SATA headers, without SGPIO header, 600mm
1x SAS cable. One miniSAS header to 4 vertical
SATA headers plus one SGPIO header. 600mm
1x SGPIO cable. One 5 pin header to one 5 pin
header and one 4 pin header. 450mm
1x miniSAS extension cable. One miniSAS header
to one MiniSAS header. 650mm
Note: Common cables are remained in P4000M chassis
package.
Air duct spare for S2600IP and W2600CR in
P4000L/P4000L-WS server chassis.
FIPCRUPMAD
915631
00735858236072
5032037030830
1
27
Product Code
MM
UPC
EAN
MOQ
Air duct and unique cable kit for Intel
S2600CO to be used Intel
Included cables:
4x SATA cables. One right angle SATA header to
FCOUPMAD
1x SAS cable. One miniSAS header to 4 right angle
919559
1x SGPIO cable. One 5 pin header to one 5 pin
1x power extension cable. One 24 pin header to
With
00735858236133
5032037030915
1
Note: Common cables are remained in P4000M chassis
package.
Description
®
Server Chassis P4000M.
one vertical SATA header, 450mm.
right angle SATA headers, 450mm.
header plus one 4 pin header, 450mm.
one 24 pin header.
®
Server Board
28
1.4 Power Subsystem Spares
00735858219433
5032037016223
Product Code
MM
UPC
EAN
MOQ
FUP365SNRPS
911884
1
Description
P4304 365W Power Supply Spare (80 Plus Silver).
Image will be available soon
FUP550SNRPS
915602
00735858235839
5032037030588
00735858235846
00735858234979
00735858219471
FUPCRPSCAGE
00735858235891
1
FXX460GCRPS
915603
5032037030595
1
FXX750PCRPS
915604
5032037030601
1
FUPNRPSADP
912769
5032037016278
1
915607
5032037030656
1
550W Power supply spare for P4000 chassis 80Plus
Silver efficiency.
460W Common Redundant Power Supply spare 80Plus
Gold efficiency for P4000, R1000, and R2000 server
chassis.
750W Common Redundant Power Supply spare 80Plus
Platinum efficiency for P4000, R1000, and R2000 server
chassis.
P4000 Non-Redundant Power Supply adaptor kit.
Includes; bracket, screws, locker
Common Pedestal CRPS PSU cage assembly (cage,
adaptor bracket, screws, supporting bulkhead, 1x blank
filler).
29
Product Code
MM
UPC
EAN
MOQ
Description
FUPPDBLC
916812
00735858238731
5032037033510
00735858238748
FXX1200PCRPS
FXX1600PCRPS
1
FUPPDBHC
916813
5032037033527
1
915605
735858225137
5032037035071
1
915606
735858243650
5032037038294
1
Power Distribution Board Spare (Low Current) for P4000
server chassis. Recommended to use with
FXX460GCRPS or FXX750PCRPS power supplies.
Power Distribution Board Spare (High Current) for P4000
server chassis. Recommended to use with
FXX750PCRPS, FXX1200PCRPS or FXX1600PCRPS
power supplies.
1200W Common Redundant Power Supply spare 80Plus
Platinum efficiency for P4000, and R2000 server chassis.
1600W Common Redundant Power Supply spare 80Plus
Platinum efficiency for P4000, and R2000 server chassis.
30
Loading...
