INTEL INTEL NUC7CJYHN User guide

Download

Intel® NUC Products NUC7CJY/NUC7PJY

Technical Product Specification

Regulatory Models: NUC7JY (Kit/Mini PC)

NUC7JYB (Board)

April 2021

Order Number: J96982-005

The Intel NUC Products NUC7CJY/NUC7PJY may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current characterized errata are documented in the Intel NUC Products NUC7CJY/NUC7PJY Specification Update.

001

First release of Intel NUC Products NUC7CJY/NUC7PJY Technical Product

January 2018 003

Spec Change

February 2019

004

Spec Clarification

October 2019

005

Spec Updated

April 2021

Revision History

Revision Revision History Date

Specification

002 Spec Change February 2018

Disclaimer

This product specification applies to only the standard Intel® NUC Boards, Kits and Mini PCs with BIOS identifier JYGLKCPX.86A.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY OCCUR.

All Intel installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other PC or embedded non-PC applications or other environments, such as medical, industrial, alarm systems, test equipment, etc. may not be supported without further evaluation by Intel.

Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.

NUC Boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal computers (PC) for

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different processor families: Go to:

Learn About Intel

Intel NUC Boards and kits may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order.

Intel, Pentium and Celeron are trademarks of Intel Corporation in the U.S. and/or other countries.

* Other names and brands may be claimed as the property of others.

Processor Numbers

Foreword

Intel NUC Board

AA Revision

BIOS Revision

Notes

NUC7CJYB

J67967-400

JYGLKCPX.86A.0027

1, 3

NUC7CJYB

J67970-400

JYGLKCPX.86A.0027

1, 3, 5

NUC7PJYB

J67969-400

JYGLKCPX.86A.0027

1, 4

NUC7CJYBN

M37348-500

JYGLKCPX.86A.0055

1, 2, 3, 6

NUC7PJYBN

M37329-500

JYGLKCPX.86A.0055

1, 2, 4

Device

Stepping

S-Spec Number(s)

Device

Stepping

S-Spec Number(s)

Device

Model

Version

SanDisk

SDINADF4-32G-H

5.1

Kingston

EMMC32G-M525-A53

5.1

Kingston

EMMC32G-TA28-A01

5.1

Device

Model

Version

Note: For this Technical Products Specification, the use of Intel NUC Products NUC7CJY/NUC7PJY refers to Intel NUC Kit NUC7CJYH, Intel NUC Kit NUC7PJYH, Intel NUC Mini PC NUC7CJYS, and Intel NUC Boards NUC7CJYB and NUC7PJYB.

Board Identification Information

Basic Intel® NUC Board Identification Information

NUC7CJYBN M37316-500 JYGLKCPX.86A.0055 1, 2, 3

Notes:

1. The AA number is found on a small label on the SO-DIMM memory connector.

2. No audio codec

3. Intel

Celeron® processor J4005 used on this AA revision consists of the following component:

Intel Celeron processor B0 SR3S5

4. Intel

5. Contains a 32GB embedded MultiMediaCard (e-MMC) device consisting of one of the following components:

Pentium® Silver processor J5005 used on this AA revision consists of the following component:

Intel Pentium Silver processor B0 SR3S3

6. Contains a 64GB embedded MultiMediaCard (e-MMC) device consisting of one of the following components:

SanDisk SDINBDA4-64G-V 5.1

iii

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Product Name

Intel NUC

Intel® NUC

Differentiating Features

NUC7CJYH

J67971-400

J67967-400

Kit with power adapter, no memory, no eMMC, no OS

NUC7CJYS

J67993-400

J67970-400

Mini PC with power adapter, preinstalled with 4GB NUC7CJYHN

M37042-500

M37316-500

Kit with power adapter, no audio codec, no memory,

NUC7PJYHN

M37320-500

M37329-500

Kit with power adapter, no audio codec, no memory,

Date

Type of Change

Description of Changes or Clarifications

February 2018

Specification Change

• Correct Pentium core count February 2019

Specification Change

Added section 2.4.2 - Weights

October 2019

Specification

Clarified Board vs System environmental specifications. April 2021

Specification Update

Added no-audio-codec SKUs

Product Identification Information

Intel® NUC Products NUC7{x}JY{y}† Identification Information

Kit SA #

NUC7PJYH J67992-400 J67969-400 Kit with power adapter, no memory, no eMMC, no OS

J67994-400

NUC7CJYSAMN M37347-500 M37348-500 Mini PC with power adapter, no audio codec,

Note:

†

where {x} = “C” for “Celeron”, “P” for “Pentium”, and {y} = “H” for “kit” and “S” = “system”

Board AA #

2400MHz DDR4 SO-DIMM, 32GB e-MMC with Microsoft* Windows* 10 Home

no eMMC, no OS

preinstalled with 4GB 2400MHz DDR4 SO-DIMM, 64GB e-MMC with Microsoft* Windows* 10 Home

Specification Changes or Clarifications

The table below indicates the Specification Changes or Specification Clarifications that apply to the Intel NUC Products NUC7CJY/NUC7PJY.

Specification Changes or Clarifications

• Correct graphics designator

Clarification

Errata

Current characterized errata, if any, are documented in a separate Specification Update. See

http://www.intel.com/content/www/us/en/nuc/overview.html

for the latest documentation.

Preface

Chapter

Description

A description of the hardware used in Intel NUC Products NUC7CJY/NUC7PJY

A map of the resources of the Intel NUC Board

The features supported by the BIOS Setup program

A description of the front panel blink codes and BIOS error messages

The features of the Intel NUC Kits and Mini PCs

This Technical Product Specification (TPS) specifies the layout, components, connectors, power and environmental requirements, and the BIOS for Intel® NUC Products NUC7CJY/NUC7PJY. The Intel® NUC Kits NUC7CJYH/NUC7PJYH are without memory and operating system, and the Intel® NUC Mini PC NUC7CJYS is with pre-installed SO-DIMM memory and operating system.

Intended Audience

The TPS is intended to provide detailed technical information about Intel NUC Products NUC7CJY/NUC7PJY and their components to the vendors, system integrators, and other engineers and technicians who need this level of information. It is specifically not intended for general audiences.

What This Document Contains

Typographical Conventions

This section contains information about the conventions used in this specification. Not all of these symbols and abbreviations appear in all specifications of this type.

Notes, Cautions, and Warnings

NOTE

Notes call attention to important information.

CAUTION

Cautions are included to help you avoid damaging hardware or losing data.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

bpp

Bits per pixel

Gigabyte (1,073,741,824 bytes)

GBps

Gigabytes per second

Kilobyte (1024 bytes)

Kilobit (1024 bits)

kbps

1000 bits per second

MBps

Megabytes per second

Megabit (1,048,576 bits)

Mbps

Megabits per second

xxh

An address or data value ending with a lowercase h indicates a hexadecimal value.

x.x V

Volts. Voltages are DC unless otherwise specified.

Other Common Notation

# Used after a signal name to identify an active-low signal (such as USBP0#)

Gbps Gigabits per second

MB Megabyte (1,048,576 bytes)

TDP Thermal Design Power

* This symbol is used to indicate third-party brands and names that are the property of their respective

owners.

[ ] Specific keyboard key callouts are enclosed in brackets, e.g., [ESC]

Contents

Revision History ............................................................................................................... ii

Board Identification Information ..................................................................................................................... iii

Product Identification Information ................................................................................................................. iii

Errata ........................................................................................................................................................................... iv

Preface ............................................................................................................................... v

Intended Audience ................................................................................................................................................. v

What This Document Contains ......................................................................................................................... v

Typographical Conventions ............................................................................................................................... v

Contents .......................................................................................................................... vii

1 Product Description ............................................................................................... 11

1.1 Overview ...................................................................................................................................................... 11

1.1.1 Feature Summary .................................................................................................................. 11

1.1.2 Board Layout (Top) ............................................................................................................... 13

1.1.3 Board Layout (Bottom) ........................................................................................................ 14

1.1.4 Block Diagram ......................................................................................................................... 16

1.2 Online Support .......................................................................................................................................... 17

1.3 Processor ..................................................................................................................................................... 17

1.4 System Memory ........................................................................................................................................ 18

1.5 Processor Graphics Subsystem .......................................................................................................... 20

1.5.1 Intel

1.5.2 High Definition Multimedia Interface* (HDMI*) ......................................................... 20

1.6 USB

1.7 SATA Interface ........................................................................................................................................... 21

1.8 Embedded MultiMediaCard (e-MMC) - optional ......................................................................... 21

1.9 Real-Time Clock Subsystem ................................................................................................................ 22

1.10 Audio Subsystem ..................................................................................................................................... 23

1.11 LAN Subsystem ......................................................................................................................................... 25

1.12 Hardware Management Subsystem ................................................................................................. 27

................................................................................................................................................................. 21

1.7.1 AHCI Mode ................................................................................................................................ 21

1.10.1 Digital Microphone Array .................................................................................................... 24

1.10.2 Mini-TOSLINK Interface ...................................................................................................... 24

1.10.3 Audio Subsystem Software ............................................................................................... 24

1.11.1 Realtek* 8111HN Gigabit Ethernet Controller .......................................................... 25

1.11.2 LAN Subsystem Software ................................................................................................... 25

1.11.3 RJ-45 LAN Connector with Integrated LEDs .............................................................. 26

1.11.4 Wireless Network Module .................................................................................................. 26

1.12.1 Hardware Monitoring ........................................................................................................... 27

Ultra-High Definition (Intel® UHD) Graphics .................................................... 20

vii

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

1.12.2 Fan Monitoring ........................................................................................................................ 27

1.12.3 Thermal Solution ................................................................................................................... 28

1.13 Operating System Support .................................................................................................................. 28

1.14 Power Management ................................................................................................................................ 29

1.14.1 ACPI ............................................................................................................................................. 29

1.14.2 Hardware Support ................................................................................................................. 31

1.14.3 HDMI Consumer Electronics Control (CEC) ................................................................ 33

1.15 Intel Platform Security Technologies .............................................................................................. 35

1.15.1 Intel® Virtualization Technology ...................................................................................... 35

1.15.2 Intel® Platform Trust Technology ................................................................................... 35

2 Technical Reference ............................................................................................... 37

2.1 Memory Resources .................................................................................................................................. 37

2.1.1 Addressable Memory ........................................................................................................... 37

2.2 Connectors and Headers....................................................................................................................... 37

2.2.1 Front Panel Connectors ...................................................................................................... 38

2.2.2 Back Panel Connectors ....................................................................................................... 38

2.2.3 Headers and Connectors (Top) ........................................................................................ 39

2.2.4 Connectors and Headers (Bottom) ................................................................................. 41

2.3 BIOS Security Jumper ............................................................................................................................ 49

2.4 Mechanical Considerations .................................................................................................................. 51

2.4.1 Form Factor ................................................................................................

2.4.2 Weights ...................................................................................................................................... 52

2.5 Electrical Considerations ...................................................................................................................... 52

2.5.1 Power Supply Considerations .......................................................................................... 52

2.5.2 Fan Header Current Capability ......................................................................................... 52

2.6 Thermal Considerations ........................................................................................................................ 53

2.7 Reliability ..................................................................................................................................................... 56

2.8 Environmental ........................................................................................................................................... 56

.............................. 51

3 Overview of BIOS Features ................................................................................... 57

3.1 Introduction ................................................................................................................................................ 57

3.2 BIOS Flash Memory Organization ..................................................................................................... 57

3.3 System Management BIOS (SMBIOS) .............................................................................................. 57

3.4 Legacy USB Support ............................................................................................................................... 58

3.5 BIOS Updates ............................................................................................................................................. 58

3.5.1 Language Support ................................................................................................................. 58

3.6 BIOS Recovery ........................................................................................................................................... 58

3.7 Boot Options .............................................................................................................................................. 59

3.7.1 Network Boot........................................................................................................................... 59

3.7.2 Booting Without Attached Devices ................................................................................ 59

3.7.3 Changing the Default Boot Device During POST ...................................................... 59

3.7.4 Power Button Menu .............................................................................................................. 60

3.8 Hard Disk Drive Password Security Feature ................................................................

viii

.................. 61

Contents

3.9 BIOS Security Features .......................................................................................................................... 62

4 Error Messages and Blink Codes ......................................................................... 63

4.1 Front-panel Power LED Blink Codes ................................................................................................ 63

4.2 BIOS Error Messages ............................................................................................................................... 63

5 Intel NUC Kit Features ........................................................................................... 64

5.1 Chassis Front Panel Features .............................................................................................................. 64

5.2 Chassis Rear Panel Features ................................................................................................................ 65

Figures

Figure 1. Major Board Components (Top) ....................................................................................................... 13

Figure 2. Major Board Components (Bottom) ................................................................................................ 14

Figure 3. Block Diagram ........................................................................................................................................... 16

Figure 4. Memory Channel and SO-DIMM Configuration.......................................................................... 19

Figure 5. 4-Pin 3.5 mm (1/8 inch) Audio Jack Pin Out ............................................................................... 23

Figure 6. Mini-TOSLINK Adaptor (not included) ........................................................................................... 24

Figure 7. LAN Connector LED Locations........................................................................................................... 26

Figure 8. Thermal Solution and Fan Header ................................................................................................... 28

Figure 9. Location of the Standby Power LED ............................................................................................... 33

Figure 10. CEC Connector ........................................................................................................................................ 34

Figure 11. Front Panel Connectors, Controls and Indicators .................................................................. 38

Figure 12. Back Panel Connectors ...................................................................................................................... 38

Figure 13. Headers and Connectors (Top) ....................................................................................................... 39

Figure 14. Connectors and Headers (Bottom) ............................................................................................... 41

Figure 15. Connection Diagram for Front Panel Header (2.0 mm Pitch) ................................

Figure 16. Location of the CIR Sensor ............................................................................................................... 48

Figure 17. Location of the BIOS Security Jumper ........................................................................................ 49

Figure 18. Board Dimensions ................................................................................................................................ 51

Figure 19. Board Height Dimensions ................................................................................................................. 52

Figure 20. Localized High Temperature Zones ............................................................................................. 54

Figure 21. Intel NUC Products NUC7CJYH/NUC7PJYH/NUC7CJYS Features – Front ................. 64

Figure 22. Intel NUC Products NUC7CJYH/NUC7PJYH/NUC7CJYS Features – Rear ................... 65

............ 46

Tables

Table 1. Feature Summary ..................................................................................................................................... 11

Table 2. Components Shown in Figure 1 ......................................................................................................... 13

Table 3. Components Shown in Figure 2 ......................................................................................................... 15

Table 4. Supported Memory Configurations .................................................................................................. 18

Table 5. Unsupported Memory Configurations............................................................................................. 18

Table 6. LAN Connector LED States ................................................................................................................... 26

Table 7. Effects of Pressing the Power Switch ............................................................................................... 29

Table 8. Power States and Targeted System Power ................................................................................... 30

Table 9. Wake-up Devices and Events .............................................................................................................. 31

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Table 10. HDMI 1 CEC expected behavior ....................................................................................................... 34

Table 11. Headers and Connectors Shown in Figure 13 ........................................................................... 39

Table 12. LPC Debug Header (2.0 mm Pitch – not stuffed) ...................................................................... 40

Table 13. Connectors and Headers Shown in Figure 14 ........................................................................... 42

Table 14. SATA Power Header (1.25 mm Pitch) ............................................................................................ 42

Table 15. Single-Port Internal USB 2.0 Headers (1.25 mm Pitch) ......................................................... 43

Table 16. Digital Microphone (DMICS) Array Connector (1.25 mm Pitch).......................................... 43

Table 17. RGB LED Connector (1.25 mm Pitch) ............................................................................................ 43

Table 18. Consumer Electronics Control (CEC) Connector (1.25 mm Pitch) .................................... 44

Table 19. SDXC Card Reader Connector .......................................................................................................... 44

Table 20. Auxiliary Power Connector ................................................................................................................ 45

Table 21. Front Panel Header (2.0 mm Pitch) ................................................................................................ 46

Table 22. States for a One-Color Power LED ................................................................................................. 47

Table 23. States for a Dual-Color Power LED ................................................................................................ 47

Table 24. BIOS Security Jumper Settings ........................................................................................................ 50

Table 25. Select Weights ........................................................................................................................................ 52

Table 26. Fan Header Current Capability ......................................................................................................... 52

Table 27. Thermal Considerations for Components ................................................................................... 55

Table 28. Tcontrol Values for Components ................................................................................................... 55

Table 29. Environmental Specifications ........................................................................................................... 56

Table 30. Acceptable Drives/Media Types for BIOS Recovery ............................................................... 58

Table 31. Boot Device Menu Options ................................................................................................................ 60

Table 32. Master Key and User Hard Drive Password Functions ................................

........................... 61

Table 33. Supervisor and User Password Functions................................................................................... 62

Table 34. Front-panel Power LED Blink Codes ............................................................................................. 63

Table 35. BIOS Error Messages ............................................................................................................................ 63

Table 36. Components Shown in Figure 21 ................................................................................................... 64

Table 37. Components Shown in Figure 22 ................................................................................................... 65

4.0 inches by 4.0 inches (101.60 millimeters by 101.60 millimeters)

Processor

Intel NUC Kit NUC7CJYH / Intel NUC Mini PC NUC7CJYS

―

• Support for DDR4 2133/2400 MHz SO-DIMMs

Graphics

• Integrated graphics support with Intel® UHD Graphics Technology:

― 4K support, at 60 Hz

Audio

• Intel® High Definition (Intel® HD) Audio via the HDMI v2.0 interfaces supporting

1 Product Description

1.1 Overview

1.1.1 Feature Summary

Table 1 summarizes the major features of the product.

Table 1. Feature Summary

Board Form Factor

Soldered-down dual-core Intel® Celeron® processor J4005

― up to 10 W TDP ― 4M Cache, 2.0 GHz base, 2.70 GHz turbo

― Intel ― Integrated memory controller ― Integrated PCH

Intel NUC NUC7PJYH

• Soldered-down quad-core Intel

― up to 10 W TDP ― 4M Cache, 1.5 GHz base, 2.80 GHz turbo ― Intel ― Integrated memory controller

Memory

• Support for 4 Gb and 8 Gb memory technology

• Support for up to 8 GB of system memory with two SO-DIMMs

• Support for non-ECC memory

• Support for 1.2 V low voltage JEDEC memory

• 4 GB DDR4 2400 MHz SO-DIMM pre-installed (included in Intel NUC Mini PC

NUC7CJYS only)

UHD Graphics 600

UHD Graphics 605

Integrated PCH

Pentium® Silver processor J5005

― Two High Definition Multimedia Interface* (HDMI*) 2.0a full-sized back panel

connectors

compressed 7.1digital audio

• Realtek ALC233 HD Audio via a stereo microphone/headphone 3.5 mm jack on the

front panel

• Compressed 5.1digital audio through a mini-TOSLINK jack on the back panel

• Digital microphone (DMIC) array for support of digital voice assistants, such as

Microsoft* Cortana* and Amazon* Alexa*)

1,2

continued

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

• USB 3.0 ports:

Storage

• One SATA 6.0 Gbps port (black)

BIOS

• Intel® BIOS resident in the Serial Peripheral Interface (SPI) Flash device

Gigabit (10/100/1000 Mbps) LAN subsystem using the Realtek* 8111H-CG Gigabit

Hardware Monitor

Hardware monitoring subsystem, based on an ITE* IT8987VG embedded controller,

Wireless

Intel® Wireless-AC 9462-D2W module Supports Microsoft* Windows* 10 Home and Microsoft* Windows* 10 Pro

Additional Features

• Integrated HDMI CEC (HDMI 1 only)

Table 1. Feature Summary (continued)

Peripheral Interfaces

― Two ports are implemented with external front panel connectors (one blue and

one amber charging capable)

― Two ports are implemented with external back panel connectors (blue)

• USB 2.0 ports:

― Two ports via two single-port internal 1x4 1.25 mm pitch headers (white)

• Consumer Infrared (CIR)

• Auxiliary power (AUX_PWR) – provides 1A of 5 VSB and DC

• Consumer Electronics Control (CEC) header

• Front panel header

― Supports one 2.5“ SSD or HDD up to 9.5mm

• One full-sized SDXC slot

• 32 GB embedded MultiMediaCard (e·MMC) onboard storage module (included in

Intel NUC Mini PC NUC7CJYS only)

• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and

System Management BIOS (SMBIOS)

LAN Support

Ethernet Controller

power

Subsystem

Operating System

including:

• Voltage sense to detect out of range power supply voltages

• Thermal sense to detect out of range thermal values

• One processor fan header

• Fan sense input used to monitor fan activity

• Simple fan speed control

• 802.11ac, Dual Band, 1x1 (Diversity) Wi-Fi + Dual Mode Bluetooth 5

• Maximum Transfer speed up to 433 Mbps

• Supports Intel® Smart Connect Technology

• Soldered-down module

• Intel NUC Mini PC NUC7CJYS comes with Windows 10 Home pre-installed on an

e-MMC storage device

• Only UEFI-enabled operating systems are supported. Legacy operating systems are

not supported. Please check your OS distributor for support details.

• Intel® Platform Trust Technology (Intel PTT) Generation 3

Notes:

1. These audio features are not available on certain models. See the Foreword section for help in identifying your model.

2. DMIC array included with Intel® NUC Kits NUC7CJYH/NUC7PJYH and Intel® NUC Mini PC NUC7CJYS; not included with board-only SKUs.

1.1.2 Board Layout (Top)

Battery (lithium coin cell, CR2032, 3.0V)

Thermal solution

Processor fan header

Figure 1 shows the location of the major components on the topside of Intel NUC Boards NUC7CJYB/NUC7PJYB.

Product Description

Figure 1. Major Board Components (Top)

Table 2 lists the components identified in Figure 1.

Table 2. Components Shown in Figure 1

Item from Figure 1 Description

B LPC Debug header (not stuffed on

production boards)

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

1.1.3 Board Layout (Bottom)

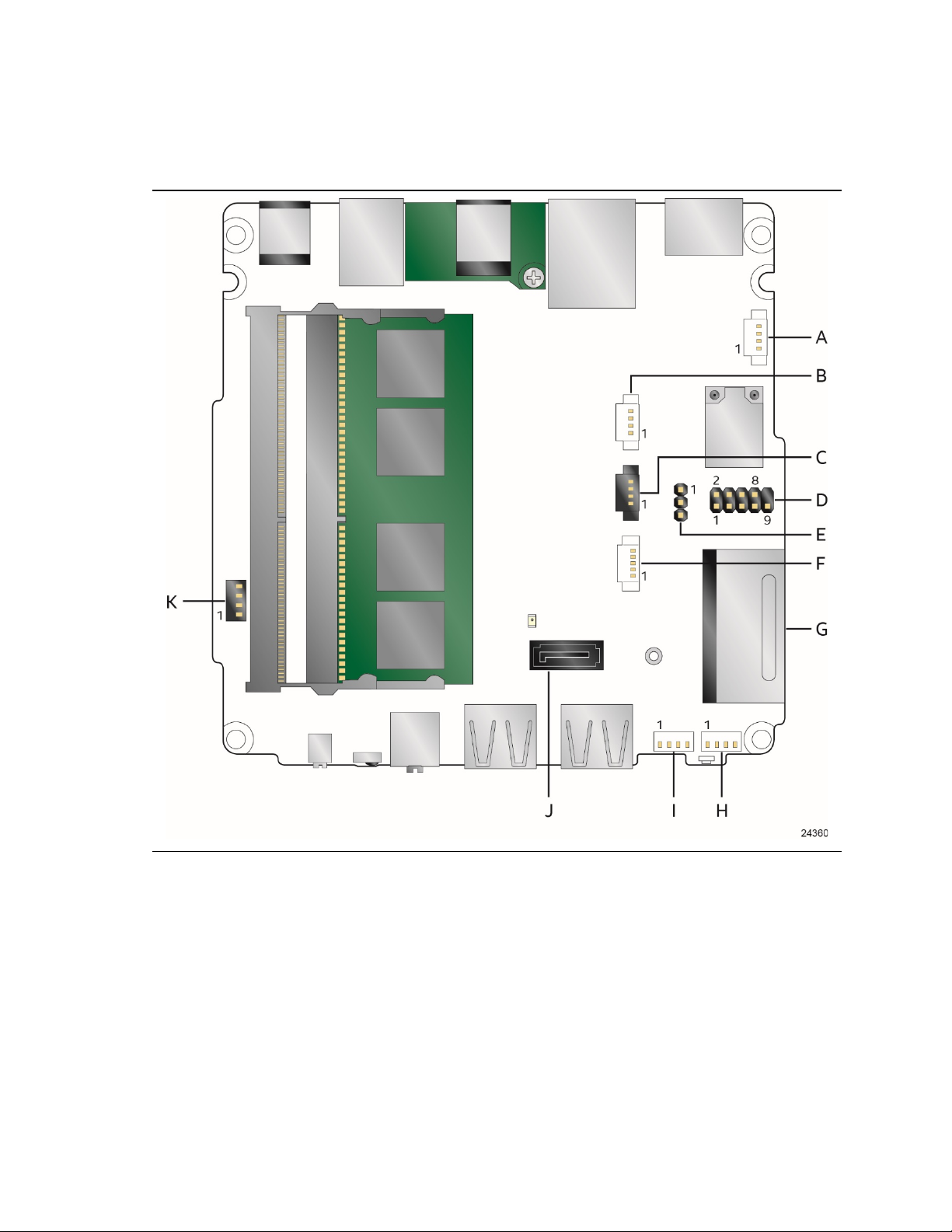

Figure 2 shows the location of the major components on the bottom-side of Intel NUC Boards NUC7CJYB/NUC7PJYB.

Figure 2. Major Board Components (Bottom)

Table 3. Components Shown in Figure 2

Item from

12 - 19V DC input jack

Back panel USB 3.0 connectors

LAN jack

HDMI 1 connector

Auxiliary power connector (AUX_PWR) (1.25 mm pitch)

Intel Wireless-AC 9462-D2W wireless LAN module

RGB LED header (RGB_LED) (1.25 mm pitch)

BIOS security jumper

SATA power connector (1.25 mm pitch)

SDXC card reader slot

Front panel single-port USB 2.0 connector (1.25 mm pitch)

+5 V Standby Power Indicator LED

Front panel USB 3.0 connector, charging capable (amber)

Front panel USB 3.0 connector (blue)

Front panel stereo speaker/headphone/microphone jack 1

Power button / power LED

Consumer Electronic Control (CEC) connector

Y,Z

Dual DDR4 SO-DIMM sockets (SO-DIMM shown for illustration purposes; SO-DIMM supplied with

Product Description

Figure 2

C Back panel TOSLINK stereo jack/HDMI 2 connector 1

G Digital microphone array (DMICS) connector (1.25 mm pitch) 1

J Front panel header (1.25 mm pitch)

O HDD LED

S SATA 6.0 Gb/s connector

Description

V Consumer Infrared (CIR) sensor

Intel NUC Mini PC NUC7CJYS only)

NOTE

1. These audio features are not available on certain models. See the Foreword section for help in identifying your model.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

1.1.4 Block Diagram

Figure 3 is a block diagram of the major functional areas of the board.

Figure 3. Block Diagram

NOTE

These audio features provided by an audio codec are not available on certain models. See the Foreword section for help in identifying your model.

Product Description

To find information about…

Visit this World Wide Web site:

Intel NUC Products NUC7CJY/NUC7PJY

http://www.intel.com/NUC

NUC Board Support

http://www.intel.com/NUCSupport

Available configurations for Intel NUC Products

http://ark.intel.com

BIOS and driver updates

http://downloadcenter.intel.com

Tested memory

http://www.intel.com/NUCSupport

Integration information

http://www.intel.com/NUCSupport

1.2 Online Support

NUC7CJY/NUC7PJY

1.3 Processor

Intel NUC Kit NUC7CJYH, Intel NUC Mini PC NUC7CJS and Intel NUC Board NUC7CJYB have

a soldered-down System-on-a-Chip (SoC), which consists of:

• Dual-core Intel Celeron processor J4005

• Up to 10 W TDP

• 4M Cache, 2.0 GHz base, 2.70 GHz turbo

• Intel

• Integrated memory controller

• Integrated PCH

UHD Graphics 600

Intel NUC Kit NUC7PJY has a soldered-down System-on-a-Chip (SoC), which consists of:

• Quad-core Intel Pentium Silver processor J5005

• Up to 10 W TDP

• 4M Cache, 1.5 GHz base, 2.80 GHz turbo

• Intel

UHD Graphics 605

• Integrated memory controller

• Integrated PCH

NOTE

The board has specific requirements for providing power to the processor. Refer to Section 2.5.1 on page 52 for information on power supply requirements for the board.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

SO-DIMM Capacity

Configuration

SDRAM Density

SDRAM Organization Front-side/Back-side

Number of SDRAM Devices

2048 MB

4 Gbit

512 M x4/empty

4096 MB

4 Gbit

512 M x4/512 M x4

4096 MB

8 Gbit

1024 M x4/empty

8192 MB

4 Gbit

512 M x8/512 M x8

8192 MB

8 Gbit

1024 M x4/1024 M x4

SO-DIMM Capacity

Configuration

SDRAM Density

SDRAM Organization Front-side/Back-side

Number of SDRAM Devices

1024 MB

1 Gbit

128 M x8/empty

2048 MB

1 Gbit

128 M x8/128 M x8

2048 MB

2 Gbit

256 M x8/empty

4096 MB

2 Gbit

256 M x8/256 M x8

1.4 System Memory

The board has two 260-pin SO-DIMM sockets and supports the following memory features:

• 1.2 V DDR4 2133/2400 MHz SDRAM non-ECC SO-DIMM with gold plated contacts

• Two memory channels

• Unbuffered, single-sided or double-sided SO-DIMMs using 4 Gb or 8 Gb technology

(density)

• 8 GB maximum total system memory (with 4 Gb or 8 Gb memory technology). Refer to

Section 2.1.1 on page 37 for information on the total amount of addressable memory.

• Minimum recommended total system memory: 2048 MB

• Serial Presence Detect

• Optional 4 GB DDR4 2400 MHz SO-DIMM pre-installed (included in Intel NUC Mini PC

NUC7CJYS only)

NOTE

To be fully compliant with all applicable DDR SDRAM memory specifications, the board should be populated with SO-DIMMs that support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read the SPD data and program the chipset to accurately configure memory settings for optimum performance. If non-SPD memory is installed, the BIOS will attempt to correctly configure the memory settings, but performance and reliability may be impacted or the SO-DIMMs may not function under the determined frequency.

NOTE

Intel NUC Products NUC7CJY/NUC7PJY support only 4 Gb and 8 Gb memory technologies (also referred to as “SDRAM density”). Table 4 lists the supported SO-DIMM configurations. Table 5

lists the SO-DIMM configurations that are not supported.

Table 4. Supported Memory Configurations

(Note)

Note: “DS” refers to double-sided memory modules and “SS” refers to single-sided memory modules.

Table 5. Unsupported Memory Configurations

(Note)

Note: “DS” refers to double-sided memory modules and “SS” refers to single-sided memory modules.

Figure 4 illustrates the memory channel and SO-DIMM configuration.

For information about…

Refer to:

Tested Memory

http://www.intel.com/NUCSupport

Product Description

Figure 4. Memory Channel and SO-DIMM Configuration

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

1.5 Processor Graphics Subsystem

The board supports dual HDMI integrated graphics via the processor.

1.5.1 Intel® Ultra-High Definition (Intel® UHD) Graphics

The Intel UHD graphics controller features the following:

• 3D rendering, media compositing, and video encoding.

• 3D graphics hardware acceleration supporting DirectX* 9.3/10/11.3/12, OpenCL* 2.0, OGL

ES 3.1, OpenGL* 4.3

• Video decode hardware acceleration supporting H.265/HEVC @ Level 5.1 8b/10b, H.264

@ Level 5.2, MPEG2, MVC, VC-1, WMV9, JPEG, VP8 and VP9 formats

• Video encode hardware acceleration supporting H.265/HEVC @ Level 4 8b, H.264 @ Level

5.2, JPEG, MVC, VP8 and VP9 (SW only) formats

• Supports content protection using High-Bandwidth Digital Content Protection (HDCP) 2.2

and PAVP 2.0.

• 4x anti-aliasing.

1.5.1.1 Video Memory Allocation

Intel® Dynamic Video Memory Technology (DVMT) is a method for dynamically allocating system memory for use as graphics memory to balance 2D/3D graphics and system performance. If your computer is configured to use DVMT, graphics memory is allocated based on system requirements and application demands (up to the configured maximum amount). When memory is no longer needed by an application, the dynamically allocated portion of memory is returned to the operating system for other uses.

1.5.2 High Definition Multimedia Interface* (HDMI*)

The HDMI ports are compliant with the HDMI 2.0a specification. The HDMI ports support standard, enhanced, or high definition video, plus multi-channel digital audio on a single cable. The ports are compatible with all ATSC and DVB HDTV standards and support eight full-range channels of lossless audio formats. The maximum supported resolution is 4096 x 2160 @ 60 Hz, 24 bpp. Maximum DDI data rate is 5.94 Gbps.

1.5.2.1.1 Integrated Audio Provided by the HDMI Interfaces

The following audio technologies are supported by the HDMI 2.0a interfaces directly from the SoC:

• AC3 - Dolby* Digital

• Dolby Digital Plus

Product Description

For information about

Refer to

The location of the USB connector on the front panel

Figure 2, page 14

1.6 USB

The USB port arrangement is as follows:

• USB 3.0 ports:  Two ports are implemented with external front panel connectors (one blue and one

amber charging capable)

 Two ports are implemented with external back panel connectors (blue)  Maximum current is 900 mA for each blue port, 1.5 A for the amber charging port

• USB 2.0 ports:  Two ports via two single-port internal 1x4 1.25 mm pitch headers (white)  Maximum current is 500 mA for each port of the white headers (1 A total)

All the USB ports are high-speed, full-speed, and low-speed capable.

NOTE

Computer systems that have an unshielded cable attached to a USB port may not meet FCC Class B requirements, even if no device is attached to the cable. Use a shielded cable that meets the requirements for full-speed devices.

The location of the USB connectors on the back panel Figure 12, page 38

1.7 SATA Interface

The SoC provides one SATA port with a theoretical maximum transfer rate of 6.0 Gb/s. A point-to-point interface is used for host to device connections.

1.7.1 AHCI Mode

The board supports AHCI storage mode.

NOTE

Microsoft* Windows* 10 includes the necessary AHCI drivers without the need to install separate AHCI drivers during the operating system installation process. However, it is always good practice to update the AHCI drivers to the latest available by Intel.

1.8 Embedded MultiMediaCard (e-MMC) - optional

The Intel NUC Mini PC NUC7CJYS contains a 32 GB Embedded MultiMediaCard (e-MMC) onboard storage module. Intel NUC Mini PC NUC7CJYS contains a 64 GB e-MMC onboard storage module. Both Mini PCs have Windows 10 Home operating system preinstalled. The

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Intel NUC Kit NUC7CJYH and Intel NUC Kit NUC7PJYH do not contain e-MMc storage nor

Windows 10 preinstalled.

1.9 Real-Time Clock Subsystem

A coin-cell lithium battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at 25 ºC with 3.3 VSB applied via the power supply 5 V STBY rail.

NOTE

If the battery and AC power fail, date and time values will be reset and the user will be notified during the POST.

When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate. Replace the battery with an equivalent one. Figure 1 on page 13 shows the location of the battery.

Product Description

Pin Number

Pin Name

Description

Tip

Left Audio Out

1.10 Audio Subsystem1

The product supports Intel HD Audio via the Realtek ALC233 audio codec. The audio subsystem supports the following features:

• Analog line-out/Analog Headphone/Analog Microphone jack on the front panel

• High Definition Audio via a stereo microphone/headphone/optical jack on the back panel

• Support for 44.1 kHz/48 kHz/96 kHz sample rates on all analog outputs

• Support for 44.1 kHz/48 kHz/96 kHz sample rates on all analog inputs

• Support for digital microphone (DMIC) array via onboard header

• Back Panel Audio Jack Support  Speakers only  Headphones only  Microphone only  Combo Headphone/Microphone  Mini-TOSLINK support (see section 1.10.2 for details)

• Front Panel Audio Jack Support (see Figure 5 for 3.5 mm audio jack pin out):  Speakers only  Headphones only  Microphone only  Combo Headphone/Microphone

(see Figure 5 for 3.5 mm audio jack pin out):

2 Ring Right Audio Out

3 Ring Common/Ground

4 Sleeve Audio In

Figure 5. 4-Pin 3.5 mm (1/8 inch) Audio Jack Pin Out

NOTES

1. These audio features provided by the Realtek audio codec are not available on certain models. See the Foreword section for help in identifying your model.

2. The analog circuit of the back panel audio connector is designed to power headphones or amplified speakers only. Poor audio quality occurs if passive (nonamplified) speakers are connected to this output.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

For information about

Refer to

1.10.1 Digital Microphone Array 1

The product supports a digital microphone (DMIC) array header for use of digital voice assistants, such as Microsoft* Cortana. Intel NUC Kit NUC7CJYH, Intel NUC Kit NUC7PJYH and Intel NUC Mini PC NUC7CJYS include dual digital array microphones mounted in the chassis on either side of the front panel.

NOTE

1. DMIC is not available on certain models. See the Foreword section for help in identifying your model.

1.10.2 Mini-TOSLINK Interface 1

The 3.5 mm audio jack also provides TOSLINK optical digital audio output.

• Mini-TOSLINK interface (back panel) plus analog audio out  PCM datastream support

 S/PDIF datastream support  Mini-TOSLINK adaptor (not included) necessary to connect to standard TOSLINK cable  Stereo audio out

Figure 6. Mini-TOSLINK Adaptor (not included)

NOTE

1. Mini-TOSLINK interface is not available on certain models. See the Foreword section for help in identifying your model.

1.10.3 Audio Subsystem Software

Audio software and drivers are available from Intel’s World Wide Web site.

Obtaining Audio software and drivers http://downloadcenter.intel.com

1.11 LAN Subsystem

For information about

Refer to

LAN software and drivers

http://downloadcenter.intel.com

For information about

Refer to

Full LAN Hardware feature set

http://www.realtek.com.tw/

For information about

Refer to

Obtaining LAN software and drivers

http://downloadcenter.intel.com

The LAN subsystem consists of the following:

• Realtek 8111HN-CG Gigabit Ethernet Controller (10/100/1000 Mb/s)

• RJ-45 LAN connector with integrated status LEDs

• Intel® Wireless-AC 9462-D2W module

Additional features of the LAN subsystem include:

• CSMA/CD protocol engine

• Jumbo frame support 9K

• LAN connect interface between the SoC and the LAN controller

• Power management capabilities  ACPI technology support  LAN wake capabilities

• LAN subsystem software

Product Description

1.11.1 Realtek* 8111HN Gigabit Ethernet Controller

The Realtek 8111HN Gigabit Ethernet Controller supports the following features:

• 10/100/1000 BASE-T IEEE 802.3 compliant

• Energy Efficient Ethernet (EEE) IEEE802.3az support (Low Power Idle (LPI) mode)

• Dual interconnect between the Integrated LAN Controller and the Physical Layer (PHY):  PCI Express-based interface for active state operation (S0) state  SMBUS for host and management traffic (Sx low power state)

• Compliant to IEEE 802.3x flow control support

• 802.1p and 802.1q

• TCP, IP, and UDP checksum offload (for IPv4 and IPv6)

• Full device driver compatibility

1.11.2 LAN Subsystem Software

LAN software and drivers are available from Intel’s World Wide Web site.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Item

Description

Link LED (Green)

Data Rate LED (Green/Yellow)

LED

LED Color

LED State

Condition

Off

LAN link is not established.

LAN link is established.

Off

10 Mb/s data rate is selected.

Green

100 Mb/s data rate is selected.

Yellow

1000 Mb/s data rate is selected.

For information about

Refer to

Obtaining WLAN software and drivers

http://downloadcenter.intel.com

Full Specifications

http://intel.com/wireless

1.11.3 RJ-45 LAN Connector with Integrated LEDs

Two LEDs are built into the RJ-45 LAN connector (shown in Figure 7).

Figure 7. LAN Connector LED Locations

Table 6 describes the LED states when the board is powered up and the LAN subsystem is operating.

Table 6. LAN Connector LED States

Link (A) Green

Blinking LAN activity is occurring.

Data Rate (B) Green/Yellow

1.11.4 Wireless Network Module

The Intel Wireless-AC 9462-D2W module provides hi-speed wireless connectivity with the following capabilities:

• 802.11ac, Dual Band, 1x1 (Diversity) Wi-Fi + Dual Mode Bluetooth 5.0

• Supports 2.4 Ghz and 5 Ghz bands

• Maximum transfer speed up to 433 Mbps

• FIPS9 and FISMA compliant

• Supports Intel® Smart Connect Technology

• Supports Multi-user multiple-input and multiple-output (MU-MIMO) technologies for

wireless communications

• Soldered-down module

• Antenna coax connector specification is I-PEX MH4F

I-PEX MH4F coax antenna specifications https://www.i-pex.com/Products/detail/17#!

Product Description

For information about

Refer to

Wired for Management (WfM) Specification

www.intel.com/design/archives/wfm/

1.12 Hardware Management Subsystem

The hardware management features enable the board to be compatible with the Wired for Management (WfM) specification. The board has several hardware management features, including thermal and voltage monitoring.

1.12.1 Hardware Monitoring

The hardware monitoring and fan control subsystem is based on an ITE IT8987VG embedded controller, which supports the following:

• Processor and system ambient temperature monitoring

• Chassis fan speed monitoring

• Voltage monitoring of +5 V, +3.3 V, Memory Vcc (SDRAM)

• SMBus interface

1.12.2 Fan Monitoring

Fan monitoring can be implemented using third-party software.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Item

Description

Processor fan header

Thermal solution

1.12.3 Thermal Solution

Figure 8 shows the location of the thermal solution and processor fan header.

Figure 8. Thermal Solution and Fan Header

1.13 Operating System Support

Only UEFI-enabled operating systems, such as Microsoft* Windows* 10 Home and Microsoft* Windows* 10 Pro, are supported. Legacy operating systems are not supported. Please check your OS distributor for support details.

Intel NUC Mini PC NUC7CJYS comes with Windows 10 Home pre-installed on an e-MMC storage device.

Product Description

Off

Less than four seconds

Power-on

More than six seconds

Fail safe power-off

Sleep

Less than four seconds

Wake-up

Sleep

More than six seconds

Power-off

1.14 Power Management

Power management is implemented at several levels, including:

• Software support through Advanced Configuration and Power Interface (ACPI)

• Hardware support:  Power Input  Instantly Available PC technology  LAN wake capabilities  Wake from USB  WAKE# signal wake-up support  Wake from S5  Wake from CIR  +5 V Standby Power Indicator LED

1.14.1 ACPI

ACPI gives the operating system direct control over the power management and Plug and Play functions of a computer. The use of ACPI with this board requires an operating system that provides full ACPI support. ACPI features include:

• Plug and Play (including bus and device enumeration)

• Power management control of individual devices, add-in boards (some add-in boards may

require an ACPI-aware driver), video displays, and disk drives

• Methods for achieving less than 15-watt system operation in the power-on/standby sleeping state

• A Soft-off feature that enables the operating system to power-off the computer

• Support for multiple wake-up events (see Table 9 on page 31)

• Support for a front panel power and sleep mode switch

Table 7 lists the system states based on how long the power switch is pressed, depending on how ACPI is configured with an ACPI-aware operating system.

Table 7. Effects of Pressing the Power Switch

If the system is in this state… …and the power switch is pressed for …the system enters this state

(ACPI G2/G5 – Soft off)

On (ACPI G0 – working state)

(ACPI G0 – working state)

(ACPI G1 – sleeping state)

Note: Depending on power management settings in the operating system.

Less than four seconds Soft-off/Standby

(ACPI G0 – working state)

(ACPI G1 – sleeping state)

(ACPI G2/G5 – Soft off)

(ACPI G0 – working state)

(ACPI G2/G5 – Soft off)

Note

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

G1 – sleeping

S3 – Suspend to RAM.

No power

D3 – no power

Power < 5 W

(Note 2)

G1 – sleeping

S4 – Suspend to disk.

No power

D3 – no power

Power < 5 W

(Note 2)

G2/S5

S5 – Soft off. Context

No power

D3 – no power

Power < 5 W

(Note 2)

1.14.1.1 System States and Power States

Under ACPI, the operating system directs all system and device power state transitions. The operating system puts devices in and out of low-power states based on user preferences and knowledge of how devices are being used by applications. Devices that are not being used can be turned off. The operating system uses information from applications and user settings to put the system as a whole into a low-power state.

Table 8 lists the power states supported by the board along with the associated system power targets. See the ACPI specification for a complete description of the various system and power states.

Table 8. Power States and Targeted System Power

Global States

G0 – working state

state

G3 – mechanical off

AC power is disconnected from the computer.

Notes:

1. Total system power is dependent on the system configuration, including add-in boards and peripherals powered by the system chassis’ power supply.

2. Dependent on the standby power consumption of wake-up devices used in the system.

Sleeping States

S0 – working C0 – working D0 – working state. Full power

Context saved to RAM.

Context saved to disk.

not saved. Cold boot is required.

No power to the system.

Processor States

No power D3 – no power for

Device States

except for wake-up logic.

wake-up logic, except when provided by battery or external source.

Targeted System

(Note 1)

Power

No power to the system. Service can be performed safely.

Product Description

1.14.1.2 Wake-up Devices and Events

Table 9 lists the devices or specific events that can wake the computer from specific states.

Table 9. Wake-up Devices and Events

Devices/events that wake up the system…

Power switch S3, S4, S5

RTC alarm

LAN

USB

PCIe via WAKE#

Consumer IR S3, S4, S5

Bluetooth N/A Wake from Bluetooth is not supported

Notes:

1. Monitor will remain in “sleep” state from S3 only

2. “S5 WoL after G3” supported w/Deep Sleep disabled

3. Wake from S4 and S5 only supported w/Deep Sleep disabled

4. Wake from device/event not supported immediately upon return from AC loss

NOTE

…from this sleep state Comments

S3, S4, S5

(Note 1)

(Notes 1, 2)

(Note 3, 4)

(Note 1)

(Notes 3, 4)

Monitor to remain in sleep state

“S5 WOL after G3” must be supported; monitor to remain in sleep state

Wake S4, S5 controlled by BIOS option

Via WAKE; monitor to remain in sleep state

The use of these wake-up events from an ACPI state requires an operating system that provides full ACPI support. In addition, software, drivers, and peripherals must fully support ACPI wake events.

1.14.2 Hardware Support

The board provides several power management hardware features, including:

• Wake from Power Button signal

• Instantly Available PC technology

• LAN wake capabilities

• Wake from USB

• WAKE# signal wake-up support

• Wake from S5

• Wake from CIR

• +5 V Standby Power Indicator LED

NOTE

The use of Wake from USB from an ACPI state requires an operating system that provides full ACPI support.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

1.14.2.1 Power Input

When resuming from an AC power failure, the computer may return to the power state it was in before power was interrupted (on or off). The computer’s response can be set using the Last Power State feature in the BIOS Setup program’s Boot menu.

1.14.2.2 Instantly Available PC Technology

Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to-RAM) sleep-state. While in the S3 sleep-state, the computer will appear to be off (the power supply is off, and the front panel LED is amber if dual colored, or off if single colored.) When signaled by a wake-up device or event, the system quickly returns to its last known wake state. Table 9 lists the devices and events that can wake the computer from the S3 state.

The use of Instantly Available PC technology requires operating system support and drivers for any installed PCI Express add-in card.

1.14.2.3 LAN Wake Capabilities

LAN wake capabilities enable remote wake-up of the computer through a network. The LAN subsystem monitors network traffic at the Media Independent Interface. Upon detecting a Magic Packet* frame, the LAN subsystem asserts a wake-up signal that powers up the computer.

1.14.2.4 Wake from USB

USB bus activity wakes the computer from an ACPI S3, S4, and S5 states.

NOTE

Wake from USB requires the use of a USB peripheral that supports Wake from USB.

1.14.2.5 WAKE# Signal Wake-up Support

When the WAKE# signal on the PCI Express bus is asserted, the computer wakes from an ACPI S3, S4, or S5 state.

1.14.2.6 Wake from S5

When the RTC Date and Time is set in the BIOS, the computer will automatically wake from an ACPI S5 state.

1.14.2.7 Wake from Consumer IR

CIR activity wakes the computer from an ACPI S3, S4, or S5 state.

1.14.2.8 +5 V Standby Power Indicator LED

The standby power indicator LED shows that power is still present even when the computer appears to be off. Figure 9 shows the location of the standby power LED.

Product Description

CAUTION

If AC power has been switched off and the standby power indicator is still lit, disconnect the power cord before installing or removing any devices connected to the board. Failure to do so could damage the board and any attached devices.

Figure 9. Location of the Standby Power LED

1.14.3 HDMI Consumer Electronics Control (CEC)

The board contains two mutually-exclusive methods for controlling HDMI CEC devices:

• External CEC adaptor connected via CEC connector (see Figure 14; pinout in Table 18).

Onboard CEC control from the embedded controller via HDMI cable connected to HDMI 1 and BIOS setup. Expected behavior is provided in Table 10 below.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Activity

Current Status

Action

Expected Behavior

1,2

TV3

Table 10. HDMI 1 CEC expected behavior

Wake On TV Off Off TV on PC on

Standby by TV On On TV Standby PC sleep or power off4

Auto Turn Off TV (S0 -> S5) On On PC Shutdown TV standby3

Auto Turn On TV (S5 -> S0) Off Off PC On TV on3

Auto Turn Off TV (S0 -> S3) On On PC Sleep TV standby3

Auto Turn On TV (S3 -> S0) Off Off PC On TV on3

Notes:

1. HDMI CEC Control enabled in BIOS Setup and in TV setup, if necessary. Please consult your TV’s documentation.

2. Fast Boot and Deep S4/S5 disabled in BIOS Setup.

3. Results seen with Panasonic LED TV VIERA TH-40A400W. Other TVs may have different results due to variable

implementations of CEC features.

4. PC power off behavior dependent upon power button setting in operating system.

5. If using external CEC adaptor, onboard CEC control must be disabled in BIOS Setup.

Figure 10. CEC Connector

Product Description

For information about

Refer to

Intel Virtualization Technology

http://www.intel.com/technology/virtualization/technology.htm

For information about

Refer to

Intel Platform Trust Technology

http://www.intel.com/content/dam/www/public/us/en/documents

1.15 Intel Platform Security Technologies

Intel platform security technologies provides tools and resources to help the user protect their information by creating a safer computing environment.

NOTE

Software with security capability is required to take advantage of Intel platform security technologies.

1.15.1 Intel® Virtualization Technology

Intel Virtualization Technology (Intel® VT) is a hardware-assisted technology that, when combined with software-based virtualization solutions, provides maximum system utilization by consolidating multiple environments into a single server or client.

NOTE

A processor with Intel VT does not guarantee that virtualization will work on your system. Intel VT requires a computer system with a chipset, BIOS, enabling software and/or operating system, device drivers, and applications designed for this feature.

1.15.2 Intel® Platform Trust Technology

Intel® Platform Trust Technology (Intel® PTT) Generation 3 is a platform functionality for credential storage and key management. Intel® PTT supports Microsoft* BitLocker* Drive Encryption for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

NOTE

Support for fTPM version 2.0 requires a true UEFI-enabled operating system, such as Microsoft* Windows* 10.

CAUTION

BIOS recovery using the BIOS security jumper clears Intel® Platform Trust Technology (Intel® PTT) keys. These keys will not be restored after the BIOS recovery.

/white-papers/enterprise-security-platform-trust-technologywhite-paper.pdf

2 Technical Reference

2.1 Memory Resources

2.1.1 Addressable Memory

The board utilizes up to 8 GB of addressable system memory. Typically the address space that is allocated for PCI Conventional bus add-in cards, PCI Express configuration space, BIOS (SPI Flash device), and chipset overhead resides above the top of DRAM (total system memory). On a system that has 8 GB of system memory installed, it is not possible to use all of the installed memory due to system address space being allocated for other system critical functions. These functions include the following:

• BIOS/SPI Flash device (16 MB)

• Local APIC (19 MB)

• Direct Media Interface (40 MB)

• PCI Express configuration space (256 MB)

• SoC base address registers PCI Express ports (up to 256 MB)

• Memory-mapped I/O (I/O fabric) that is dynamically allocated for PCI Express add-in cards

(256 MB)

The board provides the capability to reclaim the physical memory overlapped by the memory mapped I/O logical address space. The board remaps physical memory from the top of usable DRAM boundary to the 4 GB boundary to an equivalent sized logical address range located just above the 4 GB boundary. All installed system memory can be used when there is no overlap of system addresses.

2.2 Connectors and Headers

CAUTION

Only the following connectors and headers have overcurrent protection: back panel and front panel USB.

This section describes the board’s connectors and headers. The connectors and headers can be divided into these groups:

• Front panel I/O connector

• Back panel I/O connectors

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Item

Description

Power switch and LED

Front panel stereo microphone/headphone jack1

Hard drive activity LED

Item

Description

HDMI 1 connector

HDMI 2 connector

Back panel TOSLINK stereo jack1

12 - 19V DC input jack

2.2.1 Front Panel Connectors

Figure 11 shows the location of the front panel connectors, controls and indicators for the board.

B CIR

D USB 3.0 port (blue) E USB 3.0 charging-capable port (amber)

Figure 11. Front Panel Connectors, Controls and Indicators

NOTE

1. Front panel jack is not available on certain models. See the Foreword section for help in identifying your model.

2.2.2 Back Panel Connectors

Figure 12 shows the location of the back panel connectors for the board.

B LAN

E USB 3.0 ports

Figure 12. Back Panel Connectors

Technical Reference

Item from Figure 13

Description

Processor fan header

1. Mini-TOSLINK stereo jack is not available on certain models. See the Foreword section for help

NOTE

in identifying your model.

2.2.3 Headers and Connectors (Top)

Figure 13 shows the location of the headers and connectors on the top-side of the board.

Figure 13. Headers and Connectors (Top)

Table 11 lists the headers and connectors identified in Figure 13.

Table 11. Headers and Connectors Shown in Figure 13

A LPC debug header (not stuffed) – see Table 12

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Signal Name

Description

Signal Name

Description

LPC_DB_AD2

Address line 2

DB_LPC_FRAME_L

LPC Frame

LPC_DB_AD0

Address line 0

DB_LPC_CLK

LPC clock

Table 12. LPC Debug Header (2.0 mm Pitch – not stuffed)

1 LPC_DB_AD3 Address line 3 2 LPC_VCC3 +3.3V VCC

5 LPC_DB_AD1 Address line 1 6 DB_RST_L Reset

9 GND Ground 10 Key No pin

Technical Reference

2.2.4 Connectors and Headers (Bottom)

Figure 14 shows the locations of the connectors and headers on the bottom-side of the board.

Figure 14. Connectors and Headers (Bottom)

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Auxiliary power connector (AUX_PWR) (1.25 mm pitch)

Digital microphone array connector (DMICS)1

RGB LED connector (RGB_LED)

BIOS security jumper (BIOS_SEC)

SATA power connector (1.25 mm pitch)

SDXC slot

SATA 6.0 Gb/s connector (SATA)

Consumer Electronics Control (CEC) connector (1.25 mm pitch)

Signal Name

5 V

5 V 3 3.3 V

GND 5 GND

Table 13 lists the connectors and headers identified in Figure 14.

Table 13. Connectors and Headers Shown in Figure 14

Item from Figure 14

H, I

NOTE

Description

Auxiliary front panel connector (FRONT_PANEL) (2.0 mm pitch)

Front panel single-port USB 2.0 header (USB1/USB2) (1.25 mm pitch)

1. DMICS array connector is not available on certain models. See the Foreword section for help in identifying your model.

2.2.5 Signal Tables for the Connectors and Headers

Table 14. SATA Power Header (1.25 mm Pitch)

NOTE

Connector is Molex* part number 53398-0571, 1.25 mm pitch PicoBlade* header, surface mount, vertical, lead-free, 5 circuits.

Technical Reference

Signal Name

+5 V DC

Data (negative)

Data (positive)

Ground

Signal Name

Ground

+3.3 V DC (+3V3_DMIC)

Clock (DMIC_CLK)

Data (DMIC_DAT)

Signal Name

+3.3VSB

Red LED

Green LED

Blue LED

Table 15. Single-Port Internal USB 2.0 Headers (1.25 mm Pitch)

NOTE

• Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface

mount, vertical, lead-free, 4 circuits.

• The +5 V DC power on the USB header is fused.

• Use only an internal USB connector that conforms to the USB 2.0 specification for high-speed

USB devices.

Table 16. Digital Microphone (DMICS) Array Connector (1.25 mm Pitch)

NOTES

• DMICS array connector is not available on certain models. See the Foreword section for help in identifying your model.

• Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface mount, vertical, lead-free, 4 circuits.

Table 17. RGB LED Connector (1.25 mm Pitch)

NOTE

Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface mount, vertical, lead-free, 4 circuits.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Signal Name

+5VSB

Ground

CEC_PWR

HDMI_CEC

Signal Name

Descriptive Name

DATA2

Serial Data 2

DATA3

Serial Data 3

CMD

Command

VDD

Power (3.3 V)

CLK

Serial Clock

VSS2

Ground

DATA1

Serial Data 1

Write Protect

Table 18. Consumer Electronics Control (CEC) Connector (1.25 mm Pitch)

NOTE

Connector is Molex part number 53398-0571, 1.25 mm pitch PicoBlade header, surface mount, vertical, lead-free, 4 circuits.

2.2.5.1 SDXC Card Reader

The board has a standard Secure Digital (SD) card reader that supports the Secure Digital eXtended Capacity (SDXC) format, 3.01 specification.

Table 19. SDXC Card Reader Connector

1 CD Card Detection

5 VSS1 Ground

9 DATA0 Serial Data 0

NOTE

The SD card reader is not supported in Microsoft* Windows* 7

Technical Reference

Signal Name

Descriptive Name

+5VSB

5V 2 PCH_GPIO24

Power draw sensor

+VIN

12V – 19V DC input

For information about

Refer to

Power supply considerations

Section 2.5.1, page 52

2.2.5.2 Power Supply Connector

The board has the following power supply connector:

• External Power Supply – the board is powered through a 12-19 V DC connector on the back

panel. The back panel DC connector is compatible with a 5.5 mm/OD (outer diameter) and

2.5 mm/ID (inner diameter) plug, where the inner contact is +19 (±10%) V DC and the shell is GND. The maximum current rating is 3 A.

NOTE

External power voltage, 12-19 V DC, is dependent on the type of power adapter used.

Table 20. Auxiliary Power Connector

3 GND Ground

NOTE

The Auxiliary Power Connector is a limited voltage source (output) for 5V Standby and the voltage supplied to the board (typically 19V DC) for use by expansion peripherals. The Auxiliary Power Connector is limited to 1.5A max total current (fused).

NOTE

Connector is JTE (JOINT TECH): A1250WV-S-04P A-Series (Wire to Board) Vertical SMT Connector,

1.25mm pitch, 1A rating. Mates with JTE A1250 Series Housing.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Signal Name

Description

Signal Name

Description

HDD_POWER_LED

Pull-up resistor (750 Ω)

POWER_LED_MAIN

[Out] Front panel LED 5

GROUND

Ground

POWER_SWITCH#

[In] Power switch

+5V_DC

Power (2A)

Key

No pin

2.2.5.3 Front Panel Header (2.0 mm Pitch)

This section describes the functions of the front panel header. Table 21 lists the signal names of the front panel header. Figure 15 is a connection diagram for the front panel header.

Table 21. Front Panel Header (2.0 mm Pitch)

to +5V

3 HDD_LED#

7 RESET_SWITCH# [In] Reset switch 8 GROUND Ground

[Out] Hard disk activity LED

4 POWER_LED_ALT

(main color)

[Out] Front panel LED (alt color)

Figure 15. Connection Diagram for Front Panel Header (2.0 mm Pitch)

2.2.5.3.1 Hard Drive Activity LED Header

Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is being read from or written to a hard drive. Proper LED function requires a SATA hard drive or optical drive connected to an onboard SATA connector.

2.2.5.3.2 Reset Switch Header

Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type switch that is normally open. When the switch is closed, the board resets and runs the POST.

2.2.5.3.3 Power/Sleep LED Header

LED State

Description

Off

Power off

Blinking

Standby

LED State

Description

Secondary color blinking

Standby Primary color steady (blue)

Normal operation

For information about

Refer to

Power supply considerations

Section 2.5.1, page 52

Pins 2 and 4 can be connected to a one- or two-color LED. Table 22 and Table 23 show the possible LED states.

Table 22. States for a One-Color Power LED

Steady Normal operation

Table 23. States for a Dual-Color Power LED

Off Power off

(amber)

Technical Reference

NOTE

The LED behavior shown in Table 22 is default – other patterns may be set via BIOS setup.

2.2.5.3.4 Power Switch Header

Pins 6 and 8 can be connected to a front panel momentary-contact power switch. The switch must pull the SW_ON# pin to ground for at least 50 ms to signal the power supply to switch on or off. (The time requirement is due to internal debounce circuitry on the board.) At least two seconds must pass before the power supply will recognize another on/off signal.

2.2.5.3.5 5V DC Power Header

Pin 6 can supply 2A of 5V DC (VCC) power. Any usage of power from this header should be considered when calculating the system’s total power budget.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Item

Description

2.2.5.4 Consumer Infrared (CIR) Sensor

The Consumer Infrared (CIR) sensor on the front panel provides features that are designed to comply with Microsoft Consumer Infrared usage models.

The CIR feature is made up of the receiving sensor. The receiving sensor consists of a filtered translated infrared input compliant with Microsoft CIR specifications.

Customers are required to provide their own media center compatible remote or smart phone application for use with the Intel NUC. Figure 16 shows the location of the CIR sensor.

A CIR Sensor

Figure 16. Location of the CIR Sensor

Technical Reference

2.3 BIOS Security Jumper

CAUTION

Do not move a jumper with the power on. Always turn off the power and unplug the power cord from the computer before changing a jumper setting. Otherwise, the board could be damaged.

Figure 17 shows the location of the BIOS security jumper. The 3-pin jumper determines the BIOS Security program’s mode. Table 24 describes the BIOS security jumper settings for the three modes: normal, lockdown, and configuration.

Figure 17. Location of the BIOS Security Jumper

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Normal

1-2

The BIOS uses current configuration information and passwords for

Lockdown

2-3

The BIOS uses current configuration information and passwords for

Table 24. BIOS Security Jumper Settings

Function/Mode Jumper Setting Configuration

booting.

booting, except:

• All POST Hotkeys are suppressed (prompts are not displayed and keys are not accepted. For example, F2 for Setup, F10 for the Boot Menu).

• Power Button Menu is not available (see Section 3.7.4 Power Button Menu).

BIOS updates are not available except for automatic Recovery due to flash corruption.

Configuration None BIOS Recovery Update process if a matching *.bio file is found. Recovery

Update can be cancelled by pressing the Esc key.

If the Recovery Update was cancelled or a matching *.bio file was not found, a Config Menu will be displayed. The Config Menu consists of the following (followed by the Power Button Menu selections):

[1] Suppress this menu until the BIOS Security Jumper is replaced.

[2] Clear BIOS User and Supervisor Passwords.

See Section 3.7.4 Power Button Menu.

2.4 Mechanical Considerations

2.4.1 Form Factor

The board is designed to fit into a custom chassis. Figure 18 illustrates the mechanical form factor for the board. Dimensions are given in millimeters. The outer dimensions are

101.60 millimeters by 101.60 millimeters [4.0 inches by 4.0 inches].

Technical Reference

Figure 18. Board Dimensions

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Board with Thermal Solution

0..17

Tall Kit (includes Board Assembly)

0.53

Tall Mini PC (includes Board Assembly,

0.65

Fan Header

Maximum Available Current

Processor fan

.25 A

Figure 19 shows the height dimensions of the board.

Figure 19. Board Height Dimensions

2.4.2 Weights

Table 25 lists select weights of boards and kits.

Table 25. Select Weights

Item Weight (in kg)

memory, and drive)

2.5 Electrical Considerations

2.5.1 Power Supply Considerations

System power requirements will depend on actual system configurations chosen by the integrator, as well as end user expansion preferences. It is the system integrator’s responsibility to ensure an appropriate power budget for the system configuration is properly assessed based on the system-level components chosen.

2.5.2 Fan Header Current Capability

Table 26 lists the current capability of the fan header.

Table 26. Fan Header Current Capability

2.6 Thermal Considerations

CAUTION

Technical Reference

A chassis with a maximum internal ambient temperature of 58 oC at the processor fan inlet is recommended. If the internal ambient temperature exceeds 58 required to ensure components do not exceed their maximum case temperature.

C, further thermal testing is

CAUTION

Failure to ensure appropriate airflow may result in reduced performance of both the processor and/or voltage regulator or, in some instances, damage to the board.

All responsibility for determining the adequacy of any thermal or system design remains solely with the system integrator. Intel makes no warranties or representations that merely following the instructions presented in this document will result in a system with adequate thermal performance.

CAUTION

Ensure that the ambient temperature does not exceed the board’s maximum operating temperature. Failure to do so could cause components to exceed their maximum case temperature and malfunction. For information about the maximum operating temperature, see the environmental specifications in Section 2.8.

CAUTION

The processor voltage regulator area (shown in Figure 20) can reach a temperature of up to

97.5

C in an open chassis. Ensure that proper airflow is maintained in the processor voltage

regulator circuit. Failure to do so may result in shorter than expected product lifetime.

Figure 20 shows the locations of the localized high temperature zones.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Item

Description

Processor voltage regulator area

Thermal solution

Figure 20. Localized High Temperature Zones

Technical Reference

Component

Maximum Case Temperature

Processor

For processor case temperature, see processor datasheets and processor

Component

Tcontrol

For information about

Refer to

Processor datasheets and specification updates

Section 1.2, page 17

Table 27 provides maximum case temperatures for the components that are sensitive to thermal changes. The operating temperature, current load, or operating frequency could affect case temperatures. Maximum case temperatures are important when considering proper airflow to cool the board.

Table 27. Thermal Considerations for Components

specification updates

To ensure functionality and reliability, the component is specified for proper operation when Case Temperature is maintained at or below the maximum temperature listed in Table 28. This is a requirement for sustained power dissipation equal to Thermal Design Power (TDP is specified as the maximum sustainable power to be dissipated by the components). When the component is dissipating less than TDP, the case temperature should be below the Maximum Case Temperature. The surface temperature at the geometric center of the component corresponds to Case Temperature.

It is important to note that the temperature measurement in the system BIOS is a value reported by embedded thermal sensors in the components and does not directly correspond to the Maximum Case Temperature. The upper operating limit when monitoring this thermal sensor is Tcontrol.

Table 28. Tcontrol Values for Components

Processor For processor case temperature, see processor datasheets and processor

specification updates

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Parameter

Specification

Temperature

Non-Operating

-40 °C to +60 °C

Operating (Board)

0 °C to +50 °C

Shock (Board)

Unpackaged

50 g trapezoidal waveform

Velocity change of 170 inches/s²

Product Weight (pounds)

Free Fall (inches)

<20

21-40

81-100

Vibration (System)

Unpackaged

5 Hz to 20 Hz: 0.001 g²/Hz sloping up to 0.01 g²/Hz

Input acceleration is 2.20 g RMS

Packaged

5 Hz to 40 Hz: 0.015 g²/Hz (flat)

40 Hz to 500 Hz: 0.015 g²/Hz sloping down to 0.00015 g²/Hz

2.7 Reliability

The Mean Time Between Failures (MTBF) prediction is calculated using component and subassembly random failure rates. The calculation is based on the Telcordia SR-332-2 Issue 2, Method I, Case 3, 55⁰C ambient. The MTBF prediction is used to estimate repair rates and spare parts requirements. The MTBF for the board is 68,196 hours.

2.8 Environmental

Table 29 lists the environmental specifications.

Table 29. Environmental Specifications

The operating temperature of the board may be determined by measuring the air temperature from the junction of the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.

Operating (System) 0 °C to +35 °C

Packaged Free fall package drop machine set to the height determined by the weight of the

package.

41-80 24

20 Hz to 500 Hz: 0.01 g²/Hz (flat)

Input acceleration is 1.09 g RMS

Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum

operating temperature specified. It is recommended that the board temperature be at least room temperature before attempting to power on the board. The operating and non-operating environment must avoid condensing humidity.

3 Overview of BIOS Features

3.1 Introduction

The board uses an Intel Visual BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the Visual BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, GOP (Graphics Output Protocol) video BIOS (VBIOS), and Plug and Play support. The initial production BIOSs are identified as JYGLKCPX.86A.

The Visual BIOS Setup program can be used to view and change the BIOS settings for the computer, and to update the system BIOS. The BIOS Setup program is accessed by pressing the [F2] key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

NOTE

The maintenance menu is displayed only when the board is in configuration mode. Section 2.3 on page 49 shows how to put the board in configuration mode.

3.2 BIOS Flash Memory Organization

The Serial Peripheral Interface Flash Memory (SPI Flash) includes a 128 Mb (16384 KB) flash memory device.

3.3 System Management BIOS (SMBIOS)

SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.

The main component of SMBIOS is the Management Information Format (MIF) database, which contains information about the computing system and its components. Using SMBIOS, a system administrator can obtain the system types, capabilities, operational status, and installation dates for system components. The MIF database defines the data and provides the method for accessing this information. The BIOS enables applications such as third-party management software to use SMBIOS. The BIOS stores and reports the following SMBIOS information:

• BIOS data, such as the BIOS revision level

• Fixed-system data, such as peripherals, serial numbers, and asset tags

• Resource data, such as memory size, cache size, and processor speed

• Dynamic data, such as event detection and error logging

Additional board information can be found in the BIOS under the second screen to the right of the Main BIOS page.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

For information about

Refer to

BIOS update utilities

http://www.intel.com/support/motherboards/desktop/sb/CS-034499.htm

Media Type

(Note)

Can be used for BIOS recovery?

Hard disk drive (connected to SATA or USB)

Yes

USB flash drive

Yes

USB diskette drive (with a 1.4 MB diskette)

No (BIOS update file is bigger than 1.4 MB size limit)

3.4 Legacy USB Support

Legacy USB is not supported on Intel NUC Products NUC7CJY/NUC7PJY.

3.5 BIOS Updates

The BIOS can be updated using either of the following utilities, which are available on the Intel World Wide Web site:

• Intel

• Intel Visual BIOS allows the user to select the BIOS .bio file from a USB device or hard disk

All utilities verify that the updated BIOS matches the target system to prevent accidentally installing an incompatible BIOS.

Express BIOS Update utility, which enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a USB CD-ROM.

[F7] switch during POST allows a user to select where the BIOS .bio file is located and

perform the update from that location/device. Similar to performing a BIOS Recovery without removing the BIOS configuration jumper.

drive.

NOTE

Review the instructions distributed with the upgrade utility before attempting a BIOS update.

3.5.1 Language Support

The BIOS Setup program and help messages are supported in US English. Check the Intel web site for support.

3.6 BIOS Recovery

It is unlikely that anything will interrupt a BIOS update; however, if an interruption occurs, the BIOS could be damaged. Table 30 lists the drives and media types that can and cannot be used for BIOS recovery. The BIOS recovery media does not need to be made bootable.

Table 30. Acceptable Drives/Media Types for BIOS Recovery

CD/DVD drive (connected to USB) Yes

Overview of BIOS Features

For information about

Refer to

BIOS recovery

http://www.intel.com/support/motherboards/desktop/sb/CS-034524.htm

NOTE

Supported file systems for BIOS recovery:

• NTFS (sparse, compressed, or encrypted files are not supported)

• FAT32

• FAT16

• FAT12

• ISO 9660

3.7 Boot Options

In the BIOS Setup program, the user can choose to boot from a hard drive, optical drive, removable drive, or the network. The default setting is for the optical drive to be the first boot device, the hard drive second, removable drive third, and the network fourth.

NOTE

Optical drives are not supported by the onboard SATA connectors. Optical drives are supported only via the USB interfaces.

3.7.1 Network Boot

The network can be selected as a boot device. This selection allows booting from the onboard LAN or a network add-in card with a remote boot ROM installed.

Pressing the [F12] key during POST automatically forces booting from the LAN. To use this key during POST, the User Access Level in the BIOS Setup program's Security menu must be set to Full.

3.7.2 Booting Without Attached Devices

For use in embedded applications, the BIOS has been designed so that after passing the POST, the operating system loader is invoked even if the following devices are not present:

• Video adapter

• Keyboard

• Mouse

3.7.3 Changing the Default Boot Device During POST

Pressing the [F10] key during POST causes a boot device menu to be displayed. This menu displays the list of available boot devices. Table 31 lists the boot device menu options.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

[↑] or [↓]

Selects a default boot device

[Enter]

Exits the menu, and boots from the selected device

Table 31. Boot Device Menu Options

Boot Device Menu Function Keys Description

[Esc] Exits the menu and boots according to the boot priority defined

through BIOS setup

3.7.4 Power Button Menu

The Power Button Menu is accessible via the following sequence:

1. System is in S4/S5 (not G3)

2. User pushes the power button and holds it down

3. The power LED will change to its secondary color to signal the user to release the power button (approximately 3 seconds); alternately, the system will emit three short beeps from the PC speaker or headphones, if installed, then stop. Release immediately.

4. User releases the power button before the 4-second shutdown override.

If this boot path is taken, the BIOS will use default settings, ignoring settings in VPD where possible.

The BIOS will display the following prompt and wait for a keystroke:

[ESC] Normal Boot

[F2] Intel Visual BIOS

[F3] Disable Fast Boot

[F4] BIOS Recovery

[F7] Update BIOS

[F10] Enter Boot Menu

[F12] Network Boot

[F3] Disable Fast Boot is only displayed if at least one Fast Boot optimization is enabled.

If an unrecognized key is hit, then the BIOS will beep and wait for another keystroke. If one of the listed hotkeys is hit, the BIOS will follow the indicated boot path. Password requirements must still be honored.

If Disable Fast Boot is selected, the BIOS will disable all Fast Boot optimizations and reset the system.

Overview of BIOS Features

Password Set

Password During Boot

Neither

None

Master only

None

User only

Master and User Set

Master or User

3.8 Hard Disk Drive Password Security Feature

The Hard Disk Drive Password Security feature blocks read and write accesses to the hard disk drive until the correct password is given. Hard Disk Drive Passwords are set in BIOS SETUP and are prompted for during BIOS POST. For convenient support of S3 resume, the system BIOS will automatically unlock drives on resume from S3. Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to 19 characters in length.

The User hard disk drive password, when installed, will be required upon each power-cycle until the Master Key or User hard disk drive password is submitted.

The Master Key hard disk drive password, when installed, will not lock the drive. The Master Key hard disk drive password exists as an unlock override in the event that the User hard disk drive password is forgotten. Only the installation of the User hard disk drive password will cause a hard disk to be locked upon a system power-cycle.

Table 32 shows the effects of setting the Hard Disk Drive Passwords.

Table 32. Master Key and User Hard Drive Password Functions

During every POST, if a User hard disk drive password is set, POST execution will pause with the following prompt to force the user to enter the Master Key or User hard disk drive password:

Enter Hard Disk Drive Password:

Upon successful entry of the Master Key or User hard disk drive password, the system will continue with normal POST.

If the hard disk drive password is not correctly entered, the system will go back to the above prompt. The user will have three attempts to correctly enter the hard disk drive password. After the third unsuccessful hard disk drive password attempt, the system will halt with the message:

Hard Disk Drive Password Entry Error

A manual power cycle will be required to resume system operation.

NOTE

The passwords are stored on the hard disk drive so if the drive is relocated to another computer that does not support Hard Disk Drive Password Security feature, the drive will not be accessible.

Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification

Password to

Password

Neither

Can change all

None

Supervisor only

Can change all

Can change a

Supervisor Password

Supervisor

None

Supervisor and

Can change all

Can change a

Supervisor Password

Supervisor or

3.9 BIOS Security Features

The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions:

• The supervisor password gives unrestricted access to view and change all the Setup options in the BIOS Setup program. This is the supervisor mode.

• The user password gives restricted access to view and change Setup options in the BIOS Setup program. This is the user mode.

• If only the supervisor password is set, pressing the <Enter> key at the password prompt of the BIOS Setup program allows the user restricted access to Setup.

• If both the supervisor and user passwords are set, users can enter either the supervisor password or the user password to access Setup. Users have access to Setup respective to which password is entered.

• Setting the user password restricts who can boot the computer. The password prompt will be displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, the user can enter either password to boot the computer.

• For enhanced security, use different passwords for the supervisor and user passwords.

• Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to 20 characters in

length.

• To clear a set password, enter a blank password after entering the existing password.

Table 33 shows the effects of setting the supervisor password and user password. This table is for reference only and is not displayed on the screen.

Table 33. Supervisor and User Password Functions

Password Set Supervisor Mode User Mode Setup Options

options

User only N/A

user set

Note: If no password is set, any user can change all Setup options.

options

(Note)

options

limited number of options

Can change all options

limited number of options

(Note)

Enter Password Clear User Password

Enter Password

Enter Setup

User User

user

During Boot

user

Type

Pattern

Note

BIOS update in progress

Off when the update begins, then on for 0.5 seconds,

Video error

(Note)

On-off (1.0 second each) two times, then 2.5-second

When no video option ROM is

Memory error

On-off (1.0 second each) three times, then 2.5-second

Error Message

Explanation

CMOS Battery Low

The battery may be losing power. Replace the battery soon.

CMOS Checksum Bad

The CMOS checksum is incorrect. CMOS memory may have been

Memory Size Decreased

Memory size has decreased since the last boot. If no memory was No Boot Device Available

System did not find a device to boot.

4 Error Messages and Blink Codes

4.1 Front-panel Power LED Blink Codes

Whenever a recoverable error occurs during POST, the BIOS causes the board’s front panel power LED to blink an error message describing the problem (see Table 34).

Table 34. Front-panel Power LED Blink Codes

then off for 0.5 seconds. The pattern repeats until the BIOS update is complete.

pause (off), entire pattern repeats (blink and pause) until the system is powered off.

pause (off), entire pattern repeats (blinks and pause) until the system is powered off.

Thermal trip warning

Note: Disabled per default BIOS setup option.

Each beep will be accompanied by the following blink pattern: .25 seconds on, .25 seconds off, .25 seconds on, .25 seconds off. This will result in a total of 16 blinks.

4.2 BIOS Error Messages

Table 35 lists the error messages and provides a brief description of each.

Table 35. BIOS Error Messages

corrupted. Run Setup to reset values.

removed, then memory may be bad.

found.

Kensington* Anti-Theft Key Lock Hole SD Card Reader

Power Switch and Power LED

Speaker/Headset Jack (not available on certain models)

USB 3.0 Connectors

5 Intel NUC Kit Features

5.1 Chassis Front Panel Features

Intel NUC Boards NUC7CJYB and NUC7PJYB can be found integrated into Intel® NUC Kit NUC7CJYH, Intel® NUC Kit NUC7PJYH, and Intel® NUC Mini PC NUC7CJYS. Figure 21 shows the location of the features located on or near the front of the chassis.

Figure 21. Intel NUC Products NUC7CJYH/NUC7PJYH/NUC7CJYS Features – Front

Table 36 lists the components identified in Figure 21.

Table 36. Components Shown in Figure 21

Item from Figure 21 Description

Digital Microphone Array (not available on certain models)

Consumer Infrared Sensor

5.2 Chassis Rear Panel Features

19V DC Power Inlet

Cooling Vents

Speaker and Optical Audio Jack (not available on certain models)

Ethernet Port

USB 3.0 Connectors

Figure 22 shows the location of the features located on the rear of the chassis.

Intel NUC Kit Features

Figure 22. Intel NUC Products NUC7CJYH/NUC7PJYH/NUC7CJYS Features – Rear

Table 37 lists the components identified in Figure 22.

Table 37. Components Shown in Figure 22

Item from Figure 22 Description

High Definition Multimedia Interface Connectors

INTEL INTEL NUC7CJYHN User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product Description

1.1 Overview

1.1.1 Feature Summary

1.1.2 Board Layout (Top)

1.1.3 Board Layout (Bottom)

1.1.4 Block Diagram

1.2 Online Support

1.3 Processor

1.4 System Memory

1.5 Processor Graphics Subsystem

1.5.1 Intel® Ultra-High Definition (Intel® UHD) Graphics

1.5.1.1 Video Memory Allocation

1.5.2 High Definition Multimedia Interface* (HDMI*)

1.5.2.1.1 Integrated Audio Provided by the HDMI Interfaces

1.6 USB

1.7 SATA Interface

1.7.1 AHCI Mode

1.8 Embedded MultiMediaCard (e-MMC) - optional

1.9 Real-Time Clock Subsystem

1.10 Audio Subsystem1

1.10.1 Digital Microphone Array 1

1.10.2 Mini-TOSLINK Interface 1

1.10.3 Audio Subsystem Software

1.11 LAN Subsystem

1.11.1 Realtek* 8111HN Gigabit Ethernet Controller

1.11.2 LAN Subsystem Software

1.11.3 RJ-45 LAN Connector with Integrated LEDs

1.11.4 Wireless Network Module

1.12 Hardware Management Subsystem

1.12.1 Hardware Monitoring

1.12.2 Fan Monitoring

1.12.3 Thermal Solution

1.13 Operating System Support

1.14 Power Management

1.14.1 ACPI

1.14.1.1 System States and Power States

1.14.1.2 Wake-up Devices and Events

1.14.2 Hardware Support

1.14.2.1 Power Input

1.14.2.2 Instantly Available PC Technology

1.14.2.3 LAN Wake Capabilities

1.14.2.4 Wake from USB

1.14.2.5 WAKE# Signal Wake-up Support

1.14.2.6 Wake from S5

1.14.2.7 Wake from Consumer IR

1.14.2.8 +5 V Standby Power Indicator LED

1.14.3 HDMI Consumer Electronics Control (CEC)

1.15 Intel Platform Security Technologies

1.15.1 Intel® Virtualization Technology

1.15.2 Intel® Platform Trust Technology

2 Technical Reference

2.1 Memory Resources

2.1.1 Addressable Memory

2.2 Connectors and Headers

2.2.1 Front Panel Connectors

2.2.2 Back Panel Connectors

2.2.3 Headers and Connectors (Top)

2.2.4 Connectors and Headers (Bottom)

2.2.5 Signal Tables for the Connectors and Headers

2.2.5.1 SDXC Card Reader

2.2.5.2 Power Supply Connector

2.2.5.3 Front Panel Header (2.0 mm Pitch)

2.2.5.3.1 Hard Drive Activity LED Header

2.2.5.3.2 Reset Switch Header

2.2.5.3.3 Power/Sleep LED Header

2.2.5.3.4 Power Switch Header

2.2.5.3.5 5V DC Power Header

2.2.5.4 Consumer Infrared (CIR) Sensor

2.3 BIOS Security Jumper

2.4 Mechanical Considerations

2.4.1 Form Factor

2.4.2 Weights

2.5 Electrical Considerations

2.5.1 Power Supply Considerations

2.5.2 Fan Header Current Capability

2.6 Thermal Considerations
