Thank you for choosing the IM-Q35 Mini ITX mainboard
from MSI.

Based on the innovative Intel® Q35 & ICH9DO control­lers for optimal system efficiency, the IM-Q35 accom­modates the latest Intel® Core
Duo/Pentium® Dual-Core /Celeron® processors in
Socket 775 and supports two 240-pin DDR2 DIMM slots
to provide the maximum of 4GB memory capacity.

In the entry-level and mid-range market segment, the
IM-Q35 can provide a high-performance solution for
today’s front-end and general purpose workstation, as
well as in the future.

TM

2 Quad/Core

TM

2

1-1

IM-Q35 Mainboard

Mainboard Specifications

Processor Support

- Intel® Core

- Supports Intel® Yorkfield, Wolfdale

- Supports up to 95W processors only.

TM

processors in the LGA775 package

2 Quad/Core

TM

2 Duo/Pentium® Dual-Core /Celeron

Supported FSB

- 1333/1066/ 800 MHz

Chipset

- North Bridge: Intel® Q35 chipset

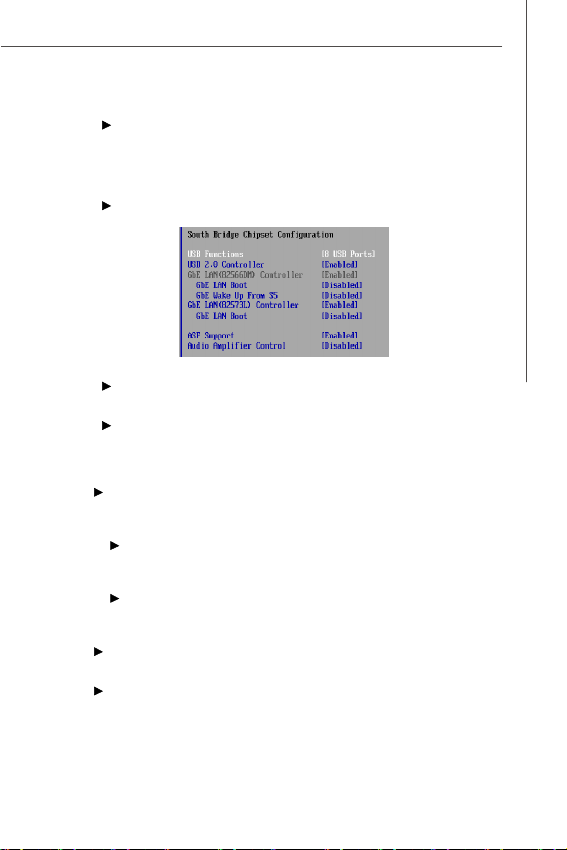

- South Bridge: Intel® ICH9DO chipset

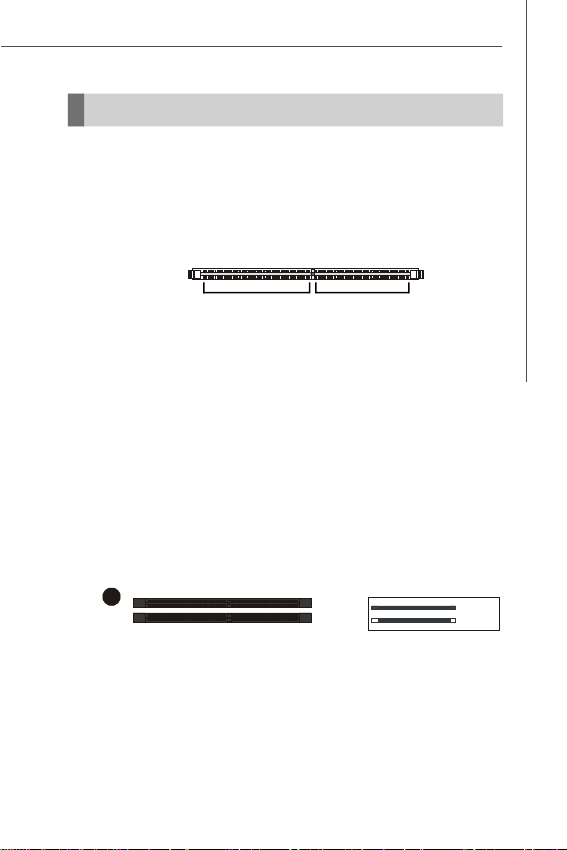

Memory Support

- DDRII 667/800 non-ECC memory (4GB Max)

- 2 * DDRII DIMMs (240pin / 1.8V)

LAN

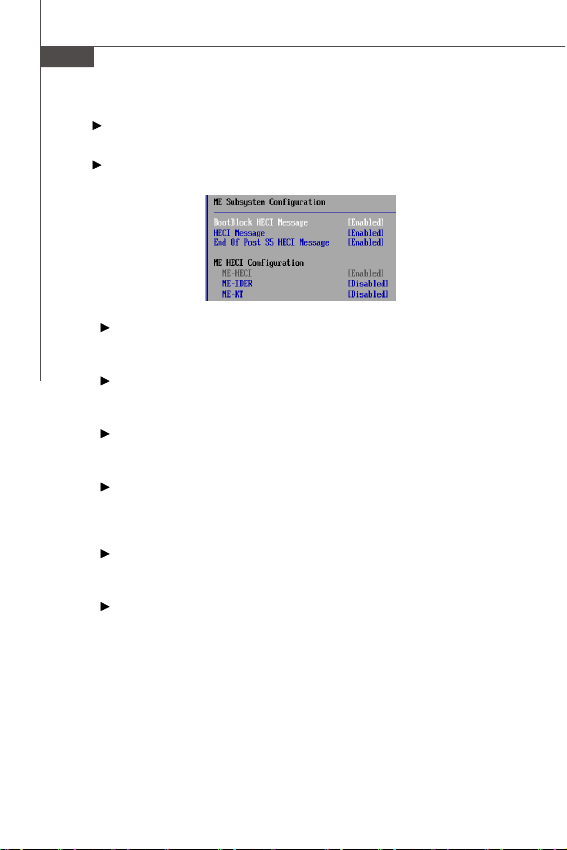

- Supports PCIe GbE LAN by Intel® 82566DM for vPro

- Supports PCIe GbE LAN by Intel® 82573L

Audio

- Realtek ALC888 HD audio codec

- Flexible 5.1 channel audio with jack sensing

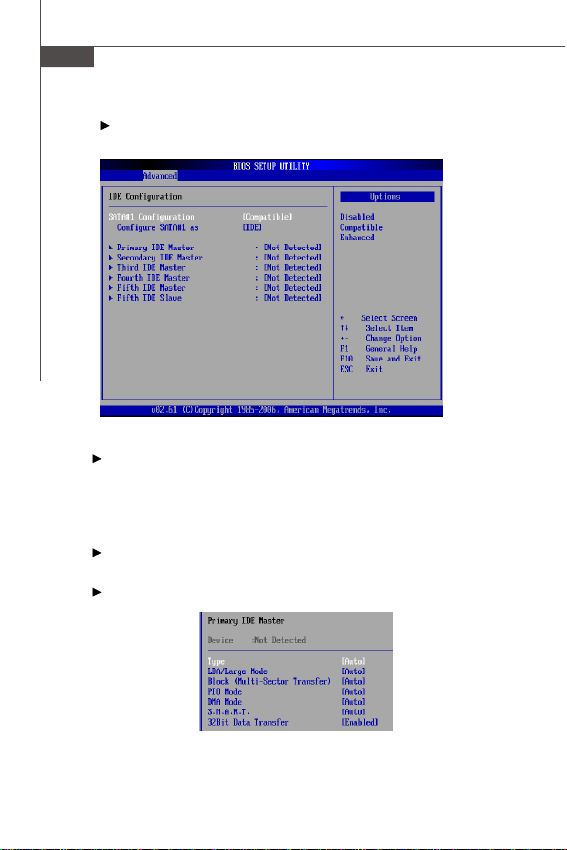

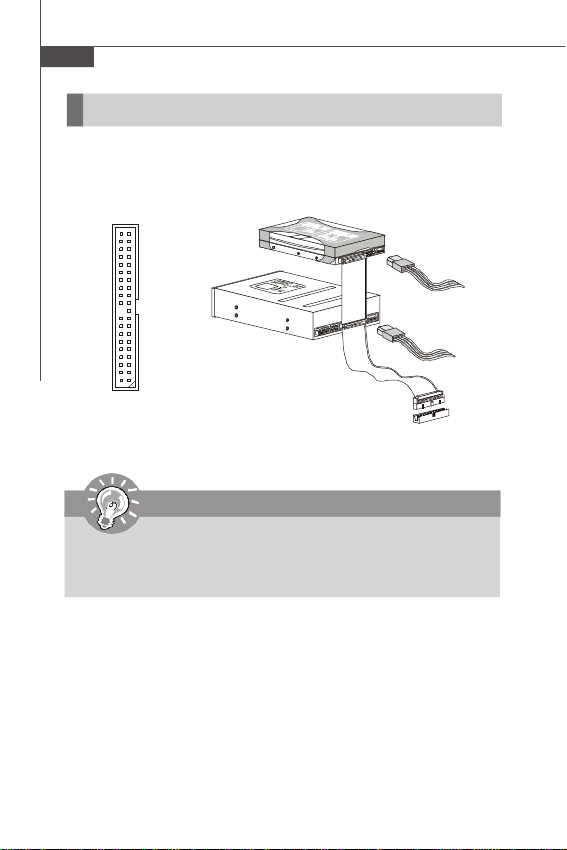

IDE

- 1 * IDE port

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

SATA

- 4 * SATAII ports by ICH9DO

- Supports storage and data transfers at up to 3Gb/s

RAID

- SATA1~4 supports RAID 0/ 1/ 5/ 10 by ICH9DO

- Supports Intel® Matrix Storage Technology.

Connectors

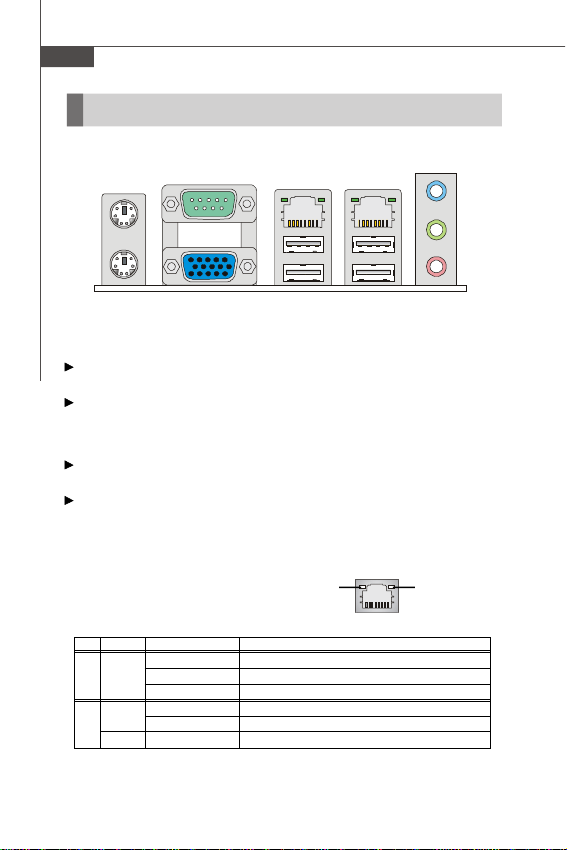

Back panel

- 1 * PS/2 mouse port

- 1 * PS/2 keyboard port

- 2 * RJ45 Gigabit LAN

- 4 * USB 2.0 ports

- 1 * RS-232 port

- 1 * VGA port

- 3 * flexible audio jacks

®

1-2

On-Board Pinheaders/ Connectors

- 2 * USB 2.0 pin headers

- 1 * Chassis Intrusion Switch pin header

- 1 * RS-232 connector

- 1 * Front Panel Audio pin header

- 1 * TPM connector

Slots

- 1 * PCIe x16 slot

- 1 * Mini-PCIe slot

Form Factor

- Mini-ITX (17.0cm X 17.0cm)

Mounting

- 4 * mounting holes

Product Overview

1-3

IM-Q35 Mainboard

Block Diagram

1-4

Mainboard Layout

JMB368

Top : mouse
Bottom:

JPWR2

keyboard

Top: COM Port
Bottom: VGA Port

Top: LAN Jack
Bottom: USB ports

Top: LAN Jack
Bottom: USB ports

T: Line-In
M: Line-Out
B: Mic-In

Fintek

F71882FG

ALC888

JAMP1

JAUD1

JCOM1

JUSB2

JUSB1

SATA4

Intel
Q35

PCI_E1

SATA1
SATA2SATA3

Intel

ICH9DO

Product Overview

JPWR1

IDE2

DIM M_B1

DIM M_A1

+

BATT

JFP1

CPUFAN1

JCI1

JBAT1

SYSFAN1

IM-Q35 Mainboard (Mini ITX)

1-5

IM-Q35 Mainboard

Board Dimension

1-6

Back Panel & I/O Shield Drawing

Product Overview

1-7

IM-Q35 Mainboard

Power Consumption

MS-9820

Enter DOS(Stable) 0.86 3.4 2.35 0.46 0.068 0.037
Enter BIOS(Stable) 0.89 3.38 2.58 0.48 0.083 0.038
Idle 0.86 3.39 0.89 0.51 0.091 0.016
CPU Stress 100% 0.9 3.47 5.92 0.5 0.075 0.016
Windows stress(3dMARK2006) 0.89 4.82 3.34 0.5 0.075 0.029
Windows Desktop Standby S1
with/without two LANs connected
(stable)
Windows Desktop Standby S3
with/without two LANs connected
(stable)
Windows Desktop Hibernate S4
with/without two LANs connected
(stable)
Windows Desktop Soft Off S5
with/without two LANs connected
(stable)

3.3V 5V 12V

Current(A) Current(A)Current(A)Current(A) Current(A) Current(A)

0.67 2.5 1.87 0.29 0.065 0.026

0 0 0 0 0.666 0

0 0 0 0 0.453 0

0 0 0 0 0.457 0

12V Main

Connector

(-)12V5V Standby

Condition

Mainboard IM-Q35
CPU Yorkfield Q9450 2.66G
Memory DDRII 1GB*2
HDD WD 40G

1-8

Safety Compliance & MTBF

Limits for harmonic current

emission

Limitation of voltage

voltage supply system

Product Overview

Certification Title of standard

RFI

CE

ImmunityEN 55024:1998+A1:2001+A2:2003 Product family standard

BSMI

CNS 13438 乙類(1997年版)
AS/NZS CISPR 22:2004

C-Tick

FCC CFR Title 47 Part 15 Subpart B: 2005 Class B

FCC

CISPR 22: 2005
VCCI V-3:2004, Class B

VCCI

VCCI V-4:2004, Class B

Standard number

EN 55022:1998+A1:2000+A2:2003 Class BProduct family standard
EN 6100-3-2:2000 Class D

EN 6100-3-3:1995+A1:2001

fluctuation and flicker in low-

1-9

Hardware Setup

Chapter 2

Hardware Setup

This chapter provides you with the information about
hardware setup procedures. While doing the installation,
be careful in holding the components and follow the
installation procedures. For some components, if you
install in the wrong orientation, the components will not
work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the
components.

2-1

IM-Q35 Mainboard

Quick Components Guide

JPW1,

JUSB1~2,

p.2-9

p.2-16

Back Panel,
p.2-10

CPU,
p.2-3

SATA1~4,
p.2-13

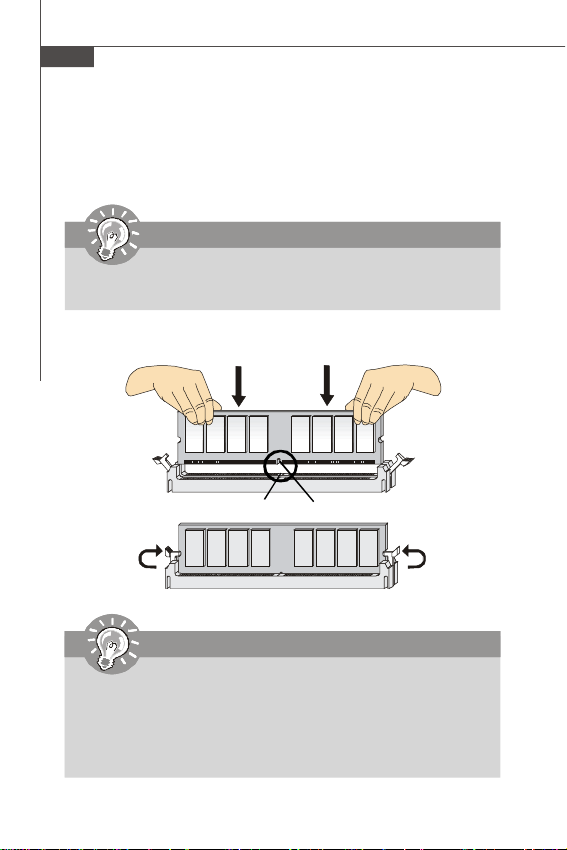

DDR2,
p.2-7

JPWR1,
p.2-9

IDE2,
p.2-12

JAMP1,
p.2-17

JAUD1,
p.2-15

JCOM1,
p.2-15

2-2

JSPD1,
p.2-17

PCI_E,
p.2-19

JBAT1,
p.2-18

CPUFAN1,
p.2-14

JFP1,
p.2-14

SYSFAN1,
p.2-14

JCI1,
p.2-17
