Intel G5905 User Manual

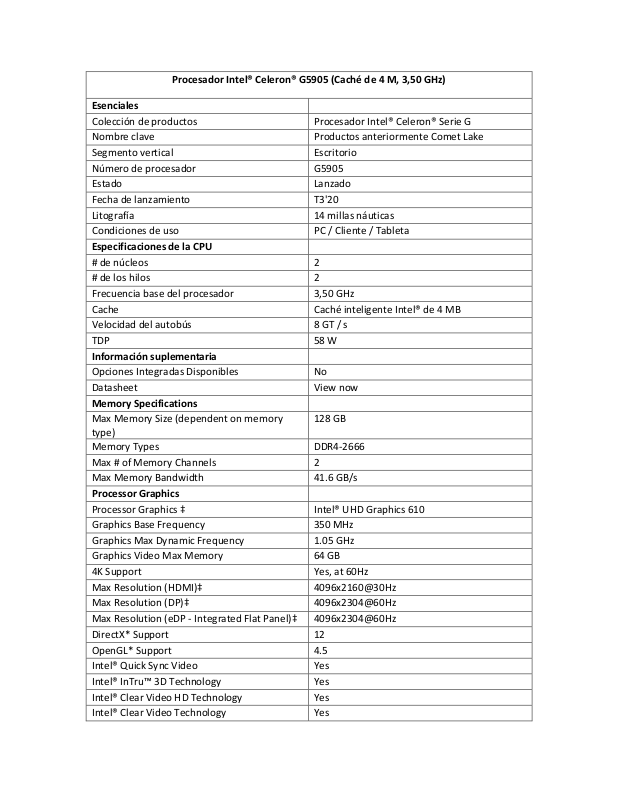

Procesador Intel® Celeron® G5905 (Caché de 4 M, 3,50 GHz)

Esenciales

Colección de productos

Procesador Intel® Celeron® Serie G

Nombre clave

Productos anteriormente Comet Lake

Segmento vertical

Escritorio

Número de procesador

G5905

Estado

Lanzado

Fecha de lanzamiento

T3'20

Litografía

14 millas náuticas

Condiciones de uso

PC / Cliente / Tableta

Especificaciones de la CPU

# de núcleos

2

# de los hilos

2

Frecuencia base del procesador

3,50 GHz

Cache

Caché inteligente Intel® de 4 MB

Velocidad del autobús

8 GT / s

TDP

58 W

Información suplementaria

Opciones Integradas Disponibles

No

Datasheet

View now

Memory Specifications

Max Memory Size (dependent on memory
type)

128 GB
Memory Types

DDR4-2666

Max # of Memory Channels

2

Max Memory Bandwidth

41.6 GB/s

Processor Graphics

Processor Graphics ‡

Intel® UHD Graphics 610

Graphics Base Frequency

350 MHz

Graphics Max Dynamic Frequency

1.05 GHz

Graphics Video Max Memory

64 GB

4K Support

Yes, at 60Hz

Max Resolution (HDMI)‡

4096x2160@30Hz

Max Resolution (DP)‡

4096x2304@60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

4096x2304@60Hz

DirectX* Support

12

OpenGL* Support

4.5

Intel® Quick Sync Video

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Clear Video HD Technology

Yes

Intel® Clear Video Technology

Yes

# of Displays Supported ‡

3

Device ID

0x9BA8

Expansion Options

Scalability

1S Only

PCI Express Revision

3

PCI Express Configurations ‡

Up to 1x16, 2x8, 1x8+2x4

Max # of PCI Express Lanes

16

Package Specifications

Sockets Supported

FCLGA1200

Max CPU Configuration

1

Thermal Solution Specification

PCG 2015C

TJUNCTION

100°C

Package Size

37.5mm x 37.5mm

Advanced Technologies

Intel® Optane™ Memory Supported ‡

Yes

Intel® Thermal Velocity Boost

No

Intel® Turbo Boost Max Technology 3.0 ‡

No

Intel® Turbo Boost Technology ‡

No

Intel vPro® Platform Eligibility ‡

No

Intel® Hyper-Threading Technology ‡

No

Intel® Virtualization Technology (VT-x) ‡

Yes

Intel® Virtualization Technology for Directed
I/O (VT-d) ‡

Yes
Intel® VT-x with Extended Page Tables (EPT) ‡

Yes

Intel® Transactional Synchronization
Extensions

No
Intel® 64 ‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Identity Protection Technology ‡

Yes

Intel® Stable Image Platform Program (SIPP)

No

Security & Reliability

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® Software Guard Extensions (Intel® SGX)

Yes with Intel® ME

Intel® OS Guard

Yes

Intel® Trusted Execution Technology ‡

No

Execute Disable Bit ‡

Yes

Intel® Boot Guard

Yes
