Intel® Xeon® Processor E3-1200 v3
Product Family
Datasheet – Volume 1 of 2
June 2013
Order No.: 328907-001
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR
OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND
CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in personal injury or death.
SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL APPLICATION, YOU SHALL INDEMNIFY AND HOLD INTEL AND
ITS SUBSIDIARIES, SUBCONTRACTORS AND AFFILIATES, AND THE DIRECTORS, OFFICERS, AND EMPLOYEES OF EACH, HARMLESS AGAINST ALL
CLAIMS COSTS, DAMAGES, AND EXPENSES AND REASONABLE ATTORNEYS' FEES ARISING OUT OF, DIRECTLY OR INDIRECTLY, ANY CLAIM OF
PRODUCT LIABILITY, PERSONAL INJURY, OR DEATH ARISING IN ANY WAY OUT OF SUCH MISSION CRITICAL APPLICATION, WHETHER OR NOT INTEL
OR ITS SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN, MANUFACTURE, OR WARNING OF THE INTEL PRODUCT OR ANY OF ITS PARTS.
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or
characteristics of any features or instructions marked "reserved" or "undefined". Intel reserves these for future definition and shall have no
responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The information here is subject to change without
notice. Do not finalize a design with this information.
The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published
specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained by calling
1-800-548-4725, or go to: http://www.intel.com/design/literature.htm
Any software source code reprinted in this document is furnished for informational purposes only and may only be used or copied and no license,
express or implied, by estoppel or otherwise, to any of the reprinted source code is granted by this document.
Any software source code reprinted in this document is furnished under a software license and may only be used or copied in accordance with the
terms of that license.
This document contains information on products in the design phase of development.
Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different
processor families: Go to: http://www.intel.com/products/processor_number
Code Names are only for use by Intel to identify products, platforms, programs, services, etc. ("products") in development by Intel that have not been
made commercially available to the public, i.e., announced, launched or shipped. They are never to be used as "commercial" names for products. Also,
they are not intended to function as trademarks.
Intel® Hyper-Threading Technology (Intel® HT Technology) is available on select Intel® Core™ processors. It requires an Intel® HT Technology
enabled system. Consult your PC manufacturer. Performance will vary depending on the specific hardware and software used. Not available on Intel
Core™ i5-750. For more information including details on which processors support Intel® HT Technology, visit http://www.intel.com/info/
hyperthreading.
Intel® 64 architecture requires a system with a 64-bit enabled processor, chipset, BIOS and software. Performance will vary depending on the specific
hardware and software you use. Consult your PC manufacturer for more information. For more information, visit http://www.intel.com/
content/www/us/en/architecture-and-technology/microarchitecture/intel-64-architecture-general.html.
No computer system can provide absolute security under all conditions. Intel® Trusted Execution Technology (Intel® TXT) requires a computer with
Intel® Virtualization Technology, an Intel TXT-enabled processor, chipset, BIOS, Authenticated Code Modules and an Intel TXT-compatible measured
launched environment (MLE). Intel TXT also requires the system to contain a TPM v1.s. For more information, visit http://www.intel.com/technology/
security.
Intel® Virtualization Technology (Intel® VT) requires a computer system with an enabled Intel® processor, BIOS, and virtual machine monitor (VMM).
Functionality, performance or other benefits will vary depending on hardware and software configurations. Software applications may not be
compatible with all operating systems. Consult your PC manufacturer. For more information, visit http://www.intel.com/go/virtualization.
Requires a system with Intel® Turbo Boost Technology. Intel Turbo Boost Technology and Intel Turbo Boost Technology 2.0 are only available on select
Intel® processors. Consult your PC manufacturer. Performance varies depending on hardware, software, and system configuration. For more
information, visit http://www.intel.com/go/turbo.
Requires activation and a system with a corporate network connection, an Intel® AMT-enabled chipset, network hardware and software. For
notebooks, Intel AMT may be unavailable or limited over a host OS-based VPN, when connecting wirelessly, on battery power, sleeping, hibernating or
powered off. Results dependent upon hardware, setup and configuration.
Intel, Intel Xeon, Intel vPro, Ultrabook, vPro Inside, and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2013, Intel Corporation. All rights reserved.
®
®
Xeon® Processor E3-1200 v3 Product Family
Intel
Datasheet – Volume 1 of 2 June 2013
2 Order No.: 328907-001
Contents—Processor
Contents
Revision History..................................................................................................................8
1.0 Introduction................................................................................................................. 9
1.1 Supported Technologies.........................................................................................10
1.2 Interfaces............................................................................................................ 11
1.3 Power Management Support...................................................................................11
1.4 Thermal Management Support................................................................................12
1.5 Package Support...................................................................................................12
1.6 Terminology.........................................................................................................12
1.7 Related Documents............................................................................................... 15
2.0 Interfaces................................................................................................................... 17
2.1 System Memory Interface...................................................................................... 17
2.1.1 System Memory Technology Supported.......................................................18
2.1.2 System Memory Timing Support................................................................. 19
2.1.3 System Memory Organization Modes........................................................... 19
2.1.3.1 System Memory Frequency............................................................ 21
2.1.3.2 Intel® Fast Memory Access (Intel® FMA) Technology Enhancements... 21
2.1.3.3 Data Scrambling.......................................................................... 21
2.2 PCI Express* Interface.......................................................................................... 22
2.2.1 PCI Express* Support................................................................................22
2.2.2 PCI Express* Architecture.......................................................................... 23
2.2.3 PCI Express* Configuration Mechanism........................................................ 23
2.3 Direct Media Interface (DMI).................................................................................. 25
2.4 Processor Graphics................................................................................................27
2.5 Processor Graphics Controller (GT)..........................................................................27
2.5.1 3D and Video Engines for Graphics Processing.............................................. 28
2.5.2 Multi Graphics Controllers Multi-Monitor Support........................................... 30
2.6 Digital Display Interface (DDI)................................................................................30
2.7 Intel® Flexible Display Interface (Intel® FDI)............................................................36
2.8 Platform Environmental Control Interface (PECI)....................................................... 36
2.8.1 PECI Bus Architecture................................................................................36
3.0 Technologies...............................................................................................................38
3.1 Intel® Virtualization Technology (Intel® VT)............................................................. 38
3.2 Intel® Trusted Execution Technology (Intel® TXT).....................................................42
3.3 Intel® Hyper-Threading Technology (Intel® HT Technology)....................................... 43
3.4 Intel® Turbo Boost Technology............................................................................... 44
3.5 Intel® Advanced Vector Extensions 2.0 (Intel® AVX2)................................................44
3.6 Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI).......................45
3.7 Intel® Transactional Synchronization Extensions (Intel® TSX).................................... 45
3.8 Intel® 64 Architecture x2APIC................................................................................ 46
3.9 Power Aware Interrupt Routing (PAIR)....................................................................47
3.10 Execute Disable Bit..............................................................................................47
3.11 Supervisor Mode Execution Protection (SMEP)........................................................47
4.0 Power Management.................................................................................................... 48
4.1 Advanced Configuration and Power Interface (ACPI) States Supported......................... 49
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 3
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Contents
4.2 Processor Core Power Management......................................................................... 50
4.2.1 Enhanced Intel® SpeedStep® Technology Key Features..................................50
4.2.2 Low-Power Idle States............................................................................... 51
4.2.3 Requesting Low-Power Idle States...............................................................52
4.2.4 Core C-State Rules....................................................................................53
4.2.5 Package C-States......................................................................................54
4.3 Integrated Memory Controller (IMC) Power Management............................................58
4.3.1 Disabling Unused System Memory Outputs...................................................58
4.3.2 DRAM Power Management and Initialization..................................................58
4.3.2.1 Initialization Role of CKE................................................................ 59
4.3.2.2 Conditional Self-Refresh.................................................................60
4.3.2.3 Dynamic Power-Down....................................................................60
4.3.2.4 DRAM I/O Power Management........................................................ 60
4.3.3 DRAM Running Average Power Limitation (RAPL) .........................................60
4.3.4 DDR Electrical Power Gating (EPG).............................................................. 61
4.4 PCI Express* Power Management............................................................................61
4.5 Direct Media Interface (DMI) Power Management...................................................... 61
4.6 Graphics Power Management..................................................................................61
4.6.1 Intel® Rapid Memory Power Management (Intel® RMPM)................................61
4.6.2 Graphics Render C-State............................................................................61
4.6.3 Intel® Graphics Dynamic Frequency............................................................ 61
5.0 Thermal Management................................................................................................. 63
5.1 Thermal Metrology................................................................................................ 64
5.2 Fan Speed Control Scheme with Digital Thermal Sensor (DTS) 1.1.............................. 64
5.3 Fan Speed Control Scheme with Digital Thermal Sensor (DTS) 2.0.............................. 66
5.4 Intel® Xeon® Processor E3-1200 v3 Product Family Thermal Specifications...................67
5.5 Processor Temperature..........................................................................................69
5.6 Adaptive Thermal Monitor...................................................................................... 69
5.7 THERMTRIP# Signal.............................................................................................. 72
5.8 Digital Thermal Sensor.......................................................................................... 73
5.8.1 Digital Thermal Sensor Accuracy (Taccuracy)................................................73
5.9 Intel® Turbo Boost Technology Thermal Considerations..............................................74
5.9.1 Intel® Turbo Boost Technology Power Control and Reporting.......................... 74
5.9.2 Package Power Control.............................................................................. 75
5.9.3 Turbo Time Parameter............................................................................... 75
6.0 Signal Description....................................................................................................... 77
6.1 System Memory Interface Signals........................................................................... 77
6.2 Memory Reference and Compensation..................................................................... 79
6.3 Reset and Miscellaneous Signals............................................................................. 80
6.4 PCI Express*-Based Interface Signals......................................................................81
6.5 Display Interface Signals....................................................................................... 81
6.6 Direct Media Interface (DMI).................................................................................. 82
6.7 Phase Locked Loop (PLL) Signals.............................................................................82
6.8 Testability Signals.................................................................................................82
6.9 Error and Thermal Protection Signals.......................................................................83
6.10 Power Sequencing...............................................................................................84
6.11 Processor Power Signals.......................................................................................84
6.12 Sense Pins......................................................................................................... 84
6.13 Ground and Non-Critical to Function (NCTF) Signals.................................................85
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
4 Order No.: 328907-001
Contents—Processor
6.14 Processor Internal Pull-Up / Pull-Down Terminations................................................ 85
7.0 Electrical Specifications.............................................................................................. 86
7.1 Integrated Voltage Regulator..................................................................................86
7.2 Power and Ground Lands ...................................................................................... 86
7.3 VCC Voltage Identification (VID).............................................................................. 86
7.4 Reserved or Unused Signals................................................................................... 91
7.5 Signal Groups.......................................................................................................91
7.6 Test Access Port (TAP) Connection.......................................................................... 93
7.7 DC Specifications................................................................................................. 93
7.8 Voltage and Current Specifications.......................................................................... 94
7.8.1 PECI DC Characteristics............................................................................. 99

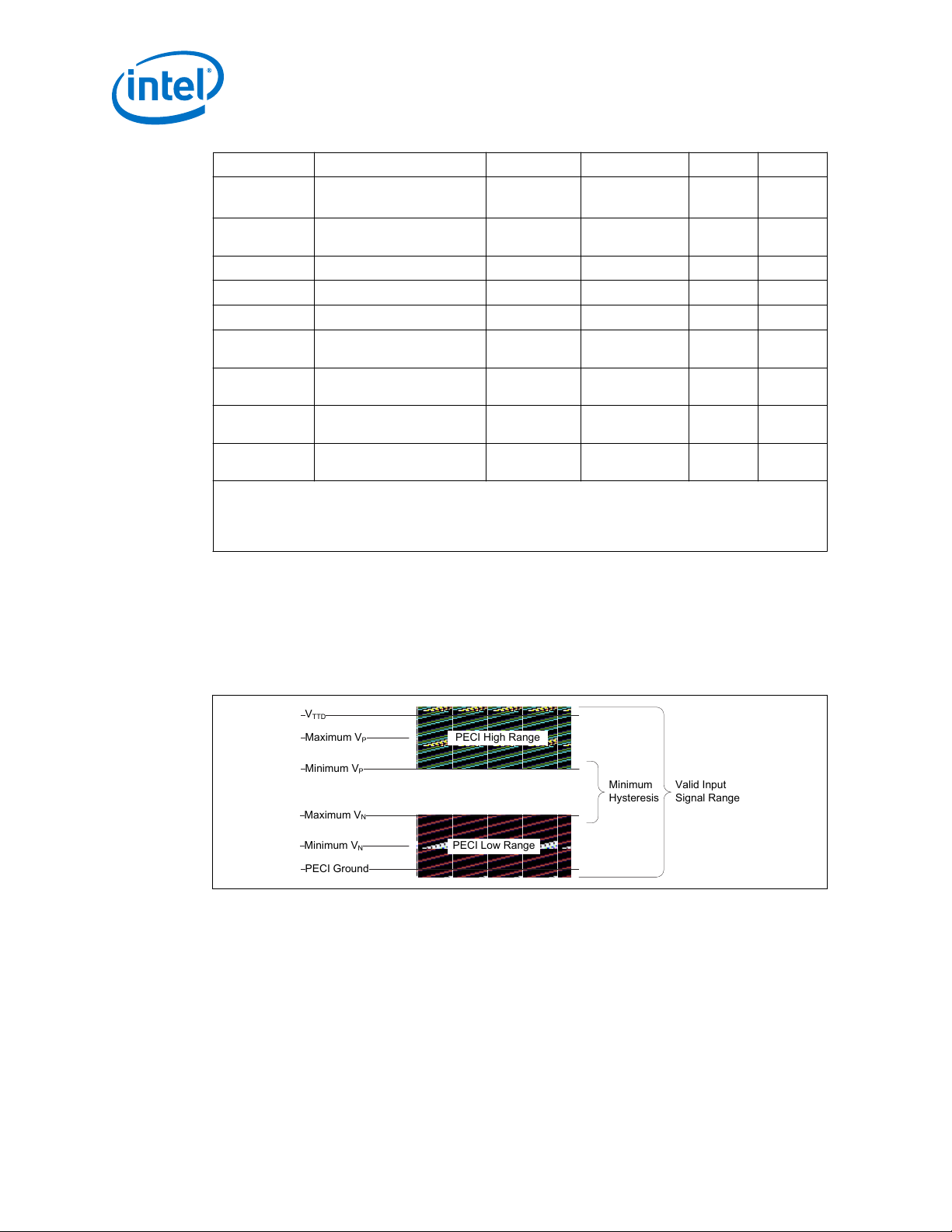

7.8.2 Input Device Hysteresis........................................................................... 100
8.0 Package Mechanical Specifications........................................................................... 101
8.1 Processor Component Keep-Out Zone.................................................................... 101
8.2 Package Loading Specifications............................................................................. 101
8.3 Package Handling Guidelines................................................................................ 102
8.4 Package Insertion Specifications............................................................................102
8.5 Processor Mass Specification.................................................................................102
8.6 Processor Materials............................................................................................. 102
8.7 Processor Markings............................................................................................. 103
8.8 Processor Land Coordinates..................................................................................103
8.9 Processor Storage Specifications........................................................................... 104
9.0 Processor Ball and Signal Information...................................................................... 106
Figures
1 Platform Block Diagram ........................................................................................... 10
2 Intel® Flex Memory Technology Operations................................................................. 20
3 PCI Express* Related Register Structures in the Processor............................................ 24
4 PCI Express* Typical Operation 16 Lanes Mapping....................................................... 25
5 Processor Graphics Controller Unit Block Diagram........................................................ 28
6 Processor Display Architecture...................................................................................31
7 DisplayPort* Overview............................................................................................. 32
8 HDMI* Overview..................................................................................................... 33
9 Example for PECI Host-Clients Connection.................................................................. 37
10 Device to Domain Mapping Structures........................................................................ 41
11 Processor Power States............................................................................................ 48
12 Idle Power Management Breakdown of the Processor Cores ..........................................51
13 Thread and Core C-State Entry and Exit......................................................................52
14 Package C-State Entry and Exit................................................................................. 56
15 Thermal Test Vehicle (TTV) Case Temperature (T
16 Digital Thermal Sensor (DTS) 1.1 Definition Points.......................................................65
17 Digital Thermal Sensor (DTS) Thermal Profile Definition................................................67
18 Package Power Control............................................................................................. 75
19 Input Device Hysteresis.......................................................................................... 100
20 Processor Package Assembly Sketch.........................................................................101
21 Processor Top-Side Markings................................................................................... 103
22 Processor Package Land Coordinates........................................................................ 104
) Measurement Location..................64
CASE
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 5
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Contents
Tables
1 Terminology........................................................................................................... 12
2 Related Documents..................................................................................................15
3 Processor DIMM Support by Product...........................................................................18
4 Supported UDIMM Module Configurations....................................................................18
5 PCI Express* Supported Configurations in Server / Workstation Products........................ 22
6 Processor Supported Audio Formats over HDMI*and DisplayPort*.................................. 34
7 Valid Three Display Configurations through the Processor..............................................35
8 DisplayPort and Embedded DisplayPort* Resolutions for 1, 2, 4 Lanes – Link Data
Rate of RBR, HBR, and HBR2.....................................................................................35
9 System States.........................................................................................................49
10 Processor Core / Package State Support..................................................................... 49
11 Integrated Memory Controller States..........................................................................49
12 PCI Express* Link States.......................................................................................... 49
13 Direct Media Interface (DMI) States........................................................................... 50
14 G, S, and C Interface State Combinations .................................................................. 50
15 D, S, and C Interface State Combination.....................................................................50
16 Coordination of Thread Power States at the Core Level................................................. 52
17 Coordination of Core Power States at the Package Level............................................... 55
18 Digital Thermal Sensor (DTS) 1.1 Thermal Solution Performance Above T
CONTROL
19 Thermal Margin Slope.............................................................................................. 67
20 Boundary Conditions, Performance Targets, and T
Specifications.............................. 68
CASE
21 Intel® Turbo Boost Technology 2.0 Package Power Control Settings............................... 75
22 Signal Description Buffer Types................................................................................. 77
23 Memory Channel A...................................................................................................77
24 Memory Channel B...................................................................................................78
25 Memory Reference and Compensation ....................................................................... 79
26 Reset and Miscellaneous Signals................................................................................ 80
27 PCI Express* Graphics Interface Signals..................................................................... 81
28 Display Interface Signals.......................................................................................... 81
29 Direct Media Interface (DMI) – Processor to PCH Serial Interface................................... 82
30 Phase Locked Loop (PLL) Signals............................................................................... 82
31 Testability Signals....................................................................................................82
32 Error and Thermal Protection Signals..........................................................................83
33 Power Sequencing................................................................................................... 84
34 Processor Power Signals........................................................................................... 84
35 Sense Pins..............................................................................................................84
36 Ground and Non-Critical to Function (NCTF) Signals..................................................... 85
37 Processor Internal Pull-Up / Pull-Down Terminations.................................................... 85
38 VR 12.5 Voltage Identification................................................................................... 87
39 Signal Groups......................................................................................................... 91
40 Processor Core Active and Idle Mode DC Voltage and Current Specifications.................... 94
41 Memory Controller (V
) Supply DC Voltage and Current Specifications.........................95
DDQ
42 VCCIO_OUT, VCOMP_OUT, and VCCIO_TERM ............................................................. 96
43 DDR3/DDR3L Signal Group DC Specifications.............................................................. 96
44 Digital Display Interface Group DC Specifications......................................................... 97
45 Embedded DisplayPort* (eDP) Group DC Specifications.................................................98
46 CMOS Signal Group DC Specifications.........................................................................98
47 GTL Signal Group and Open Drain Signal Group DC Specifications.................................. 98
48 PCI Express* DC Specifications..................................................................................99
49 PECI DC Electrical Limits...........................................................................................99
50 Processor Loading Specifications.............................................................................. 102
51 Package Handling Guidelines................................................................................... 102
52 Processor Materials................................................................................................ 103
............. 66
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
6 Order No.: 328907-001
Contents—Processor
53 Processor Storage Specifications.............................................................................. 104
54 Processor Ball List by Signal Name........................................................................... 106
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 7
Intel® Xeon® Processor E3-1200 v3 Product Family
Revision History
Revision Description Date
001 • Initial Release June 2013
Processor—Revision History
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
8 Order No.: 328907-001
Introduction—Processor
1.0 Introduction
The Intel® Xeon® processor E3-1200 v3 product family are 64-bit, multi-core
processors built on 22-nanometer process technology.
The processors are designed for a two-chip platform consisting of a processor and
Platform Controller Hub (PCH). The processors are designed to be used with the Intel
C220 Series chipset. See the following figure for an example platform block diagram.
Note: Throughout this document, the Intel® Xeon® processor E3-1200 v3 product family
may be referred to simply as "processor".
Note: Throughout this document, the Intel® C220 Series chipset may be referred to simply
as "PCH".
Throughout this document, the Intel® Xeon® processor E3-1200 v3 product family
refers to the Intel® Xeon® E3-1285 v3, E3-1285L v3, E3-1280 v3, E3-1275 v3,
E3-1270 v3, E3-1265L v3, E3-1245 v3, E3-1240 v3, E3-1230 v3, E3-1230L v3,
E3-1225 v3, E3-1220 v3, E3-1220L v3 processors.
Note: Some processor features are not available on all platforms. Refer to the processor
Specification Update document for details.
®
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 9
Intel® Xeon® Processor E3-1200 v3 Product Family
Figure 1. Platform Block Diagram
Processor
PCI Express* 3.0
Digital Display
Interface (DDI)
(3 interfaces)
System Memory
1333 / 1600 MT/s
2 DIMMs / CH
CH A
CH B
Intel® Flexible Display
Interface (Intel® FDI)
(x2)
Direct Media Interface 2.0
(DMI 2.0) (x4)
Note: 2 DIMMs / CH is not
supported on all SKUs.
Platform Controller
Hub (PCH)
SATA, 6 GB/s
(up to 6 Ports)
Analog Display
(VGA)
SPI Flash
Super IO / EC
Trusted Platform
Module (TPM) 1.2
LPC
Intel® High
Definition Audio
(Intel® HD Audio)
Integrated LAN
USB 3.0
(up to 6 Ports)
USB 2.0
(8 Ports)
PCI Express* 2.0
(up to 8 Ports)
SPI
SMBus 2.0
GPIOs
Processor—Introduction
1.1 Supported Technologies
• Intel Virtualization Technology (Intel® VT)
• Intel Active Management Technology 9.0 (Intel® AMT 9.0)
• Server Platform Services 3.0 (SPS 3.0)
• Intel® Trusted Execution Technology (Intel® TXT)
• Intel® Streaming SIMD Extensions 4.2 (Intel® SSE4.2)
• Intel® Hyper-Threading Technology (Intel® HT Technology)
• Intel® 64 Architecture
• Execute Disable Bit
• Intel® Turbo Boost Technology 2.0
• Intel® Advanced Vector Extensions 2.0 (Intel® AVX2)
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
10 Order No.: 328907-001
Introduction—Processor
• Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI)
• PCLMULQDQ Instruction
• Intel® Secure Key
• Intel® Transactional Synchronization Extensions (Intel® TSX)
• PAIR – Power Aware Interrupt Routing
• SMEP – Supervisor Mode Execution Protection
Note: The availability of the features may vary between processor SKUs.
1.2 Interfaces
The processor supports the following interfaces:
• DDR3/DDR3L
• Direct Media Interface (DMI)
• Digital Display Interface (DDI)
• PCI Express*
1.3 Power Management Support
Processor Core
• Full support of ACPI C-states as implemented by the following processor C-states:
— C0, C1, C1E, C3, C6, C7
• Enhanced Intel SpeedStep® Technology
System
• S0, S3, S4, S5
Memory Controller
• Conditional self-refresh
• Dynamic power-down
PCI Express*
• L0s and L1 ASPM power management capability
DMI
• L0s and L1 ASPM power management capability
Processor Graphics Controller
• Intel® Rapid Memory Power Management (Intel® RMPM)
• Intel® Smart 2D Display Technology (Intel® S2DDT)
• Graphics Render C-state (RC6)
• Intel® Seamless Display Refresh Rate Switching with eDP port
• Intel® Display Power Saving Technology (Intel® DPST)
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 11
Intel® Xeon® Processor E3-1200 v3 Product Family
1.4 Thermal Management Support
• Digital Thermal Sensor
• Adaptive Thermal Monitor
• THERMTRIP# and PROCHOT# support
• On-Demand Mode
• Memory Open and Closed Loop Throttling
• Memory Thermal Throttling
• External Thermal Sensor (TS-on-DIMM and TS-on-Board)
• Render Thermal Throttling
• Fan speed control with DTS
1.5 Package Support
The processor socket type is noted as LGA 1150. The package is a 37.5 x 37.5 mm
Flip Chip Land Grid Array (FCLGA 1150). See the appropriate Processor Thermal
Mechanical Design Guidelines and LGA1150 Socket Application Guide for complete
details on the package.
Processor—Introduction
1.6 Terminology
Table 1. Terminology
Term Description
APD Active Power-down
B/D/F Bus/Device/Function
BGA Ball Grid Array
BLC Backlight Compensation
BLT Block Level Transfer
BPP Bits per pixel
CKE Clock Enable
CLTM Closed Loop Thermal Management
DDI Digital Display Interface
DDR3 Third-generation Double Data Rate SDRAM memory technology
DLL Delay-Locked Loop
DMA Direct Memory Access
DP DisplayPort*
DTS Digital Thermal Sensor
EC Embedded Controller
ECC Error Correction Code
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
12 Order No.: 328907-001
Introduction—Processor
eDP Embedded Display Port
EPG Electrical Power Gating
EU Execution Unit
FMA Floating-point fused Multiply Add instructions
FSC Fan Speed Control
HDCP High-bandwidth Digital Content Protection
HDMI* High Definition Multimedia Interface
HFM High Frequency Mode
iDCT Inverse Discrete
IHS Integrated Heat Spreader
GFX Graphics
GUI Graphical User Interface
IMC Integrated Memory Controller
Intel® 64
Technology
Intel® DPST Intel Display Power Saving Technology
Intel® TSX Intel Transactional Synchronization Extensions
Intel® TXT Intel Trusted Execution Technology
Intel® VT
Intel® VT-d
IOV I/O Virtualization
ISI Inter-Symbol Interference
ITPM Integrated Trusted Platform Module
LFM
LFP Local Flat Panel
LPDDR3 Low Power Third-generation Double Data Rate SDRAM memory technology
MCP Multi-Chip Package
MFM
MLE Measured Launched Environment
MLC Mid-Level Cache
MSI Message Signaled Interrupt
MSL Moisture Sensitive Labeling
MSR Model Specific Registers
Term Description
64-bit memory extensions to the IA-32 architecture
Intel Virtualization Technology. Processor virtualization, when used in conjunction
with Virtual Machine Monitor software, enables multiple, robust independent software
environments inside a single platform.
Intel Virtualization Technology (Intel VT) for Directed I/O. Intel VT-d is a hardware
assist, under system software (Virtual Machine Manager or OS) control, for enabling
I/O device virtualization. Intel VT-d also brings robust security by providing protection
from errant DMAs by using DMA remapping, a key feature of Intel VT-d.
Low Frequency Mode. LFM is Pn in the P-state table. It can be read at MSR CEh
[47:40].
Minimum Frequency Mode. MFM is the minimum ratio supported by the processor and
can be read from MSR CEh [55:48].
continued...
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 13
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Introduction
Term Description
Non-Critical to Function. NCTF locations are typically redundant ground or non-critical
NCTF
reserved, so the loss of the solder joint continuity at end of life conditions will not
affect the overall product functionality.
ODT On-Die Termination
OLTM Open Loop Thermal Management
PCG
Platform Compatibility Guide (PCG) (previously known as FMB) provides a design
target for meeting all planned processor frequency requirements.
Platform Controller Hub. The chipset with centralized platform capabilities including
PCH
the main I/O interfaces along with display connectivity, audio features, power
management, manageability, security, and storage features.
The Platform Environment Control Interface (PECI) is a one-wire interface that
PECI
provides a communication channel between Intel processor and chipset components
to external monitoring devices.
Case-to-ambient thermal characterization parameter (psi). A measure of thermal
Ψ
ca
solution performance using total package power. Defined as (T
Package Power. The heat source should always be specified for Y measurements.
- TLA ) / Total
CASE
PCI Express* Graphics. External Graphics using PCI Express* Architecture. It is a
PEG
high-speed serial interface where configuration is software compatible with the
existing PCI specifications.
PL1, PL2 Power Limit 1 and Power Limit 2
PPD Pre-charge Power-down
Processor The 64-bit multi-core component (package)
The term “processor core” refers to Si die itself, which can contain multiple execution
Processor Core
cores. Each execution core has an instruction cache, data cache, and 256-KB L2
cache. All execution cores share the L3 cache.
Processor Graphics Intel Processor Graphics
Rank A unit of DRAM corresponding to four to eight devices in parallel, ignoring ECC.
SCI System Control Interrupt. SCI is used in the ACPI protocol.
SF Strips and Fans
SMM System Management Mode
SMX Safer Mode Extensions
A non-operational state. The processor may be installed in a platform, in a tray, or
loose. Processors may be sealed in packaging or exposed to free air. Under these
conditions, processor landings should not be connected to any supply voltages, have
Storage Conditions
any I/Os biased, or receive any clocks. Upon exposure to “free air” (that is, unsealed
packaging or a device removed from packaging material), the processor must be
handled in accordance with moisture sensitivity labeling (MSL) as indicated on the
packaging material.
SVID Serial Voltage Identification
TAC Thermal Averaging Constant
TAP Test Access Point
T
CASE
The case temperature of the processor, measured at the geometric center of the topside of the TTV IHS.
TCC Thermal Control Circuit
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
14 Order No.: 328907-001
Introduction—Processor
T
CONTROL
TDP
TLB Translation Look-aside Buffer
TTV
TM
V
CC
V
DDQ
VF Vertex Fetch
VID Voltage Identification
VS Vertex Shader
VLD Variable Length Decoding
VMM Virtual Machine Monitor
VR Voltage Regulator
V
SS
x1 Refers to a Link or Port with one Physical Lane
x2 Refers to a Link or Port with two Physical Lanes
x4 Refers to a Link or Port with four Physical Lanes
x8 Refers to a Link or Port with eight Physical Lanes
x16 Refers to a Link or Port with sixteen Physical Lanes
Term Description
T
is a static value that is below the TCC activation temperature and used as a
CONTROL
trigger point for fan speed control. When DTS > T
to the TTV thermal profile.
Thermal Design Power: Thermal solution should be designed to dissipate this target
power level. TDP is not the maximum power that the processor can dissipate.
Thermal Test Vehicle. A mechanically equivalent package that contains a resistive
heater in the die to evaluate thermal solutions.
Thermal Monitor. A power reduction feature designed to decrease temperature after
the processor has reached its maximum operating temperature.
Processor core power supply
DDR3L power supply.
Processor ground
, the processor must comply
CONTROL
1.7 Related Documents
Table 2. Related Documents
Document Document
Intel® Xeon® Processor E3-1200 v3 Product Family Datasheet, Volume 2 of 2 329000
Intel® Xeon® Processor E3-1200 v3 Product Family Specification Update 328908
Desktop 4th Generation Intel® Core® Processor Family and Intel® Xeon® Processor
E3-1200 v3 Product Family Thermal Mechanical Design Guidelines
LGA1150 Socket Application Guide 328999
Intel® 8 Series / C220 Series Chipset Family Platform Controller Hub (PCH)
Datasheet
Intel® 8 Series / C220 Series Chipset Family Platform Controller Hub (PCH)
Specification Update
Intel® 8 Series / C220 Series Chipset Family Platform Controller Hub (PCH) Thermal
Mechanical Specifications and Design Guidelines
Intel® Xeon® Processor E3-1200 v3 Product Family
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 15
Number / Location
328900
328904
328905
328906
continued...
Processor—Introduction
Document Document
Advanced Configuration and Power Interface 3.0
PCI Local Bus Specification 3.0
PCI Express Base Specification, Revision 2.0
DDR3 SDRAM Specification
DisplayPort* Specification http://www.vesa.org
Intel® 64 and IA-32 Architectures Software Developer's Manuals
Number / Location
http://
www.acpi.info/
http://
www.pcisig.com/
specifications
http://
www.pcisig.com
http://
www.jedec.org
http://
www.intel.com/
products/processor/
manuals/index.htm
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
16 Order No.: 328907-001
Interfaces—Processor
2.0 Interfaces
2.1 System Memory Interface
• Two channels of DDR3/DDR3L Unbuffered Dual In-Line Memory Modules (UDIMM)
with a maximum of two DIMMs per channel.
• Single-channel and dual-channel memory organization modes
• Data burst length of eight for all memory organization modes
• Memory data transfer rates of 1333 MT/s and 1600 MT/s
• 64-bit wide channels
• DDR3/DDR3L I/O Voltage of 1.5 V for Intel AMT Server, and Workstation
• DDR3L I/O voltage of 1.35 V for Rack/Micro Server
• The type of the DIMM modules supported by the processor is dependent on the
PCH SKU in the target platform:
— Server PCH platforms support ECC UDIMMs only
— Workstation PCH platforms support ECC and non-ECC UDIMMs
• Theoretical maximum memory bandwidth of:
— 21.3 GB/s in dual-channel mode assuming 1333 MT/s
— 25.6 GB/s in dual-channel mode assuming 1600 MT/s
• 1Gb, 2Gb, and 4Gb DDR3/DDR3L DRAM device technologies are supported
— Using 4Gb DRAM device technologies, the largest system memory capacity
possible is 32 GB, assuming Dual Channel Mode with four x8 dual ranked
DIMM memory configuration
• Up to 64 simultaneous open pages, 32 per channel (assuming 8 ranks of 8 bank
devices)
• Processor on-die VREF generation for DDR DQ Read and Write as well as
CMD/ADD
• Command launch modes of 1n/2n
• On-Die Termination (ODT)
• Asynchronous ODT
• Intel Fast Memory Access (Intel FMA):
— Just-in-Time Command Scheduling
— Command Overlap
— Out-of-Order Scheduling
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 17
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Interfaces
2.1.1 System Memory Technology Supported
The Integrated Memory Controller (IMC) supports DDR3/DDR3L protocols with two
independent, 64-bit wide channels each accessing one or two DIMMs. The type of
memory supported by the processor is dependent on the PCH SKU in the target
platform.
Note: The IMC supports a maximum of two DDR3/DDR3L DIMMs per channel; thus, allowing
up to four device ranks per channel.
Note: The support of DDR3/DDR3L frequencies and number of DIMMs per channel is SKU
dependent.
Table 3. Processor DIMM Support by Product
Processor Cores Package DIMM per Channel DDR3 / DDR3L
Dual Core uLGA
Quad Core uLGA
1 DPC 1333/1600
2 DPC 1333/1600
1 DPC 1333/1600
2 DPC 1333/1600
DDR3/DDR3L Data Transfer Rates:
• 1333 MT/s (PC3-10600)
• 1600 MT/s (PC3-12800)
• Standard 1Gb, 2Gb, and 4Gb technologies and addressing are supported for x8
devices. There is no support for memory modules with different technologies or
capacities on opposite sides of the same memory module. If one side of a memory
module is populated, the other side is either identical or empty.
Worksation platforms UDIMM Modules:
• Raw Card A – Single Ranked x8 unbuffered non-ECC
• Raw Card B – Dual Ranked x8 unbuffered non-ECC
• Raw Card D – Single Ranked x8 unbuffered ECC
• Raw Card E – Dual Ranked x8 unbuffered ECC
Server platforms UDIMM Modules:
• Raw Card D – Single Ranked x8 unbuffered ECC
• Raw Card E – Dual Ranked x8 unbuffered ECC
Table 4. Supported UDIMM Module Configurations
Raw
Card
Version
DIMM
Capacity
DRAM
Device
Technology
Unbuffered / Non-ECC Supported DIMM Module Configurations
DRAM
Organization
Server / Workstation Platforms
# of
DRAM
Devices
Physical
Devices
# of
Ranks
# of
Row / Col
Address
Bits
# of
Banks
Inside
DRAM
Page Size
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
18 Order No.: 328907-001
Interfaces—Processor
Raw
Card
Version
A 1 GB 1 Gb 128 M X 8 8 1 14/10 8 8K
B
D
E
DIMM
Capacity
2 GB 1 Gb 128 M X 8 16 2 14/10 8 8K
4 GB 2 Gb 256 M X 8 16 2 15/10 8 8K
4 GB 4 Gb 512 M X 8 8 1 15/10 8 8K
8 GB 4 Gb 512 M X 8 16 2 16/10 8 8K
1 GB 1 Gb 128 M X 8 9 1 14/10 8 8K
2 GB 2 Gb 256 M X 8 9 1 15/10 8 8K
2 GB 1 Gb 128 M X 8 18 2 14/10 8 8K
4 GB 2 Gb 256 M X 8 18 2 15/10 8 8K
8 GB 4 Gb 512 M X 8 18 2 16/10 8 8K
DRAM
Device
Technology
Unbuffered / ECC Supported DIMM Module Configurations
DRAM
Organization
Server and Workstation Platforms
# of
DRAM
Devices
# of
Physical
Devices
Ranks
# of
Row / Col
Address
Bits
# of
Banks
Inside
DRAM
Page Size
Note: DIMM module support is based on availability and is subject to change.
Note: System memory configurations are based on availability and are subject to change.
2.1.2 System Memory Timing Support
2.1.3
The IMC supports the following DDR3L Speed Bin, CAS Write Latency (CWL), and
command signal mode timings on the main memory interface:
• tCL = CAS Latency
• tRCD = Activate Command to READ or WRITE Command delay
• tRP = PRECHARGE Command Period
• CWL = CAS Write Latency
• Command Signal modes = 1N indicates a new command may be issued every
clock and 2N indicates a new command may be issued every 2 clocks. Command
launch mode programming depends on the transfer rate and memory
configuration.
System Memory Organization Modes
The Integrated Memory Controller (IMC) supports two memory organization modes –
single-channel and dual-channel. Depending upon how the DIMM Modules are
populated in each memory channel, a number of different configurations can exist.
Single-Channel Mode
In this mode, all memory cycles are directed to a single-channel. Single-channel mode
is used when either Channel A or Channel B DIMM connectors are populated in any
order, but not both.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 19
Intel® Xeon® Processor E3-1200 v3 Product Family
CH BCH A
B B
C
B
B
C
Non interleaved
access
Dual channel
interleaved access
TOM
CH A and CH B can be configured to be physical channels 0 or 1
B – The largest physical memory amount of the smaller size memory module
C – The remaining physical memory amount of the larger size memory module
Processor—Interfaces
Dual-Channel Mode – Intel® Flex Memory Technology Mode
The IMC supports Intel Flex Memory Technology Mode. Memory is divided into
symmetric and asymmetric zones. The symmetric zone starts at the lowest address in
each channel and is contiguous until the asymmetric zone begins or until the top
address of the channel with the smaller capacity is reached. In this mode, the system
runs with one zone of dual-channel mode and one zone of single-channel mode,
simultaneously, across the whole memory array.
Note: Channels A and B can be mapped for physical channel 0 and 1 respectively or vice
versa; however, channel A size must be greater or equal to channel B size.
Figure 2. Intel® Flex Memory Technology Operations
Dual-Channel Symmetric Mode
Dual-Channel Symmetric mode, also known as interleaved mode, provides maximum
performance on real world applications. Addresses are ping-ponged between the
channels after each cache line (64-byte boundary). If there are two requests, and the
second request is to an address on the opposite channel from the first, that request
can be sent before data from the first request has returned. If two consecutive cache
lines are requested, both may be retrieved simultaneously, since they are ensured to
be on opposite channels. Use Dual-Channel Symmetric mode when both Channel A
and Channel B DIMM connectors are populated in any order, with the total amount of
memory in each channel being the same.
When both channels are populated with the same memory capacity and the boundary
between the dual channel zone and the single channel zone is the top of memory, the
IMC operates completely in Dual-Channel Symmetric mode.
Note:
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
20 Order No.: 328907-001
The DRAM device technology and width may vary from one channel to the other.
Interfaces—Processor
2.1.3.1 System Memory Frequency
In all modes, the frequency of system memory is the lowest frequency of all memory
modules placed in the system, as determined through the SPD registers on the
memory modules. The system memory controller supports one or two DIMM
connectors per channel. The usage of DIMM modules with different latencies is
allowed, but in that case, the worst latency (among two channels) will be used. For
dual-channel modes, both channels must have a DIMM connector populated and for
single-channel mode only a single-channel may have one or both DIMM connectors
populated.
2.1.3.2 Intel® Fast Memory Access (Intel® FMA) Technology Enhancements
The following sections describe the Just-in-Time Scheduling, Command Overlap, and
Out-of-Order Scheduling Intel FMA technology enhancements.
Just-in-Time Command Scheduling
The memory controller has an advanced command scheduler where all pending
requests are examined simultaneously to determine the most efficient request to be
issued next. The most efficient request is picked from all pending requests and issued
to system memory Just-in-Time to make optimal use of Command Overlapping. Thus,
instead of having all memory access requests go individually through an arbitration
mechanism forcing requests to be executed one at a time, they can be started without
interfering with the current request allowing for concurrent issuing of requests. This
allows for optimized bandwidth and reduced latency while maintaining appropriate
command spacing to meet system memory protocol.
Command Overlap
Command Overlap allows the insertion of the DRAM commands between the Activate,
Pre-charge, and Read/Write commands normally used, as long as the inserted
commands do not affect the currently executing command. Multiple commands can be
issued in an overlapping manner, increasing the efficiency of system memory protocol.
Out-of-Order Scheduling
While leveraging the Just-in-Time Scheduling and Command Overlap enhancements,
the IMC continuously monitors pending requests to system memory for the best use of
bandwidth and reduction of latency. If there are multiple requests to the same open
page, these requests would be launched in a back-to-back manner to make optimum
use of the open memory page. This ability to reorder requests on the fly allows the
IMC to further reduce latency and increase bandwidth efficiency.
2.1.3.3 Data Scrambling
The system memory controller incorporates a Data Scrambling feature to minimize the
impact of excessive di/dt on the platform system memory VRs due to successive 1s
and 0s on the data bus. Past experience has demonstrated that traffic on the data bus
is not random and can have energy concentrated at specific spectral harmonics
creating high di/dt which is generally limited by data patterns that excite resonance
between the package inductance and on die capacitances. As a result, the system
memory controller uses a data scrambling feature to create pseudo-random patterns
on the system memory data bus to reduce the impact of any excessive di/dt.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 21
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Interfaces
2.2 PCI Express* Interface
This section describes the PCI Express* interface capabilities of the processor. See the
PCI Express Base* Specification 3.0 for details on PCI Express*.
2.2.1 PCI Express* Support
The PCI Express* lanes (PEG[15:0] TX and RX) are fully-compliant to the PCI Express
Base Specification, Revision 3.0.
The Intel® Xeon® processor with the Server / Workstation PCH supports the
configurations shown in the following table (may vary depending on PCH SKUs).
Table 5. PCI Express* Supported Configurations in Server / Workstation Products
Configuration Essential Server Standard Server Advanced Workstation /
1x8, 2x4 I/O I/O GFX, I/O
2x8 I/O I/O GFX, I/O, Dual x8 GFX
1x16 GFX, I/O GFX, I/O GFX, I/O
Server
• The port may negotiate down to narrower widths.
— Support for x16/x8/x4/x2/x1 widths for a single PCI Express* mode.
• 2.5 GT/s, 5.0 GT/s and 8 GT/s PCI Express* bit rates are supported.
• Gen1 Raw bit-rate on the data pins of 2.5 GT/s, resulting in a real bandwidth per
pair of 250 MB/s given the 8b/10b encoding used to transmit data across this
interface. This also does not account for packet overhead and link maintenance.
Maximum theoretical bandwidth on the interface of 4 GB/s in each direction
simultaneously, for an aggregate of 8 GB/s when x16 Gen 1.
• Gen 2 Raw bit-rate on the data pins of 5.0 GT/s, resulting in a real bandwidth per
pair of 500 MB/s given the 8b/10b encoding used to transmit data across this
interface. This also does not account for packet overhead and link maintenance.
Maximum theoretical bandwidth on the interface of 8 GB/s in each direction
simultaneously, for an aggregate of 16 GB/s when x16 Gen 2.
• Gen 3 raw bit-rate on the data pins of 8.0 GT/s, resulting in a real bandwidth per
pair of 984 MB/s using 128b/130b encoding to transmit data across this interface.
This also does not account for packet overhead and link maintenance. Maximum
theoretical bandwidth on the interface of 16 GB/s in each direction simultaneously,
for an aggregate of 32 GB/s when x16 Gen 3.
• Hierarchical PCI-compliant configuration mechanism for downstream devices.
• Traditional PCI style traffic (asynchronous snooped, PCI ordering).
• PCI Express* extended configuration space. The first 256 bytes of configuration
space aliases directly to the PCI Compatibility configuration space. The remaining
portion of the fixed 4-KB block of memory-mapped space above that (starting at
100h) is known as extended configuration space.
• PCI Express* Enhanced Access Mechanism. Accessing the device configuration
space in a flat memory mapped fashion.
• Automatic discovery, negotiation, and training of link out of reset.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
22 Order No.: 328907-001
Interfaces—Processor
• Traditional AGP style traffic (asynchronous non-snooped, PCI-X Relaxed ordering).
• Peer segment destination posted write traffic (no peer-to-peer read traffic) in
Virtual Channel 0: DMI -> PCI Express* Port 0
• 64-bit downstream address format, but the processor never generates an address
above 64 GB (Bits 63:36 will always be zeros).
• 64-bit upstream address format, but the processor responds to upstream read
transactions to addresses above 64 GB (addresses where any of Bits 63:36 are
nonzero) with an Unsupported Request response. Upstream write transactions to
addresses above 64 GB will be dropped.
• Re-issues Configuration cycles that have been previously completed with the
Configuration Retry status.
• PCI Express* reference clock is 100-MHz differential clock.
• Power Management Event (PME) functions.
• Dynamic width capability.
• Message Signaled Interrupt (MSI and MSI-X) messages.
• Polarity inversion
Note: The processor does not support PCI Express* Hot-Plug.
2.2.2 PCI Express* Architecture
Compatibility with the PCI addressing model is maintained to ensure that all existing
applications and drivers operate unchanged.
The PCI Express* configuration uses standard mechanisms as defined in the PCI Plugand-Play specification. The processor PCI Express* ports support Gen 3. At 8 GT/s,
Gen 3 operation results in twice as much bandwidth per lane as compared to Gen 2
operation. The 16 lanes PEG can operate at 2.5 GT/s, 5 GT/s, or 8 GT/s.
Gen 3 PCI Express* uses a 128b/130b encoding that is about 23% more efficient than
the 8b/10b encoding used in Gen 1 and Gen 2.
The PCI Express* architecture is specified in three layers – Transaction Layer, Data
Link Layer, and Physical Layer. See the PCI Express Base Specification 3.0 for details
of PCI Express* architecture.
2.2.3
PCI Express* Configuration Mechanism
The PCI Express* (external graphics) link is mapped through a PCI-to-PCI bridge
structure.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 23
Intel® Xeon® Processor E3-1200 v3 Product Family
Figure 3. PCI Express* Related Register Structures in the Processor
PCI-PCI
Bridge
representing
root PCI
Express ports
(Device 1 and
Device 6)
PCI
Compatible
Host Bridge
Device
(Device 0)
PCI
Express*
Device
PEG0
DMI
PCI Express* extends the configuration space to 4096 bytes per-device/function, as
compared to 256 bytes allowed by the conventional PCI specification. PCI Express*
configuration space is divided into a PCI-compatible region (that consists of the first
256 bytes of a logical device's configuration space) and an extended PCI Express*
region (that consists of the remaining configuration space). The PCI-compatible region
can be accessed using either the mechanisms defined in the PCI specification or using
the enhanced PCI Express* configuration access mechanism described in the PCI
Express* Enhanced Configuration Mechanism section.
Processor—Interfaces
The PCI Express* Host Bridge is required to translate the memory-mapped PCI
Express* configuration space accesses from the host processor to PCI Express*
configuration cycles. To maintain compatibility with PCI configuration addressing
mechanisms, it is recommended that system software access the enhanced
configuration space using 32-bit operations (32-bit aligned) only. See the PCI Express
Base Specification for details of both the PCI-compatible and PCI Express* Enhanced
configuration mechanisms and transaction rules.
PCI Express* Lanes Connection
The following figure demonstrates the PCIe* lane mapping.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
24 Order No.: 328907-001
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1 X 16
Co
ntroller
Lane 0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Lane 1
Lane 2
Lane 3
Lane 4
Lane 5
Lane 6
Lane 7
Lane 8
Lane 9
Lane 10
Lane 11
Lane 12
Lane 13
Lane 14
Lane 15
0
1
2
3
4
5
6
7
1 X 8 Controller
0
1
2
3
1 X 4 Cont
ro
ller
Interfaces—Processor
Figure 4. PCI Express* Typical Operation 16 Lanes Mapping
2.3 Direct Media Interface (DMI)
Direct Media Interface (DMI) connects the processor and the PCH. Next generation
DMI2 is supported.
Note: Only DMI x4 configuration is supported.
• DMI 2.0 support.
• Compliant to Direct Media Interface Second Generation (DMI2).
• Four lanes in each direction.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 25
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Interfaces
• 5 GT/s point-to-point DMI interface to PCH is supported.
• Raw bit-rate on the data pins of 5.0 GB/s, resulting in a real bandwidth per pair of
500 MB/s given the 8b/10b encoding used to transmit data across this interface.
Does not account for packet overhead and link maintenance.
• Maximum theoretical bandwidth on interface of 2 GB/s in each direction
simultaneously, for an aggregate of 4 GB/s when DMI x4.
• Shares 100-MHz PCI Express* reference clock.
• 64-bit downstream address format, but the processor never generates an address
above 64 GB (Bits 63:36 will always be zeros).
• 64-bit upstream address format, but the processor responds to upstream read
transactions to addresses above 64 GB (addresses where any of Bits 63:36 are
nonzero) with an Unsupported Request response. Upstream write transactions to
addresses above 64 GB will be dropped.
• Supports the following traffic types to or from the PCH:
— DMI -> DRAM
— DMI -> processor core (Virtual Legacy Wires (VLWs), Resetwarn, or MSIs
only)
— Processor core -> DMI
• APIC and MSI interrupt messaging support:
— Message Signaled Interrupt (MSI and MSI-X) messages
• Downstream SMI, SCI and SERR error indication.
• Legacy support for ISA regime protocol (PHOLD/PHOLDA) required for parallel port
DMA, floppy drive, and LPC bus masters.
• DC coupling – no capacitors between the processor and the PCH.
• Polarity inversion.
• PCH end-to-end lane reversal across the link.
• Supports Half Swing “low-power/low-voltage”.
DMI Error Flow
DMI can only generate SERR in response to errors, never SCI, SMI, MSI, PCI INT, or
GPE. Any DMI related SERR activity is associated with Device 0.
DMI Link Down
The DMI link going down is a fatal, unrecoverable error. If the DMI data link goes to
data link down, after the link was up, then the DMI link hangs the system by not
allowing the link to retrain to prevent data corruption. This link behavior is controlled
by the PCH.
Downstream transactions that had been successfully transmitted across the link prior
to the link going down may be processed as normal. No completions from
downstream, non-posted transactions are returned upstream over the DMI link after a
link down event.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
26 Order No.: 328907-001
Interfaces—Processor
2.4 Processor Graphics
The processor graphics contains a generation 7.5 graphics core architecture. This
enables substantial gains in performance and lower power consumption over previous
generations. Up to 20 Execution Units are supported depending on the processor SKU.
• Next Generation Intel Clear Video Technology HD Support is a collection of video
playback and enhancement features that improve the end user’s viewing
experience
— Encode / transcode HD content
— Playback of high definition content including Blu-ray Disc*
— Superior image quality with sharper, more colorful images
— Playback of Blu-ray* disc S3D content using HDMI (1.4a specification
compliant with 3D)
• DirectX* Video Acceleration (DXVA) support for accelerating video processing
— Full AVC/VC1/MPEG2 HW Decode
• Advanced Scheduler 2.0, 1.0, XPDM support
• Windows* 8, Windows* 7, OSX, Linux* operating system support
• DirectX* 11.1, DirectX* 11, DirectX* 10.1, DirectX* 10, DirectX* 9 support.
• OpenGL* 4.0, support
• Switchable Graphics support on AIO platforms with MxM solutions only
2.5
Processor Graphics Controller (GT)
The New Graphics Engine Architecture includes 3D compute elements, Multi-format
HW assisted decode/encode pipeline, and Mid-Level Cache (MLC) for superior high
definition playback, video quality, and improved 3D performance and media.
The Display Engine handles delivering the pixels to the screen. GSA (Graphics in
System Agent) is the primary channel interface for display memory accesses and
“PCI-like” traffic in and out.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 27
Intel® Xeon® Processor E3-1200 v3 Product Family
Figure 5. Processor Graphics Controller Unit Block Diagram
Processor—Interfaces
2.5.1 3D and Video Engines for Graphics Processing
The Gen 7.5 3D engine provides the following performance and power-management
enhancements.
3D Pipeline
The 3D graphics pipeline architecture simultaneously operates on different primitives
or on different portions of the same primitive. All the cores are fully programmable,
increasing the versatility of the 3D Engine.
3D Engine Execution Units
• Supports up to 20 EUs. The EUs perform 128-bit wide execution per clock.
• Support SIMD8 instructions for vertex processing and SIMD16 instructions for
pixel processing.
Vertex Fetch (VF) Stage
The VF stage executes 3DPRIMITIVE commands. Some enhancements have been
included to better support legacy D3D APIs as well as SGI OpenGL*.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
28 Order No.: 328907-001
Interfaces—Processor
Vertex Shader (VS) Stage
The VS stage performs shading of vertices output by the VF function. The VS unit
produces an output vertex reference for every input vertex reference received from
the VF unit, in the order received.
Geometry Shader (GS) Stage
The GS stage receives inputs from the VS stage. Compiled application-provided GS
programs, specifying an algorithm to convert the vertices of an input object into some
output primitives. For example, a GS shader may convert lines of a line strip into
polygons representing a corresponding segment of a blade of grass centered on the
line. Or it could use adjacency information to detect silhouette edges of triangles and
output polygons extruding out from the edges.
Clip Stage
The Clip stage performs general processing on incoming 3D objects. However, it also
includes specialized logic to perform a Clip Test function on incoming objects. The Clip
Test optimizes generalized 3D Clipping. The Clip unit examines the position of
incoming vertices, and accepts/rejects 3D objects based on its Clip algorithm.
Strips and Fans (SF) Stage
The SF stage performs setup operations required to rasterize 3D objects. The outputs
from the SF stage to the Windower stage contain implementation-specific information
required for the rasterization of objects and also supports clipping of primitives to
some extent.
Windower / IZ (WIZ) Stage
The WIZ unit performs an early depth test, which removes failing pixels and
eliminates unnecessary processing overhead.
The Windower uses the parameters provided by the SF unit in the object-specific
rasterization algorithms. The WIZ unit rasterizes objects into the corresponding set of
pixels. The Windower is also capable of performing dithering, whereby the illusion of a
higher resolution when using low-bpp channels in color buffers is possible. Color
dithering diffuses the sharp color bands seen on smooth-shaded objects.
Video Engine
The Video Engine handles the non-3D (media/video) applications. It includes support
for VLD and MPEG2 decode in hardware.
2D Engine
The 2D Engine contains BLT (Block Level Transfer) functionality and an extensive set
of 2D instructions. To take advantage of the 3D during engine’s functionality, some
BLT functions make use of the 3D renderer.
Processor Graphics VGA Registers
The 2D registers consists of original VGA registers and others to support graphics
modes that have color depths, resolutions, and hardware acceleration features that go
beyond the original VGA standard.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 29
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Interfaces
Logical 128-Bit Fixed BLT and 256 Fill Engine
This BLT engine accelerates the GUI of Microsoft Windows* operating systems. The
128-bit BLT engine provides hardware acceleration of block transfers of pixel data for
many common Windows operations. The BLT engine can be used for the following:
• Move rectangular blocks of data between memory locations
• Data alignment
• To perform logical operations (raster ops)
The rectangular block of data does not change, as it is transferred between memory
locations. The allowable memory transfers are between: cacheable system memory
and frame buffer memory, frame buffer memory and frame buffer memory, and within
system memory. Data to be transferred can consist of regions of memory, patterns, or
solid color fills. A pattern is always 8 x 8 pixels wide and may be 8, 16, or 32 bits per
pixel.
The BLT engine expands monochrome data into a color depth of 8, 16, or 32 bits.
BLTs can be either opaque or transparent. Opaque transfers move the data specified
to the destination. Transparent transfers compare destination color to source color and
write according to the mode of transparency selected.
Data is horizontally and vertically aligned at the destination. If the destination for the
BLT overlaps with the source memory location, the BLT engine specifies which area in
memory to begin the BLT transfer. Hardware is included for all 256 raster operations
(source, pattern, and destination) defined by Microsoft*, including transparent BLT.
The BLT engine has instructions to invoke BLT and stretch BLT operations, permitting
software to set up instruction buffers and use batch processing. The BLT engine can
perform hardware clipping during BLTs.
2.5.2
Multi Graphics Controllers Multi-Monitor Support
The processor supports simultaneous use of the Processor Graphics Controller (GT)
and a x16 PCI Express* Graphics (PEG) device. The processor supports a maximum of
2 displays connected to the PEG card in parallel with up to 2 displays connected to the
processor and PCH.
Note: When supporting Multi Graphics Multi Monitors, "drag and drop" between monitors and
the 2x8PEG is not supported.
2.6 Digital Display Interface (DDI)
• The processor supports:
— Three Digital Display (x4 DDI) interfaces that can be configured as
DisplayPort*, HDMI*, or DVI. DisplayPort* can be configured to use 1, 2, or 4
lanes depending on the bandwidth requirements and link data rate of RBR
(1.62 GT/s), HBR (2.7 GT/s) and HBR2 (5.4 GT/s). When configured as
HDMI*, DDIx4 port can support 2.97 GT/s. In addition, Digital Port D ( x4
DDI) interface can also be configured to carry embedded DisplayPort*
(eDPx4). Built-in displays are only supported on Digital Port D.
— One dedicated Intel FDI Port for legacy VGA support on the PCH.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
30 Order No.: 328907-001
Memory \ Config Interface
Display
Pipe A
Display
Pipe B
Display
Pipe C
Panel Fitting
HD Audio
Controller
Transcoder A
DP / HDMI
Timing, VDIP
Transcoder B
DP / HDMI
Timing, VDIP
Transcoder C
DP / HDMI
Timing, VDIP
eDP* Mux
Transcoder eDP*
DP encoder
Timing, VDIP
DPT, SRID
Port Mux
Audio
Codec
DP
Aux
PCH Display
DDI Ports B, C, and D
DP /
HDMI /
DVI
DP /
HDMI /
DVI / eDP
DMI DMI
FDI
FDI
RX
DP /
HDMI /
DVI
D
C
B
Interfaces—Processor
• The HDMI* interface supports HDMI with 3D, 4K, Deep Color, and x.v.Color. The
• The processor supports High-bandwidth Digital Content Protection (HDCP) for
• The processor also integrates dedicated a Mini HD audio controller to drive audio
• The processor supports streaming any 3 independent and simultaneous display
• Each digital port is capable of driving resolutions up to 3840x2160 at 60 Hz
• DisplayPort* Aux CH, DDC channel, Panel power sequencing, and HPD are
DisplayPort* interface supports the VESA DisplayPort* Standard Version 1,
Revision 2.
high-definition content playback over digital interfaces.
on integrated digital display interfaces, such as HDMI* and DisplayPort*. The HD
audio controller on the PCH would continue to support down CODECs, and so on.
The processor Mini HD audio controller supports two High-Definition Audio streams
simultaneously on any of the three digital ports.
combination of DisplayPort*/HDMI*/DVI/eDP*/VGA monitors with the exception of
3 simultaneous display support of HDMI*/DVI . In the case of 3 simultaneous
displays, two High Definition Audio streams over the digital display interfaces are
supported.
through DisplayPort* and 4096x2304 at 24 Hz/2560x1600 at 60 Hz using HDMI*.
supported through the PCH.
Figure 6. Processor Display Architecture
Display is the presentation stage of graphics. This involves:
• Pulling rendered data from memory
• Converting raw data into pixels
• Blending surfaces into a frame
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 31
Intel® Xeon® Processor E3-1200 v3 Product Family
Source Device Sink Device
Main Link
(Isochronous Streams)
AUX CH
(Link/Device Managemet)
Hot-Plug Detect
(Interrupt Request)
DisplayPort Tx
DisplayPort Rx
Processor—Interfaces
• Organizing pixels into frames
• Optionally scaling the image to the desired size
• Re-timing data for the intended target
• Formatting data according to the port output standard
DisplayPort*
DisplayPort* is a digital communication interface that uses differential signaling to
achieve a high-bandwidth bus interface designed to support connections between PCs
and monitors, projectors, and TV displays. DisplayPort* is also suitable for display
connections between consumer electronics devices, such as high-definition optical disc
players, set top boxes, and TV displays.
A DisplayPort* consists of a Main Link, Auxiliary channel, and a Hot-Plug Detect signal.
The Main Link is a unidirectional, high-bandwidth, and low latency channel used for
transport of isochronous data streams such as uncompressed video and audio. The
Auxiliary Channel (AUX CH) is a half-duplex bidirectional channel used for link
management and device control. The Hot-Plug Detect (HPD) signal serves as an
interrupt request for the sink device.
The processor is designed in accordance with the VESA DisplayPort* Standard Version
1.2a. The processor supports VESA DisplayPort* PHY Compliance Test Specification
1.2a and VESA DisplayPort* Link Layer Compliance Test Specification 1.2a.
Figure 7. DisplayPort* Overview
High-Definition Multimedia Interface (HDMI*)
The High-Definition Multimedia Interface* (HDMI*) is provided for transmitting
uncompressed digital audio and video signals from DVD players, set-top boxes, and
other audiovisual sources to television sets, projectors, and other video displays. It
can carry high quality multi-channel audio data and all standard and high-definition
consumer electronics video formats. The HDMI display interface connecting the
processor and display devices uses transition minimized differential signaling (TMDS)
to carry audiovisual information through the same HDMI cable.
HDMI includes three separate communications channels: TMDS, DDC, and the optional
CEC (consumer electronics control). CEC is not supported on the processor. As shown
in the following figure, the HDMI cable carries four differential pairs that make up the
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
32 Order No.: 328907-001
HDMI Source
HDMI Sink
TMDS Data Channel 0
Hot-Plug Detect
HDMI Tx HDMI Rx
TMDS
Data
Channel
1
TMDS Data Channel 2
TMDS Clock Channel
CEC Line (optional)
Display Data Channel (DDC)
Interfaces—Processor
TMDS data and clock channels. These channels are used to carry video, audio, and
auxiliary data. In addition, HDMI carries a VESA DDC. The DDC is used by an HDMI
Source to determine the capabilities and characteristics of the Sink.
Audio, video, and auxiliary (control/status) data is transmitted across the three TMDS
data channels. The video pixel clock is transmitted on the TMDS clock channel and is
used by the receiver for data recovery on the three data channels. The digital display
data signals driven natively through the PCH are AC coupled and needs level shifting
to convert the AC coupled signals to the HDMI compliant digital signals.
The processor HDMI interface is designed in accordance with the High-Definition
Multimedia Interface with 3D, 4K, Deep Color, and x.v.Color.
Figure 8. HDMI* Overview
Digital Video Interface
The processor Digital Ports can be configured to drive DVI-D. DVI uses TMDS for
transmitting data from the transmitter to the receiver, which is similar to the HDMI
protocol except for the audio and CEC. Refer to the HDMI section for more information
on the signals and data transmission. To drive DVI-I through the back panel the VGA
DDC signals are connected along with the digital data and clock signals from one of
the Digital Ports. When a system has support for a DVI-I port, then either VGA or the
DVI-D through a single DVI-I connector can be driven, but not both simultaneously.
The digital display data signals driven natively through the processor are AC coupled
and need level shifting to convert the AC coupled signals to the HDMI compliant digital
signals.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 33
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Interfaces
Embedded DisplayPort*
Embedded DisplayPort* (eDP*) is an embedded version of the DisplayPort standard
oriented towards applications such as notebook and All-In-One PCs. Digital Port D can
be configured as eDP. Like DisplayPort, Embedded DisplayPort also consists of a Main
Link, Auxiliary channel, and an optional Hot-Plug Detect signal.
The eDP on the processor can be configured for 2 or 4 lanes.
The processor supports Embedded DisplayPort* (eDP*) Standard Version 1.2 and
VESA Embedded DisplayPort* Standard Version 1.2.
Integrated Audio
• HDMI and display port interfaces carry audio along with video.
• Processor supports two DMA controllers to output two High Definition audio
streams on two digital ports simultaneously.
• Supports only the internal HDMI and DP CODECs.
Table 6. Processor Supported Audio Formats over HDMI*and DisplayPort*
Audio Formats HDMI* DisplayPort*
AC-3 Dolby* Digital Yes Yes
Dolby Digital Plus Yes Yes
DTS-HD* Yes Yes
LPCM, 192 kHz/24 bit, 8 Channel Yes Yes
Dolby TrueHD, DTS-HD Master Audio*
(Lossless Blu-Ray Disc* Audio Format)
Yes Yes
The processor will continue to support Silent stream. Silent stream is an integrated
audio feature that enables short audio streams, such as system events to be heard
over the HDMI and DisplayPort monitors. The processor supports silent streams over
the HDMI and DisplayPort interfaces at 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
176.4 kHz, and 192 kHz sampling rates.
Multiple Display Configurations
The following multiple display configuration modes are supported (with appropriate
driver software):
• Single Display is a mode with one display port activated to display the output to
one display device.
• Intel Display Clone is a mode with up to three display ports activated to drive the
display content of same color depth setting but potentially different refresh rate
and resolution settings to all the active display devices connected.
• Extended Desktop is a mode with up to three display ports activated to drive the
content with potentially different color depth, refresh rate, and resolution settings
on each of the active display devices connected.
The digital ports on the processor can be configured to support DisplayPort*/HDMI/
DVI. For Desktop designs, digital port D can be configured as eDPx4 in addition to
dedicated x2 port for Intel FDI for VGA. The following table shows examples of valid
three display configurations through the processor.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
34 Order No.: 328907-001
Interfaces—Processor
Table 7. Valid Three Display Configurations through the Processor
Display 1 Display 2 Display 3 Maximum
HDMI HDMI DP
DVI DVI DP 1920x1200 @ 60 Hz 3840x2160 @ 60 Hz
DP DP DP 3840x2160 @ 60 Hz
VGA DP HDMI 1920x1200 @ 60 Hz
eDP DP HDMI 3840x2160 @ 60 Hz
eDP DP DP 3840x2160 @ 60 Hz 3840x2160 @ 60 Hz
eDP HDMI HDMI 3840x2160 @ 60 Hz
Notes: 1. Requires support of 2 channel DDR3/DDR3L 1600 MT/s configuration for driving 3 simultaneous
3840x2160 @ 60 Hz display resolutions
2. DP and eDP resolutions in the above table are supported for 4 lanes with link data rate HBR2.
Resolution Display
1
4096x2304 @ 24 Hz
2560x1600 @ 60 Hz
Maximum
Resolution
Display 2
3840x2160 @
60 Hz
3840x2160 @
60 Hz
4096x2304 @ 24 Hz
2560x1600 @ 60 Hz
Maximum
Resolution Display
3
3840x2160 @ 60 Hz
4096x2304 @ 24 Hz
2560x1600 @ 60 Hz
4096x2304 @ 24 Hz
2560x1600 @ 60 Hz
The following table shows the DP/eDP resolutions supported for 1, 2, or 4 lanes
depending on link data rate of RBR, HBR, and HBR2.
Table 8. DisplayPort and Embedded DisplayPort* Resolutions for 1, 2, 4 Lanes – Link
Data Rate of RBR, HBR, and HBR2
Link Data Rate Lane Count
1 2 4
RBR 1064x600 1400x1050 2240x1400
HBR 1280x960 1920x1200 2880x1800
HBR2 1920x1200 2880x1800 3840x2160
Any 3 displays can be supported simultaneously using the following rules:
• Maximum of 2 HDMIs
• Maximum of 2 DVIs
• Maximum of 1 HDMI and 1 DVI
• Any 3 DisplayPort
• One VGA
• One eDP
High-bandwidth Digital Content Protection (HDCP)
HDCP is the technology for protecting high-definition content against unauthorized
copy or unreceptive between a source (computer, digital set top boxes, and so on)
and the sink (panels, monitor, and TVs). The processor supports HDCP 1.4 for content
protection over wired displays (HDMI*, DVI, and DisplayPort*).
The HDCP 1.4 keys are integrated into the processor and customers are not required
to physically configure or handle the keys.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 35
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Interfaces
2.7 Intel® Flexible Display Interface (Intel® FDI)
• The Intel Flexible Display Interface (Intel FDI) passes display data from the
processor (source) to the PCH (sink) for display through a display interface on the
PCH.
• Intel FDI supports 2 lanes at 2.7 GT/s fixed frequency. This can be configured to 1
or 2 lanes depending on the bandwidth requirements.
• Intel FDI supports 8 bits per color only.
• Side band sync pin (FDI_CSYNC).
• Side band interrupt pin (DISP_INT). This carries combined interrupt for HPDs of all
the ports, AUX and I2C completion events, and so on.
• Intel FDI is not encrypted as it drives only VGA and content protection is not
supported on VGA.
2.8 Platform Environmental Control Interface (PECI)
PECI is an Intel proprietary interface that provides a communication channel between
Intel processors and external components like Super I/O (SIO) and Embedded
Controllers (EC) to provide processor temperature, Turbo, TDP, and memory throttling
control mechanisms and many other services. PECI is used for platform thermal
management and real time control and configuration of processor features and
performance.
2.8.1
PECI Bus Architecture
The PECI architecture based on wired OR bus that the clients (as processor PECI) can
pull up high (with strong drive).
The idle state on the bus is near zero.
The following figure demonstrates PECI design and connectivity. While the host/
originator can be third party PECI host, and one of the PECI client is a processor PECI
device.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
36 Order No.: 328907-001
V
TT
Host / Originator
Q1
nX
Q2
1X
PECI
C
PECI
<10pF/Node
Q3
nX
V
TT
PECI Client
Additional
PECI Clients
Interfaces—Processor
Figure 9. Example for PECI Host-Clients Connection
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 37
Intel® Xeon® Processor E3-1200 v3 Product Family
3.0 Technologies
This chapter provides a high-level description of Intel technologies implemented in the
processor.
The implementation of the features may vary between the processor SKUs.
Details on the different technologies of Intel processors and other relevant external
notes are located at the Intel technology web site: http://www.intel.com/technology/
3.1 Intel® Virtualization Technology (Intel® VT)
Intel® Virtualization Technology (Intel® VT) makes a single system appear as multiple
independent systems to software. This allows multiple, independent operating systems
to run simultaneously on a single system. Intel VT comprises technology components
to support virtualization of platforms based on Intel architecture microprocessors and
chipsets.
Intel® Virtualization Technology (Intel® VT) for IA-32, Intel® 64 and Intel
Architecture (Intel® VT-x) added hardware support in the processor to improve the
virtualization performance and robustness. Intel® Virtualization Technology for
Directed I/O (Intel VT-d) extends Intel® VT-x by adding hardware assisted support to
improve I/O device virtualization performance.
Processor—Technologies
®
Intel® VT-x specifications and functional descriptions are included in the Intel® 64 and
IA-32 Architectures Software Developer’s Manual, Volume 3B and is available at:
http://www.intel.com/products/processor/manuals/index.htm
The Intel VT-d specification and other VT documents can be referenced at:
http://www.intel.com/technology/virtualization/index.htm
https://sharedspaces.intel.com/sites/PCDC/SitePages/Ingredients/ingredient.aspx?
ing=VT
Intel® VT-x Objectives
Intel VT-x provides hardware acceleration for virtualization of IA platforms. Virtual
Machine Monitor (VMM) can use Intel VT-x features to provide an improved reliable
virtualized platform. By using Intel VT-x, a VMM is:
• Robust: VMMs no longer need to use paravirtualization or binary translation. This
means that they will be able to run off-the-shelf operating systems and
applications without any special steps.
• Enhanced: Intel VT enables VMMs to run 64-bit guest operating systems on IA
x86 processors.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
38 Order No.: 328907-001
Technologies—Processor
• More reliable: Due to the hardware support, VMMs can now be smaller, less
complex, and more efficient. This improves reliability and availability and reduces
the potential for software conflicts.
• More secure: The use of hardware transitions in the VMM strengthens the
isolation of VMs and further prevents corruption of one VM from affecting others
on the same system.
Intel® VT-x Features
The processor supports the following added new Intel VT-x features:
• Extended Page Table (EPT) Accessed and Dirty Bits
— EPT A/D bits enabled VMMs to efficiently implement memory management and
• Extended Page Table Pointer (EPTP) switching
— EPTP switching is a specific VM function. EPTP switching allows guest software
• Pause loop exiting
— Support VMM schedulers seeking to determine when a virtual processor of a
page classification algorithms to optimize VM memory operations, such as defragmentation, paging, live migration, and check-pointing. Without hardware
support for EPT A/D bits, VMMs may need to emulate A/D bits by marking EPT
paging-structures as not-present or read-only, and incur the overhead of EPT
page-fault VM exits and associated software processing.
(in VMX non-root operation, supported by EPT) to request a different EPT
paging-structure hierarchy. This is a feature by which software in VMX nonroot operation can request a change of EPTP without a VM exit. Software will
be able to choose among a set of potential EPTP values determined in advance
by software in VMX root operation.
multiprocessor virtual machine is not performing useful work. This situation
may occur when not all virtual processors of the virtual machine are currently
scheduled and when the virtual processor in question is in a loop involving the
PAUSE instruction. The new feature allows detection of such loops and is thus
called PAUSE-loop exiting.
The processor core supports the following Intel VT-x features:
• Extended Page Tables (EPT)
— EPT is hardware assisted page table virtualization
— It eliminates VM exits from guest OS to the VMM for shadow page-table
maintenance
• Virtual Processor IDs (VPID)
— Ability to assign a VM ID to tag processor core hardware structures (such as
TLBs)
— This avoids flushes on VM transitions to give a lower-cost VM transition time
and an overall reduction in virtualization overhead.
• Guest Preemption Timer
— Mechanism for a VMM to preempt the execution of a guest OS after an amount
of time specified by the VMM. The VMM sets a timer value before entering a
guest
— The feature aids VMM developers in flexibility and Quality of Service (QoS)
guarantees
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 39
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Technologies
• Descriptor-Table Exiting
— Descriptor-table exiting allows a VMM to protect a guest OS from internal
(malicious software based) attack by preventing relocation of key system data
structures like IDT (interrupt descriptor table), GDT (global descriptor table),
LDT (local descriptor table), and TSS (task segment selector).
— A VMM using this feature can intercept (by a VM exit) attempts to relocate
these data structures and prevent them from being tampered by malicious
software.
Intel® VT-d Objectives
The key Intel VT-d objectives are domain-based isolation and hardware-based
virtualization. A domain can be abstractly defined as an isolated environment in a
platform to which a subset of host physical memory is allocated. Intel VT-d provides
accelerated I/O performance for virtualized platform and provides software with the
following capabilities:
• I/O device assignment and security: for flexibly assigning I/O devices to VMs and
extending the protection and isolation properties of VMs for I/O operations.
• DMA remapping: for supporting independent address translations for Direct
Memory Accesses (DMA) from devices.
• Interrupt remapping: for supporting isolation and routing of interrupts from
devices and external interrupt controllers to appropriate VMs.
• Reliability: for recording and reporting to system software DMA and interrupt
errors that may otherwise corrupt memory or impact VM isolation.
Intel VT-d accomplishes address translation by associating transaction from a given
I/O device to a translation table associated with the Guest to which the device is
assigned. It does this by means of the data structure in the following illustration. This
table creates an association between device's PCI Express* ―Bus/Device/Function‖
(B/D/F) number and the base address of a translation table. This data structure is
populated by a VMM to map devices to translation tables in accordance with the device
assignment restrictions above, and to include a multi-level translation table (VT-d
Table) that contains Guest specific address translations.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
40 Order No.: 328907-001
Root entry 0
Root entry N
Root entry 255
Context entry 0
Context entry 255
Context entry 0
Context entry 255
(Bus 255)
(Bus N)
(Bus 0)
Root entry table
(Dev 31, Func 7)
(Dev 0, Func 1)
(Dev 0, Func 0)
Context entry Table
For bus N
Context entry Table
For bus 0
Address Translation
Structures for Domain A
Address Translation
Structures for Domain B
Technologies—Processor
Figure 10. Device to Domain Mapping Structures
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 41
Intel VT-d functionality, often referred to as an Intel VT-d Engine, has typically been
implemented at or near a PCI Express host bridge component of a computer system.
This might be in a chipset component or in the PCI Express functionality of a processor
with integrated I/O. When one such VT-d engine receives a PCI Express transaction
from a PCI Express bus, its use the B/D/F number associated with the transaction to
search for an Intel VT-d translation table. In doing so, it uses the B/D/F number to
traverse the data structure shown in the above figure. If it finds a valid Intel VT-d
table in this data structure, it uses that table to translate the address provided on the
PCI Express bus. If it does not find a valid translation table for a given translation, this
results in an Intel VT-d fault. If Intel VT-d translation is required, the Intel VT-d
engine performs an N-level table walk.
For more information, refer to Intel® Virtualization Technology for Directed I/O
Architecture Specification http://download.intel.com/technology/computing/vptech/
Intel(r)_VT_for_Direct_IO.pdf
Intel® VT-d Features
The processor supports the following Intel VT-d features:
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Technologies
• Memory controller and processor graphics comply with the Intel VT-d 1.2
Specification.
• Two Intel VT-d DMA remap engines.
— iGFX DMA remap engine
— Default DMA remap engine (covers all devices except iGFX)
• Support for root entry, context entry, and default context
• 39-bit guest physical address and host physical address widths
• Support for 4K page sizes only
• Support for register-based fault recording only (for single entry only) and support
for MSI interrupts for faults
• Support for both leaf and non-leaf caching
• Support for boot protection of default page table
• Support for non-caching of invalid page table entries
• Support for hardware based flushing of translated but pending writes and pending
reads, on IOTLB invalidation
• Support for Global, Domain specific and Page specific IOTLB invalidation
• MSI cycles (MemWr to address FEEx_xxxxh) not translated
— Translation faults result in cycle forwarding to VBIOS region (byte enables
masked for writes). Returned data may be bogus for internal agents; PEG/DMI
interfaces return unsupported request status
• Interrupt Remapping is supported
• Queued invalidation is supported
• Intel VT-d translation bypass address range is supported (Pass Through)
The processor supports the following added new Intel VT-d features:
• 4-level Intel VT-d Page walk – both default Intel VT-d engine, as well as the IGD
VT-d engine, are upgraded to support 4-level Intel VT-d tables (adjusted guest
address width 48)
• Intel VT-d superpage – support of Intel VT-d superpage (2 MB, 1 GB) for default
Intel VT-d engine (that covers all devices except IGD)
IGD Intel VT-d engine does not support superpage and BIOS should disable
superage in default Intel VT-d engine when iGfx is enabled.
Note: Intel VT-d Technology may not be available on all SKUs.
3.2 Intel® Trusted Execution Technology (Intel® TXT)
Intel Trusted Execution Technology (Intel TXT) defines platform-level enhancements
that provide the building blocks for creating trusted platforms.
The Intel TXT platform helps to provide the authenticity of the controlling environment
such that those wishing to rely on the platform can make an appropriate trust
decision. The Intel TXT platform determines the identity of the controlling environment
by accurately measuring and verifying the controlling software.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
42 Order No.: 328907-001
Technologies—Processor
Another aspect of the trust decision is the ability of the platform to resist attempts to
change the controlling environment. The Intel TXT platform will resist attempts by
software processes to change the controlling environment or bypass the bounds set by
the controlling environment.
Intel TXT is a set of extensions designed to provide a measured and controlled launch
of system software that will then establish a protected environment for itself and any
additional software that it may execute.
These extensions enhance two areas:
• The launching of the Measured Launched Environment (MLE).
• The protection of the MLE from potential corruption.
The enhanced platform provides these launch and control interfaces using Safer Mode
Extensions (SMX).
The SMX interface includes the following functions:
• Measured/Verified launch of the MLE.
• Mechanisms to ensure the above measurement is protected and stored in a secure
location.
• Protection mechanisms that allow the MLE to control attempts to modify itself.
3.3
The processor also offers additional enhancements to System Management Mode
(SMM) architecture for enhanced security and performance. The processor provides
new MSRs to:
• Enable a second SMM range
• Enable SMM code execution range checking
• Select whether SMM Save State is to be written to legacy SMRAM or to MSRs
• Determine if a thread is going to be delayed entering SMM
• Determine if a thread is blocked from entering SMM
• Targeted SMI, enable/disable threads from responding to SMIs both VLWs and IPI
For the above features, BIOS must test the associated capability bit before attempting
to access any of the above registers.
For more information, refer to the Intel® Trusted Execution Technology Measured
Launched Environment Programming Guide.
Intel® Hyper-Threading Technology (Intel® HT Technology)
The processor supports Intel Hyper-Threading Technology (Intel HT Technology) that
allows an execution core to function as two logical processors. While some execution
resources such as caches, execution units, and buses are shared, each logical
processor has its own architectural state with its own set of general-purpose registers
and control registers. This feature must be enabled using the BIOS and requires
operating system support.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 43
Intel® Xeon® Processor E3-1200 v3 Product Family
Intel recommends enabling Intel HT Technology with Microsoft Windows* 8 and
Microsoft Windows* 7 and disabling Intel HT Technology using the BIOS for all
previous versions of Windows* operating systems. For more information on Intel HT
Technology, see http://www.intel.com/technology/platform-technology/hyper-
threading/.
3.4 Intel® Turbo Boost Technology
The Intel Turbo Boost Technology allows the processor core to opportunistically and
automatically run faster than its rated operating frequency/render clock if it is
operating below power, temperature, and current limits. The Intel Turbo Boost
Technology feature is designed to increase performance of both multi-threaded and
single-threaded workloads.
Maximum frequency is dependant on the SKU and number of active cores. No special
hardware support is necessary for Intel Turbo Boost Technology. BIOS and the
operating system can enable or disable Intel Turbo Boost Technology.
Compared with previous generation products, Intel Turbo Boost Technology will
increase the ratio of application power to TDP. Thus, thermal solutions and platform
cooling that are designed to less than thermal design guidance might experience
thermal and performance issues since more applications will tend to run at the
maximum power limit for significant periods of time.
Processor—Technologies
Note: Intel Turbo Boost Technology may not be available on all SKUs.
Intel® Turbo Boost Technology Frequency
The processor rated frequency assumes that all execution cores are running an
application at the thermal design power (TDP). However, under typical operation, not
all cores are active. Therefore, most applications are consuming less than the TDP at
the rated frequency. To take advantage of the available thermal headroom, the active
cores can increase their operating frequency.
To determine the highest performance frequency amongst active cores, the processor
takes the following into consideration:
• The number of cores operating in the C0 state.
• The estimated core current consumption.
• The estimated package prior and present power consumption.
• The package temperature.
Any of these factors can affect the maximum frequency for a given workload. If the
power, current, or thermal limit is reached, the processor will automatically reduce the
frequency to stay within its TDP limit. Turbo processor frequencies are only active if
the operating system is requesting the P0 state. For more information on P-states and
C-states, see Power Management on page 48.
3.5
Intel® Advanced Vector Extensions 2.0 (Intel® AVX2)
Intel Advanced Vector Extensions 2.0 (Intel AVX2) is the latest expansion of the Intel
instruction set. Intel AVX2 extends the Intel Advanced Vector Extensions (Intel AVX)
with 256-bit integer instructions, floating-point fused multiply add (FMA) instructions,
and gather operations. The 256-bit integer vectors benefit math, codec, image, and
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
44 Order No.: 328907-001
Technologies—Processor
digital signal processing software. FMA improves performance in face detection,
professional imaging, and high performance computing. Gather operations increase
vectorization opportunities for many applications. In addition to the vector extensions,
this generation of Intel processors adds new bit manipulation instructions useful in
compression, encryption, and general purpose software.
For more information on Intel AVX, see http://www.intel.com/software/avx
3.6 Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI)
The processor supports Intel Advanced Encryption Standard New Instructions (Intel
AES-NI) that are a set of Single Instruction Multiple Data (SIMD) instructions that
enable fast and secure data encryption and decryption based on the Advanced
Encryption Standard (AES). Intel AES-NI are valuable for a wide range of
cryptographic applications, such as applications that perform bulk encryption/
decryption, authentication, random number generation, and authenticated encryption.
AES is broadly accepted as the standard for both government and industry
applications, and is widely deployed in various protocols.
Intel AES-NI consists of six Intel SSE instructions. Four instructions, AESENC,
AESENCLAST, AESDEC, and AESDELAST facilitate high performance AES encryption
and decryption. The other two, AESIMC and AESKEYGENASSIST, support the AES key
expansion procedure. Together, these instructions provide a full hardware for
supporting AES; offering security, high performance, and a great deal of flexibility.
3.7
PCLMULQDQ Instruction
The processor supports the carry-less multiplication instruction, PCLMULQDQ.
PCLMULQDQ is a Single Instruction Multiple Data (SIMD) instruction that computes the
128-bit carry-less multiplication of two, 64-bit operands without generating and
propagating carries. Carry-less multiplication is an essential processing component of
several cryptographic systems and standards. Hence, accelerating carry-less
multiplication can significantly contribute to achieving high speed secure computing
and communication.
Intel® Secure Key
The processor supports Intel® Secure Key (formerly known as Digital Random Number
Generator (DRNG)), a software visible random number generation mechanism
supported by a high quality entropy source. This capability is available to
programmers through the RDRAND instruction. The resultant random number
generation capability is designed to comply with existing industry standards in this
regard (ANSI X9.82 and NIST SP 800-90).
Some possible usages of the RDRAND instruction include cryptographic key generation
as used in a variety of applications, including communication, digital signatures,
secure storage, and so on.
Intel® Transactional Synchronization Extensions (Intel
®
TSX)
Intel Transactional Synchronization Extensions (Intel TSX). Intel TSX provides a set of
instruction set extensions that allow programmers to specify regions of code for
transactional synchronization. Programmers can use these extensions to achieve the
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 45
Intel® Xeon® Processor E3-1200 v3 Product Family
performance of fine-grain locking while actually programming using coarse-grain
locks. Details on Intel TSX may be found in Intel® Architecture Instruction Set
Extensions Programming Reference.
3.8 Intel® 64 Architecture x2APIC
The x2APIC architecture extends the xAPIC architecture that provides key
mechanisms for interrupt delivery. This extension is primarily intended to increase
processor addressability.
Specifically, x2APIC:
• Retains all key elements of compatibility to the xAPIC architecture:
— Delivery modes
— Interrupt and processor priorities
— Interrupt sources
— Interrupt destination types
• Provides extensions to scale processor addressability for both the logical and
physical destination modes
• Adds new features to enhance performance of interrupt delivery
• Reduces complexity of logical destination mode interrupt delivery on link based
architectures
Processor—Technologies
The key enhancements provided by the x2APIC architecture over xAPIC are the
following:
• Support for two modes of operation to provide backward compatibility and
extensibility for future platform innovations:
— In xAPIC compatibility mode, APIC registers are accessed through memory
mapped interface to a 4K-Byte page, identical to the xAPIC architecture.
— In x2APIC mode, APIC registers are accessed through Model Specific Register
(MSR) interfaces. In this mode, the x2APIC architecture provides significantly
increased processor addressability and some enhancements on interrupt
delivery.
• Increased range of processor addressability in x2APIC mode:
— Physical xAPIC ID field increases from 8 bits to 32 bits, allowing for interrupt
processor addressability up to 4G–1 processors in physical destination mode.
A processor implementation of x2APIC architecture can support fewer than 32bits in a software transparent fashion.
— Logical xAPIC ID field increases from 8 bits to 32 bits. The 32-bit logical
x2APIC ID is partitioned into two sub-fields – a 16-bit cluster ID and a 16-bit
logical ID within the cluster. Consequently, ((2^20) – 16) processors can be
addressed in logical destination mode. Processor implementations can support
fewer than 16 bits in the cluster ID sub-field and logical ID sub-field in a
software agnostic fashion.
• More efficient MSR interface to access APIC registers:
— To enhance inter-processor and self-directed interrupt delivery as well as the
ability to virtualize the local APIC, the APIC register set can be accessed only
through MSR-based interfaces in x2APIC mode. The Memory Mapped IO
(MMIO) interface used by xAPIC is not supported in x2APIC mode.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
46 Order No.: 328907-001
Technologies—Processor
• The semantics for accessing APIC registers have been revised to simplify the
programming of frequently-used APIC registers by system software. Specifically,
the software semantics for using the Interrupt Command Register (ICR) and End
Of Interrupt (EOI) registers have been modified to allow for more efficient delivery
and dispatching of interrupts.
• The x2APIC extensions are made available to system software by enabling the
local x2APIC unit in the “x2APIC” mode. To benefit from x2APIC capabilities, a
new operating system and a new BIOS are both needed, with special support for
x2APIC mode.
• The x2APIC architecture provides backward compatibility to the xAPIC architecture
and forward extendible for future Intel platform innovations.
Note: Intel x2APIC Technology may not be available on all SKUs.
For more information, see the Intel® 64 Architecture x2APIC Specification at http://
www.intel.com/products/processor/manuals/.
3.9 Power Aware Interrupt Routing (PAIR)
The processor includes enhanced power-performance technology that routes
interrupts to threads or cores based on their sleep states. As an example, for energy
savings, it routes the interrupt to the active cores without waking the deep idle cores.
For performance, it routes the interrupt to the idle (C1) cores without interrupting the
already heavily loaded cores. This enhancement is mostly beneficial for high-interrupt
scenarios like Gigabit LAN, WLAN peripherals, and so on.
3.10
3.11
Execute Disable Bit
The Execute Disable Bit allows memory to be marked as executable when combined
with a supporting operating system. If code attempts to run in non-executable
memory, the processor raises an error to the operating system. This feature can
prevent some classes of viruses or worms that exploit buffer overrun vulnerabilities
and can, thus, help improve the overall security of the system. See the Intel® 64 and
IA-32 Architectures Software Developer's Manuals for more detailed information.
Supervisor Mode Execution Protection (SMEP)
The processor introduces a new mechanism that provides the next level of system
protection by blocking malicious software attacks from user mode code when the
system is running in the highest privilege level. This technology helps to protect from
virus attacks and unwanted code from harming the system. For more information,
please refer to Intel® 64 and IA-32 Architectures Software Developer's Manual,
Volume 3A at: http://www.intel.com/Assets/PDF/manual/253668.pdf
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 47
Intel® Xeon® Processor E3-1200 v3 Product Family
4.0 Power Management
G0 - Working
S0 – Processor Fully powered on (full on mode / connected standby mode)
C0 – Active mode
P0
Pn
C1 – Auto Halt
C1E – Auto Halt, Low freq, low voltage
C3 – L1/L2 caches flush, clocks off
C6 – Save core states before shutdown
C7 – Similar to C6, L3 flush
G1 – Sleeping
Note: Power states availability may vary between the different SKUs
S3 Cold – Sleep – Suspend to Ram (STR)
S4 – Hibernate – Suspend to Disk (STD), Wakeup on PCH
S5 – Soft Off – no power, Wakeup on PCH
G3 – Mechanical OFF
This chapter provides information on the following power management topics:
• Advanced Configuration and Power Interface (ACPI) States
• Processor Core
• Integrated Memory Controller (IMC)
• PCI Express*
• Direct Media Interface (DMI)
• Processor Graphics Controller
Figure 11. Processor Power States
Processor—Power Management
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
48 Order No.: 328907-001
Power Management—Processor
4.1 Advanced Configuration and Power Interface (ACPI) States Supported
This section describes the ACPI states supported by the processor.
Table 9. System States
State Description
G0/S0 Full On Mode.
G1/S3-Cold
G1/S4 Suspend-to-Disk (STD). All power lost (except wakeup on PCH).
G2/S5 Soft off. All power lost (except wakeup on PCH). Total reboot.
G3 Mechanical off. All power removed from system.
Table 10. Processor Core / Package State Support
State Description
C0 Active mode, processor executing code.
C1 AutoHALT state.
C1E AutoHALT state with lowest frequency and voltage operating point.
C3
C6 Execution cores in this state save their architectural state before removing core voltage.
C7
Suspend-to-RAM (STR). Context saved to memory (S3-Hot state is not supported by the
processor).
Execution cores in C3 state flush their L1 instruction cache, L1 data cache, and L2 cache
to the L3 shared cache. Clocks are shut off to each core.
Execution cores in this state behave similarly to the C6 state. If all execution cores
request C7 state, L3 cache ways are flushed until it is cleared. If the entire L3 cache is
flushed, voltage will be removed from the L3 cache. Power removal to SA, Cores and L3
will reduce power consumption. C7 may not be available on all SKUs.
Table 11. Integrated Memory Controller States
State Description
Power up CKE asserted. Active mode.
Pre-charge
Power-down
Active Power-
down
Self-Refresh CKE de-asserted using device self-refresh.
CKE de-asserted (not self-refresh) with all banks closed.
CKE de-asserted (not self-refresh) with minimum one bank active.
Table 12. PCI Express* Link States
State Description
L0 Full on – Active transfer state.
L0s First Active Power Management low power state – Low exit latency.
L1 Lowest Active Power Management – Longer exit latency.
L3 Lowest power state (power-off) – Longest exit latency.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 49
Intel® Xeon® Processor E3-1200 v3 Product Family
Table 13. Direct Media Interface (DMI) States
State Description
L0 Full on – Active transfer state.
L0s First Active Power Management low power state – Low exit latency.
L1 Lowest Active Power Management – Longer exit latency.
L3 Lowest power state (power-off) – Longest exit latency.
Table 14. G, S, and C Interface State Combinations
Processor—Power Management
Global
(G)
State
G0 S0 C0 Full On On Full On
G0 S0 C1/C1E Auto-Halt On Auto-Halt
G0 S0 C3 Deep Sleep On Deep Sleep
G0 S0 C6/C7
G1 S3 Power off Off, except RTC Suspend to RAM
G1 S4 Power off Off, except RTC Suspend to Disk
G2 S5 Power off Off, except RTC Soft Off
G3 NA Power off Power off Hard off
Sleep (S)
State
Processor
Package (C)
State
Deep Power-
Table 15. D, S, and C Interface State Combination
Graphics
Adapter (D)
State
D0 S0 C0 Full On, Displaying.
D0 S0 C1/C1E Auto-Halt, Displaying.
D0 S0 C3 Deep sleep, Displaying.
D0 S0 C6/C7 Deep Power-down, Displaying.
D3 S0 Any Not displaying.
D3 S3 N/A Not displaying, Graphics Core is powered off.
D3 S4 N/A Not displaying, suspend to disk.
Sleep (S)
State
Package (C)
State
Processor
State
down
System Clocks Description
On Deep Power-down
Description
4.2 Processor Core Power Management
While executing code, Enhanced Intel SpeedStep® Technology optimizes the
processor’s frequency and core voltage based on workload. Each frequency and
voltage operating point is defined by ACPI as a P-state. When the processor is not
executing code, it is idle. A low-power idle state is defined by ACPI as a C-state. In
general, deeper power C-states have longer entry and exit latencies.
4.2.1
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
50 Order No.: 328907-001
Enhanced Intel® SpeedStep® Technology Key Features
The following are the key features of Enhanced Intel SpeedStep Technology:
Thread 0 Thread 1
Core 0 State
Thread 0 Thread 1
Core N State
Processor Package State
Power Management—Processor
• Multiple frequency and voltage points for optimal performance and power
efficiency. These operating points are known as P-states.
• Frequency selection is software controlled by writing to processor MSRs. The
voltage is optimized based on the selected frequency and the number of active
processor cores.
— Once the voltage is established, the PLL locks on to the target frequency.
— All active processor cores share the same frequency and voltage. In a multi-
core processor, the highest frequency P-state requested among all active
cores is selected.
— Software-requested transitions are accepted at any time. If a previous
transition is in progress, the new transition is deferred until the previous
transition is completed.
• The processor controls voltage ramp rates internally to ensure glitch-free
transitions.
• Because there is low transition latency between P-states, a significant number of
transitions per-second are possible.
4.2.2
Caution: Long term reliability cannot be assured unless all the Low-Power Idle States are
Figure 12. Idle Power Management Breakdown of the Processor Cores
Low-Power Idle States
When the processor is idle, low-power idle states (C-states) are used to save power.
More power savings actions are taken for numerically higher C-states. However,
higher C-states have longer exit and entry latencies. Resolution of C-states occur at
the thread, processor core, and processor package level. Thread-level C-states are
available if Intel Hyper-Threading Technology is enabled.
enabled.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 51
Entry and exit of the C-states at the thread and core level are shown in the following
figure.
Intel® Xeon® Processor E3-1200 v3 Product Family
Figure 13. Thread and Core C-State Entry and Exit
C1 C1E C7C6C3
C0
MWAIT (C1), HLT
C0
MWAIT (C7),
P_LV L4 I/O R ead
MWAIT (C6),
P_LV L3 I/O R ead
MWAIT (C3),
P_LV L2 I/O R ead
MWAIT(C1), HLT
(C1E Enabled)
While individual threads can request low power C-states, power saving actions only
take place once the core C-state is resolved. Core C-states are automatically resolved
by the processor. For thread and core C-states, a transition to and from C0 is required
before entering any other C-state.
Table 16. Coordination of Thread Power States at the Core Level
Processor—Power Management
Processor Core C-State Thread 1
C0 C1 C3 C6 C7
C0 C0 C0 C0 C0 C0
C1 C0 C1
Thread 0
Note: 1. If enabled, the core C-state will be C1E if all cores have resolved a core C1 state or higher.
C3 C0 C1
C6 C0 C1
C7 C0 C1
4.2.3 Requesting Low-Power Idle States
The primary software interfaces for requesting low-power idle states are through the
MWAIT instruction with sub-state hints and the HLT instruction (for C1 and C1E).
However, software may make C-state requests using the legacy method of I/O reads
from the ACPI-defined processor clock control registers, referred to as P_LVLx. This
method of requesting C-states provides legacy support for operating systems that
initiate C-state transitions using I/O reads.
For legacy operating systems, P_LVLx I/O reads are converted within the processor to
the equivalent MWAIT C-state request. Therefore, P_LVLx reads do not directly result
in I/O reads to the system. The feature, known as I/O MWAIT redirection, must be
enabled in the BIOS.
The BIOS can write to the C-state range field of the PMG_IO_CAPTURE MSR to restrict
the range of I/O addresses that are trapped and emulate MWAIT like functionality.
Any P_LVLx reads outside of this range do not cause an I/O redirection to MWAIT(Cx)
like request. They fall through like a normal I/O instruction.
1
1
1
1
1
C1
C3 C3 C3
C3 C6 C6
C3 C6 C7
C1
1
C1
1
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
52 Order No.: 328907-001
Power Management—Processor
Note: When P_LVLx I/O instructions are used, MWAIT sub-states cannot be defined. The
MWAIT sub-state is always zero if I/O MWAIT redirection is used. By default, P_LVLx
I/O redirections enable the MWAIT 'break on EFLAGS.IF’ feature that triggers a
wakeup on an interrupt, even if interrupts are masked by EFLAGS.IF.
4.2.4 Core C-State Rules
The following are general rules for all core C-states, unless specified otherwise:
• A core C-state is determined by the lowest numerical thread state (such as Thread
0 requests C1E state while Thread 1 requests C3 state, resulting in a core C1E
state). See the G, S, and C Interface State Combinations table.
• A core transitions to C0 state when:
— An interrupt occurs
— There is an access to the monitored address if the state was entered using an
MWAIT/Timed MWAIT instruction
— The deadline corresponding to the Timed MWAIT instruction expires
• An interrupt directed toward a single thread wakes only that thread.
• If any thread in a core is in active (in C0 state), the core's C-state will resolve to
C0 state.
• Any interrupt coming into the processor package may wake any core.
• A system reset re-initializes all processor cores.
Core C0 State
The normal operating state of a core where code is being executed.
Core C1/C1E State
C1/C1E is a low power state entered when all threads within a core execute a HLT or
MWAIT(C1/C1E) instruction.
A System Management Interrupt (SMI) handler returns execution to either Normal
state or the C1/C1E state. See the Intel® 64 and IA-32 Architectures Software
Developer’s Manual for more information.
While a core is in C1/C1E state, it processes bus snoops and snoops from other
threads. For more information on C1E state, see Package C-States on page 54.
Core C3 State
Individual threads of a core can enter the C3 state by initiating a P_LVL2 I/O read to
the P_BLK or an MWAIT(C3) instruction. A core in C3 state flushes the contents of its
L1 instruction cache, L1 data cache, and L2 cache to the shared L3 cache, while
maintaining its architectural state. All core clocks are stopped at this point. Because
the core’s caches are flushed, the processor does not wake any core that is in the C3
state when either a snoop is detected or when another core accesses cacheable
memory.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 53
Intel® Xeon® Processor E3-1200 v3 Product Family
Core C6 State
Individual threads of a core can enter the C6 state by initiating a P_LVL3 I/O read or
an MWAIT(C6) instruction. Before entering core C6 state, the core will save its
architectural state to a dedicated SRAM. Once complete, a core will have its voltage
reduced to zero volts. During exit, the core is powered on and its architectural state is
restored.
Core C7 State
Individual threads of a core can enter the C7 state by initiating a P_LVL4 I/O read to
the P_BLK or by an MWAIT(C7) instruction. The core C7 state exhibits the same
behavior as the core C6 state.
Note: C7 state may not be available on all SKUs.
C-State Auto-Demotion
In general, deeper C-states, such as C6 state, have long latencies and have higher
energy entry/exit costs. The resulting performance and energy penalties become
significant when the entry/exit frequency of a deeper C-state is high. Therefore,
incorrect or inefficient usage of deeper C-states have a negative impact on idle power.
To increase residency and improve idle power in deeper C-states, the processor
supports C-state auto-demotion.
Processor—Power Management
4.2.5
There are two C-state auto-demotion options:
• C7/C6 to C3 state
• C7/C6/C3 To C1 state
The decision to demote a core from C6/C7 to C3 or C3/C6/C7 to C1 state is based on
each core’s immediate residency history and interrupt rate . If the interrupt rate
experienced on a core is high and the residence in a deep C-state between such
interrupts is low, the core can be demoted to a C3 or C1 state. A higher interrupt
pattern is required to demote a core to C1 state as compared to C3 state.
This feature is disabled by default. BIOS must enable it in the
PMG_CST_CONFIG_CONTROL register. The auto-demotion policy is also configured by
this register.
Package C-States
The processor supports C0, C1/C1E, C3, C6, and C7 (on some SKUs) power states.
The following is a summary of the general rules for package C-state entry. These
apply to all package C-states, unless specified otherwise:
• A package C-state request is determined by the lowest numerical core C-state
amongst all cores.
• A package C-state is automatically resolved by the processor depending on the
core idle power states and the status of the platform components.
— Each core can be at a lower idle power state than the package if the platform
does not grant the processor permission to enter a requested package C-state.
— The platform may allow additional power savings to be realized in the
processor.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
54 Order No.: 328907-001
Power Management—Processor
— For package C-states, the processor is not required to enter C0 state before
entering any other C-state.
— Entry into a package C-state may be subject to auto-demotion – that is, the
processor may keep the package in a deeper package C-state than requested
by the operating system if the processor determines, using heuristics, that the
deeper C-state results in better power/performance.
The processor exits a package C-state when a break event is detected. Depending on
the type of break event, the processor does the following:
• If a core break event is received, the target core is activated and the break event
message is forwarded to the target core.
— If the break event is not masked, the target core enters the core C0 state and
the processor enters package C0 state.
— If the break event is masked, the processor attempts to re-enter its previous
package state.
• If the break event was due to a memory access or snoop request,
— But the platform did not request to keep the processor in a higher package C-
state, the package returns to its previous C-state.
— And the platform requests a higher power C-state, the memory access or
snoop request is serviced and the package remains in the higher power Cstate.
The following table shows package C-state resolution for a dual-core processor. The
following figure summarizes package C-state transitions.
Table 17. Coordination of Core Power States at the Package Level
Package C-State Core 1
C0 C1 C3 C6 C7
C0 C0 C0 C0 C0 C0
C1 C0 C1
Core 0
Note: 1. If enabled, the package C-state will be C1E if all cores have resolved a core C1 state or higher.
C3 C0 C1
C6 C0 C1
C7 C0 C1
1
1
1
1
1
C1
C3 C3 C3
C3 C6 C6
C3 C6 C7
C1
1
C1
1
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 55
Intel® Xeon® Processor E3-1200 v3 Product Family
Figure 14. Package C-State Entry and Exit
C0
C1
C6
C7
C3
Processor—Power Management
Package C0 State
This is the normal operating state for the processor. The processor remains in the
normal state when at least one of its cores is in the C0 or C1 state or when the
platform has not granted permission to the processor to go into a low power state.
Individual cores may be in lower power idle states while the package is in C0 state.
Package C1/C1E State
No additional power reduction actions are taken in the package C1 state. However, if
the C1E sub-state is enabled, the processor automatically transitions to the lowest
supported core clock frequency, followed by a reduction in voltage.
The package enters the C1 state low power state when:
• At least one core is in the C1 state.
• The other cores are in a C1 or deeper power state.
The package enters the C1E state when:
• All cores have directly requested C1E using MWAIT(C1) with a C1E sub-state hint.
• All cores are in a power state deeper than C1/C1E state but the package low
power state is limited to C1/C1E using the PMG_CST_CONFIG_CONTROL MSR.
• All cores have requested C1 state using HLT or MWAIT(C1) and C1E autopromotion is enabled in IA32_MISC_ENABLES.
No notification to the system occurs upon entry to C1/C1E state.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
56 Order No.: 328907-001
Power Management—Processor
Package C2 State
Package C2 state is an internal processor state that cannot be explicitly requested by
software. A processor enters Package C2 state when:
• All cores and graphics have requested a C3 or deeper power state, but constraints
(LTR, programmed timer events in the near future, and so on) prevent entry to
any state deeper than C 2 state. Or,
• All cores and graphics are in the C3 or deeper power states, and a memory access
request is received. Upon completion of all outstanding memory requests, the
processor transitions back into a deeper package C-state.
Package C3 State
A processor enters the package C3 low power state when:
• At least one core is in the C3 state.
• The other cores are in a C3 state or deeper power state and the processor has
been granted permission by the platform.
• The platform has not granted a request to a package C6or deeper state but has
allowed a package C6 state.
In package C3 state, the L3 shared cache is valid.
Package C6 State
A processor enters the package C6 low power state when:
• At least one core is in the C6 state.
• The other cores are in a C6 or deeper power state and the processor has been
granted permission by the platform.
• If the cores are requesting C7 but the platform is limiting to you a package C6
state, the last level cache in this case can be flushed.
In package C6 state all cores have saved their architectural state and have had their
core voltages reduced to zero volts. It is possible the L3 shared cache is flushed and
turned off in package C6 state. If at least one core is requesting C6 state, the L3
cache will not be flushed.
Package C7 State
The processor enters the package C7 low power state when all cores are in the C7
state . In package C7, the processor will take action to remove power from portions of
the system agent.
Core break events are handled the same way as in package C3 or C6 state.
Note: C7 state may not be available on all SKUs.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 57
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Power Management
Note: Package C6 state is the deepest C-state supported on discrete graphics systems with
PCI Express Graphics (PEG).
Package C7 state is the deepest C-state supported on integrated graphics systems (or
switchable graphics systems during integrated graphics mode). However, in most
configurations, package C6 will be more energy efficient than package C7 state. As a
result, package C7 state residency is expected to be very low or zero in most
scenarios where the display is enabled. Logic internal to the processor will determine
whether package C6 or package C7 state is the most efficient. There is no need to
make changes in BIOS or system software to prioritize package C6 state over package
C7 state.
4.3 Integrated Memory Controller (IMC) Power Management
The main memory is power managed during normal operation and in low-power ACPI
Cx states.
4.3.1
4.3.2
Disabling Unused System Memory Outputs
Any system memory (SM) interface signal that goes to a memory module connector in
which it is not connected to any actual memory devices is tri-stated. The benefits of
disabling unused SM signals are:
• Reduced power consumption.
• Reduced possible overshoot/undershoot signal quality issues seen by the
processor I/O buffer receivers caused by reflections from potentially unterminated transmission lines.
When a given rank is not populated, the corresponding chip select and CKE signals are
not driven.
At reset, all rows must be assumed to be populated, until it can be proven that they
are not populated.
CKE tristate should be enabled by BIOS where appropriate, since at reset all rows
must be assumed to be populated.
DRAM Power Management and Initialization
The processor implements extensive support for power management on the SDRAM
interface. There are four SDRAM operations associated with the Clock Enable (CKE)
signals, which the SDRAM controller supports. The processor drives four CKE pins to
perform these operations.
The CKE is one of the power-save means. When CKE is off, the internal DDR clock is
disabled and the DDR power is reduced. The power-saving differs according to the
selected mode and the DDR type used. For more information, refer to the IDD table in
the DDR specification.
The processor supports three different types of power-down modes in package C0.
The different power-down modes can be enabled through configuring
"PM_PDWN_config_0_0_0_MCHBAR". The type of CKE power-down can be configured
through PDWN_mode (bits 15:12) and the idle timer can be configured through
PDWN_idle_counter (bits 11:0). The different power-down modes supported are:
1. No power-down (CKE disable)
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
58 Order No.: 328907-001
Power Management—Processor
2. Active power-down (APD): This mode is entered if there are open pages when deasserting CKE. In this mode the open pages are retained. Power-saving in this
mode is the lowest. Power consumption of DDR is defined by IDD3P. Exiting this
mode is defined by tXP – small number of cycles. For this mode, DRAM DLL must
be on.
3. PPD/DLL-off: In this mode the data-in DLLs on DDR are off. Power-saving in this
mode is the best among all power modes. Power consumption is defined by
IDD2P1. Exiting this mode is defined by tXP, but also tXPDLL (10–20 according to
DDR type) cycles until first data transfer is allowed. For this mode, DRAM DLL
must be off.
The CKE is determined per rank, whenever it is inactive. Each rank has an idlecounter. The idle-counter starts counting as soon as the rank has no accesses, and if
it expires, the rank may enter power-down while no new transactions to the rank
arrives to queues. The idle-counter begins counting at the last incoming transaction
arrival.
It is important to understand that since the power-down decision is per rank, the IMC
can find many opportunities to power down ranks, even while running memory
intensive applications; the savings are significant (may be few Watts, according to the
DDR specification). This is significant when each channel is populated with more
ranks.
Selection of power modes should be according to power-performance or thermal
trade-offs of a given system:
• When trying to achieve maximum performance and power or thermal
consideration is not an issue – use no power-down
• In a system which tries to minimize power-consumption, try using the deepest
power-down mode possible – PPD/DLL-off with a low idle timer value
• In high-performance systems with dense packaging (that is, tricky thermal
design) the power-down mode should be considered in order to reduce the heating
and avoid DDR throttling caused by the heating.
The default value that BIOS configures in "PM_PDWN_config_0_0_0_MCHBAR" is
6080h – that is, PPD/DLL-off mode with idle timer of 80h, or 128 DCLKs. This is a
balanced setting with deep power-down mode and moderate idle timer value.
The idle timer expiration count defines the # of DCKLs that a rank is idle that causes
entry to the selected powermode. As this timer is set to a shorter time, the IMC will
have more opportunities to put DDR in power-down. There is no BIOS hook to set this
register. Customers choosing to change the value of this register can do it by
changing it in the BIOS. For experiments, this register can be modified in real time if
BIOS does not lock the IMC registers.
4.3.2.1 Initialization Role of CKE
During power-up, CKE is the only input to the SDRAM that has its level recognized
(other than the DDR3/DDR3L reset pin) once power is applied. It must be driven LOW
by the DDR controller to make sure the SDRAM components float DQ and DQS during
power-up. CKE signals remain LOW (while any reset is active) until the BIOS writes to
a configuration register. Using this method, CKE is ensured to remain inactive for
much longer than the specified 200 micro-seconds after power and clocks to SDRAM
devices are stable.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 59
Intel® Xeon® Processor E3-1200 v3 Product Family
4.3.2.2 Conditional Self-Refresh
During S0 idle state, system memory may be conditionally placed into self-refresh
state when the processor is in package C3 or deeper power state. Refer to Intel®
Rapid Memory Power Management (Intel® RMPM) for more details on conditional self-
refresh with Intel HD Graphics enabled.
When entering the S3 – Suspend-to-RAM (STR) state or S0 conditional self-refresh,
the processor core flushes pending cycles and then enters SDRAM ranks that are not
used by Intel graphics memory into self-refresh. The CKE signals remain LOW so the
SDRAM devices perform self-refresh.
The target behavior is to enter self-refresh for package C3 or deeper power states as
long as there are no memory requests to service. The target usage is shown in the
following table.
4.3.2.3 Dynamic Power-Down
Dynamic power-down of memory is employed during normal operation. Based on idle
conditions, a given memory rank may be powered down. The IMC implements
aggressive CKE control to dynamically put the DRAM devices in a power-down state.
The processor core controller can be configured to put the devices in active powerdown (CKE de-assertion with open pages) or pre-charge power-down (CKE deassertion with all pages closed). Pre-charge power-down provides greater power
savings but has a bigger performance impact, since all pages will first be closed before
putting the devices in power-down mode.
Processor—Power Management
If dynamic power-down is enabled, all ranks are powered up before doing a refresh
cycle and all ranks are powered down at the end of refresh.
4.3.2.4 DRAM I/O Power Management
Unused signals should be disabled to save power and reduce electromagnetic
interference. This includes all signals associated with an unused memory channel.
Clocks, CKE, ODE, and CS signals are controlled per DIMM rank and will be powered
down for unused ranks.
The I/O buffer for an unused signal should be tri-stated (output driver disabled), the
input receiver (differential sense-amp) should be disabled, and any DLL circuitry
related ONLY to unused signals should be disabled. The input path must be gated to
prevent spurious results due to noise on the unused signals (typically handled
automatically when input receiver is disabled).
4.3.3
DRAM Running Average Power Limitation (RAPL)
RAPL is a power and time constant pair. DRAM RAPL defines an average power
constraint for the DRAM domain. Constraint is controlled by the PCU. Platform entities
(PECI or in-band power driver) can specify a power limit for the DRAM domain. PCU
continuously monitors the extant of DRAM throttling due to the power limit and
rebudgets the limit between DIMMs.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
60 Order No.: 328907-001
Power Management—Processor
4.3.4 DDR Electrical Power Gating (EPG)
The DDR I/O of the processor supports Electrical Power Gating (DDR-EPG) while the
processor is at C3 or deeper power state.
In C3 or deeper power state, the processor internally gates V
the logic to reduce idle power while keeping all critical DDR pins such as
SM_DRAMRST#, CKE and VREF in the appropriate state.
In C7, the processor internally gates V
power.
In S3 or C-state transitions, the DDR does not go through training mode and will
restore the previous training information.
CCIO_TERM
for all non-critical state to reduce idle
for the majority of
DDQ
4.4 PCI Express* Power Management
• Active power management is supported using L0s, and L1 states.
• All inputs and outputs disabled in L2/L3 Ready state.
4.5 Direct Media Interface (DMI) Power Management
Active power management is supported using L0s/L1 state.
4.6
4.6.1 Intel® Rapid Memory Power Management (Intel® RMPM)
Graphics Power Management
Intel Rapid Memory Power Management (Intel RMPM) conditionally places memory
into self-refresh when the processor is in package C3 or deeper power state to allow
the system to remain in the lower power states longer for memory not reserved for
graphics memory. Intel RMPM functionality depends on graphics/display state
(relevant only when processor graphics is being used), as well as memory traffic
patterns generated by other connected I/O devices.
4.6.2
4.6.3
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 61
Graphics Render C-State
Render C-state (RC6) is a technique designed to optimize the average power to the
graphics render engine during times of idleness. RC6 is entered when the graphics
render engine, blitter engine, and the video engine have no workload being currently
worked on and no outstanding graphics memory transactions. When the idleness
condition is met, the processor graphics will program the graphics render engine
internal power rail into a low voltage state.
Intel® Graphics Dynamic Frequency
Intel Graphics Dynamic Frequency Technology is the ability of the processor and
graphics cores to opportunistically increase frequency and/or voltage above the
guaranteed processor and graphics frequency for the given part. Intel Graphics
Dynamic Frequency Technology is a performance feature that makes use of unused
package power and thermals to increase application performance. The increase in
frequency is determined by how much power and thermal budget is available in the
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Power Management
package, and the application demand for additional processor or graphics
performance. The processor core control is maintained by an embedded controller.
The graphics driver dynamically adjusts between P-States to maintain optimal
performance, power, and thermals. The graphics driver will always try to place the
graphics engine in the most energy efficient P-state
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
62 Order No.: 328907-001
Thermal Management—Processor
5.0 Thermal Management
This chapter provides both component-level and system-level thermal management.
Topics convered include processor thermal specifications, thermal profiles, thermal
metrology, fan speed control, adaptive thermal monitor, THERMTRIP# signal, Ditital
Thermal Sensor (DTS), Intel Turbo Boost Technology, package power control, power
plane control, and turbo time parameter.
The processor requires a thermal solution to maintain temperatures within its
operating limits. Any attempt to operate the processor outside these operating limits
may result in permanent damage to the processor and potentially other components
within the system. Maintaining the proper thermal environment is key to reliable,
long-term system operation.
A complete solution includes both component and system level thermal management
features. Component level thermal solutions can include active or passive heatsinks
attached to the processor integrated heat spreader (IHS).
To allow the optimal operation and long-term reliability of Intel processor-based
systems, the processor must remain within the minimum and maximum case
temperature (T
) specifications as defined by the applicable thermal profile.
CASE
Thermal solutions not designed to provide this level of thermal capability may affect
the long-term reliability of the processor and system.
The processors implement a methodology for managing processor temperatures that
is intended to support acoustic noise reduction through fan speed control and to
assure processor reliability. Selection of the appropriate fan speed is based on the
relative temperature data reported by the processor’s Digital Temperature Sensor
(DTS). The DTS can be read using the Platform Environment Control Interface (PECI)
as described in Processor Temperature on page 69. Alternatively, when PECI is
monitored by the PCH, the processor temperature can be read from the PCH using the
SMBus protocol defined in Embedded Controller Support Provided by the PCH. The
temperature reported over PECI is always a negative value and represents a delta
below the onset of thermal control circuit (TCC) activation, as indicated by PROCHOT#
(see Processor Temperature on page 69). Systems that implement fan speed control
must be designed to use this data. Systems that do not alter the fan speed only need
to ensure the case temperature meets the thermal profile specifications.
Analysis indicates that real applications are unlikely to cause the processor to
consume maximum power dissipation for sustained time periods. Intel recommends
that complete thermal solution designs target the Thermal Design Power (TDP),
instead of the maximum processor power consumption. The Adaptive Thermal Monitor
feature is intended to help protect the processor in the event that an application
exceeds the TDP recommendation for a sustained time period. For more details on this
feature, see Adaptive Thermal Monitor on page 69. To ensure maximum flexibility
for future processors, systems should be designed to the Thermal Solution Capability
guidelines, even if a processor with lower power dissipation is currently planned.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 63
Intel® Xeon® Processor E3-1200 v3 Product Family
5.1 Thermal Metrology
37.5
37.5
Measure T
CASE
at
the geometric
center of the
package
Processor—Thermal Management
The maximum Thermal Test Vehicle (TTV) case temperatures (T
derived from the data in the appropriate TTV thermal profile earlier in this chapter.
The TTV T
is measured at the geometric top center of the TTV integrated heat
CASE
spreader (IHS). The following figure illustrates the location where T
measurements should be made.
Figure 15. Thermal Test Vehicle (TTV) Case Temperature (T
CASE-MAX
) Measurement Location
CASE
) can be
temperature
CASE
Note: THERM-X OF CALIFORNIA can machine the groove and attach a thermocouple to the
IHS. The supplier is subject to change without notice. THERM-X OF CALIFORNIA, 1837
Whipple Road, Hayward, Ca 94544. Ernesto B Valencia +1-510-441-7566 Ext. 242
ernestov@therm-x.com. The vendor part number is XTMS1565.
5.2 Fan Speed Control Scheme with Digital Thermal Sensor (DTS) 1.1
To correctly use DTS 1.1, the designer must first select a worst case scenario T
and ensure that the Fan Speed Control (FSC) can provide a ΨCA that is equivalent or
greater than the ΨCA specification.
The DTS 1.1 implementation consists of two points: a ΨCA at T
DTS = -1.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
64 Order No.: 328907-001
CONTROL
and a ΨCA at
AMBIENT
,
Thermal Management—Processor
The ΨCA point at DTS = -1 defines the minimum ΨCA required at TDP considering the
worst case system design T
AMBIENT
ΨCA = (T
design point:
– T
CASE-MAX
AMBIENT-TARGET
) / TDP
For example, for a 95 W TDP part, the T
maximum is 72.6 °C and at a worst case
case
design point of 40 °C local ambient this will result in:
ΨCA = (72.6 – 40) / 95 = 0.34 °C/W
Similarly for a system with a design target of 45 °C ambient, the ΨCA at DTS = -1
needed will be 0.29 °C/W.
The second point defines the thermal solution performance (ΨCA) at T
following table lists the required ΨCA for the various TDP processors.
These two points define the operational limits for the processor for DTS 1.1
implementation. At T
CONTROL
the fan speed must be programmed such that the
resulting ΨCA is better than or equivalent to the required ΨCA listed in the following
table. Similarly, the fan speed should be set at DTS = -1 such that the thermal
solution performance is better than or equivalent to the ΨCA requirements at T
. The fan speed controller must linearly ramp the fan speed from processor DTS =
MAX
T
CONTROL
to processor DTS = -1.
Figure 16. Digital Thermal Sensor (DTS) 1.1 Definition Points
CONTROL
. The
AMBIENT-
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 65
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Thermal Management
Table 18. Digital Thermal Sensor (DTS) 1.1 Thermal Solution Performance Above
T
CONTROL
Processor
TDP
84 W 0.627 0.390 0.330 0.270
65 W 0.793 0.482 0.405 0.328
45 W 1.207 0.699 0.588 0.477
35 W 1.406 0.753 0.610 0.467
1. ΨCA at "DTS = T
Processor cooling fan inlet) of less than 10 °C. In case the expected T
correction factor should be used as explained below. For each 1 °C T
factor (CF) is defined as CF = 1.7 / (processor TDP)
2. Example: A chassis T
CF = 1.7 / 95 W = 0.018 /W
For T
RISE
ΨCA at T
CONTROL
ΨCA = 0.627 – (12 – 10) * 0.018 = 0.591 °C/W
In this case, the fan speed should be set slightly higher, equivalent to ΨCA = 0.591 °C/W
ΨCA at DTS =
T
At System T
MAX
CONTROL
> 10 °C
= (Value provide in Column 2) – (T
1, 2
CONTROL
AMBIENT-
= 30 °C
" is applicable to systems that have an internal T
assumption is 12 °C for a 95 W TDP processor:
RISE
ΨCA at DTS = -1
At System
T
AMBIENT-MAX
= 40 °C
– 10) * CF
RISE
ΨCA at DTS = -1
At System
T
AMBIENT-MAX
= 45 °C
(T
RISE
is greater than 10 °C, a
RISE
above 10 °C, the correction
RISE
ΨCA at DTS = -1
At System T
temperature to
ROOM
MAX
= 50 °C
AMBIENT-
5.3 Fan Speed Control Scheme with Digital Thermal Sensor (DTS) 2.0
To simplify processor thermal specification compliance, the processor calculates the
DTS Thermal Profile from T
CONTROL
Thermal Margin Slope provided in the following table.
Note: TCC Activation Offset is 0 for the processors.
Using the DTS Thermal Profile, the processor can calculate and report the Thermal
Margin, where a value less than 0 indicates that the processor needs additional
cooling, and a value greater than 0 indicates that the processor is sufficiently cooled.
Refer to the processor Thermal Mechanical Design Guidelines (TMDG) for additional
information (see Related Documents).
Offset, TCC Activation Temperature, TDP, and the
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
66 Order No.: 328907-001
Thermal Management—Processor
Figure 17. Digital Thermal Sensor (DTS) Thermal Profile Definition
Table 19. Thermal Margin Slope
PCG Die
2013D
2013C
2013B 4+2 (4+2) 45 85 6 0.806
2013A
Configuration
(Native)
Core + GT
4+2 (4+2) 84 100 20 0.654
4+0 (4+2) 82 100 20 0.671
4+2 (4+2) 65 92 6 0.722
2+2 (2+2) 54 100 20 1.031
2+1 (2+2) 53 100 20 1.051
4+2 (4+2) 35 75 6 0.806
2+2 (4+2) 35 85 6 1.016
2+2 (2+2) 35 85 6 1.021
2+1 (2+2) 35 90 6 1.141
TDP (W) TCC Activation
Temperature (°C)
MSR 1A2h 23:16
Temperature
Control Offset
MSR 1A2h 15:8
5.4 Intel® Xeon® Processor E3-1200 v3 Product Family Thermal Specifications
This section provides thermal specifications (Thermal Profile) and design guidelines for
enabled thermal solutions to cool the processor.
Thermal
Margin
Slope
(°C / W)
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 67
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Thermal Management
Performance Targets
The following table provides boundary conditions and performance targets as guidance
for thermal solution design. Thermal solutions must be able to comply with the
Maximum T
Thermal Profile.
CASE
Table 20. Boundary Conditions, Performance Targets, and T
TLA,
Processor PCG
4C/GT2 95 W
1
Workstation
4C/GT2 95 W
4C/GT0 95 W
4C/GT0 80 W
4C/GT2 65 W
4C/GT1 45 W
1
1
1
1
1
2
Package
3
TDP
84 W 87 W
84 W 87 W
2013D
80 W 82 W
80 W 80 W
2013C 65 W 65 W
2013B 45 W 45 W
Platform
4
TDP
Heatsink
5
Active Cu
Core (DHA-A)
1U Al
Heatpipe
1U Al
Heatpipe
1U Al
Heatpipe
Active Al
Core (DHA-B)
Active Short
(DHA-D)
Airflow,
RPM,
Ѱ
40 °C,
3100 RPM,
0.383 °C/W
40 °C,
11.5 CFM,
0.383 °C/W
42 °C,
11.5 CFM,
0.383 °C/W
42 °C,
11.5 CFM,
0.383 °C/W
40 °C,
3100 RPM,
0.487 °C/W
44.5 °C,
3000 RPM,
0.597 °C/W
Specifications
CASE
6
CA
Power + 45.0
Power + 46.6
Power + 44.7
Power + 48.5
Maximum
T
CASE
Thermal
7
Profile
y = 0.33 *
y = 0.33 *
y = 0.41 *
y = 0.51 *
T
CASE-MAX
Platform
TDP
@
8
73.7 °C
73.7 °C
73.6 °C
73.0 °C
71.3 °C
71.4 °C
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
68 Order No.: 328907-001
Thermal Management—Processor
TLA,
Processor PCG
2C/GT2 35 W
4C/GT0 25 W
2C/GT0 16 W
Notes: 1. TDP shown here, 95 W for example, represents the maximum expected platform TDP in the next generation
1
1
1
platform for this type of SKU. This placeholder value is provided as a guideline for hardware design for the next
generation platform.
2. Platform Compatibility Guide (PCG) provides a design target for meeting all planned processor frequency
requirements. For more information, refer to Voltage and Current Specifications on page 94.
3. Package Thermal Design Power (TDP) is for the Intel® Xeon® processor E3-1200 v3 Product Family.
4. Platform Thermal Design Power (TDP) includes projections for the refresh processor that follow the Intel® Xeon
processor E3-1200 v3 Product Family in this platform.
5. Thermal Solution information can be found in the following table.
6. These boundary conditions and performance targets are used to generate processor thermal specifications and to
provide guidance for heatsink design. Values are for the heatsink shown in the adjacent column are calculated at sea
level, and are expected to meet the Thermal Profile at TDP. TLA is the local ambient temperature of the heatsink
inlet air. Airflow is through the heatsink fins with zero bypass for a passive heatsink. RPM is fan revolutions per
minute for an active heatsink. ѰCA is the maximum target (mean + 3 sigma) for the thermal characterization
parameter. For more information on the thermal characterization parameter, refer to the processor Thermal
Mechanical Design Guidelines (see Related Documents section).
7. Maximum T
outside these operating limits may result in permanent damage to the processor and potentially other system
components.
8. T
CASE-MAX
9. ATCA Reference Heatsink supports Socket B and is not tooled for Socket H.
2
2013A
Thermal Profile is the specification that must be complied to. Any Attempt to operate the processor
CASE
at Platform TDP is calculated using the maximum T
Package
3
TDP
35 W 35 W
25 W 25 W
16 W 16 W
Platform
4
TDP
Heatsink
Active Short
(DHA-D)
ATCA
Reference
Heatsink
Reference
Heatsink
9
ATCA
9
Thermal Profile and the platform TDP.
CASE
5
Airflow,
RPM,
6
Ѱ
CA
45.4 °C,
3000 RPM,
0.597 °C/W
67 °C,
10 CFM,
0.565 °C/W
67 °C,
10 CFM,
0.565 °C/W
Maximum
T
CASE
Thermal
7
Profile
y = 0.51 *
Power + 48.5
y = 0.48 *
Power + 69.1
y = 0.48 *
Power + 68.2
T
CASE-MAX
Platform
TDP
66.3 °C
81.1 °C
75.8 °C
®
@
8
5.5 Processor Temperature
A software readable field in the TEMPERATURE_TARGET register that contains the
minimum temperature at which the TCC will be activated and PROCHOT# will be
asserted. The TCC activation temperature is calibrated on a part-by-part basis and
normal factory variation may result in the actual TCC activation temperature being
higher than the value listed in the register. TCC activation temperatures may change
based on processor stepping, frequency or manufacturing efficiencies.
5.6
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 69
Adaptive Thermal Monitor
The Adaptive Thermal Monitor feature provides an enhanced method for controlling
the processor temperature when the processor silicon exceeds the Thermal Control
Circuit (TCC) activation temperature. Adaptive Thermal Monitor uses TCC activation to
reduce processor power using a combination of methods. The first method (Frequency
control, similar to Thermal Monitor 2 (TM2) in previous generation processors)
involves the processor reducing its operating frequency (using the core ratio
multiplier) and internal core voltage. This combination of lower frequency and core
voltage results in a reduction of the processor power consumption. The second
method (clock modulation, known as Thermal Monitor 1 or TM1 in previous generation
processors) reduces power consumption by modulating (starting and stopping) the
internal processor core clocks. The processor intelligently selects the appropriate TCC
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Thermal Management
method to use on a dynamic basis. BIOS is not required to select a specific method
(as with previous-generation processors supporting TM1 or TM2). The temperature at
which Adaptive Thermal Monitor activates the Thermal Control Circuit is factory
calibrated and is not user configurable. Snooping and interrupt processing are
performed in the normal manner while the TCC is active.
When the TCC activation temperature is reached, the processor will initiate TM2 in
attempt to reduce its temperature. If TM2 is unable to reduce the processor
temperature, TM1 will be also be activated. TM1 and TM2 will work together (clocks
will be modulated at the lowest frequency ratio) to reduce power dissipation and
temperature.
With a properly designed and characterized thermal solution, it is anticipated that the
TCC will only be activated for very short periods of time when running the most power
intensive applications. The processor performance impact due to these brief periods of
TCC activation is expected to be so minor that it would be immeasurable. An underdesigned thermal solution that is not able to prevent excessive activation of the TCC in
the anticipated ambient environment may cause a noticeable performance loss, and in
some cases may result in a T
that exceeds the specified maximum temperature
CASE
and may affect the long-term reliability of the processor. In addition, a thermal
solution that is significantly under designed may not be capable of cooling the
processor even when the TCC is active continuously. See the appropriate processor
Thermal Mechanical Design Guidelines for information on designing a compliant
thermal solution.
The Thermal Monitor does not require any additional hardware, software drivers, or
interrupt handling routines. The following sections provide more details on the
different TCC mechanisms used by the processor.
Frequency Control
When the Digital Temperature Sensor (DTS) reaches a value of 0 (DTS temperatures
reported using PECI may not equal zero when PROCHOT# is activated), the TCC will
be activated and the PROCHOT# signal will be asserted if configured as bi-directional.
This indicates the processor temperature has met or exceeded the factory calibrated
trip temperature and it will take action to reduce the temperature.
Upon activation of the TCC, the processor will stop the core clocks, reduce the core
ratio multiplier by 1 ratio and restart the clocks. All processor activity stops during this
frequency transition that occurs within 2 us. Once the clocks have been restarted at
the new lower frequency, processor activity resumes while the core voltage is reduced
by the internal voltage regulator. Running the processor at the lower frequency and
voltage will reduce power consumption and should allow the processor to cool off. If
after 1 ms the processor is still too hot (the temperature has not dropped below the
TCC activation point, DTS still = 0 and PROCHOT is still active), then a second
frequency and voltage transition will take place. This sequence of temperature
checking and frequency and voltage reduction will continue until either the minimum
frequency has been reached or the processor temperature has dropped below the TCC
activation point.
If the processor temperature remains above the TCC activation point even after the
minimum frequency has been reached, then clock modulation (described below) at
that minimum frequency will be initiated.
There is no end user software or hardware mechanism to initiate this automated TCC
activation behavior.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
70 Order No.: 328907-001
Thermal Management—Processor
A small amount of hysteresis has been included to prevent rapid active/inactive
transitions of the TCC when the processor temperature is near the TCC activation
temperature. Once the temperature has dropped below the trip temperature and the
hysteresis timer has expired, the operating frequency and voltage transition back to
the normal system operating point using the intermediate VID/frequency points.
Transition of the VID code will occur first, to insure proper operation as the frequency
is increased.
Clock Modulation
Clock modulation is a second method of thermal control available to the processor.
Clock modulation is performed by rapidly turning the clocks off and on at a duty cycle
that should reduce power dissipation by about 50% (typically a 30–50% duty cycle).
Clocks often will not be off for more than 32 microseconds when the TCC is active.
Cycle times are independent of processor frequency. The duty cycle for the TCC, when
activated by the Thermal Monitor, is factory configured and cannot be modified.
It is possible for software to initiate clock modulation with configurable duty cycles.
A small amount of hysteresis has been included to prevent rapid active/inactive
transitions of the TCC when the processor temperature is near its maximum operating
temperature. Once the temperature has dropped below the maximum operating
temperature and the hysteresis timer has expired, the TCC goes inactive and clock
modulation ceases.
Immediate Transition to Combined TM1 and TM2
When the TCC is activated, the processor will sequentially step down the ratio
multipliers and VIDs in an attempt to reduce the silicon temperature. If the
temperature continues to increase and exceeds the TCC activation temperature by
approximately 5 °C before the lowest ratio/VID combination has been reached, the
processor will immediately transition to the combined TM1/TM2 condition. The
processor remains in this state until the temperature has dropped below the TCC
activation point. Once below the TCC activation temperature, TM1 will be discontinued
and TM2 will be exited by stepping up to the appropriate ratio/VID state.
Critical Temperature Flag
If TM2 is unable to reduce the processor temperature, then TM1 will be also be
activated. TM1 and TM2 will then work together to reduce power dissipation and
temperature. It is expected that only a catastrophic thermal solution failure would
create a situation where both TM1 and TM2 are active.
If TM1 and TM2 have both been active for greater than 20 ms and the processor
temperature has not dropped below the TCC activation point, the Critical Temperature
Flag in the IA32_THERM_STATUS MSR will be set. This flag is an indicator of a
catastrophic thermal solution failure and that the processor cannot reduce its
temperature. Unless immediate action is taken to resolve the failure, the processor
will probably reach the Thermtrip temperature (see Testability Signals on page 82)
within a short time. To prevent possible permanent silicon damage, Intel recommends
removing power from the processor within ½ second of the Critical Temperature Flag
being set.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 71
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Thermal Management
PROCHOT# Signal
An external signal, PROCHOT# (processor hot), is asserted when the processor core
temperature has exceeded its specification. If Adaptive Thermal Monitor is enabled (it
must be enabled for the processor to be operating within specification), the TCC will
be active when PROCHOT# is asserted.
The processor can be configured to generate an interrupt upon the assertion or deassertion of PROCHOT#.
By default, the PROCHOT# signal is set to bi-directional. However, it is recommended
to configure the signal as an input only. When configured as an input or bi-directional
signal, PROCHOT# can be used for thermally protecting other platform components
should they overheat as well. When PROCHOT# is driven by an external device:
• The package will immediately transition to the minimum operation points (voltage
and frequency) supported by the processor and graphics cores. This is contrary to
the internally-generated Adaptive Thermal Monitor response.
• Clock modulation is not activated.
The TCC will remain active until the system de-asserts PROCHOT#. The processor can
be configured to generate an interrupt upon assertion and de-assertion of the
PROCHOT# signal. Refer to the appropriate Platform Thermal Mechanical Design
Guidelines (see Related Doucments section) for details on implementing the bidirectional PROCHOT# feature.
Note: Toggling PROCHOT# more than once in 1.5 ms period will result in constant Pn state
of the processor.
Note: A corner case exists for PROCHOT# configured as a bi-directional signal that can
cause several milliseconds of delay to a system assertion of PROCHOT# when the
output function is asserted.
As an output, PROCHOT# (Processor Hot) will go active when the processor
temperature monitoring sensor detects that one or more cores has reached its
maximum safe operating temperature. This indicates that the processor Thermal
Control Circuit (TCC) has been activated, if enabled. As an input, assertion of
PROCHOT# by the system will activate the TCC for all cores. TCC activation when
PROCHOT# is asserted by the system will result in the processor immediately
transitioning to the minimum frequency and corresponding voltage (using Frequency
control). Clock modulation is not activated in this case. The TCC will remain active
until the system de-asserts PROCHOT#.
Use of PROCHOT# in input or bi-directional mode can allow VR thermal designs to
target maximum sustained current instead of maximum current. Systems should still
provide proper cooling for the Voltage Regulator (VR), and rely on PROCHOT# only as
a backup in case of system cooling failure. The system thermal design should allow
the power delivery circuitry to operate within its temperature specification even while
the processor is operating at its Thermal Design Power.
5.7
THERMTRIP# Signal
Regardless of whether or not Adaptive Thermal Monitor is enabled , in the event of a
catastrophic cooling failure, the processor will automatically shut down when the
silicon has reached an elevated temperature (refer to the THERMTRIP# definition in
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
72 Order No.: 328907-001
Thermal Management—Processor
Error and Thermal Protection Signals on page 83). THERMTRIP# activation is
independent of processor activity. The temperature at which THERMTRIP# asserts is
not user configurable and is not software visible.
5.8 Digital Thermal Sensor
Each processor execution core has an on-die Digital Thermal Sensor (DTS) that
detects the core's instantaneous temperature. The DTS is the preferred method of
monitoring processor die temperature because:
• It is located near the hottest portions of the die.
• It can accurately track the die temperature and ensure that the Adaptive Thermal
Monitor is not excessively activated.
Temperature values from the DTS can be retrieved through:
• A software interface using processor Model Specific Register (MSR).
• A processor hardware interface as described in Platform Environmental Control
Interface (PECI) on page 36.
When temperature is retrieved by the processor MSR, it is the instantaneous
temperature of the given core. When temperature is retrieved using PECI, it is the
average of the highest DTS temperature in the package over a 256 ms time window.
Intel recommends using the PECI reported temperature for platform thermal control
that benefits from averaging, such as fan speed control. The average DTS
temperature may not be a good indicator of package Adaptive Thermal Monitor
activation or rapid increases in temperature that triggers the Out of Specification
status bit within the PACKAGE_THERM_STATUS MSR 1B1h and IA32_THERM_STATUS
MSR 19Ch.
5.8.1
Code execution is halted in C1 or deeper C-states. Package temperature can still be
monitored through PECI in lower C-states.
Unlike traditional thermal devices, the DTS outputs a temperature relative to the
maximum supported operating temperature of the processor (Tj
), regardless of
MAX
TCC activation offset. It is the responsibility of software to convert the relative
temperature to an absolute temperature. The absolute reference temperature is
readable in the TEMPERATURE_TARGET MSR 1A2h. The temperature returned by the
DTS is an implied negative integer indicating the relative offset from Tj
does not report temperatures greater than Tj
. The DTS-relative temperature
MAX
. The DTS
MAX
readout directly impacts the Adaptive Thermal Monitor trigger point. When a package
DTS indicates that it has reached the TCC activation (a reading of 0h, except when the
TCC activation offset is changed), the TCC will activate and indicate an Adaptive
Thermal Monitor event. A TCC activation will lower both IA core and graphics core
frequency, voltage, or both. Changes to the temperature can be detected using two
programmable thresholds located in the processor thermal MSRs. These thresholds
have the capability of generating interrupts using the core's local APIC. Refer to the
Intel® 64 and IA-32 Architectures Software Developer’s Manual for specific register
and programming details.
Digital Thermal Sensor Accuracy (Taccuracy)
The error associated with DTS measurements will not exceed ±5 °C within the entire
operating range.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 73
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Thermal Management
5.9 Intel® Turbo Boost Technology Thermal Considerations
Intel Turbo Boost Technology allows processor cores and integrated graphics cores to
run faster than the baseline frequency. During a turbo event, the processor can
exceed its TDP power for brief periods. Turbo is invoked opportunistically and
automatically as long as the processor is conforming to its temperature, power
delivery, and current specification limits. Thus, thermal solutions and platform cooling
that are designed to less than thermal design guidance may experience thermal and
performance issues since more applications will tend to run at or near the maximum
power limit for significant periods of time.
5.9.1 Intel® Turbo Boost Technology Power Control and Reporting
Package processor core and internal graphics core powers are self monitored and
correspondingly reported out.
• With the processor turbo disabled, rolling average power over 5 seconds will not
exceed the TDP rating of the part for typical applications.
• With turbo enabled (see Figure 18 on page 75)
— For the PL1: Package rolling average of the power set in POWER_LIMIT_1
(TURBO_POWER_LIMIT MSR 0610h bits [14:0]) over time window set in
POWER_LIMIT_1_TIME (TURBO_POWER_LIMIT MSR 0610h bits [23:17]) must
be less than or equal to the TDP package power as read from the
PACKAGE_POWER_SKU MSR 0614h for typical applications. Power control is
valid only when the processor is operating in turbo. PL1 lower than the
package TDP is not guaranteed.
— For the PL2: Package power will be controlled to a value set in
POWER_LIMIT_2 (TURBO_POWER_LIMIT MSR 0610h bits [46:32]). Occasional
brief power excursions may occur for periods of less than 10 ms over PL2.
The processor monitors its own power consumption to control turbo behavior,
assuming the following:
• The power monitor is not 100% tested across all processors.
• The Power Limit 2 (PL2) control is only valid for power levels set at or above TDP
and under workloads with similar activity ratios as the product TDP workload. This
also assumes the processor is working within other product specifications.
• Setting power limits (PL1 or PL2) below TDP are not ensured to be followed, and
are not characterized for accuracy.
• Under unknown work loads and unforeseen applications the average processor
power may exceed Power Limit 1 (PL1).
• Uncharacterized workloads may exist that could result in higher turbo frequencies
and power. If that were to happen, the processor Thermal Control Circuitry (TCC)
would protect the processor. The TCC protection must be enabled by the platform
for the product to be within specification.
An illustration of Intel Turbo Boost Technology power control is shown in the following
sections and figures. Multiple controls operate simultaneously allowing for
customization for multiple system thermal and power limitations. These controls
provide turbo optimizations within system constraints.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
74 Order No.: 328907-001
Thermal Management—Processor
5.9.2 Package Power Control
The package power control allows for customization to implement optimal turbo within
platform power delivery and package thermal solution limitations.
Table 21. Intel® Turbo Boost Technology 2.0 Package Power Control Settings
MSR:
Address:
Control Bit Default Description
POWER_LIMIT_1 (PL1) 14:0 SKU TDP
POWER_LIMIT_1_TIME
(Turbo Time Parameter)
POWER_LIMIT_2 (PL2) 46:32 1.25 x TDP
MSR_TURBO_POWER_LIMIT
610h
23:17 1 sec
• This value sets the average power limit over a long time
period. This is normally aligned to the TDP of the part and
steady-state cooling capability of the thermal solution. The
default value is the TDP for the SKU.
• PL1 limit may be set lower than TDP in real time for specific
needs, such as responding to a thermal event. If it is set
lower than TDP, the processor may require to use frequences
below the guaranteed P1 frequency to control to the low
power limits. The PL1 Clamp bit [16] should be set to enable
the processor to use frequencies below P1 to control to the set
power limit.
• PL1 limit may be set higher than TDP. If set higher than TDP,
the processor could stay at that power level continuously and
cooling solution improvements may be required.
This value is a time parameter that adjusts the algorithm
behavior to maintain time averaged power at or below PL1. The
hardware default value is 1 second, but 28 seconds is
recommended for most mobile applications.
PL2 establishes the upper power limit of turbo operation above
TDP, primarily for platform power supply considerations. Power
may exceed this limit for up to 10 ms. The default for this limit is
1.25 x TDP but the BIOS may reprogram it to maximize the
performance within platform power supply considerations. Setting
this limit to TDP will limit the processor to only operate up to
TDP. It does not disable turbo because turbo is opportunistic and
power/temperature dependent. Many workloads will allow some
turbo frequencies for powers at or below TDP.
Figure 18. Package Power Control
5.9.3 Turbo Time Parameter
Turbo Time Parameter is a mathematical parameter (units in seconds) that controls
the Intel Turbo Boost Technology algorithm using an average of energy usage. During
a maximum power turbo event of about 1.25 x TDP, the processor could sustain
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 75
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Thermal Management
Power_Limit_2 for up to approximately 1.5 the Turbo Time Parameter. See the
appropriate processor Thermal Mechanical Design Guidelines for more information
(see Related Documents section). If the power value and/or Turbo Time Parameter is
changed during runtime, it may take a period of time (possibly up to approximately 3
to 5 times the Turbo Time Parameter, depending on the magnitude of the change and
other factors) for the algorithm to settle at the new control limits.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
76 Order No.: 328907-001
Signal Description—Processor
6.0 Signal Description
This chapter describes the processor signals. They are arranged in functional groups
according to their associated interface or category. The following notations are used to
describe the signal type.
Notation Signal Type
I Input pin
O Output pin
I/O Bi-directional Input/Output pin
The signal description also includes the type of buffer used for the particular signal
(see the following table).
Table 22. Signal Description Buffer Types
Signal Description
CMOS CMOS buffers. 1.05V- tolerant
A Analog reference or output. May be used as a threshold voltage or for buffer
GTL Gunning Transceiver Logic signaling technology
Ref Voltage reference signal
Asynchronous 1Signal has no timing relationship with any reference clock.
1. Qualifier for a buffer type.
compensation
6.1 System Memory Interface Signals
Table 23. Memory Channel A
Signal Name Description Direction / Buffer
SA_BS[2:0]
SA_WE#
SA_RAS#
SA_CAS#
SA_DQS[8:0]
SA_DQSN[8:0]
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 77
Bank Select: These signals define which banks are selected
within each SDRAM rank.
Write Enable Control Signal: This signal is used with
SA_RAS# and SA_CAS# (along with SA_CS#) to define the
SDRAM Commands.
RAS Control Signal: This signal is used with SA_CAS# and
SA_WE# (along with SA_CS#) to define the SRAM Commands.
CAS Control Signal: This signal is used with SA_RAS# and
SA_WE# (along with SA_CS#) to define the SRAM Commands.
Data Strobes: SA_DQS[8:0] and its complement signal group
make up a differential strobe pair. The data is captured at the
crossing point of SA_DQS[8:0] and SA_DQS#[8:0] during read
and write transactions.
Intel® Xeon® Processor E3-1200 v3 Product Family
Type
O
DDR3/DDR3L
O
DDR3/DDR3L
O
DDR3/DDR3L
O
DDR3/DDR3L
I/O
DDR3/DDR3L
continued...
Processor—Signal Description
Signal Name Description Direction / Buffer
SA_DQ[63:0]
SA_ECC_CB[7:0]
SA_MA[15:0]
SA_CK[3:0]
SA_CKE[3:0]
SA_CS#[3:0]
SA_ODT[3:0]
Data Bus: Channel A data signal interface to the SDRAM data
bus.
ECC Data Lines: Data Lines for ECC Check Byte. I/O
Memory Address: These signals are used to provide the
multiplexed row and column address to the SDRAM.
SDRAM Differential Clock: These signals are Channel A
SDRAM Differential clock signal pairs. The crossing of the
positive edge of SA_CK and the negative edge of its complement
SA_CK# are used to sample the command and control signals on
the SDRAM.
Clock Enable: (1 per rank). These signals are used to:
• Initialize the SDRAMs during power-up
• Power-down SDRAM ranks
• Place all SDRAM ranks into and out of self-refresh during STR
Chip Select: (1 per rank). These signals are used to select
particular SDRAM components during the active state. There is
one Chip Select for each SDRAM rank.
On Die Termination: Active Termination Control. O
Table 24. Memory Channel B
Signal Name Description Direction / Buffer
SB_BS[2:0]
SB_WE#
SB_RAS#
SB_CAS#
SB_DQS[8:0]
SB_DQSN[8:0]
SB_DQ[63:0]
SB_ECC_CB[7:0]
SB_MA[15:0]
SB_CK[3:0]
Bank Select: These signals define which banks are selected
within each SDRAM rank.
Write Enable Control Signal: This signal is used with
SB_RAS# and SB_CAS# (along with SB_CS#) to define the
SDRAM Commands.
RAS Control Signal: This signal is used with SB_CAS# and
SB_WE# (along with SB_CS#) to define the SRAM Commands.
CAS Control Signal: This signal is used with SB_RAS# and
SB_WE# (along with SB_CS#) to define the SRAM Commands.
Data Strobes: SB_DQS[8:0] and its complement signal group
make up a differential strobe pair. The data is captured at the
crossing point of SB_DQS[8:0] and its SB_DQS#[8:0] during
read and write transactions.
Data Bus: Channel B data signal interface to the SDRAM data
bus.
ECC Data Lines: Data Lines for ECC Check Byte. I/O
Memory Address: These signals are used to provide the
multiplexed row and column address to the SDRAM.
SDRAM Differential Clock: Channel B SDRAM Differential
clock signal pair. The crossing of the positive edge of SB_CK
and the negative edge of its complement SB_CK# are used to
sample the command and control signals on the SDRAM.
Type
I/O
DDR3/DDR3L
DDR3/DDR3L
O
DDR3/DDR3L
O
DDR3/DDR3L
O
DDR3L
O
DDR3/DDR3L
DDR3/DDR3L
Type
O
DDR3/DDR3L
O
DDR3/DDR3L
O
DDR3L
O
DDR3/DDR3L
I/O
DDR3/DDR3L
I/O
DDR3/DDR3L
DDR3/DDR3L
O
DDR3/DDR3L
O
DDR3/DDR3L
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
78 Order No.: 328907-001
Signal Description—Processor
Signal Name Description Direction / Buffer
Clock Enable: (1 per rank). These signals are used to:
SB_CKE[3:0]
SB_CS#[3:0]
SB_ODT[3:0]
• Initialize the SDRAMs during power-up.
• Power-down SDRAM ranks.
• Place all SDRAM ranks into and out of self-refresh during
STR.
Chip Select: (1 per rank). These signals are used to select
particular SDRAM components during the active state. There is
one Chip Select for each SDRAM rank.
On Die Termination: Active Termination Control. O
6.2 Memory Reference and Compensation
Table 25. Memory Reference and Compensation
Signal Name Description Direction /
SM_RCOMP[2:0]
SM_VREF
SA_DIMM_VREFDQ
SB_DIMM_VREFDQ
System Memory Impedance Compensation: I
DDR3/DDR3L Reference Voltage: This signal is used as
a reference voltage to the DDR3/DDR3L controller and is
defined as V
Memory Channel A/B DIMM DQ Voltage Reference:
The output pins are connected to the DIMMs, and holds
V
/2 as reference voltage.
DDQ
DDQ
/2
Type
O
DDR3/DDR3L
O
DDR3/DDR3L
DDR3/DDR3L
Buffer Type
A
O
DDR3/DDR3L
O
DDR3/DDR3L
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 79
Intel® Xeon® Processor E3-1200 v3 Product Family
6.3 Reset and Miscellaneous Signals
Table 26. Reset and Miscellaneous Signals
Processor—Signal Description
Signal Name Description Direction /
Configuration Signals: The CFG signals have a default value of
'1' if not terminated on the board.
• CFG[1:0]: Reserved configuration lane. A test point may be
placed on the board for these lanes.
• CFG[2]: PCI Express* Static x16 Lane Numbering Reversal.
— 1 = Normal operation
— 0 = Lane numbers reversed.
• CFG[3]: MSR Privacy Bit Feature
— 1 = Debug capability is determined by
IA32_Debug_Interface_MSR (C80h) bit[0] setting
CFG[19:0]
CFG_RCOMP
FC_x
PM_SYNC
PWR_DEBUG#
IST_TRIGGER
IVR_ERROR
RESET#
RSVD
RSVD_TP
RSVD_NCTF
— 0 = IA32_Debug_Interface_MSR (C80h) bit[0] default
setting overridden
• CFG[4]: Reserved configuration lane. A test point may be
placed on the board for this lane.
• CFG[6:5]: PCI Express* Bifurcation:
— 00 = 1 x8, 2 x4 PCI Express*
— 01 = reserved
— 10 = 2 x8 PCI Express*
— 11 = 1 x16 PCI Express*
• CFG[19:7]: Reserved configuration lanes. A test point may
be placed on the board for these lands.
Configuration resistance compensation. Use a 49.9 Ω ±1%
resistor to ground.
FC (Future Compatibility) signals are signals that are available for
compatibility with other processors. A test point may be placed
on the board for these lands.
Power Management Sync: A sideband signal to communicate
power management status from the platform to the processor.
Signal is for debug. I
Signal is for IFDIM testing only. I
Signal is for debug. If both THERMTRIP# and this signal are
simultaneously asserted, the processor has encountered an
unrecoverable power delivery fault and has engaged automatic
shutdown as a result.
Platform Reset pin driven by the PCH. I
RESERVED: All signals that are RSVD and RSVD_NCTF must be
left unconnected on the board. Intel recommends that all
RSVD_TP signals have via test points.
1
Buffer Type
Asynchronous
Non-Critical to
continued...
I/O
GTL
—
I
CMOS
CMOS
CMOS
O
CMOS
CMOS
No Connect
Test Point
Function
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
80 Order No.: 328907-001
Signal Description—Processor
Signal Name Description Direction /
SM_DRAMRST#
TESTLO_x
Note: 1. PCIe bifurcation support varies with the processor and PCH SKUs used.
DRAM Reset: Reset signal from processor to DRAM devices. One
signal common to all channels.
TESTLO should be individually connected to VSS through a
resistor.
6.4 PCI Express*-Based Interface Signals
Table 27. PCI Express* Graphics Interface Signals
Signal Name Description Direction / Buffer Type
PEG_RCOMP
PEG_RXP[15:0]
PEG_RXN[15:0]
PEG_TXP[15:0]
PEG_TXN[15:0]
PCI Express Resistance Compensation I
PCI Express Receive Differential Pair I
PCI Express Transmit Differential Pair O
6.5 Display Interface Signals
Table 28. Display Interface Signals
Buffer Type
O
CMOS
A
PCI Express
PCI Express
Signal Name Description Direction / Buffer
FDI_TXP[1:0]
FDI_TXN[1:0]
DDIB_TXP[3:0]
DDIB_TXN[3:0]
DDIC_TXP[3:0]
DDIC_TXN[3:0]
DDID_TXP[3:0]
DDID_TXN[3:0]
FDI_CSYNC
DISP_INT
Intel Flexible Display Interface Transmit Differential Pair O
Digital Display Interface Transmit Differential Pair O
Digital Display Interface Transmit Differential Pair O
Digital Display Interface Transmit Differential Pair O
Intel Flexible Display Interface Sync I
Intel Flexible Display Interface Hot-Plug Interrupt I
Asynchronous
Type
FDI
FDI
FDI
FDI
CMOS
CMOS
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 81
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Signal Description
6.6 Direct Media Interface (DMI)
Table 29. Direct Media Interface (DMI) – Processor to PCH Serial Interface
Signal Name Description Direction / Buffer
DMI_RXP[3:0]
DMI_RXN[3:0]
DMI_TXP[3:0]
DMI_TXN[3:0]
DMI Input from PCH: Direct Media Interface receive
differential pair.
DMI Output to PCH: Direct Media Interface transmit
differential pair.
6.7 Phase Locked Loop (PLL) Signals
Table 30. Phase Locked Loop (PLL) Signals
Signal Name Description Direction / Buffer
BCLKP
BCLKN
DPLL_REF_CLKP
DPLL_REF_CLKN
SSC_DPLL_REF_CLKP
SSC_ DPLL_REF_CLKN
Differential bus clock input to the processor I
Embedded Display Port PLL Differential Clock In:
135 MHz
Spread Spectrum Embedded DisplayPort PLL
Differential Clock In: 135 MHz
6.8 Testability Signals
Table 31. Testability Signals
Signal Name Description Direction / Buffer
Breakpoint and Performance Monitor Signals:
BPM#[7:0]
DBR#
PRDY#
PREQ#
TCK
TDI
Outputs from the processor that indicate the status of
breakpoints and programmable counters used for
monitoring processor performance.
Debug Reset: This signal is used only in systems where
no debug port is implemented on the system board.
DBR# is used by a debug port interposer so that an intarget probe can drive system reset.
Processor Ready: This signal is a processor output
used by debug tools to determine processor debug
readiness.
Processor Request: This signal is used by debug tools
to request debug operation of the processor.
Test Clock: This signal provides the clock input for the
processor Test Bus (also known as the Test Access
Port). This signal must be driven low or allowed to float
during power on Reset.
Test Data In: This signal transfers serial test data into
the processor. This signal provides the serial input
needed for JTAG specification support.
Type
I
DMI
O
DMI
Type
Diff Clk
I
Diff Clk
I
Diff Clk
Type
I/O
CMOS
O
O
Asynchronous CMOS
I
Asynchronous CMOS
I
GTL
I
GTL
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
82 Order No.: 328907-001
Signal Description—Processor
Signal Name Description Direction / Buffer
Test Data Out: This signal transfers serial test data out
TDO
TMS
TRST#
of the processor. This signal provides the serial output
needed for JTAG specification support.
Test Mode Select: This is a JTAG specification
supported signal used by debug tools.
Test Reset: This signal resets the Test Access Port
(TAP) logic. This signal must be driven low during power
on Reset.
6.9 Error and Thermal Protection Signals
Table 32. Error and Thermal Protection Signals
Signal Name Description Direction / Buffer
Catastrophic Error: This signal indicates that the system has
experienced a catastrophic error and cannot continue to
CATERR#
PECI
PROCHOT#
THERMTRIP#
operate. The processor will set this for non-recoverable
machine check errors or other unrecoverable internal errors.
CATERR# is used for signaling the following types of errors:
Legacy MCERRs, CATERR# is asserted for 16 BCLKs. Legacy
IERRs, CATERR# remains asserted until warm or cold reset.
Platform Environment Control Interface: A serial
sideband interface to the processor, it is used primarily for
thermal, power, and error management.
Processor Hot: PROCHOT# goes active when the processor
temperature monitoring sensor(s) detects that the processor
has reached its maximum safe operating temperature. This
indicates that the processor Thermal Control Circuit (TCC) has
been activated, if enabled. This signal can also be driven to
the processor to activate the TCC.
Thermal Trip: The processor protects itself from catastrophic
overheating by use of an internal thermal sensor. This sensor
is set well above the normal operating temperature to ensure
that there are no false trips. The processor will stop all
execution when the junction temperature exceeds
approximately 130 °C. This is signaled to the system by the
THERMTRIP# pin.
Type
O
Open Drain
I
GTL
I
GTL
Type
O
GTL
I/O
Asynchronous
GTL Input
Open-Drain Output
O
Asynchronous OD
Asynchronous CMOS
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 83
Intel® Xeon® Processor E3-1200 v3 Product Family
6.10 Power Sequencing
Table 33. Power Sequencing
Processor—Signal Description
Signal Name Description Direction / Buffer
SM_DRAMPWROK
PWRGOOD
SKTOCC#
SM_DRAMPWROK Processor Input: This signal
connects to the PCH DRAMPWROK.
The processor requires this input signal to be a clean
indication that the VCC and V
stable and within specifications. This requirement
applies regardless of the S-state of the processor.
'Clean' implies that the signal will remain low (capable
of sinking leakage current), without glitches, from the
time that the power supplies are turned on until they
come within specification. The signal must then
transition monotonically to a high state.
SKTOCC# (Socket Occupied)/PROC_DETECT#:
(Processor Detect): This signal is pulled down
directly (0 Ohms) on the processor package to the
ground. There is no connection to the processor silicon
for this signal. System board designers may use this
signal to determine if the processor is present.
6.11 Processor Power Signals
Table 34. Processor Power Signals
Signal Name Description Direction / Buffer
VCC Processor core power rail. Ref
VCCIO_OUT Processor power reference for I/O. Ref
VDDQ Processor I/O supply voltage for DDR3. Ref
VCOMP_OUT Processor power reference for PEG/Display RCOMP. Ref
VIDSOUT
VIDSCLK
VIDALERT#
VIDALERT#, VIDSCLK, and VIDSCLK comprise a three
signal serial synchronous interface used to transfer
power management information between the
processor and the voltage regulator controllers.
power supplies are
DDQ
Type
I
Asynchronous CMOS
I
Asynchronous CMOS
—
Type
Input GTL/ Output Open
Drain
Output Open Drain
Input CMOS
6.12 Sense Pins
Table 35. Sense Pins
Signal Name Description Direction /
VCC_SENSE
VSS_SENSE
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
84 Order No.: 328907-001
VCC_SENSE and VSS_SENSE provide an isolated, lowimpedance connection to the processor input VCC voltage
and ground. They can be used to sense or measure
voltage near the silicon.
Buffer Type
O
A
Signal Description—Processor
6.13 Ground and Non-Critical to Function (NCTF) Signals
Table 36. Ground and Non-Critical to Function (NCTF) Signals
Signal Name Description Direction /
VSS Processor ground node GND
VSS_NCTF
Non-Critical to Function: These pins are for package
mechanical reliability.
Buffer Type
6.14 Processor Internal Pull-Up / Pull-Down Terminations
Table 37. Processor Internal Pull-Up / Pull-Down Terminations
Signal Name Pull Up / Pull Down Rail Value
BPM[7:0] Pull Up VCCIO_TERM 40–60 Ω
PREQ# Pull Up VCCIO_TERM 40–60 Ω
TDI Pull Up VCCIO_TERM 30–70 Ω
TMS Pull Up VCCIO_TERM 30–70 Ω
CFG[17:0] Pull Up VCCIO_OUT 5–8 kΩ
CATERR# Pull Up VCCIO_TERM 30–70 Ω
—
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 85
Intel® Xeon® Processor E3-1200 v3 Product Family
7.0 Electrical Specifications
This chapter provides the processor electrical specifications including integrated
voltage regulator (VR), VCC Voltage Identification (VID), reserved and unused signals,
signal groups, Test Access Points (TAP), and DC specifications.
7.1 Integrated Voltage Regulator
A new feature to the processor is the integration of platform voltage regulators into
the processor. Due to this integration, the processor has one main voltage rail (VCC)
and a voltage rail for the memory interface (V
previous processors. The VCC voltage rail will supply the integrated voltage regulators
which in turn will regulate to the appropriate voltages for the cores, cache, system
agent, and graphics. This integration allows the processor to better control on-die
voltages to optimize between performance and power savings. The processor VCC rail
will remain a VID-based voltage with a loadline similar to the core voltage rail (also
called VCC) in previous processors.
Processor—Electrical Specifications
) , compared to six voltage rails on
DDQ
7.2 Power and Ground Lands
The processor has VCC, VDDQ, and VSS (ground) lands for on-chip power distribution.
All power lands must be connected to their respective processor power planes, while
all VSS lands must be connected to the system ground plane. Use of multiple power
and ground planes is recommended to reduce I*R drop. The VCC lands must be
supplied with the voltage determined by the processor Serial Voltage IDentification
(SVID) interface. Table 38 on page 87 specifies the voltage level for the various
VIDs.
7.3
VCC Voltage Identification (VID)
The processor uses three signals for the serial voltage identification interface to
support automatic selection of voltages. The following table specifies the voltage level
corresponding to the 8-bit VID value transmitted over serial VID. A ‘1’ in this table
refers to a high voltage level and a ‘0’ refers to a low voltage level. If the voltage
regulation circuit cannot supply the voltage that is requested, the voltage regulator
must disable itself. VID signals are CMOS push/pull drivers. See Table 46 on page
98 for the DC specifications for these signals. The VID codes will change due to
temperature and/or current load changes in order to minimize the power of the part. A
voltage range is provided in Voltage and Current Specifications on page 94. The
specifications are set so that one voltage regulator can operate with all supported
frequencies.
Individual processor VID values may be set during manufacturing so that two devices
at the same core frequency may have different default VID settings. This is shown in
the VID range values in Voltage and Current Specifications on page 94. The
processor provides the ability to operate while transitioning to an adjacent VID and its
associated voltage. This will represent a DC shift in the loadline.
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
86 Order No.: 328907-001
Electrical Specifications—Processor
Table 38. VR 12.5 Voltage Identification
B
B
B
B
B
B
B
B
i
i
i
i
i
i
i
t
t
t
t
7
6
t
5
4
3
i
t
t
t
2
1
0
0 0 0 0 0 0 0 0 00h 0.0000
0 0 0 0 0 0 0 1 01h 0.5000
0 0 0 0 0 0 1 0 02h 0.5100
0 0 0 0 0 0 1 1 03h 0.5200
0 0 0 0 0 1 0 0 04h 0.5300
0 0 0 0 0 1 0 1 05h 0.5400
0 0 0 0 0 1 1 0 06h 0.5500
0 0 0 0 0 1 1 1 07h 0.5600
0 0 0 0 1 0 0 0 08h 0.5700
0 0 0 0 1 0 0 1 09h 0.5800
0 0 0 0 1 0 1 0 0Ah 0.5900
0 0 0 0 1 0 1 1 0Bh 0.6000
0 0 0 0 1 1 0 0 0Ch 0.6100
0 0 0 0 1 1 0 1 0Dh 0.6200
0 0 0 0 1 1 1 0 0Eh 0.6300
0 0 0 0 1 1 1 1 0Fh 0.6400
0 0 0 1 0 0 0 0 10h 0.6500
0 0 0 1 0 0 0 1 11h 0.6600
0 0 0 1 0 0 1 0 12h 0.6700
0 0 0 1 0 0 1 1 13h 0.6800
0 0 0 1 0 1 0 0 14h 0.6900
0 0 0 1 0 1 0 1 15h 0.7000
0 0 0 1 0 1 1 0 16h 0.7100
0 0 0 1 0 1 1 1 17h 0.7200
0 0 0 1 1 0 0 0 18h 0.7300
0 0 0 1 1 0 0 1 19h 0.7400
0 0 0 1 1 0 1 0 1Ah 0.7500
0 0 0 1 1 0 1 1 1Bh 0.7600
0 0 0 1 1 1 0 0 1Ch 0.7700
0 0 0 1 1 1 0 1 1Dh 0.7800
0 0 0 1 1 1 1 0 1Eh 0.7900
0 0 0 1 1 1 1 1 1Fh 0.8000
0 0 1 0 0 0 0 0 20h 0.8100
Hex V
CC
continued...
B
B
B
B
B
B
B
B
i
Hex V
i
i
i
i
i
i
t
t
t
t
7
6
t
5
4
3
i
t
t
t
2
1
0
CC
0 0 1 0 0 0 0 1 21h 0.8200
0 0 1 0 0 0 1 0 22h 0.8300
0 0 1 0 0 0 1 1 23h 0.8400
0 0 1 0 0 1 0 0 24h 0.8500
0 0 1 0 0 1 0 1 25h 0.8600
0 0 1 0 0 1 1 0 26h 0.8700
0 0 1 0 0 1 1 1 27h 0.8800
0 0 1 0 1 0 0 0 28h 0.8900
0 0 1 0 1 0 0 1 29h 0.9000
0 0 1 0 1 0 1 0 2Ah 0.9100
0 0 1 0 1 0 1 1 2Bh 0.9200
0 0 1 0 1 1 0 0 2Ch 0.9300
0 0 1 0 1 1 0 1 2Dh 0.9400
0 0 1 0 1 1 1 0 2Eh 0.9500
0 0 1 0 1 1 1 1 2Fh 0.9600
0 0 1 1 0 0 0 0 30h 0.9700
0 0 1 1 0 0 0 1 31h 0.9800
0 0 1 1 0 0 1 0 32h 0.9900
0 0 1 1 0 0 1 1 33h 1.0000
0 0 1 1 0 1 0 0 34h 1.0100
0 0 1 1 0 1 0 1 35h 1.0200
0 0 1 1 0 1 1 0 36h 1.0300
0 0 1 1 0 1 1 1 37h 1.0400
0 0 1 1 1 0 0 0 38h 1.0500
0 0 1 1 1 0 0 1 39h 1.0600
0 0 1 1 1 0 1 0 3Ah 1.0700
0 0 1 1 1 0 1 1 3Bh 1.0800
0 0 1 1 1 1 0 0 3Ch 1.0900
0 0 1 1 1 1 0 1 3Dh 1.1000
0 0 1 1 1 1 1 0 3Eh 1.1100
0 0 1 1 1 1 1 1 3Fh 1.1200
0 1 0 0 0 0 0 0 40h 1.1300
0 1 0 0 0 0 0 1 41h 1.1400
continued...
June 2013 Datasheet – Volume 1 of 2
Intel® Xeon® Processor E3-1200 v3 Product Family
Order No.: 328907-001 87
B
B
B
B
B
B
B
B
i
Hex V
i
i
i
i
i
i
t
t
t
t
7
6
t
5
4
3
i
t
t
t
2
1
0
CC
0 1 0 0 0 0 1 0 42h 1.1500
0 1 0 0 0 0 1 1 43h 1.1600
0 1 0 0 0 1 0 0 44h 1.1700
0 1 0 0 0 1 0 1 45h 1.1800
0 1 0 0 0 1 1 0 46h 1.1900
0 1 0 0 0 1 1 1 47h 1.2000
0 1 0 0 1 0 0 0 48h 1.2100
0 1 0 0 1 0 0 1 49h 1.2200
0 1 0 0 1 0 1 0 4Ah 1.2300
0 1 0 0 1 0 1 1 4Bh 1.2400
0 1 0 0 1 1 0 0 4Ch 1.2500
0 1 0 0 1 1 0 1 4Dh 1.2600
0 1 0 0 1 1 1 0 4Eh 1.2700
0 1 0 0 1 1 1 1 4Fh 1.2800
0 1 0 1 0 0 0 0 50h 1.2900
0 1 0 1 0 0 0 1 51h 1.3000
0 1 0 1 0 0 1 0 52h 1.3100
0 1 0 1 0 0 1 1 53h 1.3200
0 1 0 1 0 1 0 0 54h 1.3300
0 1 0 1 0 1 0 1 55h 1.3400
0 1 0 1 0 1 1 0 56h 1.3500
0 1 0 1 0 1 1 1 57h 1.3600
0 1 0 1 1 0 0 0 58h 1.3700
0 1 0 1 1 0 0 1 59h 1.3800
0 1 0 1 1 0 1 0 5Ah 1.3900
0 1 0 1 1 0 1 1 5Bh 1.4000
0 1 0 1 1 1 0 0 5Ch 1.4100
0 1 0 1 1 1 0 1 5Dh 1.4200
0 1 0 1 1 1 1 0 5Eh 1.4300
0 1 0 1 1 1 1 1 5Fh 1.4400
0 1 1 0 0 0 0 0 60h 1.4500
0 1 1 0 0 0 0 1 61h 1.4600
0 1 1 0 0 0 1 0 62h 1.4700
0 1 1 0 0 0 1 1 63h 1.4800
continued...
Processor—Electrical Specifications
B
B
B
B
B
B
B
B
i
Hex V
i
i
i
i
i
i
t
t
t
t
7
6
t
5
4
3
i
t
t
t
2
1
0
CC
0 1 1 0 0 1 0 0 64h 1.4900
0 1 1 0 0 1 0 1 65h 1.5000
0 1 1 0 0 1 1 0 66h 1.5100
0 1 1 0 0 1 1 1 67h 1.5200
0 1 1 0 1 0 0 0 68h 1.5300
0 1 1 0 1 0 0 1 69h 1.5400
0 1 1 0 1 0 1 0 6Ah 1.5500
0 1 1 0 1 0 1 1 6Bh 1.5600
0 1 1 0 1 1 0 0 6Ch 1.5700
0 1 1 0 1 1 0 1 6Dh 1.5800
0 1 1 0 1 1 1 0 6Eh 1.5900
0 1 1 0 1 1 1 1 6Fh 1.6000
0 1 1 1 0 0 0 0 70h 1.6100
0 1 1 1 0 0 0 1 71h 1.6200
0 1 1 1 0 0 1 0 72h 1.6300
0 1 1 1 0 0 1 1 73h 1.6400
0 1 1 1 0 1 0 0 74h 1.6500
0 1 1 1 0 1 0 1 75h 1.6600
0 1 1 1 0 1 1 0 76h 1.6700
0 1 1 1 0 1 1 1 77h 1.6800
0 1 1 1 1 0 0 0 78h 1.6900
0 1 1 1 1 0 0 1 79h 1.7000
0 1 1 1 1 0 1 0 7Ah 1.7100
0 1 1 1 1 0 1 1 7Bh 1.7200
0 1 1 1 1 1 0 0 7Ch 1.7300
0 1 1 1 1 1 0 1 7Dh 1.7400
0 1 1 1 1 1 1 0 7Eh 1.7500
0 1 1 1 1 1 1 1 7Fh 1.7600
1 0 0 0 0 0 0 0 80h 1.7700
1 0 0 0 0 0 0 1 81h 1.7800
1 0 0 0 0 0 1 0 82h 1.7900
1 0 0 0 0 0 1 1 83h 1.8000
1 0 0 0 0 1 0 0 84h 1.8100
1 0 0 0 0 1 0 1 85h 1.8200
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
88 Order No.: 328907-001
Electrical Specifications—Processor
B
B
B
B
B
B
B
B
i
i
i
i
i
i
t
t
t
7
t
6
5
4
i
t
t
t
3
2
1
Hex V
i
t
0
1 0 0 0 0 1 1 0 86h 1.8300
1 0 0 0 0 1 1 1 87h 1.8400
1 0 0 0 1 0 0 0 88h 1.8500
1 0 0 0 1 0 0 1 89h 1.8600
1 0 0 0 1 0 1 0 8Ah 1.8700
1 0 0 0 1 0 1 1 8Bh 1.8800
1 0 0 0 1 1 0 0 8Ch 1.8900
1 0 0 0 1 1 0 1 8Dh 1.9000
1 0 0 0 1 1 1 0 8Eh 1.9100
1 0 0 0 1 1 1 1 8Fh 1.9200
1 0 0 1 0 0 0 0 90h 1.9300
1 0 0 1 0 0 0 1 91h 1.9400
1 0 0 1 0 0 1 0 92h 1.9500
1 0 0 1 0 0 1 1 93h 1.9600
1 0 0 1 0 1 0 0 94h 1.9700
1 0 0 1 0 1 0 1 95h 1.9800
1 0 0 1 0 1 1 0 96h 1.9900
1 0 0 1 0 1 1 1 97h 2.0000
1 0 0 1 1 0 0 0 98h 2.0100
1 0 0 1 1 0 0 1 99h 2.0200
1 0 0 1 1 0 1 0 9Ah 2.0300
1 0 0 1 1 0 1 1 9Bh 2.0400
1 0 0 1 1 1 0 0 9Ch 2.0500
1 0 0 1 1 1 0 1 9Dh 2.0600
1 0 0 1 1 1 1 0 9Eh 2.0700
1 0 0 1 1 1 1 1 9Fh 2.0800
1 0 1 0 0 0 0 0 A0h 2.0900
1 0 1 0 0 0 0 1 A1h 2.1000
1 0 1 0 0 0 1 0 A2h 2.1100
1 0 1 0 0 0 1 1 A3h 2.1200
1 0 1 0 0 1 0 0 A4h 2.1300
1 0 1 0 0 1 0 1 A5h 2.1400
1 0 1 0 0 1 1 0 A6h 2.1500
1 0 1 0 0 1 1 1 A7h 2.1600
continued...
B
B
B
B
B
B
B
B
CC
i
i
i
i
i
i
t
t
t
7
t
6
5
4
i
t
t
t
3
2
1
Hex V
i
t
0
CC
1 0 1 0 1 0 0 0 A8h 2.1700
1 0 1 0 1 0 0 1 A9h 2.1800
1 0 1 0 1 0 1 0 AAh 2.1900
1 0 1 0 1 0 1 1 ABh 2.2000
1 0 1 0 1 1 0 0 ACh 2.2100
1 0 1 0 1 1 0 1 ADh 2.2200
1 0 1 0 1 1 1 0 AEh 2.2300
1 0 1 0 1 1 1 1 AFh 2.2400
1 0 1 1 0 0 0 0 B0h 2.2500
1 0 1 1 0 0 0 1 B1h 2.2600
1 0 1 1 0 0 1 0 B2h 2.2700
1 0 1 1 0 0 1 1 B3h 2.2800
1 0 1 1 0 1 0 0 B4h 2.2900
1 0 1 1 0 1 0 1 B5h 2.3000
1 0 1 1 0 1 1 0 B6h 2.3100
1 0 1 1 0 1 1 1 B7h 2.3200
1 0 1 1 1 0 0 0 B8h 2.3300
1 0 1 1 1 0 0 1 B9h 2.3400
1 0 1 1 1 0 1 0 BAh 2.3500
1 0 1 1 1 0 1 1 BBh 2.3600
1 0 1 1 1 1 0 0 BCh 2.3700
1 0 1 1 1 1 0 1 BDh 2.3800
1 0 1 1 1 1 1 0 BEh 2.3900
1 0 1 1 1 1 1 1 BFh 2.4000
1 1 0 0 0 0 0 0 C0h 2.4100
1 1 0 0 0 0 0 1 C1h 2.4200
1 1 0 0 0 0 1 0 C2h 2.4300
1 1 0 0 0 0 1 1 C3h 2.4400
1 1 0 0 0 1 0 0 C4h 2.4500
1 1 0 0 0 1 0 1 C5h 2.4600
1 1 0 0 0 1 1 0 C6h 2.4700
1 1 0 0 0 1 1 1 C7h 2.4800
1 1 0 0 1 0 0 0 C8h 2.4900
1 1 0 0 1 0 0 1 C9h 2.5000
continued...
June 2013 Datasheet – Volume 1 of 2
Intel® Xeon® Processor E3-1200 v3 Product Family
Order No.: 328907-001 89
B
B
B
B
B
B
B
B
i
Hex V
i
i
i
i
i
i
t
t
t
t
7
6
t
5
4
3
i
t
t
t
2
1
0
CC
1 1 0 0 1 0 1 0 CAh 2.5100
1 1 0 0 1 0 1 1 CBh 2.5200
1 1 0 0 1 1 0 0 CCh 2.5300
1 1 0 0 1 1 0 1 CDh 2.5400
1 1 0 0 1 1 1 0 CEh 2.5500
1 1 0 0 1 1 1 1 CFh 2.5600
1 1 0 1 0 0 0 0 D0h 2.5700
1 1 0 1 0 0 0 1 D1h 2.5800
1 1 0 1 0 0 1 0 D2h 2.5900
1 1 0 1 0 0 1 1 D3h 2.6000
1 1 0 1 0 1 0 0 D4h 2.6100
1 1 0 1 0 1 0 1 D5h 2.6200
1 1 0 1 0 1 1 0 D6h 2.6300
1 1 0 1 0 1 1 1 D7h 2.6400
1 1 0 1 1 0 0 0 D8h 2.6500
1 1 0 1 1 0 0 1 D9h 2.6600
1 1 0 1 1 0 1 0 DAh 2.6700
1 1 0 1 1 0 1 1 DBh 2.6800
1 1 0 1 1 1 0 0 DCh 2.6900
1 1 0 1 1 1 0 1 DDh 2.7000
1 1 0 1 1 1 1 0 DEh 2.7100
1 1 0 1 1 1 1 1 DFh 2.7200
1 1 1 0 0 0 0 0 E0h 2.7300
1 1 1 0 0 0 0 1 E1h 2.7400
1 1 1 0 0 0 1 0 E2h 2.7500
1 1 1 0 0 0 1 1 E3h 2.7600
1 1 1 0 0 1 0 0 E4h 2.7700
1 1 1 0 0 1 0 1 E5h 2.7800
1 1 1 0 0 1 1 0 E6h 2.7900
1 1 1 0 0 1 1 1 E7h 2.8000
1 1 1 0 1 0 0 0 E8h 2.8100
1 1 1 0 1 0 0 1 E9h 2.8200
1 1 1 0 1 0 1 0 EAh 2.8300
1 1 1 0 1 0 1 1 EBh 2.8400
continued...
Processor—Electrical Specifications
B
B
B
B
B
B
B
B
i
Hex V
i
i
i
i
i
i
t
t
t
t
7
6
t
5
4
3
i
t
t
t
2
1
0
CC
1 1 1 0 1 1 0 0 ECh 2.8500
1 1 1 0 1 1 0 1 EDh 2.8600
1 1 1 0 1 1 1 0 EEh 2.8700
1 1 1 0 1 1 1 1 EFh 2.8800
1 1 1 1 0 0 0 0 F0h 2.8900
1 1 1 1 0 0 0 1 F1h 2.9000
1 1 1 1 0 0 1 0 F2h 2.9100
1 1 1 1 0 0 1 1 F3h 2.9200
1 1 1 1 0 1 0 0 F4h 2.9300
1 1 1 1 0 1 0 1 F5h 2.9400
1 1 1 1 0 1 1 0 F6h 2.9500
1 1 1 1 0 1 1 1 F7h 2.9600
1 1 1 1 1 0 0 0 F8h 2.9700
1 1 1 1 1 0 0 1 F9h 2.9800
1 1 1 1 1 0 1 0 FAh 2.9900
1 1 1 1 1 0 1 1 FBh 3.0000
1 1 1 1 1 1 0 0 FCh 3.0100
1 1 1 1 1 1 0 1 FDh 3.0200
1 1 1 1 1 1 1 0 FEh 3.0300
1 1 1 1 1 1 1 1 FFh 3.0400
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
90 Order No.: 328907-001
Electrical Specifications—Processor
7.4 Reserved or Unused Signals
The following are the general types of reserved (RSVD) signals and connection
guidelines:
• RSVD – these signals should not be connected
• RSVD_TP – these signals should be routed to a test point
• RSVD_NCTF – these signals are non-critical to function and may be left unconnected
Arbitrary connection of these signals to VCC, VDDQ, VSS, or to any other signal
(including each other) may result in component malfunction or incompatibility with
future processors. See Signal Description on page 77 for a pin listing of the processor
and the location of all reserved signals.
For reliable operation, always connect unused inputs or bi-directional signals to an
appropriate signal level. Unused active high inputs should be connected through a
resistor to ground (VSS). Unused outputs maybe left unconnected; however, this may
interfere with some Test Access Port (TAP) functions, complicate debug probing, and
prevent boundary scan testing. A resistor must be used when tying bi-directional
signals to power or ground. When tying any signal to power or ground, a resistor will
also allow for system testability.
7.5 Signal Groups
Signals are grouped by buffer type and similar characteristics as listed in the following
table. The buffer type indicates which signaling technology and specifications apply to
the signals. All the differential signals and selected DDR3/DDR3L and Control Sideband
signals have On-Die Termination (ODT) resistors. Some signals do not have ODT and
need to be terminated on the board.
Note: All Control Sideband Asynchronous signals are required to be asserted/de-asserted for
at least 10 BCLKs with maximum Trise/Tfall of 6 ns in order for the processor to
recognize the proper signal state. See DC Specifications on page 93.
Table 39. Signal Groups
Signal Group Type Signals
System Reference Clock
Differential CMOS Input BCLKP, BCLKN, DPLL_REF_CLKP, DPLL_REF_CLKN,
DDR3/DDR3L Reference Clocks
Differential DDR3/DDR3L
Output
DDR3/DDR3L Command Signals
Single ended DDR3/DDR3L
Output
DDR3/DDR3L Control Signals
Single ended DDR3/DDR3L
Output
2
2
SSC_DPLL_REF_CLKP, SSC_DPLL_REF_CLKN
SA_CKP[3:0], SA_CKN[3:0], SB_CKP[3:0], SB_CKN[3:0]
2
SA_BS[2:0], SB_BS[2:0], SA_WE#, SB_WE#, SA_RAS#,
SB_RAS#, SA_CAS#, SB_CAS#, SA_MA[15:0], SB_MA[15:0]
SA_CKE[3:0], SB_CKE[3:0], SA_CS#[3:0], SB_CS#[3:0],
SA_ODT[3:0], SB_ODT[3:0]
continued...
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 91
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Electrical Specifications
Signal Group Type Signals
Single ended CMOS Output SM_DRAMRST#
DDR3/DDR3L Data Signals
Single ended DDR3/DDR3L Bi-
2
SA_DQ[63:0], SB_DQ[63:0]
directional
Differential DDR3/DDR3L Bi-
SA_DQSP[7:0], SA_DQSN[7:0], SB_DQSP[7:0], SB_DQSN[7:0]
directional
DDR3/DDR3L Reference Voltage Signals
DDR3/DDR3L
SM_VREF, SA_DIMM_VREFDQ, SB_DIMM_VREFDQ
Output
Testability (ITP/XDP)
Single ended CMOS Input TCK, TDI, TMS, TRST#
Single ended GTL TDO
Single ended Output DBR#
Single ended GTL BPM#[7:0]
Single ended GTL PREQ#
Single ended GTL PRDY#
Control Sideband
Single ended GTL Input/Open
PROCHOT#
Drain Output
Single ended Asynchronous
THERMTRIP#, IVR_ERROR
CMOS Output
Single ended GTL CATERR#
Single ended Asynchronous
PM_SYNC,RESET#, PWRGOOD, PWR_DEBUG#
CMOS Input
Single ended Asynchronous Bi-
PECI
directional
Single ended GTL Bi-directional CFG[19:0]
Single ended Analog Input SM_RCOMP[2:0]
Voltage Regulator
Single ended CMOS Input VR_READY
Single ended CMOS Input VIDALERT#
Single ended Open Drain Output VIDSCLK
Single ended GTL Input/Open
VIDSOUT
Drain Output
Differential Analog Output VCC_SENSE, VSS_SENSE
Power / Ground / Other
Single ended Power VCC, VDDQ
Ground VSS, VSS_NCTF
3
No Connect RSVD, RSVD_NCTF
Test Point RSVD_TP
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
92 Order No.: 328907-001
Electrical Specifications—Processor
Signal Group Type Signals
PCI Express* Graphics
Differential PCI Express Input PEG_RXP[15:0], PEG_RXN[15:0]
Differential PCI Express Output PEG_TXP[15:0], PEG_TXN[15:0]
Single ended Analog Input PEG_RCOMP
Digital Media Interface (DMI)
Differential DMI Input DMI_RXP[3:0], DMI_RXN[3:0]
Differential DMI Output DMI_TXP[3:0], DMI_TXN[3:0]
Digital Display Interface
Differential DDI Output DDIB_TXP[3:0], DDIB_TXN[3:0], DDIC_TXP[3:0],
Intel® FDI
Single ended CMOS Input FDI_CSYNC
Single ended Asynchronous
Differential FDI Output FDI_TXP[1:0], FDI_TXN[1:0]
Notes: 1. See Signal Description on page 77 for signal description details.
2. SA and SB refer to DDR3/DDR3L Channel A and DDR3/DDR3L Channel B.
Other SKTOCC#,
DDIC_TXN[3:0], DDID_TXP[3:0], DDID_TXN[3:0]
DISP_INT
CMOS Input
7.6 Test Access Port (TAP) Connection
Due to the voltage levels supported by other components in the Test Access Port
(TAP) logic, Intel recommends the processor be first in the TAP chain, followed by any
other components within the system. A translation buffer should be used to connect to
the rest of the chain unless one of the other components is capable of accepting an
input of the appropriate voltage. Two copies of each signal may be required with each
driving a different voltage level.
The processor supports Boundary Scan (JTAG) IEEE 1149.1-2001 and IEEE
1149.6-2003 standards. A few of the I/O pins may support only one of those
standards.
7.7
DC Specifications
The processor DC specifications in this section are defined at the processor pins,
unless noted otherwise. See Signal Description on page 77 for the processor pin
listings and signal definitions.
• The DC specifications for the DDR3/DDR3L signals are listed in the Voltage and
Current Specifications section.
• The Voltage and Current Specifications section lists the DC specifications for the
processor and are valid only while meeting specifications for junction temperature,
clock frequency, and input voltages. Read all notes associated with each
parameter.
• AC tolerances for all DC rails include dynamic load currents at switching
frequencies up to 1 MHz.
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 93
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Electrical Specifications
7.8 Voltage and Current Specifications
Table 40. Processor Core Active and Idle Mode DC Voltage and Current Specifications
Symbol Parameter Min Typ Max Unit Note
2013D: 1.75
Operational
VID
VID Range 1.65
Idle VID
(package
VID Range 1.5 1.6 1.65 V 2
C6/C7)
Loadline
slope within
R_DC_LL
the VR
regulation
loop
capability
Loadline
slope in
R_AC_LL
response to
dynamic load
increase
events
Loadline
slope in
R_AC_LL_OS
response to
dynamic load
release
events
T_OVS
Overshoot
time
V_OVS Overshoot 50 mV
VCC TOB V
CC
Tolerance
Band
VCC Ripple Ripple ± 10 (PS0)
V
CC,BOOT
Default V
voltage for
CC
initial power
— 1.70 — V —
up
I
CC
I
CC
I
CC
I
CC
2013D PCG
I
CC
2013C PCG
I
CC
2013B PCG
I
CC
2013A PCG
I
CC
— — 95 A 4, 8
— — 75 A 4, 8
— — 58 A 4, 8
— — 48 A 4, 8
2013C: 1.75
2013B: 1.75
1.86 V 2
2013A: 1.75
2013D PCG: -1.5
2013C PCG: -1.5
2013B PCG: -1.5
mΩ 3, 5, 6, 8
2013A PCG: -1.5
2013D PCG: -2.4
2013C PCG: -2.4
2013B PCG: -2.4
mΩ —
2013A PCG: -2.4
2013D PCG: -3.0
2013C PCG: -3.0
2013B PCG: -3.0
mΩ —
2013A PCG: -3.0
500 uS
± 20 (PS0, PS1, PS2, PS3) mV 3, 5, 6, 7, 8
± 15 (PS1)
+50/-15 (PS2)
mV 3, 5, 6, 7, 8
+60/-15 (PS3)
continued...
1
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
94 Order No.: 328907-001
Electrical Specifications—Processor
Symbol Parameter Min Typ Max Unit Note
P
MAX
P
MAX
P
MAX
P
MAX
2013D PCG
P
MAX
2013C PCG
P
MAX
2013B PCG
P
MAX
2013A PCG
P
MAX
— — 153 W 9
— — 121 W 9
— — 99 W 9
— — 83 W 9
1
Notes: 1. Unless otherwise noted, all specifications in this table are based on estimates and simulations or
empirical data. These specifications will be updated with characterized data from silicon
measurements at a later date.
2. Each processor is programmed with a maximum valid voltage identification value (VID) that is set
at manufacturing and cannot be altered. Individual maximum VID values are calibrated during
manufacturing such that two processors at the same frequency may have different settings within
the VID range. This differs from the VID employed by the processor during a power management
event (Adaptive Thermal Monitor, Enhanced Intel SpeedStep Technology, or Low Power States).
3. The voltage specification requirements are measured across VCC_SENSE and VSS_SENSE lands at
the socket with a 20-MHz bandwidth oscilloscope, 1.5 pF maximum probe capacitance, and 1-MΩ
minimum impedance. The maximum length of ground wire on the probe should be less than 5
mm. Ensure external noise from the system is not coupled into the oscilloscope probe.
4. I
specification is based on the VCC loadline at worst case (highest) tolerance and ripple.
CC_MAX
5. The VCC specifications represent static and transient limits.
6. The loadlines specify voltage limits at the die measured at the VCC_SENSE and VSS_SENSE lands.
Voltage regulation feedback for voltage regulator circuits must also be taken from processor
VCC_SENSE and VSS_SENSE lands.
7. PSx refers to the voltage regulator power state as set by the SVID protocol.
8. PCG is Platform Compatibility Guide (previously known as FMB). These guidelines are for
estimation purposes only.
9. P
is the maximum power the processor will dissipate as measured at VCC_SENSE and
MAX
VSS_SENSE lands. The processor may draw this power for up to 10 ms before it regulates to PL2.
Table 41. Memory Controller (V
Symbol Parameter Min Typ Max Unit Note
V
(DC+AC)
DDQ
DDR3/DDR3L
V
(DC+AC)
DDQ
DDR3/DDR3L
Icc
MAX_VDDQ
DDR3L)
I
CCAVG_VDDQ (Standby)
(DDR3/
Notes: 1. The current supplied to the DIMM modules is not included in this specification.
2. Includes AC and DC error, where the AC noise is bandwidth limited to under 20 MHz.
3. No requirement on the breakdown of AC versus DC noise.
4. Measured at 50 °C
5. This specification applies to UP Server/Workstation processors paired with a PCH configured with
Intel AMT FW
6. This specification applies to UP Server/workstation processors paired with a PCH configured with
SPS FW
Processor I/O supply
voltage for DDR3/DDR3L
(DC + AC specification)
Processor I/O supply
voltage for DDR3L (DC +
AC specification)
Max Current for V
Average Current for V
Rail during Standby
) Supply DC Voltage and Current Specifications
DDQ
Typ-5% 1.5 Typ+5% V 2, 3, 5
Typ-5% 1.35 Typ+5% V 2, 3, 6
Rail
DDQ
DDQ
— — 2.5 A
— 12 20 mA 4
June 2013 Datasheet – Volume 1 of 2
Intel® Xeon® Processor E3-1200 v3 Product Family
Order No.: 328907-001 95
Table 42. VCCIO_OUT, VCOMP_OUT, and VCCIO_TERM
Symbol Parameter Typ Max Units Notes
VCCIO_OUT
ICCIO_OUT Maximum
Termination
Voltage
1.0
— 300 mA
External Load
VCOMP_OUT Termination
1.0 — V 1
Voltage
VCCIO_TERM Termination
1.0 — V 2
Voltage
Notes: 1. VCOMP_OUT may only be used to connect to PEG_RCOMP and DP_RCOMP.
2. Internal processor power for signal termination.
Table 43. DDR3/DDR3L Signal Group DC Specifications
Symbol Parameter Min Typ Max Units Notes
V
IL
V
IH
V
IL
V
IH
R
ON_UP(DQ)
R
ON_DN(DQ)
R
ODT(DQ)
V
ODT(DC)
R
ON_UP(CK)
R
ON_DN(CK)
R
ON_UP(CMD)
R
ON_DN(CMD)
R
ON_UP(CTL)
Input Low Voltage — V
Input High Voltage 0.57*V
Input Low Voltage
(SM_DRAMPWROK)
Input High Voltage
(SM_DRAMPWROK)
DDQ
— — 0.15*V
0.45*V
DDQ
DDR3/DDR3L Data
Buffer pull-up
20 26 32 Ω 5, 11
Resistance
DDR3/DDR3L Data
Buffer pull-down
20 26 32 Ω 5, 11
Resistance
DDR3/DDR3L On-die
termination equivalent
resistance for data
38
signals
DDR3/DDR3L On-die
termination DC working
0.45*V
DDQ
point (driver set to
receive mode)
DDR3/DDR3L Clock
20 26 32 Ω 5, 11,
Buffer pull-up
Resistance
DDR3/DDR3L Clock
Buffer pull-down
20 26 32 Ω
Resistance
DDR3/DDR3L Command
Buffer pull-up
15 20 25 Ω
Resistance
DDR3/DDR3L Command
Buffer pull-down
15 20 25 Ω
Resistance
DDR3/DDR3L Control
Buffer pull-up
19 25 31 Ω
Resistance
Processor—Electrical Specifications
— V
/2 0.43*V
DDQ
V
/2 — V 3, 11
DDQ
DDQ
DDQ
V 2, 4, 11
V —
— 1.0 V 10, 12
50 62 Ω 11
0.5*V
DDQ
0.55*V
DDQ
V 11
continued...
1
13
5, 11,
13
5, 11,
13
5, 11,
13
5, 11,
13
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
96 Order No.: 328907-001
Electrical Specifications—Processor
Symbol Parameter Min Typ Max Units Notes
R
ON_DN(CTL)
R
ON_UP(RST)
DDR3/DDR3L Control
Buffer pull-down
Resistance
DDR3/DDR3L Reset
Buffer pull-up
Resistance
19
40 80 130 Ω —
25 31 Ω 5, 11,
DDR3/DDR3L Reset
R
ON_DN(RST)
Buffer pull-up
Resistance
40 80 130 Ω —
Input Leakage Current
(DQ, CK)
I
LI
0 V
0.2*V
0.8*V
— — 0.7 mA —
DDQ
DDQ
Input Leakage Current
(CMD, CTL)
I
LI
SM_RCOMP0
SM_RCOMP1 Data COMP Resistance
0V
0.2*V
DDQ
0.8*V
DDQ
Command COMP
Resistance
— — 1.0 mA —
99 100 101 Ω 8
74.25 75 75.75 Ω 8
SM_RCOMP2 ODT COMP Resistance 99 100 101 Ω 8
Notes: 1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.
2. VIL is defined as the maximum voltage level at a receiving agent that will be interpreted as a
logical low value.
3. VIH is defined as the minimum voltage level at a receiving agent that will be interpreted as a
logical high value.
4. VIH and VOH may experience excursions above V
with the signal quality specifications.
. However, input signal drivers must comply
DDQ
5. This is the pull up/down driver resistance.
6. R
is the termination on the DIMM and in not controlled by the processor.
TERM
7. The minimum and maximum values for these signals are programmable by BIOS to one of the
two sets.
8. SM_RCOMPx resistance must be provided on the system board with 1% resistors. SM_RCOMPx
resistors are to VSS. DDR3/DDR3L values are pre-silicon estimations and are subject to change.
9. SM_DRAMPWROK rise and fall time must be < 50 ns measured between V
*0.47.
10.SM_VREF is defined as V
DDQ
/2
*0.15 and V
DDQ
DDQ
11.Maximum-minimum range is correct but center point is subject to change during MRC boot
training.
12.Processor may be damaged if VIH exceeds the maximum voltage for extended periods.
13.The MRC during boot training might optimize RON outside the range specified.
1
13
Table 44. Digital Display Interface Group DC Specifications
Symbol Parameter Min Typ Max Units
V
IL
V
IH
Vaux(Tx)
Vaux(Rx)
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 97
HPD Input Low Voltage — — 0.8 V
HPD Input High Voltage 2.25 — 3.6 V
Aux peak-to-peak voltage at transmitting
0.39 — 1.38 V
device
Aux peak-to-peak voltage at receiving
0.32 — 1.36 V
device
Intel® Xeon® Processor E3-1200 v3 Product Family
Processor—Electrical Specifications
Table 45. Embedded DisplayPort* (eDP) Group DC Specifications
Symbol Parameter Min Typ Max Units
V
IL
V
IH
V
OL
V
OH
R
UP
R
DOWN
Vaux(Tx)
Vaux(Rx)
eDP_RCOMP
DP_RCOMP
HPD Input Low Voltage 0.02 — 0.21 V
HPD Input High Voltage 0.84 — 1.05 V
eDP_DISP_UTIL Output Low Voltage 0.1*V
eDP_DISP_UTIL Output High Voltage 0.9*V
CC
CC
eDP_DISP_UTIL Internal pull-up 100 — — Ω
eDP_DISP_UTIL Internal pull-down 100 — — Ω
Aux peak-to-peak voltage at
0.39 — 1.38 V
transmitting device
Aux peak-to-peak voltage at receiving
0.32 — 1.36 V
device
COMP Resistance
24.75 25 25.25 Ω
Note: 1. COMP resistance is to VCOMP_OUT.
Table 46. CMOS Signal Group DC Specifications
Symbol Parameter Min Max Units Notes
V
IL
V
IH
V
OL
V
OH
R
ON
I
LI
Notes: 1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.
2. The V
3. For VIN between “0” V and V
4. VIH and VOH may experience excursions above V
Input Low Voltage — V
Input High Voltage V
* 0.7 — V 2, 4
CCIO_OUT
Output Low Voltage — V
Output High Voltage V
* 0.9 — V 2, 4
CCIO_OUT
CCIO_OUT
CCIO_OUT
Buffer on Resistance 23 73 Ω -
Input Leakage
Current
referred to in these specifications refers to instantaneous VCCIO_OUT.
CCIO_OUT
CCIO_OUT
comply with the signal quality specifications.
— ±150 μA 3
. Measured when the driver is tri-stated.
. However, input signal drivers must
CCIO_OUT
— — V
— — V
1
* 0.3 V 2
* 0.1 V 2
Table 47. GTL Signal Group and Open Drain Signal Group DC Specifications
Symbol Parameter Min Max Units Notes
V
IL
V
IH
V
IL
V
IH
V
HYSTERESIS
R
ON
V
IL
Input Low Voltage (TAP, except
TCK)
Input High Voltage (TAP, except
TCK)
Input Low Voltage (TCK) — V
Input High Voltage (TCK) V
Hysteresis Voltage V
V
CCIO_TERM
CCIO_TERM
CCIO_TERM
— V
CCIO_TERM
* 0.6 V 2
* 0.72 — V 2, 4
CCIO_TERM
* 0.4 V 2
* 0.8 — V 2, 4
* 0.2 — V —
Buffer on Resistance (TDO) 12 28 Ω —
Input Low Voltage (other GTL) — V
CCIO_TERM
* 0.6 V 2
continued...
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
98 Order No.: 328907-001
1
Electrical Specifications—Processor
Symbol Parameter Min Max Units Notes
V
IH
R
ON
R
ON
I
LI
Input High Voltage (other GTL) V
Buffer on Resistance (CFG/BPM) 16 24 Ω —
Buffer on Resistance (other GTL) 12 28 Ω —
Input Leakage Current — ±150 μA 3
Notes: 1. Unless otherwise noted, all specifications in this table apply to all processor frequencies.
2. The V
3. For VIN between 0 V and V
referred to in these specifications refers to instantaneous VCCIO_OUT.
CCIO_OUT
CCIO_TERM
4. VIH and VOH may experience excursions above V
comply with the signal quality specifications.
Table 48. PCI Express* DC Specifications
Symbol Parameter Min Typ Max Units Notes
Z
TX-DIFF-DC
Z
TX-DIFF-DC
Z
RX-DC
Z
RX-DIFF-DC
PEG_RCOMP Comp Resistance 24.75 25 25.25 Ω 2, 3
Notes: 1. See the PCI Express Base Specification for more details.
DC Differential Tx Impedance (Gen 1
Only)
DC Differential Tx Impedance (Gen 2 and
Gen 3)
DC Common Mode Rx Impedance 40 — 60 Ω 1, 4, 5
DC Differential Rx Impedance (Gen1
Only)
2. PEG_RCOMP should be connected to V
3. Intel allows using 24.9 Ω ±1% resistors.
4. DC impedance limits are needed to ensure Receiver detect.
5. The Rx DC Common Mode Impedance must be present when the Receiver terminations are first
enabled to ensure that the Receiver Detect occurs properly. Compensation of this impedance can
start immediately and the 15 Rx Common Mode Impedance (constrained by RLRX-CM to 50 Ω
±20%) must be within the specified range by the time Detect is entered.
6. Low impedance defined during signaling. Parameter is captured for 5.0 GHz by RLTX-DIFF.
CCIO_TERM
* 0.72 — V 2, 4
. Measured when the driver is tri-stated.
CCIO_TERM
. However, input signal drivers must
80 — 120 Ω 1, 6
— — 120 Ω 1, 6
80 — 120 Ω 1
COMP_OUT
through a 25 Ω ±1% resistor.
1
1
7.8.1 PECI DC Characteristics
The PECI interface operates at a nominal voltage set by V
CCIO_TERM
electrical specifications shown in the following table is used with devices normally
operating from a V
V
CCIO_TERM
operate at the V
nominal levels will vary between processor families. All PECI devices will
CCIO_TERM
CCIO_TERM
interface supply.
level determined by the processor installed in the system.
Table 49. PECI DC Electrical Limits
Symbol Definition and Conditions Min Max Units Notes
R
up
V
in
V
hysteresis
June 2013 Datasheet – Volume 1 of 2
Order No.: 328907-001 99
Internal pull up resistance 15 45 Ω 3
Input Voltage Range
-0.15
Hysteresis 0.1 *
V
CCIO_TERM
V
CCIO_TERM
0.15
N/A V —
Intel® Xeon® Processor E3-1200 v3 Product Family
. The set of DC
+
V —
1
continued...
Minimum V
P
Maximum V
P
Minimum V
N
Maximum V
N
PECI High Range
PECI Low Range
Valid Input
Signal Range
Minimum
Hysteresis
V
TTD
PECI Ground
Processor—Electrical Specifications
Symbol Definition and Conditions Min Max Units Notes
V
n
V
p
C
bus
C
pad
Negative-Edge Threshold
Voltage
Positive-Edge Threshold
Voltage
Bus Capacitance per Node N/A 10 pF —
Pad Capacitance 0.7 1.8 pF —
Ileak000 leakage current at 0 V — 0.6 mA —
Ileak025 leakage current at 0.25*
V
CCIO_TERM
Ileak050 leakage current at 0.50*
V
CCIO_TERM
Ileak075 leakage current at 0.75*
V
CCIO_TERM
Ileak100 leakage current at
V
CCIO_TERM
Notes: 1. V
CCIO_TERM
maximum specifications.
supplies the PECI interface. PECI behavior does not affect V
2. The leakage specification applies to powered devices on the PECI bus.
3. The PECI buffer internal pull-up resistance measured at 0.75* V
7.8.2 Input Device Hysteresis
0.275 *
V
CCIO_TERM
0.550 *
V
CCIO_TERM
0.500
* V
CCIO_TERM
0.725 *
V
CCIO_TERM
V —
V —
— 0.4 mA —
— 0.2 mA —
— 0.13 mA —
— 0.10 mA —
CCIO_TERM
CCIO_TERM
minimum /
.
1
The input buffers in both client and host models must use a Schmitt-triggered input
design for improved noise immunity. Use the following figure as a guide for input
buffer design.
Figure 19. Input Device Hysteresis
Intel® Xeon® Processor E3-1200 v3 Product Family
Datasheet – Volume 1 of 2 June 2013
100 Order No.: 328907-001
