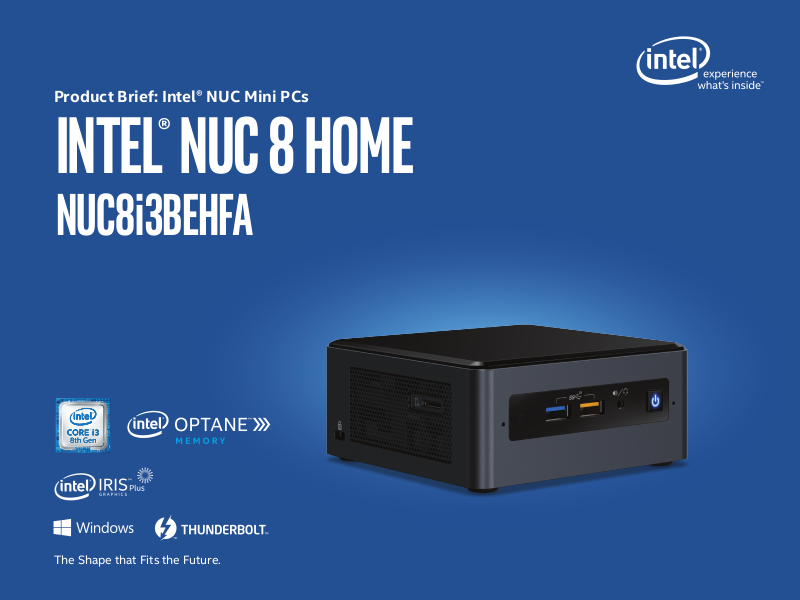

Product Brief: Intel® NUC Mini PCs
INtEl® NUC 8 HomE
NUC8i3BEHFA
The Shape that Fits the Future.
INTEL® NUC: Go Small. Get Big. INTEL® NUC: Go Small. Get Big.
INTEL® NUC: Go SmaLL. GET BIG.
INTEL® NUC: ThINk yoU kNow whaT smaLL CaN do? ThNk agaIN.
Get ready for spectacularly responsive performance from the Intel® NUC Mini PC with an 8th gen Intel® Core™ i3 processor, 16 GB of Intel® Optane™ memory, Windows® 10, and a 1 TB HDD. The Intel NUC Mini PC is perfect for working on presentations, word processing, or streaming media—in a size that ts easily into any lifestyle and any room in the house.
Dual-core 8th generation Intel® Core™ i3 processor and Intel® Optane™ memory for serious multitasking
The Intel® NUC8i3BEHFA Mini PC with a true dual-core 8th gen Intel Core i3 processor delivers a big jump in performance compared to the previous generation. Whether it’s used for a new home PC or a system with 4K UHD graphics for picture perfect entertainment, the NUC8i3BEHFA Mini PC gives great visual immersion with Iris® Plus Graphics 655 and the unprecedented performance of an Intel® Core™ processor.
The chassis has a 1 TB 2.5" HDD to store massive amounts of data and comes with 16 GB of Intel Optane memory—which is expandable to 32 GB. By coupling an HDD and Intel Optane memory, performance improves dramatically with up to 1.4x media loading. There’s also 4 GB of DDR4 RAM and is expandable to 32 GB. In addition, far-eld, dual-mics allow you to add digital assistant software or utilize Cortana to handle simple tasks.
1,2
faster
Work Like a Boss with Thunderbolt™ 3, USB 3.1, and 4K Ultra HD
The Intel® NUC Mini PC is a connectivity powerhouse. It comes with Thunderbolt™ 3 which supports up to 40 GBps of data transfer and four USB 3.1 ports. The NUC8i3BEHFA supports triple displays all in 4K Ultra HD—with an HDMI* 2.0a port and DisplayPort* 1.2
via USB-C—so images or work can show across three screens without losing delity.
Think you know what small can do? Think again.
In a footprint that’s almost zero—especially when compared with a tower—the NUC8i3BEHFA Mini PC has the performance and features of a desktop PC in a device that ts in the palm of your hand. The small size means the system can be placed almost anywhere—from behind a display to tucked discretely in an entertainment center. And with improved cooling, fan noise is minimal—which means a quieter experience no matter where the PC is positioned.
The Intel® NUC: who says small isn’t powerful?
PowEr, CAPABIlItIEs, ANd PErFormANCE IN A NEAr-zEro FootPrINt
Highlighted Features
• 8th gen Intel® Core™ i3-8109U processor
• 4 GB DDR4 SO-DIMM
• 1 TB SATA3 2.5" HDD
• 16 GB Intel® Optane™ memory
• Windows® 10 Home
• Iris® Plus graphics 655
• Intel® Dual Band Wireless-AC 9560 and Bluetooth* 5.0
• Back panel DC power connector (12–19V)
• HDMI* 2.0a display port supporting 8 channel audio (7.1 surround sound)
• Intel® Gigabit LAN
• Two USB 3.1 ports on the back panel
• Thunderbolt™ 3 USB Type-C port providing DisplayPort* 1.2 or USB 3.1 Gen 2
• Kensington lock support
• Support for user-replaceable third-party lids
• Micro SD card slot
• Consumer infrared sensor
• Two USB 3.1 ports (including one charging port) on the front panel
• Front panel headphone/microphone jack
• Front panel power button
• Dual-array front microphones
INtEl® NUC kIt NUC8¡3BEHFA
Technical Specications
Processor
• Intel® Core™ i3-8109U processor (3.0-3.6 GHz, dual core, 4 MB cache, 28W TDP)
Operating System
• Windows® 10 Home
Graphics
• Iris® Plus Graphics 655
• HDMI* 2.0a port with 4K at 60 Hz
• USB Type-C port with DisplayPort* 1.2
System Memory
• 4 GB DDR4-2400 SO-DIMM (expandable to 32 GB), 1.2V
Intel® Optane™ Memory
• 16 GB in an M.2 slot
Storage Capabilities
• Micro SDXC slot with UHS-I support on the side
• One M.2 connector supporting 22x42 or 22x80 SSD (pre-populated with Intel Optane Memory module)
• 1 TB SATA3 HDD
Peripheral Connectivity
• Intel® Gigabit LAN port
• Thunderbolt™ 3 port
• Four USB 3.1 ports (two back panel ports and two front ports including one charging port)
• Intel® Dual Band Wireless-AC 9560 (802.11ac), 2x2, up to 1.73 Gbps
• Dual Mode Bluetooth* 5.0
System Bios
• 64 Mb Flash EEPROM with Intel® Platform Innovation Framework for EFI Plug and Play
• Advanced configuration and power interface V3.0b, SMBIOS2.5
• Intel® Visual BIOS
Hardware Management Features
• Processor fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management control
Expansion Capabilities
• Two Internal USB 2.0 ports via t wo 1x4 headers (for replaceable lid support)
• One Consumer Electronics Control header
Audio
• Up to 7.1 surround audio via HDMI*
• Headphone/microphone jack on the front panel
• Dual-array microphones on the front panel
Front Panel Header
• Reset, HDD LED, power LEDs, power on/off
Mechanical Chassis Size
• 4.60" x 4.40" x 2.01"
• 117 mm x 112 mm x 51 mm
Baseboard Power Requirements
• 19V, 90W power brick
Environment Operating Temperature
• 0° C to +35° C
Storage Temperature
• -20° C to +40° C
Safety Regulations and Standards
• IEC/EN/UL 60950-1
• IEC/EN/UL 62368-1
EMC/RF Regulations and Standards
• FCC Par t 15B /15C/15 E
• CISPR/EN 55032/55024
• ICES-003
• VCCI 32
• BSMI CNS 13438
• KN 32/35
• AS/NZS CISPR 32
• EN 300 328
• EN 301 893
• EN 300 440
• EN 301 489-1/3/17
• EN 62311
• AS/NZS 4268
• AS/NZS 2772.2
• ARPANSA
Environmental Regulations
• EU RoHS
• China RoHS
• Taiwan BSMI RoHS
• REACH
1
Ben chmark result s were obtained pr ior to implemen tation of recent software
patches and rmware up dates intended to address explo its referred to as
“Spec tre” and “Meltd own”. Implementation of these up dates may make thes e result s inapplicable to your device or s ystem.
2
As me asured by Media Pr oject Load Work load comparin g 8th Gen Intel®
Core™ i7-8750 H processor (32 GB Intel® Optane™ mem ory module) + 256 GB PCIe* S SD + 1 TB HDD vs. 8th Ge n Intel Core i7-875 0H processor + 256 GB PCIe S SD + 1 TB HDD.
Intel products are not intended for use in medical, life-saving, or life-sustaining
applic ations. Intel may make changes to specications and product descript ions at
any time, without notice.
Copyri ght 2018 © Intel Corporat ion. All rights rese rved. Intel, the Inte l log o, Inte l Inside, Intel. Exper ience What’s Insi de, the Intel. Exper ience What’s Inside logo, Intel Optan e, Iris Plus, Thunder bolt, and Intel Core ar e tra demarks of Intel Corporation or its sub sidiaries in
the U.S. an d/or other cou ntries.
*Other n ames and brand s may be claimed as t he propert y of others. Printe d in USA 0918/B CP/HBD/PDF Please Recycle 338150-001US
A ll products, date s, and gures speci ed are preliminar y based on current
expect ations, and are subject to change without notice. Availab ility in differe nt
channels may vary.
®
Actual Intel
NUC kit may d iffer from t he image shown.
