Intel BLKDQ45EK, BOXDQ45EK, DQ45EK Specification
Intel® Desktop Board
DQ45EK
Technical Product Specification
The Intel® Desktop Board DQ45EK may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current
characterized errata are documented in the Intel Desktop Board DQ45EK Specification Update.
September 2008
Order Number: E42786-001US
Revision History
Revision Revision History Date
-001 First release of the Intel® Desktop Board DQ45EK Technical Product
Specification.
This product specification applies to only the standard Intel® Desktop Board DQ45EK with BIOS
identifier CBQ4510H.86A.
Changes to this specification will be published in the Intel Desktop Board DQ45EK Specification
Update before being incorporated into a revision of this document.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS
GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR
SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR
IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT
OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN
WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN
WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR
DEATH MAY OCCUR.
September 2008
Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other
intellectual property rights that relate to the presented subject matter. The furnishing of documents and
other materials and information does not provide any license, express or implied, by estoppel or otherwise,
to any such patents, trademarks, copyrights, or other intellectual property rights.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked “reserved”
or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for
conflicts or incompatibilities arising from future changes to them.
®
desktop boards may contain design defects or errors known as errata, which may cause the product
Intel
to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your
product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel
literature, may be obtained from:
Intel Corporation
P.O. Box 5937
Denver, CO 80217-9808
or call in North America 1-800-548-4725, Europe 44-0-1793-431-155, France 44-0-1793-421-777,
Germany 44-0-1793-421-333, other Countries 708-296-9333.
Intel, the Intel logo, Core, Pentium, and Celeron are registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.
* Other names and brands may be claimed as the property of others.
Copyright © 2008, Intel Corporation. All rights reserved.
Preface
This Technical Product Specification (TPS) specifies the board layout, components,
connectors, power and environmental requirements, and the BIOS for the Intel
Desktop Board DQ45EK. It describes the standard product and available
manufacturing options.
Intended Audience
The TPS is intended to provide detailed, technical information about the Intel Desktop
Board DQ45EK and its components to the vendors, system integrators, and other
engineers and technicians who need this level of information. It is specifically not
intended for general audiences.
What This Document Contains
®
Chapter Description
1 A description of the hardware used on the board
2 A map of the resources of the board
3 The features supported by the BIOS Setup program
4 A description of the BIOS error messages, beep codes, and POST codes
5 Regulatory compliance and battery disposal information
Typographical Conventions
This section contains information about the conventions used in this specification. Not
all of these symbols and abbreviations appear in all specifications of this type.
Notes, Cautions, and Warnings
#
NOTE
Notes call attention to important information.
INTEGRATOR’S NOTES
Integrator’s notes are used to call attention to information that may be useful to
system integrators.
CAUTION
Cautions are included to help you avoid damaging hardware or losing data.
iii
Intel Desktop Board DQ45EK Technical Product Specification
Other Common Notation
# Used after a signal name to identify an active-low signal (such as USBP0#)
GB Gigabyte (1,073,741,824 bytes)
GB/sec Gigabytes per second
Gbit Gigabit (1,073,741,824 bits)
KB Kilobyte (1024 bytes)
Kbit Kilobit (1024 bits)
kbits/sec 1000 bits per second
MB Megabyte (1,048,576 bytes)
MB/sec Megabytes per second
Mbit Megabit (1,048,576 bits)
Mbit/sec Megabits per second
xxh An address or data value ending with a lowercase h indicates a hexadecimal value.
x.x V Volts. Voltages are DC unless otherwise specified.
* This symbol is used to indicate third-party brands and names that are the property of their
respective owners.
iv
Contents
1 Product Description .............................................................. 9
1.1 Overview.......................................................................................... 9
1.1.1 Feature Summary .................................................................. 9
1.1.2 Board Layout ....................................................................... 11
1.1.3 Block Diagram ..................................................................... 13
1.2 Legacy Considerations...................................................................... 14
1.3 Online Support................................................................................ 14
1.4 Processor ....................................................................................... 14
1.5 System Memory .............................................................................. 15
1.5.1 Memory Configurations ......................................................... 17
1.6 Intel® Q45 Express Chipset.............................................................. 19
1.6.1 Intel Q45 Graphics Subsystem ............................................... 19
1.6.2 USB ................................................................................... 21
1.6.3 Serial ATA Interfaces ............................................................ 22
1.7 Real-Time Clock Subsystem .............................................................. 23
1.8 Legacy I/O Controller ....................................................................... 24
1.8.1 Serial Port........................................................................... 24
1.9 Audio Subsystem............................................................................. 25
1.9.1 Audio Subsystem Software .................................................... 26
1.9.2 Audio Connectors and Headers ............................................... 26
1.10 LAN Subsystem............................................................................... 27
1.10.1 Intel® 82567LM Gigabit Ethernet Controller.............................. 27
1.10.2 LAN Subsystem Software....................................................... 28
1.10.3 RJ-45 LAN Connector with Integrated LEDs .............................. 28
1.11 Intel® Active Management Technology (Intel® AMT) ............................ 29
1.11.1 Intel AMT Features ............................................................... 29
1.11.2 Intel AMT Software and Drivers .............................................. 31
1.12 Intel® Virtualization Technology (Intel® VT)......................................... 32
1.13 Intel® Trusted Execution Technology (Intel® TXT) ............................... 33
1.14 Intel® Trusted Platform Module (Intel® TPM)........................................ 34
1.15 Hardware Management Subsystem .................................................... 34
1.15.1 Hardware Monitoring and Fan Control...................................... 34
1.15.2 Fan Monitoring..................................................................... 35
1.15.3 Chassis Intrusion and Detection.............................................. 35
1.15.4 Thermal Monitoring .............................................................. 36
1.16 Power Management ......................................................................... 37
1.16.1 ACPI................................................................................... 37
1.16.2 Hardware Support ................................................................ 40
1.16.3 ENERGY STAR* .................................................................... 44
2 Technical Reference............................................................ 45
2.1 Memory Map................................................................................... 45
2.1.1 Addressable Memory............................................................. 45
v
Intel Desktop Board DQ45EK Technical Product Specification
2.2 Connectors and Headers................................................................... 48
2.2.1 Back Panel Connectors .......................................................... 49
2.2.2 Component-side Connectors and Headers ................................ 50

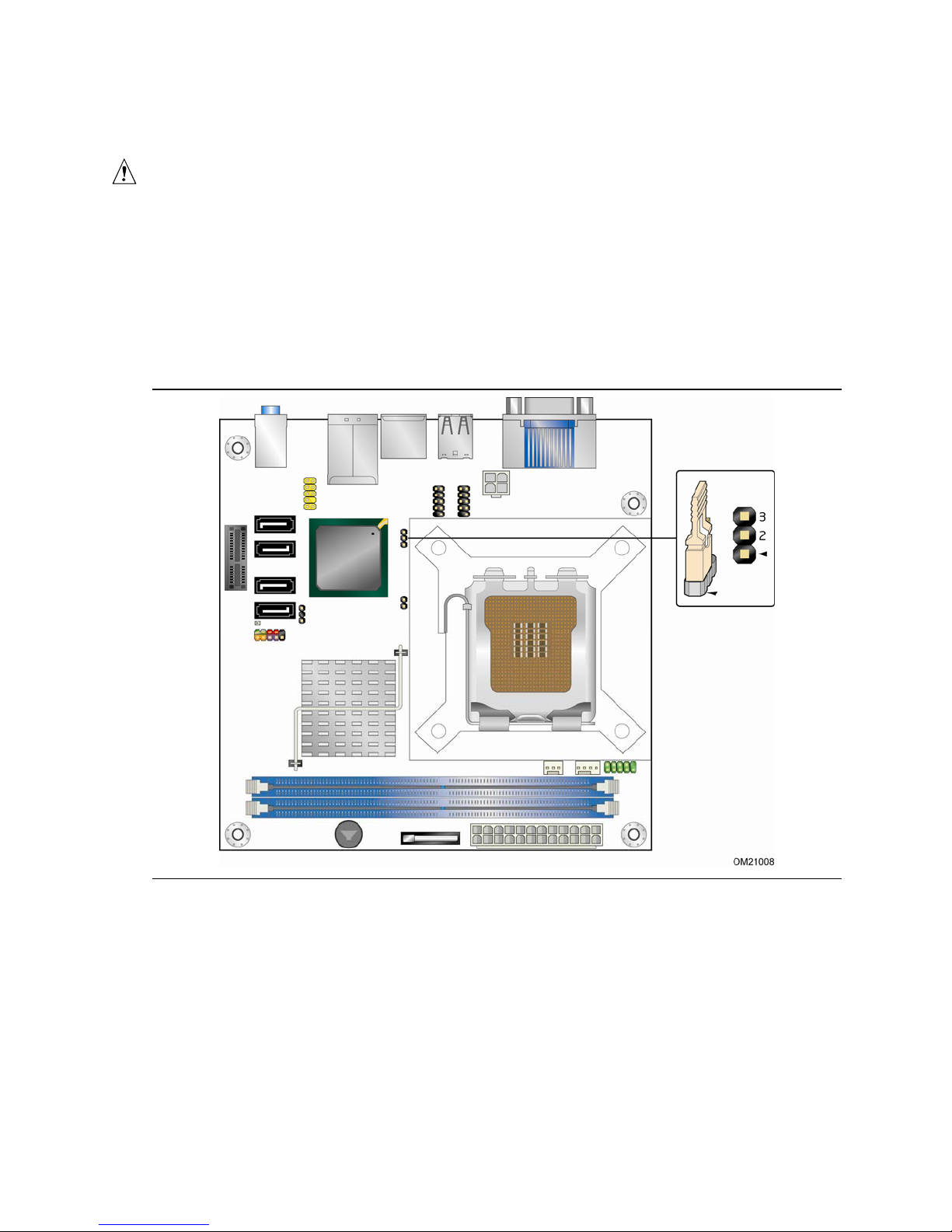

2.3 Jumper Block .................................................................................. 58
2.4 Mechanical Considerations ................................................................ 60
2.4.1 Form Factor......................................................................... 60
2.5 Electrical Considerations ................................................................... 61
2.5.1 Power Supply Considerations ................................................. 61
2.5.2 Fan Header Current Capability................................................ 61
2.5.3 Add-in Board Considerations .................................................. 62
2.6 Thermal Considerations .................................................................... 62
2.7 Reliability ....................................................................................... 64
2.8 Environmental ................................................................................ 64
3 Overview of BIOS Features ................................................. 65
3.1 Introduction ................................................................................... 65
3.2 BIOS Flash Memory Organization ....................................................... 66
3.3 Resource Configuration .................................................................... 66
3.3.1 PCI* Autoconfiguration.......................................................... 66
3.4 System Management BIOS (SMBIOS)................................................. 67
3.5 Legacy USB Support ........................................................................ 68
3.6 BIOS Updates ................................................................................. 69
3.6.1 Language Support ................................................................ 69
3.6.2 Custom Splash Screen .......................................................... 69
3.7 BIOS Recovery................................................................................ 70
3.8 Boot Options................................................................................... 71
3.8.1 CD-ROM Boot ...................................................................... 71
3.8.2 Network Boot....................................................................... 71
3.8.3 Booting Without Attached Devices........................................... 71
3.8.4 Changing the Default Boot Device During POST ........................ 71
3.9 Adjusting Boot Speed....................................................................... 72
3.9.1 Peripheral Selection and Configuration..................................... 72
3.9.2 BIOS Boot Optimizations ....................................................... 72
3.10 BIOS Security Features .................................................................... 73
4 Error Messages and Beep Codes ......................................... 75
4.1 Speaker ......................................................................................... 75
4.2 BIOS Beep Codes ............................................................................ 75
4.3 BIOS Error Messages ....................................................................... 75
4.4 Port 80h POST Codes ....................................................................... 76
5 Regulatory Compliance and Battery Disposal Information .. 81
5.1 Regulatory Compliance..................................................................... 81
5.1.1 Safety Standards.................................................................. 81
5.1.2 European Union Declaration of Conformity Statement................ 82
5.1.3 Product Ecology Statements................................................... 83
5.1.4 EMC Regulations .................................................................. 87
5.1.5 Product Certification Markings (Board Level)............................. 88
vi
Contents
5.2 Battery Disposal Information............................................................. 89
Figures
Figure 1. Major Board Components............................................................... 11
Figure 2. Block Diagram.............................................................................. 13
Figure 3. Memory Channel and DIMM Configuration ........................................ 18
Figure 4. Back Panel Audio Connector Options................................................ 26
Figure 5. LAN Connector LED Locations ......................................................... 28
Figure 6. Thermal Sensors and Fan Headers .................................................. 36
Figure 7. Location of the Standby Power Indicator LED .................................... 44
Figure 8. Detailed System Memory Address Map............................................. 46
Figure 9. Back Panel Connectors .................................................................. 49
Figure 10. Component-side Connectors and Headers....................................... 50
Figure 11. Connection Diagram for Front Panel Header.................................... 55
Figure 12. Connection Diagram for Front Panel USB Headers............................ 57
Figure 13. Location of the Jumper Block ........................................................ 58
Figure 14. Board Dimensions....................................................................... 60
Figure 15. Localized High Temperature Zones ................................................ 63
Tables
Table 1. Feature Summary............................................................................ 9
Table 2. Board Components Shown in Figure 1............................................... 12
Table 3. Supported Memory Configurations.................................................... 16
Table 4. Audio Jack Retasking Support.......................................................... 25
Table 5. LAN Connector LED States .............................................................. 28
Table 6. Effects of Pressing the Power Switch................................................. 37
Table 7. Power States and Targeted System Power......................................... 38
Table 8. Wake-up Devices and Events........................................................... 39
Table 9. System Memory Map...................................................................... 47
Table 10. Component-side Connectors and Headers Shown in Figure 10 ............ 51
Table 11. Front Panel Audio Header for HD Audio ........................................... 52
Table 12. Front Panel Audio Header for AC ’97 Audio....................................... 52
Table 13. Serial ATA Connectors .................................................................. 52
Table 14. Serial Port Header........................................................................ 52
Table 15. Chassis Intrusion Header .............................................................. 52
Table 16. Chassis (3-Pin) Fan Header ........................................................... 53
Table 17. Processor (4-Pin) Fan Header......................................................... 53
Table 18. Auxiliary Front Panel Power/Sleep LED Header ................................. 53
Table 19. Processor Core Power Connector .................................................... 54
Table 20. Main Power Connector .................................................................. 54
Table 21. Front Panel Header....................................................................... 55
Table 22. States for a One-Color Power LED .................................................. 56
Table 23. States for a Two-Color Power LED .................................................. 56
Table 24. BIOS Setup Configuration Jumper Settings ...................................... 59
Table 25. Recommended Power Supply Current Values.................................... 61
vii
Intel Desktop Board DQ45EK Technical Product Specification
Table 26. Fan Header Current Capability ....................................................... 61
Table 27. Thermal Considerations for Components.......................................... 63
Table 28. Intel® Desktop Board DQ45EK Environmental Specifications............... 64
Table 29. BIOS Setup Program Menu Bar ...................................................... 66
Table 30. BIOS Setup Program Function Keys ................................................ 66
Table 31. Acceptable Drives/Media Types for BIOS Recovery............................ 70
Table 32. Boot Device Menu Options............................................................. 71
Table 33. Supervisor and User Password Functions ......................................... 73
Table 34. Beep Codes................................................................................. 75
Table 35. BIOS Error Messages.................................................................... 75
Table 36. Port 80h POST Code Ranges .......................................................... 76
Table 37. Port 80h POST Codes.................................................................... 77
Table 38. Typical Port 80h POST Sequence .................................................... 80
Table 39. Safety Standards ......................................................................... 81
Table 40. Lead-Free Board Markings............................................................. 86
Table 41. EMC Regulations .......................................................................... 87
Table 42. Product Certification Markings........................................................ 88
viii
1 Product Description
1.1 Overview
1.1.1 Feature Summary
Table 1 summarizes the major features of the Intel Desktop Board DQ45EK.
Table 1. Feature Summary
Form Factor Mini-ITX (6.70 inches by 6.70 inches [170.18 millimeters by 170.18 millimeters])
Processor Support for the following:
Memory
Chipset
Audio 5.1 channel audio subsystem using the ADI AD1882 high definition audio codec
Video Intel® Graphics Media Accelerator 4500 (Intel® GMA 4500) onboard graphics
Legacy I/O Control Legacy I/O controller for serial port header
Peripheral
Interfaces
LAN Support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel
BIOS
®
• Intel
• Intel
• Intel
• Intel
• Intel
• Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
• Support for DDR2 800 MHz or DDR2 667 MHz DIMMs
• Support for up to 4 GB of system memory using DDR2 800 MHz or DDR2
Intel
• Intel
• Intel
subsystem
• Ten USB 2.0 ports
• Five Serial ATA (3 Gbps) interfaces, including one red-colored external Serial
• One serial port header (may require specialized chassis or cable for use)
Gigabit Ethernet Controller
• Intel
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,
Core™2 Quad processor (65 W) in an LGA775 socket
®
Core™2 Duo processor in an LGA775 socket
®
Pentium® Dual-Core processor in an LGA775 socket
®
Celeron® Dual-Core processor in an LGA775 socket
®
Celeron® processor Sequence 400 in an LGA775 socket
667 MHz DIMMs
®
Q45 Express Chipset, consisting of:
®
82Q45 Graphics and Memory Controller Hub (GMCH)
®
82801JDO I/O Controller Hub (ICH10DO)
ATA (eSATA) interface on the back panel
®
BIOS (resident in the SPI Flash device)
and SMBIOS
®
82567LM
continued
9
Intel Desktop Board DQ45EK Technical Product Specification
Table 1. Feature Summary (continued)
Instantly Available
PC Technology
Expansion
Capabilities
Hardware Monitor
Subsystem
• Support for PCI Express* Revision 1.0a
• Suspend to RAM support
• Wake on PCI, RS-232, front panel, USB ports, LAN, and CIR
• One PCI Express x1 bus add-in card connector
®
• Intel
• Voltage sense to detect out of range power supply voltages
• Thermal sense to detect out of range thermal values
• Two fan headers
• Two fan sense inputs used to monitor fan activity
Quiet System Technology implemented through the Intel® Management
Engine (Intel
®
ME) in ICH10DO
10
1.1.2 Board Layout
Figure 1 shows the location of the major components.
Product Description
Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.
11
Intel Desktop Board DQ45EK Technical Product Specification
Table 2. Board Components Shown in Figure 1
Item/callout
from Figure 1 Descri
A Front panel audio header
B Back panel connectors
C Processor core power connector (2 X 2)
D Front panel USB header
E Front panel USB header
F BIOS Setup configuration jumper block
G Chassis intrusion header
H LGA775 processor socket
I Front chassis fan header
J Processor fan header
K Serial port header
L Main Power connector (2 X 12)
M Battery
N Speaker
O DIMM socket
P DIMM socket
Q Intel 82Q45 GMCH
R Intel 82801JDO I/O Controller Hub (ICH10DO)
S Auxiliary front panel power LED header
T Front panel header
U Serial ATA connectors [4]
V PCI Express x1 connector
ption
12
1.1.3 Block Diagram
Figure 2 is a block diagram of the major functional areas.
Product Description
Figure 2. Block Diagram
13
Intel Desktop Board DQ45EK Technical Product Specification
1.2 Legacy Considerations
This board differs from other Intel Desktop Board products, with specific changes
including (but not limited to) the following:
• No parallel port
• No floppy drive connector
• No parallel ATA IDE connector
• No serial port on the back panel
• No PCI Conventional connector
• The serial port header is located near the memory sockets and may require a
specialized chassis or cabling solution to use
1.3 Online Support
To find information about… Visit this World Wide Web site:
Intel® Desktop Board DQ45EK http://www.intel.com/products/motherboard/DQ45EK/index.htm
Desktop Board Support http://support.intel.com/support/motherboards/desktop
Available configurations for the Intel
Desktop Board DQ45EK
Supported processors http://processormatch.intel.com
Chipset information http://www.intel.com/products/desktop/chipsets/index.htm
BIOS and driver updates http://downloadcenter.intel.com
http://www.intel.com/products/motherboard/DQ45EK/index.htm
1.4 Processor
The board is designed to support the following processors:
• Intel Core 2 Quad processor (65 W) in an LGA775 socket
• Intel Core 2 Duo processor in an LGA775 socket
• Intel Pentium Dual-Core processor in an LGA775 socket
• Intel Celeron Dual-Core processor in an LGA775 socket
• Intel Celeron processor Sequence 400 in an LGA775 socket
Other processors may be supported in the future. This board is designed to support
processors with a maximum wattage of 65 W. The processors listed above are only
supported when falling within the wattage requirements of the board. See the Intel
web site listed below for the most up-to-date list of supported processors.
For information about… Refer to:
Supported processors http://processormatch.intel.com
CAUTION
Use only the processors listed on the web site above. Use of unsupported processors
can damage the board, the processor, and the power supply.
14
Product Description
INTEGRATOR’S NOTE
#
Use only ATX12V-compliant power supplies.
For information about Refer to
Power supply connectors Section 2.2.2.4, page 54
1.5 System Memory
The board has two DIMM sockets and support the following memory features:
• 1.8 V DDR2 SDRAM DIMMs with gold plated contacts, with the option to raise the
voltage to support higher performance DDR2 SDRAM DIMMs
• Dual channel interleaved mode support
• Unbuffered, single-sided or double-sided DIMMs with the following restriction:
Double-sided DIMMs with x16 organization are not supported.
• 4 GB maximum total system memory using DDR2 800 MHz or DDR2 667 MHz
DIMMs; refer to Section 2.1.1 on page 45 for information on the total amount of
addressable memory.
• Minimum recommended total system memory: 512 MB
• Non-ECC DIMMs
• Serial Presence Detect
• DDR2 800 MHz or DDR2 667 MHz SDRAM DIMMs
• DDR2 667 MHz DIMMs with SPD timings of only 5-5-5 (tCL-tRCD-tRP)
• DDR2 800 MHz DIMMs with SPD timings of only 5-5-5 or 6-6-6 (tCL-tRCD-tRP)
NOTE
To be fully compliant with all applicable DDR SDRAM memory specifications, the board
should be populated with DIMMs that support the Serial Presence Detect (SPD) data
structure. This allows the BIOS to read the SPD data and program the chipset to
accurately configure memory settings for optimum performance. If non-SPD memory
is installed, the BIOS will attempt to correctly configure the memory settings, but
performance and reliability may be impacted or the DIMMs may not function under the
determined frequency.
15
Intel Desktop Board DQ45EK Technical Product Specification
Table 3. Supported Memory Configurations
DIMM
Type
DDR2 667 512 Mbit 256 MB 1 GB 2 GB
DDR2 667 1 Gbit 512 MB 2 GB 4 GB
DDR2 800 512 Mbit 256 MB 1 GB 2 GB
DDR2 800 1 Gbit 512 MB 2 GB 4 GB
SDRAM
Technology
Smallest usable
DIMM (one x16
Single-sided
DIMM)
Largest usable
DIMM (one x8
Double-sided
DIMM)
Maximum capacity
with two identical
x8 Double-sided
DIMMs
For information about… Refer to:
Tested Memory http://support.intel.com/support/motherboards/desktop/sb/
CS-025414.htm
16
Product Description
1.5.1 Memory Configurations
The Intel 82Q45 GMCH supports the following types of memory organization:
• Dual channel (Interleaved) mode. This mode offers the highest throughput for
real world applications. Dual channel mode is enabled when the installed memory
capacities of both DIMM channels are equal. Technology and device width can vary
from one channel to the other but the installed memory capacity for each channel
must be equal. If different speed DIMMs are used between channels, the slowest
memory timing will be used.
• Single channel (Asymmetric) mode. This mode is equivalent to single channel
bandwidth operation for real world applications. This mode is used when only a
single DIMM is installed or the memory capacities are unequal. Technology and
device width can vary from one channel to the other. If different speed DIMMs are
used between channels, the slowest memory timing will be used.
• Flex mode. This mode provides the most flexible performance characteristics.
The bottommost DRAM memory (the memory that is lowest within the system
memory map) is mapped to dual channel operation; the topmost DRAM memory
(the memory that is nearest to the 4 GB address space limit), if any, is mapped to
single channel operation. Flex mode results in multiple zones of dual and single
channel operation across the whole of DRAM memory. To use flex mode, it is
necessary to populate both channels.
For information about… Refer to:
Memory Configuration Examples http://www.intel.com/support/motherboards/desktop/sb/
cs-011965.htm
17
Intel Desktop Board DQ45EK Technical Product Specification
Figure 3 illustrates the memory channel and DIMM configuration.
NOTE
The DIMM 0 sockets of both channels are blue.
Figure 3. Memory Channel and DIMM Configuration
INTEGRATOR’S NOTE
#
Regardless of the memory configuration used (dual channel, single channel, or flex
mode), DIMM 0 of Channel A must always be populated. This is a requirement of the
®
Intel
Management Engine.
18
Product Description
1.6 Intel® Q45 Express Chipset
The Intel Q45 Express chipset consists of the following devices:
• Intel 82Q45 Graphics and Memory Controller Hub (GMCH) with Direct Media
Interface (DMI) interconnect
• Intel 82801JDO I/O Controller Hub (ICH10DO)
The GMCH component provides interfaces to the CPU, memory, PCI Express, and the
DMI interconnect. The component also provides integrated graphics capabilities
supporting 3D, 2D, and display capabilities. The ICH10DO is a centralized controller
for the board’s I/O paths.
The chipset supports the following features:
• Onboard Graphics
• Dynamic Video Memory Technology
• USB
• Serial ATA
For information about Refer to
The Intel Q45 Express chipset http://www.intel.com/products/desktop/chipsets/index.htm
Resources used by the chipset Chapter 2
1.6.1 Intel Q45 Graphics Subsystem
The Intel Q45 Express chipset contains the Intel Graphics Media Accelerator 4500
(Intel GMA 4500) graphics controller.
1.6.1.1 Intel® Graphics Media Accelerator 4500 Graphics
Controller
The Intel GMA 4500 graphics controller features the following:
• High quality texture engine
⎯ DirectX10* and OpenGL* 2.0 compliant
⎯ Shader Model 4.0
• 3D Graphics Rendering enhancements
⎯ 1.6 dual texture GigaPixel/sec max fill rate
⎯ 16-bit and 32-bit color
⎯ Vertex cache
• Video
⎯ Hi-Definition playback (partial hardware acceleration for MPEG-2, full hardware
acceleration for VC1 and AVC)
⎯ Dynamic Video Memory Technology (DVMT) 5.0 uses system memory
depending on the OS and the amount of memory installed
19
Intel Desktop Board DQ45EK Technical Product Specification
• Display
⎯ Supports digital and analog displays up to 2048 x 1536 at 75 Hz refresh
(QXGA); also supports 1920 x 1080 resolution for full High Definition video
playback quality
⎯ Dual independent display support
1.6.1.2 Dynamic Video Memory Technology (DVMT 5.0)
DVMT enables enhanced graphics and memory performance through highly efficient
memory utilization. DVMT ensures the most efficient use of available system memory
for maximum 2-D/3-D graphics performance. The amount of system memory
allocated to DVMT varies depending on the amount of total system memory installed
as well as the operating system being used. For Windows Vista, a minimum of 128 MB
can be allocated to DVMT and a maximum of over 2 GB can be allocated to DVMT with
the correct amount of memory installed. DVMT returns system memory back to the
operating system when the additional system memory is no longer required by the
graphics subsystem.
DVMT will always use a minimal fixed portion of system physical memory (as set in the
BIOS Setup program) for compatibility with legacy applications. An example of this
would be when using VGA graphics under DOS. Once loaded, the operating system
and graphics drivers allocate additional system memory to the graphics buffer as
needed for performing graphics functions.
NOTE
The use of DVMT requires operating system driver support.
1.6.1.3 Configuration Modes
The video modes supported by this board are based on the Extended Display
Identification Data (EDID) modes of the monitor to which the system is connected.
Standard monitors are assumed.
1.6.1.4 Digital Visual Interface (DVI)
The DVI-I port supports both digital and analog DVI displays. The maximum
supported resolution is 2048 x 1536 at 75 Hz refresh (QXGA). The DVI port is
compliant with the DVI 1.0 specification.
The DVI-D port supports only digital DVI displays. The maximum supported resolution
is 2048 x 1536 at 75 Hz refresh (QXGA). The DVI-D port is compliant with the DVI
1.0 specification.
20
Product Description
1.6.2 USB
The board supports up to 10 USB 2.0 ports, supports UHCI and EHCI, and uses UHCIand EHCI-compatible drivers.
The ICH10DO provides the USB controller for all ports. The port arrangement is as
follows:
• Six ports are implemented with stacked back panel connectors
• Four ports are routed to two separate front panel USB headers
For information about Refer to
The location of the USB connectors on the back panel Figure 9, page 49
The location of the front panel USB headers Figure 10, page 50
21
Intel Desktop Board DQ45EK Technical Product Specification
1.6.3 Serial ATA Interfaces
The board provides four Serial ATA (SATA) connectors, which support one device per
connector. The board also provides one red-colored external Serial ATA (eSATA)
connector on the back panel.
1.6.3.1 Serial ATA Support
The board’s Serial ATA controller offers five independent Serial ATA ports with a
theoretical maximum transfer rate of 3 Gbits/sec per port. One device can be installed
on each port for a maximum of five Serial ATA devices. A point-to-point interface is
used for host to device connections, unlike Parallel ATA IDE which supports a
master/slave configuration and two devices per channel.
For compatibility, the underlying Serial ATA functionality is transparent to the
operating system. The Serial ATA controller can operate in both legacy and native
modes. In legacy mode, standard IDE I/O and IRQ resources are assigned (IRQ 14
and 15). In Native mode, standard PCI Conventional bus resource steering is used.
Native mode is the preferred mode for configurations using the Windows* XP and
Windows Vista operating systems.
NOTE
Many Serial ATA drives use new low-voltage power connectors and require adapters or
power supplies equipped with low-voltage power connectors.
For more information, see: http://www.serialata.org/
For information about Refer to
The location of the Serial ATA connectors Figure 10, page 50
.
1.6.3.2 Serial ATA RAID
The board supports the following RAID (Redundant Array of Independent Drives)
levels:
• RAID 0 - data striping
• RAID 1 - data mirroring
• RAID 0+1 (or RAID 10) - data striping and mirroring
• RAID 5 - distributed parity
1.6.3.3 Intel® Rapid Recover Technology
The board incorporates the Intel® Rapid Recover Technology (Intel® RRT). Intel®
Rapid Recover Technology is a feature of Intel® Matrix Storage Manager. It uses RAID
1 (mirroring) functionality to copy data from a designated master drive to a
designated recovery drive. The master drive data can be copied to the recovery drive
either continuously or on request.
When using the continuous update policy, changes made to the data on the master
drive while the recovery drive is disconnected or offline are automatically copied to the
recovery drive when it is reconnected. When using the on request update policy, the
22
Product Description
master drive data can be restored to a previous state by copying the data on the
recovery drive back to the master drive.
1.7 Real-Time Clock Subsystem
A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When
the computer is not plugged into a wall socket, the battery has an estimated life of
three years. When the computer is plugged in, the standby current from the power
supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at
25 ºC with 3.3 VSB applied.
NOTE
If the battery and AC power fail, custom defaults, if previously saved, will be loaded
into CMOS RAM at power-on. If the battery is removed or exhausted, the Intel TPM
data will be deleted in accordance to Trusted Computing Group guidelines. Please read
the user guide and back-up Intel TPM keys and data before removing the coin cell
battery.
When the voltage drops below a certain level, the BIOS Setup program settings stored
in CMOS RAM (for example, the date and time) might not be accurate. Replace the
battery with an equivalent one. Figure 1 on page 11 shows the location of the battery.
23
Intel Desktop Board DQ45EK Technical Product Specification
1.8 Legacy I/O Controller
The I/O controller provides the following features:
• One serial port header
• Serial IRQ interface compatible with serialized IRQ support for PCI systems
• Intelligent power management, including a programmable wake-up event interface
• PCI power management support
The BIOS Setup program provides configuration options for the I/O controller.
1.8.1 Serial Port
The board has one serial port header located on the component side of the board. The
serial port supports data transfers at speeds up to 115.2 kbits/sec with BIOS support.
For information about Refer to
The location of the serial port header Figure 10, page 50
The signal names of the serial port header Table 14, page 52
24
Product Description
1.9 Audio Subsystem
The onboard audio subsystem consists of the following:
• Intel 82801JDO (ICH10DO)
• ADI AD1882 audio codec
• Back panel audio connectors
• Component-side audio header:
⎯ Intel
The audio subsystem supports the following features:
• A dynamic range of 95 dB
• 5.1 channel audio (using the back panel audio connectors)
• Independent multi-streaming stereo (using the Intel High Definition Audio front
panel header).
®
High Definition Audio front panel header
NOTE
Systems built with an AC 97 front panel will not be able to obtain the Microsoft
Windows Vista* logo.
Table 4 lists the supported functions of the front panel and back panel audio jacks.
Table 4. Audio Jack Retasking Support
Audio Jack
Front panel – Green No Yes Yes No No No
Front panel – Pink Yes No No No No No
Back panel – Blue No No No Yes Yes No
Back panel – Green No Yes Yes No No No
Back panel – Pink Yes No No No No Yes
Supports
Micro-
phone?
Supports
Line out?
Supports
Head-
phones?
Supports
Line in?
Supports
Rear
Surround?
Supports
Center/
LFE?
25
Intel Desktop Board DQ45EK Technical Product Specification
1.9.1 Audio Subsystem Software
Audio software and drivers are available from Intel’s World Wide Web site.
For information about Refer to
Obtaining audio software and drivers Section 1.2, page 14
1.9.2 Audio Connectors and Headers
The board contains audio connectors on the back panel and audio headers on the
component side of the board. The front panel audio header provides mic in and line
out signals for the front panel. Microphone bias is supported for both the front and
back panel microphone connectors.
The front/back panel audio connectors are configurable through the audio device
drivers. The available configurable audio ports are shown in Figure 4.
Item Description
A Line in
B Line out
C Mic in
Figure 4. Back Panel Audio Connector Options
For information about Refer to
The location of the front panel audio header Figure 10, page 50
The signal names of the front panel audio header Table 11, page 52
The location of the HD Audio Link header Figure 10, page 50
The back panel audio connectors Section 2.2.1, page 49
26
1.10 LAN Subsystem
The LAN subsystem consists of the following:
• Intel 82567LM Gigabit Ethernet Controller (10/100/1000 Mbits/sec)
• Intel 82801JDO (ICH10DO)
• RJ-45 LAN connector with integrated status LEDs
Additional features of the LAN subsystem include:
• CSMA/CD protocol engine
• LAN connect interface between ICH10DO and the LAN controller
• PCI Conventional bus power management
⎯ ACPI technology support
⎯ LAN wake capabilities
• LAN subsystem software
For information about Refer to
LAN software and drivers http://downloadcenter.intel.com
Product Description
1.10.1 Intel® 82567LM Gigabit Ethernet Controller
The Intel 82567LM Gigabit Ethernet Controller supports the following features:
• PCI Express link
• 10/100/1000 IEEE 802.3 compliant
• Compliant to IEEE 802.3x flow control support
• 802.1p and 802.1q
• TCP, IP, and UDP checksum offload (for IPv4 and IPv6)
• Transmit TCP segmentation
• Full device driver compatibility
• PCI Express power management support
• Intel
®
Active Management Technology (Intel® AMT) 5.0
27
Intel Desktop Board DQ45EK Technical Product Specification
1.10.2 LAN Subsystem Software
LAN software and drivers are available from Intel’s World Wide Web site.
For information about Refer to
Obtaining LAN software and drivers Section 1.2, page 14
1.10.3 RJ-45 LAN Connector with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connector (shown in Figure 5 below).
Item Description
A Link LED (Green)
B Data Rate LED (Green/Yellow)
Figure 5. LAN Connector LED Locations
Table 5 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 5. LAN Connector LED States
LED LED Color LED State Condition
Off LAN link is not established.
Link Green
Data Rate Green/Yellow
On LAN link is established.
Blinking LAN activity is occurring.
Off 10 Mbits/sec data rate is selected.
Green 100 Mbits/sec data rate is selected.
Yellow 1000 Mbits/sec data rate is selected.
28
