DUAL BAND AMATEUR RADIO
VHF / UHF FM POCKET SIZE
HANDHELD TRANSCEIVER
144-146 MHz / 128CH / 8W
430-440 MHz / 128CH / 7W
PC PROGRAMMABLE
INSTRUCTION MANUAL
Declaration of Conformity
With the present declaration, we certify that the following products :
INTEK KT-980HP
comply with all the technical regulations applicable to the above mentioned products
in accordance with the EC Directives 1999/5/EC.
Type of product : Amateur Radio Equipment VHF/UHF
Details of applied standards : EN 301 783-1 V1.2.1, EN 301 783-2 V1.2.1
EN 301 489-1 V1.9.2, EN 301 489-15 V1.2.1
EN 60950-1
+A11:2009, EN 50332-1
Manufacturer : INTEK S.R.L.
Via G. Marconi, 16
20090 Segrate, Italy
Tel. +3902 2695 0451 / Fax. +3902 2695 2185
E-mail : info@intek-radios.com
Contact Reference : Armando Zanni
Tel. +3902 2695 0451 / Fax. +3902 2695 2185
E-mail : info@intek-radios.com
Segrate, 10/11/2013 dr. Vittorio Zanetti
(C.E.O.)
DECLARATION OF CONFORMITY
EC Certificate of Conformity
(to EC Directive 1999/5/EC)
SAFETY TRAINING INFORMATION
Your KT-980HP
generates RF electromagnetic energy during transmitting
mode. This radio is designed for and classified as "Occupational Use Only",
meaning it must be used only during the course of employment by individuals
aware of the hazards, and the ways to minimize such hazards.This radio is NOT
intended for use by the "General Population" in an uncontrolled environment.
warning
GENERAL DESCRIPTION
The transceiver is a micro-miniature multiband FM transceiver with extensive receive
frequency coverage, providing local-area two-way amateur communications along
with unmatched monitoring capability.
We appreciate your purchase of our transceiver, and encourage you to read this
manual thoroughly, and learn about many exciting features.
Elect r om agnetic Inter fe r ence/Comp atibility
During transmissions, your radio generates RF energy that can possibly cause interference
with other devices or systems .To avoid such interference, turn off the radio in areas where
signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to
electromagnetic radiation such as hospitals, aircraft, and blasting sites.
Occup a tional/Cont r olled Use
The radio transmitter is used in situations in which persons are exposed as consequence
of their employment provided those persons are fully aware of the potential for exposure
and can exercise control over their exposure.
NOTICE !
It is recommended to carefully read this owner’s manual before using the product. This will also help the user to prevent
using the radio in violation of the regulations valid in the country where the product is used, as well as to avoid any
possible interferences with other services.
NOTICE !
This transceiver is programmable via PC, using the dedicated software (free download at www.intek-radios.com)
and the PC interface cable (optional item). Any programming or modification of the original default setting must be
made by a specialised technician or by an authorised service centre. Some functions of this transceiver might be
programmed in violation of the technical rules in force for the use of the VHF and UHF FM bands. It is the user’s
responsibility to check that any modification to the programming will be done in compliance with the current
regulations. Any modification to the product, alteration of the internal circuit, of the external structure of the radio or
any programming in violation of the current regulations will automatically void the product certification and your right
to use the product. INTEK S.R.L. declines any responsibility concerning any modification of the product, made by
the user or by a third party, after delivery of the product.
NOTICE !
This transceiver has been factory programmed, in order to use the product immediately after purchase. The
programming includes the activation of channels/frequencies in the VHF and UHF FM Amateur Bands, according
to the technical rules in force for the use of this bands.
RoHS
2002/95/EC
- Refer service to qualified technicians only.
- Do not disassemble or modify the transceiver for any reason.
- Do not expose the transceiver under direct sunlight long or to extremely hot
condition.
- Do not place the transceiver on the unstable surface.
- Keep the transceiver out of dust, moisture, water.
- Do not operate the transceiver or charge the battery pack under explosive
conditions.
PRECAUTIONS
It is important that the operator is aware of and understands hazards common
to the operation of any transceiver.
SAFETY
WARNING
Please turn the transceiver off at the following locations:
In explosive atmospheres (inflammable gas, dust particles, metallic powders,
grain powders, etc.).
While taking on fuel or while parking at gasoline service stations.
Near explosives or blasting sites.
In medical institutes or aircrafts.
UNPACKING AND CHECKING EQUIPMENTS / OPTIONAL ACCESSORIES
INSTALLATION OF ACCESSORIES
POWER LEVELS AND RADIO OPERATION

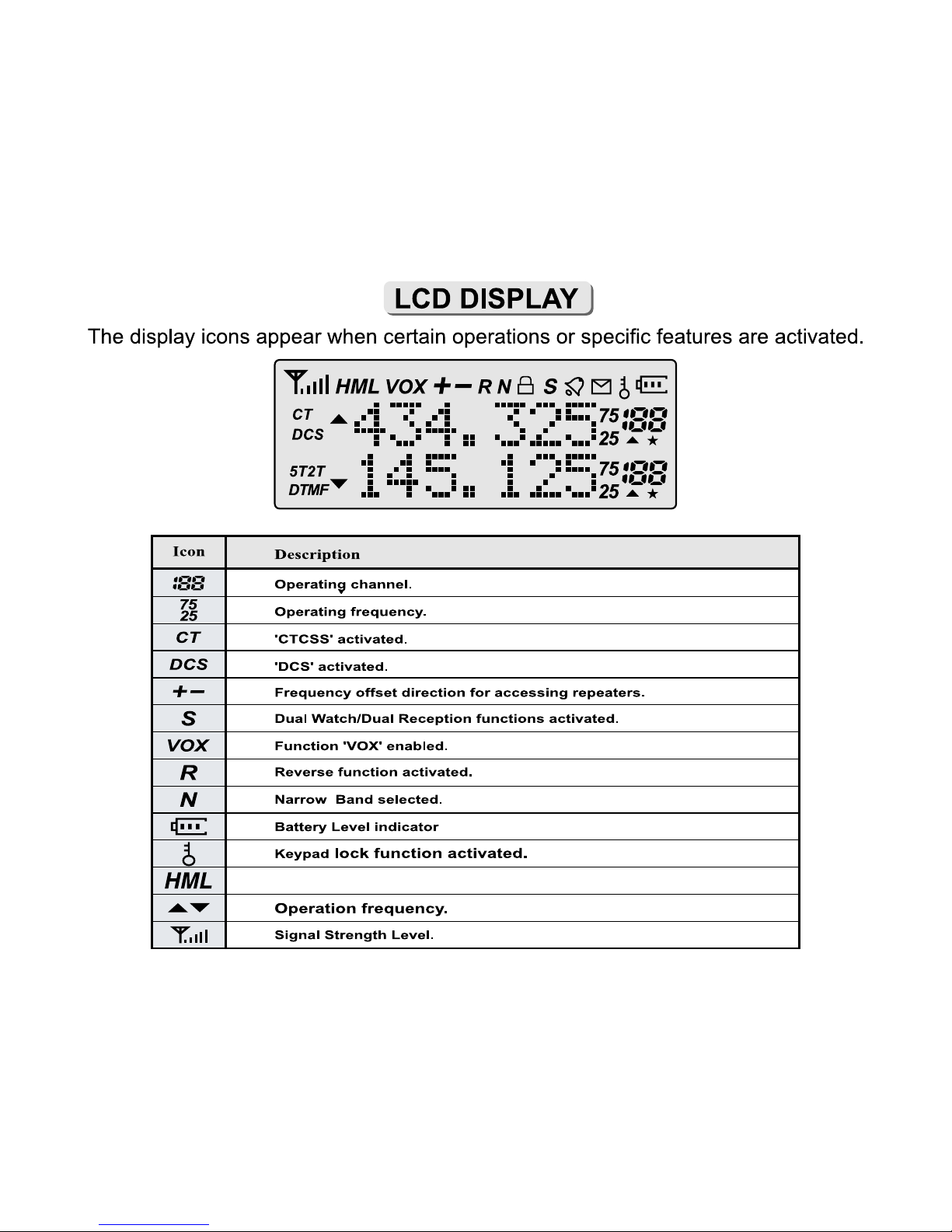

LCD DISPLAY
ADVANCED OPERATION
PARTS, CONTROLS AND KEYS
-R-DCS (SETTING RECEIVE DCS) / R-CTCS (SETTING RECEIVE CTCSS)
-T-DCS (SETTING TRANSMIT DCS) / T-CTCSS (SETTING TRANSMIT CTCSS)
06
10
11
11
11
11
11
12
12-14
15
15
15
16
16
16
17
17
17
17
07-09
18
19
GENERAL INFORMATION
TROUBLESHOOTING
SPECIFICATIONS
33
19
19
20
20
21
21
22
22
22
23
23
23
24
24
25
25
26
26
26
26
27
27
28
28
28
29
29
29
30-31
32
Dual Band (144-146 MHz / 430-440 MHz)
High / Mid / Low RF Power Selection
FM Radio (87.5-108 MHz)
Transceiver
Note: Items included in the package may differ from those listed in the table above, depending
on the country of purchase. For more information consult with the dealer or retailer.
Charger Li-Ion Battery AC Adaptor Antenna
Belt Clip &
Handstrap
Earset-Microphone
VHF/UHF DUAL BAND TRANSCEIVER
Unpack the transceiver and identify the items below before wasting the packing material.
If any item is missing or is damaged, please contact your dealer immediately.
- 1 -
- KME-315 External Earset-Microphone with tie clip
- KME-614 External Earset-Microphone with adjustable ear hook
- KME-801 External Earset-Microphone for security and bodyguard
- KME-100A External Earset-Microphone with tie clip
- KME-200A External Earset-Microphone with flexible boom mic and tie clip
- KME-H115 External Speaker-Microphone (light duty)
- KST-301 External Speaker-Microphone (heavy duty)
- ESM-960 External Earset-Microphone Smile Design
- KPG-33 PC interface USB cable
Please check www.intek-radios.com for any new available accessory for your radio.
- Do not touch or hold the antenna with your hand or wrap the outside
of it to avoid bad operation of the transceiver
- 2 -
- 3 -
- 4 -
EXTEND BATTERY LIFE
- 5 -
POWER LEVELS AND RADIO OPERATION
- 6 -
GENERAL INFORMATION
The new Dual Band handheld radio INTEK KT-980HP is the new High Power version of
the well known model KT-960 PLUS (UV-5R). The main difference and feature of model
KT-980HP is the new transmitter circuit design which is equipped with a RENESAS
RQA0011DNS Silicon N-Channel RF power MOSFET semiconductor, rated at 10,47W
with +40.2 dBm (f=520 MHz), but derated to 8,00W max for optimum and stable operation.
RADIO OPERATION
It is always recommended that the transmitter output power level is set at the lowest level at
which the communication can be carried out. The power level should be increased to a
higher level only when necessary. The LOW (L) transmitter power level is about 1.0W and
the MID (M) transmitter power level is about 4W, these two power levels correspond to the
usual power levels for VHF/UHF handheld radios. The HIGH (H) transmitter power level is
about 8.0W (VHF) / 7.0W (UHF) and it should be used only when necessary, because the
current drain at this level is much higher than in
the LOW and MID levels, which will obviously
cause a shorter battery life. Radio should also be
operated in HIGH (H) transmitter power level
only when the battery is fully charged. The
maximum transmitter output power in HIGH (H)
transmitter power level is available only in the
Amateur Radio frequency bands of 144-146 MHz
and 430-440 MHz. Out of these frequency
ranges the transmitter output power will be lower.
POWER
LEVELS
HIGH (H)
MID (M)
LOW (L)
VHF
BANDS
UHF
8W 7W
4W 4W
1W 1W

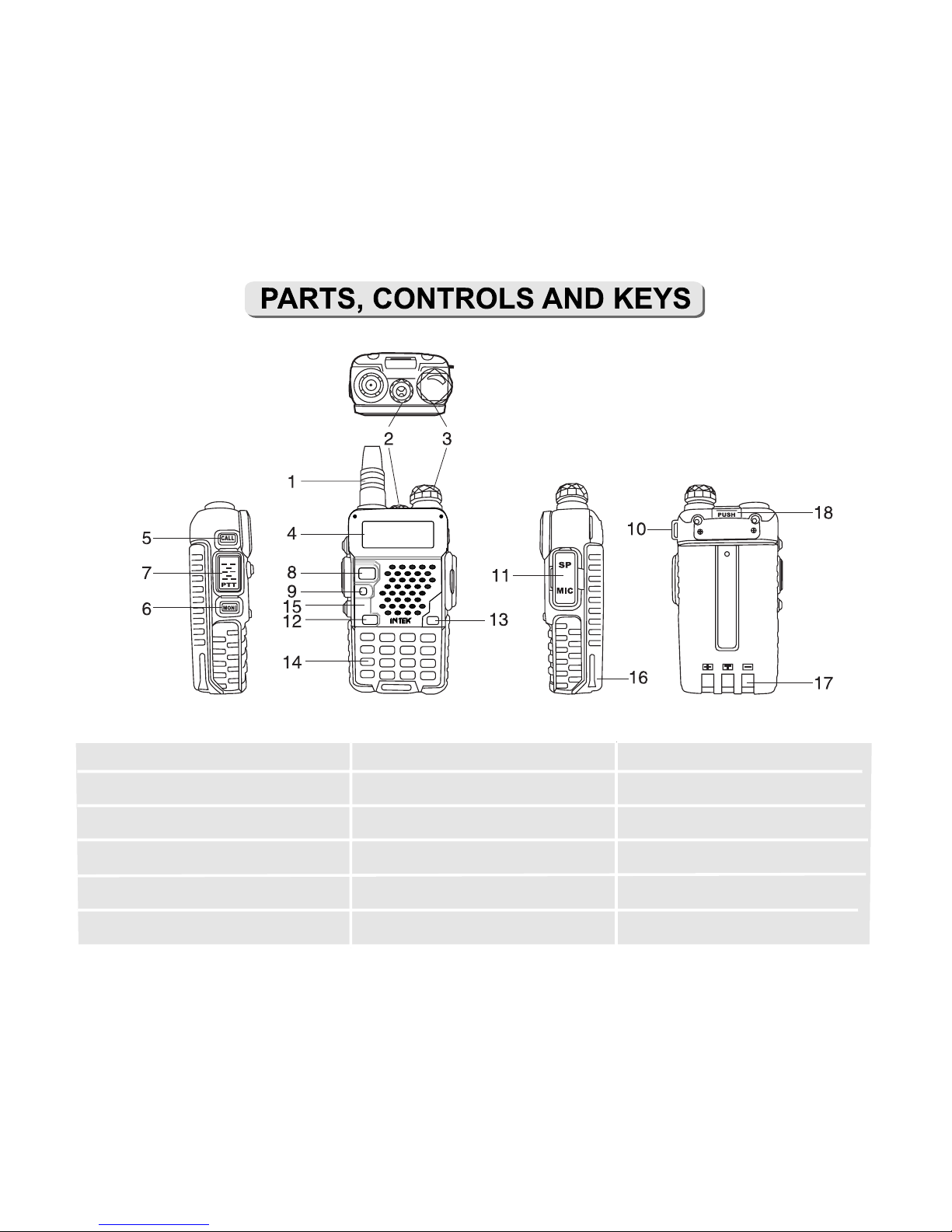

1. Antenna (Dual Band)
2. Flashlight
3. Knob (ON/OFF, Volume)
4. LCD Display
5. SK-1/Call (FM Radio, Alarm)
6. SK-2/MONI (Flashlight, Monitor)
7. PTT Key (Push-To-Talk)
8. VFO/MR (Freq. Mode/CH Mode)
9. LED Indicator
10. Strap Buckle
11. Accessory Jack
12. A/B Key (Freq. display switch)
13. BAND Key (Band switch)
14. Keypad
15. SP.&MIC.
16. Battery Pack
17. Battery Contacts
18. Battery Remove Button
VHF/UHF DUAL BAND TRANSCEIVER
- 7 -
radio (band 65-75 MHz and 87.5-108 MHz).
- 8 -
or other accessories such as PC cable.
Note: this setting is not available when TDR function (Dual Watch / Dual reception) is enabled.
Press this key to select the desired band (VHF or UHF).
In FM Radio mode, press this key to switch the band (65-75 MHz / 87.5-108 MHz).

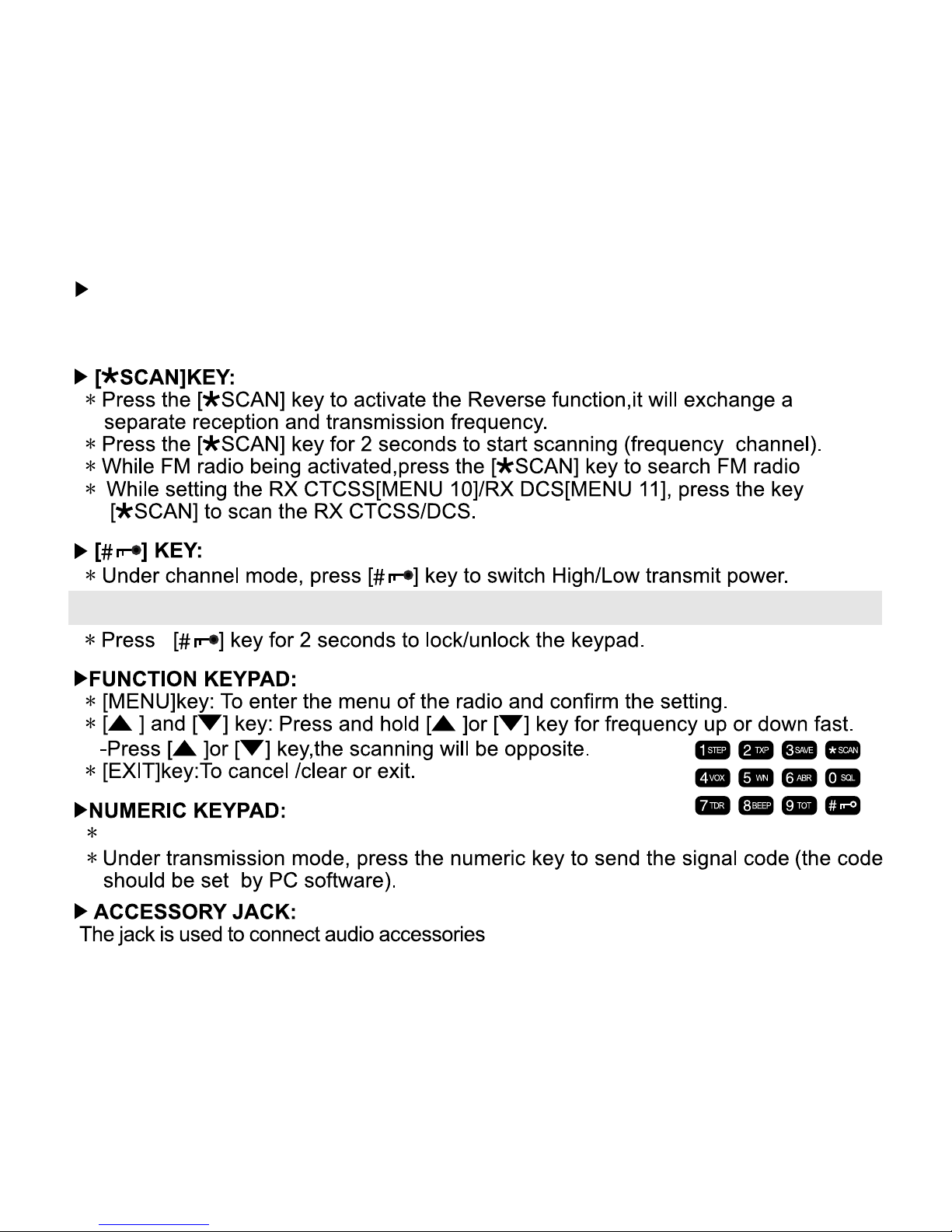

Used to enter information for programming the radio's lists and the non-standard CTCSS.
[BAND] BUTTON
station.
- 9 -
RF Transmitter Power Level (High / Mid / Low).
- 10 -
Use Numeric Keypad to direct input the desired frequency or channel number.
- 11 -
- 12 -
- 13 -
- 14 -
2. TXP (High / Mid / Low Power Selection) (Menu+2)
In standby mode, press [MENU] + [2TXP] keys; the LCD will show the TXP
indication. Press [MENU] key again then press keys to select the
desired power level (HIGH, MID or LOW). Press [MENU] key to confirm then
press [EXIT] key to return to standby.
Please refer to Power Levels Chart at page 6.
- 15 -
- 16 -
- 17 -
- 18 -
- 19 -
- 20 -
- 21 -
- 22 -
- 23 -
- 24 -
- 25 -
Radio has 2 bands: VHF 144-146 (136-174) MHz / UHF 430-440 (400-470) MHz (*)
- 26 -
- 27 -
- 28 -
- 29 -
- 30 -
- 31 -
SPECIFICATIONS
- 32 -
General
Frequency VHF 144-146 MHz (136-174 MHz) (*)
UHF 430-440 MHz (400-470 MHz) (*)
Channels 128
Channel steps 2.5, 5, 6.25, 10, 12.5, 25 KHz
DC input voltage 7.4 VDC
Standard Battery 1800mAh
Operating temperature -20/+60°
Dimensions / Weight mm 58 x 110 x 32 (main body) / 205 gr.
Current Drain (Stand-By) ≤75mA
Receiver
Sensitivity (12dB Sinad) 0.2 µV
Audio output ≤1.4V
Transmitter
RF output power 8W VHF / 7W UHF
(Maximum Transmitter Output Power in the Amateur Radio Bands)
Modulation 16K*F3E/8K*F3E (W/N)
Spurious & Harmonics in compliance with the R&TTE regulations
Current Drain ≤1.4A
FM Radio
Frequency range 87.5 - 108 MHz WFM
(*) KT-980HPX (INTERNATIONAL VERSION) 136-174 MHz / 400-470 MHz (not available for Europe)
- 33 -
General Information
Important notice !
The use of VHF and UHF FM transceivers is subject to the regulations applied in the country where
the product has to be used. As regulations are usually subject to possible modifications, please
check the current regulations in your country with your dealer or local supplier. INTEK does not take
any responsibility for illegal use and operation of this product not in accordance with the regulation of
the country where the product is used.
User Information
in accordance with art. 13 of the Legislative Decree of 25th July 2005, no. 15 ”Implementation of Directives 2002/95/EC,
2002/96/EC and 2003/108/EC, relative to reduction of the use of hazardous substances in electrical and electronic equipment,
in addition to waste disposal”.
The crossed bin symbol shown on the equipment indicates that at the end of its working life the product must be
collected separately from other waste.
The user must therefore take the above equipment to the appropriate differentiated collection centres for
electronic and electro technical waste, or return it to the dealer when purchasing a new appliance of equivalent
type, in a ratio of one to one.
Appropriate differentiated waste collection for subsequent recycling, treatment and environment-friendly disposal of the
discarded equipment helps to prevent possible negative environmental and health effects and encourages recycling of the
component materials of the equipment.
Illegal disposal of the product by the user will be punished by application of the administrative fines provided for by the
legislative decree no. 22/1997 (article 50 and following of the legislative decree no. 22/1997).
