Vented Cable Extender
Part number 0085590

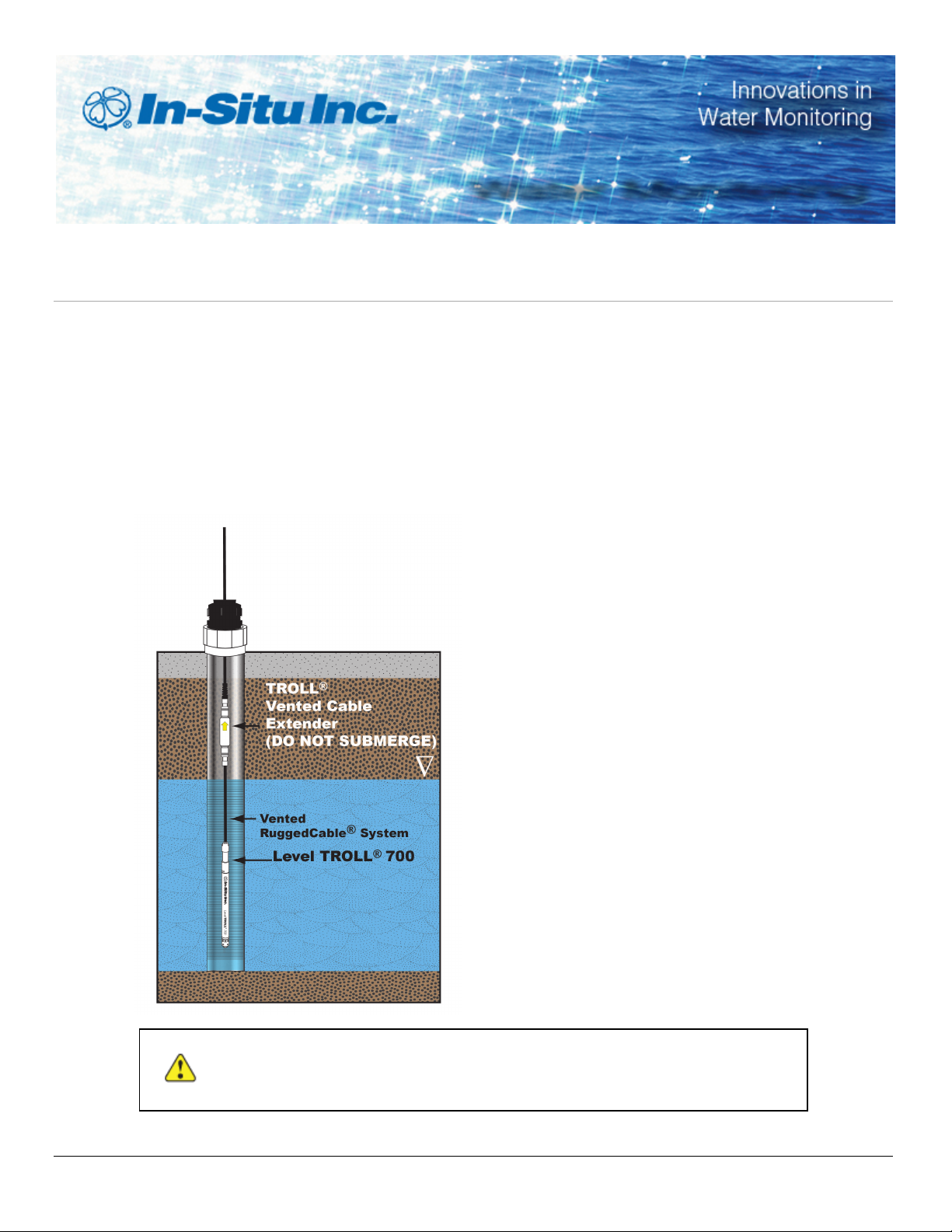

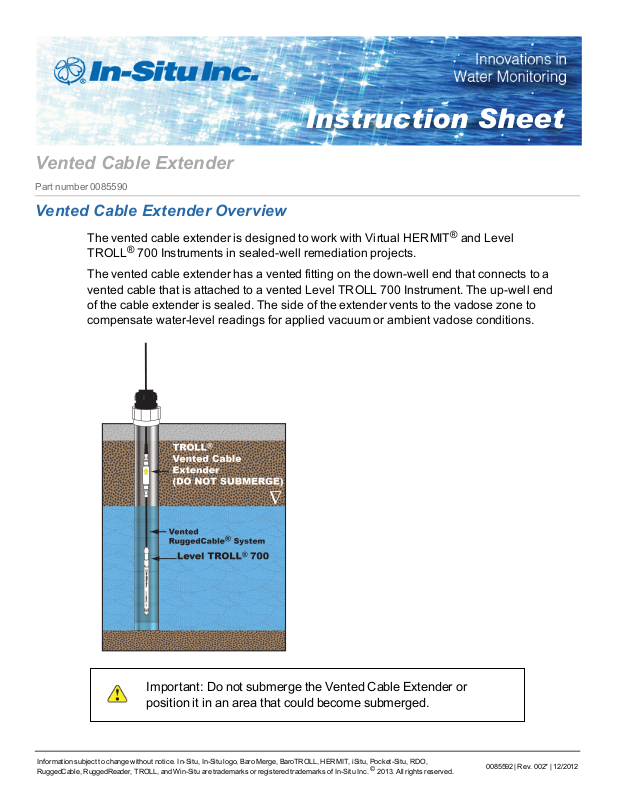

Vented Cable Extender Overview
The vented cable extender is designed to work with Virtual HERMIT®and Level
TROLL®700 Instruments in sealed-well remediation projects.
The vented cable extender has a vented fitting on the down-well end that connects to a
vented cable that is attached to a vented Level TROLL 700 Instrument. The up-well end
of the cable extender is sealed. The side of the extender vents to the vadose zone to
compensate water-level readings for applied vacuum or ambient vadose conditions.
Instruction Sheet
Important: Do not submerge the Vented Cable Extender or
position it in an area that could become submerged.
Informationsubject t o changewithout notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, iSitu, Pocket-Situ, RDO,
RuggedCable, RuggedReader, TROLL, and Win-Situ are trademarks or registeredt rademarks of In-Situ Inc.©2013. All rights reserved.
0085592 | Rev. 002* | 12/2012
Page 2
Virtual Hermit Configuration

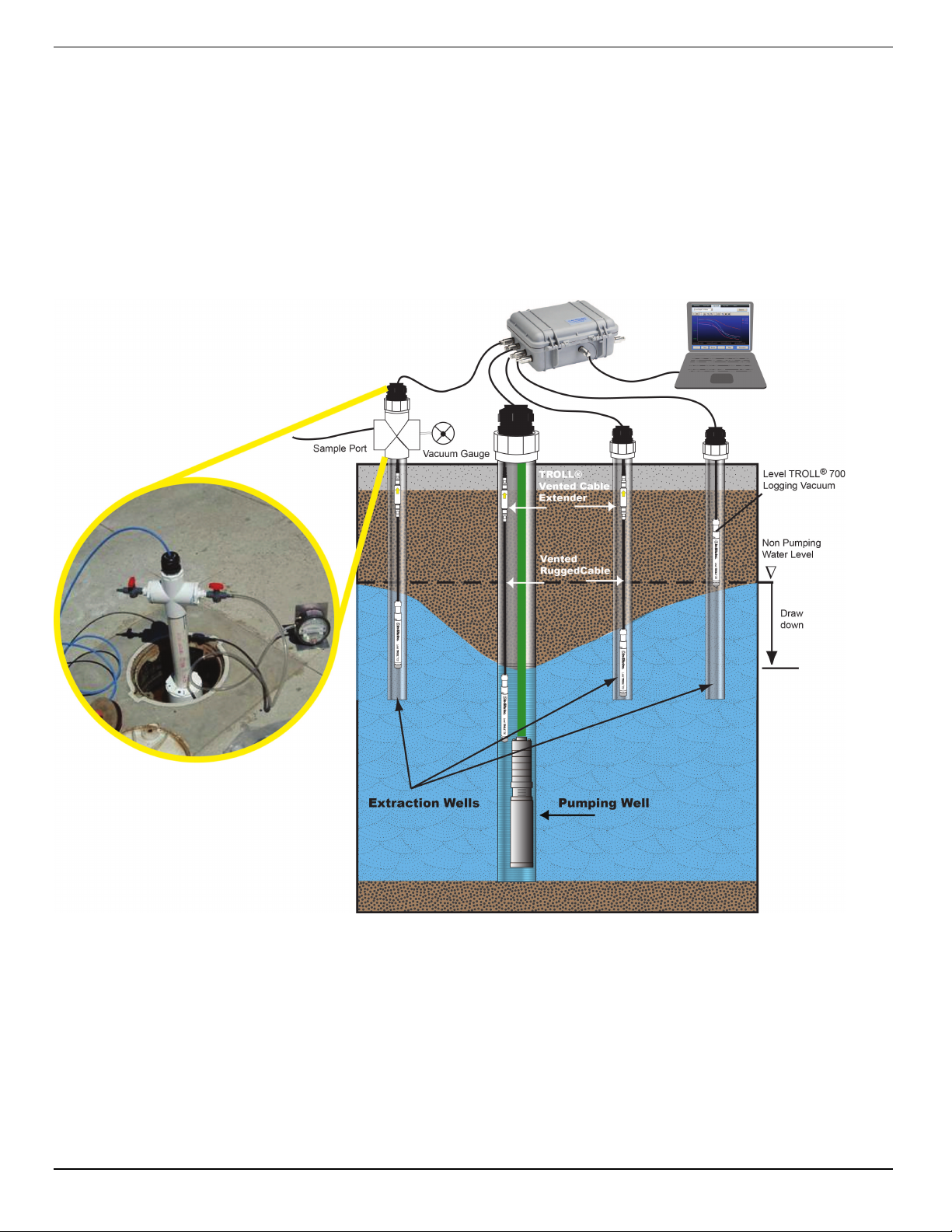

The Virtual HERMIT, in conjunction with the Vented Cable Extender, vented cable, and
the vented Level TROLL Instrument allows you to view real-time, pressure-corrected
data across a well field at one central location. Readings are automatically corrected for
vacuum pressure, which results in more accurate data and eliminates the need to postcorrect data. Because Virtual HERMIT makes it possible to view nearly instantaneous
changes across a well-field, test protocols can be rapidly adjusted if necessary. This
immediacy can reduce the duration of a study, thereby reducing overall project costs.
Installation
1. Position the Vented Cable Extender between the up-hole cable (that connects to
Virtual Hermit) and the down-hole cable (that connects to the instrument). Ensure
that the arrow on the cable extender points up.
2. Ensure that the cable extender is positioned in the well casing so that it will not be
submerged at any time during the project. Do not submerge the cable extender.
800-446-7488 2 www.in-situ.com
