Page 1
PARTS LIST FOR COMMERCIAL DISPOSERS
MODEL SS-500 IN-SINK-ERATOR® 5 H.P.
(Includes Model SS-500-1)
ORDER BY PART NUMBER, NOT CODE NUMBER
(Minimum Parts Order $3.00)
(All Parts F.O.B. FACTORY/DEPOT) (INCLUDE SERIAL AND MODEL NUMBER OF DISPOSER WHEN ORDERING)
Page 2
IN-SINK-ERATOR DIVISION
EFFECTIVE March, 1972
PARTS LIST FOR COMMERCIAL DISPOSERS
MODEL SS-500 IN-SINK-ERATOR® 5 H.P.
(Includes Model SS-500-1)
Code
No Part No
1 11004 1 Mounting Flange 27 11737-A 1 Rotor and Shah Assembly
2 11016 1 Gasket, Mounting 28 11721 1 Shell, Trim
3 11233 1 Body, Container 29 1836-A 2 Screw
4 1491 6 Bolt, Mounting 30 12460-A 1 Stator Assembly
5 11217 1 Pipe, Plug
6 11008 1 Seal. Body, Shredder 31 11733-A 1 Stator Assembly
7 11723 1 Body and Cover Assembly
8 11250 1 Stationary Shredder 32 12337 1 Tubing Insulation
9 11233 1 Nut, Shredder 33 12384 1 Bushing
10 11256 1 Washer 34 12433-B 1 Terminal Box Mounting Bracket
11 12143 1 Washer, Fibre 33 11448 4 Screw
12 11317 1 Rotor Shredder 36 12364 1 Ground Screw
13 11728 1 Upper End Bell lncludes 37 11730 1 Overload Protector
14 11463 1 Face Seal 38 12378 1 Clamp, Overload
13 11724 1 Support Washer 39 3763 2 Screw
16 11723 1 Spacer Sleeve 40 12372 1 Terminal Box
17 11729 1 Centrifugal Moisture Shield 41 12383 1 Grommet
18 12636 1 Bearing Assembly. Upper 42 12381 1 Screw
19 11732 1 Oil and Water Retainer 43 12413 1 Bearing, Lower
20 11320 2 Woodruff Key 44 12399 1 Spring, Pre-load
21 12637
22 11444 6 Washer 47 12633 1 Retaining Ring
23 11524 6 Bolt 48 1476 4 Bolt. Thru
24 11457 1 Outlet Gasket 49 11748 1 Cover. Bottom
15 11456 1 Outlet Flange 30 7887 3 Screw
26 3130 4 Bolt 31 11757-A 3 Leg Assembly
No
Reqd. Description Code No Part No
Codes 14-13-17-18-19
Bearing - Seal Kit Includes 43 11743 1 End Frame, Lower
Code 9-10-11-14-13-16-17-18-19-20 46 12393 1 Fan
No.
Reqd.
Description
208 Volt, 60 Cycle, Three Phase
230/460 Volt, 60 Cycle, Three Phase
208/230/460 Volt. 60 Cycle, Three Phase
ORDER BY PART NUMBER, NOT CODE NUMBER
(All Parts F.O.B. FACTORY/DEPOT (INCLUDE SERIAL AND MODEL NUMBER Of DISPOSER WHEN ORDERING)
(Minimum Parts Order $3.00)
EMERSON ELECTRIC CO.
4700-21ST STREET
RACINE, WISCONSIN
Page 3
COMMERCIAL DISPOSER
Start with Serial
#70,000
ISE
IN-SINK-ERATOR
MODEL
SS-500-9 230/460/60/3 SS-500-11
SS-500-10 208/60/3 SS-500-12
CANADIAN
MODEL
ORDER BY PART NUMBER, NOT CODE NUMBER
(All Parts F. O.B. Agency/Depot) (Include Serial and Model Number of Disposer when ordering)
Page 4
IN-SINK-ER
ATOR DIVISION
ISE
IN SINK ERATOR
MODEL
CANADIAN
MODEL
SS-500-9 230/460/60/3 SS-500-11
SS-500-10 208/60/3 SS-500-12
Code
No.
Part No.
1 11004 1 Mounting Flange 28 11721 1 Shell - Trim
2 11016 1 Gasket, Mounting 29 1836-A 2 Screw
3 11232 1 Body, Container 30 13079-A 1 Stator Assembly
4 1491 6 Bolt, Mounting
5 11 227 1 Pipe Plug 31 13078-A 1 Stator Assembly
6 11008 1 Seal, Body - Shredder
7 11725 1 Body and Cover Assembly "32 12357 1 Tubing Insulation
8 11250 1 Stationary Shredder 33 12384 1 Bushing
9 11255 1 Nut. Shredder 34 12433-8 1 Terminal Box Mounting Bracket
10 11256 1 Washer 35 11448 4 Screw
11 12143 1 Washer. Fibre 36 12564 1 Ground Screw
12 11317 1 Rotor Shredder 37 12620 1 Overload Protector
13 11766 1 Upper End Belt Includes
14 11463 1 Face Seal
15 11724 1 Support Washer 39 12378 1 Clamp, Overload
16 11723 1 Spacer Sleeve 40 5 765 2 Screw
17 11729 1 Centrifugal Moisture Shield 41 12372 1 Terminal Box
18 12638 1 Bearing Assembly, Upper 42 12383 1 Grommet
19 11821 1 Support Washer 43 12381
19A 11769 1 Oil and Water Retainer 44 12415
20 11320 2 Woodruff Key 45 12399
21 12639
22 11444 6 Washer 48 12635
23 11524 6 Bolt 49 8039A 4 Bolt, Thru
24 11457 1 Gasket, Outlet 50 11748 1 Cover, Bottom
25 11456 1 Outlet Flange 51 7887 3 Screw
26 3130 4 Bolt - Outlet Flange 52 11757-A 3 Leg Assembly
27 11791-A 1 Rotor and Shaft Assembly
No.
Req'd.
Description
Codes 14-15-17-18-19-19A 38 11752 1 Overload Protector
Bearing - Seal Kit Includes Codes 46 11672
9-10-11-14-15-16-17-18-19-19A-20 47 1239S
Code
No.
Part No.
No.
Req'd
Description
230/460 Volt, 60 Cycle, Three Phase
208 Volt, 60 Cycle. Three Phase
230/460 Volt, 60 Cycle, Three Phase
208 Volt, 60 Cycle, Three Phase
Screw
Bearing - Lower
Spring, Pre-load
End Frame, Lower
Fan
Retaining Ring
ORDER BY PART NUMBER. NOT CODE NUMBER
(All Parts FOB. Agency/Depot) (Include Serial and Model Number of Disposer when ordering)
EMERSON ELECTRIC CO.
4700-21 ST. STREET
RACINE. WISCONSIN 53406
PHONE: (414) 554-5432
Page 5
COMMERCIAL DISPOSER
MODEL
MODEL
CANADIAN
SS-
500-17 230/460/60/3
SS-
500-19 SS-500-18 208/60/3
SS-
500-20
ISE
IN-SINK-ERATOR
Start with Serial #130,000
(All Parts FOB Agency/Depot) (Include Serial and Model Number of Disposer when ordering)
ORDER BY PART NUMBER, NOT CODE NUMBER

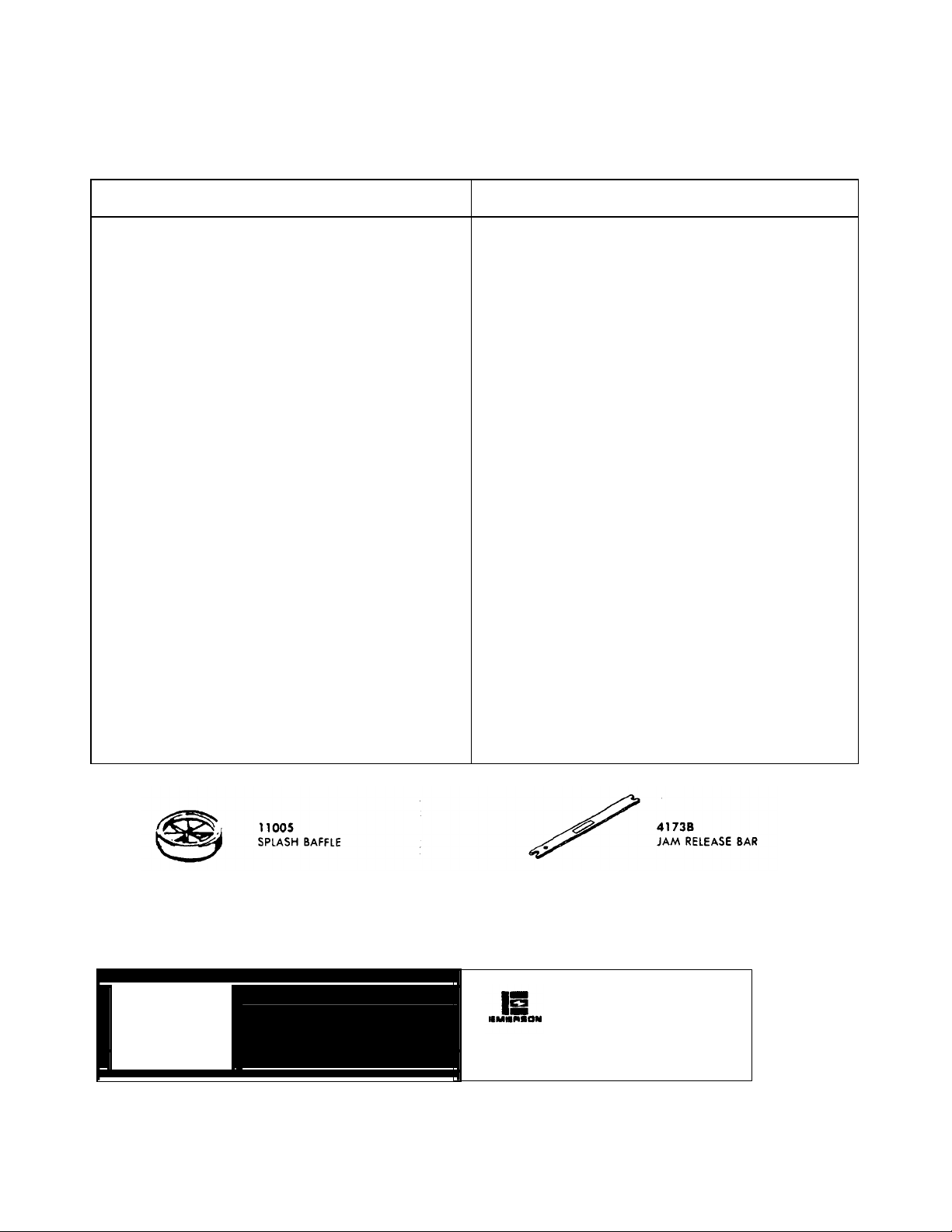

Page 6
IN-SINK-ERATOR DIVISION
ISE
MODEL
SS-500-17 230/460/60/3 SS-500-19
SS-500-18 208/60/3 SS-500-20
Start with Serial #130,000
CODE
NO.
PART
NO.
1 11004 1 Mounting Flange 31 13270-A 1 Rotor and Shaft Assembly
2 11016 1 Gasket, mounting
3 11232 1 Body, container 32 11721 1 Shell - Trim
4 1491 6 Bolt, mounting 33 1836-A 2 Screw
5 11227 1 Pipe Plug 34 13079-A 1 Stator Assembly
6 11008 1 Seal, body - Shredder
7 11725 1 Body and Cover Assembly 35 13078-A 1 Stator Assembly
8 11250 1 Stationary Shredder
9 11255 1 Nut, shredder 36 12357 1 Tubing Insulation
10 11256 1 Washer 37 12384 1 Bushing
11 12143 1 Washer, fiber 38 12433-B 1 Terminal Box Mounting Bracket
12 13273 1 Rotor Shredder 39 11448 4 Screw
13 13320 1 End Bell, upper (Includes 40 2466-A 1 Ground Screw
14 13266 1 Shield
15 1269 6 Screw 42 11752 1 Overload Protector
16 13260 1 Seal, triple lip
17 13265 1 Spacer Sleeve 43 12378 1 Clamp, Overload
18 12859 1 "O" Ring 44 1836-A 2 Screw
19 11729 1 Centrifugal Moisture Shield 45 12372 1 Terminal Box
20 12638 1 Bearing Assembly, upper 46 12383 1 Grommet
21 11821 1 Support Washer 47 12381 1 Screw
22 11769 1 Oil and Water Retainer 48 12415 1 Bearing, lower
23 11320 2 Woodruff Key 49 12399 1 Spring, pre-load
24 11322 1 Woodruff Key 50 11672 1 End Frame, lower
25 13281 1 Bearing - Seal Kit, (Includes 51 12395 1 Fan
26 11444 6 Washer 53 8039 4 Bolt, thru
27 11524 6 Bolt 54 11748 1 Cover, bottom
28 11457 1 Gasket, outlet 55 7887 3 Screw
29 11456 1 Outlet Flange 56 1 11757-A 3 Leg Assembly
30 3130 4 Bolt - Outlet Flange
NO.
DESCRIPTION
REQ.
Codes 9, 10, 11, 14 thru 24) 41 12620 1 Overload Protector
Codes 9, 10, 11, 14 thru 24) 52 12635 1 Retaining Ring
CODE
NO.
MODEL
CANADIAN
PART
NO.
NO.
DESCRIPTION
REQ.
(Includes Code 48)
230/460 Volt, 60 Hz, Three Phase
208 Volt, 60 Hz, Three Phase
230/460 Volt, 60 Hz, Three Phase
208 Volt, 60 Hz, Three Phase
IN SINK ERATOR
ORDER BY PART NUMBER, NOT CODE NUMBER
(All Parts FOB Agency/Depot) ( Include Serial And Model Number Of Disposer When Ordering)
EMERSON ELECTRIC CO.
4700-21 ST STREET RACINE.
WISCONSIN 53406 PHONE:
(414) 554-5432
Page 7
COMMERCIAL DISPOSER
Gasket, Shredder
33
1836A 2
Screw
7
11725
Body & Cover Assy
34
13079
A 1 Stator Assy
8
11250
Shredder, Stationary
35
12357
1
Tubing, Insulation
9
11255
Nut 36 12384
1
Bushing
10
11256
Washer
37
12433B
1
Bracket Assy (Mountlng)
11
12143
Washer, Fiber
38
11448
4
Screw 12
13273
Shredder Assy, Rotor
39
2466A
1
Screw, Ground
13
13320
End Bell Assy, Upper
40
13422 AC
1
Overload, Protector
(Incl. Codes
9-11 & 14
-
24) 41 12378
1
Clamp, Overload
14
13266
1
Shield
42
1836A
2
Screw, Tapping
15
1269 6 Screw, Tappin
g 43 13396B
1
Box, Terminal Assy
16
13260
1
Seal Assy
(Incl. code
44) 17 13265
1
Sleeve, Spacer
44
12383
1
Grommet, Overload
18
12859
1 O-
Rlng 45 12381
1
Screw
19
11729
1
Slinger
46
12415
1
Bearing, Lower
20
12638
1
Bearing Assy, Upper
47
12399
1
Washer. Spring
21
11821
1
Support Washer
48
11672
1
End Frame, Lower
22
11769
1
Oil and Water Retainer
49
12395
1
Fan 23 11320
2
Key, Woodruff
50
12635
1
Ring, Retaining
24
11322
1
Key, Woodruff
51
8039 4 Bolt, Thru
25
13281
1
Bearing Seal Kit (Incl
. 52 11748
1
Cover, Bottom
Codes 9
-11 & 14-24) 53 8221 3 Screw
26
11444
6
Washer, Lock
54
11757A
3
Tube Assy, Foot
27
11524
6
Screw
28
11457
1
Gasket, Outlet
Start Date:
10-05-82
ISE
IN-SINK-ERATOR
MODEL NO. SS500-23
(415 Volt / 50 Hz / 3 Phase)
Engineer Number:
13262G
CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION
1 11004
2 11016
3 11232 Body, Assy, Upper 31 13270 A 1 Rotor & Shaft Assy
4 1491 6 Screw, Mounting
5 11227 Pipe. Plug 32 11721 1 Trim, Band
6 11008
Flange, Mounting 29 13998 1 Outlet, Flange
Gasket, Mounting 30 3130 4 Bolt, Outlet Flange
(Incl. code 46)
Page 8
IN
SINK
ERATOR
COMMERCIAL DISPOSER
MODEL NO. SS500-21
(200 Volt / 50 / 60 Hz / 3 Phase)
Start Date:
3/99
Engineer Number:
13262D
CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION
1 11004 1 Flange, Mounting 29 13998 1 Flange, Tailpipe
2 11016 1 Gasket, Mounting 30 3130 4 Screw, Tailpipe
3 11232 1 Body, Assy, Upper 31 13270A 1 Rotor & Shaft Assy
4 1491 6 Screw, Mounting
5 11227
6 11008
7 11725
8 11250
9 11255
10 11256
11 12143
12 13273 1 Shredder Assy, Rotor 39 2466A 1 Screw, Ground
13 13320 1 End Bell Assy, Upper 40 13422AJ 1 Overload, Protector
14 13266 1 Shield 42 8221 2 Screw, Tapping
15 1269 12 Screw, Tapping 43 13396A 1 Box, Terminal Assy
16 13260 1 Seal Assy 44 12383 1 Grommet, Overload
17 13265 1 Sleeve, Spacer 45 12381 1 Screw
18 12859 1 O-Ring 46 12415 1 Bearing, Lower
19 11729 1 Slinger 47 12399 1 Washer, Spring
20 12638 1 Bearing Assy, Upper 48 11672 1 End Frame, Lower
21 11821 1 Support Washer 49 12395 1 Fan
22 11769 1 Oil and Water Retainer 50 12635 1 Ring, Retaining
23 11320 2 Key, Woodruff 51 8039 4 Bolt, Thru
24 11322 1 Key, Woodruff 52 11748 1 Cover, Bottom
25 13281 1 Bearing Seal Kit (Incl. 53 8221 3 Screw
26 11444 6 Washer, Lock
27 11524 6 Screw
28 11457 1 Gasket, Outlet
Pipe, Plug 32 11721 1 Trim, Band
Gasket, Shredder 33 1836A 2 Screw
Body & Cover Assy 34 13078D 1 Stator Assy
Shredder, Stationary 35 12357 1 Tubing, Insulation
Nut 36 12384 1 Bushing
Washer 37 12433B 1 Bracket (Term Box)
Washer, Fiber 38 11448 4 Screw (8-18 x 1/4)
(Incl. Codes 9-11 & 14- 24) 41 12378 1 Clamp, Overload
codes 9-11 & 14-24) 54 11757A 2 Tube Assy, Foot
(Incl. code 46)
Page 9
MODEL
SS
-
500
-
25
208/230/460/60/3
ISE
COMMERCIAL DISPOSER
IN SINK ERATOR
ORDER BY PART NUMBER, NOT CODE NUMBER
(All Parts F.O.B. Agency/Depot) (Include Serial and Model Number of Disposer when ordering)
Page 10
COMMERCIAL DISPOSER
IN-
SINK-ERATOR DIVISION
ISE
MODEL
SS-500-25 208/230/460/60/3
Code
No.

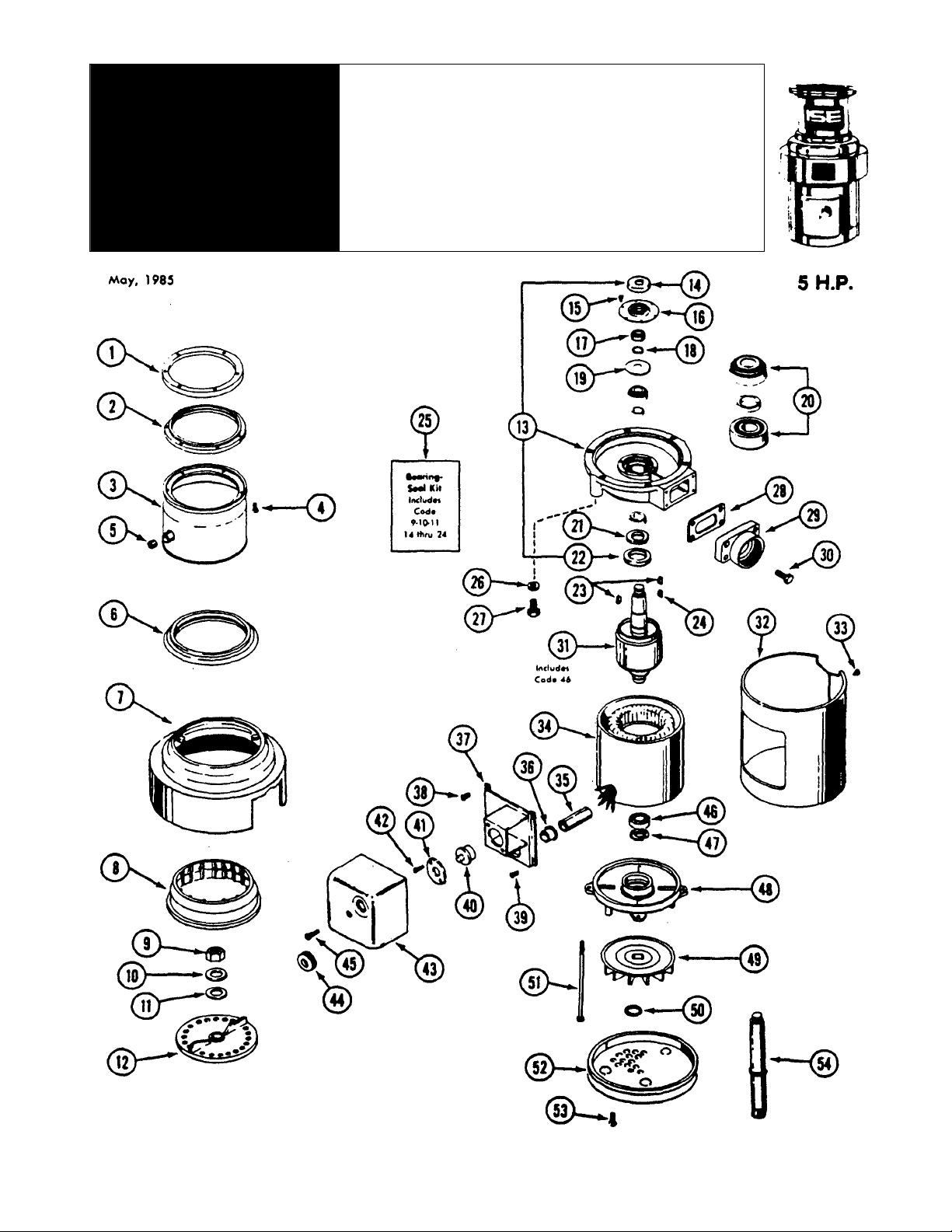

1 11004 1 Mounting Flange 28 11457 1 Gasket Outlet
2 11016 1 Mounting Gasket 29 11456 1 Outlet Flange
3 11232 1 Body Container 30 3130 4 Screw Outlet Flange
4 1491 6 Screw Mounting 31 13270A 1 Rotor & Shah Assembly
5 11227 1 Pipe Plug
6 11008 1 Gasket 32 11721 1 Trim Shell
7 11725 1 Body & Cover Assembly 33 1836A 2 Screw
8 11250 1 Shredder Stationary 34 13079C 1 Stator
9 11255 1 Nut 35 12357 1 Insulation Tubing
10 11256 1 Washer 36 12384 1 Bushing
11 12143 1 Washer Fiber 37 12433B 1 Bracket Mounting Terminal Box
12 13273 1 Rotor Shredder 38 11441 4 Screw
13 13320 1 End Boll, Upper 39 2466A 1 Screw Ground
14 13266 1 Shield 41 12378 1 Clamp Overload
15 1269 12 Screw 42 5765 2 Screw
16 13260 1 Seal Triple Up 43 12372 1 Terminal Box
17 13265 1 Spacer Sleeve 44 12383 1 Grommet
18 12159 1 "0" Ring 45 12381 1 Screw
19 11729 1 Slinger 46 1241S 1 Bearing lower
20 12631 1 Bearing Assembly 47 12399 1 Spring Preload
21 11821) 1 Washer Thrust 48 11672 1 Lower End Frame
22 11769 1 Oil & Water Retainer 49 12395 1 Fan
23 11320 2 Key Woodruff 50 12635 1 Ring Retainer
24 11322 1 Key Woodruff 51 8039 4 Bolt Thru
25 13281 1 Bearing & Sea) Kit 52 11741 4 Cover Bottom
26 11444 6 Washer 54 11757A 3 Leg Assembly
27 11524 6 Screw
Part
No.
No.
Description
Req
(Includes Codes 9. 10. 1), 14 thru 24) 40 12606 1 Overload Protector
(Includes Codes 9, 10. 11. 14 thru 24) 53 7887 3 Screw
Code
No.
Part
No.
No.
Description
Req.
(Incudes Code 46)
—
IN SINK ERATOR
(All Parts FOB Agency/Depot) (Include Serial and Model Number of Disposer when ordering)
ORDER BY PART NUMBER. NOT CODE NUMBER
EMERSON ELECTRIC CO.
4700-21ST STREET RACINE.
WISCONSIN 53406 PHONE
(414) 554-5432
Page 11
IN-SINK-ERATOR
1 11004
1
Flan
ge, Mounting
28
11457
1
Gasket, Tailpipe

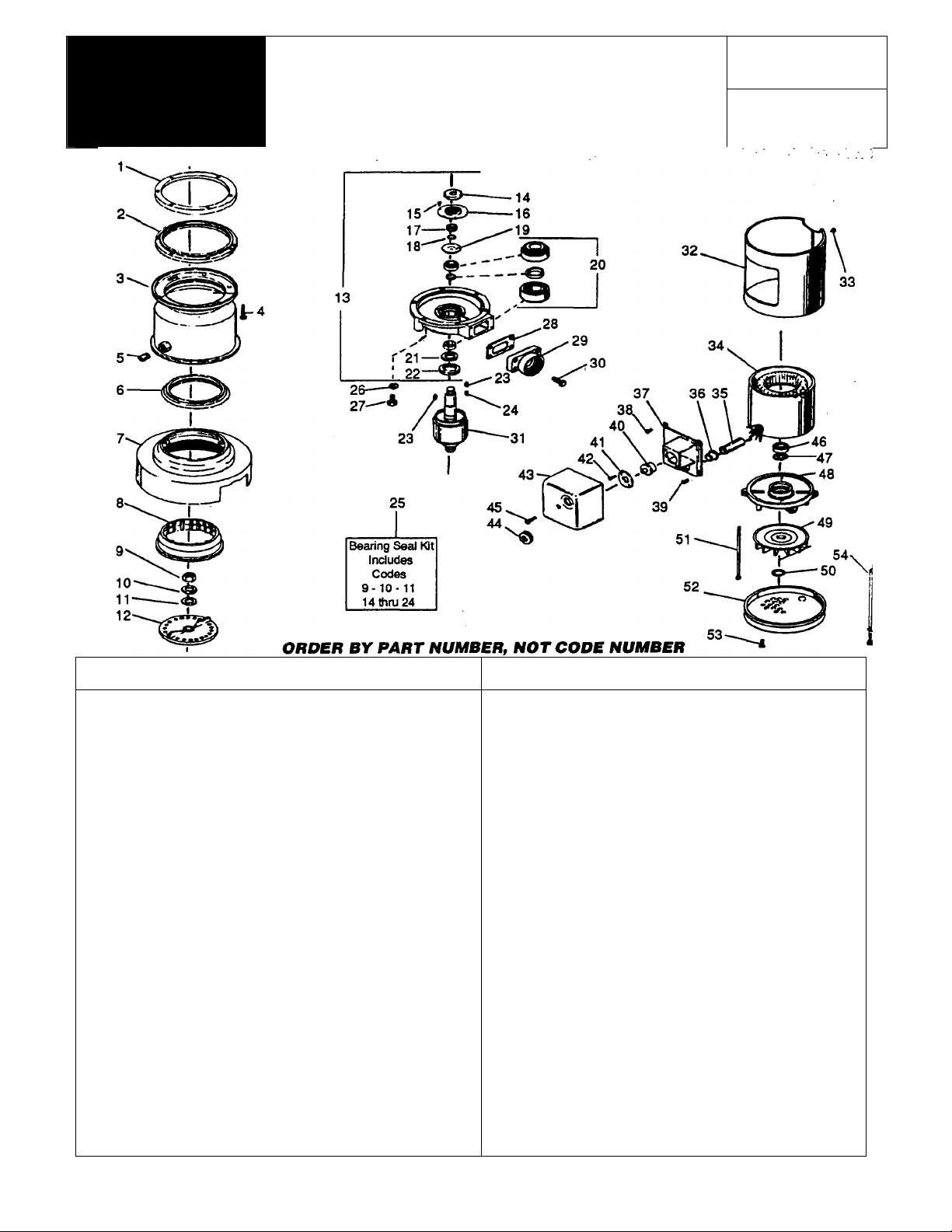

COMMERCIAL DISPOSER
MODEL NO. SS500-28
USA
(208-230/460/60/3ø)
Start Date:
8/85
Engineer Number:
13390C
ORDER BY PART NUMBER, NOT CODE NUMBER
CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION
2 11016 1 Gasket, Mounting 29 11456 1 Flange, Tailpipe
3 11232 1 Body Assy, Upper 30 3130 4 Screw, Tailpipe
4 1491 6 Screw, Mounting 31 13270-A 1 Rotor & Shaft Assy
5 11227 1 Pipe Plug
6 11008 1 Gasket, Shredder 32 11721 1 Trim, Band
7 11725 1 Body & Cover Assy 33 1836-A 2 Screw
8 11250 1 Shredder, Stationary 34 13079-A 1 Stator Assy
9 11255 1 Nut 35 12357 1 Insulation Tubing
10 11256 1 Washer 36 12384 1 Bushing
11 12143 1 Washer, Fiber 37 12433-B 1 Bracket (Terminal Box)
12 13273 1 Shredder Assy, Rotor 38 11448 4 Screw
13 13320 1 End Bell Assy, Upper 39 2466-A 1 Screw, Ground
(Incl Codes 9- 11 & 14-24 40 13422-8 1 Overload, Protector
14 13266 1 Shield 41 12378 1 Clamp, Overload
15 1269 12 Screw, Tapping 42 5765 2 Screw, Tapping
16 13260 1 Seal Assy 43 12372 1 Box, Terminal
17 13265 1 Sleeve, Spacer 44 12383 1 Grommet, Overload
18 12859 1 O-Ring 45 12381 1 Screw
19 11729 1 Slinger 46 12415 1 Bearing
20 12638 1 Bearing Assy, Upper 47 12399 1 Washer, Spring
21 11821 1 Washer, Thrust 48 11672 1 End Frame, Lower
22 11769 1 Seal, Water & Oil 49 12395 1 Fan
23 11320 2 Key, Woodruff 50 12635 1 Ring, Retaining
24 11322 1 Key, Woodruff 51 8039 4 Bolt, Thru
25 13281 1 Bearing Seal Kit 52 11748 1 Cover, Bottom
(Incl Codes 9- 11 & 14-24 53 8221 3 Screw
26 11444 6 Washer, Lock 54 11757-A 3 Tube Assy, Foot
27 11524 6 Screw
(Incl Codes 46)
Page 12
1 11004
1
Flange, Mounting
28
11457
1
Gasket, Tailpipe
IN-SINK-ERATOR
COMMERCIAL DISPOSER
MODEL NO. SS500-29
CANADIAN
(208-230/460/60/3ø)
Start Date:
4/1/87
Engineer Number:
13390D
ORDER BY PART NUMBER, NOT CODE NUMBER
CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION
2 11016 1 Gasket, Mounting 29 11456 1 Flange, Tailpipe
3 11232 1 Body Assy, Upper 30 3130 4 Screw, Tailpipe
4 1491 6 Screw, Mounting 31 13270-A 1 Rotor & Shaft Assy
5 11227 1 Pipe Plug
6 11008 1 Gasket, Shredder 32 11721 1 Trim, Band
7 11725 1 Body & Cover Assy 33 1836-A 2 Screw
8 11250 1 Shredder, Stationary 34 13079-A 1 Stator Assy
9 11255 1 Nut 35 12357 1 Insulation Tubing
10 11256 1 Washer 36 12384 1 Bushing
11 12143 1 Washer, Fiber 37 12433-B 1 Bracket (Terminal Box)
12 13273 1 Shredder Assy, Rotor 38 11448 4 Screw
13 13320 1 End Bell Assy, Upper 39 2466-A 1 Screw, Ground
14 13266 1 Shield 41 12378 1 Clamp, Overload
15 1269 12 Screw, Tapping 42 5765 2 Screw, Tapping
16 13260 1 Seal Assy 43 12372 1 Box, Terminal
17 13265 1 Sleeve, Spacer 44 12383 1 Grommet, Overload
18 12859 1 O-Ring 45 12381 1 Screw
19 11729 1 Slinger 46 12415 1 Bearing
20 12638 1 Bearing Assy, Upper 47 12399 1 Washer, Spring
21 11821 1 Washer, Thrust 48 11672 1 End Frame, Lower
22 11769 1 Seal, Water & Oil 49 12395 1 Fan
23 11320 2 Key, Woodruff 50 12635 1 Ring, Retaining
24 11322 1 Key, Woodruff 51 8039 4 Bolt, Thru
25 13281 1 Bearing Seal Kit 52 11748 1 Cover, Bottom
26 11444 6 Washer, Lock 54 11757-A 3 Tube Assy, Foot
27 11524 6 Screw
(lncl Codes 9-11 & 14-24) 40 13422-B 1 Overload, Protector
(Incl Codes 9- 11 & 14-24) 53 7887 3 Screw
(IncI Codes 46)
Page 13
5/88
IN-SINK-ERATOR
1 11004
1
Flange, Mounting
28
11457
1
Gasket, Tailpipe
COMMERCIAL DISPOSER
MODEL NO. SS500-30
U.S.A.
(208-230/460/60/3ø)
Start Date:
Engineer Number:
13390E
ORDER BY PART NUMBER, NOT CODE NUMBER
CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION
2 11016 1 Gasket, Mounting 29 11456 1 Flange, Tailpipe
3 11232-B 1 Body Assy, Upper 30 3130 4 Screw, Tailpipe
4 1491 6 Screw, Mounting 31 13270-A 1 Rotor & Shaft Assy
5 11227 1 Pipe Plug
6 11008 1 Gasket, Shredder 32 11721 1 Trim, Band
7 11725 1 Body & Cover Assy 33 1836-A 2 Screw
8 11250 1 Shredder, Stationary 34 13079-A 1 Stator Assy
9 11255 1 Nut 35 12357 1 Insulation Tubing
10 11256 1 Washer 36 12384 1 Bushing
11 12143 1 Washer, Fiber 37 12433-B 1 Bracket (Terminal Box)
12 13273 1 Shredder Assy, Rotor 38 11448 4 Screw
13 13320 1 End Bell Assy, Upper 39 2466-A 1 Screw, Ground
14 13266 1 Shield 41 12378
15 1269 12 Screw, Tapping 42 5765 2 Screw, Tapping
16 13260 1 Seal Assy 43 12372
17 13265 1 Sleeve, Spacer 44 12383
18 12859 1 O-Ring 45 12381
19 11729 1 Slinger 46 12415
20 12638 1 Bearing Assy, Upper 47 12399
21 11821 1 Washer, Thrust 48 11672
22 11769 1 Seal, Water & Oil 49 12395
23 11320 2 Key, Woodruff 50 12635
24 11322 1 Key, Woodruff 51 8039 4 Bolt, Thru
25 13281 1 Bearing Seal Kit 52 11748 1 Cover, Bottom
26 11444 6 Washer, Lock 54 11757-A 3 Tube Assy, Foot
27 11524 6 Screw
(lncl Codes 9- 11 & 14-24) 40 13422-B
(lncl Codes 9- 11 & 14-24 53 8221 3 Screw
(IncI Codes 46)
Overload, Protector
Clamp, Overload
Box, Terminal
Grommet, Overload
Screw
Bearing
Washer, Spring
End Frame, lower
Fan
Ring, Retaining
Page 14
3/99
IN
1 11004
1
Flange, Mounting
29
13998
1
Outlet, Flange
SINK
ERATOR
COMMERCIALDISPOSER
MODEL NO. SS500-31
(200 Volt / 50/60 Hz / 3 Phase)
5H.P.
Start Date:
Engineer Number:
13390G
CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION
2 11016 1 Gasket, Mounting 30 3130 4 Bolt, Outlet Flange
3 11232 1 Body, Assy, Upper 31 13270A 1 Rotor & Shaft Assy
4 1491 6 Screw, Mounting
5 11227 1 Pipe, Plug 32 11721 1 Trim, Band
6 11008 1 Gasket, Shredder 33 1836A 2 Screw
7 11725
8 11250
9 11255
10 11256
11 12143
12 13273
13 13320
14 13266 1 Shield 42 1836A 2 Screw, Tapping
15 1269 6 Screw, Tapping 43 13396G 1 Box, Terminal Assy
16 13260 1 Seal Assy
17 13265 1 Sleeve, Spacer 44 12383 1 Grommet, Overload
18 12859 1 O-Ring 45 12381 1 Screw
19 11729 1 Slinger 46 12415 1 Bearing, Lower
20 12638 1 Bearing Assy, Upper 47 12399 1 Washer, Spring
21 11821 1 Support Washer 48 11672 1 End Frame, Lower
22 11769 1 Oil and Water Retainer 49 12395 1 Fan
23 11320 2 Key, Woodruff 50 12635 1 Ring, Retaining
24 11322 1 Key, Woodruff 51 8039 4 Bolt, Thru
25 13281 1 Bearing Seal Kit (Incl. 52 11748 1 Cover, Bottom
26 11444 6 Washer, Lock 54 11757A 3 Tube Assy, Foot
27 11524 6 Screw
28 11457 1 Gasket, Outlet
Body & Cover Assy 34 13079D 1 Stator Assy
Shredder, Stationary 35 12357 1 Tubing, Insulation
Nut 36 12384 1 Bushing
Washer 37 12433B 1 Bracket Assy(Mounting)
Washer, Fiber 38 11448 4 Screw
Shredder Assy, Rotor 39 2466A 1 Screw, Ground
End Bell Assy, Upper 40 13422AC 1 Overload, Protector
(Incl. Codes 9-11 & 14-24) 41 12378 1 Clamp, Overload
codes 9-11 & 14- 24) 53 8221 3 Screw
(Incl. code 46)
(Incl. code 44)
Page 15
1
0/2/97
IN
1 11004
1
Flange, Mounting
29
3130 4 Bolt, Outlet Flange
1
30
1
6
42
1
1
43
1
2
49
1
1
28
1
SINK
ERATOR

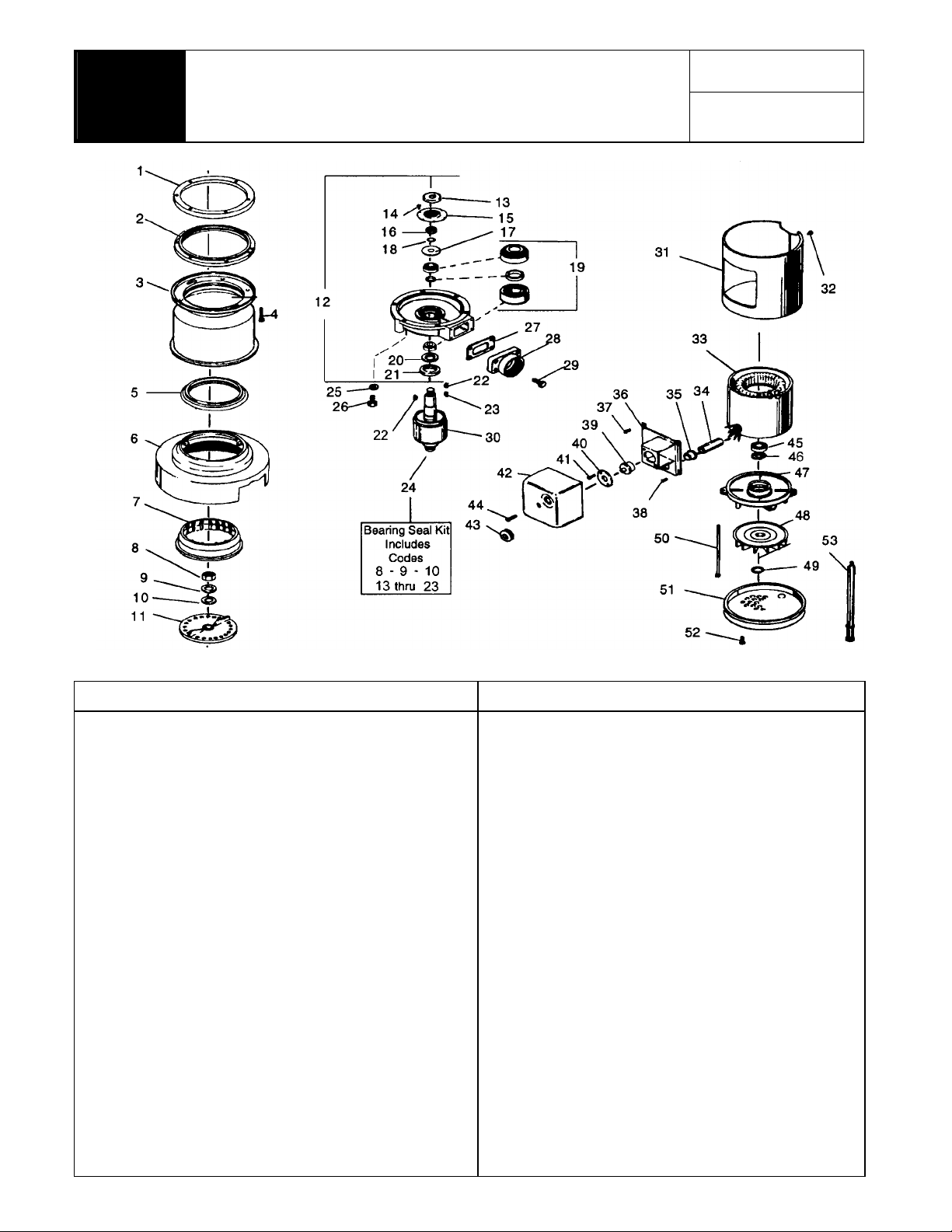

COMMERCIAL DISPOSER
MODEL NO. 0S500-1
U.S.A.
(208-230/460/60/30)
Start Date:
Engineer Number:
14122
ORDER BY PART NUMBER, NOT CODE NUMBER
CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION
2
3 14124 1 Body, Assy, Upper
4 1491 6 Screw, Mounting 31 11721 1 Trim, Band
5 11008 1 Gasket, Shredder 32 1836A 2 Screw
6 11725 1 Body & Cover Assy 33 13079A 1 Stator Assy
7 11250 1 Shredder, Stationary 34 12357 1 Tubing, Insulation
8 11255 1 Nut 35 12384 1 Bushing
9 11256 1 Washer 36 12433B 1 Bracket Assy (Mounting)
10 12143 1 Washer, Fiber 37 11448 4 Screw
11 13273 1 Shredder Assy, Rotor 38 2466A 1 Screw, Ground
12 13320 1 End Bell Assy, Upper 39 13422B 1 Overload, Protector
13 13266 1 Shield 41 5765 2 Screw, Tapping
14
15 13272 1 Seal Assy
16
17 12859 1 O-Ring 44 12381 1 Screw
18 11729 1 Slinger 45 12415 1 Bearing, Lower
19 12638 1 Bearing Assy, Upper 46 12399 1 Washer, Spring
20 11821 1 Support Washer 47 11672 1 End Frame, Lower
21 11769 1 Oil and Water Retainer 48 12395 1 Fan
22
23 11322 1 Key, Woodruff 50 8039 4 Bolt, Thru
24 13281 1 Bearing Seal Kit (Incl. 51 11748 1 Cover, Bottom
25 11444 6 Washer, Lock 53 11757A 3 Tube Assy, Foot
26 11524 6 Screw 54 14029 1 Offset Chute Assy
27
11016
1269
13265
11320
11457
13998
Gasket, Mounting
(Incl. Codes 8-10&13-23) 40 12378 1 Clamp, Overload
Screw, Tapping
Sleeve, Spacer
Key, Woodruff
codes 8-10 & 13-23) 52 8221 3 Screw
Gasket, Outlet
Outlet, Flange
13270A
12372
12383
12635
Rotor & Shaft Assy
(Incl. code 45)
Box, Terminal Assy
(Incl. code 43)
Grommet, Overload
Ring, Retaining
(Not Shown)
Page 16
12-01-89
ISE
IN-SINK-ERATOR
COMMERCIAL DISPOSER
MODEL NO. SD500
EXPORT
415 Volt/ 50 Hz/ 3 Phase
Start Date:
Engineer Number:
13534
ORDER BY PART NUMBER, NOT CODE NUMBER
CODE NO. PART NO. NO. REQ. DESCRIPTION CODE NO. PART NO. NO. REQ. DESCRIPTION
1 11004 1 Flange, Mounting 31 13563 1 Adaptor 3" to 2" pipe
2 11016 1 Gasket, Mounting 32 13562 1 Adaptor 2" pipe to tube
3 11232-8 1 Body Assy, Upper 33 13270-A 1 Rotor & Shaft Assy
4 1491 6 Screw, Mounting
5 11227 1 Pipe Plug 34 1836-A 2 Screw
6 11008 1 Gasket, Shreddder 35 11721 1 Trim, Band
7 11725 1 Body & Cover Assy 36 13079-A 1 Stator Assy
8 11250 1 Shredder, Stationary 37 12357 1 Insulation Tubing

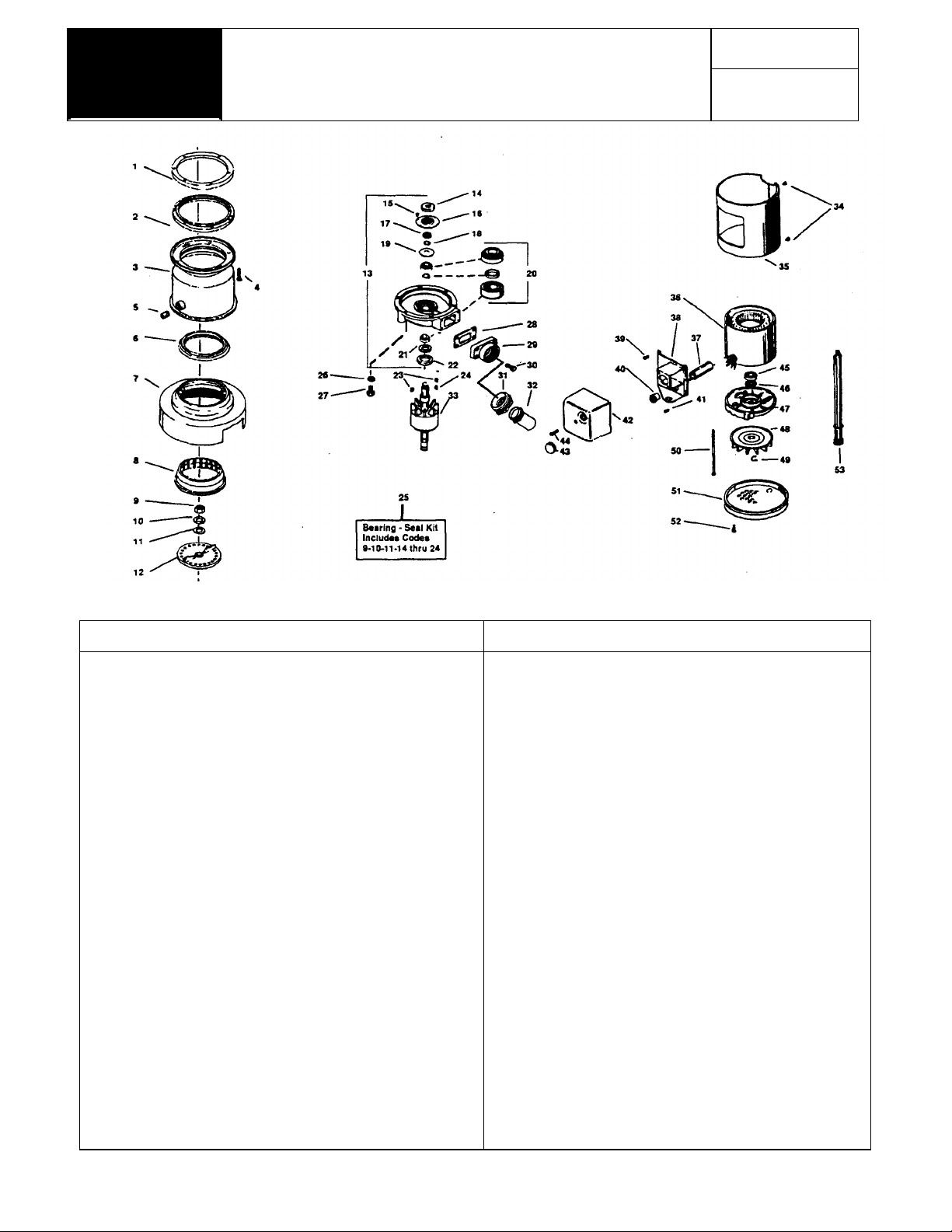

9 11255 1 Nut 38
10 11256 1 Washer 39 11448 4 Screw
11 12143 1 Washer, Fiber 40 12384 1 Bushing
12 13273 1 Shredder Assy, Rotor 41 2466-A 1 Screw, Ground
13 13320 1 End Bell Assy, Upper 42 12372 1 Box, Terminal
(Inc Codes 9-11 &14-24) 43 13559 1 Grommet
14 13266 1 Shield 44 12381 1 Screw
15 1269 12 Screw, Tapping 45 12415 1 Bearing, Lower
16 13260 1 Seal Assy 46 12399 1 Washer, Spring
17 13265 1 Sleeve, Spacer 47 11672 1 End Frame, Lower
18 12859 1 O-Ring 48 12395 1 Fan
19 11729 1 Slinger 49 12635 1 Ring, Retaining
20 12638 1 Bearing Assy, Upper 50 8039 3 Bolt. Thru
21 11821 1 Washer, Thrust 51 11748 1 Cover, Bottom
22 11769 1 Seal, Water & Oil 52 8221 3 Screw
23 11320 2 Key, Woodruff 53 11757-A 3 Tube Assy, Foot
24 11322 1 Key, Woodruff
13281 1 Bearing Seal Kit
25
26 11444 6 Washer, Lock
27 11524 6 Screw
28 11457 1 Gasket, Tailpipe
29 11456 1 Flange, Tailpipe
30 3130 4 Screw, Tailpipe
(Inc Codes 9-11 & 14-24)
(Incl Code 45)
1 Bracket Assy, Mounting
Loading...
