© IN-SINK-ERATOR Printed in USA Form No. C187-04E-02-02
In-Sink-Erator is a division of Emerson Electric Co.

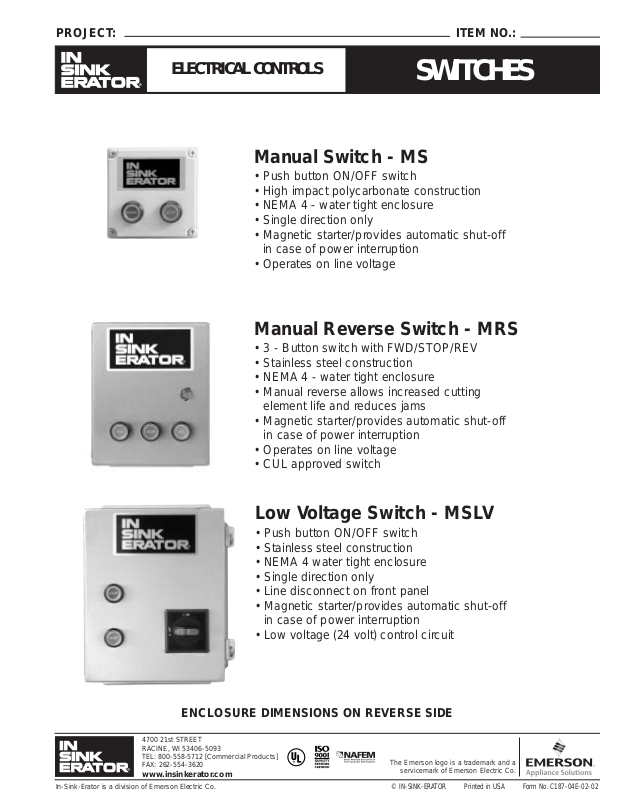

SWITCHES
ELECTRICAL CONTROLS
PROJECT: ITEM NO.:
4700 21st STREET
RACINE, WI 53406-5093
TEL: 800-558-5712 [Commercial Products]
FAX: 262-554-3620
www.insinkerator.com
The Emerson logo is a trademark and a
servicemark of Emerson Electric Co.
Manual Switch - MS
• Push button ON/OFF switch
• High impact polycarbonate construction
• NEMA 4 - water tight enclosure
• Single direction only
• Magnetic starter/provides automatic shut-off
in case of power interruption
• Operates on line voltage
ENCLOSURE DIMENSIONS ON REVERSE SIDE
Low Voltage Switch - MSLV
• Push button ON/OFF switch
• Stainless steel construction
• NEMA 4 water tight enclosure
• Single direction only
• Line disconnect on front panel
• Magnetic starter/provides automatic shut-off
in case of power interruption
• Low voltage (24 volt) control circuit
Manual Reverse Switch - MRS
•3 - Button switch with FWD/STOP/REV
• Stainless steel construction
• NEMA 4 - water tight enclosure
•Manual reverse allows increased cutting
element life and reduces jams
• Magnetic starter/provides automatic shut-off
in case of power interruption
• Operates on line voltage
• CUL approved switch
ENCLOSURE DIMENSIONS (Inches)
MANUAL REVERSE SWITCH – MRS LOW VOLTAGE SWITCH – MSLV
1
/4" DIA.
HOLE (4)
10 3/4"
10 1/4"
6
1
/4"
6"
5 1/
2"
8
1
/4"
MANUAL SWITCH – MS
4 7/8”
4 1/2” (with buttons)
(without buttons)
4”
4 7/8”
4”
3/8”
between centerlines
2 1/4”
self-tapping screws needed
11/16” from edge
to centerline
#6 3/8” panhead
8 9/16” from centerlines
6 7/16”
4 1/2” from
7 15/16”
5 1/4”
centerline
s
mounting holes
5/16” in diameter
6 3/4”
