Insinkerator MS-4 Installation Manual

DISPOSER CONTROL CENTER

Installation Manual

Model MS

The Danger signal indicates an immediately hazardous situation which, if not
avoided, will result in death or serious injury.

The Warning signal alerts you to potential hazards or unsafe practices which,
if not avoided, could result in severe personal injury or death.

The Caution signal alerts you to hazards of unsafe practices which, if not avoided,
may result in minor personal injury or property damage.

Please be certain that the person who installs or uses this appliance carefully reads
and understands the Safety Instructions contained in this manual.

www.insinkerator.com/foodservice

Part No. 14703 - Rev A

Table of Contents

Introduction/Features

Introduction ......................................................................................3

Features .......................................................................................... 3

Mounting the Control Center .......................................................... 3

Plumbing Connections ................................................................................. 4

Electrical Connections

Electrical Connections ....................................................................

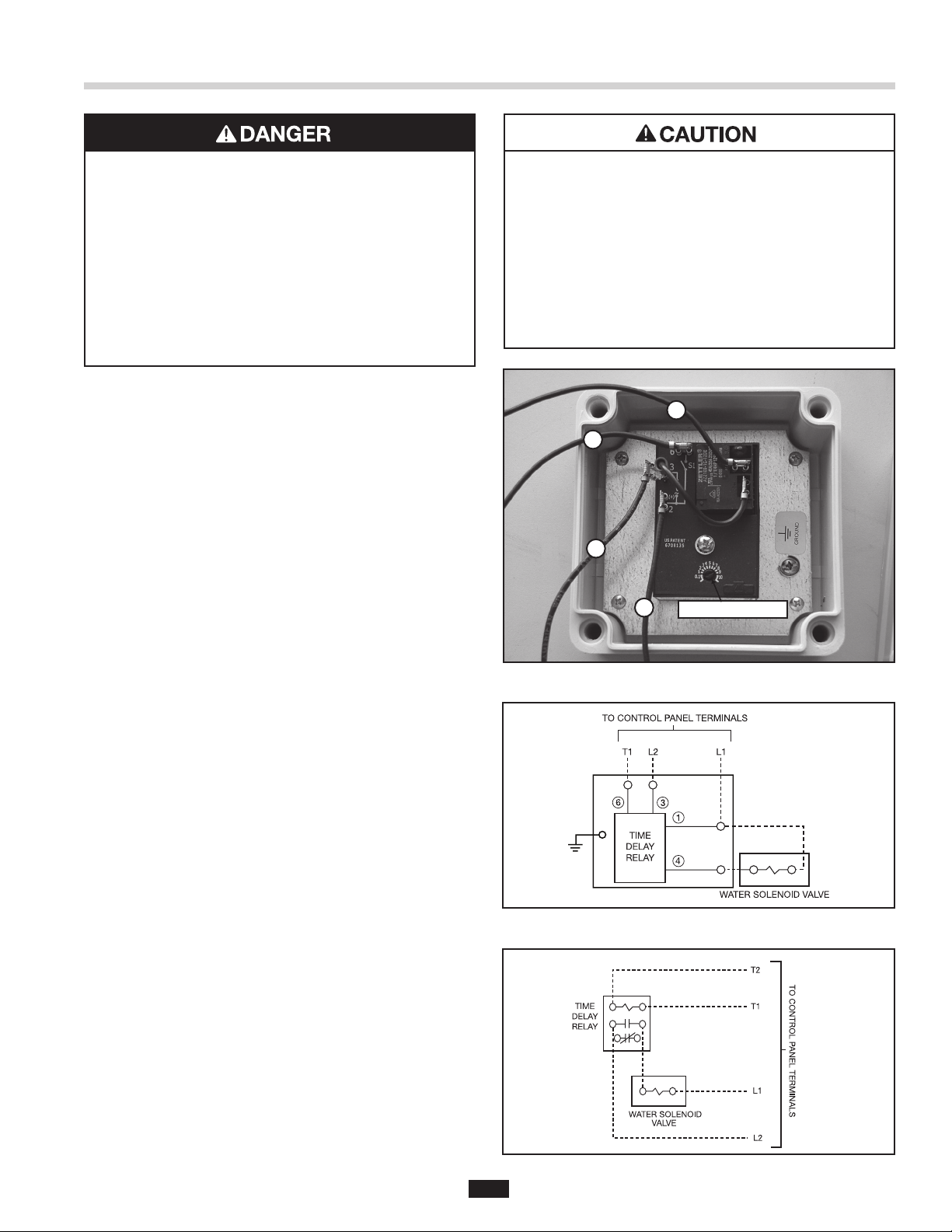

Time Delay Relay .............................................................................

Operating Instructions/Troubleshooting

Operating Instructions .................................................................... 6

Troubleshooting .............................................................................. 6

Wiring Diagrams

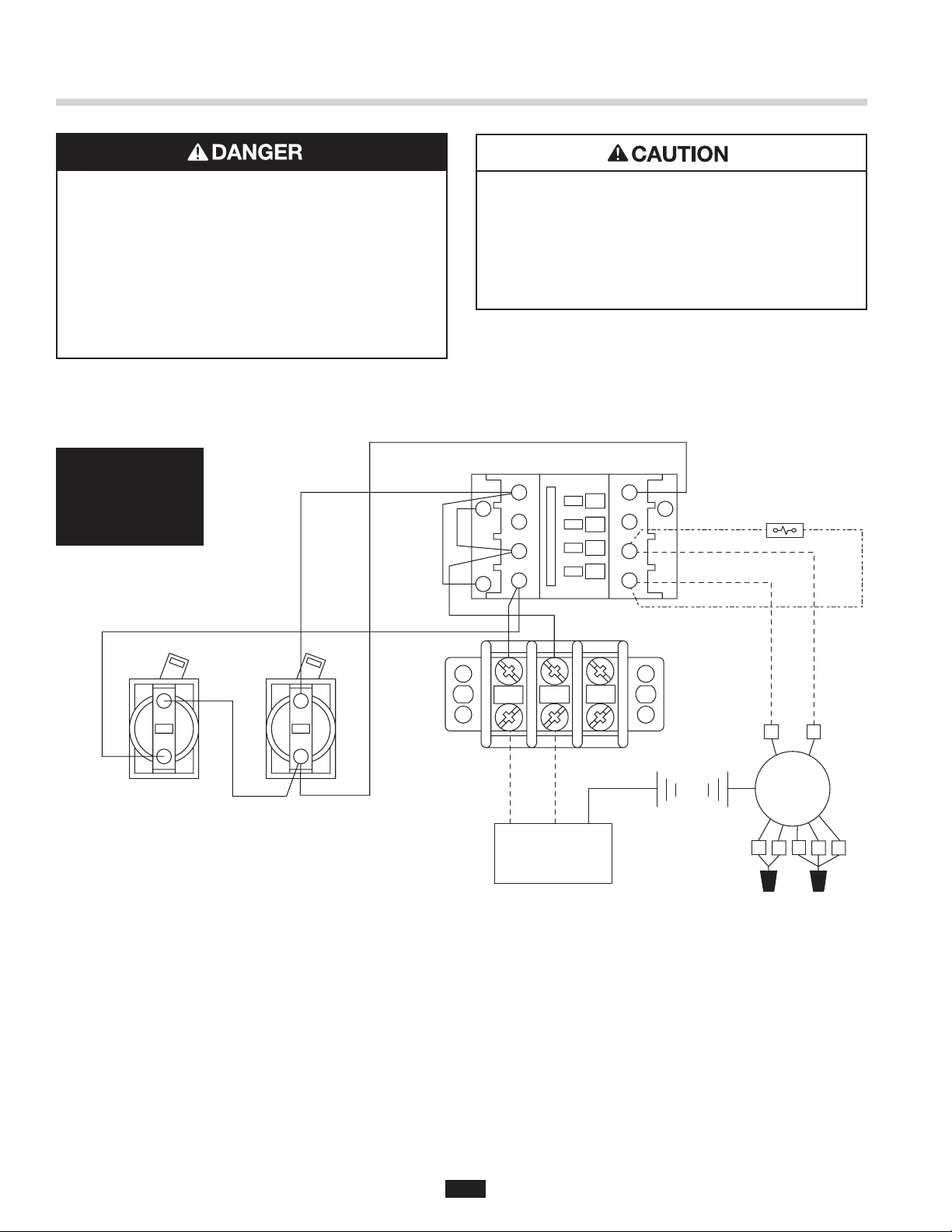

Model No. MS-4 (120V, 1 phase, 1/2-2 HP) .................................... 7

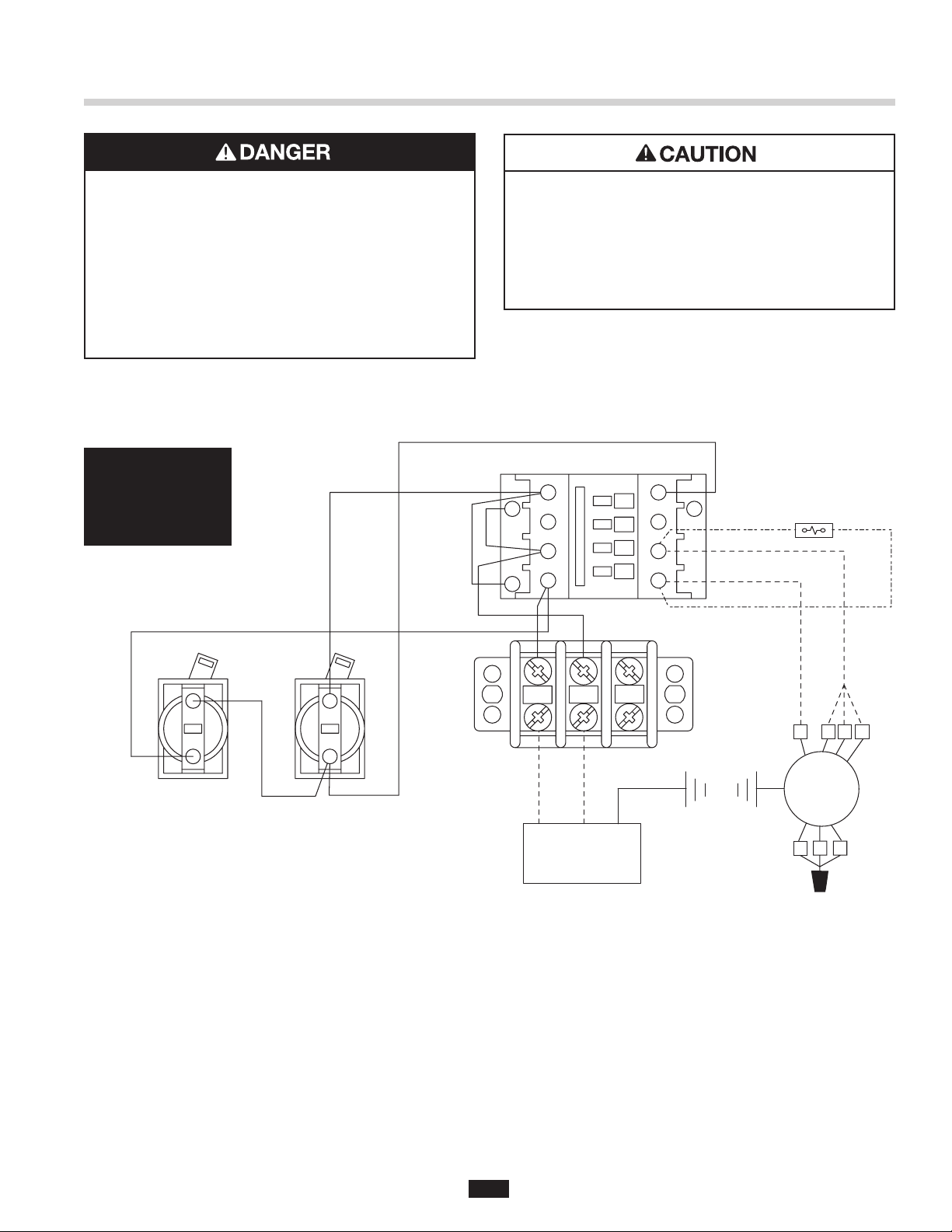

Model No. MS-5 (208-230V, 1 phase, 1/2-2 HP) ............................ 8

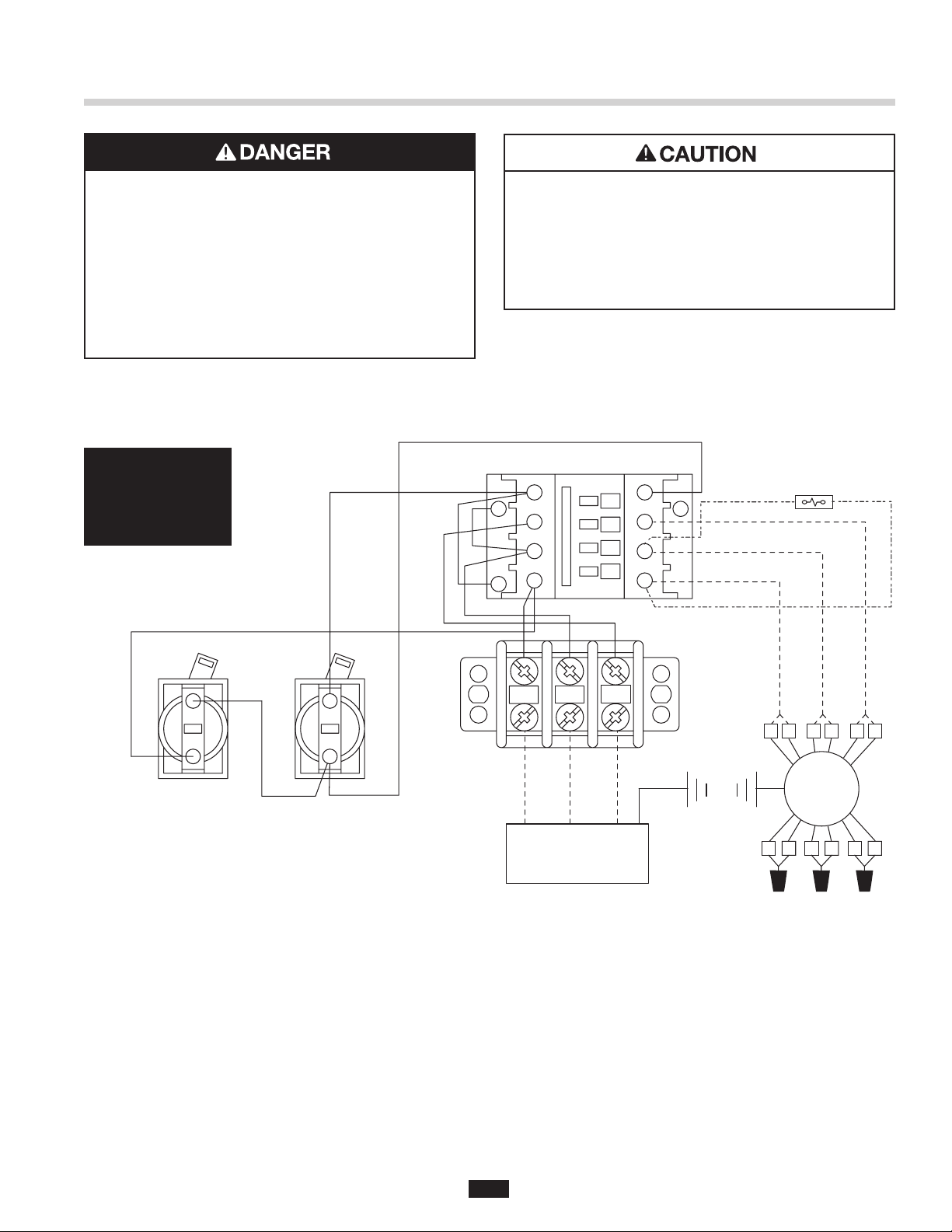

Model No. MS-5 (208-230V, 3 phase, 1/2-5 HP) ............................ 9

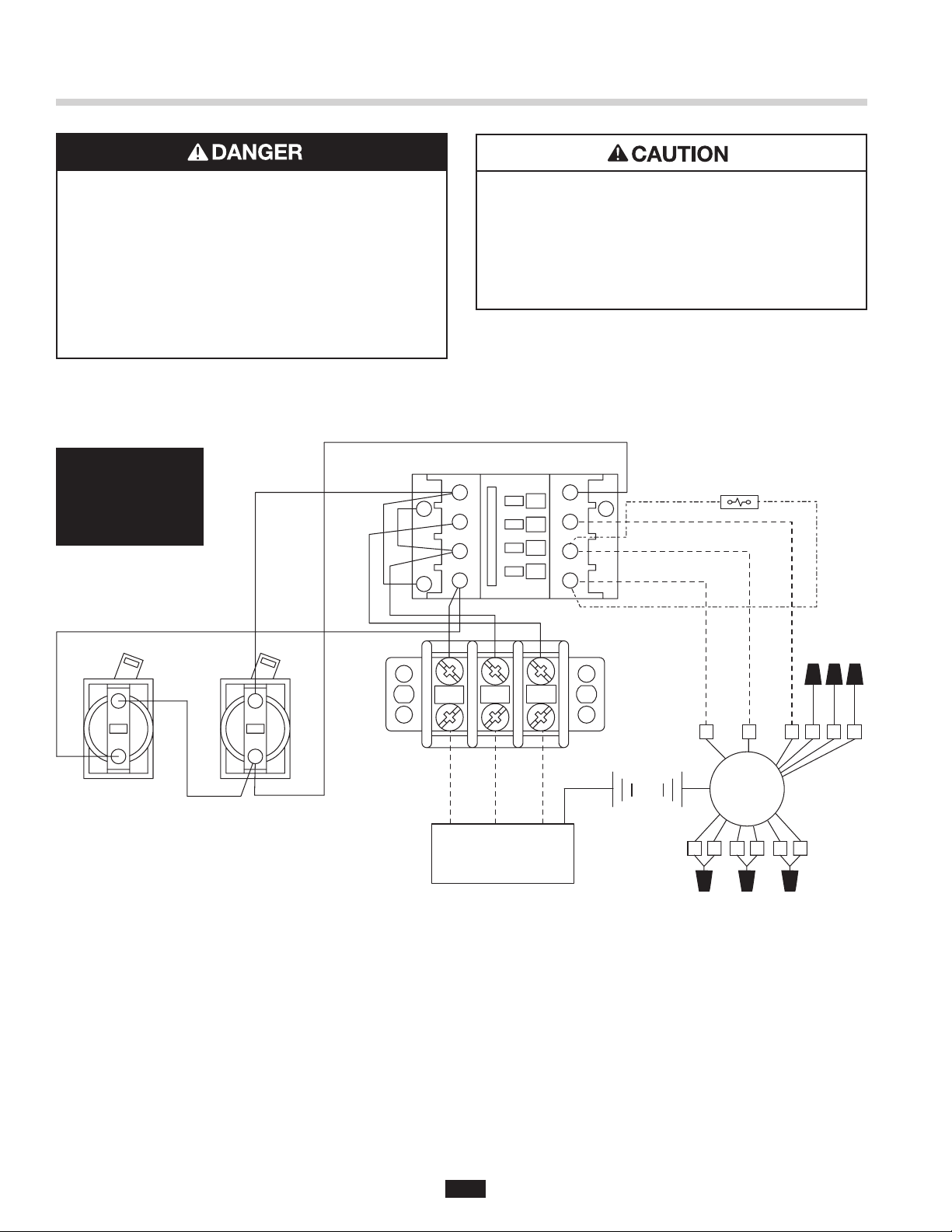

Model No. MS-6 (380/460V, 3 phase, 1/2-10 HP) ......................... 10

5
5

Warranty

FOODSERVICE DISPOSER CONTROL CENTER LIMITED WARRANTY

InSinkErator Foodservice Disposer Control Centers are warranted against defects in material and workmanship for
one year from the date of installation. The warranty includes parts and labor, provided the service is performed by an
InSinkErator Factory Authorized Service Center. This warranty does not apply if failure is due to: faulty or improper

electrical installation, faulty or improper plumbing installation, product abuse or misuse, or accidental damage.

InSinkErator Foodservice disposer accessories are included in this warranty only if they are included in the original
disposer purchase package.

2

Features/Mounting the Control Center

INTRODUCTION

The MS Control Center is UL® and CUL® approved for
use with InSinkErator Foodservice Disposers. See
Table 1 for approved disposer and control center
combinations. The control center operates the disposer.
Its main functions are:

• To start and stop the disposer.

• To start the water flow to the disposer.

Model Waste Disposer Model

MS-4
MS-5

MS-5 SS50-27, SS75-28, SS100-29,

MS-6 SS50-27, SS75-28, SS100-29,

Table 1. Approved Disposer and Control Center Combinations

SS50-26, SS75-27, SS100-28, SS125-25,

SS150-34, SS150-38, SS200-27, SS200-31

SS125-26, SS150-36, SS150-39,

SS200-29, SS200-32, SS300-25, SS300-27,

SS500-28, SS500-29, SS500-30

SS125-26, SS150-36, SS150-39,
SS200-29, SS200-32, SS300-25,

SS300-27, SS500-28, SS500-30, SS750-13,

SS750-15, SS1000-10, SS1000-11, SS1000-12

MOUNTING THE CONTROL CENTER

Use the flanges at the back of the control center
enclosure and only mount panel in the upright vertical

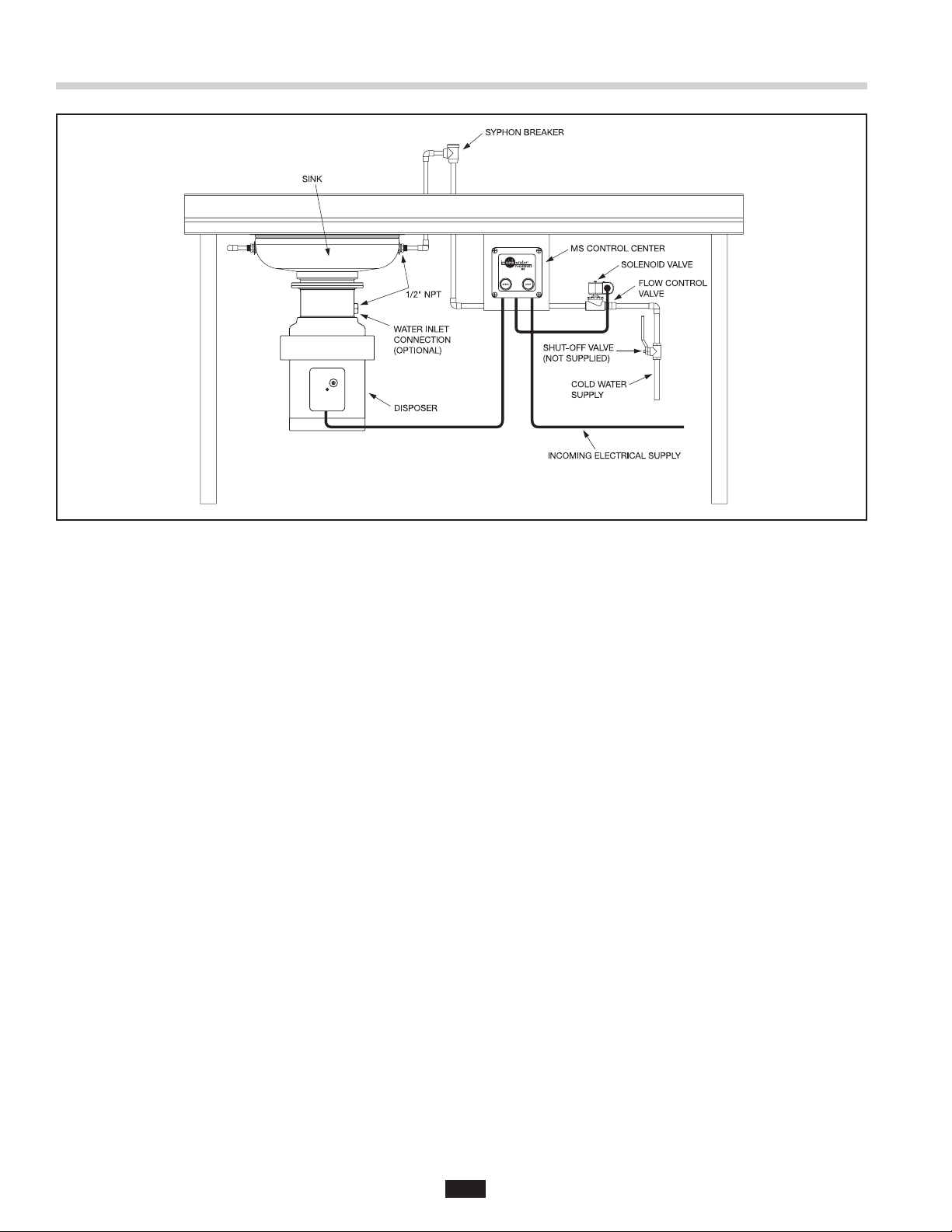

position. See Figure 1.

Locate control center within sight of disposer per local
codes. Locate any remote control station within sight of
disposer per local codes.

If box is mounted to the sink table, recess the box so
that the buttons do not extend beyond the table's edge.

Model Part No. Voltage Phase HP

MS-4 14356

MS-5 14356A

MS-5 14356A

MS-6 14356B

Table 2. Electrical Specifications

120V 1 1/2-2

208-230V 1 1/2-2

208-230V 3

380/460V 3

1/2-5

1/2-10

FEATURES

ENCLOSURE

NEMA 4 construction.

PUSH BUTTON OPERATION

Push Green button to start disposer. Push Red button to
stop disposer.

Figure 1. Control Center Dimensions

PROPERTY DAMAGE

Use of more than two solenoid valves will affect
the overall function of the MS control center. Extra
solenoid valves will cause a reduction in voltage and
solenoid actuation will not occur.

3
