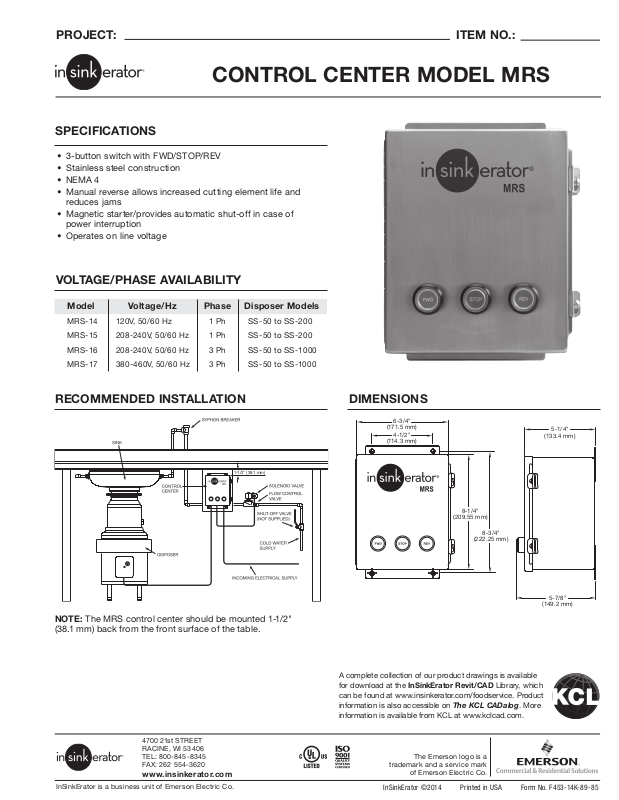

CONTROL CENTER MODEL MRS

SPECIFICATIONS

• 3-button switch with FWD/STOP/REV

• Stainless steel construction

• NEMA 4

• Manual reverse allows increased cutting element life and
reduces jams

• Magnetic starter/provides automatic shut-off in case of
power interruption

• Operates on line voltage

VOLTAGE/PHASE AVAILABILITY

Model Voltage/Hz Phase Disposer Models

MRS-14 120V, 50/60 Hz 1 Ph SS-50 to SS-200

MRS-15 208-240V, 50/60 Hz 1 Ph SS-50 to SS-200

MRS-16 208-240V, 50/60 Hz 3 Ph SS-50 to SS-1000

MRS-17 380-460V, 50/60 Hz 3 Ph SS-50 to SS-1000

RECOMMENDED INSTALLATION

1-1/2" (38.1 mm)

NOTE: The MRS control center should be mounted 1-1/2"
(38.1 mm) back from the front surface of the table.

DIMENSIONS

6-3/4"

(171.5 mm)

4-1/2"

(114.3 mm)

8-1/4"

(209.55 mm)

8-3/4"

(222.25 mm)

A complete collection of our product drawings is available
for download at the InSinkErator Revit/CAD Library, which
can be found at www.insinkerator.com/foodservice. Product
information is also accessible on The KCL CADalog. More
information is available from KCL at www.kclcad.com.

5-1/4"

(133.4 mm)

5-7/8"

(149.2 mm)
